Design and Implementation of a New Run-time Life-cycle for

Interactive Public Display Applications

Jorge C. S. Cardoso

and Alice Perpétua

1,2

CITAR/School of Arts, Portuguese Catholic University, Porto, Portugal

FEUP, University of Porto, Porto, Portugal

Keywords: Interactive Public Displays, Run-time Life-cycle.

Abstract: Public display systems are becoming increasingly complex. They are moving from passive closed systems

to open interactive systems that are able to accommodate applications from several independent sources.

This shift needs to be accompanied by a more flexible and powerful application management. In this paper,

we propose a run-time life-cycle model for interactive public display applications that addresses several

shortcomings of current display systems. Our model allows applications to load their resources before they

are displayed, enables the system to quickly pause and resume applications, provides strategies for

applications to transition and terminate gracefully by requesting additional time to finish the presentation of

content, allows applications to save their state before being destroyed and gives applications the opportunity

to request and relinquish display time. We have implemented our model as a Google Chrome extension that

allows any computer with the Google Chrome browser to become a public display driver without further

software. In this paper we present our model, implementation, and evaluation of the system.

1 INTRODUCTION

In this paper, we propose a run-time life-cycle model

for interactive public display applications. This

model allows both the display application and the

display system to better manage their resources.

The most common and simple approach for

content scheduling in public displays is to follow a

playlist where each content item is given a pre-

determined amount of display time. In this approach,

display systems instantiate and kill content

according to their scheduled time. This approach

works well with time-based content where the

content’s duration is known, such as in videos, or

with non-time-based content where the display

owner can easily decide how much display time the

content should have, as in still images or text.

However, the movement towards open display

systems (Davies, Langheinrich, Jose, and Schmidt,

2012) creates a more complex environment where

the traditional scheduling approach may compromise

the user’s experience. In an open network, display

owners can easily interconnect their displays and

take advantage of various kinds of existing content,

including rich interactive applications. Application

developers can create applications and distribute

them globally, to be used in any display. Users can

not only watch the content played on the display, but

also appropriate it in various ways such as

interacting with it, expressing their preferences,

submitting and downloading content from the

display.

In this environment, while display owners may

still have control over what is displayed, display

systems must be prepared to efficiently manage the

resource of an increasing number of applications in a

more flexible and unanticipated way.

This type of environment requires display

systems to function more as operating systems, and

it also requires a specific application framework that

defines a more fine-grained run-time life-cycle. This

will allow a better display resource management just

like we have in other platforms. For example, the

Android platform defines a rich run-time application

life-cycle that breaks down all the possible states

and transitions between states of an application from

the time it is loaded into memory and started, to the

time it is shut down and removed from memory.

This break down of possible states allows

application programmers and system to negotiate the

resources that an application needs in each state,

guaranteeing an efficient usage of those resources on

the one hand, and rapid application switching and

loading, on the other hand. For example, an

Cardoso J. and Perpétua A..

Design and Implementation of a New Run-time Life-cycle for Interactive Public Display Applications.

DOI: 10.5220/0005205600050014

In Proceedings of the 5th International Conference on Pervasive and Embedded Computing and Communication Systems (PECCS-2015), pages 5-14

ISBN: 978-989-758-084-0

 2015 SCITEPRESS (Science and Technology Publications, Lda.)

application may be paused if another application

comes to the foreground (e.g., because the user

requested another application), stopping animations

and other CPU consuming operations and save its

state to persistent storage (because paused

applications may be destroyed by the system if it

needs memory). When the application is resumed, it

can start the animations again.

It is easy to imagine that display systems will

need this kind of resource management when the

number of applications that each display handles

grows. In this paper, we present the design,

implementation and evaluation of a new life-cycle

model for public display applications.

The contributions of this paper are twofold:

1. A new run-time life-cycle model for public

display applications that allows a fine-grained

management of the display and application

resources.

2. An implementation of the proposed model in a

public display application player as a Google

Chrome extension, available as an open-source

project (Cardoso, 2014a).

2 RELATED WORK

Many public display content players / content

schedulers have been implemented by researchers

and industry. For example, (Lindén, Heikkinen,

Ojala, Kukka, and Jurmu, 2010) proposes a web-

based framework for managing the screen real estate

of the UBI-hotspot system - a public display system

that supports concurrent applications on a single

display. The framework was implemented using

Mozilla Firefox browser and custom JavaScript code

that manages the temporal and spatial allocation of

the screen to various applications. The UBI-hotspots

support two modes: a passive broadcast mode, and

an interactive mode. These two modes represent

different ways for deciding when and which

application/content should be loaded by the display

system. The framework does not support any type of

fine-grained control over the execution of an

application. For example, if an application takes a

long time to load, the user will be aware of this (at

best the application may use a splash screen).

Similarly, when unloading, the system simply

unloads the content, giving no possibility for the

application to run clean-up operations. Even if an

application is often used, it will always have to be

completely loaded and unloaded every time it is

used; the system does not put applications in a

suspended state for rapid resuming.

Yarely (Clinch, Davies, Friday and Clinch, 2013)

is a public display player for open pervasive display

networks that was developed to replace the existing

software infrastructure of the Lancaster e-Campus

system (Storz, Friday, and Davies, 2006). Yarely

uses a subscription management system where each

display node receives a content descriptor set that

lists the content that the player should play and how

it should be scheduled. It also supports caching of

content items so that displays still function under

network failures and disconnections. Even though

Yarely is a very powerful software player, even

capable of running native content, it is still geared

towards passive content that is scheduled

consecutively and where the content length can be

known a priori. Yarely supports dynamic schedule

changes that allow it to display unforeseen content

such as emergency broadcasts, but it does not

provide any specific support for interrupted content

to be resumed.

(Elhart, Langheinrich, Memarovic, and

Heikkinen, 2014) identified several limitations in

existing scheduling systems for public displays,

particularly when dealing with interactive

applications. They proposed a scheduling system

that is able to schedule applications with arbitrary

start time and durations. They define a notation that

allows the description of the display environment,

the application environment, and rules for display

behaviours. The work presented in this paper

addresses similar issues but at a different level.

While (Elhart et al., 2014) were concerned with the

high-level scheduling issues, at the display network

system level, we are concerned with lower-level

issues such as managing the resources of the

individual display and application.

3 EXISTING PROBLEMS AND

DESIGN GOALS

Previous work on interactive public display

applications (Cardoso, 2014b; Elhart et al., 2014)

has identified a number of shortcomings in existing

public display systems. In this section, we present

and extend the observed problems, and the

associated design goals for the run-time life-cycle

we propose in this paper.

3.1 Application Loading

Many interactive applications have noticeable

loading times that designers usually address by

PECCS2015-5thInternationalConferenceonPervasiveandEmbeddedComputingandCommunicationSystems

Figure 1: The problem with application loading times.

showing a splash screen or loading indicator.

Loading times may be, in some cases, avoidable or

reduced by leveraging on caching techniques, but

they are not generally solvable. Many applications,

particularly web-based applications, have to set up

communication channels with their own servers and

with external services. These initialization processes

may be hard to circumvent to give users the

impression of instant loading. On public displays

these loading times represent wasted display

resources and hinder the user experience: the time an

application takes to load could have been used to

display the previous content for a bit more time.

This problem is illustrated in Figure 1.

Our goal is to create a display system that

efficiently manages the display in these situations by

assigning display time only when the application is

ready to display useful content.

3.2 Graceful Transitions

Interactive applications have no intrinsic duration

that display owners can use when setting up their

display’s schedule. The result is that applications

may be assigned an arbitrary time slot for execution.

For some applications, this results in a suboptimal

user experience because they are sometimes

interrupted in the middle of an important operation.

The interactive video player application is a

paradigmatic example: an application that lets users

search/select videos to play next. The public display

Figure 2: The problem with arbitrary duration.

player may terminate this application before the

video finishes, representing an obvious failure for

users. This problem is illustrated in Figure 2.

Our goal is to allow applications to, within

system-defined bounds, request additional display

time to finish an important operation or process.

Obviously, these requests may not be honoured by

the system if another content with higher priority

needs display time.

3.3 Abrupt Termination

Another issue we notice in interactive applications is

the difficulty of running proper finishing/cleaning

processes before the application is terminated.

Usually, applications are simply unloaded from the

browser component without warning. This results in

added difficulty for the application to save state and

terminate connections in a proper manner.

Our goal is to allow applications to terminate

properly, giving them time to contact servers and

save their state remotely or locally.

3.4 Pausing and Resuming

In some situations it is more efficient to pause and

resume an application instead of unloading and

reloading it again in the future. For example, if a

notification must be displayed, the interrupted

application probably does not need to be unloaded,

but simply taken to a paused state where it stops

most activity, until the alert is removed from the

display. However, the most common approach is to

unload the current application and then reload it

again after the notification has ended. This problem

is illustrated in Figure 3. Our goal is to support

application pausing, and resuming. Applications

should be able to quickly resume operation if they

are interrupted by the system, without having to be

completely loaded again.

Figure 3: The problem with application interruptions.

DesignandImplementationofaNewRun-timeLife-cycleforInteractivePublicDisplayApplications

3.5 Application-requested Loading and

Unloading

Another problem faced by interactive applications

for public displays is that they usually have no way

to request display time by themselves, or to

relinquish the display if they have no possibility to

continue. Although some public display players do

allow unanticipated content to be displayed, this

usually requires manual intervention. Ideally,

applications should be able to request display time in

order to display short-term notifications, for

example. Conversely, applications that find

themselves in a situation where they can no longer

continue to execute (e.g., because a fundamental

resource could not be loaded) should be able to

inform the display system and relinquish the display.

This is illustrated in Figure 4. Obviously, this

requires additional management policies on the

display system to guarantee that applications do not

misbehave and take over the display.

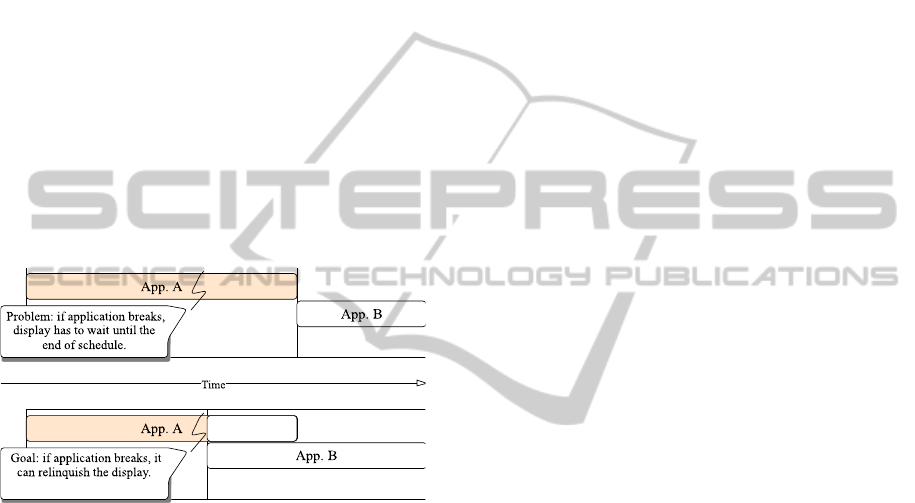

Figure 4: The problem with unforeseen termination.

Our goal is to support this kind of operation,

allowing display applications to request display time

for short periods, and to give up the display time if

they are unable to continue operating.

4 ANALYSIS OF EXISTING

PLATFORMS

We have looked at various computing platforms in

order to understand the existing approaches to run-

time life-cycles. We then synthesized these models

and adapted the result to take into account our

design goals.

We have analysed Android, iOS, Windows

Phone, Windows 8, Applets, and HTML/Javascript

platforms. Each platform has different ways to

manage applications and give applications different

levels of granularity for managing their resources.

However, we can identify commons categories of

application states and event callbacks. In all these

platforms, primary memory is a central resource.

When an application is “loaded” or “initialized”, this

means that it is being loaded into primary memory.

Conversely, when an application is “unloaded” or

“destroyed”, this means that it is being unloaded

from primary memory. Most application states are

defined for when the application is loaded in

memory. These states allow the application, and the

system, to better manage their resources (memory,

CPU, energy consumption, bandwidth, etc.) in an

efficient manner, while still maintaining the

responsiveness of the application, and system.

The main event callbacks associated with each

platform are presented in Table 1 and described

next.

Initializing refers to callback methods that are

invoked only once by the system, when the

application is initialized. Initialization callbacks are

usually called by the system before the application is

shown to the user, so that lengthy operations can be

executed without disturbing the user experience.

Typically, programmers should use these callbacks

to instantiate user interface resources and other

startup logic that happens only once in the lifetime

of the application. On the Android platform, for

example, the onCreate() is the only initialization

callback and programmers are instructed to declare

the user interface, which is usually defined in an

XML file and thus must be parsed and converted to

actual programming objects.

Starting/Resuming refers to callback methods

that are called before the application is put into the

foreground, either for the first time, or because the

user is resuming the application. These callbacks

may be invoked several times during the lifetime of

the application in memory. In general these

callbacks allow applications to start graphical

animations, sounds, and other quick initializations,

but different platforms provide different levels of

granularity. For example, the Android platform

provides three different start/resume callbacks

giving a very fine-grained control to programmers:

onStart() signals the transition from an invisible state

to a visible state and is always called before

onResume(). Together, they allow programmers to

separate different initialization procedures to make

sure that the application is displayed as fast as

possible. Additionally, there is also the onRestart()

callback, called before onStart(), that allows

programmers to know if the application is starting

for the first time, or restarting.

Pausing refers to callbacks that signal the

PECCS2015-5thInternationalConferenceonPervasiveandEmbeddedComputingandCommunicationSystems

Table 1: Summary of analysed platforms.

Callback

categories

Platforms

ndroid iOS Windows

hone

Windows 8

pplets

TML

Initializing onCreate() WillFinishLaunchingWithOptions()

DidFinishLaunchingWithOptions()

Launching() onLaunched() Init() Onload()

Starting/

Resuming

onStart()

onResume()

onRestart()

DidBecomeActive() Activated() Activating()

Resuming()

Start() Onpageshow() onfocus()

Pausing onPause() WillResignActive()

WillEnterForeground()

Deactivated() VisibilityChanged()

Suspending()

Onpagehide() onblur()

Stopping/

Destroying

onStop()

onDestroy()

DidEnterBackground()

WillTerminate()

Close() Stop()

Destroy()

Onbeforeunload()

onunload()

Figure 5: Proposed run-time life-cycle model for public display applications.

application that it is being interrupted and is being

taken from view, at least partially. In these cases,

applications should stop animations, sound, and

other CPU intensive operations.

Stopping/Destroying refers to callbacks that

signal the application to stop executing, unload all

unnecessary resources, and perform state saving

routines. Stopped applications may not be

immediately removed from memory, but are good

candidates if the system needs the resources.

5 RUN-TIME LIFE-CYCLE

Our model for a run-time life-cycle for public

display applications is presented graphically in

Figure 5, and described next.

onCreate() – This represents the application’s

entry point method and is called only once in the

lifetime of the application in memory. Depending on

the implementation, it is possible that application

code may execute before this method is called. In

our Javascript implementation for example, we

cannot prevent applications from executing before

the onCreate() method is invoked. However, only

after onCreate() can an application interact with the

display system and it should not be assumed that the

display system functions are ready before the

onCreate() is called.

onLoad() – is called when the display system

decides to give display time to the application.

Before display time is actually assigned to the

application, the system calls onLoad() and expects

applications to reply with a loaded() call. At the

onLoad() stage, applications should perform all

necessary loading routines to ensure the application

is ready to be displayed. The system will only

consider the application ready to be displayed when

it receives the loaded() response from the

application. The onLoad() callback (in addition to

the onResume() described next), address the

problem of “Application Loading” described earlier.

While the display system is waiting to receive the

loaded() response from the application, it can

display other useful content. This makes the use of

splash screens and loading indicators unnecessary

(at least as a way to mask initializations).

onResume() – is called immediately before the

application is put visible on the display. At this

phase, applications should make sure they are ready

to show content. This callback can be used to

perform very fast initialization routines such as

starting animations. When this method is called

there should be no noticeable delay before content is

displayed by the application.

DesignandImplementationofaNewRun-timeLife-cycleforInteractivePublicDisplayApplications

onPauseRequest() – this callback signals the

application that it will be taken off the display. In

this stage applications can still notify the system

about how much more time they need to finish

gracefully. The system will honour the application’s

time request, within pre-defined limits, and call

onPause() when the time required by the application

expires. This callback may not be invoked if the

system has another urgent content to display, in

which case the onPause() callback will be used

immediately. Applications should implement this

callback and return a numeric value corresponding

to the number of seconds they need to finish

gracefully. This callback addresses the “Graceful

Transitions” problem identified earlier. With this

approach, applications can request extra display

time, beyond the time originally defined by the

display owner, to finish what they were doing in a

way that causes the least disturbance to the user’s

experience. For example, a video player application

can request an extra time that allows it to finish

playing the current video.

onPause() – called to signal that the application

should pause animations, sounds and other

unnecessary operations. In this stage the application

is either not visible or only partially visible. Paused

applications may be resumed quickly by the system

by invoking the onResume() callback. Paused

applications should make sure they are able to

display useful content quickly when they are put

back on the display. By allowing applications to be

paused, instead of completely unloading them, we

address the “Pausing and Resuming” problem

described earlier.

onUnload() – the display system may decide to

unload a paused application when it expects that the

application will not be put back on the display soon.

When the onUnload() callback is invoked,

applications should unload any memory and CPU

demanding resources, and keep only the minimum

network connections required.

onDestroy() – is invoked just before the

application is completely unloaded from memory.

Applications should perform any finalization

routines here, perhaps saving state to persistent

storage either locally or remotely. The onUnload()

and onDestroy() callbacks address the “Abrupt

Termination” problem described earlier by explicitly

providing a means for applications to perform

finalization routines.

showMe() – Applications can signal the system

that they want display time by calling the showMe()

method. The system will then apply its internal

policy to determine if and when the application

should be given display time.

releaseMe() – Conversely, applications can

signal the system that they cannot display any more

content (perhaps due to a server error or other

condition). The system will then take the necessary

steps to bring another application to the display. The

showMe() and releaseMe() callbacks address the

“Application-requested Loading and Unloading”

problem described earlier.

6 PUBLIC DISPLAY

APPLICATION SCHEDULER

We have implemented a first version of our model as

a Google Chrome Extension where each application

is assigned a browser tab. This allows any computer

with the Google Chrome browser to become a public

display driver, without the need for any further

software.

Our implementation manages the life-cycle of

each application, invoking the specified callbacks on

the application code through message passing, and

determining which tab should be displayed at any

given time. Our system applies a priorities scheme to

determine which applications can interrupt which

applications.

In the next sections, we provide a more detailed

description of the main concepts.

6.1 Applications

Our scheduler supports full-screen, web-based

applications (i.e., only one application is displayed

at a time, and it must be able to run on a browser).

Our scheduler supports three types of applications:

Foreground applications correspond to

traditional public display applications. These are

applications that show relevant content whenever

they are displayed.

Background applications are applications that

are usually in the background, i.e., not showing any

content. These applications can only show relevant

content when external events occur. A notification

application that alerts users for a given calendar

event is an example of a background application.

Legacy applications are traditional web

applications that do not implement our run-time life-

cycle. Legacy applications are always foreground

applications but they were not implemented

specifically to follow our life-cycle model.

PECCS2015-5thInternationalConferenceonPervasiveandEmbeddedComputingandCommunicationSystems

6.2 Scheduling

Our public display application scheduler supports

traditional scheduling by allowing display owners to

define a playlist of applications. This is done within

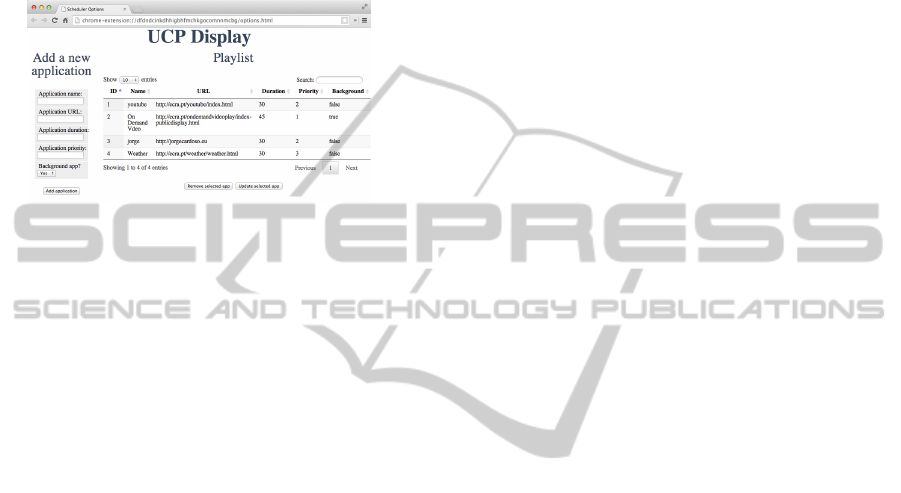

an options page in the Chrome Extension. Figure 6

shows the current interface to define the display’s

playlist.

Figure 6: Interface to define the display's playlist.

At the moment, each display’s playlist is defined

in the display itself, but this could be easily changed

so that a central service could manage the

scheduling of several displays simultaneously. To

define a playlist, display owners must enter the

application’s URL, how much display time the

application should have, what priority it has, and

whether the application is a foreground, or

background applications (legacy applications are

handled transparently from the display owners point

of view).

When started, the system loads applications into

independent browser tabs. Background applications

are all loaded when the scheduler is started so that

they can begin executing and possibly ask for

display time whenever needed. Foreground

applications are loaded only when they are schedule

to be displayed for the first time (but are kept loaded

until the system is shutdown, or when the system

needs the resources to load other applications).

The system will go through all foreground

applications in a round-robin fashion, and assign

display time to each application according to the

value defined by the display owner. However, the

initial schedule defined by the display owner is only

indicative and can change as result of:

1. The current application requests to be taken out

of the display (for example because it lost

communication with its own server or with a

required third-party service). In this case, the

next application will be displayed before its

initial scheduled time.

2. Another application requests display time and

either

a. interrupts the current application, or

b. is scheduled to display after.

6.3 Priorities

Priorities are enforced when an application requests

display time. Different policies can be implemented,

but currently we use a simple policy to determine if

an application that requests display time should

interrupt the current application or be schedule to

display after the current application: if the requesting

application has a higher priority than the current

application, the current application will be paused,

and the requesting application will be displayed. If

the requesting application has a lower or equal

priority, it will be schedule to display after the

current application. If more than one application

requests display time, the scheduler orders them by

priority: higher priority applications will be

displayed first.

6.4 Destroying

Our scheduler destroys applications when the system

runs out of memory resources. If a new application

is being loaded and not enough resources exist, we

destroy the oldest application (the application that

was displayed the longest ago). We currently define

the resource limits based on the number of open

browser tabs: our scheduler limits the total number

of tabs and destroys applications when the limit is

exceeded. (The Google Chrome API for inspecting

the memory resources was not yet available at the

time of the development.)

7 EVALUATION

We evaluated the implemented system from two

perspectives. The first was an informal evaluation of

the behaviour of the system that allowed us to get a

better perception of the scheduling policies. The

second was an evaluation of the system from an

application programmer’s perspective in order to

understand the usability of the API of the system.

7.1 System’s Behaviour

To evaluate the system’s behaviour, we developed

five applications that were then configured to run on

a public display using our scheduler:

 Random YouTube Video: a foreground

application that plays a random YouTube video

DesignandImplementationofaNewRun-timeLife-cycleforInteractivePublicDisplayApplications

from a selected set of videos. Default duration:

40 seconds; Priority: 3 (higher value means

lower priority).

 RSS News: a legacy application that displays

RSS feed entries from a selected set of feeds.

Default duration: 30 seconds; Priority: 3.

 Weather: a legacy application that displays the

local weather. Default duration: 20 seconds;

Priority: 3.

 Calendar Alerts: a background application that

displays calendar alerts 15 minutes before the

event takes place. Default duration: 30 seconds;

Priority: 1.

 Video on Demand: a background application that

plays a YouTube video. This application has a

desktop backoffice that allows users to select a

YouTube video and create a QR Code that will

launch the video on the public display. Users can

create the QR Code and distribute it physically

so that anyone can launch that specific video on

the display at any time. Default duration: 30;

Priority: 2.

The “Random YouTube Video” was

programmed to relinquish the display when the

current video ended, and to ask for additional time if

the current video took longer than the default 40

seconds assigned to the application. The “Calendar

Alerts” application was configured with the highest

priority to make sure it interrupted any application

and was able to display the alert timely. The “Video

on Demand” application was also configured with a

high priority to make sure users did not have to wait

much to see the video after they scanned the QR

Code.

Although these applications were only setup in a

public display in our laboratory, this already allowed

us to perceive a few issues with the system:

Applications interrupted very near the end give

the impression of error. We noticed that sometimes

the Random YouTube Video application or the RSS

News application would be interrupted very near to

the end of the video, or the default application time.

When these applications were resumed, they would

appear only very briefly before giving place to the

next scheduled application. In these cases, users had

not enough time to even read the news post, and this

could be perceived as a system error, or at least as a

strange system behaviour by users.

Users loose context with applications interrupted

for a very long time. When the two background

applications requested display time, they could

interrupt the current application for a considerable

amount of time (30 seconds for the Calendar alert

plus the duration of the video to be played by the

Video on Demand application). When the

interrupted application was resumed, a few minutes

could have passed since it was interrupted and users

would have lost the context of that application. This

was most noticeable when the interrupted

application was the Random YouTube Video. Users

that were not present when the application was

interrupted would begin to see the video from the

middle.

Legacy applications continue to consume

resources. Another issue we noticed with our system

was that, although it supports legacy applications

and is able to display them correctly, these

applications continue to consume CPU and memory

even when not being displayed. We noticed this

issue particularly with the Weather application that

uses a Flash animation to represent the current

weather. Because the application does not

implement our run-time life-cycle, the Flash objects

used are constantly loaded. Even though the

browser’s plugin manages these resources so that

tabs that are not visible do not use as much resources

as visible tabs, this is still not an optimal

management, particularly for an application that is

only displayed for less than 15% of the overall

default time for all applications.

7.2 Programmers Evaluation

We conducted programming sessions with a total of

5 programmers with, at least, basic knowledge on

Javascript. The participants were asked to develop a

simple application or adapt an existing one using our

model and framework. We sent documentation to

participants the day before the session with the

following information: brief introduction (context

and motivation of the work), an image of the

proposed run-time with an explanation of each state

and callback, a template of an application that

displays on the screen the name of the callback when

called and finally the description of the task we

proposed them to do.

On the session day, we started by clarifying the

doubts of the participants, followed by a

demonstration of our extension working with some

of the developed applications. Before the

participants started to develop their applications, a

small period of time was used to hear and discuss

application’s ideas, making sure the applications to

develop would take advantage of our system. We

noted the most relevant doubts during the session

and at the end we asked the programmer’s opinions.

All programmers successfully created or adapted

PECCS2015-5thInternationalConferenceonPervasiveandEmbeddedComputingandCommunicationSystems

an application using our framework. We observed

that all the programmers had some initial difficulties

to understand the proposed life-cycle and all its

specifications. We quickly concluded that the given

documentation and example was insufficient to

completely understand the life-cycle. At the end, all

participants have stated that a more complete

documentation would have eased the task.

One programmer suggested to divide

onResume() on two different callbacks, in a similar

way to the Android platform: one callback for the

first time the application is put on the screen, and

another for when the application is resumed from

paused. For this developer this would make the code

easier to read and would give programmers an easy

way to determine if the application was being put on

the display for the first time.

Another programmer suggested that the

releaseMe() callback could also be available from

the paused state (currently it is only available from

the resumed state). This would allow applications to

unload themselves if an error occurs while paused.

Overall, however, all programmers stated that it

was easy or very easy to create an application for

our public display system.

8 CONCLUSIONS

We have presented a new run-time life-cycle model

for public display applications that allows a better

resource management for display systems that have

to handle a high number of independent

applications. The model allows applications to load

their resources before they are displayed, allows

applications to transition and terminate gracefully,

allows rapid pausing and resuming, and allows

applications to request and relinquish display time.

We have implemented this model as a Google

Chrome Extension where each application is

assigned a browser tab. Our implementation

manages the life-cycle of each application

determining which tab should be displayed at any

time. We support three types of applications:

foreground, background, and legacy applications.

Our system provides a priority mechanism that

allows display owners to control which applications

can be interrupted by which applications.

Our tests with this system have revealed some

issues regarding the user experience when

applications are paused very near their end, and

when they are interrupted for a long time. The best

approach to deal with these issues is still an open

question that we plan to research in the future.

Our system is, to the best of our knowledge, the first

to specifically address the problem of resource

management within a multi-application public

display system. We believe this line of research can

result in more efficient public display systems that

provide a better user experience. Our system is

available as an open-source project at (Cardoso,

2014a).

ACKNOWLEDGEMENTS

This paper was financially supported by the

Foundation for Science and Technology — FCT —

in the scope of project PEst-OE/EAT/UI0622/2014.

A “work-in-progress” version of this work has been

presented in the ICIW 2014 conference (Perpétua,

Cardoso, and Carlos C. Oliveira, 2014).

REFERENCES

Cardoso, J. C. S. (2014a). A Google Chrome based public

display application scheduler. Retrieved from

https://code.google.com/p/public-display-scheduler/

Cardoso, J. C. S. (2014b). An Interaction Abstraction

Toolkit for Public Display Applications. University of

Minho. Retrieved from http://figshare.com/articles/

An_interaction_abstraction_toolkit_for_public_displa

y_applications/920152.

Clinch, S., Davies, N., Friday, A., and Clinch, G. (2013).

Yarely: a software player for open pervasive display

networks. In Proceedings of the 2nd ACM

International Symposium on Pervasive Displays (pp.

25–30). ACM. doi:10.1145/2491568.2491575.

Davies, N., Langheinrich, M., Jose, R., and Schmidt, A.

(2012). Open Display Networks: A Communications

Medium for the 21st Century. Computer, 45(5), 58–

64. doi:10.1109/MC.2012.114.

Elhart, I., Langheinrich, M., Memarovic, N., and

Heikkinen, T. (2014). Scheduling Interactive and

Concurrently Running Applications in Pervasive

Display Networks. In Proceedings of The

International Symposium on Pervasive Displays -

PerDis ’14 (pp. 104–109). New York, New York,

USA: ACM Press. doi:10.1145/2611009.2611039.

Lindén, T., Heikkinen, T., Ojala, T., Kukka, H., and

Jurmu, M. (2010). Web-based Framework for

Spatiotemporal Screen Real Estate Management of

Interactive Public Displays, 1277–1280.

Perpétua, A., Cardoso, J. C. S., and Carlos C. Oliveira.

(2014). A Runtime Lifecycle for Interactive Public

Display Applications. In Proceedings of The Ninth

International Conference on Internet and Web

Applications and Services - ICIW 2014 (pp. 72–75).

Paris, France: IARIA. Retrieved from

http://www.thinkmind.org/index.php?view=articleand

DesignandImplementationofaNewRun-timeLife-cycleforInteractivePublicDisplayApplications

articleid=iciw_2014_4_10_20083.

Storz, O., Friday, A., and Davies, N. (2006). Supporting

content scheduling on situated public displays.

Computers and Graphics, 30(5), 681–691. doi:DOI:

10.1016/j.cag.2006.07.002.

PECCS2015-5thInternationalConferenceonPervasiveandEmbeddedComputingandCommunicationSystems
