From Simulation to Development in MAS

A JADE-based Approach

ao P. C. Lopes

and Henrique Lopes Cardoso

1,2

DEI/FEUP, Faculdade de Engenharia, Universidade do Porto, Portugal

LIACC – Laborat

orio de Intelig

encia Artiﬁcial e Ci

encia de Computadores, Porto, Portugal

Keywords:

Multi-Agent Systems, Multi-Agent-Based Simulation, Model Conversion, Standards.

Abstract:

Multi-agent systems (MAS) present an effective approach to the efﬁcient development of modular systems

composed of interacting agents. Several frameworks exist that aid the development of MAS, but they are

often not very appropriate for some kind of uses, such as for Multi-Agent-based Simulation (MABS). Other

frameworks exist for running simulations, sharing little with the former. While open agent-based applica-

tions beneﬁt from adopting development and interaction standards, such as those proposed by FIPA, most

MABS frameworks do not support them. In this paper we propose an approach to bridge the gap between

the development and simulation of MAS, by putting forward two complementary tools. The Simple API for

JADE-based Simulations (SAJaS) enhances MABS frameworks with JADE-based features, and the MAS Sim-

ulation to Development (MASSim2Dev) tool allows the automatic conversion of a SAJaS-based simulation

into a JADE MAS, and vice-versa. Repast Simphony was used as the base MABS framework. Our proposal

provides increased simulation performance while enabling JADE programmers to quickly develop their simu-

lation models using familiar concepts. Validation tests demonstrate the signiﬁcant performance gain in using

SAJaS with Repast Simphony when compared with JADE and show that using MASSim2Dev preserves the

original functionality of the system.

1 INTRODUCTION

A multi-agent system (MAS) is composed of au-

tonomous intelligent agents, capable of interacting

with each other (Wooldridge, 2008). Agent-based

applications are in widespread use in multiple ﬁelds

of research and industry and can be heterogeneous,

often requiring interoperation between agents from

different systems. In order to make this possible,

agent technologies have matured and standards have

emerged to support the interaction between agents.

The speciﬁcations of the Foundation for Intelli-

gent Physical Agents (FIPA)

promote interoperabil-

ity in heterogeneous agent systems. These standards

deﬁne not only a common Agent Communication

Language (ACL), but also a group of interaction pro-

tocols, recommended facilities for agent management

and directory services (O’Brien and Nicol, 1998).

Several frameworks exist (Nikolai and Madey,

2009; Allan, 2009) that offer some level of abstraction

from low level development of agent-based applica-

tions, allowing programmers to focus on a more con-

http://www.ﬁpa.org/

ceptual approach in MAS design. It turns out, though,

that FIPA standards (or any standards) are not sup-

ported by all of them.

Multi-agent based simulations (MABS) are some-

times used on the course of the development of a full-

featured MAS – for instance, for testing purposes –

for the potential gains in performance when simulat-

ing MAS. However, most platforms for MAS devel-

opment are not well suited for MABS due to scalabil-

ity limitations (Mengistu et al., 2008). Interest exists

in solutions that make MABS more easily created us-

ing MAS development frameworks. Furthermore, an

opportunity exists to partially automate the develop-

ment of robust MAS from a previously tested simula-

tion.

In this paper we focus on two frameworks, JADE

and Repast. For this paper, version 4.3.2 of JADE and

version 2.1 of Repast Simphony (henceforth simply

“Repast”) were used.

JADE (Bellifemine et al., 2007) is a FIPA-

compliant, general-purpose (i.e. not focused on a sin-

gle domain) framework used in the development of

distributed agent applications. It is a very popular

Lopes J. and Lopes Cardoso H..

From Simulation to Development in MAS - A JADE-based Approach.

DOI: 10.5220/0005214600750086

In Proceedings of the International Conference on Agents and Artiﬁcial Intelligence (ICAART-2015), pages 75-86

ISBN: 978-989-758-073-4

 2015 SCITEPRESS (Science and Technology Publications, Lda.)

MAS development framework that allows the creation

of seamless distributed agent systems and complies

with FIPA standards. It uses an architecture based on

agent containers which allows the abstraction from

the network layer, meaning that there is no differ-

ence between interacting agents running in separate

machines or in the same one. However, experiments

with JADE show that the platform’s scalability is lim-

ited (Mengistu et al., 2008). Its multi-threaded archi-

tecture falls short in delivering the necessary perfor-

mance to run a local simulation with a large number

of agents, meaning that JADE is not an appropriate

tool to create MABS.

Repast (Collier, 2003) is an agent-based simula-

tion toolkit that allows creating simulations using rich

GUI elements and real time agent statistics. It can

easily handle large numbers of agents in a single sim-

ulation. Unlike JADE, though, Repast lacks much of

the infrastructure for agent creation and interaction.

The main motivation for this paper lies in the po-

tential performance gains when using agent simula-

tion frameworks to produce a simulation of a MAS

more complex than those typically developed with

such frameworks. Some works (Garc

ıa et al., 2011;

Gormer et al., 2011) propose, as a solution for bridg-

ing the gap between MAS development and simula-

tion, an integration of JADE and simulation features

by extending this framework with a simulation layer

created from scratch, or by integrating another frame-

work, such as Repast.

This work is aimed at developing an integrated

solution for bridging the domains of simulation and

development of MAS. In order to do that, two main

goals were pursued:

1. First, the creation of an adapter or API that allows

developers to abstract from simulation framework

features and use familiar ones present in MAS de-

velopment frameworks, thus creating “MAS-like

MABS”. This approach allows the resulting code

to be easily ported to a full-featured MAS frame-

work. JADE was selected for its wide use and

FIPA-compliance nature. The developed API in-

cludes JADE’s FIPA speciﬁcations for agent inter-

action and management.

2. Second, the development of a code conversion

tool. By abstracting from the simulation tools

and creating a MAS-like MABS, it becomes pos-

sible and more straightforward to engineer a tool

that performs the automatic conversion of these

MABS into equivalent MAS.

This solution is specially aimed at JADE develop-

ers who need to create a simulation of their already-

developed MAS. By converting their code, the devel-

oper can perform tests and simulation and later con-

vert the simulation back to a MAS, preserving all

changes. JADE developers can also create simula-

tions from scratch using frameworks like Repast us-

ing familiar JADE-like features, which would then be

converted to a full features JADE MAS. Finally, this

system is also of interest to Repast developers who de-

sire to expand their knowledge of MAS development

using more complex frameworks. We are aware that

this kind of facilities is only valuable for true multi-

agent based simulation, and not in general for any

agent-based modeling and simulation approach (for

which Repast is also suited).

The rest of this paper is structured as follows.

Section 2 presents related work, mainly devoted at

bridging the gap between MAS simulation and de-

velopment tools. Section 3 makes an overview of

the whole solution proposed in this paper. Sections 4

and 5 present the developed tools, SAJaS and MAS-

Sim2Dev, respectively, with more detail including

their architecture and use cases. Section 6 explains

how both tools were validated. Section 7 presents

some conclusions and Section 8 suggests some future

work to further develop SAJaS and MASSim2Dev.

2 RELATED WORK

Several frameworks exist that offer support to the de-

velopment of MAS or MABS. Some are domain spe-

ciﬁc, meaning that their purpose was well deﬁned in

their conception. MASeRaTi (Ahlbrecht et al., 2014),

MATSim (Balmer et al., 2008) and SUMO (Kra-

jzewicz et al., 2012) are some examples of MABS

frameworks for trafﬁc and transports simulation.

Other works like Repast (Collier, 2003), NetLogo

(Tisue and Wilensky, 2004), GALATEA (D

avila and

Uzc

ategui, 2000) and Plasma (Warden et al., 2010)

are considered general-purpose. This list comprises

only tools that are free and open source and is not

meant to be exhaustive.

Some works propose approaches that are very

similar to the solution proposed in this paper, namely

the bridging of the domains of MAS and Simulation.

MISIA, JRep and Plasma were built on top of JADE

to create a simulation environment based on it. Some

details of each of these three frameworks was pre-

sented next.

2.1 MISIA

MISIA is a middleware whose goal is to enhance the

simulation of intelligent agents and to allow the visu-

alization and analysis of agent’s behaviour. It was de-

ICAART2015-InternationalConferenceonAgentsandArtificialIntelligence

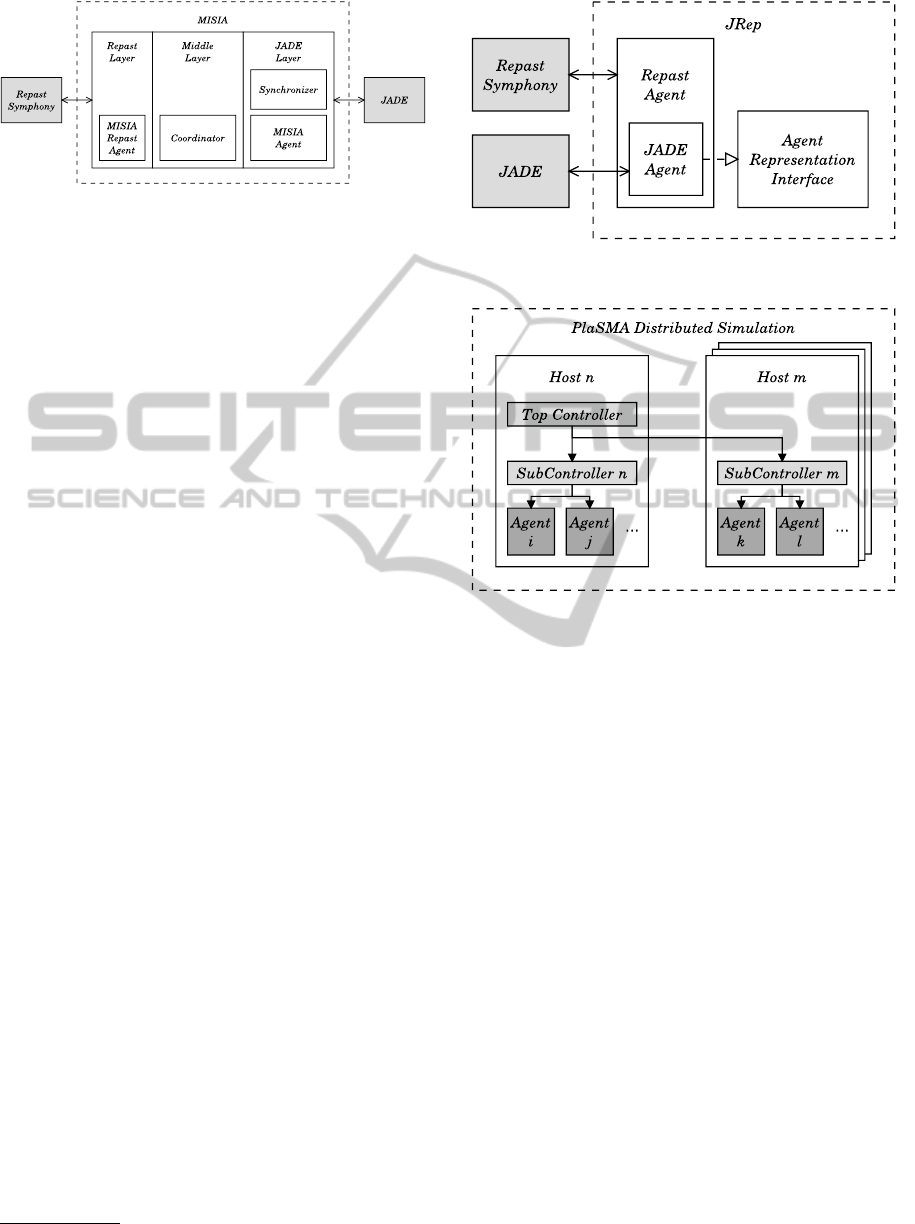

Figure 1: High-level representation of MISIA’s architecture

(adapted from (Garc

ıa et al., 2011)).

veloped by the Bioinformatic, Intelligent Systems and

Educational Technology Research Group (BISITE)

from Universidad de Salamanca

. It is no longer an

active project; as a research experiment, work on this

middleware evolved into other more speciﬁc tools.

MISIA’s approach, as suggested by Figure 1, is to

use a middle layer that acts as the bridge between two

other layers that interact with JADE and Repast. By

extending the agents in Repast and JADE, communi-

cating through a coordinator and synchronizing their

state, these agents work as a single one.

One of the challenges identiﬁed by the authors

when re-implementing the FIPA interaction protocols

was synchronizing them with the Repast tick-based

simulation model. Given JADE’s event-driven ar-

chitecture, MISIA proposes the use of a coordinator

agent that informs the JADE-Agent when a tick has

passed. It also proposes its own implementation of

the interaction protocols supported by JADE, making

them tick-friendly.

2.2 JRep

JRep’s approach is not as complex as MISIA’s. By

having the Repast Simphony agent encapsulate a

JADE agent representation, synchronization is imme-

diate and is assured without requiring an external co-

ordinator. The two agent representations take care of

synchronizing any state changes. Figure 2 represents

the basic structure of JRep.

Each agent takes care of interfacing their respec-

tive frameworks. The interaction between agents in

JRep is performed using FIPA ACL and the protocol

implementations are those provided by the JADE plat-

form. Similarly to MISIA, an Agent Representation

Interface is used to introduce the concept of schedule

in the JADE agent.

2.3 PlaSMA

Unlike the two previous frameworks, the PlaSMA

system is based solely on the JADE platform. The dis-

http://bisite.usal.es/

Figure 2: High-level representation of JRep’s architecture

(adapted from (Gormer et al., 2011)).

Figure 3: High-level representation of PlaSMA’s architec-

ture (adapted from (Warden et al., 2010)).

tributed simulation is synchronized by entities called

“Controllers” who communicate with the “Top Con-

troller”, keeping the pace of the simulation and han-

dling agent lifecycle management as well. Figure 3

illustrates this architecture. PlaSMA, unlike MISIA

and JRep, is still an active project.

2.4 Comparison

JADE is a very rich platform but, for many simulation

scenarios, the overhead it introduces has a signiﬁcant

impact on simulation performance (Mengistu et al.,

2008).

Even though both MISIA and JRep attempt to in-

tegrate the features from both JADE and Repast, as far

as Repast simulations are concerned JADE’s multi-

threaded infrastructure affects their performance very

signiﬁcantly. The main advantage of our approach is

the possibility of using Repast with JADE features,

namely FIPA speciﬁcations including interaction pro-

tocols, without the need to interface with JADE.

FromSimulationtoDevelopmentinMAS-AJADE-basedApproach

3 PROPOSAL

In order to beneﬁt from different features, modeling

the same system in multiple development environ-

ments is often necessary. The two main goals of this

work have been fulﬁlled with two proposals:

1. The Simple API for JADE-based Simulations

(SAJaS), which provides a set of features present

in JADE; those features were reimplemented from

scratch in an attempt to simplify their internal

complexity, preserving JADE-like external execu-

tion;

2. The MAS Simulation to Development (MAS-

Sim2Dev) code conversion tool in the form of an

Eclipse plug-in that is capable of mapping JADE

features to SAJaS’ and vice versa, and convert ap-

plications developed using one into applications

based on the other, automatically. The plugin has

no Repast or JADE dependencies in the code, but

makes use of a dictionary ﬁle that is speciﬁc to

JADE and Repast.

SAJaS is an API meant to be used with simulation

frameworks to enable JADE-based features in them,

including agent interaction protocols and agent man-

agement services. It also uses JADE’s concept of be-

haviours which encapsulate most of agents’ actions.

SAJaS was initially created to be used with Repast

Simphony but was developed to allow its integration

with other simulation frameworks.

When developing SAJaS a close resemblance to

JADE’s own API was kept, not only to make the code

conversion more straightforward, but to allow proﬁ-

cient JADE developers to create SAJaS-based simu-

lations using a familiar JADE-based API.

SAJaS does not yet implement all JADE features.

A set of the most common features were selected

which allows for the simulation of scenarios with

some complexity, including communication between

agents and the creation of custom behaviours. Fea-

tures in JADE applications which are not available in

SAJaS will typically be shown as errors when con-

verted – MASSim2Dev simply ignores them and they

should be re-implemented manually as necessary.

3.1 JADE and Repast

A study of JADE was performed to identify which

features to implement. As Table 1 illustrates, JADE

agents execute in separate threads and while this

architecture facilitates the platform’s distribution,

JADE agents are heavy in terms of resources. Experi-

ments with JADE show that the platform’s scalability

is limited in number of agents and that the global sys-

tem performance drops quickly for large numbers of

agents (Mengistu et al., 2008) (Garc

ıa et al., 2011).

This further strengthens the idea that using JADE or a

JADE-Repast hybrid, as described in Section 2, is not

the best course of action if performance is an impor-

tant issue.

In JADE, agents are distributed in containers.

Each host machine can contain multiple containers,

and JADE allows agents in different containers and

hosts to interact with each other. In each JADE in-

stance, a main container exists where some special

agents reside, which help in the management and ad-

dress resolution of the agents. JADE agents can even

hop onto another container.

While there is no equivalent infrastructure for

these agents in Repast, Repast contains a “Context”

object that indexes all scheduled agents. Because

Repast does not support distributed applications, there

is no need for address resolution services.

Table 1: Summary of JADE and Repast features.

JADE Repast

Interaction FIPA ACL Method calls

Shared resources

Distributed Yes No

Simul. Tools No Yes

Scalability Limited High

Ontologies Yes No

Open Source Yes Yes

Agent Behaviours Scheduler

Execution Multi thread Single thread

Event-driven Tick-driven

Assync Sync

In Repast, agent execution is scheduled manually.

An agent class can contain annotations that indicate

which methods should be called and when (for in-

stance, in every simulation tick or from time to time).

This approach is very ﬂexible, allowing to schedule

any method; however, more complex structures are

non-existent in Repast.

JADE agent actions can be executed in their setup

and takedown, but most are encapsulated in objects

called Behaviours. JADE has many different kinds

of behaviours that function in different ways, such as

running one single task once or running them cycli-

cally. Other behaviours implement FIPA interaction

protocols, which agents can use to interact with other

agents.

3.2 FIPA Speciﬁcations

SAJaS follows JADE architecture very closely, in-

cluding how FIPA standards are implemented. The

implemented features can be divided in three cate-

ICAART2015-InternationalConferenceonAgentsandArtificialIntelligence

gories: Agent Management, Messaging and Interac-

tion Protocols.

Agent Management includes the directory facili-

tator (DF) service and the Agent Management Service

(AMS). The DF is a component that provides a yellow

page service. It allows one agent to perform searches

about agents rendering speciﬁc services. The AMS’

purpose is to manage the agent platform, namely cre-

ating and terminating agents. Registration of each

agent in the AMS is required for agents to interact,

since it is from the AMS that agents obtain their own

AID, needed identify the agent in communication.

Messaging includes the ACL Message, the Mes-

sage Template and the Message Transport Service

(MTS). The MTS is a service for transportation of

ACL messages between agents. It is responsible for

resolving agent addresses and it may request infor-

mation from the AMS to perform this task. The

ACL Message is the envelope that contains the details

for communication. The Agent Communication Lan-

guage (ACL) stipulates what ﬁelds a message should

contain.

FIPA Interaction Protocols typify communica-

tion interactions among agents by specifying two

roles: initiator (the agent starting the interaction) and

responder (a participant in the interaction). Each pro-

tocol deﬁnes precisely which messages are sent by

each role and in which sequence.

In JADE, agent activity is programmed through

the notion of behaviours. For interaction protocols,

two complementing behaviours are used for each side

of the interaction, and JADEs API supports the most

important protocols with built-in initiator and respon-

der behaviours. Table 2 presents a mapping between

some FIPA interaction protocols and the classes that

implement them in JADE. The ones represented in

this table are also available in SAJaS.

3.3 Usage Scenarios

Figure 4 illustrates the scenarios where this system is

expected to be useful.

One possible scenario is when a JADE developer

creates a JADE MAS and desires to perform some

tests and simulations in a local and controlled envi-

ronment. The developer can use this tool to convert

the MAS into a MABS. Eventually, the application

can be converted back if changes were made while in

the simulation format.

A second possible scenario could be that of a de-

veloper that intends to create a MABS with the goal

of later creating a MAS out of it. This could be a

Repast developer who desires to create agent simula-

tions that take advantage of communication and agent

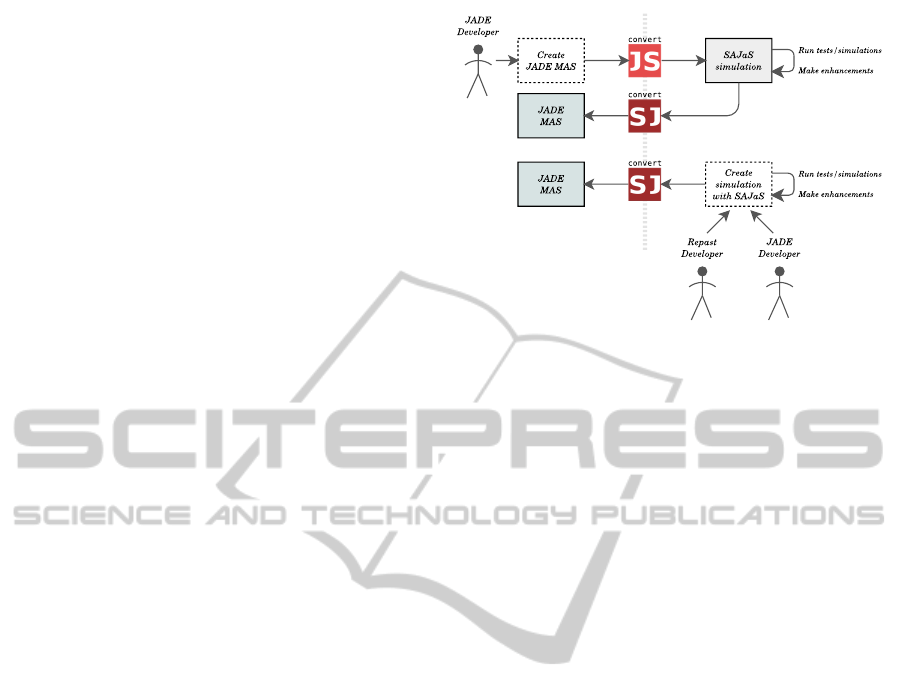

Figure 4: Possible work ﬂows for SAJaS users. “SJ” and

“JS” represent conversion from SAJaS to JADE and the re-

verse, respectively.

management tools from MAS, or a JADE developer

that wants to create Repast simulations using familiar

JADE-like tools.

A third scenario is when a developer simply wants

to create a complex agent-based, FIPA-compliant

simulation. In this case, there is no need for a code

conversion tool, but SAJaS can be used as a stan-

dalone library.

The next sections detail both the SAJaS API and

the MASSim2Dev conversion tool.

4 SAJaS

From the point of view of the MAS programmer,

working with the SAJaS API feels the same as work-

ing with JADE, although limited to the presently

available features. However, SAJaS has a much sim-

pler internal architecture, which attempts to imple-

ment only the fundamental components needed for

everything else to work. The most evident feature that

was not ported from JADE was the network layer that

enables the creation of distributed MAS. The decision

of not including this JADE feature in SAJaS is based

on its negative effects on the performance of applica-

tions where agent interaction is very frequent.

The diagram in Figure 5 represents a simpliﬁed

version of SAJaS. Classes with a dotted border are in-

ternal and speciﬁc to SAJaS. All other classes are part

of the API. The BehaviourAction and the RepastA-

gent offer support to Repast. More speciﬁcally, the

BehaviourAction is responsible for interfacing Repast

Symphony and scheduling the execution of all be-

haviours.

Protocol initiators are behaviours that initiate the

communication, sending the ﬁrst message. Respon-

ders start by waiting for this message to arrive. Be-

FromSimulationtoDevelopmentinMAS-AJADE-basedApproach

Table 2: Interaction protocols supported in JADE (adapted from (Bellifemine et al., 2007)).

Protocol(s) Initiator class Responder class

FIPA Request AchieveREInitiator AchieveREResponder

FIPA Query

FIPA Contract Net ContractNetInitiator ContractNetResponder

SSContractNetResponder

FIPA Propose Propose Initiator Propose Responder

FIPA Subscribe SubscriptionInitiator SubscriptionResponder

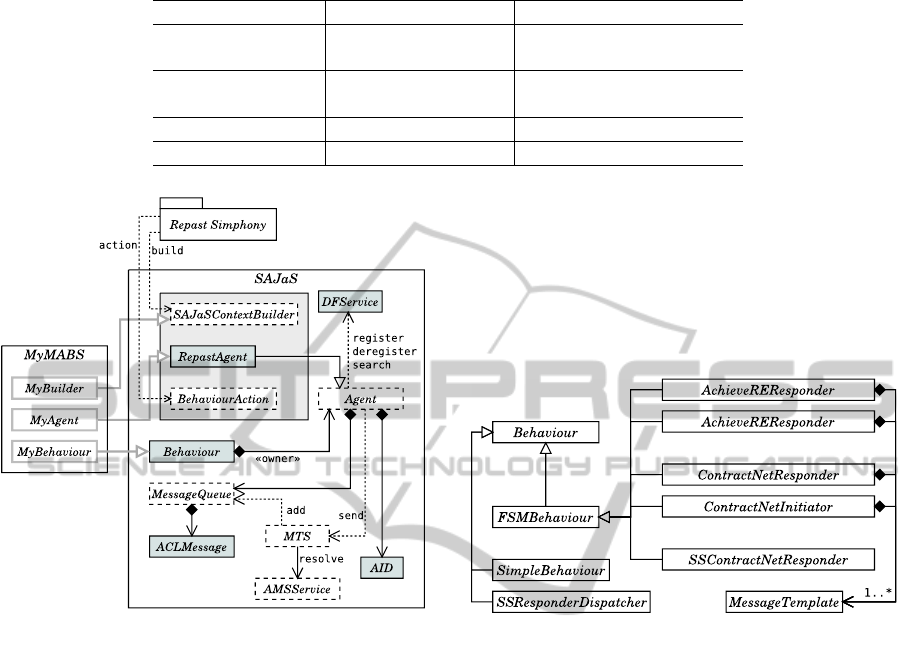

Figure 5: A simpliﬁed UML diagram of the architecture of

SAJaS.

cause protocols have states, each responder is able to

handle one conversation at a time. In JADE, a respon-

der restarts after the conversation has ﬁnished, thus

becoming ready to handle a new conversation. For

the ability to handle concurrent conversations, JADE

provides responder dispatchers, which may be used

to handle the ﬁrst message of a protocol and create on

the ﬂy an appropriate single session (SS) responder,

that is, a responder whose purpose is to handle a sin-

gle conversation. For this, JADEs API includes sin-

gle session versions of responders. Using this mecha-

nism, a variable number of responder behaviours may

be active at any point in time, one for each of ongoing

conversations.

SAJaS follows this same architecture of be-

haviours and protocols. The next section presents the

general structure of behaviours in SAJaS and JADE.

4.1 Behaviours

Figure 6 shows the implementation of behaviours in

SAJaS with more detail. The Behaviour superclass

contains methods that are triggered by certain events.

1. onStart is called immediately before the ﬁrst call

to action

2. action is called once per tick

3. done is called every tick to determine if the be-

haviour has ended and if true is returned, it trig-

gers onEnd

4. onEnd is called right after the behaviour ended

Figure 6: Simpliﬁed UML class diagram for the behaviours

and protocols in SAJaS.

The methods action and done are abstract in

Behaviour, so other behaviours have to implement

it. Methods onStart and onEnd, though, are imple-

mented but do nothing in Behaviour.

The ﬁve “responder” and “initiator” classes imple-

ment the two protocols currently available in SAJaS.

The FSMBehaviour, which they extend, contains a

dynamic list of states and transitions. These can be

registered and unregistered at runtime, typically be-

fore initiating the behaviour or in its setup. Each state

is itself a behaviour.

Each protocol can be represented as a different

state machine. For instance, in a Contract Net, the

initiator’s state starts as “sending CFP”, then “wait-

ing for replies”, “waiting for result notiﬁcations” and

ﬁnally “ﬁnished”.

Internally, protocols in SAJaS use Java enums in-

stead of the FSM Behaviour from JADE to represent

their internal state machine. An enum is an immutable

variable type while the FSM is a dynamic structure.

The performance of enum-based and FSM-based pro-

tocol behaviours was compared and enum-based be-

haviours have shown to be signiﬁcantly faster than

ICAART2015-InternationalConferenceonAgentsandArtificialIntelligence

a dynamic FSM. The FSMBehaviour is available in

SAJaS to allow the creation of custom complex be-

haviours by programmers.

4.2 Agent Execution

JADE execution can be concurrent and parallel, since

JADE supports distributed and multi-threaded agent

systems. Execution in Repast, on the other hand, is

not concurrent. Repast uses a time-share type of ex-

ecution, granting each agent the right to perform its

tasks until they ﬁnish them, in sequence, but in no

particular order.

Except when executed during their setup or take-

down, agents’ actions in JADE are encapsulated in

Behaviours. In JADE, multiple agents can be exe-

cuting their behaviours simultaneously. In Repast,

however, all scheduled objects run consecutively with

variable execution sequence. This schedule is one of

the components in SAJaS that is speciﬁc to its Repast

interface.

Even though a local application can take advan-

tage of direct method invocation, when the simulation

platform is single-threaded - as Repast is - there is a

risk of the simulation stagnating if, for instance, two

agents engage in a very long “conversation”.

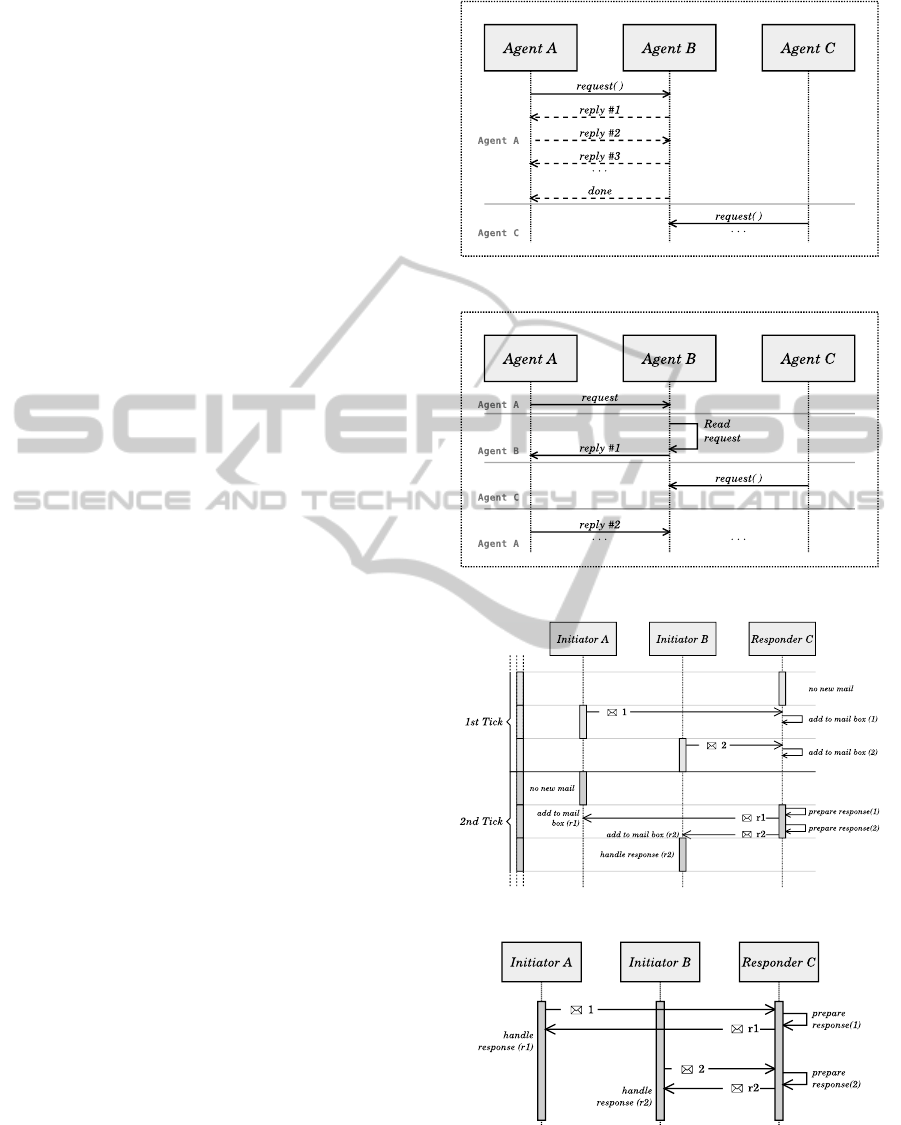

Figure 7 represents a scenario where two agents

engage in a conversation that involves multiple multi-

ple replies from both sides. With direct method invo-

cation, the response is instantaneous but other agents

do not get any time to execute in-between.

In Figure 8 on the other hand, each agent is al-

lowed to execute one task - send one message, in this

case. Messages stay waiting until the agent reads and

processes it. This way, Agent C did not have to wait

for the other two to ﬁnish.

In (Mengistu et al., 2008), authors concluded that

increasing the granularity of the system, it is possible

to improve its overall performance, even if individual

tasks are delayed. The granularity of an agent task

is explained as the communication-to-computation, or

“a measure of the amount of computation an agent

executes before entering the communication phase of

one simulation time step”.

In SAJaS, as in JADE, agent interaction occurs us-

ing the messaging service. Therefore, asynchronous

execution is appropriate for the kind of applica-

tions developed for JADE and SAJaS. Simulations in

Repast, though, usually depend on the synchrony of

the environment. The use of ACLMessages, which

wait in the message queue until processed, allows to

maintain a synchronous execution, while simulating

an asynchronous one.

To better demonstrate the differences between

Figure 7: Communication with direct method invocation.

Figure 8: Asynchronous communication.

Figure 9: Communication in SAJaS.

Figure 10: Communication in JADE, running in parallel.

agent execution in both frameworks, Figures 9 and

10 represents a scenario where two agents send a

message to a third one who then replies. In SAJaS

FromSimulationtoDevelopmentinMAS-AJADE-basedApproach

(Fig. 9), messages are delivered to agent C’s message

queue, and processed only in C’s turn. In JADE (Fig.

10), messages can arrive concurrently. Their arrival

triggers an event and they are processed right away

in the receiving agent’s thread. In this case, agent C

handles the messages as they arrive and issues the re-

spective replies.

It should be noted that agent behaviours are the

objects actually being scheduled, as each agent typ-

ically initiates multiple behaviours. The order by

which Repast executes each scheduled behaviour

should not be predictable: to remove the inﬂuence

that a ﬁxed execution order can have in the outcome

of a simulation, the schedule is randomized every tick.

As a result, it is not guaranteed that all the behaviours

of a single agent are executed consecutively. This is

the expected execution when working with Repast as

well as with JADE (given its multi-threaded nature)

and it is up to the programmer to ensure that the ap-

plication does not rely on the order of execution.

5 MASSim2Dev

MASSim2Dev is an Eclipse plugin that makes use of

SAJaS. It acts as a translator that changes the MABS

dependencies from one platform to the equivalent

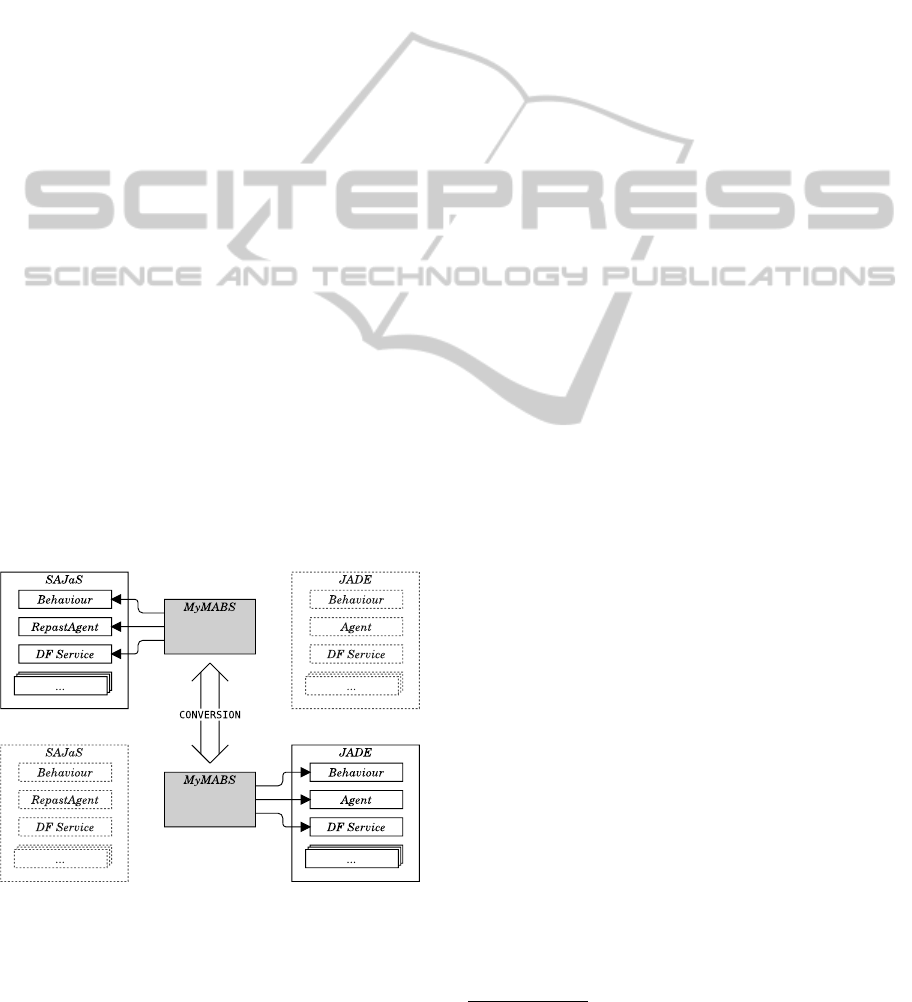

classes in the other platform (see Figure 11). After

conversion, no dependency to the previous platform

exists in the generated project, as long as the original

SAJaS simulation is not using internal components

from the SAJaS library, or the original JADE appli-

cation is not using elements from the JADE API that

are not yet implemented in SAJaS.

Figure 11: Representation of the conversion of code.

5.1 Plugin Execution

When the plugin is activated, it triggers a series of

actions.

1. Clone the selected project;

2. Change all references to SAJaS classes in class

imports;

3. Inject needed libraries in the new project and add

them to the build path;

4. Fix hierarchy (e.g classes that extended

RepastAgent must now extend Agent).

When the hierarchy needs to be ﬁxed, it means

that the Java type name of the superclass is not

the same for JADE and SAJaS. Currently this oc-

curs solely for the Agent class. Throughout SA-

JaS’ code, all references to the agent use the abstract

type core.Agent. However, agent types in simu-

lations based on SAJaS+Repast always extend the

RepastAgent type.

To perform the mapping of the class imports be-

tween the frameworks, a dictionary ﬁle exists within

the plugin. It allows for quick upgrades to the tool

in the future without having to edit the actual code.

The dictionary contains annotations that inform how

to deal with the hierarchy ﬁxing problem. It also con-

tains information about extra dependencies, such as

JADE and Repast libraries.

5.2 Code Conversion

There are multiple ways to tackle the problem of code

transformations. The brute force approach would be

to parse the source code, create an abstract syntax tree

(AST), which represents all code constructions in a

program, perform certain transformations in the tree,

and then generate back the code from the new AST.

Fortunately, there are free and open source projects

that developers can use to do exactly this with signif-

icantly reduced effort.

The Eclipse Java Development Tools (JDT)

used

to develop MASSim2Dev are a group of tools inte-

grated in the Eclipse IDE. Some of its most interest-

ing features are the automatic cloning of projects, the

handling of classes, imports, methods and ﬁelds as

objects and the possibility of doing complex manip-

ulation tasks without parsing the code. It does, how-

ever, allow the use of a high level AST for a more

direct manipulation of the source code. JDT is acces-

sible to plugin developers from within Eclipse.

6 VALIDATION

To validate both SAJaS and MASSim2Dev, a set of

experiments was designed, with the aim of covering

https://www.eclipse.org/jdt/

ICAART2015-InternationalConferenceonAgentsandArtificialIntelligence

and testing all the available features. Table 3 summa-

rizes the aims of each experiment.

The ﬁrst example consists of a simple contract net

between one buyer and multiple sellers. In the sec-

ond example, multiple contract nets run concurrently

and some of the buyers make use of available com-

putational trust about sellers. The third example is a

board game called Risk developed prior to the start of

this project. The goal of this last example was to test

SAJaS with an application that had not been devel-

oped speciﬁcally for this test, in order do demonstrate

that performance results obtained in JADE applica-

tions generated using MASSim2Dev were not caused

by faulty code generation.

6.1 Simple Contract Net

In this scenario, an agent (the buyer) intends to pur-

chase a certain quantity of goods. The diagram in Fig-

ure 12 illustrates the interactions between the agents

in this scenario.

The buyer issues a call for proposals (CFP) con-

taining a request for supplies to all agents that an-

nounce themselves as suppliers in the DF. After re-

ceiving a CFP, the supplier replies with a PROPOSAL

containing a price for each product if the demanded

supply is within the seller’s capacity. Otherwise, a

REFUSE message will be sent to the buyer. Finally,

the buyer agent compares all valid proposals, chooses

the cheapest offer for each of the three products and

replies with an ACCEPT PROPOSAL to the best of-

fers, and REJECT PROPOSAL to all others.

Figure 12: Sequence of agents interaction in the simple con-

tract net scenario.

One of the difﬁculties of testing MABS is the po-

tential stochastic behaviour of agents in the simula-

tion, which makes it more difﬁcult to obtain a clearly

deﬁned result. This ﬁrst validation scenario circum-

vents this problem, aiming instead at comparing sim-

ulation performance. To ensure the proper compari-

son of results between multiple runs of the experiment

and between runs in SAJaS and JADE, a predeﬁned

data set was used in all executions. This experiment

focused on two simple metrics to evaluate the result:

execution time and outcome. After 10 executions,

the average performance of the experiment was cal-

culated for different numbers of agents, as shown in

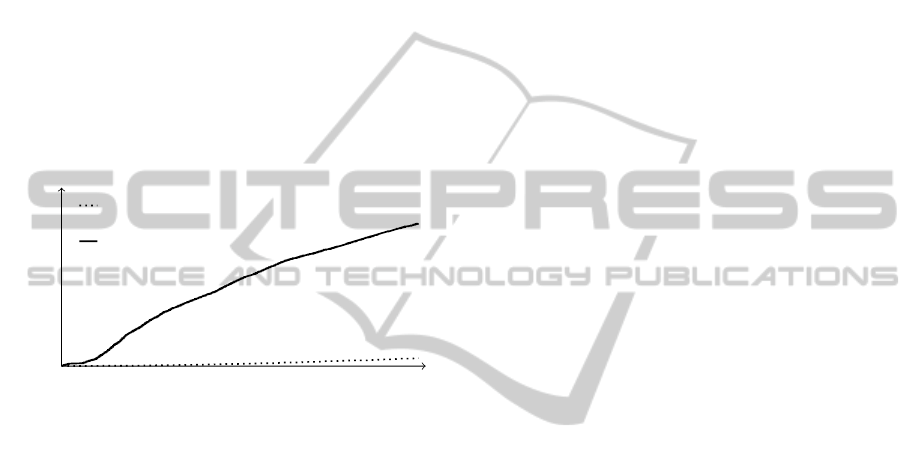

Figure 13. The performance of the simulation based

on SAJaS was signiﬁcantly better, excelling when the

number of agents is high. JADE was able to perform

better when using two distinct containers. The out-

come of this experiment consisted in identifying the

agent with the lowest bid and was known a priori.

As expected, in all executions with the same number

of agents, this result was identical in SAJaS and in

JADE.

Number of agents

100

200

300

400

500

750

1000

350

1050

1800

2550

Time (ms)

JADE (2 containters)

JADE (1 containter)

Repast using SAJaS

Figure 13: Average execution time on each framework in

each setup.

6.2 Multiple Contract Net

This scenario is composed of multiple buyers and sell-

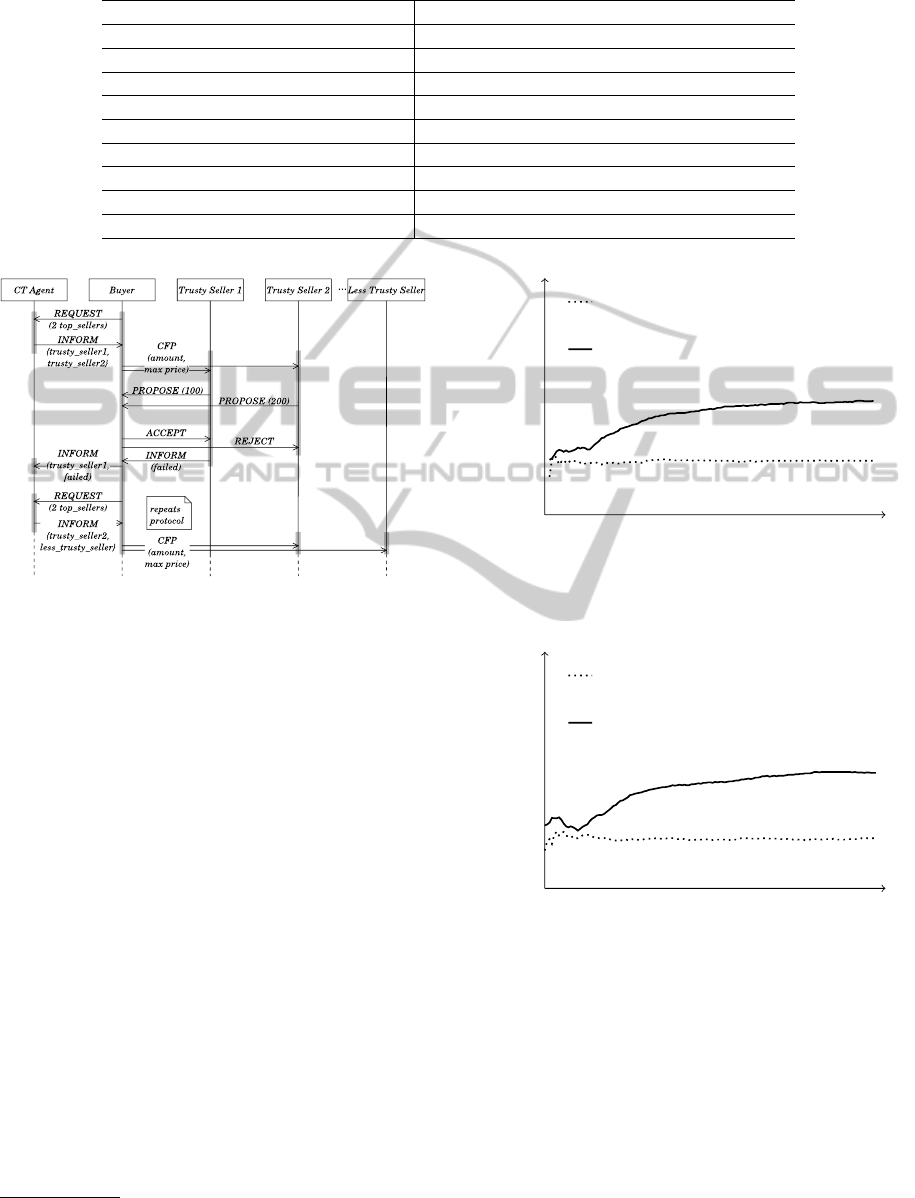

ers running simultaneously. The diagram in Figure

14 illustrates one round of negotiation in this scenario

involving a single buyer. After searching the DF for

sellers of a given product, each buyer sends the list

of sellers to the CTAgent (CT standing for computa-

tional trust). The CTAgent keeps track of the sellers’

past contracts with buyers and provides information

on the top sellers in terms of successful contracts.

With this information, the buyer sends a CFP only

to the most trusted agents and accepts the best pro-

posal from them. Some sellers will occasionally vio-

late the contract after acceptance. The buyer will then

inform the CTAgent if the contract was fulﬁlled or vi-

olated.

Some buyers are programmed to ignore trust and

rely solely on the proposal. The premise is that

informed buyers eventually avoid contacting sellers

programmed to violate contracts more often. The goal

of this experiment is to model this scenario in SAJaS,

convert it to JADE and verify that the obtained results

are similar.

FromSimulationtoDevelopmentinMAS-AJADE-basedApproach

Table 3: Features covered by each experiment.

Simple CNet Multiple CNet Risk Game

ACL, DF, MTS, AMS, Behaviours X X X

Contract Net Protocol X X

Achieve RE Protocol X X

SS Contract Net Protocol X

FSM Behaviour X

Simple Behaviour X

Responder Dispatcher X

SAJaS to JADE Conversion X X

JADE to SAJaS Conversion X

Figure 14: Sequence of agents interaction in the simple con-

tract net scenario.

The experiment was executed 5 times in JADE

and 5 times in SAJaS. The scenario is composed of

20 buyers using computational trust, 20 not using

trust and 80 sellers. A total of 2000 contracts were

recorded to create the charts in Figures 15 and 16.

Unlike in the ﬁrst example, this one included non de-

terministic elements (the sellers’ bids). The compar-

ison of the results was made by analysing the charts.

As shown, buyers who made use of computational

trust obtained increasingly more successful contracts.

The ﬂuctuations early in the simulation are due to the

initial lack of trust information. As expected and as

shown in the charts, a similar outcome was observed

both in JADE and SAJaS.

6.3 RISK Board Game

RISK is a multi-player strategy board game played in

turns. It is a game currently owned by Hasbro and the

full rules manual is available online

. The game used

for this experiment was developed with JADE before

the conception of the project described in this paper.

The game is played automatically by agents, compet-

http://www.hasbro.com/risk/

Number of Contracts

0 500 1000 1500 2000

% of fulfillment

0.25

0.50

0.75

1.00

Using trust and proposal

Using only the proposal

Figure 15: Average result of 5 executions of the Multiple

Contract Net scenario during 2000 contracts in JADE.

Number of Contracts

0 500 1000 1500 2000

% of fulfillment

0.25

0.50

0.75

1.00

Using trust and proposal

Using only the proposal

Figure 16: Average result of 5 executions of the Multiple

Contract Net scenario during 2000 contracts in SAJaS.

ing against each other for the conquest of a map that

loosely resembles a world map and its regions.

Player agents have different behavioural architec-

tures and are classiﬁed as aggressive, defensive, op-

portunistic or random. Communication occurs be-

tween the players and the game agent using the FIPA

REQUEST protocol. The game also heavily relies

on custom Finite State Machine Behaviours (FSM-

Behaviour) to control game progress. To evaluate the

ICAART2015-InternationalConferenceonAgentsandArtificialIntelligence

performance of the game, logging features were intro-

duced to the original source code of the application.

Other than that, no other changes were made to the

original code.

For this experiment, a match with 5 “random

agents” was setup. Random agents do not follow any

particular strategy of attack, defense or soldier distri-

bution and a game with only random agents is always

never-ending. To analyze the overall performance of

the agent system, the game was converted from JADE

to SAJaS using MASSim2Dev. The experiment was

then repeated 5 times during 8 seconds and the num-

ber of game rounds was registered. The chart in Fig-

ure 17 shows that SAJaS was capable of executing

many more rounds in the same period. The GUI of

the game made it possible to assure that the game was

executing correctly.

Time/s

1 2 3 4 5 6

# of Rounds

120

SAJaS

JADE

Figure 17: Performance of a Risk match with 5 random

agents.

7 CONCLUSIONS

To bridge the gap between MAS development and

simulation, SAJaS was created in order to allow

JADE developers to create Repast-based simulations

using familiar JADE features. MASSim2Dev was

also developed to enable the conversion of simula-

tions created with SAJaS into JADE MAS.

The main advantage of using SAJaS over the so-

lutions studied in the related work is the ability to run

simulations that do not need JADE at runtime, rely-

ing on Repast only. JADE is a very rich platform

for the development of agent systems distributed in

a network, but its architecture quickly becomes a per-

formance hog as the number of agents in a system

rises. Therefore, Repast was presented as a viable al-

ternative to serve as the base for complex but scal-

able agent-based simulations. A conscious effort was

made to keep a clear separation within SAJaS be-

tween Repast-speciﬁc elements and the core of this

API.

Three tests were designed to validate the results of

this paper. Technically, the scenarios covered all fea-

tures currently available in SAJaS. The Achieve RE

protocol was used in the Multiple Contract Net sce-

nario to communicate with the CTAgent and it was

widely used in Risk for all communications. The

Contract Net protocol was covered in the ﬁrst two ex-

periments. The Multiple Contract Net scenario also

allowed multiple concurrent contracts to take place

by using the Responder Dispatcher. The creation of

custom Simple Behaviours and Finite State Machine

(FSM) Behaviours was covered by the Risk example

scenario. This feature is also important for the cre-

ation of more custom protocols or any kind of agent

behaviour.

All scenarios made use of the DF, AMS and MTS

services, as well as structures like the ACL Message,

Message Template, DF Agent Description and Ser-

vice Description. All these JADE-based facilities and

structures are widely used in JADE-based applica-

tions.

It was possible to demonstrate that bringing JADE

and Repast together is not only feasible using the

developed tools, but also provides increased perfor-

mance when compared with a JADE MAS. Further-

more, our results show that, even though only a sub-

set of the protocols and features from JADE are im-

plemented in SAJaS, it is already possible to create

simulations with a reasonable degree of complexity.

SAJaS and MASSim2Dev are meant to be developed

in the future and released to the academic community

for further development, discussion and use.

8 FUTURE WORK

SAJaS and MASSim2Dev already provide program-

mers with the means to develop MABS with some

complexity. There is, however, still room for devel-

opment and future enhancements, both in SAJaS and

MASSim2Dev.

The most immediate extension to this project is to

enlarge the range of supported JADE features present

in SAJaS. While it is important to keep the simplicity

of SAJaS’s internals in order to maintain good simula-

tion performance, more elements from the JADE API

can be implemented in SAJaS. The core of SAJaS al-

lows to easily extend the API with more interaction

protocols and other types of behaviours. Furthermore,

SAJaS’ modularity allows future extensions without

changing the API and opens doors to future integra-

tion with other simulation tools.

One interesting feature in Repast is the ability

to create real time visualizations of simulation data.

This is possible in part because agents in Repast are

FromSimulationtoDevelopmentinMAS-AJADE-basedApproach

executed locally, so access to this data is facilitated. It

could be interesting to include data collection and dis-

play tools that could be ported between frameworks,

taking advantage of MASSim2Dev.

Possible enhancements to the plugin could include

providing support for user conﬁgurations like the se-

lection of the name and location of the newly gener-

ated project, conversion of individual classes and the

automatic creation of “stub launchers” that would al-

low to quickly test if the generated project executes

correctly.

Finally, future projects could enrich the SAJaS

platform by creating new frameworks for different

simulation tools. While SAJaS core takes care of the

agent model and communication and other function-

alities as described in this paper, a simple independent

module takes care of interfacing with Repast. It is

possible to create new modules to interface with other

simulation tools. Such modules should implement the

following features:

• Contain a structure that organizes all the be-

haviours from all agents;

• Allow the adition of new behaviours to the

pool and initiate them by calling the appropriate

method (“onStart”);

• Allow the removal of behaviours from the pool

and terminate them by calling the appropriate

method (“onEnd” and “done”);

• Schedule each behaviours’ execution by calling

the “action” method on each behaviour – SAJaS’

Repast interface does this sequentially, but other

frameworks could do it concurrently, for instance.

The development of manuals for the implemen-

tation of such interface modules is already underway,

as is the organization of all project documentation and

source code.

REFERENCES

Ahlbrecht, T., Dix, J., K

oster, M., Kraus, P., and M

uller, J. P.

(2014). A scalable runtime platform for multiagent-

based simulation. Technical report, Technical Report

IfI-14-02, TU Clausthal.

Allan, R. (2009). Survey of agent based modelling and sim-

ulation tools. BT Technology Journal.

Balmer, M., Meister, K., Rieser, M., Nagel, K., Axhausen,

K. W., Axhausen, K. W., and Axhausen, K. W. (2008).

Agent-based simulation of travel demand: Structure

and computational performance of MATSim-T. ETH,

Eidgen

ossische Technische Hochschule Z

urich, IVT

Institut f

ur Verkehrsplanung und Transportsysteme.

Bellifemine, F. L., Caire, G., and Greenwood, D. (2007).

Developing multi-agent systems with JADE, volume 7.

John Wiley & Sons.

Collier, N. (2003). Repast: An extensible framework for

agent simulation. The University of Chicagos Social

Science Research, 36.

avila, J. and Uzc

ategui, M. (2000). Galatea: A multi-

agent simulation platform. In Proceedings of the In-

ternational Conference on Modeling, Simulation and

Neural Networks.

Garc

ıa, E., Rodr

ıguez, S., Mart

ın, B., Zato, C., and P

erez,

B. (2011). Misia: Middleware infrastructure to sim-

ulate intelligent agents. In International Symposium

on Distributed Computing and Artiﬁcial Intelligence,

pages 107–116. Springer Berlin Heidelberg.

Gormer, J., Homoceanu, G., Mumme, C., Huhn, M., and

Muller, J. (2011). Jrep: Extending repast simphony

for jade agent behavior components. In Proc. 2011

IEEE/WIC/ACM Int. Conf. on Web Intelligence and

Intelligent Agent Technology, Vol. 02, pages 149–154.

IEEE Computer Society.

Krajzewicz, D., Erdmann, J., Behrisch, M., and Bieker,

L. (2012). Recent development and applications of

SUMO - Simulation of Urban MObility. Int. J. on Ad-

vances in Systems and Measurements, 5:128–138.

Mengistu, D., Troger, P., Lundberg, L., and Davidsson, P.

(2008). Scalability in distributed multi-agent based

simulations: The jade case. In 2nd Int. Conf. on Future

Generation Communication and Networking Sym-

posia (FGCNS’08), volume 5, pages 93–99. IEEE.

Nikolai, C. and Madey, G. (2009). Tools of the trade: A

survey of various agent based modeling platforms. J.

of Artiﬁcial Societies & Social Simulation, 12(2).

O’Brien, P. and Nicol, R. (1998). Fipatowards a standard for

software agents. BT Technology Journal, 16(3):51–59.

Tisue, S. and Wilensky, U. (2004). Netlogo: A simple en-

vironment for modeling complexity. In International

Conference on Complex Systems, pages 16–21.

Warden, T., Porzel, R., Gehrke, J. D., Herzog, O., Langer,

H., and Malaka, R. (2010). Towards ontology-based

multiagent simulations: The plasma approach. In 24th

European Conf. on Modelling and Simulation (ECMS

2010). European Council for Modelling and Simula-

tion, pages 50–56.

Wooldridge, M. (2008). An introduction to multiagent sys-

tems. Wiley. com.

ICAART2015-InternationalConferenceonAgentsandArtificialIntelligence
