Finding Evidence for Updates in Medical Guidelines

Roelof Reinders, Annette ten Teije and Zhisheng Huang

Department of Computer Science, VU University Amsterdam, Amsterdam, The Netherlands

Keywords:

Medical Guidelines, Evidence-based Medicine, Medical Guideline Updates.

Abstract:

Medical guidelines are documents that describe optimal treatment for patients by medical practitioners based

on current medical research (evidence), in the form of step-by-step recommendations. Because the ﬁeld of

medical research is very large and always evolving, keeping these guidelines up-to-date with the current state

of the art is a difﬁcult task. In this paper, we propose a method for ﬁnding relevant evidence for supporting

the medical guideline updating process. Our method that takes from the evidence-based medical guideline

the recommendations and their corresponding evidence as its input, and that queries PubMed, the world’s

largest search engine for medical citations, for potential new or improved evidence. We built a prototype and

performed a feasibility study on a set of old recommendations, and compared the output to evidence for the

newer version. The system succeeded in ﬁnding goal articles for 11 out of 16 recommendations, but in total,

only 20 out of 71 articles were retrieved. Our ranking method for most relevant articles worked well for small

result sets, but for large result sets it failed to rank the goal articles in the top 25 results.

1 INTRODUCTION

The ﬁeld of medical science is very broad. But what

it all comes down to in practice, is treating an indi-

vidual patient suffering from a physical or psycholog-

ical discomfort, and ﬁnding the optimal treatment to

cure him or her. In order to help medical practitioners

keep a clear view of how a patient should be treated,

medical guidelines have been created. These medi-

cal guidelines describe the different steps that should

be taken in helping a patient who suffers from certain

symptoms, from diagnosis to treatment to aftercare.

It is then up to the medical practitioner to follow this

guideline, and to decide when to diverge from it based

on the individual circumstances of the patient.

The concept of guidelines is built on what is

known as evidence-based medicine (EBM). Sackett et

al. (1996) describe this concept as the conscientious,

explicit, and judicious use of current best evidence

in making decisions about the care of individual pa-

tients. What this comes down to, is that medical prac-

titioners should use the current strongest scientiﬁc

evidence combined with their individual expertise to

ﬁnd the optimal treatment for their patients. Field and

Lohr (1990) describe guidelines as Systematically de-

veloped statements to assist practitioner and patient

decisions about appropriate health care for speciﬁc

clinical circumstances.

Guidelines are usually created and maintained by

(semi-)governmental organizations. An example of

this is the National Guideline Clearinghouse

, which

contains a collection of guidelines maintained by the

U.S. Department of Health & Human Services. Each

individual guideline is created by a committee, of

which all members must disclose any possible con-

ﬂicts of interest. These committees have occasional

meetings to discuss possible changes and updates to

the guidelines.

1.1 Motivation

Because of the number and size of guidelines, these

desirable updates can be difﬁcult to identify. Relevant

evidence might be overlooked or not fully recognized,

causing suboptimal treatment quality. Also, the pro-

cess of ﬁnding and identifying the evidence is a time-

consuming task. This can cause the process between

research being done and the results transferring into

the guidelines to take longer than necessary.

Shelleke et al. (2001) deﬁnes several factors that

could make updating a guideline desirable. These

factors include ‘technical’ improvements found in re-

search, but also more ‘societal’ factors, such as the

change of values in a society, or the economical cir-

cumstances that could lead to preference for a certain

http://www.guideline.gov/

Reinders R., Ten Teije A. and Huang Z..

Finding Evidence for Updates in Medical Guidelines.

DOI: 10.5220/0005219900910102

In Proceedings of the International Conference on Health Informatics (HEALTHINF-2015), pages 91-102

ISBN: 978-989-758-068-0

 2015 SCITEPRESS (Science and Technology Publications, Lda.)

intervention over another. The authors developed a

model that should indicate whether a recommenda-

tion inside a guideline has to be updated. This is

based on two steps: consultation of experts and lit-

erature research. If either of these steps indicate that

changes are favorable, a panel of experts should judge

whether the suggested changes are correct and see to

it that they are implemented in the guideline.

Consultation of medical experts is useful, and also

expensive in terms of time and knowledge. Because

it is focused on human interaction (a guideline expert

interviewing a medical expert), it is very difﬁcult to

improve upon in terms of resources.

Literature research is currently also expensive in

terms of time, but slightly less so in terms of knowl-

edge. A large part of the work, namely the gathering

of new relevant articles, could be performed by com-

puters. While the results of this search should still be

processed by human experts to determine their rele-

vance, giving automatic support to the task of guide-

line updating by indentifying relevant new articles

(evidence) from PubMed could lead to major time

beneﬁts. This project aims to develop a system that

can perform this task in an adequate manner.

1.2 Research Goals

The goal of this project is to develeop a method that

ﬁnds suggests evidence for updates in evidence-based

medical guidelines, to implement a prototype, and to

show the feasability of the method. More speciﬁcally,

our research should answer the following question:

Is it possible to build an automated system that

can improve the process of updating medical guide-

lines by performing literature search?

The answer will be based on the subquestions:

1. How can we extract useful search terms from a

guideline recommendation and its evidence?

2. How can we use the search terms obtained from 1

to construct a relevant PubMed query?

3. How can the search results from our PubMed

query be judged and ranked based on their rele-

vance to the recommendation and their scientiﬁc

strength.

4. How can the ﬁnal search results and their ranking

be evaluated in terms of their use in practice?

The rest of this paper is structured as follows.

First, we brieﬂy discuss other studies towards this

goal and how we hope to improve on their results.

In section 3, we propose our approach to accomplish-

ing this. We will then evaluate our method by running

it on recommendations from multiple guidelines. Fi-

nally, we describe our interpretation of the results and

make suggestions for future research.

2 RELATED WORK

We discuss two approaches to perform a similar task

from the literature. The ﬁrst is a system by (Cohen, et

al., 2012) that predicts whether a medical article can

be used to update a systematic review of a research

ﬁeld. This approach uses a machine learning method

based on Support Vector Machines that is trained on

a dataset of pre-tagged articles. This led to good re-

sults in testing, where over 70% of all updates were

recognized while maintaining a low alert rate. Even

though this approach shows promise, there are def-

initely some downsides to it. Firstly, it requires an

annotated set of articles, which requires a lot of hu-

man effort to assemble. Secondly, the resulting model

trained by the SVM algorithm is still a black box.

Even though the system has decent results, it is difﬁ-

cult to determine how it got these results and whether

the method is generalizable. The second approach is a

system developed by (Iruetaguena, et al., 2013). This

system takes the referenced articles from a guideline,

and then constructs a new set of articles by using the

PubMed related articles search. Then for each arti-

cle in this set, the PubMed related articles are taken

again. This was done for multiple guidelines of which

an older and a newer version were available. The ap-

proach found over 90% of all articles introduced in

the new version (high recall), but the resulting set

of articles was so large that only 0.07% of all arti-

cles found (low precision) were goal articles. Our

approach improve on these two methods in multiple

ways. We want our system to be generalizable, and

not require a manually constructed or tagged set of

articles. We keep our list of suggested articles small,

so that it is easily processable by humans. We im-

plement a ranking system that puts the most relevant

articles high in the list of results.

Other work being done in this ﬁeld aims at for-

malizing and digitalizing guidelines so that they are

easier for computer programs to process. (Peleg, et

al., 2003) describes several languages that are devel-

oped speciﬁcally for this cause. Our work ﬁts very

well to the idea of ‘living guidelines’: guidelines that

are updated continuously, as for example described by

(Seyfang, et al., 2007).

HEALTHINF2015-InternationalConferenceonHealthInformatics

3 APPROACH

In this section, we describe the means we used to an-

swer our research question. We ﬁrst describe the ex-

ternal resources used. Then we propose our method,

followed by detailed description of each step of the

method.

3.1 MEDLINE and PubMed

MEDLINE is the largest online database of medi-

cal scientiﬁc articles. It is an online implementation

of the MEDLARS (Medical Literature Analysis and

Retrieval System) that was launched by the United

States National Library of Medicine in 1964 (Rogers,

1964). We will use this database to retrieve articles

used for evidence updates. One of the most powerful

resources for categorizing medical articles in MED-

LINE are the MEdical Subject Headings, or in short,

MeSH terms. These terms are used as annotations

to all articles in the MEDLINE database, and have

been part of the MEDLARS design since its concep-

tion (Libscomb,2000). These annotations range from

very speciﬁc to very broad, and are structured in the

form of a tree, where broad terms can have more spe-

ciﬁc terms as their children. There are different sub-

trees for different topics, for instance ‘Diseases’ or

‘Organisms’, but also meta-terms such as ‘Publication

Characteristics’

. On top of the MEDLINE database,

the PubMed search engine was developed. This is

a very advanced search engine that offers many op-

tions beyond basic keyword search. Most advanced

features are accessed by entering special parameters

into the search ﬁeld. Other features include search-

ing for publication dates, journals, MeSH terms, and

many others. A full list of search tags can be found

in the PubMed Help book (PubMedHelp 2005). One

of the features that makes PubMed so powerful, is the

automatic recognition of these tags. Plain text that

is given as input is automatically parsed by PubMed

and annotated with semantic tags that help deﬁne the

search query. For example, if a certain piece of text

is recognized as the name of an author, the [Author]

tag is automatically included in the query when it is

executed. We use this for certain steps in our method.

Another key feature of PubMed, is that it allows

access to most of its important features via the Entrez

Programming Utilities, or E-Utilities in short. We use

three of E-utilities functions, namely ESearch, that

performs a query on the database, EFetch, that re-

quests the summary of a given article, and ELink,

that ﬁnds related articles for a given article. A full

For a full overview of the MeSH tree, visit http://

www.nlm.nih.gov/mesh/trees.html

documentation of all features can be found in the E-

Utilities online help book

3.2 Method

The input for our method consists of a recommenda-

tion (in natural language), and the PubMed IDs of the

articles that are used to support it. An example of a

recommendation, including its evidence is shown be-

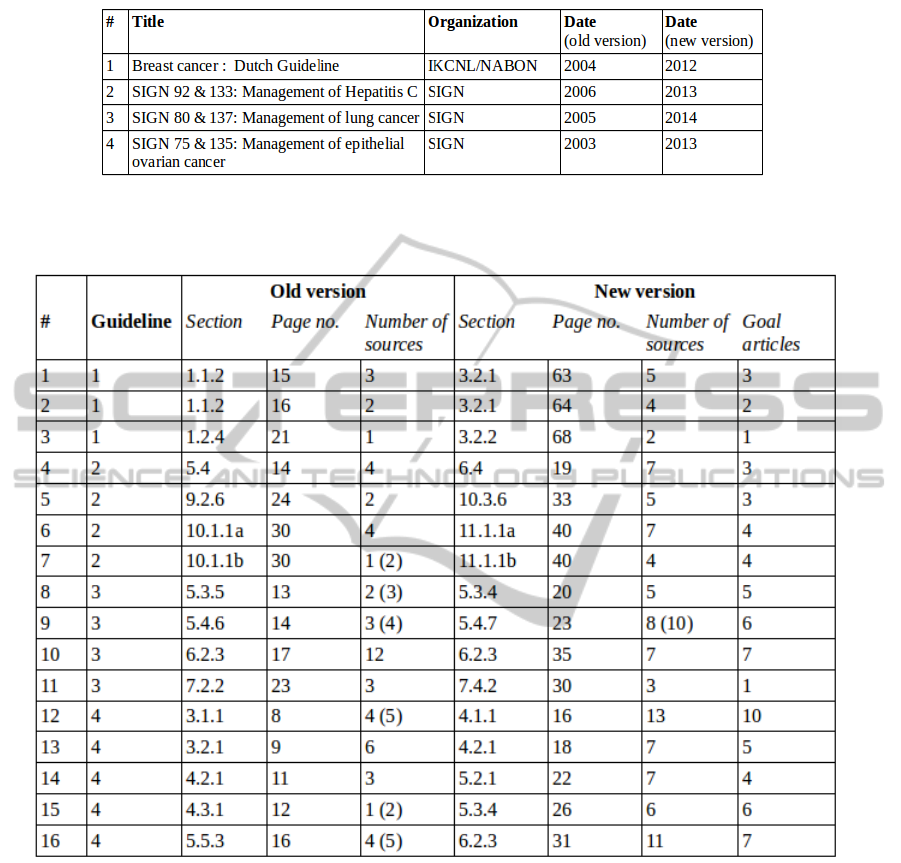

low. This example corresponds to recommendation 1

in table 5.

Addition of radiotherapy following local excision

of DCIS results in a signiﬁcantly lower risk of lo-

cal recurrence (this is valid for all subgroups). with

the PubMed IDs 9469327, 12867108, 10683002, and

8292119. Based on this input, we take the following

steps:

step 1: Parsing the recommendation

step 2: Processing the evidence

step 3: Constructing a PubMed query and executing

the query

step 4: Grading and ranking the results

step 5: Generating the output to the user

We discuss each step in detail below.

3.2.1 Step 1: Parsing the Recommendation

The recommendation is a string of natural language,

from which we want to extract as much useful infor-

mation as possible. We use ESearch API from the E-

Utilities of PubMed. As we described in section 3.1,

the query processing system can automatically recog-

nize certain terms. We make use of this by sending

the recommendation string to the ESearch API, and

extracting the recognized MeSH terms for the query

that is returned. We use those MeSH terms for con-

structing the query (step 3).

3.2.2 Step 2: Processing the Evidence

To process the evidence articles, ﬁrst a Python dic-

tionary is created, with as its keys the article IDs for

each evidence article, and as its value another dictio-

nary containing information on the article that was

extracted from its summary which is obtained by per-

forming an EFetch request, including its title, ab-

stract, and a list of MeSH terms used to categorize

it. We perform a loop over the sets of MeSH terms

and use them to create two sets. The goal of this pro-

cess is to establish which terms are common between

the articles, and are therefore useful for annotating the

http://www.ncbi.nlm.nih.gov/books/NBK25500/

FindingEvidenceforUpdatesinMedicalGuidelines

recommendation. The ﬁrst will be referred to as ‘pri-

mary terms’, and contains terms that:

• Are used to categorize every piece of annotated

evidence

• Are tagged as a ‘Major Topic’ in at least one piece

of evidence

The set of ‘secondary terms’ contain MeSH terms

that are used to categorize all but one piece of evi-

dence.

3.2.3 Step 3: Constructing and Executing

Queries

At this point, we have two pieces of information:

1. A set of terms that PubMed recognized in the rec-

ommendation text.

2. A set of primary terms and a set of secondary

terms that were extracted from the evidence.

We use this information to create one or multi-

ple PubMed queries that will bring us new relevant

articles. It should be possible to make queries more

broad (more answers) or more speciﬁc (less answers),

depending on the number of results that is desirable.

For this goal, we use two methods:

1. Constructing a query by combining sets of terms

(result of step 1)

2. Constructing a query by selecting terms (result of

step 2)

Constructing Queries Method by Combining Sets

of Terms

This method is used in the case where we have a set of

primary and a set of secondary terms. These sets are

left in tact, but the variation lies in how they can be

combined can make the resulting query more speciﬁc

or more broad (lower level). The different levels of

this combination, ranging from the most broad to the

most speciﬁc, are shown in table 1.

For this method, the program starts by executing a

query of level 4 (the most speciﬁc). This query is sent

to PubMed with the ESearch method. If there are not

enough search results, it tries again with a query from

a broader level. This process continues until enough

results are gathered.

For example the recommendation (14 from table

5):

”To minimise the need for a second operative

staging procedure, intraoperative frozen sec-

tion assessment can be used to diagnose ma-

lignancy and to exclude metastatic disease.”

Table 1: Different levels for combining primary and sec-

ondary terms.

Level Query format (output)

0 Disjunction of the union of

primary and secondary terms

1 Disjunction of primary terms

2 Conjunction of primary terms

3 (Conjunction of primary terms) AND

(Disjunction of secondary terms)

4 (Conjunction of primary terms) AND

(Conjunction of secondary terms)

The following MeSH terms were determined to be

primary terms:

{Humans, Frozen Sections, Ovarian Neoplasms,

Retrospective Studies, Female}

The following MeSH terms were determined to be

secondary terms:

{Sensitivity and Speciﬁcity, Adolescent, Predictive

Value of Tests, Middle Aged, Aged, 80 and over,

Adult, Aged}

Table 2 shows the different queries constructed for

each level. In the table the quotation marks, MeSH

Terms strings added to each term, and search time

ranges were removed for the sake of clarity.

Constructing Queries Method by Selecting Terms

The second method for constructing queries, is called

‘Querying by Selecting Terms’. This method takes a

single set of MeSH terms as its input. These terms

are then combined into a conjunction, which is sent

to PubMed as a query. If the query does not yield

enough results, the least important of the MeSH terms

is removed from the list, and the query is sent again.

The difﬁcult part here is determining which of the

terms are the most and least important. For this task,

we developed a method that is based on the MeSH

subtrees. The MeSH vocabulary is divided into differ-

ent categories, each indicating a different part of the

medical domain. We ordered the different subtrees in

terms of their relevance for constructing a query, the

result of which is shown in Table 3. The list of terms

is sorted by the relevance of their subtree, and for each

query, the least important term is removed if there are

not enough results.

3.2.4 Step 4: Grading and Ranking the Results

After a query with a large enough number of results,

we have a list of potentially useful articles. To deter-

mine whether or not an article is useful for a possi-

ble guideline update, we have to determine its scien-

tiﬁc strength. For evidence to be very strong, it has

HEALTHINF2015-InternationalConferenceonHealthInformatics

Table 2: Example of the different levels of queries as con-

structed by combining the sets of primary and secondary

terms of the evidence.

Level Query

4 Humans AND Frozen Sections AND

Ovarian Neoplasms AND Retrospective

Studies AND Female AND Sensitivity

and Speciﬁcity AND Adolescent AND

Predictive Value of Tests AND Middle

Aged AND Aged, 80 and over AND

Adult AND Aged

3 Humans AND Frozen Sections AND

Ovarian Neoplasms AND Retrospective

Studies AND Female AND (Sensitivity

and Speciﬁcity OR Adolescent OR Pre-

dictive Value of Tests OR Middle Aged

OR Aged, 80 and over OR Adult OR

Aged)

2 Humans AND Frozen Sections AND

Ovarian Neoplasms AND Retrospective

Studies AND Female

1 Humans OR Frozen Sections OR Ovar-

ian Neoplasms OR Retrospective Stud-

ies OR Female

0 Humans OR Frozen Sections OR Ovar-

ian Neoplasms OR Retrospective Stud-

ies OR Female OR Sensitivity and

Speciﬁcity OR Adolescent OR Predic-

tive Value of Tests OR Middle Aged OR

Aged, 80 and over OR Adult OR Aged

Table 3: List of MeSH subtrees ranked by importance.

Rank Index Description

1 C Diseases

2 D Chemicals and Drugs

3 A Anatomy

4 B Organisms

5 N Health Care

6 M Named Groups

7 E Analytical, Diagnostic and

Therapeutic Techniques and

Equipment

8 F Psychiatry and Psychology

9 G Phenomena and Processes

10 H Disciplines and Occupations

11 I Anthropology,Education, So-

ciology and Social Phenomena

12 J Technology, Industry, Agricul-

ture

13 K Humanities

14 V Publication Characteristics

15 L Information Science

16 Z Geographicals

to describe randomized controlled trials, a type of re-

search in which test subjects are separated into multi-

ple groups. (Rosenfeld and Shiffman, 2009) describes

a set of criteria that can be used to determine whether

an article describes research of this form. Based on

these criteria, each article in the result set is tagged

with a boolean value that indicates whether it is strong

or not. This method is described in detail in (Irue-

taguena et al., 2013), and is also implemented in our

system.

Next to an article’s scientiﬁc strength, we want to

determine its relevance to the guideline recommen-

dation. Two techniques are applied for this. First,

the term frequency/inverse document frequency (tf-

idf) value is calculated for each article. This term was

ﬁrst coined by (Stalton and Buckley, 1988). To do

this, a corpus of 50,006 article summaries was gath-

ered by requesting related articles to our input arti-

cles on PubMed. A dictionary was created containing

each word in the abstracts of these articles, as well as

their relative number of occurrences. The words in

the recommendation are then compared to the words

in the abstract for each individual and the sum of the

weights for terms that occur in both is taken. The re-

sulting score is a measure for the article’s relevance.

The second measure to determine article relevance is

the Inverse MeSH distance. To calculate this measure,

the distance in MeSH tree branches between MeSH

terms used to categorize each article and the MeSH

terms extracted from the recommendation is calcu-

lated. This is based on the assumption that terms that

are close to each other in the tree are more similar

than ones that are far apart. The inverse of this value

is taken, so that more similar articles receive higher

grades. This computation is made only if two terms

are in the same subtree of the MeSH vocabulary.

At this point we have three measures of relevance

for an article:

1. The article’s scientiﬁc strength s

2. The article’s abstract’s relevance to the recom-

mendation r

3. The inverse MeSH distance to the recommenda-

tion d

We use those three measures to rank the articles.

The score for each article is calculated using the fol-

lowing formula: score = (5 ·s) + r + d

s is given more weight than the other variables, be-

cause it turned out during testing that the article’s sci-

entiﬁc strength is a strong factor in indicating whether

or not it can be referenced in a medical guideline.

Of course other weights can be given to the different

components. After the score for each article has been

calculated, the list of articles is sorted by this score in

FindingEvidenceforUpdatesinMedicalGuidelines

descending order and presented to the user.

3.2.5 Step 5: Generating the Output

The output of the algorithm is an HTML ﬁle pre-

senting the program’s results in a clear overview,

sorted on ranking and with the calculated grades. The

queries that were executed are also displayed, as well

as the terms used to generate them from both the

recommendation and the evidence. The level of the

query is also stated. All articles and queries contain a

hyperlink to directly access them on PubMed.

3.3 Implementation

The entire system is implemented in Python. All code

was tested and conﬁrmed to be working on Python

2.7.6, using one external library: the xmltodict li-

brary, that allows XML ﬁles to be loaded and inter-

preted as Python dictionaries. This was used to parse

the results of the PubMed responses. The library is

available from its website

. The source code is avail-

able on the author’s GitHub account

4 EXPERIMENTS AND RESULTS

4.1 Experimental Set-up

For the feasibility study, several experiments were

performed, all with real medical guidelines of which

two versions were available: one recent version and

an older version from a few years ago. Recommen-

dations from these guidelines that were updated with

new evidence between these versions were selected.

These recommendations and their corresponding evi-

dence were extracted and used as data to evaluate the

system.

For the different types of queries that our program

uses, we want to evaluate three metrics.

The Recall is the percentage of goal articles found

by the query. Goal articles are articles that were added

to a recommendation between the two versions of the

guidelines, and that were thus used to update the rec-

ommendation.

The Number of results is the number of search re-

sults for each query. This value will be evaluated to

get an indication of whether the program has managed

to generate queries that are not too broad or too spe-

ciﬁc. Ideally, this number should lie between 10 and

200 for each query.

See: https://pypi.python.org/pypi/xmltodict

https://github.com/roelofreinders/guidelineupdate

The Top25-Recall is the percentage of goal articles

that were found by the program and that were ranked

in the top 25 most relevant results by the ranking algo-

rithm. This value should be compared to the Recall: if

goal articles are retrieved, but not ranked highly, this

would be an indication that the ranking algorithm is

under-performing.

4.2 Gathering of Test Data

The recommendations used for these experiments

were extracted from the guidelines shown in table 4

From these guidelines, recommendations had to be

extracted by hand. This was done by reading both

versions of the guideline and looking for sections on

the same subject, where the evidence for a recommen-

dation had changed between versions. This usually

meant that there was a change in the text, as well as

an improvement of the recommendation’s grade. For

each recommendation, the text of the older version

was used as program’s input. For the recommenda-

tions’ evidence, all PubMed IDs were gathered by

searching for the referenced articles manually. The

PubMed IDs that occur in the new version of the

guideline, but not in the old one, are identiﬁed as ‘goal

articles’: these are the articles that we want our pro-

gram to ﬁnd.

The list of recommendations used is shown in

table 5, together with their number of evidence ar-

ticles in both the old and the new version. The

full recommendations and their evidence and goal

articles are supplied in http://www.roelofreinders.nl/

guidelineupdate/appendixa.pdf.

4.3 Finding the Optimal Search

Strategy

As described in section 3.2.3, we developed two ways

of constructing PubMed queries from sets of MeSH

terms. The sets were extracted from the recommen-

dation text and the evidence articles. Both were cre-

ated in such a way that they can be made more broad

or more speciﬁc in terms of how many results they

return. Now we want to compare how these methods

compare to each other in terms of ﬁnding the greatest

number of goal articles. For our experiments we use

the query construction method by combining sets with

different input sets of MeSH terms (techniques 1,2,

3), and the query construction method by selecting

terms with different input set of MeSH terms (tech-

nique 4, 5, 6):

1. Query construction method by combination for

just the MeSH terms from the recommendation

HEALTHINF2015-InternationalConferenceonHealthInformatics

Table 4: The guidelines used to gather test data.

Table 5: The recommendations and their evidence extracted from the guidelines. Not every evidence article could be found

on PubMed. The number of evidence articles that were retrievable from PubMed are listed in the table, and the actual number

of articles is shown between parentheses. The guideline number refers to the guideline number of table 4.

2. Query construction method by combination of

the primary and secondary evidence set of MeSH

terms

3. Query construction method by combination of the

union of the MeSH terms of the recommendation

and the primary evidence MeSH terms, and the

secondary evidence MeSH terms

4. Query construction method by selecting terms for

just the recommendation terms

5. Query construction method by selecting terms for

the primary evidence terms

6. Query construction method by selecting terms for

the recommendation MeSH terms and the primary

evidence MeSH terms combined

Both query construction methods will construct a

broader query until the desired number of articles. For

the experiments the minimum number of search re-

sults was set to 15 for each technique. For the grading

and ranking of the results we use at most 1000 results,

in other words the maximum number of results from

PubMed was set to 1000. The results where sorted by

PubMed based on their relevance to the query. This

means that result 1001 and onward will be ignored

by the ranking algorithm and ignored for its results.

This number was chosen because it seems to be on

the edge of what a laptop can handle, and we do not

want to overburden the PubMed servers by requesting

thousands of articles.

FindingEvidenceforUpdatesinMedicalGuidelines

The percentage of goal articles found per recom-

mendation in the at most 1000 results, as well as the

total number of search results returned by techniques

1 to 3 are shown in table 6. The results for techniques

4 to 6 are shown in table 7.

Overall, 20 out of 71 goal articles were found.

Looking at the results more closely, we can note the

following ﬁndings:

1. For 5 out of 16 recommendations, the system was

unable to ﬁnd any of the goal articles with any of

the techniques (recommendations 3, 5, 12, 13 and

15)

2. Technique 2 found the most articles overall,

closely followed by technique 3. Both techniques

work by the query construction method by com-

bining sets of terms.

3. The techniques 4 to 6, which are based on

constructing queries by selecting terms, perform

much worse.

4. The query constructing method by combining sets

of terms (technique 1-3) performs better overall,

but yields many more search results. This in-

dicates that the query captures the recommenda-

tions’ meaning the best, but is not very speciﬁc in

doing so.

If we want to explain ﬁnding 1, we have to take

a closer look at recommendations 3, 5, 12, 13 and

15. For recommendation 3, 5 and 15, this can be ex-

plained by the small amount of evidence articles for

the recommendation (1, 2 and 1 respectively). No-

table about recommendations 12 and 13 is that their

updates seem to radically change the recommenda-

tion itself. This could be the reason that the system

was unable to ﬁnd any goal articles: the goal articles

are simply too different from the original evidence.

To elaborate on ﬁnding 2, we have to look more

closely at the techniques used. Both are based on con-

structing query method by combining sets of terms,

and both use the primary MeSH terms extracted from

the evidence articles as their input (for technique 3,

these are augmented with the MeSH terms of the rec-

ommendation). In practice, most queries that reach

the threshold of 15 articles are of level 1: they are a

disjunction of all primary terms, as explained in sec-

tion 3.2.3. This explains why the number of search

results is so large, as disjunctions are very weak re-

strictions on the set of articles. The fact that there are

still a signiﬁcant number of goal articles found, indi-

cates that the PubMed search engine is quite potent at

sorting articles by relevance to the search terms, since

only the ﬁrst 1000 were used.

We can also see that constructing queries by se-

lecting terms (technique 4-6) reaches one of the goals

for which it was designed, which is decreasing the

search space. This can be seen by the number of

search results, which is much lower on average than

when using the constructing queries by combining

sets of terms (technique 1-3) . This approach is, how-

ever, much worse at ﬁnding the goal articles. This in-

dicates that removing search terms in order to broaden

the query can lead to a loss in meaning, causing worse

results.

The large number of results returned by the

queries indicates how volatile queries can be. Even

though our approach offers a lot of variation between

broad and speciﬁc queries, small changes such as re-

moving a term or switching from conjunction to dis-

junction can result in an explosion in the number of

results obtained by the query. This is a difﬁcult prob-

lem to solve due to the size of the database, and re-

quires further research.

4.4 Results for Ranking

Now that we have an indication of how well our

queries perform, we will examine how well the rank-

ing algorithm performs in determining their rele-

vance. To do this, we will take a look at our best

performing technique (1-6) for each recommendation,

and measure the percentage of articles that are ranked

in the top 25 most relevant. We chose the number 25,

as this is a reasonable amount that can be processed

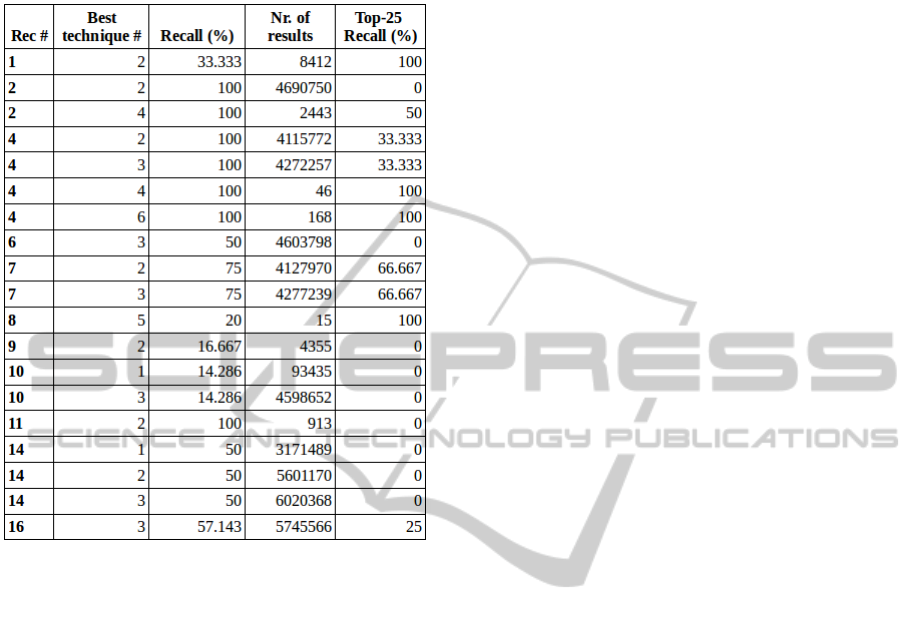

by a person in approximately an hour. In table 8 is for

each recommendation given: the best technique (1-6),

the recall for the at most 1000 results (the percentage

goal articles in ﬁrst 1000 results), and the top-25 re-

call. Recommendations for which we found no goal

articles (3, 5, 12, 13 and 15) are omitted.

From these results, we can immediately see the

urgency of keeping the number of search results low.

In the cases where there are a lot of results, the goal

articles have a very high chance to get lost outside

of the top of the ranking. This reinforces the ﬁnd-

ings of (Iruetaguena, et al., 2013), who noted simi-

lar results. This indicates that the combination of the

Rosenfeld-Shiffman ﬁlter combined with tf-idf is per-

haps not a suitable way to process large numbers of

articles, as the resulting ratings are very close to each

other for many articles. For smaller sets of articles,

for instance recommendations 4 and 8, the algorithm

seems to have performed very well.

The addition of the MeSH distance to these rat-

ings showed little difference. This can have multiple

reasons:

• Not all articles are sufﬁciently annotated with

MeSH terms. If an article is not annotated, the

MeSH distance will always be 0, resulting in an

HEALTHINF2015-InternationalConferenceonHealthInformatics

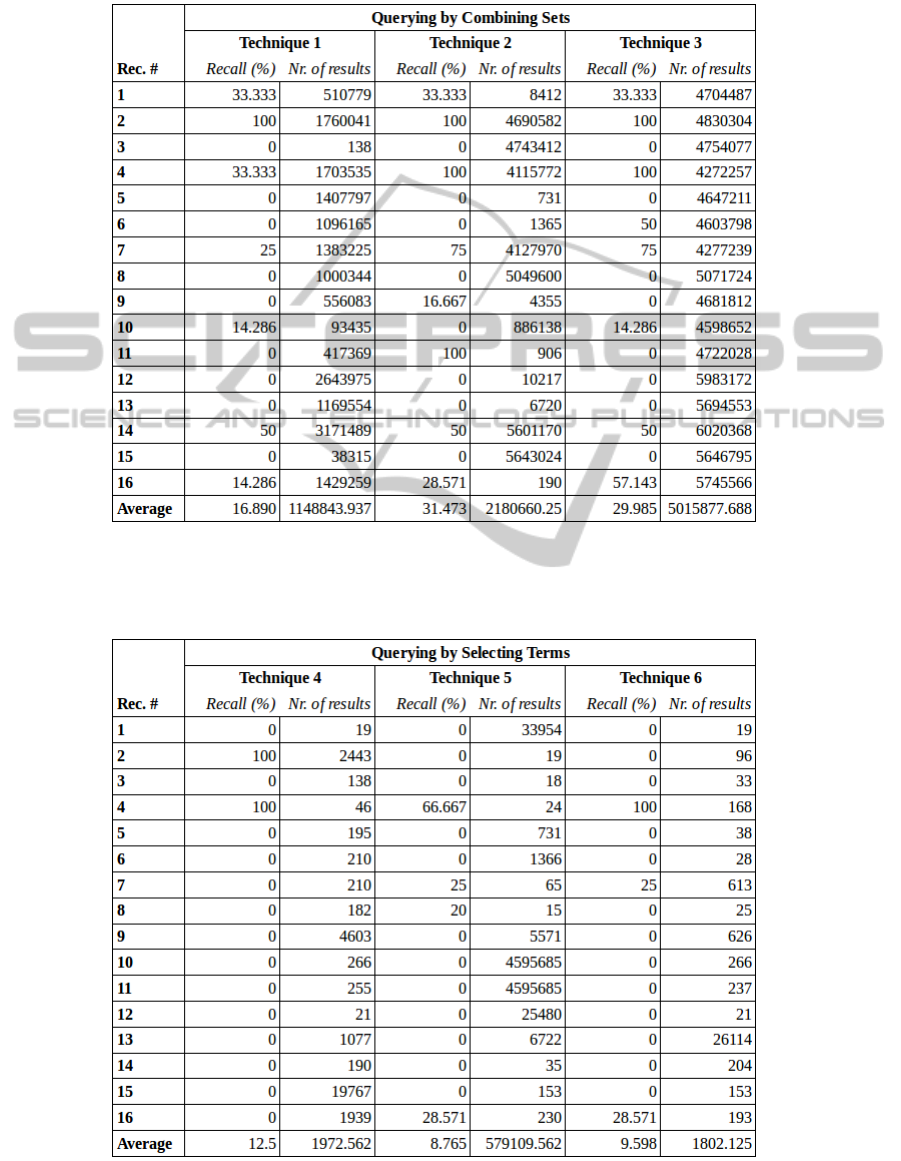

Table 6: Percentage of goal articles found in the ﬁrst (at most) 1000 results and the number of search results for each

recommendation per technique. Technique 1-3 use ”querying by combining sets” for query construction with respectively the

MeSH terms from the recommendation (technique 1), the primary and secondary evidence sets of MeSH terms (technique 2),

and the MesH terms from the recommendation, and the primary/secondary evidence sets of MeSH terms (technique 3).

Table 7: Percentage of goal articles found in the ﬁrst (at most) 1000 results and the number of search results for each

recommendation per technique. Technique 4-6 use ”querying by selecting terms” for query construction with respectively the

MeSH terms from the recommendation (technique 4), the primary and secondary evidence sets of MeSH terms (technique 5),

and the MesH terms from the recommendation, and the primary/secondary evidence sets of MeSH terms (technique 6).

FindingEvidenceforUpdatesinMedicalGuidelines

Table 8: The best technique, the recall (based on the at most

ﬁrst 1000 results), and the Top25-Recall for each recom-

mendation.

advantage over other articles.

• The weighting of the MeSH distance was not op-

timally calibrated. The resulting number was very

low and did not have much impact on the article’s

score.

While the second reason can be solved by further

experimentation, the ﬁrst reason indicates a difﬁcult

problem, that can only be solved by more consistent

tagging of articles from the side of PubMed. Al-

though the annotation standards have improved over

the years, older articles are still poorly tagged which

makes them harder to ﬁnd, although those are proba-

bly less relevant for guideline update.

5 CONCLUSION

5.1 Findings

Giving automatically support to the guideline update

process by identifying relevant papers for updating

the guideline is a challenging task. Previous attempts

have shown some success in ﬁnding articles for up-

dates, but these approaches each had their limitations.

Cohen et al. (2012) show some success in identify-

ing goal articles with a machine learning approach,

but this approach requires a large manually annotated

dataset, which is very labor-intensive. Iruetaguena et

al.(2013) were able to ﬁnd these articles, but their re-

sult set was too large, and their rating and ﬁltering

proved insufﬁcient to ﬁlter out goal articles to the top

of their ranking.

Our approach focused on extracting as much in-

formation as possible from the recommendation text

and the supporting evidence articles in the form of

MeSH terms. These MeSH terms were then used to

construct PubMed queries that could be tuned to be

more speciﬁc or more broad depending on the number

of results. Extracting MeSH terms from the recom-

mendation text and from evidence articles was done

by using E-utilities from PubMed. For the evidence

we constructed a set of primary MeSH terms, which

were shared amongst all articles, and set of secondary

MeSH terms, which were shared amongst all but one.

From these sets of MeSH terms, two techniques

for querying PubMed were constructed:

1. Constructing queries by combining sets, which

takes two sets of MeSH terms as input and

chooses which logical operator is used amongst

them (conjunction or disjunction) in order to make

the query more broad or more speciﬁc.

2. Constructing queries by selecting terms, which

takes the conjunction of a set of MeSH terms, and

removes terms in order of importance to make the

query more broad. The order of importance is de-

termined by a pre-made ordering of MeSH sub-

trees.

The techniques were evaluated by taking older

and newer versions of four medical guidelines. From

these guidelines, recommendations concerning the

same subject were selected that were updated between

the older and the newer versions. From these recom-

mendations, the set of articles introduced in the newer

version of the recommendation were determined as

‘goal articles’.

After the execution of a query, each article in

the list of search results was rated based on scien-

tiﬁc strength and relevance to the recommendation.

To determine the strength, articles were judged on

the Rosenfeld-Shiffman criteria. To determine rele-

vance, a corpus of 50,006 article summaries was gath-

ered. For each word in this corpus, the tf-idf weight

was calculated. This weight was used in combination

with a new measure called the inverse MeSH distance.

This measure is based on the number of branches sep-

arating two terms in the same MeSH subtree. Based

on these factors, a ranking is calculated.

We ran the program for each recommendation

using different techniques. Overall, constructing

HEALTHINF2015-InternationalConferenceonHealthInformatics

100

queries by combining sets proved to be the most suc-

cessful method for ﬁnding goal articles, particularly

when used on the primary and secondary evidence

terms. One problem that occurred when using this

technique, was that the number of search results was

highly volatile. Most of the higher level (more spe-

ciﬁc) queries yielded 0 results, while the lower level

queries yielded hundreds of thousands of results.

The ‘constructing queries by selecting terms’

technique was successful in making more speciﬁc

queries, and thus keeping the number of search results

in check. This method of searching, however, did ﬁnd

a lot less of the goal articles.

Overall, the combined techniques found at least

one goal article for 11 out of 16 recommendations. In

total, 20 out of 71 goal articles were found.

The ranking of the articles was successful for

queries with not too many results, for which the ma-

jority of articles was ranked in the top 25. For the

larger lists of results (> 1000 in length), goal articles

were often lost in the middle of the ranking.

5.2 Discussion and Future Work

The ﬁrst thing to state about the results, is that the

amount of goal articles found is not necessarily rep-

resentative of the success of the system. Guidelines

are maintained by a panel that judge article relevance

based on articles handed to them by an information

expert. It could be that the program ﬁnds other use-

ful articles that could be used to improve guideline

quality other than the ones used by the committee.

Based on our own judgment of the search results, this

could very well be the case, as the top articles seem

mostly relevant to the topic at hand. To make a solid

judgment of this would take a medical professional or

someone with expert knowledge on the subject. An

experiment in a setting in which such an expert would

provide feedback on the results could provide a better

evaluation of the system.

Another factor that inﬂuenced the performance of

the system, was the timespan between the two ver-

sions of the recommendation that the system was

tested on. In our case this was several years; the

time between the release of two guideline documents.

When the concept of ‘living guidelines’ becomes a re-

ality, the timespan might however be a lot shorter, for

instance a month. Because this signiﬁcantly reduces

the search space, it could also greatly improve the re-

sults. Notice that our methods rely on the availability

of the MeSH terms in PubMed.

The search strategies we developed each have

their own upsides and downsides. Searching by com-

bination works decently for ﬁnding goal articles, but

the number of search results is not very scalable and

tends to explode. This meant a lot of the selection of

the articles was left to PubMed, which performed a

decent job, but this was not the aim of the research.

Searching by terms on the other hand, scales very

well when it comes to limiting the number of search

results, but performs much worse when it comes to

ﬁnding goal articles. This could be because the or-

dering of the importance between the MeSH subtrees

was done based on intuition and not tested severely.

This is because the number of possible orderings is

explosive. An ordering made by a medical informa-

tion expert could perhaps offer better results.

When it comes to the number of search results,

we believe this is perhaps the most difﬁcult problem

to solve. The size of the MEDLINE database makes

it difﬁcult to set good restrictions on the number of

results when constructing queries. Perhaps a hybrid

method that combines aspects of both searching by

combination and searching by terms could be used for

this.

An extension that could be made to the method

is the inclusion and prediction of the evidence rating.

This is a letter that indicates how solid the evidence

provided is. The rules for assigning this grade are

clearly deﬁned, and could be applied automatically.

However, this step is outside of the scope of this re-

search.

Looking at the performance of our ranking sys-

tem, we see that there is room for improvement, as

the algorithm seems to fall short when it comes to

larger result sets. Perhaps this indicates that simple

word comparison, even with tf-idf weighting, is not

sufﬁcient for this task. We therefore believe it will

be useful if more meta-data would be included in the

ranking. Examples of this would be MeSH terms, the

number of times an article is cited, or the journal that

an article has appeared in. We believe the MeSH dis-

tance is a good approach to attaining this in theory, but

it ran into several practical problems, such as the lack

of tags on a large number of articles. Using meta-data

to judge the relevance of evidence would deﬁnitely be

worth looking into in the future.

Overall, we believe that our system has achieved

its goals, and is a good base for further research. We

constructed a small set of test data that can be used

in the future. During the evaluation, we clearly man-

aged to identify the problems that our approach ran

into, and we believe these offer solid ground for future

research. We think living guidelines and automated

guideline updates are deﬁnitely attainable in the fu-

ture.

FindingEvidenceforUpdatesinMedicalGuidelines

101

ACKNOWLEDGEMENTS

This work is supported by the European Commis-

sion under the 7th framework programme EURECA

Project (FP7-ICT-2011-7, Grant 288048).

REFERENCES

Entrez Programming Utilities Help [Internet].

Bethesda (MD): National Center for Biotechnol-

ogy Information (US); 2010-. Available from:

http://www.ncbi.nlm.nih.gov/books/NBK25501/

PubMed Help [Internet]. Bethesda (MD): National

Center for Biotechnology Information (US); 2005-.

PubMed Help. [Updated 2014 Jul 9]. Available from:

http://www.ncbi.nlm.nih.gov/books/NBK3827/

Cohen, A. M., Ambert, K., & McDonagh, M. (2012).

Studying the potential impact of automated document

classiﬁcation on scheduling a systematic review up-

date. BMC medical informatics and decision making,

12(1), 33.

Field, M. J., & Lohr, K. N. (1990). Clinical practice guide-

lines: Directions for a new Program. Washington

(DC): Institute of Medicine.

Iruetaguena, A., Garcia Adeva, J.J., Pikatza, J. M., Se-

gundo, U., Buenestado, D., & Barrena, R. (2013). Au-

tomatic retrieval of current evidence to support update

of bibliography in clinical guidelines. Expert Syst.

Appl., 40, 6 (May 2013), 2081-2091.

Lipscomb, C. E. (2000). Medical subject headings (MeSH).

Bulletin of the Medical Library Association, 88(3),

265.

Peleg, M., Tu, S., Bury, J., Ciccarese, P., Fox, J.,

Greenes, R. A., ... & Stefanelli, M. (2003). Compar-

ing computer-interpretable guideline models: a case-

study approach. Journal of the American Medical In-

formatics Association, 10(1), 52-68.

Rogers, F. B. (1964). The Development of MEDLARS. Bull

Med Libr Assoc., 52(1): 150C151.

Rosenfeld, R. M., & Shiffman, R. N. (2009). Clinical

practice guideline development manual: a quality-

driven approach for translating evidence into action.

Otolaryngology–head and neck surgery: ofﬁcial jour-

nal of American Academy of Otolaryngology-Head

and Neck Surgery, 140(6 Suppl 1), S1.

Sackett, D. L., Rosenberg, W. M., Gray, J. A., Haynes,

R. B., & Richardson, W. S. (1996). Evidence based

medicine: what it is and what it isn’t. BMJ: British

Medical Journal, 312(7023), 71.

Salton, G., & Buckley, C. (1988). Term-weighting ap-

proaches in automatic text retrieval. Information pro-

cessing & management, 24(5), 513-523.

Seyfang, A., Martnez-Salvador, B., Serban, R., Wittenberg,

J., Miksch, S., Marcos, M., ten Teije, A. & Rosen-

brand, K. (2007). Maintaining formal models of liv-

ing guidelines efﬁciently. In Artiﬁcial Intelligence in

Medicine (pp. 441-445). Springer Berlin Heidelberg.

Shekelle, P., Eccles, M. P., Grimshaw, J. M., & Woolf, S. H.

(2001). When should clinical guidelines be updated?.

BMJ: British Medical Journal, 323(7305), 155.

HEALTHINF2015-InternationalConferenceonHealthInformatics

102
