A Framework to Mitigate Debugging Difﬁculty on Agent Migration

Shin Osaki

, Masayuki Higashino

, Kenichi Takahashi

, Takao Kawamura

and Kazunori Sugahara

Department of Information and Electronics , Graduate School of Engineering, Tottori University, Tottori, Japan

Organization for Regional Industrial Academic Cooperation, Tottori University, Tottori, Japan

Keywords:

Mobile Agent System, Debug, Distributed System, Migration, Interaction.

Abstract:

A mobile agent is an autonomous software module that can work on different computers and migrate among

these computers. The characteristics of a mobile agent, migration and interaction, are helpful to implement

distributed systems. In the real world, however, a mobile agent is not widely used because its migration makes

debugging distributed systems difﬁcult. Therefore, in this paper, we discuss problems in debugging a mobile

agent system and propose a framework that includes a search, a single-step execution, and a reproduction

function to help programmers debug a mobile agent system. Results from our experiments on debugging test

applications show that our framework is helpful to support programmers and help them to debug. This reduces

the number of keystrokes by 41% and number of clicks by 24%.

1 INTRODUCTION

A mobile agent system, which is constructed from

many mobile agents, can migrate among computers to

achieve its tasks. Hence, we can use mobile agent mi-

gration instead of clientserver communications. Be-

cause the mobile agent can continue its work over the

computers, we do not need to elaborate a client- and

server-side program pair. We can implement a server-

and client-side program as one mobile agent, thus en-

abling us to implement a network-based system with-

out being aware of communication APIs and proto-

cols. Such a mobile agent system is attractive for de-

signing, implementing, and maintaining a distributed

system (Hurson et al., 2010; Outtagarts, 2009); how-

ever, a mobile agent is not widely used in the real

world because the migrations of mobile agents make

it difﬁcult to debug mobile agent systems.

To debug a mobile agent system, it is important

to grasp their behavior. However, this is difﬁcult

because there are many mobile agents that migrate

among computers autonomously. In general, a debug-

ger provides remote debugging functions, such as a

breakpoint function and a single-step execution func-

tion, to check the details of running programs; how-

ever, it does not expect the migration of programs.

Thus, we cannot debug mobile agents continuously

because they migrate to other computers even while

programmers are debugging. Another problem is that

the behavior of a mobile agent is affected by other

mobile agents. Furthermore, network conditions can

affect the migration of a mobile agent. Therefore,

we need to consider not just one but multiple mo-

bile agent states and network situations in debugging.

There are some standards organizationfor agents such

as FIPA(FIPA, 2014) and MASIF(Milojicic et al.,

1998). However, they do not care about the previously

mentioned Problems. In this paper, we discuss their

problems and propose a debugger that has a search

function, a single-step execution function, and a re-

production function for mobile agents.

This paper is organized as follows. Section 2 dis-

cusses problems in debugging mobile agents. Section

3 discusses a frameworkto solve these problems. Sec-

tion 4 discusses the implementation and evaluation of

our framework. Section 5 shows related works, and

we conclude the paper in Section 6.

2 PROBLEMS IN DEBUGGING

MOBILE AGENT SYSTEMS

Many mobile agents work on many computers and

migrate autonomously. This characteristic enables

us to reduce network trafﬁc and helps us to con-

struct more robust and faulttolerant distributed sys-

tems. However, it is difﬁcult to debug a mobile agent

system because of the following reasons.

190

Osaki S., Higashino M., Takahashi K., Kawamura T. and Sugahara K..

A Framework to Mitigate Debugging Difﬁculty on Agent Migration.

DOI: 10.5220/0005224401900197

In Proceedings of the International Conference on Agents and Artiﬁcial Intelligence (ICAART-2015), pages 190-197

ISBN: 978-989-758-073-4

 2015 SCITEPRESS (Science and Technology Publications, Lda.)

(a) Autonomous migration. (b) Migration on debugging. (c) Inﬂuence from outside.

Figure 1: Problems on debugging a mobile agent system.

Problem 1. Autonomous Migration

In general systems, we usually debug one pro-

gram. However, there are many mobile agents

(programs) in a mobile agent system. Further-

more, mobile agents disperse to many computers

because each mobile agent migrates among com-

puters autonomously (Figure 1(a)). Therefore,

programmers face difﬁculty grasping the behavior

of mobile agents, thus making it difﬁcult to deter-

mine which mobile agent is causing a bug. To de-

bug a mobile agent system, we need a search func-

tion that enables us to ﬁnd out the mobile agent

that is causing a bug.

Problem 2. Migration During Debugging

To debug a program on a remote computer, we

often use a remote debugger such as breakpoint

function and single-step execution function. Re-

mote debugger need to connect the remote com-

puter where the target is running. A mobile agent,

however, migrates among computers during de-

bugging. A debugger loses the mobile agent when

it migrates because the mobile agent is not run-

ning on remote connected computer yet (Figure

1(b)). To debug a mobile agent continuously, we

need to change the connection automatically ac-

cording to the mobile agents migration.

Problem 3. Outside Inﬂuences

To specify the cause of a bug, we have to repro-

duce the bug. On a mobile agent system, the be-

havior of a mobile agent is affected by the com-

puter environment that the agent is running on and

by other mobile agents. Furthermore, a computer

may leave the network. These reasons make it dif-

ﬁcult to reproduce a bug (Figure 1(c)). Therefore,

we need a function that enables us to reproduce

the bug.

3 DEBUGGING FUNCTIONS FOR

A MOBILE AGENT SYSTEM

In this section, we design a framework to help in de-

bugging a mobile agent system. The framework has

three functions: search, single-step execution, and re-

production. The search function helps us to locate a

mobile agent in the whole system. The single-step ex-

ecution function changes a connection automatically

according to mobile agent migration. The reproduc-

tion function records the state of a agent and the out-

side effects from other agents and enables program-

mers to reproduce a bug.

3.1 Search Function

There are many mobile agents working in a mobile

agent system. To debug the mobile agent system,

programmers need to determine the mobile agent that

is causing the bug. Therefore, we propose a search

function that helps us ﬁnd a mobile agent that may be

causing a bug.

Typical bugs on a mobile agent system are caused

by the migration of a mobile agent. For example, a

mobile agent migrates to unexpected computers, does

not migrate, or migrates frequently. These migrations

cause a defective state in the mobile agent migration

route and/or intervals of mobile migration. Therefore,

to ﬁnd such a mobile agent, we prepare a migration

log. The migration log consists of the following con-

tents.

node

src address of the computer

node

dest address of the destination computer

staying

time running time on the computer

agent

name role of this mobile agent

agent

id identiﬁer of this mobile agent

AFrameworktoMitigateDebuggingDifficultyonAgentMigration

191

Figure 2: Recording migration logs.

The bugs related to migration are judged from

node

src, node dest, and staying time.When a mo-

bile agent arrives from a source computer, the search

function records the address of the source computer as

node

src. When a mobile agent departs to a destina-

tion computer, the search function records the address

of the destination computer as node

dest. By tracing

these logs, we can determine the migration route of

the mobile agent.

staying

time records the difference between agent

arrival time and departure time. This enables us to

know the defect situation related to a mobile agents

migration. agent

name is a name and role that

the programmer speciﬁes. agent

id is a universally

unique identiﬁer)(Leach et al., 2005) for identifying

each agent. The search function records these logs

when mobile agents migrate (Figure 2). agent

name

and agent

id are used for showing a programmer the

search results and selecting the target for debugging.

3.2 Single-step Execution Function

To debug a program, it is necessary to see the state of

the program in detail. In general, a programmer de-

bugs a program by using a single-step execution func-

tion. However,It is difﬁcult to perform this debugging

on a mobile agent system because a mobile agent mi-

grates to remote computers. When the mobile agent

migrates to other computers during debugging, the

general debugger loses the mobile agent. Therefore,

to debug a mobile agent continuously, a singlestep

execution function for a mobile agent system has to

change the connection according to the migration of

the mobile agent when it migrates.

To change this connection, the singlestep execu-

tion function receives the notiﬁcation of a migration

when the mobile agent migrates to another computer.

Then the singlestep execution function changes the

connection according to this notiﬁcation. Here, the

single-step execution function might receive multiple

notiﬁcations concurrently when a mobile agent mi-

grates frequently because network speeds are differ-

ent in each computer. Therefore, the single-step ex-

Figure 3: Migration sequence for the single-step execution

function.

ecution function needs to know the order of notiﬁca-

tions to avoid losing the mobile agent. Thus, a notiﬁ-

cation consists of agent

id, which is an identiﬁer for

the agent; node

dest, which is the IP address of the

destination computer; and id cnt, which is the num-

ber of migrations.

Figure 3 illustrates the sequence of the single-step

execution function. When the mobile agent migrates

from PC:A to PC:B, the mobile agent sends the fol-

lowing notiﬁcation.

• agent

id = 1a8ebd10

• node

dest = PC:B

• id

cnt = 1

Subsequently, the mobile agent migrates from PC:B

to PC:C and sends the following notiﬁcation.

• agent

id = 1a8ebd10

• node

dest = PC:C

• id

cnt = 2

If the later notiﬁcation arrivesat the single-step execu-

tion function ﬁrst, the single-step execution function

records node

dest with id cnt = 2. After this pro-

cess, the former notiﬁcation arrives at the single-step

execution function; the single-step execution func-

tion then compares the received id

cnt and recorded

id cnt; then, it ignores the notiﬁcation because the

received id

cnt is smaller than the recorded id cnt.

Thus, a single-step execution function can debug a

mobile agent even when the agent frequently migrates

during debugging.

3.3 Reproduction Function

To discover the cause of a bug, we must execute a pro-

gram repeatedly to narrow down the cause. However,

the migration and interaction characteristics of a mo-

bile agent make it difﬁcult to ﬁnd the cause because

the result of migration and interaction is different ac-

cording to each situation. Therefore, we propose a

reproduction function, which records the behavior of

ICAART2015-InternationalConferenceonAgentsandArtificialIntelligence

192

(a) Reproducing agent state.

(b) Reproducing interaction.

Figure 4: Reproducing agent state and interaction.

a mobile agent and reproduces a past agent behavior.

Using this information, programmers can conﬁrm the

behaviors as often as they want without executing a

program repeatedly, thus helping them to identify the

causes of bugs.

3.3.1 Migration

To reproduce a bug, it is necessary to reproduce the

state of the debugging program. However, the migra-

tion of a mobile agent is affected by the condition of

the network at that time. To avoid this, we use the

characteristic of a mobile agent. The migration of a

mobile agent is implemented by the following steps

(Satoh, 2006):

Step 1. The runtime system on the source computer

suspends the execution of the agent.

Step 2. It marshals the agent into a bit chunk that can

be transmitted over a network.

Step 3. It transmits the chunk to the destination com-

puter through the underlying network protocol.

Step 4. The runtime system on the destination com-

puter receives the chunk.

Step 5. It unmarshals the chunk into the agent and

resumes the agent.

Here, the chunk, which contains the state of the

mobile agent inside, is created (marshaled) when a

mobile agent migrates. Therefore, we record the

chunk and use the recorded chunk when a mobile

agent migrates. This enables us to avoid the effect

of the network condition.

3.3.2 Interaction

Mobile agents interact with other mobile agents.

Therefore, to discover the cause of a bug, the debug-

ger needs to reproduce the interactions that led to the

problem. To reproduce the interactions, we need to

record the behavior of all partner agents.

The difﬁculty in doing this reproduction is that

many mobile agents are running on a system. There-

fore, we record only the effect from partner agents.

Here, the interactions of mobile agents are real-

ized by message passing. Therefore, we record a

sent message, which is the message the agent sends

to the partner, and reply message, which is the mes-

sage to which the partner agent replies as a key-value

pair. When the reproduction function reproduces the

interaction, the function uses recorded messages in-

stead of partner agents.

3.3.3 Reproducing Behaviors

A reproduction function reproduces the behaviors of a

mobile agent. The reproduction function builds a vir-

tual agent runtime environment for executing mobile

agents. The function restores the mobile agent from a

recorded chunk and executes the mobile agent on the

virtual agent runtime environment. The virtual agent

runtime environment has only one computer and one

mobile agent that the function has recorded. Thus, it

reproduces migration and interactions virtually using

recorded chunks and messages.

When the reproduction function reproduces the

migration of a mobile agent, the function replaces the

state of the mobile agent from the current chunk to the

next chunk (Figure 4(a)). Thus, we can reproduce the

migration irrespective of network conditions.

When an agent tries to interact with a part-

ner agent, the reproduction function steals the

sent message without sending it to the partner. The

function obtains the reply message which is the

value of the sent message by searching with the

sent message from recorded messages. The function

hands this reply message to the agent instead of re-

plying the message from partner agent (Figure 4(b)).

Thus, the reproduction function can reproduce the in-

teraction.

AFrameworktoMitigateDebuggingDifficultyonAgentMigration

193

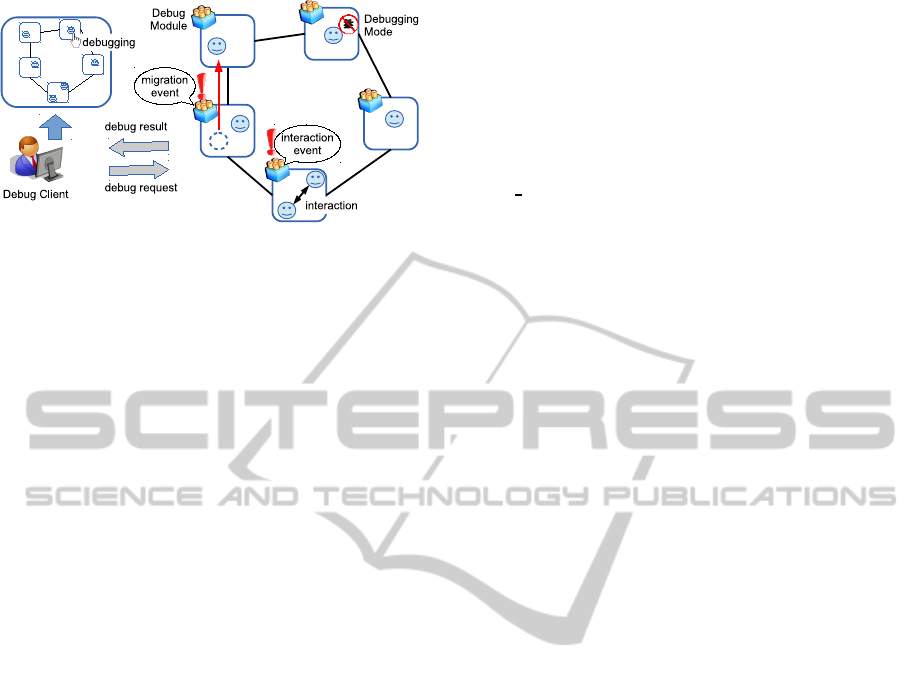

Figure 5: Overview of the debugger.

4 IMPLEMENTATION AND

EVALUATION

We have implemented a prototype of our debugger

on a mobile agent framework called Maglog (Kawa-

mura et al., 2005). To evaluate our proposed debug-

ger, we have experimented by using two applications

that were developed on Maglog.

4.1 Implementation of the Debugger

Maglog is implemented by extending PrologCaf´e

(Banbara et al., 2005), which can run on JVM. Prolog-

Caf´e has a Prolog-to-Java source-to-source translator

and a Prolog interpreter. The mobile agent of Ma-

glog is implemented by extending the Prolog class,

which has a Prolog engine. When a mobile agent mi-

grates, the agent runtime environment converts a mo-

bile agent state to a chunk by java object serialization

(Oracle Corporation, 2014) and transmits it to another

computer.

4.1.1 Construction of the Debugger

Our proposed debugger consists of a debug modules

located on each computer and a debug client lo-

cated on the programmer’s computer (Figure 5). A

debug module records the event logs of agent be-

haviors, such as agent migrations of mobile agent

behaviors running on its computer. A debug client

provides a user interface to debug for program-

mers and communicates with debug modules. Both

debug module and debug client have an HTTP

server. The debug client sends debug requests to

debug modules. A debug module sends a debug re-

sult to the debug client.

4.1.2 Searching Methods

Our proposed search function has two searching

methods. One is the ﬂooding method, which sends

the search query through every outgoing link except

the one on which it arrived. The other is the forward-

ing method, which tracks the route of mobile agent

migration by sending the search query to the destina-

tion of the mobile agent migration by using the mi-

gration log.

The ﬂooding method is used for searching many

mobile agents or computers, such as searching

agent

name, because this method can spread the

search query among many computers. Searching the

migration route is realized by tracing the migration

log by the forwarding method. The programmer can

thereby check an agent and its route.

4.1.3 Single-step Execution Function

To use the single-stepping execution function and

the breakpoint function, we ﬁnd the mobile agent

to debug by the search function. When a pro-

grammer sets a breakpoint to a mobile agent, a

debug client sends a request to set the breakpoint

to the debug module on which the mobile agent is

running. The debug module sets the breakpoint on

the mobile agent. When the mobile agent executes

the breakpoint, the debug module interrupts the ex-

ecution of the mobile agent and sends its state to

the debug client. The debug client shows the pro-

grammer the mobile agents state. Similarly, when

a programmer performs the mobile agent single-

step execution, the debug client sends a request, the

debug module interrupts the execution of the mobile

agent, and replies with the state of the mobile agent.

Figure 6 shows the user interface of the single-

stepping function. The top of the window shows the

IP address in which the mobile agent is running. The

right side of the window shows the current predicate

that the mobile agent is executing. The left side of the

window shows the code of the mobile agent.

This shows the situation where the mobile agent

migrates from 192.168.132.56 to 192.168.132.55. At

the left, a programmer sets the breakpoint to go,

which is a built-in predicate for migration in Ma-

glog, and the mobile agent is interrupted there. The

window after the single-step execution is at the right

in the ﬁgure. The current IP address changes to

192.168.132.55 and the current predicate changes to

retract. Therefore, the programmer can continue the

single-step execution function even if a mobile agent

migrates to another computer during debugging.

4.1.4 Reproduction Function

When a programmer notices that something is wrong

in the system, the programmer sets a mobile agent to

ICAART2015-InternationalConferenceonAgentsandArtificialIntelligence

194

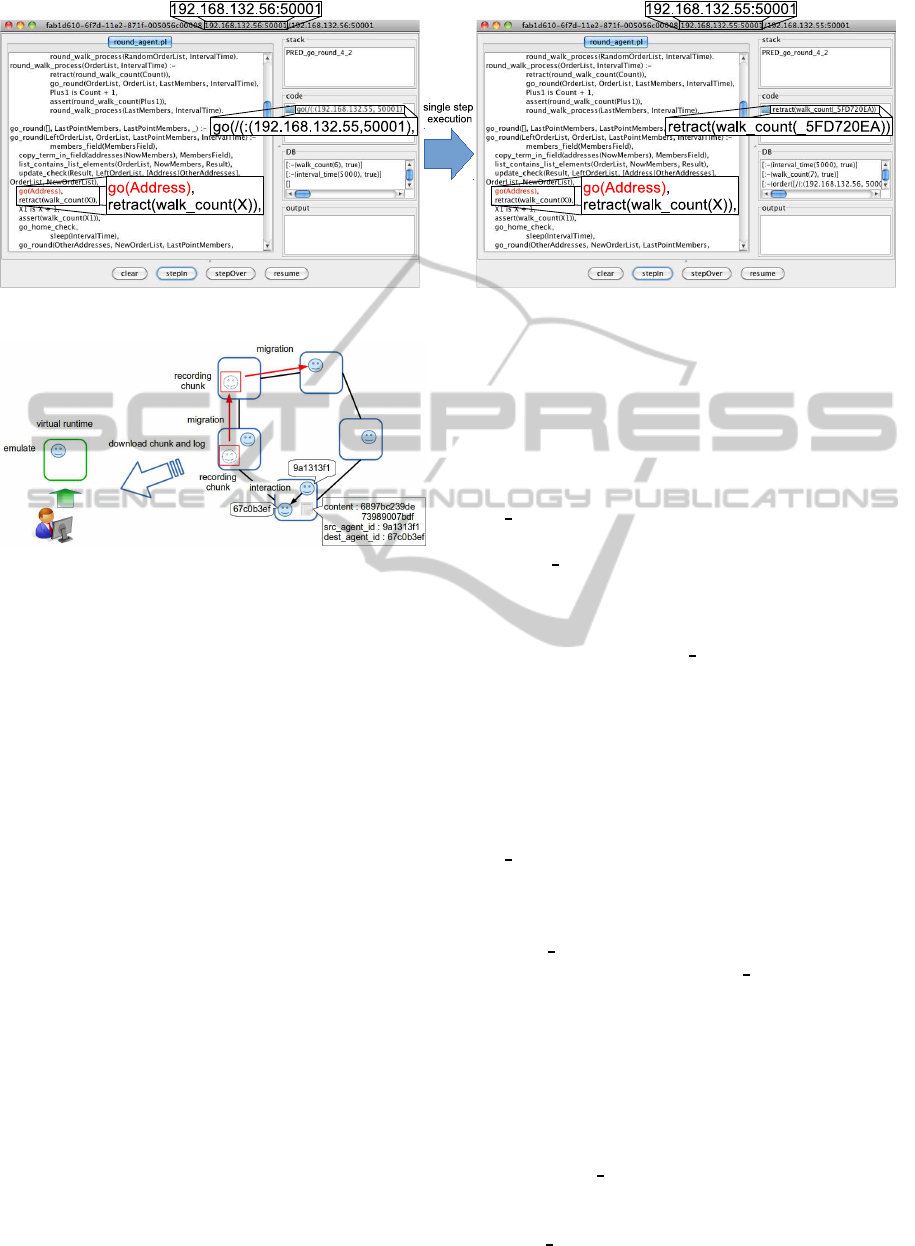

Figure 6: User Interface of the single-stepping function.

Figure 7: Overview of reproduction.

debug. Debug module records the chunk and mes-

sages of the mobile agent. Debug client has a virtual

agent runtime environment that a mobile agent exe-

cutes. Debug client restores the chunk and executes

the mobile agent on the virtual agent runtime. envi-

ronment (Figure 7).

When a programmer sets the breakpoint for the

mobile agent, debug client downloads the chunk and

messages from the debug module. Debug client re-

stores the past state of the mobile agent and executes

it. Reproduction is realized as follows.

• When the mobile agent tries to migrate, the re-

production function downloads the next chunk

and recorded messages from the destination

debug module.

• When the mobile agent tries to interact, the repro-

duction function hands a recorded message to the

mobile agent.

• When the mobile agent executes the breakpoint,

the debug client interrupts the execution of the

mobile agent.

4.2 Evaluation

We implemented two applications for the evaluation

of our debugger. The ﬁrst application is a distributed

hash table (DHT) and the second application is a ho-

tel reservation application (HOTEL). Table 1 shows

the bugs that occurred in the implementation of each

application.

When we were developing the DHT application,

it failed to obtain a value with a key from the ta-

ble. In this DHT application, a mobile agent named

“get agent” migrated from one computer to other

computers to search for a value related with a key.

After “get

agent” ﬁnished searching for the value, the

agent showed its result to us. However, we could not

obtain the result. Therefore, we noticed that the ap-

plication has bugs.

On this debugging, “get

agent” did not come back

to our computer. We guess that the cause of it is that

the agent died or failed to migrate on the destination

computer. Therefore, we need to conﬁrm the follow-

ing:

• Whether the agent is alive or not;

• Where the agent is running on.

In order to conﬁrm this, we searched a location of

“get

agent” by the search function. The result of the

search is that this agent was running on an unexpected

computer. We noticed that the agent failed to migrate.

Next, we should guess the cause of it. In this applica-

tion, “get

agent” read a destination address from the

address list managed by “network

agent”. Therefore,

we should conﬁrm following:

• Whether the address in the address list is correct;

• Whether the process after reads is succeeded.

Therefore, we restored the previous state, in which the

agent migrated to the unexpected computer, by a re-

production function, and conﬁrmed the migration by

the single-step execution function. This caused us to

notice that “get

agent” read a wrong destination ad-

dress and a list of addresses did not have a correct

one. Thus, we noticed that this bug was caused by

“network

agent”.

AFrameworktoMitigateDebuggingDifficultyonAgentMigration

195

Table 1: Bugs and the useful debugging functions.

bugs search stepping reproduction

fail to store value X X X

fail to get value X X X

DHT

fail to join network X X

fail to initialize hotel information X

lost a part of information X X

HOTEL

search wrong data X X X

Table 2: Number of keystrokes and clicks.

logs keystrokes clicks

without our debugger 869 167

with our debugger 514 128

reduction rate 41% 24%

While conﬁrming the locations of mobile agents

without our proposed debugger, we need to insert

print statements and conﬁrm each log dispersed.

While ﬁnding defective functions and conﬁrming the

values of an instance, migrations of a mobile agent

make it difﬁcult to debug even when using an ordi-

nary remote debugger because we lose a mobile agent

when it migrates. Furthermore, the same bugs may

not even occur if we deploy the same agent because

the situation may change.

In contrast, when debugging with our proposed

debugger, programmers can obtain the locations of

mobile agents easily using the searching function.

Because the single-step execution function can grasp

the behaviors of a mobile agent, a programmer can

be debugging even when the mobile agent migrates to

other computers. The reproduction function can help

us to conﬁrm the causes of bugs by restoring a past

state of a mobile agent.

Table 2 shows the number of keystrokes and clicks

on debugging. As shown in Table 2,the keystroke

count was reduced by 41% and the click count was

reduced by 24% by our proposed debugger. Thus,

our proposed debugger can effectively debug a mo-

bile agent system.

LAM (Logical Agent Mobility)

5 RELATED WORKS

There are description languages to deﬁne interactions

and scenarios among agents. If the deﬁnitions of

interactions and scenarios are valid logically, native

source codes generated from these deﬁnitions do not

have any bugs. Mobile Object-Z (MobiOZ) (Taguchi

and Song Dong, 2002), LAM (Logical Agent Mo-

bility) (Xu et al., 2003) are description languages

that deﬁne interactions and scenarios among agents

for a mobile agent system. These languages verify

the model of a mobile agent application by the Sim-

ple Process meta language Interpreter model checker

(Ben-Ari, 2008) and the Construction and Analysis of

Distributed Processes toolbox (Garavel et al., 2011).

However, To apply these approaches to an existing ap-

plication, a programmer must design and implement

it again for these languages. Furthermore, these ap-

proaches are not realistic in practice because the costs

increase with an increasing scale and complexity of

the applications. Furthermore, some applications are

not compatible with these approaches.

Several researchers have proposed a tool to vi-

sualize interactions among agents (Ndumu et al.,

1999; Lam and Barber, 2005; Padgham et al., 2005;

Vigueras and Botia, 2008; Cabac et al., 2009), but

these tools do not focus on the mobility of agents.

JADE (Bellifemine et al., 2010) and Agent Factory

(Collier, 2007; Brazier et al., 2002) is a platform for

multi-agent systems that includes a debugger. These

platforms support the mobility of agents; neverthe-

less, their debuggers do not support and focus on the

mobility of agents.

(Lynch and Rajendran, 2007) suggested re-

quirements for integrated development environments

(IDEs) to support the construction of multi-agent sys-

tems, but they do not focus on agent mobility. MiLog

(Fukuta et al., 2000) is a framework(platform) includ-

ing an IDE for mobile agent systems that can visualize

the locations of agents in a network and dump logs of

each agent. However, it supports a debugging only on

the visualization of agent locations.

6 CONCLUSION

In this paper, we discussed problems in debugging

a mobile agent system, and proposed the debugging

functions: searching, single-step execution, and re-

production function. Experimental results show that

our proposed functions can mitigate debugging difﬁ-

culty on agent migration.

ICAART2015-InternationalConferenceonAgentsandArtificialIntelligence

196

REFERENCES

Banbara, M., Tamura, N., and Inoue, K. (2005). Prolog

cafe : A prolog to java translator system. In Proc. of

the 16th International Conference on Applications of

Declarative Programming and Knowledge Manage-

ment, pages 1–11.

Bellifemine, F., Caire, G., Trucco, T., and Rimassa, G.

(2010). JADE PROGRAMMERS GUIDE.

Ben-Ari, M. (2008). Principles of the Spin Model Checker.

Springer London.

Brazier, F. M. T., Overeinder, B. J., van Steen, M., and Wi-

jngaards, N. J. E. (2002). Agent factory: generative

migration of mobile agents in heterogeneous environ-

ments. In Proc. of the 2002 ACM symposium on Ap-

plied computing, pages 101–106.

Cabac, L., D¨orges, T., Duvigneau, M., and Moldt, D.

(2009). Requirements and tools for the debugging

of multi-agent systems. In Proc. of the 7th German

conference on Multiagent system technologies, pages

238–247.

Collier, R. (2007). Debugging agents in agent factory. In

Proc. of the 4th international conference on Program-

ming multi-agent systems, pages 229–248.

FIPA (2014). FIPA. Web. http://www.ﬁpa.org.

Fukuta, N., Ito, T., and Shintani, T. (2000). Milog: A mo-

bile agent framework for implementing intelligent in-

formation agents with logic programming. In Paciﬁc

Rim International Workshop on Intelligent Informa-

tion Agents.

Garavel, H., Lang, F., Mateescu, R., and Serwe, W. (2011).

CADP 2010: a toolbox for the construction and analy-

sis of distributed processes. In Proc. of the 17th inter-

national conference on Tools and algorithms for the

construction and analysis of systems, pages 372–387.

Hurson, A. R., Jean, E., Ongtang, M., Gao, X., Jiao, Y.,

and Potok, T. E. (2010). Recent Rdvances in Mo-

bile Agent-Oriented Applications. In Mobile Intelli-

gence: Mobile Computing and Computational Intelli-

gence, Wiley Series on Parallel and Distributed Com-

puting. John Wiley & Sons, Inc., 1st edition.

Kawamura, T., Motomura, S., and Sugahara, K. (2005).

Implementation of a logic-based multi agent frame-

work on java environment. In Proc. of IEEE Interna-

tional Conference on Integration of Knowledge Inten-

sive Multi-Agent Systems, pages 486–491.

Lam, D. N. and Barber, K. S. (2005). Debugging agent

behavior in an implemented agent system. In Proc. of

the Second international conference on Programming

Multi-Agent Systems, pages 104–125.

Leach, P., Mealling, M., and Salz, R. (2005). A Universally

Unique IDentiﬁer (UUID) URN Namespace. Request

for Comments 4122.

Lynch, S. and Rajendran, K. (2007). Breaking into industry:

tool support for multiagent systems. In Proc. of the 6th

international joint conference on Autonomous agents

and multiagent systems, pages 136:1–136:3.

Milojicic, D., Breugst, M., Busse, I., Campbell, J., Covaci,

S., Friedman, B., Kosaka, K., Lange, D., Ono, K., Os-

hima, M., Tham, C., Virdhagriswaran, S., and White,

J. (1998). Masif: The omg mobile agent system in-

teroperability facility. Personal Technologies, pages

117–129.

Ndumu, D. T., Nwana, H. S., Lee, L. C., and Collis, J. C.

(1999). Visualising and debugging distributed multi-

agent systems. In Proc. of the third annual conference

on Autonomous Agents, pages 326–333.

Oracle Corporation (2014). Object Serialization. Web.

http//docs.oracle.com/javase/tutorial/jndi/objects/

serial.html.

Outtagarts, A. (2009). Mobile Agent-based Applications :

a Survey. International Journal of Computer Science

and Network Security (IJCSNS), pages 331–339.

Padgham, L., Winikoff, M., and Poutakidis, D. (2005).

Adding debugging support to the prometheus method-

ology. Eng. Appl. Artif. Intell., 18(2):173–190.

Satoh, I. (2006). Mobile agents. In Scerri, P., Vincent, R.,

and Mailler, R., editors, Coordination of Large-Scale

Multiagent Systems, pages 231–254. Springer US.

Taguchi, K. and Song Dong, J. (2002). An Overview of

Mobile Object-Z. In Proc. of the 4th International

Conference on Formal Engineering Methods: Formal

Methods and Software Engineering (ICFEM-2002),

pages 144–155.

Vigueras, G. and Botia, J. A. (2008). Tracking causality by

visualization of multi-agent interactions using causal-

ity graphs. In Proc. of the 5th international conference

on Programming multi-agent systems, pages 190–204.

Xu, D., Yin, J., Deng, Y., and Ding, J. (2003). A formal

architectural model for logical agent mobility. IEEE

Trans. on Softw. Eng., 29(1):31–45.

AFrameworktoMitigateDebuggingDifficultyonAgentMigration

197
