Integration of Heterogeneous Modeling Languages via Extensible and

Composable Language Components

Arne Haber

, Markus Look

, Antonio Navarro Perez

, Pedram Mir Seyed Nazari

, Bernhard Rumpe

Steven V

olkel

and Andreas Wortmann

Software Engineering, RWTH Aachen University, Aachen, Germany

Volkswagen Financial Services, Braunschweig, Germany

Keywords:

Modeling Language Engineering, MDE, Modeling Language Integration.

Abstract:

Effective model-driven engineering of complex systems requires to appropriately describe different speciﬁc

system aspects. To this end, efﬁcient integration of different heterogeneous modeling languages is essential.

Modeling language integaration is onerous and requires in-depth conceptual and technical knowledge and ef-

fort. Traditional modeling lanugage integration approches require language engineers to compose monolithic

language aggregates for a speciﬁc task or project. Adapting these aggregates to different contexts requires vast

effort and makes these hardly reusable. This contribution presents a method for the engineering of grammar-

based language components that can be independently developed, are syntactically composable, and ultimately

reusable. To this end, it introduces the concepts of language aggregation, language embedding, and language

inheritance, as well as their realization in the language workbench MontiCore. The result is a generalizable,

systematic, and efﬁcient syntax-oriented composition of languages that allows the agile employment of mod-

eling languages efﬁciently tailored for individual software projects.

1 INTRODUCTION

Engineering of non-trivial software systems requires

reducing the conceptual gap between problem do-

mains and solution domains (France and Rumpe,

2007). Model-driven engineering (MDE) aims at

achieving this by raising the level of abstraction from

programming of a complete system implementation

to abstract modeling of domain and system aspects.

In this way, models are raised to the level of pri-

mary development artifacts. Different aspects of com-

plex software systems require different modeling lan-

guages to be expressed with. The UML (Object Man-

agement Group, 2010), for instance, contains seven

structure modeling languages, with class diagrams

probably being the most famous, and seven behav-

ior modeling languages as well, e.g., statecharts and

activity diagrams. Integration of modeling languages

for a software project either requires composing the

languages speciﬁcally for this project a priori, or de-

signing the independent languages with composition

in mind - but without prior assumptions of the ac-

tual composition. The former approach yields mono-

lithic language aggregates which are hardly reusable

for different projects.

We propose an approach to syntax-oriented black-

box integration of grammar-based textual languages

developed around the notions of language aggre-

gation, language embedding, and language inheri-

tance (Schindler, 2012; V

olkel, 2011). This approach

addresses all aspects of syntax-oriented language in-

tegration, namely concrete syntax, abstract syntax,

symbol tables, and context conditions. Is based on

previous work on syntactic modeling language inte-

gration (Krahn et al., 2008) and introduces new mech-

anisms to inter-language model validation. These new

mechanisms were brieﬂy introduced at the GEMOC

workshop at MODELS 2013 (Look et al., 2013).

This contribution explains the concepts and their im-

plementation with the language workbench Monti-

Core (Krahn et al., 2010) in detail.

At ﬁrst, we will motivate the need for language

integration in MDE on the example of a cloud-based

web system in Sect. 2. Afterwards, Sect. 3 explains

the concepts for language integration, and Sect. 4

their support through a language integration frame-

work. Section 5 discusses concepts related to our

work. Section 6 concludes this contribution with an

outlook on future work and a summary.

Haber A., Look M., Navarro Perez A., Mir Seyed Nazari P., Rumpe B., Völkel S. and Wortmann A..

Integration of Heterogeneous Modeling Languages via Extensible and Composable Language Components.

DOI: 10.5220/0005225000190031

In Proceedings of the 3rd International Conference on Model-Driven Engineering and Software Development (MODELSWARD-2015), pages 19-31

ISBN: 978-989-758-083-3

 2015 SCITEPRESS (Science and Technology Publications, Lda.)

2 MOTIVATION

To illustrate our approach we will ﬁrst motivate the

concepts of language aggregation, language embed-

ding, and language inheritance by the example of a

cloud-based web system that is described by various,

heterogeneous models. The techniques employed in

this example will be described in detail in the follow-

ing sections. Throughout the example, different needs

for language integration will arise which we catego-

rize as follows:

• Language aggregation integrates different model-

ing languages by mutually relating their concepts

such that their models can be interpreted together,

yet remain independent.

• Language embedding denotes the composition of

different modeling languages by embedding con-

cepts of one language into declared extension

points of another. Models of the new language

thereby contain concepts of both languages.

• Language inheritance is the deﬁnition of new lan-

guages on the basis of existing languages through

reuse and modiﬁcation of existing language con-

cepts.

Consider a system that receives streams of sen-

sor data from a multitude of internet-connected sen-

sor hardware, e.g., temperature and wattage sensors

in buildings, analyzes these streams for patterns, and

persists the data into a database. Our aim is to specify

this system by using models in a way detailed enough

to generate a signiﬁcant amount of its implementation

automatically.

To this end, various system aspects, such as its

overall architecture, the data it operates on, and its

deployment onto a runtime infrastructure, need to be

addressed individually by appropriate modeling lan-

guages, including but not limited to architecture mod-

els, data models, and deployment models. Yet, many

of those aspects are not independent, but mutually re-

lated. For instance, for each speciﬁed type of data,

there are processing logic and database structures spe-

ciﬁc to it. Consequently, the languages need to be in-

tegrated in such a way that their models can reference

each other and be interpreted together.

In addition, some aspects of the system are of a

more general nature and apply to a wide range of sys-

tem kinds. Conversely, other aspects are speciﬁc to

the application domain at hand. For instance, archi-

tectural distribution is not only relevant in web sys-

tems, but also in many embedded systems, whereas

aspects like session management are more speciﬁc to

web systems. It is desirable to separate the language

concepts for general aspects from those for speciﬁc

aspects in order to facilitate the modularization of lan-

String clientID

Date timestamp

Long sequence

Request

String gatewayID

String sensorID

Date timestamp

SensorMeasurement

String signature

Credentials

String key

T value

SensorValue

1..*

SELECT Object(v)

FROM SensorValue v

WHERE v.key = :key

getValues(String key)

HQL

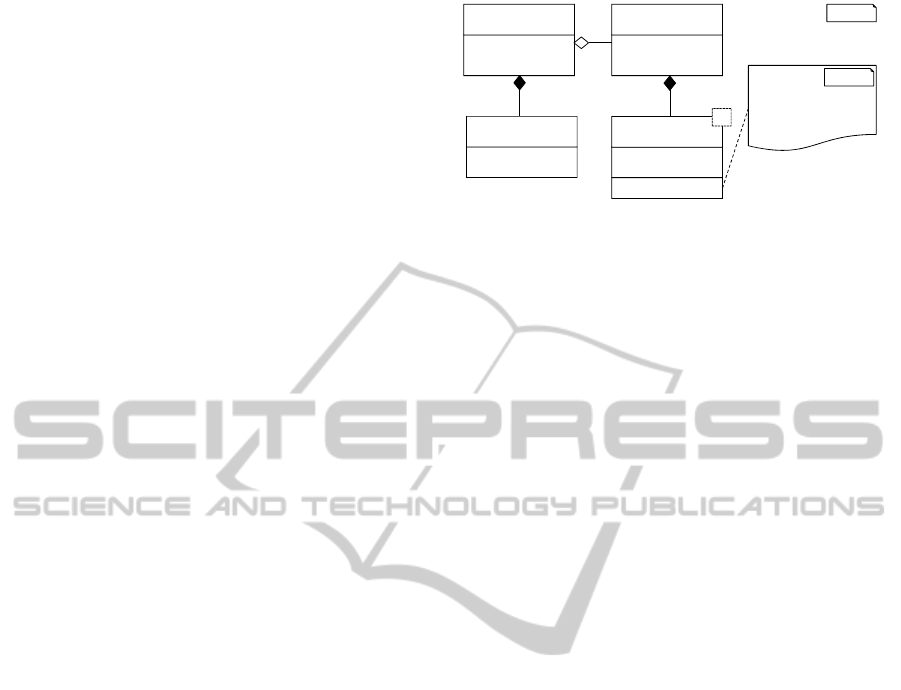

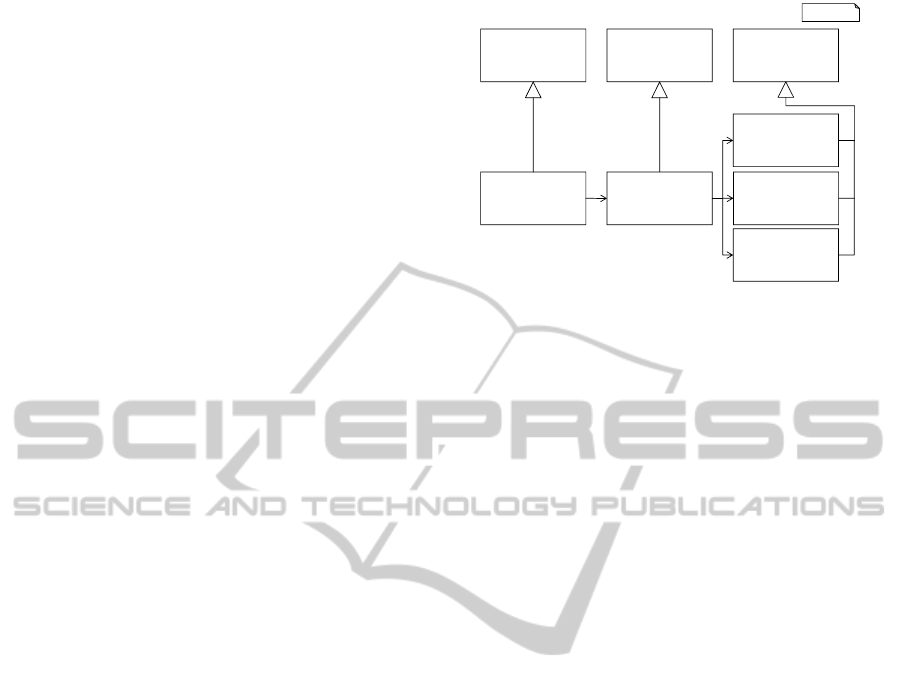

Figure 1: Domain model SensorData for sensor measure-

ments.

guages into reusable language components. Besides,

such reuse of existing general languages reduces the

need for developers to learn new notations and con-

cepts.

In the following, we model the domain model and

the software architecture of our system using several

modeling languages. In doing so, we stress the differ-

ent needs of language integration that arise from our

scenario.

2.1 Domain and Data Modeling

Nearly all object-oriented systems operate in the con-

text of a domain model. Such models describe the ap-

plication’s real world context in terms of classes and

associations between classes. Their most prominent

role is to serve as the basis for the application’s fun-

damental data structures that are used for computa-

tion, communication, and state persistence. The latter

is typically realized by means of a database that op-

erates according to a database paradigm, such as rela-

tional databases or one of various NoSQL ﬂavors. In

our example we focus on a relational database which

allows for complex queries on data. Such queries

are typically expressed in SQL or one of its deriva-

tives, such as Hibernate’s HQL (Hibernate website

http://hibernate.org/, ), depending on the technology

underlying the application’s persistence.

Class diagrams (CD) are the foundational model-

ing language in which domain models are described.

We formulate them by means of a textual syntax de-

ﬁned by the UML/P (Rumpe, 2011; Rumpe, 2012;

Schindler, 2012), a variant of the UML focused on

precise semantics and applicability to generative soft-

ware engineering. In any case, CDs mainly consist of

classes, interfaces, and associations.

Figure 1 shows a graphical representation of the

domain model for our example. It consists of classes

representing the messages received by the system and

the values they convey. Class SensorValue is pa-

rameterized with a generic parameter T which might

be bound with a type deﬁned by another class or by

any type deﬁned by an external language, e.g., Java.

MODELSWARD2015-3rdInternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

Furthermore, its method getValues(key) contains

an embedded HQL expression that speciﬁes its imple-

mentation.

2.2 Software Architecture

Cloud-based web systems typically consist of many

different components that are distributed over differ-

ent hardware nodes in a network. In addition, soft-

ware components and hardware nodes may replicate

dynamically at runtime to meet changing system load

levels. We model the overall software architecture

with a component and connector architecture descrip-

tion language (ADL) (Medvidovic and Taylor, 2000)

clArc that is derived from the ADL MontiArc (Haber

et al., 2012b) and includes cloud-speciﬁc language

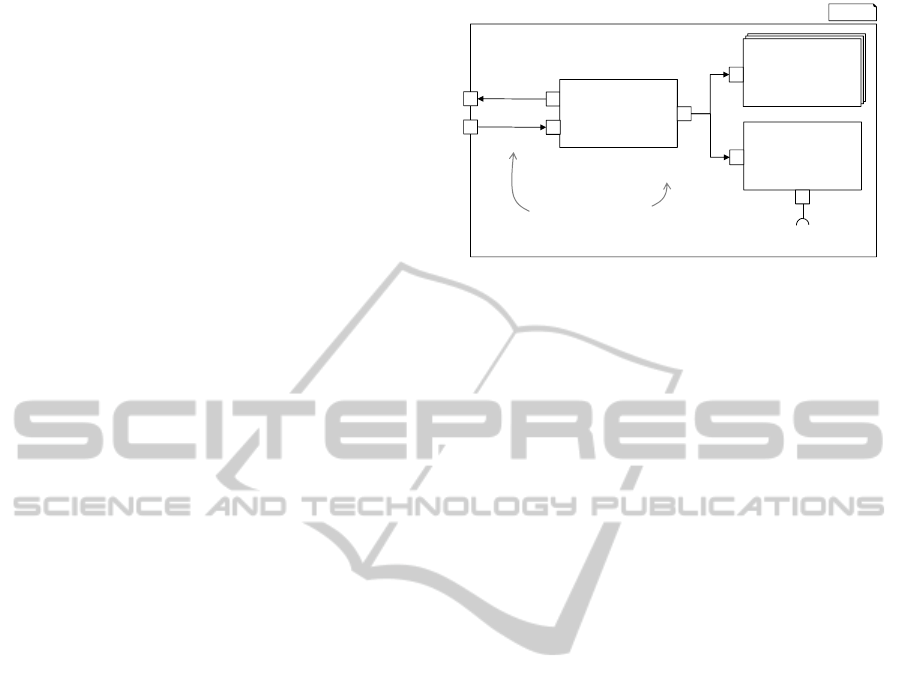

extensions. Figure 2 shows the graphical represen-

tation of such a software architecture model. It is for-

mulated in terms of hierarchically decomposed com-

ponents. Components realize the system’s function-

ality by interacting through directed communication

channels over which they exchange messages asyn-

chronously. Channels are at each end connected to

typed ports which in sum represent a component’s in-

terface. These elements are deﬁned by MontiArc.

The example shows two of the extensions clArc

introduces. Firstly, components may be marked as

replicating, indicating that they depict multiple run-

time instances in the actual system. Secondly, com-

ponents may have service ports in addition to reg-

ular ports. These ports represent “vertical” opera-

tional interfaces that integrate the component with

its runtime environment. In our example, the soft-

ware architecture model describes a service im-

plemented by the SensorDataSubmissionHandler

component. This component is decomposed into

four interconnected components. The DataStore and

EventBroadcaster component interact with their

runtime environment by referencing operational inter-

faces that they request and provide. These interfaces

are speciﬁed by an external language, e.g., Java. The

PatternMatcher component uses the language ex-

tension of replication to indicate that it may increase

or decrease its quantity dynamically at runtime ac-

cording to system load. Port declarations reference

type deﬁnitions given by the CD in Fig. 1, thereby de-

noting that messages exchanged via that port have to

correspond to the port’s referenced type. Moreover,

service ports reference the CD as a whole, indicating

that the operational interface represented by that port

is made such that it corresponds to basic database op-

erations inferred from the data model interpretation

of that CD. It is evident that integration concepts be-

tween these different and heterogeneous models are

clArc

reference to the

class in the domain

model

SensorDataSubmissionHandler

SensorValue

DataStore

Sensor

Receiver

Sensor

Receiver

PatternMatcher

«data»

Database

Request

Ack

Authenticating

Receiver

Figure 2: The software architecture model depicting the ser-

vice SensorDataSubmissionHandler which receives and

processes streams of sensor data.

required. In the following section we deﬁne such con-

cepts on the language level.

3 LANGUAGE INTEGRATION

CONCEPTS

In (Look et al., 2013) we already gave a ﬁrst re-

alization of the language integration concepts de-

ﬁned above and outlined their implementation for

grammar-based languages in the language workbench

MontiCore (Krahn et al., 2010). Here, we describe

these concepts as well as their application in detail.

In particular, we give a detailed description of the in-

tegration concepts, the integrated abstract syntax trees

(AST), and of references between AST nodes. Please

note that the corresponding parser integration mech-

anisms and the resulting chalanges are already dis-

cussed in (Krahn et al., 2010).

The following descriptions make use of the ex-

tended grammar format deﬁned by MontiCore. Such

grammars serve to systematically derive both the con-

crete syntax and the abstract syntax of a language,

as well as language processing infrastructure such as

parsers and pretty-printers. Described brieﬂy, every

production of a grammar implies the existence of an

AST node class of the same name. The non-terminals

of that production form the set of attributes of the

AST node class. Their entirety forms the signature

of that class. In addition, grammars can deﬁne ab-

stract productions and interface productions. Other

productions can extend abstract productions and im-

plement interface productions, indicating that their

non-terminals can be used anywhere the extended/im-

plemented production’s non-terminals are used. Con-

sequently, the resulting AST node classes incorporate

the respective extended/implemented signatures into

their own. Abstract productions differ from normal

productions in that they need to have at least one nor-

IntegrationofHeterogeneousModelingLanguagesviaExtensibleandComposableLanguageComponents

(a) Aggregration

AST of second

language

AST of first

language

(b) Embedding

ASTs of

embedded

languages

extended AST

nodes of

sublanguage

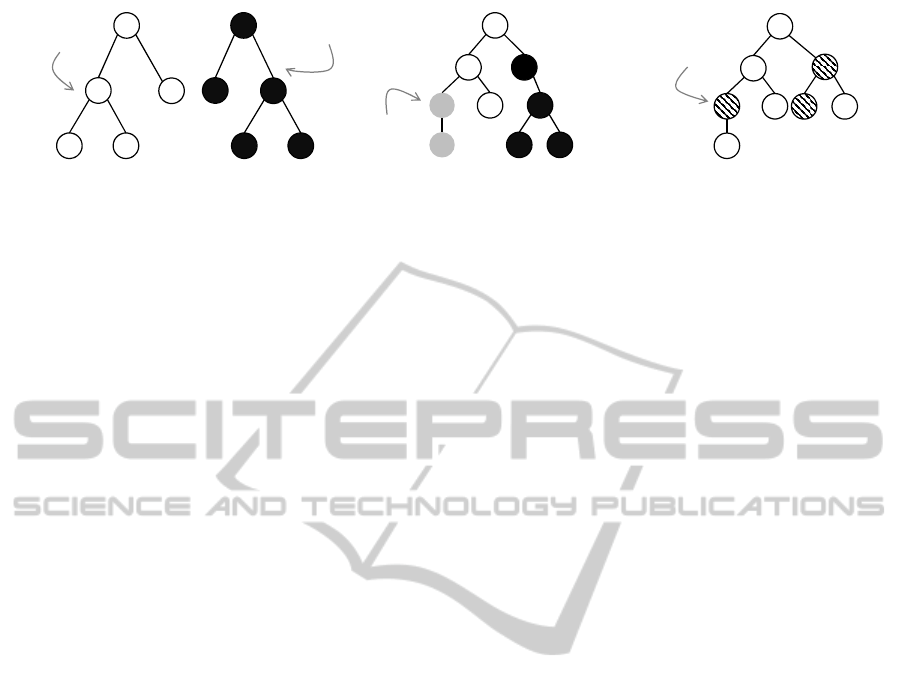

Figure 3: The resulting ASTs for aggregation, embedding, and inheritance. Aggregation results in separate ASTs for each

model. Embedding results in a single AST with subtrees embedded at the leaves of the host language. Inheritance results also

in a single AST containing extended nodes of the sublanguage (cf. (Look et al., 2013)).

mal production that extends them. Interface produc-

tions work the same way but do not deﬁne concrete

syntax and hence only consist of non-terminals. An

in-depth description of the MontiCore grammar for-

mat is given in (Krahn et al., 2010).

3.1 Language Aggregation

Language aggregation combines multiple languages

into a collection of languages (called language fam-

ily), such that models of these languages can be in-

terpreted together but remain formulated in separate

artifacts, as shown in Sect. 2.2. There, port decla-

rations reference type deﬁnitions given by the class

diagram. The individual languages in a language fam-

ily are loosely coupled and able to mutually reference

each other’s elements. For instance, a declaration in a

model of one language may reference a type declared

by a model of another language.

Figure 4 shows how aggregation works on a con-

ceptual level and how concrete aggregations can be

deﬁned within the MontiCore framework. The left

half shows two grammars (MCG) while the right half

shows a class diagram and a clArc model that corre-

spond to their respective grammar on the left. The

upper left part shows an excerpt of the grammar for

UML/P CDs. In particular, it shows the production

of the CDClass nonterminal which deﬁnes a class as

consisting of a modiﬁer, i.e., private, protected,

and public, followed by the keyword class and the

name of the class. An opening curly bracket fol-

lows, enclosing arbitrary many attributes, methods or

constructors in an arbitrary order, and closing with a

curly bracket. The upper right part contains an in-

stance of the production in concrete syntax in which

a SensorValue class is deﬁned. The lower left part

shows an excerpt of the clArc grammar in which the

production for a component port declaration is de-

ﬁned. As explained earlier, the Type of a port is a

name interpreted as a reference to a data type. The

lower right part shows an instance of the production

referencing a SensorValue type.

Via language aggregation CD and ADL models

can be combined such that the type references in the

ADL model are interpreted as references to class def-

initions in the CD. The technical realization of lan-

guage aggregation works in two steps. Firstly, every

model of every language is parsed individually, re-

sulting in an AST for each model as shown in Fig. 3.

In our example, the type reference in the AST of the

architecture model is represented by an AST node

of type Name containing the name of the reference,

whereas the class deﬁnition in the AST of the CD is

represented by an AST node of type CDClass. Sec-

ondly, the references are related to each other by a

symbol table. Conceptually, the symbol table man-

ages a kind of link between AST nodes. Technically,

the links are implemented by adapter classes to al-

low for ﬂexible linking to AST nodes from other lan-

guages. The details of this are described in Sect. 4.

Language aggregation is adequate for modeling

different aspects of a system, each of which can be un-

derstood on their own. Each aspect is then described

by individual model documents in specialized model-

ing languages. Through aggregation, these models are

related to each other without infringing a tight cou-

pling between them. Thereby, models can be reused

in different combinations and in a modular way. For

instance, the same CD can be used to deﬁne the same

types which can then be referenced by different mod-

els and in different development projects.

3.2 Language Embedding

Language embedding combines languages such that

they can be used in a single model. To this end, an em-

bedding language incorporates elements from other

languages at distinguished extension points. Even

though this gives the impression of tight coupling,

the individual languages are still developed indepen-

dently and integrated in a black-box way. References

between elements of embedding and embedded lan-

guages work similarly to language aggregation. Sect.

2.1 shows an example of CDs with embedded HQL.

MODELSWARD2015-3rdInternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

CDClass =

Modifier "class" Name "{"

( CDAttribute

| CDConstructor

| CDMethod)* "}"

ClArcPort =

("in" | "out")

Type Name? ["[*]"]? ;

public class SensorValue {

String key;

T value;

}

out SensorValue dataToStore

types are modeled in a

class diagram

adaptation of language

constructs

MCG

MCG clArc

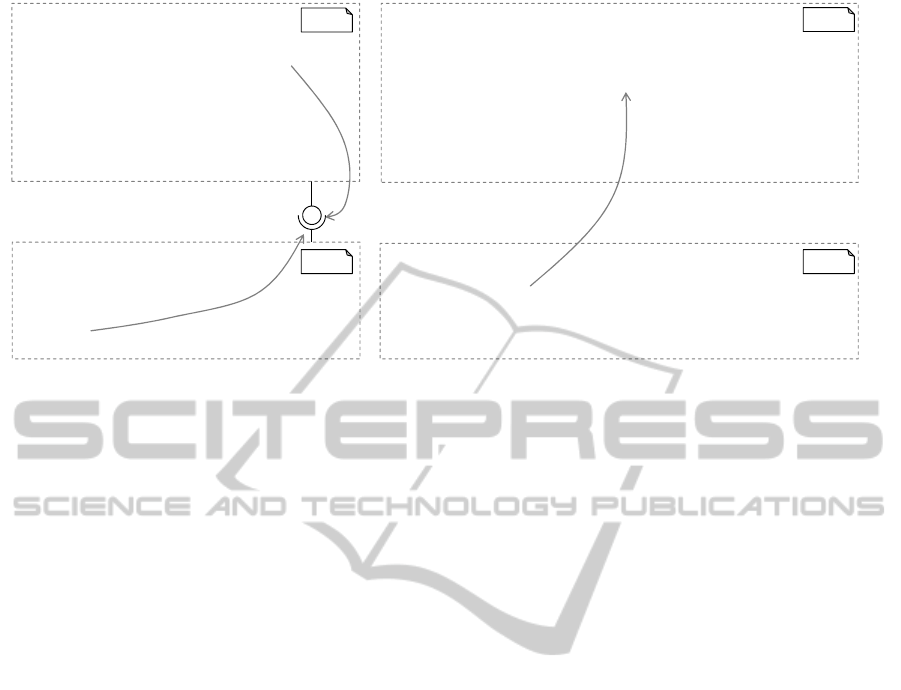

Figure 4: The mechanism for aggregating languages. By adaptation between elements of two independent languages refer-

encing between them is achieved. The right half of the ﬁgure shows concrete models of aggregated languages referencing

each other.

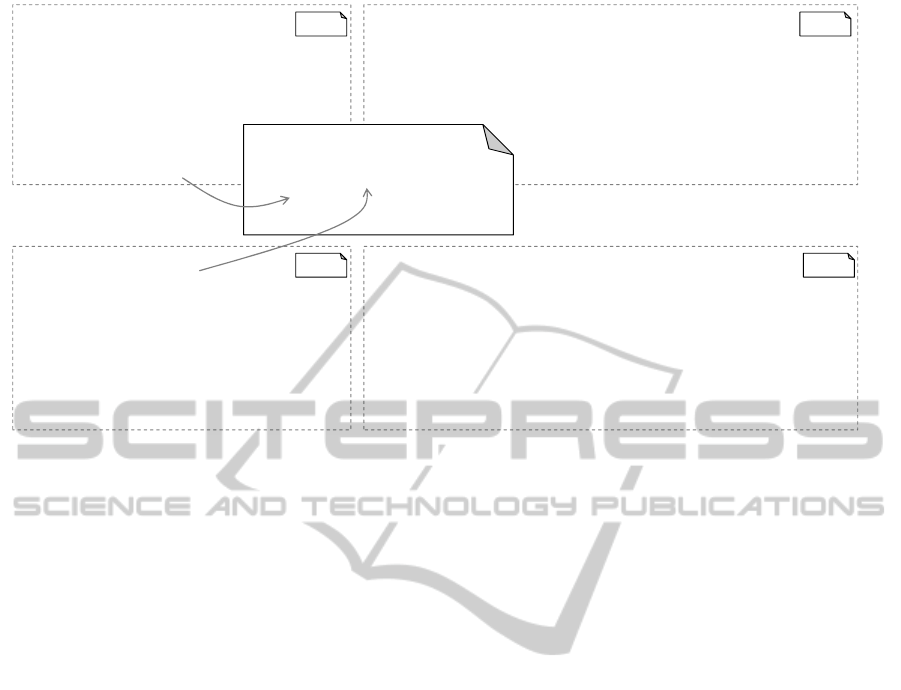

Figure 5 shows how the embedding is accom-

plished within the MontiCore framework.

The upper left part again shows an excerpt of the

CD grammar with the production of the nonterminal

CDMethod. The production describes a method with

a modiﬁer, a return type, a name followed by param-

eters enclosed in round brackets, and a Body. The

body is deﬁned as an external nonterminal. Such ex-

ternal productions act as the extensions points into

which elements from other languages can be embed-

ded. In fact, the language is not complete as long as

its external productions have not been bound to ex-

ternal language elements. Note that neither the gram-

mar nor the external production contain any informa-

tion about ﬁlling the external nonterminal, leaving the

binding to a later stage. The lower left part shows

an excerpt of a HQL grammar containing the deﬁni-

tion of a HQL block statement that encloses multiple

statements with curly brackets. The HQLStatement

nonterminal is production comprises further nonter-

minals, such as SELECT or INSERT statements. Again,

the HQL grammar does not contain any explicit ref-

erence to language embedding. The actual embed-

ding is speciﬁed in the language conﬁguration model,

shown in the middle part of Fig. 5. The model maps

the nonterminal HQLBlock to the external nonterminal

Body. It is also possible to embed several languages

into a single external production by mapping several

external non-terminals to it, for instance, vanilla SQL.

After parsing, the resulting AST consists of different

nodes of the different languages, as shown in Fig. 3.

Nodes from embedded languages manifest as subtrees

attached in place of the node representing the external

production.

Language embedding is especially useful when

the language developer does not want to force the use

of a speciﬁc language but allows to choose the sub-

language later. For instance, it can be used to em-

bed different action languages within a structural lan-

guage to specify behavior.

3.3 Language Inheritance

Language inheritance can be used to extend or reﬁne

an existing language. For this purpose, MontiCore al-

lows to deﬁne new languages on the basis of existing

languages by reusing, modifying and overriding their

productions. The example in Sect. 2.2 illustrates how

the clArc language extends the MontiArc language

and adds cloud-speciﬁc extensions.

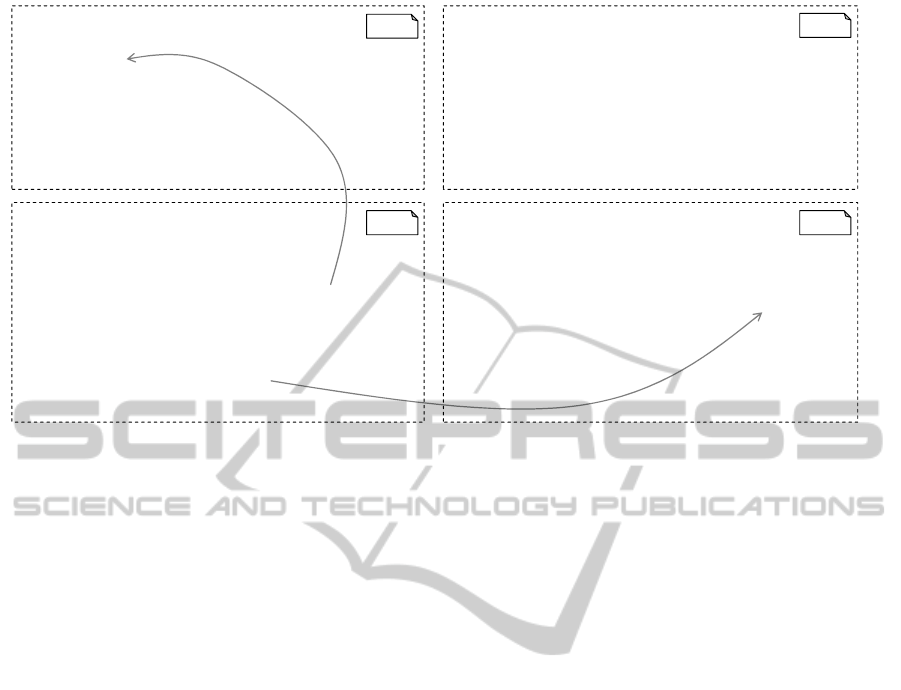

Figure 6 illustrates how this extension is deﬁned

within MontiCore’s grammar format. The upper left

part shows a production (with details omitted) from

the MontiArc grammar which speciﬁes the nontermi-

nal ArcPort. Each port starts with either the key-

word in or the keyword out followed by a Type and

a Name. Both Type and Name deﬁne possible identi-

ﬁers for types and instances names similar to the nam-

ing scheme used in Java. The upper right part shows a

model element that conforms to the production shown

in the upper left part. The lower left part shows an

excerpt of the textual clArc grammar extending the

MontiArc grammar. The name of the grammar is fol-

lowed by the keyword extends and a reference to the

extended grammar. The production of the nontermi-

nal ClArcPort also contains the keyword extends

and a reference to the name of the extended pro-

duction inherited from the MontiArc grammar. The

left-hand side of the production contains all elements

present in the parent production and adds the possi-

IntegrationofHeterogeneousModelingLanguagesviaExtensibleandComposableLanguageComponents

CDMethod =

Modifier ReturnType

Name "(" CDParameters* ")"

Body | ";" ;

external Body;

language embedding {

HQLBlock in

Body;

}

HQLBlock = "{"

HQLStatement*

"}" ;

HQLStatement = ...

public Object getValues(String key);

public Object getValues(String key){

SELECT Object(v)

FROM SensorValue v

WHERE v.key = :key

}

CDMCG

MCG

Figure 5: The mechanism for embedding languages. By declaring an external nonterminal Body and a separate mapping

artifact, nonterminals of arbitrary languages, such as BlockStatement can be embedded. The right half of the ﬁgure shows

a concrete model with the embedded element.

bility of specifying an additional terminal [*] which

denotes replicating ports. It is not obligatory to keep

all elements of a production that have been present

in the parent production. Instead, it is also possible

to leave some out, reorder them, add new elements

in between, or even remove all elements. The lower

right part shows a model element that corresponds to

the production on the lower left.

Productions of extended languages (or “parent”

language) are “virtually‘” copied into the extending

new language where they can be referenced from new

productions. In addition, new productions can indi-

vidually extend productions from the parent language

and thereby inherit that production’s interface. This

means that the extending production can be used any-

where the non-terminal from the extended production

is used. The resulting new AST nodes consequently

implement the signatures of their parent counterparts.

The right part in Fig. 3 illustrates the structure

of ASTs from inheriting languages. The generated

parser for the sublanguage is able to parse text corre-

sponding to the parent language as well as text corre-

sponding to the sublanguage, and consequently cre-

ates an AST containing node types from both lan-

guages. Since parent grammars and nodes are refer-

enced by names, name collisions can occur. To pre-

vent this, the language designer may use full qualiﬁed

names formed by the respective grammar’s package,

the grammar’s name and the name of the production.

Language inheritance is particularly useful for

reusing existing concepts of languages while extend-

ing them with new concepts. It is applicable when

the inheriting language is conceptually similar to the

parent language.

4 LANGUAGE INTEGRATION

FRAMEWORK

In this section, we describe a framework to (1) imple-

ment symbol table infrastructures that relate model

elements in composed languages in a black-box way

and to (2) conﬁgure them for concrete language com-

positions based on the concepts introduced above.

Section 3 described how language embedding and

language inheritance manifest in the ASTs of pro-

cessed models that are instances of combined lan-

guages (cf. Fig. 3). Both mechanisms make infor-

mation about embedded or inherited model elements

directly available in the AST for further model pro-

cessing, such as code generation. However, this is

not the case for models of aggregated languages in

which elements of one language reference elements

of another language by name. Here, the AST nodes

only contain the raw name of the referenced model

element. The same holds for embedding and embed-

ded languages which refer to each other through raw

names as well. Consequently, additional infrastruc-

ture is necessary to translate raw name references into

information about referenced model elements.

In the following, we describe an infrastructure

named symbol table that a) allows to acquire infor-

mation from referenced models as well as b) to trans-

MODELSWARD2015-3rdInternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

grammar MontiArc {

ArcPort =

("in" | "out")

Type Name?;

}

grammar ClArc extends

ArchitectureDiagram {

ClArcPort extends ArcPort =

("in" | "out")

Type Name? ["[*]"]? ;

}

out SensorValue dataToStore

out SensorValue dataToStore[*]

MCG

clArc

Figure 6: The mechanism for inheritance between languages. By declaring an extension, languages can inherit from each

other and are able to override productions. The right half of the ﬁgure shows a concrete model using the inheritance.

parently interpret elements of one language as ele-

ments of another. Compared to traditional symbol ta-

ble techniques, our realization must be able to trans-

late these different kinds of concepts between lan-

guages. For example, automata know about states

and input signals, whereas Java knows nothing about

these. To integrate these languages nonetheless, the

concept of a state must be translated into Java in a

meaningful way. For instance, states could be mapped

to an enumeration or also to subclasses (as, e.g., in

the state pattern (Gamma et al., 1995)). To keep both

languages, independent, we cannot deﬁne this trans-

lation in either language. Instead, we need to deﬁne

it as a separate artifact during language integration.

The ability to do this is one key feature of our symbol

table framework.

4.1 Symbol Table Concepts

A symbol table is a data structure that is used to store

and to resolve identiﬁers within a language. An iden-

tiﬁer, such as a name, is associated with further infor-

mation from the corresponding language element. In

this way detailed information may be gathered from

the symbol table by resolving an element using its

name. In (V

olkel, 2011) the most important parts of a

symbol table are deﬁned. These are:

Deﬁnition 1 (Entry and Kind). A symbol is an entry

in a symbol table that represents a named element of

a model. It has a well deﬁned signature determined

by its kind. This structure allows to store and read

kind speciﬁc information together with the entry.

An entry may be in distinct states that represent

the completeness of its name and the associated infor-

mation. For an unqualiﬁed entry only its unqualiﬁed

name, e.g., SensorValue is known, if the full qual-

iﬁed name, e.g., de.se.SensorValue is known the

entry is in the qualiﬁed state. If an entry is in the full

state, further information respectively entries, e.g., the

methods of type de.se.SensorValue, are associated

to the entry.

Deﬁnition 2 (Scope). A scope of an entry is that part

of a model in which the element that is represented by

the entry may be referenced by its name. Thus, the

entry is visible and not hidden within its scope.

Deﬁnition 3 (Namespace). A namespace is a section

of a model in which names and corresponding en-

tries are managed together in symbol tables. Usu-

ally, namespaces are attached to nonterminals that

open namespaces and are thus organized hierarchi-

cally. A namespace may import names and corre-

sponding entries from other namespaces, e.g., from a

parent namespace. Entries with the same name stored

in different namespaces may shadow each other, if the

namespaces are related.

The structural relation of these elements is de-

picted in Fig. 7. A NameSpace may have arbi-

trary many child namespaces and an optional parent

namespace to represent a namespace hierarchy. A

SymbolTable associates entries (Entry) with their

name. Entries are serialized in a preprocessed, con-

densed form that allows for fast loading of its con-

tained information.

IntegrationofHeterogeneousModelingLanguagesviaExtensibleandComposableLanguageComponents

SymbolTable

NameSpace

Entry

parent

children

encapsulated

imported

exported

forwarded

name

0,1

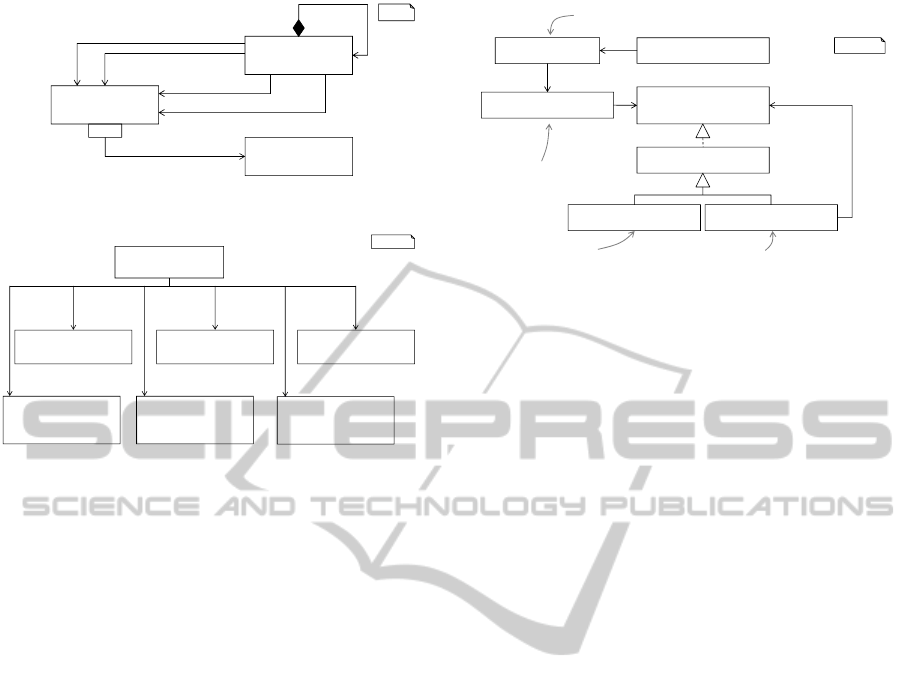

Figure 7: Hierarchical namespaces, their symbol tables and

related entries (cf. (V

olkel, 2011)).

«interface»

ILanguage

«interface»

IQualifierClient

ConcreteASTAnd

NameSpaceVisitor

«abstract»

EntryDeserializer

«interface»

IResolverClient

«interface»

IInheritedEntries

CalculatorClient

entryCreators

deserializers

qualifiers

resolvers

Abstract

ContextCondition

contextconditions

inheritedEntryCalculators

Figure 8: Technical components of a symbol table (cf.

olkel, 2011)).

4.2 Symbol Table Components

The previously described symbol table and names-

pace structure has to be created for each language.

The MontiCore framework (Gr

onniger et al., 2006)

provides infrastructure for a uniform development of

technical symbol table components for modeling lan-

guages. The most important classes and interfaces are

depicted in Fig. 8.

Each concrete modular modeling language is

presented by the interface ILanguage. It of-

fers the technical components needed to cre-

ate namespaces and symbol tables for an in-

stance of that language. Its entry creators (sub-

classes of ConcreteASTAndNameSpaceVisitor) are

used to set up the namespace hierarchy of a

model. Then, entries for model elements are

created and organized in the symbol tables of

the given namespace hierarchy. The registered

IInheritedEntriesCalculatorClients are used

to compute if entries from imported namespaces

are hidden by locally deﬁned entries. An

IQualifierClient has to be provided for each el-

ement kind of a language which instances may be ref-

erenced within the current or another model, such as

a referenced type of a ﬁeld. The concrete qualiﬁer

client is used to transfer entries with the correspond-

ing kind from the unqualiﬁed to the qualiﬁed state.

Resolver clients (IResolverClient) have to be pro-

vided for each entry kind that may be referenced

within the current namespace hierarchy. The regis-

tered deserializers (EntryDeserializer) load serial-

AbstractLanguage

«interface»

ILanguage

LanguageComponent CompositeLanguage

components

ModelingLanguage

LanguageFamily

aggregation of different kind of languages

(e.g., clArc using Java or CD types)

MontiCore-specific info

(e.g., file extension,

framework)

single language or language

fragment (e.g., MontiArc

without embeddings)

complete language

(with embedded fragments: CD

with embedded HQL & Java)

DSLTool

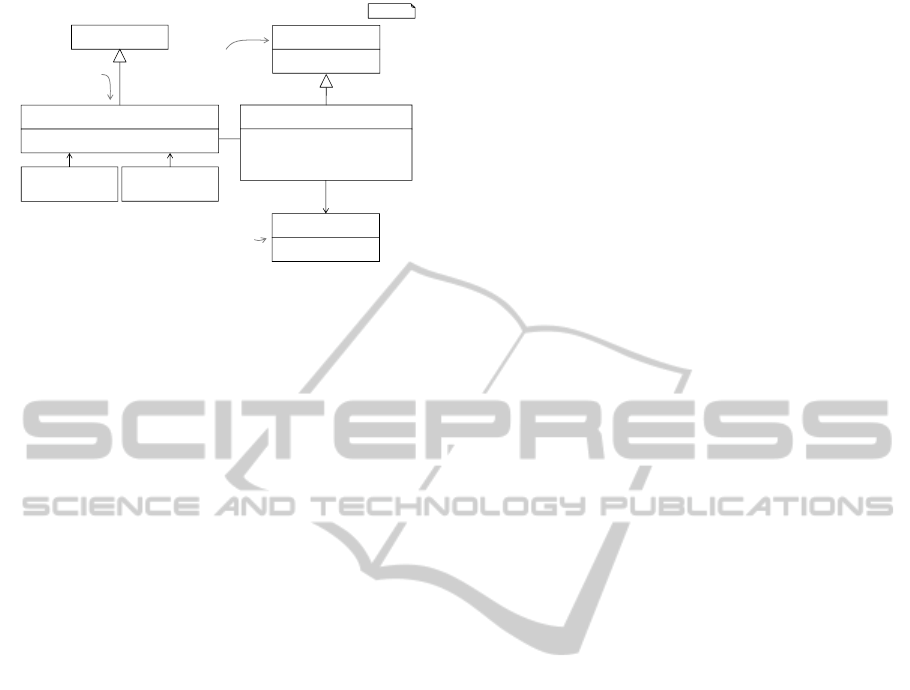

Figure 9: Technical realization of MontiCore’s language

composition mechanisms (cf. (Schindler, 2012; V

olkel,

2011)).

ized entries from externally referenced models. They

are used to transition the entries that represent a ref-

erenced model element from the qualiﬁed to the full

entry state. Associated context conditions that extend

the abstract class AbstractContextCondition are

used to check if processed models are well formed.

This way a concrete ILanguage module offers all

means to process models or model parts of a cer-

tain language and produce a corresponding names-

pace and symbol table hierarchy. The provided infras-

tructure additionally alleviates inter-model relations

that allow to resolve external information deﬁned in

related models. How to combine these components in

several ways to realize the language integration con-

cepts presented in Sect. 3 is described in the following

subsection.

4.3 Conﬁguration of Language

Compositions

Language integration requires different effort depend-

ing on the type of integration. The composition takes

place hierarchically to enable application of mecha-

nisms in the best possible order. Fig. 9 shows the

different language concepts required to achieve this

compositionality.

Language aggregation of two or more ex-

isting modeling languages is implemented in

LanguageFamily instances. These gather the differ-

ent independent ModelingLanguages together with

the inter-language infrastructure, such as resolvers,

qualiﬁers and adapters for symbol table integration,

as well as factories and inter-language context con-

ditions. Language families are used by MontiCore’s

DSLTools to process sets of heterogeneous but related

models. The clArc language family, for instance,

comprises a modeling language for architecture

MODELSWARD2015-3rdInternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

models and a modeling language for CDs.

A ModelingLanguage is a black-box language

and contains language-speciﬁc information such as

the ﬁle ending. It may contain either a single language

or a composition of embedded languages, such as

CDs with embedded HQL. Therefore, modeling lan-

guages contain a hierarchy of ILanguage interfaces.

Based on this, MontiCore creates the infrastructure to

parse model instances accordingly. This infrastruc-

ture contains the correct combination of parser and

lexer for the model at hand.

For single languages, modeling languages contain

only a single LanguageComponent which contains

the symbol table infrastructure and context conditions

necessary. A LanguageComponent contains the infor-

mation required to process symbols of the respective

single language, i.e., how entries are created, deseri-

alized, qualiﬁed, resolved, which context conditions

are available, and which entry types are exported (see

Sect. 4.2). For embedded languages, modeling lan-

guages contain a hierarchy of CompositeLanguages.

These are composed of the embedded languages that

themselves are represented by an implementation of

ILanguage. Language components and composite

languages are implemented as AbstractLanguage

which provide common functionality used by lan-

guage components and composite languages. They

implement the interface ILanguage to allow utiliza-

tion in a composite (Gamma et al., 1995). Using

the composite pattern for embedding allows to reuse

the resulting language combinations easily in differ-

ent contexts, e.g., to embed Java and HQL into CD.

Composite languages and language families can be

considered as the glue between languages and their

symbol tables as they hold the required adapters, re-

solvers, qualiﬁers, and context conditions for their

speciﬁc composition.

Figure 9 also shows, that the order of language ag-

gregation is arbitrary and depends on the language en-

gineer. Whether a subset of the embedded languages

should deﬁne a new ModelingLanguage solely de-

pends on the desire to reuse this combination. It

might, for example, be useful to combine CD and

HQL ﬁrst, and to reuse the resulting combination with

different action languages. Please note that language

inheritance is not reﬂected in this structure, as the re-

sulting combined abstract syntax does not necessarily

require any interaction on symbol level. If this how-

ever is necessary, usually a new ’main’ entry has to

be created which contains the additional information

resulting from the language extension. Thus clArc in-

troduces a new component entry to contain the new

language features. To be reusable with existing lan-

guage integration infrastructure of the inherited lan-

ClArcCD

Language

Modeling

Language

Composite

Language

Component

Composite

HQLJavaCD

Language

CDLanguage

Component

JavaLanguage

Component

HQLLanguage

Component

Figure 10: Language composition for the UML/P

ClarcCDLanguage (cf. (Schindler, 2012)).

guage, these need to be adapted to its entries accord-

ingly. Hence, clArc component entries need to be

adapted to MontiArc component entries. Similar to

the development of the symbol table of a new lan-

guage, entries, entry creators, qualiﬁers, and resolvers

have to be registered for elements added by the inher-

iting language. The inheriting language can also reuse

context conditions of the inherited language and add

new ones.

Figure 10 illustrates the language composi-

tion mechanisms on the clArc CD language

ClArcCDLanguage. The language allows to model

CDs with embedded Java and HQL as illustrated

in Sect. 2.1. As this embedding happens on

the concrete syntax, there is no need to refer-

ence models of other languages by name. There-

fore, the language is implemented as a model-

ing language that contains the composite language

CompositeHQLJavaCDLangauge which realizes the

embedding. CompositeHQLJavaCDLangauge is

composed of language components for CD, Java,

and HQL respectively, and contains adapters between

the three languages as well as inter-language con-

text conditions. Language-internal context condi-

tions are deﬁned in the language component. Cross-

language inter-model context conditions are deﬁned

in language families, whereas cross-language intra-

model context conditions are deﬁned in composite

languages. Adaptation between entries of two embed-

ded languages, such as the types of embedded HQL

and the embedding CD, requires the composite lan-

guage to provide adapters, qualiﬁers, and resolvers for

type pairs. Adaptation between aggregated languages

of a language family requires to conﬁgure these el-

ements in the language family instead. Figure 11

shows the elements required to adapt type entries of

a HQL language to type entries of a CD language.

Integration requires to provide a new adapter factory

marked responsible to create entries of a certain type

IntegrationofHeterogeneousModelingLanguagesviaExtensibleandComposableLanguageComponents

part of language

integration

infrastructure

CD2HQLAdapterFactory

AdapterFactory

+ TypeEntry create(CDTypeEntry t)

CDType2HQL

Qualifier

CDType2HQL

Resolver

CDType2HQLAdapter

+ String getName() {

return adaptee.getName()

}

HQLTypeEntry

+ String getName()

CDTypeEntry

+ String getName()

adaptee

type entry of

the CD language

type entry

of the HQL

language

Figure 11: Adaptation between type entries of HQL and

those of the CD language.

(here HQL type entries for CD types). When a CD

type needs to be qualiﬁed or resolved for embedded

HQL, the factory produces an adapter which behaves

like a HQL type entry, but delegates all methods to

the adapted CD type entry.

Using adaptation on the levels of composite lan-

guages and language families allows to develop lan-

guages without consideration of a posteriori integra-

tion. As the languages are free from integration

premises, they can be composed arbitrarily.

5 RELATED WORK

We have presented three mechanisms for the integra-

tion of modeling languages. Integration takes place

on the syntactical level and enables language aggre-

gation, language embedding, and language inheri-

tance. Related to our contribution are other studies

and approaches on general syntax-oriented language

integration. We do neither discuss language integra-

tion for speciﬁc language families (Barja et al., 1994;

Groenewegen and Visser, 2008) as these are usually

speciﬁcally created to be integrated, nor do we dis-

cuss semantic language integration (Gr

onniger and

Rumpe, 2011; Hedin and Magnusson, 2003; Wende

et al., 2010; Wyk et al., 2008).

A study on language composition mechanisms

distinguishes the mechanisms: “language exten-

sion, language restriction, language uniﬁcation, self-

extension, and extension composition” (Erdweg et al.,

2012). The authors’ notion of language extension also

requires that languages can be composed a-posteriori

and distinguishes language extension from language

integration. Our approach to language extension al-

lows to overwrite nonterminals from the extended

language in order to reduce expressiveness. The

proposed notion of “language uniﬁcation” matches

our deﬁnition of language aggregation, where two

independent languages can be used “unchanged by

adding glue code only”. In their deﬁnition of “self-

extension”, the authors start from a different deﬁ-

nition of “language embedding” than we do: there,

language embedding is that a “domain-speciﬁc lan-

guage is embedded into a host language by provid-

ing a host-language program that encapsulates the

domain-speciﬁc concepts and functionality” (Hudak,

1998) which deﬁnes the use of domain-speciﬁc pro-

grams and is hardly recognizable as language em-

bedding. Accordingly, the author’s deﬁnition of

“self-extension” requires that “the language can be

extended by programs of the language itself while

reusing the language’s implementation unchanged”–

which also allows to “embed” languages as strings

into the host language, e.g., SQL queries or regular

expressions in Java. MontiCore does not provide an

explicit “self-extension” mechanism, but supports it

by embedding action languages allowing deﬁnition of

programs. MontiCore languages also support the lan-

guage extension composition mechanisms denoted as

incremental extension and language uniﬁcation as de-

ﬁned in (Erdweg et al., 2012).

A recent study on language workbenches (Erd-

weg et al., 2013) provides an overview of ex-

isting tools and their features. In particular,

Ens

o (van der Storm et al., 2014), M

as (M

as website

http://www.mas-wb.com, ), MetaEdit+ (Kelly et al.,

1996), MPS (Dmitriev, 2004), Onion (Erdweg et al.,

2013), Rascal (Klint et al., 2009), Spoofax (Kats

and Visser, 2010), SugarJ (Erdweg et al., 2011), the

Whole Platform (Solmi, 2005) and XText (Eysholdt

and Behrens, 2010) are reviewed. This review con-

siders four dimensions: syntax, validation, seman-

tics and editor services. According to the overview

all of the presented tools are able to achieve syntac-

tical composition via different mechanisms. Never-

theless the composition on the validation depends on

the validation features of the respective workbench.

Only MPS, SugarJ and XText provide validation for

naming and type checking similar to our approach

to syntax-oriented language integration, namely con-

crete syntax, abstract syntax, symbol tables, and con-

text conditions. In (Voelter, 2013) the composition

of languages in MPS is shown in more detail. To

compose types new type deﬁnition rules have to be

applied to infer types via uniﬁcation. Since Monti-

Core is not projectional and uses independent parsers

we deﬁne these connections between AST elements

via our adaptation mechanisms and not via generic

type deﬁnition rules. Furthermore (Voelter, 2013) dis-

tinguishes between language combination, extension,

reuse and embedding. While language combination

and reuse are similar to our notion of aggregation,

language extension corresponds to our language in-

MODELSWARD2015-3rdInternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

heritance, and language embedding is congruent with

our concept of embedding.

The authors of (Tomassetti et al., 2013) highlight

cross-language context conditions as an important

source for errors, propose to develop reusable cross-

language context conditions and sketch how these can

be implemented with their language workbench. It re-

mains to be discussed how context conditions check-

ing semantic properties speciﬁc to a language family

can be designed for reuse.

Another approach to deal with the complexity

of language integration is to employ domain-speciﬁc

embedded languages (DSELs) in a host language

(e.g., Scala) (Hofer and Ostermann, 2010). Regarding

our example, this circumvents the problems arising

from using data types between languages and allows

to reuse existing development infrastructure. These

approaches focus on syntax-oriented integration as

well, but language reuse is limited to languages of

the same host language and often DSELs lack explicit

meta-models usable for integration purposes.

Attribute grammars (Knuth, 1968) allow to enrich

grammar symbols with computation rules. Research

in attribute grammars led to promising results regard-

ing language integration, like Forwarding (Wyk et al.,

2002), and produced capable language workbenches

as well (Wyk et al., 2008). Using multiple inheri-

tance of attribute grammars to integrate is another in-

teresting approach (Mernik, 2013) to language inte-

gration which sufﬁces to fulﬁll the language compo-

sition mechanisms identiﬁed in (Erdweg et al., 2012).

6 FUTURE WORK AND

CONCLUSION

Engineering of complex software systems requires

MDE where language integration can help to deal

with the heterogeneity of modeling languages in-

volved. We introduced language aggregation, lan-

guage embedding, and language inheritance by ex-

ample. These language integration techniques allow

integration of languages without stipulating possible

integration partners or mechanisms a priori. This en-

ables to compose languages with minimal effort.

We have illustrated how these integration mech-

anisms are implemented in MontiCore. To achieve

cross-language resolution of names, the symbol table,

language families, and modeling languages were in-

troduced. Language families and modeling languages

contain the glue to enable cross-language model us-

age. This glue is implemented in the form of adapters

between entries of symbol tables. The presented con-

cepts and framework have been evaluated with var-

ious languages for different domains (Haber et al.,

2012b; Haber et al., 2013; Haber et al., 2012a; Haber

et al., 2011a; Haber et al., 2011b; Haber et al., 2011c;

Navarro P

erez and Rumpe, 2013; Thomas et al., 2013;

Ringert et al., 2013a; Ringert et al., 2013b). (AW says:

Sch

oner formulieren? )

In the future we will examine whether parts of

symbol table infrastructure can be generated from the

language and its models directly. We further will in-

vestigate whether the different language integration

deﬁnition mechanisms (e.g., grammars for embed-

ding, symbol table for aggregation) can be uniﬁed.

Furthermore, it might be possible to generate the cross

language infrastructure from enriched models of the

respective language as well.

REFERENCES

Barja, M. L., Paton, N. W., Fern, A. A. A., Williams,

M. H., and Dinn, A. (1994). An effective deduc-

tive object-oriented database through language inte-

gration. In Proc. 20th Int. Conf. on Very Large Data

Bases (VLDB).

Dmitriev, S. (2004). Language oriented programming:

The next programming paradigm. JetBrains onBoard,

1(2).

Erdweg, S., Giarrusso, P. G., and Rendel, T. (2012). Lan-

guage composition untangled. In Proceedings of the

Twelfth Workshop on Language Descriptions, Tools,

and Applications.

Erdweg, S., Rendel, T., K

astner, C., and Ostermann, K.

(2011). Sugarj: Library-based syntactic language ex-

tensibility. In ACM SIGPLAN Notices.

Erdweg, S., van der Storm, T., V

olter, M., Boersma, M.,

Bosman, R., Cook, W. R., Gerritsen, A., Hulshout, A.,

Kelly, S., Loh, A., et al. (2013). The state of the art in

language workbenches. Springer.

Eysholdt, M. and Behrens, H. (2010). Xtext: Implement

your language faster than the quick and dirty way.

In Proceedings of the ACM International Conference

Companion on Object Oriented Programming Sys-

tems Languages and Applications Companion.

France, R. and Rumpe, B. (2007). Model-driven Devel-

opment of Complex Software: A Research Roadmap.

Future of Software Engineering (FOSE ’07).

Gamma, E., Helm, R., Johnson, R., and Vlissides, J. (1995).

Design patterns: elements of reusable object-oriented

software. Addison-Wesley Professional.

Groenewegen, D. and Visser, E. (2008). Declarative ac-

cess control for webdsl: Combining language integra-

tion and separation of concerns. In Web Engineering,

2008. ICWE’08. Eighth International Conference on.

onniger, H., Krahn, H., Rumpe, B., Schindler, M., and

olkel, S. (2006). MontiCore 1.0 - Ein Framework

zur Erstellung und Verarbeitung dom

anenspeziﬁscher

Sprachen. Technical Report Informatik-Bericht 2006-

IntegrationofHeterogeneousModelingLanguagesviaExtensibleandComposableLanguageComponents

04, Software Systems Engineering Institute, Braun-

schweig University of Technology.

onniger, H. and Rumpe, B. (2011). Modeling language

variability. In Foundations of Computer Software.

Modeling, Development, and Veriﬁcation of Adaptive

Systems. Springer.

Haber, A., H

olldobler, K., Kolassa, C., Look, M., Rumpe,

B., M

uller, K., and Schaefer, I. (2013). Engineering

Delta Modeling Languages. In Proceedings of the

17th International Software Product Line Conference.

Haber, A., Kutz, T., Rendel, H., Rumpe, B., and Schaefer, I.

(2011a). Delta-oriented Architectural Variability Us-

ing MontiCore. In ECSA ’11 5th European Confer-

ence on Software Architecture: Companion Volume.

Haber, A., Rendel, H., Rumpe, B., and Schaefer, I. (2011b).

Delta Modeling for Software Architectures. In

Tagungsband des Dagstuhl-Workshop MBEES: Mod-

ellbasierte Entwicklung eingebetteterSysteme VII.

Haber, A., Rendel, H., Rumpe, B., and Schaefer, I. (2012a).

Evolving Delta-oriented Software Product Line Ar-

chitectures. In Large-Scale Complex IT Systems. De-

velopment, Operation and Management, 17th Mon-

terey Workshop 2012, Oxford, UK, March 19-21,

2012.

Haber, A., Rendel, H., Rumpe, B., Schaefer, I., and van der

Linden, F. (2011c). Hierarchical Variability Modeling

for Software Architectures. In Proceedings of Inter-

national Software Product Lines Conference (SPLC

2011).

Haber, A., Ringert, J. O., and Rumpe, B. (2012b). MontiArc

- Architectural Modeling of Interactive Distributed

and Cyber-Physical Systems. Technical Report AIB-

2012-03, RWTH Aachen.

Hedin, G. and Magnusson, E. (2003). Jastadd—an aspect-

oriented compiler construction system. Science of

Computer Programming.

Hibernate website http://hibernate.org/.

Hofer, C. and Ostermann, K. (2010). Modular domain-

speciﬁc language components in scala. In ACM SIG-

PLAN Notices.

Hudak, P. (1998). Modular domain speciﬁc languages and

tools. In Software Reuse, 1998. Proceedings. Fifth In-

ternational Conference on.

Kats, L. C. and Visser, E. (2010). The spoofax language

workbench: Rules for declarative speciﬁcation of lan-

guages and ides. SIGPLAN Not.

Kelly, S., Lyytinen, K., and Rossi, M. (1996). Metaedit+ a

fully conﬁgurable multi-user and multi-tool case and

came environment. In Advanced Information Systems

Engineering.

Klint, P., van der Storm, T., and Vinju, J. (2009). Rascal:

A domain speciﬁc language for source code analysis

and manipulation. In Source Code Analysis and Ma-

nipulation, 2009. SCAM’09. Ninth IEEE International

Working Conference on.

Knuth, D. F. (1968). Semantics of context-free languages.

Mathematical systems theory.

Krahn, H., Rumpe, B., and V

olkel, S. (2008). Monticore:

Modular development of textual domain speciﬁc lan-

guages. In Proceedings of Tools Europe.

Krahn, H., Rumpe, B., and V

olkel, S. (2010). MontiCore: a

framework for compositional development of domain

speciﬁc languages. STTT.

Look, M., Perez, A. N., Ringert, J. O., Rumpe, B., and

Wortmann, A. (2013). Black-box Integration of Het-

erogeneous Modeling Languages for Cyber-Physical

Systems. In Proceedings of the 1st Workshop on the

Globalization of Modeling Languages (GEMOC), Mi-

ami, Florida, USA.

Medvidovic, N. and Taylor, R. (2000). A Classiﬁcation

and Comparison Framework for Software Architec-

ture Description Languages. IEEE Transactions on

Software Engineering.

Mernik, M. (2013). An Object-oriented Approach to Lan-

guage Compositions for Software Language Engi-

neering. Journal of Systems and Software.

as website http://www.mas-wb.com.

Navarro P

erez, A. and Rumpe, B. (2013). Modeling Cloud

Architectures as Interactive Systems. In 2nd In-

ternational Workshop on Model-Driven Engineering

for High Performance and CLoud computing (MDH-

PCL).

Object Management Group (2010). OMG Uni-

ﬁed Modeling Language (OMG UML), Su-

perstructure Version 2.3 (10-05-05). http://

www.omg.org/spec/UML/2.3/Superstructure/PDF/.

Ringert, J. O., Rumpe, B., and Wortmann, A. (2013a). From

Software Architecture Structure and Behavior Model-

ing to Implementations of Cyber-Physical Systems. In

Software Engineering 2013 Workshop Proceedings.

Ringert, J. O., Rumpe, B., and Wortmann, A. (2013b).

MontiArcAutomaton : Modeling Architecture and

Behavior of Robotic Systems. In Workshops and Tuto-

rials Proceedings of the International Conference on

Robotics and Automation (ICRA).

Rumpe, B. (2011). Modellierung mit UML, volume 2nd

Edition. Springer.

Rumpe, B. (2012). Agile Modellierung mit UML: Code-

generierung, Testf

alle, Refactoring, volume 2nd Edi-

tion. Springer.

Schindler, M. (2012). Eine Werkzeuginfrastruktur zur

agilen Entwicklung mit der UML/P. Aachener

Informatik-Berichte, Software Engineering, Band 11.

Shaker.

Solmi, R. (2005). Whole platform. PhD thesis, University

of Bologna.

Thomas, U., Hirzinger, G., Rumpe, B., Schulze, C., and

Wortmann, A. (2013). A New Skill Based Robot Pro-

gramming Language Using UML/P Statecharts. In

Proceedings of the 2013 IEEE International Confer-

ence on Robotics and Automation (ICRA), Karlsruhe,

Germany.

Tomassetti, F., Vetro, A., Torchiano, M., Voelter, M., and

Kolb, B. (2013). A model-based approach to lan-

guage integration. In Modeling in Software Engineer-

ing (MiSE), 2013 5th International Workshop on.

van der Storm, T., Cook, W. R., and Loh, A. (2014). The

design and implementation of Object Grammars. Sci-

ence of Computer Programming.

MODELSWARD2015-3rdInternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

olkel, S. (2011). Kompositionale Entwicklung

dom

anenspeziﬁscher Sprachen. Aachener Informatik-

Berichte, Software Engineering Band 9. 2011. Shaker

Verlag.

Voelter, M. (2013). Language and ide modularization and

composition with mps. In Generative and Trans-

formational Techniques in Software Engineering IV.

Springer Berlin Heidelberg.

Wende, C., Thieme, N., and Zschaler, S. (2010). A Role-

based Approach Towards Modular Language Engi-

neering. In Proceedings of the Second International

Conference on Software Language Engineering.

Wyk, E. V., Bodin, D., Gao, J., and Krishnan, L. (2008). Sil-

ver: an Extensible Attribute Grammar System. Elec-

tronic Notes in Theoretical Computer Science.

Wyk, E. V., de Moor, O., Backhouse, K., and Kwiatkowski,

P. (2002). Forwarding in attribute grammars for mod-

ular language design. In In Proc. 11th Intl. Conf. on

Compiler Construction, volume 2304 of LNCS.

IntegrationofHeterogeneousModelingLanguagesviaExtensibleandComposableLanguageComponents
