Towards Managing Data Variability in Multi Product Lines

Niloofar Khedri and Ramtin Khosravi

School of Electrical and Computer Engineering, College of Engineering, University of Tehran, Tehran, Iran

Keywords:

Multi Product lines, Software Product Line Engineering, Data Model Variability, Delta-oriented Programming.

Abstract:

Multi product lines (MPLs) are systems consisting of collections of interdependent software product lines

(SPLs). The dependencies and interactions among the SPLs cause new challenges in variability management.

In the case of a large-scale information system MPL, important issues are raised regarding integration of

the databases of the individual SPLs comprising the main system. The aim of this paper is to introduce

a method to manage the variability in the data model of such systems. To this end, we ﬁrst address the

problem of developing a universal feature model of the MPL, obtained from integrating the feature models

of the individual SPLs, incorporating the data interdependencies among the features. Further, we develop the

data model of the MPL using a delta-oriented technique, based on the universal feature model. Our method

addresses the problem of possible conﬂicts among the data model elements of different SPLs and proposes

techniques to resolve the conﬂicts based on data model reﬁnements.

1 INTRODUCTION

Software product line (SPL) approach is based on

deﬁning the commonalities and variabilities of the

products and building reusable platforms. A fea-

ture model contains the compact representation of all

products of software family in terms of features (Pohl

et al., 2005).

“Multi product lines (MPLs) are sets of several

self-contained but still interdependent product lines,

together representing a large-scale or ultra-large-scale

system” (Holl et al., 2012a). As MPL is a system in-

cluding dependent systems, the main issues to man-

age variability include the dependency management

among multiple systems and consistency checking

across them (Holl et al., 2012a). The main role of

the data and the importance of managing data vari-

ability in information systems as well as the lack of

variability management method in MPLs lead us to

the study of the variability in data model of MPLs in

the area of information systems. Having an MPL of

information systems implies some kind of data inte-

gration between the system. Designing a single inte-

grated database schema is a solution to this problem

which beneﬁts from the capabilities such as deﬁning

referential integrity across the subsystems, global op-

timizations, partitioning and clustering.

The main goal of the study is to present a method

to develop a single data model for an MPL of sev-

eral information systems, each having a separate data

model. Our method to manage the variability in the

data model of the MPLs is based on a delta-oriented

technique which uses the feature model as the ba-

sis to model variability in terms of delta modules.

Hence, we need a way to represent the variabilities

in the MPL in a universal feature model. As there

is no common well-known method to derive such a

feature model for MPLs, we ﬁrst solve this problem

by integrating the feature models of the subsystems

focusing on the data interdependencies among them.

Based on the universal feature model, we present a

delta-oriented method to generate the data model for

the MPL.

We have used our method in a case study which

is a family of university software systems and library

information systems. This study is part of a project,

currently being done in the Software Architecture

Laboratory in University of Tehran on developing a

middle-sized MPL for university-related information

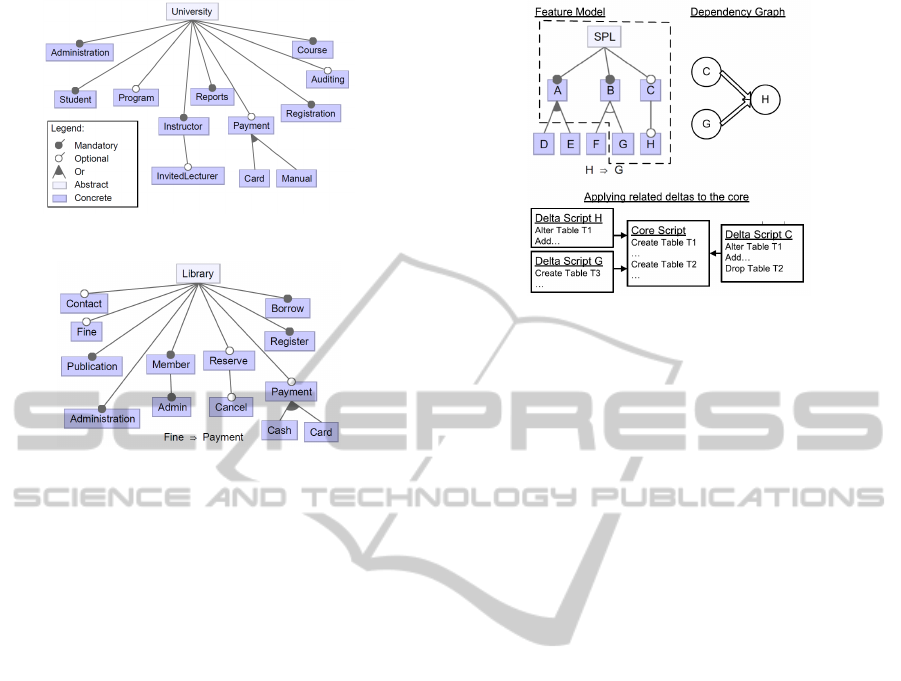

systems. Figures 1 and 2 illustrate the simpliﬁed fea-

ture models of our running example of the university

and library product lines. Our main contributions in

this paper are summarized below:

• Providing a method to create a universal feature

model for MPLs focusing on the data interdepen-

dencies among systems.

• Presenting a method to generate the MPLs data

model with regards to the interdependencies

among systems.

523

Khedri N. and Khosravi R..

Towards Managing Data Variability in Multi Product Lines.

DOI: 10.5220/0005227005230530

In Proceedings of the 3rd International Conference on Model-Driven Engineering and Software Development (MODELSWARD-2015), pages 523-530

ISBN: 978-989-758-083-3

 2015 SCITEPRESS (Science and Technology Publications, Lda.)

Figure 1: Simpliﬁed university feature model.

Figure 2: Simpliﬁed library feature model.

• Reducing the complexity of generating MPLs

data model through systematic reuse across data

model development of systems by presenting the

MPLs core data model and delta models.

2 DATA MODEL VARIABILITY IN

SPLS

In our previous work(Khedri and Khsoravi, 2013),

we presented an approach to manage variability in

database design of information system product lines

based on delta-oriented programming (DOP) tech-

nique (Schaefer et al., 2010). In DOP, a core module

contains the mandatory features of the product family

and delta modules are linked to the alternative and op-

tional features. A product is created by applying delta

modules to the core module incrementally.

In our method (Khedri and Khsoravi, 2013), the

core includes the DDL scripts of the mandatory (and

some selected alternative and optional) features and

a delta consists of the DDL scripts of the changes to

the core to implement the related feature. The DDL

scripts related to the deltas includes the related tables,

columns, primary keys, foreign keys and constraints

to implement the feature in data model. The deltas

are applied to the core in a sequence, derived by ap-

plying topological sort on the dependency graph of

the selected conﬁguration.

The consistency of the resulting database is

checked during the process and the conﬂicts are han-

Figure 3: A sample SPL conﬁguration and applying the re-

lated deltas to the core.

dled by creating new DDL scripts or changing the

existing ones. For instance, the selected conﬁgura-

tion of the sample SPL is depicted in Figure 3. The

core consists of the mandatory features A and B. The

dependency graph related to selected conﬁguration is

shown in Figure 3. One sequence of applying deltas

to the core according to the result of applying topo-

logical sort on the dependency graph is C, G and H.

The whole method of applying DDL delta scripts to

the core is illustrated in Figure 3.

3 GENERATING FEATURE

MODEL FOR MPL

In this paper, we generate the feature model of the

MPLs from that of the product families and their data

model, in contrast to the SPL approach, in which

the feature model is generated at the end of the do-

main requirement engineering through analysis of the

variable and common requirement of the product line

(Pohl et al., 2005).

3.1 Matching and Mapping Features of

SPLs

Our method is based on comparison and analysis of

the core and deltas to ﬁnd the matching features.

Since the data model contains the detail of the system

at the database level, the result of matching the data

model elements can make the matching of features

more accurate. It is important to note that the features

implementation at the data model level includes the

details that make easier the identiﬁcation of the dif-

ferences and similarities of the features. For instance,

the features Registration in University and Register

in Library are matched just by looking at the feature

MODELSWARD2015-3rdInternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

524

models. But in our method, in the core data model

of the University, the Registration feature represents

that the student takes some courses each term. In Li-

brary data model the Register feature corresponds to

the membership of the students in library. As a result,

the details of data models do not show any similarity

between these features, also the Registration feature

is implemented by a more precise relationship in Uni-

versity data model (Takes)

. Having a well-deﬁned

meta-model, the data model can be used as a guide to

semantically differentiate between two features.

The Core and Delta Models Element Matching. At

the ﬁrst step, the core and delta models of the indi-

vidual SPLs are compared and the set of matching

schema elements are identiﬁed. We use name match-

ing method to ﬁnd the schema element with equal or

similar names (Palopoli et al., 1998). In some cases,

two elements have the same name but different con-

cept in the core data models (called homonyms in

database concept (Batini and Lenzerini, 1984)), so

to prevent further conﬂicts in schema merging we re-

name one and modify all the deltas consisting the el-

ement (see Section 4.3).

Feature Matching. The set of features related to

the matched elements are identiﬁed according to

the mapping of the core and delta elements in data

model to the features. As mentioned in Section 2,

each data model element in the core or deltas is re-

lated to at least one feature. At the end of this

step, a set of potentially matched features is gen-

erated: {(Student, Member), (Instructor, Member),

(Admin, Admin), ...}

FeatureMapping. In this phase, the relation between

the matched features is identiﬁed. We classify the re-

lation between the features in three categories as listed

below:

• Equivalent (≡): Feature F

from product fam-

ily SPL

is to the feature F

from product family

SPL

(SPL

≡ SPL

), if they represent the

same concept. They can be renamed to have the

same name.

• Generalized (⊑): One feature can be general-

ized to the other one (SPL

⊑ SPL

). It

means that F

is a generalization of F

. For in-

stance, “University.Student ⊑ Library.Member”

means that a Student in the University is a Mem-

ber of Library.

• Undecided (<>): In some cases we cannot make

a decision on the proper and reasonable relation

between the matched features. For instance, the

Admin in University and Admin in Library data

University data model: http://khorshid.ut.ac.ir/

∼n.khedri/FigureUCore.png

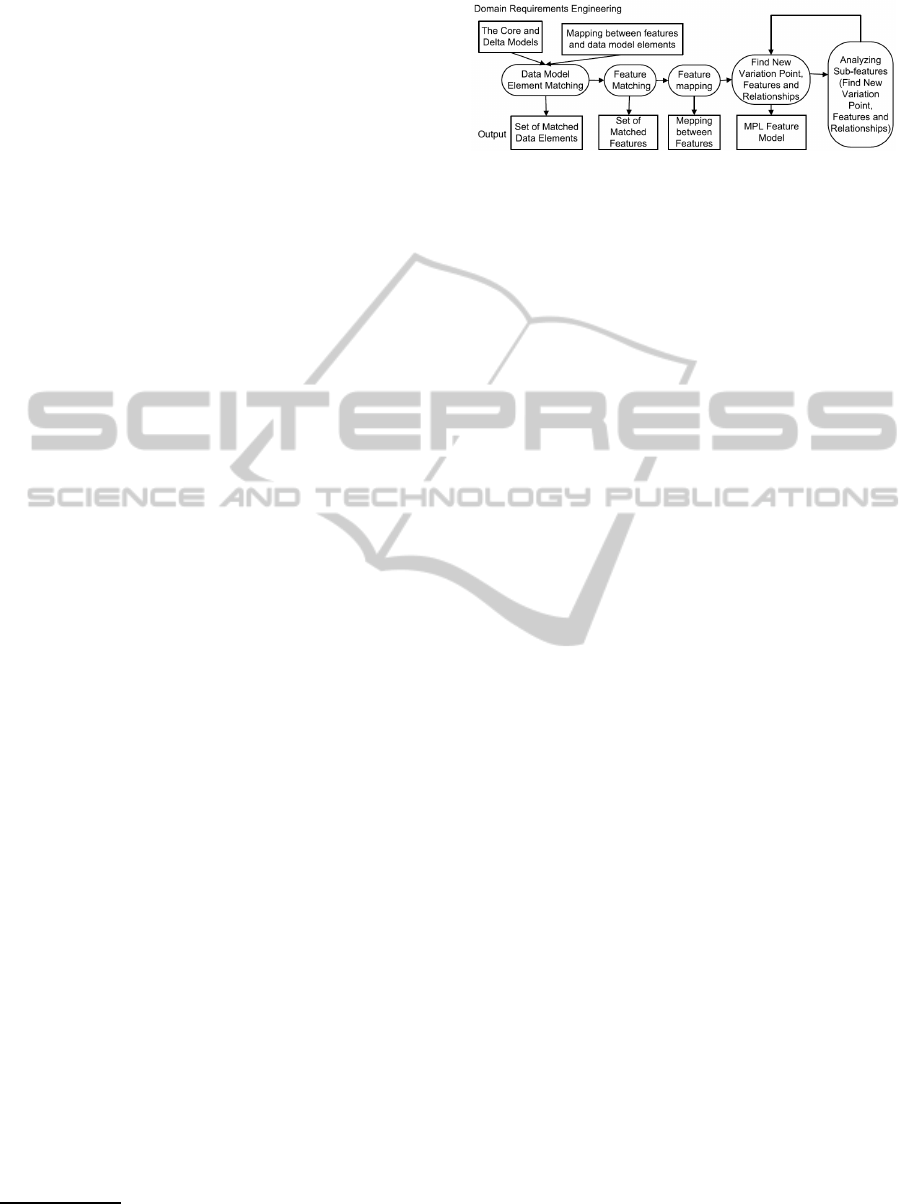

Figure 4: MPLs feature model methodology.

models are mapped onto each other, but we can-

not decide about these features, because they may

or may not have the same functionality. In such

cases, the customer’s requirements of the MPLs

deﬁne the relation between the features.

For example, analyzing the running exam-

ple including University and Library shows a

list of relations between the features including:

(University.Student ⊑ Library.Member,

University.Instructor ⊑ Library.Member,

University.Administration <> Library.Admin)

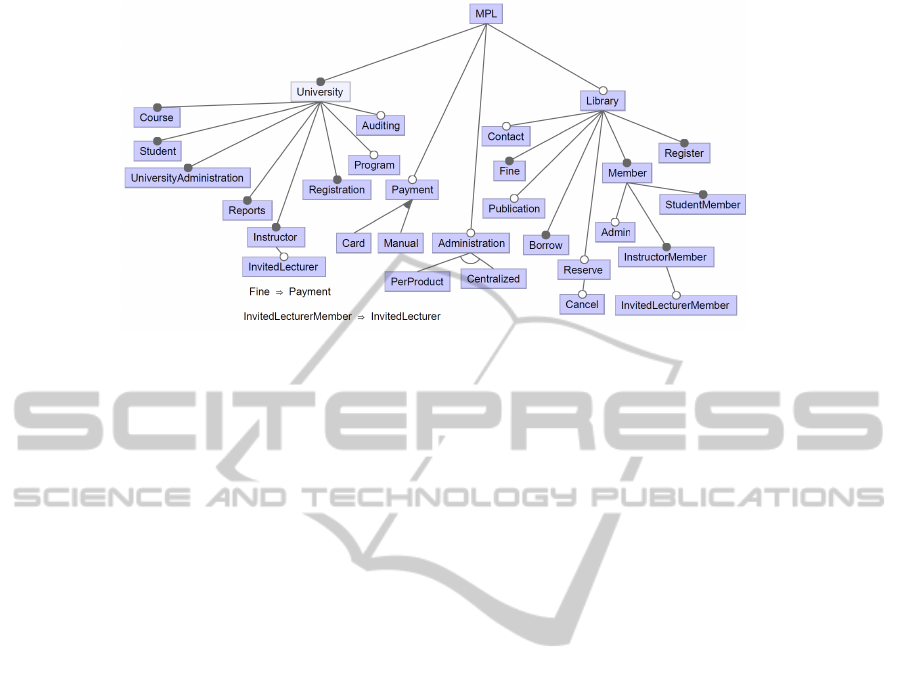

3.2 MPLs Feature Model

The goal here is to generate a data-focused feature

model for MPLs containing all the features of the

SPLs and their interrelations. To generate the feature

model, a new feature model is created. The root fea-

ture is the MPLs, and its sub-features are the feature

models of the product families in MPLs.

At ﬁrst, we analyze each identiﬁed relation be-

tween features A and B (equivalent, generalized and

undecided), to ﬁnd a new possible variation point in-

cluding new requirements or business rules and im-

prove the MPLs feature model by adding integration

features or new relations. For instance, when the gen-

eralized relation between Instructor and Member is

identiﬁed (Instructor ⊑ Member), we can ask some

questions as below: “Does the library lend books to

Instructors?” “Is it necessary to have special rules to

lend books to Instructors (for example, they can lend

more books than general members)?” So, there is a

variation point in Library feature model, and a new

integration feature InstructorMember is added under

the Member specifying whether the feature is manda-

tory, optional or alternative as well as its relationships

to other features. For example, the InstructorMember

is an optional feature (depicted in Figure 5). The in-

terrelations between features of multiple systems are

shown by “Requires” and “Excludes” relations be-

tween features.

We add the new variation point, features and rela-

tionships to the MPLs feature model. In some cases,

the variation point and new features are added to the

sub-tree of a product family. But in some other cases,

TowardsManagingDataVariabilityinMultiProductLines

525

features are added under the MPLs’ root which indi-

cates a new variability that is created when combining

the systems together. As a result, an integration fea-

ture is addedto the MPLs feature model in accordance

with the new variation points generated by integrating

systems. An integration feature is added to the MPLs

feature model in two levels: SPLs-level and MPLs-

level.

Second, we iteratively analyze the sub-features

and relationships of the matching features. For

example, we should analyze the sub-features

and relationships of Instructor and Member

(Instructor ⊑ Member). InvitedLecturer is a

sub-feature of the Instructor; the new questions

are: “Does the library lend books to guest in-

structors?” “Is it necessary to have special rules

to lend books to guest instructors?” As a result,

a new feature InvitedLecturerMember is added

under the InstructorMember with the new relation

“InvitedLecturerMember ⇒ InstructorMember”.

Admin is a sub-feature of the Member in Library

feature model; the questions are: “Can the library ad-

min be a student at the university?” “If yes, is there

any difference between a student and a librarian (as

a student) for the University?” As there is no differ-

ence for the university between a library admin and a

student, no new business rules is added and the MPLs

feature model is not changed. The resulting feature

model related to our case study including the univer-

sity education and library systems is depicted in Fig-

ure 5.

In the case of an undecided relation between

two features, the domain experts of the systems

must analyze the systems and study the features,

their functionality and role in each system and

multi-system. In the case study, handling the

“University.Administration <> Library.Admin”

implies that administration operations are not the

same in these systems. In this case, the feature model

of the individual systems is modiﬁed and a new vari-

ation point is identiﬁed in the MPLs-level, which im-

plies the variability on handling administration opera-

tion in the whole system (Administration, Centralized

and PerProduct, depicted in Figure 5).

4 MPL DATA MODEL

Our method to build the data model of the MPLs is

based on delta-oriented techniques (Khedri and Khso-

ravi, 2013). The obvious method of designing data

model for the whole MPL from scratch is not prac-

tical, since we lose the reuse obtained from applying

SPL method on the individual subsystems. Further-

more, designing the MPLs core requires a team of dif-

ferent domain experts, not always available, and MPL

is a(n) (ultra-)large scale system, the design and im-

plementation of the core and all the deltas of which

are complicated due to the interrelations between the

systems.

In the presented method, we suppose to have the

set of cores and deltas related to each family. First,

we build a modiﬁed version of the core data models

of each product, consisting of the interdependencybe-

tween the core features of them. Also, we create a set

of integration delta models related to the integration

features of MPLs feature model. Then, the modiﬁed

core data models are merged to create a core related

to the MPLs. Finally, the data model of the MPLs is

created by adding deltas associated with the selected

features to the MPLs core. Given that the interrela-

tions between systems are handled in modiﬁed core

and MPLs-deltas, the presented method is more prac-

tical and understandable in comparison with the inte-

grating data models method (mentioned above).

4.1 Integration Delta Models

In section 3, we present a method to generate a fea-

ture model consisting of all the features of MPL sys-

tem and their relations in one feature model. In some

cases, a new integration feature is added to the fea-

ture model to represent an interrelation between two

systems. For instance, StudentMember is added to the

Library feature model, indicating that student can be

a member of library. In this step, we provide integra-

tion delta models for each integration feature.

The integration delta related to MPLs-level in-

tegration feature, named MPLs-delta, may integrate

more than two systems in the MPLs and consequently,

can affect more than two data models. Hence, the in-

tegration delta model generation is an important phase

in our method possibly preventing further conﬂicts in

data model generation.

4.2 Modiﬁed Core Delta Models

In the delta-oriented approach, we ﬁrst build a core

for MPLs and then apply delta models on it to gen-

erate the MPLs data model. In our method, the core

of each system consists of the mandatory features of

the family. We cannot merge the cores of the mul-

tiple systems without considering the interdependen-

cies. Consequently, each core should be modiﬁed to

include the interdependencies. At this step, the core

features of each product based on the related sub-

root in MPLs feature model are deﬁned. For exam-

ple, StudentMember, added to the Library product is

MODELSWARD2015-3rdInternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

526

Figure 5: MPLs feature model.

a mandatory integration feature and is selected in the

set of core features. We have “Student IS− A Mem-

ber” as the relationship between the entities.

Then, we apply the new integration features and

new relations to the related product core by applying

the related DDL script to the core and resolve prob-

able conﬂicts (Khedri and Khsoravi, 2013). As a re-

sult, each core is modiﬁed to include its integration

features.

4.3 Generating the MPLs Data Model

In this step, the core data model of the MPLs is gener-

ated by integrating the core data models of the prod-

ucts, using integration (and merge) schema methods

in database context (Pottinger and Bernstein, 2003).

Some conﬂicts may arise during the integration pro-

cess. These conﬂicts are resolved by database solu-

tions (Pottinger and Bernstein, 2003). The output of

this phase is the core data model of the MPLs.

Our method to merge the schemas, based on the

schema integration methodology in the ER models,

is explained in (Batini and Lenzerini, 1984). The

method contains three main phases: conﬂict analy-

sis, merging and restructuring. In conﬂict analysis

the naming conﬂicts and modeling compatibility is

checked. The names of the elements are compared

in order to set a unique name to the matched ele-

ments in the integrated schema. Two possible cases

can be identiﬁed here: synonyms and homonyms.

Homonym is the case in which two unmatched ele-

ments have the same name, handled initially by re-

naming one element to another name during the ele-

ment matching step (Section 3.1). Modeling compat-

ibility analysis contains the type checking analysis,

transforming the element type to another (for instance

transform an entity to an attribute). Then the inte-

grated schema is enriched and restructured to ﬁnd new

properties in integrated schema. Note that we keep

track of all changes to the schemas in conﬂict anal-

ysis and restructuring phases to do the same changes

on related deltas. After that schemas are merged. At

last, the SQL script of the MPLs Integrated core data

model is generated for the next phase.

In this section, the MPLs data model is gener-

ated by applying DDL delta scripts related to the

MPLs selected conﬁguration on the integrated core

data model. The sequence of applying deltas is de-

ﬁned according to the relation between features in

MPLs feature model by creating a dependency graph

of selected features and then running topological sort

on it.

4.4 Methodology

Software product line engineering (SPLE) has two

concurrent processes: domain engineering and appli-

cation engineering (Pohl et al., 2005). The common-

alities and variabilities of the products are deﬁned in

domain engineering and a reusable platform is devel-

oped. The real products based on the customer re-

quirements are generated during the application engi-

neering. MPL is a collection of interconnected prod-

uct families, so our methodology can be presented

based on the processes of the SPLE mentioned above

(Figure 6 illustrates our methodology).

As we present a method to generate the data model

of the MPLs in database implementation level, all

the activities in our method are considered as parts

of the domain realization and application realization

sub-processes of domain and application engineering

processes respectively.

In domain realization sub-process of the domain

engineering process, the detailed design and imple-

mentation of the software are provided to be reused

TowardsManagingDataVariabilityinMultiProductLines

527

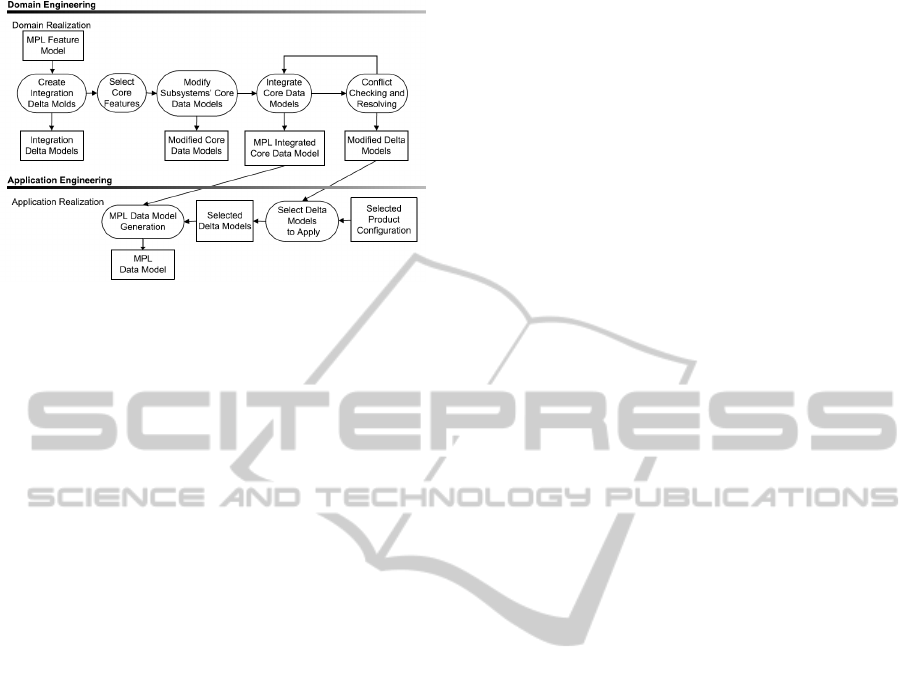

Figure 6: The presented methodology.

in application realization (Pohl et al., 2005). As a re-

sult, the conclusion can be drawn that the high level

structure of the data model of the MPLs is generated

in domain realization sub-process too. The core and

deltas of the MPLs are implemented in domain real-

ization.

5 DISCUSSION

Applying the Method on Global Schema. In the

case of using global schema instead of the core and

deltas, the mapping between global schema elements

and features must be identiﬁed too. Our approach to

ﬁnd the mapping is to identify the database opera-

tion for each feature. For example, feature Register

in University indicates that the courses for the new

term are shown ﬁrst (select operation on Course and

Term tables), and then each student choose the desired

courses (insert operation in the table which show the

relation between Student, Course and Term). Analyz-

ing the database operation performed in each features

can result in a mapping between the database objects

and the features, which in turn can be used as a guide

to match features as described.

5.1 MPLs Feature Model

Integrating Feature Models. In the method pre-

sented, the mechanism to generate a universal fea-

ture model for the MPLs is based on matching feature

models incorporating the data models of the product

families in MPLs. This requires a teamwork between

the domain experts of the individual SPLs, as well as

their data modelers. Also, in the case that the method

is applied to global schemas, the presented method

requires added work on the schemas to ﬁnd out the

relationship between features and schema elements.

As the main focus of our method is to develop the

data model of the MPLs, the universal feature model

may miss some interdependencies and new features

that do not affect the data access layer, and hence,

cannot be considered as a complete variability model

for the MPL. In case such a model is needed, separate

effort based on other viewpoints (e.g. user interface)

is needed.

5.2 MPLs Data Model

Conﬂict Resolution. As mentioned before, it is not

possible to merge the data model of the product fam-

ilies in MPLs due to the (ultra-) large size of the

data models and the inconsistency among data mod-

els. The inconsistency among data models results in

conﬂicts in schema integration and the large size of

the data models reduces the possibility of ﬁnding the

source of the conﬂict. The data model of the MPLs is,

as a result, generated in three steps and the emerging

conﬂicts are resolved in each step.

The conﬂicts in the ﬁrst step can be handled by

reviewing the deltas in conﬂict and build a new delta

for them. The goal of the second step is generating the

MPLs core data model. In conﬂict analysis and trans-

forming phases, the data model may change due to the

conﬂict or inconsistencies between schemas. More-

over, the delta models are changed to be consistent to

the MPLs core data model. In the last step, the data

model of the MPLs is created by applying deltas to

the core data model of MPLs. The conﬂicts in this

step usually have two reasons. First, the dependency

among the deltas models causes the conﬂict. Such

conﬂicts can be handled by deriving a new delta for

the features in conﬂict. Second, the changes on the

modiﬁed cores cause an inconsistency between the

MPLs core and deltas. We can solve such conﬂicts

by transforming the deltas to a new one that changes

the core data model to implement the related feature.

Data Model Completeness. The MPLs data model

consists of all the elements needed to implement the

related features in each product family as well as the

interconnections among families. There is no element

in the data model, redundant due to the selected fea-

ture model.

Data Integrity. The integrity of the MPLs data model

is handled through deﬁning the primary and foreign

keys and constraints between database elements (col-

lectively named constraint scripts). In the proposed

method, we deﬁne constraint scripts in the related

DDL scripts such as the core and deltas. In the ﬁrst

applying of deltas to the family core and in the last

phase consisting of applying deltas to the MPLs core

to generate the MPLs data model, delta scripts includ-

ing the constraint scripts are applied and the database

MODELSWARD2015-3rdInternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

528

checks the correctness of the constraint scripts and

their references. As a result, the database itself checks

the integrity of the data.

Complexity of the MPLs Schema. In the proposed

method, the complexity of the MPLs meta-model is

decreased because the MPLs data model consists of

the required database elements and there is no redun-

dant element in the MPLs data model.

6 RELATED WORK

The capabilities to support the MPLs are reviewed in

(Holl et al., 2012a) such as sharing and distribution of

variability models, deﬁning and managing the differ-

ent types of the dependencies and consistency check-

ing as we face with them in this paper.

6.1 Variability Modeling in MPLs

Some existing work have studied merging feature

models. Cross product line analysis proposed a

method based on similarity metrics and clustering to

analyze the commonalities and variabilities of various

related SPLs (Wulf-Hadash and Reinhartz-Berger,

2013). Another approach for merging feature mod-

els based on graph transformation is discussed in (Se-

gura et al., 2008), relying on having features with the

same name and the same roots in the feature mod-

els. In MPLs, the systems do not necessarily have the

same root and features with the same name. Merge

and insert operators on feature models are developed

as composition operators (Acher et al., 2009) and then

a domain speciﬁc language named FAMILIAR pre-

sented to support the large scale management of fea-

ture models (Acher et al., 2011). In our method, a new

feature model with new features and relations is gen-

erated for the MPLs in contrast to the merging feature

models method (Wulf-Hadash and Reinhartz-Berger,

2013; Segura et al., 2008).

In (Hartmann and Trew, 2008), the context vari-

ability model meaning the variability of environment

is combined to the feature model to support dimen-

sions in context space and proposes a consistent con-

text feature model. In (Rosenm¨uller et al., 2008), de-

pendent SPLs are modeled in a class diagram that

shows the SPLs and their dependencies. Then, in

(Rosenm¨uller and Siegmund, 2010), a method to de-

sign and conﬁgure these systems is presented which

automatically creates the conﬁguration generators. In

(Hartmann and Trew, 2008; Rosenm¨uller et al., 2008;

Rosenm¨uller and Siegmund, 2010), the consistency

and interdependencies between various SPLs are kept

in a single model for the MPLs similar to our method.

In our method, our focus is on data dependency and

data consistency, whereas in (Hartmann and Trew,

2008) and (Rosenm¨uller et al., 2008; Rosenm¨uller

and Siegmund, 2010), the focus is on the context and

the relationship between different SPLs such as use,

respectively.

In (Holl et al., 2012b), the MPLs is modeled and

deployed by product line bundles. Product line bun-

dles consist of the table of contents and meta-data, the

variability model, organizational policies, dependen-

cies to other bundles, and an expiry date. In (Holl

et al., 2012b), the set of dependencies between prod-

uct lines is deﬁned as inferred, conﬁrmed and formal-

ized. In this work, the dependencies between systems

are deﬁned and modeled like in our method. In our

method, the dependencies between systems are han-

dled by the feature model relations require and ex-

clude, and we concentrate on the data interdependen-

cies between systems. Moreover, we identify the new

integration features, especially at the MPLs-level that

show new services, added to the whole system by us-

ing MPLs. It is important to note that our method

is not in contrast with existing techniques on MPL

feature modeling and other methods to integrated the

feature models mentioned above can be employed in

our method during the development of the universal

feature model.

6.2 Managing Variability in Data Model

There are some studies on modeling data variabil-

ity in SPLs (Zaid and Troyer, 2011; Bartholdt et al.,

2009; Siegmund et al., 2009; Sch¨aler et al., 2012). A

method to manage data variability in domain model

layer (not database design and implementation) is pre-

sented in (Bartholdt et al., 2009). Managing variabil-

ity in the domain layer makes database designer check

the database constraints in domain or application

layer probably leading to data inconsistency. Also, in

(Siegmund et al., 2009), a global consistent schema

is created out of different local schemas for users by

using view integration techniques. In (Sch¨aler et al.,

2012), the work is extended to modeling the variable

schemas based on features and then generates the tai-

lored schemas automatically by superimposing vari-

able schemas, namely entity-relationship diagrams.

The schema composition methods have the limitation

on removing some parts of the database elements as

well as the transforming database element type, but

using the delta-oriented method proposed, we can ap-

ply the mentioned changes to database. For example,

attribute A changes to a new table A. This change is

impossible in schema composition approaches, but in

our method, a delta script can handle it.

TowardsManagingDataVariabilityinMultiProductLines

529

In (Zaid and Troyer, 2011), data model variabil-

ity is managed in a single data model. The proposed

method leads to a complicated data model when the

size of the product family increases. Note that in

(Zaid and Troyer, 2011), the entities and attributes

are the variable database elements, but in our method

there is no limitation on database elements. As men-

tioned in (Holl et al., 2012a), MPLs representation in

a single model is hard due to its size and complexity.

Consequently, we build the data model of the MPLs

by generating the data model of the mandatory part

of each data model, merging them, and applying the

variable part at the end.

7 CONCLUSIONS AND FUTURE

WORK

In this paper, we addressed the feature model rep-

resentation and data model variability problem in

MPLs. First, we introduced a method for generat-

ing a universal feature model according to the data

model interdependencies, extracted from data model

element matching. Second, we propose a three-phase

method to generate the MPLs meta-model based on

delta-oriented programming and schema integration

methods. The proposed method has been applied on

the University Education Systems, Reserve Food Sys-

tems and Library Systems. As the proposed method is

in progress, we plan to analyze the inﬂuences of the

software evolution, adding feature and modify exist-

ing ones on both techniques: generating a universal

feature model and a single data model for the MPL.

Our method is planned to support the interdepen-

dencies in the application and presentation layers and

propose a universal feature model for MPLs in fu-

ture. Furthermore, future work includes tool support

for automatic generation of the MPLs data model that

visually represents the cores and delta models related

to each product family.

REFERENCES

Acher, M., Collet, P., Lahire, P., and France, R. B. (2009).

Composing feature models. In SLE ’09, pages 62–81.

Acher, M., Collet, P., Lahire, P., and France, R. B. (2011).

Managing feature models with familiar: a demonstra-

tion of the language and its tool support. In VaMoS

’11, pages 91–96.

Bartholdt, J., Oberhauser, R., and Rytina, A. (2009). Ad-

dressing data model variability and data integration

within software product lines. International Journal

On Advances in Software, 2:84–100.

Batini, C. and Lenzerini, M. (1984). A methodology

for data schema integration in the entity relationship

model. IEEE Trans. Software Eng., 10(6):650–664.

Hartmann, H. and Trew, T. (2008). Using feature dia-

grams with context variability to model multiple prod-

uct lines for software supply chains. In SPLC ’08,

pages 12–21.

Holl, G., Grnbacher, P., and Rabiser, R. (2012a). A system-

atic review and an expert survey on capabilities sup-

porting multi product lines. Information and Software

Technology, 54(8):828–852.

Holl, G., Thaller, D., Gr¨unbacher, P., and Elsner, C.

(2012b). Managing emerging conﬁguration depen-

dencies in multi product lines. In VaMoS ’12, pages

3–10.

Khedri, N. and Khsoravi, R. (2013). Handling database

schema variability in software product lines. In

APSEC ’13, pages 331–338.

Palopoli, L., Sacc`a, D., and Ursino, D. (1998). Semi-

automatic semantic discovery of properties from

database schemas. In IDEAS ’98, pages 244–253.

Pohl, K., B¨ockle, G., and Linden, F. J. v. d. (2005). Soft-

ware Product Line Engineering: Foundations, Princi-

ples and Techniques. Springer-Verlag.

Pottinger, R. A. and Bernstein, P. A. (2003). Merging mod-

els based on given correspondences. VLDB ’03, pages

862–873.

Rosenm¨uller, M. and Siegmund, N. (2010). Automating

the conﬁguration of multi software product lines. In

VaMoS ’10, pages 123–130.

Rosenm¨uller, M., Siegmund, N., K¨astner, C., and ur Rah-

man, S. S. (2008). Modeling dependent software prod-

uct lines. In McGPLE ’08, pages 13–18.

Schaefer, I., Bettini, L., Bono, V., Damiani, F., and Tan-

zarella, N. (2010). Delta-oriented programming of

software product lines. In SPLC ’10, pages 77–91.

Sch¨aler, M., Leich, T., Rosenm¨uller, M., and Saake, G.

(2012). Building information system variants with tai-

lored database schemas using features. In CAiSE ’12,

pages 597–612.

Segura, S., Benavides, D., Ruiz-Cort´es, A., and Trinidad,

P. (2008). Generative and transformational techniques

in software engineering II. chapter Automated Merg-

ing of Feature Models Using Graph Transformations,

pages 489–505. Springer-Verlag.

Siegmund, N., Kstner, C., Rosenmller, M., Heidenreich,

F., Apel, S., and Saake, G. (2009). Bridging the gap

between variability in client application and database

schema. In German Database Conference ’09, pages

297–306.

Wulf-Hadash, O. and Reinhartz-Berger, I. (2013). Cross

product line analysis. In VaMoS ’13, pages 21:1–21:8.

Zaid, L. A. and Troyer, O. D. (2011). Towards model-

ing data variability in software product lines. In BM-

MDS/EMMSAD ’11, pages 453–467.

MODELSWARD2015-3rdInternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

530
