Towards World Model-based Test Generation in Autonomous Systems

Anneliese Andrews, Mahmoud Abdelgawad and Ahmed Gario

Department of Computer Science, University of Denver, Denver, CO 80208 U.S.A.

Keywords:

World Model, Behavioral Model, Model-based Testing, Test Generation, Autonomous Systems.

Abstract:

This paper describes a model-based test generation approach for testing autonomous systems interacting with

their environment (i.e., world). Unlike other approaches that assume a static world with attributes and values,

we present and test the world dynamically. We build the world model in two steps: a structural model that

constructs environmental factors (i.e., actors) and a behavioral model that describes actors’ behaviors over

a certain landscape (i.e., snippet). Abstract world behavioral test cases (AWBTCs) are then generated by

covering the behavioral model using graph coverage criteria. The world model-based test generation technique

(WMBTG) is used on an autonomous ground vehicle (AGV).

1 INTRODUCTION

According to (Cheng, 2011), autonomous systems

are those systems that can accomplish entirely or in

part certain goals without human intervention. In

this paper, we consider autonomous mobile robot

platforms (so-called Unmanned Systems). Au-

tonomous systems exist in various applications such

as rescue robots, military robots, driverless vehi-

cles, and in-door robots (e.g., robotic vacuum clean-

ers (Roomba)). Testing the interactions between au-

tonomous systems and world actors- pedestrians, mo-

bile objects, and unknown obstacles- poses a series

of challenges, due to the complexity of these systems

and the unpredictabilityof their environment. In order

to generate behavioral test cases in the form of con-

current world stimuli, model-based testing (MBT) is

able to leverage behavioral models, such as commu-

nicating extended ﬁnite state machines (CEFSMs) (Li

and Wong, 2002; Cheng and Krishnakumar, 1993),

Coloured Petri Nets (CPN) (Lill and Saglietti, 2012),

Labelled Transition Systems (LTS) (Tretmans, 2008),

and sequence and communication diagrams of the

Uniﬁed Modeling Language (UML) (Shirole and Ku-

mar, 2013), to describe the behavioral scenarios that

can occur between the system under test (SUT) and its

world. However, MBT can pose challenges due to the

state space explosion issues of many behavioral mod-

els. This requires testing solutions to deal with the

large number of possibilities in behavioral scenarios.

Current MBT approaches for testing real-time embed-

ded systems (RTES) interacting with their worlds as-

sume a static world model (Iqbal et al., 2012; Hes-

sel et al., 2008), which does not show the interac-

tions can be occurred in these worlds. However, for

autonomous systems, the world cannot be described

only statically with attributes and values, the world

should also be presented and tested dynamically. To

address these challenges, we propose a systematic

MBT approach, world model-based test generation

(WMBTG), that identiﬁes what, where and how to

test worlds of autonomous systems, uncovers diverse

types of autonomous systems failures, improves scal-

ability issues and avoids state space explosion by us-

ing a hierarchical modeling approach instead of ﬂat-

tening all behaviors of actors into a single behavioral

model (Andrews et al., 2010). Tests are generated by

aggregating test paths in the individual models simi-

lar to (Andrews et al., 2010). We apply WMBTG to

autonomous city vehicles (ACVs) (Furda and Vlacic,

2010). ACVs are driverless vehicles that share the

highway with other trafﬁc participants. We formalize

the efﬁciency of test criteria that are used to generate

abstract world behavioral test cases (AWBTCs). This

paper uses UML class diagrams to depict the struc-

tural model of actors and their relationships. Com-

municating extended ﬁnite state machines (CEFSMs)

are used to represent typical landscapes in the envi-

ronment. We call these landscapes snippets. They are

used to link behavioral models of variousactors in this

world together. Our objective is to provide an MBT

technique for testing autonomous systems behavior in

a dynamic world alongside behavioral testing that is

ﬂexible, systematic, scalable, and shows potential of

being extendable to other types of applications and

types of applicable behavioral models such as CPT

165

Andrews A., Abdelgawad M. and Gario A..

Towards World Model-based Test Generation in Autonomous Systems.

DOI: 10.5220/0005228201650176

In Proceedings of the 3rd International Conference on Model-Driven Engineering and Software Development (MODELSWARD-2015), pages 165-176

ISBN: 978-989-758-083-3

 2015 SCITEPRESS (Science and Technology Publications, Lda.)

and LTS.

The remainder of this paper is organized as fol-

lows. Section 2 gives the state of research about

model-based testing, testing autonomous systems,

and world model-based testing. The case study is de-

scribed in section 3. Section 4 presents our approach

and applies it to the case study. We also analyze and

discuss complexity and efﬁciency issues in the same

section. Section 5 draws conclusions.

2 STATE OF RESEARCH

2.1 Model-Based Testing (MBT)

(Dias-Neto et al., 2007) provide a survey on model-

based testing (MBT). MBT uses various models to

automatically generate tests. MBT includes three key

elements: models that describe software behavior,cri-

teria that guide the test-generation algorithms, and

tools that generate supporting infrastructure for the

tests. (Zander et al., 2012) deﬁne MBT as an al-

gorithm that generates test cases automatically from

models instead of creating them manually. (Utting

et al., 2012) also provide a survey on MBT. They

deﬁne six dimensions of MBT approaches (a taxon-

omy): model scope, characteristics, paradigm, test

selection criteria, test generation technology and test

execution. They also classify MBT notations as state

based, history based, functional, operational, stochas-

tic, and transition based. Transition based notations

are graphical node-and-arc notations that focus on

deﬁning the transitions between states of the system

such as various types of ﬁnite state machines. (Li and

Wong, 2002) present an MBT approach to generate

behavioral test cases. They use CEFSMs to model

behavior and events of a system under test (SUT).

Events with variables are used to model data while the

events’ interaction channels are used to model com-

munication. The tests are then generated based on

a combination of behavior, data, and communication

speciﬁcations. (Shirole and Kumar, 2013) present a

survey on model-based test generation from behav-

ioral UML speciﬁcation diagrams. They classify the

various research approaches based on formal spec-

iﬁcations, graph theory, and direct UML speciﬁca-

tion processing. Formal speciﬁcation-based testing

is an automated software testing method based on

algebraic speciﬁcations. UML models are usually

translated into a formal notation such as Petri nets,

colored Petri nets, concurrent object oriented Petri

nets, transition systems, and labeled transition sys-

tems, which are used as formal speciﬁcations. Test

cases are then derived from the formal speciﬁcation

and applied to the implementation. In graph-based

testing, a test case is a path that covers some spe-

ciﬁc system requirement and data. (Shaﬁque and

Labiche, 2013) present a systematic review to deter-

mine the current state of the art of MBT tool sup-

port. They scope their study to tools which use state-

based models: FSMs, EFSMs, abstract state machine

(ASM), state-charts, UML state machines, (timed,

input/output)-automata, Harel statecharts, Petri Nets,

state ﬂow diagram and Markov chains. They grouped

MBT tools based on test criteria similarity and di-

vided these criteria into four groups. Model-ﬂow

criteria refer to state, transition, transition-pair, all-

paths and scenario criteria. Script-ﬂow criteria re-

fer to interface (function), statement, decision/branch,

condition, modiﬁed-condition/ decision, and atomic-

condition. Data criteria refer to the selection of input

values when creating concrete test cases from abstract

test cases: one-value, all-values, boundary-values and

pair-wise values. The requirement criterion relies on

traceability links between requirements and model el-

ements. Twelve MBT tools are selected as primary

studies. A comparison enables tool selection based

on project needs.

2.2 Testing Autonomous Systems

Autonomy is the ability to operate independently,

without the need for human guidance or interven-

tion (Cheng, 2011). Based on this deﬁnition, au-

tonomous systems can automatically achieve certain

goals. They can decide which action to take even in

unforeseen circumstances. Autonomous systems are

now being deployed in safety, mission, and business

critical scenarios. Increasingly, modern house-hold,

business, and industrial systems incorporate auton-

omy as well (Fisher et al., 2013). Testing autonomous

systems to provide a meaningful assessment of their

reliability and robustness with respect to unknown

and dynamically changing environments, presents a

signiﬁcant challenge. Although, in this paper, we only

consider autonomous mobile robot platforms, our ap-

proach may be applicable for multi-agent systems

(MAS) due to their autonomous behaviors. (Nguyen

et al., 2011) provide a survey on testing methods and

techniques in MAS. The authors classify the existing

work on MAS testing based on testing levels. Test-

ing in MAS consists of ﬁve levels (unit, agent, inte-

gration, system, and acceptance). System testing in-

tends to test the MAS as a system running in the tar-

get operating environment. They also organize test-

ing MAS techniques into two categories, simulation-

based techniques (passive approaches) and structured

testing techniques (active approaches). They differ-

MODELSWARD2015-3rdInternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

166

entiate between them in terms of test input perspec-

tives. In passive techniques, test inputs are often pre-

deﬁned. On the contrary, active techniques obtain test

inputs while monitoring the output behaviors of the

SUT. Despite the classiﬁed literature on testing MAS,

these approaches do not consider that tests can be gen-

erated from a world model. (Rehman and Nadeem,

2013) analyze and evaluate seven techniques based

on seven variables (case study, evolution capability,

testing framework, tool support, input artifact, arti-

fact coverage, and level of testing). Although the sur-

vey is not extensive, the ﬁndings indicate that MBT

and Integration testing of autonomous agent systems

requires serious attention. (Jacoff et al., 2003) in-

troduce performance metrics to evaluate capabilities

and behaviors of autonomous mobile robots. These

robots perform a variety of urban search and rescue

(USAR) tasks i.e. explore the maze-like test course,

autonomously negotiate obstacles, ﬁnd simulated vic-

tims, identify hazards, deliver sustenance and com-

munications, and generate practical maps of the envi-

ronment. The presented technique simulates mobile

robots’ collaboration in realistic situations in a variety

of arenas. Arenas are collapsed structures that are de-

signed and modeled from buildings in various stages

of collapse. The technique uses a Reference Test

Arena for Autonomous Mobile Robots which was de-

veloped through support from DARPA. The technique

also provides up to thirty simulated victims placed

throughout the arenas. Each victim displays up to

ﬁve signs of life (form, motion, body heat, sound, and

emission). Unlike our technique, the test arenas

technique is world simulation-based and uses static

testing worlds. Similarly, (Arnold and Alexander,

2013) provide a technique to generate automatically a

wide range of test situations, which are a combination

of maps, peer entities, and missions or objectives. Sit-

uations represent simulation environments. Situations

are, then, executed against a simulated autonomous

robot in the simulator (i.e., Player/Stage robot simu-

lator) to observe how the robot behaves. They gen-

erated and ran 500 different situations with random-

ized map size, obstacle density and minimum route

lengths for simulating Pioneer 3-AT robot. These sit-

uations involved collisions between the autonomous

robot and one of several dumb robots. Although the

approach is not fully automated, it requires a human

engineer to study accident scenarios, the result shows

that faults were uncovered. (Lill and Saglietti, 2012)

use a MBT technique for testing autonomoussystems.

First, the authors compare different modeling nota-

tions (Process Algebras like Calculus of Communi-

cating Systems (CCS) and Communicating Sequen-

tial Processes (CSP), UML activity diagrams, Petri

Nets (PNs), and Coloured Petri Nets (CPNs)) that

are used to model concurrent behavior of cooperat-

ing autonomous systems. The comparison is based

on four evaluation criteria (understandability, well-

deﬁnedness, scalability, and testability). The authors

then select CPNs to model a factory robot due to its

high scalability. The factory robot carries a load from

one place to another. Obstacle passing is not consid-

ered. They also deﬁne coverage criteria tailored to

the characteristics of CPNs, such as colour-based and

event-based coverage criteria. Although there is no

test generation, the authors found CPNs as the most

promising option for MBT of autonomous systems.

Even though the literature on testing autonomous sys-

tems is large, no work found that aims to use behav-

ioral model such as CEFSM and CPN to address test-

ing dynamic worlds.

2.3 World Model-Based Testing

Most approaches in the literature on modeling the

world of autonomous systems deﬁne the world model

as a software control component that represents the

autonomous system’s view of its world. On the con-

trary, in our approach, the world is considered as in-

dependent actors interacting with the SUT instead of

being part of it. Existing approaches mostly have the

purpose of increasing the understandability of the au-

tonomous system to the relevant surrounding world

in order to implement proper, efﬁcient, and safe be-

havior, but they are not aiming for model-based test-

ing. (Ghete et al., 2010) contribute an intelligent in-

formation storage and management system approach

for autonomous systems with the aim of modeling the

world of an autonomous system. The approach uses

a three-pillar information architecture: prior knowl-

edge, world model, and real world (sensory infor-

mation). Sensory information and prior knowledge

are stored as world model, and then are delivered

to cognitive processes. The world model is repre-

sented as instances of classes with class speciﬁc at-

tributes and relations. (Furda and Vlacic, 2010) also

present an object-oriented world model approach for

the road trafﬁc environment of autonomous vehicles.

The main feature of the approach is to build an accu-

rate and real-time world model that is used as input

information for a decision-making module in order

to execute the most appropriate driving maneuver for

any given trafﬁc situation. The authors divide input

information into: 1) priori information that comprises

all advance information, before the autonomous vehi-

cle starts its journey, such as a planned travel path, 2)

real-time information that is obtained from on-board

sensors in real-time during the vehicle’s movement,

TowardsWorldModel-basedTestGenerationinAutonomousSystems

167

and 3) communication information that is provided

through vehicle-to-vehicle (V2V) communication, or

through vehicle-to-infrastructure (V2I) communica-

tion (e.g., a trafﬁc management center). The approach

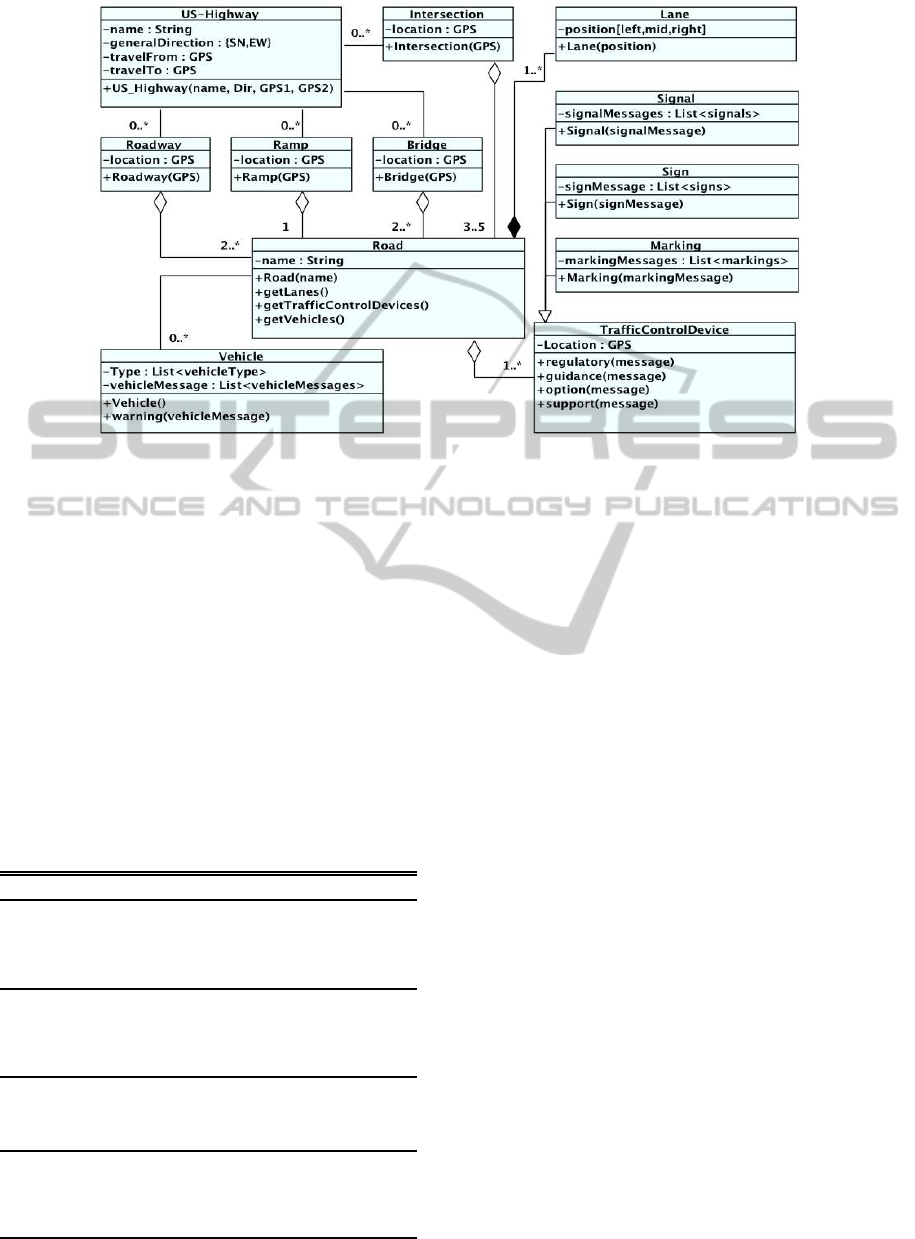

uses UML class diagrams to represent the structure of

the world actors.

A closely related approach for world model-based

testing and its extensions is presented in (Iqbal et al.,

2012). The approach limits the world model to a static

world. It is speciﬁed for testing real-time embedded

systems (RTES); however, it is not applicable for au-

tonomous systems because their worlds are dynamic.

The approach generates black-box test cases automat-

ically based on the static world model. The main

characteristics of the approach are: 1) modeling the

structural and behavioral world properties, especially

real-time properties. Invariants and error states such

as unsafe, undesirable, or illegal states are also mod-

eled. They use an extension of UML (MARTE) that

models and analyzes real-time embedded systems, to

model the world. 2) Test oracles are then generated

automatically from the world model. A simulator is

used to observe actual response. 3) To identify feasi-

ble test cases and maximize possibilities of fault de-

tection, heuristic algorithms are used as test genera-

tion strategies. An empirical study is conducted to

identify which test case generation approach obtains

the best results. The experiment shows that ART is

the best among the algorithms.

3 APPLICATION DESCRIPTION

3.1 Autonomous City Vehicles (ACVs)

There are many applications of autonomous system.

The autonomous robotic vacuum cleaner is a well-

known example. (Couceiro et al., 2014) present a sur-

vey on multi-robot systems (MRS). The use of MRS

is especially preferable when the development area

is either hazardous or inaccessible to humans, e.g.,

search-and-rescue (SaR) victims in catastrophic sce-

narios. In the driverless vehicles domain, there are

three categories of applications, autonomous under-

water vehicles (AUVs), autonomous aerial vehicles

(AAVs), and autonomous ground vehicles (AGVs). In

this paper, we focus on AGVs. (Cheng, 2011) de-

ﬁnes AGVs as consisting of four modules: world per-

ception and modeling (sensors), localization and map

building (sensors and communications), path plan-

ning and decision-making (intelligent algorithms),

and motion control (actuators). The world perception

and modeling module includes both image-based sen-

sors like monocular and stereo cameras (monochrome

and color), and range sensing devices like radio de-

tection and ranging (RADAR), Laser detection and

ranging (LADAR), and Light detection and ranging

(LIDAR). These sensors are responsible for provid-

ing a concrete description of the surrounding world,

e.g. static obstacles, moving objects, vehicle posi-

tion, etc. Motion control consists of a set of actuators

that are controlled by AVGs autonomously, including

throttle control, steering control, and brake control.

Unless we are dealing with automatic transmission,

the gearshift also has to be automated. These actua-

tors are based on two control tasks, longitudinal and

lateral. The longitudinal control refers to an AGV’s

speed regulation and involves throttle and brake. The

lateral control includes an AGV’s steering to follow a

track reference, and turning lights to warn other ve-

hicles. Autonomous city vehicles that are detailed in

section 2.3 are used in this paper as SUT. These AGVs

continuously communicate and synchronize informa-

tion about their surrounding world through V2V and

V2I. They also interact with a set of world actors con-

sidered to be necessary for autonomous driving. Our

case study uses a structured world (U.S. Highways) to

model instead of using an unstructured (Urban) one as

described in (Furda and Vlacic, 2010).

3.2 U.S. Highway

A highway can be divided into multiple snippets (en-

trance ramp, divided highway, and exit ramp). Each

snippet contains relevant instances of trafﬁc control

devices (TCDs). For instance, the entrance ramp

includes a Speed-limit sign and a Red-Green traf-

ﬁc light. The express highway is composed of only

a group of Speed-limit signs. Moreover, the same

TCDs in different snippets may send different mes-

sages. For example, a Speed-limit sign on an entrance

ramp sends a different message than a Speed-limit

sign on the express highway. For example, the en-

trance ramp may contain many actors such as a red

trafﬁc light, a stopped vehicle, a single solid white

line showing the lane’s boundary, and a single dot-

ted white line guiding road users to the highway junc-

tion. The U.S. Department of Transportation, Federal

Highway Administration (FHWA), has developed the

design details of TCDs on all public streets, high-

ways, bikeways, and private roads open to public

trafﬁc as a standard (The Manual on Uniform Traf-

ﬁc Control Devices (MUTCD)) (U.S. Department of

Transportation, 2013). We use MUTCD as an infor-

mation resource to build the highway world model. In

general, TCDs are classiﬁed into three groups, signal,

sign, and marking control devices. Signal control de-

vices send light signals such as red, yellow, and green

MODELSWARD2015-3rdInternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

168

light to control trafﬁc. Sign control devices use text

and numbers, such as speed limit and stop signs, to

regulate/alert road users. Marking control devices are

usually painted on the ground, such as dotted, solid,

single, double, white, and yellow lines that guide road

users to promote highway safety and efﬁciency. All

TCD groups are also designed to send four types of

messages (regulatory, guidance, option, and support).

Regulatory messages have a statement of required,

mandatory, or speciﬁcally prohibitive practice. Guid-

ance messages convey a statement of recommended,

but not mandatory, practice. A statement of practice

is a permissive condition and carries no requirement

or recommendation. Support messages express in-

formational statements that do not convey any degree

of mandate, recommendation, authorization, prohibi-

tion, or enforceable condition. For detail of United

States TCDs, see (U.S. Department of Transportation,

2013).

4 APPROACH

Our objective is to provide a systematic model-based

test generation approach to generate test cases from

autonomous systems’ world model. Because of

some scalability and complexity issues of the dy-

namic worlds, especially when actors act indepen-

dently and unpredictably, we concentrate on actors

that autonomous systems are dealing with, behav-

iors of these actors, and stimuli (messages) that au-

tonomous systems can read (perceive) from actors.

The locations where actors interact are also consid-

ered. A group of actions that a set of actors can per-

form can happen over a particular snippet. For in-

stance, when an AGV travels on the highway, it per-

forms certain functions (e.g., speed up, slow down,

change lane, or emergency stop) depending on mes-

sages perceived from highway actors such as trafﬁc

control signs and other road users. Therefore, we

build the world behavioral model in two steps. First,

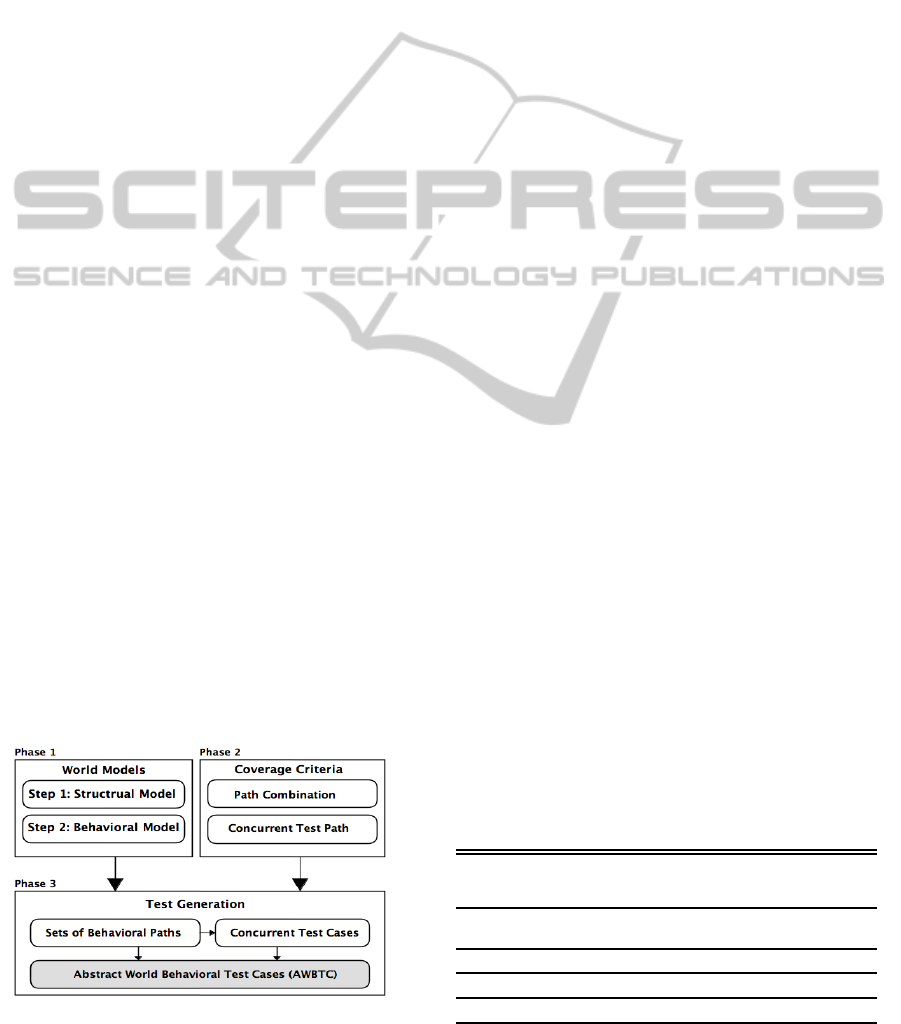

Figure 1: Behavioral Test Generation Process.

we construct a structural model of actors to repre-

sent their attributes, functions and relations. Second,

we construct the behavioral model to describe ac-

tors’ states and transitions and their interactions. Each

actor is presented by one behavioral model show-

ing messages they can send/receive. The commu-

nication between these actors represents the world

model. These communications need to be modeled

by a communicating behavioral semantic model such

as a CEFSM that handles the communication between

the actors. As such in our application (AGV and high-

way), actors are interacting simultaneously, the com-

municating behavioral model should cover not only

the internal transitions of actors, but also the commu-

nicating between them. The communicating behav-

ioral model can then be leveraged to generate world

behavioral test cases. Once we build the world behav-

ioral model, any member of the graph-based testing

criteria from (Ammann and Offutt, 2008) can be used

to generate behavioral test paths, which are abstract

world behavioral test cases (AWBTCs). The test gen-

eration process is illustrated in Figure 1. The world

model-based test generation process has the follow-

ing three phases:

• Model the world by constructing structural and

behavioral models.

• Select proper graph-based test criteria to cover the

communicating behavioral model.

• Generate AWBTCs which are test paths extracted

from the communicating behavioral model based

on selected criteria.

4.1 Phase 1: World Modeling

4.1.1 Structural Model

The structural model is constructed using a UML

class diagram, where classes represent actors includ-

ing their important characteristics, messages, and re-

lationships. Each group of actors is aggregated into

a single snippet. The number of involved actors in

the snippet is determined by their multiplicity rela-

tionship and similar actors that send common mes-

Table 1: Highway snippets instances.

Class vs-

pace0.08cm

Snippet Instances

Roadway Freeway, expressway, non-toll highway, toll

highway, and toll plaza.

Ramp

Entrance, exit, and switch ramp.

Bridge Movable/unmoveable bridges and tunnels.

Intersection Three, four, and ﬁve way of intersections.

TowardsWorldModel-basedTestGenerationinAutonomousSystems

169

Figure 2: Structural Model for Highway Actors.

sages are generalized into a single class. The associ-

ation relation is also used to describe that one actor

can support or be part of another actor or snippet. In

our application, the highway can be represented by

four types of snippets, roadways, ramps, bridges, and

intersections. Table 1 shows examples of highway

snippet instances. Actors that are considered with a

highway are of four types: vehicles, signals, signs,

and markings trafﬁc devices. For simplicity, at this

point, we assume that pedestrians do not exist in the

highway world. Actors’ instances and messages they

can send are illustrated in Table 2. The UML class di-

agram that represents the structural model of the high-

way world is shown in Figure 2.

Table 2: Highway actors instances.

Class

Actor Instances Messages

Vehicle

Passenger vehicles, ﬁre

vehicles, law enforce-

ment vehicles, ambu-

lances, and other ofﬁcial

emergency vehicles.

ambulance.warning(

’turn ﬂash light’).

ﬁreTruck.warning(

’siren released’).

Signal

Trafﬁc

Device

(Red and green), (Red,

yellow, and green) traf-

ﬁc light, steady, ﬂashing

arrows, No U-turn move-

ment ﬂashing.

redGreenTLD.regluto-

ry(’redlight’). green-

Flashing Arrow.

guidance (’turn is

allowed’).

Sign

Trafﬁc

Device

Stop, yield, speed limit,

ﬁnes double, do not pass,

emergency stopping only.

speedLimit.regulatory

(’speed limit 45’).

doNotPass.regulatory(

’Do Not Pass’).

Marking

Trafﬁc

Device

White left-turn arrows,

single dotted and solid

white line, double solid

white and yellow lines,

lanes reduction.

laneReduction.regulat-

ory(’lanes reduction

single white line’).

4.1.2 Behavioral Model

Although a wide range of behavioral models exists,

we illustrate the behavioral model using communi-

cating extend ﬁnite state machines (CEFSMs). The

strength of CEFSM is that it can model orthogonal

states of a system in a ﬂat manner and does not need

to compose the whole system in one state as in state

charts, which would make it more complicated and

harder to analyze and/or test (Brand and Zaﬁropulo,

1983; Li and Wong, 2002). CEFSM = (S, s

, E, P,

T, A, M, V, C), such that: S is a ﬁnite set of states,

is the initial state, E is a set of events, P is a set

of boolean predicates, T is a set of transition func-

tions such that T: S×P×E→S×A×M, A is a set of

actions, M is a set of communicating messages, V is

a set of variables, and C is the set of input/output

communication channels used in the CEFSM. State

changes (action language): The function T returns a

next state, a set of output signals, and an action list for

each combination of a current state, an input signal,

and a predicate. It is deﬁned as: T(s

, p

, get(m

))/(s

A, send(m

,..., m

)) where, s

is the current state, s

is the next state, p

is the predicate that must be true

in order to execute the transition, e

is the event that

when combined with a predicate triggers the transi-

tion function, m

,..., m

are the messages. CEFSM is

a generalization of an EFSM (Cheng and Krishnaku-

mar, 1993) (i.e., adding communication channels be-

tween EFSMs). We model individual actors as EF-

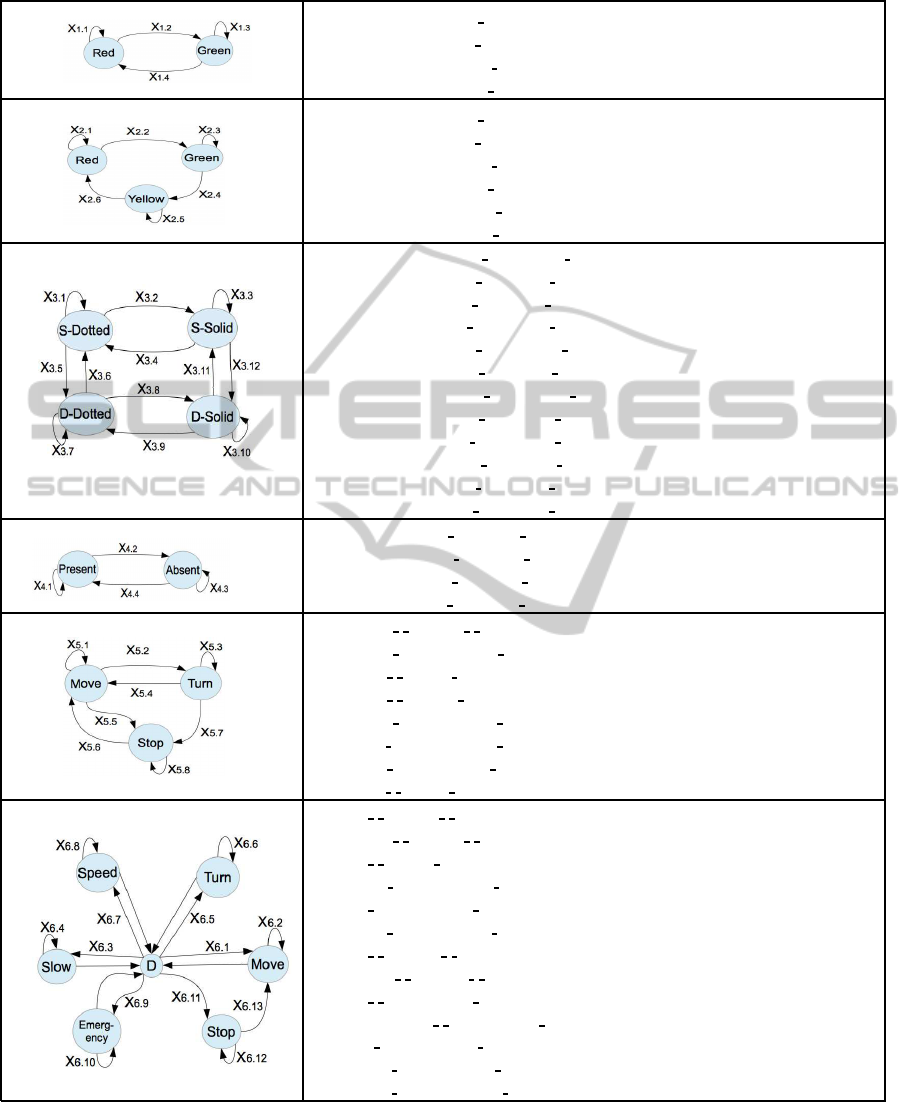

SMs and their interaction as CEFSM. Table 3 shows

a set of EFSMs that represent a group of highway ac-

tors. Predicates that control transitions are also ex-

MODELSWARD2015-3rdInternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

170

Table 3: Highway Actors’ Behavioral Models.

X1. Red & Green trafﬁc light

1.1

:(Red,[timer<30sec], )/(Red,timer++,actor.regulatory(’Red light’))

1.2

:(Red,[timer=30sec], )/(Green,timer=0,actor.regulatory(’Green light’))

1.3

:(Green,[timer<30sec],

)/(Green,timer++,actor.regulatory(’Green light’))

1.4

:(Green,[timer=30sec], )/(Red,timer=0,actor.regulatory(’Red light’))

X2. Red, Green & Yellow trafﬁc light

2.1

:(Red,[timer<60sec], )/(Red,timer++,actor.regulatory(’Red light’))

2.2

:(Red,[timer=60sec],

)/(Green,timer=0,actor.regulatory(’Green light’))

2.3

:(Green,[timer<60sec], )/(Green,timer++,actor.regulatory(’Green light’))

2.4

:(Green,[timer=60sec],

)/(Yellow,timer=0,actor.regulatory(’Yellow light’))

2.5

:(Yellow,[timer<30sec], )/(Yellow,timer++,actor.regulatory(’Yellow light’))

2.6

:(Yellow,[timer=30sec],

)/(Red,timer=0,actor.regulatory(’Red light’))

X3. Dotted and Solids Marking Devices

3.1

:(S-Dotted,[!Change], )/(S-Dotted, ,actor.regulatory(’Single dotted white line’))

3.2

:(S-Dotted,[Change], )/(S-Solid, ,actor.regulatory(’Single solid white line’))

3.3

:(S-Solid,[!Change],

)/(S-Solid, ,actor.regulatory(’Single solid white line’))

3.4

:(S-Solid,[Change], )/(S-Dotted, ,actor.regulatory(’Single dotted white line’))

3.5

:(S-Dotted,[Change],

)/(D-Dotted, ,actor.regulatory(’Double dotted white lines’))

3.6

:(D-Dotted,[Change], )/(S-Solid, ,actor.regulatory(’Single solid white line’))

3.7

:(D-Dotted,[!Change],

)/(D-Dotted, ,actor.regulatory(’Double dotted white lines’))

3.8

:(D-Dotted,[Change], )/(D-Solid, ,actor.regulatory(’Double solid white lines’))

3.9

:(D-Solid,[Change],

)/(D-Dotted, ,actor.regulatory(’Double dotted white lines’))

3.10

:(D-Solid,[!Change], )/(D-Solid, ,actor.regulatory(’Double solid white lines’))

3.10

:(D-Solid,[Change],

)/(S-Solid, ,actor.regulatory(’Single solid white line’))

3.12

:(S-Solid,[Change], )/(D-Solid, ,actor.regulatory(’Double solid white lines’))

X4. Trafﬁc sign

4.1

:(Present,[Seen], )/(Present, ,actor.regulatory(’Trafﬁc sign’s rule’))

4.2

:(Present,[!Seen],

)/(Absent, ,actor.regulatory(’Start trafﬁc sign’s rule’))

4.3

:(Absent,[!Seen], )/(Absent, ,actor.regulatory(’Keep following rule’))

4.4

:(Absent,[Seen],

)/(Present, ,actor.regulatory(’New trafﬁc sign’s rule’))

X5. Passenger Car

5.1

:(Move, , )/(Move, , )

5.2

:(Move, ,get(m

))/(Turn, ,actor.regulatory(’Turning ﬂash light on’))

5.3

:(Turn,

, )/(Turn, ,actor.regulatory(’Turning ﬂash light on’))

5.4

:(Turn, , )/(Move, ,actor.regulatory(’Turning ﬂash light off’))

5.5

:(Move,

,get(m

))/(Stop, ,actor.regulatory(’Stop light on’))

5.6

:(Stop, ,get(m

))/(Move, ,actor.regulatory(’Stop light off’))

5.7

:(Turn,

,get(m

))/(Stop, ,actor.regulatory(’Stop light on’))

5.8

:(Stop, , )/(Stop, ,actor.regulatory(’Stop light on’))

X6. Car In an Emergency Situation

6.1

:(D, , )/(Move, , )

6.2

:(Move,

, )/(Move, , )

6.3

:(D, , )/(Slow, ,actor.regulatory(’Stop light on’))

6.4

:(Slow,

,get(m

))/(Slow, ,actor.regulatory(’Stop light on’))

6.5

:(D, ,get(m

))/(Turn, ,actor.regulatory(’Turning ﬂash light on’))

6.6

:(Turn,

,get(m

))/(Turn, ,actor.regulatory(’Turning ﬂash light’))

6.7

:(D, , )/(Speed, , )

6.8

:(Speed,

, )/(Speed, , )

6.9

:(D, , )/(Emergency, ,actor.regulatory(’Siren/Emergency-ﬂashing’))

6.10

:(Emergency,

, )/(Emergency, ,actor.regulatory(’Siren/Emergency-ﬂashing’))

6.11

:(D, ,get(m

))/(Stop, ,actor.regulatory(’Stop light’))

6.12

:(Stop,

,get(m

))/(Stop, ,actor.regulatory(’Stop light’))

6.13

:(Stop, ,get(m

))/(Move, ,actor.regulatory(’Stop light off’))

pressed in Table 3. Highway actors are a red-yellow-

green trafﬁc light, a dotted-line marking device, a

speed-limit sign device, an ambulance,..., a passen-

ger car,..., etc. Note that X6 (Car in an emergency

situation) uses a dynamic node D to model commu-

nication between the various states. This is done to

reduce the number of transitions. Without it the graph

would be fully connected. This approach also uses

TowardsWorldModel-basedTestGenerationinAutonomousSystems

171

dummy edges without transition annotations as input

to node D. In our application, we selected the entrance

ramp snippet as an example. We also selected ﬁve ac-

tors (red-green trafﬁc light, dotted-solid lines, speed

limit trafﬁc sign, passenger vehicle, and emergent ve-

hicle) to participate in this snippet. Three of them,

the red-green trafﬁc light, the dotted-solid lines, and

the trafﬁc sign, do not receive messages from outside.

They only send messages periodically. The other two

actors, passenger and emergency vehicles, however,

do react to the messages that other actors send. They

also send and react to each other. For instance, when

the red-green trafﬁc light actor turns to red, it sends a

message to all vehicles to stop but this trafﬁc light ac-

tor does not react to any message that comes from the

world. On the other hand, a vehicle actor must stop

when it receives a red light message from the trafﬁc

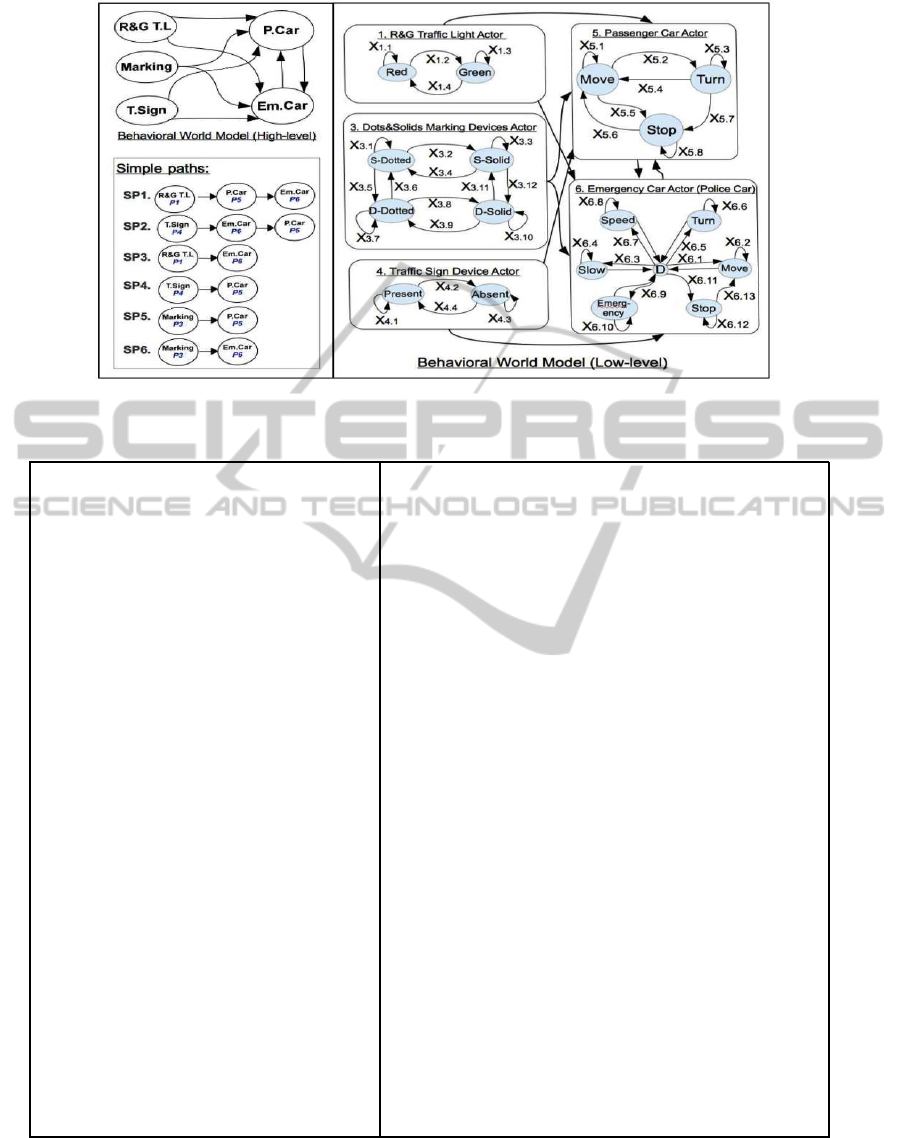

light actor. Figure 3 shows the CEFSM model that

represents the concurrent interactions between these

ﬁve actors over the entrance ramp snippet.

4.2 Phase 2: Coverage Criteria

Since actors interact concurrently, world behavioral

model can be deﬁned as a collection of concurrent

processes. Each process is modeled as aCEFSM

that

can be represented as a directed graph G

= (N

, E

)

where N

is a set of nodes and E

is a set of edges and is

considered as a conventional graph where it is treated

sequentially (Yang and Chung, 1990). Test crite-

ria such as edge-coverage, prime-path coverage etc.

(Ammann and Offutt, 2008), can be applied. Using

any of a number of test path generation techniques,

test paths then can be generated that fulﬁll these cov-

erage criteria. Let P

= (p

, p

, ..., p

) be a set of

such paths that cover G

, where 1 ≤ i ≤ |CEFSMs|

and |CEFSMs| is the number of CEFSMs, which

also corresponds to the number of actors that share

a snippet, and k is the number of paths that inter-

nally cover G

. We used edge-coverage to generate

internal paths that cover actors’ behavioral models

(X1, X2, ..., X6) from Table 3. The generated internal

path sets, P

, P

, ..., P

, are shown in the left column

of Table 4. These actor CEFSMs communicate via

the exchange of messages. There are two different

types of paths, internal and global paths, that repre-

sent the concurrent execution behavior of CEFSMs.

The internal paths describe the internal execution of

the processes that can be characterized by the input

and the sequence of the states involved in the execu-

tion. The global paths represent the communications

between the CEFSMs. The behavior varies depend-

ing on changes in synchronization conditions among

the concurrent processes. Therefore, the global paths

are considered concurrent paths. The concurrent in-

teraction between different paths that represent mul-

tiple CEFSMs produces an arbitrary combination of

internal paths of CEFSMs. As a result, we have two

types of coverage criteria, path combination and con-

current test path coverage criteria.

4.2.1 Path Combination Coverage Criteria

As mentioned earlier, each actor is represented as a

CEFSM. These CEFSMs communicate concurrently

via global messages which are seen as global paths,

as shown in the behavioral world model (High-level),

in Figure 3. Therefore, we ﬁrst have to generate

global test paths that cover the global messages. We

used simple-path coverage, see (Ammann and Of-

futt, 2008), to generate global test paths that cover

the top level of the world behavioral model. Fig-

ure 3 shows six simple paths, SP

, SP

, . . . , SP

, that

cover the top level of the world model of the entrance

ramp snippet. Let WBM be deﬁned as the set of sim-

ple paths {SP

, SP

, . . . , SP

}. Each simple path SP

is composed of multiple sets of {P

|1 ≤ i ≤ n, n is

the number of actors that participate in SP

} of in-

ternal paths, which actually represent a behavioral

scenario that can occur over the snippet. As a re-

sult, we have to combine each internal path p

path in P

) with other internal paths, p

(a path in

) and p

(a path in P

), in order to cover all possi-

ble combinations of internal paths that SP

can han-

dle. We use the same process for the other sim-

ple paths. Therefore, path combination coverage

criteria should determine what combinations are re-

quired. Let P

, P

, . . . , P

be a path through the be-

havioral world model WBM and the sets of internal

paths (nodes in SP

), P

= {p

,.. .,p

} and P

,.. .,p

}. Then, the selection of p

from P

and a p

from P

is called a path combination. Let

len(p) be the number of nodes in path p, the length

of p. The path combination set of a simple path SP

Comb

= {(p

,.. .,p

)|p

∈ P

, m = len(SP

), n =

|, 1 ≤ j ≤ m, 1 ≤ k ≤ n}. The number of all path

combinations of SP

will be the product of the number

of internal paths of each P

. Then, |Comb

len(SP

)

∏

j=1

At this point, we cover all possible combinations of

internal paths that a simple path SP

is composed of,

although not all of them are feasible due to lack of

reachability (Lei and Carver, 2006). Nevertheless,

the resulting set of path combinations are not yet test

paths, only path combinations that represent the ref-

erences to internal paths of various CEFSMs. There-

fore, we need test path coverage criteria that process

each path combination individually in order to gener-

ate concurrent test paths.

MODELSWARD2015-3rdInternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

172

Figure 3: World Behavioral Model for Highway Entrance Ramp Snippet.

Table 4: Internal Paths of CEFSMs (using Edge Coverage) and Examples of AWBTCs.

is set of paths that covers X1:

: Red

1.1

−−→Red

1.2

−−→Green

: Green

1.3

−−→Green

1.4

−−→Red

is set of paths that covers X3:

: S-Dotted

3.2

−−→S-Solid

3.4

−−→S-Dotted

: S-Dotted

3.5

−−→D-Dotted

3.6

−−→S-Dotted

: D-Solid

3.9

−−→D-Dotted

3.8

−−→D-Solid

: S-Solid

3.12

−−−→D-Solid

3.11

−−−→S-Solid

is set of paths that covers X4:

: Present

4.2

−−→Absent

: Absent

4.4

−−→Present

is set of paths that covers X5:

: Move

5.2

−−→Turn

: Turn

5.3

−−→Turn

5.4

−−→Move

: Move

5.5

−−→Stop

: Turn

5.7

−−→Stop

: Stop

5.8

−−→Stop

5.6

−−→Move

is set of paths that covers X6:

: Slow

6.4

−−→Slow

6.11

−−−→Stop

: Stop

6.12

−−−→Stop

6.13

−−−→Move

: Move

6.5

−−→Turn

6.6

−−→Turn

: Move

6.7

−−→Speed

6.8

−−→Speed

: Move

6.9

−−→Emergency

6.10

−−−→Emergency

: Speed

6.3

−−→Slow

6.1

−−→Move

Example of path combinations and concurrent test paths that

represent simple paths, shown in Figure 3:

• Simple path SP1, where P

, P

and P

are synchronized:

- Combination c

=(p

, p

)

[Red

1.1

−−→Red

1.2

−−→Green]

−→p

[Move

5.2

−−→Turn]

−→

[Slow

6.4

−−→Slow

6.11

−−−→Stop]

- Combination c

=(p

, p

)

[Red

1.1

−−→Red

1.2

−−→Green]

−→p

[Move

5.2

−−→Turn]

−→

[Stop

6.12

−−−→Stop

6.13

−−−→Move]

• Simple path SP2, where P

, P

and P

are synchronized:

- Combination c

=(p

, p

)

[Present

4.2

−−→Absent]

−→p

[Slow

6.4

−−→Slow

6.11

−−−→Stop]

−→

[Move

5.2

−−→Turn]

- Combination c

=(p

, p

)

[Present

4.2

−−→Absent]

−→p

[Slow

6.4

−−→Slow

6.11

−−−→Stop]

−→

[Turn

5.3

−−→Turn

5.4

−−→Move]

• Simple path SP3, where P

and P

are synchronized:

- Combination c

=(p

, p

)

[Red

1.1

−−→Red

1.2

−−→Green]

−→p

[Slow

6.4

−−→Slow

6.11

−−−→Stop]

- Combination c

=(p

, p

)

[Red

1.1

−−→Red

1.2

−−→Green]

−→p

[Stop

6.12

−−−→Stop

6.13

−−−→Move]

• Simple path SP4, where P

and P

are synchronized:

- Combination c

=(p

, p

)

[Present

4.2

−−→Absent]

−→p

[Move

5.2

−−→Turn]

- Combination c

=(p

, p

)

[Present

4.2

−−→Absent]

−→p

[Turn

5.3

−−→Turn

5.4

−−→Move]

4.2.2 Concurrent Test Path Coverage Criteria

The produced path combination sets do not show how

these paths interact concurrently. Consequently, we

have to have concurrent test path coverage criteria.

In this paper, we investigate all possible serialized

execution sequences that a combination of paths can

produce although we expect that not all of these seri-

TowardsWorldModel-basedTestGenerationinAutonomousSystems

173

alizations are feasible. We also use the Rendezvous

technique, as in (Yang and Chung, 1990). These

concurrent test path coverage criteria are deﬁned as

follows:

• All Possible Serialized ExecutionSequences Cov-

erage Criterion (APSESCC): Test requirements

contains a set of all possible serialized nodes of

the paths that are included in each path combina-

tion, i.e. each node in path p

can be triggered by

each node in path p

and vice versa. For example,

let p

be a→b and p

be x→y, where p

and p

are

in the same path combination, and a→b means a

sends a global message to b. Then, all serialized

executionsequences of path combinations (p

)

will be: ((a→b→x→y),(a→x→b→y),(a→x→y→b),

(x→y→a→b), (x→a→y→b),(x→a→b→y)) .

If a path combination includes two paths and each

one contains three nodes, there are 20 possible se-

rializations. In general, all possible number of se-

rializations of nodes is

|Comb

∑

i=1

(

len(c

)

∑

j=1

len(c

)

∑

j=1

(

We do not consider this a practicable criterion,

rather we can use it as an upper bound.

• Rendezvous Coverage Criterion (RCC): The test

requirements contain a set of all paths that have

rendezvous nodes. Then the possible number of

rendezvous-paths RZV of the simple path SP

∏

j=1

+ 1) − 1.

4.3 Phase 3: Test Generation

Common algorithms that satisfy conventional test

coverage criteria stated in (Ammann and Offutt,

2008) are used. Our case study uses edge coverage

to generate the internal test paths for each CEFSM.

These test paths are then combined according to the

simple path coverage criterion to cover the high level

behavioral model. An example of internal test paths

is shown in the left column of Table 4. The test paths

in the right column of the same table are the com-

binations of the internal test paths that represent the

Table 5: Number of Path Combinations.

Simple Path

#Path Combination Sets

→ (P

, P

) = 2× 5× 6 = 60

→ (P

, P

) = 2× 6× 5 = 60

→

, P

) = 2× 6 = 12

→

, P

) = 2× 5 = 10

→

, P

) = 4× 5 = 20

→

, P

) = 4× 6 = 24

concurrent processes. We used the serialization algo-

rithm in (Yang and Chung, 1990) to generate these

concurrent paths. The concurrent paths illustrated in

the right column are serialized nodes of the internal

paths. We expressed the concurrency of the paths us-

ing double-bar ”||” as used in LOTOS for deﬁning

concurrent functions, see (Sighireanu et al., 2000).

However, the generated test paths are still abstract. To

make these test paths executable, test-data coverage

criteria, i.e. input-space partitioning (Ammann and

Offutt, 2008), should be deﬁned. One can also use the

input selection method deﬁned in (Ran et al., 2009).

The number of concurrent behavioral test paths de-

pends on the coverage criteria chosen to combine and

generate test paths. The criteria used in this exam-

ple produced a huge number of AWBTCs, which is

expensive and requires reachability analysis (Carver

and Lei, 2013; Hwang et al., 1994; Yang and Chung,

1990) of the test paths. Table 5 shows the number of

combinations for each simple path SP

(i = 1. . . 6).

When we impose the All Serialized Execution Se-

quences Coverage Criterion (APSECC) on the path

combination set Comb

, the number of produced

concurrent test paths increases exponentially. For in-

stance, the ﬁrst path combination of Comb

, as seen

in Table 4, c

=(p

, p

), produced

(3+2+3)!

3!×2!×3!

= 560

test paths. The total number of AWBTCs generated

fromComb

is 60480 test paths, and the whole num-

ber of AWBTCs generated from all path combina-

tion sets, Comb

,Comb

, . . . ,Comb

, is 241920

test paths. This is clearly not scaleable. The Ren-

dezvous Coverage Criterion (RCC) on SP

results in

125 test paths as (((2+1) × (5+ 1) × (6+ 1)) − 1). Table 6

shows the number of test paths for each simple path

(i = 1. . . 6). The total number of test paths gen-

erated from simple paths, SP

, SP

, . . . , SP

is 350 test

paths. This number of test paths is reasonable due to

the complexity of AGV systems.

5 CONCLUSION

This paper presented a novel model-based test gen-

eration approach that allows testing of autonomous

Table 6: Number of Test Paths for RCC.

Simple Path

#Test Paths

→

, P

) = (((2+ 1)× (5+1) ×(6+1)) −1)= 125

→

, P

) = (((2+ 1) × (6+ 1) × (5+ 1)) − 1) = 125

→

, P

) = (((2+ 1) × (6+ 1)) − 1) = 20

→

, P

) = (((2+ 1) × (5+ 1)) − 1) = 17

→

, P

) = (((4+ 1) × (5+ 1)) − 1) = 29

→

, P

) = (((4+ 1) × (6+ 1)) − 1) = 34

MODELSWARD2015-3rdInternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

174

systems in their dynamic world. We modeled an ac-

tive world of an autonomous system. A test genera-

tion process is deﬁned. In addition, a path combina-

tion technique is introduced and formalized in order

to generate concurrent test paths (AWBTCs). Two

concurrent test criteria (APSESCC and RCC) are in-

vestigated. The ﬁndings indicate that RCC is practi-

cally feasible. Reachability analysis (Carver and Lei,

2013; Hwang et al., 1994; Yang and Chung, 1990)

is required for both criteria (APSESCC and RCC) to

increase their feasibility and efﬁciency. Future work

will explore other path combination and concurrent

test path coverage criteria. Future work will also ex-

periment using the CADP (Construction and Analy-

sis of Distributed Processes) toolbox (Garavel et al.,

2013). Reachability analysis investigations and scala-

bility of the world behavioral model will also be pro-

vided. We also plan on extending the approach to

other robotic systems such as robots interacting with

humans in manufacturing.

ACKNOWLEDGEMENTS

This work was supported, in part, by NSF IUCRC

grant # 0934413, 1127947, and 1332078 to the Uni-

versity of Denver.

REFERENCES

Ammann, P. and Offutt, J. (2008). Introduction to Software

Testing. Cambridge University Press, 32 Avenue of

the Americas, New York, NY 10013, USA, ﬁrst edi-

tion.

Andrews, A., Offutt, J., Dyreson, C., Mallery, C. J., Jerath,

K., and Alexander, R. (2010). Scalability issues with

using fsmweb to test web applications. Inf. Softw.

Technol., 52(1):52–66.

Arnold, J. and Alexander, R. (2013). Testing autonomous

robot control software using procedural content gen-

eration. In Bitsch, F., Guiochet, J., and Kaniche, M.,

editors, Computer Safety, Reliability, and Security,

volume 8153 of Lecture Notes in Computer Science,

pages 33–44. Springer Berlin Heidelberg.

Brand, D. and Zaﬁropulo, P. (1983). On communicating

ﬁnite-state machines. J. ACM, 30(2):323–342.

Carver, R. and Lei, Y. (2013). A modular approach

to model-based testing of concurrent programs. In

Lourenco, J. and Farchi, E., editors, Multicore Soft-

ware Engineering, Performance, and Tools, volume

8063 of Lecture Notes in Computer Science, pages

85–96. Springer Berlin Heidelberg.

Cheng, H. (2011). Autonomous Intelligent Vehicles: The-

ory, Algorithms, and Implementation. Springer-

Verlag, Springer London Dordrecht Heidelberg, New

York, ﬁrst edition.

Cheng, K. T. and Krishnakumar, A. (1993). Automatic

functional test generation using the extended ﬁnite

state machine model. In Proceedings of the 30th In-

ternational Design Automation Conference, DAC ’93,

pages 86–91, New York, NY, USA. ACM.

Couceiro, M., Vargas, P., Rocha, R., and Ferreira, N. (2014).

Benchmark of swarm robotics distributed techniques

in a search task. Robotics and Autonomous Systems,

62(2):200–213.

Dias-Neto, A., Subramanyan, R., Vieira, M., and Travas-

sos, G. H. (2007). A survey on model-based test-

ing approaches: A systematic review. In Proceedings

of the 1st ACM International Workshop on Empiri-

cal Assessment of Software Engineering Languages

and Technologies: Held in Conjunction with the

22Nd IEEE/ACM International Conference on Auto-

mated Software Engineering (ASE) 2007, WEASEL-

Tech ’07, pages 31–36. ACM.

Fisher, M., Dennis, L., and Webster, M. (2013). Verifying

autonomous systems. Commun. ACM, 56(9):84–93.

Furda, A. and Vlacic, L. (2010). An object-oriented de-

sign of a world model for autonomous city vehicles.

In Intelligent Vehicles Symposium (IV), IEEE, pages

1054–1059.

Garavel, H., Lang, F., Mateescu, R., and Serwe, W. (2013).

Cadp 2011: a toolbox for the construction and anal-

ysis of distributed processes. International Journal

on Software Tools for Technology Transfer, 15(2):89–

107.

Ghete, I., Heizmann, M., Belkin, A., and Beyerer, J. (2010).

World modeling for autonomous systems. In Dill-

mann, R., Beyerer, J., Hanebeck, U., and Schultz, T.,

editors, KI 2010: Advances in Artiﬁcial Intelligence,

volume 6359 of Lecture Notes in Computer Science,

pages 176–183. Springer Berlin Heidelberg.

Hessel, A., Larsen, K., Mikucionis, M., Nielsen, B., Pet-

tersson, P., and Skou, A. (2008). Formal methods and

testing. chapter Testing real-time systems using UP-

PAAL, pages 77–117. Springer-Verlag, Berlin, Hei-

delberg.

Hwang, G.-H., Tai, K.-C., and Huang, T. (1994). Reachabil-

ity testing: an approach to testing concurrent software.

In Proceedings of the Software Engineering Confer-

ence, 1994 First Asia-Paciﬁc, pages 246–255.

Iqbal, M., Arcuri, A., and Briand, L. (2012). Empiri-

cal investigation of search algorithms for environment

model-based testing of real-time embedded software.

In Proceedings of the 2012 International Symposium

on Software Testing and Analysis, ISSTA 2012, pages

199–209, New York, NY, USA. ACM.

Jacoff, A., Messina, E., Weiss, B., Tadokoro, S., and Naka-

gawa, Y. (2003). Test arenas and performance metrics

for urban search and rescue robots. In Proceedings

of the IEEE International Conference on Intelligent

Robots and Systems (IROS), volume 4, pages 3396–

3403 vol.3.

Lei, Y. and Carver, R. H. (2006). Reachability testing

of concurrent programs. IEEE Trans. Softw. Eng.,

32(6):382–403.

Li, J. and Wong, W. (2002). Automatic test generation

from communicating extended ﬁnite state machine

TowardsWorldModel-basedTestGenerationinAutonomousSystems

175

(CEFSM)-based models. In Proceedings of 5th IEEE

International Symposium on Object-Oriented Real-

Time Distributed Computing. (ISORC 2002), pages

181–185.

Lill, R. and Saglietti, F. (2012). Model-based testing of

autonomous systems based on coloured petri nets. In

ARCS Workshops (ARCS), pages 1–5.

Nguyen, C., Perini, A., Bernon, C., Pavon, J., and

Thangarajah, J. (2011). Testing in multi-agent sys-

tems. In Proceedings of the 10th International

Conference on Agent-oriented Software Engineer-

ing, AOSE’10, pages 180–190, Berlin, Heidelberg.

Springer-Verlag.

Ran, L., Dyreson, C., Andrews, A., Bryce, R., and Mallery,

C. (2009). Building test cases and oracles to automate

the testing of web database applications. Inf. Softw.

Technol., 51(2):460–477.

Rehman, S. and Nadeem, A. (2013). Testing of autonomous

agents: A critical analysis. In Proceedings of the 2013

Saudi International Electronics, Communications and

Photonics Conference (SIECPC), pages 1–5.

Shaﬁque, M. and Labiche, Y. (2013). A systematic review

of state-based test tools. International Journal on Soft-

ware Tools for Technology Transfer, pages 1–18.

Shirole, M. and Kumar, R. (2013). Uml behavioral model

based test case generation: A survey. Softw. Eng.

Notes, SIGSOFT, 38(4):1–13.

Sighireanu, M., Chaudet, C., Garavel, H., Herbert, M., Ma-

teescu, R., and Vivien, B. (2000). Lotos nt user man-

ual.

Tretmans, J. (2008). Model based testing with labelled

transition systems. In Hierons, R., Bowen, J., and

Harman, M., editors, Formal Methods and Testing,

volume 4949 of Lecture Notes in Computer Science,

pages 1–38. Springer Berlin Heidelberg.

U.S. Department of Transportation, F. H. A. F. (2013). Man-

ual on uniform trafﬁc control devices MUTCD.

Utting, M., Pretschner, A., and Legeard, B. (2012). A

taxonomy of model-based testing approaches. Softw.

Test. Verif. Reliab., 22(5):297–312.

Yang, R. and Chung, C.-G. (1990). A path analysis ap-

proach to concurrent program testing. In Proceedings

of the 9th Annual International Phoenix Conference

on Computers and Communications, pages 425–432.

Zander, J., Schieferdecker, I., and Mosterman, P. J. (2012).

Model-based testing for embedded systems. CRC

Press, 6000 Broken Sound Parkway NW,Boca Raton,

FL 3348, USA, ﬁrst edition.

MODELSWARD2015-3rdInternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

176
