A Multimodal User Interface using the Webinos Platform to Connect a

Smart Input Device to the Web of Things

E. Baccaglini, M. Gavelli, M. Morello and P. Vergori

Istituto Superiore Mario Boella, Via P. C. Boggio 61, Turin, Italy

Keywords:

Speech Recognition, Web-based Applications, Open-source Platforms, Internet of Things, Web of Things.

Abstract:

We propose an innovative overlay architecture among heterogeneous devices that works on different operating

systems and an application based on standard web technologies that leverages on such architecture to perform

a broad range of functions using audio commands. To achieve this, a secure web runtime platform allows

connecting different devices such as an Android mobile device, a single board computer and a Web of Things

(WoT) sensor/actuator in a secure and independent manner. Methods and functions have been created in order

to capture the audio from the microphone on personal computers and on mobile phones, and to safely transfer

ﬁles to a single board computer, in which a speech recognition engine is embedded. Therefore, by recording

the audio command from one of these devices and performing voice command identiﬁcation using the speech

engine, it is possible to perform different actions previously deﬁned by the user on one of his devices. This

work demonstrates how open source platforms can interconnect and operate with proprietary architecture in a

complementary and secure manner.

1 INTRODUCTION

Nowadays with the growing presence of persistent in-

teractions among smart devices, users and companies

are exploring different ways to interconnect heteroge-

neous devices. As discussed in (Catania et al., 2012),

smart things and their services can be fully integrated

in the web by reusing and adapting consolidated tech-

nologies and patterns used for traditionalweb content.

Small web servers are embedded into the objects and

the REST technology (Richardson and Ruby, 2008)

is applied to resources in the physical world. Using

REST, the services exposed on the web by the smart

things usually take the form of a structured XML doc-

ument or a JavaScript Object Notation (JSON) object,

which are directly machine-readable.

One signiﬁcant rather new development in elec-

tronic devices is the capability to control the devices

by the user’s voice. Each day more and more com-

panies and developers tend to provide devices and

applications which enable the users to control their

electronic devices using voice commands instead of

clicking on a button, dialing, writing a text or doing

any other kind of physical activity. This enables the

users to easily interact with devices when performing

other tasks or simply just for making it more comfort-

able. Voice command recognition started with voice-

activated dialling for mobile phones (Hosn, 1997)

(Tan et al., 1998) evolving to present days in speaker-

independent voice recognition systems capable of re-

spond to multiple voices regardless of accent or di-

alectal inﬂuences (Jurafsky and Martin, 2000). These

latter systems usually adopt Hidden Markov Mod-

els (Juang and Rabiner, 1991) or Neural Networks

(Gajecki, 2014) to perform their task. Many com-

panies put lots of effort developing proprietary audio

engines, each with its own strengths and ﬂaws. Of-

ten audio engines are limited to a subset of languages

or even just one. These audio engines can be found

in different products such as computer operating sys-

tems, commercial applications, cars, smartphones or

even Internet search engines. One of those can better

suit speciﬁc needs but can only be used on the device

it comes with.

The novelty of this work is the uniﬁcation of de-

vice capabilities, bringing to a single device new fea-

tures and technologies leveraging on those available

on other interconnected devices. The objective is

to have a set of devices all connected to each other

through the webinos (Vergori et al., 2013) platform.

In this way, instead of having an application running

on a single device to trigger vocal commands, the

user is able to perform a function on one of these de-

vices by recording the audio command and perform

104

Baccaglini E., Gavelli M., Morello M. and Vergori P..

A Multimodal User Interface using the Webinos Platform to Connect a Smart Input Device to the Web of Things.

DOI: 10.5220/0005231001040108

In Proceedings of the 5th International Conference on Pervasive and Embedded Computing and Communication Systems (PECCS-2015), pages

104-108

ISBN: 978-989-758-084-0

 2015 SCITEPRESS (Science and Technology Publications, Lda.)

the voice recognition on another connected device.

This distributed capabilities scenario lowers complex-

ity and cuts back device cost. Due to the heteroge-

neous nature of the webinos platform, multiple de-

vices support comes for free. In fact, the same appli-

cation is able to run on Linux, Windows, Android and

other platforms.

The proposed API implementation is based on the

webinos API architecture and it is thereforedeveloped

in node.js. On Android, the API (as also webinos) is

running on anode, an open source porting of node.js

for the Android platform.

The objective of this work is to demonstrate how

webinos can be extended and integrated with existing

technologies such as the STMicroelectronics speech

engine (Kurniawati et al., 2012). This engine inter-

prets the voice command using a speech recognition

algorithm and remotely performs an action or func-

tion for the user. It is desirable to be able to perform

the voice command without the need to be present

next to the device and therefore doing it remotely, us-

ing an application running on another device or smart-

phone. To achieve this, a web application has been

implemented which relies on standard web technolo-

gies only, such as HTML5, JavaScript and CSS3 and

with the ability to leverage on the functionalities in-

troduced by the webinos platform.

The scenarios deﬁned for the project can be ex-

tended to perform more complex functions requir-

ing minor changes to the webinos APIs’ code (e.g.

controlling a smart TV from mobile devices). The

proposed domotic controller is a proof-of-concept

to represent the link between the conventional ar-

chitectural models and the Web of Things (WoT)

world as an evolution of Internet of Things (IoT)

smart devices and RESTful interfaces web connected

(Guinard et al., 2011).

The rest of the paper is organized as follows. In

Sec.2 we describe the proposed architecture, in Sec.3

we sketch a use case in which the architecture can be

applied and in Sec.4 we describe the on-going work.

Sec.5 concludes the paper describing future work.

2 PROPOSED ARCHITECTURE

Webinos is a EU co-funded project, started in 2010

and ended in 2013, aiming to deliver a platform for

web applications across mobile, PC, home media and

in-car devices. The webinos project consists of over

twenty partners from across Europe spanning aca-

demic institutions, industry research ﬁrms, software

ﬁrms, handset manufacturers and automotive manu-

facturers. Webinos is a ’Service Platform’ project un-

der the EU FP7 ICT Programme (Vergoriet al., 2013).

The webinos platform is based on open-source

software. Its objective is to enable web applications

and services to be used and shared consistently and

securely over a broad spectrum of converged and con-

nected devices, including mobile, PC, tablet, home

media and in-car units. The webinos technology has

been built on HTML5, widgets and device API stan-

dards.

Webinos presents many cloud architectural com-

ponents. These components aim to enable cross-

device services in heterogeneous inter and intra-user

scenarios, thus fading out the physical boundaries of

devices. This seamless device interconnection mech-

anism can be described by the Personal Zone concept

(Botsikas et al., 2013). In Figure 1 an example of

the webinos architecture is depicted. The Personal

Zone is the predominantly concept introduced by the

webinos architecture and three different entities are

its main actors namely the Personal Zone Area, the

Personal Zone Hub and the Personal Zone proxy.

The Personal Zone Area (PZA) is representable as

an overlay network whose perimeter is delimited and

deﬁned by the ownership of devices. Each webinos-

enabled device that belongs to the same user is con-

sidered to be inside this perimeter (Vergori et al.,

2013). Moreover, every PZA is considered by deﬁni-

tion a single point of synchronization and all the de-

vices within this area must be authenticated against.

The authentication point is represented by the sec-

ond entity, i.e. the Personal Zone Hub (PZH) that

is the entity in charge of providing functionality to

the webinos ecosystem, such as attestation, authenti-

cation and act as privacy/policy control point. These

assets are provided through OpenID authentication

ﬂows (Recordon and Reed, 2006) and X509 certiﬁ-

cates’ exchange. The PZHs are, in turn, connected

at their edges in order to extend the overlay network

described above, federating multiple PZH entities and

creating a multi-user cross device environment. The

third entity is represented by the Personal Zone Proxy

and is deployed on every webinos-enabled device in

order to manage interconnections with the PZH. It

also keeps all preferences synchronized across per-

sonal devices and exposes available services across

the PZA. Local caching mechanisms are in charge of

making these services available and even maintaining

consistency among already authenticated PZPs when

Internet connection is not available.

The webinos end-to-end communication system is

complemented with an API set that is based on both

standard and non-standard speciﬁcations. The testbed

foresees the use of the webinos W3C File API

that

http://www.w3.org/TR/FileAPI/

AMultimodalUserInterfaceusingtheWebinosPlatformtoConnectaSmartInputDevicetotheWebofThings

105

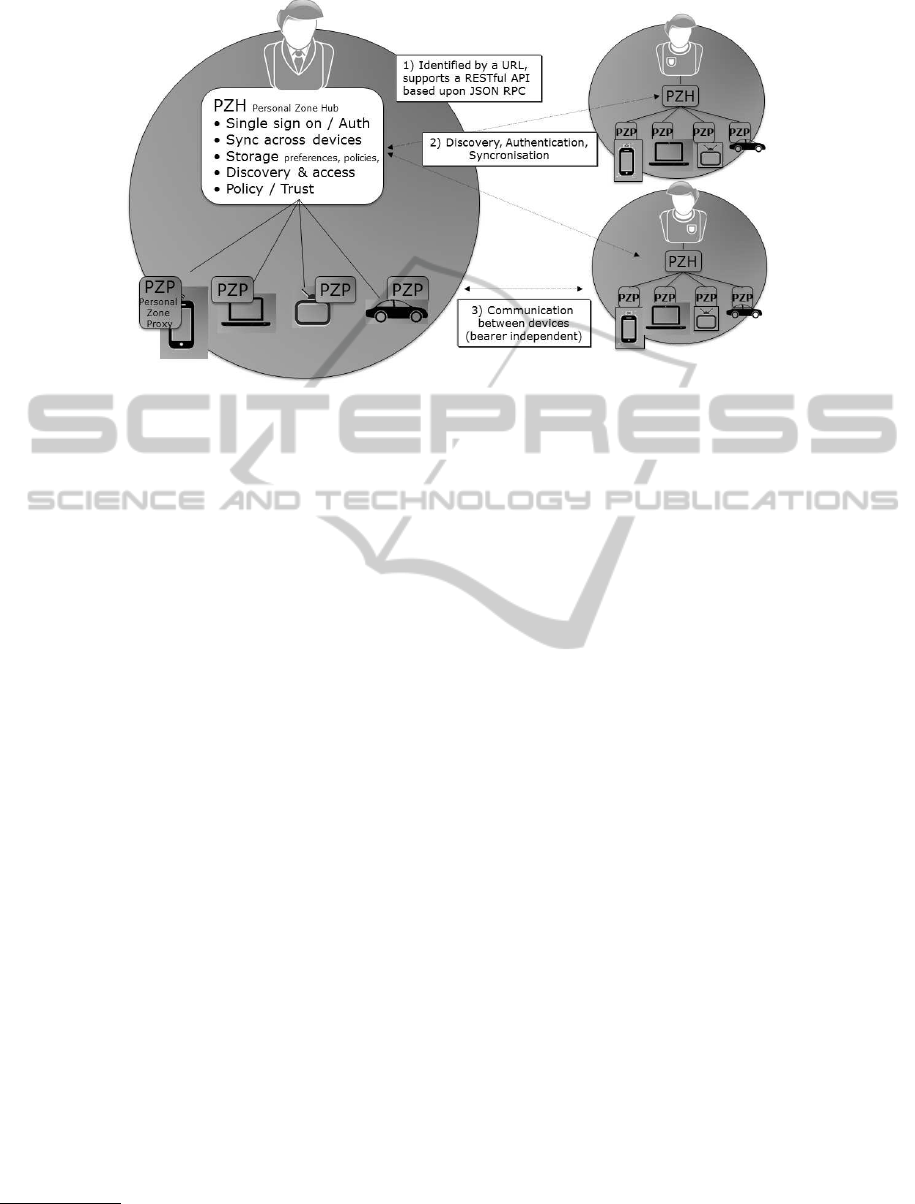

Figure 1: The webinos framework.

is a standard implementation of the namesake W3C

API and the webinos IoT Sensors - Actuators API

The latter is a container for multiple IoT sensors con-

nected to the PZA.

Every webinos API has a logical separation be-

tween the server side and the client side. The former is

represented by the actual implementation of the API;

the latter contains all methods exposed by the API’s

server side.

Webinos bundles alongside with its platform a

chromium-based browser for running application in a

secure manner called Webinos RunTime (WRT). The

WRT is a sandboxed environment where webinos ap-

plications are able to be installed, updated and con-

sumed. The beneﬁts of using this approach are the

possibility to:

• Assign unique application-IDs to each installed

application and therefore apply customize settings

and preferences;

• Synchronize preferences across the Personal

Zone;

• Enforce privacy preferences for each application

leveraging on the client side of the webinos policy

enforcement point;

• Package the web application as a standard W3C

widget

3 USE CASE

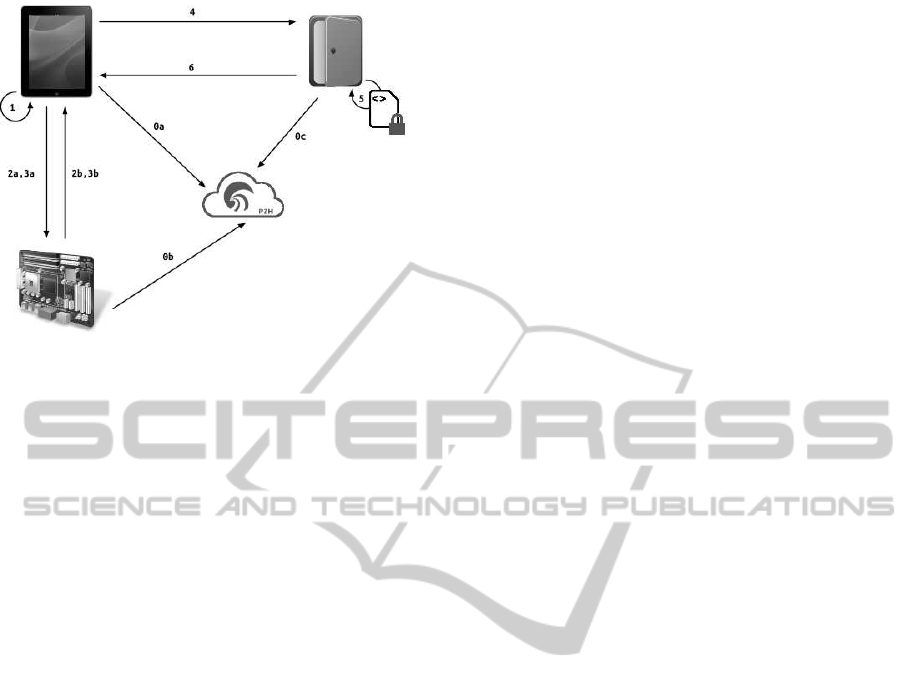

In the following, we propose a use case which

shows how different technologies can be integrated

http://docs.webinos,org/#/APIs

http://www.w3.org/TR/widgets/

in the webinos infrastructure and made usable to any

webinos-enabled device. In this use case, we have a

domotic controller, a speech recognition engine and a

tablet. All of those have proprietary technologies, and

with a webinos PZP running on each of these devices,

these features are easily accessible from the others. In

the presented scenario, a tablet has no speech recog-

nition engine but leveraging on webinos cross device

sharing features, the tablet can use the one provided

by a single-board PC (here a Snowball SKY-S9500-

ULP-CXX). In the same way, the tablet is not capable

of directly activate the door opening, but is able to use

the service exposed by the webinos-enabled domotic

controller.

The presented use case is based on the described

architecture and focus on interconnecting the STMi-

croelectronics proprietary speech engine running on

the single-board PC with a webinos ecosystem. As

a proof-of-concept, we developed an API to wrap and

then expose the speech recognition engine. Moreover,

a frontend application to demonstrate the capabilities

of the aforementioned API has been integrated in the

testbed.

In the presented testbed a door actuator has been

also interfaced with the webinos IoT API, in order to

be able to control it remotely. The architecture de-

scription foresees the domotic controller as a single

entity, whereas in the actual implementation, the door

actuator has been connected to a Raspberry PI that is

the webinos PZP real host.

In Figure 2 we show the application ﬂow that al-

lows using the remote door locking as a service for

opening a door from the tablet with a speech com-

mand. Before starting the whole process, each device

connects to a webinos PZH (cloud hosted in this case)

PECCS2015-5thInternationalConferenceonPervasiveandEmbeddedComputingandCommunicationSystems

106

Figure 2: The application ﬂow for the proposed use case.

and exchanges the list of exposed services [steps 0a,

0b, and 0c]. When all devices have completed this

pre-enrolment stage, they can discover each other and

therefore they become aware of all available services.

The ﬁrst step of the process is the recording of the

audio command [step 1]. Having no direct access to

the microphone the application leverages on the func-

tionality exposed by the PZP through a native imple-

mentation of a wrapped API in order to accomplish

this task. The reason why the application cannot di-

rectly connect to the microphone is because it runs in

a sandboxed environment such as the WRT.

Once the command is recorded, the application

sends it to the single-board PC using the exposed ser-

vice that corresponds to the webinos implementation

of the W3C File API [step 2a]. A response is then

sent back to the tablet conﬁrming that the transfer is

correctly completed [step 2b]. After this success call-

back is sent from the Snowball, the tablet proceeds

triggering the SID audio engine to perform the speech

to text recognition on the Snowball [step 3a]. When

completed, the recognized command is sent back to

the application [step 3b]. The application has a series

of pre-mapped commands and each of them triggers

a different action. In this case the received command

matches with the openDoor case. The tablet then calls

the IoT API to activate the door actuator on the do-

motic controller [step 4]. When the webinos PZP on

the door receives the call for the IoT API, the request

is intercepted from the policy manager and it proceeds

verifying if the caller has the rights to access the API.

If the permission is granted, then it forwards the com-

mand [step 5]. The last step [step 6] is the call-back,

called from the webinos domotic controller informing

the tablet that the door has been opened.

4 ONGOING WORK

Whilst analyzing and extending the webinos ecosys-

tem some criticalities have been spotted.

The main issue is related to the absence of a mech-

anism that leverages on smart objects. At the mo-

ment the webinos discovery dance provides only a list

of APIs that a certain device exposes. It is then de-

manded to the requestor to have knowledge on how to

call the APIs’ methods. This assumption makes com-

pulsory for the requestor to have the API installed on

the webinos device. Therefore, in the proposed use

case, the tablet is required to have installed the webi-

nos IoT API implementation of the speciﬁc door un-

locker, although the tablet would never be able to use

its implementation itself because it is not interfaced

with the actuator. The only useful part for the request-

ing device is the webinos client side API. In fact, we-

binos APIs list separately callable methods in a dif-

ferent location from the actual implementation, but at

the moment the only way to host this list of capabil-

ities on-board is to install the full API. To solve this

issue Personal Zone Proxies may be completely fea-

ture agnostic about what are the capabilities of other

webinos-enabled devices. The main idea is to trans-

mit the API’s client side to the requestor of a speciﬁc

feature as part of the discovery dance, in respect of

Personal Zone privacy/policy settings. Thus, the re-

questor does not need to have any knowledge of the

API that it is going to use, since this API’s client side

is going to be received from the API client end. In

fact, in the client side of the APIs there are listed all

the methods required to call API methods, omitting

the actual implementation. The described scenario

introduces a certain degree of complexity in the we-

binos discovery, but the improvement that would be

achieved is remarkable.

Another relevant aspect is related to the capabil-

ities of the WRT. The ﬁrst downside of running the

web based application in the WRT is that there are

no HTML5 primitives to access the hardware com-

ponents, such as the microphone. From a developer

point of view, it would be desirable to have con-

sistency between HTML5 prototypes and WRT ex-

posed functions. In our testbed, this issue could be

overtaken by running the application on a traditional

browser. Nevertheless, the problem of storing the ﬁle

would remain unsolved since this choice would limit

the application to access only the local web storage,

making not best practice for the webinos File API to

be conﬁgured to access a speciﬁc browser folder.

AMultimodalUserInterfaceusingtheWebinosPlatformtoConnectaSmartInputDevicetotheWebofThings

107

5 CONCLUSIONS

In this work we presented a platform-independent

system based on the webinos architecture which is

able to deliver audio commands to remotely drive the

behaviour of different components. We described the

implemented functions in order to capture an audio

command recorded from a microphone on an Android

mobile device. This audio ﬁle is sent to a single-board

PC in a secure and reliable way through the webi-

nos platform end-to-end system. We showed how we

achieved this objective by extending webinos APIs

pool, implementing a novel API in node.js and ex-

ploiting native code bindings to record the audio com-

mand.

Future work will be devoted to expand the func-

tionalities of the current setup in order to extend the

set of possible actions. As an example, by connect-

ing the Snowball board to a smart TV, it would be

possible to use the application to seamlessly control

this device from an Android device or from the PC.

In addition, the application can be extended adding

support for different voice recognition mechanisms

such as Google speech-to-text API to perform user-

independent command recognition.

REFERENCES

Botsikas, C., Lasak, M., and Vergori, P. (2013). webinosTV:

the multi-screen switchboard for seamless interaction

with distributed content. In Proceedings of EuroITV.

Catania, V., Torre, G. L., Monteleone, S., Patti, D., Ver-

celli, S., and Ricciato, F. (2012). A novel approach

to Web of Things: M2M and enhanced Javascript

technologies. In Green Computing and Communica-

tions (GreenCom), 2012 IEEE International Confer-

ence on, pages 726–730.

Gajecki, L. (2014). Architectures of neural networks ap-

plied for LVCSR language modeling. Neurocomput-

ing, pages 46–53.

Guinard, D., Trifa, V., Mattern, F., and Wilde, E. (2011).

From the internet of things to the web of things:

Resource-oriented architecture and best practices. In

Architecting the Internet of Things, pages 97–129.

Springer Berlin Heidelberg.

Hosn, R. (1997). Key challenges in deploying a voice

activated premier dialing application. In Automatic

Speech Recognition and Understanding, IEEE Work-

shop on, pages 575–582. IEEE.

Juang, B. H. and Rabiner, L. R. (1991). Hidden Markov

models for speech recognition. In Technometrics, vol-

ume 3, pages 251–272.

Jurafsky, D. and Martin, J. H. (2000). Speech and language

processing. Pearson Education India.

Kurniawati, E., Celetto, L., Capovilla, N., and George, S.

(2012). Personalized voice command systems in multi

modal user interface. In Emerging Signal Processing

Applications (ESPA), 2012 IEEE International Con-

ference on, pages 45–47. IEEE.

Recordon, D. and Reed, D. (2006). OpenID 2.0: a platform

for user-centric identity management. In Proceedings

of the 2nd ACM workshop on Digital identity manage-

ment, pages 11–16. ACM.

Richardson, L. and Ruby, S. (2008). RESTful web services.

O’Reilly Media, Inc.

Tan, B. T., Gu, Y., and Thomas, T. (1998). Implementation

and evaluation of a voice-activated dialling system. In

Interactive Voice Technology for Telecommunications

Applications, 4th Workshop on, pages 83–86. IEEE.

Vergori, P., Ntanos, C., Gavelli, M., and Askounis, D.

(2013). The webinos architecture: a developer’s point

of view. In Mobile Computing, Applications, and Ser-

vices, pages 391–399. Springer Berlin Heidelberg.

PECCS2015-5thInternationalConferenceonPervasiveandEmbeddedComputingandCommunicationSystems

108
