Graphical Debugging of Distributed Applications

Using UML Object Diagrams to Visualize the State of Distributed Applications at

Runtime

Andreas Koch and Albert Z

undorf

Software Engineering Research Institute, Kassel University, Wilhelmsh

oher Allee 73, Kassel, Germany

Keywords:

Tool, Debug, Distributed, UML2, Objectdiagram, Eclipse.

Abstract:

While debugging is one of the most time consuming tasks software developers perform, the tool support,

especially for distributed applications, is lacking according to many professional developers. The Visual De-

bugger is an approach to provide an easy-to-use tool which gives software developers an abstract view on the

current state of their application in debugging sessions. While similar tools for non distributed applications al-

ready exist, the Visual Debugger addresses the more complex debugging scenarios in distributed applications.

Therefore, several views with different levels of abstraction of the current state of an application are provided.

Although the approach may be adapted to other object oriented programming languages, the current target of

the Visual Debugger is languages running on the Java Virtual Machine with the focus on Java.

1 INTRODUCTION

Debugging is one of the most time consuming tasks in

the daily work of a software developer. To tackle this

challenge, many tools were developed in research as

well as in the industry. Additionally, in each modern

IDE as Eclipse, IntelliJ IDEA or NetBeans some kind

of debugging support is already integrated. Although

so much work was invested into this area, there are

still many professional software developers not sat-

isﬁed with the provided support of debugging tools.

(Layman et al., 2013)

Started in a research project with industrial part-

ners, the Visual Debugger presented in this paper is

an approach to ﬁll the gap of an easy-to-use, but help-

ful visualization of the state of distributed and non

distributed Java applications as a helper in debugging

sessions.

To explain the usage of the Visual Debugger, at

ﬁrst it must be positioned in the debugging process.

This process can be separated into several steps:

1. An unwanted behaviour of an application takes

place.

2. The problematic part of the source code is located.

3. The source code is changed to prevent this be-

haviour.

4. The test scenario is reproduced to ensure this

changed behaviour is correct.

The steps 1, 3 and 4 are already well supported by

tools and frameworks like logging or testing frame-

works, mature source code editors and more. In con-

trast, the second step is the most crucial and most time

consuming part of this process because there are a lot

of different sources of an unwanted behaviour, that

must be considered: logical failures in algorithms,

performance issues, not catched exceptions and many

more.

Most of these sources result in the same simple

outcome: values are changed or not changed as ex-

pected. To ﬁnd a reproducible test scenario to trigger

unwanted behaviour can be challenging. But even if

this scenario is found, the search for the erroneous

source code is difﬁcult. One common problem is the

inability to understand the current state of the appli-

cation in a reasonable amount of time when the un-

wanted behaviour occurs.

Apart from the research area, in the industry, most

available debugging tools focus on a textual view on

the application state. One example, which can be

found in most IDEs and therefore is probably the most

used tool during debugging sessions, is a tree repre-

sentation of the runtime state of objects like the vari-

ables view in the Eclipse IDE in ﬁgure 1. This has

indeed proven to be useful in many debugging situa-

tions, but tends to be less helpful in object oriented

programming languages when the application state

becomes more complex. One reason is the visualiza-

223

Koch A. and Zündorf A..

Graphical Debugging of Distributed Applications - Using UML Object Diagrams to Visualize the State of Distributed Applications at Runtime.

DOI: 10.5220/0005233202230230

In Proceedings of the 3rd International Conference on Model-Driven Engineering and Software Development (MODELSWARD-2015), pages 223-230

ISBN: 978-989-758-083-3

 2015 SCITEPRESS (Science and Technology Publications, Lda.)

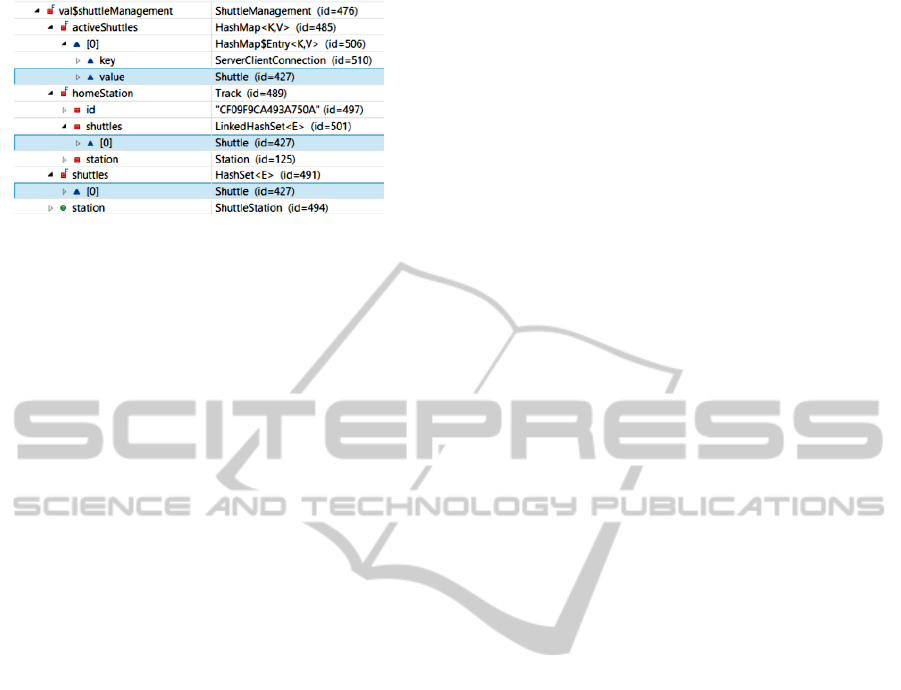

Figure 1: A snippet of the Java heap in the Eclipse variables

view.

tion of a graph structure in a tree. Relations between

objects are only visible from one object to another.

This results in duplications of objects in the variables

view, when different objects have relations with the

same child. As an example: browsing the state of the

topmost object in ﬁgure 1 (id=476), the highlighted

object with id 427 is reachable (and therefore visible)

three times with different paths. Another reason this

view is problematic in distributed (or concurrent) sce-

narios is, it only provides data for the current state

the user is looking at. Resuming the program exe-

cution results in losing the current viewpoint and the

state needs to be re-evaluated again at the next inter-

ruption of the execution. The situation is worsened

when a distributed application comes into play. This

increases the complexity of the state of an applica-

tion. Usually objects live on different Java Virtual

Machines (JVM) on the same or even on physically

separated devices.

Hereinafter, the terms object and instance are used

in the following way. While the term instance is used

to describe the instantiation of a class in a (single)

JVM, object is used when two or more equals in-

stances on different JVMs are meant.

Understanding the current state of a distributed

application becomes more difﬁcult, because during

a debugging session much more state changes take

place. Each time the developer is forcedoo to re-

evaluate the state. The identiﬁcation of different in-

stances of an object on different JVMs complicates a

debugging session as these state changes force devel-

opers to identify equal instances on different JVMs

again and again. Additionally, unexpected program

behaviour is more difﬁcult to reproduce, which of-

ten results in repeatedly executed debugging sessions

until the unwanted behaviour appears again and the

source behind it can be located. During the debug-

ging sessions a lot of time is spent to understand the

current state. The focus of the Visual Debugger is to

provide an abstract view on the part of the application

state that is relevant for a debugging session.

Due to the different requirements distributed and

non distributed applications have, the Visual Debug-

ger provides two modes. One, which targets mainly

on applications running in a single JVM and another

mode, that adds additional functionality to support the

visualization of distributed applications. This paper

focuses on the second mode, but explains in the fol-

lowing sections some basic behaviour which is valid

for both modes and necessary to understand the sec-

tions focused on distributed scenarios.

2 RELATED WORK

Although graphical debugging tools are researched

quite well, they are rarely found as commercial prod-

uct. Especially when distributed applications come

into play, most existing tools are limited in their us-

ability. Besides, many of these tools focus on visu-

alizing program behaviour instead of the application

state.

Some tools that follow a similar idea as the Visual

Debugger are Jive (Gestwicki and Jayaraman, 2005)

and the eDobs (Geiger and Z

undorf, 2002) (Geiger

and Z

undorf, 2006). But both tools lack of support for

the special requirements of distributed applications.

There are tools, that are targeted at distributed ap-

plications, but serve a different use case. One ex-

ample for this tool section is the JRastro (da Silva

et al., 2003). While the Visual Debugger provides

an abstract view on the state of the application during

the execution, JRastro helps with ﬁnding performance

problems by visualizing the communication between

the different nodes of the application. Tools follow-

ing a similar idea than JRastro are Atropos (L

onnberg

et al., 2011), JACOT (Leroux et al., 2003) or JaVis

(Mehner, 2001).

JAVAVIS (Oechsle and Schmitt, 2001) shows the

internal behaviour and state of an application with

UML sequence and object diagrams. But its usability

for distributed applications is limited as it is targeted

on sequential program execution.

JAN (L

ohr and Vratislavsky, 2003) uses object di-

agrams to visualize the state of an application, but its

focus is on the animation of different states of an ap-

plication to understand the behaviour of a program in-

stead of debugging it.

3 ARCHITECTURE OF THE

VISUAL DEBUGGER

To visualize a complex graph structure like the Java

heap, an obvious choice is to use an object diagram.

MODELSWARD2015-3rdInternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

224

In the Visual Debugger standard UML2 object dia-

grams are used. While this forced us to use a strongly

formalized and predeﬁned syntax, it provides easy in-

teroperability with other tools. Each model created

during a debugging session can be used as input in

other UML compatible tools, for example as part of

the test documentation.

Three of the main design goals were to create ac-

ceptance, simplicity and usability. Creating accep-

tance is difﬁcult because many software developers

have an existing workﬂow and a given set of tools

they use in their daily work. To get into this work-

ﬂow a tight integration into the tools they use is nec-

essary. For Java developers this includes on the one

hand developing a tool for their IDE of choice and on

the other hand integrating the tool into already exist-

ing tools in the IDE itself. To achieve simplicity, the

information to be shown in the object diagram should

be as few as necessary for the current debugging ses-

sion and easily extendible/reducible by the user. Us-

ability can mainly be achieved with a well designed

UI. This is one point many existing research tools for

debugging are lacking of. Therefore, we decided to

use an existing object diagram editor and extended it

when necessary.

As already mentioned, the Visual Debugger was

not planned as stand-alone application but a tool in-

tegrated into existing IDEs. Due to their plug-in sup-

port, the ﬁrst choice was to develop it as a plug-in

for the Eclipse IDE. The decision in favour of Eclipse

leads to several beneﬁts. At ﬁrst, it is well established

in the open source as well as in the commercial com-

munity. Eclipse is based on the Open Service Gate-

way initiative (OSGi) speciﬁcation and has an easy to

use plug-in architecture. At last, with the Java Devel-

opment Tools for Eclipse (JDT) there is a layer avail-

able for the Java Debug Interface (JDI).

The drawback is that a tight entanglement with the

Eclipse IDE must be provided for a good usability.

To antagonise a too strong coupling the Eclipse and

JDT related parts of the Visual Debugger are split into

Eclipse speciﬁc and more general plug-ins.

With the focus on Java applications the data nec-

essary to visualize the heap must be retrieved directly

from the JVM. Running a JVM application in the de-

bug mode makes those data accessible via the JDI.

The JDI is a component in the Java Platform Debug-

ger Architecture (JPDA). It provides a set of inter-

faces for retrieving and requesting this information.

A common way to request data from a JVM is to reg-

ister EventRequests which notify each requester with

an Event, when they are triggered. There are several

types of events. The most important type for the Vi-

sual Debugger is the LocatableEvent. These are re-

lated to the source code and are triggered, for exam-

ple, when a speciﬁc line in the source code is exe-

cuted, a method is called or the ﬁeld of an object is

changed. Besides, there are events that notify about

started/stopped threads respectively loaded/unloaded

classes in a JVM or state changes of the JVM itself.

On top of the JDI, Eclipse delivers with the JDT

an easy-to-use layer to access the heap of a JVM.

The JDT is a mature framework and used in almost

all debugging tools integrated into the Eclipse IDE.

It provides utilities to register requests, collect values

or control the program execution with customizable

breakpoints.

As written before the Visual Debugger uses no

own implementation of an object diagram editor, but

an already existing one. The UML Lab object dia-

gram editor is an intuitive editor with powerful lay-

outing mechanisms. Although it is a commercial tool

in general, it is completely free of charge when used

for academic purposes. Thus, it matches the needs of

the Visual Debugger to address academical users as

well as industrial ones. The editor is based on the

(open source) Graphical Editor Framework (GEF),

which is the de-facto standard for developing editors

for Eclipse. Therefore extensibility of the object dia-

gram editor in UML Lab is given without the need to

have any deeper knowledge about the (closed source)

editor itself.

4 EXAMPLE PROJECT

To show different use cases of the Visual Debugger,

an example project is explained brieﬂy in the fol-

lowing. The project simulates transportation shuttles.

There are two kinds of nodes available: on the one

hand the Shuttle Management Node and on the other

hand the Shuttle Node. While the ﬁrst kind only exists

once in this distributed application, the second one

can be started multiple times, one for each available

shuttle. The term Node means in this scenario a dif-

ferent Java Virtual Machine.

Both components share the majority of their data-

model, expecially all objects have the property id.

This property is used as an unique identiﬁer to ﬁnd

the same objects on different nodes. The simulation

itself is rather simple. Shuttles move from track to

track while people are waiting at stations, which may

be connected to a track. When a shuttle reaches a

track with a station, all people will enter the shuttle,

unless its maximum capacity is reached.

GraphicalDebuggingofDistributedApplications-UsingUMLObjectDiagramstoVisualizetheStateofDistributed

ApplicationsatRuntime

225

5 VISUALIZING A HEAP OBJECT

AS A DIAGRAM OBJECT

Before we have a deeper look into the visualization

of distributed applications, the visualization of a heap

object in general will be explained. Using the UML2

object diagrams, the formal speciﬁcation is already

given. Each instance on the Java heap is mapped to an

object (InstanceSpeciﬁcation) in the diagram. Each

primitive variable of an instance is mapped to an at-

tribute assignment in its object in the diagram. Each

reference to another non primitive Java instance is

translated into a link (InstanceSpeciﬁcation) between

the two corresponding objects in the diagram.

According to the UML2 speciﬁcation each In-

stanceSpeciﬁcation in an object diagram must be re-

lated to a Classiﬁer to deﬁne the type of this instance.

If the InstanceSpeciﬁcation represents an object, this

has to be a Class, if it is a link, this has to be an Asso-

ciation. Similar requirements exist for the other arte-

facts in an object diagram like Slots or Types. As a re-

sult, it is necessary to maintain a class diagram while

the object diagram is created and modiﬁed.

To create this class diagram, the necessary in-

formation must be extracted from the runtime data.

As this diagram shall be accessible over at least one

whole debugging session, a mapping must be per-

sisted. Table 1 shows equivalent mappings of the dif-

ferent artefacts from the JDI, the JDT and the UML2

meta-model. While Class, Property and Interface can

be mapped easily, the empty spaces in the other rows

indicate that not for each element an exact one-to-one

mapping can be found. Especially associations must

be treated in a speciﬁc way. On the one hand, they can

be used uni- or bidirectional and on the other hand, a

bidirectional association can be a composition or an

aggregation. The last two examples are not supported

by the Visual Debugger, because they are in most sce-

narios not identiﬁable by inspecting only the runtime

data. An inspection of the source or byte-code would

be necessary. As the detection of those structures is

difﬁcult, and the value of these additional information

is limited, we currently ignore these special cases. To

identify uni- and bidirectional associations different

approaches were tested. Finally, this led us to an ap-

proach where no association should be refactored af-

ter its deﬁnition. Therefore the object graph in the

JDT is analyzed as a whole and pairs of object in-

stances referencing each other are searched. Each of

those pairs results in a bidirectional association and

all other found references become an uni-directional

association.

In addition to the differentiation between uni- and

bidirectional, the cardinality of an association must

be determined; is it a one-to-one, a one-to-many

or a many-to-many association. This can be easily

achieved by looking at the type of a ﬁeld. If it is a

Collection or an Array, the property of the associa-

tion is to-many; to-one otherwise. If one direction

is to-many, the collection instance in the heap is ab-

stracted into direct links to the contained objects.

Table 1: Comparison of the mapping artefacts from

JDI (com.sun.jdi), JDT (org.eclipse.jdt.internal.debug.core.

model) and the UML2 meta-model.

JDI/JDT UML2

ClassType / JDIClassType Class

Field / (JDIFieldVariable) Property

InterfaceType / JDIInterfaceType Interface

PrimitiveType / — PrimitiveType

ArrayType / JDIArrayType —

— / — Association

While the creation of the class diagram is done

automatically without the user noticing it, the object

diagram is usually only changed by direct input from

the user. To get a responsive UI for the tool the stor-

age of the mapping data of object diagrams is even

more important for providing a fast synchronization

process.

Table 2 shows the different mapping pairs between

the UML2 meta-model and the JDT interfaces. The

mappings are straightforward.

Table 2: Comparison of the mapping artefacts from JDT

and the UML2 meta-model.

JDT UML2

JDIObjectValue InstanceSpeciﬁcation

JDIPrimitiveValue LiteralSpeciﬁcation

JDIObjectValue InstanceValue

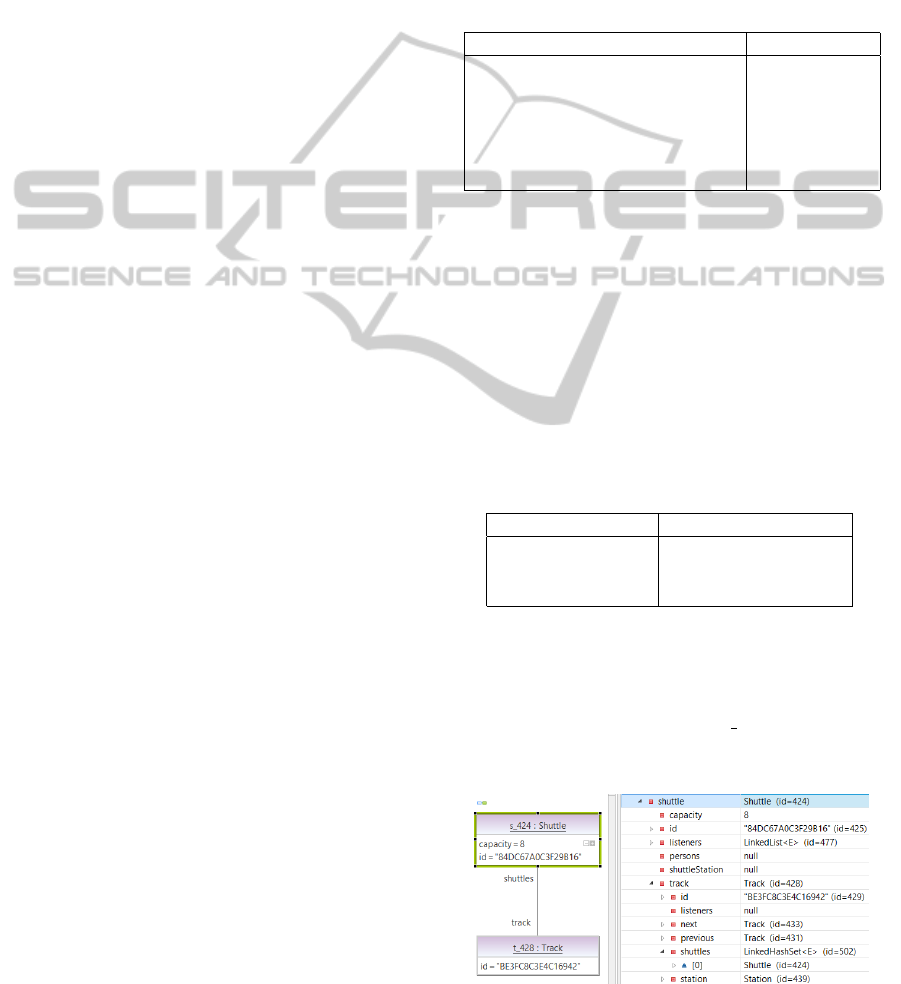

To give an example of a visualized object, ﬁgure 2

compares an instance of the type Shuttle in the Eclipse

variables view on the right side with the correspond-

ing object in the Visual Debugger on the left side. The

visualization of the object itself (s 424) and its prim-

itive variables id and capacity is a direct one-to-one

mapping. Links are treated differently. The reference

Figure 2: Comparison of the object diagram visualization

with the same data in a tree.

MODELSWARD2015-3rdInternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

226

to the track (t 428) on the right side equals the link be-

tween the two objects on the left side. At the bottom

in the variables view a back reference from the track

instance to the shuttle instance via the shuttles collec-

tion indicates, that this link is bidirectional, which can

be seen in the diagram on the left side, too.

6 THE SYNCHRONIZATION

PROCESS

In the following section a deeper look into the under-

lying synchronization process of transforming heap

data to UML2 objects and vice versa is taken. This

process can be separated into two different modes.

As a short deﬁnition for these modes, one could

say:

Batch Mode. This mode is active when a whole JVM

or one or more separate threads are paused.

Live Mode. This mode is active when a JVM is not

paused in any kind.

Per deﬁnition both modes can be active at the

same time, when one or more threads are paused, but

not the whole JVM. Depending an the currently ac-

tive mode(s), the interaction with the object diagram

is signiﬁcantly different.

Generally, the Visual Debugger is designed to be

fault tolerant to occurring errors within the synchro-

nization process. One quite regular error scenario

would be a failed data retrieval from a JVM while the

synchronization is in process. This speciﬁc task will

then be postponed and repeated later. The drawback

of this approach is that the object diagram may be in

an asynchronous state to the heap data for an unde-

ﬁned time.

6.1 Batch Mode

With the IDebugEventSetListener the JDT provides

an easy method to react to state changes of the JVM

or single threads. Each time a state change indicates

a paused thread/JVM, the batch mode of the Visual

Debugger runs a full synchronization of the current

object diagram.

Each synchronization cycle is structured as fol-

lows: At ﬁrst, each (visible and invisible) object in

the diagram is taken and its current data is synchro-

nized with the runtime heap data. When these tasks

are ﬁnished the post synchronization tasks are trig-

gered. The most important task is the synchronization

of links. As already said, links must be treated sepa-

rately, because a link is usually based on the combina-

tion of several artefacts in the runtime data. The link

synchronization consists of the following steps:

1. All existing links in the diagram are searched

2. For each, its existance is checked in the Java heap

3. For all objects in the object diagram, the runtime

object is retrieved and all non primitive ﬁelds with

a value not equal null are collected

4. For each non primitive ﬁeld, it is considered part

of a new link

5. All possible link candidates found in the last step

are evaluated

(a) If the properties of two of them belong to the

same association, they are merged

(b) If the properties of two of them do not belong

to an association but they cross-reference each

other, they are assumed as bidirectional associ-

ation and they are combined. This is a trade-

off in the algorithm to detect bidirectional as-

sociations. This can lead to false positives, but

prevents object diagrams ﬂooded with unidirec-

tional links.

6. For every remaining link candidate a link in the

object diagram is created, the other ones are

deleted

The described evaluation of the runtime data is exe-

cuted sequentially to ensure that all class and object

diagram parts are updated correctly before the link

evaluation starts.

Any interaction with the object diagram is only

available during batch mode. This includes adding

new objects to the object diagram as well as the au-

tomatic expansion of the object diagram based on the

already existing content.

6.2 Live Mode

The live mode is active when a JVM is not paused

entirely. As long as at least one thread is running,

the live mode is still active for this JVM. Its synchro-

nization behaviour is based on EventRequests from

the JDI. These requests can be registered in a run-

ning JVM to receive data updates without pausing

threads in the JVM. To be more precise threads are

actually stopped for a short amount of time to react

to events (triggered by the requests), but automati-

cally resumed afterwards. The event handling is done

asynchronously to minimize the effect on the runtime

behaviour of the JVM. This enables the object dia-

gram to be updated without the user noticing an im-

pact on the program execution. There are several re-

quest types available in the JDI, but only the Modif-

cationWatchpointRequest, AccessWatchpointRequest,

GraphicalDebuggingofDistributedApplications-UsingUMLObjectDiagramstoVisualizetheStateofDistributed

ApplicationsatRuntime

227

MethodEntryRequest and MethodExitRequest types

are used in the Visual Debugger.

The ModifcationWatchpointRequest can be regis-

tered on a ﬁeld of a class. This can be a ﬁeld in general

or restricted to a speciﬁc instance of a class to reduce

the number of events to evaluate. This request type

is used to supervise all primitive ﬁelds and all to-one

links.

The AccessWatchpointRequest, MethodEntryRe-

quest and MethodExitRequest types are used to su-

pervise to-many links. As mentioned earlier, to-many

links can be based on a variety of Java components;

each subtype of Collection, arrays or an own imple-

mentation of a data structure. To support each of them

with a reasonable effort, a general approach must be

available. Additionally, for speciﬁc types like Arrays

or commonly used subtypes of the Collection inter-

face like LinkedList or HashSet a speciﬁc handling is

implemented due to runtime reasons.

The general approach is mainly based on the

MethodEntryRequest and MethodExitRequest. For

each ﬁeld identiﬁed as source of a to-many link, the

according instance is supervised by adding a Meth-

odEntryRequest and a MethodExitRequest to each

method the target type has. Every time a Method-

EntryRequest is triggered, the ﬁeld value and all in-

stances it references are analysed. When the Method-

ExitRequest of the same method is triggered, the ﬁeld

value is analysed again and the delta is calculated.

Any new contained object results in a new link, each

removed object triggers the deletion of the according

link. To optimize the general approach MethodEn-

tryRequests are only evaluated as long as no other

evaluation is in process. This prevents unnecessary

calculations during call chains within the same object.

For speciﬁc class types like LinkedList or HashSet the

knowledge about the source code of the class can be

used to improve the runtime of the analysis. Only

methods that affect the content of the underlying col-

lection need to be considered. This usually excludes

the majority of methods which access the collection

read-only.

As especially primitive values can change very of-

ten during runtime, not every event needs to be and

can be evaluated in detail. The evaluation is scheduled

with an interval from 500ms, which led to the best re-

sults for us. During this 500ms each event change is

represented as an internal LiveEvent. If a change af-

fects an already existing LiveEvent, the event is up-

dated, newly created otherwise. The mapping to a

LiveEvent must be done in the callback method of the

debug listener, because only during the callback the

JDI values of an event are stable. After each 500ms

all collected LiveEvents are evaluated asynchronously

and the object diagram is updated accordingly. To

prevent an unwanted behaviour during the synchro-

nization process because of an asynchronously up-

dated LiveEvent, each LiveEvent contains a stable and

an unstable state. The stable state is locked, when the

synchronization starts and unlocked, when it is ﬁn-

ished.

7 CHALLENGES OF

VISUALIZING THE STATE OF A

DISTRIBUTED APPLICATION

All the previously explained behaviour does not differ

when debugging a distributed and a non distributed

application. However, a distributed application makes

additional demands on the Visual Debugger. This in-

cludes identifying shared objects as well as keeping

those shared objects updated in the object diagram.

In distributed applications some objects usually

exist on different JVMs, which means they are distinct

instances in separated JVMs. To work with these in-

stances the application must be able to identify them.

A common approach is to give an object an unique

identiﬁer. This identiﬁer is usually stored in the ob-

ject as a primitive value. Therefore the Visual Debug-

ger uses a couple of basic property names like id or

uuid to search for these identiﬁers. Additional prop-

erty names can be added via the preferences.

A signiﬁcant difference between the visualization

of distributed and non distributed applications is the

usage of batch and live mode. In a non distributed

application the ﬁrst entry point into a debugging ses-

sion is always the batch mode. As mentioned earlier,

adding objects to the diagram is only possible in batch

mode. A ﬁrst breakpoint must be used to put all ob-

jects into the diagram which are interesting for this

session. At this point pausing all JVMs at once can

be necessary to avoid a race condition. When the pro-

gram execution is resumed the live mode is activated

and the visible objects are automatically updated until

the next breakpoint is reached or another event pauses

the program execution. This includes manually paus-

ing a JVM or a stepwise continuation. This debug-

ging cycle is repeated while the debugging session is

active.

Switching to a distributed application leads to a

more complicated data retrieval. The entry point into

a debugging session is still the batch mode, where ﬁrst

objects from one or more JVMs are added into the ob-

ject diagram. The ﬁrst difference at this point is the

behaviour after adding an instance. All existing mir-

rored instances of this object in all JVMs should be

MODELSWARD2015-3rdInternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

228

supervised and updated as if they would be in live

mode. To achieve this, all instances of this object

must be found in other JVMs on the ﬁrst hand. Here

we differ between two scenarios:

A JVM is started from within the Eclipse IDE.

Each of those JVMs can be supervised right from

their launch. Therefore, another subtype of EventRe-

quest is used, the ClassPrepareRequest. When this

request is registered events are ﬁred as soon as a class

is loaded in the JVM. This class can be analysed for an

identiﬁer property and if one is found changes to this

property can be tracked. As those identiﬁer proper-

ties usually only change once for each instance (when

they are initialized) the overhead is reasonable. Each

class that does not own a valid identiﬁer property will

not be supervised as they are not shared across JVMs.

A JVM is started from another IDE or on an-

other node and a remote debugging session is started.

This JVM is probably running for a long time and

all relevant classes for a debugging session are al-

ready loaded. Nevertheless, the process described

above is still initiated to keep track of newly loaded

classes. If an instance of a class is searched that was

already loaded before the remote debugging session

was started, it must be searched explicitly. Depending

on the amount of instances of a class this search can

be expensive. Therefore, this analysis is done asyn-

chronously.

Each object with an initialized identiﬁer will be

stored internally and mapped with all its instances on

the other JVMs. This enables the Visual Debugger

to access these shared objects much faster during the

ongoing debugging session.

A special treatment is necessary when an object

from one JVM is added while not all other JVMs hav-

ing this class already loaded. In this scenario the class

is explicitly loaded (if available in this VM) and the

already explained supervising process is triggered.

8 THE DISTRIBUTED MODE

With the example project from chapter 4, the usage

of the Visual Debugger in different scenarios will be

shown. The following sections explain the two differ-

ent available view modes.

Detail Mode. The detail view mode is similar to the

behaviour of the Visual Debugger in a non distributed

application. Each instance in each JVM is displayed

as an own object in the object diagram. In ﬁgure 3

a debug scenario with the shuttle simulation project

is shown. There are in total ﬁve objects, two from a

Shuttle Node running in one JVM (on the left) and

three from the Shuttle Management Node running in

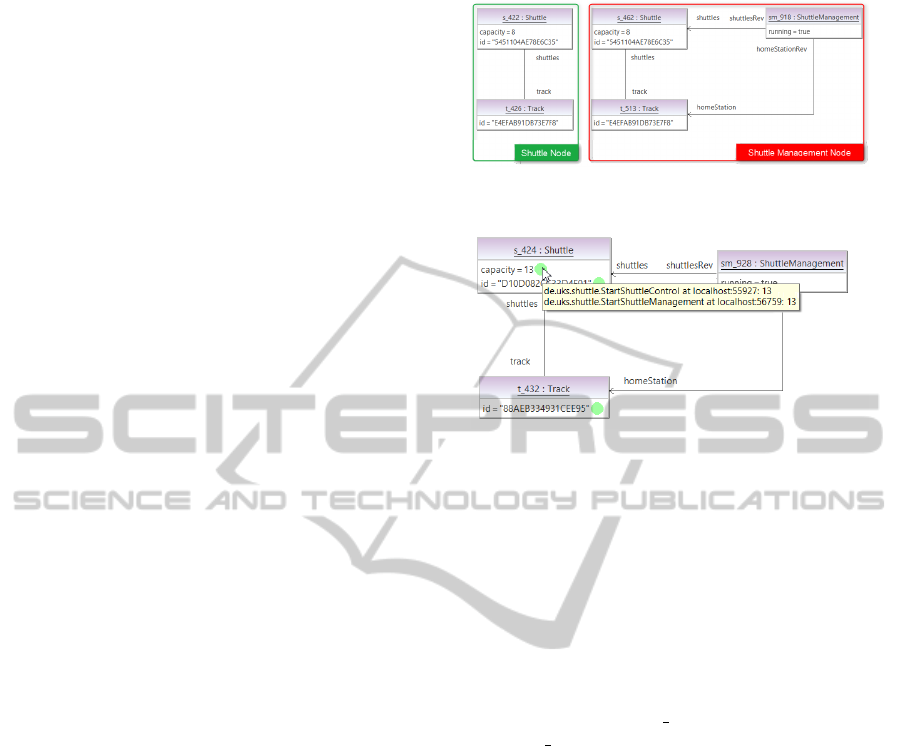

Figure 3: Object diagram showing several objects from dif-

ferent JVMs with the detail mode activated.

Figure 4: Object diagram showing several objects from dif-

ferent JVMs with the combined mode activated.

another JVM (on the right). The highlights are added

after the screenshot was made to improve the visibil-

ity. Comparing the id properties of the objects reveals,

that the two Shuttle instances and the two Track in-

stances are the same objects on different JVMs. Due

to the naming conventions in the Visual Debugger, the

same objects have different names on different JVMs.

Each name usually includes the internal id of an in-

stance in the JVM. Regarding the Shuttle instances the

ids are 422 for the left (s 422) and 462 for the right

instance (s 462). This convention helps identifying

instances in other debugging tools, like the variables

view, faster.

This mode is especially useful, if it is important

to supervise the changes of one or more objects on

speciﬁc JVMs.

Combined Mode. When the combined mode is ac-

tivated all instances of the same object in different

JVMs are combined into one single object in the di-

agram. In ﬁgure 4 a similar scenario as in ﬁgure 3

is shown. Compared to the detail mode, the object

diagram is reduced from ﬁve to three objects.

To still get the information which value each prop-

erty and link has on the different JVMs an overlay is

added to each of these artefacts. In ﬁgure 4 the over-

lay for attribute assignments is active. Next to each

attribute assignment a small circle is drawn to give an

indicator of its stability. A green circle means that the

value is the same on each JVM. A red circle means,

that the value at least on two JVMs differs. This can,

but must not be problematic. If speciﬁc attribute val-

ues are not synchronized between (all) JVMs, an inte-

GraphicalDebuggingofDistributedApplications-UsingUMLObjectDiagramstoVisualizetheStateofDistributed

ApplicationsatRuntime

229

ger could probably stay at zero or a string value may

stay null. At this point it is up to the developer to

decide whether this is an unwanted and problematic

behaviour of the application or not. Additionally, a

tooltip is available if the attribute value of the instance

on each JVM is interesting for the user. In ﬁgure 4

the tooltip indicates, that the capacity property has in

both instances, in the Shuttle Node and the Shuttle

Management Node, the value 13.

9 CONCLUSIONS

In this paper the Visual Debugger and its usage with

distributed applications is presented. The main pur-

pose of the tool is to give a view on the current state of

an application by showing all relevant objects during

a debugging session. This is achieved with an UML2

object diagram visualizing objects on the Java heap.

Although the Visual Debugger has been proven to

be useful in a successful recent research project, there

are still open areas. During a debugging session a

regularly observed problem is that several changes in

the object diagram happen too fast to follow them.

Therefore an additional replay mode would be help-

ful where all changes in the object diagram during the

last debugging session can be repeated forwards and

backwards. If a debugging session must be repeated

several times to ﬁnd the source of an unwanted be-

haviour, each restart forces the user to ﬁll the object

diagram again with objects. An automatic restoration

of diagrams when the same debugging scenario is re-

peated would be helpful.

Nevertheless, the Visual Debugger should be seen

as addition to existing debugging tools and not as a

replacement. Thus, a tight integration into the Eclipse

IDE was an important design goal. During debug-

ging sessions which focus on supervising the state of

a speciﬁc, but known part of the application the Visual

Debugger delivers the most value.

One important lesson we learned so far is, that the

Visual Debugger has a steep learning curve; indepen-

dent from the experience of the software developer.

Students as well as professional developers (work-

ing in the industry for years) shared similar problems

when they are confronted with an unknown kind of

tool like the Visual Debugger. We currently develop a

tutorial addressing this problem.

REFERENCES

da Silva, G. J., Schnorr, L. M., and de Oliveira Stein, B.

(2003). Jrastro: A trace agent for debugging mul-

tithreaded and distributed java programs. In SBAC-

PAD, pages 46–54. IEEE Computer Society.

Geiger, L. and Z

undorf, A. (2002). Graph Based Debugging

with Fujaba. Barcelona, Spain.

Geiger, L. and Z

undorf, A. (2006). edobs - graphical de-

bugging for eclipse. ECEASST, 1.

Gestwicki, P. and Jayaraman, B. (2005). Methodology and

architecture of jive. In SoftVis ’05: Proceedings of

the 2005 ACM symposium on Software visualization,

pages 95–104, New York, NY, USA. ACM.

Layman, L., Diep, M., Nagappan, M., Singer, J., DeLine,

R., and Venolia, G. (2013). Debugging revisited: To-

ward understanding the debugging needs of contem-

porary software developers. In ESEM, pages 383–392.

IEEE.

Leroux, H., Rquil-Romanczuk, A., and Mingins, C. (2003).

Jacot: a tool to dynamically visualise the execution of

concurrent java programs. In Power, J. F. and Wal-

dron, J., editors, PPPJ, volume 42 of ACM Interna-

tional Conference Proceeding Series, pages 201–206.

ACM.

ohr, K.-P. and Vratislavsky, A. (2003). Jan -java anima-

tion for program understanding. In HCC, pages 67–

75. IEEE Computer Society.

onnberg, J., Ben-Ari, M., and Malmi, L. (2011). Java re-

play for dependence-based debugging. In Loureno, J.

and Farchi, E., editors, PADTAD, pages 15–25. ACM.

Mehner, K. (2001). Javis: A uml-based visualization and

debugging environment for concurrent java programs.

In Diehl, S., editor, Software Visualization, volume

2269 of Lecture Notes in Computer Science, pages

163–175. Springer.

Oechsle, R. and Schmitt, T. (2001). Javavis: Automatic pro-

gram visualization with object and sequence diagrams

using the java debug interface (jdi). In Diehl, S., ed-

itor, Software Visualization, volume 2269 of Lecture

Notes in Computer Science, pages 176–190. Springer.

MODELSWARD2015-3rdInternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

230
