RIOT OS Paves the Way for Implementation of High-performance MAC

Protocols

evin Roussel, Ye-Qiong Song and Olivier Zendra

LORIA/INRIA Nancy Grand-Est, Universit

e de Lorraine, 615, rue du Jardin Botanique, 54600 Villers-L

es-Nancy, France

Keywords:

Real-time, Wireless Sensor Networks, Internet of Things, MAC protocols, RIOT OS.

Abstract:

Implementing new, high-performance MAC protocols requires real-time features, to be able to synchronize

correctly between different unrelated devices. Such features are highly desirable for operating wireless sensor

networks (WSN) that are designed to be part of the Internet of Things (IoT). Unfortunately, the operating

systems commonly used in this domain cannot provide such features. On the other hand, “bare-metal” devel-

opment sacriﬁces portability, as well as the multitasking abilities needed to develop the rich applications that

are useful in the domain of the Internet of Things.

We describe in this paper how we helped solving these issues by contributing to the development of a port

of RIOT OS on the MSP430 microcontroller, an architecture widely used in IoT-enabled motes. RIOT OS

offers rich and advanced real-time features, especially the simultaneous use of as many hardware timers as the

underlying platform (microcontroller) can offer. We then demonstrate the effectiveness of these features by

presenting a new implementation, on RIOT OS, of S-CoSenS, an efﬁcient MAC protocol that uses very low

processing power and energy.

1 INTRODUCTION

When programming the small devices that constitutes

the nodes of the Internet of Things (IoT), one has to

adapt to the limitations of these devices.

Apart from their very limited processing power

(especially compared to the current personal comput-

ers, and even mobile devices like smartphones and

tablets), the main speciﬁcity of the devices is that they

are operated on small batteries (e.g.: AAA or button

cells).

Thus, one of the main challenges with these motes

is the need to reduce as much as possible their energy

consumption. We want their batteries to last as long as

possible, for economical but also practical reasons: it

may be difﬁcult—even almost impossible—to change

the batteries of some of these motes, because of their

locations (e.g.: on top of buildings, under roads, etc.)

IoT motes are usually very compact devices: they

are usually built around a central integrated chip that

contains the main processing unit and several basic

peripherals (such as timers, A/D and D/A convert-

ers, I/O controllers. . . ) called microcontroller units or

MCUs. Apart from the MCU, a mote generally only

contains some “physical-world” sensors and a radio

transceiver for networking. The main radio commu-

nication protocol currently used in the IoT ﬁeld is

IEEE 802.15.4. Some MCUs do integrate a 802.15.4

transceiver on-chip.

Among the various components that constitute a

mote, the most power-consuming block is the radio

transceiver. Consequently, to reduce the power con-

sumption of IoT motes, a ﬁrst key point is to use

the radio transceiver only when needed, keeping it

powered-off as much as possible. The software ele-

ment responsible to control the radio transceiver in an

adequate manner is the MAC / RDC (Media Access

Control & Radio Duty Cycle) layer of the network

stack.

A efﬁcient power-saving strategy for IoT motes

thus relies on ﬁnding the better trade-off between

minimizing the radio duty cycle while keeping net-

working efﬁciency at the highest possible level. This

is achieved by developing new, “intelligent” MAC /

RDC protocols.

To implement new, high-performance MAC /

RDC protocols, one needs to be able to react to events

with good reactivity (lowest latency possible) and

ﬂexibility. These protocols rely on precise timing to

ensure efﬁcient synchronization between the different

motes and other radio-networked devices of a Per-

sonal Area Network (PAN), thus allowing to turn on

Roussel K., Song Y. and Zendra O..

RIOT OS Paves the Way for Implementation of High-performance MAC Protocols.

DOI: 10.5220/0005237600050014

In Proceedings of the 4th International Conference on Sensor Networks (SENSORNETS-2015), pages 5-14

ISBN: 978-989-758-086-4

 2015 SCITEPRESS (Science and Technology Publications, Lda.)

the radio transceivers only when needed.

At the system level, being able to follow such ac-

curate timings means having very efﬁcient interrup-

tion management, and the extensive use of hardware

timers, that are the most precise timing source avail-

able.

The second most power-consuming element in a

mote, after the radio transceiver, is the MCU itself:

every current MCU offers “low-power modes”, that

consist in disabling the various hardware blocks, be-

ginning with the CPU core. The main way to min-

imize energy consumption with a MCU is thus to

disable its features as much as possible, only using

them when needed: that effectively means putting the

whole MCU to sleep as much as possible.

Like for the radio transceiver, using the MCU ef-

ﬁciently while keeping the system efﬁcient and reac-

tive means optimal use of interruptions, and hardware

timers for synchronization.

Thus, in both cases, we need to optimally use in-

terruptions as well as hardware timers. Being able to

use them both efﬁciently without too much hassle im-

plies the use of a specialized operating system (OS),

especially to easily beneﬁt from multitasking abilities.

That is what we will discuss in this paper.

2 PREVIOUS WORK AND

PROBLEM STATEMENT

Specialized OSes for the resource-constrained de-

vices that constitute wireless sensor networks have

been designed, published, and made available for

quite a long time.

2.1 TinyOS

The ﬁrst widely used system in this domain was

TinyOS (Levis et al., 2005). It is an open-source

OS, whose ﬁrst stable release (1.0) was published in

september 2002. It is very lightweight, and as such

well adapted to limited devices like WSN motes. It

has brought many advances in this domain, like the

ability to use Internet Protocol (IP) and routing (RPL)

on 802.15.4 networks, including the latest IPv6 ver-

sion, and to simulate networks of TinyOS motes via

TOSSIM (Levis et al., 2003).

Its main drawback is that one needs to learn a spe-

ciﬁc language—named nesC—to be able to efﬁciently

work within it. This language is quite different from

standard C and other common imperative program-

ming languages, and as such can be difﬁcult to mas-

ter.

The presence of that speciﬁc language is no

coincidence: TinyOS is built on its own speciﬁc

paradigms: it has an unique stack, from which the

different components of the OS are called as stati-

cally linked callbacks. This makes the programming

of applications complex, especially for decomposing

into various “tasks”. The multitasking part is also

quite limited: tasks are run in a ﬁxed, queue-like or-

der. Finally, TinyOS requires a custom GNU-based

toolchain to be built.

All of these limitations, plus a relatively slow de-

velopment pace (last stable version dates back to au-

gust 2012) have harmed its adoption, and it is not the

mainly used OS of the domain anymore.

2.2 Contiki

The current reference OS in the domain of WSN and

IoT is Contiki (Dunkels et al., 2004). It’s also an

open-source OS, which was ﬁrst released in 2002.

It is also at the origin of many assets: we can men-

tion, among others, the uIP Embedded TCP/IP Stack

(Dunkels, 2003), that has been extended to uIPv6,

the low-power Rime network stack (Dunkels, 2007),

or the Cooja advanced network simulator (

Osterlind

et al., 2006).

While a bit more resource-demanding than

TinyOS, Contiki is also very lightweight and well

adapted to motes. Its greatest advantage over TinyOS

is that it is based on standard, well-known OS

paradigms, and coded in standard C language, which

makes it relatively easy to learn and program. It of-

fers an event-based kernel, implemented using coop-

erative multithreading, and a complete network stack.

All of these features and advantages have made Con-

tiki widespread, making it the reference OS when it

comes to WSN.

Contiki developers also have made advances in the

MAC/RDC domain: many of them have been imple-

mented as part of the Contiki network stack, and a

speciﬁcally developed, ContikiMAC, has been pub-

lished in 2011 (Dunkels, 2011) and implemented into

Contiki as the default RDC protocol (designed to be

used with standard CSMA/CA as MAC layer).

However, Contiki’s extremely compact footprint

and high optimization comes at the cost of some limi-

tations that prevented us from using it as our software

platform.

Contiki OS is indeed not a real-time OS: the pro-

cessing of “events”—using Contiki’s terminology—

is made by using the kernel’s scheduler, which is

based on cooperative multitasking. This scheduler

only triggers at a speciﬁc, pre-determined rate; on

the platforms we’re interested in, this rate is ﬁxed

SENSORNETS2015-4thInternationalConferenceonSensorNetworks

to 128 Hz: this corresponds to a time skew of up

to 8 milliseconds (8000 microseconds) to process an

event, interruption management being one of the pos-

sible events. Such a large granularity is clearly a

huge problem when implementing high-performance

MAC/RDC protocols, knowing that the transmission

of a full-length 802.15.4 packet takes bout 4 mil-

liseconds (4000 microseconds), a time granularity of

320 microseconds is needed, corresponding to one

backoff period (BP).

To address this problem, Contiki provides a real-

time feature, rtimer, which allows to bypass the ker-

nel scheduler and use a hardware timer to trigger exe-

cution of user-deﬁned functions. However, it has very

severe limitations:

• only one instance of rtimer is available, thus

only one real-time event can be scheduled or exe-

cuted at any time; this limitation forbids develop-

ment of advanced real-time software—like high-

performance MAC / RDC protocols—or at least

makes it very hard;

• moreover, it is unsafe to execute from rtimer,

even indirectly, most of the Contiki basic func-

tions (i.e.: kernel, network stack, etc.), because

these functions are not designed to handle pre-

emption. Contiki is indeed based on cooperative

multithreading, whereas the rtimer mechanism

seems like a “independent feature”, coming with

its own paradigm. Only a precise set of functions

known as “interrupt-safe” (like process poll())

can be safely invoked from rtimer, using other

parts of Contiki’s meaning almost certainly crash

or unpredictable behaviour. This restriction prac-

tically makes it very difﬁcult to write Contiki ex-

tensions (like network stack layer drivers) using

rtimer.

Also note that this cooperative scheduler is de-

signed to manage a speciﬁc kind of tasks: the pro-

tothreads. This solution allows to manage different

threads of execution, without needing each of them

to have its own separate stack (Dunkels et al., 2006).

The great advantage of this mechanism is the abil-

ity to use an unique stack, thus greatly reducing the

needed amount of RAM for the system. The trade-

off is that one must be careful when using certain C

constructs (i.e.: it is impossible to use the switch

statement in some parts of programs that use pro-

tothreads).

For all these reasons, we were unable to use

Contiki OS to develop and implement our high-

performance MAC/RDC protocols. We deﬁnitely

needed an OS with efﬁcient real-time features and

event handling mechanism.

2.3 Other Options

There are other, less used OSes designed for the

WSN/IoT domain, but none of them fulﬁlled our re-

quirements, for the following reasons:

SOS (Han et al., 2005). This system’s development

has been cancelled since november 2008; its au-

thors explicitly recommend on their website to

“consider one of the more actively supported al-

ternatives”.

Lorien (Porter and Coulson, 2009). While its

component-oriented approach is interesting, this

system seems does not seem very widespread.

It is currently available for only one hardware

platform (TelosB/SkyMote) which seriously lim-

its the portability we can expect from using an OS.

Moreover, its development seems to have slowed

down quite a bit, since the latest available Lorien

release was published in july 2011, while the lat-

est commit in the project’s SourceForge reposi-

tory (r46) dates back to january 2013.

Mantis (Abrach et al., 2003). While this project

claims to be Open Source, the project has made,

on its SourceForge web site, no public re-

lease, and the access to the source repository

(http://mantis.cs.colorado.edu/viewcvs/) seems to

stall. Moreover, reading the project’s main web

page shows us that the last posted news item men-

tions a ﬁrst beta to be released in 2007. The last

publications about Mantis OS also seems to be in

2007. All of these elements tend to indicate that

this project is abandoned. . .

LiteOS (Cao et al., 2008). This system offers

very interesting features, especially the ability

to update the nodes ﬁrmwares over the wireless,

as well as the built-in hierarchical ﬁle system.

Unfortunately, it is currently only available on

IRIS/MicaZ platforms, and requires AVR Stu-

dio for programming (which imposes Microsoft

Windows as a development platform). This

greatly hinders portability, since LiteOS is clearly

strongly tied to the AVR microcontroller architec-

ture.

MansOS (Strazdins et al., 2010). This system is

very recent and offers many interesting features,

like optional preemptive multitasking, a network

stack, runtime reprogramming, and a scripting

language. It is available on two MCU architec-

tures: AVR and MSP430 (but not ARM). How-

ever, none of the real-time features we wanted

seems to be available: e.g. only software timers

with a 1 millisecond resolution are available.

RIOTOSPavestheWayforImplementationofHigh-performanceMACProtocols

In any case, none of the alternative OSes cited here-

above offer the real-time features we were looking for.

On the other hand, “bare-metal” programming is

also unacceptable for us: it would mean sacriﬁcing

portability and multitasking; and we would also need

to redevelop many tools and APIs to make applica-

tion programming even remotely practical enough for

third-party developers who would want to use our

protocols.

We also envisioned to use an established real-time

OS (RTOS) as a base for our works. The current ref-

erence when it comes to open-source RTOS is FreeR-

TOS (http://www.freertos.org/). It is a robust, mature

and widely used OS. Its codebase consists in clean

and well-documented standard C language. However,

it offers only core features, and doesn’t provide any

network subsystem at all. Redeveloping a whole net-

work stack from scratch would have been too time-

consuming. (Network extensions exist for FreeRTOS,

but they are either immature, or very limited, or pro-

prietary and commercial software; and most of them

are tied to a peculiar piece of hardware, thus ruining

the portability advantage offered by the OS.)

2.4 Summary: Wanted Features

To summarize the issue, what we required is an OS

that:

• is adapted to the limitations of the deeply-

embedded MCUs that constitute the core of

WSN/IoT motes;

• provides real-time features powerful enough to

support the development of advanced, high-

performance MAC / RDC protocols;

• includes a network stack (even a basic one)

adapted to wireless communication on 802.15.4

radio medium.

However, none of the established OSes commonly

used either in the IoT domain (TinyOS, Contiki) nor

in the larger spectrum of RTOS (FreeRTOS) could

match our needs.

3 THE RIOT OPERATING

SYSTEM

Consequently, we focused our interest on RIOT OS

(Hahm et al., 2013).

This new system—ﬁrst released in 2013—is also

open-source and specialized in the domain of low-

power, embedded wireless sensors. It offers many in-

teresting features, that we will now describe.

It provides the basic beneﬁts of an OS: portabil-

ity (it has been ported to many devices powered by

ARM, MSP430, and—more recently—AVR micro-

controllers) and a comprehensive set of features, in-

cluding a network stack.

Moreover, it offers key features that are otherwise

yet unknown in the WSN/IoT domain:

• an efﬁcient, interrupt-driven, tickless micro-

kernel;

• that kernel includes a priority-aware task sched-

uler, providing pre-emptive multitasking;

• a highly efﬁcient use of hardware timers: all

of them can be used concurrently (especially

since the kernel is tickless), offering the abil-

ity to schedule actions with high granularity; on

low-end devices, based on MSP430 architecture,

events can be scheduled with a resolution of

32 microseconds;

• RIOT is entirely written in standard C language;

but unlike Contiki, there are no restrictions on us-

able constructs (i.e.: like those introduced by the

protothreads mechanism);

• a clean and modular design, that makes develop-

ment with and into the system itself easier and

more productive.

The ﬁrst three features listed hereabove make

RIOT a full-ﬂedged real-time operating system.

We also believe that the tickless kernel and the op-

timal use of hardware timers should make RIOT OS a

very suited software platform to optimize energy con-

sumption on battery-powered, MCU-based devices.

A drawback of RIOT, compared to TinyOS or

Contiki, is its higher memory footprint: the full

network stack (from PHY driver up to RPL rout-

ing with 6LoWPAN and MAC / RDC layers) cannot

be compiled for Sky/TelosB because of overﬂowing

memory space. Right now, constrained devices like

MSP430-based motes are limited to the role of what

the 802.15.4 standard calls Reduced Function Devices

(RFD), the role of Full Function Devices (FFD) be-

ing reserved to more powerful motes (i.e.: based on

ARM microcontrollers).

However, we also note that, thanks to its modu-

lar architecture, the RIOT kernel, compiled with only

PHY and MAC / RDC layers, is actually lightweight

and consumes little memory. We consequently be-

lieve that the current situation will improve with the

maturation of higher layers of RIOT network stack,

and that in the future more constrained devices could

also be used as FFD with RIOT OS.

SENSORNETS2015-4thInternationalConferenceonSensorNetworks

When we began to work with RIOT, it also had

two other issues: the MSP430 versions were not sta-

ble enough to make real use of the platform; and be-

yond basic CSMA/CA, no work related to the MAC /

RDC layer had been done on that system. This is

where our contributions ﬁt in.

4 OUR CONTRIBUTIONS

For our work, we use—as our main hardware

platform—IoT motes built around MSP430 micro-

controllers.

MSP430 is a microcontroller (MCU) architec-

ture from Texas Instruments, offering very low-power

consumption, cheap price, and good performance

thanks to a custom 16-bit RISC design. This archi-

tecture is very common in IoT motes. It is also very

well supported, especially by the Cooja simulator

(

Osterlind et al., 2006), which makes simulations of

network scenarios—especially with many devices—

much easier to design and test.

RIOT OS has historically been developed ﬁrst on

legacy ARM devices (ARM7TDMI-based MCUs),

then ported on more recent microcontrollers (ARM

Cortex-M) and other architectures (MSP430 then

AVR). However, the MSP430 port was, before we im-

proved it, still not as “polished” as ARM code and

thus prone to crash.

Our contribution can be summarized in the follow-

ing points:

1. analysis of current OSes (TinyOS, Contiki, etc.)

limitations, and why they are incompatible with

development of real-time extensions like ad-

vanced MAC / RDC protocols;

2. add debugging features to the RIOT OS kernel,

more precisely a mechanism to handle fatal er-

rors: crashed systems can be “frozen” to facilitate

debugging during development; or, in production,

can be made to reboot immediately, thus reduc-

ing unavailability of a RIOT-running device to a

minimum;

3. port RIOT OS to a production-ready, MSP430-

based device: the Zolertia Z1 mote (already

supoorted by Contiki, and used in real-world sce-

narios running that OS);

4. debug the MSP430-speciﬁc portion of RIOT

OS—more speciﬁcally: the hardware abstraction

layer (HAL) of the task scheduler—making RIOT

OS robust and production-ready on MSP430-

based devices.

Note that all of these contributions have been

reviewed by RIOT’s development team and in-

tegrated into the “master” branch of RIOT OS’

Github repository (i.e.: they are now part of the

standard code base of the system).

5. running on MSP430-based devices also allows

RIOT OS applications to be simulated with the

Cooja simulator; this greatly improves speed and

ease of development.

6. thanks to these achievements, we now have a

robust and full-featured software platform of-

fering all the features needed to develop high-

performance MAC/RDC protocols—such as all of

the time-slotted protocols.

As a proof of concept of this last statement, we

have implemented one of our own designs, and ob-

tained very promising results, shown in the next sec-

tion.

5 USE CASE: IMPLEMENTING

THE S-CoSenS RDC PROTOCOL

5.1 The S-CoSenS Protocol

The ﬁrst protocol we wanted to implement is S-

CoSenS (Nefzi, 2011), which is designed to work

on top of the IEEE 802.15.4 physical and MAC (i.e.:

CSMA/CA) layers.

It is an evolution of the already published CoSenS

protocol (Nefzi and Song, 2010): it adds to the latter

a sleeping period for energy saving. Thus, the ba-

sic principle of S-CoSenS is to delay the forwarding

(routing) of received packets, by dividing the radio

duty cycle in three periods: a sleeping period (SP),

a waiting period (WP) where the radio medium is

listened by routers for collecting incoming 802.15.4

packets, and ﬁnally a burst transmission period (TP)

for emitting adequately the packets enqueued during

WP.

The main advantage of S-CoSenS is its ability to

adapt dynamically to the wireless network throughput

at runtime, by calculating for each radio duty cycle

the length of SP and WP, according to the number of

relayed packets during previous cycles. Note that the

set of the SP and the WP of a same cycle is named

subframe; it is the part of a S-CoSenS cycle whose

length is computed and known a priori; on the con-

trary, TP duration is always unknown up to its very

beginning, because it depends on the amount of data

successfully received during the WP that precedes it.

The computation of WP duration follows a “slid-

ing average” algorithm, where WP duration for each

RIOTOSPavestheWayforImplementationofHigh-performanceMACProtocols

duty cycle is computed from the average of previous

cycles as:

= α · WP

n−1

+ (1 − α) · WP

n−1

= max(WP

min

, min(WP

, WP

max

))

where WP

and WP

n−1

are respectively the average

WP length at n

and (n − 1)

cycle, while WP

and

n−1

are the actual length of respectively the n

and (n − 1)

cycles; α is a parameter between 0 and

1 representing the relative weight of the history in the

computation, and WP

min

and WP

max

are high and low

limits imposed by the programmer to the WP dura-

tion.

The length of the whole subframe being a param-

eter given at compilation time, SP duration is sim-

ply computed by subtracting the calculated duration

of WP from the subframe duration for every cycle.

The local synchronization between a S-CoSenS

router and its leaf nodes is done thanks to a beacon

packet, that is broadcasted by the router at the begin-

ning of each cycle. This beacon contains the duration

(in microseconds) of the SP and WP for the currently

beginning cycle.

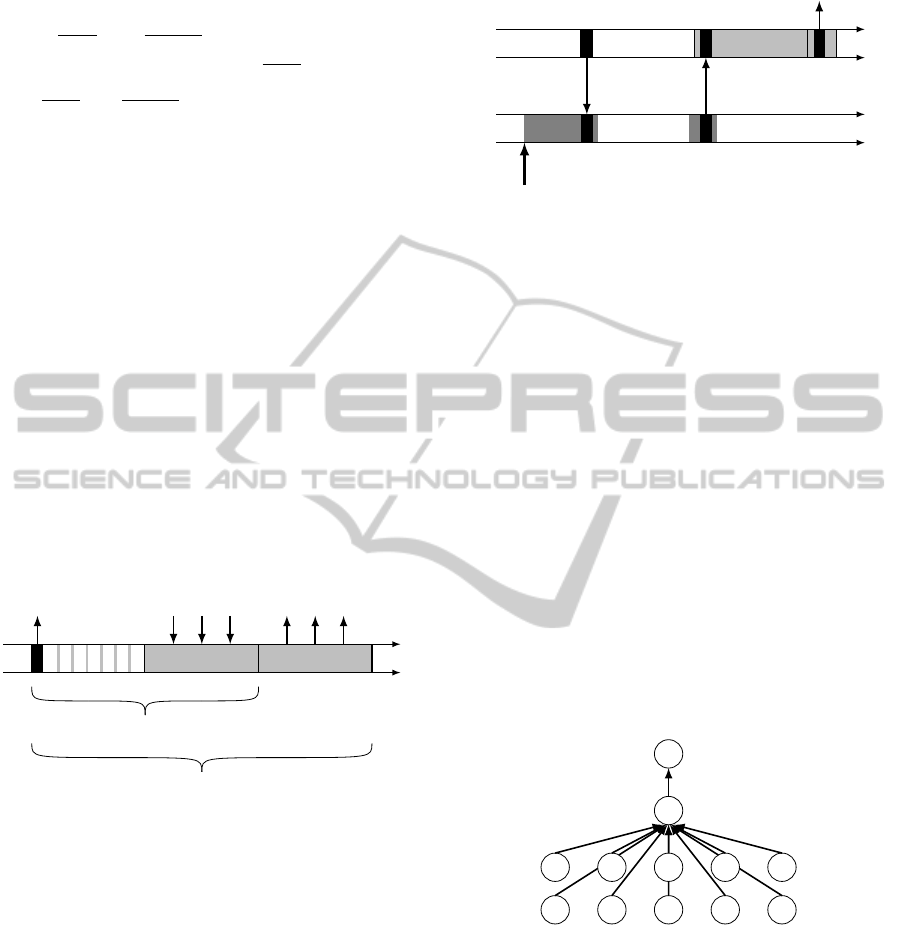

The whole S-CoSenS cycle workﬂow for a router

is summarized in ﬁgure 1 hereafter.

Beacon

(broadcasted)

P1 P2

Subframe

Figure 1: A typical S-CoSenS router cycle.

The gray strips in the SP represents the short wake-up-and-

listen periods used for inter-router communication.

An interesting property of S-CoSenS is that leaf

(i.e.: non-router) nodes always have their radio

transceiver ofﬂine, except when they have packets

to send. When a data packet is generated on a leaf

node, the latter wakes up its radio transceiver, listens

and waits to the ﬁrst beacon emitted by an S-CoSenS

router, then sends its packet using CSMA/CA at the

beginning of the WP described in the beacon it re-

ceived. A leaf node will put its transceiver ofﬂine dur-

ing the delay between the beacon and that WP (that

is: the SP of the router that emitted the received bea-

con), and will go back to sleep mode once its packet

is transmitted. All of this procedure is shown in ﬁgure

We thus need to synchronize with enough accu-

racy different devices (that can be based on different

Beacon

packet arrival

Figure 2: A typical transmission of a data packet with the

S-CoSenS protocol between a leaf node and a router.

hardware platforms) on cycles whose periods are dy-

namically calculated at runtime, with resolution that

needs to be in the sub-millisecond range. This is

where RIOT OS advanced real-time features really

shine, while the other comparable OSes are for that

purpose deﬁnitely lacking.

5.2 Simulations and Synchronization

Accuracy

We have implemented S-CoSenS under RIOT, and

made ﬁrst tests by performing simulations—with

Cooja—of a 802.15.4 PAN (Personal Area Network)

constituted of a router, and ten motes acting as “leaf

nodes”. The ten nodes regularly send data packets

to the router, that retransmits these data packets to

a nearby “sink” device. Both the router and the ten

nodes use exclusively the S-CoSenS RDC/MAC pro-

tocol. This is summarized in ﬁgure 3.

1 2

Figure 3: Functional schema of our virtual test PAN.

Our ﬁrst tests clearly show an excellent synchro-

nization between the leaf nodes and the router, thanks

to the time resolution offered by RIOT OS event man-

agement system (especially the availability of many

hardware timers for direct use). This can be seen in

the screenshot of our simulation in Cooja, shown in

ﬁgure 4. For readability, the central portion of the

timeline window of that screenshot (delimited by a

thick yellow rectangle) is zoomed on in ﬁgure 5.

On ﬁgure 5, the numbers on the left side are

motes’ numerical IDs: the router has ID number 1,

SENSORNETS2015-4thInternationalConferenceonSensorNetworks

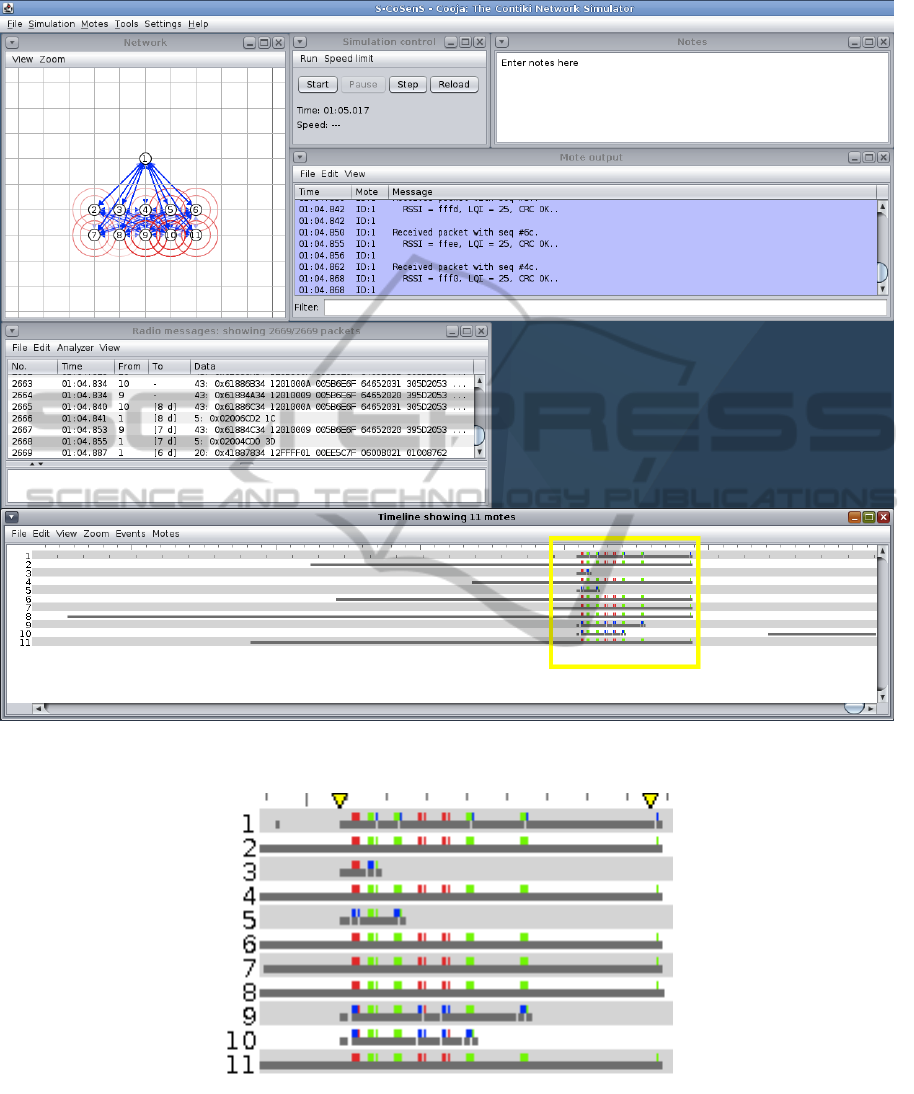

Figure 4: Screenshot of our test simulation in Cooja. (Despite the window title mentioning Contiki, the simulated application

is indeed running on RIOT OS.)

Figure 5: Zoom on the central part of the timeline of our simulation.

while the leaf nodes have IDs 2 to 11. Grey bars

represent radio transceiver being online for a given

mote; blue bars represent packet emission, and green

bars correct packet reception, while red bars represent

collision (when two or more devices emit data con-

currently) and thus reception of undecipherable radio

signals.

Figure 5 represents a short amount of time (around

RIOTOSPavestheWayforImplementationofHigh-performanceMACProtocols

100 milliseconds), representing the end of a duty cy-

cle of the router: the ﬁrst 20 milliseconds are the end

of SP, and 80 remaining milliseconds the WP, then the

beginning of a new duty cycle (the TP has been dis-

abled in our simulation).

In our example, four nodes have data to transmit

to the router: the motes number 3, 5, 9, and 10; the

other nodes (2, 4, 6, 7, 8, and 11) are preparing to

transmit a packet in the next duty cycle.

At the instant marked by the ﬁrst yellow arrow (in

the top left of ﬁgure 5), the SP ends and the router

activates its radio transceiver to enter WP. Note how

the four nodes that are to send packets (3, 5, 9, and

10) do also activate their radio transceivers precisely

at the same instant: this is thanks to RIOT OS precise

real-time mechanism (based on hardware timers), that

allows to the different nodes to precisely synchronize

on the timing values transmitted in the previous bea-

con packet. Thanks also to that mechanism, the nodes

are able to keep both their radio transceiver and their

MCU in low-power mode, since RIOT OS kernel is

interrupt-driven.

During the waiting period, we also see that several

collisions occur; they are resolved by the S-CoSenS

protocol by forcing motes to wait a random duration

before re-emitting a packet in case of conﬂict. In

our example, our four motes can ﬁnally transmit their

packet to the router in that order: 3 (after a ﬁrst col-

lision), 5, 10 (after two other collisions), and ﬁnally

9. Note that every time the router (device number 1)

successfully receives a packet, an acknowledgement

is sent back to emitter: see the very thin blue bars that

follow each green bar on the ﬁrst line.

Finally, at the instant marked by the second yellow

arrow (in the top right of ﬁgure 5), WP ends and a new

duty cycle begins. Consequently, the router broad-

casts a beacon packet containing PAN timing and syn-

chronization data to all of the ten nodes. We can see

that all of the six nodes waiting to transmit (2, 4, 6, 7,

8, and 11) go idle after receiving this beacon (beacon

packets are broadcasted and thus not to be acknowl-

edged): they go into low-power mode (both at radio

transceiver and MCU level), and will take advantage

of RIOT real-time features to wake up precisely when

the router goes back into WP mode and is ready to

receive their packets.

5.3 Performance Evaluation:

Preliminary Results

We will now present the ﬁrst, preliminary results we

obtained through the simulations we described here-

above.

Important: note that we evaluate here the imple-

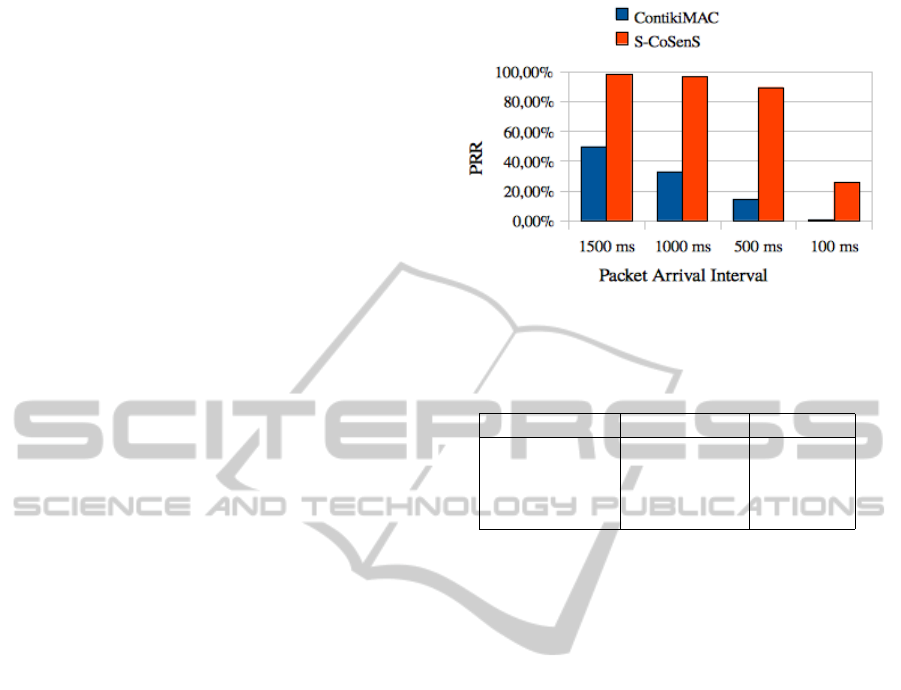

Figure 6: PRR results for both ContikiMAC and S-CoSenS

RDC protocols, using default values for parameters.

Table 1: PRR results for both ContikiMAC and S-CoSenS

RDC protocols, using default values for parameters.

PAI \ Protocol ContikiMAC S-CoSenS

1500 ms 49.70% 98.10%

1000 ms 32.82% 96.90%

500 ms 14.44% 89.44%

100 ms 0.64% 25.80%

mentations, and not the intrinsic advantages or weak-

nesses of the protocols themselves.

We have ﬁrst focused on QoS results, by comput-

ing Packet Reception Rates and end-to-end delays be-

tween the various leaf nodes and the sink of the test

PAN presented earlier in ﬁgure 3, to evaluate the qual-

ity of the transmissions allowed by using both of the

protocols.

For these ﬁrst tests, we used default parameters for

both RDC protocols (ContikiMAC and S-CoSenS),

only pushing the CSMA/CA MAC layer of Contiki to

make up to 8 attempts for transmitting a same packet,

so as to put it on par with our implementation on

RIOT OS. We have otherwise not yet tried to tweak

the various parameters offered by both the RDC pro-

tocols to optimize results. This will be the subject of

our next experiences.

5.3.1 Packet Reception Rates (PRR)

The result obtained for PRR using both protocols are

shown in ﬁgure 6 as well as table 1.

The advantage of S-CoSenS as shown on the ﬁg-

ure is clear and signiﬁcant whatever the packet ar-

rival interval constated. Excepted for the “extreme”

scenario corresponding to an over-saturation of the

radio channel, S-CoSenS achieve an excellent PRR

(' 90%), while ContikiMAC’s PRR is always / 50%.

SENSORNETS2015-4thInternationalConferenceonSensorNetworks

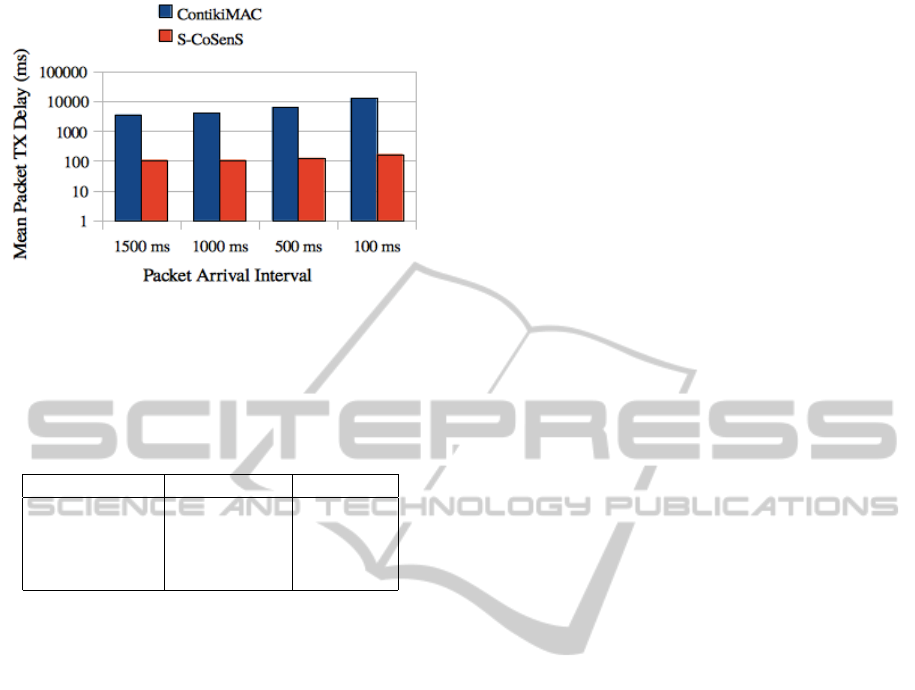

Figure 7: End-to-end delays results for both ContikiMAC

and S-CoSenS RDC protocols, using default values for pa-

rameters; note that vertical axis is drawn with logarithmic

scale.

Table 2: End-to-end delays results for both ContikiMAC

and S-CoSenS RDC protocols, using default values for pa-

rameters.

PAI \ Protocol ContikiMAC S-CoSenS

1500 ms 3579 ms 108 ms

1000 ms 4093 ms 108 ms

500 ms 6452 ms 126 ms

100 ms 12913 ms 168 ms

5.3.2 End-To-End Transmission Delays

The result obtained for PRR using both protocols are

shown in ﬁgure 7 and table 2.

S-CoSenS has here also clearly the upper hand, so

much that we had to use logarithmic scale for the ver-

tical axis to keep ﬁgure 7 easily readable. The advan-

tage of S-CoSenS is valid whatever the packet arrival

interval, our protocol being able to keep delay below

an acceptable limit (in the magnitude of hundreds of

milliseconds), while ContikiMAC delays rocket up to

tens of seconds when network load increases.

5.3.3 Summary: QoS Considerations

While these are only preliminary results, it seems that

being able to leverage real-time features is clearly a

signiﬁcant advantage when designing and implement-

ing MAC/RDC protocols, at least when it comes to

QoS results.

6 FUTURE WORKS AND

CONCLUSION

We plan, in a near future:

• to bring new contributions to the RIOT project:

we are especially interested in the portability that

the RIOT solution offers us; this OS is indeed ac-

tively ported on many devices based on powerful

microcrontrollers based on ARM Cortex-M archi-

tecture (especially Cortex-M3 and Cortex-M4),

and we intend to help in this porting effort, es-

pecially on high-end IoT motes we seek to use in

our works (e.g.: as advanced FFD nodes with full

network stack, or routers);

• to use the power of this OS to further advance our

work on MAC/RDC protocols; more precisely,

we are implementing other innovative MAC/RDC

protocols—such as iQueue-MAC (Zhuo et al.,

2013)—under RIOT, taking advantage of its high-

resolution real-time features to obtain excellent

performance, optimal energy consumption, and

out-of-the-box portability.

RIOT is a powerful real-time operating sys-

tem, adapted to the limitations of deeply embedded

hardware microcontrollers, while offering state-of-

the-art techniques (preemptive multitasking, tickless

scheduler, optimal use of hardware timers) that—we

believe—makes it one of the most suitable OSes for

the embedded and real-time world.

While we weren’t able to accurately quantize en-

ergy consumption yet, we can reasonably think that

lowering activity of MCU and radio transceiver will

signiﬁcantly reduce the energy consumption of de-

vices running RIOT OS. This will be the subject of

some of our future research works.

Currently, RIOT OS supports high-level IoT pro-

tocols (6LoWPAN/IPv6, RPL, TCP, UDP, etc.). How-

ever, it still lacks high-performance MAC / RDC layer

protocols.

Through this work, we have shown that RIOT OS

is also suitable for implementing high-performance

MAC / RDC protocols, thanks to its real-time features

(especially hardware timers management).

Moreover, we have improved the robustness of the

existing ports of RIOT OS on MSP430, making it a

suitable software platform for tiny motes and devices.

REFERENCES

Abrach, H., Bhatti, S., Carlson, J., Dai, H., Rose, J., Sheth,

A., Shucker, B., Deng, J., and Han, R. (2003). Man-

tis: System Support for Multimodal Networks of In-

Situ Sensors. In 2nd ACM International Workshop on

Wireless Sensor Networks and Applications, WSNA

2003, pages 50–59. ACM.

RIOTOSPavestheWayforImplementationofHigh-performanceMACProtocols

Cao, Q., Abdelzaher, T., Stankovic, J., and He, T.

(2008). the LiteOS Operating System: Towards

Unix-Like Abstractions for Wireless Sensor Net-

works. In Proceedings of the 7th International Confer-

ence on Information Processing in Sensor Networks,

IPSN ’08, pages 233–244. IEEE Computer Society.

http://www.liteos.net/.

Dunkels, A. (2003). Full TCP/IP for 8-bit architectures.

In Proceedings of the 1st International Conference on

Mobile Systems, Applications and Services, MobiSys

’03, pages 85–98. ACM.

Dunkels, A. (2007). Rime — a lightweight layered com-

munication stack for sensor networks. In EWSN,

Poster/Demo session.

Dunkels, A. (2011). The ContikiMAC Radio Duty Cycling

Protocol. Technical Report T2011:13, Swedish Insti-

tute of Computer Science.

Dunkels, A., Gr

onvall, B., and Voigt, T. (2004). Contiki

– a Lightweight and Flexible Operating System for

Tiny Networked Sensors. In IEEE 29th Conference on

Local Computer Networks, LCN ’04, pages 455–462.

IEEE Computer Society. http://www.contiki-os.org/.

Dunkels, A., Schmidt, O., Voigt, T., and Ali, M. (2006).

Protothreads: Simplifying Event-Driven Program-

ming of Memory-Constrained Embedded Systems. In

Proceedings of the 4th International Conference on

Embedded Networked Sensor Systems, SenSys ’06,

pages 29–42. ACM.

Hahm, O., Baccelli, E., G

unes, M., W

ahlisch, M., and

Schmidt, T. C. (2013). RIOT OS: Towards an OS for

the Internet of Things. In INFOCOM 2013, Poster

Session. http://www.riot-os.org/.

Han, C.-C., Kumar, R., Shea, R., Kohler, E., and Srivas-

tava, M. (2005). SOS: A Dynamic Operating System

for Sensor Nodes. In Proceedings of the 3rd Interna-

tional Conference on Mobile Systems, Applications,

and Services, MobiSys ’05, pages 163–176. ACM.

https://projects.nesl.ucla.edu/public/ sos-2x/doc/.

Levis, P., Lee, N., Welsh, M., and Culler, D. (2003).

TOSSIM: Accurate and Scalable Simulation of Entire

TinyOS Applications. In Proceedings of the 1st Inter-

national Conference on Embedded Networked Sensor

Systems, SenSys ’03, pages 126–137. ACM.

Levis, P., Madden, S., Polastre, J., Szewczyk, R., White-

house, K., Woo, A., Gay, D., Hill, J., Welsh, M.,

Brewer, E., and Culler, D. (2005). TinyOS: An Oper-

ating System for Sensor Networks. In Ambient Intel-

ligence, pages 115–148. Springer Berlin Heidelberg.

http://www.tinyos.net/.

Nefzi, B. (2011). M

ecanismes auto-adaptatifs pour la ges-

tion de la Qualit

e de Service dans les r

eseaux de cap-

teurs sans ﬁl. PhD thesis, Networking and Internet

Architecture. Institut National Polytechnique de Lor-

raine (INPL).

Nefzi, B. and Song, Y.-Q. (2010). CoSenS: a Collecting and

Sending Burst Scheme for Performance Improvement

of IEEE 802.15.4. In IEEE 35th Conference on Local

Computer Networks, LCN ’10, pages 172–175. IEEE

Computer Society.

Osterlind, F., Dunkels, A., Eriksson, J., Finne, N., and

Voigt, T. (2006). Cross-Level Sensor Network Simu-

lation with Cooja. In IEEE 31st Conference on Local

Computer Networks, LCN ’06, pages 641–648. IEEE

Computer Society.

Porter, B. and Coulson, G. (2009). Lorien: a Pure Dy-

namic Component-Based Operating System for Wire-

less Sensor Networks. In Proceedings of the 4th Inter-

national Workshop on Middleware Tools, Services and

Run-Time Support for Sensor Networks, MidSens ’09,

pages 7–12. ACM. http://lorienos.sourceforge.net/.

Strazdins, G., Elsts, A., and Selavo, L. (2010). MansOS:

Easy to Use, Portable and Resource Efﬁcient Operat-

ing System for Networked Sensor Systems. In Pro-

ceedings of the 8th ACM Conference on Embedded

Networked Sensor Systems, Sensys ’10, pages 427–

428. ACM. http://mansos.edi.lv/.

Zhuo, S., Wang, Z., Song, Y.-Q., Wang, Z., and Almeida, L.

(2013). iQueue-MAC: A trafﬁc adaptive duty-cycled

MAC protocol with dynamic slot allocation. In IEEE

10th Conference on Sensor, Mesh, and Ad Hoc Com-

munications and Networks, SECON 2013, pages 95–

103. IEEE Communications Society.

SENSORNETS2015-4thInternationalConferenceonSensorNetworks
