Model Query Translator

A Model-level Query Approach for Large-scale Models

Xabier De Carlos

, Goiuria Sagardui

, Aitor Murguzur

, Salvador Trujillo

and Xabier Mendialdua

IK4-Ikerlan Research Center, P .J. M. Arizmendiarrieta, 2 20500 Arrasate, Spain

Mondragon Unibertsitatea, Goiru 2, 20500 Arrasate, Spain

Keywords:

Model-Driven Development, Large-scale Models, Query Languages, Persistence, Eclipse Modelling Frame-

work, Scalable-query.

Abstract:

Persisting and querying models larger than a few tens of megabytes using XMI introduces a signiﬁcant time

and memory footprint overhead to MDD workﬂows. In this paper, we present an approach that attempts to

address this issue using an embedded relational database as an alternative persistence layer for EMF models,

and runtime translation of OCL-like expressions for efﬁciently querying such models. We have performed

an empirical study of the approach using a set of large-scale reverse engineered models and queries from the

Grabats 2009 Reverse Engineering Contest. Main contribution of this paper is the Model Query Translator, an

approach that translates (and executes) at runtime queries from model-level (EOL) to persistence-level (SQL).

1 INTRODUCTION

Model Driven Development (MDD) raises the level

of abstraction from code to models and makes the

latter ﬁrst-class citizens of the development process.

In some domains, models used for MDD can be-

come very large. For example, in embedded sys-

tem domains such as wind-power or railway, sys-

tems can comprise a large number of elements such

as sensors, actuators and control units. To effec-

tively support such domains, scalable model persis-

tence mechanisms are essential. Unfortunately, this

is not the case for the standard XML Metadata Inter-

change (XMI), which the Eclipse Modelling Frame-

work (EMF) uses as its default persistence format

(Pag

an et al., 2013).

To overcome scalability problems several ap-

proaches have been proposed to leverage relational

and non-relational databases to facilitate scalable

model persistence and loading. Those provide an al-

ternative persistence mechanism for large-scale mod-

els entailing different elements: (i) providing a persis-

tence approach with features that facilitate scalabil-

ity such as partial loading or loading on demand; (ii)

integrating the persistence mechanism within com-

monly used modelling tools; and (iii) providing scal-

able querying of persisted models.

This paper focuses on the scalable querying of

persisted models. For that purpose, we present the

Model Query Translator (MQT) approach in order

to translate at runtime queries expressed in the Ob-

ject Constraint Language (OCL)-based Epsilon Ob-

ject Language (EOL) to SQL. MQT supports read-

only EOL queries and we plan to add support for mod-

iﬁcation query expressions in a next version. General

overview of MQT was presented in (De Carlos et al.,

2014). In this paper we provide technical details of

the solution and an empirical study to compare it with

XMI.

With MQT users can execute queries using the

same level of abstraction used for querying models

persisted using XMI, but with the efﬁciency of SQL.

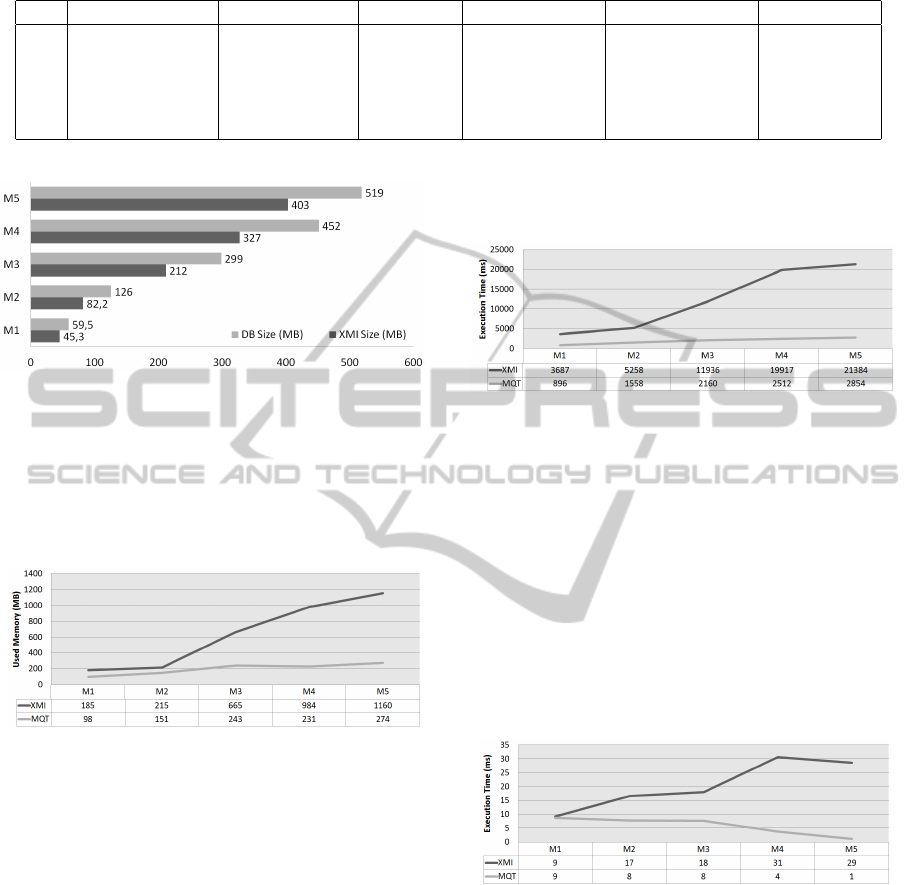

As a quantitative evaluation, we have performed an

empirical study using ﬁve models of different sizes

(from 45.3MB to 403MB). Each model has been per-

sisted using both XMI and our persistence approach

(embedded database). Then we have executed the

GraBaTs’09 Reverse Engineering Contest query (sin-

gleton extraction). In our experiments, models per-

sisted using our approach take up more storage space

but consistently outperform their XMI counterparts in

terms of memory footprint and query execution time.

De Carlos X., Sagardui G., Murguzur A., Trujillo S. and Mendialdua X..

Model Query Translator - A Model-level Query Approach for Large-scale Models.

DOI: 10.5220/0005238000620073

In Proceedings of the 3rd International Conference on Model-Driven Engineering and Software Development (MODELSWARD-2015), pages 62-73

ISBN: 978-989-758-083-3

 2015 SCITEPRESS (Science and Technology Publications, Lda.)

Roadmap of the Paper

The rest of the paper is organised as follows: Sec-

tion 2 provides some background and motivates this

work. Sections 3 and 4 describe MQT approach and

the translation process. An empirical study is per-

formed in Section 5 and then Section 6 reviews related

work and compares it with the proposed approach.

This paper concludes with conclusions and directions

for future work are proposed in Section 7.

2 BACKGROUND AND

MOTIVATION

XMI is an XML-based model interchange format

standardised by the OMG, and the default model per-

sistence format in the widely-used EMF. In addition

to XMI other ﬁle-based persistence formats exist: bi-

nary (supported by EMF) or JSON

. However, ﬁle-

based persistence entails memory and performance

problems with large models, since the information

needs to be fully loaded in memory before it can be

queried (Pag

an et al., 2013). As models grow in size,

this can have a signiﬁcant impact both on the overall

time needed to execute a query on a stored model, and

on the memory footprint of the host application.

Most recent approaches (Eike Stepper, 2014;

Pag

an et al., 2013; Benelallam et al., 2014;

Scheidgen, 2013) try to solve scalability problems

through persisting models in databases. These ap-

proaches provide persistence-level query languages

that leverage the capabilities of these databases (e.g.

SQL, MorsaQL (Pag

an and Molina, 2014), etc.).

Persistence-level queries are speciﬁc and dependent

on a particular persistence mechanism. This results

in queries that are expressed at a low level of ab-

straction and tightly couples the queries with the spe-

ciﬁc model persistence mechanism. One of the ad-

vantages of persistence-level queries is that they are

typically executed directly over persisted models. By

contrast, model-level queries are closer to model en-

gineers since they are expressed in languages focused

on interacting with models, independently of the per-

sistence mechanism (e.g. IncQuery, EOL, etc.). The

main disadvantage of model-level query languages is

that they typically require to load models into mem-

ory before queries can be executed.

This scenario motivates us to provide a solution

that is able to query persisted models using a model-

level query language, but also leveraging the capabil-

ities of the persistence mechanism used.

Read more at http://ghillairet.github.io/emfjson/

3 MQT: OVERVIEW

MQT is an approach that supports querying models

with a model-level language but also takes advan-

tage of the persistence-level query language. MQT

translates at runtime model-level (EOL) queries to

persistence-level (SQL) queries.

We have chosen EOL as model-level query lan-

guage. Main reasons for choosing EOL are that (i)

EOL is a OCL-like language that besides read-only

queries it also provides queries for model modiﬁ-

cation; (ii) other languages such as Epsilon Valida-

tion Language (EVL), Epsilon Transformation Lan-

guage (ETL), Epsilon Comparison Language (ECL)

are built on top of EOL (Kolovos et al., 2014) and pro-

vide model validation, transformation or comparison

features. On the persistence-level, we have chosen

SQL since it is a structured and mature language used

to query information from relational databases (and

also some NoSQL databases). EOL is imperative and

cannot be directly mapped to SQL. For this reason,

MQT performs partial translation of EOL queries into

equivalent SQL queries. Partial translation is suitable

when the model-level query language provides con-

structs that have no direct mapping in the target lan-

guage. Approaches such as (Demuth et al., 2001) and

(Marder et al., 1999) perform OCL to SQL transla-

tion at compilation-time, but the translation on MQT

is executed at runtime. Runtime-translation facilitates

translation of languages that have not direct mapping

(e.g. EOL and SQL).

The translation mechanism provided by our ap-

proach is based on the Epsilon Model Connectivity

Layer (EMC) (Kolovos et al., 2014). EMC is an API

that provides abstraction facilities over modelling and

data persistence technologies. It deﬁnes the IModel

interface that provides methods that enable query-

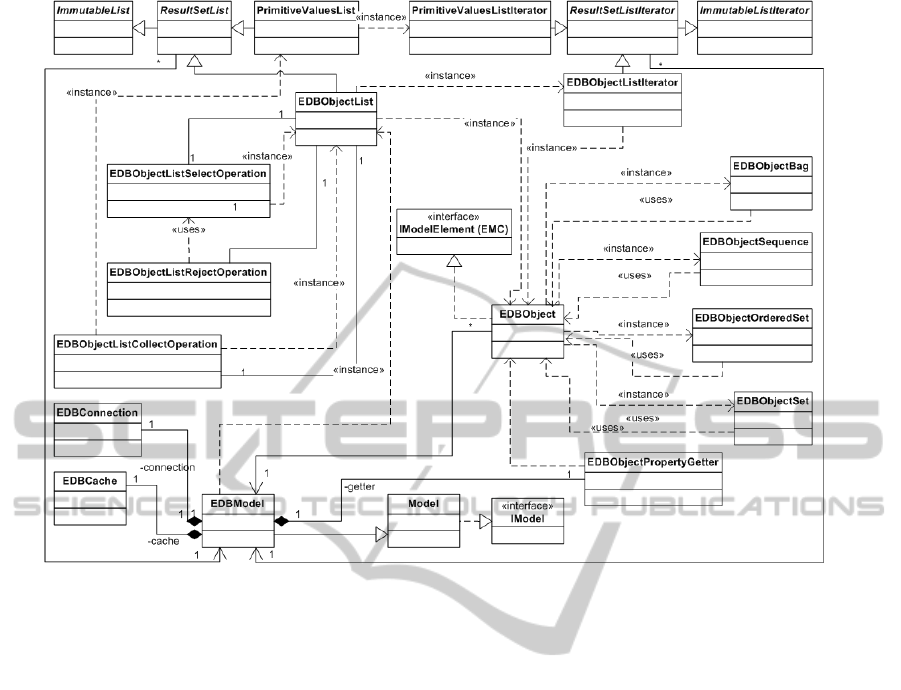

ing and modifying model elements. MQT provides,

EDBObject class (described in Section 3.2) that im-

plements the IModel interface of EMC. Using in-

stances of this class, MQT is able to interact with

models conforming to an Ecore metamodel and per-

sisted in a relational database. Our approach is based

on (Kolovos et al., 2013), where the naive transla-

tion provided by EMC is used to query large datasets

stored on a single-table relational database. By con-

trast, MQT provides: (i) a metamodel-agnostic data-

schema that is able to persist models conforming to

any Ecore metamodel; and (ii) customized transla-

tion of queries from EOL to SQL. At this stage, al-

though translation of read-only EOL query expres-

sions is supported, MQT does not support query ex-

pressions that modify model.

ModelQueryTranslator-AModel-levelQueryApproachforLarge-scaleModels

3.1 Data-schema

We have chosen SQL query language on persistence-

level. Consequently, translated queries must be based

on a data-schema. We have speciﬁed a data-schema

that is able to persist models in a relational database.

The schema is metamodel-agnostic and persistence

of models in the database is independent of meta-

models they conform to. Thus, any model can be

persisted under the same schema, so in case meta-

model evolves, no changes are required in the schema.

We have deﬁned different indexes within the schema

that allow running the translated SQL queries faster.

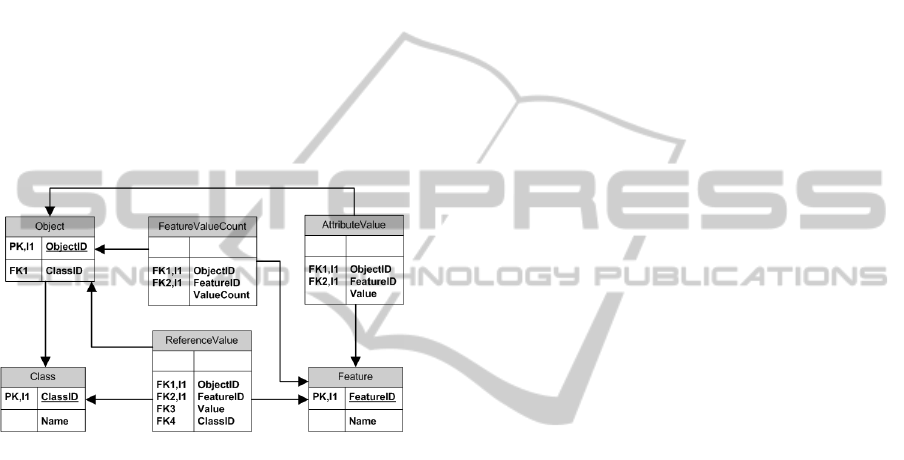

Figure 1 illustrates the schema. The EOL to SQL

translation process of MQT is dependent on this data-

schema. Tables, relations and indexes shown on the

schema are discussed below:

Figure 1: Speciﬁed metamodel-agnostic database schema.

• Object table: A tuple in this table is created

for each element of the model. Model elements

are identiﬁed by a primary key in the row of the

ObjectID column and the meta-class ID (foreign

key) of each element is stored in the row of the

ClassID column. ObjectID has been deﬁned as

an index of this table.

• Class table: It contains all meta-classes of the

model. ClassID (primary key) and Name of the

meta-class are stored for each one. ClassID has

been deﬁned as an index of this table.

• Feature table: It stores an ID (FeatureID

column, primary key) and the name (Name col-

umn) for each attribute and reference in the meta-

classes of the model. FeatureID has been deﬁned

as an index of this table.

• AttributeValue table: This table stores at-

tribute values of model elements. Attribute values

are identiﬁed by an ObjectID and a FeatureID

(both foreign keys), and the Value column stores

the primitive value of the attribute. In case of

single-ﬁle attributes with empty value, value-by-

default is stored. An index has been created for

this table on ObjectID and FeatureID.

• ReferenceValue table: This table stores ref-

erences of model elements. References are iden-

tiﬁed by an ObjectID and a FeatureID (both

foreign keys). The ID of the referenced element

(Value column, foreign key) and meta-class of

the referenced element (ClassID column, foreign

key) identify the referenced model element. An

index has been created for this table on ObjectID

and FeatureID.

• FeatureValueCount table: Stores the num-

ber of values of each feature. Tuples are identiﬁed

by two foreign keys (ObjectID and FeatureID),

and the count is stored in ValueCount. This ta-

ble is not indispensable to save the model infor-

mation, but preliminary tests show that using it

performance is improved in terms of speed. An

index has been created for this table on ObjectID

and FeatureID.

Although the schema is metamodel-agnostic, the

metamodel is provided by the users when the EDB-

Model class is instantiated (through a parameter on

the constructor). Being so, MQT makes use of the

metamodel to: (i) identify superclasses and subclasses

of model elements; (ii) obtain the default value of

each attribute; (iii) identify whether a feature is an

attribute or a reference; or (iv) obtain bounds of fea-

tures.

Additionally, we have provided an utility

that giving a model persisted in XMI, re-

turns a database with the previously described

schema and containing all the model infor-

mation (es.ikerlan.edbm.EDBModelImport.

importFromXMI(...)).

3.2 Conceptual Model

Figure 2 illustrates a UML class diagram of MQT,

where the conceptual model of MQT is speciﬁed.

Next, each class is described one-by-one:

• EDBConnection. This class is responsible for

connecting with the database and it is used to ex-

ecute queries and get results from the database.

The instance of EDBConnection contains the in-

formation required to connect to the database:

username, password, basepath, database name

and an instance of the JDBC Driver.

• EDBCache. Each instance of this class contains

two Maps that keep in memory names and ids

of classes and features in the queried model.

Maps are accessible using different methods:

getClassID(name), getFeatureID(name),

MODELSWARD2015-3rdInternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

Figure 2: Class-diagram of MQT.

getClassName(id) or getFeatureName(id).

Using methods provided by this class, it is

possible to avoid some joins on the translated

SQL queries, since names or ids of classes and

features are obtained directly from memory.

• EDBModel. This class extends the Model class

of EOL (which implements the IModel inter-

face of EMC). This is the main class of MQT

and instances of this class are responsible for in-

teracting with model elements persisted in the

database. Each instance of this class stores and

uses an instance of the class EDBConnection

and another one of EDBCache. The EDBModel

class overrides Model methods that query models

(modiﬁcation methods are not supported). This

class also overrides the getPropertyGetter()

methods of Model, returning an instance of

EDBObjectPropertyGetter.

• EDBObjectPropertyGetter. This class

extends the AbstractPropertyGetter class of

EOL. It is invoked when a feature value is queried,

and it executes the method getValue(feature)

of the queried EDBObject instance ( the method

is described in the next point).

• EDBObject. This class implements the

IModelElement interface of EOL and it is

used to represent model elements that are per-

sisted in the database. EDBObject class is in-

stantiated by classes such as EDBObjectList,

EDBObjectIterator or EDBModel to return el-

ements of the model. Instances of EDBObject

class are able to get attribute and reference

values of the model object that they repre-

sent. Attribute and reference values are ob-

tained through the method getValue(String

featureName). It also provides other methods

to obtain other information about the model el-

ement: equals(Object object) compares the

model element with another object and returns if it

is equal; getEClass() returns the EClass of the

represented model element; getOwningModel()

returns the model where the element is contained;

getObjectID() returns the ID that identiﬁes the

model element within the database; etc.

• EDBObjectBag, EDBObjectSequence,

EDBObjectSet,

EDBObjectOrderedSet. These classes

extend different collection type classes of

EOL (EolBag, EolSequence, EolSet and

EolOrderedSet). These classes are instantiated

and returned in the execution of the method

getValue(feature) of the class EDBObject.

• ImmutableList. An abstract class that im-

plements the interface java.util.List and pro-

ModelQueryTranslator-AModel-levelQueryApproachforLarge-scaleModels

vides support for read-only lists.

• ResultSetList. An abstract class that ex-

tends the previously described ImmutableList.

This class is used to provide a List that is able

to work with results returned by the database

(ResultSet) after executing a SQL query.

• EDBObjectList. This class extends

ResultSetList and speciﬁes a list composed

by EDBObjects. This class is instantiated when

the translated and executed SQL query returns

a list of model elements. List methods imple-

mented in this class use a database (ResultSet)

to return results. For example: the size()

method returns the size of the ResultSet;

contains(Object object) returns if the given

object exists on the results of the ResultSet;

etc. To support runtime adaptation of queries

the EDBObjectList class implements the in-

terface IAbstractOperationContributor

and an implementation of

getAbstractOperation(String operation)

method is provided. Depending on the translated

operation (select, collect, etc.) it returns an

instance of class EDBObjectSelectOperation,

EDBObjectCollectOperation or

EDBObjectRejectOperation.

• PrimitiveValuesList. This class extends

ResultSetList and is similar to the previously

described EDBObjectList. In this case, this class

is instantiated when the translated and executed

SQL query returns a list of primitive values (in-

stead of model elements).

• ImmutableListIterator. An ab-

stract class that implements the interface

java.util.ListIterator and provides an

implementation for read-only list iterators.

• ResultSetListIterator. Abstract

class extending the previously described

ImmutableListIterator. This class is used to

provide a ListIterator that is able to work with

results returned by the database (ResultSet)

after executing a SQL query.

• EDBObjectListIterator. Extends the

class ResultSetListIterator and implements

IteratorList methods but returning results

(EDBObjects) based on a database (ResultSet).

This class is instantiated when the method

listIterator() of the EDBObjectList class is

executed.

• PrimitiveValuesListIterator. Imple-

ments the same methods of the previous class but

in this case it is adapted to work with a ResultSet

containing primitive values. This class is instan-

tiated when the method listIterator() of the

PrimitiveValuesList class is executed.

• EDBObjectSelectOperation,

EDBObjectCollectOperation and

EDBObjectRejectOperation. These

classes extend different EOLOperations, over-

riding the execute() method and providing

more performant and adapted translated select,

collect and reject queries. EMC provides a naive

translation where each expression is translated

and then executed one-by-one. For example,

the expression ‘‘Elem.all.collect(n |

n.name)’’ returns a list containing names of

all model elements of type Elem. In the case

of the EMCs’ naive translation and execution

of the query, ﬁrst ‘‘Elem.all’’ is executed,

getting a EDBObjectList containing all Elem

type elements. Then, one SQL query is generated

and executed to get the name of each element

returned on the list. By contrast, extending

EOLOperations, more performant queries are

constructed when translating select, reject and

collect expressions. For example, in case of

‘‘Elem.all.collect(n | n.name)’’, we

can construct a SQL query that returns in one

execution all Elem type elements’ name. We

compared query execution times of the naive and

of the extended translation in (De Carlos et al.,

2014).

4 MQT: EOL to SQL Translation

This section describes the translation process by

analysing how MQT translates EOL query expres-

sions. The EOL query parsing and execution is driven

by the EOL Module and our approach is able to inter-

act with it since MQT is based on the EMC. Figure 3

illustrates the sequence diagram of the translation of

the most noteworthy EOL expressions. Following, the

translation and execution process of the expressions

illustrated in the Figure 3 and of other EOL expres-

sions is described. We have extracted from (Kolovos

et al., 2014) the description of each EOL expression .

4.1 Query Model Elements

The model itself is the input of EOL expressions of

this type. Being so, the starting point of the transla-

tion are the methods located on the EDBModel class

instance and they are executed by the EOL Module.

First step of the Figure 3 illustrates the translation pro-

cess of an EOL query of this type. Next, the transla-

MODELSWARD2015-3rdInternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

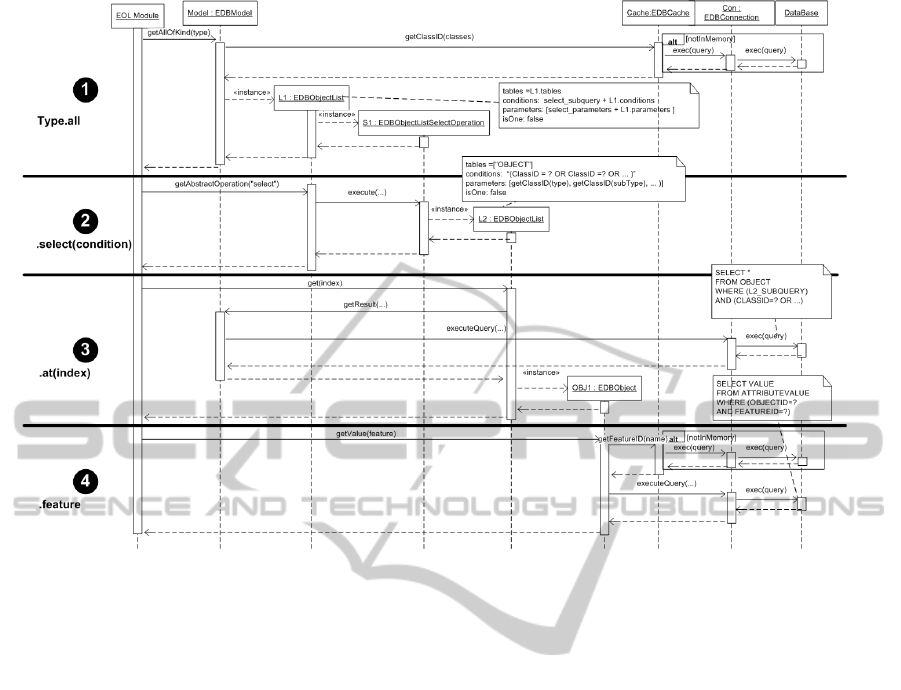

Figure 3: Sequence diagram of a MQT execution.

tion process for EOL expressions of this type is de-

scribed:

• allOfKind(), allInstances(),

all():EDBObjectList:

EOL Description: allOfKind() returns an

EDBObjectList containing all the model ele-

ments (EDBObject instances) that are instances

either of the type itself or of one of its subtypes.

Methods allInstances() and all() are aliases

of allOfKind() and the execution and result is

the same.

MQT Translation: returned EDBObjectList

is able to query from the database model ele-

ments that are instances of the type or of the

subtypes: (SELECT * FROM OBJECT WHERE

(OBJECT.CLASSID = getClassID(type) OR

OBJECT.CLASSID = getClassID(subtype)

OR ...)), but the query is not executed until

the result is required. As step 1 of Figure

3 illustrates, when an allOfKind() EOL

query is executed, the EOLModule executes the

getAllOfKind(String type) method of the

EDBModel class instance (Model in the ﬁgure).

In this method, summarizing, ﬁrst classIds of

the type and subtypes (if exist) are obtained from

memory through the EDBCache class instance. If

the queried class is loaded in memory, it returns

the ID directly. If it is not yet loaded, the ID of the

class is obtained through a SQL query that is ex-

ecuted by an EDBConnection instance. Next, an

EDBObjectList is instantiated (L1), where some

of the constructor parameters are : tables =

‘‘[Object]’’, conditions=‘‘(ClassID=?

OR ClassID=? OR ...)’’

parameters=[getClassID(type),

getClassID(subtype),...], isOne=false.

These parameters are used to construct the SQL

query.

• allOfType():EDBObjectList:

EOL Description: returns an EDBObjectList

containing all the elements in the model (repre-

sented using EDBObject instances) that are in-

stances of the type.

MQT Translation: returned EDBObjectList

is able to query from the database model ele-

ments that are instances of the type (SELECT

* FROM OBJECT WHERE (OBJECT.CLASSID

= getClassID(type))) and the query is not

executed until the result is required. The pro-

cess to get the EDBObjectList is similar to

the expression allOfKind(). In this case, the

getAllOfType(type) method of the EDBModel

instance is executed. In this method, ﬁrst,

classId of the type is obtained using EDBCache

instance. Then EDBObjectList is instanti-

ated. Some parameters which are passed to the

ModelQueryTranslator-AModel-levelQueryApproachforLarge-scaleModels

constructor are: tables = ‘‘[Object]’’,

conditions=‘‘(ClassID=?)’’

parameters=[getClassID(type)],

isOne=false.

4.2 Element Filtering

A previously instantiated EDBObjectList is the in-

put of EOL expressions of this group. The starting

point of the translation is the execution of a method

of the EDBObjectList instance, and it is performed

by the EOL Module. The second step in Figure 3 il-

lustrates translation of a select, an expression of this

type. Next, translation process of some EOL expres-

sions of this type is described:

• select(iterator:Type |

condition):EDBObjectList:

EOL Description: getting an EDBObjectList as

input, it returns all elements of the list satisfying

the condition.

MQT Translation: returned EDBObjectList is

able to query from the database model elements

of the input EDBObjectList satisfying speciﬁed

condition (SELECT * FROM OBJECT WHERE

(L2

SUBQUERY) AND (CLASSID=? OR ...)).

The query is not executed until the result is

required.

Step 2 of Figure 3 illustrates the trans-

lation process and it is explained be-

low: First, the EOL Module executes the

getAbstractOperation("select") method

of the corresponding EDBObjectList (pre-

viously instantiated on the translation of

another expression; e.g. L1 of the ﬁg-

ure). Then, the execute() method of the

EDBObjectListSelectOperation class

instance (S1) is executed. It returns a

new instance of the EDBObjectList class

(L2). In this case, constructor parame-

ters are completed with attributes of L1

and with condition of the select: tables =

L1.tables, conditions=select subquery

+ L1.conditions

parameters=[select parameters +

L1.parameters], isOne=false. With this

information, the EDBObjectList instance is able

to construct the SQL expression that gets model

elements that meet previous conditions and also

the condition of the select.

• reject(iterator:Type |

condition):EDBObjectList:

EOL Description: getting an EDBObjectList as

input, it returns all elements of the list that do not

satisfy the condition.

MQT Translation: returned EDBObjectList is

able to query from the database model elements

of the input EDBObjectList that do not sat-

isfy the condition (SELECT * FROM OBJECT

WHERE (OBJECT NOT IN L2 SUBQUERY)

AND (CLASSID=? OR ...)). When this

expression is parsed, as with the select

expression, the EOL Module executes the

getAbstractOperation("reject") method

of the corresponding EDBObjectList. It uses

a EDBObjectListRejectOperation instance

(based on a EDBObjectListSelectOperation)

to instantiate the returned EDBObjectList.

• collect(iterator:Type |

condition):EDBObjectList |

PrimitiveValueList:

EOL Description: getting an EDBObjectList

as input, it returns a EDBObjectList or a

PrimitiveValueList. The returned list contains

values of the speciﬁed condition for each element

of the input list.

MQT Translation: if the speciﬁed cond-

tion is based on an attribute, the returned

PrimitiveValueList contains values of

the feature for each element of the input

EDBObjectList. Else, if the feature is based on a

reference, an EDBObjectList is returned.

When this expression is parsed,

the EOL Module executes the

getAbstractOperation("collect") method

of the corresponding EDBObjectList. To

return the computed list, ﬁrst, SQL queries

should be executed and then results obtained

from the database are used to populate returned

list. The executed query is based on the in-

put EDBObjectList, but it is re-factorized to

return in one execution all the required val-

ues. If the result is a PrimitiveValueList,

format of the SQL expression constructed and

executed during collect translation is the fol-

lowing: SELECT VALUE FROM OBJECT INNER

JOIN ATTRIBUTEVALUE ON OBJECT.OBJECTID

= ATTRIBUTEVALUE.OBJECTID WHERE ....

Else if the result is an EDBObjectList, the

format of the SQL expression is: SELECT

VALUE, CLASSID FROM OBJECT INNER JOIN

REFERENCEVALUE ON OBJECT.OBJECTID =

REFERENCEVALUE.OBJECTID WHERE ...

• selectOne(...), closure(...),

aggregate(...), exists(...),

etc.: The approach makes use of the pre-

viously described methods’ to get the result of

MODELSWARD2015-3rdInternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

these methods.

4.3 Query Results (EDBObjectList)

These EOL query expressions return a result from

a given EDBObjectList. The translation starting

point is a method of the EDBObjectList instance

that is executed by the EOL Module. It is im-

portant to note that as this type expressions re-

quire to return the result, SQL expression constructed

by the input EDBObjectList should be executed.

The SQL query expression is only executed once,

since in the following execution of methods of the

same EDBObjectList instance same ResultSet is

used. Then, based on the ResultSet returned by

the database, required result is prepared and returned.

Third step of the Figure 3 illustrates translation of an

expression of this type: at(2) that returns the second

EDBObject of the list.

Next, translation process of some EOL expres-

sions of this type are described:

• at(index: Integer):EDBObject:

EOL Description: returns the EDBObject of the

collection at the speciﬁed index.

MQT Translation: returns a new instance of

EDBObject based on the result located in the

ResultSet (returned by the database) at the spec-

iﬁed index. As step 3 of the Figure 3 illustrates,

the EOL Module executes the method get(2) of

the EDBObjectList (L2). To get the result, ﬁrst

the SQL expression constructed by the L2 is exe-

cuted through the EDBConnection instance (Con)

located at the EDBModel instance (Model). The

database returns a ResultSet that is stored on L2.

Finally, it is used to return results, in this case cre-

ating a new EDBObject instance based on the sec-

ond row of the ResultSet.

• first(), second(), third(),

fourth(), last() : EDBObject:

EOL Description: returns the ﬁrst, second, third,

fourth and last EDBObject of the EDBObjectList

respectively.

MQT Translation: these expressions make use of

the previously described method at(index) (e.g.

at(0) in case of ﬁrst()).

• size():Integer:

EOL Description: returns how many EDBObjects

are contained in the EDBObjectList.

MQT Translation: ﬁrst, ResultSet is obtained

(as previously described) and then returns the

number of rows that it contains.

• includes(obj:

EDBObject):Boolean:

EOL Description: returns true if the

EDBObjectList includes the EDBObject.

MQT Translation: the EOL Module executes the

contains(obj) method of the EDBObjectList.

This method iterates all the rows of the previ-

ously obtained ResultSet analysing if the speci-

ﬁed obj is in the list. ObjectID is used to compare

EDBObjects and if it is equal once, the method

returns true.

• includesAll(objCol:

Collection):Boolean:

EOL Description: returns true if the

EDBObjectList includes all the EDBObjects of

objCol.

MQT Translation: the EOL Module exe-

cutes the containsAll(col) method of the

EDBObjectList. This method iterates all

EDBObjects of col, executing for each one the

previously described includes(obj).

4.4 Query Results (EDBObject)

These EOL query expressions return a result from a

given EDBObject. The translation starting point is a

method of the EDBObject instance that is executed

by the EOL Module. Next, the translation process of

some EOL expressions of this type is described:

• .feature (e.g. obj.name):

EOL Description: returns the value of the speci-

ﬁed feature of the given EDBObject.

MQT Translation: constructs and executes the

SQL expression getting the features’ value from

the database. In case the feature is an attribute

the SQL expression has the following for-

mat: SELECT FROM ATTRIBUTEVALUE WHERE

OBJECTID=? AND FEATUREID=?; else, if the

feature is a reference, the SQL expression format

is: SELECT FROM REFERENCEVALUE WHERE

OBJECTID=? AND FEATUREID=?. As shown

on the fourth step of 3, to translate the EOL

expression to SQL, ﬁrst, the EOL Module exe-

cutes the getValue(feature). Then, the SQL

expression is constructed and executed within

this method. As previously shown, the SQL

query uses the OBJECTID and FEATUREID.

While the OBJECTID is directly obtained from

the EDBObject instance, the FEATUREID is

obtained through the EDBCache instance (cache)

of the Model. Finally, the SQL query is executed

and result is returned.

ModelQueryTranslator-AModel-levelQueryApproachforLarge-scaleModels

• type(): Type:

EOL Description: returns the type of the

EDBObject.

MQT Translation: the EOL Module executes the

getEClass() method that returns EClass of the

EDBObject. The EClass is obtained directly from

the EDBObject instance (it is speciﬁed in the in-

stantiation through the constructor).

5 EMPIRICAL STUDY

This section presents an empirical study of MQT. We

have executed a query over ﬁve models (M1...M5)

of different sizes. We have evaluated storage size,

query execution time and memory footprint. The

query is based on the GraBaTs’09 Reverse Engineer-

ing Contest, and identiﬁes singletons within a Java

project. The query has been implemented using EOL,

and it is illustrated in Listing 1. First all the meth-

ods named getInstance that have a modifier are

selected (lines 1-2). Then, for each method, if its

modifier is static and public (line 7) and the return

type is the same as the class that contains the method

(lines 8-9), the class is stored in a variable (line 10).

Finally, the query shows the name of all the classes

that are singletons (lines 13-14).

1 var method = M e t h o d D e c l a r a t i o n . a ll .

se l ect ( m | m . na me = ’ ge t I nst a n c e ’ ) ;

2 m e th o d = met h od . s e le c t (m | ! m .

mo d i f i er . is E m pt y () );

3 var m od ;

4 var s i n gle t o n s = new Sequence;

5 for(m in met h od ){

6 mod = m . mod i f i er ;

7 if( mod . s ta t i c = tr ue and m od .

vi s i b i l i t y . lit e r al == ’ publ i c ’) {

8 var c l as s = m .

ab s t r a c t T y p e D e c l a r a ti o n ;

9 if( m . r e tur n T y p e . type = c las s )

10 si n g l e t o n s . add ( c l as s );

11 }

12 }

13 for( c in s i ngl e t o n s )

14 c . na me . pr int l n () ;

Listing 1: EOL query that extracts singleton classes from a

Java model.

Models have been created from existing Java plug-

ins using the Java Discoverer provided by MoDisco

(Bruneliere et al., 2010), a framework for model-

driven reverse engineering. These models have been

persisted in the native XMI and also in a single-

ﬁle, embedded database using H2 v.1.3.168 and a

metamodel-schema (previously described in Section

3.1). Model to database importation has been per-

formed using the XMI to database import utility

provided by MQT. Table 1 illustrates details about

models used on this study: size of the XMI ﬁle,

size of the database ﬁle, number of objects exist-

ing within the database, number of instances of the

MethodDeclaration class, number of instances that

satisfy ﬁrst conditions (lines 1-2 of 1) and number of

returned singletons.

The query has been executed 100 times over each

model and using both persistence formats (XMI and

embedded DB). Values measured have been storage

size, memory footprint and query execution time. The

memory footprint has been measured on both cases

using VisualVM

. Regarding query execution times,

measured values are different depending on the used

persistence:

• XMI: the model is ﬁrst completely loaded into

memory and then the query is executed. As such,

we have divided results in two groups: (i) ﬁrst

execution which includes loading time and query

execution time; and (ii) the average of the follow-

ing executions which include only query execu-

tion time.

• Embedded DB: the ﬁrst execution has a warm-

up time overhead which includes loading the

database driver, connections, etc. For this rea-

son, we have divided results in two groups: (i)

ﬁrst execution which includes warm-up time and

query execution time; and (ii) the average of sub-

sequent executions which include only query exe-

cution time.

All tests have been executed under an Intel Core

i7-3520M CPU at 2.90GHz with 8GB of physical

RAM running 64 bits Windows 7 SP1, JVM 1.8.0 and

the Eclipse Luna (4.4.0) distribution conﬁgured with

2GB of maximum heap size.

5.1 Results

This section shows and discusses obtained results:

storage size, execution time and memory footprint.

Storage size and memory footprint are shown in

Megabytes (MB) and query execution time in mil-

liseconds (ms).

5.1.1 Storage Size

As is illustrated on Figure 4 models persisted using

our approach are between %31-%53 bigger than mod-

els persisted using XMI. The reason for it is that be-

sides model information, the database stores indexes

Read more about VisualVM at http://visualvm.java.net

MODELSWARD2015-3rdInternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

Table 1: Details about used models.

XMI Size (MB) DB Size (MB) # Object # MethodDecl. # Methods cond # Singletons

M1 45,3 59,5 165.741 5.366 9 9

M2 82,2 126 330.761 8.129 8 8

M3 212 299 875.988 11.393 6 6

M4 327 452 1.343.207 15.386 3 0

M5 403 519 1.566.890 19.366 0 0

Figure 4: Comparison of storage size (MB) between XMI

and Embedded DB.

and duplicated information in some cases (e.g. Fea-

tureValueCount table) to support faster queries.

5.1.2 Memory Footprint

Figure 5: Comparison of used memory (MB) between XMI

and MQT.

Figure 5 shows the results of the used memory during

the execution of the query over the selected models

(from the smallest M1 to the largest M5). As illus-

trated in the ﬁgure, in XMI, the use of memory grows

slowly from M1 to M2 (% 16 more) but the size of the

model has much more impact over memory footprint

from M3 to M5. In the ﬁrst executions the used mem-

ory has a low value (185 and 215 MB), but in case

of M4-M5 the used of memory rounds one gigabyte,

making handling large XMI models impractical in de-

vices with limited memory such as an embedded sys-

tem, smartphones/tablets or computers with reduced

memory.

In MQT, the memory usage increases, but the

growth is slower: comparing with M1, memory us-

age is 2.79 times higher in M5, while in the case of

XMI the use of memory is 6.27 bigger. Being so, al-

though model size has impact over used memory in

MQT, it scales better than XMI.

5.1.3 Query Execution Time

Figure 6: Comparison of query execution time (ms) be-

tween XMI (with loading time) and MQT (with warm-up

time).

On the one hand, Figure 6 illustrates query execu-

tion times on different models using XMI and MQT.

Measures shown on this chart also include the time

for loading model in case of XMI and the time for

warming-up the database in case of MQT. As is illus-

trated in the ﬁgure, XMI has to load the entire model

in memory and it is a time consuming task. By con-

trast, MQT has to warm-up the database (create driver

and connections, load some information in the mem-

ory, etc.) but the impact of the model size is lower

than in XMI.

Figure 7: Comparison of query execution time (ms) be-

tween XMI (without loading time) and MQT (without

warm-up time).

On the other hand, Figure 7 illustrates average of

the query execution without load/warm-up time. As

shown on the chart, model size has impact over the

query execution time over XMI. However, execution

time in M5 is lower than execution time in M4. The

reason is that as is shown on Table 1, while in M4

three methods satisfy conditions of the query pro-

gram, there are not methods satisfying them in M5.

Consequently, fewer queries should be translated and

executed in the case of M5, and this has a positive

impact over the execution time (less time required).

ModelQueryTranslator-AModel-levelQueryApproachforLarge-scaleModels

In case of MQT, the number of queries to be trans-

lated and executed has direct impact over the execu-

tion time result and it is dependent on the nature of

the model. However, in this case, model size has not

signiﬁcant impact over the result.

5.2 Threats to Validity

Used memory and execution time results, show that

our approach is promising in terms of scalability with

respect to XMI. Correctness of the results has been

veriﬁed manually, ensuring that query results are the

same in XMI and in MQT.

Results show that a more intensive evaluation

should be performed, analysing the impact of the na-

ture of the model and of the query program over the

execution time and memory footprint. We plan to per-

form this study in future iterations of this work.

6 RELATED WORK

Morsa (Pag

an et al., 2013), Neo4EMF (Benelallam

et al., 2014), EMF Fragments (Scheidgen, 2013),

Mongo EMF (Bryan Hunt, 2014) and CDO (Eike

Stepper, 2014) are approaches that provide model per-

sistence facilities by leveraging relational and non-

relational Database Management Systems (DBMSs).

These approaches provide persistence-level query

languages that leverage capabilities of these databases

(E.G. MorsaQL (Pag

an and Molina, 2014), COCL

(Eike Stepper, 2014), CYPHER or SQL). Models per-

sisted using this approach also can be queried using a

model-level query language (E.G. EMF Query (An-

thony Hunter, 2014), INCQuery (Bergmann et al.,

2012), EOL (Kolovos et al., 2014) or OCL), but with-

out fully-leveraging database capabilities. By con-

trast, our approach translates queries from model-

level to persistence-level and then executes them, pro-

viding in this way a mechanisms for querying from

model-level but leveraging also persistence capabili-

ties.

Other approaches are focused on the generation

of queries based on OCL-like languages: (Heiden-

reich et al., 2008) proposes an approach focused on

generating SQL queries from invariants that are spec-

iﬁed using OCL. This approach supports mapping be-

tween Uniﬁed Modelling Language (UML) models

and databases. Then, the approach generates queries

that allow to evaluate invariants using SQL. (Demuth

et al., 2001) describes an approach that generates

views using OCL constraints. Then it uses views to

check the integrity of the persisted data. The approach

has been implemented in OCL2SQL

, a tool that gen-

erates SQL queries from OCL constraints. (Marder

et al., 1999) proposes another similar approach for

integrity checking. While previously described ap-

proaches translate OCL constraints into SQL queries

at compilation-time, our approach translates queries

from EOL to SQL, but at runtime.

The approach described in (Parreiras, 2012),

translates SPARQLAS (an SPARQL-like query syn-

tax) to SPARQL and then executes translated queries

against an OWL knowledge base. Obtained re-

sults are used as input for OCL queries. Being so,

this approach executes queries in persistence-level

(SPARQL) and then results are the input of model-

level queries (OCL). By contrast, our approach trans-

lates queries from model-level (EOL) to persistence-

level (SQL) and then executes them against the

database.

(Kolovos et al., 2013) describes an approach

where EOL is used to query large datasets stored on

relational databases composed by one table. This ap-

proach uses the naive translation provided by EMC to

query information persisted in a single-table database.

By contrast, our approach provides custom translation

of SQL queries to be executed against a database with

multiple tables.

7 CONCLUSIONS AND FURTHER

WORK

In this paper, we have presented MQT, a prototype

that is able to query models persisted in a relational

database at model-level (same level of abstraction

used for querying models persisted with XMI) but ex-

ploring the advantages of a persistence-level language

(SQL). While existing approaches which are able to

translate OCL-like languages statically at compila-

tion time, our approach provides runtime translation

of queries from EOL to SQL. Performing the transla-

tion at runtime eases to translate languages that have

not direct mapping, and this is the case of EOL and

SQL. At this stage, MQT only supports read-only

EOL queries. However, we plan to add support for

modiﬁcation queries in a future prototype.

We have performed an empirical study where

querying using both MQT and XMI is compared. In

this study, we have compared the values that measure

storage size, memory footprint and query execution

time. The results show that our approach scales better

than XMI on the execution of the query proposed by
