Automated DSL Construction Based on Software Product Lines

Changyun Huang, Ataru Osaka, Yasutaka Kamei and Naoyasu Ubayashi

Kyushu University, Fukuoka, Japan

Keywords:

Domain-speciﬁc Language, Software Product Line, Language Workbench.

Abstract:

DSL (Domain-Speciﬁc Language) is one of the important approaches for software abstraction. In the past

decades, DSLs have been provided by expert engineers familiar with domain knowledge and programming

language processors. It is not easy for ordinary programmers to construct DSLs for their own purposes. To

deal with this problem, we propose a language workbench called Argyle that can automatically generate a

DSL by only specifying a set of functions needed to the DSL and an execution platform supported by the

DSL. Argyle is based on software product lines and consists of the following two steps: 1) development

of the core assets for constructing a family of DSLs and 2) DSL conﬁguration using these core assets. To

demonstrate the effectiveness of our approach, we developed a prototype DSL for supporting MSR (Mining

Software Repositories), the most active research ﬁeld in software engineering.

1 INTRODUCTION

DSL (Domain-Speciﬁc Language) is one of the

promising approaches to dealing with software ab-

straction. An application can be developed at a high

abstraction level by using a DSL that encapsulates the

details of domain knowledge and hides the usage of

a speciﬁc software platform. DSL can improve the

efﬁciency of software development and maintenance

(Fowler, 2010). However, it is not easy to develop

DSLs. In most cases, DSLs are constructed by expert

engineers who are familiar with not only application

domains but also programming language processors.

In this paper, we propose Argyle, a language

workbench based on SPL (Software Product Line)

(Clements and Northrop, 2001). Using Argyle, a pro-

grammer can obtain a DSL for a speciﬁc purpose by

only specifying a set of functions needed to the DSL

and an execution platform supported by the DSL. Ar-

gyle automatically generates a DSL grammar and its

compiler by ﬁnding a set of language assets satisfy-

ing the speciﬁed requirements from a software prod-

uct line targeted to the language development.

The remainder of this paper is structured as fol-

lows. In Section 2, we illustrate the overview of Ar-

gyle. In Section 3, we explain the design and imple-

mentation of Argyle. In Section 4, we show a pro-

totype DSL for MSR (Mining Software Repositories)

to demonstrate the usefulness of our approach. Con-

cluding remarks are provided in Section 5.

2 Argyle: LANGUAGE

WORKBENCH

The key concept of Argyle is to deﬁne language as-

sets and combine them to construct a DSL according

to user requirements. Though the SPL-based DSL

construction has already been proved to be effective

(Mernik et al., 2005), there is still a lack of the sys-

tematic methodology to achieve it. SPL engineering

consists of domain engineering and application engi-

neering. In our case, an application is a DSL.

Figure 1 shows the overview of Argyle support-

ing domain analysis, language design, and compiler

construction. In domain analysis, we create a feature

model based on SPL by analyzing what language as-

sets are needed to construct a family of DSLs in the

target application domain such as MSR. In language

design, a DSL grammar in the form of BNF (Backus-

Naur Form) is derived by user requirements (capabil-

ities selection for anticipated DSL functionality). In

DSL construction, a language processor for the de-

rived grammar is constructed using a framework for

DSL construction or an extensible programming lan-

guage. In current implementation of Argyle, we use

Xtext as a framework. Domain analysis, language de-

sign, and compiler construction correspond to domain

engineering in SPL. Application development using

the generated DSL corresponds to application engi-

neering.

247

Huang C., Osaka A., Kamei Y. and Ubayashi N..

Automated DSL Construction Based on Software Product Lines.

DOI: 10.5220/0005239902470254

In Proceedings of the 3rd International Conference on Model-Driven Engineering and Software Development (MODELSWARD-2015), pages 247-254

ISBN: 978-989-758-083-3

 2015 SCITEPRESS (Science and Technology Publications, Lda.)

;

;;

[[

Q





/





H



'

U



&

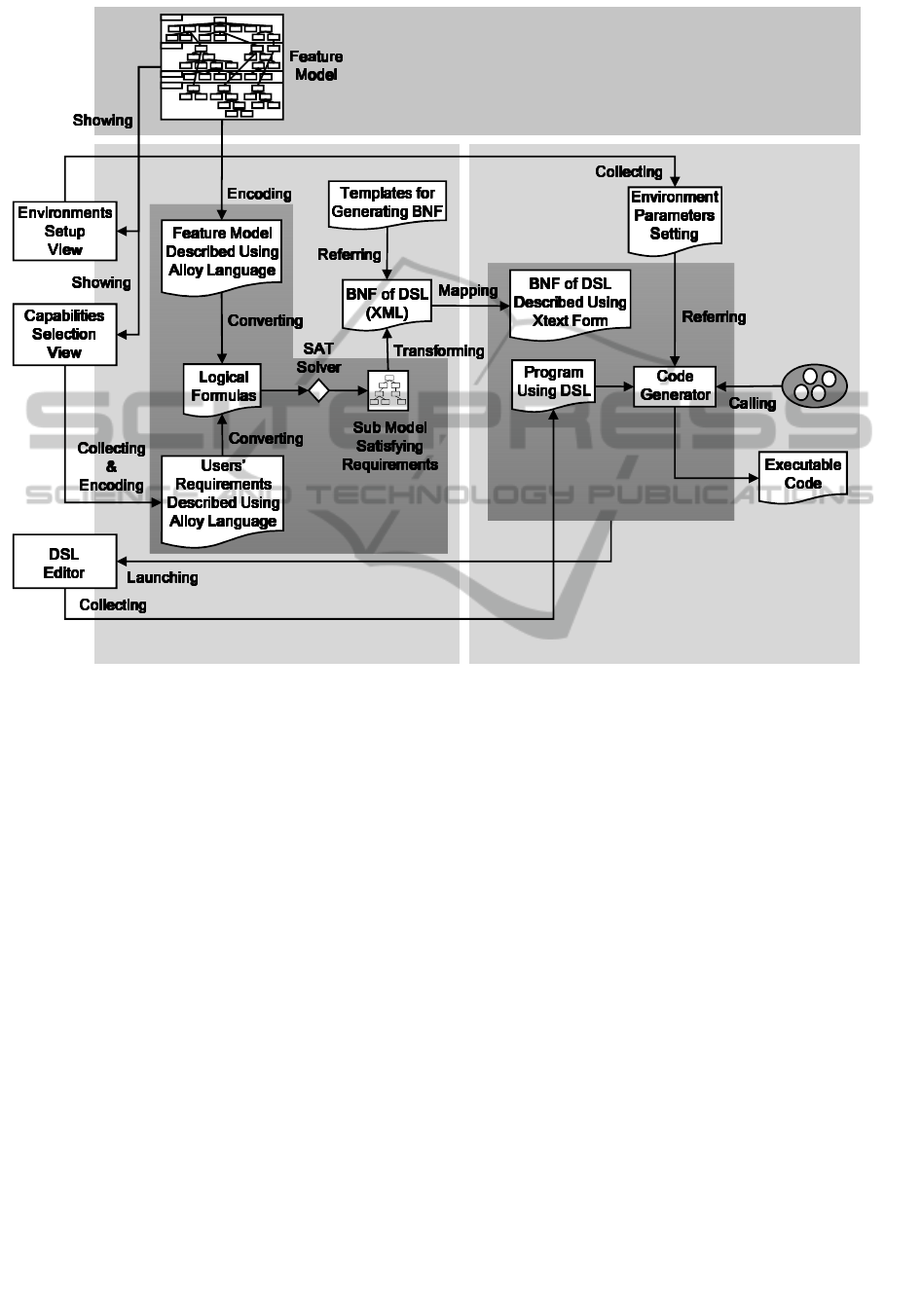

Figure 1: Argyle: Language Workbench for DSL Construction.

3 DESIGN AND

IMPLEMENTATION OF Argyle

We show the details of domain analysis, language de-

sign, and compiler construction supported in the lan-

guage workbench Argyle.

3.1 Domain Analysis Support

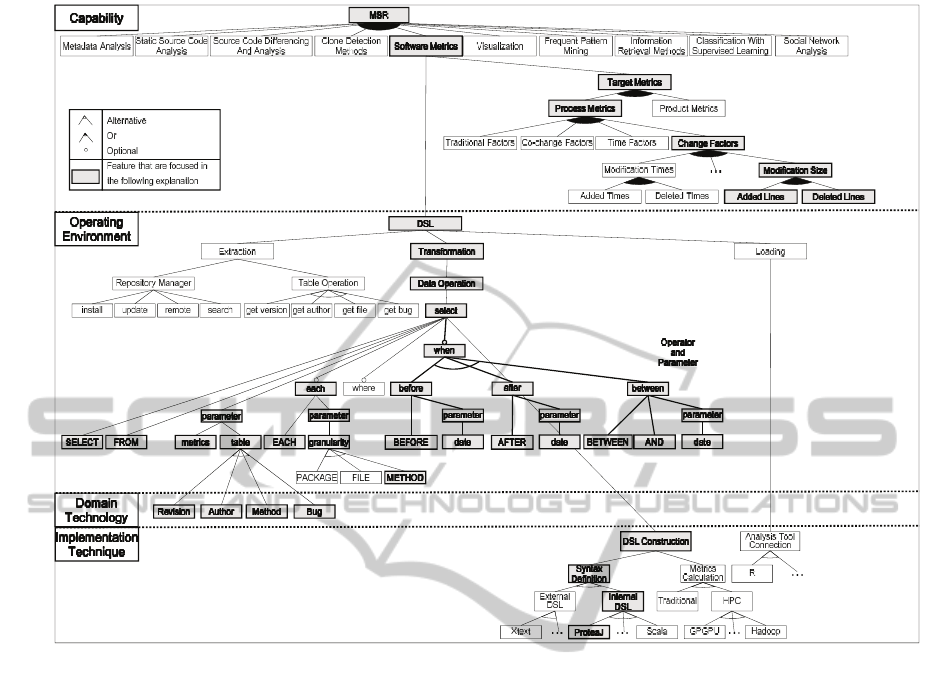

In Argyle, Feature-Oriented Domain Analysis

(FODA) (Kang et al., 2002) (Kang et al., 1990) is

used to deﬁne language assets and the constraints

among them (Huang et al., 2013). A feature model

in FODA consists of four layers: capability layer;

operating environment layer; domain technology

layer; and implementation technique layer.

Language assets in Argyle are deﬁned according

to FODA layers as follows:

• Capability Assets. A set of DSL functions

needed in an application domain is deﬁned as the

assets in the capability layer.

• Syntax Assets. A variety of domain-speciﬁc op-

erators and reserved words is deﬁned as the assets

in the operating environment layer. By conﬁgur-

ing these operators and reserved words, Argyle

generates the syntax of a DSL. In our prototype

DSL for MSR,

select

is deﬁned as a domain-

speciﬁc operator for retrieving a set of data from

a repository.

• Data Type Assets. A variety of domain-speciﬁc

data types is deﬁned as the assets in the domain

technology layer. These data types are used in the

operators deﬁned as syntax assets. In the MSR ap-

plication domain, domain-speciﬁc data types such

Project

and

Author

are useful to write a pro-

gram for analyzing software engineering data.

MODELSWARD2015-3rdInternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

248

• Implementation Assets. Code generation tem-

plates and software components for executing a

program written in a generated DSL are deﬁned as

the assets in the implementation technique layer.

The constraints such as the appearance order of

the domain-speciﬁc operators, the relation between

the argument types of a domain-speciﬁc operator

and domain-speciﬁc data types, and the dependency

among assets have to be deﬁned in a feature model.

Argyle provides a diagram editor for modeling a

feature diagram consisting of the above four layers.

Domain analysis is performed by expert engineers fa-

miliar with domain knowledge and the theory of pro-

gramming languages. However, in Argyle, language

design shown in the next can be performed by ordi-

nary programmers. Compiler construction is fully au-

tomated.

3.2 Language Design Support

3.2.1 Overview

In Argyle, a DSL is constructed by conﬁguring lan-

guage assets as follows:

1. Argyle acquires DSL requirements by letting a

DSL user (programmer)select the necessary func-

tions of the anticipated DSL from capability assets

and an execution platform from implementation

assets.

2. According to the above selection, Argyle extracts

the related syntax assets and data type assets. Af-

ter that, Argyle conﬁgures these assets to generate

the DSL grammar in the form of BNF consisting

of domain-speciﬁc operators, reserved words, and

data types. Using this DSL, we can write a pro-

gram that realizes the functions speciﬁed in step

3. Argyle extracts a set of implementation assets for

the DSL compiler to generate the executable code

from a program written in the DSL generated in

step 2.

DSL users have only to execute a few simple oper-

ations in step 1. Even the ordinary programmers with-

out the deep knowledge of programming language

processors can develop a DSL, because step 2 and 3

can be automatically performed by Argyle. In Argyle,

a feature model, constraints among language assets,

and user requirements are encoded into logical for-

mulas. A generated DSL corresponds to the subset

of these assets satisfying constraints and user require-

ments. We use Alloy (Jackson, 2006) (Gheyi et al.,

2006) to obtain the subset(Nakajima and Ubayashi,

2007). Alloy, a name of both a formal speciﬁcation

language used for describing structures (e.g., feature

model) and an analyzer tool for exploring them, has

been proved to be effective for describing and ﬁnd-

ing structures. In this paper, we call the speciﬁcation

language “Alloy language” and the analyzer tool “Al-

loy Analyzer” separately. Argyle can easily encode a

feature model, constraints, and user requirements into

Alloy code. We introduce the Alloy encoding pat-

terns.

3.2.2 Translation from Feature Model into Alloy

Language

Two elements (i.e., signatures and predicate) of the

Alloy language are mainly used in our encoding. Re-

served words, sig and pred, are used to declare these

two elements. A signature is used to deﬁne a set of

atoms and may have some ﬁelds in its body that can

be used to establish a relation to the other signature.

The concept of a signature is as similar as a class in

Java and a ﬁeld in a signature looks like an attribute

or property in a Java class. On the other hand, a pred-

icate is used to deﬁne the interaction among signa-

tures. Using predicate in Alloy language is as similar

as using a method in Java.

The main encoding patterns consist of the encod-

ing of features (Figure 2), relations (Figure 3), and

composition rules (Figure 4).

An abstract signature “Feature” is deﬁned at ﬁrst

by using the reserved word abstract. “Feature” has

two ﬁelds: “up” and “select”. The “up” ﬁeld points

to the super feature. If the current feature is selected,

the “select” ﬁeld is set to “Yes” otherwise to “No”. A

concrete feature is deﬁned by extending abstract sig-

nature using the reserved word extends. All concrete

features also have the above two ﬁelds.

The relations among features are deﬁned by using

predicates. In a predicate, “... =>... else ...” signiﬁes

the expression if ... then ... else ... and a reserved

word and means a logical conjunction. Each predi-

cate deﬁnes a relation among features by indicating,

for example, whether these features can be selected at

the same time or not.

A feature related to a syntax asset in the operat-

ing environment layer is distinctive from other fea-

tures, because it is considered as an “Operator” in our

encoding. An “Operator” is a special “Feature” that

has some new ﬁelds such as “next”. These ﬁelds are

used to deﬁne some additional information which are

necessary on constructing BNF. For example, “next”

is used to deﬁne the order between two “Operator”s

when they appear in a BNF. The details are described

inside the predicate “GeneratingRule”.

AutomatedDSLConstructionBasedonSoftwareProductLines

249

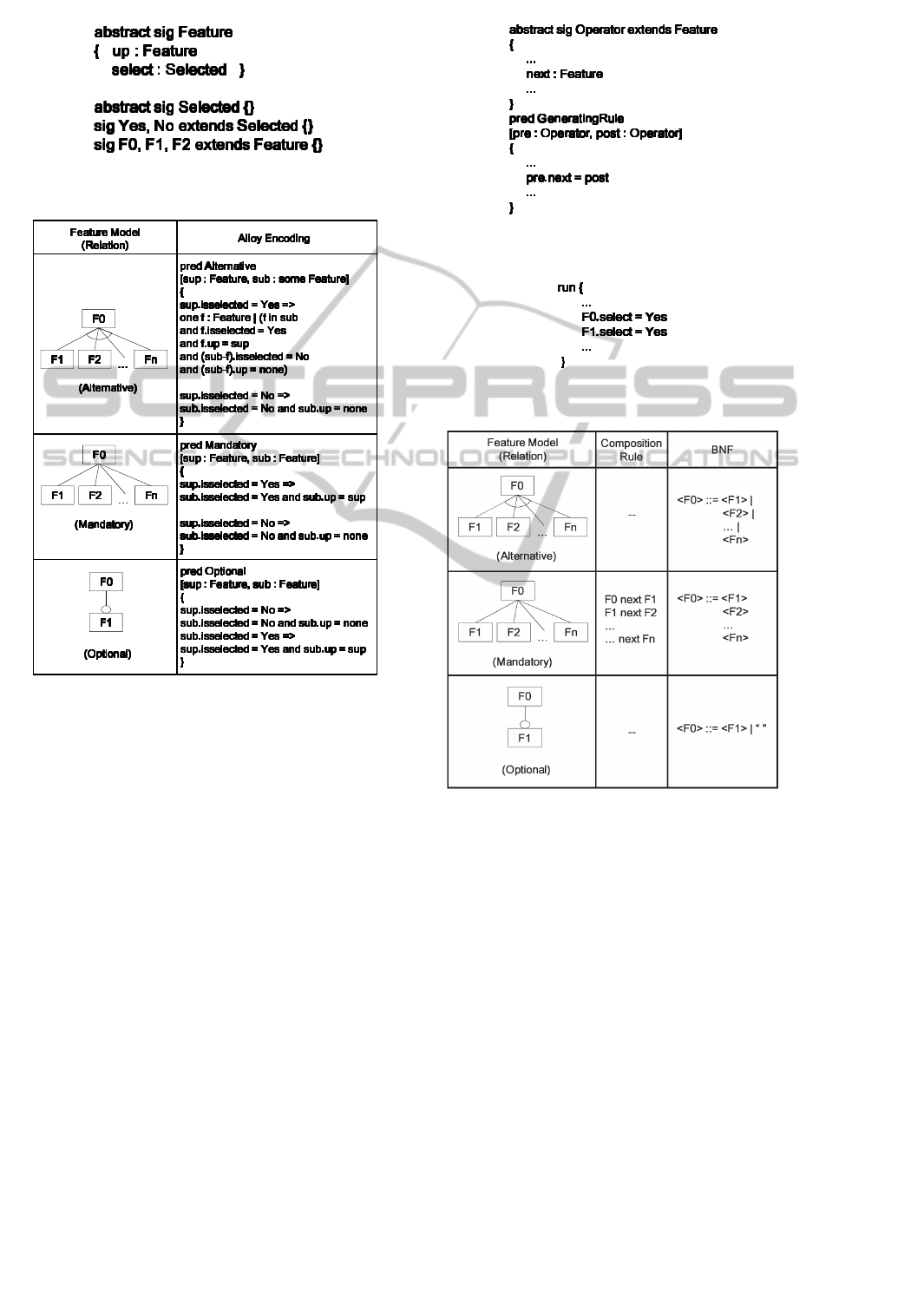

Figure 2: Encoding Features.

Figure 3: Encoding Relations.

3.2.3 BNF Generation using Alloy Analyzer

Argyle generates BNF with the help of Alloy Ana-

lyzer as follows:

1. Set user requirements;

2. Find submodels (a subset of features and their

constraints) satisfying the requirements; and

3. Map the submodel to BNF.

First, user requirements (feature selections or as-

set selection) are encoded by setting related features’

“select” ﬁelds to “Yes”. The code is written inside the

run command as shown in Figure 5. Next, this code

is inputted to Alloy Analyzer that uses a SAT solver.

The analysis results include the submodels satisfying

the user requirements. Alloy Analyzer has two out-

put types, diagram and XML ﬁle. For auto-process,

Argyle uses the XML ﬁle which includes the informa-

tion for generating the syntax of a DSL. Finally, XML

Figure 4: Encoding Composition Rules.

Figure 5: Encoding User Requirements.

Figure 6: Templates for generating BNF.

ﬁles are mapped to BNFs. Argyle prepares templates

for this mapping process. Figure 6 shows the tem-

plates.

3.3 Automated Compiler Construction

Argyle translates the BNF of a generated DSL to

Xtext, a Java-based extensible programminglanguage

framework. The process is as follows:

• Encode the generated BNF using Xtext; and

• Make a code generator to establish correspon-

dences between the BNF and the target language

(executable source code).

MODELSWARD2015-3rdInternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

250

Figure 7: A Part of Feature Model for MSR.

Argyle provides an interpreter to translate a BNF

to the corresponding Xtext code. Argyle also auto-

matically generates the source code of a code genera-

tor which is used to transform a DSL program into the

target language (e.g., Java) program that calls imple-

mentation assets. A DSL user (programmer) can use

a DSL editor to write their own DSL programs.

4 CASE STUDY

In this section, we show a case study of constructing

DSL for Mining Software Repositories (MSR) using

Argyle.

4.1 Domain Analysis on MSR

MSR (Shang et al., 2011) is a research ﬁeld where

practitioners analyze the data stored in software

repositories, such as version control systems, bug

tracking systems, and mailing list etc., to discover

meaningful information to support the software de-

velopment. While there are many work needed to be

done in MSR, deriving necessary data from reposito-

ries is one of the most important work (Dyer et al.,

2013) (Gu et al., 2012). In our case study, Argyle

provides an approach to constructing a simple SQL-

like DSL for retrieving related data from repositories

(Yamashita, 2013). Figure 7 shows a part of domain

analysis on MSR. This feature model includes lan-

guage assets used to construct SQL-like DSL state-

ments, such as “select ... from ...” and some optional

operators to set period (e.g., “between ... and ...”) and

granularity (e.g., “each ...”).

4.2 Speciﬁcation of User Requirements

To give user-friendly interfaces to specify user re-

quirements, Argyle provides the following views as

shown in Figure 8: 1) capabilities selection view and

2) environments setup view.

4.2.1 Capabilities Selection View (Area 1)

Argyle provides capability assets in this view that lists

what DSLs can be used to do. Each capability as-

set shown in this view means that Argyle provides

AutomatedDSLConstructionBasedonSoftwareProductLines

251

䐟

䐠

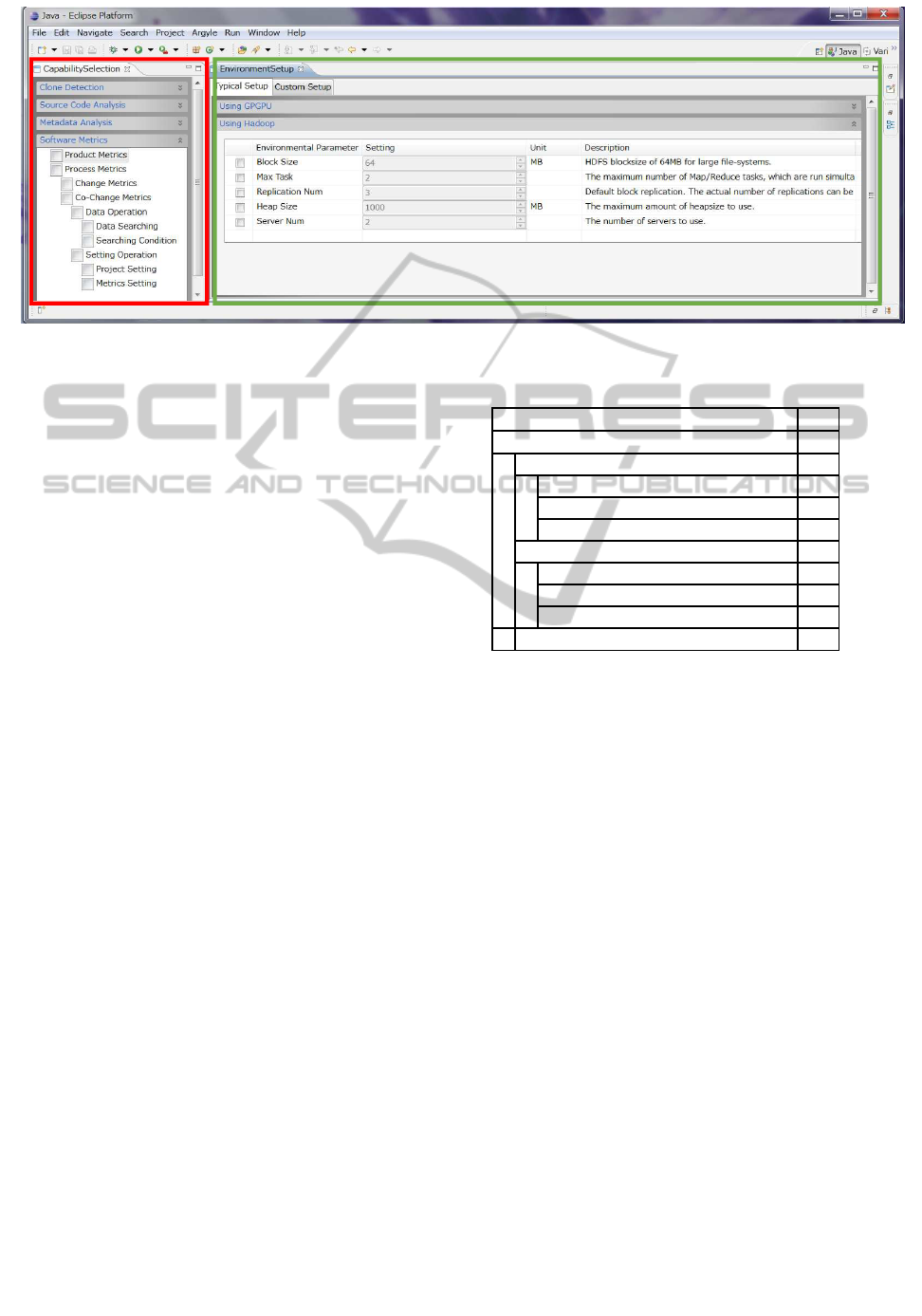

Figure 8: Setting Interfaces.

syntax assets and data type assets needed to realize

the corresponding capability. Argyle tries to provide

the easy-to-understand description of each capabil-

ity, such as “Data Searching” and “Granularity Set-

ting”, because we assume that users of Argyle have

not enough knowledge about the details of DSL con-

struction. Users can select capabilities they like by

selecting related check boxes.

4.2.2 Environments Setup View (Area 2)

Argyle requires users to decide which platform their

DSLs will be executed in. This view is used to deal

with the execution environment problems. It allows

users not only to decide the environments but also set

the related parameters of those environments (if nec-

essary). As an example, in Figure 8 there are two

environments Hadoop and GPGPU. To take care of

users who have little knowledge about these environ-

ments, Argyle prepares default parameter settings for

using Hadoop or GPGPU.

4.3 DSL Generation using Argyle

After user requirements are speciﬁed, Argyle gener-

ates a DSL.

The feature model shown in Figure 7 consisting of

about 30 features takes about 100 lines of Alloy code.

Table 1 shows the details of Alloy code. A part of

Alloy code can be reused for other DSL generations.

Figure 9 shows a submodel derived by Alloy An-

alyzer. This submodel is stored in an XML ﬁle that

is mapped to the BNF. This BNF is also stored in an-

other XML ﬁle with a form shown in Figure 10. Fig-

ure 11 shows a part of description of BNF in Xtext.

Argyle can provide a DSL editor and a code genera-

tor.

Table 1: Composition of Alloy Code.

Number of Features 30

Total Alloy Code (lines) 86

Reusable Code 28

Relations Deﬁnitions 16

Abstract Signatures Deﬁnitions 9

Composition Rule Deﬁnition 3

None Reusable 47

Features Deﬁnitions 6

Relations Settings 27

Composition Rule Settings 14

Others 11

4.4 DSL Editor and Code Generation

Argyle launches a DSL editor for users as shown in

Figure 12. This editor allows users to make their pro-

gram using the DSL whose BNF is generated above.

In this case, a statement such like “select ... from ...”

can be used in a program. A program written in the

DSL editor is translated to a programming language

which can be used in the environment that was indi-

cated by users through environments setup view. For

example, users can use the Hadoop platform to calcu-

late the software engineering metrics.

5 CONCLUSIONS

In this paper, we provided a language workbench

called Argyle which is used to support DSL construc-

tions. The key idea of Argyle is to deﬁne language el-

ements as assets and combine them according to user

requirements. Argyle gives developers, who want to

use DSLs, an approach to make DSL by themselves

even though they have not enough knowledge about

MODELSWARD2015-3rdInternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

252

2SWLRQDO(OHPHQWV

&RPSRVLWLRQ5XOHV

0DQGDWRU\(OHPHQWV

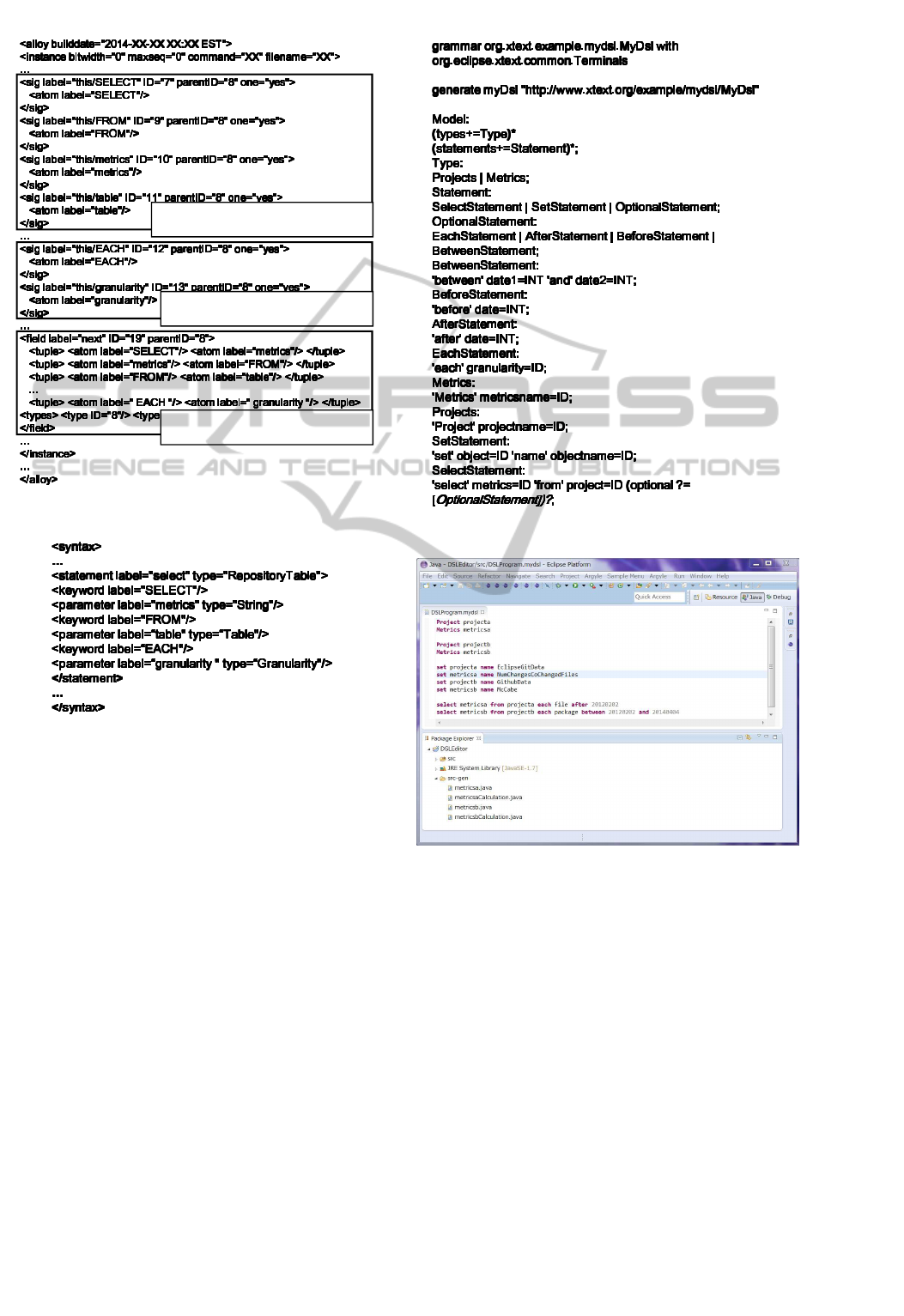

Figure 9: Results of Alloy Analyzer stored in a XML File.

Figure 10: A part of BNF stored in XML ﬁle.

programming language processor.

Currently, Argyle has only a small set of deﬁned

language assets. This set needs to be expanded to sup-

port more user requirements. However, it is difﬁcult

to complete this work only by ourselves. The better

way is to encourage many programmers to add new

language assets to Argyle. This is our future work.

ACKNOWLEDGEMENTS

This research was conducted as part of the Core

Research for Evolutional Science and Technology

(CREST) Program, “Software development for post

petascale supercomputing — Modularity for super-

computing”, by the Japan Science and Technology

Agency

Figure 11: BNF Representation in Xtext.

Figure 12: DSL Editor.

REFERENCES

Clements, P. and Northrop, L. (2001). Software product

lines. Addison-Wesley.

Dyer, R., Nguyen, H. A., Rajan, H., and Nguyen, T. N.

(2013). Boa: A language and infrastructure for ana-

lyzing ultra-large-scale software repositories. In 35th

International Conference on Software Engineering.

Fowler, M. (2010). Domain-Speciﬁc Languages. Addison-

Wesley Professional.

AutomatedDSLConstructionBasedonSoftwareProductLines

253

Gheyi, R., Massoni, T., and Borba, P. (2006). A theory for

feature models in alloy. In First Alloy Workshop.

Gu, Z., Barr, E. T., Schleck, D., and Su, Z. (2012). Reusing

debugging knowledge via trace-based bug search. In

12th ACM International Conference on Object Ori-

ented Programming Systems Languages and Applica-

tions.

Huang, C., Yamashita, K., Kamei, Y., Hisazumi, K., and

Ubayashi, N. (2013). Domain analysis for min-

ing software repositories -towards feature-based dsl

construction-. In 4th International Workshop on Prod-

uct LinE Approaches in Software Engineering.

Jackson, D. (2006). Software Abstractions. The MIT Press.

Kang, K., Cohen, S., Hess, J., Nowak, W., and Peterson,

S. (1990). Feature-oriented domain analysis feasibil-

ity study. Technical report, Carnegie Mellon Univer-

sity/Software Engineering Institute.

Kang, K. C., Lee, J., and Donohoe, P. (2002). Feature-

oriented product line engineering. IEEE Software.

Mernik, M., Heering, J., and Sloane, A. M. (2005). When

and how to develop domain-speciﬁc languages. ACM

Computing Surveys.

Nakajima, S. and Ubayashi, N. (2007). Lightweight formal

analysis of foda feature diagrams. In 4th International

Workshop on Rapid Integration of Software Engineer-

ing techniques.

Shang, W., Adams, B., and Hassan, A. E. (2011). Using pig

as a data preparation language for large-scale mining

software repositories studies: An experience report.

Journal of Systems and Software.

Yamashita, K. (2013). Modular construction of an analysis

tool for mining software repositories. In ACM Student

Research Competition at the 13th Aspect-Oriented

Software Development Conference.

MODELSWARD2015-3rdInternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

254
