Vulnerability Analysis using Network Timestamps in Full

Virtualization Virtual Machine

M. Noorafiza

1,2

, H. Maeda

, R. Uda

, T. Kinoshita

and M. Shiratori

Graduate School of Computer Science, Tokyo University of Technology, 1404-1 Katakuramachi, Hachioji Tokyo, Japan

Department of Computer Science, National Defence University of Malaysia, Kem Sungai Besi, Kuala Lumpur, Malaysia

Keywords: Vulnerability, Security, Privacy, Malware, Virtual Machine, Cloud Computing.

Abstract: Virtualization is the main underlying technology for cloud computing. The popularity of cloud computing

had expanded rapidly over the past few years. As any new technology advancement, cloud computing also

has vulnerability possibilities and potential security risks. Therefore it is important to study and understand

the underlying technologies in cloud computing and test any possible loophole that may give advantages for

malware and attackers. Virtual machine (VM) is one of the basic component in cloud computing. VM itself

is a program that executes multiple operating systems on one physical machine. Due to the complexity of

the VM, together with the complex setting of the network environment and physical machine technology

during the implementation of VM environment, vulnerability in the environment may occur. For example,

the ability of malware to detect either the environment that they are attacking is on VM or not. Through this

detection, the malware or attackers may hide its malicious program since VM are commonly used as

defensive system for malware detection, such as honeypots. In this paper, we present a remote detection

technique for VM that uses IP timestamp option in full virtualization that could be used to detect VM

environment and contributing to VM vulnerability. Evaluation of this technique was done by examining and

analysing the characteristic of IP packet timestamps replies from VM and real machine. This research

finding could serve as new knowledge for further studies on how to provide comprehensive protection from

VM vulnerability. This research also could formulate more effective security improvement that could lead

to better security policy towards VM technology.

1 INTRODUCTION

Virtualization technologies allow multiple operating

systems and applications run on the same machine

that resulted on effective time and cost for

deployment. Virtualization is also one of the

important pillar for cloud computing. Through cloud

computing, users will be able to conveniently access

the applications and services on the cloud via their

thin client or mobile devices. The user friendly

characteristic makes the popularity of cloud

computing sky rocketing. (Buyya, R., et al., 2009)

argues that cloud computing are expanding until

cloud computing itself could be considered as the

next vital utility after water and electricity.

However, virtualization technology may also serve

as the limitation of cloud computing since there are

potential security risks that associated with VM

technology (Anthes, G., 2010). This limitation may

causes enterprises and organizations to hold back

from implementing cloud computing as their IT

solution. Such example for the vulnerability and

security issues in VM is the ability of malicious code

to detect the presence of VM (Grobauer, B., et al.,

2011). Despite of enormous effort in keeping the

differences of running on VM and real machine

environment as minimum as possible, there are still

possible methods in detecting the virtual machine

environment.

In this paper, we present a remote detection

technique for VM that uses IP timestamp option in

full virtualization that could be used to detect VM

environment and contributing to VM vulnerability.

IP timestamp option allows a requester to request

timestamps value from any machine which handles

packets by specifying its IP address. This research is

the continuity from our previous work and we are

now focusing on testing VM remote detection

method using network timestamps in full

virtualization. Our previous study (Noorafiza, M., et

Nooraﬁza M., Maeda H., Uda R., Kinoshita T. and Shiratori M..

Vulnerability Analysis using Network Timestamps in Full Virtualization Virtual Machine.

DOI: 10.5220/0005242000830089

In Proceedings of the 1st International Conference on Information Systems Security and Privacy (ICISSP-2015), pages 83-89

ISBN: 978-989-758-081-9

 2015 SCITEPRESS (Science and Technology Publications, Lda.)

al., 2013) proved that there were distinguishable

differences in the timestamps replies behaviours

received from para-virtualization VM and non-VM

machines even in a high performance private cloud

computing environment. Findings from this paper

proved that there were distinguishable differences in

full virtualization as well. This research is vital in

contributing to comprehensive analysis for network

timestamps pattern that could lead to detection of

VM that was implemented using full virtualization

technique and the possible attack vector. This

finding also provide more input for researchers in

initiating and establishing security improvement and

also formulating more effective and better security

policy towards VM technology in full virtualization.

2 RESEARCH BACKGROUND

2.1 Virtualization and Cloud

Computing

Virtualization technology is the key feature for cloud

computing. A host computer runs software program

known as a hypervisor or Virtual Machine Monitor

(VMM) that creates one or more VM that simulate

physical computers. There are two types of

hypervisor, para-virtualization and full virtualiza-

tion. Differences of characteristic between the two

types of virtualization are shown in Figure 1. Full

virtualization offers the best isolation and security

for virtual machines. It simplifies migration and

portability as the same virtualized guest OS instance

can run on native hardware. In full virtualization, the

hypervisor provides most of the same hardware

interfaces as those provided by the hardware’s

physical platform. In other word, the OSs and

applications running within full virtualization do not

need to be modified for virtualization to work if the

OSs and applications are compatible with the

underlying hardware. For full virtualization, as the

guest OS is fully abstracted from the underlying

hardware by the virtualization layer, the guest OS

does not aware it is being virtualized and requires no

modification, therefore making the implementation

simpler. In addition, full virtualization is the only

option that requires no hardware system assist to

virtualize sensitive and privileged instructions.

The hypervisor translates all operating system

instructions and caches the results for future use,

while user level instructions run unmodified at

native speed. In full virtualization technique, speed

of executing the instructions will be slower than

speed of executing instructions in para-virtualization

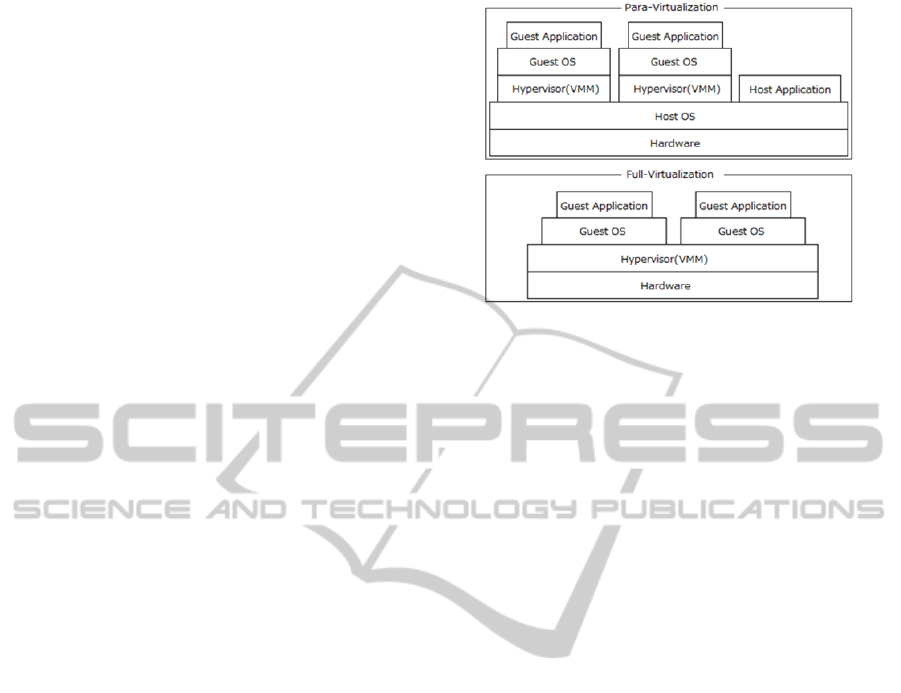

Figure 1: Two Types of Virtualization,

because hypervisor in full virtualization run similar

to physical machine that will cause some delay that

are able to be detected by attackers and malicious

software. Meanwhile, para-virtualization is a method

for the hypervisor to offer hardware interfaces to the

guest OS to use instead of using normal hardware

interfaces. Para-virtualization is lower in

virtualization overhead, but the performance

advantage of para-virtualization over full

virtualization can vary greatly depending on the

workload. As para-virtualization cannot support

unmodified operating systems, its compatibility and

portability is poor. Para-virtualization can also

introduce significant support and maintainability

issues in production environments as it requires deep

OS kernel modifications (VMWare, 2007).

2.2 Security Issues

Despite of the advantages of virtual machine

technology and cloud computing, security issues

remain as the main issue. One of the biggest

challenges in cloud computing is the design of the

VM itself that could lead to various security

vulnerabilities and threats. Meanwhile, details of the

underlying resource architectures where these

systems operate are not commonly published for

research. Security issues in virtualization

technologies remain exist and this scenario is

contributing to the vulnerability of cloud computing.

Hypervisor technologies and implementation

technique of VM also varies. Each scenario of VM

implementation both in full virtualization and para-

virtualization should be tested and analysis should

be made. However, with the fast track changes in the

VM technologies, more comprehensive and fast

track study need to be performed periodically.

Making virtual and native hardware indistinguisha-

ble, thus preventing VM detection is vital in order to

ICISSP2015-1stInternationalConferenceonInformationSystemsSecurityandPrivacy

minimize security issues towards VM. Therefore,

security risk towards cloud computing that utilize

VM as the main technology could be reduced.

By VM detection, malicious system could

withdraw any harmful operations such as botnet

attack and hiding itself from the VM security

systems. As the result, malware may avoid from

being detected by VM security applications, thus

reducing the risk for their behavior from being

studied and revealed. Attackers may now write

programs that first try to detect either the system are

running on VM or not before executing any

destructive or security breaching operations. The

malware could than selectively targeting to only

execute their operation on native machines or client

devices such as smart phones and mobile devices.

This will creates critical vulnerability in cloud

computing. Furthermore if majority of future

malware detection such as honeypot runs on virtual

machine, malware will eventually choose not to run

at all on those environments. The malware attacks

will be escaping from detection and exploiting of the

VM itself (Ferrie, P., 2007).

Enterprises are also trending in using smart and

mobile device that runs on Android, Apple iOS,

Apple Mac OS X, Blackberry and etc. This trend is

the result from the emerging use of cloud computing

environment as information are now easily can be

accessed through the cloud computing. Enterprises

will provide the mobile devices to their employees

in order to give better mobility in completing their

daily task. In such cases the required thin client

software applications such as those that are related

to sales, finance and customer managements will be

made available to be downloaded to the devices.

However, before the applications could be released

to the employees, we predict that there are high

possibilities that implementation and testing process

for the applications will be done using emulator in

the VM on the cloud computing environment. The

applications test results might not give the true

results, especially in term of security testing against

various malicious code because the malicious

operation may not show their behavior when they

had detected that the running environment are VM.

As a result once the application released, the mobile

device and other stand-alone environment might be

compromised in such a way that the malware will

start to execute malicious behavior once it had

detected that it is not on a VM environment.

Therefore data that are stored or communications

through the mobile devices might be revealed to

malicious third party.

3 RELATED WORKS

In previous researches, one of the methods for

detecting execution within a VM, have typically

focused on specific artifacts of the implementation,

such as hardware naming, guest-to-host

communications systems, or memory addresses.

Functional and transparency detection method was

discussed in (Ferrie, P., 2007; Garfinkel, T., et al.,

2007) by highlighting detection strategies that look

upon the characteristic of logical discrepancies,

resource discrepancies and timing discrepancies

between VM and non-VM environment. Detection

method that focuses on differences in performance

between VM and physical hardware were also

discussed. However, as machines that are being used

to host the VM are continuously improved, the

difference according to performance might be

different and more tests need to be done constantly

to verify current situation. A light weight detection

method of Virtual Machine Monitor using CPU

instruction execution performance stability had been

studied in (K. Miyamoto, et al., 2011). However, this

method required adjustment to be made in operating

system (OS) and could lead to instability in the OS

itself. On the other hand, detection method that

focuses on network implementation and VM

behavior could be considered as a technique for

remotely detecting VM without compromising the

target. Method that using network timestamps was

first exploited by (Kohno, T., et al.,2005) using TCP

timestamps as a convert channel to reveal a target

host’s physical clock skew, which uniquely identifies

a physical machine.

Malware will try to avoid honeypots that are

mainly implemented in VM to trace and record their

behavior and signature. One of the honeypot tools is

the automated solution, dynamic malware testing

systems TTAnalyze (Bayer, U., et al., 2006) was

proposed and became the ideal tool for quickly

getting an understanding of the behavior of an

unknown malware. This tool automatically loads the

sample of malicious code to be analyzed into a

virtual machine environment and execute it. The

tools recorded the interaction with the operating

system that involves recording which system calls

were invoked, together with their parameters. This

tool could be considered as the early stage of

implementation of honeypots in VM. Meanwhile,

Temporal Search is a behavior based analysis

technique that exploits the fact that, using processor

performance to measure time can be inaccurate and

the only way for malware to coordinate malicious

VulnerabilityAnalysisusingNetworkTimestampsinFullVirtualizationVirtualMachine

events based on time is to use the system’s

timekeeping infrastructure (Crandall, J. R., et al.,

2006). Virtual machine usage in discovering the

system timers without making assumptions about the

integrity of the kernel was shown. Fuzzy

benchmarking was discussed as an approach that can

successfully detect the presence or absence of a

VMM on a remote system by making timing

measurements of the execution time of particular

code sequences executing on the remote system

(Franklin, J., et al., 2008). Time measurement could

be used in order to detect the VM environment. In

this research we are focusing on timestamps.

Timestamps is the current time of an event that is

recorded by a computer. Through mechanisms such

as the Network Time Protocol (NTP), a computer

maintains accurate current time, calibrated to minute

fractions of a second. Network timestamps exist in

various network protocols such as Internet Protocol

(IP) and Internet Control Message Protocol (ICMP).

The IP is designed for use in interconnected systems

of packet-switched computer communication

networks. It provides info for transmitting blocks of

data called data-grams from sources to destinations,

where sources and destinations identified by fixed

length addresses. IP timestamp (Mills, 1992) is an

optional extension to the IP header. It allows the

sender to request timestamp values from any

machine which handles the packet by specifying it’s

IP address. However, length of the IP timestamps

reply will only limited to nearest microsecond. In

this research, for comparison purposes with para-

vitualization analysis that we already performed in

(Noorafiza, M., et al., 2013). For the VM

technologies, we chose the popular virtualization

products for most open platforms over the past 5

years which are VMWare ESX (P. Padala, et al.,

2007) and Oracle VirtualBox (J. Watson, 2008).

Both of these products also could be implemented in

full virtualization technique and suitable for our

desired experiments environment.

4 EXPERIMENTAL

ENVIRONMENTS

In this study, we present a remote detection

technique for VM that uses IP timestamp option in

full virtualization. To evaluate our technique,

experiments were done to obtain IP timestamps

reply data to prove that VM is detectable using

timestamps discrepancies in full virtualization. The

experiments environment were a private cloud

computing environment that consist of full-

virtualization VM and was set up in our campus lab.

Experiments were done in the lab network

environment to minimize interruption to the IP

timestamps data due to router clock skew. We set up

different test environment with high performance

machine as a host of 30 running VMs in order to

provide maximum utilization for the machine in full

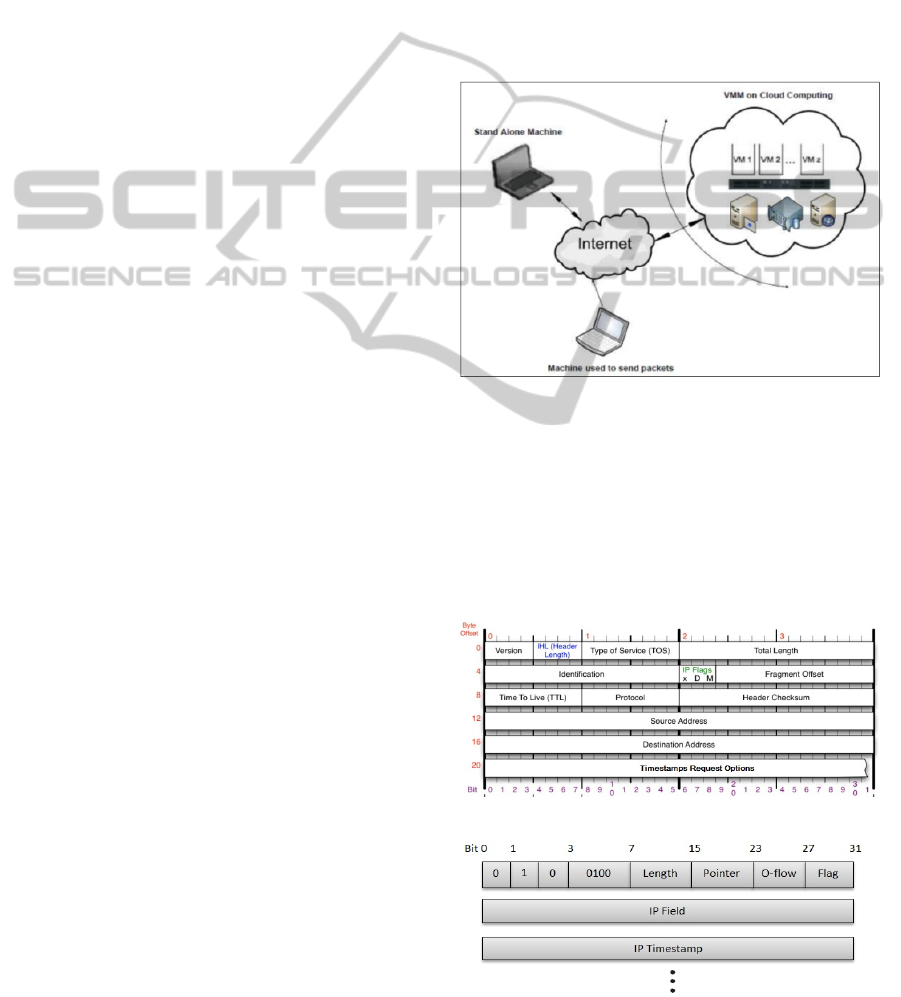

virtualization technique. The experiments

environment used in this research is shown in Figure

2. In the experiments, packets were sent from stand-

alone host OS to guest OS in VM and host in stand-

alone environment.

Figure 2: Experimental Environment Set up.

A custom script was executed in the test machine to

send packets to target servers requesting for IP

timestamps replies. This request was repeated until

5,000,000 times. IP packets data structure with

timestamps request options are as per Figure 3 and

IP timestamps option packets structure that were

cosntructed is as per Figure 4. These requests were

sent to the target hosts.

Figure 3: IP Packets Data Structure.

Figure 4: IP Timestamps Option Packets Structure.

ICISSP2015-1stInternationalConferenceonInformationSystemsSecurityandPrivacy

The specifications for the experiment environment

are shown in Table 1, Table 2 and Table 3.

Table 1 Experiment Environment for Real OS.

OS Linux Ubuntu 12.04

CPU Linux Ubuntu 12.04

Memory 1GB

Hardware Dell Power Edge

Table 2: Experiment Environment for VMWare.

OS Linux Ubuntu 12.04

VMM

VMWare vSphere

Hypervisor (ESXi) 5.1.0

CPU Intel Xeon E5-2440

Hardware Dell Power Edge

Memory (Virtual Allocation) 1GB

Storage (Virtual IDE) HDD 16GB

Table 3: Experiment Environment for VirtualBox.

OS Linux Ubuntu 12.04

VMM Oracle VirtualBox 4.3.12

CPU Intel Xeon E5-2440

Hardware Dell Power Edge

Memory (Virtual Allocation) 1GB

Storage (Virtual IDE) HDD 16GB

For the target server, VM software from VMWare,

VM vSphere 5 was emulated in the VM

environment as full virtualization VM system and

Linux Ubuntu 12.04 was emulated as the OS on the

VM. 5,000,000 times of request packets were sent to

the target server to obtain its timestamps in the IP

packets reply. Later the same experiment was also

done using Oracle Virtual Box with Linux Ubuntu

12.04 as the emulated OS. Multiple IP timestamps

requests were sent constantly to remote hosts as

attempts to measure the differences in timestamps

reply characteristic received from real machine and

VM. The differences were measured to the nearest

microsecond. We chose high performance Intel(R)

Xeon(R) Processor E5-2440 with 6 cores and

2.40GHz clock speed as the host machine for the

VM in our test environment. Timestamps replies that

were received at the request machine were compiled

to the nearest microsecond as data in a CSV file. In

the case of VM, since there will be VM interface

between the CPU and the network interface, it is

expected that there will be a small delays for issuing

the timestamps between the requests. On the other

hand, it will not be an issue in real machine since it

will only have CPU and network interface

interactions. Thus, as the results from analysing and

comparing the timestamp replies data between VM

and real machine, it is expected that the timestamps

value from VM will change more frequently

compared to the timestamp replies in real machine.

5 EXPERIMENTAL RESULTS

AND ANALYSIS

In our previous study we had proven that para-

virtualization VMs are clearly detectable remotely

by analysing the replies from IP timestamps. The

conclusion was done based on the collected

timestamps data in IP and ICMP replies by looking

at timestamps stamping differences. In this study, we

performed testing using high performance machine

by implementing full virtualization technique using

VMWare ESX and VirtualBox. The timestamps

reply consists of 32 bits but only could be display in

8 digits of timestamps in hexadecimal and 10 digits

of timestamp in decimal number. The collected IP

timestamps data was analysed to determine its

characteristic behaviour. In the data analysis, we

define N as count for how many times same

timestamps was replied from the targeted server. For

real machine, we observed that 62% of the

timestamps replies were 5 times of the same

timestamps value and 25% of the timestamps replies

were 4 times of the same timestamps value.

However, we also observed that for VM

environment the behaviour of timestamps stamping

are different which are, lesser same timestamps were

sent as replies when the timestamps reply request

were sent to the requestor. We could clearly see the

behaviour pattern differences in this experiment as

shown in Table 4. Figure 5 has shown the

comparison of real environment and VM

environment, for how many time the same

timestamps reply were sent. In real machine, more

than 60% of timestamps are stamped for 5 times. In

contrast, we could see that there were no 5 times

same timestamps reply in VirtualBox and VMWare

ESX.

Table 4: Experiment Results for Full Virtualization.

Count N Real Machine (%) VirtualBox (%) VMWare (%)

7 2 0 0

6 3 0 0

5 62 0 0

4 25 1 36

3 5 19 55

2 2 47 8

1 0 33 2

VulnerabilityAnalysisusingNetworkTimestampsinFullVirtualizationVirtualMachine

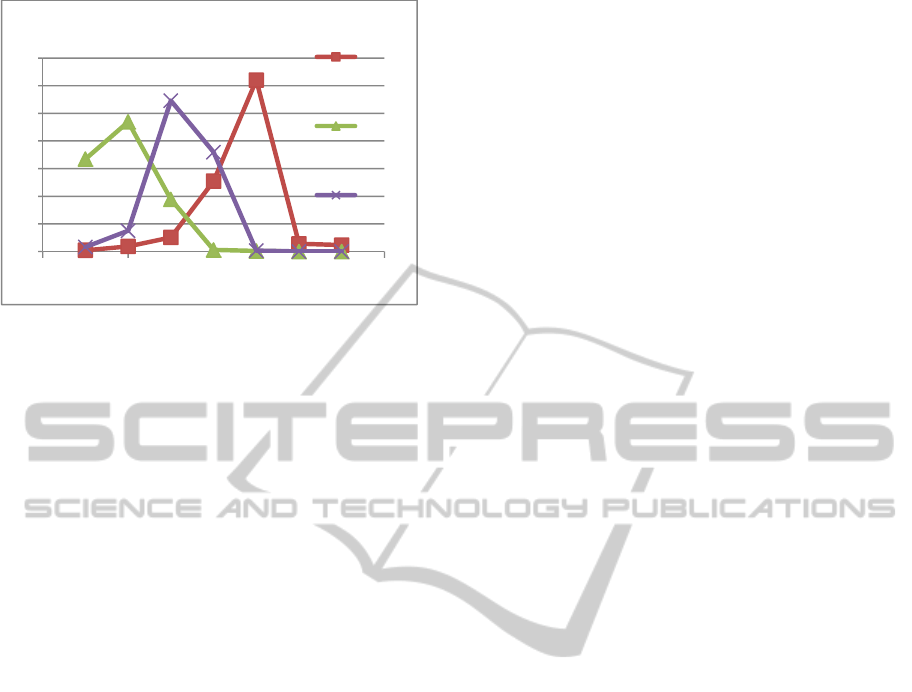

Figure 5: Count for same timestamps reply.

The reason is because VM sometime interrupted

timestamps operations to complete other operations

and make the time taken to complete job longer than

real machine. Even though in full virtualization that

simplifies migration and portability, the remote

detection by using IP timestamps packet reply still

could be observed and this could reveal the

environment that one system is running on. Malware

will be able to detect the environment that they are

running on and could choose not to run at all or

manipulate the running environments for the attack.

Full virtualization offers the best isolation and

security for virtual machines, however, remote

detection by using network timestamps need to be

addressed to resolve the VM vulnerability. Since that

machine that was used to install the VM is

continuously improved, the difference according to

performance might be different. More tests need to

be done constantly and periodically to verify the

current situation and detect vulnerability.

6 CONCLUSIONS

Building a transparent VM is still a difficult task, as

shown from the results of this research where remote

detection method was discovered in full virtualize-

tion technique. How VM could be detected has

significant value that requires extensive studies and

research in order to prevent any security loop holes

that could exploit the vulnerability of VM including

security holes that caused by any possible detection

method. By analyzing all possible detection

methods, which will be the ideal expectation,

countermeasures could be proposed and

implemented for creating better secured VM in

cloud computing environment. Our study explores

detection methods by looking it from perspective of

detecting VM existence by performing timestamps

analysis in full virtualization using IP timestamp

option, so that vulnerability that caused by ability to

detect VM existence from timestamps data could be

addressed. As a future work, we would like to

perform more tests using various machines and also

in grid and cloud test bed to get more data

characteristics for comprehensive analysis. This

research shows that behavior between IP timestamps

packets reply from the most popular technique of

choice, VMWare ESX and VirtualBox could be

differentiated remotely and this could be potentially

used as a VM detection method before attack vector

chosen to compromised the target host. Based on our

discussion in previous section that timestamps reply

will be different in VM and stand-alone machine, as

a future work, we would like to propose a

mechanism to change timestamps reply in stand-

alone machine to look similar with VM timestamp

reply. This mechanism should be able to hide the

differences between timestamp reply in VM and

non-VM and prevent it from being used as method

to detect either that the machine is running on VM

environment or not. Later on, based from this

research, we will also perform more studies about

malware behavior and its relationship with VM

discrepancies in both full virtualizations and para-

virtualization. We are aiming to set up various

scenarios for both full and para-virtualization and

obtain various characteristic of data. The results will

contribute on providing more secure cloud

computing services. The approach that we proposed

will contribute to VM environment prevention of

detection based on remote timestamps reply. Our

approach will decrease the possible detection

method that could lead to manipulation for cloud

computing environment and the possible attack

vector. Base on the finding, we would like to

propose the solution by applying it to cloud

computing security policy framework for cloud

computing.

REFERENCES

Anthes, G., "Security in the cloud." Communications of

the ACM 53(11): 16-18. (2010).

B. Lau and V. Svajcer. “Measuring virtual machine

detection in malware using DSD tracer”. Journal in

Computer Virology, 6(3), 2010.

Bernd Grobauer, Tobias Walloschek, and Elmar Stocker.

2011. Understanding Cloud Computing Vulnerabili-

02468

Percentage

(%)

timestamps(count)

Countforsametimestampsreply

Real

Machin

Virtual

Box

Vmwar

ICISSP2015-1stInternationalConferenceonInformationSystemsSecurityandPrivacy

ties. IEEE Security and Privacy 9, 2 (March 2011), 50-

57.

J. Crandall, G. Wassermann, D. Oliveira, Z. Su, S. Wu,

and T. Chong. “Temporal search: detecting hidden

malware timebombs with virtual machines”. In

ASPLOS-XII: Proceedings of the 12th international

conference on Architectural support for programming

languages and operating systems, pages 25–36, New

York, NY, USA, 2006. ACM Press.

J. Franklin, M. Luk, J. M. McCune, A. Seshadri, A. Perrig

and L. van Doorn. “Remote detection of virtual

machine monitors with fuzzy benchmarking”.

SIGOPS Oper. Syst. Rev., 42(3):83–92, 2008.

J. Watson, “Virtualbox: bits and bytes masquerading as

machines,” Linux Journal, vol. 2008, no. 166, p. 1,

2008.

K. Miyamoto, H.Tanaka, “Proposal of Effective Detection

Method of VMM without Feature Database”,

Information Processing Society of Japan, Vol. 52. pp.

2602-2612, 2011. (Japanese).

Karen A. Scarfone and Peter M. Mell, Guide to Intrusion

Detection and prevention Systems (Idps), technical

Report NIST Gaithersburg, MD, United States, 2007.

Matrazali Noorafiza, Hiroshi Maeda, Toshiyuki Kinoshita,

Ryuya Uda: Virtual machine remote detection method

using network timestamps in cloud computing.

ICITST 2013: 375-380.

Mills D. Network Time Protocol (version 3): specification,

implementation and analysis. Technical Report RFC

1305,Network Working Group; March 1992.

Nance, Kara, Hay, Brian, Bishop, Matt "virtual machine

introspection." IEEE Computer Society. (2008).

P. Ferrie, “Attacks on More Virtual Machine Emulators”,

Symantec Advanced Threat Research, 2006.

P. Padala, X. Zhu, Z. Wanf, S. Singhal, and K. Shin,

"Performance evaluation of virtualization technologies

for server consolidation, HP Labs, Tech. Rep. HPL-

2007-59, 2007.

R. Buyya, C. Yeo, S. Venuopal, J. Broberg, and I.Brandic,

“Cloud Computing and emerging IT platforms: vision,

hype and reality for delivering computing as the 5th

utility”, Future Generation Computer Systems, pp.

599-616, 2009.

T. Garfinkel, K. Adams, A.Warfield, J. Franklin,

“Compatibility is Not Transparency: VMM Detection

Myths and Realities”, Proceedings of the 11th

Workshop on Hot Topics in Operating Systems (Hot

OS-XI), 2007.

T. Kohno, A. Broido and K.C. Claffy. “Remote physical

device fingerprinting”. In SP ’05: Proceedings of the

2005 IEEE Sympossium on Security and privacy,

pages 211-255, Washington, DV, USA, 2005.

The Internet Engineering Task Force Darpa Internet

Program Protocol Specification, http://www.ietf.org/

rfc/ (Access date: 23 September 2014).

U. Bayer, C. Kruegel, and E. Kirda. “TTAnalyze: A Tool

for Analyzing Malware”. In 15th Annual Conference

of the European Institute for Computer Antivirus

Research EICAR), 2006.

VMWare, “Understanding Full virtualization, Para-

virtualization and hardware Assist,” 2007. [Online].

Available: http://www.vmware.com/files/pdf/VM

ware_paravirtualization.pdf (Access date: 23

September 2014).

VulnerabilityAnalysisusingNetworkTimestampsinFullVirtualizationVirtualMachine
