Polymer

A Model-driven Approach for Simpler, Safer, and Evolutive Multi-objective

Optimization Development

Assaad Moawad

, Thomas Hartmann

, Francois Fouquet

, Gr´egory Nain

, Jacques Klein

and Johann Bourcier

Interdisciplinary Centre for Security, Reliability and Trust, University of Luxembourg, Luxembourg City, Luxembourg

IRISA / INRIA, University of Rennes 1, Rennes, France

Keywords:

Multi-objective Evolutionary Algorithms, Optimization, Genetic Algorithms, Model-driven Engineering.

Abstract:

Multi-Objective Evolutionary Algorithms (MOEAs) have been successfully used to optimize various domains

such as ﬁnance, science, engineering, logistics and software engineering. Nevertheless, MOEAs are still

very complex to apply and require detailed knowledge about problem encoding and mutation operators to

obtain an effective implementation. Software engineering paradigms such as domain-driven design aim to

tackle this complexity by allowing domain experts to focus on domain logic over technical details. Similarly,

in order to handle MOEA complexity, we propose an approach, using model-driven software engineering

(MDE) techniques, to deﬁne ﬁtness functions and mutation operators without MOEA encoding knowledge.

Integrated into an open source modelling framework, our approach can signiﬁcantly simplify development and

maintenance of multi-objective optimizations. By leveraging modeling methods, our approach allows reusable

optimizations and seamlessly connects MOEA and MDE paradigms. We evaluate our approach on a cloud

case study and show its suitability in terms of i) complexity to implement an MOO problem, ii) complexity to

adapt (maintain) this implementation caused by changes in the domain model and/or optimization goals, and

iii) show that the efﬁciency and effectiveness of our approach remains comparable to ad-hoc implementations.

1 INTRODUCTION

In many domains, such as ﬁnance, science, engineer-

ing, and logistics several conﬂicting objectives need

to be simultaneously optimized. In ﬁnance for ex-

ample, the anticipated value of a portfolio should

be maximized, whereas the expected risk should

be minimized. Such problems, involving conﬂict-

ing objectives, are called multi-objective optimiza-

tion (MOO) problems, characterized by potential so-

lutions offering trade-offs between different objec-

tives. Different algorithms can cope with such prob-

lems, e.g. particular swarm optimization (Kennedy

et al., 1995), simulated annealing (Van Laarhoven and

Aarts, 1987), and population based algorithms (Deb

et al., 2002). Multi-objective evolutionary algorithms

(MOEAs) are another class of algorithms, which has

proved to be particularly capable of ﬁnding solu-

tions for complex domain-speciﬁc optimization prob-

lems with large solution spaces for which typically

no efﬁcient deterministic algorithms exist. However,

MOEAs are difﬁcult to use, require speciﬁc and de-

tailed expert knowledge about ﬁtness functions, muta-

tion operators, and genetic problem encodings. Com-

mon encodings consist in mapping a domain-speciﬁc

MOO problem into a binary, permutation-based ma-

trix, or graph-based representation (Coello et al.,

2002). The solutions found by MOEAs must then be

decoded, meaning to map them back to the domain-

speciﬁc multi-objective optimization problem. This

makes it very challenging to properly apply MOEAs

and may require developers to focus more on the

encoding of a problem than on the problem itself

(Konak et al., 2006). The continuous design process

of today’s software systems makes it even more difﬁ-

cult to implement and especially to maintain MOEAs.

Each change in the domain and/or in the optimiza-

tion goals requires to adapt the problem encoding and

decoding. This makes it ﬁrst necessary to identify

which impacts a change has on the problem encoding.

Since the encoding is usually not statically typed, type

checkers cannot be used to indicate potential errors.

As a consequence it is hardly possible to use standard

refactoring techniques to apply domain and/or opti-

286

Moawad A., Hartmann T., Fouquet F., Nain G., Klein J. and Bourcier J..

Polymer - A Model-driven Approach for Simpler, Safer, and Evolutive Multi-objective Optimization Development.

DOI: 10.5220/0005243202860293

In Proceedings of the 3rd International Conference on Model-Driven Engineering and Software Development (MODELSWARD-2015), pages 286-293

ISBN: 978-989-758-083-3

 2015 SCITEPRESS (Science and Technology Publications, Lda.)

mization goal changes. Instead, the problem encoding

must be adapted manually and independentlyfrom the

domain representation. Moreover, optimization prob-

lems are inevitably linked to the growing complexity

of software.

In this paper we present a new MDE approach

to develop MOO layers directly on top of domain

models. Fitness functions and mutation operators can

use these models and their API instead of relying

on complex and error prone encoding steps. Similar

to paradigms like domain-driven design, our model-

driven approach allows developers to focus on the

actual domain-speciﬁc optimization problems rather

than on technical encoding details. Our approach also

reduces the gap between MOEA representations and

models, allowing to reuse standard modeling tools

(e.g. model checkers) within ﬁtness functions or mu-

tation operators. Integrated into an open-source mod-

eling framework, our approach can signiﬁcantly sim-

plify domain-speciﬁc MOO development. We eval-

uate our approach on a cloud case study and show

its suitability in terms of i) complexity to implement

a MOO problem, ii) complexity to adapt (maintain)

this implementation caused by changes in the domain

model and/or optimization goals, and iii) efﬁciency

and effectiveness of our approach remains compara-

ble to traditional implementations.

This paper is organized as follows. Section 2 in-

troduces MOEA background. In section 3 we provide

a case study, which we further use to present our con-

tribution in section 4 and to evaluate it in section 5.

The related work is discussed in section 6. Finally,

section 7 gives the conclusion and future work.

2 BACKGROUND

In the 1960s, several researchers independently sug-

gested to adopt the principles of natural evolution

(Darwin’s theory) for optimizations. This created the

ﬁeld of evolutionary algorithm (EA). In EA, a solu-

tion vector is called individual or chromosome, which

consist of discrete units, which are called genes. Each

gene controls one or more features of a solution. Usu-

ally, a chromosome corresponds to a unique solution

in the solution space. This requires a mapping, called

encoding, between the domain speciﬁc solution space

and chromosomes. Usually, the encoding step is com-

plex and can be even more complicated than the actual

optimization problem itself (Konak et al., 2006). EAs

operate on a collection of chromosomes, called a pop-

ulation. The population is usually randomly initial-

ized and then evaluated with a provided ﬁtness func-

tion in order to select the “most appropriate” one for

the next generation. After this step, EAs use two

operators to generate new solutions: crossover and

mutation. The crossover operator takes two chromo-

somes, combines them together and ﬁnally creates a

new offspring. The mutation operator injects random

changes into chromosomes.

The ﬁrst MOEA was proposed by Shaffer (Schaf-

fer, 1985). MOEAs, unlike EAs, solve problems

involving multiple conﬂicting objectives and offer a

representative subset of the Pareto optimal solution

set, rather than a single optimized solution. “The

Pareto optimal set is a set of solutions that are non-

dominated with respect to each other. While mov-

ing from one Pareto solution to another, there is al-

ways a certain amount of sacriﬁce in one objec-

tive(s) to achieve a certain amount of gain in the

other(s)” (Konak et al., 2006). There are several algo-

rithms to select which solution subsets of the Pareto

optimal set to keep in order to cover, as diversely as

possible, the different trade-offs between objectives.

The NSGA (Deb et al., 2002) algorithm family (e.g.

NSGA-II, NSGA-III) is amongst the most well known

ones. MOEAs, like conventional EAs, rely on a ge-

netic encoding step. However, besides mutation and

crossover operators, for MOEAs several ﬁtness func-

tions representing the different objectives, need to be

deﬁned, instead of only one ﬁtness function in EAs.

Subsequently, a decision making procedure has to be

called to select one solution from the Pareto subset.

3 REAL-WORLD CASE STUDY

MOEA frameworks are often evaluated against a suite

of mathematical functions with well known charac-

teristics like ZDT, DTLZ and LZ09 (Auger et al.,

2012). These problems are well suited to evaluate

the performance of MOEAs in terms of ﬁnding the

best Pareto front and the optimum solution. However,

they are less suitable to represent the complexity of

real-world problems and to evaluate the required ef-

fort for developers to implement and maintain MOOs

for domain-speciﬁc problems. In this section we de-

ﬁne a non trivial real-world MOO case study to ap-

ply our approach to. As shown in (Frey et al., ) the

cloud computing domain is an appropriate real-world

case study where MOEAs are used for scheduling and

scaling tasks. Scheduling applications on the cloud is

a non trivial task (Pandey et al., 2010). First of all,

several different cloud computing providers exist on

the market. Each of these offers different comput-

ing speciﬁcations (e.g. CPU, memory, storage, and

networking capacity) at different prices and pricing

models (ﬁxed pricing, bidding, etc). Then, different

Polymer-AModel-drivenApproachforSimpler,Safer,andEvolutiveMulti-objectiveOptimizationDevelopment

287

applications can be deployed on the cloud, each hav-

ing differentrequirementsin terms of hardware (CPU,

RAM, disk, network), security (such as sand-boxing,

redundancy), priority, and latency (distribution on dif-

ferent geographic zones). All of these requirements

can be translated into optimization ﬁtness functions.

For this paper, we deﬁne the following case study:

we have a ﬁxed number n = 7 of applications, each

requiring a speciﬁc computational power (in virtual

CPU hours). Further, we assume that these applica-

tions can be parallelized and distributed into smaller

tasks. Then we can rent a variable number m < 100

of cloud instances from a provided list of available in-

stance models M = 47 (we provide as input for each:

number of virtual CPUs and ﬁxed price per hour). An

instance model can be rented several times. We di-

vide each application into m tasks and we assign a

weight to each task (between 0 and 100). The weight

of application i on instance j represents the pro-

portion of resources allocated for the application i

on the instance j. The optimization objectives are,

i) reducing the average time required to execute all

applications and ii) reducing the total price paid on

instances. These two objectives are conﬂicting: the

more we pay, the more instances we can rent and

the less average time is needed for the execution. In

addition, we deﬁne three mutation operators for this

case study: AddInstance (to allocate a new cloud in-

stance), RemoveInstance (to delete a cloud instance),

and ChangeWeight (to randomly change the weight

of an application on an instance). We implement the

same problem with the same input ﬁles with our ap-

proach, using models and in a traditional way, using

an array encoding with the jMetal framework (Durillo

and Nebro, 2011). jMetal is an object-oriented Java-

based framework for MOO with metaheuristics. We

use for both implementations a population

size = 20

and max generations = 1000.

4 MODEL-BASED MOO

In this section we describe our model-driven approach

to simplify complex multi-objective optimizations.

4.1 Approach

The classical process of using MOEAs in an appli-

cation can be divided into six steps, which are shown

in ﬁgure 1. First, the problem domain must be de-

ﬁned and implemented. This is usually achieved us-

ing tools such as UML or E/R diagrams and standard

programming languages like Java or C/C++ (POJO

based). The second step is the encoding step. This

Domain

Deﬁntion

Encoding

Fitness Functions

Crossover Operators

Mutation Operators

Step 1: Step 2: Step 3:

Decoding

Step 4:

Conﬁguration

Step 5:

Domain

Usage

Step 6:

MOEA Speciﬁc Steps

Continuous Design

Figure 1: Classical steps to use MOEAs.

means that the section of the domain impacted by the

MOO must be mapped to a suitable structure in order

to execute MOEAs. Typically, representations like bi-

nary or int arrays, permutations, matrix, or graphs are

used for this purpose (Coello et al., 2002). Figure 2

shows an example of such a classical encoding (based

on an int array), aligned to our cloud case study. As

…

IDs m x n software weights

IDs of instances m x n software weights

Weights of all software on the first machine

Figure 2: Classical MOO encoding using arrays.

for our case study, the number of reserved instances

m can vary and is subject to optimization, the size of

the array varies as well. For each computing instance,

we need to allocate an integer for the ID of the in-

stance (in our case a number from 1 to 47), and n

integers for the weights of the n applications. In this

way the encoding consists of an integer array of size:

m × (n+ 1). As a design choice, we decide that the

ﬁrst m values in the encoding represent the IDs of the

reserved instances and the next m× n values represent

the weights of the applications. However, this clas-

sical mapping comes with a number of drawbacks.

First, this task is usually not trivial and requires ex-

pertise form both sides, domain experts as well as

MOEA experts. Second, type-safety is lost. Conse-

quently, it is more difﬁcult to ﬁnd bugs in the encoded

MOEA representation and to maintain it. Last but not

least, such encodings are difﬁcult to read. In a third

step ﬁtness functions, crossover, and mutation opera-

tors must be deﬁned. Listing 3 shows as an example,

again aligned to our cloud case study, the implemen-

tation of a mutator to remove an instance.

Listing 1: RemoveInstance mutator on array encoding.

class

RemoveInstance

implements

Mutation {

void

mutate (

int

[] cloud) {

int

m= cloud.length/(N_SOFT+1);//number of instances

(m==0)

return

;

int

x= rand.nextInt (m);

int

[] newCloud=

new int

[(m-1)*(N_SOFT+1)];

for

(

int

i=0;i<x;i++) { newCloud [i]= cloud[i] };

for

(

int

i=x+1;i<m+x*N_SOFT ;i++){newCloud [i-1]=cloud[i]};

MODELSWARD2015-3rdInternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

288

Application

Modeling API

(generated)

MOEA

(e.g. NSGA-II)

MOEA Optimization Layer

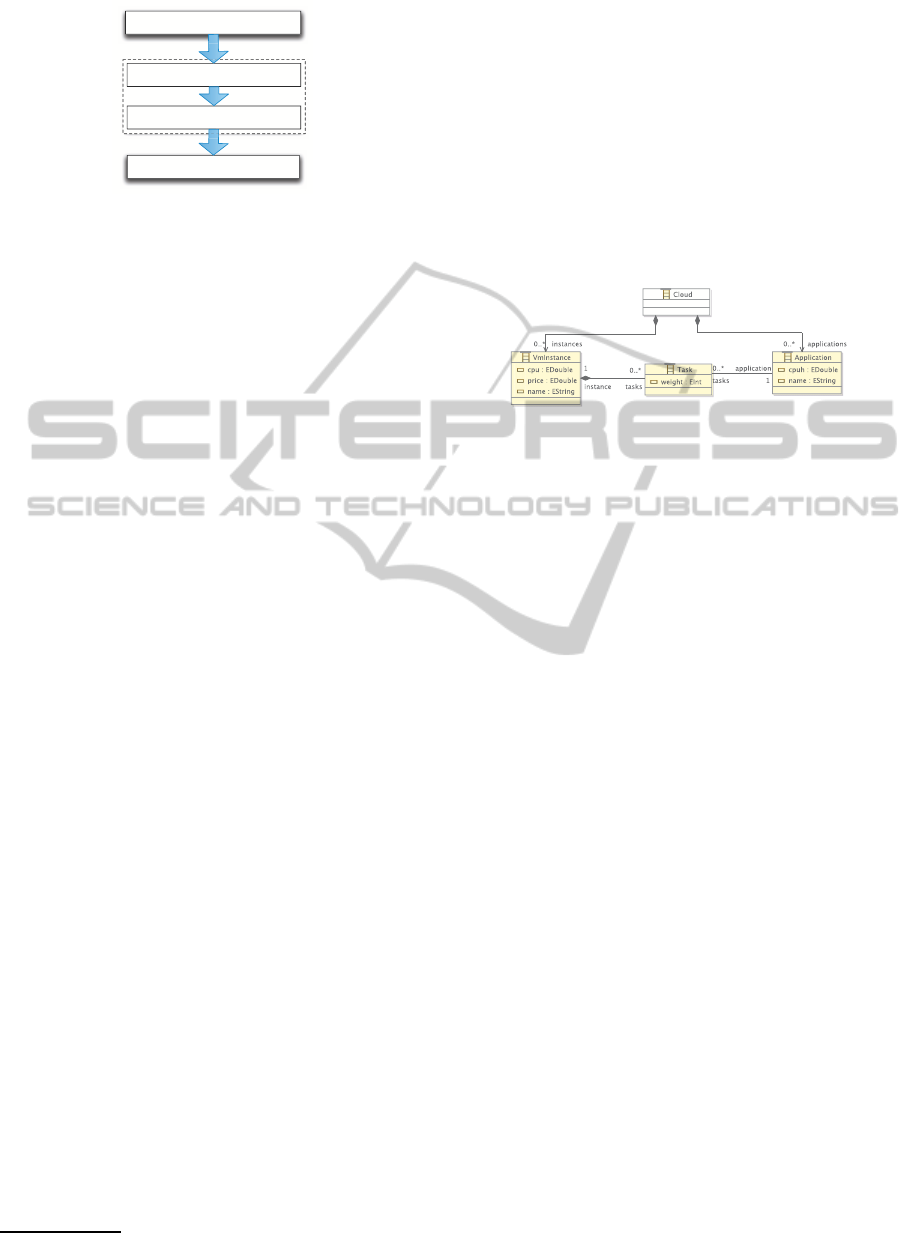

Figure 3: Model-based MOO overview.

for

(

int

i=m+(x+1)*N_SOFT;i<m*(N_SOFT +1);i++){

newCloud[i-1- N_SOFT ]=cloud[i]}; cloud=newCloud ; }}

As can be seen in the listing, in order to remove a

machine x from the cloud, we need to remove its ID

from the ID section then remove the n associated ap-

plication weights from the weights section. Next, the

MOEA setup must be conﬁgured. This includes the

initialization of the population, its size, and the selec-

tion of an algorithm for the diversiﬁcationof solutions

(e.g. NSGA-II). In a ﬁfth step the solution found by a

MOEA must be interpreted and decoded back to the

domain representation. Finally, the decoded solutions

can be used in the domain-speciﬁc MOO problem.

A major challenge that comes along with this

classical process is that in case of refactoring, and

continuous design, all these steps have to be checked

for impacts and potentially must be repeated.

We claim that this process can be signiﬁcantly

simpliﬁed by leveraging model-driven engineering

techniques to allow a domain-speciﬁc model en-

coding for MOO problems. The main idea of this

approach is to allow to express the MOO problem, ﬁt-

ness functions, crossover and mutations operators di-

rectly and seamlessly using the domain model, mak-

ing explicit encoding and decoding steps unnecessary.

This allows to throughout use the same models for

both the domain representation and MOO problem

encoding and therefore to avoid this mismatch. By in-

tegrating our approach into the open-source Kevoree

Modeling Framework (KMF) (Fouquet et al., 2012)

we provide a framework

to express domain-speciﬁc

model encodings for MOEAs in order to discard the

encoding/decodingsteps. Figure 3 shows an overview

of the layers involved in our approach. In MDE the

application layer is typically built using a modeling

API, which is generated form a meta-model deﬁni-

tion (e.g. from an Ecore model). In our approach, we

use MOF based modeling, using textual and graphical

representations. We extend this modeling API with

several interfaces to implement ﬁtness functions, mu-

tation and crossover operators, as well as the popula-

tion creation factory. These interfaces are typed with

http://kevoree.org/polymer/

the model, which means that they can be implemented

using the modeling API. Listing 2 shows a simpliﬁed

version of our interfaces.

Listing 2: Interfaces of the extended modeling API.

interface

FitnessFunction <A

extends

KContainer > {

double

evaluate(A model );}

interface

MutationOperator <A

extends

KContainer > {

List<MutationVars > enumerateVars (A model);

void

mutate (A model);}

interface

CrossoverOperator <A

extends

KContainer > {

A execute (A modelA , A modelB);}

Figure 4 represents the model encoding of the

MOO problem of our cloud case study. As can be

Figure 4: A cloud meta-model.

seen in the ﬁgure, a cloud contains several virtual ma-

chine instances and applications, which can be exe-

cuted on the virtual machine instances. Using stan-

dard model-driven techniques this meta-model can be

transformedinto object-orientedcode. Listing 3 again

showsthe implementationof the RemoveInstance mu-

tator. But this time the operator is implemented di-

rectly on the model encoding instead of an explicit

MOO problem encoding.

Listing 3: RemoveInstance mutator on a model encoding.

class

RemoveInstance

implements

MutationOperator <Cloud > {

void

mutate (Cloud could) {

int

m=could.getInstances ().size();

(m==0)

return

;

int

x= rand.nextInt(m);

VmInstance vmtoRemove = could.getInstances .get(x);

could.removeInstances (vmtoRemove ); }}

The extended modeling API allows developers

to encode the MOO problem completely in terms

of the domain model. In addition, we provide a

MOEA optimization layer, which initiates the pop-

ulation, calculates the ﬁtnesses, and executes muta-

tion and crossover operators according to their imple-

mentations. We use established algorithms such as

NSGA-II and ε-MOEA for the actual MOO. These

algorithms only operate on the provided ﬁtnesses and

are independent from our model encoding. Our opti-

mization layer provides the ﬁtnesses and executes the

mutations (both on top of models) for the underlay-

ing MOEA layer. The MOEA optimization layer can

be conﬁgured to choose one of the supported MOEAs

and to set the maximum number of generations.

This approach enables the execution of MOEAs

on top of models and can signiﬁcantly simplify the us-

age of MOEAs to tackle domain-speciﬁc MOO prob-

lems. The necessary MOEA expertise is hidden in the

Polymer-AModel-drivenApproachforSimpler,Safer,andEvolutiveMulti-objectiveOptimizationDevelopment

289

framework and allows software engineers to focus on

the domain-speciﬁc MOO problem, instead of MOEA

encoding and decoding. First, software engineers can

express the optimization problems in terms of the do-

main model without being MOEA experts. Second,

type-safety is maintained, which improves the main-

tainability of the application. Third, since the prob-

lem is expressed in domain terms the solution is far

more readable. Leveraging type safety and object-

oriented design, MOEAs can shift to complex opti-

mization using several mutation operators. Last but

not least, our approach enables to use standard mod-

eling techniques during the optimization process, and

thus can leverage many tools to verify solutions.

4.2 Polymer Implementation

We implement our framework on top of KMF (Fou-

quet et al., 2012), which is an alternative to the

Eclipse Modeling Framework (EMF), fully support-

ing the Ecore ﬁle format but targeting runtime perfor-

mance. We use KMF to generate the modeling code

and API from domain models to support the construc-

tion of MOEA elements (ﬁtness functions and muta-

tion operators) on top. The Polymer framework core

itself on one hand provides the MOEA interfaces de-

scribed in section 4.1 and on the other hand imple-

ments a mapping layer to intermediate between clas-

sical MOEAs and our model-based encoding. There-

fore, Polymer calculates the ﬁtness function score

based on the implementation of the provided inter-

faces, using a classical visitor pattern. The result

of the different ﬁtness functions (plain numbers) are

used as input for classical MOEA Pareto-front se-

lectors. Whenever a MOEA needs to mutate one of

the solutions, Polymer creates a clone of the domain

model and executes one of the implemented mutation

operators (randomly) on this clone. Since cloning of

models is a frequent but costly operation in our ap-

proach we implemented an efﬁcient partial cloning

mechanism, which is described in more detail in sec-

tion 4.3. Like ﬁtness functions, mutation operators

operate directly on the generate modeling API and

can take advantage of model transformations. In this

paper we do not intent to provide a new MOEA algo-

rithm, instead we allow to use different already exist-

ing search algorithms. The novelty of our approach is

to allow the usage of a model-based encoding for do-

main speciﬁc MOO problems. Figure 5 summerizes

the implementation concept of Polymer.

4.3 Partial Model Cloning

It is easy to efﬁciently copy traditional MOEA prob-

Kevoree Modeling Framework

Ecore

Meta-Model

Modeling

API

Polymer

MOEA Optimization Layer

input

generates

MOEA

(e.g. NSGA-II)

Application

implements

MOEA interfaces

uses modeling layer to

implement the domain model

and MOEA interfaces

uses

provides MOEA

interfaces

uses

Domain Model

Clone

creates clones

calculates

ﬁtnesses, executes

mutations and

crossovers

provides ﬁtnesses,

executes required

mutations

MOEA

Interfaces

uses

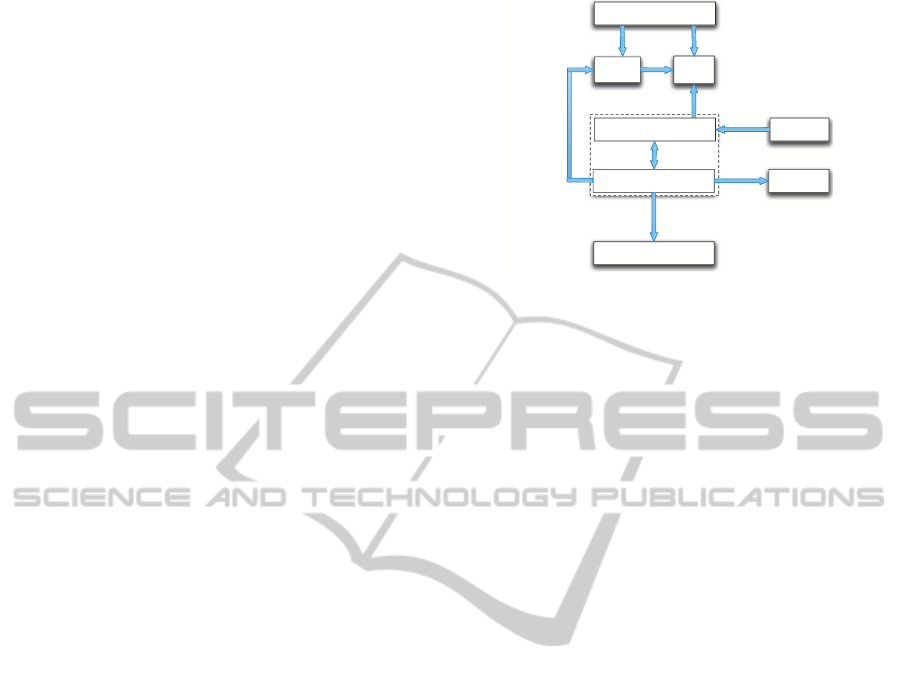

Figure 5: Model-based MOO implementation.

lem encodings, e.g. binary arrays. However, our

model-based problem encodings are more difﬁcult

and less efﬁcient to copy, since potentially a com-

plete model must be cloned. To reach a compara-

ble efﬁciency in terms of memory usage and per-

formance, while still offering developers the advan-

tages of working directly on top of domain models,

we provide a partial model cloning mechanism (Fou-

quet et al., 2014). First, for most real-world appli-

cations, we argue that only a fraction of parameters

and ﬁelds of domain-speciﬁc models are subject to

optimization. A big part of the model consists of im-

mutable ﬁelds or reﬂects static characteristics of the

domain and consequently is outside the search space

of MOEAs. Therefore, whenever we clone a model to

generate another potential solution, we ensure in our

framework to not copy immutable ﬁelds but only re-

fer to them. In fact, this mechanism only clones the

mutable parts of a model (partial cloning) instead of

the whole model. For our case study, the application

class can be declared as immutable, because the muta-

tions do not impact this class. In the cloud case study,

the optimization occurs on the rented machine and the

way the weights are distributed. This partial cloning

is completely transparent for developers.

5 EVALUATION

We evaluate our approach on the cloud case study

and show its suitability in terms of i) complexity to

implement a MOO problem, ii) complexity to adapt

(maintain) this implementation, and iii) show that the

efﬁciency and effectiveness of our approach remains

comparable to ad-hoc implementations.

5.1 Complexity to Implement

We claim that a major complexity of MOEA based

developments is due to the required mixed expertise,

MODELSWARD2015-3rdInternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

290

Table 1: Implementation complexity for jMetal / Polymer.

M.Loc=MOEA Expert LoC / D.Loc=Domain Expert LoC.

Feature jMetal Polymer

M. LoC D. LoC M. LoC D. LoC

Domain Encoding 1 – – 24

Fitness Operators 13 39 – 39

Mutation Operators 28 32 – 34

Crossover Operators 6 22 – 22

Population Factory 6 16 - 30

MOEA settings 14 – 9 –

Decoding solution 12 – – –

Total 80 109 9 149

on the one hand MOEA and on the other hand the

domain itself. To evaluate the complexity of our ap-

proach compared to classical MOEA development we

implement the cloud case study in both approaches

and count the required lines of code (LoC) associated

for each expertise. We keep the same coding style

for both implementations in order to keep the abso-

lute number of LoC comparable, however the most

important point is the balance between MOEA and

domain expertise. The Polymer implementation takes

158 LoC, while the implementation with jMetal needs

189, as shown in table 1. This difference is mainly

due to the encoding/decoding in the jMetal imple-

mentation. Additionally, it is important to notice that

the 24 LoC for the domain deﬁnition of the Polymer

version are reusable for other model-based develop-

ments. For jMetal, in every operator, the genetic en-

coding must be deﬁned by MOEA experts, in order

to be usable by domain experts. That explains the

71 LoC difference for the MOEA experts. For Poly-

mer, MOEA experts have just to decide the core set-

tings (the algorithm and its conﬁguration, number of

generations, number of individuals in the population).

However, the 40 additional lines difference for the do-

main experts in the Polymer implementation are due

to the model structure and manipulations of objects

where in the traditional implementation the structure

is ﬁxed in the array encoding. We can conclude from

this subsection that the Polymer based implementa-

tion successes to reduce the development complexity

by allowing developers to focus on cloud optimization

(the actual domain problem).

5.2 Evolutive Refactoring Robustness

In order to evaluate the necessary refactoring effort

for both platforms, we consider 10 different modiﬁca-

tions (in 3 categories) on the previously deﬁned case

study. We then count the modiﬁed lines of code to

adapt the implementation for both frameworks. Ad-

ditionally, we check if the necessary changes can be

pointed out by the Java type checker or not.

In the ﬁrst category, we remain in the same opti-

mization problem deﬁnition, but consider adding/re-

moving ﬁtness functions, mutation, and crossover op-

erators, over the same problem. Both, Polymer and

jMetal are able to check the type of the operators.

In the second category, we remain again in the

same optimization use case but we change some pa-

rameters, e.g. adding/removing an application. In

jMetal it is necessary to manually add/remove this

application from the array of applications in each

crossover/mutation operator and ﬁtness function. In

Polymer, we just need to add/remove this application

from the population creation factory. We do not need

to modify any operator or ﬁtness because the model is

integrally passed to them. Another modiﬁcation that

falls into this category, is to add an optimization ﬁeld.

Let’s say we want to optimize over CPU and network

resources of the deployed applications on the virtual

machines. In Polymer, we just have to add a ﬁeld

“network” in the metaclasses Task, Application and

VmInstance. There is no code change in any pre-

viously implemented ﬁtness function, mutation and

crossover operator necessary. However, in the tradi-

tional approach a big change needs to be manually

done on the encoding. Figure 2 is not enough any-

more to represent the new encoding. Instead, a new

integer needs to be reserved for each application task

on each VM instance. The total number of integers

in the array representing a solution, changes from the

previously calculated m× (n + 1) to the new value of

m× (2n + 1). Developers then need to manually up-

date all previously deﬁned operators in order to take

this structural change in the encoding into account.

In this simple use case implementation, we already

counted as many as 43 lines of code affected by this

change. What is even more dangerous, is that it is up

to the encoding designer to deﬁne what comes ﬁrst in

the encoded array, among the v-cpu weight and the

network weight. Type checkers cannot enforce that

the encoding is actually used by its intended meaning

in ﬁtness functions and mutation operators. Table 2

summarizes the modiﬁcations.

5.3 Performance and Effectiveness

To evaluate the effectiveness of our approach we run

both implementations (model-based and traditional

MOEAs) 100 times on our cloud case study on a core

i7 computer (2.7Ghz) with 2 GB RAM dedicated for

the optimization process. As shown in ﬁgure 6 both

Polymer-AModel-drivenApproachforSimpler,Safer,andEvolutiveMulti-objectiveOptimizationDevelopment

291

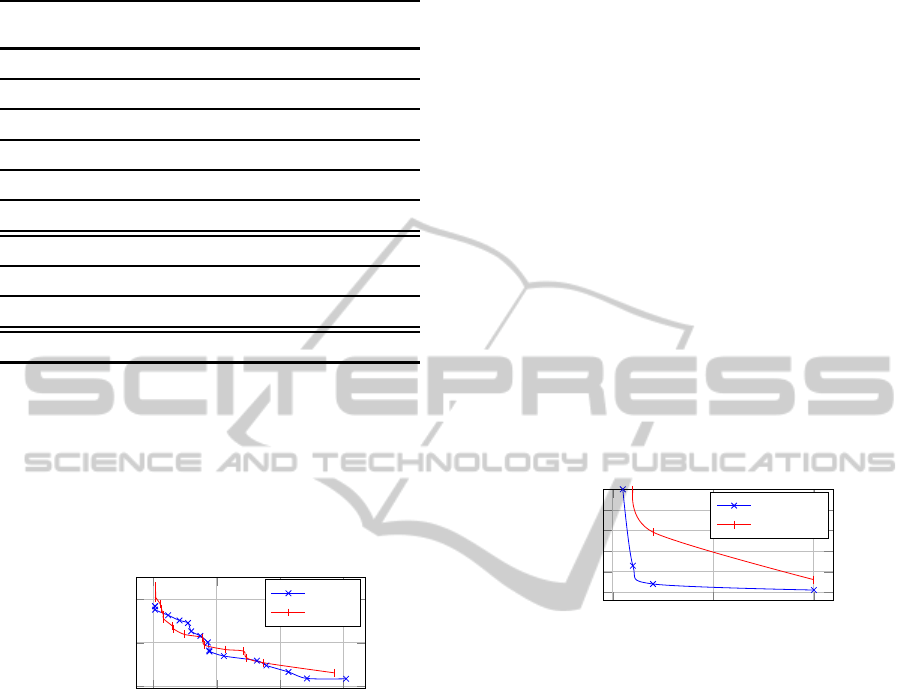

Table 2: Lines of code changed in both frameworks.

Modiﬁcation jMetal Polymer

LoC T. Check LoC T. Check

Adding Mutator 3 ✓ 1 ✓

Removing Mutator 3 ✓ 1 ✓

Adding Crossover 3 ✓ 1 ✓

Removing Crossover 3 ✓ 1 ✓

Adding Fitness 1 ✓ 1 ✓

Removing Fitness 1 ✓ 1 ✓

Adding an App 10 ✗ 1 ✓

Removing an App 10 ✗ 1 ✓

Adding Network Optim. 43 ✗ 1 ✓

Changing Optim. Problem All - 40% -

approaches lead to similar Pareto fronts. We validate

this using a Mann-Whitney U-Test (statistical test at

0.01 signiﬁcance level) which give evidence that both

Pareto are comparable. At the core both frameworks

use the same MOEA algorithm, namely NSGA-II.

Therefore, we can conclude that the bias introduced

by the modeling layer does not impact the result.

Time ﬁtness in hours

Price ﬁtness ($)

jMetal

Polymer

Figure 6: Pareto fronts for jMetal and Polymer.

In order to evaluate the efﬁciency of our approach

we measure the time for performing the solution

search and the used memory. All in all, Polymer takes

more time (by an average of 15 %) and memory (by

an average of 20 %). This is due to model manipula-

tions and cloning of models instead of simply copy-

ing arrays. The overhead in performance and mem-

ory is a trade-off to achieve an easier and more main-

tainable MOO development. However, this overhead

decreases in term of percentage, when the complex-

ity or the number of ﬁtness functions to evaluate in-

crease. For each genetic generation step the model

cloning operation has a ﬁxed cost. In order to op-

timize this step we apply the partial model cloning

strategy. When dealing with complex ﬁtness evalu-

ations, the cloning cost and the overhead in perfor-

mance become negligible (less than 5 % for the partial

clone, and less than 15 % for the full clone). Figure

7 shows how the performance overhead (using as ref-

erence zero the traditional ad-hoc encoding) changes

when the ﬁtness functions become more complex to

evaluate. As can be seen in ﬁgure 7 the overhead

introduced by the partial cloning and model opera-

tions, become more and more negligible with increas-

ing complexity of the case study. This increase in

complexity can be due to one of three factors: 1) In-

crease in the number of objectives to optimize, e.g.

optimizing network, RAM, disk usage, latency, secu-

rity, redundancy and price at the same time. 2) In-

crease in complexity of previously deﬁned ﬁtnesses,

e.g. a more precise ﬁtness function is implemented.

3) Increase in the complexity of the domain itself, e.g.

adding more virtual machines or more applications to

optimize leads to slower ﬁtness evaluation per genera-

tion. We can conclude, that our approach can compete

with traditional MOEA usage by using heuristics like

partial cloning. We can also see that the overhead be-

comes negligible for complex optimization scenarios,

which are the main target of our approach (because

for them maintainability becomes critical).

500

1,000

100

Fitnesses eval time in ms

Overhead (%)

Partial Clone

Full Clone

Figure 7: Performance overhead.

6 RELATED WORK

Different encodings have been used in litera-

ture (Coello et al., 2002), e.g. binary, permutation,

matrix, graph, and tree based encodings. They all re-

quire functions to encode, decode, navigate, and get

information from the genetic encoded format. Many

proposals have been presented for which encoding

is suitable for which type of problem (Coello et al.,

2002). For example, graph-based encodings are suit-

able for network optimization problems. Some en-

coding types, like permutation-based encodings, have

the advantage to require only a very small memory

footprint. None of these encodings are suitable for

complex domains containing different types of data

at the same time. Therefore, it is necessary to have

a complex encoding/decoding step to transform the

domain speciﬁc multi-objectiveoptimization problem

into a suitable MOEA representation and to transform

the solution back to the domain problem. Recently,

MODELSWARD2015-3rdInternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

292

ideas to apply MDE on MOEAs to simplify the en-

coding steps were presented (Williams and Poulding,

2011) and (Amato et al., 2014). Their idea is to create

an automatic wrapper to transform a model into an ar-

ray encoding and use the traditional approach behind.

We discard the encoding step and use the model itself

as encoding.

7 CONCLUSION

We claim that the usage of MOEAs to solve domain-

speciﬁc MOO problems is complicated. This is

mainly due to necessary encoding steps, meaning

that a domain-speciﬁc problem must be mapped into

a structure, which is suitable for the execution of

MOEAs. This burdens developers with not only to

understand a domain-speciﬁc MOO problem but also

with the technical challenge to properly express this

problem in terms of MOEA encoding. Many appli-

cation domains can beneﬁt from MOOs on top of

models. In this paper we introduced a MDE frame-

work to allow developers to combine MOOs with a

model-driven development process. For this purpose,

we enabled the execution of MOEAs on top of mod-

els and signiﬁcantly simpliﬁed their usage and im-

proved their reusability. We showed that the nec-

essary MOEA expertise is hidden in the framework

and enables software engineers to focus on domain-

speciﬁc MOO problems instead of MOEA encoding

and decoding. This has several advantages. First,

MOO problems can be expressed in terms of domain

models without being a MOEA expert. Second, type-

safety is kept, which improves maintainability of the

application. Third, since the problem is expressed in

domain terms the solution is more readable. Our ap-

proach allows to use the same models for domain rep-

resentation and MOO problem encoding to avoid the

mismatch between these representations.

In future work we plan to integrate additional

MOEAs in our framework, e.g. NSGA-III (Yuan

et al., 2014). We also plan to apply the type infor-

mation of models to introduce novel optimizations in

MOEA algorithms (Elkateb et al., ). Finally, we will

investigate the optimization of domain model cloning.

As we have seen model cloning in our approachis still

a bottleneck. A faster mechanism would improve the

performance of our approach.

ACKNOWLEDGEMENTS

The research leading to this publication is supported

by the FNR (grant 6816126), Creos LuxembourgS.A.

and the CoPAInS project (code CO11/IS/1239572).

REFERENCES

Amato, A., Di Martino, B., and Venticinque, S. (2014).

Multi-objective genetic algorithm for multi-cloud bro-

kering. In Euro-Par 2013: Parallel Processing Work-

shops.

Auger, A., Bader, J., Brockhoff, D., and Zitzler, E.

(2012). Hypervolume-based multiobjective optimiza-

tion: Theoretical foundations and practical implica-

tions. Theoretical Computer Science, 425:75–103.

Coello, C. A. C., Van Veldhuizen, D. A., and Lamont, G. B.

(2002). Evolutionary algorithms for solving multi-

objective problems, volume 242. Springer.

Deb, K., Pratap, A., Agarwal, S., and Meyarivan, T. (2002).

A fast and elitist multiobjective genetic algorithm:

Nsga-ii. Evolutionary Computation, IEEE.

Durillo, J. J. and Nebro, A. J. (2011). jmetal: A java frame-

work for multi-objective optimization. Advances in

Engineering Software, 42(10):760–771.

Elkateb, D., Fouquet, F., Bourcier, J., and Le Traon, Y. Opti-

mizing multi-objective evolutionary algorithms to en-

able quality-aware software provisioning. In 14th In-

ternational Conference on Quality Software.

Fouquet, F., Nain, G., Morin, B., Daubert, E., Barais, O.,

Plouzeau, N., and J´ez´equel, J.-M. (2012). An eclipse

modelling framework alternative to meet the models@

runtime requirements. In Model Driven Engineering

Languages and Systems, pages 87–101. Springer.

Fouquet, F., Nain, G., Morin, B., Daubert, E., Barais, O.,

Plouzeau, N., and J´ez´equel, J.-M. (2014). Kevoree

modeling framework (kmf): Efﬁcient modeling tech-

niques for runtime use. CoRR, abs/1405.6817.

Frey, S., Fittkau, F., and Hasselbring, W. Search-based ge-

netic optimization for deployment and reconﬁguration

of software in the cloud. In Software Engineering

(ICSE), 2013 35th International Conference on.

Kennedy, J., Eberhart, R., et al. (1995). Particle swarm op-

timization. 4(2):1942–1948.

Konak, A., Coit, D. W., and Smith, A. E. (2006). Multi-

objective optimization using genetic algorithms: A tu-

torial. Reliability Engineering & System Safety.

Pandey, S., Wu, L., Guru, S. M., and Buyya, R. (2010).

A particle swarm optimization-based heuristic for

scheduling workﬂow applications in cloud computing

environments. In Advanced Information Networking

and Applications (AINA), 2010 24th IEEE Interna-

tional Conference on, pages 400–407. IEEE.

Schaffer, J. D. (1985). Multiple objective optimization with

vector evaluated genetic algorithms. In Proceedings

of the 1st international Conference on Genetic Algo-

rithms, pages 93–100. L. Erlbaum Associates Inc.

Van Laarhoven, P. J. and Aarts, E. H. (1987). Simulated

annealing.

Williams, J. R. and Poulding, S. (2011). Generating models

using metaheuristic search. Sponsoring Institutions.

Yuan, Y., Xu, H., and Wang, B. (2014). An improved nsga-

iii procedure for evolutionary many-objective opti-

mization. In Proceedings of the 2014 Conference on

Genetic and Evolutionary Computation, GECCO ’14.

Polymer-AModel-drivenApproachforSimpler,Safer,andEvolutiveMulti-objectiveOptimizationDevelopment

293
