Disciplined Approach for Transformation CIM to PIM in MDA

Yassine Rhazali

, Youssef Hadi

and Abdelaziz Mouloudi

ACIDROS Laboratory, Faculty of Science, Kenitra, Morocco

LaRIT Laboratory, Faculty of Science, Kenitra, Morocco

Keywords: Model Transformation, MDA, CIM, PIM, Business Processes.

Abstract: This paper suggests a disciplined approach to mastered transformation of CIM level to PIM level in

accordance with the MDA approach. Our suggestion is founded on creating good CIM level through well-

selected rules, allowing us to achieve rich models that contain relevant information to facilitate the task of

the transformation to the PIM level. We specify, thereafter, an appropriate PIM level through different UML

points of view (functional, dynamic and static) using a diagram for each one. Next, we present a set of well-

defined rules to shift CIM to PIM so as to ensure an automatic transformation, the maximum possible. Our

method follows the MDA approach by considering the business dimension in the CIM level, through the use

standards modelling business of OMG (BPMN and Activity Diagram), and by using the UML in PIM

advocated by MDA in this level.

1 INTRODUCTION

Transformations between the different levels of

MDA(Model Driven Architecture) (Siegel, 2014)

begin with the transformations from CIM to PIM

that aim to partially build PIM models from CIM

models. The goal is to rewrite the information

contained in the CIM models into PIM models

which would ensure that business information is

conveyed and respected throughout the MDA

process. Then, the transformation of PIM models to

PSM models adds PIM technical information related

to a target platform.

In practice, the automatic transformation starts

from the second (PIM) level. However, our ultimate

goal is to make the CIM level a productive one, and

also a basis for building PIM level through an

automatic processing. The purpose is that the

business models would not only be documents of

communication between business experts and the

software designers.

In this paper, we propose a solution to automate

the transformation from CIM level at PIM level, by

effectively using current business modeling

standards, so as to achieve focused CIM models to

simplify the transformation to PIM, then, we define

a set of rules to automate the conversion to a PIM

level.

Our approach uses the BPMN (OMG, 2014)

collaboration diagram and the UML (OMG, 2013)

activity diagram which represent standards of

business model to define the CIM level. Then the

rich business models of well-concentrated

information help us to achieve models of PIM level.

The first model of the PIM level is the use case

diagram that defines the functionality of the

information system; then, the system states are

presented through the state diagram. Next, the class

diagram model allows modeling the system classes

and their relationships independently of a

programming language in particular. Finally, all

classes are structured in packages that are

transformed from the CIM level.

The rest of this paper is organized as follows.

Section II analyzes the related works of the CIM

transformation to PIM. Section III presents our

approach and describes the rules for constructing

models of CIM level and the rules for transformation

from the CIM level to the PIM level. In Section IV

we illustrate our proposal in a case study showing

the construction of the CIM level and the

transformation to the PIM level. Finally, in Section

V, we conclude by determining the outcome of our

work and describing future works.

312

Rhazali Y., Hadi Y. and Mouloudi A..

Disciplined Approach for Transformation CIM to PIM in MDA.

DOI: 10.5220/0005245903120320

In Proceedings of the 3rd International Conference on Model-Driven Engineering and Software Development (MODELSWARD-2015), pages 312-320

ISBN: 978-989-758-083-3

 2015 SCITEPRESS (Science and Technology Publications, Lda.)

2 RELATED WORK

In this section, we are going to shed light on the

related works concerning the passage of the CIM

level to the PIM level in MDA drawing out in part

the advantages and disadvantages of each approach.

The oriented service transformation from CIM to

PIM was proposed by (Castro ,Marcos and Vara,

2011). The authors present the CIM level using

BPMN for modeling business process and the value

model (Gordijn and Akkermans, 2003) so as to

identify services from the beginning in the business

perspective. Through the ATL language, the authors

move towards a PIM level presented by two

extensions of use case model and two extensions of

the activity diagram. Although this method has the

advantage of identifying services and the

specification of a business process at the CIM level

in order to guide the transformation to PIM in a

semi-automatic manner with well-defined rules. But

the authors’ study is only limited to the use case

diagram and the activity diagram in the PIM level

and does not present the structural view (generally

through the class diagram) that defines the ultimate

objective of this level. Also, the use of activity

diagram in the PIM level causes great inconvenience

since this diagram is among the standards for

modeling business processes.

A transformation approach from CIM to PIM

based on security requirements from the beginning

in the business perspective is presented by

(Rodríguez, García-Rodríguez de Guzmán,

Fernández Medina and Piattini, 2010). The authors

use the BPMN notation for modeling a secure

business processes of the CIM level; then, they

determine the transformations in QVT in order to

obtain class diagrams and use case. This method

presents a reference in the transformation of CIM to

PIM security oriented. However, this proposal

focuses only on secure information systems.

(Hahn, Dmytro and Fischer., 2010) focus on

engineering services driven by models. The authors

present the CIM level with BPMN notation and

establish the ATL language to achieve a

transformation to the PIM level represented in this

approach by using SoaML models. The authors use

SoaML, the new OMG standard for modeling

services, but this approach does not represent the

ultimate goal of PIM level, such class digrams.

(Zhang, Mei, Zhao and Yang, 2005) describe an

approach in which the CIM and PIM are

respectively represented by functionalities and

components. Responsibilities in this approach are

considered as connectors between functionalities and

components to simplify the task of transforming

CIM to PIM. (Grammel and Kastenholz, 2010) rely

on a DSL connection, which focuses on the

management of traceability in general. Both

approaches offer solutions to transform CIM to PIM,

while they do not specify models used in CIM level

and PIM level.

An approach respecting MDA which aims at

transforming the diagram of use case to the activity

diagram is proposed by (Gutiérrez, Nebut, Escalona,

Mejías and Ramos, 2008). The authors use QVT to

transform existing use cases to the activity diagram.

While this approach makes a CIM to PIM

transformation through clear rules, the authors

define in the CIM level functional requirements

represented by the use case.

(Mazón, Pardillo and Trujillo, 2007) propose an

objective-oriented approach by defining a UML

profile to present the CIM level, based on the i*

modeling framework. The authors use QVT to move

towards the PIM that focuses on conceptual

modeling of data warehouse. However, this

approach only tackles the transformation in the field

of data warehousing.

(Kherraf, Lefebvre and Suryn, 2008) propose a

disciplined approach to transform the CIM to PIM

using the business process model and use case

diagram as an initial step in the modeling of business

processes, then a detailed activity diagram which

defines the system requirements which represents

the last step in the CIM level. The elements of the

requirements’ model are transformed as components

of the system. These are presented in the component

diagram as a first step in the PIM level. Finally, a set

of business archetypes helps to transform the system

components to obtain the class diagram. This

approach offers interesting ideas on transforming the

CIM to PIM. However, this approach uses diagram

use case that represents the system functionalities in

the CIM level.

(Kardoš and Drozdová, 2010) present an

analytical method for the transformation of CIM to

PIM in MDA. The authors define the CIM level

through the data flow diagram; then they use the use

case diagram to initiate the information system view.

This approach also defines a model of activity

diagram as well as a model of sequence diagram and

finally a model class diagram. The advantage of this

method is the use of various UML diagrams that

present different views of the information system in

PIM level, but this method does not present a real

business view since it uses DFD, and does not

clearly define rules for transforming the CIM to

PIM.

DisciplinedApproachforTransformationCIMtoPIMinMDA

313

After this overview on related works concerning

the passage of the CIM level to the PIM level, we

can classify the works into five categories. We find

works that use model requirements (such as the use

case diagram) in the CIM level, to facilitate the

transformation to PIM (Gutiérrez, Nebut, Escalona,

Mejías and Ramos, 2008) and (Kherraf, Lefebvre

and Suryn, 2008). Then, other researches (Castro

,Marcos and Vara, 2011) and (Hahn, Dmytro and

Fischer., 2010), even if they define the business

processes in CIM level, do not represent the

structural view (usually through the class diagram)

in the PIM level. Then there are researches that

target transformation in a particular field

(Rodríguez, García-Rodríguez de Guzmán,

Fernández Medina and Piattini, 2010) and (Mazón,

Pardillo and Trujillo, 2007). There are also methods

such as (Kardoš and Drozdová, 2010) which

represent the structural view in the PIM level and are

not intended for a particular area, but the authors do

not specify transformation rules. Finally, there are

methods (Zhang, Mei, Zhao and Yang, 2005) and

(Grammel and Kastenholz, 2010) that define exactly

the transformation rules and do not have the models

used in the CIM and PIM level.

So we can say that the main contributions of our

study compared with others as follows: a business

process model is used in CIM level; then, we define

the structural view in PIM level; next we propose an

approach of generic transformation that is not

directed to a particular field and has clear rules to

achieve the maximum possible automatic

transformation from CIM to PIM.

3 PROPOSED METHOD OF

TRANSFORMATION FROM

CIM TO PIM

All models of the PIM level are realized through an

automatic transformation of CIM level (cf. Figure

1), via well-defined and concentrated transformation

rules.

Below, we present the rules of construction of

CIM level and the rules of transformation to the PIM

level.

3.1 Construction Rules of CIM Level

 Define means and not complex sub-processes,

i.e., each process must not contain other sub-

processes. In fact, each sub-process must be

comprised of about 4 to 12 tasks.

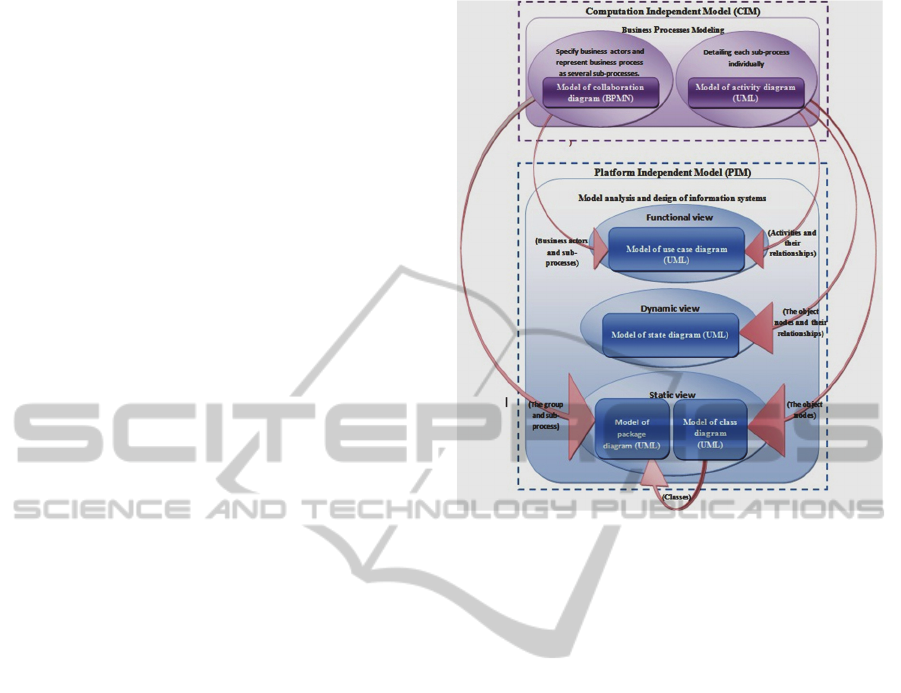

Figure 1: Schema of the proposed approach.

 If a sub-process consists of less than 4 tasks,

or represents a complementary operation to

another sub-process, we merge two sub-

processes into one.

 Avoid the maximum possible of the

representation of tasks, and present only

manual tasks.

 The model does not describe all possible cases

and ways, but it just presents a description of

the sequence of activities of the most common

business processes.

 Focus on sub-processes and their sequences.

 Identify the maximum possible of the actors

who interact and who collaborate in the

achievement of business processes since we

talk about an enterprise process.

 Use the "Group" notation to group sub-

processes that belong to the same category.

 Avoid in this level, the maximum possible,

representation of the connections.

The rules of construction of model activity

diagram:

 Detail individually each sub-process in a

model as several actions (this latter constitute

the fundamental unit in the activity diagram).

 Do not represent the manual tasks of model

collaboration diagram.

 Present connections in this model.

MODELSWARD2015-3rdInternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

314

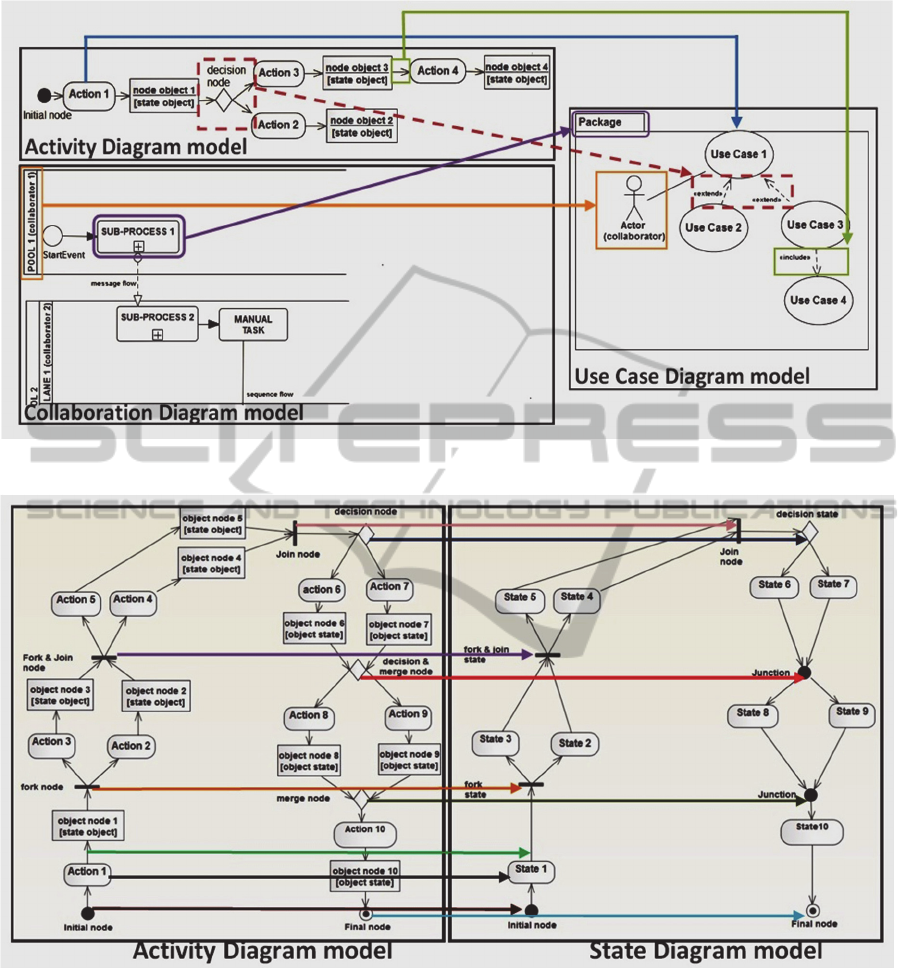

Figure 2: Schema of passage from the CIM level models to use case diagram model.

Figure 3: Schema of passage from activity diagram model to state diagram model.

 Enrich this model with the most exceptional

ways.

 Any task described in the BPMN diagram

model is represented here by an action.

 Add an object node containing object state at

the output of each action.

3.2 Transformation Rules from CIM to

PIM

The rules of passage from the CIM level models to

model of use case diagram (cf. Figure 2):

 Every action of the model activity diagram

that corresponds to a functionality of the

system is transformed to the use case.

 The collaborator, who realizes the sub-

processes of the model of collaboration

DisciplinedApproachforTransformationCIMtoPIMinMDA

315

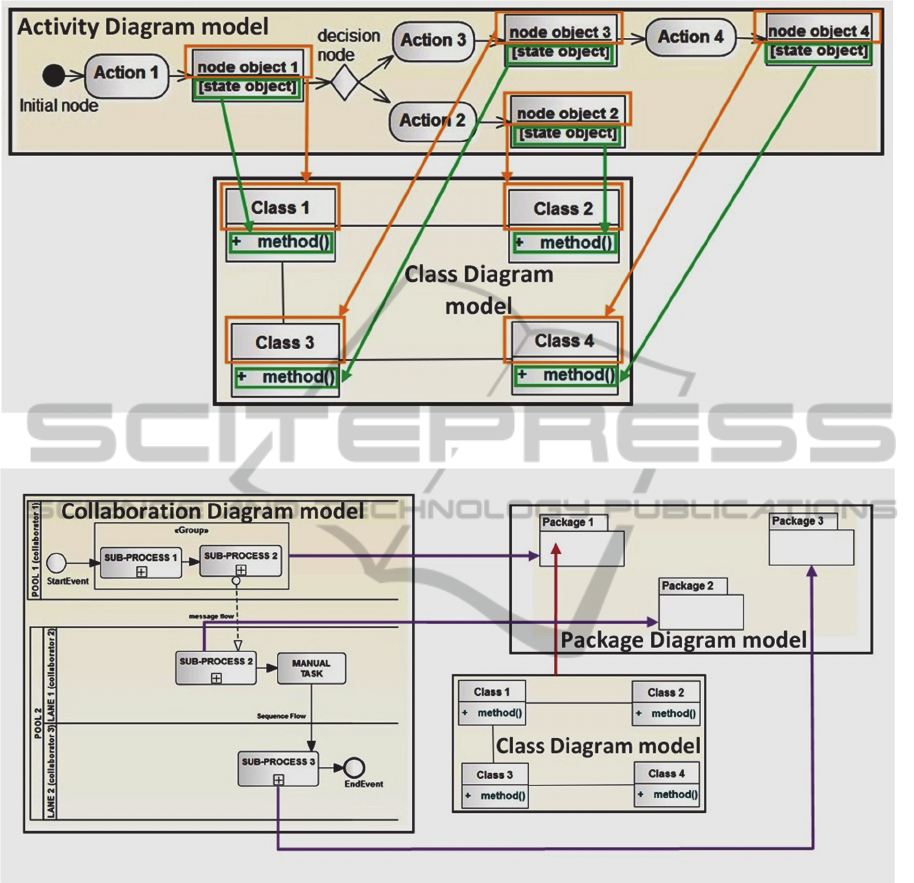

Figure 4: Schema of passage from activity diagram model to class diagram model.

Figure 5: Schema of passage from collaboration diagram model and class diagram model to package diagram model.

diagram BPMN, becomes an actor of use

cases that correspond to the actions of this

sub-process.

 If there is a "decision node" between two

actions, the corresponding use cases are

connected by a relationship "extend".

 If there is just a control flow between two

actions, the corresponding use cases are

connected by a relationship "include".

 Do not transform the control flow returning

back.

 Each sub-process of collaboration diagram

model is transformed to a package which

includes the use cases corresponding to the

actions of this sub-process.

The rules of passage from model of activity

diagram to model of state diagram (cf. Figure 3):

 Each node object becomes a state.

 Each decision node becomes a decision point.

 Each merge node becomes a junction point.

 Each decision and merge node becomes a

junction point.

 Each initial node is transformed to an initial

state.

 Each final node becomes a final state.

 Each control flow located between two actions

MODELSWARD2015-3rdInternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

316

is transformed to a transition.

 Each fork node becomes a fork state.

 Each joint node becomes a joint state.

 Each joint and fork node becomes a joint and

fork state.

The rules of passage from the model of activity

diagram to the model of class diagram (cf. Figure 4):

 Transform object nodes of model activity

diagram as classes.

 Each state of an object becomes a class

method.

The rules of passage from the model of

collaboration diagram and the model of class

diagram to the model of package diagram (cf. Figure

5):

 Each group becomes a package.

 Each sub-process that does not belong to any

group transforms to a package

 Each set of classes, which become the same

group, will be placed in the package that

matches the group.

 Classes resulting from the same sub-process,

which belongs to no group, will be placed in

the package that corresponds to the sub-

processes.

4 CASE STUDY

In this section, we present a case study for sales

through e-commerce to illustrate our approach of

transforming the CIM level to the PIM level.

A customer can browse the catalog of products

available. He can also see detailed information about

each item, then he decides either to put a quantity of

product in the cart or not. Each time the customer

has the right to change the amount or eliminate

completely the article from the cart. Once products

that satisfied the needs of the customer are clearly

selected, the latter starts the command. Then, he

presents the payment information, and precise

details of delivery.

An order agent begins treating the order,

declaring the reservation of products specified by the

customer. Then, the assembly worker collects

reserved items, manually, from stock.

The assembly team leader checks quantity and

quality of each product. Then the delivery agent

carries the confirmed order, so that the customer gets

his ordered products.

4.1 Presentation of the CIM Level

Figure 6 shows the model of the business process

represented by the collaboration diagram of BPMN.

In this model we just specified sub-processes and

their sequence by avoiding the identification of tasks

and connections to present a business process in

general. However, we have presented the maximum

of collaborators to define a true business process, in

which there is collaboration between several

business actors. For example, instead of putting a

single lane "delivery service", we identified the

lanes: "assembly worker", "assembly team leader"

and "delivery agent".

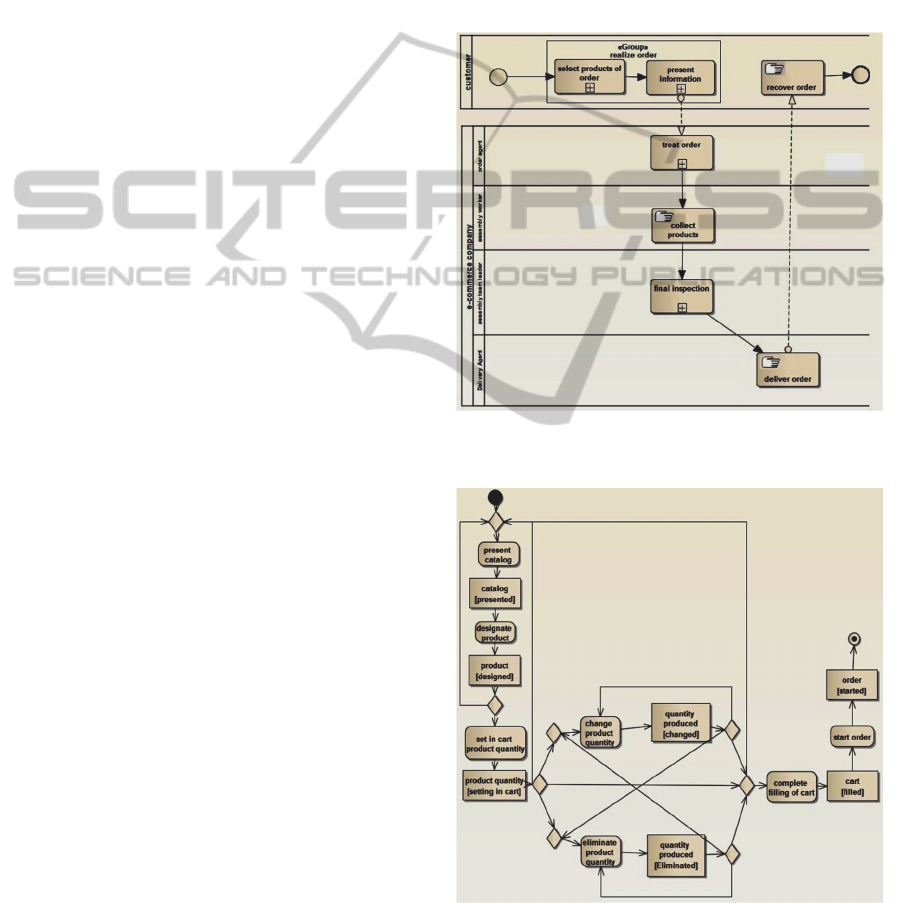

Figure 6: Collaboration diagram model of “sales through

e-commerce”.

Figure 7: Activity diagram model of “select products for

order”.

This fractionation also facilitates the task of

transformation to the PIM level. For instance, when

DisciplinedApproachforTransformationCIMtoPIMinMDA

317

moving to the model diagram use case, collaborators

will be transformed to actors. However, we

presented medium sub-processes. So the customer

would normally perform the activity "select

products", then "start order" and later the activity

"present information", but since "start order" cannot

contain more than three tasks, we have merged

"select products" as a single sub-process called

"choose products for order". Finally, we specified all

manual tasks.an make several refinements on an

initial model to achieve a model that respects our

rules.

Figure 7 shows the second model in CIM level

as a model of activity diagram. Through this model

we individually detail each sub-process of the

previous model as several actions. However, in this

model the sub-processes "select product for order" is

analyzed. Also, we have identified all possible ways

towards connections. Then we presented an object

node with its state in the output of each action.

4.2 Presentation of the PIM Level

Figure 8 presents a model of diagram use case. This

model is transformed from the business models of

CIM level. However, in this model the sub-process

“select product for order” -model of collaboration

diagram of BPMN- is transformed to a package.

Then the collaborator "customer" who performs the

sub-processes becomes actor. Then the actions that

detail the sub-processes in the model of the activity

diagram are transformed to use cases. Decision

nodes that lie between two actions become

relationship "extend". For example, in this model

there is a decision node between the two actions

"designate product" and "put in cart quantity product

"; so the two correspondent use cases are connected

via an "extend" relationship. Control flows that lie

between two actions become relationship "include."

Thus, in this model there is flow control between the

two actions "present catalog" and "designate

product," so the two corresponding use cases are

connected via an "include" relationship. However, it

is not presented in this model the flows which return

backward. For example, the relationship between the

action "put in cart product quantity" and "present

catalog" is not specified in this model, so as not to

complicate the model, and so that the diagram use

case would not focus only on the identification of

functionality and not on the sequence.

Figure 9 presents the second model of the PIM

level which is a model state diagram transformed

from the activity diagram of the CIM level. In this

model the nodes of objects are transformed to states.

Then, the control flows that lie between two actions

are transformed into a transition. E.g. the object

node "catalog" with the state "presented" becomes

"catalog presented" in the state diagram. However,

the initial node is transformed to an initial state; the

final node becomes a final state; the decision nodes

are transformed to decision points; nodes fusion

become junction points and a decision and fusion

node become a junction point.

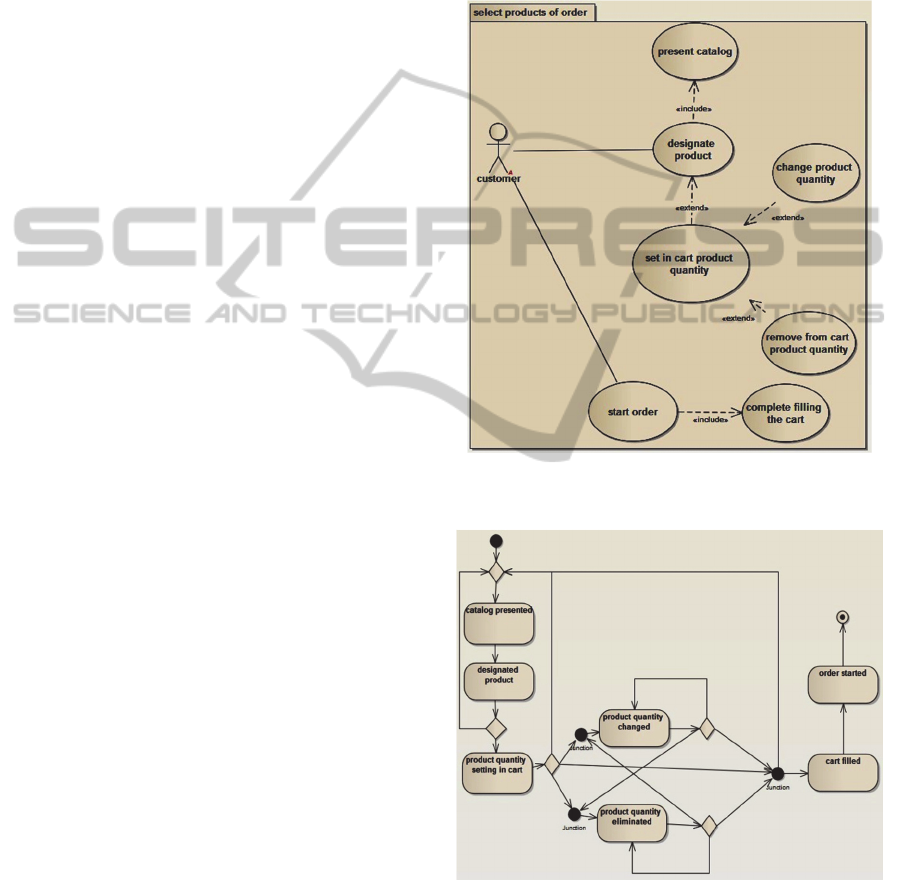

Figure 8: Use case diagram Model of “choose products for

order”.

Figure 9: State diagram Model of “choose products for

order”.

Figure 10 shows the final objective of the PIM level

which is the construction of a model of class

diagram. This model is transformed from the model

of the activity diagram. In this model the classes are

MODELSWARD2015-3rdInternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

318

transformed from object nodes. Then the states of an

object are transformed to functions of the class. So

the object node "order" with state "started"

transform to class "order" that contains the "start"

method.

Figure 11 shows a model of the package

diagram. So the group "realize order" transform into

package. Then the sub-processes that are not in a

group, such as "treat order" and "final inspection"

become as packages.

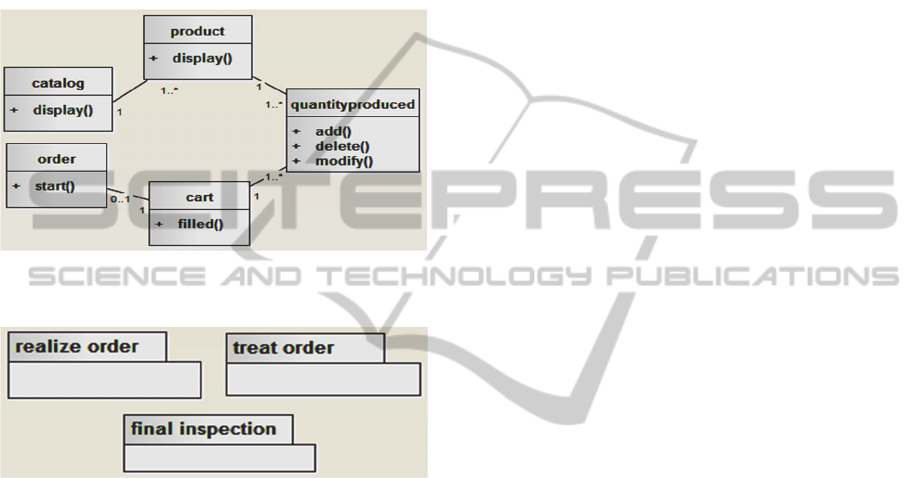

Figure 10: Class diagram Model of “choose products for

order”.

Figure 11: Package diagram model of “sales through e-

commerce”

5 CONCLUSIONS AND FUTURE

WORK

One of the major challenges in the software

development process is the definition of an approach

that allows moving from models that describe the

operation of the business to models which present

the analysis and design of software, allowing to

sharing design between people and computers.

Based on MDA, our approach provides a solution to

the problem of transformation of business models

represented in CIM level to analysis and design

models, modeled in PIM level. This approach results

in a set of well organized and useful classes in the

process of software development. The ongoing work

is intended to improve the rules of construction of

the CIM level and the rules of transformation to the

PIM in order to implement these transformations to

a tool via the QVT language. In addition, in our

future work, we plan to transform the models

obtained in the PIM level to models of PSM level,

since our ultimate goal is to provide the source code

from the business models through automatic

transformations.

REFERENCES

Siegel, J., 2014. MDA Guide, revision 2.0,

<http://www.omg.org/cgi-bin/doc?ormsc/14-06-01>.

OMG, 2013. Unified Modeling Language, Version 2.0.2

Beta 2, <http://www.omg.org/spec/UML/2.5/Beta2/>.

OMG, 2014. Business Process Modelling Notation, v

2.0.2, <http:// www.omg.org/spec/BPMN/2.0/pdf>.

Gordijn, J., Akkermans, J.M., 2003. Value based

requirements engineering: exploring innovative e-

commerce idea, Requirements Engineering Journal 8

(2) (2003) 114–134.

Castro, V.D., Marcos, E., Vara, J.M., 2011. Applying

CIM-to-PIM model transformations for the service-

oriented development of information systems:

Information and Software Technology 53 87–105.

Rodríguez, A., García-Rodríguez de Guzmán, I.,

Fernández Medina, E., Piattini, M., 2010. Semi-formal

transformation of secure business processes into

analysis class and use case models: an MDA approach,

Information and Software Technology 52 (9) (2010)

945–971.

Kherraf, S., Lefebvre E., Suryn W., Transformation From

CIM to PIM Using Patterns and Archetypes. In 19th

Australian Conference on Software Engineering

(2008) 338-346.

Hahn, C., Dmytro, P., Fischer, K., 2010. A model-driven

approach to close the gap between business

requirements and agent-based execution. In

Proceedings of the 4th Workshop on Agent-based

Technologies and applications for enterprise

interoperability, Toronto, Canada, 2010, pp. 13–24.

Zhang, W., Mei, H., Zhao, H., Yang, J., 2005.

"Transformation from CIM to PIM: A Feature-

Oriented Component-Based Approach," presented at

MoDELS 2005, Montego Bay, Jamaica, 2005.

Grammel, B., Kastenholz, S., 2010. A generic traceability

framework for facet-based traceability data extraction

in model-driven software development. In Proceedings

of the 6th ECMFA Traceability Workshop held in

conjunction ECMFA 2010, Paris, France, 2010, pp. 7–

14.

Gutiérrez, J.J., Nebut, C., Escalona, M.J., Mejías, M.,

Ramos, I.M., 2008. Visualization of use cases through

automatically generated activity diagrams. In 11th

international conference on Model Driven Engineering

Languages and Systems.

Mazón, J., Pardillo, J., Trujillo, J., 2007. A model-driven

goal-oriented requirement engineering approach for

data warehouses. In Proceedings of the Conference on

Advances in Conceptual Modeling Workshops,

DisciplinedApproachforTransformationCIMtoPIMinMDA

319

Auckland, New Zealand, 2007, pp. 255–264.

Kardoš, M., Drozdová, M., 2010. Analytical Method of

CIM to PIM Transformation in Model Driven

Architecture (MDA) : JIOS, VOL. 34, NO. 1 (2010),

PP. 89-99.

MODELSWARD2015-3rdInternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

320
