Quantifying Negative Affect

Usability Testing to Observe the Effect of Negative Emotions on User Productivity

Through the Use of Biosignals and OCC Theory

Gloria Washington

School of Computing, Clemson University, Clemson, SC, U.S.A.

Keywords: OCC, Biosignal, Negative Affect.

Abstract: Humans sometimes experience negative emotions caused by electronic devices that impede their task(s).

User experience researchers have examined technology-caused negative affect by collecting task

performance metrics, user feedback, and/or human physiological data like skin temperature or blood

pressure for more insight. Much research has been done to determine the amount of negative affect

produced by the humans during these events. However, these methods usually require the user to self-report

their negative feelings through Likert scales, pressure-sensitive devices or other manual methods. Task

performance measures have also been used in lieu of asking a user what they feel. In this research, we adapt

OCC Theory for use with physiological data for quantifying negative affect in human-computer

interactions, along with asking a person how they feel about an application. In addition, we observe how

negative affect amounts impact task performance measures in a usability study by adding random system

delays into an application to induce negative feelings. Results from this work showed productivity does not

always degrade when negative feelings are experienced by a user. In addition, some types of negative affect

may have the opposite effect and allow a user to increase their performance under the right conditions.

1 INTRODUCTION

On a typical day, humans will come into contact

with some type of electronic device more than ten

times (Modapt, and Morrissey, 2011). During these

interactions, technology causes the user to

experience some sort of frustrating event 18% of the

time. User experience researchers have studied how

to reduce the occurrence of these events through

usability testing. During usability testing, users will

interact with a device and be asked to perform

certain tasks while a usability professional captures

data like utterances, human physiological data, or

task performance measures (Ward & Marsden,

2003). In addition, users may be asked to fill out a

user survey after the test, sometimes in the form of a

Likert scale, to determine the amount of negative or

positive feelings experienced during the test. Human

physiological data is gathered to understand more

fully how a person is feeling about a device or

application. Productivity metrics also provide

insight into what tasks a user can perform quickly or

slowly and/or easily or with difficulty within an

application. Usability experts use all of this data to

find out what functionality works well and what

needs refinement.

Negative feelings or affect caused by technology

have been studied extensively by researchers in both

affective computing and human factors engineering.

Theories like Goal theory, Appraisal theory, or

Frustration theory have helped early researchers of

human-computer interaction to shed light on why

these emotions occur in human-computer

interactions (Freud, 1922 & Scherer, 2001). What

they found through various studies is that negative

emotions caused by technology can occur due to a

number of factors including how determined a

person is at completing a task, how sure a person is

of themselves in completing a task, and/or the

significance of the event that caused the negativity

to occur (Bessiere et al., 2006).

1.1 OCC Theory of Emotions

In 1988, Ortony, Clore, and Collins (OCC)

developed a structure for modelling human emotions

(Ortony, Clore, Collins, 1988). Unlike other

emotional theories created before it, this model was

Washington G..

Quantifying Negative Affect - Usability Testing to Observe the Effect of Negative Emotions on User Productivity Through the Use of Biosignals and OCC

Theory.

DOI: 10.5220/0005246200830089

In Proceedings of the 2nd International Conference on Physiological Computing Systems (PhyCS-2015), pages 83-89

ISBN: 978-989-758-085-7

 2015 SCITEPRESS (Science and Technology Publications, Lda.)

designed specifically for characterizing emotions by

situations that cause them to occur. Also, emotions

do not occur until an individual has reached and

surpassed a unique threshold inherently set within a

person. Essentially people’s perception of events

causes them to experience situations differently. For

an example, a person that is confined to a time-

constraint is more likely to experience a greater

amount of frustration if they are impeded from

completing a task, whereas someone without a time

limit may experience less.

In OCC theory, emotions are grouped into 22

groups are called “emotion types”. Each emotion

type has different factors affecting the intensity of

that type. Factors that tend to increase emotion

intensity often increase the potential for other

emotions to occur in that emotion type. For instance,

a person may have a deadline to submit his/her tax

return by 12:00AM on April 15the and may

experience a blackout that causes his/her Internet to

be down, thereby causing the person to come

dangerously close to incurring a penalty because the

return is late. In this situation, the person may

initially feel extreme anger towards his/her self or

even “Mother Nature”. However, as the

consequences of the event unfold, he/she may begin

to feel fear over missing the tax submission

deadline.

Also in OCC theory, people perceive the world

to be events, agents, and objects. Emotions occur

due to consequences of events, actions of agents, or

aspects of objects. In the example given about the

person and his/her tax return, the Internet/weather is

the agent, the action of the agent is the blackout, and

the late penalty from the IRS is the consequence of

the power outage.

Humans often have competing and conflicting

goals that may impact the intensity of an emotion.

Unfortunately, OCC theory does not assess the

consequences of multiple, competing goals.

However, it does address how to determine emotion

intensity for each goal expressed by a human.

In OCC Theory, the intensity of emotion

experienced by an individual pertains to: the

congruence of an event’s consequences with one’s

goals (i.e. the user is pleased when his computer

“helps” him by automatically typing a word into a

report, but displeased if it inserts an incorrect word);

the consequences of actions of agents(one’s self,

people, or inanimate objects such as computers)

according to some standard (i.e. a person is

displeased when he realizes he has lost his report

due to his failure in saving the document); and the

consequences of people’s attitudes or disposition to

like or dislike certain objects or aspects of objects

(i.e. people’s attitudes about root canals causes the

idea of going to the dentist to be unappealing.)

Equation (1) shows the original OCC structure for

determining emotion intensity. This method,

described in the next section, is modified for

determining frustration intensities using bio-signal

data.

1.2 Contribution to Physiological

Computing

There has been much research on the use of

physiological data in usability studies to understand

negative affect (Westerman et al., 2006). This work

does not purport that gathering and analyzing

physiogical data in usability testing is new.

However, quantifying negative affect from

physiological data using OCC Theory is a novel

approach. Additionally, this work does not suggest

OCC theory is the best psychological theory for

describing negative affect that occurs in human-

computer interactions. However, this work examines

OCC theory because it is a psychological theory that

includes a computational model for quantifying

negative affect that may occur in human-computer

interaction. This work builds upon research related

to negative emotions caused by technology, OCC

Theory and negative emotion modeling, and

explores two main themes:

 Determining the amount of negative emotion

experienced by a user in a usability test

through the use of the OCC Theory of

Emotions

 Determining the unique effect of negative

emotion amounts on user productivity.

2 RELATED STUDIES

Negative emotions caused by electronic devices

include frustration, annoyance, anger, and/or stress.

Frustration, as described by Freud is any event that

occurs and impedes a user from completing a task

(Freud, 1922). Bessiere studied user frustration

(defined as frustration during computing) in the

workplace by having participants keep diaries and

log their experiences as they interacted with a tool

(Bessiere et al., 2006). In addition, subjects filled

out Likert scale surveys to report the frustration they

experienced after the study. From this work, the

Computer Frustration Model was developed to help

understand the relationship between problems

encountered by workplace computer users and the

PhyCS2015-2ndInternationalConferenceonPhysiologicalComputingSystems

frustration and mood of the users. Strong predictors

of negative mood were strongly linked to a person’s

self-efficacy or belief they can accomplish the task

on the computer, the severity of an interruption

impeding a person from completing a task, and the

importance of the goal to the person.

System delays are found to be the most common

task inhibitor and computer users seem to exhibit the

most negative feelings when they occur (Scheirer,

2001). In 2004, affective computing researchers

Picard and Klein used system delays to study the

physiological effects of stress/frustration on the

human body (Picard & Klein, 2005). In their

research they captured blood pressure and heart rate

data along with the use of a hidden Markov model

(HMM) classifier (Ghahramani, 2001) to allow the

computer to respond to negative affect exhibited by

participants in the study. In addition, other

researchers have explored using human

physiological data to better understand negative

affect in human computer interactions (Klein, 2001;

Hazlett, 2003; Riseberg, 1998; Picard 1997 & 2003,

Scheirer, 2001).

In most usability studies frustration is self-

reported; however researchers have begun to explore

computer hardware that is able to capture the stress

experienced by a user through pressure sensitive

mice and keyboards (Yuan & Picard, 2013 and

Hernandez et al., 2014). Rajendran (Rajendran,

2011) calculated frustration-index scores generated

from student log data and time information gathered

from various activities. These frustration index

scores were verified against frustration amounts self-

reported by students via a pop-up window in an

intelligent tutoring application.

The previous studies mentioned rely on

psychological theories like Frustration theory, goal

theory, and appraisal theory to understand the

amount of negative emotions that occur when a

computer unexpectedly blocks a user from

completing a task. This work, however, uses OCC

Theory of Emotions (called OCC) to understand the

amount of negative feelings produced by person

being blocked from completing a task or goal

(Ortony, Clore, & Collins, 1988). OCC says that

negative compound emotions and attribution

emotions occur as a result of consequences of an

action attributed to an agent. In this work, the agent

is the computer and the action is the task-inhibitor or

blocker.

In 1993, Elliot (Elliott, 1992) implemented an

artificial intelligence application called TaxiWorld

that utilized an emotional model called the Affective

Reasoner based on OCC theory. In this application,

users would navigate their taxi through a world

based off of the Chicago area and experience various

emotions including anger. The other taxis in the

program would react using the underlying emotional

model as various situations presented itself to a user

and his/her taxi.

Katsionis and Virvou (Katsionis & Virvou,

2005), used OCC theory to create an instructional

technology tool for teaching English to Spanish

speaking students. In this tool, the emotional model

would learn from student input and areas within the

instruction where students needed more help. The

emotional model used by Katsionis and Virvou

calculated intensities for performance metrics related

to English translations provided by the student.

The previous studies described use system

delays, human physiological signals, task

performance measures, various psychological

theories for understanding negative affect, and/or

user feedback data to study user productivity and/or

negative affect in human computer interactions. This

research uses the OCC, along with human

physiological indicators of negative affect to

determine the amount of affect experienced by users

in a usability study. In addition, this study calculates

user performance metrics and determines what

amounts of negative affect degrade task

performance.

3 METHOD

To study the relationship between the amount of

negative affect experienced by a user and task

performance, an experiment was performed to gather

human biological data, productivity metrics, and

user feedback. In addition, the original OCC model

was adapted for calculating amounts of negative

emotion experienced by users.

3.1 OCC Adaptation

The original OCC computational model that is

included in the theory is shown in Equation 1. This

model says that an emotion has not occurred unless

it has surpassed a person’s unique internal threshold.

Therefore, intensities of an emotion can be

calculated once it has surpassed a person’s unique

threshold.

To adapt this computational model for human

biological data it is necessary to come up with a

person’s unique threshold. Upper and Lower, as

shown in Equation 2, do just that. Upper and Lower

measures account for a user’s normal physiological

QuantifyingNegativeAffect-UsabilityTestingtoObservetheEffectofNegativeEmotionsonUserProductivityThrough

theUseofBiosignalsandOCCTheory

if (emotion-potential) > (emotion-threshold)

then

(emotion-intensity) =

(emotion-potential) – (emotion-

threshold)

else

(emotion-intensity) = 0;

(1)

behaviour while they are interacting with an

electronic device. An example of this is if a usability

participant is frustrated about a getting an expensive

parking ticket before starting a testing session.

Her/his physiological signals may include outliers

due to increased heart rate, skin temperature, blood

pressure that often accompany negative feelings due

to anger (Hazlett, 2003). The values of the Upper

and Lower would help to find a user’s internal

threshold for a negative emotion to occur during the

usability test not any other negative emotions that

may have occurred prior to testing.

Upper = Mean + Standard Deviation

Lower = Mean – Standard Deviation

(2)

if (bio-signal > Upper)

then

intensity = bio-signal – Upper

else if (bio-signal<Lower)

then

intensity = Lower-bio-signal

else

intensity = 0

(3)

Intensity values and their interpretations are

shown in Table 1. For simplicity reasons in the table,

the term frustration is used to encompass all

negative emotions experienced by a subject in this

usability test. We understand that frustration has a

specific definition that is related to a goal-blocking

event.

Table 1: Intensity values and their interpretations.

Intensity Description

indicates no frustration has occurred and

the user has not surpassed their normal

physiological range

indicates user has surpassed their

threshold and a minimal amount of

frustration has occurred

indicates a low amount of frustration has

occurred

indicates a medium amount of

frustration has occurred

indicates a medium-high amount of

frustration has occurred

5 indicates a high amount of frustration

3.2 Experiment

Forty-two participants were asked to interact with a

modified online word processing tool, called

tinyMCE shown in Figure 1, that included random

system delays between mouse and keyboard output.

Users were asked to perform a simple word-

processing task by creating a flier for the grand-

opening of a Coffee shop in the area. The Coffee

shop flier had to contain various formats, images,

and other information about the opening. The total

tasks to complete by the user were 25. At any time

during the study, users were given the option to skip

a task and go on to the next task if they did not want

to complete it. Users were asked to wear the Bio-Pac

harness device around their chest that gathered

heart-rate, skin temperature, posture, and various

breathing metrics every 4 milliseconds. In addition

to this, users were asked to be as vocal as possible

when working in the tool and fill out a post-study

survey that included a Likert scale to indicate their

overall experience with the tool.

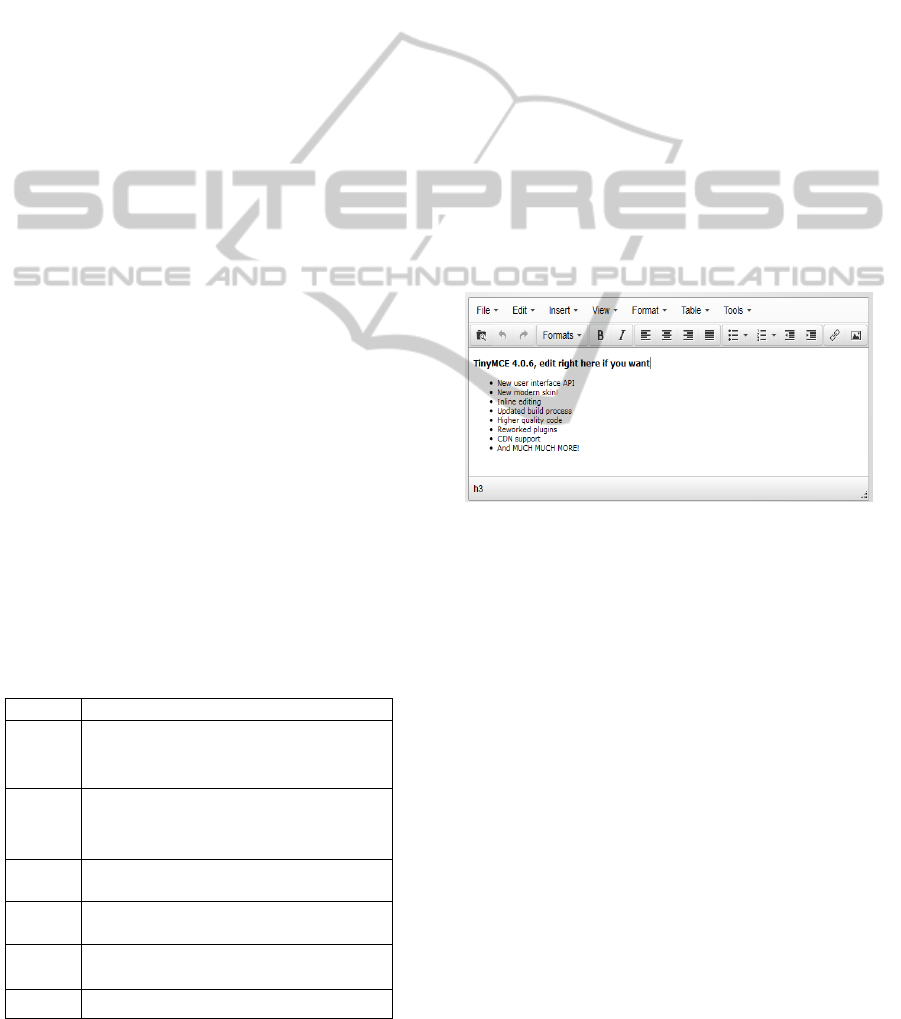

Figure 1: interface of modified word-processing tool.

Metrics captured during the study included:

 number of times a user skips a task

 number of typos

 consecutive number of typos

 number of formatting errors

 number of uncompleted tasks

 number of times student did not follow

directions

 time to complete study

 number of skipped tasks

 total number of intensities #1s, 2s, …, n where

intensities = [1 to n]

 total number of intensities that decreased task

performance

 total number of intensities that increased task

performance

 overall intensity for a 4ms

 overall intensity for a session

 number of intensities task performance

unchanged

PhyCS2015-2ndInternationalConferenceonPhysiologicalComputingSystems

Equation 2 & 3 was used to calculate the intensities

for the biosignals gathered by BioPac: heart rate,

skin temperature, blood pressure, and breathing

metrics. In order to combine these signals, a

normalization process was used to convert the

signals to the same scale. This transformation

insured that the intensities were within the same

range, between 0 and 5. Zero through five was

chosen because typical usability scale surveys

contain a Likert scale from 0 to five for participants

to label the amount of negative affect experienced

during a test.

4 RESULTS

Initially 44 subjects participated in the study;

however two of the individuals were excluded

because task performance data was missing or

incomplete. Therefore, there were 20 females and

22 males, aged 18-45. Average time to complete the

study was about 10 minutes. Only one participant

opted to skip a task and stick with the decision. 88%

of users experienced a higher “number of typos” and

“consecutive typos” than any other measure during

the study. The measures with the lowest numbers

were “number of skipped tasks” and “uncompleted

tasks”. These measures indicate users had the most

trouble with typing in the interface. However, users

did not seem to have trouble with formatting text or

adding images in the modified tool.

A majority of the users, 98%, experienced

frustration intensities between 1-3. Only one person

experienced an intensity of zero indicating no

frustration. Also, one participant in the study

experienced a frustration intensity of 4. He/she was

the oldest participant in the study at 45 years of age.

15%, of the subjects in the study experienced an

intensity, either from 1-3 that caused their task

performance to decrease. Interesting to note, 55% of

the users experienced an intensity that caused task

performance to remain unchanged; meaning it did

not decrease nor increase. Furthermore, 30% of the

users of the modified tool experienced an increase in

task performance.

Looking deeper at the category of subjects that

experienced unchanged task performance, 20 of the

42 participants experienced a frustration amount of 3

indicating a medium amount of frustration. Whereas,

only 13 of the 42 subjects experienced frustration

levels from 0-2; indicating minimal to no frustration.

Furthermore upon examining the category of

subjects that experienced increased productivity, 19

of the 42 subjects experienced medium frustration

and 23 of subjects experienced minimal to no

frustration. Lastly, analyzing the category of

subjects that experienced decreased performance

found that 31 of the 42 participants experienced a

low to medium amount of frustration (a calculated

intensity of 2 or 3).

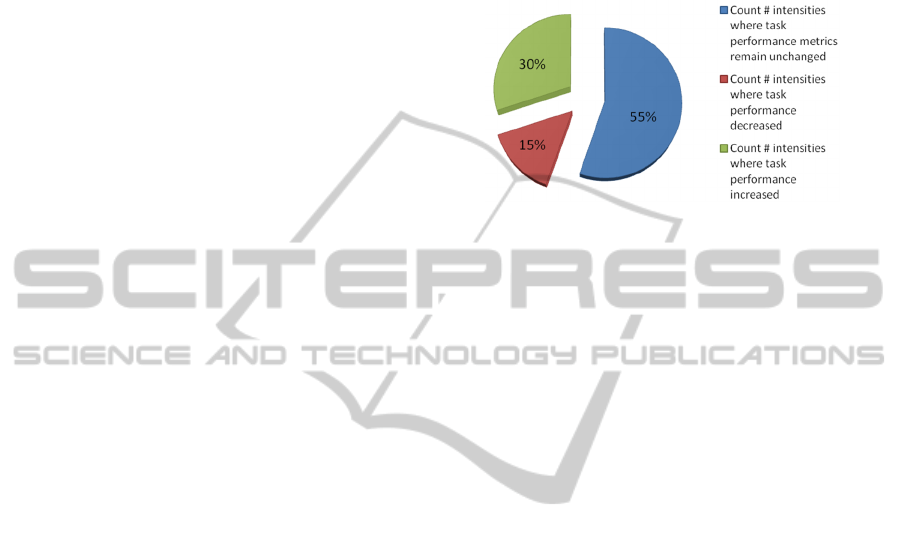

Figure 2: Count of intensities that caused productivity to

remain unchanged, decrease, or increase.

To test how well OCC’s computational model

was at determining a user’s overall experience with

a tool, we compared the overall session intensity

with the user feedback Likert-scale data. 85% of the

user-supplied Likert scale data agreed with the

overall session intensity calculated by our adapted

model.

5 DISCUSSION

Users in this study had more contact with electronic

devices due to the age of the population sampled.

The average age of the majority of participants was

30 years old. However, more than 50% of the

subjects studied were in their early twenties. Many

of them have had mobile devices since they were

teenagers. Their reactions to task-blockers are

somewhat different than an older population that has

not been accustomed to electronic devices most of

their lives. Furthermore, some of the subjects

adopted a competitive stance when it came to system

delays. Some of the comments from the participants

included “It’s easy. I’m used to the delays. I slowed

my work down to match the computer” and “I didn’t

let the delays bother me. I focused my time typing

rather than the output on the screen”. In addition,

some mentioned “the task was easy enough to

complete, so I didn’t let the problem bother me too

much”. Perhaps this phenomenon of wanting to beat

the system was expressed through their

physiological data and the intensities calculated by

the modified OCC model. One would assume that

higher intensities would result in decreased task

performance; however this was not the case in this

QuantifyingNegativeAffect-UsabilityTestingtoObservetheEffectofNegativeEmotionsonUserProductivityThrough

theUseofBiosignalsandOCCTheory

study. In fact, some users were able to experience

“low to medium frustration” without it negatively

affecting their performance. Perhaps this explains

the amount of subjects that experienced an increase

in task performance.

More research is needed to explore the

conditions necessary for a person to experience

technology- caused frustration or stress without it

negatively impacting productivity. Perhaps this

information could lead to adaptive interface

techniques that optimize a user’s productive time

based off of intensities calculated from OCC.

The modified OCC computational model in this

study uses an upper and lower bound to account for

a user’s normal behaviour while interacting with an

electronic device. However, this upper and lower

bound could be found through machine learning

techniques that account for outliers in physiological

signals caused by events external to a usability test.

6 FUTURE WORK

The study described in this paper will be run again

and combined with eye tracking data and mouse

pointer data to determine the widgets or

functionality that a person is interacting with in a

tool. We hope that this will identify aspects of the

user interface that need more refinement.

Furthermore, we hope that it yields more

information for user experience experts to draw from

in analyzing the results of a usability study. Along

with this, we will test the system with a wider

population with various age ranges. We hope that it

will help us discover differences in the way older

and younger individuals exhibit negative emotions

caused by technology and the conditions necessary

for increasing productivity in these populations.

Further in the future we will combine Hidden

Markov Models to determine the Upper and Lower

bound for the modified OCC computational model.

7 CONCLUSIONS

User experience researchers gather various kinds of

data including human physiological signals, task

performance metrics, and user feedback during/after

usability studies. This information helps usability

researchers improve the design of a tool by

understanding the various causes of technology-

induced negative emotions and the events that cause

a decrease in user productivity. In this study we

wanted to further examine the relationship between

task performance and negative emotions caused by

task-blocking system delays. We modified the

original OCC theory to include an upper and lower

bound for calculating the amount or intensity of a

negative emotion experienced by a user. We

examined how each calculated amount improves,

degrades, or does not affect productivity metrics.

The usability test from this work showed that users

can experience some amount of negative emotion

and not have it decrease their task performance.

From this study, we determined that more work

needs to be done to optimize the time a user is

productive, even if they are experiencing some level

of negative emotion. Lastly, we believe intensities of

negative emotions could give usability engineers

extra data to analyze when refining interfaces and/or

applications.

ACKNOWLEDGEMENTS

This work was funded through a grant from the

Booz Allen Hamilton Center of Excellence. Any

opinions, findings, and conclusions or

recommendations expressed in this material are

those of the author and do not necessarily reflect the

views of Booz Allen Hamilton, Incorporated.

REFERENCES

Bessiere, K. A Model for Computer Frustration: The Role

of Instrumental and Dispositional Factors on Incident,

Session, and Post-Session Frustration and Mood.

Computer in Human Behavior, 2006, 941-961.

Bessiere, K ., Ceaparu, I., Lazar, J., Robinson, J., and

Shneiderman, B. Understanding Computer User

Frustration: Measuring and Modeling the Disruption

from Poor Designs. HCIL Lab Day 2002, Technical

Report No. 4409, HCIL-2002-18 2002.

BioPac. BioHarness Data Logger Telemetry System

AcqKnowledge. 2010

http://www.biopac.com/bioharness-data-logger-

telemetry-system-acqknowledge.

Ceaparu, I., Lazar, J., Bessiere, K., Robinson, J., and

Shneiderman, B. Determining Causes and Severity of

End-User Frustration. International Journal on HCI,

2004.

Dicks, S. R. Mis-Usability: On the Uses and Misuses of

Usability Testing" International Conference on

Computer Documentation. 2002, 26-30.

Elliott, Clark. Using the Affective Reasoner to Support

Social Simulations. International Joint Conferences on

Artificial Intelligence. 1993.

PhyCS2015-2ndInternationalConferenceonPhysiologicalComputingSystems

Freud, S. Beyond the Pleasure Principle. London: Hogarth

Press, 1922.

Ghahramani, Z. An Introduction to Hidden Markov

Models and Bayesian Networks. International Journel

of Pattern Recognition and Artificial Intelligence.

15(1), 9-42. 2001.

Hazlett, R. Measurement of User Frustration: A Biological

Approach. CHI2003, Conference on Human Factors in

Computing Systems. 2003. 734-735.

Hernandez, J., Paredes, P., Roseway, A. and Czerwinski,

M. Under Pressure: Sensing Stress of Computer

Users. CHI2014, International Conference on Human

Factors in Computing Systems. 2014.

Katsionis, G. and Virvou, M. Adapting OCC Theory for

Affect Perception in Educational Software. HCI2005,

2005.

Klein, J., Moon, Y., and Picard, R.W. This Computer

Responds to User Frustration: Theory, Design, and

Results. Interacting with Computers 14, 2 (2001), 119-

140.

Modapt, Inc. and Morrissey & Co. Modapt, Inc./Morrissey

& Company Mobile Survey,

http://www.modapt.com/wp-

content/pdfs/Survey_Results_11Aug2011.pdf.

Moxiecode Systems AB. TinyMCE. 2011.

http://tinymce.moxiecode.com.

Ortony, A., Clore G.L., and Collins A.. A Cognitive

Structure of Emotions. Cambridge University Press,

1988.

Picard, R.W. Affective Computing. Cambridge: MIT Press,

1997.

Picard, R. and Daily, S. Evaluating Affective Interactions:

Alternatives to Asking What the Users Feel. CHI2005,

CHI Workshop on Evaluating Affective Interfaces:

Innovative Approaches, 2005.

Picard, R. W. and Klein, J. Computers that Recognize and

Respond to User Emotion: Theoretical and Practical

Implications. MIT Media Lab Tech Report: 538.

2003.

Rajendran, R. Automatic Identification of Affective States

Using Student Log Data. AIED’11, Proceedings of the

International Conference on Artificial Intelligence

in Education, 2011, 612-615.

Riseberg, J. Frustrating the User on Purpose: Using Bio-

signals in a Pilot Study to Detect the User's Emotional

State. CHI2008, Conference on Human Factors in

Computing Systems. 1998.

Scheirer, J. Frustrating the User on Purpose: A Step

Toward Building an Affective Computer.2001.

Sherer, K.R., Schorr, A. Ed. Appraisal Processes in

Emotion: Theory, Methods, Research. Oxford

University Press, 2001.

Ward, Robert D., and Philip H. Marsden. "Physiological

responses to different web page designs." International

Journal of Human-Computer Studies 59.1 (2003): 199-

212.

Westerman, S.J., Gardner, P.H., Sutherland, E.J.

Taxonomy of Affective Systems Usability Testing

Report. Institute of Physiological Sciences, University

of Leeds. 2006.

Yuan, Qi & Picard, R.W. Context-sensitive Bayesian

Classifiers and Application to Mouse Pressure Pattern

Classification. MIT Media Lab Tech Report, TR-553.

2013.

QuantifyingNegativeAffect-UsabilityTestingtoObservetheEffectofNegativeEmotionsonUserProductivityThrough

theUseofBiosignalsandOCCTheory
