Automatic ROI for Remote Photoplethysmography using PPG and Color

Features

Elisa Calvo-Gallego

and Gerard de Haan

Instituto de Microelectr

onica de Sevilla (IMSE-CNM), CSIC-University of Seville, Seville, Spain

Eindhoven University of Technology, Eindhoven, The Netherlands

Keywords:

Biomedical Monitoring, Photoplethysmography (PPG), Image Analysis, Skin Detection, Fuzzy Logic.

Abstract:

Remote photoplethysmography (rPPG) enables contact-less monitoring of the blood volume pulse using a

regular camera, thus providing valuable information about the cardiovascular system. However, the quality

of the acquired rPPG signal is strongly affected by the region of skin where the analysis is carried out and,

therefore, to be conﬁdent of obtaining valid information, a pre-selection of the region-of-interest (ROI) for

the PPG analysis is necessary. In this paper, we propose a method for the automatic extraction of this ROI

combining the local characteristics of the PPG-signal with the color information using fuzzy logic. Results of

the quality of the ROI extraction and its application on pulse rate detection are provided.

1 INTRODUCTION

Photoplethysmography (PPG) is an optical technique

that allows monitoring of vital signals, such as pulse

or respiratory rate, from the optical absorption varia-

tions of the human skin caused by the blood volume

variations during the cardiac cycle.

The ﬁrst reference to this technique dates from

1930s (Hertzman, 1937), when the ﬁrst characteri-

zations of the PPG signals, the capture of the ﬁrst

recordings from human ﬁngers and the ﬁrst measures

of blood volume changes from PPG signals in diffe-

rent situations, like exercise and exposure to cold of

the subject, were carried out and published. At the

time, the origin of the different components of the

PPG signal were only partially understood. Howe-

ver, it was generally accepted that they could provide

valuable information about the cardiovascular system

and, consequently, research on this topic continued.

It was not until 1980s when many of these advances

gave rise to the creation of a commercial device, a

pulse-oximeter, which greatly increased the relevance

of these studies in clinical care (Allen, 2007).

Due to its low-cost and its non invasiveness,

efforts to develop PPG have been multiplied recently,

following mainly two lines of research. On one hand,

the desire of preventing contact in extreme sensiti-

vity cases (e.g. neonates, patients with burns) or si-

tuations requiring strict unobtrusiveness (e.g. surveil-

lance, ﬁtness) and the ambition of removing the sen-

sitivity to the varying force or pressure of the probe

on the skin, has promoted the evolution towards re-

mote PPG (rPPG) (Huelsbusch et al., 2002),(Takano

et al., 2007). On the other hand, studies in ambient

light conditions using regular video cameras have

been done to replace dedicated light sources (typically

red/infra-red wavelength), initially used as a result of

a shallower penetration depth in skin (Verkruysse et

al., 2008).

The quality of the acquired rPPG signal is strongly

affected by the subject motion, the region and type of

skin (deﬁned mainly by its thickness and its color, in

turn determined by the concentration of melanin in

the epidermis and the concentration of hemoglobin in

the dermal blood vessels) and the illumination.

Many studies have been aimed at increasing the

robustness against motion and changing illumination

conditions. This is where the use of an RGB-video

camera is advantageous, as it simultaneously pro-

vides multiple color channels with different PPG and

noise mixtures. To retrieve the desired clean sig-

nal from the observed set without prior information

about the mixing process, Blind Source Separation

(BSS) techniques have been used for decades in this

kind of physiological measurement applications e.g.

in multi-channel electroencephalogram and electro-

cardiogram (Glass, 2004). Indeed, motion robust

methods to ﬁnd the pulse-signal, i.e. the pulsatile

component of the PPG, from video using BSS have

been described in (Huelsbusch et al., 2002), (Poh et

357

Calvo-Gallego E. and de Haan G..

Automatic ROI for Remote Photoplethysmography using PPG and Color Features.

DOI: 10.5220/0005259003570364

In Proceedings of the 10th International Conference on Computer Vision Theory and Applications (VISAPP-2015), pages 357-364

ISBN: 978-989-758-089-5

 2015 SCITEPRESS (Science and Technology Publications, Lda.)

al., 2010), or (Lewandowska et al., 2011). A diffe-

rent, chrominance-based, approach was used by (de

Haan et al., 2013) who assumed non-local intensity-

variation and specular reﬂection to cause the main

distortions. Furthermore, they assumed a constant

standardized skin-color, which enabled them to con-

struct a linear combination of the normalized mean

skin-color signals orthogonal to the assumed distor-

tions regardless the color of the illumination. This eli-

minated the periodicity-based component-selection of

BSS-based methods, which performed poorly on ﬁt-

ness videos with their strong periodic subject motion.

To segment the relevant skin regions for remote-

PPG, however, not much progress has been docu-

mented. The majority of the publications need a seg-

mentation of the ROI, either manually or, using a face

detector which involves an increase of computational

complexity, a limitation of the part of skin that can be

detected, or the necessity of an initialization or perio-

dic reset process (Lempe et al., 2013).

At this point, this paper aims to contribute by

proposing an automatic ROI-detection in a video

sequence for remote PPG analysis. This goal is

achieved with a system (Fig. 1) that uses the output

of the pursued application (the PPG analysis), combi-

ning it with other input (the color, speciﬁcally the hue

component), to detect the pixels belonging to human

skin (that is, the ROI). The idea is that, in a later pro-

cessing stage, from this skin template, the performed

PGG analysis or the conclusions obtained from it can

be ﬁltered, modiﬁed or/and improved and, to demon-

strate it, a simple system for automatically obtaining

the pulse rate of a person in a video sequence is pre-

sented. Since the inputs of the proposed system are

already required by the application, the added compu-

tational complexity is low (barely some comparators

and multipliers).

The reason to combine the different kinds of in-

formation is mainly to reinforce the classiﬁcation pro-

cess made by systems based on a single feature, owing

to the fact that, as a result of the already mentioned

problems to acquire a good PPG signal under cer-

tain scenarios and to similar circumstances with the

color, decisions taken in those process could be wrong

or undetermined. Due to that imprecise nature of

data, fuzzy logic inference systems have been con-

sidered for the mixture. They are universal interpola-

tors which allow to perform any non-linear mapping

Figure 1: Block diagram of the proposed system.

between the input and output space.

The paper is organized as follows. In Sections II

and III, the methods for the calculation of the inputs of

the fuzzy system as well as the reasons for its choice

are brieﬂy explained. Section II is focused on rPPG

signals and information obtained from them whereas

Section III is centered on the acquisition of chromatic

information of the image. Section IV describes the

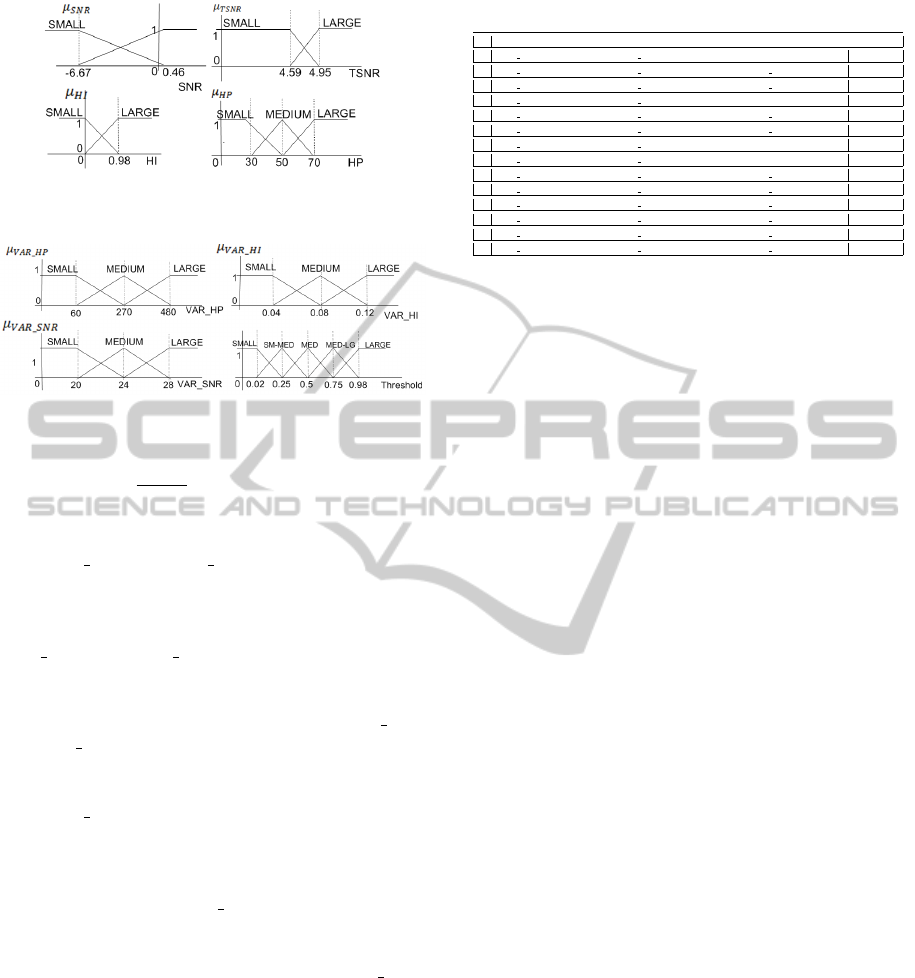

proposed fuzzy system for skin detection. This sys-

tem is composed by two rule-bases whose functio-

nality is to calculate the probability of belonging to

a skin fuzzy set (ﬁrst rule base) and to adjust dyna-

mically the threshold for a ﬁnal binarization process

(skin/non-skin) (second rule base). Assessment de-

tails and simulations results are summarized in Sec-

tion V and VI. The obtained conclusions are exposed

in Section VII.

2 PPG PROCESSING

The ﬁrst feature for skin-detection extracted from the

video sequence is based on an analysis of PPG signals

in the frequency domain.

PPG signals are obtained using the chrominance-

based method of (de Haan et al., 2013) since this con-

cept has demonstrated a relevant improvement on mo-

tion robustness against earlier proposed blind source

separation techniques. Our system, illustrated in Fig.

2, adds a true-motion estimation block to achieve

pixel alignment ((de Haan et al., 1994),(de Haan,

2010)). Later, a 2048 point Fast Fourier Transform

(FFT) is applied on the Hanning windowed PPG sig-

nals and a peak detection and a signal-to-noise rate

calculation are carried out in the signals.

The position of the maximum peak of the sig-

nal provides the pulse rate (P), that is, the rate of

heart contractions, measured in beats/min. Since, for

adults, this value lies between 30 beats/min (in case

of a well trained athlete, in rest) and 240 beats/min

(in case of an person at maximum level exercise), the

peak detection is limited to that frequency interval.

The signal-to-noise rate (SNR) provides the rela-

tion between the energy around the fundamental fre-

quency plus the ﬁrst harmonic of the pulse signal and

the remaining energy contained in the spectrum. It is

computed using Eq. (1), where harmonics of the spec-

trum of the PPG signal (denoted as

S( f )) are isolated

using unitary templates around them (U

( f )).

SNR = 10 ∗ log

(

∑

240

( f )

S( f ))

∑

240

((1 −U

( f ))

S( f ))

) (1)

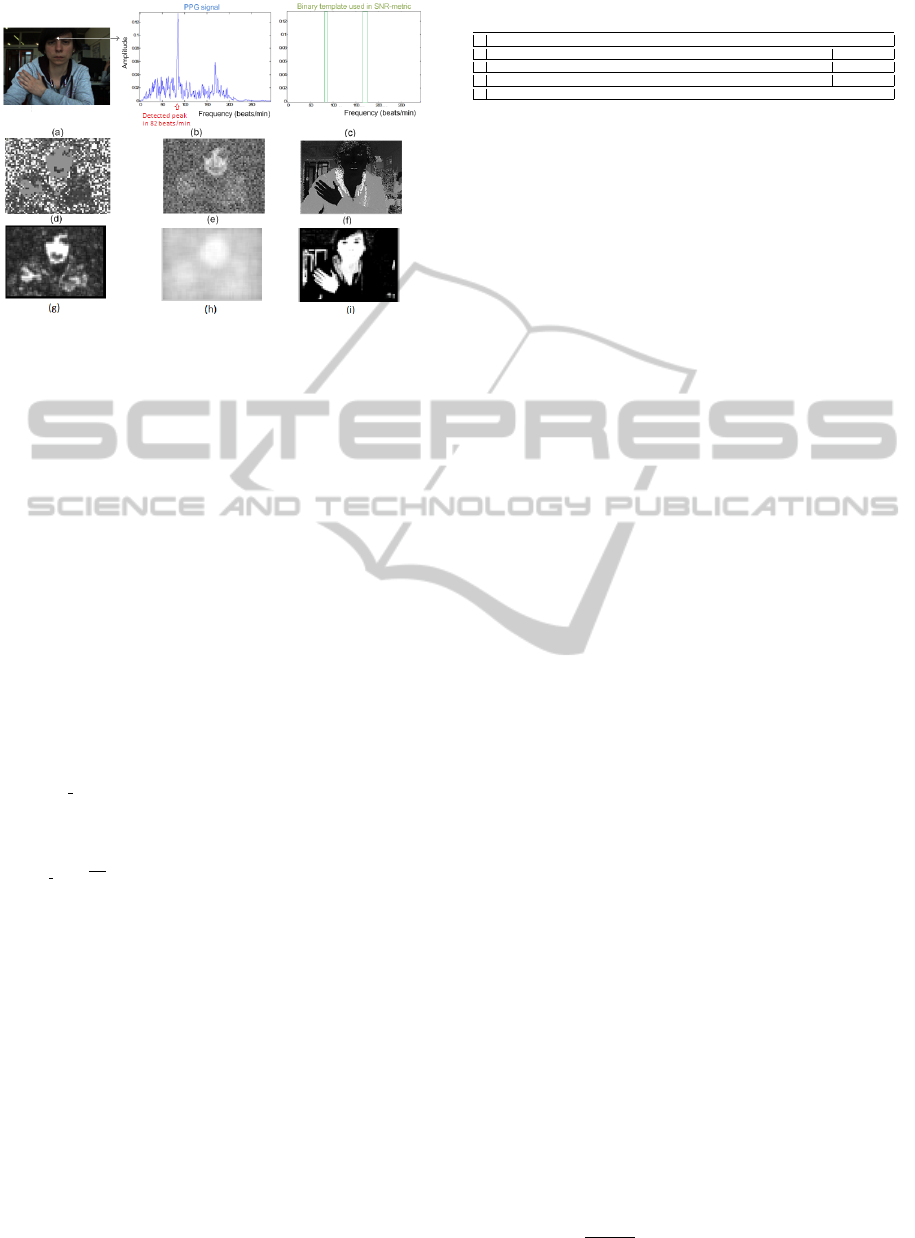

In Fig. 3.b, an example of a PPG signal in the fre-

quency domain calculated in one pixel of the example

VISAPP2015-InternationalConferenceonComputerVisionTheoryandApplications

358

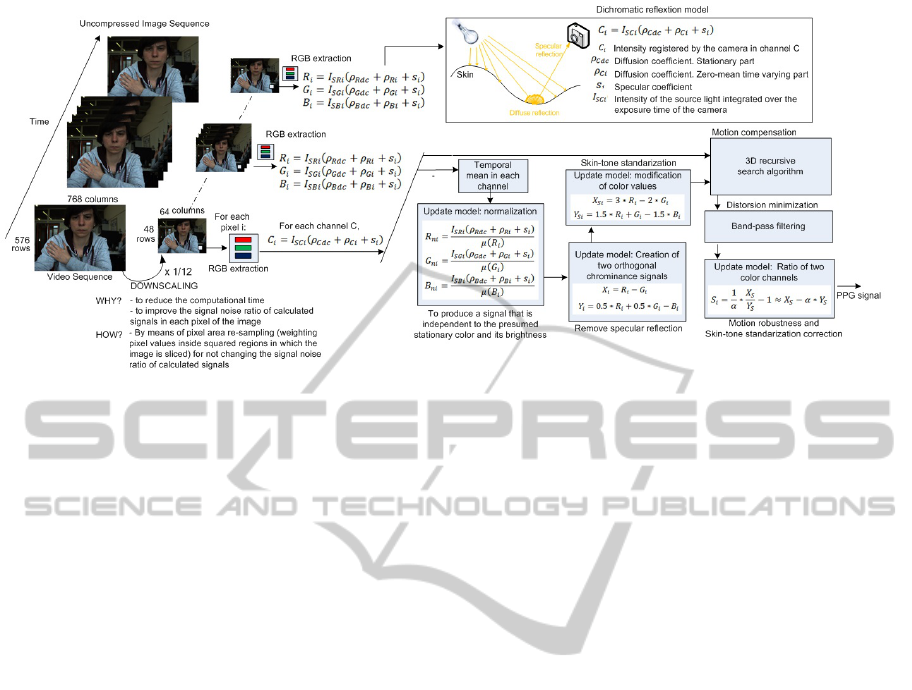

Figure 2: Flowchart of considered PPG signal extraction.

frame is shown. The values of detected P and SNR

in the whole image are shown in 3.d and 3.e, where

brighter pixels indicate higher values of these magni-

tudes. It can be recognized that skin pixels have a re-

latively high SNR (up to 10 dB) and a valid pulse rate

value (in this case, 82 beats/min). In pixels where

SNR and pulse rate values are not the expected, for

example in the neck, it is considered that the PPG sig-

nal has not been acquired with sufﬁcient quality.

The appreciable homogeneity of these magnitudes

in the skin regions leads to the deﬁnition of other two

measures as inputs of the system:

• Uniformity of the pulse rate (HP): A 3 x 3 win-

dow is considered around each pixel of P to calcu-

late the number of pairs in that window in which

differences between pulse rate values exceed a

threshold (Eq. 2 and 3, being Thp=5). This allows

us to measure the uniformity of P, checking how

many pixels are substantially equal in the neigh-

borhood. The values of this matrix are between 0

and 81. As shown in Fig. 3.d, pulse rate values are

equal or homogeneous in skin regions. For that

reason, HP matrix (Fig. 3.g) has higher values in

skin areas than in non skin areas.

i j

j+1

∑

v= j−1

i+1

∑

u=i−1

j+1

∑

s= j−1

i+1

∑

r=i−1

(d(u, r, v, s)) (2)

d(u, r, v, s) = 1 i f abs(P(u, v) − P(r, s)) ≥ T h

(3)

d(u, r, v, s) = 0 i f otherwise

The computational cost of this equation can be

reduced removing (v,u) = (s,r) pairs and (r,u,s,v)

combinations.

• Uniformity of SNR (TSNR, values in natural

units): The texture of the SNR values in a 9 x 9

neighborhood centered in each pixel is calculated

by means of an entropy ﬁlter. It has been com-

puted using the ‘entropyﬁlt’ instruction of Matlab

whose theoretical base is Eq. (4), where p(u,v)

is the probability of (u,v) value in the conside-

red sub-histogram. TSNR values normally fall

between 0 and 10, being lower when the tex-

ture of that SNR sub-matrix is less random, this

means softer in changes. For that reason, values

are higher in points where PPG signal is detected,

i.e. in skin areas. An example of TSNR matrix is

shown in Fig. 3.h.

T SNR

i j

j+4

∑

v= j−4

(

i+4

∑

u=i−4

(p(u, v) ∗ log

(p(u, v)))) (4)

3 COLOR PROCESSING

The majority of methods proposed in the literature

for skin detection are based on color, texture, or ap-

pearance features. In general, the major drawbacks

of many textures and object detection methods like

face-detectors are that they can not deal with different

skin-regions, partial occlusion or changes in the ob-

ject position or scale, moreover their computational

complexity is high. Consequently, our search for fea-

tures to complement the PPG-signal has focused on

color methods that, in many situations, allow to over-

come these kind of problems ((Kelly et al., 2008)-

(Kakumanu et al., 2007)). One of the simplest pos-

sible options, a thresholding of the hue component of

the image (Fig. 3.f), was initially selected as as mea-

sure of interest for the considered system. Later, to

work with a more reliable measure, also an index of

hue homogeneity was calculated as follows (Fig. 3.i):

AutomaticROIforRemotePhotoplethysmographyusingPPGandColorFeatures

359

Figure 3: (a) Example frame, (b) PPG signal in frequency

domain for a pixel belonging to forehead, (c) Binary tem-

plate window for calculating SNR in case (b), (d) P, (e)

SNR, (f) Hue component, (g) HP, (h) TSNR, (i) HI.

• Hue index (HI): In the whole image, the hue (H)

and the uniformity of the hue (HH) in each pixel

are evaluated. HH is calculated in the same way

that it was previously done with pulse rate (Eq.

2). If both measures are in a speciﬁc range (Eq.

5, where T h

= 0.1, T h

= 0.95 and T h

= 60)

it is considered that this pixel belongs to skin and

the HI

nds

acquires ’1’ value in that pixel. Oth-

erwise, a zero value is assigned to it. After that,

a downscaling process is done over HI (Eq. 6,

where n=12) as it was done with the original

image in Fig. 2. The values of this ﬁnal matrix are

between 0 and 1, being values closer to ’1’ when

the probability of skin in that pixel is higher.

nds i j

= [(H

i j

< T h

)||(H

i j

> T h

)] ◦ (5)

[HH

i j

> T h

]

ds i j

j∗n

∑

v=( j−1)∗n−1

(

i∗n

∑

u=(i−1)∗n−1

nds

(u, v)) (6)

4 FUZZY SYSTEM

The contribution presented in this paper is a hierar-

chical system composed by two rule-bases.

The ﬁrst rule base combines, in each pixel, HP,

HI, TSNR and SNR to provide a value in the interval

[0,1] that indicates the probability of belonging of a

pixel to the skin or, in other words, the membership

grade to a skin fuzzy subset. While closer to ’1’, the

belonging to skin will be higher. The set of IF-THEN

rules that deﬁnes this subsystem is shown in Table 1.

It has been deducted from the following principles,

obtained analyzing the inputs of the system.

Table 1: Fuzzy skin detection rule base.

ID IF ANTECEDENTS THEN CONSEQ

1 HI = LARGE AND HP = LARGE SKIN

2 HI = LARGE AND TSNR = LARGE SKIN

3 HI = SMALL AND HP = LARGE AND TSNR = LARGE AND SNR = LARGE SKIN

3 OTHERWISE NON-SKIN

• Normally, color information is more reliable than

PPG information. However, it is insufﬁcient for

reliable classiﬁcation.

• False positive cases in a classiﬁcation process

based only on HI matrix are mainly due to noisy

dark areas and some red areas such as clothes or

the mouth of the person. They can be reduced

corroborating HI decision with some other inputs:

HP or TSNR. If HI is large and, either HP or

TSNR are large, the output should be skin. SNR

is not used in these situations since it is very de-

pendent on the the quality of the acquired signal.

• False negative cases in a classiﬁcation process

based only on HI matrix results occur, e.g. when

there are highlights in the face of the person. They

can be reduced if, in case HI was small, HP, TSNR

and SNR are all large.

As this heuristic knowledge does not provide

enough information to determine the values that de-

ﬁne the fuzzy sets of the antecedents, a tuning process

has been employed to adjust them, using the well-

Known supervised learning Marquardt-Levenberg al-

gorithm within of the fuzzy system development en-

vironment Xfuzzy 3.3 (Xfuzzy WebPage). Typical

values in the literature have been selected as ini-

tial value for the Hessian addition (0.2) and the in-

crease/decrease adaptation factors (2 and 0.2, respec-

tively). The training has been performed with some

prepared ﬁles, composed by sets of inputs/output

patterns generated for one or several video test se-

quences. The ﬁnal considered fuzzy sets for each in-

put variable are shown in Fig. 4. The fuzzy mean has

been chosen as defuzifﬁcation method, generating the

output of the system as the mean of the consequent

values (deﬁned by two singleton fuzzy sets in zero

and one), weighted by its activation grade.

The second rule base allows to calculate dynami-

cally the threshold used in the ﬁnal binary classiﬁca-

tion into skin and non-skin sets. The inputs to this

rule-base are three indexes that measure the quality of

the types of information by means of the variance of

its values in each frame, being it calculated according

Eq. 7 and 8 (nc is the number of columns of the frame

and nf is the number of rows of the frame). These in-

puts are represented using fuzzy sets whose member-

ship grade are shown in Fig. 5.

V =

nc ∗ n f

n f

∑

v=1

(

∑

u=1

− µ)

) (7)

VISAPP2015-InternationalConferenceonComputerVisionTheoryandApplications

360

Figure 4: Fuzzy skin detection rule-base: Membership

functions for the fuzzy sets.

Figure 5: Fuzzy threshold calculation: Membership func-

tions for the fuzzy sets.

µ =

nc ∗ n f

n f

∑

v=1

(

∑

u=1

) (8)

In these sets, the variances of the SNR and HP va-

lues (VAR SNR and VAR HP, respectively) are small

when few pixels have a high value of these magni-

tudes. This can be why, either skin regions are small

or the quality of the acquired PPG signals is not good.

VAR SNR and VAR HP are medium when, either

the quality of the acquired PPG signals is medium

or there are regions with very good quality and re-

gions with very bad quality. And, ﬁnally, VAR SNR

and VAR HP are large when the quality of the PPG

input is usually good and region is medium in size.

With the last input, the variance of the hue index va-

lues (VAR HI), the followed reasoning is similar. It is

small when, in few pixels, there is a dominant color

in the red range and as before, this can be why, either

skin regions are small or the quality of hue compo-

nent is not good. If VAR HI is medium, it can be

considered that the quality of hue is good although it

also happens that red areas have been detected in the

image but not in the correct position. If VAR HI is

large, either the skin areas are large or the number of

red range false positive cases in the image is high.

Taking these ideas into account, in general, when

the value of these three indexes are small, the output

of the ﬁrst rule base is less deﬁned, that is, it is closer

to zero. Then, threshold should be also small. If one

or several indexes are high, the value of the threshold

will increase, but when the three indexes are high, the

subject in the image is usually taken the whole image

up. In this case, it is necessary to decrease the value

of the threshold. This knowledge has been expressed

using the rule set shown in Table 2.

Table 2: Fuzzy threshold calculation for binarization.

ID IF ANTECEDENTS THEN CONSEQ

1 VAR HI = SMALL AND VAR SNR = SMALL SMALL

2 VAR HI = SMALL AND VAR SNR = MEDIUM AND VAR HP = SMALL SMALL

3 VAR HI = SMALL AND VAR SNR = MEDIUM AND VAR HP = LARGE MEDIUM

4 VAR HI = SMALL AND VAR SNR = LARGE MED-LG

5 VAR HI = MEDIUM AND VAR SNR = SMALL AND VAR HP = SMALL SM-MED

6 VAR HI = MEDIUM AND VAR SNR = SMALL AND VAR HP = MEDIUM MEDIUM

7 VAR HI = MEDIUM AND VAR SNR = MEDIUM MEDIUM

8 VAR HI = MEDIUM AND VAR SNR = LARGE MEDIUM

9 VAR HI = LARGE AND VAR SNR = SMALL AND VAR HP = SMALL SM-MED

10 VAR HI = LARGE AND VAR SNR = MEDIUM AND VAR HP = SMALL MEDIUM

11 VAR HI = LARGE AND VAR SNR = MEDIUM AND VAR HP = MEDIUM MEDIUM

12 VAR HI = LARGE AND VAR SNR = MEDIUM AND VAR HP = LARGE MED-LG

13 VAR HI = LARGE AND VAR SNR = LARGE AND VAR HP = MEDIUM LARGE

14 VAR HI = LARGE AND VAR SNR = LARGE AND VAR HP = LARGE MEDIUM

The output variable has been deﬁned by means of

ﬁve fuzzy sets which has been also shown in Fig.5.

As in the ﬁrst subsystem, the fuzzy mean algorithm

has been used as defuzziﬁcation method.

5 SETUP AND VIDEO DATABASE

A 768 x 576 pixels, 8-bit, global shutter RGB CCD

camera (type USB UI-2230SE-C of IDS Gmbh) with

a ﬂexible C-mount lens (Tamron 12VM412ASIR),

operated at 20 frames/s, has been used for recording

some videos to test the system. The duration of the

video recording was set to 2 min and uncompressed

data were stored. Subjects were asked to sit and re-

lax for 2 min prior to the recording to ensure a stable

pulse rate. Also, they were asked to remain stationary

for the duration of the recordings.

A total of 22 video sequences with 18 people with

different skin-types have been used in the ﬁnal tests.

The followed nomenclature for identifying the men-

tioned recordings is: L1-L2N, where L1 is I, II, III,

IV or V (roughly estimated skin-type on Fitzpatrick

scale), L2 is M, or F (Male, or Female subject), and N

is the number of recordings of this type that have been

captured. Following this terminology, V-M1 means

the ﬁrst sequence registering a male subject having an

estimated skin-type V on Fitzpatrick’s scale.

6 SIMULATIONS RESULTS

Fig. 6 shows some examples of sequences that have

been processed. The ﬁrst seven rows describe the be-

havior of the ﬁrst rule-base. Examining them, it is

possible to extract mainly three conclusions:

• Both, PPG information and hue information, play

an important role in the system. In I-M1 and I-F1

video sequences, for example, it is the PPG input

which provide more conﬁdent information since a

bad hue index detection has been done as a result

AutomaticROIforRemotePhotoplethysmographyusingPPGandColorFeatures

361

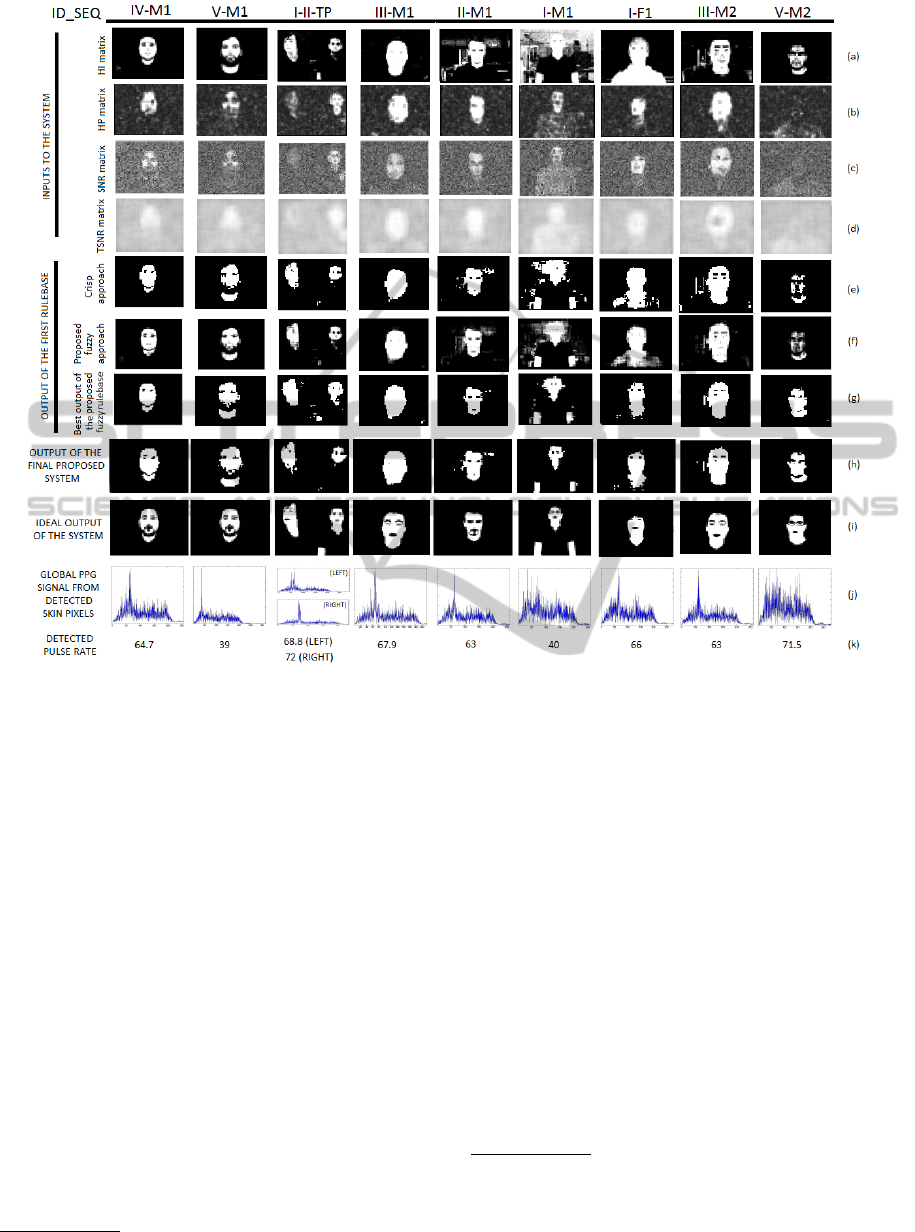

Figure 6: (a)-(d) Inputs of the ﬁrst rule-base, (e) Output of the crisp approach for the ﬁrst rule-base (f) Fuzzy output of

the ﬁrst rulebase (g) Best output of the ﬁrst rule-base calculated by means of the true and the false success rate trade-off

in the performed classiﬁcation (See ROC Curves (Oberti et al., 1999)) (h) Output of the proposed ﬁnal system (i) Ideal

hand-segmented output of the skin detection system (j) Global PPG signal in the image (k) Detected pulse rate from (j).

of red colors clothes and noise. In other cases, ho-

wever, such as V-M2, magnitudes obtained from

PPG signals have low values (skin shapes are not

visually appreciated) and, consequently, a deci-

sion about this pixel is hard based on this type

of information. In these cases, the input related

with hue is decisive and it is able to improve the

output of the system up to provide an acceptable

result in skin detection. Despite all, among these

cases, there are situations, as happens in IV-M1,

where PPG input can slightly improve the output

that provide only the hue input, for example, hel-

ping in the detection of eyes. An example where

both kind of input signals are good is II-M1.

• The inﬂuence of fuzzy logic in the system is rele-

vant. It can be easily corroborated comparing the

rows (e) and (f) of Fig. 6. In I-M1, I-F1 and V-

M2, specially, fuzzy logic improves signiﬁcantly

results of crisp approach

Unlike the fuzzy approach in which a element can be-

• The performance of this ﬁrst rule-base is good

since, in the ﬁgures of the row (f) it is already pos-

sible to distinguish visually the skin of the image,

which, in a perfect detection, should be equal to

the ﬁgures shown of the row (i). However, in cases

such as I-F1 or I-M1, the necessity to establish a

good threshold that changes dynamically with the

video sequences, is appreciated. With that desired

threshold value, the output of the system would be

similar to the ideal output (See rows (g) and (i)).

The performance of the second rule-base (it pro-

vides the searched threshold) has been evaluated

numerically, comparing the best and the calculated

threshold value. In 13 of the 22 processed video se-

quence, the committed error was less than 0.1. Al-

though in the majority of the rest of the sequences the

long to several sets with different membership grade, in the

crisp approach, each element can only belong to one set. In

this work, the limit between sets has been established as the

middle point of the parameters of the fuzzy set. The output

of the system in this case is obtained using a decision-tree.

VISAPP2015-InternationalConferenceonComputerVisionTheoryandApplications

362

error is a bit larger (between 0.15 and 0.25), this error

do not have too much inﬂuence on the output of the

system (see (h) and (i) rows of Fig.6). There are only

two cases, III-M1 and I-II-TP, where the error is re-

levant (around 0.45). In them, the difference between

the desired and the real output is signiﬁcant.

The last two rows of Fig.6 show the results of

an simple example in which a global PPG signal has

been obtained from each set of extracted connected

skin pixels in the image. To achieve it, after the skin

detection carried out with the proposed system, a con-

nected component labeling (CCL) algorithm has been

also applied to discriminate between the different sub-

jects in the image, for example, in case of I-II-TP.

Later, the global signal for each blob is calculated,

choosing for each frequency value of the new signal,

the most frequent value in that frequency among all

the skin pixels belonging to that blob. Choosing the

mode value, although the signal was not good in all

the pixels of the skin, the detection will be right and,

as a result of it, the shape of the obtained global PPG

signals is very similar to the shape of a signal obtained

in a pixel belonging to the forehead of each subject

using (de Haan et al., 2013). Finally, a peak detection

is made in that global signal, allowing to obtain auto-

matically the pulse rate value of each person. Except

in case I-M1, in which the highest found peak (in 40

Mhz) doesn’t correspond to the actual pulse rate (in

72.5 MHz), the pulse rate value is correctly detected

with the proposed system.

6.1 Comparison with Other Techniques

The original idea to use rPPG for performing a

high level task like skin-detection was ﬁrst shown in

(Schmitz, 2010) and claimed in (US 8542877, 2010).

Apart from the presented contribution, other work

where this method is used has been published recently

(Gibert et al., 2013). In it, the estimation of pixels

belonging to skin from a presence/absence of heart

rate index, which is calculated using the mean and the

maximum spectral power of the PPG signal in each

region of the image, is addressed. Later, a cleaning

processing of false detections is carried out, removing

ROIs that are not surrounding by others ROIs with a

valid heart rate value and including ROIs in the neigh-

borhood of well-detected ROIs whose difference of

pulse rate value with the true value was less than 3

beats per minute. Although (Gibert et al., 2013) did

not propose subsequent use for improving the PPG

analysis, in our benchmarking of the proposed sys-

tem, pulse rate detection has been also carried out

with an implementation of the (Gibert et al., 2013)

method, as it was done in the previous section with

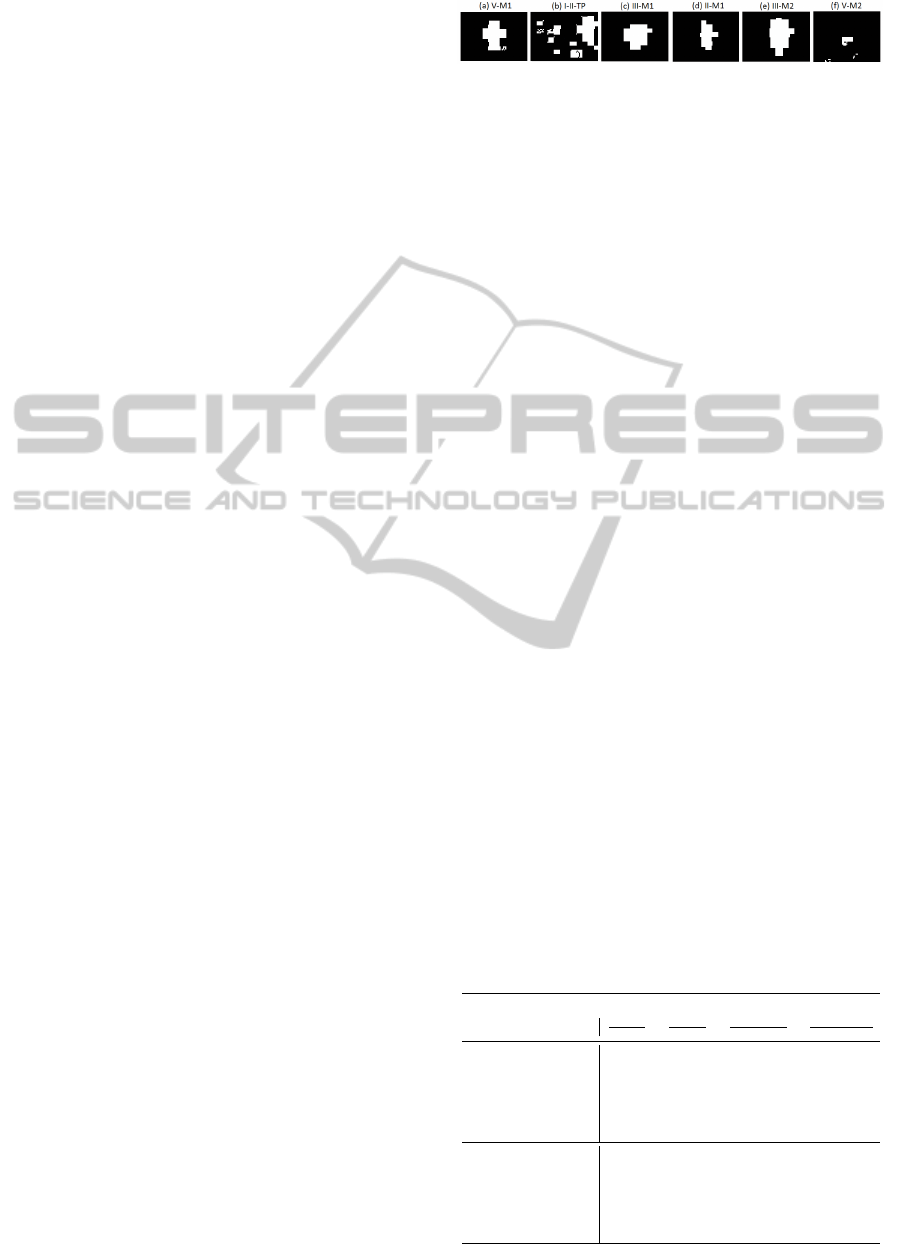

Figure 7: Skin detection achieved by the (Gibert et al.,

2013) implementation.

the proposed system. The used implementation of the

Fast ICA algorithm needed to obtain the PPG signal

in that algorithm has been found in (Delorme’s Web-

Page). To get a fair comparison, the duration of the

considered analysis window has been 60 sec. whereas

the used ROI dimensions have been (12 x 12).

Fig. 7 shows the resulting skin detection. As it can

be appreciated visually, comparing this ﬁgure with re-

sults in Fig. 6, the proposed system improves the at-

tained resolution and deﬁnition of the pieces of skin

in addition to increase the detection index (for exam-

ple, in cases I-II-TP or V-M2). To support this visual

impressions, Table 3, which gathers some quantita-

tive measures of the quality of the skin extraction, has

been also included. In addition to the true positive

and negative rates (TPR and (1-FPR), respectively),

this table shows values of other two overall measures,

similarity and F-Measure, to also prove the improve-

ment of the proposed system. As a result of this bad

skin extraction with some sequences, the pulse rate

detection is not so good. In some cases, such as I-

II-TP, there is no peak for making the pulse rate de-

tection, whereas in some other cases, e.g. V-M1 and

V-M2, an incorrect peak is being detected.

7 CONCLUSIONS

The main contribution of our paper is a low-cost sys-

tem for increasing the robustness of an earlier pro-

posed pulse rate detector based on remote photo-

plethysmography. The system combines, by means of

fuzzy logic, PPG and hue features in a video sequence

Table 3: Quantitative quality measures of the skin ex-

traction. TN/TP = True negative/positive classiﬁed pixels,

FN/FP = False negative/positive classiﬁed pixels.

TPR 1-FPR Similarity F-Measure

T P

T P+FN

T N

T N+FP

T P

T P+FN+F P

2T P

2T P+FN+F P

(Gibert et

al., 2013)

V-M1 0.9422 0.8786 0.4988 0.6656

I-II-TP 0.5678 0.7912 0.3072 0.4701

III-M1 0.7734 0.9101 0.5879 0.7405

II-M1 0.8947 0.9363 0.5936 0.7450

III-M2 0.8707 0.9259 0.7020 0.8249

V-M2 0.1779 0.9949 0.1730 0.2950

Proposed

algorithm

V-M1 0.9911 0.9568 0.7534 0.8593

I-II-TP 0.6773 0.9846 0.6384 0.7793

III-M1 0.8771 0.9623 0.7745 0.8729

II-M1 0.9904 0.9495 0.7065 0.8280

III-M2 0.9682 0.9574 0.8506 0.9193

V-M2 0.8470 0.9730 0.7346 0.8470

AutomaticROIforRemotePhotoplethysmographyusingPPGandColorFeatures

363

to arrive at a robust skin detection. Once the region-

of-interest has been extracted, the already done PPG

analysis is ﬁltered and modiﬁed to make the pulse

rate detection more conﬁdent. Achieved results on

skin and pulse rate detection have been evaluated and

benchmarked with a recent publication on this topic.

ACKNOWLEDGEMENTS

The authors like to thank the colleagues from the

Electronic Systems group, Dept. EE, of the Eind-

hoven University of Technology for acting as sub-

jects in our test, and particularly S.D. Fernando and

W. Wang for further assisting with the equipment and

the recording, and Cosmin Sabarnescu for the code

for estimating PPG signals that he build during his in-

ternship in the group.

This work was partially supported by TEC2011-

24319 from the Spanish Government and P08-TIC-

03674 from the Andalusian Regional Government

(both with support from FEDER). E. Calvo-Gallego

is funded by a FPU fellowship from the Spanish Gov-

ernment.

REFERENCES

Hertzman, A. B. (1937) Photoelectric plethysmography of

the ﬁngers and toes in man, Exp. Biol. Med., vol. 37,

no. 3, pp. 529-534, 1937

Allen, J. (2007), Photoplethysmography and its application

in clinical physiological measurement, Physiological

Measurement, vol. 28, no. 3, pp. R1R39

Huelsbusch, M. and Blazek, V. (2002). Contactless map-

ping of rhythmical phenomena in tissue perfusion us-

ing PPGI, Proc. SPIE, vol. 4683, pp. 110-117

Takano, C. and Ohta, Y. (2007), Heart rate measurement

based on a time-lapse image, Med. Eng. Phys., vol.

29, pp. 853-857

Verkruysse, W. and Svaasand, L.O. and Nelson, J.S.

(2008), Remote plethysmographic imaging using am-

bient light, Opt. Exp., vol. 16, no. 26, pp. 21434/5

Glass, K.A., Frishkoff, G.A., Frank, R.M. Davey, C. Dien,

J. Malony, A.D. and Tucker, D.M. (2004), A frame-

work for evaluating ICA methods of artefact removal

from multichannel EEG, Proc. 5th Int. Conf. ICA

2004, Spain, Sept.

ulsbusch, M. (2008), An image-based functional method

for opto-electronic detection of skin-perfusion, PhD

Thesis, RWTH Aachen, Depart. of EE, (in German)

Lewandowska, M. and Ruminski, J. and Kocejko, T. and

Nowak, J. (2011), Measuring pulse rate with a we-

bcam - A non-contact method for evaluating cardiac

activity, Proc. Federated Conf. Comput. Sci. Inform.

Syst., pp. 405-410

Poh, M.Z. and McDuff, D.J. and Picard, R.W. (2010), Non-

contact, automated cardiac pulse measurements using

video imaging and blind source separation, Optics

Express, vol. 18, no. 10, pp. 10762-10774

De Haan, G. and Jeanne, V. (2013), Robust Pulse Rate From

Chrominance-Based rPPG IEEE Transactions on

Biomedical Engineering, vol. 60, no. 10, pp. 2878/86

Lempe, G. and Zaunseder, S. and Wirthgen, T. and Zipser,

S. and Malberg, H. (2013), ROI Selection for Remote

Photoplethysmography Bildverarbeitung fr die Medi-

zin, Springer Berlin Heidelberg

De Haan, G. and Biezen, P.W. (1994), Sub-pixel motion

estimation with 3-D recursive search block-matching.

Signal Processing: Image Communication, vol. 6, n. 3

De Haan, G. (2010), Chapter 10: Motion compensation.

Digital Video Post Processing, Eindhoven, pp. 225/27

Kelly, W. and Donnellan, A. and Molloy, D. (2008), Screen-

ing for Objectionable Images: A Review of Skin De-

tection Techniques IEEE International Machine Vi-

sion and Image Processing Conference

Vezhnevets, V. and Sazonov, V. and Andreeva, A. (2003), A

survey on pixel-based skin color detection techniques.

Proc. Graphicon, vol. 3, pp. 8592

Kakumanu, P. and Makrogiannis, S. and Bourbakis, N.

(2007), A survey of skin-color modeling and detec-

tion methods. Pattern Recognition, vol. 40, no. 3

Xfuzzy [Online] http://www2.imse-cnm.csic.es/Xfuzzy/

Oberti, F. and Teschioni, A. and Regazzoni, C.S. (1999),

ROC curves for performance evaluation of video se-

quences processing systems for surveillance applica-

tions. Proceedings International Conference on Image

Processing, ICIP, vol. 2, pp. 949-953

Schmitz, G.L.L.H. (2010) Video camera based photo-

plethysmography using ambient light Master gradu-

ation paper, Electrical Engineering, Publ. of TUE

Jeanne, V. and De Bruijn, F.J. and Vlutters, R. and Cennini,

G. and Chestakov, D (2010) Processing images of at

least one living being US Patent 8,542,877

Gibert, G. and DAlessandro, D. and Lance, F. (2013),

Face detection method based on photoplethysmog-

raphy. 10th IEEE International Conference on Ad-

vanced Video and Signal Based Surveillance (AVSS)

Delorme’s WebPage [Online], http://sccn.ucsd.edu/ arno/

VISAPP2015-InternationalConferenceonComputerVisionTheoryandApplications

364
