An Online Vision System for Understanding Complex Assembly Tasks

Thiusius Rajeeth Savarimuthu

, Jeremie Papon

, Anders Glent Buch

, Eren Erdal Aksoy

Wail Mustafa

, Florentin W

org

otter

and Norbert Kr

uger

Maersk Mc-Kinney Moller Institute, University of Southern Denmark, Odense, Denmark

Department for Computational Neuroscience, Georg-August-Universit

at G

ottingen, G

ottingen, Germany

Keywords:

Tracking, Monitoring, Robotics.

Abstract:

We present an integrated system for the recognition, pose estimation and simultaneous tracking of multiple

objects in 3D scenes. Our target application is a complete semantic representation of dynamic scenes which

requires three essential steps; recognition of objects, tracking their movements, and identiﬁcation of interac-

tions between them. We address this challenge with a complete system which uses object recognition and

pose estimation to initiate object models and trajectories, a dynamic sequential octree structure to allow for

full 6DOF tracking through occlusions, and a graph-based semantic representation to distil interactions. We

evaluate the proposed method on real scenarios by comparing tracked outputs to ground truth trajectories and

we compare the results to Iterative Closest Point and Particle Filter based trackers.

1 INTRODUCTION

Fast and reliable interpretation of complex scenes by

computer vision is still a tremendous challenge. De-

velopment in manufacturing procedures require vi-

sion systems to cope with versatile and complex sce-

narios within a fast changing production chain (Zhang

et al., 2011). Many of the assembly processes to-

day can be described by object identities and their

spatiotemporal relation in the semantic level (Aksoy

et al., 2011; Yang et al., 2013; Ramirez-Amaro et al.,

2014). Hence, object detection and persistence as

well as pose estimation are vital in order to automati-

cally detect and classify assembly processes.

Figure 1 shows a scene where multiple objects of

uniform and identical color are presented to the vision

system. Monitoring of such state spaces is important,

e.g., for the execution of assembly tasks performed by

robots, as we are investigating in the industrial work-

cell MARVIN (see Figure 2). This monitoring allows

for the detection of preconditions for robot actions to

be performed as well as for the evaluation of individ-

ual robot actions. In our setup, we restrict ourselves

to table top scenarios, where rigid objects are manip-

ulated in different ways.

Recently, Semantic Event Chains (SECs) (Ak-

soy et al., 2011) have been introduced as a mid-

level representation for action sequences. SECs en-

code “the essence of action sequences” by means of

touching relations between objects in so-called key-

frames. SECs—in addition to a graph with touching

relations—include object identity and object pose in-

formation fed from the lower level modules. Hence

detecting object identities and tracking the poses of

these objects are required in order to enrich SECs

and relate them to actions. However, it is neither

possible nor required to compute object identity and

pose information continuously. It is not possible due

to limited computational resources and it is not re-

quired, since the object identity does not change ar-

bitrarily. Furthermore, exact pose estimation is only

required in particular situations, e.g. when an assem-

bly action is performed. As such, it is sufﬁcient to

initialize a tracking system using a precise detection

and pose estimation system, and then maintain ob-

ject pose using the tracker. The tracked output can be

used to detect when key-frames occur and more pre-

cise (or interaction-speciﬁc) pose and object-identity

information are needed.

One important aspect required in such a system is

object persistence through occlusions, as in even sim-

ple assembly tasks components will often become oc-

cluded by the person performing the assembly. This

is of particular importance to the system described

above, as losing object identity makes it impossi-

ble to recover an accurate semantic understanding

of observed actions. While recent 3D tracking ap-

proaches address the issue of run-time performance

454

Savarimuthu T., Papon J., Buch A., Aksoy E., Mustafa W., Wörgötter F. and Krüger N..

An Online Vision System for Understanding Complex Assembly Tasks.

DOI: 10.5220/0005260804540461

In Proceedings of the 10th International Conference on Computer Vision Theory and Applications (VISAPP-2015), pages 454-461

ISBN: 978-989-758-091-8

 2015 SCITEPRESS (Science and Technology Publications, Lda.)

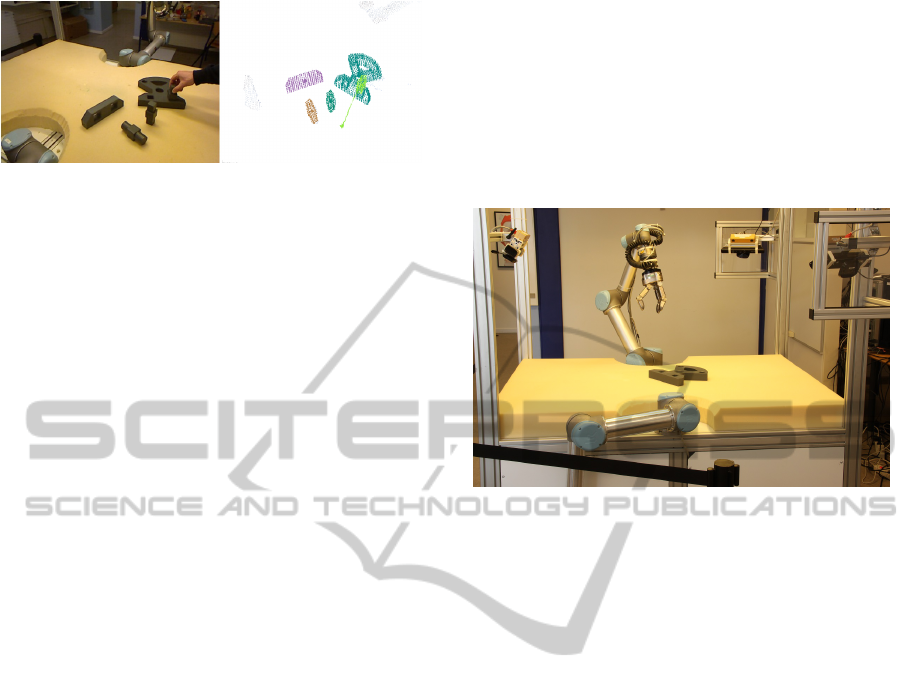

Figure 1: Left: intermediate frame of a complex assembly

scene where one of many peg in hole operations is being

performed. Right: detection and tracking output.

by ofﬂoading processing to a GPU (Choi and Chris-

tensen, 2013), or accurate 3D reconstruction of sin-

gle targets (Ren et al., 2013), in this work we focus

on maintaining tracks of multiple interacting objects

even in the presence of long durations of full occlu-

sions.

In this paper, we describe a system which is able

to compute a semantic representation of complex

scenes. In particular, we propose a tracking and mon-

itoring system with bottom-up initialisation of the

tracking and top-down enrichment of the scene rep-

resentation. The main processing backbone for con-

necting the object-speciﬁc recognition and pose es-

timation systems with the object-invariant SEC rep-

resentations is the tracking system proposed by (Pa-

pon et al., 2013). Motivated by the particular im-

portance of the parallel tracking of multiple objects

in this work, we compare the proposed tracking sys-

tem with a naive tracking method (ICP), a comparable

tracking method (particle ﬁlter) and to a “ground truth

tracking” by magnetic sensors in order to demonstrate

the superior occlusion-handling of our system.

We show that by using assumptions on object per-

manence and efﬁciently combining low-level tracking

and pose estimation, we are able to extract the struc-

ture of a complex scene with multiple moving objects

with partly signiﬁcant occlusions in real-time.

2 SYSTEM OVERVIEW

We describe the complete system – both on a hard-

ware and a software level – to explain the context in

which the tracker operates. We start by shortly de-

scribing our test platform, followed by a description

of the different perception modules and their interac-

tion.

The MARVIN platform is a robotic platform de-

signed to simulate industrial assembly tasks (see Fig-

ure 2 and (Savarimuthu et al., 2013)). The setup

includes both perception and manipulation devices.

The perception part includes three sets of vision sen-

sors, each set consisting of a Bumblebee2 stereo cam-

era and a Kinect sensor. The three camera sets are

placed with approx. 120

◦

separation, as shown in

Figure 2. In addition to the cameras, the platform

is also equipped with high-precision trakSTAR mag-

netic trackers capable of providing 6D poses simulta-

neously from up to four sensors. In this paper, we use

one Kinect and the trakSTAR sensors for the evalua-

tion of the tracker results (see Sect. 4).

Figure 2: The robotic MARVIN platform with two manip-

ulators and three camera pairs.

2.1 Interaction of Modules

The proposed system has four modules: object recog-

nition, pose estimation, tracking and SEC extraction.

The system is initialized by the ﬁrst two modules in

combination. Correct detection of objects is crucial

to the performance of the running system, but also

requires a high amount of computational resources.

Therefore, after the detection of objects, the real-time

tracker maintains the pose of the objects. Based on

the (tracked) state of the scene, the SEC extractor

maintains a meaningful high-level representation of

the scene. As soon as the state of the scene changes

due to newly formed or terminated object relations, a

reinitialization of the tracker is required, since at these

key-frames the appearance of objects may change in

a non-smooth manner, e.g., by sudden occlusions.

The SEC module detects key-frames and propa-

gates the information to the tracker, which in turn in-

vokes the pose estimation module for a robust reini-

tialization of object pose(s). No object recognition is

required at this point, since the object identities have

been preserved by the tracker, and only the objects in-

volved in the changed relation are reinitialized. The

pose reinitialization is performed using an optimized

local pose estimation routine. Consequently, there are

multiple dependencies in both directions between the

different modules. Object identities and poses are sent

“up” for the tracking of objects and the SEC extrac-

tion, whereas higher-level relations are sent “down”

AnOnlineVisionSystemforUnderstandingComplexAssemblyTasks

455

to strengthen the tracking. See Figure 3 for an illus-

tration. All modules are detailed in the following sec-

tion.

The object recognition, pose estimation and track-

ing modules are all directly involved in the extraction

and preservation of explicit object information (iden-

tity and pose) for parts in the scene. The last mod-

ule (SEC) operates at a higher level and integrates

the knowledge about all objects into a coherent scene

representation. Based on this system, we are able to

track multiple object with a framerate of 15hz during

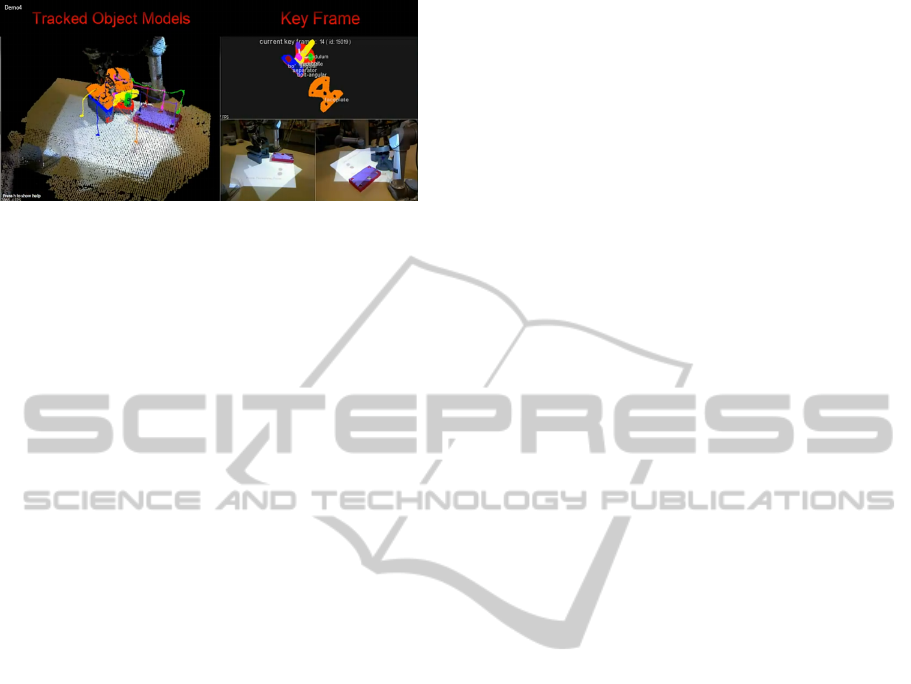

robotic assembly. The image on the left of Figure 4

shows the full tracking history of 9 objects. The col-

ored lines marks the path of the induvidual object dur-

ing assembly. The top right image of Figure 4 shows

the last SEC representation of the scene. Here all the

objects are identiﬁed and have thier labels attached.

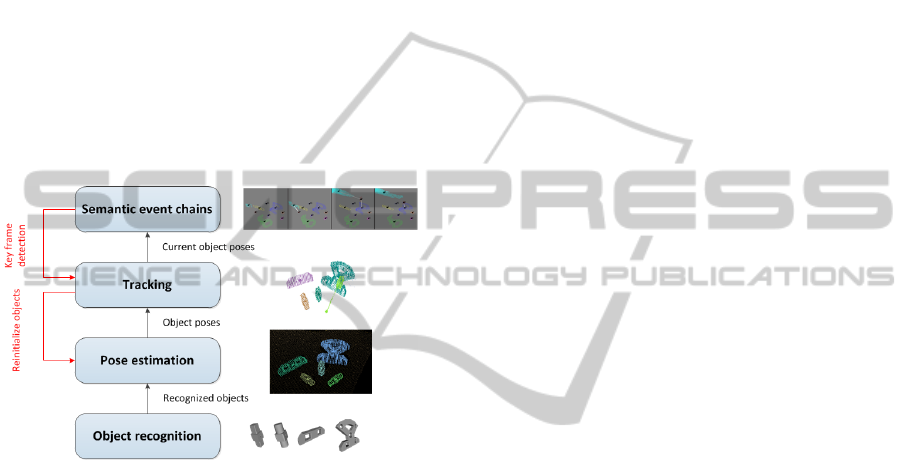

Figure 3: Schematic of the four modules.

3 MODULE DESCRIPTION

3.1 Geometry-based Object Recognition

and Pose Estimation

At the very ﬁrst frame of a sequence, we apply robust

object recognition and pose estimation techniques to

extract the identity and location of each object present

in the scene. Both modules operate on a special-

ized set of 3D feature points called texlets, which are

used for representing local surfaces (Kootstra et al.,

2012). The texlet representation signiﬁcantly reduces

the number of data points compared to, e.g., a point

cloud representation and provides a good trade-off be-

tween completeness and condensation.

The texlet representation has previously been ap-

plied by (Mustafa et al., 2013) for recognition and by

(Buch et al., 2013) for pose estimation of 3D objects

containing varying degrees of distinct appearance

(texture) and geometry (non-planar surfaces), both for

single- and multi-view observations of scenes. For

completeness, we shortly outline these methods be-

low, as they are used in the respective modules.

Our approach stands in contrast with regular point

cloud based detection systems in which local fea-

tures capture geometric statistics (Tombari et al.,

2010), and where feature points are either selected

uniformly or randomly (Drost et al., 2010; Aldoma

et al., 2012). Instead, we use detected feature points

and local features capturing both geometry and ap-

pearance.The object recognition system is based on

a Random Forest (RF) classiﬁer, which is applied to

a high-dimensional feature space, given by a two-

dimensional histogram computed globally on an ob-

ject surface represented by texlets. The histogram

entries are computed by binary geometric relations

between texlet pairs. Since texlets are much more

sparse than, e.g., point clouds, we sample all possi-

ble texlet pairs on the reconstructed object surface.

Each object model is now represented by a geome-

try histogram, as follows. Between every sampled

texlet feature pair, we extract the relative angle be-

tween the surface normals, and the normal distance,

i.e., the point to plane distance between the one texlet

and the plane spanned by the other texlet in a pair.

We bin all pairs into a 2D angle-distance histogram,

and get the ﬁnal geometry descriptor vector by plac-

ing all rows in the histogram in a single array. This

histogram provides a highly discriminative object rep-

resentation, which is fed to the RF classiﬁer. This

method requires the objects in the scene to be sepa-

rable by segmentation in order to initially extract the

full texlet representation of the object. For each rec-

ognized segment in the scene, we now execute a ro-

bust feature-based pose estimationThis method uses

local histogram descriptors computed in a local region

around each texlet, deﬁned by a support radius. Pose

estimation is done by a check of the geometric con-

sistency between the triangle formed on the object by

the sample points and the triangle formed in the scene

by the matched feature points. We refer the reader to

(Buch et al., 2013) for further details and evaluations

of this method. This method has also been accepted

in the Point Cloud Library (PCL)(Rusu and Cousins,

2011), and is available since version 1.6 in the class

SampleConsensusPrerejective.

3.2 Proposed Tracker

Tracking takes advantage of a novel Sequential

Adjacency-Octree (SATree), also publicly available

as part of the PCL. This is a dynamic octree struc-

ture which was ﬁrst introduced by (Papon et al., 2013)

in order to achieve object permanence and maintain

VISAPP2015-InternationalConferenceonComputerVisionTheoryandApplications

456

Figure 4: The scene interpretation. Left panel: The trac-

ing history of the individual objects represented by coloured

threads. Top right panel: Scene representation on the level

of Semantic Event Chains. Bottom left: Two of the cameras

recording the scene.

object tracks through lengthy full occlusions. Points

are added into this tree structure through a three stage

process. Starting with an existing tree (i.e. from the

ﬁrst frame), we ﬁrst insert the newly observed points

into the octree, and initialize new leaves for them if

they did not exist previously. This results in an octree

where leaves fall into three possible categories; they

are either new, observed, or unobserved in the most

recent observation. Handling of new and observed

leaves is straightforward; we simply calculate adja-

cency relations for their voxels to existing leaves. Of

more importance is how to handle leaves which were

not observed in the inserted point cloud. Rather than

simply prune them, we ﬁrst check if it was possible to

observe them from the viewpoint of the sensor which

generated the input cloud. This occlusion check can

be accomplished efﬁciently using the octree by deter-

mining if any voxels exist between unobserved leaves

and the sensor viewpoint. If a clear line of sight exists

from the leaf to the camera, it can safely be deleted.

Conversely, if the path is obstructed, we “freeze” the

leaf, meaning that it will remain constant until it is ei-

ther observed or passes the line of sight test in a future

frame (in which case, it can be safely deleted). In or-

der to account for objects moving towards the camera,

we additionally check if an unobserved occluded leaf

has any new leaves adjacent to it. If so, and one of

these adjacent leaves is responsible for the occlusion,

we prune it. This occlusion testing means that track-

ing of occluded objects is trivial, as occluded voxels

remain in the observations which are used for track-

ing. We should note that this reasoning assumes that

occluded objects do not move signiﬁcantly while be-

ing fully occluded. Tracking of the segmented models

is accomplished using a bank of independent parallel

particle ﬁlters. The models consist of clouds of vox-

els, and observations are the voxel clouds produced

by the SATree. The measurement model transforms

model voxels using predicted state (x, y, z, roll, pitch,

yaw), and then determines correspondences by asso-

ciating observed voxels with nearest voxels from the

transformed models. Distance between correspond-

ing voxels is measured in a feature space of spatial

distance, normals, and color (in HSV space). These

correspondence distances are then combined into an

overall weight for each particle. We use a constant ve-

locity motion model, but do not include velocity terms

in the state vector, as this would double the dimen-

sionality of the state-vector (negatively affecting run-

time performance). Instead we use a “group-velocity”

which uses the overall estimated state from the previ-

ous time-step to estimate the velocity. This allows us

to track motions smoothly without the need to add ve-

locity state terms to each particle.

KLD sampling (Fox, 2003) is used to dynamically

adapt the number of particles to the certainty of pre-

dictions. This works well in practice due to the use of

the persistent world model from the SATree, meaning

that very little computational power is needed to track

models which are static (or occluded), as the target

distribution has only small changes and therefore can

be approximated well using only a small particle set.

Details of the particle ﬁlters themselves are beyond

the scope of this work, but we refer the reader to (Fox,

2003) for an in-depth description of their operation.

For this work, we rely on the fact that the particle ﬁl-

ters yield independent predictions of 6D object states,

allowing a transformation of the model to the current

time-step, roughly aligning it with the currently ob-

served world voxel model.

3.2.1 Pose Reﬁnement for Reinitialization

The object recognition combined with the pose esti-

mation addresses the problem of identifying the ob-

jects present in the scene, while the tracker seeks to

maintain these identities during movement. As will

be presented in the following section, we are addition-

ally able to detect object collisions, which can desta-

bilize the tracking process. At these time instances,

we apply a customized ICP (Besl and McKay, 1992),

initialized with the current tracker pose, to the objects

involved in the collision. For efﬁciency, we resam-

ple the point clouds of the objects and the scene to a

coarse resolution of 5 mm. We set an inlier threshold

of twice this resolution for associating nearest point

neighbors in each iteration, and we terminate the ICP

loop prematurely if the relative decrease in the RMS

point to point alignment error becomes too low. These

modiﬁcations ensure convergence to a good solution,

while avoiding the risk of running for too many itera-

tions.

AnOnlineVisionSystemforUnderstandingComplexAssemblyTasks

457

3.3 Semantic Event Chain

The SEC was recently introduced as a possible

descriptor for manipulation actions (Aksoy et al.,

2011). The SEC framework analyzes the sequence of

changes of the spatial relations between the objects

that are being manipulated by a human or a robot.

The SEC framework ﬁrst interprets the scene as undi-

rected and unweighted graphs, nodes and edges of

which represent segments and their spatial relations

(e.g. touching or not-touching), respectively. Graphs

hence become semantic representations of segments,

i.e. objects present in the scene (including hands),

in the space-time domain. The framework then dis-

cretizes the entire graph sequence by extracting only

main graphs, each of which represents essential prim-

itives of the manipulation. All extracted main graphs

form the core skeleton of the SEC which is a se-

quence table, where the columns and rows correspond

to main graphs and spatial relational changes between

each object pair in the scene, respectively. SECs con-

sequently extract only the naked spatiotemporal pat-

terns which are the essential action descriptors, invari-

ant to the followed trajectory, manipulation speed, or

relative object poses. The resulting SECs can be eas-

ily parsed for the detection of key-frames in which

object collisions/avoidances occur, simply by check-

ing if touching relations have appeared/disappeared.

This in turn allows us to determine when to perform

reinitialization of object poses for the tracker, as de-

scribed in the previous section. Figure 4 top right

image shows the SEC representation of the assembly

scene shown in the two bottom right images.

Tracker Frame rate [Hz]

ICP tracker 1.92

Std particle ﬁlter 25.6

Proposed tracker 31.8

Figure 5: Results for the control sequence, where two ob-

jects are lying still for the whole duration. Top: ﬁrst frame

of the sequence and timing benchmark, averaged over the

full sequence. Bottom: recorded trajectories for the se-

quence.

4 EXPERIMENTS

For evaluations, we have carried out experiments to

assess the performance of the proposed tracker, since

the tracker represents the backbone of the online mon-

itoring system. Importantly, we note that full-scale

recognition and pose estimation experiments are not

the key aspect of this paper, and we thus refer the

reader to previous works (Mustafa et al., 2013; Buch

et al., 2013). We evaluate our tracking method using a

set of real sequences with thousands of frames, show-

ing manipulation of different objects. The ﬁrst exper-

iment is a sensitivity analysis of the noise level of the

tracker, and all the following experiments are done

on sequences with varying degrees of movement. In

a ﬁnal qualitative experiment, we show how the pre-

sented system performs on a complex assembly se-

quence involving multiple objects.

We have implemented two baseline trackers for

quantitative comparison of our system, an ICP-based

tracker and a point cloud based particle ﬁlter tracker.

This former is a straightforward application of the

modiﬁed ICP algorithm described in Sect. 3.2.1 into

a tracking context. The use of ICP during track-

ing has been successfully applied in other works,

e.g. the KinectFusion algorithm (Newcombe et al.,

2011). Our ICP-based tracker simply updates the ob-

ject pose from frame to frame using the previously

described ICP algorithm. While our tracker shows

near real-time performance, the ICP-based tracker has

a much lower frame rate due to the geometric veriﬁca-

tion, making it unsuitable for practical usage. While

the ICP algorithm is expected to produce an optimal

alignment in terms of RMS point to point error in sim-

ple scenarios, in realistic scenarios with clutter and

occlusions it will tend to fail by switching to clutter

or occluders. Even worse, if tracked objects are dis-

placed by a large distance from one frame to another,

the ICP tracker will inevitably fail, due to its very nar-

row convergence basin. The second tracker we com-

pare against is a slightly modiﬁed version of the stan-

dard point cloud based particle ﬁlter previously avail-

able as part of the PCL. The modiﬁcations include

optimizations for run-time performance in the multi-

object case, as well as improvements to the measure-

ment function.

4.1 Evaluation Metrics

For the evaluation of the different methods, we com-

pare the relative displacements recorded during a

tracked trajectory. As all sequences start with objects

lying still on the table, we use the ﬁrst 5 % tracked

poses to ﬁnd a mean pose. The rotation mean is taken

VISAPP2015-InternationalConferenceonComputerVisionTheoryandApplications

458

by matrix addition of the rotation matrices, followed

by an orthogonalization using singular value decom-

position. This pose is regarded as the intial pose of

the object relative to the tracking system. We now

take the relative pose in each tracked time instance to

this pose to get a displacement in SE(3) relative to

the starting point. The translation component of this

pose implicitly reﬂects both the positional displace-

ment and the angular displacement, and thus quantify

the displacement in that time instance by the norm of

this translation. All plots shown below are created us-

ing this procedure. We consider the trakSTAR trajec-

tories as ground truth, since they show very low rela-

tive errors in µm range. To quantify the tracking er-

ror, we take the RMS error between the displacement

reported by the tracker and the ground truth displace-

ment. We also note that in all graphs presented in the

following sections, equidistant data point markers are

added to the plots for the sake of clarity; thus, they do

not reﬂect the frequency of the data points used for

plotting the curves, which is much higher.

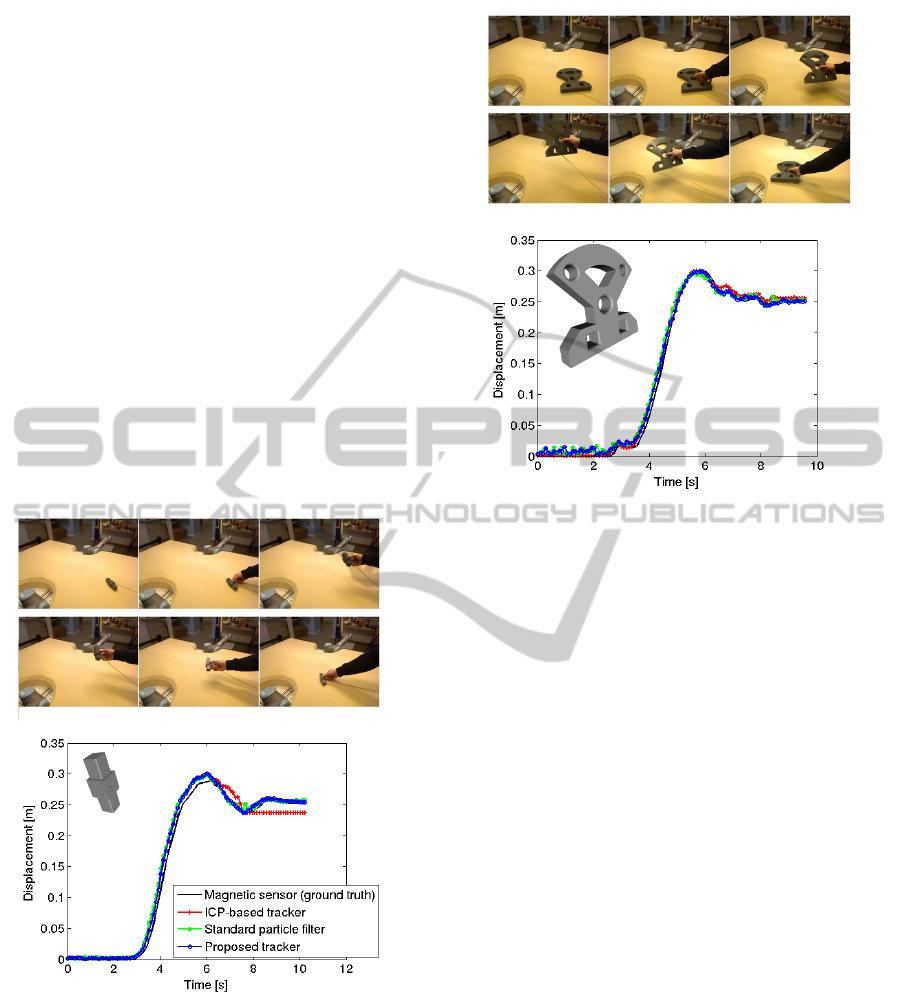

Figure 6: Results for the simple sequences. The object is

moved along a circular arc during manipulation.

In an initial experiment, we investigate the sensi-

tivity and computational complexity of the three im-

plemented trackers. As the ICP tracker always seeks

to minimize an objective function, it is expected to

converge consistently to the same solution, whereas

the randomized nature of the particle ﬁlter trackers

make them more imprecise, but allowing for higher

robustness towards large displacements. All results

of the experiment are shown in Figure 5. The ICP

Figure 7: Results for the simple sequences. The object is

moved along a circular arc during manipulation.

method provides very stable results for this very con-

trolled scenario. Referring to the two top rows in

Tab. 1, this is validated by the numbers, which shows

a RMS error of 0.95 mm for the bolt and 0.35 mm

for the faceplate (CAD models of both objects, belt

and face plate, are shown in the two lower subﬁgures

in ﬁgure 5 in the upper left corner). The lower error

of the large faceplate can be explained by the simple

fact that the higher number of points in the model al-

lows for a higher robustness against point outliers in

the alignment process. For the particle ﬁlter track-

ers, however, this behavior is reversed. These track-

ers sample poses in SE(3) around the current estimate

to widen the convergence basin, and select the best

candidate. For large objects, perturbations in the ro-

tations have larger effect on the resulting alignment,

making the error higher for the faceplate in this case.

The errors for the proposed tracker are 1.4 mm and

5.9 mm (see table 1 ﬁrst two lines), respectively, but

this is achieved in less than 1/15

of the time. In ad-

dition, as we will show below, the proposed tracker

is more stable than both the ICP-based tracker and a

standard particle ﬁlter tracker. We also note that the

timings shown in Figure 5 are best case results, since

during fast changing poses, the adaptive sampling can

lead to multiple pose candidates for validation.

In the second test (see ﬁgure 6 and 7) we perform

a very simple movement of a single object each. We

again tested the small bolt and the larger faceplate and

observed similar results. Notably, the ICP tracker per-

AnOnlineVisionSystemforUnderstandingComplexAssemblyTasks

459

forms worse in the ﬁnal stage of the bolt sequence (see

Figure 6) compared to the face plate sequence (see

Figure 7). This occurs due to the ICP tracker assign-

ing false point correspondences, i.e., the full model

is ﬁtted suboptimally to the incomplete scene data.

We now show by a simple peg in hole sequence how

Figure 8: Results for a peg in hole assembly sequence. See

text for details.

both the baseline trackers completely fail under oc-

clusions. In this sequence, the human arm and the

large faceplate are moved initially in such a way that

they temporarily occlude the bolt completely. In this

period, both the ICP and the standard particle ﬁlter

trackers fail: the ICP tracker stops functioning be-

cause it cannot associate point correspondences (be-

cause all points close to the model are occluded), and

the particle ﬁlter—being more global—ﬁnds a false

alignment on the table and stays there. Our tracker,

however, is able to cope with this situation by the oc-

clusion reasoning outlined in section 3.2. When the

occlusion initally occurs, the object displaces a bit,

since the tracker can only provide a suboptimal align-

ment due to the increasing level of occlusion. Af-

ter a short while, the occlusion is detected, and the

tracker maintains the object identity in a static pose

until the region in space becomes visible again. The

occlusion part of the sequence is visible in the left-

most plot in Figure 8 at approx. 5-13 s into the se-

quence. In these sequences, we also observe the ef-

fect of the pose reinitialization, made possible by the

higher-level SEC detection of key-frames. In the ﬁ-

nal insertion stage of the bolt, at approx. 22 s, the

proposed tracker “undershoots” by approx. 20 mm.

The pose reinitialization is invoked, and the alignment

improves, until the tracker settles at a displacement

Table 1: RMS errors for the test sequences. The static se-

quence results reﬂect the steady state tracker noise levels.

Seq. (object) ICP Std. Prop.

[mm] [mm] [mm]

Static (bolt) 0.95 2.3 1.4

Static (f.plate) 0.35 5.7 5.9

Simple (bolt) 13 12 8.9

Simple (f.plate) 7.7 10 7.1

Assemb. (bolt) 81 198 17

Assemb. (f.plate) 2.5 9.1 5.4

with an overshoot of approx. 5 mm. The reinitial-

ization is also visible at the same time in the face-

plate sequence, where a slight overshoot occurs dur-

ing insertion. After the reinitialization of the faceplate

pose, the tracker settles at a displacement very close

to ground truth.

For all the previous experiments, we quantify the

errors relative to the trakSTAR trajectories, as ex-

plained in Sect. 4.1. In general, our tracker outper-

forms the standard particle ﬁlter tracker, whereas in

most cases ICP provides the optimal ﬁt, but at the ex-

pense of a signiﬁcant increase in computational time.

Results are shown in Tab. 1.

We ﬁnalize our evaluation by presenting a more

realistic and complex assembly involving multiple

objects. For this experiment, we had to remove the

magnetic sensors, otherwise they would obstruct cer-

tain parts of the objects, making assembly impossible.

Therefore we present only qualitative results in Fig-

ure 9 where the tracked poses of the objects are shown

as coloured lines. Note that the bolts are maintained

in the model even after heavy occlusions, visible pri-

marily in the last frame. We also note that the human

arm causes several occlusions during the sequence.

5 CONCLUSIONS

In this paper, we have addressed the non-trivial prob-

lem of maintaining the identities and poses of several

recognized objects in 3D scenes during manipulation

sequences. We have implemented and successfully

tested a bidirectional feedback structure to initialize

and maintain object identity and pose. By that we

were able to compute a semantic scene representation

with multiple independently moving objects which

has been used for action monitoring. We sompared

our tracking algorithm to a baseline implementation

of an ICP-based tracker. By that we were able to show

that our tracking method provides a speedup of more

than 15 times with a superior performance on com-

plex scenes. When compared our tracking also with

a standard particle ﬁlter and showed that our method

VISAPP2015-InternationalConferenceonComputerVisionTheoryandApplications

460

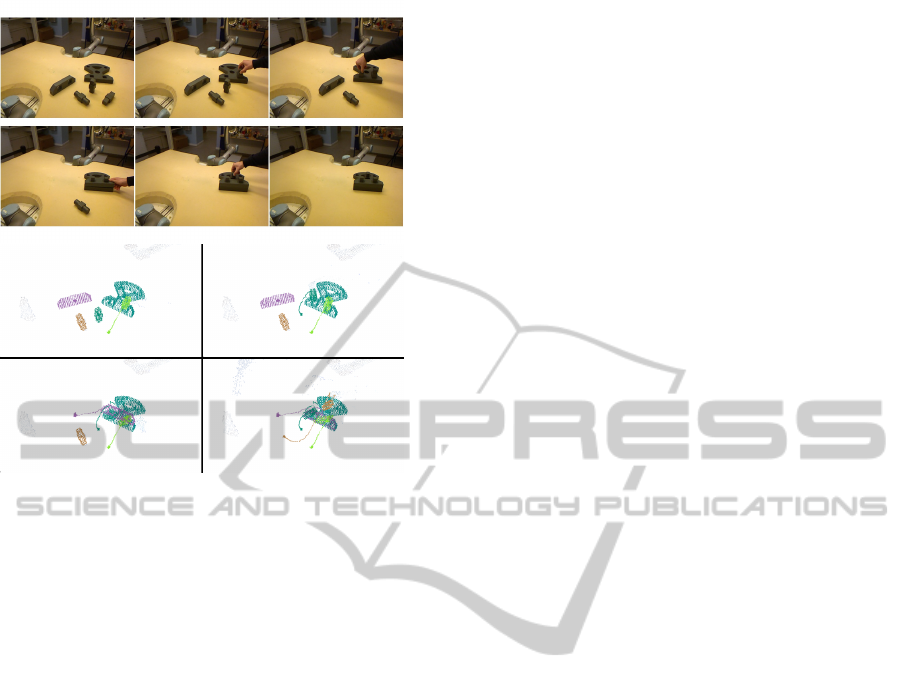

Figure 9: Tracker results for a complex assembly sequence.

The bottom images show the tracked object models, rep-

resented by point clouds, at the key-frames which are also

shown in the four intermediate top images.

shows a higher degree of robustness to disturbances

in the form of both partial and total occlusions.

ACKNOWLEDGEMENTS

This work has been funded by the EU project ACAT

(ICT-2011.2.1, grant agreement number 600578) and

the DSF project patient@home.

REFERENCES

Aksoy, E. E., Abramov, A., D

orr, J., Ning, K., Dellen,

B., and W

org

otter, F. (2011). Learning the semantics

of object-action relations by observation. The Inter-

national Journal of Robotics Research, 30(10):1229–

1249.

Aldoma, A., Tombari, F., Di Stefano, L., and Vincze, M.

(2012). A global hypotheses veriﬁcation method for

3d object recognition. In Computer Vision–ECCV

2012, pages 511–524. Springer.

Besl, P. and McKay, N. D. (1992). A method for registration

of 3-d shapes. PAMI, 14(2):239–256.

Buch, A., Kraft, D., Kamarainen, J.-K., Petersen, H.,

and Kr

uger, N. (2013). Pose estimation using local

structure-speciﬁc shape and appearance context. In

ICRA, pages 2080–2087.

Choi, C. and Christensen, H. (2013). Rgb-d object track-

ing: A particle ﬁlter approach on gpu. In Intelligent

Robots and Systems (IROS), 2013 IEEE/RSJ Interna-

tional Conference on.

Drost, B., Ulrich, M., Navab, N., and Ilic, S. (2010). Model

globally, match locally: Efﬁcient and robust 3d object

recognition. In Computer Vision and Pattern Recogni-

tion (CVPR), 2010 IEEE Conference on, pages 998–

1005. IEEE.

Fox, D. (2003). Adapting the sample size in particle ﬁlters

through kld-sampling. The International Journal of

Robotics Research, 22(12):985–1003.

Kootstra, G., Popovic, M., Jørgensen, J., Kuklinski, K., Mi-

atliuk, K., Kragic, D., and Kruger, N. (2012). En-

abling grasping of unknown objects through a syner-

gistic use of edge and surface information. The Inter-

national Journal of Robotics Research, 31(10):1190–

1213.

Mustafa, W., Pugeault, N., and Kr

uger, N. (2013). Multi-

view object recognition using view-point invariant

shape relations and appearance information. In ICRA,

pages 4230–4237.

Newcombe, R. A., Davison, A. J., Izadi, S., Kohli, P.,

Hilliges, O., Shotton, J., Molyneaux, D., Hodges, S.,

Kim, D., and Fitzgibbon, A. (2011). Kinectfusion:

Real-time dense surface mapping and tracking. In IS-

MAR, pages 127–136. IEEE.

Papon, J., Kulvicius, T., Aksoy, E., and Worgotter, F.

(2013). Point cloud video object segmentation using

a persistent supervoxel world-model. In IROS, pages

3712–3718.

Ramirez-Amaro, K., Beetz, M., and Cheng, G. (2014). Au-

tomatic Segmentation and Recognition of Human Ac-

tivities from Observation based on Semantic Reason-

ing. In IEEE/RSJ International Conference on Intelli-

gent Robots and Systems.

Ren, C., Prisacariu, V., Murray, D., and Reid, I. (2013).

Star3d: Simultaneous tracking and reconstruction

of 3d objects using rgb-d data. In Computer Vi-

sion (ICCV), 2013 IEEE International Conference on,

pages 1561–1568.

Rusu, R. B. and Cousins, S. (2011). 3D is here: Point Cloud

Library (PCL). In ICRA, Shanghai, China.

Savarimuthu, T., Liljekrans, D., Ellekilde, L.-P., Ude, A.,

Nemec, B., and Kruger, N. (2013). Analysis of hu-

man peg-in-hole executions in a robotic embodiment

using uncertain grasps. In Robot Motion and Control

(RoMoCo), 2013 9th Workshop on, pages 233–239.

Tombari, F., Salti, S., and Di Stefano, L. (2010). Unique

signatures of histograms for local surface description.

In ECCV, pages 356–369.

Yang, Y., Ferm

uller, C., and Aloimonos, Y. (2013). De-

tection of manipulation action consequences (mac).

In Computer Vision and Pattern Recognition, pages

2563–2570.

Zhang, B., Wang, J., Rossano, G., Martinez, C., and Kock,

S. (2011). Vision-guided robot alignment for scalable,

ﬂexible assembly automation. In ROBIO, pages 944–

951.

AnOnlineVisionSystemforUnderstandingComplexAssemblyTasks

461
