Key Establishment and Trustful Communication for the Internet of

Things

Davi Resner and Antônio Augusto Fröhlich

Software/Hardware Integration Lab, Federal University of Santa Catarina,

PO Box 476, 88040-900 - Florianópolis, SC, Brazil

Keywords:

Internet of Things, Trustfulness, Security, Key Establishment.

Abstract:

This work describes a practical solution for the problem of cryptographic key establishment and secure com-

munication in the context of the Internet of Things, in which computational efﬁciency is a fundamental re-

quirement. A symmetric-key establishment protocol based on AES, Poly1305-AES, time synchronization,

Elliptic Curve Difﬁe-Hellman and sensor IDs is proposed to achieve data conﬁdentiality, authentication, in-

tegrity and prevention from replay attacks. Such a protocol was implemented in the EPOS operating system in

the form of a network layer that transparently provides trustfulness. Tests were executed on the EPOSMoteII

platform and the analysis of the results shows that the implementation is adequate to be used in the scenario

of embedded systems with low processing power.

1 INTRODUCTION

The idea of an Internet of Things (IoT) is quickly

materializing through the adoption of RFID as a re-

placement for barcode along with the introduction of

Near Field Communication (NFC) devices that are

able to interface our daily-life objects with the Inter-

net. However, the next steps towards a global network

of smart objects will drive us through several large-

scale, interdisciplinary challenges. In particular, se-

curity and privacy are issues that must be consistently

addressed (Atzori et al., 2010) (Elkhodr et al., 2013)

before IoT can make its way into people’s lives.

Things in IoT will interact with each other and

with human beings through a myriad of communi-

cation technologies. This communication will often

happen wirelessly, and will almost always be sub-

ject to interference, corruption, eavesdropping and all

kinds of cybernetic attacks. Most of the encryption

and authentication techniques developed for the orig-

inal Internet – the Internet of People – to handle im-

personation, tampering, and replay attacks, in theory,

can also be applied to the IoT. It is important to recog-

nize, however, that these conventional solutions will

not always be adequate for the IoT, making it an open

area of research (Elkhodr et al., 2013). The micro-

controllers used in smart objects will seldom be able

to put up with the requirements. Furthermore, IoT

will be subject to particular conditions not so often

faced by today’s Internet devices. Some things will

send messages that will trigger immediate reactions

from other things that directly control the environ-

ment. Capturing and reproducing one such valid mes-

sage, even if it is encrypted and signed, could lead

complex systems such as roadways, factories, and

even whole smart cities to misbehave. Some things

will harvest energy from the environment for hours

before they can say something to the world, and when

they speak, one will have to decide whether or not to

believe in what they say without having a chance to

further discuss the subject (at least not for a couple

of hours). Conventional solutions such as transaction

authentication and channel masking (Fu et al., 2003)

are of little help in this context.

In previous works, we introduced a trustful infras-

tructure for the IoT conceived with these pitfalls in

mind (Fröhlich et al., 2011; Fröhlich et al., 2013). In

this paper, we detail the design and implementation of

a key component of that infrastructure: key establish-

ment. In that infrastructure, trustfulness is tackled at

MAC layer by extensive use of the Advanced Encryp-

tion Standard (AES) hardware accelerators now avail-

able in most IEEE 802.15.4 implementations. The

adoption of this widespread symmetric-key algorithm

as the foundation of the infrastructure’s trustfulness

brings several practical beneﬁts (e.g. performance

and power consumption), but brings also the major

drawback of symmetric-key encryption: both parties

197

Resner D. and Augusto Fröhlich A..

Key Establishment and Trustful Communication for the Internet of Things.

DOI: 10.5220/0005262701970206

In Proceedings of the 4th International Conference on Sensor Networks (SENSORNETS-2015), pages 197-206

ISBN: 978-989-758-086-4

 2015 SCITEPRESS (Science and Technology Publications, Lda.)

must share a secret key. Generating the keys before

deployment and storing them for subsequent distri-

bution would lessen the infrastructure security to the

level of key management, involving humans. Gen-

erating the keys at servers and sending them to the

smart things over the network would also make room

for additional attacks, since decrypting the message

containing the key at any time would reveal the key it-

self. Therefore, the proposed key bootstrapping strat-

egy also makes use of Elliptic Curve Difﬁe-Hellman

(ECDH) for distributed key generation, and precise

clock synchronization in a communication protocol

that exploits previously-known sensor information to

overcome such challenges with no need for third-

parties.

The remaining of the paper is organized as fol-

lows: Section 2 presents the related works. In Sec-

tion 3, we describe the main components that were

used as building blocks for the trustful IoT infrastruc-

ture. In Section 4 we expose how we combine the

building blocks and propose a key establishment and

trustful communication protocol, which is analysed in

Section 5. Section 6 concludes the paper.

2 RELATED WORK

TinySec (Karlof et al., 2004) deﬁnes a link-layer

security architecture for Wireless Sensor Networks

(WSNs), providing encryption and authentication.

TinySec supports two different security options: au-

thenticated encryption (TinySec-AE) and authentica-

tion only (TinySec-Auth). In authenticated encryp-

tion mode, TinySec encrypts the data payload accord-

ing to the Skipjack block cipher and authenticates the

packet with a Message Authenticity Code (MAC).

The MAC is computed over the encrypted data and

the packet header. In authentication only mode, Tiny-

Sec authenticates the entire packet with a MAC but

does not encrypt the data payload. The inclusion of

a MAC to ensure authenticity and integrity has a cost

on radio usage and consequently in energy consump-

tion, because the hash values commonly represent a

long sequence of bits – the length of a MAC deter-

mines the security strength of a MAC function (Sun

et al., 2010). TinySec achieves low energy consump-

tion by reducing the MAC size, hence decreasing the

level of security provided. TinySec also does not at-

tempt to protect against replay attacks and does not

discuss how to establish link-layer keys. TinySec is

implemented in TinyOS and runs on Mica, Mica2,

and Mica2Dot platforms, each one using Atmel pro-

cessors. TinySec has 3000 lines of nesC code , and

the implementation requires 728 bytes of RAM and

7146 bytes of program space.

MiniSec (Luk et al., 2007) is a secure network

layer protocol for WSNs that attempts to solve the

known problems of TinySec. MiniSec accomplishes

this by combining three techniques. First, it employs

a block cipher mode of operation that provides both

privacy and authenticity in only one pass over the

message data. Second, MiniSec sends only a few

bits of the Initialization Vector (IV) – a block of bits

used by some operating modes to randomize the en-

cryption, producing distinct ciphertexts from the same

plaintext over time – while retaining the security of a

full-length IV per packet. In order to protect against

replay attacks and reduce the radio’s energy consump-

tion, it uses synchronized counters, but only sending

the last bits of the counter along with each packet.

However Jinwala et al. showed that such scheme re-

quires the execution of costly resynchronization rou-

tines when the counters shared are desynchronized

(packets delivery out-of-order) (Jinwala et al., 2009).

Related protocols for key establishment include

a fast scheme based on Elliptic Curve Cryptogra-

phy presented in (Huang et al., 2003). They use the

idea of combining symmetric and asymmetric opera-

tions, proposing what the authors call a hybrid pro-

tocol, which ofﬂoads work from the sensors by mak-

ing the gateway work more. (Pan et al., 2011) shows

that some of their security claims do not hold since

the gateway could recover a sensor’s secret long-term

key, and proposes an improved version.

The idea of a sensor-ID based protocol is explored

in (Li-ping and Yi, 2009), and a rough estimation of

time and bandwidth costs indicates that this can be

an efﬁcient approach. In these works, however, ei-

ther the sensor needs to be pre-loaded with speciﬁc

and sensitive information or an external security man-

ager is assumed to distribute certiﬁcates to sensors

through an alternative, secure out-of-band channel.

The present work contrasts by aiming at reducing this

pre-deployment effort and proposing a practical solu-

tion for key establishment.

3 PROTOCOL BUILDING

BLOCKS

3.1 EPOS

EPOSMote is an open hardware project (EPOS,

2014). The project’s main objective is delivering a

hardware platform to allow research on energy har-

vesting, biointegration, and MEMS-based (Micro-

ElectroMechanical Systems) sensors. Figure 1 shows

SENSORNETS2015-4thInternationalConferenceonSensorNetworks

198

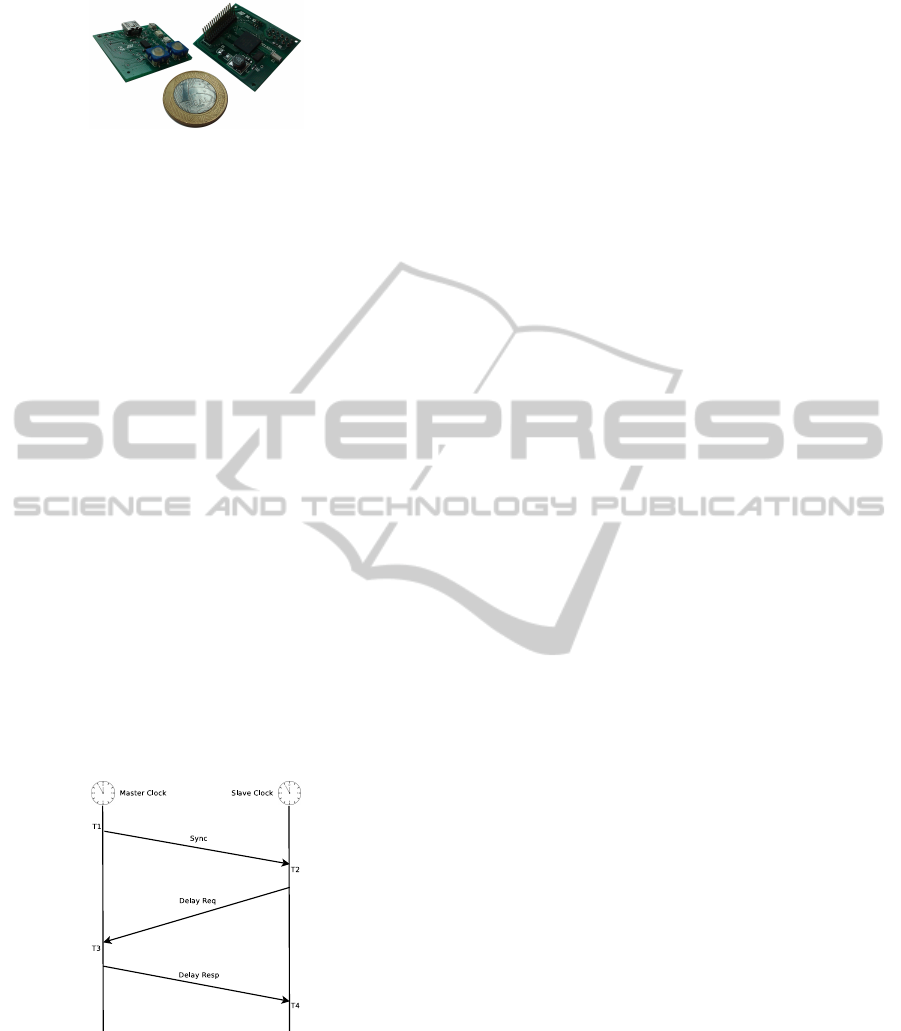

Figure 1: EPOSMoteII SDK side-by-side with a R$1 coin.

EPOSMoteII, the model used in this work. It features

a 32-bit, 26MHz ARM7TDMI-S processor, 128kB of

ﬂash memory, 96kB of RAM and an IEEE 802.15.4-

compliant radio transceiver. EPOS (Embedded Paral-

lel Operating System) is the running operating system

of choice, which is implemented in C++.

3.2 PTP

The proposed protocol makes use of timing synchro-

nization to add principles of temporality to the secure

communication. In previous work, we implemented

EPOS’ timing protocol (Oliveira et al., 2012), which

delivers clock time across a wireless sensor network

in conformance with the IEEE 1588 standard, the Pre-

cision Time Protocol (PTP). A central node (the gate-

way) equipped with a GPS receiver propagates its pre-

cise clock time to slave nodes as illustrated by Fig-

ure 2. Since in the wireless scenario propagation is

done broadcasting messages, listening nodes can pas-

sively take advantage of protocol interactions to re-

calibrate whenever they observe valid PTP messages

in the network, greatly reducing the total trafﬁc gener-

ated. EPOS’ PTP can keep a PAN synchronized with

sub-millisecond precision.

Figure 2: Overview of messages exchanged by EPOS’ PTP.

3.3 Hardware AES Acceleration

The Advanced Encryption Standard is a symmetric-

key algorithm considered to be resistant against math-

ematical attacks. It consists of a block cipher contain-

ing a 128-bit block size, with key sizes of 128, 192,

and 256 bits. AES is a very popular cryptographic

engine and is included in the IEEE 802.15.4 stan-

dard, so that many devices for the Internet of Things

(including EPOSMoteII) have hardware acceleration

for AES available. The use of hardware accelera-

tion for cryptographic algorithms not only enhances

the performance of security systems but also leaves

the computing resources available to a more useful

work (Chang et al., 2010). Therefore, we make ex-

tensive use of the widespread hardware-assisted se-

curity mechanism to derive keys, sign, encrypt and

decrypt all necessary data. The implementation in

EPOSMoteII uses a ﬁxed key size of 128 bits and is

extremely efﬁcient (Fröhlich et al., 2011).

3.4 Poly1305-AES

Poly1305-AES (Bernstein, 2005) is a state-of-the-

art Message Authentication Code algorithm that uses

AES (thus taking advantage of hardware accelera-

tion) to compute a 16-byte authenticator according to

Equation 1, where:

• c is of length q, and is derived from the message,

• k, r are two secret keys, each of length 16,

• n is a nonce,

• AES

(m) is the ciphertext produced by running

AES using message m and key k as input.

Poly(c, k, r, n) =

(((c

· r

+ · ·· + c

· r

) mod (2

130

− 5))

+ AES

(n)) mod 2

128

(1)

Poly1305-AES is proven to be secure if AES is se-

cure (Bernstein, 2005), and can be implemented with

comparative efﬁciency.

3.5 Difﬁe-Hellman

Elliptic Curve Difﬁe-Hellman (ECDH) over Prime

Curves (F

), widely considered more robust and ef-

ﬁcient than the traditional Difﬁe-Hellman scheme

(NSA, 2009), is used in the present work. The proto-

col, however, is agnostic as to which underlying arith-

metics for Difﬁe-Hellman is used.

4 SECURE KEY

BOOTSTRAPPING PROTOCOL

The proposed protocol adds two-way authentication

to a typical Difﬁe-Hellman scheme, and also allows

an additional secret to be shared between a sensor and

the gateway: a deployment time window. It relies on

KeyEstablishmentandTrustfulCommunicationfortheInternetofThings

199

unique sensor IDs, AES, Poly1305-AES and synchro-

nized clocks. The following conditions are assumed

to be valid by the protocol. Some of these are dis-

cussed further in Section 5.

• Each sensor has a unique identiﬁer on the net-

work. This identiﬁer needs not have a speciﬁc for-

mat. It can be, for instance, the microprocessor’s

serial number.

• Sensors are capable enough to perform assymetric

cryptography operations when they join the net-

work.

• There is a node called gateway which is a local,

trusted and controlled machine.

• Secure communication is only necessary between

sensor and gateway. In WSNs, usually, most (or

all) communication happens between sensors and

gateway only.

• Sensors have persistent memory for holding a

cryptographic key; i.e. sensors are assumed not

to “forget” keys (e.g. due to a power loss) once

they are established.

The ﬁrst three conditions are inherent to the protocol,

while the others are stated to limit the scope of the

present work.

The following notation is used through the rest of

this paper:

• ID

: Unique identiﬁer of sensor a.

• Auth

: A hash computed from ID

, for instance

AES(ID

, ID

• (Y

, P

): Public and private (respectively) Difﬁe-

Hellman key-pair of sensor a.

• (Y

, P

): Gateway’s DH key-pair.

• DH(P

, Y

): a Difﬁe-Hellman operation, which

calculates a Master Secret K

. In our implemen-

tation, this denotes an Elliptic Curve point multi-

plication by a scalar.

• Poly(a, b, c, d): The result of running the

Poly1305-AES algorithm using a, b, c, d as pa-

rameters (Equation 1).

• M

· M

: Concatenation of messages M

and M

• {M}

: Message M encrypted under symmetric

key k, e.g.: AES(M, k).

• T : The current time window of the network,

which is the timestamp truncated to a ﬁxed,

network-wide interval length. The windows shall

be long enough to accommodate a message’s

transmission and reception.

The protocol is divided into 3 phases: Initial-

ization, Key Establishment and Authentication, after

DH_Request(Yg)

DH_Response(Ys)

Clock Sync.

Auth_Request(Auth, OTP)

Auth_Granted({ID}KT)

Sensor

Gateway

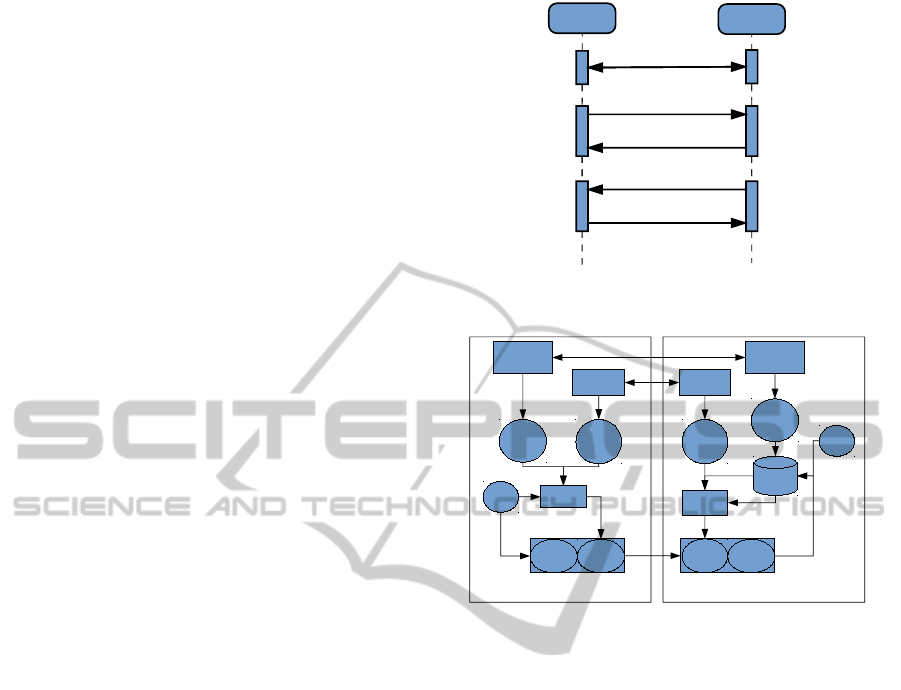

Figure 3: Overview of messages exchanged for key estab-

lishment and authentication.

Sensor Gateway

Diffie

Hellman

Master

Secret

PTP

Poly

Time

Stamp

Diffie

Hellman

Master

Secret

PTP

Poly

IDs,

Auths

Time

Stamp

Auth OTP Auth

OTP

Figure 4: Overview of the interactions between several of

the protocol’s building-blocks.

which nodes can start communicating trustfully. Fig-

ure 3 illustrates the messages exchanged and Figure 4

presents an overview of the interactions between the

various building-blocks, as detailed in the following

sections.

4.1 Initialization

Each trusted sensor is assigned a unique identiﬁer.

The ID need not have any particular form, as long as

it is unique in the network. It can be the device’s se-

rial number, for instance. The IDs of each sensor to

be trusted must be loaded in the gateway, and is dele-

gated to the user to do this in a secure way, since the

gateway is assumed to be a trusted, controlled local

machine. Sensors also have an Auth code, which is a

known hash function of the ID, and the gateway has a

database corresponding Auth codes with IDs.

When a sensor is deployed, it listens to the Difﬁe-

Hellman parameters of the network (which may op-

tionally be pre-loaded, since they are public and usu-

ally known before deployment), generates its Difﬁe-

Hellman key-pair, synchronizes its clock with the net-

work and remains idle until the gateway asks for au-

thentication. Once the user loads the IDs in the gate-

SENSORNETS2015-4thInternationalConferenceonSensorNetworks

200

way, it is ready to issue a DH_Request(Y

) command,

moving on to the next step.

4.2 Key Establishment

Key establishment is carried out as a traditional

Difﬁe-Hellman protocol. The ﬁrst message is sent by

the gateway and is denoted DH_Request(Y

). The part

in parenthesis indicates a variable value sent along

with the message (in this case, Y

). This message

can be broadcast or transmitted to a particular node.

When a DH_Request(Y

) message arrives at the des-

tination, the receiving sensor s must respond with

DH_Response(Y

) and then calculate the symmetric

key K

= DH(P

, Y

), which we call Master Secret.

Similarly, upon receiving the response the gateway

calculates K

= DH(P

, Y

). At this point, sensor and

gateway share a symmetric key. However, since no

authentication aspects have been involved so far, they

have no evidence that this key is shared with a trustful

node in the network.

4.3 Authentication

The authentication step’s purpose is twofold: it pro-

vides evidence to the gateway that the sensor is au-

thentic (i.e. holds a valid and unique ID) and vice-

versa, then ties the previously calculated K

to this

valid ID, validating the Master Secret. In order to do

this, the sensor calculates a One-Time Password OT P

as in Equation 2 and sends to the gateway the message

Auth_Request(Auth

, OTP

OT P

= Poly(K

⊕ ID

, K

, ID

, T ) (2)

Upon receiving an expected

Auth_Request(Auth

, OTP

) message, the gateway

veriﬁes if there is a Master Secret pending authen-

tication which is implicitly contained in OT P

. The

process starts with a database query for ID

via Auth

Then, for each K

pending authentication, the gate-

way calculates OT P

= Poly(K

⊕ ID

, K

, ID

, T )

(using for every calculation the T indicating the

moment the Auth_Request message was received)

and checks if OTP

= OT P

. If and only if OT P

found, the gateway has evidence that K

is in fact K

and was shared with an authentic sensor identiﬁed by

; it then associates the ID with the Master Secret

for future communication with s.

Finally, the gateway transmits the last message:

Auth_Granted({ID

}

), to provide to the sensor

evidence that this node is an authentic gateway (i.e.

is the only other node that knows ID

). KT

is a dis-

posable key derived from the Master Secret with the

mechanism explained in Section 4.4.

Upon receiving Auth_Granted({ID

}

), the

sensor is able to derive KT

as well and decrypt the

message to check if ID

is correct. If it is, the sensor

starts trusting the Master Secret. Otherwise, it shall

not consider itself authenticated and must start the

protocol again, waiting for a new DH_Request mes-

sage.

4.4 Secure Communication

Once a Master Secret K

has been authenticated, it is

ready to be used as an AES key, but only indirectly.

When a node needs to send a message M securely,

it must derive a key KT

according to Equation 3,

include a checksum C to the message and then send

Secure_Message({C · M}

= Poly(K

⊕ ID

, K

, ID

, T ) (3)

If the receiving node is a sensor, it is able to de-

rive KT

, decrypt the message to obtain C and M and

check if the checksum is correct (if it isn’t, the mes-

sage is discarded). If the receiver is the gateway, it

must derive a KT

for each authenticated sensor a,

then try to decrypt the message with each key until

one generates the correct checksum (if none gener-

ates, the message is discarded). If the implementation

allows access to a lower-layer network address, it can

be used as a heuristic to accelerate this search for K

When C is correctly generated, the receiver has ev-

idence that the Secure_Message was generated by the

only other node in the network that knows the pre-

viously validated Master Secret. It then trusts that

the message is authentic, conﬁdential, wasn’t mod-

iﬁed and was generated within the current network

time window.

5 EVALUATION

This section aims at evaluating the proposed proto-

col’s efﬁciency and viability. The analysis is divided

in two: Section 5.1 brings a qualitative discussion re-

garding the protocol’s security aspects, its main pos-

itive characteristics and limitations. The section that

follows it, 5.2, shows results of tests performed with

a prototype implementation of the protocol.

5.1 Protocol Analysis

IoT devices will often communicate through wireless

technology, allowing any radio interface conﬁgured at

the same frequency band to monitor or participate in

communications, which is very convenient for attack-

ers (Zhou et al., 2008). In order to avoid undesired

KeyEstablishmentandTrustfulCommunicationfortheInternetofThings

201

attacks a secure infrastructure for the IoT must pro-

vide the principles of conﬁdentiality, authenticity and

integrity (Suo et al., 2012).

In the proposed protocol, if a secure message M

{C · M}

is sent – for example – from s to g and

is successfully decrypted yielding a matching check-

sum, the receiver can conclude that:

• M is conﬁdential, since only the sensor and the

gateway know K

• M is authentic, because K

is secret and tied to

• M

was not modiﬁed by anyone but s, because it

is extremely unlikely that the message was altered

blindly and still carries a valid checksum.

• M

was generated in the current network time win-

dow T.

5.1.1 IDs

Each sensor’s unique identiﬁer does not need to have

a particular format, but some observations impact the

provided security level. An attacker can disguise it-

self as an authentic sensor if it ﬁnds a valid ID and

uses it in the appropriate time, before the legitimate

holder of that ID does (see Section 5.1.3); therefore,

it is desirable for any valid ID to be very hard to ﬁnd.

The three main factors that impact on this difﬁculty

is the secrecy with which the IDs are stored and han-

dled, their size in bits and their predictability.

Secrecy is a factor we can’t control, since it

greatly depends on the context in which the proto-

col is being used, including human and logistic fac-

tors such as the outsourcing of the team that generates

and instals the sensors and their IDs. Ideally, the IDs

should be kept secret and only revealed in a controlled

way to those who necessarily need to know them.

ID size is directly related to the security level.

The larger the ID is, the harder it will be for an at-

tacker to blindly guess it correctly. The Auth codes

and the One-Time Passwords also beneﬁt from an in-

crease in ID size if an AES encryption mode that takes

advantage of the whole plaintext is used (e.g. CBC

mode). An ID smaller than 128 bits is highly unrec-

ommended, because it would affect the values utilized

as keys in Auth and OTP, which would decrease AES

security.

Predictability is an important aspect because an at-

tacker that has an idea of the format of valid IDs can

potentially ﬁnd one much more easily by trial-and-

error. Thus, randomly-generated IDs are the most rec-

ommended.

In summary, ideally one would like the IDs to

be random, 128-bit (or larger) numbers, which are

revealed only to trusted individuals who necessarily

need to know them. One should balance these three

factors as the context allows. If, for instance, one

wishes to use each device’s not-secret, 10-bit serial

number as IDs, one could instead use the serial num-

bers as input to a random number generator of greater

magnitude and use the output as ID.

With these recommendations in mind, it may seem

easier to simply load pre-established symmetric keys

on the sensor, or use the IDs directly as keys and dis-

miss any protocol. In this strategy, however, if an

attacker happens to ﬁnd an ID (or key, in this case)

they would be able to decrypt all the messages ever

exchanged – in the past or in the future – by the cor-

responding node, while in our proposal the attacker

must, besides ﬁnding out an ID, break the discrete

logarithm problem for elliptic curves, which in itself

is far from a trivial problem. One could also use the

shared, secret IDs as Difﬁe-Hellman keys and dis-

miss the rest of the protocol, but that would bring the

known Difﬁe-Hellman Man-In-The-Middle vulnera-

bility (since the sensor would not be able to recognize

a valid gateway) and wouldn’t provide temporality of

messages.

Because the proposed protocol does not derive

keys exclusively from the ID, security holds even if

they are employed with low care (see Section 5.1.3),

allowing for some relaxing in the requirements re-

garding the ID. Using the IDs directly as keys would

require a care directly proportional to the desired se-

curity level.

5.1.2 Timestamps

The timestamps used along the protocol are not the

direct value of the clock, but a truncation to a pre-

established, network-level time window, which will

deﬁne the timestamp’s granularity. There should be

here a point of contact with the lower layers of the

network stack since the timestamp used in the calcu-

lations should reﬂect the moment in which the mes-

sage is actually transmitted. In WSNs, for instance,

the use of duty-cycling protocols is common, in which

senders must transmit preamble packets for X units of

time before sending the actual message. In this case,

the timestamp used for encryption on that message

should be T

i+X

(where i is the current moment).

Within a single timestamp, a message must be able

to travel from the sender to the receiver. Timestamps

with too coarse granularity should not be used be-

cause replay attacks are possible within a same times-

tamp.

SENSORNETS2015-4thInternationalConferenceonSensorNetworks

202

5.1.3 Possible Attacks

In this section we consider a few possible attacks to

the protocol, their potential impacts and preventive

measures.

1. Guessing an ID

Attack. The attacker deploys an unauthorized

device which will try to authenticate using a

number of different educated (or completely

in-the-dark) guesses of ID, until it ﬁnds a valid

one.

If Successful. An unauthorized node is deployed

and treated as a trusted one. If the legitimate

holder of the ID tries to authenticate later, it will

be treated as an attacker and blocked (see next

attack).

Countermeasure. Since the gateway is the one

to start the protocol, it has knowledge of how

many authentication attempts should be hap-

pening at any given time. If too many attempts

are detected, the gateway can start ignoring

them, so an attacker cannot try an arbitrary

number of IDs. Furthermore, any node that is

detected as trying to authenticate more than a

very few times could be blacklisted and ignored.

A mechanism for trusted nodes to detect and

report such malicious nodes is being devised

as future work (it could take geographic loca-

tion information, for instance). If the very ﬁrst

guess is correct, this attack turns into the next one.

2. Knowing an ID

Attack. The attacker knows a valid ID and

deploys a malicious node using it.

If Successful. An unauthorized node is deployed

and treated as a trusted one. If the legitimate

holder of the ID tries to authenticate later, it will

be treated as an attacker and blocked.

Countermeasure. The gateway can determine

if there is already some trusted node under that

ID. If a different node is trying to use the ID

while some node is already using it, the gateway

blocks the one that came later. This attack is

only successful if the attacker ﬁnds out the valid

ID, deploys and authenticates the node before

the proper node is authenticated; therefore the

attacker must not only ﬁnd out the ID by some

means, but also use it with perfect timing.

This solution implies that if a legitimate node

is reset for some reason and “forgets” its key

without the gateway knowing, it will not be

able to authenticate again. We assume that this

won’t happen, but if it is a concern, a policy

of key renewing can be implemented, which

periodically invalidates keys and ensures that the

key bootstrapping protocol is run to establish

new, valid keys. This way a reset sensor will be

inactive only until the next key renewal period,

but, on the other hand, every such period will

open a new window for successful “ID-knowing”

attacks.

Since the generation of a shared key is entirely

independent of the ID, stealing an ID after the

key is established does not compromise the key

in any way.

3. Manipulating Time Synchronization

Attack. Since time synchronization is needed

for secure communication, PTP must be run un-

secured by the protocol at least for the ﬁrst time,

enabling attackers to manipulate PTP messages

and break synchronization.

If Successful. New keys will not be established

successfully and secured messages will not be

decrypted correctly, resulting in Denial of Service

(DoS).

Countermeasure. DoS is a threat to wireless

networks in general, since attackers could in

most cases simply jam the channel by inserting

a large number of messages, preventing any

communication from being successful. Since

this is the only harm caused by a PTP attack

(no cryptographic material can be obtained this

way), we do not regard this as a new vulnerability.

4. Node Capture

Attack. The attacker physically acquires a legiti-

mate node in the network.

If Successful. The attacker is assumed to have

complete control over the node, and can read and

modify its data as they like.

Countermeasure. This attack is also a general

threat to Wireless Sensor Networks. By cloning

all the node’s already validated cryptographic in-

formation to a new one, the attacker can effec-

tively introduce a malicious node in the system,

which will be treated as a trusted one. Never-

theless, since any given node holds no informa-

tion – explicit or implicit – about any other node’s

key, it is guaranteed that capturing a node will

not disclose private cryptographic-key data about

the gateway (besides one shared key) or any other

nodes in the network.

5.2 Implementation Analysis

This section analyses the performance of the code

written to implement the protocol in EPOS (EPOS,

KeyEstablishmentandTrustfulCommunicationfortheInternetofThings

203

2014), allowing an application to communicate trust-

fully with transparency. In the test scenario, an EPOS-

MoteII device (Section 3.1) was used as the gateway

and two more as sensors. The implementation leaves

room for optimization (e.g. more complex algorithms

for elliptic curve operations, hardware implementa-

tion . . . ), and the aim of the evaluation is to show that

the protocol implies arguably modest overhead, even

with a sub-optimal implementation.

We implemented the Elliptic Curve arithmetic –

following the works of (Brown et al., 2001; Menezes

et al., 1996) – and Poly1305-AES libraries completely

in C++. Table 1 shows the resulting code sizes for

each part.

In the running time graphs, each bar represents the

mathematical average of a few iterations of the indi-

cated algorithms and parameters, running on differ-

ent EPOSMotes. Network overhead is not accounted.

The Elliptic Curves used are the ones recommended

in (SEC, 2000), and the numbers in the names (e.g.

secp128r1) indicate the size in bits of the parameters.

Table 1: Size (in bytes) of .text section for, respectively,

the Elliptic Curve Cryptography, Big Integer and Poly1305-

AES libraries.

ECC Bignum Poly1305 Total

size 2880 3700 1512 8092

5.2.1 Poly1305-AES

Figure 5 shows the time taken by our implementation

of the Poly1305-AES algorithm for derivation of KT

keys (which must be performed every time a message

is encrypted) and One-Time Passwords, according to

Equation 2. The total time taken by the gateway for

checking an OTP and preparing a conﬁrmation mes-

sage is shown in Figure 6.

600

800

1000

1200

1400

secp128r1 secp160r1 secp192r1

Running time [us]

Elliptic Curve

128-bit ID 160-bit ID 256-bit ID

Figure 5: Average times (µs) for OTP derivation.

In both graphs, there is a signiﬁcant difference

in the case where the ID and the ECDH parameters

are 128-bit wide. This difference happens because

1400

1600

1800

2000

2200

2400

2600

2800

3000

3200

secp128r1 secp160r1 secp192r1

Running time [us]

Elliptic Curve

128-bit ID 160-bit ID 256-bit ID

Figure 6: Average times (µs) for authentication checking

and conﬁrmation.

Poly1305-AES operates on 128-bit blocks, and in ev-

ery other case at least one of the parameters is larger

than this.

5.2.2 Elliptic Curve Difﬁe-Hellman

The execution times shown in the two previous ﬁgures

are insigniﬁcant compared to the time taken by the

ECDH implementation. Figure 7 shows the average

times taken to perform one of the two Elliptic Curve

point multiplications required by the protocol. One

should keep in mind, however, that Poly1305-AES is

used whenever a secure message is sent and received,

while this multiplication pair generates a key that will

be valid for a very long time (hours, days, months, de-

pending on the application), therefore they will hap-

pen very sporadically, in some cases only once in a

sensor’s lifetime in the network.

800

1000

1200

1400

1600

1800

2000

2200

2400

2600

2800

secp128r1 secp160r1 secp192r1

Running time [ms]

Elliptic Curve

128-bit ID 160-bit ID 256-bit ID

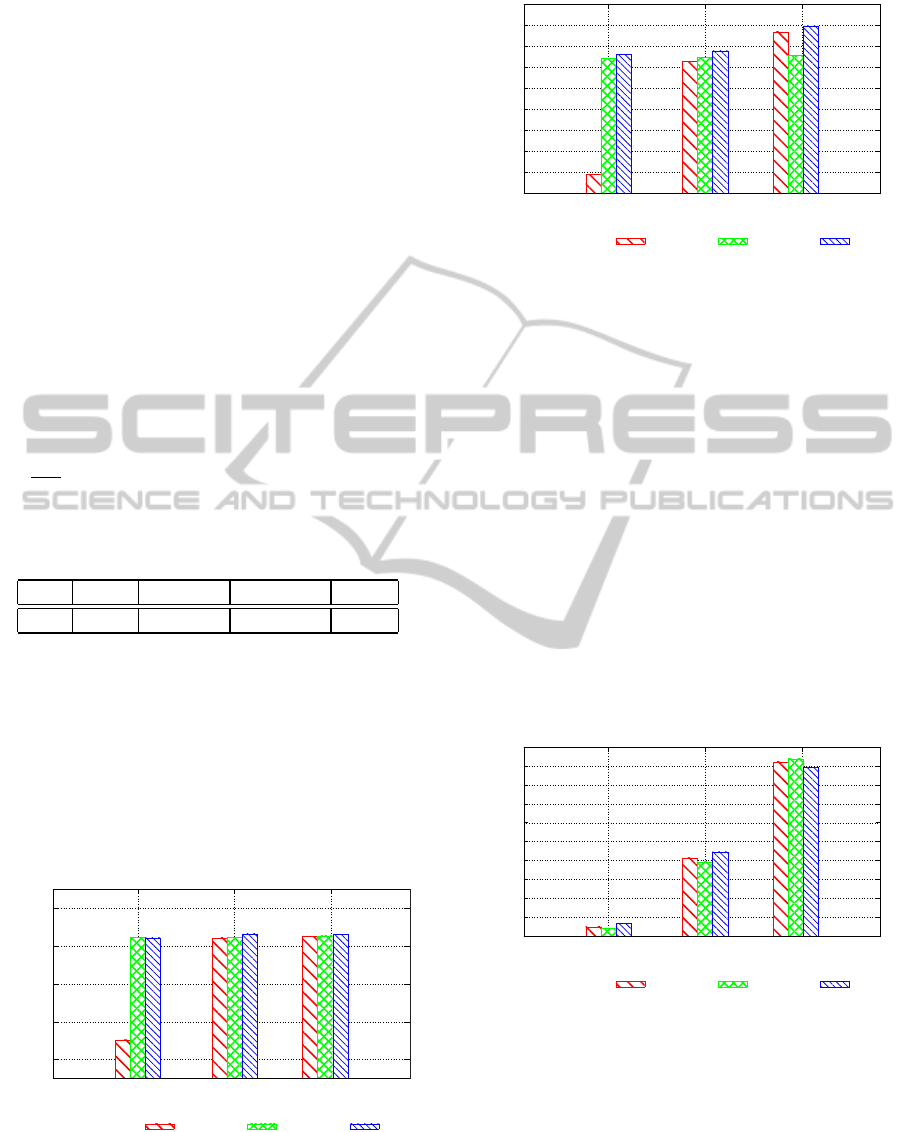

Figure 7: Average times (ms) for ECDH point multiplica-

tion.

5.2.3 Communication Overhead

For key establishment, a total of 4 messages are

exchanged, as shown in Figure 3. For each mes-

sage, the security layer implementation uses one byte

to represent message type, and a payload of size

speciﬁc for each message. The ﬁrst two messages

each carry a Difﬁe-Hellman public key. Its size

SENSORNETS2015-4thInternationalConferenceonSensorNetworks

204

is implementation-dependent, and in our ECDH im-

plementation it is a two-dimensional Elliptic Curve

point. The total size of the point is equal to

twice the size of the generated Master Secret. In

Auth_Request(Auth, OT P), both values are ﬁxed at 16

bytes each. Auth_Granted({ID

}

) has a payload

of size equal to ID

. Table 2 shows the total commu-

nication overhead for these 4 messages, for varying

sizes of ID and Master Secret.

Table 2: Total communication overhead (in bytes) for key

establishment for varying sizes of Master Secret (rows) and

ID (columns).

ID size 16 20 32

MS size

16 116 120 132

20 132 136 148

24 148 152 164

6 CONCLUSIONS

This paper presented a trustful infrastructure for the

IoT developed within the realm of project EPOS. As-

pects such as people privacy in respect to trafﬁc pat-

tern analysis and data dependability have not been

considered in this paper. Also, optimized implemen-

tations and secure group communication are topics

left as future work and are currently under study.

The proposed infrastructure was implemented

around the EPOSMoteII platform and delivered to

end users through a trustful communication protocol

stack. Trustfulness for the infrastructure was achieved

through a combination of mechanisms. A practical

key establishment protocol based on AES, Poly1305-

AES, time synchronization, Difﬁe-Hellman and sen-

sor IDs was proposed to achieve conﬁdentiality, au-

thentication, integrity and prevention from replay at-

tacks. The proposal was experimentally evaluated in

terms of running time in a real-world implementation.

The results conﬁrm that the proposed infrastructure

can provide the security needed without introducing

excessive overhead to a network of things, a key step

in making the Internet of Things a daily reality.

REFERENCES

Atzori, L., Iera, A., and Morabito, G. (2010). The internet

of things: A survey. Computer Networks, 54(15):2787

– 2805.

Bernstein, D. J. (2005). The poly1305-aes message-

authentication code. In Proceedings of Fast Software

Encryption, pages 32–49, Paris, France.

Brown, M., Hankerson, D., López, J., and Menezes, A.

(2001). Software implementation of the nist ellip-

tic curves over prime ﬁelds. In Naccache, D., editor,

Topics in Cryptology - CT-RSA 2001, volume 2020 of

Lecture Notes in Computer Science, pages 250–265.

Springer Berlin Heidelberg.

Chang, J.-T., Liu, S., Gaudiot, J., and Liu, C. (2010).

Hardware-assisted security mechanism: The acceler-

ation of cryptographic operations with low hardware

cost. In Performance Computing and Communica-

tions Conference (IPCCC), 2010 IEEE 29th Interna-

tional, pages 327 –328.

Elkhodr, M., Shahrestani, S., and Cheung, H. (2013). The

internet of things: Visions & challenges. In TENCON

Spring Conference, pages 218 – 222.

EPOS (2014). Epos project website. http://epos.

lisha.ufsc.br.

Fröhlich, A. A., Okazaki, A. M., Steiner, R. V., Oliveira, P.,

and Martina, J. E. (2013). A cross-layer approach to

trustfulness in the internet of things. In 9th Workshop

on Software Technologies for Embedded and Ubiqui-

tous Systems (SEUS), Paderborn, Germany.

Fröhlich, A. A., Steiner, R., and Ruﬁno, L. M. (2011). A

trustful infrastructure for the internet of things based

on eposmote. In 9th IEEE International Conference

on Dependable, Autonomic and Secure Computing,

pages 63–68, Sydney, Australia.

Fu, X., Graham, B., Bettati, R., and Zhao, W. (2003).

Active trafﬁc analysis attacks and countermeasures.

In Proceedings of the 2003 International Conference

on Computer Networks and Mobile Computing, ICC-

NMC ’03, pages 31–, Washington, DC, USA. IEEE

Computer Society.

Huang, Q., Cukier, J., Kobayashi, H., Liu, B., and Zhang,

J. (2003). Fast authenticated key establishment pro-

tocols for self-organizing sensor networks. In Pro-

ceedings of the 2Nd ACM International Conference on

Wireless Sensor Networks and Applications, WSNA

’03, pages 141–150, New York, NY, USA. ACM.

Jinwala, D., Patel, D., Patel, S., and Dasgupta, K. (2009).

Replay protection at the link layer security in wireless

sensor networks. In Computer Science and Informa-

tion Engineering, 2009 WRI World Congress on, vol-

ume 1, pages 160 –165.

Karlof, C., Sastry, N., and Wagner, D. (2004). Tinysec: a

link layer security architecture for wireless sensor net-

works. In Proceedings of the 2nd international confer-

ence on Embedded networked sensor systems, SenSys

’04, pages 162–175, New York, NY, USA. ACM.

Li-ping, Z. and Yi, W. (2009). An id-based key agreement

protocol for wireless sensor networks. In 1st Interna-

tional Conference on Information Science and Engi-

neering (ICISE), pages 2542 – 2545.

Luk, M., Mezzour, G., Perrig, A., and Gligor, V. (2007).

Minisec: A secure sensor network communication ar-

chitecture. In Information Processing in Sensor Net-

works, 2007. IPSN 2007. 6th International Sympo-

sium on, pages 479 –488.

Menezes, A., van Oorschot, P., and Vanstone, S. (1996).

Handbook of Applied Cryptography. CRC Press.

KeyEstablishmentandTrustfulCommunicationfortheInternetofThings

205

NSA (2009). The case for elliptic curve cryptography.

www.nsa.gov/business/programs/elliptic_curve.shtml.

Oliveira, P., Okazaki, A. M., and Fröhlich, A. A. (2012).

Sincroniza cão de tempo a nível de so utilizando o

protocolo ieee1588. In Simpósio Brasileiro de Engen-

haria de Sistemas Computacionais, Natal, Brazil.

Pan, J., Wang, L., and Ma, C. (2011). Analysis and im-

provement of an authenticated key exchange protocol.

In Bao, F. and Weng, J., editors, Information Secu-

rity Practice and Experience, volume 6672 of Lecture

Notes in Computer Science, pages 417–431. Springer

Berlin Heidelberg.

SEC (2000). Standards for Efﬁcient Cryptography, SEC

2: Recommended Elliptic Curve Domain Parameters.

Certicom Research.

Sun, H.-M., Chang, S.-Y., Tello, A., and Chen, Y.-H.

(2010). An authentication scheme balancing authen-

ticity and transmission for wireless sensor networks.

In Computer Symposium (ICS), 2010 International,

pages 222 –227.

Suo, H., Wan, J., Zou, C., and Liu, J. (2012). Security in

the internet of things: A review. In Computer Science

and Electronics Engineering (ICCSEE), 2012 Inter-

national Conference on, volume 3, pages 648–651.

Zhou, Y., Fang, Y., and Zhang, Y. (2008). Securing wireless

sensor networks: A survey. IEEE Communications

Surveys & Tutorials, 10:6–28.

SENSORNETS2015-4thInternationalConferenceonSensorNetworks

206
