Color Restoration for Infrared Cutoff Filter Removed RGBN

Multispectral Filter Array Image Sensor

Chul Hee Park, Hyun Mook Oh and Moon Gi Kang

Institute of BioMed-IT, Energy-IT and Smart-IT, Technology (BEST), Yonsei University,

50 Yonsei-Ro, Seodaemun-Gu, Seoul, South Korea

Keywords:

Multi Spectral Image, Color Restoration, Spectral Estimation, Low Light Condition, Spectral Decomposition,

Multi Filter Array, Infrared Cut Off Filter Removal.

Abstract:

Imaging systems based on multispectral ﬁlter arrays(MSFA) can simultaneously acquire wide spectral infor-

mation. A MSFA image sensor with R, G, B, and near-infrared(NIR) ﬁlters can obtain the mixed spectral

information of visible bands and that of the NIR bands. Since the color ﬁlter materials used in MSFA sensors

were almost transparent in the NIR range, the observed colors of multispectral images were degraded by the

additional NIR spectral band information. To overcome this color degradation, a new signal processing ap-

proach is needed to separate the spectral information of visible bands from the mixed spectral information. In

this paper, a color restoration method for imaging systems based on MSFA sensors is proposed. The proposed

method restores the received image by removing NIR band spectral information from the mixed wide spec-

tral information. To remove additional spectral information of the NIR band, spectral estimation and spectral

decomposition were performed based on the spectral characteristics of the MSFA sensor. The experimental

results show that the proposed method restored color information by removing unwanted NIR contributions to

the RGB color channels.

1 INTRODUCTION

In most digital cameras, CCD or CMOS image sen-

sors are used to acquire the light reﬂected by ob-

jects. Unlike human eyes, sensors based on sili-

con (SiO2) are sensitive to near-infrared(NIR) up to

1100nm, limited by the cut-off of silicon. To prevent

unnatural looking images, digital cameras are usually

equipped with infrared cut-off (IRCF) ﬁlter. This ﬁl-

ter, sometimes called IR ﬁlter or hot mirror, reﬂect or

block near infrared wavelengths from about 700nm to

1100nm while allowing visible light to enter.

However, because of this characteristic of IRCF,

image sensors cannot receive much valuable informa-

tion outside of the visible spectrum. For instance,

most dyes and pigments used for material coloriza-

tion are somewhat transparent to NIR. Therfore, the

difference in the NIR intensities is not only due to the

particular color of the material, butalso the absorption

and reﬂectance characteristics of the dyes. Therefore,

the NIR intensity gives the information pertinent to

material classes rather than the color of that object

(Salamati and Susstrunk, 2010).

Recently, there have been several attempts to use

NIR band information. In remote sensing applications

(J. Choi and Kim, 2011), the multi-spectral images

observed in a variety of the spectrum bands are used

where both visible and NIR bands are included. As

each spectral band provides different information, the

spectral bands are selectively used in the observation

of the multi-spectral images.

In surveillance cameras (X. Hao and Wang, 2010),

the NIR band is used especially in low light condi-

tions or invisible NIR light conditions. The NIR band

is also used in biometric (Kumar and Prathyusha,

2009), face matching (D. Yi and Li, 2007), and face

recognition (S. Z. Li and Lun, 2007) applications,

which have been studied based on the intrinsic re-

ﬂectivity of the skin or eyes under NIR illumination.

Since the reﬂection in NIR is material dependent, it

is also used in material classiﬁcation (Salamati and

Susstrunk, 2010) and illuminant estimation (Fredem-

bach and Susstrunk, 2009). NIR images can be used

in image enhancement applications such like image

dehazing (L. Schaul and Susstrunk, 2009).

Kise et al. designed a three-band spectral imaging

system composed of multiple cameras with a beam

splitter (M. Kise and Windham, 2010). This imaging

system has been used to acquire multispectral images

in user-selected spectral bands simultaneously by uti-

Park C., Oh H. and Kang M..

Color Restoration for Infrared Cutoff Filter Removed RGBN Multispectral Filter Array Image Sensor.

DOI: 10.5220/0005263600300037

In Proceedings of the 10th International Conference on Computer Vision Theory and Applications (VISAPP-2015), pages 30-37

ISBN: 978-989-758-089-5

 2015 SCITEPRESS (Science and Technology Publications, Lda.)

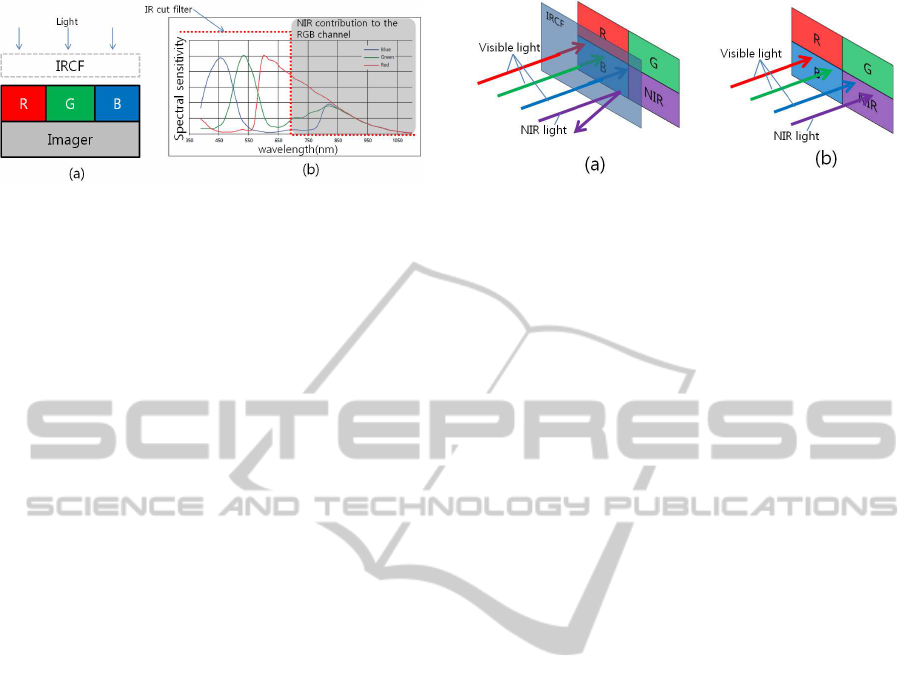

Figure 1: (a) Conventional camera system based on CFA

image sensor with IR-cut ﬁlter. (b) Spectral sensitivity of

the camera system.

lizing three interchangeable optical ﬁlters and various

optical components. Similarly, Matsui et al. imple-

mented a multispectral imaging system, where two

IRCF removed cameras were used to capture the color

and NIR images, independently (S. Matsui and Sato,

2010). In this system, the IRCF removed cameras are

perpendicularly aligned and the IRCF was used as a

light splitter for visible and NIR bands. By managing

the shutter of two cameras with a single controller,

each spectral band image pair was acquired, simul-

taneously. However, this imaging system requires a

large place to ﬁx two or more cameras and an align-

ment process. Due to the lack of portability of the

devices, multi-camera based imaging systems are not

suitable for outdoor environments.

As an alternative approach, an IRCF removed

color ﬁlter array (CFA) image sensor like a Bayer

image sensor without an IRCF can be used (Fredem-

bach and Susstrunk, 2008). By using a single digi-

tal camera without IRCF, the spectral information of

the visible band and that of the NIR band can be ac-

quired at the same time. Fig. 1 shows a conventional

camera system approach with an IRCF and a spec-

tral sensitivity of a MOS imager integrated with tra-

ditional organic on-chip RGB Bayer ﬁlters. By re-

moving the IRCF, the NIR contribution to the RGB

channel reaches the MOS imager.

On the other hand, mixing color and NIR sig-

nals on the pixel level can result in extreme color de-

saturation if the illumination contains high amounts

of NIR. Although it may be possible to overcome the

unwanted NIR contribution to the RGB color channel

through the signal processing technique, it is hard to

estimate the NIR spectral energy in each RGB color

channel because there is no way to detect the NIR

band spectral characteristics.

As an improved system based on the single im-

age sensor, an imaging system based on a multispec-

tral ﬁlter array (MSFA) which simultaneously ob-

tains visible and NIR band images can be considered

(S. Koyama and Murata, 2008). A pixel conﬁguration

of the RGB ﬁlters and another NIR pass ﬁlter, which

transmits NIR light only, is shown in Fig.2. With the

Figure 2: The Infrared cut off ﬁlter. (a) Typical imaging

system using IRCF. (b) IRCF removed imaging system.

use of this ﬁlter conﬁguration, RGB signals can be

calculated by subtracting a NIR signal from RGB sig-

nals that have deteriorated with the NIR components.

As a result, the IRCF can be removed even during

the day. Because of this advantage, imaging systems

based on MSFA sensors can be applied to a wide vari-

ety of applications. Furthermore, if fusion technology

that uses NIR band information is applied, it is possi-

ble to gain additional sensitivity to color which does

not deviate signiﬁcantly from the human visual sys-

tem.

This paper proposes a color restoration method

that removes the NIR component in each RGB color

channel with an imaging system based on the IRCF

removed MSFA image sensor. Since the color degra-

dation caused by the IRCF removal is a huge limita-

tion, the NIR contribution to each RGB color chan-

nel needs to be eliminated. To remove unwanted NIR

components in each RGB channel, the color restora-

tion model is subdivided into two parts : spectral es-

timation and spectral decomposition.

2 PROBLEM STATEMENT

2.1 Color Model of an IRCF removed

MSFA Image Sensor

The color image observed by an IRCF removed

MSFA image sensor can be modeled as a spectral

combination of three major components: illuminant

spectra E(λ), sensor function R

(k)

(λ), and surface

spectra S(λ). The color image formation model for

channel k, C

(k)

, is deﬁned as (K. Barnard and Funt,

2002):

(k)

expand

E(λ)R

(k)

(λ)S(λ)dλ (1)

vis

E(λ)R

(k)

(λ)S(λ)dλ

nir

E(λ)R

(k)

(λ)S(λ)dλ

= C

(k)

vis

(k)

nir

ColorRestorationforInfraredCutoffFilterRemovedRGBNMultispectralFilterArrayImageSensor

where w

expand

, w

vis

and w

nir

represent the spectral

range of the IRCF removed MSFA image sensor, the

visible band between 400nm to 650nm, and the NIR

band up to 650nm, respectively. Since the IRCF re-

moved MSFA image sensor acquires the additional

NIR band spectral energy up to 650nm wavelength,

the range of these three major components should be

expanded to the NIR band. C

(k)

vis

, C

(k)

nir

represents the

camera response for channel k by using the IRCF re-

moved MSFA image sensor in the visible band, and

the NIR band, respectively. For image sensors with

RGBN ﬁlters, the intensities at each pixel position can

be represented as,

R(i, j) = R

vis

(i, j) + R

nir

(i, j) (2)

G(i, j) = G

vis

(i, j) + G

nir

(i, j)

B(i, j) = B

vis

(i, j) + B

nir

(i, j)

N(i, j) = N

vis

(i, j) + N

nir

(i, j).

In Eq. (2), each pixel contains additional NIR band

information. Since this information help to gain the

sensitivity of the sensor, this feature can be useful un-

der low light conditions. However, mixing color and

NIR intensities can result in color degradation if the

illumination contains high amounts of NIR.

2.2 Color Degradation

To correct the de-saturated color from the images

acquired by MSFA image sensors, several conven-

tional methods can be considered as described in

(K. Barnard and Funt, 2002). Given the observed

color vector Y and the visible band color vector with

canonical illuminance X, the color correction ob-

tained by a color constancy method can be repre-

sented in matrix form:

X = Φ

Y (3)

where Φ is a diagonal matrix whose component

corresponds to the ratio between the canonical and

the current illuminance of each channel. The illumi-

nant color estimation was performed under unknown

lighting conditions where pre-knowledge based ap-

proaches, such as gamut mapping (G. D. Finlayson,

2000) or the color correlation framework (G. D. Fin-

layson and Hubel, 2001) were used. However, the

conventional color constancy method which does not

consider the NIR contribution to the RGB channels is

limited when it comes to restoring natural color. As a

result, the color degradation caused by additive NIR

band intensity cannot be corrected by the conven-

tional color constancy method. Although each color

is obtained under the same illuminant conditions

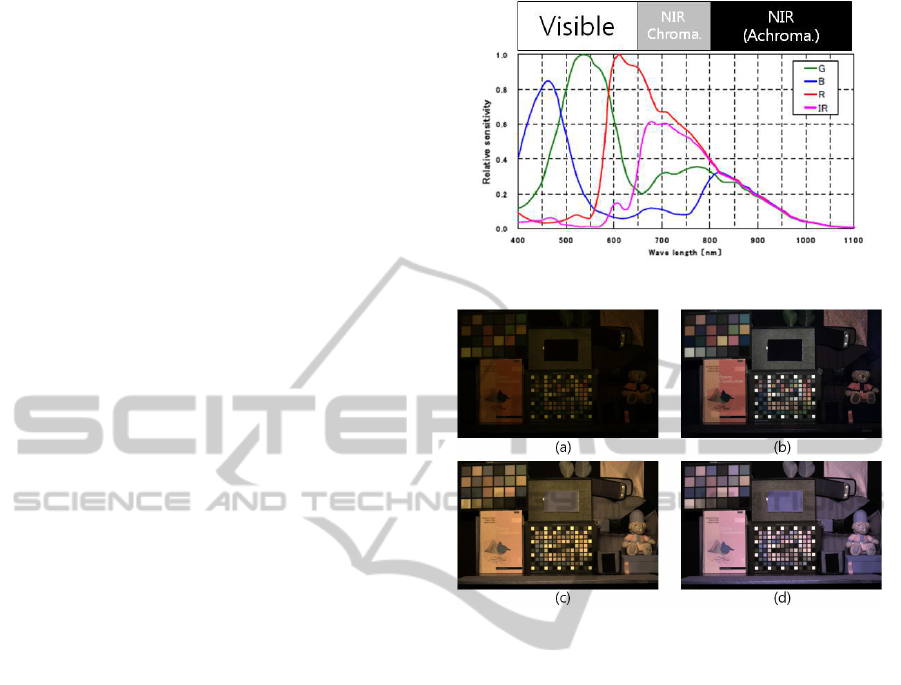

Figure 3: The spectral response of the MSFA image sensor.

Figure 4: The color observation of the MSFA image sensor

under incandescent light. (a) Image captured with IRCF.

(b)(a) with color constancy. (c) Image captured with IRCF

removal MSFA image sensor. (d) (c) with color constancy.

with and without an IRCF, respectively, the mixture

of the exclusive NIR band intensity to the visible

band intensity results in severe color distortion which

alters the original color observation in the visible

band.

Figure 4 describes the effect of the NIR band

intensity in the color image. When objects were

illuminated by an incandescent lamp, the image

sensor with IRCF obtained a yellowish image due to

the low color temperature of the illuminance. After

performing the white balance technique from a grey

color patch, a natural color image was obtained as

shown in Fig. 4(b). On the other hand, when the

IRCF was removed, the entire band of the image

sensor was utilized and a broad spectral band image

was observed. Due to additive NIR intensity in the

RGB channels, Fig. 4(c) appears more brighter than

Fig. 4(a) but shows low color saturation despite

applying white balance in Fig. 4(d).

To analyze the change of the chromaticity feature

obtained by the additional NIR, the RGB color space

was converted into a HSI color space as follows,

VISAPP2015-InternationalConferenceonComputerVisionTheoryandApplications

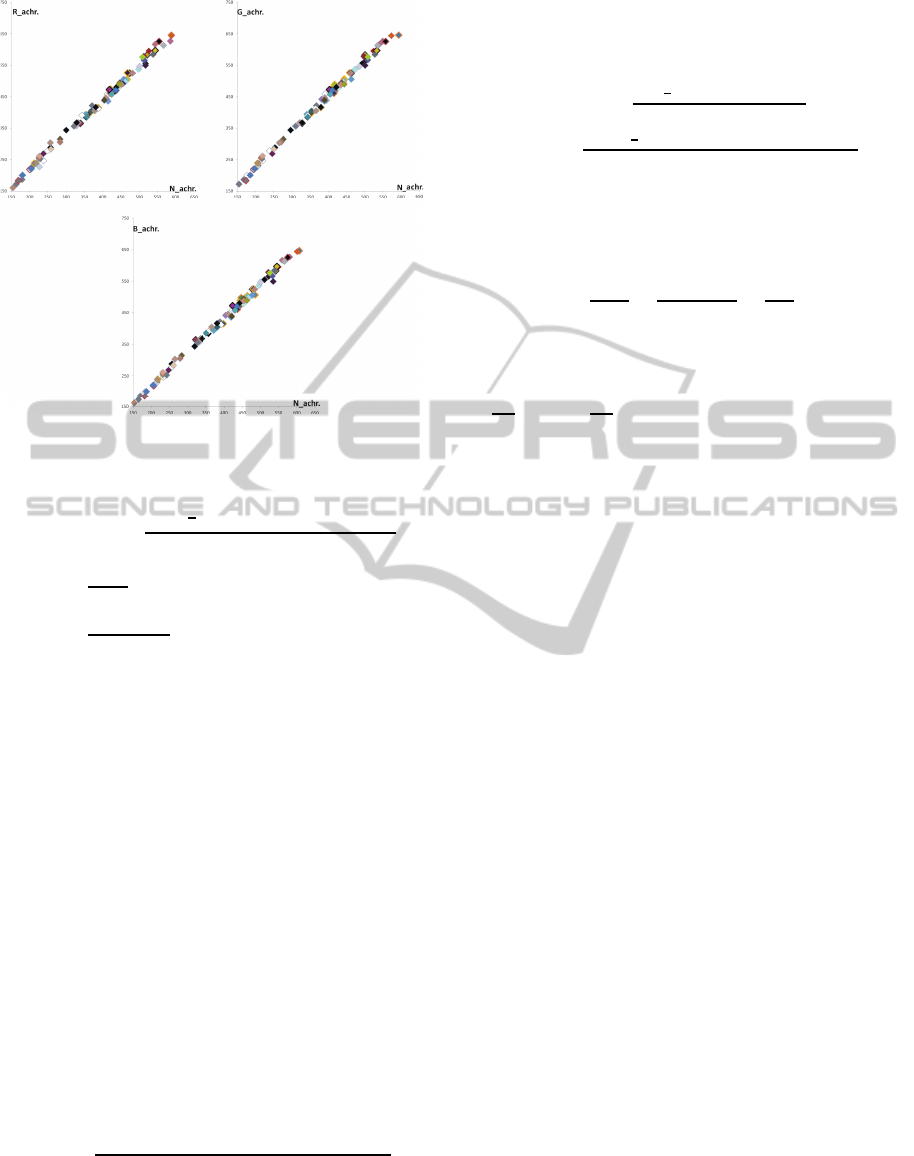

Figure 5: RGBN channel correlation in the NIR band above

800nm. (a) N

nir

vs R

nir

. (b)N

nir

vs G

nir

. (c) N

nir

vs B

nir

H = cos

−1

{

[(R− G) + (R− B)]

[(R− G)

+ (R− B)(G− B)]

1/2

}(4)

S =

I − a

where a = min[(R, G,B)],

I =

R+ G+ B

where min(·) represents the minimum value

among the three values. In Fig. 3, the NIR band

is divided into two sub bands: we deﬁned these sub

bands as a chromatic NIR band (650nm 800nm) and

an achromatic NIR band (800nm 1100nm), respec-

tively. Figure 5 shows that the responses of the achro-

matic NIR bands were identical to each other. Based

on this characteristic of the CMOS sensor in the NIR

achromatic band, we deﬁned these responses as con-

stant at each pixel, such as R

nir(achr)

= G

nir(achr)

= δ. As a result, the RGB intensities at a

pixel position in Eq. (2) were represented as:

R(i, j) = R

chr

(i, j) + δ(i, j) (5)

G(i, j) = G

chr

(i, j) + δ(i, j)

B(i, j) = B

chr

(i, j) + δ(i, j)

where R

chr

represent the chromatic col-

ors of the image sensor under 800nm wavelength.

With the RGB color values with offset δ, the inten-

sity of the observed color was deﬁned as follows:

I =

[(R

chr

+ δ) + (G

chr

+ δ) + (G

chr

+ δ)]

(6)

= I

chr

+ δ,

where I

chr

= (R

chr

+ G

chr

+ B

chr

)/3 is the intensity of

the chromatic spectral band of the image sensor. The

intensity of the IRCF removed MSFA image sensor is

changed by the amount of the offset value. The hue

value in Eq. (4) was redeﬁned as:

H = cos

−1

{

[(R−G)+(R−B)]

[(R−G)

+(R−B)(G−B)]

1/2

}, (7)

= cos

−1

{

[(R

chr

−G

chr

)+(R

chr

−B

chr

)]

[(R

chr

−G

chr

)

+(R

chr

−B

chr

)(G

chr

−B

chr

)]

1/2

Because the achromatic offset value δ was re-

moved during subtraction, the identical offset on the

RGB channels did not change the hue value. Finally,

the saturation value became:

S =

I− a

chr

− a

chr

· S

chr

where S

chr

= (I

chr

− a

chr

)/I

chr

represents the satu-

ration of the chromatic spectral band of the image sen-

sor and a

chr

= min(R

chr

). Since the range

chr

was 0≤

chr

≤ 1, the saturation of the image ob-

tained by the IRCF removed MSFA image sensor was

degraded and became smaller than the image obtained

by the chromatic spectral band of the image sensor.

3 PROPOSED METHODS

The purpose of the proposed method is to restore

the original color in the visible band from the mixed

wide band signal. However, color restoration in the

spectral domain is an under-determined problem, as

described in Eq. (2). Since MSFA image sen-

sors have additional pixels whose intensity was rep-

resented in Eq. (2), this under-determined problem

can be redeﬁned with eight unknown spectral values.

From Eq.(1), the observed intensity vectors of the

multi-spectral images can be represented as C(i,j) =

[R(i,j),G(i, j), B(i,j),N(i,j)]

. To focus on the color

restoration at each pixel position, we assumed the spa-

tially sub-sampled MSFA image was already interpo-

lated. As a result, there were four different intensities

at each RGBN pixel position.

In Fig. 3, the spectral response of each channel

is described with the corresponding RGB and N val-

ues. The energy of the NIR band was obtained by the

RGB color ﬁlters as well as the N ﬁlter. Similarly, the

large amount of the energy in the visible band was ob-

tained by the N channel. By considering the observed

multi-spectral intensity vector C(i,j), the spectral cor-

relation between the channels in the visible band and

the NIR band resulted in a mixture of exclusive re-

sponses in each channel as represented in Eq. (2).

From the sub-spectral band intensity mixture

model, the color restoration problem was deﬁned

to ﬁnd the unknown visible band intensity values

vis

from the observed intensity values R, G,

ColorRestorationforInfraredCutoffFilterRemovedRGBNMultispectralFilterArrayImageSensor

B, N which contained the unknown NIR band inten-

sity values and the unknown visible intensity values.

3.1 Sensor Spectral Response Function

Modeling

To restore the RGB channels corrupted by NIR

band spectral energy, the additional NIR band

components(R

nir

, G

nir

, B

nir

) in the RGB channels had

to be removed:

vis

= R− R

nir

(8)

vis

= G− G

nir

vis

= B− B

nir

vis

= N− N

nir

Since the spectral response function of the RGBN

ﬁlter was not deﬁned only in the NIR band, we used a

signal processing approach to estimates the NIR band

response. To decompose the spectral information of

the RGBN channel, the unknown value N

vis

or N

nir

had to be estimated. To cope with the different char-

acteristics of the correlation in the visible band as

well as the NIR band, we set the correlation model

in each subband, separately. In the visible band, the

RGB channel ﬁlters showed different peak spectral re-

sponses while the N channel ﬁlter covered all spectral

ranges without an outstanding peak. As a result, the

N channel ﬁlter response function was modeled as a

linear combination of the others:

vis

700

400

(λ)E(λ)R

(r)

(λ)S(λ)dλ (9)

700

400

(λ)E(λ)R

(g)

(λ)S(λ)dλ

700

400

(λ)E(λ)R

(b)

(λ)S(λ)dλ

where ω

(λ), ω

(λ), and ω

(λ) represent the coefﬁ-

cients that show cross-correlations in the visible band.

Since the spectral response of the N channel in the

visible band covered a wide spectral range without an

outstanding peak, those coefﬁcients were constrained

to be constant in terms of the wavelength (Park and

Kang, 2004). Using the constrained weights, the in-

tensities of the N channel in the visible band were ap-

proximated as follows:

vis

(i,j) ≈ ω

· R

vis

(i,j) (10)

+ω

· G

vis

(i,j) + ω

· B

vis

(i,j),

where ω

,ω

, and ω

represent the visible band cross-

correlation coefﬁcients obtained by the linear trans-

formation model: x

′

= Mx, where M represents a 1

by 3 matrix describing the mapping between the RGB

to N channel values. The transformation M was ob-

tained by a least square solution. The weight function

was of any arbitrary form caused by the illuminance

change and the spectral response of the sensor. As a

result, the function ω depended not on the spectrum λ

itself but on the spectral response of the illuminance

and the sensor.

In the NIR band where the spectral correlations

between the RGBN ﬁlters were high, there were num-

bers of coefﬁcient sets in the application of the spec-

tral decimation model. For instance, consider an ex-

treme case of a single weight for one channel and

zeros for the others or evenly distributed weights.

Among a variety of solutions, we used visible band

weights where the selection was a key to the relation

between the exclusive two spectral bands. To cope

with the different energy ratio in the visible and the

NIR bands, the response of the N channel in the NIR

band was:

nir

(i,j) ≈ β

v,n

· (ω

· R

nir

(i,j) (11)

+ω

· G

nir

(i,j) + ω

· B

nir

(i,j))

where β

v,n

is the inter-spectral correlation coefﬁcient

that considers the energy balance between the visible

band and the NIR band. When we decomposed the

spectrally decomposed N channel in the visible and

NIR bands, the given N channel was represented by

the RGB channel intensities in the visible and NIR

bands from Eq. (10) and Eq. (11).

N = N

vis

+ N

nir

(12)

= ω

· (R

vis

+ β

v,n

· R

nir

) + ω

· (G

vis

+β

v,n

· G

nir

) + ω

· (B

vis

+ β

v,n

· B

nir

)

In Eq. (12), the observed N channel is described

with unknown RGB values in the visible band and the

NIR band. Therefore, we obtained the decomposed

N channel indirectly from Eq. (12). Corresponding

to the spectral response of the N channel, we deﬁned

the artiﬁcial N channel which was made by using the

observed RGB channels and the inter-channel coefﬁ-

cients in Eq. (10).

N = ω

· R+ ω

· G+ ω

· B (13)

= ω

· (R

vis

+ R

nir

) + ω

· (G

vis

+ G

nir

)

+ω

· (B

vis

+ B

nir

)

Since the coefﬁcients were designed to ﬁt the N

channel in the visible band, the estimated luminance

resembled the N channel model in the visible band

but not in the NIR band. Therefore, the N channel

was decomposed into the visible and NIR bands by

subtracting the original N channel in Eq. (12) and the

artiﬁcial N channels

N in Eq. (13):

VISAPP2015-InternationalConferenceonComputerVisionTheoryandApplications

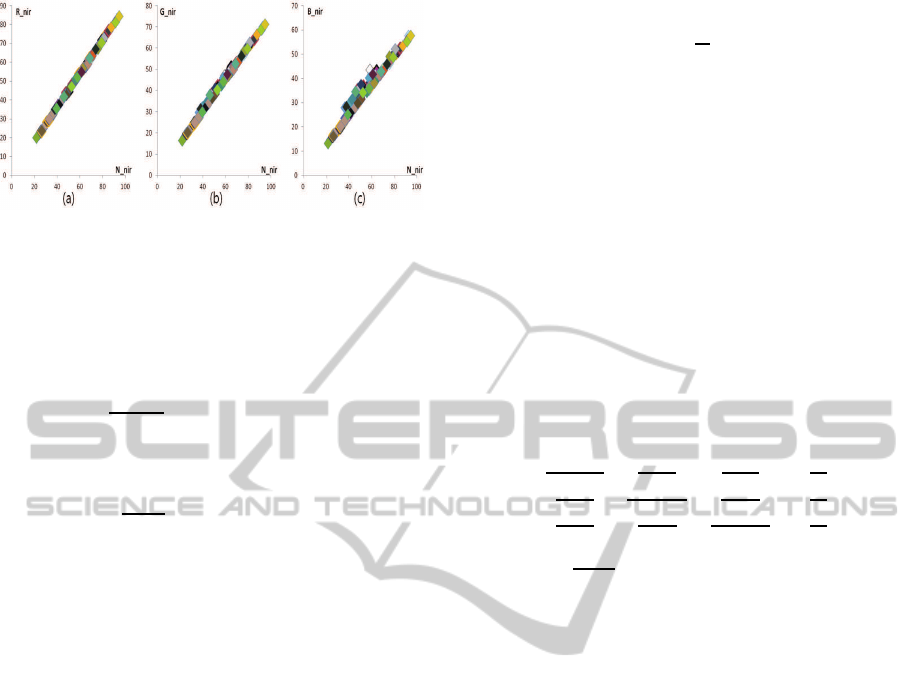

Figure 6: RGBN channel correlation in the NIR band. (a)

nir

vs R

nir

. (b)N

nir

vs G

nir

. (c) N

nir

vs B

nir

N−

N = ω

· (β

v,n

− 1) · R+ ω

· (β

v,n

− 1) · G (14)

+ω

· (β

v,n

− 1) · B

= (β

v,n

− 1) · (ω

· R

nir

+ ω

· G

nir

+ ω

· B

nir

)

v,n

− 1

v,n

nir

= K·

nir

where K =

v,n

−1

v,n

is a scaling factor ,and

nir

rep-

resents the artiﬁcial N channel of NIR band from Eq.

(11). Based on Eq. (14), we decomposed the spec-

tral response of the N channel into the two different

channels, the visible band and the NIR band. The N

channel information in NIR band was recovered from

the N channel that contained the energy of the entire

spectrum of the image sensor. As a result, the decom-

posed N channel intensities in the NIR band and the

RGB channel intensities in the NIR band were esti-

mated from the result of Eq. (14). In Fig. 6, the

relationship of the RGB channel intensities and the

N channel intensity of 96 color patches of the Gretag

color checker SG in the NIR band is represented. As

described in the ﬁgure, they are asymptotically linear

in the NIR band. From this correlation, the decom-

posed NIR band value of the RGB channel in the NIR

band is deﬁned as follows:

nir

= α

nir

(15)

nir

= α

nir

= α

nir

where α

, α

, and α

represent the coefﬁcients that

show the linear correlation between the RGB chan-

nels and the N channel in the NIR band. From the

equation, the intensities of the RGB channel in the

NIR band were estimated and this color restoration

model was processed with a single matrix transfor-

mation of:

(

vis

)

= M · (R, G, B,N)

, (16)

where M is

M = E+

AW, (17)

where W is the N channel decomposition matrix,

A is the RGB channel decomposition matrix, and E is

a 3 by 4 matrix of zeros, with 1s along the leading di-

agonal. The N channel decomposition matrix W was

deﬁned as:

W =







−1







, (18)

and the RGB channel decomposition matrix was de-

ﬁned as:

A =





0 0 0

0 α

0 0

0 0 α





. (19)

Based on Eq. (17), the uniﬁed matrix M was:

M =





·ω

−

·ω

−

·ω

−





(20)

where K =

v,n

−1

v,n

is a scaling factor in Eq. (14),

(λ),ω

(λ) are the coefﬁcients for the linear

combination in Eq. (9) and α

, α

, and α

are the co-

efﬁcients that represent the linear correlation between

the RGB channels and the N channel in the NIR band

in Eq. (15). The color restoration matrix restored the

visible band intensity values from the observed cross-

correlated RGBN valueswhere the matrix coefﬁcients

were given by the visible band cross-correlation coef-

ﬁcients and the spectral cross-correlation coefﬁcient.

4 EXPERIMENTAL RESULTS

We tested the method with several images captured

under various lighting conditions: sunlight, incandes-

cent lamp, and ﬂuorescent lamp. For the training set

for the correlation coefﬁcients, we used the standard

colors in the Macbeth SG color checkerboard.

In Figs. 8 (a) and (b), the visible band images

observed by the MSFA sensor without and with the

IRCF are depicted, respectively. In the ﬁgures, the

effect of the NIR band energy on the color hue and

saturation in all colors in color patches can be shown.

Moreover, color degradation was highly distinctive in

some materials such as fabrics since the NIR band

energy had more effect on these materials. In Fig.

8(c), the result of the conventional method (G. D. Fin-

layson and Hubel, 2001) is described where the color

saturation is far better than in Fig. 8(a). However,

ColorRestorationforInfraredCutoffFilterRemovedRGBNMultispectralFilterArrayImageSensor

Table 1: Average angular error.

Average angular error (x10

−

Input image Conventional method Proposed method

Fluorescent 0.7651 0.7996 0.7716

Sunlight 6.9688 2.9261 1.5253

Incandescent 28.7329 7.7961 4.2263

the color saturation is still low with the high NIR

reﬂectance materials, such as the yellow T-shirt and

the black hat of the doll. In Fig. 8(d), the proposed

method shows greater improvementsthan the conven-

tional method with the vivid colors in the SG color

chart and in the NIR sensitive materials. When com-

pared with the visible band image in Fig. 8(b), the

proposed method produces colors much more simi-

lar to the visible band color in both color patches and

other materials.

In Fig. 7, the experimental results obtained un-

der ﬂuorescent lamp with 350lx illumination are de-

picted. Since the ﬂuorescent lamp did not emit NIR

band energy, the input image in Fig. 7 (a) and the

optical ﬁltered image in Fig. 7 (b) were almost the

same. Because there was no distortion caused by the

NIR band spectral energy in the input image, the pro-

posed method in Fig. 7 (d) preserved the color of the

input image. Figure 9 shows the experimental results

in sunlight. Sunlight contains a wide range of spectral

distribution and plenty of visible band information. In

this case, we restored color with the proposed method

in Eq. (20). When comparing ﬁgures 9 (c) to (d),

the resulting image of the proposed method restored

the distorted color well, especially the materials with

high reﬂectance in the NIR band.

To demonstrate the similarity of the restored col-

ors to the original visible band colors, the well known

matric called angular error was used (K. Barnard and

Funt, 2002). In this measurement, the color difference

was calculated by the angle between the two color

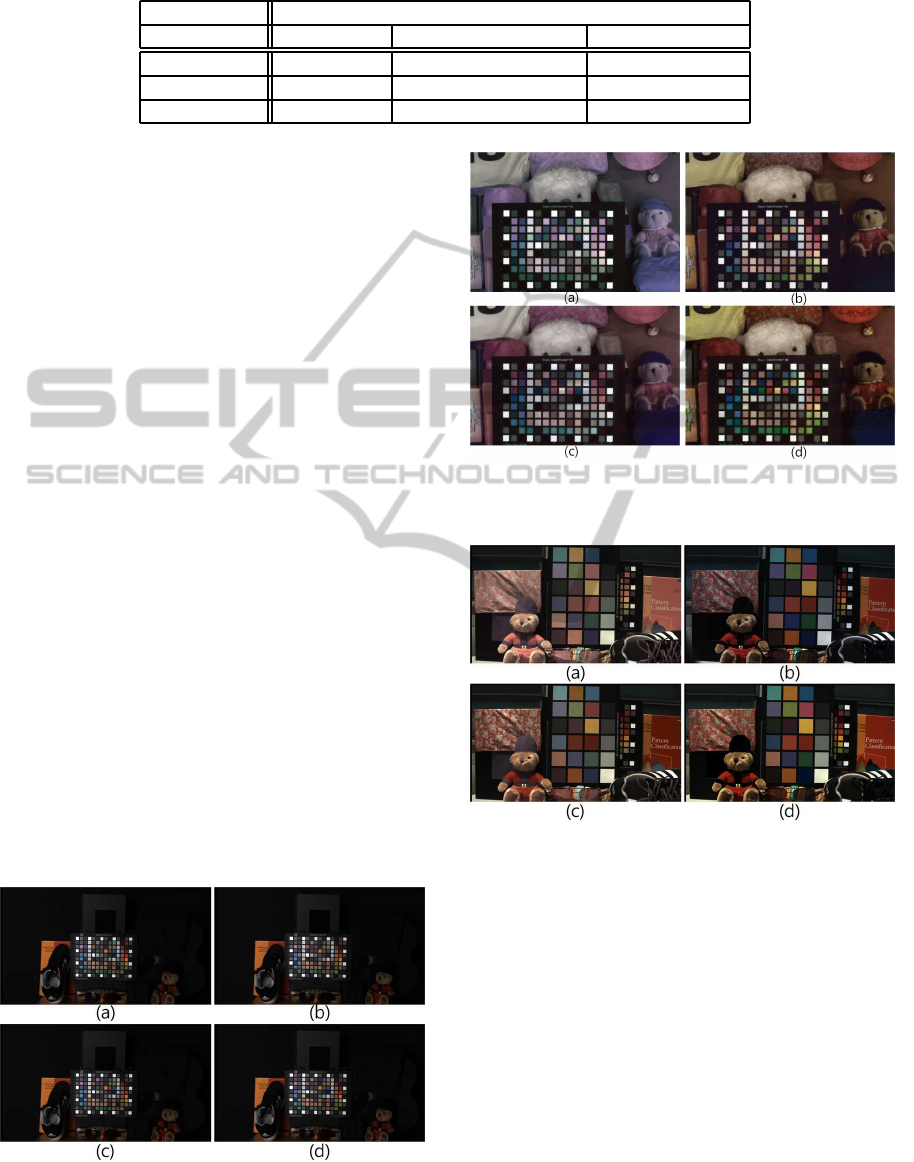

Figure 7: Experimental results under ﬂuorescent lamp. (a)

Input image. (b) Optical ﬁltered visible band image. (c) LS

based conventional method. (d) Proposed method.

Figure 8: Experimental results under incandescent lamp. (a)

Input image. (b) Optical ﬁltered visible band image. (c) LS

based conventional method. (d) Proposed method.

Figure 9: Experimental results under sunlight. (a) Input

image. (b) Optical ﬁltered visible band image. (c) LS based

conventional method. (d) Proposed method.

vectors. In this estimation, the standard color patches

and the colors in the fabric and in the leather were

used as representatives.

In table 1, the average angular error of the stan-

dard color patches with a variety of light sources is

described. The performance of the proposed method

is well conﬁrmed visually for materials with a large

reﬂectance in the NIR band.

VISAPP2015-InternationalConferenceonComputerVisionTheoryandApplications

5 CONCLUSIONS

In this paper, a color restoration algorithm for an

IRCF removed MSFA image sensor was proposed.

For the spectrally degraded color information with

RGB channels, the spectral estimation and spectral

decomposition methods were used to the remove ad-

ditional NIR band spectral information. Based on the

ﬁlter correlation, the inter-channel correlations on the

visible and NIR bands were assumed, respectively.

When the N channel was decomposed into the visible

and the NIR band information, the RGB channel in

the visible band was ﬁnally restored with spectral de-

composition. The experimental results show that the

proposed method effectively restored the visible color

from the color degraded images caused by IRCF re-

moval.

ACKNOWLEDGEMENTS

This work was supported by the National

Research Foundation of Korea (NRF) grant

funded by the Korea government (MSIP) (No.

2012R1A2A4A01003732).

REFERENCES

D. Yi, R. Liu, R. C. Z. L. and Li, S. Z. (2007). Face match-

ing between near infrared and visible light images.

In Proc. IAPR/IEEE International Conference on Bio-

metrics on.

Fredembach, C. and Susstrunk, S. (2008). Colouring the

near-infrared. In IS&T/SID 16th Color Imaging Con-

ference. SPIE.

Fredembach, C. and Susstrunk, S. (2009). Illumination

estimation and detection using near infrared. In

SPIE/IS&T Electronic Imaging, Digital Photography.

SPIE.

G. D. Finlayson, S. D. H. (2000). Improving gamut map-

ping color constancy. IEEE Transactions on Image

Processing, 9(10).

G. D. Finlayson, S. D. H. and Hubel, P. M. (2001). Color

by correlation: a simple, unifying framework for color

constancy. IEEE Transactions on Pattern Anal. and

Machine Intell, 23(11).

J. Choi, K. Y. and Kim, Y. (2011). A new adaptive

component-substitution-based satellite image fusion

by using partial replacement. IEEE Transaction on

Geoscience and Remote Sensing on, 49(1).

K. Barnard, V. C. and Funt, B. (2002). A comparison

of computational color constancy algorithms - part i:

methodology and experiments with synthesized data.

IEEE Transactions on Image Processing, 11(9).

Kumar, A. and Prathyusha, K. V. (2009). Personal au-

thenticatoin using hand vein triangulation and knuckle

shape. IEEE Transactions on Image Processing on,

18(9).

L. Schaul, C. F. and Susstrunk, S. (2009). Color image de-

hazing using the near-infrared. In IEEE International

Conference on Image Processing. IEEE.

M. Kise, B. Park, G. W. H. K. C. L. and Windham, W. R.

(2010). Multispectral imaging system with inter-

changeable ﬁlter design. Computers and Eloctronics

in Agriculture, 72(2).

Park, J. H. and Kang, M. G. (2004). Spatially adaptive

multi-resolution multispectral image fusion. Interna-

tional Journal of Remote Sensing on, 25(23):5491–

5508.

S. Koyama, Y. Inaba, M. K. and Murata, T. (2008). A day

and night visoin mos imager with robust pphotonic-

crystal-based rgb-and-ir. IEEE Transactions on Elec-

tron Devices, 55(3).

S. Matsui, T. Okabe, M. S. and Sato, Y. (2010). Image en-

hancement of low-light scenes with near-infrared ﬂash

images. In Lecture Notes in computer Science: Com-

puter Vision. SPIE.

S. Z. Li, C. RuFeng Chu, L. S. and Lun, Z. (2007). Illumi-

nation invariant face recognition using near-infrared

images. IEEE Transactions on Pattern Analysis and

Machine Intelligence on, 29(4).

Salamati, N. and Susstrunk, S. (2010). Material-based ob-

ject segmentation using nir information. In IS& T/SID

18th Color Imaging Conference on. SPIE.

X. Hao, H. Chen, C. Y. N. Y. H. B. and Wang, C. (2010).

A near-infrared imaging method for capturing the in-

terior of a vehicle through windshield. In 2010 IEEE

Southwest Symposium on Image Analysis & Interpre-

tatioin on. IEEE.

ColorRestorationforInfraredCutoffFilterRemovedRGBNMultispectralFilterArrayImageSensor
