Information Visualization for CSV Open Data Files Structure Analysis

Paulo Carvalho

1,2

, Patrik Hitzelberger

, Beno

ıt Otjacques

, Fatma Bouali

and Gilles Venturini

Gabriel Lippmann Public Research Center, 41 Rue du Brill, L-4422 Belvaux, Luxembourg

University Franc¸ois Rabelais of Tours, Tours, France

Keywords:

CSV, Information Visualization, InfoVis, Open Data, Table structure, Tabular Information Visualization.

Abstract:

New and different information sources have appeared over the past years (e.g. Blogs, Media, Open Data,

Scientiﬁc Data and Social Networks). The variety of these sources is growing and the related data volume

increases exponentially. Open Data (OD) initiatives and platforms are one of the current major data producers,

also because the topic seems to be important for many governments world-wide. Given the many ﬁelds

and sectors involved, OD brings high business and societal potential. The amount and diversity of available

information is high. However, analysing and understanding OD in order to exploit is far from being an easy

task. Several problems and constraints must be solved. Information Visualization (InfoVis) can help to give a

graphical idea of the processed ﬁles structure. Given that OD is provided very often as tabular data, this paper

focuses on OD CSV ﬁles. It presents an overview on the analysis of tabular information. Finally, the paper

describes the role of Information Visualization and the way it may help the end-user to understand quickly the

structure and issues of OD CSV ﬁles.

1 INTRODUCTION

The amount of information being generated and re-

leased every day on the Internet is enormous. This

fact results mainly from the growing number of new

information sources: Open Data (OD), Social Net-

works and Media (e.g. Twitter, Facebook), blogs, sci-

entiﬁc data, commercial data, and so on. OD is a cur-

rent active movement in terms of data generation and

release. This is mainly due to the pressure made by

governments in order that data produced and main-

tained by public entities should be accessible to the

global public. The economic value of OD has been es-

timated at 40 billion, per year, in Europe alone (Euro-

peanCommission, 2014). At the same time, OD rep-

resents an important element of the way towards more

IT supported participation and transparency (Janssen,

2011) in the public sector. Many actors of both the

private and the public sector are involved in OD pub-

lication: agriculture, economy, health, culture, trans-

ports, education, etc. This diversity is one of the fac-

tors that explain why OD has a high value and an

important potential for the society and the economy

in general. Every data, and in particular, every OD

dataset has its own business/social value. To realize

the maximum potential of datasets, however, it may

be necessary to combine them. We have been explor-

ing this area in order to create adequate charts to sup-

port OD integration processes. However, before com-

bining data, it is necessary to understand it. One of

the major problems concerning OD is the lack of a

common and unique standard used by organizations

to publish their datasets. This leads to datasets be-

ing published and accessible in different formats and

shapes: ﬁles (in different formats), RSS, APIs, etc.

Understanding how datasets are organized is a major

issue considering all kinds of dataset formats that may

exist. This problem is known as the ”table recognition

problem” (Ng et al., 1999). It consists in identifying,

in a given data ﬁle, the important parts of data tables

such as headers (columns and rows), data values and

their types (string, numeric, etc), missing values and

other information in the ﬁle. Some ﬁles might con-

tain more than one table. Once the table structure

is understood, the table can be further processed and

combined with other information: it can be integrated

in a data warehouse, or it can be processed by a data

mining or a visualization tool. This paper focuses on

OD CSV ﬁles. The reason of this choice is explained

in a later section. We support the idea that Informa-

tion Visualization is a promising candidate to ease the

understanding of OD CSV ﬁles structure. The paper

tries to answer the challenge of presenting an intuitive

and efﬁcient manner to visualize the structure of such

datasets. The rest of the paper is structured as follows:

First, we give a brief introduction of table structure

101

Carvalho P., Hitzelberger P., Otjacques B., Bouali F. and Venturini G..

Information Visualization for CSV Open Data Files Structure Analysis.

DOI: 10.5220/0005265301010108

In Proceedings of the 6th International Conference on Information Visualization Theory and Applications (IVAPP-2015), pages 101-108

ISBN: 978-989-758-088-8

 2015 SCITEPRESS (Science and Technology Publications, Lda.)

analysis, followed by an overview on the state of the

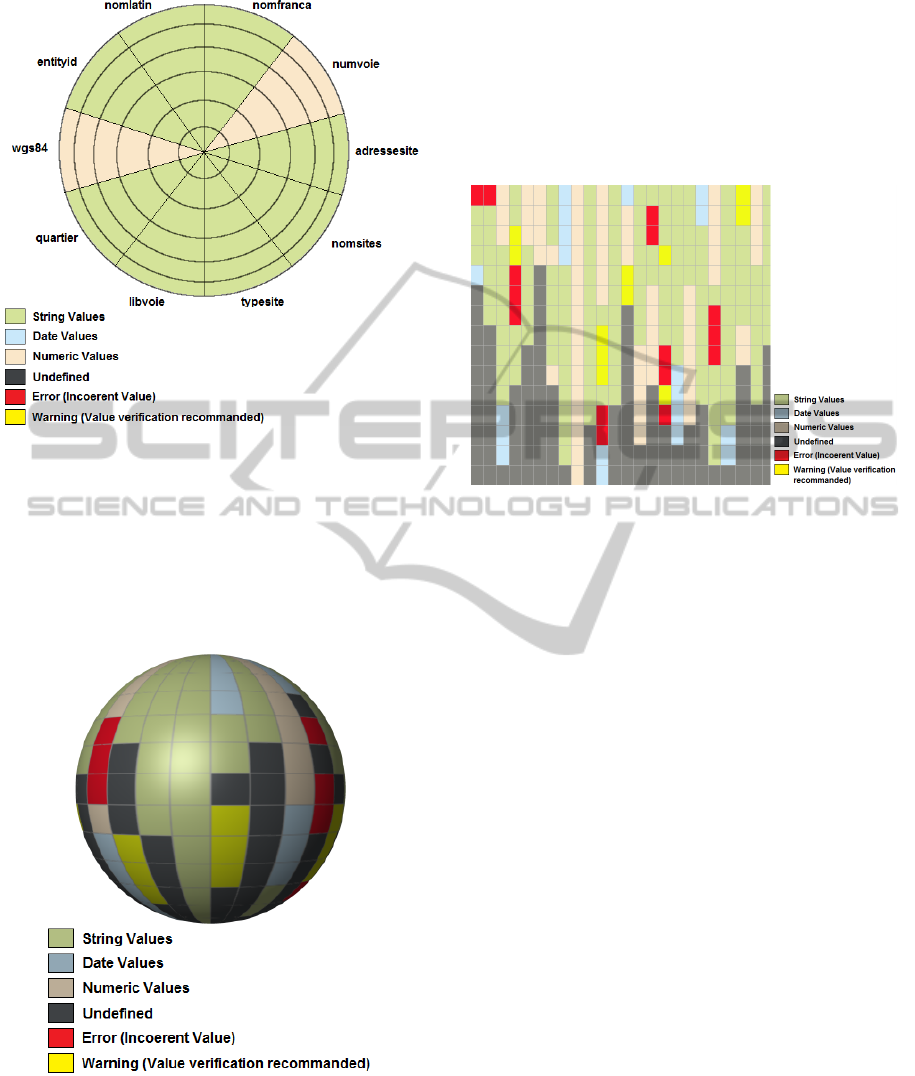

art in this ﬁeld. Several chart types we have worked

on during our analysis are presented and their advan-

tages and limitations are discussed. Our chosen chart

solution - Piled Chart - is described in detail. Finally,

we present the results and conclusions of using In-

formation Visualization to support CSV ﬁles structure

analysis.

2 TABLE STRUCTURE ANALYSIS

In 2011, OD implementation across Europe was still

emerging. Only a small percentage of datasets was

published under open (1.8%) and machine-readable

(11.8%) formats (Reggi, 2011). PDF was the most

spread format. The only open format used was

CSV. In the next section we discuss how things have

evolved and our choice of focusing our work in the

CSV format.

2.1 CSV Format

Several initiatives encourage the use of machine-

readable formats for OD. For the prevailing tabu-

lar datasets, the simplest and widest-spread format

is CSV (comma-separated values). Its usage in OD

contexts is commonplace. The Open Government

Partnership (OGP) was launched in 2011 (Harrison

et al., 2012) to stimulate the creation of open govern-

ments worldwide. Currently, OGP has 64 participat-

ing countries (OpenGovernmentPartnership, 2014).

Members of this organization are required to respect

various open-governance standards (Yu and Robin-

son, 2012), concerning e.g. the type of information

released or the format of the published data. In gen-

eral, datasets are required to be released in a machine-

readable format. In Europe, the Financial Trans-

parency System (FTS) of the European Commission

provides information related with European Union

projects since the year of 2007 (Martin et al., 2014).

All the datasets can be downloaded as CSV ﬁles.

In the Netherlands, Zuiderwijk and Janssen made a

study of the OD policy of seven countries (Zuider-

wijk and Janssen, 2014). It shows that standard for-

mats, including CSV, are used most of the time. In

2014, Veljkovi et al. presented a benchmark proposal

regarding OD available in the United States OD portal

(Data.Gov, 2012). In this study, it has been concluded

that most of the OD datasets were available in CSV,

XLS and PDF ﬁles (Veljkovi

c et al., 2014). Finally, a

recent study of OD policies in ﬁve different countries

(United States, United Kingdom, Netherlands, Kenya

and Indonesia) has conﬁrmed that CSV is used in all

involved countries except Indonesia, where datasets

are only available as PDF ﬁles (Nugroho, 2013). All

these facts demonstrate the importance of the CSV

format for OD, and why we focus our research on

CSV ﬁles. This choice is also linked to the bellow

reasons:

• CSV is a machine-readable format;

• CSV is a basic, non-proprietary format;

• CSV is a simple tabular format.

However, the advantage of the extreme simplic-

ity of the format is not without issues. The semantic

and syntactic interpretation of CSV ﬁles can be difﬁ-

cult. Furthermore, there is no common standard used

for publishing OD (Rivero et al., 2012). In order to

proﬁt from the presumptive high potential business-

value of OD, data must be made usable, meaningful

and exploitable. Getting an overview of the structure

and the content of a CSV ﬁle can be a hard task. De-

spite its popularity, this format does not have a formal

speciﬁcation. The informal de-facto standard is RFC

4180 (Shafranovich, 2005) that speciﬁes the follow-

ing syntatic rules for CSV ﬁles:

• Records are located on a separated line delimited

by a line break;

• Last record of the ﬁle may not have an ending line

break;

• An optional header line may exist on the ﬁrst line

of the ﬁle;

• Within the header and each record, there may be

one or more ﬁelds separated by commas;

• Each ﬁeld may or not be enclosed in double

quotes;

• Fields containing line breaks, double quotes and

commas should be enclosed in double-quotes;

• In ﬁelds where double-quotes are used to enclose

them, a double-quote must precede another one

appearing inside a ﬁeld to escape it.

2.2 Visualizing the Structure of a Table

Despite its importance and barriers faced, the visu-

alization of the structure of tabular data does not

seem to be a subject of deep study during the last

years. Many visualization techniques use tabular data

as an input. They consider the structure of the table

as clearly identiﬁed. Among the table visualization

methods (Hoffman and Grinstein, 1997), some ap-

proaches can directly represent the structure of a ta-

ble, like Table Lens (Rao and Card, 1994) and Table-

plot Graphics (Malik et al., 2010).

Table Lens is a technique to visualize and understand

IVAPP2015-InternationalConferenceonInformationVisualizationTheoryandApplications

102

the meaning of large tables using a ﬁsheye approach.

The idea behind this methodology is based on a dis-

tortion applied by the user where the centre of the

distortion becomes zoomed-in while the other regions

displayed are zoomed-out (Sundararajan et al., 2011).

Table Lens is more appropriate for the analysis of pre-

cise and small regions of a table. It can be used to ﬁnd

correlations existing in a given context. On its side,

Tableplot Graphics is a method to represent graphy-

cally the cell values of a tabular dataset. It does not

analyse and show the type of data analysed. Other re-

lated work on this subject has been found: Sopan at

al. Exploring Distributions - Design and Evaluation

(Sopan et al., 2010). However, data types were also

not taken into account.

Although its global utility, these methods are not

convenient regarding the type of CSV structure anal-

ysis we want to achieve. We support the idea that it

is necessary to create a more speciﬁc solution to as-

sess the structure of a CSV ﬁle. Our objective is to

provide the user with an intuitive and global overview

of the structure of a CSV ﬁle and the type of data it

contains, in order to determine what pre-processing

must be performed on such a table. We also want to

furnish a tool that is able to identify possible errors in

CSV ﬁles in order to correct them if possible. This is

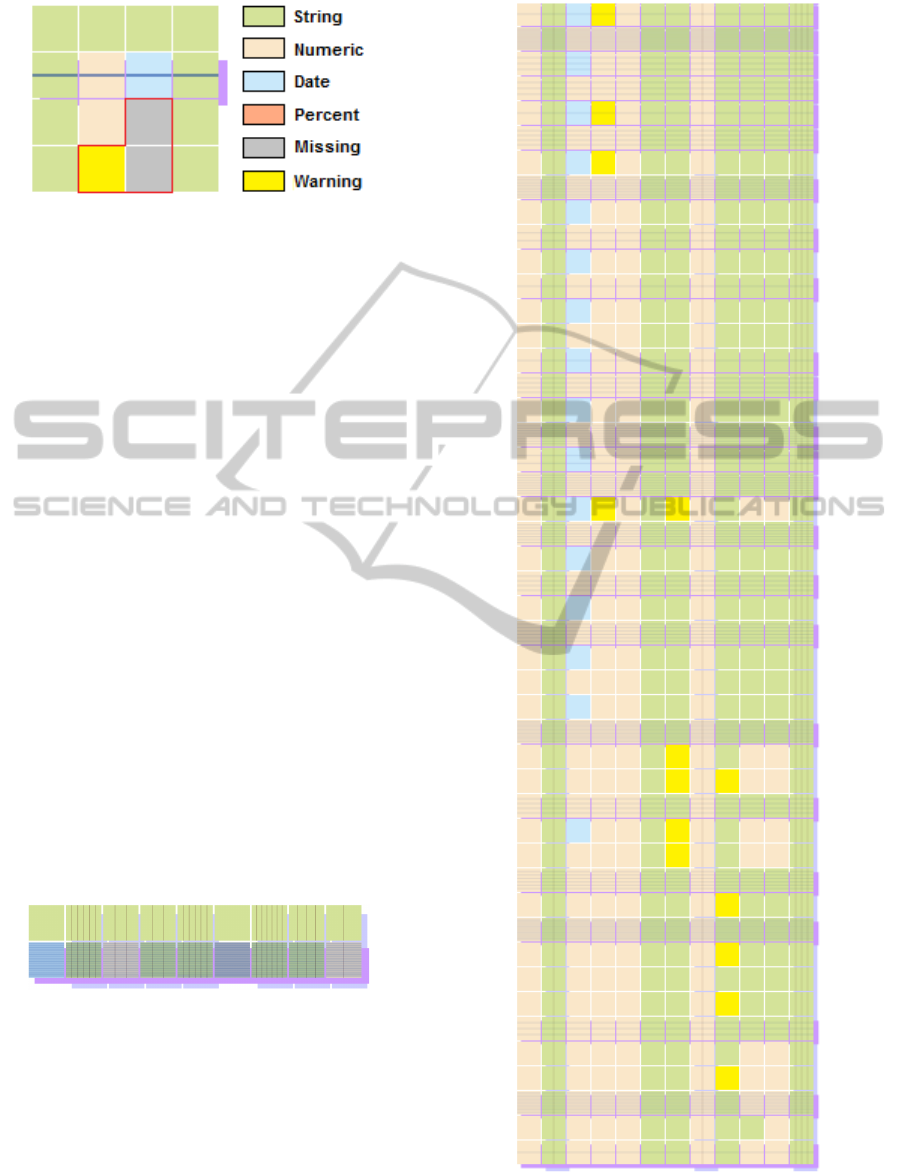

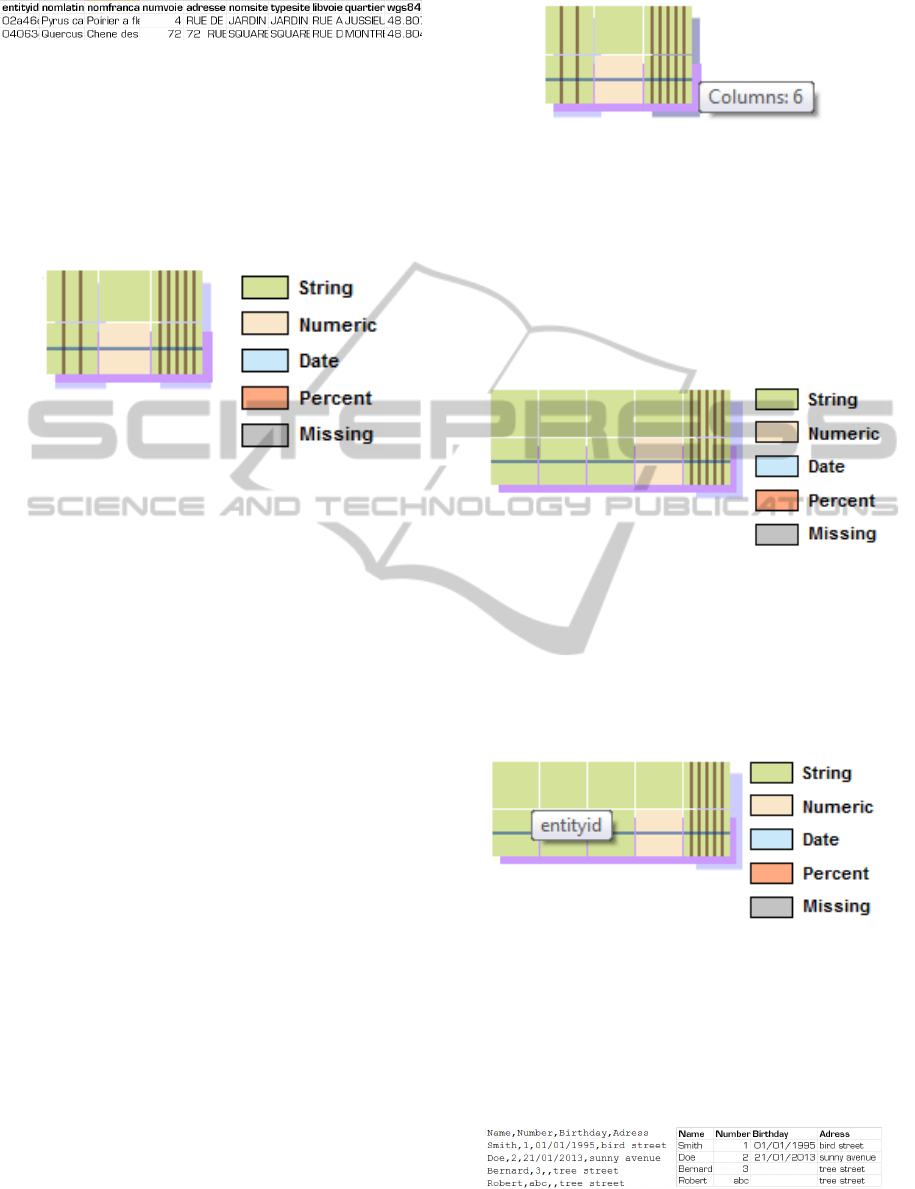

why we have created the concept of a tabular Piled-

Chart. This chart will be described further section in

this document.

3 PILED CHART TECHNIQUE

Processing, analysing and understand large amounts

of information is a complex task. Creating and de-

veloping a new technique of information visualiza-

tion that is able to provide better results than exist-

ing methods and respecting the properties presented

above (Section 1.1) is a hard job. With all the dif-

ferent forms, graphs and shapes already existing to

represent information (e.g.: Pie charts, Ellimaps -

use nested ellipses of various sizes to build graph-

ics (Otjacques et al., 2009), Treemaps, Geographical

Treemaps, etc.), being innovative and bringing better

results becomes more and more challenging. Table

Lens is a technique that is used to analyse tabular in-

formation. However, it is based on a ﬁsheye approach

which is not appropriate to give a view of the entire

data. Our aim is to create a visualization technique

that is able to give a global overview of an OD CSV

ﬁle structure:

• To estimate the size (number of rows/columns) of

the CSV ﬁle;

• To provide information on the data type of CSV

ﬁle cells;

• The possibility to compare the same type of

datasets over time periods. This can be very use-

ful to detect problems, errors and incoherencies

because OD datasets are often published periodi-

cally.

Additionally, the new chart should have the fol-

lowing characteristics:

• Be efﬁcient - in order to deliver a rapid idea of the

CSV ﬁle form. Users with limited or even poor

knowledge about the analysed information should

be capable of getting a global idea of the CSV ﬁle

structure in an effective and intuitive manner;

• Be user-friendly provinding e.g. zoom-in/zoom-

out functions; legends; tooltip information; etc.

With the focus on the objectives presented,

respecting constraints listed above and taking

into account the peculiar nature of tables (their

columns/rows structure; their size which may vary

from small to large; the cells may contain diverse data

types; etc.), the Piled Chart technique has been cre-

ated. Before creating Piled Chart, we focused our

studies on several solutions which fulﬁlled our needs

partly, and were important for the development of

Piled Chart rise. This is why they will be presented

brieﬂy.

3.1 Previous Attempts

Before arriving to a solution that is able to present

graphically tabular data, we have worked on several

solutions (e.g. the Sphere Chart; the Circle Chart).

They acted as a starting point of our research but were

not retained because of several weaknesses:

• They were not able to present the structure of

more than one ﬁle simultaneously - the user can

only visualize the structure of a region of one CSV

ﬁle;

• Some limitations regarding their understanding

and perception;

• The user did not have the view of the entire struc-

ture of the ﬁle. Mouse interaction was needed in

order to view other parts of the structure.

The Circle Chart (Figure 1) is a chart that allows

to represent the structure of a CSV ﬁle. Its main draw-

back is its unreadability when the number of columns

and rows of the analysed ﬁle is considerable.

InformationVisualizationforCSVOpenDataFilesStructureAnalysis

103

Figure 1: Circle Chart example.

Figure 2 shows the Sphere Chart. The aim of the

Sphere Chart is to show the structure of a CSV ﬁle

giving the ability to view its cells content, detect miss-

ing values and potential errors. However, it has an im-

portant limitation: the user needs to rotate the sphere

in order to view parts of the ﬁle structure. It does not

give an entire image of the complete ﬁle structure.

Figure 2: Sphere Chart example.

3.2 CSV Cell Chart

Succeeding previous chart solutions, CSV Cell Chart

was created (Figure 3). CSV Cell Chart was a step for-

ward to our solution - Piled Chart is completely based

on this approach. CSV Cell Chart consists merely in

showing every column, row and cell in the same or-

der as they are in the CSV ﬁle. In other words, it gives

to the user an image of the CSV ﬁle structure, using

a colour code to represent the data type of each cell.

This colour code is also used to show possible warn-

ings/errors.

Figure 3: CSV Cell Chart example.

3.3 Piled Chart

CSV Cell Chart has an important weakness: it dis-

plays all rows/columns, even if they have the same

structure. This fact is not optimal in terms of space

usage and of the visualization. To eliminate this in-

convenience, retaining however the advantages of the

CSV Cell Chart, the Piled Chart was created. Its main

characteristics are:

• Rows with the same structure - rows with the same

data types on the same column index - are grouped

(piled) into an unique row;

• Columns with the same structure - columns with

the same data types on the same row index - are

grouped (piled) into an unique column;

• A colour code is used to represent the data type

for every cell. For now the data types supported

are limited (String, Number, Date and Percent-

age). The colour code may also be used to rep-

resent possible errors and/or warnings.

With this approach, the structure of a CSV ﬁle can

be represented on a reduced area - because rows and

columns with a similar formation are grouped. The

ﬁgure below (Figure 4) shows a part of a OD CSV

ﬁle which contains information about the trees in the

parks of the Versailles city (

Ile-de France, 2014).

IVAPP2015-InternationalConferenceonInformationVisualizationTheoryandApplications

104

Figure 4: OD CSV ﬁle example - Trees existing on the parks

of Versailles.

It is a small and simple CSV ﬁle with a structure

of 10 columns and 3 rows. Using a Piled Chart to

represent the ﬁle structure will help the user to deter-

mine easily the types of the cells present on the ﬁle.

The advantage of using Piled Chart grows with the

complexity of the analysed CSV ﬁle.

Figure 5: Piled Chart example.

The chart (Figure 5) is composed of three columns

(two piled-columns + one ”normal” column) and two

rows (one normal row + one piled-row). By a quick

look at the chart, with a special focus on the piled-

rows and piled-columns, it is possible to extract fol-

lowing information:

• The cells are all composed by Strings or Numbers

(based on the colour code presented);

• The ﬁrst row has only String values in every cell;

• All the others rows (2 rows) have the same struc-

ture;

• The ﬁle is composed - from left to right - of

3 columns with the same structure (cells with a

String value), followed by 1 column and ﬁnally

ends with a set of 6 columns with the same struc-

ture (cells with a String value).

The number of columns covered by a piled-

column may be determined by counting the regions

deﬁned by the brown lines. At the same time, the

number of rows covered by a piled-row may be de-

termined by counting the regions deﬁned by the dark-

blue lines. It is also possible to obtain this informa-

tion by just moving the mouse over the piled-region

behind the piled-rows and/or the piled-columns (e.g.

Figure 6).

Figure 6: Tooltip example.

An additional characteristic of the Piled Chart

is the possibility to expand a piled-column and/or a

piled-row. The user has the possibility to click on the

piled-area behind a piled-row/piled-column in order

to expand it. This action will turn visible the entire

structure of the selected piled-region. The following

picture (Figure 7) shows the result of expanding the

ﬁrst piled-column of the graph.

Figure 7: Piled-column expand.

It is possible to visualize the content of a given

cell. Obviously, this functionality is not available for

piled-columns and piled-rows. To do so, the user just

has to move the mouse pointer over the wanted non-

piled-cell and a tooltip with its value appears (e.g.

Figure 8).

Figure 8: Cell value.

Finally, another useful functionality of the Piled

Chart is its ability to detect and show missing values

on a CSV ﬁle to the user. Every missing value is rep-

resented with a speciﬁc colour in the example, the

grey colour is used. This scenario is demonstrated in

the ﬁgures 9 and 10.

Figure 9: CSV ﬁle plain text format VS CSV ﬁle in Excel

form.

InformationVisualizationforCSVOpenDataFilesStructureAnalysis

105

Figure 10: CSV ﬁle with missing value and possible error.

The difﬁculty which may occur when viewing

a CSV ﬁle grows with the size of the CSV ﬁles

and the complexity of its structure (missing val-

ues, many rows, many columns, irregular number of

rows/columns, etc.). Looking at an image like the one

in Figure 10, the user is able to conclude quickly that

the analysed CSV ﬁle may have a problem in the cell

located on its last row of the 2nd column because

of the yellow colour. Looking at Figure 9, this cell

has the value ”abc”, while all the others cells in this

column are numbers (except the header). In certain

cases, missing values can have an important impact

on the process, so it may be crucial to detect them.

Using the same kind of reasoning, the user is able

to conclude that two values are missing on the 3rd

column of the analysed CSV ﬁle. This effectiveness

of usage is mandatory for the success of every visu-

alization solution. The more complex the structure

and the larger the size of a CSV ﬁle are, the more a

Piled Chart is valuable. The ﬁgure below (Figure 11)

shows the Piled Chart representation of a CSV ﬁle

with 52 rows and 33 columns. Because many rows

and columns have the same structure, the entire ﬁle

structure is shown using two rows and nine columns

reducing the area of analysis needed by the user to un-

derstand the ﬁle structure. The Piled Chart area size

is reduced along as similar rows/columns exists.

Figure 11: Understanding CSV ﬁles structure reducing

user’s area of analysis.

The Figure 12 shows another example of the Piled

Chart for a large CSV ﬁle, with 17 columns and 204

rows. This ﬁle gathers information related with the

parks and the gardens of the city of Montpellier.

Figure 12: Understanding large CSV ﬁles structure reduc-

ing user’s area of analysis.

IVAPP2015-InternationalConferenceonInformationVisualizationTheoryandApplications

106

The following table summarizes the features of

Piled Chart:

Table 1: Piled Chart features.

Global view of a CSV ﬁle’s structure

using the smallest area possible.

Possibility to visualize each cell type and

each cell value.

+ Missing values detection.

User-friendly: zoom-in/zoom-out

function; tooltips with information; etc.

Not able to analyse 2 different ﬁles

simultaneously.

- Limited to CSV ﬁles analysis.

4 CONCLUSIONS AND FURTHER

WORK

In this paper we have presented the advantages of cre-

ating a new type of an information visualization chart

that is able to describe the structure of CSV ﬁles.

CSV ﬁles are not always easy to understand. Their

structure may be very complex, with large number of

columns and/or rows, non-regular number of columns

in each row, different types of data in each cell and so

on. With the growing OD trend, large amount of in-

formation is published over the Internet. Abundant

variety and quantity of public data is now available

for different usage scenarios. Many OD datasets are

published in the CSV format. If the user cannot inter-

pret efﬁciently OD CSV ﬁles, the potential of these

datasets cannot be exploited and they may become

useless. By providing better tools to the user that ease

the understanding and exploitation of such data, we

increase the potential use of these datasets. Beyond

the possibility the user has to analyse more efﬁciently

the ﬁles, potential errors can be detected - and cor-

rected. These factors make the use of OD CSV ﬁles

more convenient and efﬁcient. According to the lit-

erature, it seems that there are not many techniques

to analyse tabular information. Table Lens is one of

them but has some weaknesses that were presented

in this paper. That is the main reason why we have

worked on a new type of information visualization

technique for OD CSV ﬁles: Piled Chart. In our opin-

ion, Piled Chart is promising, but still has potential

for improvement. One current limitation of the Piled

Chart is its incapability to inspect more than one ﬁle

simultaneously. Many of OD datasets available on

the web are published periodically. The possibility

to evaluate several ﬁles at the same time would bring

important advantages to compare rapidly the same

kind of CSV ﬁles over periods of time (e.g. datasets

with the data of the public budget for two different

months). This would help to detect inconsistencies

between ﬁle generations. Another challenging task is

the scalability problem: can the technique cope with

very large ﬁles? How will the system work when pro-

cessing several large datasets? Finally, but not less

important, the technique should be as user-friendly as

possible. The user should be able to understand eas-

ily the information showed in the chart and the inter-

action must be easy and ﬂuid. We are already taking

this into account but there is still work ahead.

REFERENCES

Data.Gov (2012). The home of the u.s. governments

open data. https://www.data.gov/. Last accessed on

September 22, 2014.

EuropeanCommission (2014). Digital agenda for eu-

rope - a europe 2020 initiative - open data.

http://ec.europa.eu/digital-agenda/public-sector-

information-raw-data-new-services-and-products.

Last accessed on September 16, 2014.

Harrison, T. M., Pardo, T. A., and Cook, M. (2012). Cre-

ating open government ecosystems: A research and

development agenda. Future Internet, 4(4):900–928.

Hoffman, P. and Grinstein, G. (1997). Visualizations for

high dimensional data mining-table visualizations.

Ile-de France, R. (2014). Arbres dans les parcs de la ville de

versailles. http://www.data.gouv.fr/en/dataset/arbres-

dans-les-parcs-de-la-ville-de-versailles-idf. Last ac-

cessed on September 16, 2014.

Janssen, K. (2011). The inﬂuence of the psi directive

on open government data: An overview of recent

developments. Government Information Quarterly,

28(4):446–456.

Malik, W. A., Unwin, A., and Gribov, A. (2010). An inter-

active graphical system for visualizing data quality–

tableplot graphics. In Classiﬁcation as a Tool for Re-

search, pages 331–339. Springer.

Martin, M., Stadler, C., Frischmuth, P., and Lehmann, J.

(2014). Increasing the ﬁnancial transparency of eu-

ropean commission project funding. Semantic Web,

5(2):157–164.

Ng, H. T., Lim, C. Y., and Koo, J. L. T. (1999). Learn-

ing to recognize tables in free text. In Proceedings of

the 37th annual meeting of the Association for Com-

putational Linguistics on Computational Linguistics,

pages 443–450. Association for Computational Lin-

guistics.

Nugroho, R. P. (2013). A comparison of open data policies

in different countries.

OpenGovernmentPartnership (2014). Open government

partnership. http://www.opengovpartnership.org/.

Last accessed on September 22, 2014.

Otjacques, B., Cornil, M., and Feltz, F. (2009). Using el-

limaps to visualize business data in a local adminis-

InformationVisualizationforCSVOpenDataFilesStructureAnalysis

107

tration. In Information Visualisation, 2009 13th Inter-

national Conference, pages 235–240. IEEE.

Rao, R. and Card, S. K. (1994). The table lens: merging

graphical and symbolic representations in an interac-

tive focus+ context visualization for tabular informa-

tion. In Proceedings of the SIGCHI conference on

Human factors in computing systems, pages 318–322.

ACM.

Reggi, L. (2011). Benchmarking open data availability

across europe: The case of eu structural funds. Eu-

ropean Journal of ePractice, 12.

Rivero, C. R., Schultz, A., Bizer, C., and Ruiz, D. (2012).

Benchmarking the performance of linked data transla-

tion systems. In LDOW.

Shafranovich, Y. (2005). Common format and mime type

for comma-separated values (csv) ﬁles.

Sopan, A., Freire, M., Taieb-Maimon, M., Golbeck, J.,

Shneiderman, B., and Shneiderman, B. (2010). Ex-

ploring distributions: design and evaluation. Univer-

sity of Maryland, Human-Computer Interaction Lab

Tech Report HCIL-2010-01.

Sundararajan, P. K., Mengshoel, O. J., and Selker, T.

(2011). Multi-ﬁsheye for interactive visualization of

large graphs. In Scalable Integration of Analytics and

Visualization.

Veljkovi

c, N., Bogdanovi

c-Dini

c, S., and Stoimenov, L.

(2014). Benchmarking open government: An open

data perspective. Government Information Quarterly,

31(2):278–290.

Yu, H. and Robinson, D. (2012). The new ambiguity

of’open government’. Princeton CITP/Yale ISP Work-

ing Paper.

Zuiderwijk, A. and Janssen, M. (2014). Open data poli-

cies, their implementation and impact: A framework

for comparison. Government Information Quarterly,

31(1):17–29.

IVAPP2015-InternationalConferenceonInformationVisualizationTheoryandApplications

108
