Extraction of Homogeneous Regions in Historical Document Images

Maroua Mehri

1,2

, Pierre H

eroux

, Nabil Sliti

, Petra Gomez-Kr

amer

Najoua Essoukri Ben Amara

and R

emy Mullot

L3i, University of La Rochelle, Avenue Michel Cr

epeau, 17042, La Rochelle, France

LITIS, University of Rouen, Avenue de l’Universit

e, 76800, Saint-Etienne-du-Rouvray, France

SAGE, University of Sousse,

Ecole Nationale d’Ing

enieurs de Sousse, 4023, Sousse, Tunisia

Keywords:

Historical Document Images, Segmentation, SLIC Superpixels, Gabor Filters, Multi-Scale Analysis, ARLSA.

Abstract:

To reach the objective of ensuring the indexing and retrieval of digitized resources and offering a structured

access to large sets of cultural heritage documents, a raising interest to historical document image segmenta-

tion has been generated. In fact, there is a real need for automatic algorithms ensuring the identiﬁcation of

homogenous regions or similar groups of pixels sharing some visual characteristics from historical documents

(i.e. distinguishing graphic types, segmenting graphical regions from textual ones, and discriminating text in

a variety of situations of different fonts and scales). Indeed, determining graphic regions can help to segment

and analyze the graphical part in historical heritage, while ﬁnding text zones can be used as a pre-processing

stage for character recognition, text line extraction, handwriting recognition, etc. Thus, we propose in this arti-

cle an automatic segmentation method for historical document images based on extraction of homogeneous or

similar content regions. The proposed algorithm is based on using simple linear iterative clustering (SLIC) su-

perpixels, Gabor ﬁlters, multi-scale analysis, majority voting technique, connected component analysis, color

layer separation, and an adaptive run-length smoothing algorithm (ARLSA). It has been evaluated on 1000

pages of historical documents and achieved interesting results.

1 INTRODUCTION

The idea of conducting strategies of digitization pro-

grams with cultural heritage documents has emerged

since the early 1960s. The primary goals of these dig-

itization programs, which were related to the tremen-

dous growth and spread of the Internet technologies,

were not clearly identiﬁed (e.g. providing digital

copies of historical document images (HDIs), shar-

ing databases of document images between many li-

braries, designing a computer-assistance tool for tex-

tual data handling, etc.). Nevertheless, the rapid

growth of digital libraries has become a serious hin-

drance to promote wide efﬁciency and effectiveness

in the management of this cultural heritage resources

(i.e. quick and relevant access to information con-

tained therein) due to the huge amount of digital

high quality reproductions of fragile books and digital

copies of rare collections. To meet the need to rein-

force the enrichment and exploitation of heritage doc-

uments in addition to make it electronically available

for access via the Internet, many research projects

has been set up with the support of public funding

provided through the European and American gov-

ernments. The main goals of these projects are to

provide a computer-based access and analysis of cul-

tural heritage documents, searchable and browseable

HDI databases, and an automatic indexing, linking

and retrieval semantic-based systems of HDIs (Cous-

taty et al., 2011).

In this work, we are interested in historical docu-

ment image layout analysis (HDILA). HDILA starts

by segmenting a document in order to ﬁnd and clas-

sify homogeneous regions or zones, such as graphic

and textual regions (Okun and Pietik

ainen, 1999).

Finding graphic regions can be used to analyze the

graphical part in historical heritage, while determin-

ing text zones can be used as a pre-processing stage

for handwriting recognition, etc. Our goal consists

of identifying homogenous regions or similar groups

of pixels sharing some visual characteristics by label-

ing and grouping pixels from HDIs. We aim to char-

acterize each digitized page of historical book with

a set of homogeneous or similar content regions and

Mehri M., Héroux P., Sliti N., Gomez-Krämer P., Ben Amara N. and Mullot R..

Extraction of Homogeneous Regions in Historical Document Images.

DOI: 10.5220/0005265500470054

In Proceedings of the 10th International Conference on Computer Vision Theory and Applications (VISAPP-2015), pages 47-54

ISBN: 978-989-758-091-8

 2015 SCITEPRESS (Science and Technology Publications, Lda.)

their topological relationships to characterize the doc-

ument layout and content by deﬁning one or more

signatures for each digitized page. Therefore, an au-

tomatic segmentation method for HDIs is proposed

in this article. The proposed algorithm is based on

using simple linear iterative clustering (SLIC) super-

pixels (Liu et al., 2011), Gabor ﬁlters (Gabor, 1946),

k-means clustering (MacQueen, 1967), multi-scale

analysis (Li et al., 2000), majority voting technique

(Lam and Suen, 1997), connected component (CC)

analysis (Rosenfeld and Pfaltz, 1966), color layer sep-

aration, and adaptive run-length smoothing algorithm

(ARLSA), for extraction of homogeneous or similar

content regions in HDIs.

The remainder of this article is organized as fol-

lows: in Section 2, the proposed segmentation algo-

rithm for HDIs based on extraction of homogeneous

or similar content regions is detailed. Section 3 de-

scribes the experimental protocol by presenting the

experimental corpus, and the deﬁned ground-truth. To

evaluate the performance of our proposed algorithm

and validate our choice of the used techniques on each

step of our algorithm, a set of experiments on a large

variety of HDIs is detailed in Section 4. Then, an

assessment of the different steps of our algorithm is

presented and an analysis of the obtained results is

subsequently discussed. Qualitative results are also

given to demonstrate the segmentation quality. Our

conclusions and future work are presented in Section

2 PROPOSED METHOD

To ensure a relevant segmentation of graphical re-

gions from textual ones, an efﬁcient discrimination

of text in a variety of situations of different fonts

and scales, and a robust distinction between differ-

ent graphic types in HDIs, an automatic segmenta-

tion method for HDIs based on extraction of homo-

geneous or similar content regions is proposed in this

article. The proposed algorithm segments the content

of digitized HDIs. In particular, it discriminates be-

tween the different classes of the foreground layers

of a digitized document based on textural and topo-

logical descriptors. First, a HDI is fed as input and

is read as a gray-scale image. The extraction of tex-

ture information is processed on gray-scale document

images without introducing a binarizing task. A bi-

narization step is avoided because it causes a loss of

information speciﬁcally textural information. Then,

to obtain enhanced backgrounds of noisy HDIs and

reduce the step complexity of a pixel-based segmen-

tation method, a foreground-background segmenta-

tion task based on SLIC superpixel segmentation and

k-means clustering algorithms is performed. After-

wards, an automatic extraction of texture descriptors

from foreground superpixels is processed by involv-

ing a multi-scale approach. The extracted textural

features are then used in an unsupervised clustering

approach to label clusters or groups of pixels with re-

spect to the results of the superpixel clustering phase.

Then, for reﬁnement of the pixel labeling results, a

ﬁrst step of post-processing “Post-processing 1” is

introduced by taking into consideration the topolog-

ical relationship between pixels and integrating a spa-

tial multi-scale analysis of majority votes. Finally,

a second post-processing task “Post-processing 2” is

added based on using the multi-scale analysis, major-

ity voting technique, CC analysis, color layer sepa-

ration, and ARLSA to identify the homogeneous or

similar content regions that are characterized by sim-

ilar properties.

The proposed algorithm does not require a priori

knowledge of the document structure/layout, the ty-

pographical parameters or the graphical properties of

the document image. In addition, it is fast since a

SLIC superpixel technique has been used in our pro-

posed algorithm, instead of using a rigid structure of

pixel grid for feature extraction and processing at the

pixel level for segmentation, localization, and classiﬁ-

cation issues. The superpixel approach has the advan-

tage to be faster, more memory efﬁcient, and more

interesting to compute image features on each super-

pixel center than on each image pixel (Achanta et al.,

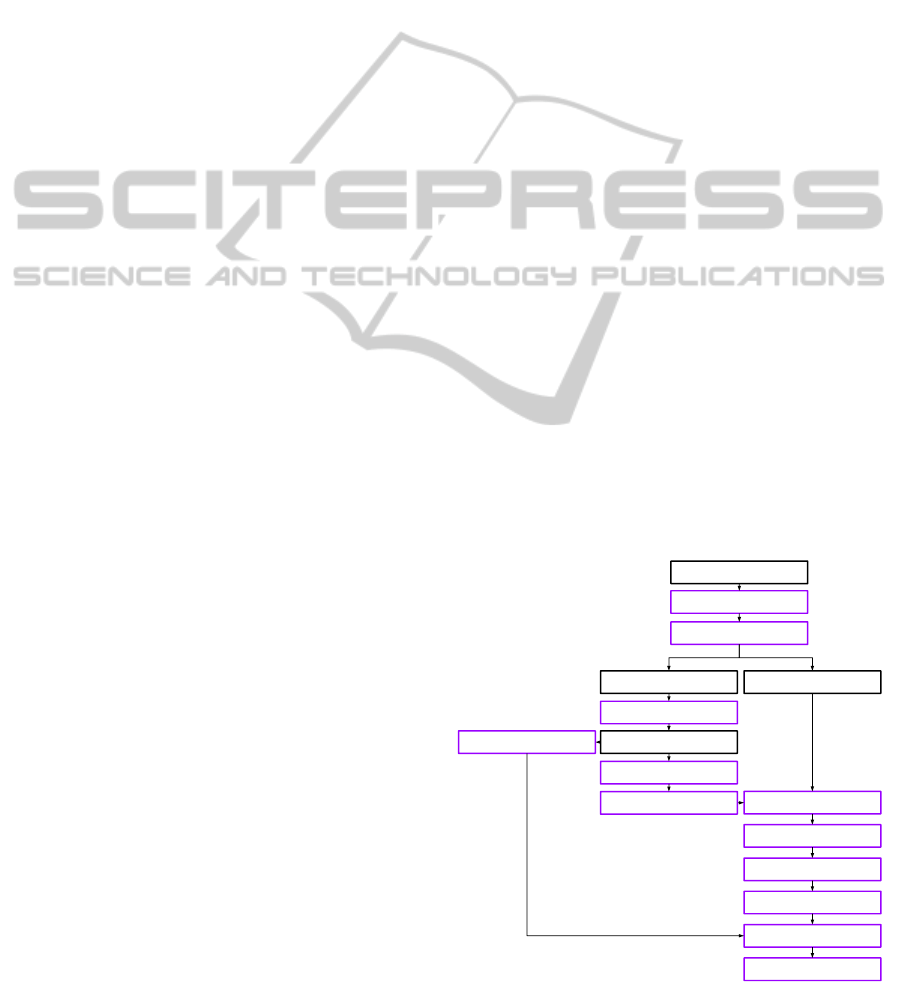

2012). Figure 1 illustrates the detailed schematic

block representation of the proposed algorithm.

Document

Gray-scale conversion

Gabor feature extraction

Foreground/background

segmentation

Superpixel clustering

Foreground superpixels Background superpixels

Background superpixel

processing

Enhanced

document image

Gabor filter application

Border replication

Pixel labeling

Post-processing 1

Post-processing 2

Binarization

Extraction and labeling

homogeneous regions

Figure 1: Flowchart of the proposed algorithm for extrac-

tion of homogeneous regions in HDIs.

VISAPP2015-InternationalConferenceonComputerVisionTheoryandApplications

2.1 Foreground-background

Segmentation

By using the SLIC superpixel approach on our pro-

posed algorithm, pixels sharing similar characteristics

or properties (e.g. texture cues, contour, color, etc.)

are grouped into a signiﬁcant polygon-shaped region

(Achanta et al., 2012). Thus, by setting the number

of superpixels k

equal to 0.01% of image pixels, an

over-segmented image representing a compact con-

tent map is generated. Afterwards, the background

and foreground superpixels are classiﬁed based on

computing the mean gray-level value of each su-

perpixel, which is determined by averaging over all

the gray-level pixels belonging to the superpixel re-

gion, and using the k-means algorithm. To segment

an image into two layers (i.e., the foreground and

background), the k-means algorithm is performed on

the computed mean gray-level values of superpixels,

without taking into account the image spatial coordi-

nates, by setting the number of clusters k

equal to

2 to extract two clusters. One represents the infor-

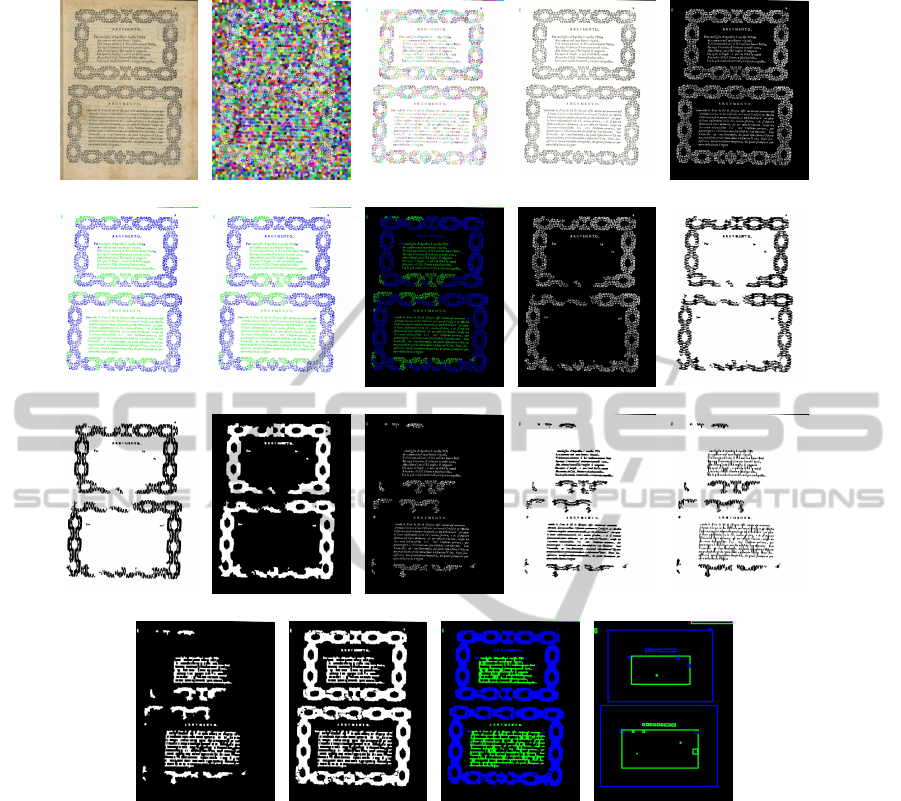

mation of the background (cf. Figure 3(b)) and the

other represents the foreground (e.g. noise, text ﬁelds,

drawings, etc.) (cf. Figure 3(c)).

2.2 Document Enhancement

Since the foreground-background segmentation step

is carried out, the background superpixels of the orig-

inal gray-level image are only processed by assign-

ing the value of a white pixel (i.e. a 255 gray-level

value) to their centers and the pixels belonging to

them. However, the values of the gray-level fore-

ground superpixels and their pixels of the original

gray-level image are remained unchangeable. Thus,

an enhanced and non-noisy background is achieved

(cf. Figure 3(d)). Figure 3(d) illustrates an example

of enhanced image by the superpixel technique with a

clean background.

2.3 Gabor Feature Extraction

In our previous work, some of the well-known

texture-based approaches (auto-correlation function,

gray-level co-occurrence matrix, and Gabor ﬁlters)

were compared for ancient document image segmen-

tation (Mehri et al., 2013). We concluded that the Ga-

bor features perform better than the auto-correlation

and co-occurrence ones for font segmentation and for

distinguishing textual regions from graphical ones.

Thus, once the document is enhanced, Gabor ﬁlters

are applied on it by setting the same default parame-

ters proposed in (Mehri et al., 2013). Then, a quick

and easy way to extract Gabor features on the whole

transformed image by the selective Gabor ﬁlter, is to

introduce a border replication step before the Gabor

feature extraction task. By using rectangular overlap-

ping processing windows, Gabor descriptors are only

extracted from the selected foreground superpixels of

the transformed image by the selective Gabor ﬁlter

and the border replication step, at four different sizes

of sliding windows to adopt a multi-scale approach.

Thus, a feature vector (with dimension 48 to repre-

sent 24 Gabor ﬁlters) is produced based on the com-

puted mean and standard deviation of the magnitude

response of the transformed image by the selective

Gabor ﬁlter which are extracted from one analyzed

sliding window. A 192-dimensional feature vector

(48 Gabor indices × 4 sliding window sizes) is subse-

quently formed through four different sizes of sliding

windows.

2.4 Foreground Superpixel Clustering

and Foreground Pixel Labeling

A foreground superpixel clustering task is performed

by partitioning Gabor-based feature sets into compact

and well-separated clusters in the feature space to en-

sure the segmentation of graphical regions from tex-

tual ones, the discrimination text in a variety of situ-

ations of different fonts and scales, and the distinc-

tion between different graphic types in HDIs. The

foreground superpixel clustering task does not include

spatial information and is performed by using the k-

means algorithm. Then, a phase of labeling clusters

of the gray-level foreground superpixels and the gray-

level pixels belonging to each superpixel in the en-

hanced document image is carried out with respect to

the results of the superpixel clustering phase. Since

the clustering and labeling phases of the proposed al-

gorithm have been performed, a pixel-labeled docu-

ment image is obtained (cf. Figure 3(f)).

2.5 Post-processing 1

To reﬁne the pixel labeling results, many researchers

have introduced the spatial relationships between pix-

els which have not been considered when the texture

features have been analyzed. Then, it has the advan-

tage to deal with the non-smoothed boundaries due

to the extraction of texture features from small pre-

deﬁned windows (Chang and Kuo, 1992). In our algo-

rithm, a ﬁrst step of post-processing “Post-processing

1” is introduced by taking into consideration the topo-

logical relationship between the selected foreground

superpixels and integrating a spatial multi-scale anal-

ysis of majority votes. First, the Euclidean distance

ExtractionofHomogeneousRegionsinHistoricalDocumentImages

between each foreground superpixel and the centroid

of cluster belonging to it is computed. Then, the fore-

ground superpixels are sorted in descending order ac-

cording to the computed Euclidean distance values in

such a way that the ﬁrst processed foreground super-

pixel is the one that has a higher Euclidean distance

value. The higher the values of the computed Eu-

clidean distances, the more there is a high probability

that the foreground superpixel is improperly labeled

since it is far from the centroid of cluster belonging

to it. Thus, the ﬁrst processed foreground superpix-

els are those that have high values of Euclidean dis-

tances by using a multi-scale majority voting tech-

nique. By performing a multi-scale approach in the

majority voting technique, small isolated groups of

superpixels will be removed. Indeed, a local deci-

sion on the label of each selected foreground super-

pixel is taken using the maximum number or majority

of superpixel labels and pixel labels belonging to it,

which is performed at the same four pre-deﬁned sizes

of sliding windows in the Gabor feature extraction

step. Then, if the processed foreground superpixel has

a new label, the pixels belonging to it will have the

same new label. Afterwards, the next processed fore-

ground superpixel is one that has a smaller Euclidean

distance value than the former foreground superpixel.

The labels of foreground superpixels and the pixels

belonging to them are updated on each run of multi-

scale majority voting technique on each foreground

superpixel to ensure a relevant reﬁnement of the pixel

labeling results. Since the ﬁrst step of post-processing

of the proposed algorithm “Post-processing 1” has

been performed, a post-processed 1 pixel-labeled doc-

ument image is obtained (cf. Figure 3(g)).

2.6 Post-processing 2

As already seen on the proposed algorithm (cf. Fig-

ure 1), our goal is to ﬁnd homogeneous regions de-

ﬁned by common characteristics or similar texture

features as easily, quickly, and automatically as pos-

sible. So since the ﬁrst step of post-processing “Post-

processing 1” has been performed, our output data

consists of a post-processed 1 pixel-labeled document

image. Nevertheless, we need to identify group of

pixels sharing common characteristics or similar tex-

tural properties at this stage in order to extract ho-

mogenous region (i.e. to partition text into columns,

paragraphs, lines or words, and identify the graphi-

cal regions). Therefore, we aim in the second step of

post-processing “Post-processing 2” to ﬁll automat-

ically the space within each pixel in order to deter-

mine the largest CCs illustrating similar content re-

gions by replacing a sequence of background pixels

with foreground ones and afterwards grouping pixels

which share common characteristics or similar textu-

ral properties from the post-processed 1 pixel-labeled

document image (cf. Section 2.5, Figure 3(g)).

First, a binarization step is performed using a stan-

dard parameter-free binarization method, the Otsu’s

method, on the enhanced document image (cf. Sec-

tion 2.2, Figure 3(d)) to obtain a binarized enhanced

document image (cf. Figure 3(e)) and subsequently

to retrieve the CCs (Otsu, 1979). Then, the majority

voting technique is applied on each extracted CC from

the binarized enhanced document image by comput-

ing the maximum number or majority of pixel labels

belonging to the localized CC on the post-processed

1 pixel-labeled document image (cf. Section 2.5, Fig-

ure 3(g)). Therefore, using the majority voting tech-

nique, the extracted CCs from the binarized enhanced

document image are labeled according to the post-

processed 1 pixel-labeled document image. The re-

sulting image of labeling the extracted CCs is illus-

trated in Figure 3(h).

Since the extracted CCs from the binarized en-

hanced document image are labeled, a color layer sep-

aration task is performed to split the CCs according

to their labels. Therefore, a document image contain-

ing only single color CCs is generated for each color

layer. For instance, in the example illustrated in Fig-

ure 3, there are two colors representing separately the

graphical (blue) and textual (green) CCs in Figures

3(i) and 3(m), respectively. The color layer separation

task ensures the segmentation of the extracted CCs

according to their label (i.e. content type). When we

separate the extracted CCs according to their label,

the issues caused by the complex, dense, and over-

lapping document layout of HDIs will be overcome.

The identiﬁcation of homogeneous regions is based

on ﬁnding the largest CCs. By replacing a sequence

of background pixels with foreground ones and after-

wards grouping pixels which share common charac-

teristics or similar textural properties from a pixel-

labeled document image, the extraction of homoge-

neous regions will be more accurate and relevant. In-

deed, the idea is to ﬁll automatically the space within

each component to partition text into columns, para-

graphs, lines or words on the one hand, and identify

the graphical regions on the other hand.

So an adaptive RLSA is proposed in this work,

which is a modiﬁed version of the state-of-the-art

RLSA (Wahl et al., 1982). The RLSA studies the

spaces between black pixels in order to link neighbor-

ing black areas by applying the run-length smearing

both horizontally and vertically. It operates by replac-

ing a horizontal (vertical, respectively) sequence of

background pixels with foreground ones if the num-

VISAPP2015-InternationalConferenceonComputerVisionTheoryandApplications

ber of background pixels in the horizontal (vertical,

respectively) sequence is smaller or equal to a pre-

deﬁned horizontal (vertical, respectively) threshold.

The proposed ARLSA determines automatically the

horizontal and vertical thresholds, which correspond

to to the run-length smoothing values, respectively.

To obtain the proper values of the horizontal and ver-

tical thresholds, the two histograms of the widths and

heights of the extracted CCs are examined, respec-

tively. These two histograms gives the distributions

of the widths and heights of the extracted CCs in

the analyzed HDI. The estimation of the horizontal

(vertical, respectively) threshold is based on the de-

termination of the global maximum of the histogram

of the widths (heights, respectively) of the extracted

CCs. The global maximum of the histogram of the

widths (heights, respectively) of the extracted CCs

gives mainly information about the mean character

length (height, respectively).

Once the horizontal and vertical run-length

smoothing values are estimated automatically accord-

ing to the analyzed HDI content (i.e. and particu-

larly the distributions of the widths and heights of the

extracted CCs of the binarized enhanced document

image), the proposed ARLSA is applied on each re-

sulting image of the color layer separation task after

performing a binarizing step by using the Otsu’s al-

gorithm. It operates by taking the logical AND of

the horizontally (cf. Figure 3(j) (3(n), respectively))

and vertically (cf. Figure 3(k) (3(o), respectively))

merged images of each resulting image of the color

layer separation task to generate Figure 3(l) (3(p), re-

spectively). After applying the ARLSA on each re-

sulting image of the color layer separation task, the

logical NOT is performed on each resulting image to

merge the different resulting images of the ARLSA

task (cf. Figures 3(l) and 3(p)) with the logical OR.

Since the merge process of the different resulting im-

ages has been performed with the logical OR, a post-

processed binarized document image is generated (cf.

Figure 3(q)) in which the neighboring black areas are

linked by applying the run-length smearing both hor-

izontally and vertically. Then, the post-processed 2

pixel-labeled document image (cf. Figure 3(r)) is ob-

tained with labeling the extracted CCs from Figure

3(q), according to the deduced labels from Figure 3(h)

by using the majority voting technique.

Finally, the homogeneous or similar content re-

gions are extracted and labeled from the resulting

image of the “Post-processing 2” task by identify-

ing group of pixels sharing common characteristics

or similar textural properties (cf. Figure 3(s)). To de-

ﬁne an extracted region, a bounding box covering all

the pixels belonging to the extracted CC is used (i.e.

a contour tracking of the shape of the extracted CC

is carried out to identify the bounding box from each

component). Then, the colors of the external contours

of the deﬁned bounding box is drawn according to the

label deduced from the resulting image of using the

majority voting technique (cf. Figure 3(h)).

3 CORPUS AND PREPARATION

OF GROUND-TRUTH

Our experimental corpus contains 1000 ground-

truthed one-page document images which have been

collected from Gallica, encompassing six centuries

(1200-1900) of French history. The HDIs of our cor-

pus have been selected from several printed mono-

graphs and manuscripts across a variety of disciplines

(e.g. novels, law texts, educational books (history, ge-

ography, nature), xylographic booklets, etc.) to pro-

vide a broader range of document contents. They

are gray-scale/color documents which have been dig-

itized at 300/400 dpi and saved in the “TIFF” format,

which provides a high resolution of digitized images.

Our dataset has been structured into four cate-

gories of real scanned HDIs differentiated by their

content (cf. Figure 2), reﬂecting the challenges of our

work to determine which texture features can be more

adequate for segmenting graphical regions from tex-

tual ones on the one hand and discriminate text in a

variety of situations of different fonts and scales on

the other hand. Our experimental corpus includes a

sufﬁcient number of HDIs with both simple and com-

plex layouts for each category of documents which

have been ground-truthed to ensure a better under-

standing of the behavior of the evaluated texture fea-

ture sets. It is composed of:

• 250 pages containing only two fonts (cf. Figure 2(a))

• 250 pages containing only three fonts (cf. Figure 2(b))

• 250 pages containing graphics and one text font (cf.

Figure 2(c))

• 250 pages containing graphics and text with two differ-

ent fonts (cf. Figure 2(d))

(a) Only two

fonts

(b) Only

three fonts

and one text

font

(d) Graphics

and two text

fonts

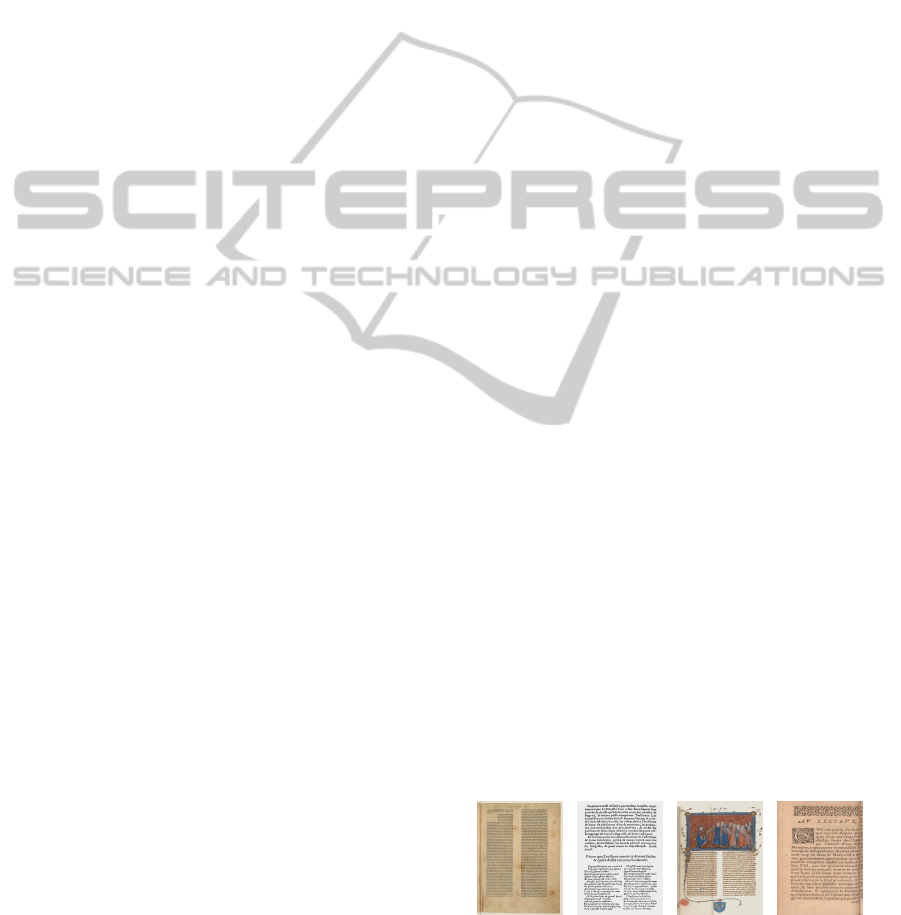

Figure 2: Illustration of our experimental corpus.

ExtractionofHomogeneousRegionsinHistoricalDocumentImages

The ground-truth for document images has been

manually outlined using rectangular regions drawn

around each selected zone. The zones have been

ground-truthed by zoning manually each content type

(i.e. each rectangular region has been classiﬁed into

text or graphics). Different labels for regions with dif-

ferent fonts have been also deﬁned for evaluating the

performance of texture feature to separate various text

fonts.

4 EVALUATION AND RESULTS

In this work, due to a possible bias produced by es-

timating the number of clusters, the maximum num-

ber of homogeneous and similar content regions is set

equal to the ones deﬁned in the ground-truth. The

ﬁrst aspect of future work is to introduce a cluster-

ing methodology to estimate automatically the correct

number of clusters (e.g. analysis of changes in aver-

age silhouette width values computed from clusters

built by using the k-means algorithm).

The proposed algorithm provides very satisfying

results particularly in distinguishing textual regions

from graphical ones (cf. Figure 3(s)). This high-

lights a much greater discriminant power for separat-

ing text and graphic regions than for distinguishing

two or more different text fonts (normal, uppercase,

and italic fonts). Nevertheless, this way of assessing

the effectiveness of a segmentation method is inher-

ently a subjective evaluation and we need to evalu-

ate robustness using an appropriate quantitative met-

ric. In the tables there are two “Overall” values. The

“Overall

∗

” value is obtained by averaging all the re-

spective column values except the value of “Two fonts

and graphics

∗∗

”. The “Overall

∗∗

” value is obtained

by averaging all the respective column values except

the value of “Two fonts and graphics

∗

”. “Two fonts

and graphics

∗

” represents the case when every font

in the text has a different label in the ground truth,

and clustering is performed by setting the number of

types of content regions to 3 (graphics and two dif-

ferent text fonts). “Two fonts and graphics

∗∗

” rep-

resents the case when all fonts in the text have the

same label in the ground truth, and clustering is per-

formed by setting the number of types of content re-

gions equal to 2 (graphics and text). This distribution

of this dataset points out whether or not the proposed

algorithm is ﬁrstly adequate for segmenting graphi-

cal regions from textual ones, and secondly if it can

discriminate between texts with a variety of fonts and

scales. The results of accuracy metrics are presented

in Table 1.

First, in this study the F-measure (F) is computed

to evaluate the different steps of post-processing of

the proposed algorithm for extraction of homoge-

neous regions in HDIs. The overall pixel label-

ing results are reasonably promising, i.e. we ob-

tain 67% and 70% of overall F-measure rates, with-

out taking into consideration the topological rela-

tionships of pixels and their labels for “Overall

∗

”

and “Overall

∗∗

”, respectively. We conclude that the

best performance is obtained for documents contain-

ing graphics and single text font (81%). The lowest

value of F is obtained for documents containing only

three fonts (53%). Therefore, the pixel labeling re-

sults show a much greater discriminating power for

separating text (single font) and graphic regions than

for distinguishing documents containing graphics and

two or more text fonts. Furthermore, we note that we

do not need a post-processing phase, since there is

a no signiﬁcant performance difference between the

cases of without and with adding the multi-scale anal-

ysis of majority voting (i.e. overall F gains of 0.1%

and 0.004% for “Overall

∗

” and “Overall

∗∗

”, respec-

tively). This study shows the robustness of the pro-

posed pixel labeling technique based on Gabor fea-

ture analysis with the SLIC superpixels and multi-

scale approach for segmentation in the case of the use-

lessness of introducing the topological relationships.

However, by adding a post-processing step to iden-

tify group of pixels sharing common characteristics

or similar textural properties and extract homogenous

region, overall F gains of 0.6% and 1% are obtained

for “Overall

∗

” and “Overall

∗∗

”, respectively.

Then, three accuracy metrics are computed: the

precision (P

), recall (R

), and Jaccard index (J

)

for evaluating the extracted homogeneous regions

(Brunessaux et al., 2014). The results obtained for

homogenous region extraction assessment are per-

formed (P

, R

, and J

) by calculating the mean

value of each accuracy metric relative to the num-

ber of deﬁned rectangular regions of the ground-

truth, which are illustrated in Table 1. The com-

puted accuracy metrics values are quite encouraging

since we obtain 88%(P

), 90%(R

), and 86%(J

93%(P

), 93%(R

), and 91%(J

) are noted for

documents containing text (single font) and graphic

regions. In conclusion, by computing numerous ac-

curacy metrics, we prove that the proposed algorithm

has a much greater discriminating power for separat-

ing text (single font) and graphic regions than for dis-

tinguishing documents containing graphics and two

or more text fonts. The results also conﬁrm that it

is more difﬁcult to separate two or three text fonts in

HDIs.

VISAPP2015-InternationalConferenceonComputerVisionTheoryandApplications

(a) (b) (c) (d) (e)

(f) (g) (h) (i) (j)

(k) (l) (m) (n) (o)

(p) (q) (r) (s)

Figure 3: Illustration of the intermediate results of the different tasks of the post-processing step of the proposed algorithm:

Figure (a) shows an example of an HDI (as an input of the proposed algorithm). Figures (b) and (c) show the background and

foreground SLIC superpixels, respectively. Colors assigned to the background (foreground, respectively) superpixels which

are illustrated in Figure (b) ((c), respectively) are randomly generated. Figure (d) depicts the result of the enhancement step.

Figure (e) shows the resulting image of applying a binarization step on the enhanced document image. Figure (f) illustrates

the pixel-labeled image (as an output of the analysis of the extracted Gabor features (graphic regions (blue), textual regions

(green)). Figure (g) depicts the results of the ﬁrst step of post-processing “Post-processing 1”. Figure (h) shows the resulting

image of the labeling of the extracted CCs from the binarized enhanced document image according to the obtained pixel

labeling results in the ﬁrst step of post-processing by using the majority voting technique. Figures (i) and (m) are the two

resulting binarized images of the color layer separation task, illustrating separately the graphical (blue) and textual (green)

CCs, respectively. Figures (j) and (k) show the resulting images of the application of the run-length smearing both horizontally

and vertically on the resulting binarized image representing the graphical regions (cf. Figure (i)), respectively. Figures (n) and

(o) show the resulting images of the application of the run-length smearing both horizontally and vertically on the resulting

binarized image representing the textual regions (cf. Figure (m)), respectively. Figure (l) ((p), respectively) is the resulting

image of merging the two resulting images of applying the run-length smearing both horizontally and vertically on each

resulting binarized image of the color layer separation task (cf. Figures (j) and (k)) (cf. Figures (n) and (o), respectively) by

using the logical AND. Figure (q) is the resulting image of merging the two resulting images of applying ARLSA on each

resulting binarized image of the color layer separation task by using the logical OR (cf. Figures l) and (p), respectively).

Figure (r) shows the resulting image of the second step of post-processing “Post-processing 2” by labeling the extracted CCs

from Figure (q) with taking into account to the labels of the extracted CCs from Figure (h). Figure (s) illustrates the output of

the proposed algorithm for extraction of homogeneous regions in HDIs.

ExtractionofHomogeneousRegionsinHistoricalDocumentImages

Table 1: Evaluation of the different steps of the proposed algorithm for extraction of homogeneous regions in HDIs by

computing the F-measure (F), the precision (P

), the recall (R

), and the Jaccard index (J). µ(.) represents the mean value.

The higher the mean values, the better the results. †, ‡, and o represent the evaluation of the analysis of the extracted texture

features in the case of without the ﬁrst step of post-processing “the pixel labeling step”, with the ﬁrst step of post-processing

and with the second step of post-processing, respectively. µ

‡−†

(.) and µ

o−‡

(.) represent the mean difference values between

‡ and †, and between o and ‡, respectively.

†

(F) µ

‡

(F) µ

‡−†

(F) µ

o−‡

(F) µ (P

) σ (R

) µ(J

)

One font and graphics

0.8159 0.8172 0.7761 0.0013 −0.0557 0.9264 0.9352 0.9158

Two fonts and graphics

∗

0.6011 0.6019 0.6313 0.0008 0.0294 0.9158 0.9282 0.9071

Two fonts and graphics

∗∗

0.7140 0.7125 0.7553 −0.0015 0.0428 0.8223 0.8851 0.8429

Only two fonts

0.7315 0.7322 0.7403 0.0007 0.0081 0.8227 0.8782 0.8373

Only three fonts

0.5342 0.5356 0.5816 0.0014 0.0460 0.8628 0.8564 0.7970

Overall

∗

0.6706 0.6717 0.6786 0.0010 0.0069 0.8818 0.9012 0.8657

Overall

∗∗

0.6989 0.6993 0.7096 0.0004 0.0103 0.8819 0.8995 0.8643

5 CONCLUSION AND

PERSPECTIVES

This article presents a novel automatic segmenta-

tion method for HDIs based on extraction of homo-

geneous or similar content regions. The proposed

algorithm is based on using simple linear iterative

clustering (SLIC) superpixels, Gabor ﬁlters, multi-

scale analysis, majority voting technique, CC analy-

sis, color layer separation, and ARLSA. The robust-

ness of the proposed algorithm is used in a parameter-

free method and adapted to all kinds of HDIs which

is designed to identify the homogeneous regions with-

out formulating a hypothesis or assumption concern-

ing the document model/layout or content. It was

evaluated on 1000 pages of HDIs with promising re-

sults.

Homogeneous region extraction in HDIs is a ﬁrst

step towards automatic historical book understanding,

our future work will build on the results of the ex-

traction of homogeneous or similar content regions

to characterize HDI content with intermediate level

meta-data, between document content and layout. By

characterizing each digitized page of historical book

with a set of homogeneous or similar content regions

and their topological relationships, a signature can be

designed for each book page. The obtained signatures

will help deducing the similarities of book page struc-

ture or layout and/or content.

REFERENCES

Achanta, R., Shaji, A., Lucchi, A., Fua, P., and S

usstrunk,

S. (2012). SLIC superpixels compared to state-of-the-

art superpixel methods. PAMI, pages 2274–2282.

Brunessaux, S., Giroux, P., Grilheres, B., Manta, M., Bodin,

M., Choukri, K., Galibert, O., and Kahn, J. (2014).

The Maurdor project: Improving automatic process-

ing of digital documents. In DAS, pages 349–354.

IEEE.

Chang, T. and Kuo, C. C. J. (1992). Texture segmenta-

tion with tree-structured wavelet transform. In TFTSA,

pages 543–546.

Coustaty, M., Raveaux, R., and Ogier, J. M. (2011). Histor-

ical document analysis: A review of French projects

and open issues. In EUSIPCO, pages 1445–1449.

Gabor, D. (1946). Theory of communication. Part 1: The

analysis of information. Journal of the Institution of

Electrical Engineers - Part III: Radio and Communi-

cation Engineering, pages 429–441.

Lam, L. and Suen, C. Y. (1997). Application of majority

voting to pattern recognition: an analysis of its behav-

ior and performance. SMC, pages 553–568.

Li, J., Wang, J. Z., and Wiederhold, G. (2000). Classiﬁca-

tion of textured and non-textured images using region

segmentation. IP, pages 754–757.

Liu, M. Y., Tuzel, O., Ramalingam, S., and Chellappa, R.

(2011). Entropy rate superpixel segmentation. In

CVPR, pages 2097–2104.

MacQueen, J. B. (1967). Some methods for classiﬁcation

and analysis of multivariate observations. In Berkeley

Symposium on Mathematical Statistics and Probabil-

ity, pages 281–297. University of California Press.

Mehri, M., Gomez-Kr

amer, P., H

eroux, P., Boucher, A.,

and Mullot, R. (2013). Texture feature evaluation for

segmentation of historical document images. In HIP,

pages 102–109.

Okun, O. and Pietik

ainen, M. (1999). A survey of texture-

based methods for document layout analysis. In

WTAMV, pages 137–148.

Otsu, N. (1979). A threshold selection method from gray-

level histograms. SMC, pages 62–66.

Rosenfeld, A. and Pfaltz, J. L. (1966). Sequential oper-

ations in digital picture processing. Journal of the

ACM, pages 471–494.

Wahl, F. M., Wong, K. Y., and Casey, R. G. (1982). Block

segmentation and text extraction in mixed text/image

documents. CGIP, pages 375–390.

VISAPP2015-InternationalConferenceonComputerVisionTheoryandApplications
