Software Architecture Design by Stepwise Model Transformations

A Comparative Case Study

Fabian Gilson and Vincent Englebert

PReCISE Research Center, Faculty of Computer Science, University of Namur, Namur, Belgium

Keywords:

Software Architecture, Model Transformation, Design Rationale, Design Decision, Case Study.

Abstract:

Software architecture design is a critical task as lots of requirements can be taken into account on which

many decisions can be made. The maintenance and evolution of resulting models often become tricky, even

impracticable when their rationale is lost. In a previous work, we introduced a set of languages used in a

transformation-centric design method meant to tackle this scattering of requirements and to facilitate further

model evolutions. But, we did not provided a formal validation of our proposal yet. The present work depicts

a comparative case study we conducted on a group of students. The participants were asked to develop an

online book store in two phases, the second one simulating an evolution of the system. We evaluated the

functional completeness of the created software as well as the traceability of design decisions and rationale.

The participants were also asked to criticize the design method and language they used in a textual report and

through a questionnaire. Even if the size of the case study is rather limited, it clearly highlighs the advantages

of our approach regarding, among others, its expressiveness and decisions traceability.

1 INTRODUCTION

Software engineering methods offer guidelines and

tool-support to structure the creation process of soft-

ware systems. As the complexity of such systems

increases, the need for iterative methods has been

widely expressed (Bosch and Molin, 1999). In draw-

ing the architecture model of the system-to-be, many

decisions are taken and a large part of the knowl-

edge resides in the reasons that lead to a particular

model (Perry and Wolf, 1992).

Beside, systems must evolve over time in terms

of the functionalities and qualities they fulﬁll and

regarding technological frameworks. In order to

handle system maintenance and evolution, appropri-

ate documentation and traceability mechanisms are

needed (Parnas and Clements, 1986).

An increasing number of companies are moving

to Agile design methods that offer beneﬁts like time-

overrun reduction and a higher developer productiv-

ity (Dyb

a and Dingsøyr, 2008). With faster release

frequencies, the amount of design decisions logically

increases. Without an appropriate tracing mecha-

nism, the architectural knowledge is often lost, even

by the practitioners in charge of the impacted models

or code (Tang et al., 2006). However, one of the most

crucial piece of information is the link between a re-

quirement and its implementation in a model or in the

code (Jansen and Bosch, 2005).

We integrated both aspects into an architecture

framework (ISO/IEC/IEEE, 2011). On the one hand,

we use structural models iteratively enriched through

model transformations, and on the other hand, an

ad-hoc requirement modeling language with explicit

traceability mechanisms for design decisions and ra-

tionale. In this comparative case study, we confronted

the Domain Speciﬁc Languages (DSL) we formalized

in our framework to the OMG’s SysML

model-

ing language (Object Management Group, 2012). We

evaluated the feasibility and advantages of using such

an integrated framework to build a web-based soft-

ware from scratch. Twelve teams of two students

used one or the other set of languages and we identi-

ﬁed that the functional completeness and correctness

were higher under our framework. The decision doc-

umentation rate, i.e. the amount of documented de-

sign decisions, was also evaluated. During the two

phases of the evaluation, we counted an average of

0.96 and 0.94 documented decision under our frame-

work where only 0.35 and 0.32 on the other side.

Aside, we conducted a paper-based survey and an-

alyzed feedback reports to capture the participants’

feelings regarding the languages they used. This sur-

vey highlighted a signiﬁcant improvement regarding

modeling element expressiveness.

The present paper starts with an overview of some

134

Gilson F. and Englebert V..

Software Architecture Design by Stepwise Model Transformations - A Comparative Case Study.

DOI: 10.5220/0005266101340145

In Proceedings of the 3rd International Conference on Model-Driven Engineering and Software Development (MODELSWARD-2015), pages 134-145

ISBN: 978-989-758-083-3

 2015 SCITEPRESS (Science and Technology Publications, Lda.)

related work in Section 2. Afterwards, in Section 3,

we give a quick description of the proposed method

and languages. The protocol of the comparative case

study is then presented in Section 4. Next, the teams’

deliverables and feedbacks are detailed in Section 5.

We discuss the outcomes of the case study in Sec-

tion 6 where we evaluate the research method itself

and identify the potential threats to validity. Finally,

the research perspectives and conclusions are pre-

sented in Section 7.

2 RELATED WORK AND

MOTIVATION

Numerous architecture description languages have

been proposed like ACME (Garlan et al., 1997) or

AADL (Society of Automotive Engineers, 2012), but

most of them do not provide decision-making trace-

ability, even if their long-term added-value is widely

recognized (Perry and Wolf, 1992; Malavolta et al.,

2013).

Many decision and rationale recording methods

have been deﬁned, from the precursor Potts and Bruns

model (Potts and Bruns, 1988) to the viewpoint-based

documentation framework (van Heesch et al., 2012).

van Heesch et al. recently conducted a case study on

documentation of architecture design decisions and

highlighted that explicit recordings of these decisions

empower a more systematic exploration of design al-

ternatives (van Heesch et al., 2013). However, all

these techniques require to maintain extra models for

decision and rationale traceability.

Within model-driven approaches, model-to-model

transformation languages play a key role. Hybrid im-

perative and declarative language, like ATL (Jouault

and Kurtev, 2005), usually do not support incremen-

tal model transformations with change propagations.

Triple Graph Grammars offers such a feature, but

makes it difﬁcult to deﬁne transformations where op-

erational semantics is needed (Ehrig et al., 2005).

Abstract syntax-based techniques require to learn an-

other language to deﬁne transformations, such that

some extra expertise is needed.

In our approach, we believe in a fully integrated

framework where any change in an architecture will

be fully traceable as documented model transforma-

tions, together with their design rationale. Explored

alternatives may also be recorded, again as concrete

transformations. Last, reusable solutions, i.e. archi-

tectural patterns, may be documented as dedicated

transformations too, again using the same formalism.

3 DESIGN METHOD IN SHORT

The design method is supported by three DSL. Those

languages have been presented in dedicated publica-

tions, but we summarize their main principles in the

following sections.

3.1 Requirement Listing

A simple language has been deﬁned to list require-

ments with their design decisions (Gilson and Engle-

bert, 2011b; Gilson and Englebert, 2011a). We fo-

cus only on architecturally-signiﬁcant requirements

(ASR), i.e, requirements that have “a measurable im-

pact on the software system’s architecture” (Chen

et al., 2013).

A requirement model gathers a list of ASR for a

speciﬁc architecture model. Every requirement must

be assigned to an architectural construct in charge

of satisfying it. Listing 1 depicts a simpliﬁed ASR

model with one functional requirement that will be

implemented as a transformation.

1 asrmodel clientserver {

2 func SayHello assigned Server {

3 description "The Server shall print ’Hello

World!’ to the console.";

4 realisation implementSayHello ;

5 rationale {

6 assessment "Functionality is trivial , a

unique service should make the trick.";

7 strength "Very simple implementation with

unique service without parameters.";

8 }

9 }

10 }

Listing 1: Simpliﬁed ASR model.

Decisions can be taken on requirements, such as

reﬁnements, implications, alternative selections or re-

alization through model transformations. Any deci-

sion must be at least justiﬁed by an assessment, but

can be further reﬁned by other design rationale like

strengths or constraints for example.

3.2 Architecture Description and

Transformations

A three-stage architecture description language has

been deﬁned to represent the structure of software

systems at different levels of abstraction (Gilson and

Englebert, 2011b). Listing 2 depicts an empty Client-

Server Deﬁnition Assemblage Deployment (DAD)

models.

SoftwareArchitectureDesignbyStepwiseModelTransformations-AComparativeCaseStudy

135

1 dadmodel clientserver {

2 definition {

3 componenttype Client { }

4 componenttype Server { }

5 }

6 }

Listing 2: Simpliﬁed DAD model.

The set of transformation rules referred as the re-

alization documented in Listing 1, is illustrated in

Listing 3.

1 transformationset implementSayHello concerns

SayHello {

2 create interface Hello { sync void hello(); }

3 alter componenttype Client{ uses Hello as hello;

}

4 alter componenttype Server { implements Hello as

hello; }

5 create connectortype One2One { mode one2one; }

6 create linkagetype from Client.hello to Server.

hello with One2One;

7 }

Listing 3: Simpliﬁed transformations set.

Concretely, a binding is created between the

Client and the Server through their facets typed by

the Hello interface.

More modeling elements are available in the DAD

language to express a software architecture from (i)

an abstract deﬁnition, (ii) a runnable assemblage

with, among other, particular communication proto-

col constraints, and (iii) a deployment speciﬁcation

with (user-deﬁned) infrastructure properties.

Listing 4 shows a more complete, though simpli-

ﬁed, overview of all stages of a DAD model.

1 dadmodel dadsample {

2 definition { // building blocks

3 interface Hello { sync void hello (); }

4 componenttype Client { uses Hello as h; }

5 componenttype Server { implements Hello as h; }

6 protocol TCP { layer transport; }

7 connectortype Con { mode one2one; }

8 linkagetype from Client.h to Server.h with Con;

9 nodetype Computer { Ethernet eth; }

10 mediumtype RJ45 { supports TCP; }

11 }

12 assemblage { // concrete instances

13 soi c : Client { Client.h as h on TCP; }

14 soi s : Server { Server.h as h on TCP; }

15 linkage from c.h to s.h with Con;

16 }

17 deployment { // possible deployment

18 node comp[2] : Computer;

19 deploy client on comp[0]; open c.h on comp[0]::

eth;

20 deploy server on comp[1]; open s.h on comp[1]::

eth;

21 plug RJ45 from comp[0]:: eth to comp[1]::eth;

22 }

23 }

Listing 4: All DAD model stages.

Note that all stages in a model are optional so that,

for example, reusable building blocks can be speciﬁed

separately in dedicated library-models or different as-

semblage or deployment stages for the same deﬁnition

can be deﬁned.

3.3 A Transformational Approach

The IODASS design approach is transformation-

centric, i.e., changes made in the architecture

model must be expressed with model transforma-

tions (Gilson and Englebert, 2014). As illustrated

in Listing 3, it provides rules to create, delete and

modify any type of construct. Transformations are

always related to a particular requirement. A soft-

ware architecture is then created in an iterative way

where designers start from a model with a list of ASR

(possibly incomplete), a set of basic constructs and

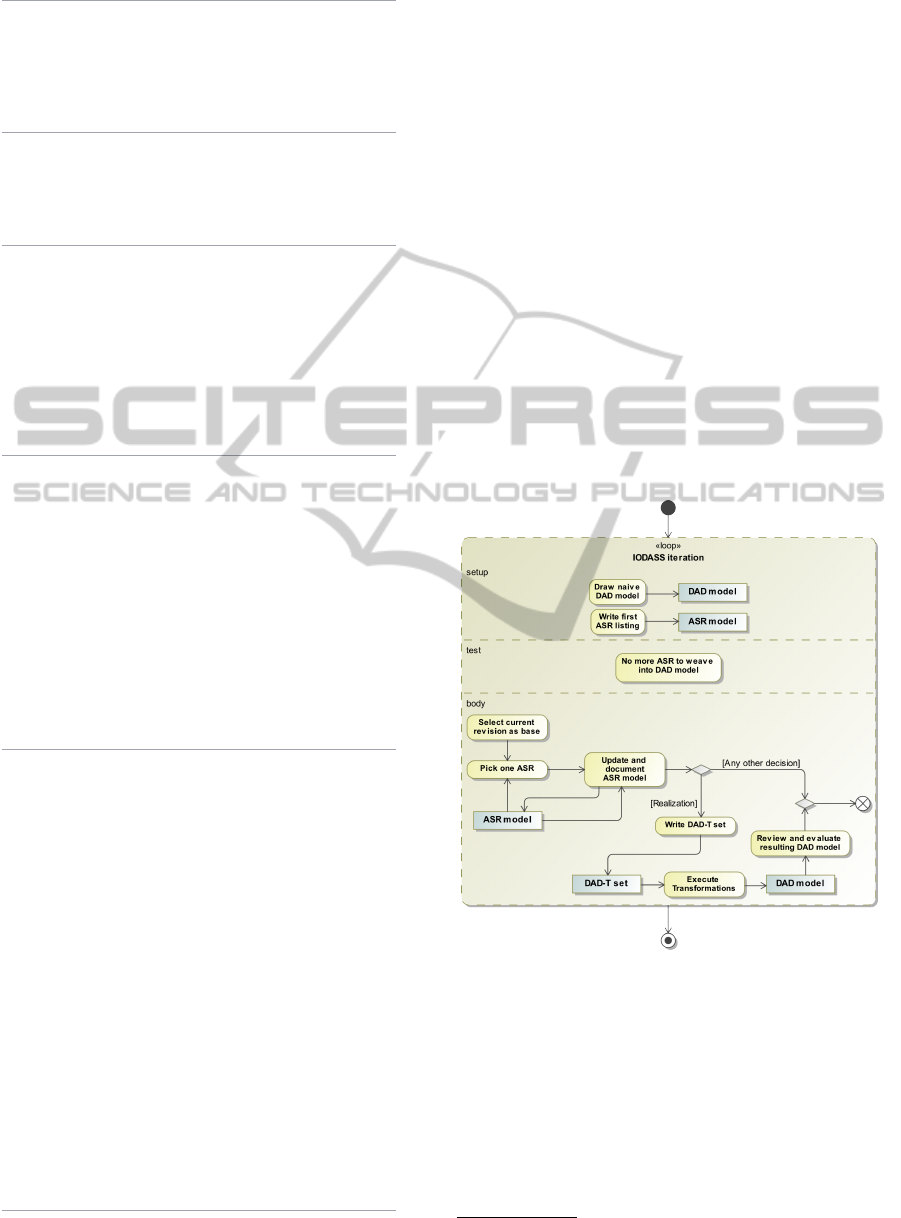

make successive decisions. Figure 1 depicts the typi-

cal design process, very close to Hofmeister’s general

model (Hofmeister et al., 2007).

Figure 1: IODASS Design process as a UML activity.

An architecture model is iteratively enriched and

documented through model transformations such that

all structural changes are kept for later references.

Furthermore, any decision is directly encoded into the

ASR model and refer, when needed, to a transfor-

mations set, such that structural elements are always

bound to their related requirements.

Editors for all languages have been implemented

as Eclipse plugins with the Xtext

framework. Trans-

http://www.eclipse.org/Xtext

MODELSWARD2015-3rdInternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

136

formations are run within Eclipse on the models’ ab-

stract syntax tree and produce a new model each

time. The history of all created models is kept in the

workspace to backtrack to previous versions and ex-

plore implementation alternatives, if necessary.

4 CASE STUDY PROTOCOL

After a couple of tests on toy examples, we de-

cided to evaluate our approach in a comparative case

study. We followed a rigorous process to design

the study and conducted it on a group of master

students (Pﬂeeger, 1995; Runeson and H

ost, 2009;

Wohlin et al., 2012). The study was planned to evalu-

ate (i) the feasibility and beneﬁts of a transformation-

centric approach to build a software system and (ii)

the expressiveness of our modeling languages and

their impacts on model documentation.

In order to evaluate the feasibility of our design

method, we had to compare it to an iterative design

process where engineers may pick one requirement

at a time, reﬁne or implement it and evaluate the re-

sulting model. As identiﬁed by Hofmeister et al. in

their general model, this iterative process is very com-

mon as architecture design method (Hofmeister et al.,

2007). Furthermore, it is a somewhat intuitive way of

designing a piece of software. Then for the study it-

self, we required the students from the control group

to follow an iterative design process too.

Regarding the languages themselves, we decided

to compare them to the OMG’s SysML. On top of

structural modeling facilities at variable levels of

abstraction, requirements, traceability and rationale-

related information can be added into SysML models.

It allows to deﬁne building blocks in a similar fashion

as in our architectural language, with infrastructure-

related objects too. Also, the participants had no

knowledge of both modeling languages, even if they

all are familiar with UML modeling, such that previ-

ous knowledge in one or the other language would not

have biased the study.

Finally, we also had to take care of the devel-

opment environment, since our languages are imple-

mented inside the Eclipse platform. A couple of

SysML plugins also exist in that platform. Thus the

participants could work in the same environment as

for our framework, which reduces the possible bias

regarding the tool’s takeover.

4.1 Participants’ Properties

The participants were master students of the Fac-

ulty of Computer Science at the University of Namur

and chosen by convenience. They all have a Bach-

elor degree that includes all the prerequisite compe-

tencies for the experiment concerning (UML) soft-

ware modeling or iterative design methods. 24 stu-

dents were involved in the study that was conducted

from mid-March until end of May 2013 as part of a

course in the Software Engineering option of the Mas-

ter’s curriculum. They all had a previous experience

with a mid-scale academic project where they devel-

oped a web-based three-tier information system from

scratch. They all were males between 21 and 25 year

old. However, instead of creating random teams, we

ﬁrst conducted a preliminary phase to build compara-

ble groups of students for the control and under-study

teams.

4.2 Initial Phase

During this preliminary phase, students had to draw a

UML class diagram from a requirement document de-

scribing a vehicle inspection system. This document

contained an informal description of the system-to-

be, the use case diagrams and corresponding scenar-

ios. It also contained clear instructions regarding the

expected class diagram to produce in terms of level of

details and completeness. These guidances were il-

lustrated by a sample diagram to make everything as

clear as possible. During this preliminary round, all

students received exactly the same remarks in class-

room at the beginning of the lecture and were spread

into a room wide enough to minimize cheating possi-

bilities.

4.3 Build Comparable Groups

At the end of the lecture, we gathered the produced

models and classiﬁed them using a judging method

inspired from the work of Jones (Jones, 1983): two in-

house researchers and one external senior researcher,

all familiar with UML modeling, were asked to cate-

gorize the diagrams.

First, they individually drew their own quick-

draft of the class diagram based on the requirement

document. Second, they individually classiﬁed the

students’ models regarding their own criteria. The

judges were free to deﬁne their own categories as well

as the number of categories. After this classiﬁcation

round, it appeared that all judges used comparable cri-

teria and built four categories of diagrams that we can

summarize by the following characteristics:

Cat. 1. syntacticly and semantically incorrect

Cat. 2. syntacticly correct, semantically incorrect

Cat. 3. incomplete, correct syntax and semantics

SoftwareArchitectureDesignbyStepwiseModelTransformations-AComparativeCaseStudy

137

Cat. 4. complete, correct syntax and semantics

We calculated the 2-digits truncated arithmetic

mean (denoted tam) of the assigned values by the

judges for each diagram, i.e, Cat.1 diagrams received

a value of 1, Cat.4 a value of 4. Upon this calcula-

tion, we had three categories: low (tam < 2), mid-

range (2 ≤ tam < 3) and high results (tam ≥ 3). The

mid-range category contained too many elements so,

we used external criteria, like their previous results in

modeling lectures, to split the category in two.

In order to let a bit of freedom to the students

to create pair-teams for the remaining of the case

study, we created four hats based on the aforemen-

tioned categories to equalize as much as possible the

modeling competences of the future teams. We fairly

distributed the students between the hats assigned to

SysML (S-Teams) and to our framework (I-Teams).

4.4 Case Study Startup

Prior to give the description of the system to develop

to the students, they followed separately a 2 hours lec-

ture where SysML was presented to the S-Teams, and

our framework to the I-Teams. Both lectures were or-

ganized the same way and given by the same person.

Two screencasts were realized to explain how to in-

stall the plugins in Eclipse and how to create a hel-

loworld model. Both screencasts followed the same

template and illustrated the same concepts.

The remaining of the study was realized by the

participants outside classroom, per teams, except for

one session dedicated to general questions and an-

swers and for the ﬁnal demonstration of their pro-

totypes. The study was organized in two phases,

the ﬁrst one dedicated to the realization of a proto-

type from scratch, the second one to modify part of

the system, with a notable impact at the architectural

level. For each phase, the students received a sep-

arate document explaining the system requirements

only for the concerned phase, so that they had no idea

of the nature of the future evolutions. After the ﬁrst

phase, we had a 15-minutes informal discussion with

all teams individually to answer their questions and

debrief about their deliverables regarding documenta-

tion quality and functional correctness.

4.5 Case Description

We speciﬁed a ﬁctitious online library system where

customers can order books from different book stores.

Each time a book is sold, an auction is organized be-

tween all stores to determine the actual selling price.

When the auction is done, the library contacts the par-

cel delivery system to pick up the book at the store

and deliver it to the customer. For this ﬁrst phase,

the library was leading the overall process. The stu-

dents were given a document with an informal de-

scription of the case study, as well as the list of the

expected functionalities and qualities for all three sub-

systems, speciﬁed in ten very detailed requirements.

Some simplifying hypotheses and methodological as-

pects regarding the iterative design method to follow

and the expected deliverables were also speciﬁed in

that document.

The ﬁrst document was very precise and the re-

quired implementation was almost straightforward in

order to let them concentrate on their modeling, docu-

mentation and coding activities. For the second phase,

the participants received another document with new

requirements. They were expressed at a higher ab-

straction level, though still complete and unambigu-

ous, in order to compare the decision traceability

mechanisms of both approaches. They also received

detailed guidelines on how to write their own evalua-

tions of the language(s) they used. The new require-

ments were (i) the auction had to be taken in charge

by the book stores, (ii) the customer could withdraw

its purchase and then receives a credit note, and (iii)

the catalog had to be exposed also as a web service.

At the end of both phases, the teams delivered

a set of documented models representing the overall

system with the design rationale and the description

of the iterative process they actually followed, as re-

quired at the beginning of the study. They also had

to provide a functional prototype. At the end of the

second phase, the teams also submitted an evalua-

tion report on (i) the language expressiveness, (ii) the

documentation and traceability facilities, and (iii) the

maintainability of the models.

4.6 Evaluation Method

We will now present the results of the case study. We

used a Goal-Question-Metric approach to deﬁne our

evaluation criteria and metrics (Basili, 1992) detailed

hereafter with the Purpose/Issue/Object/Viewpoint

template (PIOV).

GOAL 1. Evaluate the feasibility of a transforma-

tional architecture design method to design a soft-

ware system

PIOV. Evaluate / the feasibility of iteratively trans-

form a / software architecture model / from the

project manager’s viewpoint

Question 1. Is it effective to implement a software

based on an architecture model created from

stepwise formal model transformations?

Metric 1. Number of top-level functionalities cor-

rectly implemented

MODELSWARD2015-3rdInternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

138

GOAL 2. Evaluate the quality of architecture and re-

quirement models using DAD-ASR languages

PIOV. Evaluate / the functional completeness of a /

software architecture model regarding the ex-

pected model elements / from the architect’s

viewpoint

Question 2. Does the produced architecture models

contain all expected components and interfaces

to fulﬁll the software’s requirements?

Metric 2. Number of requirements without any re-

sponsible component/part.

Question 3. Are the newly introduced subrequire-

ments correctly documented with their ratio-

nale?

Metric 3. Number of decisions regarding subre-

quirements with a meaningful explanation of

their purposes (rationale).

GOAL 3. Evaluate the traceability of a transforma-

tional method regarding the history of the devel-

opment process (planning-evaluation)

PIOV. Evaluate / the actual implementation order

of the / architecturally signiﬁcant requirements

/ from the architect’s viewpoints

Question 4. Does all development iterations have

been backlogged for evaluation and traceability

purposes?

Metric 4. Number of iterations reported with corre-

sponding implementation plans.

GOAL 4. Evaluate the feasibility of a transforma-

tional method in maintenance and evolution ac-

tivities of a software system

PIOV. Evaluate / the feasibility of iteratively trans-

form an / existing software architecture model /

from the architect’s viewpoints

Question 5. Is it effective to incorporate new func-

tionalities in a software based on an architec-

ture model modiﬁed by stepwise formal model

transformations?

Metric 5. Number of impacted functionalities cor-

rectly implemented

5 CASE STUDY RESULTS

We now detail the results we gathered from the deliv-

erables produced by all teams.

5.1 Functional Correctness and Quality

of Deliverables

At the end of the ﬁrst phase, we deployed their pro-

totypes, following their readme ﬁles to test the four

top-level functional requirements. To this end, we or-

dered a book and checked if the auction started and

completed as expected, as well as if the delivery was

correctly done (happy scenario). We also analyzed

the requirements and structural models, as well as the

project management documentation they produced to

detail their development iterations. Table 1 summa-

rizes the results for all teams. Some columns have

been directly linked to the metrics identiﬁed in the

previous section. We also provide the arithmetic mean

values for each groups.

Regarding the test of the functionalities of the

happy scenario, our framework produced slightly bet-

ter results. One more I-Team provided a fully func-

tional prototype than the S-Teams. Two S-Teams’ pro-

totypes did not implement correctly any requirement,

for one I-Team. Moreover, an average of 3 require-

ments were correctly implemented by the I-Teams,

where 2.17 for the S-Teams. Even if the difference

is not signiﬁcant, we can notice than, except for the

I6-Team, all other ﬁve I-Teams implemented at least 3

requirements where three S-Teams completed similar

functional results.

Concerning the number of produced requirements

and their traceability as structural elements, the re-

sults show a better result for the S-Teams, where only

0.66 requirement remained untraced against 3.33 for

I-Teams. However, the amount of sub-requirements

identiﬁed within our framework is signiﬁcantly higher

with an average of 24.16 requirements against 12.5 on

the other side. Half of the S-Teams listed only the ten

requirements found in the case study document and

did not reﬁne any of them. This was also the case

for the I3-Team that did not provide any traceability

information or even design rationale.

Similarly to the amount of produced requirements,

the amount of design rationale is signiﬁcantly higher

for I-Teams than for S-Teams. To identify the deci-

sions and their rationale, we analyzed the design re-

ports given by the students, where they were asked

to justify the decisions (and alternatives) they made

to build the online library system. An average of

12.83 decisions could be found in the models and

documents produced by the S-Teams, from which 4.5

(0.35) were documented. On the other side, I-Teams

produced an average of 17.5 decisions from which

16.83 were justiﬁed (0.96). This result is not really

surprising since ASR models are meant to receive

such pieces of information. But we analyzed the con-

tent of the rationale-dedicated constructs to remove

useless justiﬁcations, i.e. empty ﬁelds or even incom-

plete or fuzzy justiﬁcations that gave no clue on the

reasons why the requirement was actually produced.

The last metric we are interested in concerns the

SoftwareArchitectureDesignbyStepwiseModelTransformations-AComparativeCaseStudy

139

Table 1: Evaluation of the deliverables of phase 1.

Team Happy scenario Impl.(M1) Req. Untr.(M2) Decis. Rat.(M3) Iter.(M4)

S1 Stopped during auction 2 19 1 17 10 4

S2 No possibility to order 0 15 2 11 2 0

S3 Fully functional 4 10 0 10 1 0

S4 Fully functional 4 10 0 11 8 3

S5 Stopped after auction 3 11 1 16 4 0

S6 No possibility to order 0 10 0 12 2 3

MeanS n/a 2.17 12.50 0.66 12.83 4.50 1.66

I1 Fully functional 4 23 1 15 15 1

I2 No book delivery 3 30 1 28 28 5

I3 Fully functional 4 10 10 0 0 0

I4 Stopped after auction 3 14 2 9 8 8

I5 Fully functional 4 41 3 29 29 4

I6 Compilation failure 0 27 3 24 21 5

MeanI n/a 3 24.16 3.33 17.50 16.83 3.83

Table 2: Evaluation of the ﬁnal prototypes and deliverables.

Team Feedback Auction Credit Impl.(M5) Req. Untr.(M2) Decis. Rat.(M3) Iter.(M4)

S1 Medium Fully Incomplete 5 23 2 19 12 0

S2 None Partially Complete 3 17 1 13 2 0

S3 Medium Fully Incomplete 5 15 0 13 4 0

S4 Basic Fully Complete 5 14 0 24 7 0

S5 Basic Fully None 3 15 1 18 5 0

S6 Basic Partially Complete 4 18 1 16 4 2

MeanS n/a n/a n/a 4.16 17 0.83 17.33 5.66 0.33

I1 Medium Fully Complete 6 27 3 24 24 1

I2 Basic Fully Complete 5 35 1 31 31 3

I3 Medium Fully Complete 6 17 14 3 3 1

I4 Basic Fully None 3 17 3 11 11 2

I5 Basic Fully Complete 5 56 5 51 48 3

I6 Complete Fully Complete 7 38 4 34 28 7

MeanI n/a n/a n/a 5.33 31.66 5 25.66 24.16 2.83

number of iterations needed by the participants to im-

plement the system. As already mentioned, the ini-

tial document also contained explicit methodological

guidances about the iterative process the participants

had to follow. Since all of the students had a pre-

vious experience with a SCRUM-based development

project (Schwaber and Beedle, 2001), they were al-

ready familiar with small iteration steps for software

development. However, we could not retrieve any in-

formation regarding the implementation order of the

functionalities for three S-Teams. On the other hand,

two I-Teams showed similar results (I1 recorded one

iteration and I3 that provided again not a single piece

of information). We can note that the number of it-

erations are quite similar for all teams that actually

reported on that aspect, but one more I-Team docu-

mented their development life cycle.

At the end of the second phase, we evaluated the

functional correctness of their prototypes in a differ-

ent way. Each team had a 10 minutes slot to demon-

strate the full scenario, from the book purchase to the

withdrawal at the delivery. We especially evaluated

(i) the user feedback, (ii) the new auction mechanism,

(iii) the withdrawal with credit note and (iv) the cat-

alog as a web service. Table 2 summarizes the re-

sults of this second phase

. Each new requirement

received a value corresponding to the amount of sub-

requirements that should have been produced at least.

The completeness of the user feedback was eval-

uated in order to check whether the structured way

of writing requirements had an impact on how they

speciﬁed end-user functionalities. No clear require-

ment was expressed to this end, but we were curious

to evaluate if our stringent process produced more ex-

haustive lower-order requirements. The ratings are

None=0 (no user feedback at all), Basic=1 (very few

details), Medium=2 (most of the expected details are

shown) and Complete=3 (the summary page contains

all book and customer details).

The new auction mechanism was obviously tested

as it was a major rework at architecture and imple-

mentation levels. This rework was playing the role

Note that all teams implemented correctly the web ser-

vice, so we do not show it on Table 2. Also, note that the

M4 metrics is reused, but concerns only the iterations of the

second phase, that could have been isolated easily.

MODELSWARD2015-3rdInternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

140

of an evolution activity needed to fulﬁll a new non-

functional requirement that the participants had to

translate into multiple lower-order functional require-

ments. Above the evaluation of modeling and evolu-

tion facilities, this aspect was a major indicator of the

feasibility and effectiveness of our framework. The

auction process is either Partially=1 (responsibility

transfered, but still done synchronously), or Fully=2

implemented (asynchronously with a callback from

the store).

Unlike the change in the auction mechanism, the

withdrawal requirement was almost isolated from the

existing functionalities, i.e., less intrusive at the ar-

chitecture level. The objective was to check whether

adding functionalities to an existing product was

straightforward or not. The credit note values are

None=0, Incomplete=1 (some details are missing)

and Complete=2 (every customer details are present

in the note).

The overall amount of requirements implemented

successfully is very close for both groups, with an av-

erage of one more requirement correctly implemented

by the I-Teams. Qualitatively, we may note that all

six I-Teams implemented correctly the modiﬁcation

of the Auction mechanism, which was more intrusive

and used as an evaluation criterion for GOAL 4, where

four S-Teams provided the same functional complete-

ness for that requirement. However, even if this result

is promising, the difference is not signiﬁcant enough

to claim our framework lead to a more efﬁcient sys-

tem design.

The same tendencies as during the ﬁrst phase are

observed concerning the requirement traceability, de-

sign decisions and rationale. The amount of iden-

tiﬁed requirements increased in a comparable man-

ner in both groups, conﬁrming a signiﬁcantly more

systematic decomposition of requirements under our

framework. The proportion of documented decisions

by meaningful rationale stays at a very high level too

(0.94).

Last, the explanation regarding the iterative pro-

cess dropped signiﬁcantly for the S-Teams where only

one team actually reported the design steps they fol-

lowed.

5.2 Paper-based Survey

In order to complement the above metrics, we wanted

to gather the participants’ feelings about the case

study and the modeling languages they used with a

paper-based survey. Participants had to answer in-

dividually and anonymously to encourage them to

freely express their opinions. The survey evaluated

(i) the language expressiveness, (ii) the added value

of the language (implicitly regarding UML, as it is

the most common general purpose modeling language

they learn here at the university), (iii) the evolution

capabilities and (iv) the documentation support for

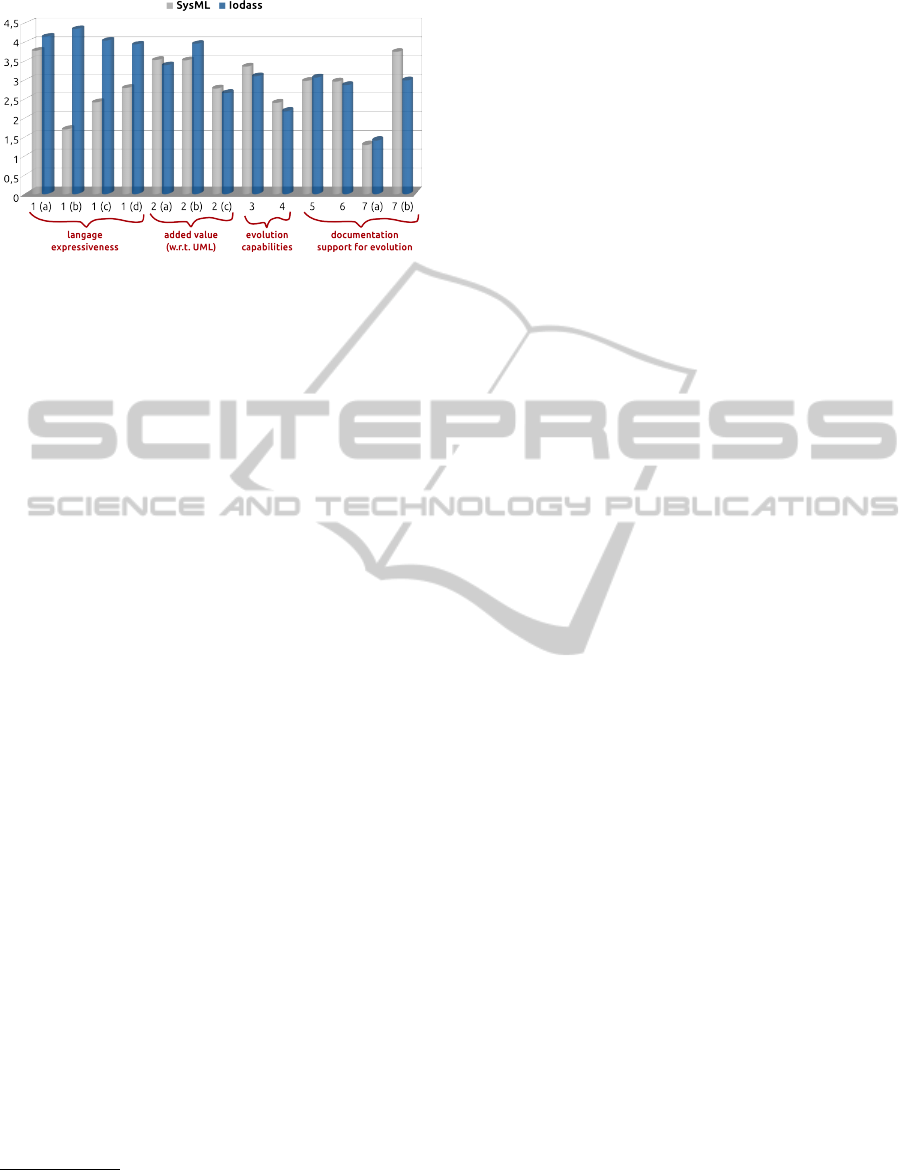

model evolution. Table 3 lists the questions we asked

to the participants.

Table 3: Questionnaire.

1. The languages constructs allow to represent:

1.a. the expected functionalities of the system.

1.b. the technological and communication constraints.

1.c. the physical constraints related to the deployment.

1.d. the non-functional requirements.

2. The modeling language coupled to an agile development method

as the one used during this laboratory offers an added value :

2.a. to manage the complexity of the system-to-be.

2.b. for the traceability of the requirements in terms of functionalities

to implement.

2.c. for the correctness and completeness of the implementation (code)

of the system.

3. The structural constructs impacted by a modiﬁcation of a require-

ment can be identiﬁed quickly.

4. The structural constructs impacted by a modiﬁcation of a require-

ment can be identiﬁed at a glance.

5. The language offers the necessary constructs and mechanisms to

write an accurate documentation.

6. The written documentation allows to efﬁciently comprehend the

system within the framework of a modiﬁcation of the system.

7. During the second phase:

7.a. a major work was necessary to re-understand the architectural

concepts of the system.

7.b. the modeling languages eased the structural changes linked to the

new functionalities to implement.

We used a non-graduated scale only indexed by

fully disagree (0) and fully agree (5) marks, inspired

from (Krosnick and Presser, 2010). The participants

could draw a line wherever they estimated it appro-

priate. This technique suits particularly when com-

paring different approaches because answers are ex-

pressed on a continuous interval that can be measured

with a ruler. It also lets more freedom to the respon-

dents and usually avoid them to backtrack to previous

answers because they want to order them within re-

lated questions. Besides, we dissimulated two very

close questions (Q3 and Q7b.) that concern the evo-

lution phase to evaluate more precisely the impact of

our framework on model maintenance and evolution

tasks. Figure 2 shows the average rankings given by

the respondents.

The collected answers show notably better results

with our framework regarding constructs expressive-

ness (Q1), especially for communication facilities.

The ratings for the added value and evolution capa-

bilities are very close, so we cannot say anything on

that. Model evolution seems a bit more complicated

in our approach since the impacted elements can be

identiﬁed almost as rapidly than for SysML diagrams

SoftwareArchitectureDesignbyStepwiseModelTransformations-AComparativeCaseStudy

141

Figure 2: Results of the questionnaire-based survey.

(Q3), but requires more effort to be identiﬁed (Q4,

Q7).

But, for all questions except Q7a. that was for-

mulated in a dissimulated negative manner and Q4,

the IODASS ratings are upper to 2.5 which is a rather

satisfactory result.

5.3 User Remarks

In their own evaluation reports, the participants ex-

pressed interesting remarks and part of them help to

interpret more accurately the values we observed in

the survey.

All S-Teams pointed the excessive freedom of-

fered by the SysML block construct, even if this ﬂex-

ibility is interesting in some cases. They were often

puzzled on how to concretely reﬁne the semantics of a

block to enhance the model comprehension and when

to stop the BDD-IBD reﬁnement process. This is par-

ticularly visible in the differences expressed in the re-

lated questions in the survey (Q1a. to Q1c.). We can

reasonably think that the participants are more com-

fortable with semantically rich modeling constructs.

The S-Teams were disappointed regarding the de-

sign decisions and rationale traceability mechanism,

partially because of a bug in some Eclipse builds used

by some students. For a part of them, their version

of Obeo Designer

, yet a commercial plugin, was

not displaying requirement satisfy tables correctly

However, the rationale construct was working cor-

rectly, but none of the S-Teams used it. We objec-

tively could not include in our survey speciﬁc ques-

tions to evaluate the decision tracing mechanism since

it would have been biased in favor of our framework.

Our prototype was not preserving the comments in

the models after a transformation. All I-Teams noted

that it was particularly annoying for comprehension

http://marketplace.obeonetwork.com

Even if the version we tested prior to the study

was working correctly, the problem was randomly present

across operating systems and Eclipse builds.

and maintenance purposes since they consider com-

ments as an important piece of information and a ﬁrst-

class entity for model documentation. Also, many

I-Teams suggested to develop a visual layer for ar-

chitectural models. They reported to have had some

difﬁculties during the ﬁrst phase with textual models

because they were not used to such a representation.

They all were experienced with graphical syntaxes,

mainly UML models. These remarks partially explain

the lower score of our framework in Q7b., and to a

wider extend, their difﬁculties in textual-based model

comprehension.

6 DISCUSSION

We will now summarize the observations we made

and discuss the results regarding our four goals in-

troduced at the beginning of Section 5. We will after-

wards evaluate the protocol itself.

We decided to discuss the results of the study and

survey outside a statistical framework because we did

not have a statistically signiﬁcant sample since the

amount of software engineers is very large (which re-

quires then a large sample) and we were conducting

the study over students (which limits the generaliza-

tion possibilities). We then preferred to stick to ob-

jective metrics and discuss only over very large dif-

ferences.

6.1 Evaluation of the Approach

As a ﬁrst goal, we wanted to evaluate the feasibil-

ity of our approach. After both phases, the func-

tional correctness (M1 and M5) was slightly higher

for the I-Teams. The changes in the Auction mecha-

nism was correctly implemented by the six I-Teams,

against four S-Teams. Two more I-Teams also im-

plemented the Credit Note with the expected level of

details. Even if the small amount of involved teams

does not allow us to claim the difference is statisti-

cally signiﬁcant, we may claim our stringent design

framework does not have a negative impact on the

functional correctness and may probably have some

impact on requirement elicitation.

The second goal concerned the quality of DAD

and ASR models regarding their completeness (M2)

and traceability of design decisions. (M3). The

amount of unrelated requirements is higher in our

framework than in the produced SysML models.

These unrelated requirements were mostly the ones

that were not related to other requirements or for-

mally linked to a model transformation. However,

in an ASR model, a requirement is always assigned

MODELSWARD2015-3rdInternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

142

to a structural element which is equivalent to the sat-

isfy relation in SysML. Since this feature is manda-

tory in ASR models, we looked for other types of for-

mal relations, where the SysML satisfy relationship

was considered as an explicit link and counted accord-

ingly. Strictly speaking, an ASR is always related to a

structural element, but we wanted to evaluate more

complex relationships. which explains these rather

high values of unrelated requirements (0.07) for the

ﬁrst and 0.15 for the second phase).

About the traceability of design decisions (M3),

the results are signiﬁcantly higher. In average, 0.96

and 0.94 design decisions were documented, where

the S-Teams documented an average of 0.35 and 0.32

of their decisions. Moreover, the extraction of the de-

cisions and their rationale was a very tough analyz-

ing task to recover them, usually from free text jus-

tiﬁcations. The number of recorded decisions is also

a bit higher for the I-Teams which probably indicates

a more structured way of thinking under our frame-

work.

Last, we wanted to evaluate the reporting of the

history of the design process with the number of iter-

ations necessary to draw the architecture model (M4).

Even if we explicitly asked for such details, the num-

ber of S-Teams that provided their development plan

dropped at only one team for the second phase. We

could not ﬁnd any explicit or implicit explanations in

the ﬁnal reports from the S-Teams and we can reason-

ably think they did not implement the whole second

phase at once, such that part of the design history is

lost.

6.2 Threats to Validity

We now discuss relevant threats to validity (Cook and

Campbell, 1979; Wohlin et al., 2012).

Internal Validity

First, the selection of the participants was not per-

formed randomly. We used a control group with

a comparable, well recognized, modeling language.

However, the aforementioned bug in the Obeo plugin

may have played a role in the motivation of the S-

Teams which has lead to a lower documentation rate.

We especially took care of acting fairly between

teams, without favoring one or the other. Some stu-

dents may have been too gentle, or harsh regarding

our method. The impact of this good-looking effect is

hardly identiﬁable and must be kept in mind aside our

conclusions.

The extraction of design decisions and their ratio-

nale from textual reports could have lead to lower val-

ues. Some of the decisions were explicitly stated, but

not all of them. We carefully analyzed multiple times

these reports, but we cannot ensure all decisions were

actually counted. However, with the many report re-

readings, it is fairly unconceivable we missed so many

decisions or rationale that the difference would have

been insigniﬁcant. Furthermore, we were particularly

careful regarding that aspect in the conclusions we

drew.

Construct and External Validity

Focusing on students represents a signiﬁcant threat

to external validity. They all were students from the

university, but with different backgrounds and expe-

riences. They were almost equally coming from the

ﬁrst and the second year of the Master’s degree. Dur-

ing the preliminary phase, we particularly paid atten-

tion to build comparable groups regarding their for-

mer experiences and modeling skills.

The size of the case study is another threats, even

if the case sounds realistic, and the ﬁnal prototype was

evaluated by all authors in a client demo-like setup.

However, since it involved various technologies, anal-

ysis and programming skills, we may reasonably con-

sider a valid extrapolation of our results to junior an-

alysts.

Conclusion Validity

Because the amount of participants is rather small, we

intentionally did not use a statistical test, but focused

on metrics where the differences in the results were

very high. Our main goal was to evaluate the feasibil-

ity of the approach, i.e. pieces of software produced

with models written within our framework were as

functional as the ones produced within a compara-

ble iterative method with a recognized modeling lan-

guage.

The other aspect we wanted to evaluate was the

frequency of documented design decisions and the

SysML modeling language offers enough constructs

to record this kind of details, even if the analysis was

mainly a manual extraction from their reports.

7 CONCLUSIONS

The present work detailed a comparative case study

that evaluated the feasibility of a transformation-

centric architecture design method. The study was

conducted on a group of students from the University

of Namur as part of a Software Engineering course.

The participants were separated in two groups and

composed pair-teams to develop a library system in

SoftwareArchitectureDesignbyStepwiseModelTransformations-AComparativeCaseStudy

143

two phases. Half of the teams used SysML models,

the other half used a set of languages we deﬁned in

previous publications. Both teams were required to

follow an Agile method and to document the design

rationale and decisions during the project. We tested

their prototypes after each phase and evaluated the

quality of the produced models. We also conducted a

paper-based survey in order to collect their feedbacks

in a structured way.

At the sight of this study, it appears that our

transformation-centric approach produces software

with a slightly higher rate of functional correctness

and completeness (one more group delivered a fully-

functional prototype). Also, the amount of justi-

ﬁed design decisions was signiﬁcantly higher (0.94

against 0.32 documented design decisions for the sec-

ond phase). Some participants even took the oppor-

tunity to add more details than the only mandatory

information. However, the study was rather small, so

the scalability of our approach should be deﬁnitely

evaluated on a bigger project

A critical feature requested by the participants

concerned a graphical editor, combined to the tex-

tual syntax, in order to enhance model visualization.

Combined textual and graphical representations of the

same model, but focusing on different aspects, may

be a very effective tool support and should be investi-

gated.

ACKNOWLEDGEMENTS

The authors thank Nicolas Genon, Quentin Boucher

(PReCISE), and Xavier Le Pallec (LIFL, France) for

their help and advices. The authors are also grateful

to the Master students of the University of Namur for

their kind participation in this case study.

REFERENCES

Basili, V. R. (1992). Software modeling and measurement:

The goal/question/metric paradigm. Technical report,

University of Maryland at College Park, College Park,

MD, USA.

Bosch, J. and Molin, P. (1999). Software architecture

design: Evaluation and transformation. IEEE Int.

Conf. on the Engineering of Computer-Based Systems,

pages 4–10.

Chen, L., Ali Babar, M., and Nuseibeh, B. (2013). Charac-

terizing architecturally signiﬁcant requirements. Soft-

ware, IEEE, 30(2):38–45.

The detailed protocol and analysis may be found on

http://info.unamur.be/∼fgi

Cook, T. D. and Campbell, D. T. (1979). Quasi-

Experimentation: Design & Analysis Issues for Field

Settings. Houghton Mifﬂin Company.

Dyb

a, T. and Dingsøyr, T. (2008). Empirical studies of agile

software development: A systematic review. Informa-

tion and Software Technology, 50(910):833 – 859.

Ehrig, K., Guerra, E., Lara, J. D., Lengyel, L., Prange,

U., Taentzer, G., Varro, D., and Varro-Gyapay, S.

(2005). Model transformation by graph transforma-

tion: A comparative study. In Proc. of Model Trans-

formation in Practice Workshop, MoDELS ’05, pages

71–80.

Garlan, D., Monroe, R. T., and Wile, D. (1997). Acme:

An architecture description interchange language. In

Conference of the Centre for Advanced Studies on

Collaborative research (CASCON 97), pages 169–

183, Toronto, Ontario.

Gilson, F. and Englebert, V. (2011a). Rationale, decisions

and alternatives traceability for architecture design. In

Proc. of the 5th European Conf. on Software Architec-

ture (Comp. Vol.). ACM.

Gilson, F. and Englebert, V. (2011b). Towards handling

architecture design, variability and evolution with

model transformations. In Proc. of the 5th Work-

shop on Variability Modeling of Software-Intensive

Systems, pages 39–48. ACM.

Gilson, F. and Englebert, V. (2014). A domain speciﬁc lan-

guage for stepwise design of software architectures.

In Proc. of the 2nd Int’l Conf. on Model-Driven En-

gineering and Software Development, pages 67–78.

SciTePress.

Hofmeister, C., Kruchten, P., Nord, R. L., Obbink, H., Ran,

A., and America, P. (2007). A general model of soft-

ware architecture design derived from ﬁve industrial

approaches. J. Sys. Softw., 80(1):106–126.

ISO/IEC/IEEE (2011). Systems and software engi-

neering – architecture description. ISO/IEC/IEEE

42010:2011(E) (Revision of ISO/IEC 42010:2007 and

IEEE Std 1471-2000).

Jansen, A. and Bosch, J. (2005). Software architecture as

a set of architectural design decisions. In Proc. of

the 5th Working Conf. on Software Architecture, pages

109–120, Washington, DC, USA. IEEE Computer So-

ciety.

Jones, S. (1983). Stereotypy in pictograms of abstract con-

cepts. Ergonomics, 26(6):605–611.

Jouault, F. and Kurtev, I. (2005). Transforming models

with ATL. In Model Transformations in Practice

(MTIP) Workshop at ACM/IEEE 8th Int’l Conference

on Model Driven Engineering Languages and Sys-

tems.

Krosnick, J. A. and Presser, S. (2010). Question and ques-

tionnaire design. In Marsdenand, P. V. and Wright,

J. D., editors, Handbook of Survey Research, Second

Edition, pages 263–313. Emerald Group Publishing

Limited.

Malavolta, I., Lago, P., Muccini, H., Pelliccione, P., and

Tang, A. (2013). What industry needs from architec-

tural languages: A survey. IEEE Trans. Softw. Eng.,

39(6):869–891.

MODELSWARD2015-3rdInternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

144

Object Management Group (2012). OMG Systems Model-

ing Language (OMG SysML

), version 1.3. OMG

document formal/2012-06-01.

Parnas, D. L. and Clements, P. C. (1986). A rational de-

sign process: How and why to fake it. IEEE Trans.

Software Eng., 12:251–257.

Perry, D. E. and Wolf, A. L. (1992). Foundations for the

study of software architecture. SIGSOFT Software En-

gineering Notes, 17(4):40–52.

Pﬂeeger, S. L. (1995). Experimental design and analysis in

software engineering. Ann. Softw. Eng., 1:219–253.

Potts, C. and Bruns, G. (1988). Recording the reasons for

design decisions. In Proc. of the 10th Int. Conf. on

Software Engineering, pages 418 –427.

Runeson, P. and H

ost, M. (2009). Guidelines for conduct-

ing and reporting case study research in software en-

gineering. Empir. Softw. Eng., 14(2):131–164.

Schwaber, K. and Beedle, M. (2001). Agile Software Devel-

opment with Scrum. Prentice Hall PTR, Upper Saddle

River, NJ, USA, 1st edition.

Society of Automotive Engineers (2012). Architecture

Analysis & Design Language (AADL). Standard

number AS5506 Revision: B.

Tang, A., Ali Babar, M., Gorton, I., and Han, J. (2006). A

survey of architecture design rationale. J. Syst. Softw.,

79(12):1792 – 1804.

van Heesch, U., Avgeriou, P., and Hilliard, R. (2012). A

documentation framework for architecture decisions.

J. Syst. Softw., 85(4):795 – 820.

van Heesch, U., Avgeriou, P., and Tang, A. (2013). Does de-

cision documentation help junior designers rationalize

their decisions? a comparative multiple-case study. J.

Syst. Softw., 86(6):1545 – 1565.

Wohlin, C., Runeson, P., H

ost, M., Ohlsson, M. C., Reg-

nell, B., and Wessl

en, A. (2012). Experimentation in

Software Engineering. Springer-Verlag.

SoftwareArchitectureDesignbyStepwiseModelTransformations-AComparativeCaseStudy

145
