Depth Camera to Improve Segmenting People in Indoor
Environments
Real Time RGB-Depth Video Segmentation
Arnaud Boucher
1
, Oliver Martinot
2
and Nicole Vincent
3
1
University of Burgundy, Le2i – Route des plaines de l’Yonne – 89000 Auxerre, France
2
Bell Labs, Alcatel Lucent – 91620 Nozay, France
3
Paris Descartes University, LIPADE (SIP) - 45, rue des Saints Peres, 75006 Paris, France
Keywords: Video Segmentation, Depth+RGB Data, Confidence Estimation.
Abstract: The paper addresses the problem of people extraction in a closed context in a video sequence including
colour and depth information. The study is based on low cost depth captor included in products such as
Kinect or Asus devices that contain a couple of cameras, colour and depth cameras. Depth cameras lack
precision especially where a discontinuity in depth occur and some times fail to give an answer. Colour
information may be ambiguous to discriminate between background and foreground. This made us use first
depth information to achieve a coarse segmentation that is improved with colour information. Furthermore,
color information is only used when a classification in two classes of fore/background pixels is clear
enough. The developed method provides a reliable and robust segmentation and a natural visual rendering,
while maintaining a real time processing.
1 INTRODUCTION
Segmentation in videos is most often a difficult task
and may have different purposes. Some applications
answer to editing purposes, such as the matting
problem. Most of the solutions still rely on an
interaction with the user (Wang, 2007) (Levin,
2008). Many applications are devoted to people
tracking, either still or moving people. Tracking
according to movement makes the problem easier as
some information is added to the only 2D still colour
image, based on the comparison of several images.
Difficulty is also depending on the camera status,
fixed or moving. In any cases, any additional
information enables to improve segmentation
results. Another way to add information to the
colour image is to use several sensors. This approach
is more and more frequent as hardware cost is
decreasing. The sensors may be based on the same
principle, this is the case with stereovision
(Jourdheuil, 2012), then depth information can be
retrieved from a mathematical model of the coupled
sensors, these sensors are now a days available in
the field of video and give very good depth
precision. The sensors may be based on different
spectral information giving complementary
information, in some contexts, IR or UV spectrum
may be more adapted than visible light. They are
used for instance in biometrics applications
(Lefevre, 2013) or since a long time in remote
sensing domain (Tucker, 1979). In the robotic field,
Time of Flight (ToF) cameras are used that give
information on the distance of object with respect to
the axis of the camera (Wang, 2010). The depth
knowledge is integrated to build representation of
the objects for robotics tasks (Richtsfield, 2012).
Recently, cheap depth camera are coupled with RGB
web cam, the quality of these camera is not very
high but it is informative enough to stimulate
research and develop applications based on this kind
of product, the most popular ones being the Kinect
camera and the Asus product. Our work is
positioned in this trend. The aim is to extract in real
time the people present in the scene. The
applications are numerous. We mention here as
examples, modification of the video background,
construction of a two layer video, the person in one
layer and the background in the other, augmented
reality (Maimone, 2012) (Wu, 2008). We can
imagine a speaker in front of his computer where the
presentation is displayed and the conference being
55
Boucher A., Martinot O. and Vincent N..
Depth Camera to Improve Segmenting People in Indoor Environments - Real Time RGB-Depth Video Segmentation.
DOI: 10.5220/0005269700550062
In Proceedings of the 10th International Conference on Computer Vision Theory and Applications (VISAPP-2015), pages 55-62
ISBN: 978-989-758-091-8
Copyright
c
2015 SCITEPRESS (Science and Technology Publications, Lda.)
transmitted with the speaker in foreground and the
slide as background. The speaker can show elements
on the slide thanks to the feedback on the computer
screen. This needs a real time analysis in order to
give the speaker the ability to interact with the slides
in a virtual way as illustrated in figure 1.
(a)
(b)
Figure 1: (a) real context, the speaker is looking at the
computer screen (b) transferred image where the speaker
is incrusted in the presentation in real time.
In section 2, methods applied in foreground /
background segmentation and based on the
RGB+Depth information are investigated. Next in
section 3, the method we developed is analysed and
the experiments and results are presented in section
4.
2 RELATED WORKS
In order to use the different types of information, a
strategy is needed and makes possible to group the
methods that have been proposed. Depth and colour
have not the same nature. The difference is twofold,
of course the physical nature is not the same but also
the resolutions of images are most often different.
The combination of the two can be done at different
levels, either at raw data level or at feature
extraction level or at decision level according to the
methods. Using the available data, foreground /
background segmentation has to be achieved in a
real time process in order to enable interaction with
the video content. First we investigate the approach
we are interested in before we go more in detail in
the segmentation process.
2.1 Characterization of the Approach
Here we consider the global view of the process. Of
course, it depends on the acquisition device. Two
images, a couple of visual images or a couple of one
visual image and one depth image, constitute the
material. Then a registration step is needed. It may
be performed at hardware level where the two
cameras are coupled. In stereovision, from the
quality of the registration, is depending the quality
of the depth map. With other acquisition devices the
quality of registration may vary. Then a registration
step has to be integrated in the process (Alempijevic,
2007) (Abramov, 2012).
Then, we distinguish between three ways to
process the images.
The two resulting images may be processed
independently, usually leading to the
definition of two masks that are combined.
The decision may also integrate the past
results or data from the previous frames. The
final result is obtained after a smoothing as
post processing (Camplani, 2014) (Gallego,
2014).
Another approach is to aggregate the different
data in a single data vector. This assumes the
quality of the two sensors quality is equivalent
otherwise this can give biased results
(Stückler, 2010).
A third approach is to process the two images
(RGB and D images) in a sequential way. The
first type of data gives a mask that can be
improved using the additional information and
a post processing.
Taking into account the specificities of the used
sensors, we have chosen this last strategy, using
depth data to define a coarse mask, improved by the
colour information.
2.2 Foreground/background
Segmentation
In the literature a wide variety of methods exists to
detect an object in RGB and / or Depth images. We
here distinguish between methods based on learning
and more innovative approaches; the goal is to
position and justify our methodological choices.
The learning methods aim to model the
characteristics of both background and foreground.
The favorite approach is the use of Gaussian
mixtures or assumption of other distributions as
uniformity in parametric models (Camplani, 2014)
(Gallego, 2014) (Schiller, 2011) (Stormer, 2010).
Other approaches use non-parametric methods, for
VISAPP2015-InternationalConferenceonComputerVisionTheoryandApplications
56
example using kernel approaches to model some
characteristic distributions (Elgammal, 2002) or a
color model based on codebooks as in (Fernandez-
Sanchez, 2013). In other cases only raw
characteristic samples are stored in order to be used
during the decision step (Stückler, 2010). Then,
segmentation decision can be handled by a simple
thresholding step. This is only efficient when the
sensor can efficiently enough discriminate between
foreground and background. This is the case with
Time on Fly (ToF) sensors (Crabb, 2008) (Wu,
2008) (Frick, 2011). As this type of sensor is very
accurate, the processing is simplified. For the
sensors with lesser precision we can mention the use
of classical clustering methods, such as neural
networks (Maddalena, 2008), k nearest neighbour
approaches when the learning step is limited to
stored samples (KNN) (Barnich, 2011), region
growing (Xia, 2011), mean-shift (Bleiweiss, 2009)
or random forests (Stückler, 2010). All these well-
known clustering methods require training and their
efficiency is depending on the type of environment
in which the object or people is evolving. Each of
the methods is therefore tuned for specific contexts
and most only need an adaptive learning.
Other methods attempt to obtain relevant
segmentation without a learning step, but based on
best boundary between two media. Graphs-cuts are
used for instance in a US patent (Do, 2014). From
annotations characterizing the inside and outside of
the object, these two areas are defined by the
minimum cut of the weighted graphs. The orientated
graph is characterized by colour and depth
differences between neighbouring pixels. This
method is efficient when the limits between fore and
background are neat and not too complex. One of
the difficulties of this method is to fixe the size of
the neighbouring zones. Other studies are relying on
mean-shift approach that need a lower number of
parameters to be tuned.
Depending on the sensors used and the method
chosen, the RGB / Depth data can be processed
separately, and thus lead to the production of two
masks that need to be combined by logical operators.
One mask can be considered as master mask that
will be improved through the second type data.
Indeed we have not discussed the complexity
process but this has to be taken into account when
real time is needed.
3 OUR METHOD
In our study, data is extracted from low cost devices
such as typical camera sensor Kinect or ASUS Xtion
and so limited to indoor environments. The
segmentation of people must be reliable, efficient,
and able to be processed at the rate of 25 frames per
second. In our choices, we have taken into account
the qualities and defect of the sensor as well as the
time limit of 40ms to process a frame. To obtain
good results all available information present some
interest either for better accuracy or to decrease
processing time. As it happens, typical camera
sensor such as Kinect or ASUS Xtion, are sold with
some more sophisticated capabilities than the output
to raw colour or depth signal. In fact the device
includes some middleware libraries that are used in
the play applications and that are available to the
developers. Several information are available such
as a pre-segmentation of the individual person
present in the scenery, the segmentation of the
person in a certain number of significant zones and a
skeleton associated with the person. As our aim is
not to build an avatar of the person or to analyse
his/her gest, but only to reproduce them with high
quality of the contours, we have chosen to use only
the person extraction module. We have
experimented the detection of the persons is robust
but the segmentation at the contour level is not very
precise. The aim of the work is to improve this
segmentation integrating both colour and depth
information. The most difficult parts are
segmentation of the hairs and precision in
segmenting the fingers within the hand when they
are not touching.
Figure 2 : raw person extraction given by ASUS Xtion
software.
3.1 General Organization
Then, in order to spend more time on additional
processes, we have chosen to replace the original
depth map provided by the camera by the binarised
DepthCameratoImproveSegmentingPeopleinIndoorEnvironments-RealTimeRGB-DepthVideoSegmentation
57
version that is available and is supposed to provide
the different persons that are present in the video
frame. This is an approximation of the 3D position
of the surfaces and includes some parts where the
depth has not been measured and where there is no
results. An example of such a person extraction is
given on figure 2. We also think, the only use of
colour information gives results the quality of which
is much depending on the image content, on the
relative nature of the background and foreground
colours. Then, according to the data types, it is better
not to process independently the two information
sources. Finally, to use the forces of each of the
information sources and to prevent their weaknesses
we decided to privilege binarised depth map. In fact
the resolution of the depth map is lower than the
resolution of the colour image. This map can be
considered as an initialization of the process that
will be improved by incorporating colour data but
this is not done uniformly all over the frame but only
when colour is pertinent enough for segmenting fore
and background. A classification process is here
involved.
Possible post processing may allow visual
improvement of the final display in order to decrease
the imperfection appearances without any correction
of the errors. Visual appearance is the most
important concern of the study. Next we detail the
different steps of the processing (see Figure 3).
Figure 3: General organization.
3.2 Depth Image Processing
The output of ASUS camera system using only
depth data provides a coarse segmentation of
person(s) detected in the scene. We have chosen to
use such information on the fly rather than to
process the raw data. This rough segmentation gives
a good detection of persons and a rather good
estimate of the people contour but with many
defaults such as flickers between frames or missing
parts of the person. This differentiates our work
from (Camplani, 2014) as we have a region
approach rather than a contour based approach. The
mask associated with presence of a person gives an
irregular vision of the person and has to be smoothed
using mathematical morphology operators (Serra,
1982; Soille, 1999). In our case we operate a closure
with a circular structuring element (radius of 3
pixels) followed by a Gaussian blur to smooth the
contour. The visual result is greatly improved, but
colour information is not yet used. The result of this
first step is a zone supposed to be associated with a
person. From this binary image, the contours can be
extracted. Next step is to take colour into account to
improve the visual rendering.
(
a) (b)
Figure 4: in (a) segmentation issued from the acquisition
system (hard and soft) and in (b) improvement after
morphological operations.
3.3 Colour Refinement Principle
The refinement is needed only when the contour of
the improved depth map are not in coherence with
the actual contour of the person to be extracted. This
step is crucial for result visual quality. Based on the
smoothed depth mask, a study in the neighbour of
each contour point is needed; this is to estimate the
confidence that can be associated with the depth
contour. First we build a trimap like map. The set of
contour points is dilated and defines the uncertainty
zone. By definition, a priori, the pixels on either
sides of the zone are labelled in a confident way as
background or speaker (see Figure 5). They can be
used to perform a first supervised classification.
Here, the aim is to determine whether the pixel
of fore / background can be discriminated and in the
positive case to determine the class of each pixel in
the uncertainty zone. A global approach, considering
RGB image I Depth image
Native extraction of
people I
D
Improvement of I
D
using
morphological operators
giving I
C
the contour zones Z
Classification of the Z
pixels according to 2
classes (inside/outside)
Computation of a
confidence index associated
with the classification
Decision in every pixel
according confidence index
VISAPP2015-InternationalConferenceonComputerVisionTheoryandApplications
58
(a)
(b)

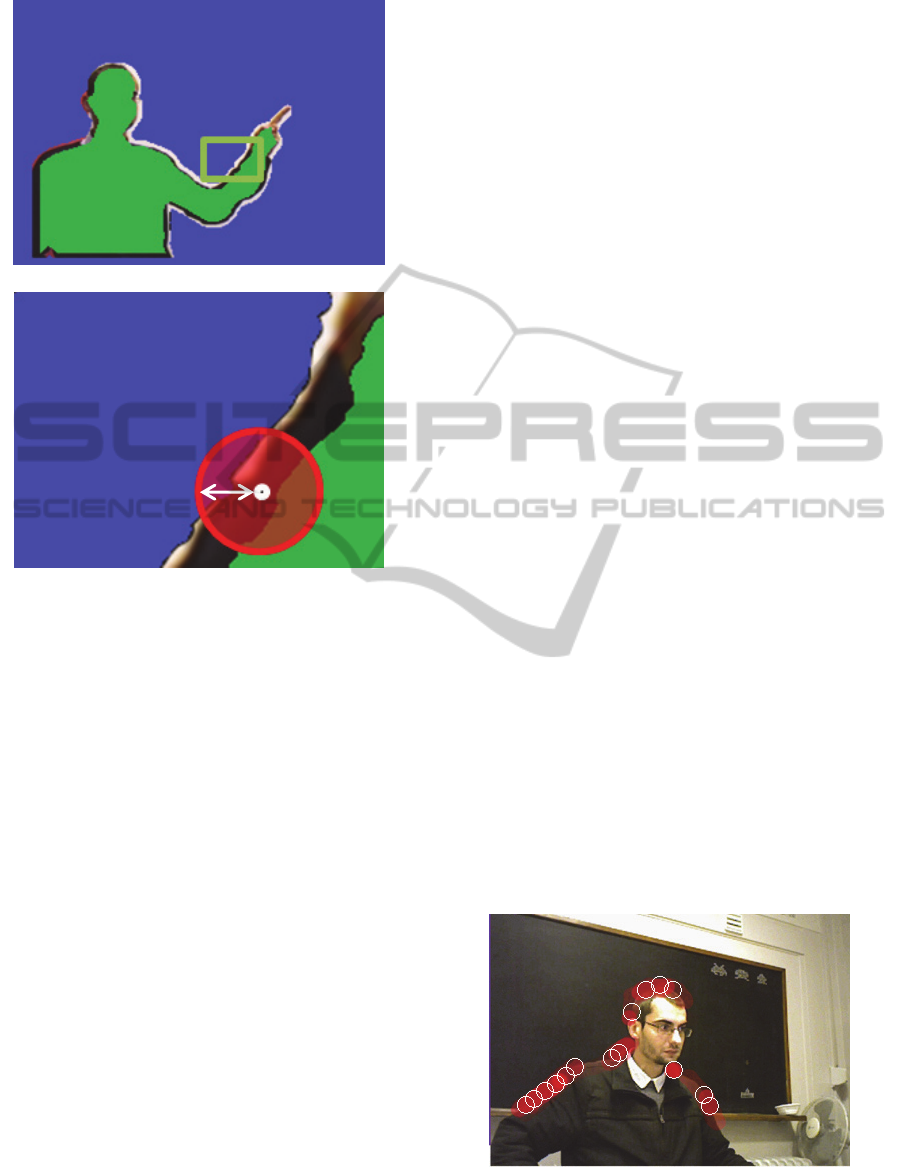

Figure 5: In (a) global image with background in dark
grey, foreground in light grey and in between an
uncertainty zone, in (b) a zoom on the enclosed area in (a),
showing the background and the foreground zones
specially in the neighbourhood of the white pixel.
the whole image would be defeated when the
background or the foreground are not uniform. Then
we adopt a local approach in an adaptive way. A
neighbouring zone Z
P
is associated with each pixel P
in such a way that Z
P
contains pixels from the
background and pixels in the foreground a priori
defining two areas B
P
and F
P
. The colours
respectively of the background and foreground can
be locally learned. Here they are simply modelled by
the mean colours m
BP
and m
FP
respectively in B
P
and
F
P
. Thus, pixel P is classified according to its colour
C
P
and to the mean colour nearest to it (see Figure
5b).
Two distances are compared:
d
F
(P) = | C
P
- m
FP
| (1)
d
B
(P) = | C
P
- m
BP
| (2)
Without any rejection rule in the pixel classification,
the result is obtained in a sequential process, first
depth processing followed by colour processing.
This is not satisfying as all the decisions are based
on both types of data in an equal way. The results
should be improved if we could benefit only from
the best aspects of the two data types. This motivates
a new step we present in next session. In fact depth
precision is not so high near the edge of the person
as there is a rapid change of depth at these points.
3.4 Fusion of Depth and Colour
Approaches
As stated in the introduction, as far as our problem is
concerned, neither colour nor depth is relevant at all
points. Our aim is to combine the information in an
intelligent way, locally deciding which information
has a better quality and deciding to keep as a final
conclusion the result obtained in either the first or
the second step of our process. The use of depth
initiates the process of a colour-based refinement.
Indeed, as shown in figure 6, some edge points are
located in areas where speaker and background
colours are very similar. In figure 6, the more the
colour of the neighbouring zones are red, the more it
is difficult to distinguish between fore and
background colours. In such cases, colour does not
give a discriminant enough information and the
confidence in the colour results is low. Thus, colour
approach is used only in regions where the colour-
based classification is done with high confidence.
This confidence is measured at pixels in the
uncertainty zone by the difference between the d
F(P)
and d
B(P). The colour label is assigned only if this
difference is high enough.
| d
F(P) - dB(P) | > s (3)
with s a confidence margin. Otherwise the depth
image process gives the final conclusion.
The end result is smoothed by a very slight
Gaussian blur aimed to eliminate any noise that may
prevent misclassification. In next section some
analysis of the results is presented.
Figure 6: Circles indicate how foreground and background
are similar, the more intense red the zone is, the lower the
confidence is.
p
r
Z
p
DepthCameratoImproveSegmentingPeopleinIndoorEnvironments-RealTimeRGB-DepthVideoSegmentation
59
4 EXPERIMENTS AND RESULTS
First of all evaluation protocol has to be set. As
precision in the person location is our aim, we have
chosen evaluation at pixel level. The measure has to
be based on the number of false positive pixels (FP)
and of false negative ones (FN). The quality of the
results depends on these pixels.
A fair evaluation is very difficult because the
different videos do not present the same difficulty
level depending on their content, specially the
number of people and objects present in the scene,
the proximity of these objects, the location of the
people in the scene, the similarity between colours in
the people and in the background, the rapidity of the
people movements, the quality of the data. Then a
manually annotated benchmark is needed. We have
used many videos with different levels of difficulty.
The difference can be seen in Figure 7. The same
person makes various movements in two different
environments, one quite easy and the other more
difficult because of the similarity of the colours of
the blackboard and the person coat. A manual
segmentation of the person on 5 frames of each
video chosen every 100 frames makes the ground
truth we use for the quantitative evaluation of the
method.
To illustrate the different roles of depth and
colour knowledge along the process, we show in
figure 8 an image extracted from one of the video
both the RGB image (8a) and the depth image (8b)
as well as the ground truth (8f). Then we have
illustrated the difference between the ground truth
and the segmentation results obtained from the depth
map smoothed by morphological operations (8c), the
improvement using colour (8d) in a uniform way
along the contour, and the final result taking into
account the context (8e), that is choosing according
to the confidence associated with the local contrast
between fore and background. The quality is linked
to ratio of grey pixels. The false positive and the
false negative pixels are respectively indicated in
(a) (b)
Figure 7: two videos of different difficulties, in (a) high
contrast between the person and the background and in (b)
a more difficult on with similar colour on the person and
the background.
(a) (b)
(c) (d)
(e) (f)
Figure 8: In (a) and (b) the initial RGB and Depth images,
in (c) results using only depth information, in (d) the
improvement based on colour, in (e) the combination of
the two, in (f) the ground truth segmentation, (g) natural
segmentation based on (e).
white and black. The grey level indicates the
segmentation is coherent with the ground truth.
On this example, we can notice the good
improvement at the finger level. Also on the depth
image we can see the bad segmentation at the hair
level. The top part of the door is mistaken with the
person hair. At the bottom, the arm is not
differentiated from the body.

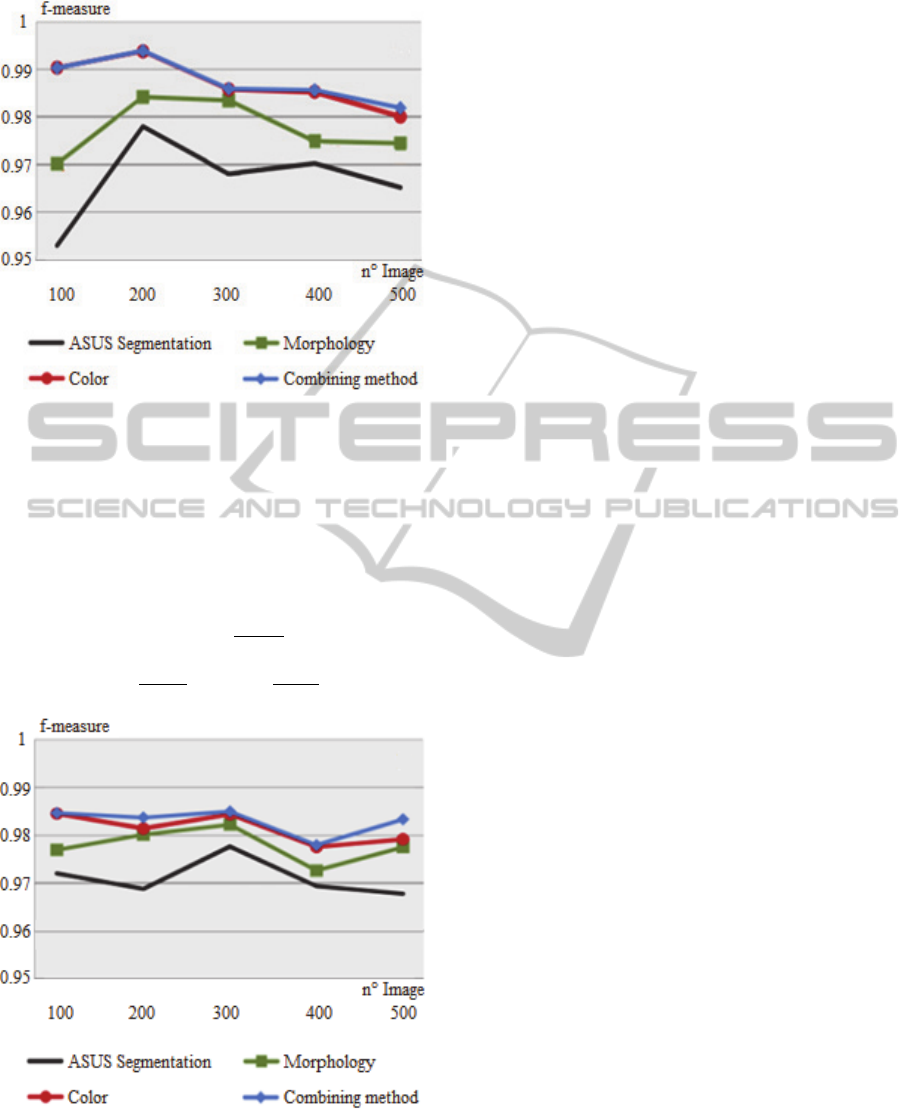

The quantitative evaluation is based on the 5
images extracted in the videos. Recall, precision of
the pixels of the person are classical indexes to
assess the method. In figure 9 and figure 10, we are
VISAPP2015-InternationalConferenceonComputerVisionTheoryandApplications
60
Figure 9: F-measure of proposed segmentation on the
different frames with the “easy” video where the contrast
is high between the person and the background, illustrated
in figure 7a.
presenting the F-measure associated with the
original result provided by the camera itself, the
smoothing morphology, the improvement given by
colour, the adaptive combining method.
2
with
(4)
Figure 10: F-measure of proposed segmentation on the
different frames with the “difficult” video where the
person and the background have nearly the same colour,
the video is illustrated in figure 7b.
The results show that simple morphology
improves result. Nevertheless, colour enables to
have good results in “easy” cases but fails when the
video is more “difficult”. Finally combining the two
sources of information in an adaptive way thanks to
the notion of uncertainty, gives the better results.
The results are obtained in real-time on an Intel
Pentium i7.
5 CONCLUSIONS
In this paper, relying on the initial results provided
by the commercial new sensors based on RGB-D
data, we introduced a real time and robust method
using information produced by a new type of sensor
in an adaptive way, in an intelligent way. The results
applied to the segmentation of a speaker in a video-
conference context are convincing both on the visual
aspect and on the computation time. The growing
power of computers will enable to improve the
colour processing that is to say the classification of
the pixels, here we model the colours locally by a
mean value. Both the F-measure computed and the
user feedbacks show that the visual result is quite
satisfactory. Further evaluation has to be performed
and the method could be tested with other sensors.
Nevertheless, visual enhancements may be
introduced to make the display of the results in an
even more agreeable visual perception. A smoothing
process can achieve this. The flicker aspect can be
eliminated making the process depend on the
movement evaluation of the person. When there is
no movement, the previous result can be considered
as well calculated, when movement is occurring a
new calculus is more appropriated. A combination
depending on the movement speed is a good
solution.
REFERENCES
Abramov A., Pauwels K., Papon J., Worgotter F., Babette
Dellen B., 2012. Depth-supported real-time video
segmentation with the kinect, in Workshop on the
Applications of Computer Vision.
Alempijevic A., Kodagoda S., Dissanayake G.,2007.
Sensor Registration for Robotic Applications, in
proceedings of 6
th
International Conference on Field
and Service Robotics, Chamonix, France.
Barnich O., Van Droogenbroeck M., 2011. ViBe: a
universal background subtraction algorithm for video
sequences, In IEEE Transactions on Image
Processing, vol 20(6), pp. 1709–1724.
Bleiweiss A., Werman M., 2009. Fusing time-of-flight
depth and color for real-time segmentation and
DepthCameratoImproveSegmentingPeopleinIndoorEnvironments-RealTimeRGB-DepthVideoSegmentation
61
tracking, In Conference on Dynamic 3D Imaging, pp.
58–69.
Camplani M., Salgado L., 2014. Background foreground
segmentation with RGB-D Kinect data: An efficient
combination of classifiers, Journal of Visual
Communication and Image Representation, vol 25(1),
pp. 122-136.
Crabb C., Tracey R., Puranik A., Davis J., 2008. Real-time
foreground segmentation via range and color
imaging”, In IEEE Computer Society Conference on
Computer Vision and Pattern Recognition Workshops
(CVPRW), pp. 1–5.
Do M., Lin D., Meyer G., Nguyen Q., Patel S., 2014.
Systems and methods for accurate user foreground
video extraction, U.S. Patent Application 13/083,470.
Elgammal A., Duraiswami R., Harwood D., Davis L.,
2002. Background and foreground modeling using
non-parametric kernel density estimation for visual
surveillance, In Proceedings of the IEEE, vol 90,
pp.1151–1163.
Fernandez-Sanchez E., Diaz J., Ros E., 2013. Background
Subtraction Based on Color and Depth Using Active
Sensors. Sensors 13 (7), p. 8895-8915.
Frick A., Franke M., Koch R., 2011. Time-consistent
foreground segmentation of dynamic content from
color and depth video, Pattern Recognition, Elsevier,
pp. 296–305.
Gallego J., Pardas M., 2014. Region based foreground
segmentation combining color and depth sensors via
logarithmic opinion pool decision, Journal of Visual
Communication and Image Representation, vol 25(1),
pp.184-194.
Jourdheuil L., Allezard N., Château T. and Chesnais T.,
2012. Heterogeneous adaboost with realtime
constraints - application to the detection of pedestrians by
stereovision, In Proceedings VISAPP’12, pp. 539–546.
Lefevre T., Dorizzi B., Garcia-Salicetti S., Lempérière N.,
Belardi S., 2013. Effective elliptic fitting for iris
normalization. Computer Vision and Image
Understanding 117(6): 732-745.
Levin, A., Rav-Acha, A., Lischinski, D., 2008. Spectral
matting. IEEE transactions on pattern analysis and
machine intelligence, 30(10), pp.1699–712.
Maddalena I., Petrosino A., 2008. A self-organizing
approach to background subtraction for visual
surveillance applications, IEEE Transactions on Image
Processing 17, pp. 1168–1177.
Maimone A., Bidwell J., Peng K., Fuchs H., 2012.
Enhanced personal autostereoscopic telepresence
system using commodity depth cameras. Computers &
Graphics 36 (7) p. 791-807.
Richtsfield A., Morwald T., Prankl J., Balzer J., 2012.
Towards scene understanding – object segmentation
using using RGBD-images, in Computer Vision
Winter Workshop.
Schiller I., Koch R., 2011. Improved video segmentation
by adaptive combination of depth keying and mixture-
of-Gaussians, Image Analysis, pp. 59–68.
Serra J., 1982. Image Analysis and Mathematical
Morphology, Academic Press, London.
Soille P., 1989. Morphological Image Analysis : Principles
and Applications. Springer-Verlag.
Stormer A., Hofmann M., Rigoll G., 2010. Depth gradient
based segmentation of overlapping foreground objects
in range images, In proceedings of IEEE 13th
Conference on Information Fusion, pp.1–4.
Stückler J., Behnke S., 2010. Combining depth and color
cues for scale and Viewpoint Invariant object
segmentation and recognition using Random Forests,
In proceedings International Conference on Intelligent
Robots and Systems (IROS), pp. 4566-4571.
Tucker C., 1979.Red and photographic infrared linear
combinations for monitoring vegetation, Remote
Sensing of Environment Volume 8, Issue 2, May
1979, Pages 127–150.
Wang J., Cohen M., 2007. Image and Video Matting : A
Survey. Computer Graphics and Vision, pp.1–78.
Wang L., Zhang C., Yang R., Zhang C., 2010. Tof cut:
towards robust real-time foreground extraction using a
time-of-flight camera, Conference 3D PVT.
Wu Q., Boulanger P., Bischof W., 2008. Robust real-time
bi-layer video segmentation using infrared video, In
proceedings of Conference on Computer and Robot
Vision (CRV), pp. 87–94.
Xia L., Chen C., Aggarwal J., 2011. Human detection
using Depth information by Kinect, IEEE Computer
Society Conference on Computer Vision and Pattern
Recognition Workshops (CVPRW), pp. 15-22.
VISAPP2015-InternationalConferenceonComputerVisionTheoryandApplications
62
