On the Power Consumption of Cryptographic Processors in Civil

Microdrones

Abdulhadi Shoufan

, Hassan Alnoon

and Joonsang Baek

Electrical and Computer Engineering Department, Khalifa University, Abu Dhabi, U.A.E.

Advanced Technology Consultancy L.L.C, Emirates Advanced Investment Group L.L.C, Abu Dhabi, U.A.E.

Keywords:

Civil Drone Security.

Abstract:

In this paper we analyze the security requirements of civil microdrones and propose a hardware architecture

to meet these requirements. While hardware solutions are usually used to accelerate cryptographic operations

and reduce their power consumption, we show that the latter aspect needs to be reviewed in the context of

civil drones. Specifcally, adding cryptgraphic hardware to a ﬂying device increases its weight and, thus, the

power needed to ﬂy this device. Depending on the relative weight of the added cryptographic processor, the

computational power advantage of the hardware solution may be undone by the additional hadrware weight.

This aspect is analyzed for the proposed hardware solution.

1 INTRODUCTION

Unmanned aerial vehicles have long been used for

surveillance in homeland security. Due to their high

costs, however, the effectiveness of UAVs in civil ap-

plications has always been under discussion. This cir-

cumstance contributed to the development of lower-

cost platforms in form of quadrotors or multirotors,

which we refer to as civil microdrones (CMD). The

absence of mechanical linkages to vary the rotor blade

pitch angle, the usage of multiple rotors and the im-

provements in the algorithms that controls its ad-

vanced electronic systems and sensors has allowed

CMDs to be of small-size and easy to ﬂy, control, and

maintain. Due to their ability to interact with the envi-

ronment in close proximity safely, CMDs are gaining

an increasing attention in different civil application

areas (Quaritsch et al., 2008). In environment mon-

itoring CMDs use sensors and cameras to collect in-

formation that is difﬁcult to be obtained by helicopters

because of space or cost reasons. An example for this

application area is monitoring the woods, desert, an-

imals, and agriculture. Disaster management is an-

other application area where CMDs can give a quick

overview of the size and the grade of a disaster caused

by ﬂooding, earthquake, or ﬁre. Based on this infor-

mation an efﬁcient plan for rescue activities can be

deﬁned and implemented. Especially in the surveil-

lance and law enforcement areas CMDs are receiv-

ing an increasing acceptance to observe restricted ar-

eas, state borderline, pipelines, private properties, or

public events for detecting suspicious actions and pre-

venting terrorism.

Commercial CMDs are penetrating and the im-

portance of these devices was recognized by the

governments of many countries. Several research

projects were supported by governmental and non-

governmental funding sources: USICO (Unmanned

Aerial Vehicle Safety Issues For Civil Operations)

is a European project that dealt with the operation

and the safety of UAVs, e.g., for collision avoidance.

CAPECON (Civil UAV Application & Economic Ef-

fectivity of Potential Conﬁguration Solution) is an-

other European project, which aimed at the speciﬁ-

cation of civilian applications for the UAVs. A major

aspect of this project is the integration of large-scale

UAVs into the air trafﬁc control system.The design of

a distributed control system for cooperative detection

and monitoring using heterogeneous UAVs (Gancet

et al., 2005) was the subject of the project COMETS

funded by the European Union, too. µDrones is an-

other European project which focuses on microdrones

for autonomous navigation for environment sensing.

The purpose is the development of hardware and soft-

ware modules to ensure ﬂight stability, navigation, lo-

calization, and robustness to unexpected events. Sev-

eral topics related to networked UAVs were investi-

gated at the Aerospace Controls Laboratory at MIT

(How et al., 2008). These include sensor network de-

sign, adaptive control, and model predictive control.

283

Shoufan A., Alnoon H. and Baek J..

On the Power Consumption of Cryptographic Processors in Civil Microdrones.

DOI: 10.5220/0005273402830290

In Proceedings of the 1st International Conference on Information Systems Security and Privacy (ICISSP-2015), pages 283-290

ISBN: 978-989-758-081-9

 2015 SCITEPRESS (Science and Technology Publications, Lda.)

Starmac is a project at Stanford University (Hoffmann

et al., 2004), which works on autonomous collision

and obstacle avoidance and task assignment forma-

tion ﬂight using both centralized and decentralized

techniques. Additionally to these projects, an enor-

mous amount of individual research papers can be

found in the literature that address different topics

such as speciﬁc control systems (Chiu and Lo, 2011;

Dierks and Jagannathan, 2010; Voos, 2006) and ob-

stacle avoidance approaches (Minguez and Montano,

2004; Yuan et al., 2009; Zsedrovits et al., 2011).

With all this attention to the functional aspects of

this new technology, the consideration of security as-

pects is still very limited. When it comes to security,

the CMD should be considered from two points of

view: as a threat and as a target. CMDs are consid-

ered as security threat because they can be used for

mischievous or criminal activities. With the versa-

tile technical possibilities, the drones can be abused

to spy on unaware individuals. Privacy and civil lib-

erty advocates have raised many doubts about the le-

gitimacy of facial recognition cameras, thermal imag-

ing cameras, open Wi-Fi sniffers,license plate scan-

ners and other sensors. For example, the researchers

at the London-based Sensepoint security ﬁrm showed

how to equip a drone with a software program called

Snoopy that allows the vehicle to steal data from sur-

rounding mobile devices searching for a Wi-Fi net-

work. The researchers successfully demonstrated the

ability of the Snoopy application to steal Amazon,

PayPal, and Yahoo credentials from random citizens

while the drone was ﬂying over their heads in the

streets of London. Not only individual’s privacy and

security seem to be threatened by the CMD technol-

ogy but also commercial, industrial, and governmen-

tal sectors. Recently, a drone was used to leak behind

the scenes footage of the ﬁlming of the new Star Wars

movie series without the authority to be able to do

anything about it. The penetration of new commercial

products such as DroneShield, that help detect spy-

ing drones based on acoustic noise or radio signals

is a clear evidence for the seriousness of these con-

cerns. CMDs, however, can themselves be an attack

target. The principal risks are represented by the pos-

sibility that criminals and cyber terrorists can attack

unmanned aerial vehicles for several purposes such

as hacking or hijacking.

The paper deals with the CMD security from this

latter point of view and provides an in-depth analy-

sis of the CMD communication security. Based on

this analysis a hardware-based solution is proposed

to obtain the required performance for cryptographic

functions. The solution is investigated with respect

to power consumption and compared with a software

solution. This investigation shows that the cryptopro-

cessors advantage of low power consumption is sup-

pressed in this application because of the additional

power that is needed to carry and ﬂy the additional

hardware.

The paper is structured as follows. Section 2

presents the security vulnerabilities and threats of

civil microdrones. Section 3 describes the proposed

hardware solution and Section 4 gives some imple-

mentation details. In Section 5 we analyze the perfor-

mance and the power consumption of the developed

prototype. Section 6 concludes the paper.

2 SECURITY ASPECTS IN CMD

COMMUNICATION

This section describes the vulnerabilities of CMDs

and the attacks they are exposed to. The security re-

quirements are then deﬁned and supporting technical

solutions are discussed.

A CMD is a remote-controlled ﬂying platform. As

a communication system the CMD is exposed to dif-

ferent passive and active attacks with speciﬁc impacts

as summarized in the following:

1. Control Data Manipulation: Control data ma-

nipulation is perhaps the most critical active at-

tack on a CMD. Sending fake control commands

by an attacker may be motivated by one of the fol-

lowing:

(a) Dislocating the CMD: When CMDs are used

for surveillance and law enforcement purposes,

then people under surveillance, who may be

criminals, may work against that by trying to

ﬂy the CMD away from the monitored area.

(b) Physical Theft (Hijacking): Some commer-

cial microdrones are highly expensive and can

ﬂy to far distances. Having it under control,

an attacker may ﬂy a CMD to a desired place

where she or he can steal it physically. The

physical theft may also be motivated by the in-

tention to tamper with the device to disclose

cryptographic keys or secret data.

light weight, a CMD can ﬂy with high speeds.

A malicious attacker may use this feature to

steer a CMD and cause it to collide with high

momentum with an arbitrary or certain target.

In addition to the risk of person’s injury and

damage to property, such attacks may cause

major legal liability problems to the CMD

owner or to his or her insurance provider.

ICISSP2015-1stInternationalConferenceonInformationSystemsSecurityandPrivacy

284

2. Replay Attacks on Control Data: Adversaries

may record control data and resend it later to mis-

use the CMD. This kind of attack works even if

control data are protected against manipulation.

3. Denial-of-Service Attacks (DoS): CMDs are

power-critical microcontroller-based systems.

Any computation overhead causes additional

power consumption and shortens the ﬂying time

of the CMD. An attacker may use this vulnera-

bility to ﬂood the CMD with faked or replayed

commands and, thus, impair the availability of the

CMD. Even if the CMD is able to identify these

commands as fake or replay, e.g., using a veriﬁca-

tion process, this approach demands considerable

computation power and time. In extreme cases,

such a DoS attack may cause the CMD to be

completely engaged in the authentication process

until the CMD battery is fully discharged. Note

that ﬂooding the CMD with faked or replayed

commands, as treated in this paper, can be

regarded as a DoS attack on the application

layer. DoS attacks in wireless networks on lower

layers such as the physical layer (jamming) and

the MAC layer are well-studied in the literature

(Pelechrinis et al., 2011; Bicakci and Tavli, 2009)

and out of the scope of this paper.

4. Information Theft: The bird’s-eye view pro-

vided by the CMD is attracting professional pho-

tographers to take high-quality pictures or record

videos from the sky. As a rule, these pictures or

videos are sent to the ground station not only to

save the memory usage on the CMD but also for

the photographer to control the picture taking or

the video recording. Obviously, such data may

be of high value and under copy right. Sending

the data in plaintext opens the way for adversaries

to record and distribute the data at low cost and

to cause considerable ﬁnancial loss to the profes-

sional photographer. Understandably, information

theft may be exercised in many other CMDs’ ap-

plication areas with different motives.

5. Information Manipulation: Information data

sent by the CMD may be used for critical pur-

poses. For instance, pictures taken in surveillance

and law enforcement applications may be used as

means of evidence. Also, the success of a res-

cue plan for disaster management may rely on the

picture taken by the CMD. Obviously, any manip-

ulation of these data including replay attacks may

cause severe problems.

The severity of the described attacks depends on

the application area and its data criticality. For in-

stance, CMD’s used by trafﬁc police to inspect a car

accident area blocked by a trafﬁc jam may pose a low

risk because of the randomness of both the location

and the time point of such a use case: The probability

of the presence of an active attacker at the location of

a random accident, at which a CMD is used, is fairly

low. In contrast, CMDs used against organized crime,

such as drugs’ smuggling, are assumed to be at high

security risk. This is because organized criminals are

expected to be able to perform sophisticated attacks.

Based on the later analysis of CMD vulnerabilities

and potential attacks, the following security require-

ments can be deﬁned:

1. Conﬁdentiality of information and control data

communicated between the CMD and the ground

station

2. Integrity and authenticity of information and con-

trol data

3. Resistance to replay-attacks

4. Resistance to denial-of-service attacks

5. Tamper resistant key management on the CMD

These security requirements can be met by differ-

ent technical solutions as detailed in the following.

2.1 Data Conﬁdentiality

Depending on the application, remote control data

(Upstream), information data (Downstream), or both

should be encrypted. For CMD communication the

AES algorithm is selected with a key length of 128

bit (Daemen and Rijmen, 2002). AES in its native

operation mode (Electronic Code Book (ECB)) re-

sults in the same ciphertext block if the same plain-

text block is encrypted, which presents a security

risk. To avoid this, the Cipher Block Chaining mode

(CBC) can be used. CBC encryption provides con-

ﬁdentiality against Chosen Plaintext Attack (CPA),

which is a strong but essential requirement for secure

symmetric-key encryption (Katz and Lindell, 2008).

2.2 Data Integrity and Authenticity

To enforce Data Integrity and Authenticity we used a

message authentication code scheme (MAC) that uses

a symmetric key. A MAC scheme can be either pro-

prietary, hash-based, or block-cipher based. We chose

to use CBC-MAC which is block-cipher based MAC

scheme so that is can share the same AES core used

for encryption due to hardware resource constraints.

The high similarity between the MAC scheme and

the CBC-mode of encryption is essential for the de-

sign of a compact cryptographic engine as will be de-

tailed in 3.1. Note that message authentication code

OnthePowerConsumptionofCryptographicProcessorsinCivilMicrodrones

285

uses AES in encryption mode only in both the sender

and receiver sides of communication. MAC also im-

plicitly provides data integrity, as any change in the

message will result in a different MAC value.

2.3 Resistance against Replay-attacks

Even encrypted and authentic messages may be cap-

tured by an attacker and replayed at a later point of

time. Replayed data passes the authentication pro-

cess successfully on the receiver side. Therefore, to

detect replay attacks additional information is added

to the message, which enables the receiver to verify

the freshness of the message. The additional infor-

mation can be a nonce (number used only once), time

stamp, or a sequential number. In CMD communi-

cation, we propose using sequential numbers against

replay attacks, as these numbers can be deployed for

additional purposes, speciﬁcally to detect packet loss

and to restore the packet order.

2.4 Resistance to DoS Attacks

DoS attacks are versatile and can be carried out on

different network layers. Countermeasures are usu-

ally speciﬁc to one or small number of attacks and

operate on speciﬁc layers embedded in ﬁrewalls, net-

work routers, switches, etc. As noted previously, we

focus on a DoS on the application layer by assum-

ing that the attacker is able to ﬂood the CMD with

fake or replayed commands to affect the availability

of the vehicle. In CMD communication, command

authentication and the replay attack countermeasure

play a detective and a preventive role in the defense

against DoS attacks. First, the CMD keeps track of re-

ceived commands and periodically determines the ra-

tio of non-authentic commands and replay commands

to the total number of received commands. If this ra-

tio becomes higher than a speciﬁc value a DoS attack

is assumed. Second, command authentication and the

replay attack countermeasure perform a primary ﬁl-

tering of DoS commands. This means that the system

components that follow the authentication process are

preserved from the DoS effects. Using authentication

to mitigate (not eliminate) DoS attacks is deployed in

the IPSec protocol suite, for instance.

2.5 Tamper-resistant Key Management

Key management is a challenging task that addresses

key generation, key exchange, key storage, key up-

date, and key revocation, in general. The following

paragraphs describe how the proposed key manage-

ment scheme works for CMD communication.

2.5.1 Key Generation

The encryption and authentication keys are generated

by the ground station based on the key generator spec-

iﬁed in ANSI X9.17 which is a key management stan-

dard for ﬁnancial institutions published by the Amer-

ican National Standard Institute (NIST, 1985). This

key generator relies on the block cipher 3DES but can

use any other block cipher. In our case we use AES,

as it is already available for other security functions.

2.5.2 Key Exchange and Storage

Key exchange and key storage are usually treated sep-

arately. In our case they are related due to the used

hardware platform. As will be seen later, we use

an FPGA to run the security functions on the CMD.

The used FPGA is SRAM-based, which means that

the conﬁguration data must be loaded to the FPGA at

each start. The conﬁguration data is stored in a small

external conﬁguration memory mounted on the same

board. Thus, a permanent key storage on the FPGA is

impossible. Furthermore, storing the keys in the con-

ﬁguration memory as a part of the conﬁguration data

poses two risks. First, if the attacker gets physical ac-

cess to the CMD she or he can temper with the mem-

ory chip to extract the key. Furthermore, the attacker

may analyze the conﬁguration data while transferred

from the memory to the FPGA to obtain the key.

To avoid these risks we propose the following sim-

ple scheme. Before each ﬂight, keys are generated by

the ground station and written to the FPGA by wire.

Wireless submission is improper as radio data can be

intercepted by adversaries. The keys are stored in

dedicated registers inside the FPGA. These registers

can only be read by the cryptographic engine and has

no read interface to outside. Writing the keys to the

FPGA by wire may appear to cause an operational

overhead. However, ﬂying a CMD is always preceded

by a setup phase. The proposed key exchange ap-

proach can be seen as a step in this setup phase.

2.5.3 Key Update and Revocation

Updating symmetric keys is recommended to enhance

security. The idea is to reduce the amount of data en-

crypted with the same key to limit the damage, if the

key is compromised. Usually, symmetric keys are up-

dated for each new message or for each new commu-

nication session. For the CMD we propose updating

the encryption and the authentication keys for each

ﬂight. The new keys are generated according to stan-

dardized key management algorithm (ANSI X9.17)

and sent to the FPGA by wire as described in the pre-

vious paragraph.

ICISSP2015-1stInternationalConferenceonInformationSystemsSecurityandPrivacy

286

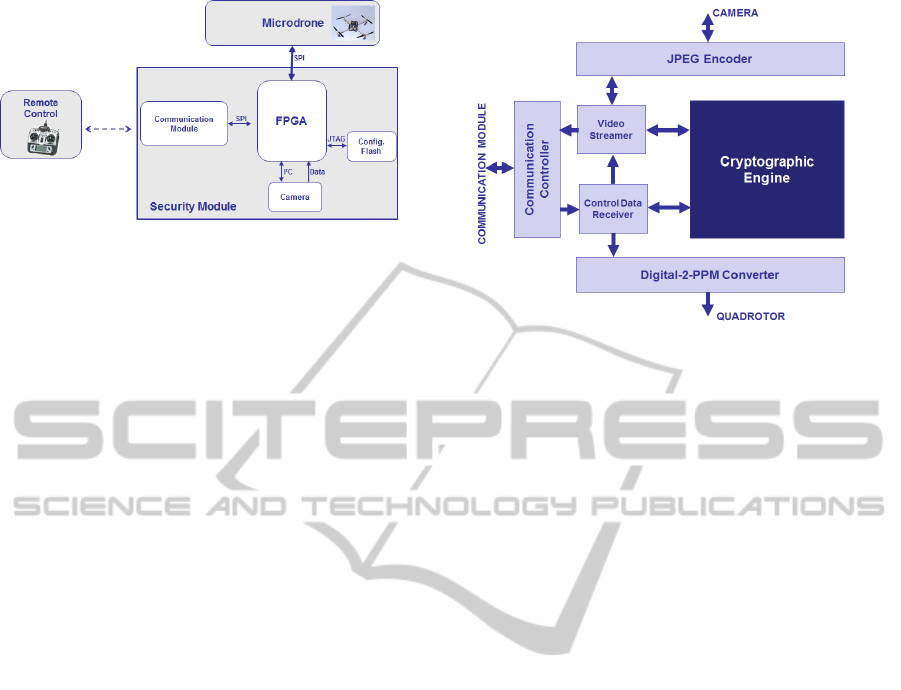

Figure 1: General Architecture of the Secure CMD System.

The registers used to store the keys are provided

by a reset input that can be activated by a special com-

mand from the ground station. The CMD operator can

submit this command in emergency cases when she or

he loses control over the CMD for any reason.

3 SYSTEM ARCHITECTURE

The general architecture of the CMD system given

in Fig. 1 consists of three main components: The

remote control, the CMD, and an extension module

connected to the CMD that embeds the cryptographic

engine.

The hardware architecture that secures the CMD

communication is depicted in Fig. 2. The architecture

comprises a cryptographic engine; the on-chip JPEG

encoder , which on its part embeds a camera con-

troller; a video streamer and the control data receiver

to manage the data communication; A Digital-2-PPM

converter, which receives the digital control data ex-

tracted from the upstream packet and converts it back

into a PPM signal (Pulse Position Modulation). In the

following sections the different components of this ar-

chitecture will be explained with special focus on the

Cryptographic Engine as it provides the core of the

security solution.

3.1 Cryptographic Engine

The Cryptographic Engine is the central part of the

hardware architecture. The authentication key and the

encryption key are written to the corresponding reg-

isters during the CMD setup. The Cryptographic En-

gine serves the video streamer and the control data

receiver. It expects from these modules an interme-

diate MAC value, a plaintext block, and a ciphertext

block. The particular module indicates its need for

data processing by sending a start signal, the cryp-

tographic module also decides which module will be

served next using a ”fairness scheme” that was de-

veloped to prevent the data-intensive video streamer

Figure 2: General Architecture of the FPGA Hardware Sys-

tem.

from occupying the cryptographic engine for a long

time at the cost of the control data receiver. In the

idle state the control data receiver are given priority

over the video streamers. This is necessary because

the control data include some information for video

control.

3.1.1 Processing Video Streamer Data

Video data are prepared and sent by the CMD. Before

sending the data, the Cryptographic Engine (CE) pro-

cesses the video data in two stages for encryption and

authentication. First, the Cryptographic Engine re-

ceives the video data block to be encrypted and either

the ciphertext block of the previous block or the en-

cryption initialization vector (IV). Secondly the Cryp-

tographic Engine is fed with the encrypted video data

block and either with the intermediate MAC value or

with the authentication initialization vector.

3.1.2 Processing Control Data

Control data are sent to the CMD by remote control.

The CMD processes the control data in two stages be-

fore sending it the Microdrone. First, in the authen-

tication stage the Cryptographic Engine receives the

data block and either the intermediate MAC value or

the authentication initialization vector. Secondly, in a

decryption stage the encrypted data block and either

the previous encrypted control data block or the en-

cryption initialization vector.

3.2 Remote Control Data Receiver

The Control Data Receiver receives control data from

the communication controller in form of a 384-bit

packet that is compound of three 128-bit blocks. The

OnthePowerConsumptionofCryptographicProcessorsinCivilMicrodrones

287

ﬁrst block represents the encryption initialization vec-

tor IV

enc

which is not encrypted but authenticated by

the ground station. The second block is the con-

trol block that includes the actual control data in en-

crypted form. The third block is the MAC value of

the ﬁrst two blocks. These data are sent to the Cryp-

tographic Engine for authentication and to decrypt the

control data block.

3.3 Video Streamers

Control data are sent from the ground station at a low

rate according to the PPM scheme. In contrast, video

data are sent continuously at high rate. One image

occupies many packets. The size of the packet relies

on the used communication module.

Each video packet includes an 128-bit encryp-

tion initialization vector IV

enc

(or the last ciphertext

block), a variable number of 128-bit video ciphertext

blocks, a 128-bit encrypted status block, and the 128-

bit MAC value of the entire packet.

The Video Streamer receives the byte-wise from

the communication controller through a ﬁrst-in ﬁrst-

out memory (FIFO). Using a shift register, 16 bytes

of these data are concatenated to construct a 128-

bit data block. In addition to the video data, the

Video Streamer constructs and appends a status block

to each downstream packet. The VS controller also

exchanges control signals with the Control Data Re-

ceiver, the Cryptographic Engine, the communication

Module, and the JPEG Encoder. Data is processed

according to a developed abstract ﬁnite state machine

which is responsible for creating the different block

of encrypted data according to the stream.

3.4 Digital-2-PPM Converter

The used remote control generates a PPM frame with

a length of 22ms. For each control channel a rectan-

gular pulse is produced, whereas the pulse width is

proportional to the control value. The minimum and

the maximum width is 0.7ms or 1.5ms, respectively.

The minimum distance between each two succeeding

pulses is 0.4ms. The remaining time of the 22ms is

used as a start signal.

The CMD receives all the channel data at once

embedded in the control block inside the control data

packet. The PPM signal is generated using different

counters. The ﬁrst counter has a ﬁxed preset value

that depends on the clock frequency to produce the

start pulse. The second counter produces the control

pulse. It has a variable preset value to produce time

values between the minimum and maximum width of

a PPM pulse. The preset value of this counter is the 8-

bit digital value of the corresponding control channel.

The third counter produces the pause periods which

vary between 1.8 and 0.4 ms.

3.5 Other Components

The FPGA hardware includes a communication mod-

ule and a JPEG encoder that includes a controller for

the camera. The JPEG encoder was adopted from

(Krepa, ) and adapted to suit our design.

4 IMPLEMENTATION

To evaluate our solution a complete system prototype

was implemented. The system prototype consists of

a remote control, a personal computer, and a micro-

drone extended with a security module.

The microdrone was prototype as a quadro-

tor based on the Next-Generation Universal Aerial

Video Platform (NG-UAVP). The NG-UAVP is “a

community-driven open source project to build a

modern autonomously ﬂying multicopter” (ANG-

UAVP, ). The NG-UAVP has a special focus on

expandability and conﬁgurability with a proprietary

near real-time operating system and a hardware ab-

straction layer that enables the platform to support

different hardware types and conﬁgurations. The NG-

UAVP uses three microcontrollers for data acquisition

and preparation on the sensor’s board and for ﬂight

control.

The quadrotor is extended with the security mod-

ule and a camera module. The camera used is the

TCM8240MD from Toshiba with an image resolu-

tion of 640x480 pixel, a frame rate of 30 FPS, and

a color depth of 24 bit. One of the selection criteria

of this camera was its small size of 6x6x4.5 mm. The

camera has an Inter-Integrated Circuit (I

C) interface

for conﬁguration and delivers pixel data over an 8-bit

parallel interface along with two lines for vertical and

horizontal synchronization.

The security module is compatible with the other

NG-UAVP boards. It contains mainly a communica-

tion module, an FPGA, and a ﬂash memory for pro-

gramming the FPGA. The used communication mod-

ule (from the company Avisaro AG) is connected to

the FPGA through a serial peripheral interface (SPI),

which allows a maximum data rate of 2.8 MBit/s.

As an FPGA we use Spartan E from Xilinx. Im-

age processing demands large memory size. The

used open-source JPEG encoder works on 8x8-pixel

blocks. However, data is read from the camera row

by row. Thus, for the JPEG encoder to start, at least

seven rows and the ﬁrst 8 pixels of the 8-th row must

ICISSP2015-1stInternationalConferenceonInformationSystemsSecurityandPrivacy

288

Table 1: Image Parameters used in the Prototype Implemen-

tation.

Parameter Value Unit

Image resolution 640x480 pixel

Color depth 24 bit

Frame size before encoding 7372800 bit

Compression ratio 15 %

Frame size after encoding 491520 bit

No. AES blocks per frame 3840 block

be read ﬁrst. With 640 pixel per row and 24-bit color

depth a minimum memory space of (7 ∗ 640 + 8) ∗

24 = 108 kbit is required. To increase throughput, the

JPEG encoder uses pipelined processing of 16 rows

which demands a total memory usage of 163.840 kbit.

Additional memory space is required for the encoder

output buffer, for the AES Sboxes, and for the input

and output FIFOs of the video streamers.

Instead of using external memory for data storage

we decided to use the largest member of the Spartan E

family. By this means, the design is kept simpler and

data are transferred synchronously between the dif-

ferent FPGA components, which is essential for the

performance. The FPGA works at 50 MHz clock fre-

quency that is supplied by an external oscillator. The

FPGA is conﬁgured using a SPI serial ﬂash PROM

(Programmable read-only memory) from Atmel.

5 RESULTS AND ANALYSIS

The hardware prototype was tested for the data given

in Table 1. The raw frame size results from multiply-

ing the image resolution by the color depth. Through

encoding, the frame size is reduced 15 times. The en-

coded frame is divided by 128 to get the number of

AES blocks that need to be processed for one frame.

Table 2 shows a comparison between the hardware

solution and a comparable software solution run-

ning on the drone microcontroller ARM7 LPC2148

clocked at 60 MHz. The comparison metrics are the

timing, the power consumption, and ﬂight time.

With respect to timing, the developed FPGA

solution provides an approximately 20-time higher

throughput than the software solution. The software

solution only achieves a frame rate of 3.2 fps, which is

clearly below acceptable rates for live feed, and there-

fore fails to deliver a moving picture.

With respect to power, the consumption of the

hardware solution exceeds the consumption of the

software solution by 3.356 watts. This amount com-

prises three components:

1. The power consumption of the FPGA chip as

provided by the Xilinx Xpower Analyzer (0.22

watts).

2. The measured electrical power consumed by the

FPGA board exclusive of the FPGA chip (0.64

watts)

3. The mechanical power needed to raise the addi-

tional weight caused by the FPGA card (2.5 watt).

This value was determined using a commercial

calculator as detailed below.

By comparing the pure computational power con-

sumption, the FPGA with 0.22 watt is superior to the

software solution that consumes 1.8 watt on ARM7

LPC2148. This is in line with the general understand-

ing of FPGAs as power-efﬁcient alternatives to soft-

ware. This is valid even when we compare with the

power consumed by the entire FPGA board (0.64 +

0.22 = 0.88 watt).

In this application, however, we have to consider

the power needed to carry the weight of the FPGA

board. Apparently, this part is signiﬁcant and it con-

tributes to shortening the ﬂight time by almost 1.5%.

The latter ﬁgure is based on the voltage and the ca-

pacity of the battery used in our model. These are 14

volts and 2300 mAh, respectively.

Note, however, that the actual impact on the ﬂight

time should be considered in the light of the required

throughput. The advantage of the software solution

is only valid when 3.2 FPS or less are required. As

stated before, this rate is not sufﬁcient for motion pic-

tures.

To determine the power needed to carry the FPGA

we used eCalc which is a commercially available

online tool that provides calculations for electrically

driven remote controlled devices (Mller, ). The ven-

dor states that the calculation accuracy is 10%. eCalc

provides four different tools for RC model calcula-

tion: propeller airplanes, multicopters, ducted fan air-

planes and helicopters. eCalc can be used for free

however with limited capability in terms of supported

models and components as well as provided output

data. For our calculations we used the commercial

edition of eCalc to be as speciﬁc as possible in the

data entry.

6 CONCLUSIONS

The paper presented a security analysis for civil mi-

crodrone communication. Based on this analysis

technical solutions were proposed, implemented us-

ing an FPGA platform, and embedded into a self-

constructed quadrotor. The hardware solution shows

OnthePowerConsumptionofCryptographicProcessorsinCivilMicrodrones

289

Table 2: A HW-SW Comparison of the Image Coding (Encryption and Authentication).

Compared Value Software Hardware Unit

Time needed to encode one JPEG frame 100 14.4 msec

Time needed to encrypte and authenticate one JPEG frame 209.6 1.54 msec

Time needed to encode, encrypt and authenticate one JPEG frame 309.6 15.9 msec

Throughput 3.2 62.8 fps

Measured prone power consumption while hovering 220 223.36 watt

Estimated ﬂight time under maximum possible throughput 9.03 8.89 minute

as expected a clear throughput advantage when com-

pared to a similar software implementation. In con-

trast, the power consumption of the hardware solu-

tion exceeds that of the software alternative due to the

extra weight of the FPGA board. It can be assumed

that this aspect gets more relevant for low-weight mi-

crodrones that need to meet security requirements.

Speciﬁcally, such vehicles have very limited com-

putational power, as a rule, and are expected to fail

to support cryptographic functions. While enhanc-

ing these vehicles with cryptoprocessors can solve the

performance issue, the relative weight of the addi-

tional hardware can signiﬁcantly worsen the power

consumption of the device and thus its ﬂight time.

The speciﬁcation and the modeling of this aspect is an

interesting research question that will be addressed in

future work.

REFERENCES

ANG-UAVP. Next generation universal aerial video plat-

form. http://ng.uavp.ch/moin/FrontPage.

Bicakci, K. and Tavli, B. (2009). Denial-of-service attacks

and countermeasures in ieee 802.11 wireless net-

works. Computer Standards & Interfaces, 31(5):931–

941.

Chiu, C. and Lo, C. (2011). Vision-only automatic ﬂight

control for small uavs. Vehicular Technology, IEEE

Transactions on, 60(6):2425–2437.

Daemen, J. and Rijmen, V. (2002). The design of Rijndael:

AES–the advanced encryption standard. Springer-

Verlag New York Inc.

Dierks, T. and Jagannathan, S. (2010). Output feedback

control of a quadrotor uav using neural networks.

Neural Networks, IEEE Transactions on, 21(1):50–

66.

Gancet, J., Hattenberger, G., Alami, R., and Lacroix, S.

(2005). Task planning and control for a multi-uav sys-

tem: architecture and algorithms. In Intelligent Robots

and Systems, 2005.(IROS 2005). 2005 IEEE/RSJ In-

ternational Conference on, pages 1017–1022. Ieee.

Hoffmann, G., Rajnarayan, D., Waslander, S., Dostal, D.,

Jang, J., and Tomlin, C. (2004). The stanford testbed

of autonomous rotorcraft for multi agent control (star-

mac). In Digital Avionics Systems Conference, 2004.

DASC 04. The 23rd, volume 2, pages 12–E. Ieee.

How, J., Bethke, B., Frank, A., Dale, D., and Vian,

J. (2008). Real-time indoor autonomous vehicle

test environment. Control Systems Magazine, IEEE,

28(2):51–64.

Katz, J. and Lindell, Y. (2008). Introduction to modern

cryptography. Chapman & Hall.

Krepa, M. Jpeg encoder, project, mkjpeg.

http://opencores.org/.

Minguez, J. and Montano, L. (2004). Nearness diagram

(nd) navigation: collision avoidance in troublesome

scenarios. Robotics and Automation, IEEE Transac-

tions on, 20(1):45–59.

Mller, M. ecalc, on-line calculator for electric driven rc

models. http://www.ecalc.ch/.

NIST (1985). American national standard for ﬁnancial in-

stitution key management (wholesale). Available at

http://csrc.nist.gov/publications/ﬁps/.

Pelechrinis, K., Iliofotou, M., and Krishnamurthy, V.

(2011). Denial of service attacks in wireless networks:

The case of jammers. Communications Surveys & Tu-

torials, IEEE, (13):245–257.

Quaritsch, M., Stojanovski, E., Bettstetter, C., Friedrich, G.,

Hellwagner, H., Rinner, B., Hofbaur, M., and Shah,

M. (2008). Collaborative microdrones: applications

and research challenges. In Proceedings of the 2nd In-

ternational Conference on Autonomic Computing and

Communication Systems, page 38. ICST (Institute for

Computer Sciences, Social-Informatics and Telecom-

munications Engineering).

Voos, H. (2006). Nonlinear state-dependent riccati equation

control of a quadrotor uav. In Computer Aided Con-

trol System Design, 2006 IEEE International Con-

ference on Control Applications, 2006 IEEE Interna-

tional Symposium on Intelligent Control, 2006 IEEE,

pages 2547–2552. IEEE.

Yuan, C., Recktenwald, F., and Mallot, H. (2009). Vi-

sual steering of uav in unknown environments. In

Intelligent Robots and Systems, 2009. IROS 2009.

IEEE/RSJ International Conference on, pages 3906–

3911. IEEE.

Zsedrovits, T., Zarandy, A., Vanek, B., Peni, T., Bokor, J.,

and Roska, T. (2011). Collision avoidance for uav us-

ing visual detection. In Circuits and Systems (ISCAS),

2011 IEEE International Symposium on, pages 2173–

2176. IEEE.

ICISSP2015-1stInternationalConferenceonInformationSystemsSecurityandPrivacy

290
