Recognizing Hand and Finger Gestures with IMU based Motion and

EMG based Muscle Activity Sensing

Marcus Georgi, Christoph Amma and Tanja Schultz

Cognitive Systems Lab, Institute for Anthropomatics and Robotics, Karlsruhe Institute of Technology, Karlsruhe, Germany

Keywords:

Wearable Computing, Gesture Recognition, Inertial Measurement Unit, Electromyography.

Abstract:

Session- and person-independent recognition of hand and ﬁnger gestures is of utmost importance for the

practicality of gesture based interfaces. In this paper we evaluate the performance of a wearable gesture

recognition system that captures arm, hand, and ﬁnger motions by measuring movements of, and muscle

activity at the forearm. We fuse the signals of an Inertial Measurement Unit (IMU) worn at the wrist, and the

Electromyogram (EMG) of muscles in the forearm to infer hand and ﬁnger movements. A set of 12 gestures

was deﬁned, motivated by their similarity to actual physical manipulations and to gestures known from the

interaction with mobile devices. We recorded performances of our gesture set by ﬁve subjects in multiple

sessions. The resulting datacorpus will be made publicly available to build a common ground for future

evaluations and benchmarks. Hidden Markov Models (HMMs) are used as classiﬁers to discriminate between

the deﬁned gesture classes. We achieve a recognition rate of 97.8% in session-independent, and of 74.3% in

person-independent recognition. Additionally, we give a detailed analysis of error characteristics and of the

inﬂuence of each modality to the results to underline the beneﬁts of using both modalities together.

1 INTRODUCTION

Mobile and wearable computing have become a more

and more integral part of our everyday lives. Smart-

watches and mixed-reality-glasses are getting popu-

lar and widely available, promoting the idea of an

immersive usage with micro-interactions. The inter-

action with such devices differs from the interaction

with mobile phones and tablet computers, that al-

ready gained functionality that allows to use them as

a replacement for conventional computers in a wide

range of usage scenarios. For glasses and watches, the

usage of onscreen keyboards becomes cumbersome,

if not impossible. Therefore, alternative interaction

paradigms have to be used, allowing an intuitive han-

dling of these devices.

As gestures performed with the hand and ﬁn-

gers can resemble actual physical manipulations con-

nected to spatial tasks, like navigation on a map or

manipulation of a picture, they are a beneﬁcial com-

plementary modality to speech recognition, as these

are tasks not easily solved using only spoken lan-

guage (Oviatt, 1999). A system using hardware that

can be worn like clothing or an accessory would be

favourable for mobile usage.

Different approaches were proposed to sense both

hand and ﬁnger movements in a mobile environment

without placing sensors directly at the hand of a uesr.

They were based on the usage of cameras, body-worn

(Mistry et al., 2009) or wrist-worn (Kim et al., 2012),

on the measurement of tendon movement (Rekimoto,

2001) or on the usage of Electromyography (EMG)

(Saponas et al., 2008; Wolf et al., 2013; Samadani

and Kulic, 2014; Kim et al., 2008) and Inertial Meau-

rement Units (IMUs) (Amma et al., 2014; Hartmann

and Link, 2010; Cho et al., 2004; Benbasat and Par-

adiso, 2001).

This paper presents a recognition framework for

gesture interfaces, based on Electromyography and an

Inertial Measurement Unit, both being wearable sen-

sor systems.

We will systematically evaluate the performance

of this system in differentiating between gestures, us-

ing the IMU and EMG individually, as well as the

multimodal recognition performance. Additionally,

the contributions of both modalities to the overall re-

sults will be presented, with focus on the beneﬁts for

speciﬁc types of movement. This will clarify the ad-

vantages and disadvantages of IMUs, EMG, and will

validate their combined usage for gesture recognition.

The performance of this system will be evaluated

both for session-independent and person-independent

Georgi M., Amma C. and Schultz T..

Recognizing Hand and Finger Gestures with IMU based Motion and EMG based Muscle Activity Sensing.

DOI: 10.5220/0005276900990108

In Proceedings of the International Conference on Bio-inspired Systems and Signal Processing (BIOSIGNALS-2015), pages 99-108

ISBN: 978-989-758-069-7

 2015 SCITEPRESS (Science and Technology Publications, Lda.)

Table 1: Comparison of investigated research questions. This table shows what kind of gesture recognition tasks were evalu-

ated in the work related to this paper, and which modalities were used.

session dependent session independent person-independent

EMG IMU combined EMG IMU combined EMG IMU combined

(Li et al., 2010) - - - - - x - - -

(Wolf et al., 2013) - - x - - - - - -

(Zhang et al., 2011) x x x - - - - - x

(Chen et al., 2007) x x x - - - - - -

(Saponas et al., 2008) - - - x - - x - -

(Kim et al., 2008) x - - - - - x - -

(Samadani and Kulic, 2014) - - - - - - x - -

This paper - - - x x x x x x

recognition, which is of importance for practical and

usable gesture based interfaces. Session-independent

recognition surveys how well the system can be

attuned to a user. A system with high session-

independent accuracy can be used by one person with-

out training it each time it is used. This makes the

system ready to use by just mounting the sensors and

starting the recognition. Person-independent recog-

nition is relevant in regard to an envisioned system

that can be used without prior training by some new

user. Instead, it would use exemplary training data

from a selected, representative group, making explicit

training sessions superﬂuous. Such a system could

nonetheless still beneﬁt from further adaption to an

individual user.

The evaluations of this paper will be based on ges-

tures that were designed to resemble actual physical

manipulations, as well as gestures known from the

interaction with mobile devices. They were not de-

signed to be optimally distinguishable, but rather to

represent useful gestures for real-world interfaces.

The recorded dataset will be made publicly avail-

able to be used by others as a common ground for

the development and evaluation of gesture recogni-

tion systems based on IMUs and EMG.

1.1 Related Work

The simultaneous usage of an IMU and EMG for ges-

ture based interfaces was also evaluated in a small set

of other studies, that are listed and compared in Ta-

ble 1. The comparison of the various different ap-

proaches to the task of gesture recognition based only

on reported recognition accuracies is hard, as different

gesture sets were designed and a variety of recording

setups and hardware was used.

In (Li et al., 2010) IMUs and EMG are used

for the automatic recognition of sign language sub-

words, speciﬁcally of Chinese sign language (CSL)

subwords. On a vocabulary of 121 subwords a high

accuracy of 95.78% is achieved, but only session-

independent accuracy was evaluated. Additionally, it

is hard to estimate the transferability of these results

to other tasks, as a very task speciﬁc recognizer de-

sign is used, in contrast to a more general design, as it

is used in this paper and most other studies and most

other studies.

In (Wolf et al., 2013) two different approaches

for gesture recognition are presented. One uses a

SVM to distinguish between 17 static gestures with

96.6% accuracy. It discriminates these 17 gesture

classes based on EMG and uses an additional ori-

entation estimation based on IMU signals to distin-

guish whether the gestures were performed with a

hanging, raised or neutral arm, increasing the num-

ber of classes that can be interpreted by a factor of

three. To decode dynamic gestures, they combine the

features of both modalities to a single feature vector.

Again, they achieve a high accuracy of 99% for a set

of nine gestures. However, both session-independent

and person-independent performance are not evalu-

ated for both techniques, and the contribution of the

individual modalities is not discussed.

Zhang et al. (Zhang et al., 2011) show, that it

is possible to construct a robust, person-independent,

gesture based interface using an IMU and EMG to

manipulate a Rubik’s Cube. They report a person-

independent accuracy of 90.2% for 18 different ges-

ture classes. One has to note that this gesture set was

designed to include only three different static hand

postures that were hard to detect with only an IMU,

and that, similar to (Wolf et al., 2013), the direc-

tion of movement with the whole arm then increased

the number of gestures by a factor of six. In com-

parison, we use a set of twelve different gestures,

with dynamic postures and movement. Additionally,

they discuss the contribution of the individual modal-

ities IMU and EMG in a CSL recognition task sim-

ilar to (Li et al., 2010), but do this only for session-

dependent recognition.

Chen et al. (Chen et al., 2007) also com-

pare the session-dependent gesture recognition per-

formance for various gesture sets when using 2D-

accelerometers and two EMG channels individually

BIOSIGNALS2015-InternationalConferenceonBio-inspiredSystemsandSignalProcessing

100

as well as in combination. When using both modali-

ties combined, they report accuracy improvements of

5 −10% on various gesture sets with up to 12 classes.

Again, this evaluation is not done for the session- and

person-independent case.

As we evaluate single-modality performance for

person-independent recognition, we also evaluate the

performance when using only EMG. Only very few

studies have reported on this so far (Saponas et al.,

2008; Kim et al., 2008; Samadani and Kulic, 2014),

often with lacking results, or only on small gesture

sets.

Samadani and Kuli

c (Samadani and Kulic, 2014)

use eight dry EMG sensors in a prototypic commer-

cial armband from Thalmic Labs

to capture EMG

readings from 25 subjects. In person-independent

recognition, they achieve 49% accuracy for a gesture

set with 25 gestures. Additionally, they report 79%,

85%, and 91% accuracy for select gesture sets with

10, 6, and 4 gestures, respectively.

2 DATASET

2.1 Gesture Set

To get a reliable performance estimate for practical

interfaces, we deﬁne a set of gestures that is a rea-

sonable choice for gesture based interfaces. Dif-

ferent studies, e.g. (Alibali, 2005; Hauptmann and

McAvinney, 1993), show that spatial gestures can

convey unique information not included in linguis-

tic expressions when used to express spatial informa-

tions. Therefore we use spatial gestures, as an inter-

face based on such gestures could be beneﬁcial for

mobile and wearable usage when used complemen-

tary to speech recognition.

Hauptmann et al. (Hauptmann and McAvinney,

1993) evaluate what kind of gestures were performed

by subjects trying to solve spatial tasks. In a Wiz-

ard of Oz experiment they collected statistical values

of the amount of ﬁngers and hands that were used to

solve tasks related to the graphical manipulations of

objects.

We compared their statistical values with gestures

commonly occurring during the actual manipulation

of real objects or whilst using touchscreens or touch-

pads. On the one hand, we hope that users can intu-

itively use these gestures due to both their level of fa-

miliarity, as well as their similitude to physical inter-

actions. On the other hand, we assume that interfaces

like virtual or augmented reality glasses might beneﬁt

Thalmic Labs Inc., www.thalmic.com

from such gestures by allowing a user to manipualte

displayed virtual objects similar to real physical ob-

jects.

As a result we deﬁned the list of gestures in Table

2 to be the list of gestures to be recognized. These

gestures involve both movements of the ﬁngers, as

well as of the whole hand.

2.2 Experimental Procedure

2.2.1 Hardware

Inertial Measurement Unit

A detailed description of the sensor we use to cap-

ture acceleration and angular velocity of the forearm

during the experiments can be found in (Amma et al.,

2014). It consists of a 3D accelerometer, as well as

a 3D gyroscope. We transmit the sensor values via

Bluetooth and sample at 81.92 Hz.

EMG Sensors

To record the electrical activity of the forearm mus-

cles during the movements of the hand, two biosig-

nalsplux devices from Plux

are used. These devices

allow the simultaneous recording of up to eight chan-

nels simultaneously per device. Both devices are syn-

chronized on hardware level via an additional digi-

tal port. One additional port is reserved to connect

a reference or ground electrode. Each bipolar chan-

nel measures an electrical potential using two self-

adhesive and disposable surface electrodes. The de-

vices sample at 1000 Hz and recorded values have a

resolution of 12 bit.

2.2.2 Subject Preparation

Each subject that was recorded received an explana-

tion of what was about to happen during the experi-

ments. Afterwards 32 electrodes were placed in a reg-

ular pattern on both the upper and lower side of their

forearm. This pattern can be seen in Figure 1. The

position of the electrodes near the elbow was chosen,

as the ﬂexors and extensors for all ﬁngers apart from

the thumb are mainly located in this area. (M. exten-

sor digitorum communis, M. extensor digiti minimi,

M. extensor pollicis brevis, M. ﬂexor digitorum pro-

fundus and M. ﬂexor digitorum superﬁcialis). These

muscles are oriented largely parallel to the axis be-

tween elbow and wrist. Therefore we applied the elec-

trodes as eight parallel rows around the arm, each row

consisting of four electrodes. From each row, the two

PLUX wireless biosignals S.A., www.plux.info

RecognizingHandandFingerGestureswithIMUbasedMotionandEMGbasedMuscleActivitySensing

101

Table 2: All gestures deﬁned to be recognized.

# Gesture Name Description Interaction Equivalence

1 Flick Left (FL) Flick to the left with index ﬁnger extended. Flicking left on a touchscreen.

2 Flick Right (FR) Flick to the right with index ﬁnger extended. Flicking right on a touchscreen.

3 Flick Up (FU) Flicking upwards with index and middle ﬁnger

extended.

Scrolling upwards on a touchscreen.

4 Flick Down (FD) Flicking downwards with index and middle ﬁn-

ger extended.

Scrolling downwards on a touchscreen.

5 Rotate Left (RL) Grabbing motion followed by turning the hand

counterclockwise.

Turning a knob counterclockwise.

6 Rotate Right (RR) Grabbing motion followed by turning the hand

clockwise.

Turning a knob clockwise.

7 Flat Hand Push

(PSH)

Straightening of the hand followed by a transla-

tion away from the body.

Pushing something away or compress-

ing something.

8 Flat Hand Pull (PLL) Straightening of the hand followed by a transla-

tion towards the body.

Following the movement of something

towards the body.

9 Palm Pull (PLM) Turning the hand whilst cupping the ﬁngers fol-

lowed by a translation towards the body.

Pulling something towards oneself.

10 Single Click (SC) Making a single tapping motion with the index

ﬁnger.

Single click on a touchscreen.

11 Double Click (DC) Making two consecutive tapping motions with

the index ﬁnger.

Double click on a touchscreen.

12 Fist (F) Making a ﬁst. Making a ﬁst or grabbing something.

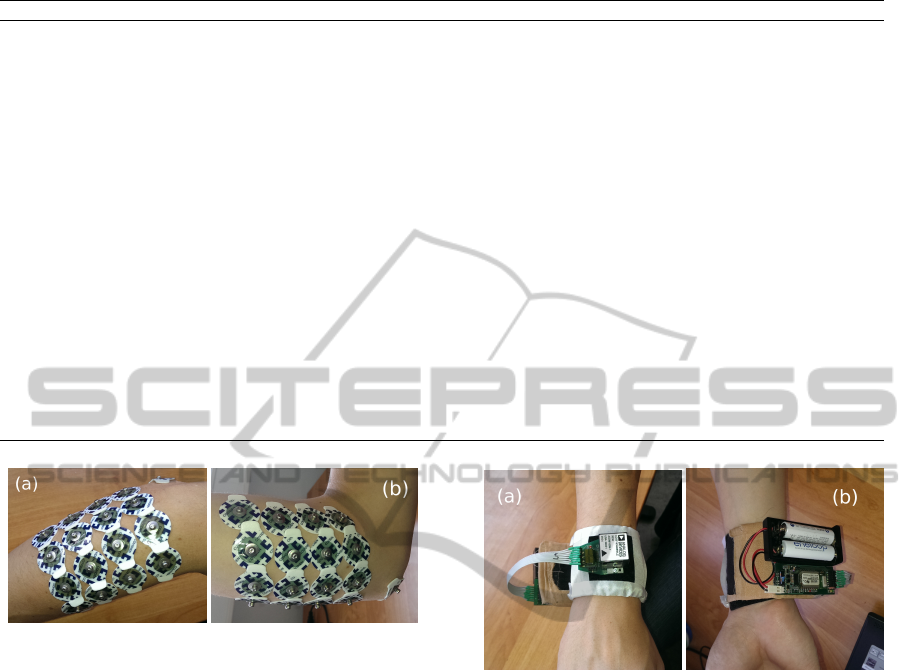

Figure 1: Electrode placements on the (a) upper and (b)

lower side of the forearm.

upper, as well as the two lower electrodes form a sin-

gle, bipolar channel. With eight rows and two chan-

nels per row we get 16 EMG channels in total. The

reference electrodes for each device were placed on

the elbow.

We decided to place the electrodes in a regular

pattern around the forearm instead of placing them di-

rectly on the muscles to be monitored. This resembles

the sensor placement when using a wearable armband

or sleeve like in (Wolf et al., 2013) or (Saponas et al.,

2008), that can easily be worn by a user. This kind

of sensor placement does lead to redundant signals

in some channels, as some muscles are recorded by

multiple electrodes. However, it should prove use-

ful for future work on how to further improve the

session- and person-independent usage, as it allows

for the compensation of placement variations using

virtual replacement strategies or some blind source

separation strategy. Placement variations can hardly

be avoided with sensor sleeves that are to be applied

by a user.

The inertial sensor device was ﬁxed to the forearm

of the subject using an elastic wristband with Velcro.

Figure 2: Inertial sensor device mounted ath the wrist on

top of the forearm (a). Power supply and controller board

are underneath the arm (b).

The sensor itself was mounted on top of the forearm,

which can be seen in Figure 2. No hardware is placed

on the hand and ﬁngers themselves, all sensing equip-

ment is located at the forearm.

The whole recording setup is not intended to be

practical and wearable, but can be miniaturized in the

future. IMUs can already be embedded in unobtrusive

wristbands and (Wolf et al., 2013) show, that the man-

ufacturing of armbands with integrated EMG sensor

channels is possible. Also the upcoming release of the

Myo from Thalmic Labs shows the recent advances in

the development of wearable sensing equipment.

2.2.3 Stimulus Presentation and Segmentation

To initiate the acquisition of each gesture, a stimu-

lus is presented to a subject. Figurative representa-

tions for all the gestures deﬁned in Table 2 were cre-

ated. Additionally a short text was added, describing

BIOSIGNALS2015-InternationalConferenceonBio-inspiredSystemsandSignalProcessing

102

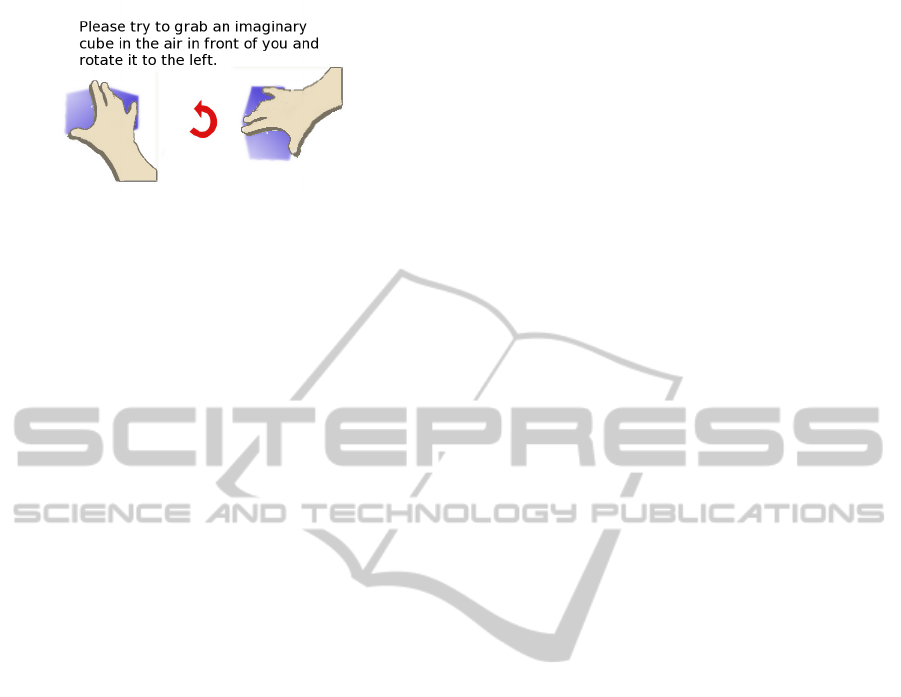

Figure 3: Example of a gesture stimulus, particularly the

stimulus of the rotate left gesture.

the movements of the gesture. An example of such a

stimulus can be seen in Figure 3.

The start and end of each gesture acquisition have

to be manually triggered by the subjects by keypress

to generate the segmentation groundtruth.

2.3 Data Corpus

In one recording session, 15 repetitions of the twelve

deﬁned gestures were recorded in random, but bal-

anced order. We do not use a ﬁxed order of gestures

to force the subjects to comprehend and perform each

gesture individually, rather than to perform a repeti-

tious pattern. Additionally, this makes the movements

of a gesture less dependent on the context of the ges-

tures prior to and after it.

Five different subjects were asked to participate

in such recording sessions. Their age was between

23 and 34; four of them were male, one was female.

For each subject, ﬁve sessions were recorded on dif-

ferent days. Therefore, each gesture was recorded 75

times by each subject, which sums up to 900 gesture

performances per subject. In total, 25 sessions with

4500 gesture repetitions are present in the data cor-

pus. The corpus also contains the data samples we

recorded during the relaxation phases, as well as the

data samples that were transmitted between the actual

gesture acquisitions. It might therefore also be used

in future work to investigate other tasks and topics,

like automatic segmentation, gesture sequence recog-

nition, or the effects of muscle fatigue and familiar-

ization.

3 GESTURE RECOGNITION

3.1 Preprocessing and Feature

Extraction

For preprocessing, we normalize the signals of both

sensors using Z-Normalization. For the IMU, this

normalization decreases the impact of movement

speed on the recordings. Furthermore, it reduces the

inﬂuence of gravitation on the accelerometer signals,

that we assume to be a largely constant offset, as the

normalization removes baselineshifts. It is character-

istic for EMG signals to ﬂuctuate around a zero base-

line. Therefore the mean of the signal should already

be almost zero and mean normalization only removes

a shift of the baseline. But the variance normalization

has a rather large impact, as it makes the signal am-

plitude invariant to the signal dampening properties

of the tissue and of skin conductance, up to a certain

degree.

After preprocessing, we extract features on sliding

windows for both modalities. As the different sen-

sor systems do not have the same sampling rate, we

choose the number of samples per window in accor-

dance to the respective sampling rate, so that windows

for both modalities represent the same period of time.

This allows for the early fusion of the feature vectors

for each window to one large feature vector.

Similar to (Amma et al., 2014), we use the av-

erage value in each window of each IMU channel as

a feature. As the average computation for each win-

dow is effectively a smoothing operation and could

therefore lead to information loss, we added standard

deviation in each window as a second feature for each

channel of the IMU.

We also compute standard deviation as a feature

on each window of each EMG channel. (Wolf et al.,

2013) state that, like Root Mean Square (RMS), stan-

dard deviation is correlated to signal energy, but not

as inﬂuenced by additive offsets and baselineshifts.

Averaging operations on large windows often re-

duce the inﬂuence of outliers by smoothing the sig-

nal, whereas feature extraction on small windows in-

creases the temporal resolution of the feature vectors.

As it is hard to predict the inﬂuence of different win-

dow sizes on the recognition results, we evaluated dif-

ferent window sizes in the range of 50 ms to 400 ms.

We did not evaluate longer windows, as some of the

recorded gestures were performed in under 600 ms.

The mean duration of the gestures is about 1.1 s. We

got the best results for windows with a length of

200 ms and chose an overlap of half a window size,

namely 100 ms.

In conclusion we compute for each window a 28

dimensional feature vector. The ﬁrst twelve dimen-

sions are mean and standard deviation for each of the

six channels of the IMU. The remaining 16 dimen-

sions are the standard deviation of each EMG chan-

nel. For single modality evaluations, we only use the

features of one modality whilst omitting the features

of the other one.

Figure 4 shows the set of features computed for

RecognizingHandandFingerGestureswithIMUbasedMotionandEMGbasedMuscleActivitySensing

103

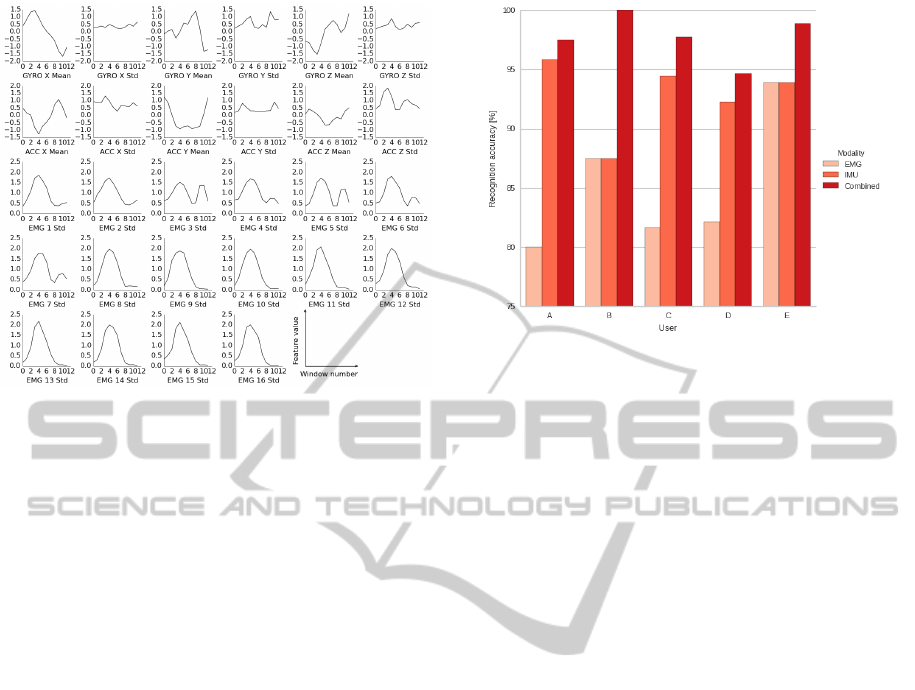

Figure 4: Computed features for the gesture ﬁst. All sub-

plots represent one of the 28 feature vector dimensions. The

raw signals were z-normalized and windowed into windows

of 200 ms length with an overlap of 100 ms between consec-

utive windows. On each window one value for each dimen-

sion was computed. The ﬁrst twelve subplots show features

for the IMU channels, namely mean and standard devia-

tion for the accelerometers and gyroscopes. The remaining

16 subplots show standard deviation for each of the EMG

channels.

the signals recorded when making a ﬁst. Each subplot

shows the progression of values of one dimension of

the feature vector over all extracted windows.

3.2 Gesture Modeling

In our system, continuous density Hidden Markov

Models (HMMs) are used to model each of the ges-

ture classes. For an introduction to HMMs refer to

(Rabiner, 1989). We chose linear left-to-right topolo-

gies to represent the sequential nature of the recorded

signals and Gaussian Mixture Models (GMMs) to

model the observation probability distribution. Em-

pirically we found topologies with ﬁve states and

GMMs with ﬁve Gaussian components to deliver the

best performance. The Gaussian components have di-

agonal covariance matrices to avoid overﬁtting to the

data, as the number of free model parameters is then

only linearly dependent on the number of features, in

contrast to the quadratic dependence for full matrices.

Provided a sufﬁciently large dataset, in future work

the usage of unrestricted covariance matrices might

further improve the gesture modeling by representing

the correlation between the different channels. To ﬁt

the models to the training data, we initialize them us-

ing kMeans and use Viterbi Training afterwards.

Figure 5: Session-independent recognition accuracy for all

recorded subjects. For each subject, the performance when

using IMU or EMG individually, as well as in combination,

are shown.

4 RESULTS

We evaluate the performance of our gesture recog-

nition system for session-independent and person-

independent recognition by determining its accuracy

in discriminating the twelve different gesture classes

of Table 2, with chance being 8.33%. The gesture

labels used in the graphics of this section follow the

short names introduced in Table 2.

4.1 Session Independent

For the session-independent evaluation, testing is

done using cross-validation individually for each sub-

ject. The training set for each validation fold con-

sists of all sessions but one of a subject. The re-

maining session is used as the test set. We achieve

97.8%(±1.79%) recognition accuracy as an average

for all evaluated subjects.

Figure 5 displays the individual recognition per-

formance for each subject. With all of the ﬁve sub-

jects achieving more than 94% accuracy, the session

independent recognition yields very satisfying results.

Additionally, Figure 5 shows the recognition accuracy

when modalities are used individually. This will be

discussed later on.

Figure 6 shows the confusion matrix for the differ-

ent gesture classes. It has a strong diagonal character,

which is ﬁtting the high overall accuracy. A block for-

mation at the crossing between the rows and columns

corresponding to single click and double click illus-

trates that these gestures are occasionally confused

with each other. Only one small movement of the

BIOSIGNALS2015-InternationalConferenceonBio-inspiredSystemsandSignalProcessing

104

Figure 6: Confusion matrix for session-independent gesture

recognition. The matrix shows what hypotheses were given

for different gestures that were fed to the recognizer. The

labels follow Table 2.

index ﬁnger differentiates both gestures. This could

easily be confused with involuntary ﬁnger movements

at the beginning and the end of the gesture recording.

4.1.1 Modality Comparison

Figure 5 visualizes the recognition performance when

we use only the feature subset of one of the sen-

sors for the recognition. One can see that the accu-

racy is lower when the sensing modalities are used

individually. Nonetheless rather high results were

achieved using both modalities separately, on average

92.8%(±2.88%) with the IMU and 85.1%(±5.09%)

with the EMG sensors. Therefore both of the systems

are suitable choices for hand gesture recognition.

To further analyze the advantages and disadvan-

tages of the IMU and EMG, Figure 7 and Figure 8

show the confusion matrices for session-independent

recognition using the individual modalities. We ex-

pect the IMU and EMG to be complementary and to

differ in their performance for certain gesture classes,

due to them monitoring different aspects of the per-

formed movements.

Figure 7 shows the confusion matrix for single

modality recognition using the IMU. It is overall

rather similar to the one for multi modality recogni-

tion in Figure 6. The most prominent difference is,

that more false positives were reported for single and

double click, and for ﬁst. Whilst the clicks are often

confused with one another, ﬁst is more often given as

a hypothesis for the ﬂick and rotate classes. As mak-

ing a ﬁst only involves minor arm movements, we as-

sume that the gesture has largely unpredictable IMU

features. Thus the HMM for ﬁst is less descriptive.

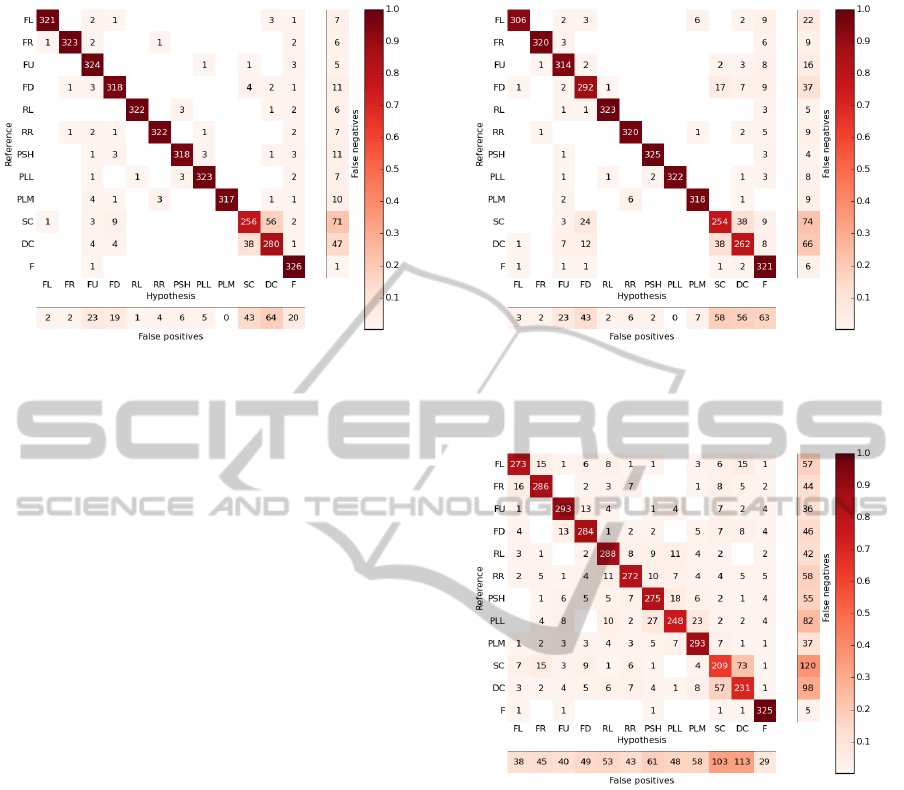

Figure 7: Confusion matrices for session-independent ges-

ture recognition. The recognizer used only the features ex-

tracted from the IMU signals. The labels follow Table 2.

Figure 8: Confusion matrices for session-independent ges-

ture recognition. The recognizer used only the features ex-

tracted from the EMG signals. The labels follow Table 2.

This is consistent with the expectation, that gesture

recognition based solely on IMU signals might prove

problematic for small-scale hand gestures that do not

involve arm movements.

In contrast, one would expect movements involv-

ing large rotational or translational movements of the

whole arm to be easily discriminated. Accordingly,

rotate right and rotate left, as well as ﬂat hand push

and ﬂat hand pull have a low false positive count.

Figure 8 shows the confusion matrix when using

only EMG features. As for the multimodal case, we

see most of the confusions for the double and single

click gestures.

Also some other less frequent misclassiﬁcations

occur when using EMG individually. As we antici-

RecognizingHandandFingerGestureswithIMUbasedMotionandEMGbasedMuscleActivitySensing

105

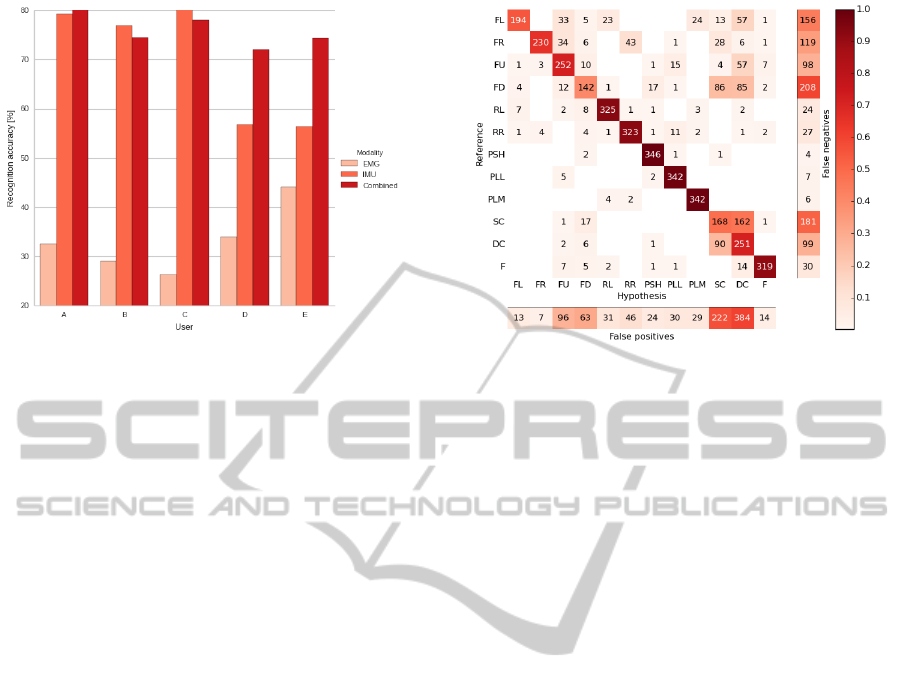

Figure 9: Person-independent recognition accuracy. Each

bar depicts the achieved accuracy with the recordings of the

respective subject used as test samples. For each subject,

the performance when using IMU or EMG individually, as

well as in combination, are shown.

pate that the direction of a movement is largely en-

coded in the IMU signal, we expect that gestures are

confused, that differ mostly in the direction of their

movement. This is the case with ﬂick left, ﬂick right,

ﬂick up and ﬂick down, all being performed mainly

with extended index and middle ﬁnger. Also ﬂat hand

push and pull, as well as palm pull are sometimes con-

fused. As the accuracy is still rather high, one can

assume that the direction of movement does in fact

imprint a pattern on the activity signals.

Making a ﬁst produces very distinctive features in

all feature space dimensions for EMG, as all the mon-

itored muscles contract. Accordingly, in contrast to

IMU based recognition, only few false positives and

negatives are reported for the gesture ﬁst.

4.2 Person Independent

For person-independent evaluation, the recordings of

all subjects but one are used as training data in the

cross-validation, leaving the recordings of the remain-

ing subject as test data. The same model and prepro-

cessing parameters as for session-independent testing

are used.

We achieve a mean accuracy of 74.3%(±4.97%)

for person independent recognition. The results for

each test run, and therefore for each subject, are

shown in Figure 9, together with the results when us-

ing the modalities individually.

Figure 10 shows the confusion matrix for person-

independent recognition. As expected, the matrix

does not show a diagonal character as pronounced

as in the confusion matrices for session independent

recognition. The gestures ﬂat hand push and pull,

Figure 10: Confusion matrices for person-independent ges-

ture recognition. The labels follow Table 2.

palm pull, ﬁst and rotate left and right are the classes

with the lowest false negative count. The classes, to-

gether with the ﬂick left and right classes, also have

the lowest false positive count. Person-independent

recognition seems therefore already reliable for a spe-

ciﬁc gesture subset. But especially the ﬂick gestures,

as well as the click gestures are often confused with

others. Presumably, the inter-person variance is the

highest for these classes.

4.2.1 Modality Comparison

Also for person-independent recognition the perfor-

mance of the individual modalities is evaluated.

Figure 9 compares the best results for each indi-

vidual subject as well as the average result for both

modalities. Clearly the IMU with an average accuracy

of 70.2%(±11.21%) outperforms the EMG modal-

ity with only 33.2%(±6.06%) accuracy on average.

But the multimodal recognition still beneﬁts from the

combination of both sensor modalities.

Figure 11 shows the misclassiﬁcations when us-

ing only features extracted from the IMU signals. The

confusion matrix is largely similar to the one result-

ing from a combined usage of both modalities. This

underlines that for this system, EMG has rather small

inﬂuence on person-independent recognition results.

But some differences have to be addressed. The ges-

ture double click shows a higher false positive count

and is often given as the hypothesis for other gestures.

As was mentioned before, we assume that especially

the EMG signals are descriptive for ﬁst. It it therefore

consistent to this expectation, that the most prominent

degradation of performance is visible for the ﬁst ges-

ture, which was performing rather well when using

IMU and EMG together. Both its false positive and

BIOSIGNALS2015-InternationalConferenceonBio-inspiredSystemsandSignalProcessing

106

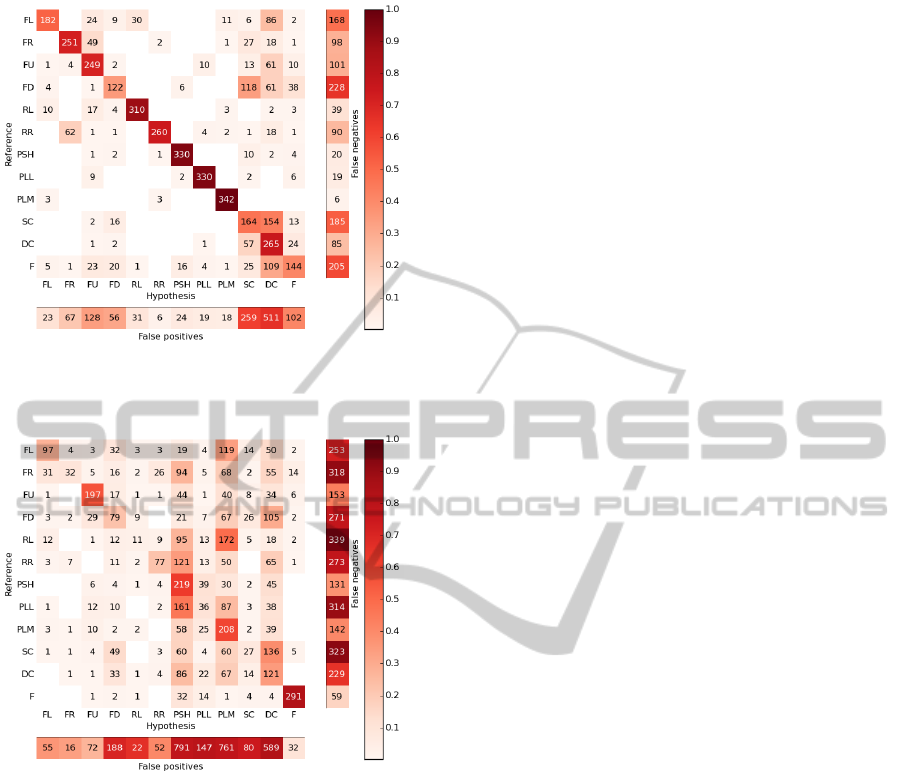

Figure 11: Confusion matrices for person-independent ges-

ture recognition. The recognizer used only the features ex-

tracted from the IMU signals. The labels follow Table 2.

Figure 12: Confusion matrices for person-independent ges-

ture recognition. The recognizer used only the features ex-

tracted from the EMG signals. The labels follow Table 2.

negative count are now rather high.

The diagonal character of the confusion matrix in

Figure 12, representing recognition using only EMG

features, is rather weak. Interestingly, no predom-

inant attractor classes are present. Also no distinct

block formations are visible, meaning that there is no

pronounced clustering of different gesture groups in

feature space. Instead, inter-person variance leads to

many confusions scattered across the confusion ma-

trix. The gestures ﬂick upwards and ﬁst both performe

exceedingly well using only EMG, thereby explain-

ing why they also perform well using both modalities

combined.

We expected person-independent gesture recog-

nition with EMG to be a hard task, as EMG sig-

nals vary from person to person and produce patterns

over the different channels that are hard to compare.

This explains, why only a few studies exist to person-

independent, solely EMG based gesture recognition.

Still, with 33.2% accuracy we perform better than

chance with 8.33%.

5 CONCLUSION

In this paper we present a system for recognizing hand

and ﬁnger gestures with IMU based motion and EMG

based muscle activity sensing. We deﬁne a set of

twelve gestures and record performances of these ges-

tures by ﬁve subjects in 25 sessions total. The result-

ing data corpus will be made publicly available. We

built a baseline recognition system using HMMs to

evaluate the usability of such a system. We achieve a

high accuracy of 97.8% for session-independent and

an accuracy of 74.3% for person-independent recog-

nition, which still has to be considered rather high

for person-independent gesture recognition on twelve

classes. With that, we show both the feasibility of

using IMUs and EMG for gesture recognition, and

the beneﬁts from using them in combination. We also

evaluate the contribution of the individual modalities,

to discuss their individual strengths and weaknesses

for our task.

ACKNOWLEDGEMENTS

This research was partly funded by Google through a

Google Faculty Research Award.

REFERENCES

Alibali, M. W. (2005). Gesture in spatial cognition: Ex-

pressing, communicating, and thinking about spa-

tial information. Spatial Cognition Computation,

5(4):307–331.

Amma, C., Georgi, M., and Schultz, T. (2014). Airwriting:

a wearable handwriting recognition system. Personal

and Ubiquitous Computing, 18(1):191–203.

Benbasat, A. Y. and Paradiso, J. A. (2001). An inertial mea-

surement framework for gesture recognition and ap-

plications. In Wachsmuth, I. and Sowa, T., editors, Re-

vised Papers from the International Gesture Workshop

on Gesture and Sign Languages in Human-Computer

Interaction, volume LNCS 2298 of Lecture Notes in

Computer Science, pages 9–20. Springer-Verlag.

Chen, X., Zhang, X., Zhao, Z., Yang, J., Lantz, V., and

Wang, K. (2007). Hand gesture recognition research

based on surface emg sensors and 2d-accelerometers.

In Wearable Computers, 2007 11th IEEE Interna-

tional Symposium on, pages 11–14.

RecognizingHandandFingerGestureswithIMUbasedMotionandEMGbasedMuscleActivitySensing

107

Cho, S.-J., Oh, J.-K., Bang, W.-C., Chang, W., Choi, E.,

Jing, Y., Cho, J., and Kim, D.-Y. (2004). Magic wand:

a hand-drawn gesture input device in 3-d space with

inertial sensors. In Frontiers in Handwriting Recogni-

tion, 2004. IWFHR-9 2004. Ninth International Work-

shop on, pages 106–111.

Hartmann, B. and Link, N. (2010). Gesture recognition

with inertial sensors and optimized dtw prototypes. In

Proceedings of the IEEE International Conference on

Systems, Man and Cybernetics, Istanbul, Turkey, 10-

13 October 2010, Proceedings of the IEEE Interna-

tional Conference on Systems, Man and Cybernetics,

Istanbul, Turkey, 10-13 October 2010, pages 2102–

2109. IEEE.

Hauptmann, A. G. and McAvinney, P. (1993). Gestures with

speech for graphic manipulation. International Jour-

nal of ManMachine Studies, 38(2):231–249.

Kim, D., Hilliges, O., Izadi, S., Butler, A. D., Chen, J.,

Oikonomidis, I., and Olivier, P. (2012). Digits: Free-

hand 3d interactions anywhere using a wrist-worn

gloveless sensor. In Proceedings of the 25th An-

nual ACM Symposium on User Interface Software and

Technology, UIST ’12, pages 167–176, New York,

NY, USA. ACM.

Kim, J., Mastnik, S., and Andr

e, E. (2008). Emg-based

hand gesture recognition for realtime biosignal inter-

facing. In Proceedings of the 13th International Con-

ference on Intelligent User Interfaces, volume 39 of

IUI ’08, pages 30–39, New York, NY, USA. ACM

Press.

Li, Y., Chen, X., Tian, J., Zhang, X., Wang, K., and Yang, J.

(2010). Automatic recognition of sign language sub-

words based on portable accelerometer and emg sen-

sors. In International Conference on Multimodal In-

terfaces and the Workshop on Machine Learning for

Multimodal Interaction, ICMI-MLMI ’10, pages 17–

1, New York, NY, USA. ACM.

Mistry, P., Maes, P., and Chang, L. (2009). WUW-wear Ur

world: a wearable gestural interface. Proceedings of

CHI 2009, pages 4111–4116.

Oviatt, S. (1999). Ten myths of multimodal interaction.

Communications of the ACM, 42(11):74–81.

Rabiner, L. (1989). A tutorial on hidden markov models

and selected applications in speech recognition. Pro-

ceedings of the IEEE, 77(2):257–286.

Rekimoto, J. (2001). GestureWrist and GesturePad: un-

obtrusive wearable interaction devices. Proceedings

Fifth International Symposium on Wearable Comput-

ers.

Samadani, A.-A. and Kulic, D. (2014). Hand gesture recog-

nition based on surface electromyography. In En-

gineering in Medicine and Biology Society (EMBC),

2014 36th Annual International Conference of the

IEEE.

Saponas, T. S., Tan, D. S., Morris, D., and Balakrishnan, R.

(2008). Demonstrating the feasibility of using forearm

electromyography for muscle-computer interfaces. In

Proceedings of the SIGCHI Conference on Human

Factors in Computing Systems, CHI ’08, pages 515–

524, New York, New York, USA. ACM Press.

Wolf, M. T., Assad, C., Stoica, A., You, K., Jethani, H.,

Vernacchia, M. T., Fromm, J., and Iwashita, Y. (2013).

Decoding static and dynamic arm and hand gestures

from the jpl biosleeve. In Aerospace Conference, 2013

IEEE, pages 1–9.

Zhang, X., Chen, X., Li, Y., Lantz, V., Wang, K., and Yang,

J. (2011). A framework for hand gesture recognition

based on accelerometer and emg sensors. Systems,

Man and Cybernetics, Part A: Systems and Humans,

IEEE Transactions on, 41(6):1064–1076.

BIOSIGNALS2015-InternationalConferenceonBio-inspiredSystemsandSignalProcessing

108
