Information Fusion for Semi-supervised Cluster Labelings

Huaying Li and Aleksandar Jeremic

∗

Department of Electrical and Computer Engineering, McMaster University

Hamilton, Ontario, Canada

Keywords:

Clustering, Information Fusion, Cluster Ensemble and Semi-supervised Learning.

Abstract:

Clustering analysis is a widely used technique to ﬁnd hidden patterns of a data set. Combining multiple

clustering results into a consensus clustering (cluster ensemble) is a popular and efﬁcient method to improve

the quality of clustering analysis. Many algorithms were proposed in the literature and most of which are

unsupervised learning techniques. In this paper, we proposed a semi-supervised cluster ensemble algorithm.

It is so-called semi-supervised because labels of some data points in the given data set are known or provided

by experts. To evaluate the performance of the proposed algorithm, we compare it with other well-known

algorithms, such as MCLA and BCE.

1 INTRODUCTION

Mutation is accidental changes in genomic sequence

of DNA (Pickett, 2006). Studies of mutation are

usually completed using ﬂuorescence microscopy, an

important tool for visualizing biochemical activity

within individual cells. In the past, analysis of these

images was done manually through visual inspection,

which sometimes leads to a time consuming and inac-

curate conclusion. Nowadays, automated image anal-

ysis techniques are developed, such as high content

analysis (HCA). It is the use of automated microscopy

and high end computation to understand the complex

biological processes. It typically involves acquiring

high resolution images and translating them into a

multi-dimensional feature space, which spans hun-

dreds of features per ﬂuorescence channel and will be

further processed to provide relevant output (Shariff

et al., 2010). Cluster analysis is a widely used tech-

nique to ﬁnd the hidden patterns or structure of a data

set. The objective is to divide data points into dis-

tinct clusters so that data points in the same cluster are

similar to each other and data points in different clus-

ter are dissimilar. Cluster analysis is also one popu-

lar machine learning technique to further process data

obtained from feature extraction step of HCA.

Although there are many clustering algorithms ex-

ist in the literature, such as hierarchical, centroid-

based, distribution-based and graph theory-based al-

gorithms, no single algorithm can correctly identify

underlying structure of all data sets in practice (Xu

∗

This work was supported by Natural Sciences and En-

gineering Research Council of Canada.

and Wunsch, 2008). It is usually difﬁcult to decide

which algorithm should be applied for a given data

set when prior information about the cluster shape

and size are not provided. Furthermore, for a partic-

ular clustering algorithm, it usually generates differ-

ent clustering labels for a given data set by choosing

different initial start points or different parameter set-

ting of the algorithm. Combing multiple clusterings

into a consensus labeling is a hard problem because of

two reasons: (1) number of clusters in each clustering

could be different and the desired number of clusters

is usually unknown; (2) cluster labels are symbolic

so there is also a correspondence problem. In (Vega-

Pons and Ruiz-Shulcloper, 2011), the authors provide

a detailed review of many existing algorithms: some

algorithms are based on relabeling and voting; some

are based on co-association matrix; Some are based

on graph and hypergraph representation of cluster-

ings; some are based on ﬁnite mixture models and

etc. All of these algorithms are unsupervised learning

because input data set is unlabeled and clusters are

not pre-deﬁned. Also, most of cluster ensemble algo-

rithms consists of two major steps: cluster ensemble

generation and consensus fusion.

In this paper, we propose a semi-supervised clus-

ter ensemble method. The term semi-supervised

means labels of some data points are available and

are utilized in the fusion stage. In next section we

brieﬂy describe the cluster ensemble problem and in-

troduce the structure of multiple clustering system. In

the following section, we propose a semi-supervised

algorithm for combing multiple clusterings. Then we

provide several numerical examples to illustrate the

318

Li H. and Jeremic A..

Information Fusion for Semi-supervised Cluster Labelings.

DOI: 10.5220/0005282203180323

In Proceedings of the International Conference on Bio-inspired Systems and Signal Processing (BIOSIGNALS-2015), pages 318-323

ISBN: 978-989-758-069-7

 2015 SCITEPRESS (Science and Technology Publications, Lda.)

algorithm and evaluate performance of the algorithm

using different types of data sets. Finally, we give a

conclusion in the last section.

2 CLUSTER ENSEMBLE

PROBLEM

For a given data set, it depends on its characteristic to

choose an appropriate clustering algorithm with some

suitable parameter settings. It also depends on the

purpose of the use of the clustering results. Therefore,

utilizing cluster analysis techniques to obtain multi-

ple clusterings and combining them into a consensus

clustering is an efﬁcient way to improve the quality

of clustering. The objective is to obtain a consensus

clustering containing the most information from each

individual clustering. In this section, we ﬁrst intro-

duce some notation to describe the cluster ensemble

problem and then deﬁne our multiple clustering sys-

tem.

Let X = {x

,...,x

} denote a set of N data

points and each data point x

(for n = 1,...,N) comes

from a F-dimensional feature space. Clustering tech-

nique is used to partition the data set into some

smaller sets, denoted as k clusters, in the way that

data points in a cluster are more similar to each other

than to those in different clusters. A clusterer Φ rep-

resents the function of generating a clustering result,

which is stored in a N-dimensional label vector. The

idea of cluster ensemble is represented in Fig. 1. For

a given data set X, a clusterer Φ

( j)

is used to parti-

tion the data into k

clusters and cluster labels are

stored in λ

( j)

, where j = 1,2,...,M. A set of clus-

terings Λ = {λ

(1)

,λ

(2)

,...,λ

(M)

} is generated by al-

ternating the clustering algorithm M times in each

clusterer or choosing different parameter settings (i.e.

choosing different numbers of clusters for each clus-

terer or choosing different initial cluster centers and

etc.). Multiple clusterings are fused later by a consen-

sus function Γ in order to obtain a single label vector

λ, a more reliable partition of the given data.

In Fig 1, arrows on the left represent the genera-

tion step and arrows on the right represent the con-

sensus step. On the one hand, there is usually no

constrains on how to generate the multiple cluster-

ings. There are several possibilities in the generation

process: using different clustering algorithms; using

the same clustering algorithm with different initializa-

tions and/or different parameter settings; using sub-

sets of features of data points and using random pro-

jections on different subspaces. On the other hand,

the consensus step is the core step to obtain a con-

solidated single clustering result. In this paper, we

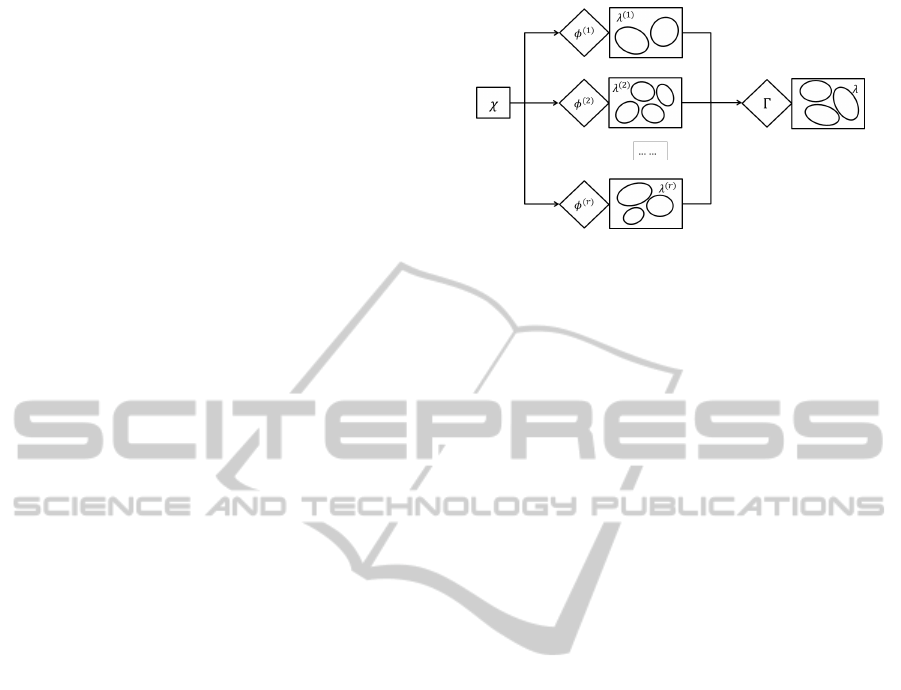

Figure 1: Multiple Clustering System.

propose an algorithm that is based on relabeling and

voting. Different from the existing algorithms work-

ing with unlabeled data, our proposed algorithm deals

with data set that is partially labeled. We call it semi-

supervised cluster ensemble algorithm.

3 PROPOSED ALGORITHM

In this section, we propose our semi-supervised algo-

rithm on information fusion of multiple clusterings.

It contains three major steps: pre-clustering, cluster

ensemble generation and consensus fusion.

3.1 Pre-clustering

Usually in every ﬁeld of study, opinions from experts

are available but limited due to many factors. Our

assumption is that for a given data set experts or re-

sources are available to provide future cluster labels

for a certain portion of all data points. In the pre-

clustering step, we randomly select p% (p is a pre-

determined number) of data points in X to be refer-

ence points. Data set X is thus divided into two sub-

sets: reference set and unknown set. Reference set

contains reference data points and unknown set X

consists of the rest of data points called undetermined

points. Experts analyze on reference set X

and group

the reference points into clusters. We call these clus-

ters as reference clusters. These clustering labels of

reference points are useful later in consensus fusion

and we call them reference labels. Suppose the num-

ber of reference clusters is k

. Reference set X

could

be divided into k

sub-sets: {X

,...,X

}, where X

(for k = 1,. . . , k

) contains the data points in the k-th

reference cluster. Since reference points are randomly

selected, we assume the number of desired clusters

for the whole data set X should be consistent with the

number of reference clusters k

InformationFusionforSemi-supervisedClusterLabelings

319

3.2 Cluster Ensemble Generation

Different clustering algorithms provide different clus-

ter labels for the same data set since they focus on

different aspects of data (Topchy et al., 2004). Due

to its simplicity, k-means algorithm is a widely used

algorithm to provide individual clustering in genera-

tion step of cluster ensemble algorithm. By choos-

ing a number k quite larger than the expected num-

ber of clusters, k-means algorithm is capable to divide

data points into k smaller groups. Such a small group

of data pints usually is able to capture some details

of the structure of the entire data set, while some of

these smaller groups may need to be merged together

to form a cluster because their common properties.

In (Fred and Jain, 2005), cluster ensemble is gen-

erated by running k-means algorithm multiple times

with random initializations. The number of clusters

for each run is randomly selected from a set of inte-

gers (much greater than k

). We used a similar gen-

eration mechanism to obtain cluster ensemble in this

paper. For data set X (reference and unknown sets to-

gether), k-means algorithm is applied M times to gen-

erate M individual clusterings, which form a N-by-M

label matrix Λ. Entry of Λ on the i-th row and j-th

column Λ

i, j

is the cluster label of x

according to j-

th clustering. In previous pre-clustering step, data set

X is divided into k

+ 1 subsets: k

reference clusters

and an unknown set (i.e. X = {X

,...,X

}).

Accordingly, matrix Λ could be segmented into k

parts: Λ

,Λ

,...,Λ

,Λ

3.3 Consensus Fusion

Consensus fusion of multiple clusterings is the core

step of the proposed algorithm. The fusion idea is

stated as follow: according to an individual cluster-

ing, count the number of agreements between label

of a data point in unknown set and labels of reference

points in each reference clusters; assign this data point

the corresponding cluster label which has the highest

number of agreements; repeat the procedure for all the

clusterings and determine the ﬁnal cluster label based

on some fusion rule. The summary of the proposed

algorithm is stated in Table 1.

Suppose for k = 1, . . . , k

is the number of ref-

erence points in the k-th reference cluster and R is the

total number of reference points. Thus, R = R

···+ R

and the total number of undetermined points

is N − R. For the i-th undetermined data point x

and

the j-th clustering λ

( j)

(where i = 1,...,N − R and

j = 1, . . . , M), the association vector a

contains k

entries, each of which describes the association of x

and a reference cluster.

Table 1: Semi-supervised clustering ensemble algorithm.

1. Pre-clustering

(a) Choose p% of data points and obtain ref-

erence labels (1,...,k

)

2. Cluster Ensemble Generation

(a) Apply clusterer Φ

( j)

to data set X and ob-

tain individual clustering λ

( j)

(b) Repeat M times to form a label matrix

Λ = {Λ

,Λ

,...,Λ

,Λ

}

3. Consensus Fusion

(a) Assign undetermined data points their

most associated cluster ids (highest en-

try in association vector) according to la-

bel vector λ

. Association vector is com-

puted by

(k) =

occurrence of Λ

(i, j)in Λ

(:, j)

#of points in kth reference cluster

(b) Repeated M times to form new sub-

matrix Λ

clustering

Recall that for the undetermined data points the

corresponding segment of label matrix Λ is Λ

. Fu-

sion rule, such as majority voting, is difﬁcult to ap-

ply directly to Λ

due to the correspondence problem

of cluster labels. A new matrix is necessary in or-

der to apply fusion rule to generate the consensus la-

bels. Based on the relabeling scheme we described

above, according to a clustering λ

( j)

, assign undeter-

mined data points their most associated cluster labels

(highest entry in the corresponding association vec-

tor) and repeat M times to form a new matrix Λ

. In

this new label matrix, the correspondence problem is

removed by utilizing the reference labels. We could

apply any fusion rule to obtain the consensus cluster-

ing. In this paper, we use plurality voting scheme to

generate the ﬁnal consensus label.

4 ALGORITHM EXTENSION

FOR LARGE DATA SETS

Our proposed algorithm requires number of reference

labels is sufﬁcient (i.e the ratio of the number of ref-

erence points and the size of data set is greater than

a certain percentage p%). Due to the fact that ex-

pertise or resource is usually expensive and limited,

the proposed algorithm is only suitable for data set

with a moderate size. For a large data set, we pro-

BIOSIGNALS2015-InternationalConferenceonBio-inspiredSystemsandSignalProcessing

320

Table 2: Extended version of Semi-supervised clustering

ensemble algorithm.

• Pre-clustering: Choose p% of data points

and obtain reference labels (1,...,k

)

• If

≥ p%, do step 2) and 3) in TABLE 1

to obtain λ

• If

< p%, Q = d

1−p

N−R

– for q = 1 : Q

= {X

}, where X

is the q-th sub-

set of X

do step 2) and 3) in TABLE 1 on X

obtain λ

end

– λ

= {λ

,λ

,...,λ

}

Table 3: Data sets from UCI machine learning repository.

Data Set Data Points Features Classes

Ionosphere 351 34 2

Pima 768 8 2

Balance 625 4 3

Wine 178 13 3

Segmentation 2100 19 7

pose to divide the undetermined set X

into several

smaller sub-sets and to apply the proposed algorithm

on each subset combined with the reference set. Re-

call that N is the total number of data points in X

and R is the number of reference points. If

< p%,

we divide the undetermined set X

into Q sub-sets, i.

e. X

= {X

,...,X

}, where Q = d

1−p

N−R

Function dxe is the ceil function: the smallest integer

not less than x.

For q = 1, . . . , Q, denote the combination of refer-

ence data set and the q-th subset of X

as a new data

set X

= {X

}. Apply the semi-supervised clus-

ter ensemble algorithm to X

and generate consen-

sus clustering λ

and repeat it Q times. Combine the

Q segments together to form the overall consolidated

clustering of the whole undetermined set X

, where

= {λ

,λ

,...,λ

}. The summary of the extended

version of proposed algorithm is stated in Table 3.

5 EXPERIMENTAL RESULTS

AND DISCUSSION

In this section, we provide several numerical exam-

ples to show the performance of the proposed algo-

rithm. UCI machine learning repository website pro-

vides hundreds of data sets for machine learning re-

searchers (Bache and Lichman, 2013). We choose

Table 4: Maximum micro-precision of proposed algorithm

with selected percentages of reference.

Maximum p = 5% p = 10% p = 15%

Ionosphere 0.8034 0.8917 0.9345

Pima 0.6523 0.6914 0.7630

Balance 0.7456 0.7648 0.7872

Wine 0.4888 0.6404 0.7022

Segmentation 0.7652 0.7881 0.8262

Maximum p = 20% p = 25% p = 30%

Ionosphere 0.9345 0.9402 0.9459

Pima 0.7617 0.7773 0.7878

Balance 0.8096 0.8032 0.8240

Wine 0.6966 0.7640 0.7865

Segmentation 0.8129 0.8214 0.8367

Table 5: Average micro-precision of proposed algorithm

with selected percentages of reference.

Average p = 5% p = 10% p = 15%

Ionosphere 0.7929 0.8721 0.9248

Pima 0.5997 0.6837 0.7510

Balance 0.7162 0.7304 0.7496

Wine 0.4640 0.6163 0.6702

Segmentation 0.7543 0.7719 0.8078

Average p = 20% p = 25% p = 30%

Ionosphere 0.9262 0.9319 0.9239

Pima 0.7436 0.7638 0.7809

Balance 0.7778 0.7862 0.8008

Wine 0.6478 0.7433 0.7584

Segmentation 0.8057 0.8110 0.8284

ﬁve data sets from their website to evaluate the per-

formance of our proposed algorithm. The information

about the chosen data sets are listed in Table 3.

Since in our experiments testing data sets have

true labels associated with them, we choose micro-

precision (mp) as our metric to measure the accu-

racy of a clustering result with respect to the true

clustering (Wang et al., 2011). Suppose there are k

classes in truth for a given data set X with N data

points. Suppose N

is the number of data points in

the k-th cluster of a clustering result that are correctly

assigned to the corresponding class. Corresponding

class here represents the true class that has the largest

overlap with the k-cluster. The micro-precision is de-

ﬁned by mp =

∑

k=1

/N. As mentioned at the be-

ginning of this paper, many cluster ensemble algo-

rithms exist in the literature. We compared our algo-

rithm withMCLA and CSPA proposed in (Strehl and

Ghosh, 2003) and MM and BCE presented in (Wang

et al., 2011). The authors of (Vega-Pons and Ruiz-

Shulcloper, 2011) provide a brief review and the core

idea of these algorithms. True cluster labels of the

data sets listed in Table 3 are available throughout

UCI website.

InformationFusionforSemi-supervisedClusterLabelings

321

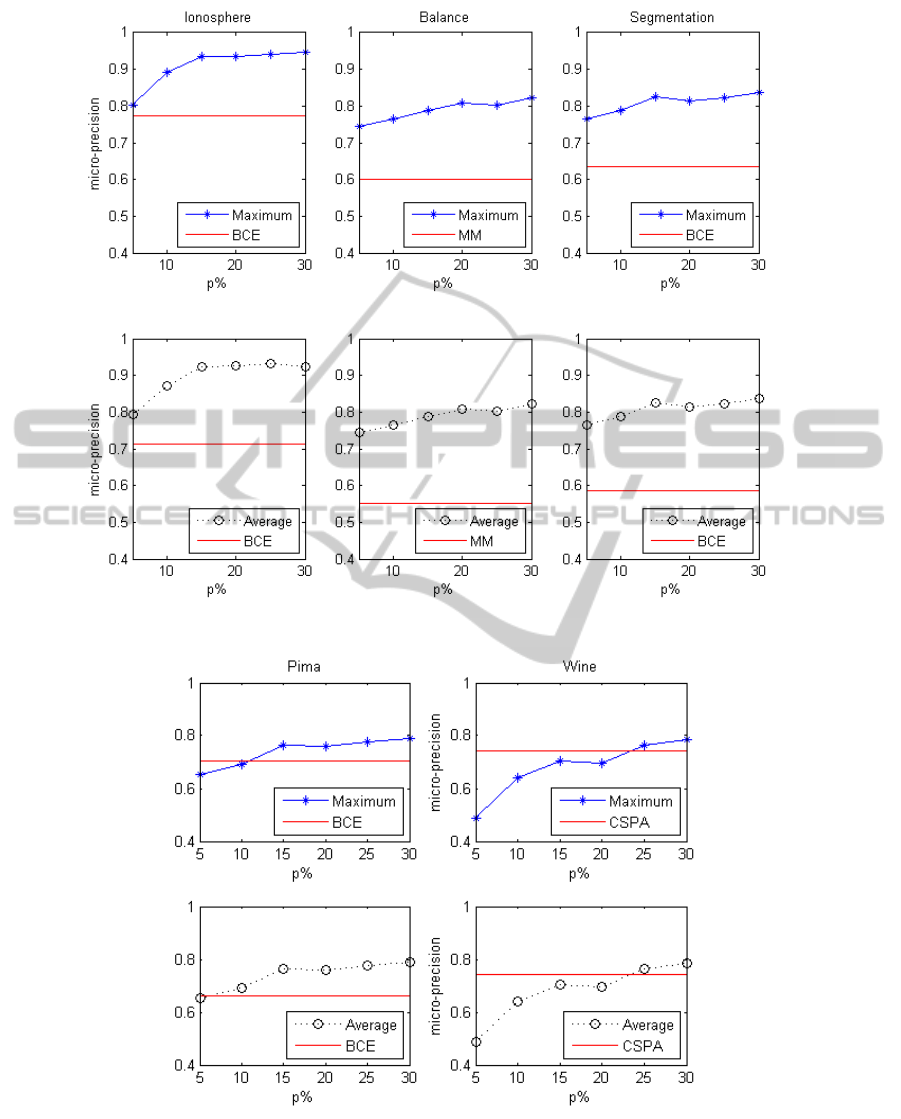

Figure 2: Micro-precision of proposed algorithm compared with other algorithms Part I.

Figure 3: Micro-precision of proposed algorithm compared with other algorithms Part II.

In our experiments, we randomly select p% of

data points and use the corresponding true labels of

these points as reference labels where M = 15 is used

to generate the ensemble. We start with p = 5 and in-

crease the percentage of reference points with a 5%

increment. The maximum and average performance

of our proposed semi-supervised cluster ensemble al-

gorithm are listed in Table 4 and Table 5 respec-

BIOSIGNALS2015-InternationalConferenceonBio-inspiredSystemsandSignalProcessing

322

tively. Compared with experimental results reported

in (Wang et al., 2011), Figure 2 and Figure 3 show that

the proposed algorithm could provide higher micro-

precisions in most of our experiments. In the ﬁg-

ures each column represents one data set. The up-

per plots show the maximum performance while the

lower plots show the average performance. The x-

axis represents the percentage of reference points and

y-axis displays the micro-precision of the proposed

algorithm. The more reference points used, the bet-

ter performance obtained. There is a horizontal line

in each plot, which represents the corresponding best

micro-precision reported in (Wang et al., 2011). For

data sets Ionosphere, Balance and Segmentation, us-

ing only 5% of reference labels could generate a con-

sensus clustering with much higher micro-precision.

For data sets Pima and Wine, increasing the amount

of reference points is able to generate a more precise

consensus clustering.

We also apply the proposed algorithm to a

biomedical data set which was obtained using Perkin

Elmar high content imaging system. The data is

used to study human breast cancer cells undergoing

treatement of different drugs. In our experiment, data

points are from four different treatments. As prelim-

inary results, our proposed algorithm is able to label

75% of data points correctly by using 5% of reference

data points and 86% correctly by using 20% of refer-

ence.

REFERENCES

Bache, K. and Lichman, M. (2013). UCI machine learning

repository.

Fred, A. L. and Jain, A. K. (2005). Combining multi-

ple clusterings using evidence accumulation. Pat-

tern Analysis and Machine Intelligence, IEEE Trans-

actions on, 27(6):835–850.

Pickett, J. P. (2006). The American heritage dictionary of

the English language. Houghton Mifﬂin.

Shariff, A., Kangas, J., Coelho, L. P., Quinn, S., and Mur-

phy, R. F. (2010). Automated image analysis for high-

content screening and analysis. Journal of biomolec-

ular screening, 15(7):726–734.

Strehl, A. and Ghosh, J. (2003). Cluster ensembles—

a knowledge reuse framework for combining multi-

ple partitions. The Journal of Machine Learning Re-

search, 3:583–617.

Topchy, A. P., Jain, A. K., and Punch, W. F. (2004). A mix-

ture model for clustering ensembles. In SDM, pages

379–390. SIAM.

Vega-Pons, S. and Ruiz-Shulcloper, J. (2011). A survey of

clustering ensemble algorithms. International Jour-

nal of Pattern Recognition and Artiﬁcial Intelligence,

25(03):337–372.

Wang, H., Shan, H., and Banerjee, A. (2011). Bayesian

cluster ensembles. Statistical Analysis and Data Min-

ing, 4(1):54–70.

Xu, R. and Wunsch, D. (2008). Clustering, volume 10. John

Wiley & Sons.

InformationFusionforSemi-supervisedClusterLabelings

323
