Estimation of Human Orientation using Coaxial RGB-Depth Images
Fumito Shinmura
1
, Daisuke Deguchi
2
, Ichiro Ide
3
, Hiroshi Murase
3
and Hironobu Fujiyoshi
4
1
Institute of Innovation for Future Society, Nagoya University, Furo-cho, Chikusa-ku, Nagoya, Aichi, Japan
2
Information & Communications, Nagoya University, Furo-cho, Chikusa-ku, Nagoya, Aichi, Japan
3
Graduate School of Information Science, Nagoya University, Furo-cho, Chikusa-ku, Nagoya, Aichi, Japan
4
Department of Robotics Science and Technology, Chubu University, 1200 Matsumoto-cho, Kasugai, Aichi, Japan
Keywords:
Human Orientation Estimation, Single-chip RGB-ToF Camera, RGB-D.
Abstract:
Estimation of human orientation contributes to improving the accuracy of human behavior recognition. How-
ever, estimation of human orientation is a challenging task because of the variable appearance of the human
body. The wide variety of poses, sizes and clothes combined with a complicated background degrades the
estimation accuracy. Therefore, we propose a method for estimating human orientation using coaxial RGB-
Depth images. This paper proposes Depth Weighted Histogram of Oriented Gradients (DWHOG) feature
calculated from RGB and depth images. By using a depth image, the outline of a human body and the texture
of a background can be easily distinguished. In the proposed method, a region having a large depth gradient
is given a large weight. Therefore, features at the outline of the human body are enhanced, allowing robust
estimation even with complex backgrounds. In order to combine RGB and depth images, we utilize a newly
available single-chip RGB-ToF camera, which can capture both RGB and depth images taken along the same
optical axis. We experimentally confirmed that the proposed method can estimate human orientation robustly
to complex backgrounds, compared to a method using conventional HOG features.
1 INTRODUCTION
Vision based human behavior recognition is widely
used in security surveillance (Hu et al., 2004), con-
sumer demand research (Hu et al., 2009), and gesture
recognition (Chen and Koskela, 2014). Since the esti-
mation of the human orientation is important for im-
proving the accuracy of human behavior recognition,
we are focusing on the accurate estimation of human
orientation. A common approach for obtaining hu-
man orientation refers to the walking trajectory esti-
mated by an object tracking technique. However, in
the case of a moving camera, it is difficult to obtain a
correct human walking trajectory. Therefore, this pa-
per proposes a method to estimate human orientation
using a single-shot image. In this paper, the human
orientation is defined as shown in Fig. 1.
The human orientation estimation problem has
been approached by many research groups, and vari-
ous methods have been proposed. Gandhi and Trivedi
used Histogram of Oriented Gradients (HOG) fea-
tures and a support vector machine (SVM) for the es-
timation (Gandhi and Trivedi, 2008). Weinrich et al.
used HOG features and a decision tree with SVMs
for the estimation (Weinrich et al., 2012). Methods
for human pose estimation have been also proposed,
and the human orientation can be understood from the
human pose. Straka et al. used skeleton graph extrac-
tion and skeleton model fitting (Straka et al., 2011),
and Shotton et al. used body part classification and
offset joint regression by randomized forests for esti-
mating human pose (Shotton et al., 2013).
In the above methods, an RGB image is often used
for the estimation of human orientation. Most of these
methods calculate image features, such as intensity
gradients and human body textures. These image fea-
tures are effective to distinguish shapes and appear-
ances of each pose. However, the image features are
easily affected by a complicated background, since it
has variable texture patterns, including a texture sim-
ilar to a human body. In such case, the distinction
between the outline of a human body and the texture
of a background is difficult. Accordingly, the accu-
racy of orientation estimation is often degraded by the
background scene.
On the other hand, some techniques using depth
information have also been reported. In these meth-
ods, a depth image is utilized to represent 3D rela-
113
Shinmura F., Deguchi D., Ide I., Murase H. and Fujiyoshi H..
Estimation of Human Orientation using Coaxial RGB-Depth Images.
DOI: 10.5220/0005305301130120
In Proceedings of the 10th International Conference on Computer Vision Theory and Applications (VISAPP-2015), pages 113-120
ISBN: 978-989-758-090-1
Copyright
c
2015 SCITEPRESS (Science and Technology Publications, Lda.)
0r 45r 180r 225r 270r 315r90r 135r
0
180
90 270
0
180
90 270
0
180
90 270
0
180
90 270
0
180
90 270
0
180
90 270
0
180
90
270
0
180
90
270
㼻
㼻
㼻 㼻
㼻
㼻
㼻 㼻
㼻
㼻
㼻 㼻
㼻
㼻
㼻
㼻
㼻
㼻 㼻
㼻
㼻
㼻 㼻
㼻
㼻
㼻 㼻
㼻
㼻
㼻

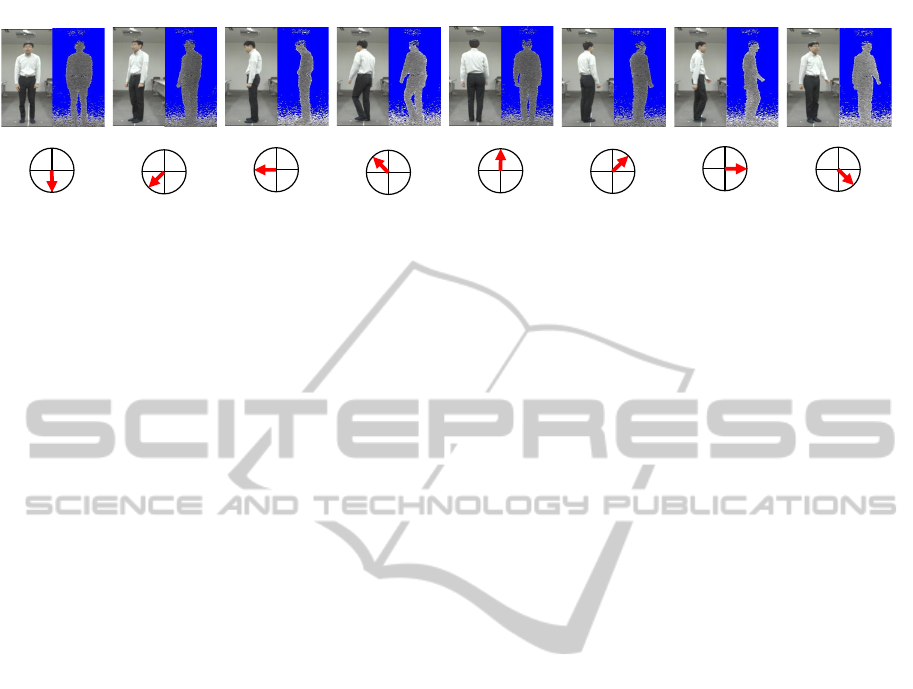

Figure 1: Example of images of human orientation.
tionships of body parts. Shotton et al. proposed the
depth comparison feature (Shotton et al., 2013) which
is defined as the difference of depth between two pix-
els. Since the depth of the human body and the back-
ground differ significantly, a human body region can
easily be extracted. However, since body textures
cannot be obtained from the depth image, it is dif-
ficult to distinguish between the front view and the
back view of the human body.
Since a difference of depth occurs on the outline,
but not on the pattern, the outline of human body and
the texture of background can easily be distinguished
by using depth images. Thus methods using depth im-
ages are expected to overcome the drawback of RGB
image features. Therefore, combining RGB and depth
images should also be effective for estimating human
orientation.
In recent years, RGB-D cameras such as Mi-
crosoft Kinect have become commercially available.
Liu et al. proposed a method for estimating hu-
man orientation using an RGB-D camera (Liu et al.,
2013). Their method uses a viewpoint feature his-
togram for static cues and scene-flow information for
motion cues, and combines these cues using a dy-
namic Bayesian network system. Human orientation
is estimated based on these combined cues. However,
this method cannot be applied to a moving camera
and cannot estimate orientation when human tracking
fails. Therefore, it is necessary to develop a method
for estimating human orientation from a single-shot
image. Additionally, although this kind of RGB-D
camera can obtain both RGB and depth images simul-
taneously, the RGB and depth images are captured
along different optical axes. Therefore, it is impor-
tant to consider the difference of optical axes when
calculating features for orientation estimation.
To overcome the above problems, this paper pro-
poses a method for estimating human orientation from
a single-shot image. In addition, the proposed method
introduces the usage of a newly available single-chip
RGB-ToF camera, which can capture both RGB and
depth images along the same optical axis. By using
this camera, this paper proposes an RGB-D image
feature that considers the coaxial characteristics of the
camera. Contributions of this paper are as follows:
(1) First research on human orientation estimation us-
ing a single-chip RGB-ToF camera.
(2) Proposal of Depth Weighted HOG (DWHOG)
feature, which is a variant of the HOG feature that
suppresses the influence of the background tex-
ture.
In the following, the single-chip RGB-ToF camera
is explained in section 2. The proposed method is
presented in section 3. The results of the experiments
are discussed in section 4. Finally, we conclude this
paper in section 5.
2 SINGLE-CHIP RGB-ToF
CAMERA
In this paper, we make use of a single-chip RGB-ToF
(RGB-D) camera for human orientation recognition.
Currently, RGB-D cameras are widely used in many
applications, such as consumer games with Kinect.
However, most of them consist of a separate RGB
camera and a depth camera, so they do not share the
same optical axis. Therefore, it is difficult to integrate
information from both cameras to improve the accu-
racy of human orientation recognition. To overcome
this problem, we introduce the usage of a newly avail-
able single-chip coaxial RGB-ToF camera (Panasonic
MN34901TL). Figure 2 shows the images acquired
by this camera. This camera can coaxially acquire an
RGB image and an infrared image, and it has an abil-
ity to measure the target depth by the Time-of-Flight
(ToF) principle using infrared light. This camera al-
lows us to use spatially aligned RGB and depth data
simultaneously as shown in Fig. 3, and by combining
the two, we expect to improve the accuracy of human
orientation estimation.
VISAPP2015-InternationalConferenceonComputerVisionTheoryandApplications
114
(a) RGB image.
Far
Blue: Impossible to be measured
(b) Depth image.
Figure 2: Example of images acquired from the RGB-ToF
camera. The blue regions in the depth image are impossible
to be measured since they are outside the sensor range.
RGB
Depth
Overlapped
(a) Coaxial.
RGB
Depth
Overlapped
Gap
(b) Non-coaxial.
Figure 3: Coaxial and non-coaxial RGB-D images.
3 ESTIMATION OF HUMAN
ORIENTATION BY
SINGLE-CHIP RGB-ToF
CAMERA
This section presents the method that we propose for
human orientation estimation using the coaxial RGB-
D camera. Figure 4 shows the process flow of the
proposed method.
3.1 Basic Idea
The proposed method consists of the following four
steps:
1. Noise reduction of the depth image by referring to
the RGB image.
2. Computation of features from coaxial RGB-Depth
images.
3. Construction of a classifier for human orientation
estimation.
4. Estimation of human orientation.
Given RGB and depth images from the RGB-ToF
camera, we first reduce noise from the depth images.
Since depth images are easily affected by noise from
the environment and the sensor itself, it is very im-
portant to reduce them. As we noticed that RGB im-
ages can be observed with slightly less noise in com-
parison with depth images, the proposed method tries
to reduce the noise of the depth image by using in-
formation from the coaxially obtained RGB image,
with a cross-bilateral filter (Pestschnigg et al., 2004;
Yang et al., 2013). Here, the coefficients of the cross-
bilateral filter are calculated from the RGB image.
Next, the RGB-D features are computed. The ap-
pearance features such as the shape and the texture
of a human body can be obtained from the RGB im-
age. Since the appearance of the human body changes
depending on orientation, we decided to employ the
HOG feature to represent the appearance. However,
the RGB image features are easily affected by the
background texture. Therefore, the influence of the
background is reduced by emphasizing the human
body outline provided by the depth image. The HOG
features are weighted according to the magnitude of
depth gradient. Weighting the region with a large
depth gradient, which corresponds to the outline of
a human body, with a larger weight provides robust-
ness to a textured background, while preserving tex-
ture areas within the human body outline. These are
expected to allow robust estimation to complex back-
grounds.
Finally, human orientation is classified into a dis-
crete number of direction in orientation estimation.
In this paper, the human body orientation estimation
problem is approached by classifying human orienta-
tion into eight directions (0
◦
, 45
◦
, . . . , 315
◦
) as shown
in Fig. 1. Therefore, a multi-class SVM is used for es-
timating the human orientation. For implementation,
we use LIBSVM (Chang and Lin, 2011), which is a
library for support vector machines.
3.2 Training Phase
In the training phase, we construct the estimator for
human orientation, as shown in the left side of Fig. 4.
The depth image is first smoothed, and the RGB-D
features are computed from each RGB and depth im-
age pairs. These computed features are combined,
and the estimator is constructed by training these fea-
tures.
3.2.1 Noise Reduction of the Depth Image
Referring to the RGB Image
Assuming the image coordinate of the pixel of an in-
terest to be x, the noise reduction using coaxial RGB-
D characteristic can be formulated as a cross-bilateral
filter (Pestschnigg et al., 2004) as
EstimationofHumanOrientationusingCoaxialRGB-DepthImages
115
Training data (0π)
Training data (45π)
Training data (90π)
Training dataset
Noise reduction of depth images
Depth image
Depth image
after noise reduction
Cross-bilateral
filtering
RGB image
Training data (315π)
Computation of features
0° 160°
RGB and depth images
Image features
Construction of estimator
Features (45π)
Features (0π)
1
Features (315π)
Training
Human
orientation
estimator
Training Phase Estimation Phase
Input data
Estimation of human orientation
Features
Human
orientation
estimator
Result: 315π
0π
180π
Figure 4: Process flow of the proposed method.
F(x) =
∑
x
′
∈N(x)
w
d
(x, x
′
)w
v
(g(x), g(x
′
)) f (x)
∑
x
′
∈N(x)
w
d
(x, x
′
)w
v
(g(x), g(x
′
))
, (1)
w
d
(x, x
′
) = exp(−
||x − x
′
||
2
2σ
2
1
), (2)
w
v
(g(x), g(x
′
)) = exp(−
(g(x) − g(x
′
))
2
2σ
2
2
), (3)
where N(x) are neighborhood pixels of x, x
′
is the
coordinates of a pixel in N(x), σ
1
and σ
2
are smooth-
ing parameters, respectively. Functions f (·) and g(·)
represent the pixel values of the depth image and that
of the RGB image, respectively. Function w
d
is the
weight assigned according to the spatial distance, and
w
v
is the weight assigned according to the difference
of pixel values, as shown in Eqs. (2) and (3).
An example by applying this cross-bilateral filter
to a depth image is shown in Fig. 5. Cross-bilateral
filtering reduced noise while preserving the outline of
the object, and filled in the pixel gaps. Figure 5 also
shows how bumps on the outline of the object and the
salt and pepper noise are removed after applying the
cross-bilateral filter.
(a) Before application. (b) After application.
Figure 5: Example of depth images before and after apply-
ing the cross-bilateral filter.
3.2.2 Computation of Depth Weighted HOG
(DWHOG) Features
This paper proposes a HOG feature weighted by the
magnitude of depth gradient, which we name the
“Depth Weighted HOG (DWHOG)”.
The original HOG feature is computed from RGB
images as in (Dalal and Triggs, 2005). The gradient
strengths of HOG features are generally computed as
m(x) =
√
(
d
dx
g(x)
)
2
+
(
d
dy
g(x)
)
2
, (4)
where x is the image coordinate of the pixel, m(x)
is the gradient strength at x.
d
dx
g(x) and
d
dy
g(x) are
horizontal and vertical differential values of intensity
VISAPP2015-InternationalConferenceonComputerVisionTheoryandApplications
116
(a) Input RGB im-
age.
(b) Input Depth im-
age.
(c) RGB edge im-
age.
(d) Conventional
HOG feature.
(e) DWHOG
feature.
(f) Depth weight of
DWHOG feature.
Figure 6: Example of images visualizing image features and depth weight.
at x, respectively.
In the proposed method, the gradient strengths are
weighted as
m(x) = W
d
(x)
√
(
d
dx
g(x)
)
2
+
(
d
dy
g(x)
)
2
. (5)
Here, the weight W
d
(x) is computed using depth val-
ues, such as
W
d
(x) =
1
1 + e
−0.01n(x)
, (6)
n(x) =
√
(
d
dx
f (x)
)
2
+
(
d
dy
f (x)
)
2
, (7)
where
d
dx
f (x) and
d
dy
f (x) are horizontal and verti-
cal differential values of depth at x, respectively. The
regions having a large depth gradient corresponds to
the human body outline. Therefore, the weighting
method of Eqs. (5) – (7) enhances the features on
the outline of the human body.
The images visualizing features and depth weights
are shown in Fig. 6. Figures 6(a) and (b) are the input
RGB image and the input depth image, respectively.
Figure 6(c) displays the RGB edge image obtained
by Canny edge detector (Canny, 1986), where we can
see many large intensity gradients besides the outline
of a human body. Figure 6(d) shows the visualized
conventional HOG feature, and Fig. 6(e) shows the
visualized DWHOG feature. These images display
the principal directions with large intensity gradient
in each block region, and lines with brighter colors
represent the directions with large intensity gradients.
We can see that the HOG feature has larger intensity
gradient on backgrounds than the proposed DWHOG
feature. Therefore, although the conventional HOG
feature is influenced by gradient directions in back-
grounds, the DWHOG feature selects the gradient di-
rections corresponding to the outline of the human
body. Figure 6(f) shows the depth weight which is
used when the DWHOG feature is computed. Re-
gions with brighter colors represent those with larger
weight. It can be confirmed that a large weight is cal-
culated at the outline of the human body.
3.2.3 Construction of a Human Orientation
Estimator
A multi-class SVM classifier for eight directions is
constructed as the human orientation estimator. The
implementation for SVM multi-class classification is
the one-against-one method (Chang and Lin, 2011).
For training, training data of each orientation are
prepared, and the classifier learns DWHOG features
computed from these data.
3.3 Human Orientation Estimation
Phase
In the estimation phase, the human orientation is es-
timated from input images by using the constructed
estimator, as shown in the right side of Fig. 4.
Following the same procedure as in the training
phase, the depth images are first smoothed, and the
RGB-D features are computed from input RGB and
depth images. Finally, the human orientation is esti-
mated from the computed features by using the esti-
mator constructed beforehand.
4 EXPERIMENT
We conducted experiments on human orientation es-
timation in order to evaluate the effectiveness of the
proposed method.
EstimationofHumanOrientationusingCoaxialRGB-DepthImages
117
Figure 7: Example of RGB and depth images for the exper-
iment.
4.1 Test Data
For the experiment, we prepared RGB and depth im-
ages captured with the newly available single-chip
RGB-ToF camera (Panasonic MN34901TL). The res-
olution of the captured RGB image was 640×480 pix-
els and that of the captured depth image was 320×240
pixels. We cropped the human regions from these im-
ages manually, and used for the experiment. Example
of the prepared images are shown in Fig. 7. We pre-
pared 9,600 images in total, which included eight hu-
man orientations and six persons (both standing still
and walking).
4.2 Experiments and Results
The accuracy rate of estimating human orientation
was used as an evaluation criteria. In the experi-
ment, data of five persons (8,000 images) were used
for training and data of another person (1,600 images)
were used for evaluation. The experiment was re-
peated six times with different evaluation data, and
then the average correction rate was computed in the
6-fold cross validation manner.
In order to confirm the effectiveness of the pro-
posed RGB-D features in estimating human orienta-
tion, we carried out two types of experiments.
First, we carried out an experiment in order to con-
firm the effectiveness of the proposed DWHOG fea-
ture. We compared the proposed method with two
current methods; a method using conventional HOG
feature and a method using conventional HOG feature
and a simple depth feature. Here, as simple depth fea-
ture, we used the difference of depth between body
(a) Image with a simple back-
ground.
(b) Image with a complicated
background.
Figure 8: Example of images with simple and complicated
backgrounds.
Table 1: Experimental results.
Method (Used features) Accuracy
HOG 64.8 %
HOG + Difference of depth 72.4 %
Depth Weighted HOG
78.9 %
(Proposed method)
sections inspired by Shotton et al.’s method (Shot-
ton et al., 2013). Their method employed the differ-
ence of depth between two pixels selected randomly
for pose estimation. Their study indicated the effec-
tiveness of the difference of depth features. However,
the difference of depth between pixels was vulnerable
to noise. Therefore the difference of depth between
block regions was used here. This feature should ap-
proximately estimate the body inclination. The result
of this experiment is shown in Table 1. In addition, the
result of each orientation is shown in Table 2, and the
confusion matrix of the proposed method (DWHOG)
is shown in Table 3.
Next, we carried out an experiment in order to
confirm the robustness to a complicated background.
Figure 8 shows images with a simple and a compli-
cated backgrounds, respectively. The simple back-
ground had fewer texture patterns, and the compli-
cated background had many complex texture patterns.
We compared the experimental results using images
with complicated backgrounds with those using im-
ages with simple backgrounds. The results of this
comparison is shown in Table 4. The prepared im-
ages included 4,800 images with complicated back-
grounds and the same number of images with simple
backgrounds. Generally, a human body orientation
in a simple background such as in Fig. 8(a) was ex-
pected to be able to be accurately estimated. In con-
trast, the estimation accuracy of human orientation in
a complicated background such as in Fig. 8(b) was
expected to be reduced because of the influence of
backgrounds. Therefore, the proposed method was
expected to show less reduction in orientation accu-
racy when compared to other methods.
VISAPP2015-InternationalConferenceonComputerVisionTheoryandApplications
118
Table 2: Experimental results of each orientation.
Method (Used features)
Accuracy
0
◦
45
◦
90
◦
135
◦
180
◦
225
◦
270
◦
315
◦
HOG 69.2 % 66.4 % 68.5 % 64.9 % 50.0 % 62.0 % 92.5 % 44.9 %
HOG + Difference of depth 63.8 % 77.1 % 68.6 % 73.3 % 61.7 % 75.5 % 95.5 % 64.2 %
Depth Weighted HOG
69.6 % 77.7 % 79.3 % 91.8 % 66.1 % 78.6 % 94.3 % 73.9 %
(Proposed method)
Table 3: Confusion matrix of the proposed method (DWHOG).
Correct orientation
0
◦
45
◦
90
◦
135
◦
180
◦
225
◦
270
◦
315
◦
Estimated orientation
0
◦
69.6 % 0.8 % 0 % 20.6 % 0.9 % 6.9 % 0.9 % 0.3 %
45
◦
1.4 % 77.7 % 13.7 % 7.3 % 0 % 0 % 0 % 0 %
90
◦
0 % 20.5 % 79.3 % 0.1 % 0 % 0 % 0.1 % 0 %
135
◦
0.8 % 1.9 % 2.5 % 91.8 % 2.8 % 0.3 % 0 % 0 %
180
◦
0.2 % 0 % 0 % 28.2 % 66.1 % 4.9 % 0.7 % 0 %
225
◦
1.3 % 0 % 0 % 9.9 % 1.7 % 78.6 % 8.5 % 0 %
270
◦
0 % 0 % 0 % 0.5 % 0 % 0.4 % 94.3 % 4.8 %
315
◦
1.6 % 0 % 0 % 5.3 % 0 % 7.9 % 11.3 % 73.8 %
Table 4: Complicated backgrounds vs. Simple backgrounds.
Method (Used features)
Accuracy
Complicated backgrounds Simple backgrounds
HOG 54.7 % 74.9 %
HOG + Difference of depth 52.5 % 92.4 %
Depth Weighted HOG
63.9 % 93.9 %
(Proposed method)
4.3 Discussion
As shown in Table 1 and Table 4, the proposed
method achieved the highest accuracy of the three
methods. In addition, the degradation of the accu-
racy between the experiment using images with sim-
ple backgrounds and those with complicated back-
grounds was smaller than the method using the HOG
and the difference of depth features. This shows that
the proposed method’s accuracy was least affected by
background textures.
Focusing on the accuracy of each orientation in
Table 2, the accuracy at 135
◦
and 315
◦
were particu-
larly improved by the proposed method compared to
the method using the simple HOG feature. In order to
distinguish a human body from an oblique view point,
the use of the human body shape is effective. How-
ever, when there is a large intensity gradient in the
background, the HOG feature cannot correctly repre-
sent the shape of a human body. The DWHOG feature
solved this problem by emphasizing the human body
outline, and improved the estimation accuracy from
an oblique view point.
Sample images where human orientation was cor-
0
180
90 270
0
180
90 270
0
180
90
270
Figure 9: Example of images where human orientation was
correctly estimated.
rectly estimated by the proposed method are shown
in Fig. 9, and sample images where human orienta-
tion estimation was incorrect are shown in Fig. 10.
When a person swings his/her arm largely, the pro-
posed method may fail to estimate the orientation.
The proposed method weighted the outline of the hu-
man body. However, it was not appropriate to weight
the body parts with large movement such as arms and
EstimationofHumanOrientationusingCoaxialRGB-DepthImages
119
0
180
90
270
0
180
90
270
0
180
90 270
Correct orientation
Estimated orientation
Figure 10: Example of images where human orientation
was incorrectly estimated.
legs with a large weight, and these body parts should
be weighted with a small weight. In order to solve
this problem, it is necessary to investigate a method
of weighting adapted to estimating human orientation
based on the selection of body part.
5 CONCLUSION
This paper proposed a method for estimating human
orientation using coaxial RGB and depth images. We
utilized a newly available single-chip RGB-ToF cam-
era in order to use coaxial RGB and depth features.
This paper is the first research on human orienta-
tion estimation using this camera, and we propose a
novel combination of RGB and depth features (Depth
Weighted HOG). We experimentally confirmed the
effectiveness of the combination of RGB and depth
features. Our future work will include development
of a more effective feature to combine RGB and depth
information considering high motion body areas such
as arms and legs.
ACKNOWLEDGEMENTS
Parts of this research were supported by JST, Nagoya
University COI and MEXT, Grant-in-Aid for Scien-
tific Research.
REFERENCES
Canny, J. (1986). A computational approach to edge de-
tection. IEEE Transactions on Pattern Analysis and
Machine Intelligence, 8(6):679–698.
Chang, C.-C. and Lin, C.-J. (2011). LIBSVM:
A library for support vector machines. ACM
Transactions on Intelligent Systems and Tech-
nology, 2:27:1–27:27. Software available at
http://www.csie.ntu.edu.tw/∼cjlin/libsvm.
Chen, X. and Koskela, M. (2014). Using appearance-based
hand features for dynamic RGB-D gesture recogni-
tion. In Proceedings of the 22nd International Con-
ference on Pattern Recognition, pages 411–416.
Dalal, N. and Triggs, B. (2005). Histograms of oriented gra-
dients for human detection. In Proceedings of 2005
IEEE Computer Society Conference on Computer Vi-
sion and Pattern Recognition, pages 886–893.
Gandhi, T. and Trivedi, M. M. (2008). Image based es-
timation of pedestrian orientation for improving path
prediction. In Proceedings of 2008 IEEE Intelligent
Vehicles Symposium, pages 506–511.
Hu, W., Tan, T., Wang, L., and Maybank, S. (2004). A sur-
vey on visual surveillance of object motion and behav-
iors. IEEE Transactions on System, Man, and Cyber-
netics, Part C: Applications and Reviews, 34(3):334–
352.
Hu, Y., Cao, L., Lv, F., Yan, S., Gong, Y., and Huang, T. S.
(2009). Action detection in complex scenes with spa-
tial and temporal ambiguities. In Proceedings of 12th
IEEE International Conference on Computer Vision,
pages 128–135.
Liu, W., Zhang, Y., Tang, S., Tang, J., Hong, R., and Li,
J. (2013). Accurate estimation of human body ori-
entation from RGB-D sensors. IEEE Transaction on
Cybernetics, 43(5):1442–1452.
Pestschnigg, G., Agrawala, M., Hoppe, H., Szeliski, R., Co-
hen, M., and Toyama, K. (2004). Digital photography
with flash and no-flash image pairs. ACM Transaction
on Graphics, 23(3):664–672.
Shotton, J., Girshick, R., Fitzgibbon, A., Sharp, T., Cook,
M., Finocchio, M., Moore, R., Kohli, P., Criminisi,
A., Kipman, A., and Blake, A. (2013). Efficient hu-
man pose estimation from single depth images. IEEE
Transactions on Pattern Analysis and Machine Intel-
ligence, 35(12):2821–2840.
Straka, M., Hauswiesner, S., R
¨
uther, M., and Bischof, H.
(2011). Skeletal graph based human pose estimation
in real-time. In Proceedings of the 22nd British Ma-
chine Vision Conference, pages 69.1–69.12.
Weinrich, C., Vollmer, C., and Gross, H.-M. (2012). Esti-
mation of human upper body orientation for mobile
robotics using an SVM decision tree on monocular
images. In Proceedings of 2012 IEEE/RS Interna-
tional Conference on Intelligent Robots and Systems
(IROS), pages 2147–2152.
Yang, Q., Ahuja, N., Yang, R., Tan, K.-H., Davis, J., Cul-
bertson, B., Apostolopoulos, J., and Wang, G. (2013).
Fusion of median and bilateral filtering for range im-
age upsampling. IEEE Transactions on Image Pro-
cessing, 22(12):4841–4852.
VISAPP2015-InternationalConferenceonComputerVisionTheoryandApplications
120
