Semi-automatic Hand Detection

A Case Study on Real Life Mobile Eye-tracker Data

Stijn De Beugher

, Geert Brˆone

and Toon Goedem´e

EAVISE, ESAT - KU Leuven, Belgium

MIDI Research Group - KU Leuven, Belgium

Keywords:

Eye-tracking, Hand detection, Hand tracking, Human-human interaction, Gaze, (Semi-)automatic analysis.

Abstract:

In this paper we present a highly accurate algorithm for the detection of human hands in real-life 2D image

sequences. Current state of the art algorithms show relatively poor detection accuracy results on unconstrained,

challenging images. To overcome this, we introduce a detection scheme in which we combine several well

known detection techniques combined with an advanced elimination mechanism to reduce false detections.

Furthermore we present a novel (semi-)automatic framework achieving detection rates up to 100%, with only

minimal manual input. This is a useful tool in supervised applications where an error-free detection result is

required at the cost of a limited amount of manual effort. As an application, this paper focuses on the analysis

of video data of human-human interaction, collected with the scene camera of mobile eye-tracking glasses.

This type of data is typically annotated manually for relevant features (e.g. visual ﬁxations on gestures),

which is a time-consuming, tedious and error-prone task. The usage of our semi-automatic approach reduces

the amount of manual analysis dramatically. We also present a new fully annotated benchmark dataset on this

application which we made publicly available.

1 INTRODUCTION

Detection of human hands in real-life images is an ex-

tremely challenging task due to their varying shape,

orientation and position. Our motivation for devel-

oping a highly accurate hand detector comes from the

wide applicability in a variety of disciplines including

computer science, linguistics, sociology and psychol-

ogy. Practical applications for such a technique in-

clude human-computer and human-robot interaction,

gesture detection, automatic sign language transla-

tion, active gaming, etc. Recently, several highly ac-

curate hand detection algorithms were developed for

3D images (Van den Bergh and Van Gool, 2011).

Hand detection in 2D images, however, is far from

a trivial task due the lack of depth context. Sev-

eral attempts were made including skin-based detec-

tions (Wu et al., 2000), model-based detections (Bo

et al., 2007; Karlinsky et al., 2010; Mittal et al., 2011)

or pose estimation techniques (Yang and Ramanan,

2011). Unfortunately when applied to real-life im-

ages, their performance drops signiﬁcantly.

On top of the challenging task we try to tackle,

we aim to develop a generic method to achieve a high

detection rate. It is well known that fully automatic

approaches typically do not guarantee high accuracy

in practical cases. However many applications could

beneﬁt from such a generic approach, e.g. the removal

of privacy sensitive content such as faces in mobile

mapping images, generation of ground-truthdata, car-

tography by using object detection in aerial images,

etc. To overcome this we expanded our framework

with an intelligent mechanism which automatically

demands for manual input when the conﬁdence of a

detection is below a threshold value. Using such an

approach increases the detection rate signiﬁcantly at

the cost of a limited amount of manual interventions.

For a certain target accuracy, our system computes the

minimum amount of manual interactions.

In contrast to other techniques, we focus in this

work on the detection of hands in video material. Us-

ing sequences of images gives us the opportunity to

use the spatio-temporal relationship between consec-

utive frames to increase the detection rate. We use a

3-stage frameworkto generate the best possible result.

First, we reduce the search space, using a human-

torso detector. Second, we make a hypothesis using a

sliding window approach of a hand model combined

with a skin-based hand detection. Third, we use an

advanced elimination approach to removefalse detec-

121

De Beugher S., Brône G. and Goedemé T..

Semi-automatic Hand Detection - A Case Study on Real Life Mobile Eye-tracker Data.

DOI: 10.5220/0005306601210129

In Proceedings of the 10th International Conference on Computer Vision Theory and Applications (VISAPP-2015), pages 121-129

ISBN: 978-989-758-090-1

 2015 SCITEPRESS (Science and Technology Publications, Lda.)

tions in combination with a tracker resulting in reli-

able detections.

To validate our framework, we present a (semi-)

automatic analysis of mobile eye-tracker data in the

context of human-human interaction studies. The

analysis of these data generally requires substantial

manual annotation work (Gebre et al., 2012; Jokinen,

2010; Al Moubayed et al., 2013; Brˆone and Oben,

2014). The eye-tracking community would greatly

beneﬁt from the implementation of techniques that

reduce the manual annotation load, like e.g. the de-

tection of gesture strokes (Gebre et al., 2012) and

body language categorization (Williams et al., 2008).

The presented framework aims to contribute to these

developments and proposes a technique to (semi-)

automatically detect hands in video data recorded by

a mobile eye-tracker. By mapping eye gaze data on

interlocutors’ body parts that are instrumental to face-

to-face communication (like hands and faces), a ﬁrst

step in the analytical process is realized, as it allows

for basic calculations of visual distribution. These

data can then serve as the basis for further analytical

work (e.g. the analysis of visual ﬁxations on certain

gesture types).

Next to a fast and accurate hand detection frame-

work, an important contribution of this paper is a

generic (semi-)automatic detection approach. Fur-

thermore, during our study, we noticed that it is hard

to ﬁnd fully annotated video material of human hands

in real life recordings. Therefore we made our anno-

tated dataset of eye-tracker recordings publicly avail-

able. This set contains two sets of data of which ap-

proximately 1000 frames were annotated

This paper is organised as follows: In section 2,

we discuss related work on hand detection. Section 3

clariﬁes our hand detection framework in detail. In

section 4 we discuss our novel (semi-)automatic ap-

proach in which a minimal manual intervention step

enhances the detection rate. Finally in section 5 we

present the results on a pre-existing dataset and on our

publicly available eye-tracker recordings that were

performed to validate the approach.

2 RELATED WORK

In recent years several attempts have been made to

develop an accurate hand detector for 2D images,

mostly by decreasing the complexity of the prob-

lem. Examples are the use of artiﬁcial markers e.g.

coloured gloves (Wang and Popovi´c, 2009) or using a

static camera enabling the use of backgroundsegmen-

http://www.eavise.be/insightout/Datasets/

tation (Pﬁster et al., 2012). In this paper however, we

focus on real-life applications where unmarked body

parts need to be detected automatically, and therefore

we only review the most popular methods that are ap-

plicable to natural settings.

A well known object detection technique is based

on Haar-like features (Viola and Jones, 2001). This

technique combines a set of weak classiﬁers to build

a ﬁnal strong classiﬁer and uses a sliding window ap-

proach to search for speciﬁc patterns in the image.

In (Bo et al., 2007) this technique is used as a basis

for a hand detection algorithm, in combination with

a skin detector to eliminate non-hand detections. Un-

fortunately the performance of this technique on un-

constrained images is insufﬁcient. Newer detectors

outperform greatly Haar-based techniques.

A second approach is based on the Deformable

Parts Model (Felzenszwalb et al., 2010), which is

an extension of Histograms of Oriented Gradients

(HOG) (Dalal and Triggs, 2005). This approach al-

lows for the deﬁnition of a model of an object which

is invariant to various postures or viewing angles.

In (Mittal et al., 2011) this technique is used to cre-

ate two models of a hand, both with and without its

surrounding region, e.g. the wrist (see ﬁgure 1). In

addition, they use a skin detector based on the av-

erage skin colour of the face. This skin detector is

used to improve the detection rate by searching for

arms in the image. Finally a super-pixel based non-

maxima suppression (NMS) is used in which overlap-

ping bounding boxes are suppressed. A drawback of

this method is the high computational cost: process-

ing a frame of 360 x 640 pixels takes up to 4 minutes,

of which the greater part is spent on superpixel calcu-

lations.

Another hand detection approach was presented

by (Spruyt et al., 2013). In this paper an invariant

hough forest detector was used, resulting in a robust

detection of the hand locations. Nevertheless, in our

application the detection of the hand orientation is

also of great importance on top of the location itself.

Therefore we can not use such a basic approach.

In (Eichner et al., 2012) the human pictorial struc-

ture is used. This approach searches for limbs in a

human torso using the spatial relation between them.

This method performs well on larger body parts (such

as arms or heads), whereas smaller parts (e.g. a hand)

are much more challenging. There are two major

drawbacks of this method: a) the requirement that all

body parts are visible in the image and b) they have a

limited set of body poses that are detectable.

A pose estimation algorithm is proposed by (Yang

and Ramanan, 2011). This method is highly accurate

since it has several parts for each limb and uses con-

VISAPP2015-InternationalConferenceonComputerVisionTheoryandApplications

122

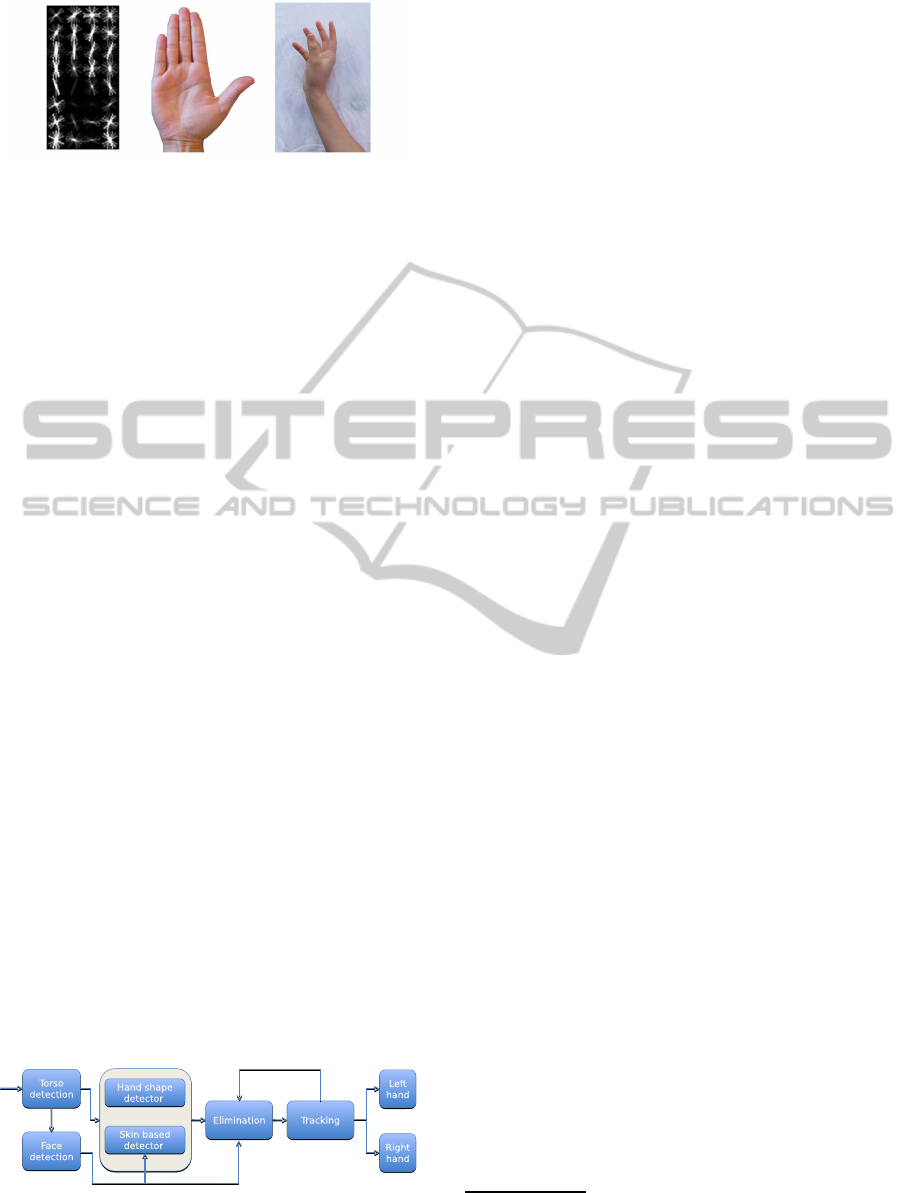

Figure 1: Illustration of the hand models. The left image

is the HOG representation of the hand model. The middle

image illustrates the hand model, while the right image is an

illustration of the context model (hand and its surrounding

region including the background and wrist.)

textual co-occurrence relations between them. This

method is designed for static images and its accuracy

decreases drastically when motion blur is present,

caused by moving body parts. The authors also ad-

mit their model has difﬁculties with some body poses

(e.g. raised arms).

Based on a comparison of the previously de-

scribed techniques, we opted for the work of (Mit-

tal et al., 2011) as a starting point for our algorithm.

This approachachievesdecent accuracy and its source

code is publicly available so we can easily compare

our method against it. In the next section we discuss

the modiﬁcations we made in order to improve the

detection results drastically, and how we extended to

video.

3 HAND DETECTION

FRAMEWORK

An overview of our hand detection algorithm is given

in ﬁgure 2. The general idea is that we ﬁrst detect a

human torso in the image, giving a robust reference

for the detection of smaller body parts. Next we de-

tect the face resulting in an indication of the hand

sizes. After that, we detect hands using a model in-

troduced by (Mittal et al., 2011) in combination with

a skin-based detection. Then we apply an advanced

elimination scheme in order to remove false detec-

tions. Finally we use a Kalman ﬁlter to track left and

right hand using the spatial relationship of consecu-

tive frames.

Figure 2: Graphical representation of the proposed hand de-

tection framework. The three stages: torso and face detec-

tion, hand detection and a combination of elimination and

tracking.

3.1 Torso Detection

The ﬁrst stage in our approach is the detection of a hu-

man torso, for which we use our own torso detector as

we proposed in (De Beugher et al., 2014). This torso

detector is a part-based model (Felzenszwalb et al.,

2010), trained using only the upper 60% of the labeled

boundingboxes of human bodies of the standard PAS-

CAL VOC dataset

. Using this model, rather than the

more widely used full person detector, has the advan-

tage that we can cope with images in which a person

is not completely visible (from head to foot) such as,

for example, in most of the images captured by a mo-

bile eye-tracker (see ﬁgure 5) in a natural setting.

3.2 Face Detection

The next stage is a face detection step (Viola and

Jones, 2001), which is used as a way to further im-

provethe accuracy of the hand detections. In the work

of (Mittal et al., 2011), the face detection is only used

for skin segmentation. If a face is detected, they ap-

ply a skin colour based proposal method to improve

their detection results. In our approach on the other

hand, we also make use of the proportions of the face

by rejecting hand detections which have an abnormal

size compared to the size of the face. This is based on

the general rule that a human face has, about the same

size as an outstretched human hand.

3.3 Hand Detection

When the torso and face location are known, we

run our actual hand detection algorithm. Instead of

searching for hands in the entire image, we deﬁne a

search area by expanding the torso detection bound-

ing box in both vertical and horizontal orientation. As

mentioned before, we started from the work of (Mittal

et al., 2011). This means we use the same part-based

deformable model of a hand, as illustrated in the left

part of ﬁgure 1. In their approach, an additional con-

text model is used. However, the experiments we ran

for this study showed that the addition of this model

introduces a signiﬁcant amount of false detections, so

that we opted not to use it.

The hand model was developed to detect up-

standing hands, but in real-life recordings any hand-

orientation is possible. Therefore we rotate the en-

larged region around the detected torso in steps of 10

degrees per rotation, as illustrated in ﬁgure 3, yield-

ing an accurate detection of hands in any orientation.

The PASCAL Visual Object Classes Challenge

2009 (VOC2009) Dataset http://www.pascal-network

.org/challenges/VOC/voc2009/workshop/index.html

Semi-automaticHandDetection-ACaseStudyonRealLifeMobileEye-trackerData

123

Table 1: Accuracy of the hand model versus rotation angle

of the images.

Step size Precision Recall Time/frame

10 deg. 79,20 % 78,86 % 42 s

20 deg. 75,78 % 75,47 % 21 s

30 deg.

71,24 % 71,13 % 14 s

45 deg. 62,82 % 62,55 % 9,3 s

90 deg.

48,72 % 48,50 % 5 s

Using a larger step size decreases the computational

cost, but also affects the accuracy of the detector as

shown in table 1. This table shows the performance

of the hand model on a set of 100 annotated frames

of 1280 x 720 pixels. To further decrease the com-

putational cost related to this type of model evalua-

tion, we used the acceleration approach of (Dubout

and Fleuret, 2012).

The hand model performs well as long as a hand

is clearly visible in the image. However, when a

hand is not visible or strongly deformed — for exam-

ple due to motion blur caused by fast movements of

the arms — these models show low detection rates.

To overcome this problem, we developed an addi-

tional hand detection technique as shown in ﬁgure 4.

This technique segments the image in skin and no-

skin based on three different colour spaces as intro-

duced by (N. A. Abdul Rahim, 2006). In this work,

skin colour is deﬁned in both Red Green Blue (RGB),

Hue Saturation Value (HSV) and Luma Chroma blue

Chroma red (YCbCr) colour space resulting in a ro-

bust detection mechanism for skin, even under dif-

ferent lighting conditions. Using this approach is an

improvement compared to the work of (Mittal et al.,

2011), because we no longer depend on the accuracy

of the face detector for skin segmentation. We apply

this segmentation to the stretched torso detection as

shown in ﬁgure 4(b). Next, we skeletonize this result

using a sequence of several erosion and dilation steps

in order to get an accurate estimation of the skeleton,

as illustrated in ﬁgure 4(c). In a following step, we

apply the information obtained from the face detector.

We use the correlation between the human body parts

to classify the skeletonized image. If a skeletonized

part has a length which is similar to the height of the

face, we classify it as a hand (as illustrated by the top

row in ﬁgure 4. Parts that are larger than a face are

automatically treated as an arm (as illustrated by the

bottom row in ﬁgure 4). For each part that is classiﬁed

as an arm, we estimate a hand at both endpoints of the

arm, as illustrated in ﬁgure 4(d). Estimated detections

at the wrong endpoints are rejected using the elimina-

tion and tracking described in the next sections.

Figure 3: Illustration of the rotation of our images in order

to detect hands in any orientation. Left: step size is 10

◦

per

rotation. Right: step size is 20

◦

per rotation.

3.4 Elimination

After the above-mentioned steps, a large amount of

hand detections is obtained, as seen in ﬁgure 5(a). The

task of this elimination stage is to reject non-hand de-

tections and to cluster overlapping detections. The

output of this elimination operation is a reduced num-

ber of hand candidates as shown in ﬁgure 5(b). In our

elimination process we apply the following steps:

• Remove hand detections which have an insufﬁ-

cient number of skin pixels, using the same skin

detection algorithm as described in the previous

step.

• Remove hand detections which have a divergent

size with respect to the size of the face.

• Cluster overlapping detections based on their

overlap and distance between their centers.

• Reduce the contribution of clusters that coincide

with the face. We noticed that a face is often de-

tected by the hand model. Only eliminating these

detections is not a viable option since persons can

hold their hands in front of the face. Therefore we

reduce the score of those overlapping clusters by

a predeﬁned factor to minimize the impact.

• Remove hand detections which are too far from

the predicted location by the Kalman trackers.

In the elimination step, we reduced the number of

hand detections. Finally we classify the remaining de-

tections in a left and right detection using the Kalman

tracker information as explained in the next section.

3.5 Tracking

Our tracking stage is one of the most important contri-

butions in order to improve the detection results. This

is realized by steering the detections based on previ-

ous detections using a Kalman ﬁlter (Kalman, 1960).

This mathematical ﬁlter is used to predict the posi-

tion of the hands, which is needed when a detection is

missing due to e.g. occlusions. A second advantage of

VISAPP2015-InternationalConferenceonComputerVisionTheoryandApplications

124

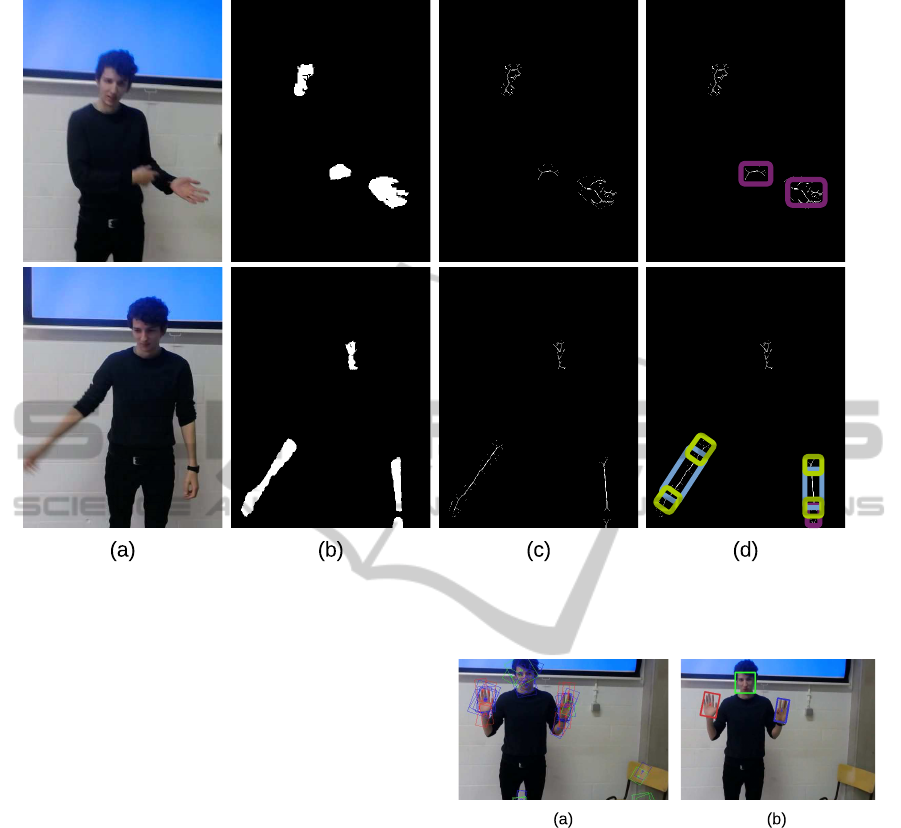

Figure 4: From left to right: original image(a); binary image based on skin segmentation(b); skeletonization(c); arm and hand

estimation(d). Purple boxes illustrate the hand classiﬁcations, blue boxes the arm detections and green boxes the estimated

hands at the endpoints of the arm.

using a Kalman ﬁlter is that the noise on the measured

position of the detections is ﬁltered out, resulting in

more stable detections. For each torso detection we

deﬁne two Kalman trackers: one for the left hand and

one for the right hand in order to track each hand in-

dividually. We use a Kalman ﬁlter with the following

state vector and update matrix, assuming a constant

velocity motion model:

x =













A =







1 0 1 0

0 1 0 1

0 0 1 0

0 0 0 1







(1)

where x and y are the position of the hand and v

and

are the velocity of the hand. For each of the re-

maining clusters, as described in the previous section,

we calculate the cost, based on the distance, to assign

them to one of the Kalman trackers. By choosing the

cluster with the lowest cost, we select the best candi-

date for each tracker.

To summarize this section we give an overview

of our contributions as compared to the approach

of (Mittal et al., 2011):

• Reduced computational footprint of our algorithm

by avoiding both super-pixel calculation and the

validation of the context model without loss in ac-

curacy.

Figure 5: Left: large amount of detections before elimina-

tion; Right: Final detections after elimination step.

• Reduced search space by using a human-torso de-

tector and only searching for hands in a region

around the torso detection. This resulted in a re-

duced computational time and it reduced the num-

ber of false detections.

• Skin based detection is performed even when no

face is detected, resulting in more detection can-

didates.

• Elimination of false-detections using the size of

the face.

• Kalman tracker for both left and right hand that

belongs to each torso detection.

Semi-automaticHandDetection-ACaseStudyonRealLifeMobileEye-trackerData

125

4 SEMI-AUTOMATIC ANALYSIS

As mentioned before, we aim to develop a framework

that achieves a detection rate up to 100%. Obviously

it is unfeasible to develop an algorithm that achieves

perfect accuracy on each dataset. Therefore we ex-

panded our hand detection framework with a generic

mechanism that allows for manual intervention re-

sulting in a much higher accuracy. The key idea is

that when the conﬁdence drops under a speciﬁc (user-

deﬁned) threshold, our algorithm requests manual in-

put. The user then has to manually annotate the miss-

ing detection. Relying only on the detection score re-

sults in a too large amount of manual interventions.

To overcome this, we also take into account the dis-

tance between a detection and the predicted position

(coming from the Kalman trackers). The formula of

the conﬁdence score is shown in equation 2:

M = αlog(D

max

− D) + βS

(2)

where:

D =

(

max

− 1, if d(C

, C

i−1

) ≥ D

max

d(C

, C

i−1

), otherwise

max

stands for the maximum allowed distance be-

tween the current detection and a detection in the pre-

vious frame, C

and C

i−1

deﬁne respectively the cen-

ter of the current and the previous detection. α and

β are used to change the weight of the distance and

detection score. In our experiments, we empirically

determined the optimal value of those parameters: α

= 0.5 and β = 1.0.

The general concept of this approach is that a de-

tection is likely to be valid if either the distance to

the predicted location (based on previous detections)

is low or if the detection score is high. If this value

is below a user-deﬁned threshold, manual input is

requested. Thus by varying this threshold we can

change the amount of manual interventions from zero

(fully automatic detection) up to the number neces-

sary to achieve full accuracy ((semi-)automatic detec-

tion). As illustrated in ﬁgure 6, the user is requested to

manually annotate the missing detections when con-

ﬁdence score M is below a certain threshold. After

this manual intervention the state vector of the corre-

sponding kalman tracker is reset, thus resulting in a

stable reference point for further detections.

5 EXPERIMENTAL RESULTS

As mentioned in the introduction, we validate our

hand detection framework using a data set of record-

ings. First we introduce our datasets, next we dis-

Figure 6: Interface for manual intervention in which one

can manually annotate the detection items.

cuss the accuracy of our framework compared to other

techniques.

5.1 Dataset

During our research we noticed that it is very hard

to ﬁnd video material containing hand annotations for

each frame. In (Mittal et al., 2011) a dataset of anno-

tated movie frames is presented. Unfortunately, the

available frames are not consecutive, which makes

them unsuitable for our approach, designed for a se-

quence of frames. We also examined some video

recordings from the MPI archive

, but those were an-

notated in terms of gestures (start and endpoint of

the gesture) and contain no additional information of

hand locations.

To overcome the lack of fully annotated video ma-

terial, we set up a series of experiments. In each

experiment a mobile eye-tracker was used to record

the ﬁeld of view of the test person. This eye-tracker

records images at a resolution of 1280 x 720 pixels.

In the ﬁrst experiment two persons stood face-to-face

at a distance of 3 meters from each other. The per-

son who wore the eye-tracker was told to look at-

tentively at the interlocutor while this person made

movements with his hands. The second experiment

was performed in a more natural setting. In this ex-

periment, a powerpoint presentation was given with

the spectator wearing a mobile eye-tracker used as

recording device. An illustration of these is given in

ﬁgure 7.

For each experiment we manually annotated left

and right hand in more than 500 consecutive frames.

This results in a reference dataset of more than 2000

annotated hand instances which can be used as ref-

erence dataset for benchmark tests. The annotation

consist of a bounding rectangle oriented with respect

to the wrist. Since it is hard to ﬁnd publicly available

hand-annotated video material, we made our dataset

http://corpus1.mpi.nl

VISAPP2015-InternationalConferenceonComputerVisionTheoryandApplications

126

Figure 7: Left image is a frame from our ﬁrst dataset, right

image is a frame from the second dataset.

publicly available

for other researchers.

5.2 Results

To validate our framework, we have performed a se-

ries of experiments. First we tested our hand detec-

tion algorithm without tracking of the hands nor man-

ual intervention. We did this experiment on both our

own datasets and one publicly available dataset: the

’5-signers’ dataset. Examples of the detections on

those datasets are shown in ﬁgure 8 and 9 respec-

tively. This is a collection of non-consecutive frames

from ﬁve news sequences (39 frames each) with dif-

ferent signers (Buehler et al., 2008). The validation is

done using the F-measure:

F =

2TP

2TP+ FP+ FN

(3)

In each frame of our datasets one person and two

hands are visible. Since our framework was designed

to detect two hands for each torso instance, the num-

ber of false positives (FP) and false negatives (FN)

are equal, hence the F-measure is reduced to the pre-

cision. A hand detection is considered valid if it is

within half hand width from the ground-truth location

of the hand. We compare the results to the perfor-

mance of two state of the art techniques. The publicly

available hand detection algorithm of (Mittal et al.,

2011) was used in which we use the two best detec-

tion scores as candidates for left and right hand. We

also compare to the pose estimation proposal of (Yang

and Ramanan, 2011) in which we classify the outer-

most bounding boxes of the arms as hands.

Our algorithm performs better than the other tech-

niques in terms of accuracy. We outperfom the pose

estimation technique, although a note on the bad

performace of the approach of (Yang and Ramanan,

2011) should be made. The detection code we have

used was developed to detect poses of persons from

head to foot, whereas in the images of Dataset 1 the

legs of the person are not completely visible as shown

http://www.eavise.be/insightout/Datasets/

Table 2: Accuracy of our hand detection algorithm com-

pared to other techniques. Dataset 1 & 2 contains 1000 an-

notated hand-instances each, the ’5-Signer’ dataset contains

390 hand-instances.

Mittal Yang Ours

Ours incl.

tracking

Dataset 1 85% 24.2% 83.4% 88.2%

Dataset 2 48.9% 46.5% 52.9% 65.3%

5-Signers 77.6% n.a. 81.1% n.a.

Figure 8: Examples of hand detections on our own recorded

datasets. Top row are images from our ﬁrst dataset, bottom

row are images from our second dataset.

in the left part of ﬁgure 7. The results of this compar-

ison is shown in table 2. Next, we compared our hand

detection algorithm with tracking of the hands to the

other techniques. We did those experiments on our

own datasets, since we need sequences of frames. It

is clear that the accuracy increases signiﬁcantly when

the tracking is applied, as shown in the right column

of table 2.

We also compared the execution speed of our al-

gorithm, as shown in table 3. It is clear that the exe-

cution time of our algorithm is drastically lower com-

pared to the other techniques on the same hardware

(Intel Xeon E5645). Our approach is much faster

compared to the work of (Mittal et al., 2011) since

amongst others we no longer depend on the super-

pixel calculation. We also outperform the computa-

tional cost of (Yang and Ramanan, 2011) by a factor

of 3.

Furthermore we present the extensive results of

our (semi-)automatic approach on both our own

datasets as shown in ﬁgure 10. In this graph we plot

the accuracy in function of the number of manual in-

Semi-automaticHandDetection-ACaseStudyonRealLifeMobileEye-trackerData

127

Figure 9: Examples of hand detections on the 5-Signer

dataset.

Table 3: Execution times per frame averaged over all

frames.

Mittal Yang Ours

Avg time/frame 293.33 s 113 s 36.67 s

terventions expressed in a percent of the numbers of

frames in the set. As mentioned before, by thresh-

olding the result of equation 2, we can change the

amount of necesary manual interventions. It is ob-

vious that a higher amount of manual interventions

results in a higher accuracy. We should also note the

improvement in accuracy between no manual inter-

vention and the lowest amount of manual interven-

tions. For Dataset 1, the accuracy increases form

90% to 93% at the cost of only 7 manual interven-

tions, Dataset 2 on the other hand has an accuracy

improvement of 12% at the cost of only 14 manual

interventions. We observe that each manual interven-

tion restarts the tracker such that the hands in the fol-

lowing frames are again detected automatically.

6 CONCLUSION

We present a novel approach for the detection of hu-

man hands in real-life 2D-image sequences. We used

Figure 10: Result of our (semi-)automatic approach in

which accuracy is improved by manual interventions.

the work of (Mittal et al., 2011) as a baseline and

extended this approach in order to improve the ac-

curacy and to lower the computation cost. First we

use a torso detector to reduce the search area, next we

use a face detector whose information is used to reject

wrong hand detections. Furthermore we use an ad-

vanced hand and arm detection mechanism, based on

skin detection, to detect hands in images where mo-

tion blur occurs. Finally, an evaluationscheme is used

to reject wrong hand detections and a advanced track-

ing mechanism for left and right hand is introduced

to steer the detections based on previous frames. We

report good accuracy as compared to state-of-the-art

techniques while the computation cost is drastically

less.

In order to further improve the accuracy, we ex-

panded our hand detection framework with a generic

mechanism that ﬁnds the optimal places to ask for

manual intervention resulting in a much higher ac-

curacy with minimal manual effort. By calculating

a score based on the detection score and distance to

the predicted detection, we measure the reliability of

detection. By thresholding this value, we can change

the amount of manual interventions.

The validation of our approach was done using

a series of datasets. We used two own recorded

datasets, which we made publicly available, and one

pre-existing dataset. We report good accuracy on all

datasets outperforming the other techniques in both

accuracy and execution time.

Our future work concentrates on further reducing

the computational cost of the hand detection algo-

rithm. Furthermore we will work on the integration

of the eye gaze data. Using such an approach enables

the automatic analysis of mobile eye-tracker data in

terms of visual ﬁxations on hands.

ACKNOWLEDGEMENTS

This work is partially funded by KU Leuven via the

projects Cametron and InSight Out. We also thank

Raphael Den Dooven for his contributions.

REFERENCES

Al Moubayed, S., Edlund, J., and Gustafson, J. (2013).

Analysis of gaze and speech patterns in three-party

quiz game interaction. In Interspeech 2013.

Bo, N., Dailey, M. N., and Uyyanonvara, B. (2007). Robust

hand tracking in low-resolution video sequences. In

Proc of the third conference on IASTED International

Conference: Advances in Computer Science and Tech-

nology, pages 228–233, Anaheim, CA, USA.

VISAPP2015-InternationalConferenceonComputerVisionTheoryandApplications

128

Brˆone, G. and Oben, B. (2014). Insight interaction. A mul-

timodal and multifocal dialogue corpus. In Language

Resources and Evaluation.

Buehler, P., Everingham, M., Huttenlocher, D., and Zisser-

man, A. (2008). Long term arm and hand tracking for

continuous sign language tv broadcasts. In Proceed-

ings of the British Machine Vision Conference, pages

110.1–110.10. BMVA Press.

Dalal, N. and Triggs, B. (2005). Histograms of oriented

gradients for human detection. In CVPR, pages 886–

893.

De Beugher, S., Brˆone, G., and Goedem´e, T. (2014). Au-

tomatic analysis of in-the-wild mobile eye-tracking

experiments using object, face and person detection.

In Proc. of the 9th International Joint Conference on

Computer Vision, Imaging and Computer Graphics

Theory and Applications.

Dubout, C. and Fleuret, F. (2012). Exact acceleration of

linear object detectors. In Proc. of the European Con-

ference on Computer Vision (ECCV), pages 301–311.

Eichner, M., Marin-Jimenez, M., Zisserman, A., and Fer-

rari, V. (2012). 2D articulated human pose estimation

and retrieval in (almost) unconstrained still images.

International Journal of Computer Vision, 99:190–

214.

Felzenszwalb, P. F., Girshick, R. B., McAllester, D., and

Ramanan, D. (2010). Object detection with discrim-

inatively trained part-based models. IEEE Transac-

tions on Pattern Analysis and Machine Intelligence,

32(9):1627–1645.

Gebre, B. G., Wittenburg, P., and Lenkiewicz, P. (2012).

Towards automatic gesture stroke detection. In the

Eighth International Conference on Language Re-

sources and Evaluation, pages 231–235.

Jokinen, K. (2010). Non-verbal signals for turn-taking and

feedback. In Proc. of the Seventh International Con-

ference on Language Resources and Evaluation.

Kalman, R. (1960). A new approach to linear ﬁltering

and prediction problems. In Transaction of the ASME

Journal of Basic Engineering, volume 82, pages 35–

45.

Karlinsky, L., Dinerstein, M., Harari, D., and Ullman, S.

(2010). The chains model for detecting parts by their

context. In Computer Vision and Pattern Recognition

(CVPR), 2010 IEEE Conference on, pages 25–32.

Mittal, A., Zisserman, A., and Torr, P. (2011). Hand

detection using multiple proposals. In Proc. of

the British Machine Vision Conference, pages 75.1–

75.11. BMVA Press.

N. A. Abdul Rahim, C. W. Kit, J. S. (2006). RGB-H-CbCr

skin colour model for human face detection. In MMU

International Symposium on Information and Com-

munications Technologies (M2USIC), Petaling Jaya,

Malaysia.

Pﬁster, T., Charles, J., Everingham, M., and Zisserman, A.

(2012). Automatic and efﬁcient long term arm and

hand tracking for continuous sign language TV broad-

casts. In British Machine Vision Conference.

Spruyt, V., Ledda, A., and Philips, W. (2013). Real-

time, long-term hand tracking with unsupervised ini-

tialization. In Proceedings of the IEEE International

Conference on Image Processing, pages 3730–3734.

IEEE.

Van den Bergh, M. and Van Gool, L. (2011). Combining

rgb and tof cameras for real-time 3d hand gesture in-

teraction. In Proceedings of the 2011 IEEE Workshop

on Applications of Computer Vision (WACV), WACV

’11, pages 66–72, Washington, DC, USA. IEEE Com-

puter Society.

Viola, P. and Jones, M. (2001). Rapid object detection using

a boosted cascade of simple features. pages 511–518.

IEEE Computer Society Conference on Computer Vi-

sion and Pattern Recognition.

Wang, R. Y. and Popovi´c, J. (2009). Real-time hand-

tracking with a color glove. In ACM SIGGRAPH 2009

Papers, pages 63:1–63:8.

Williams, G., Bregler, C., Hackney, P., Rosenthal, S., Mc-

dowall, I., and Smolskiy, K. (2008). Body signature

recognition.

Wu, Y., Liu, Q., and Huang, T. S. (2000). An adaptive self-

organizing color segmentation algorithm with applica-

tion to robust real-time human hand localization. In in

Proc. of Asian Conference on Computer Vision, pages

1106–1111.

Yang, Y. and Ramanan, D. (2011). Articulated pose esti-

mation with ﬂexible mixtures-of-parts. In Computer

Vision and Pattern Recognition (CVPR), 2011 IEEE

Conference on, pages 1385–1392. IEEE.

Semi-automaticHandDetection-ACaseStudyonRealLifeMobileEye-trackerData

129
