Automatic Illustration of Short Texts via Web Images

Sandro Aldo Aramini, Edoardo Ardizzone and Giuseppe Mazzola

Dipartimento di Ingegneria Chimica, Gestionale, Informatica, Meccanica (DICGIM)

Università degli Studi di Palermo, Viale delle Scienze bd.6, 90128, Palermo, Italy

Keywords: Automatic Illustration, Story Picturing, Semantic Similarity, Semantic Space, Text Analysis, Web Image

Search, Google Image.

Abstract: In this paper we propose a totally unsupervised and automatic illustration method, which aims to find onto

the Web a set of images to illustrate the content of an input short text. The text is modelled as a semantic

space and a set of relevant keywords is extracted. We compare and discuss different methods to create se-

mantic representations by keyword extraction. Keywords are used to query Google Image Search engine for

a list of relevant images. We also extract information from the Web pages that include the retrieved images,

to create an Image Semantic Space, which is compared to the Text Semantic Space in order to rank the list

of retrieved images. Tests showed that our method achieves very good results, which overcome those ob-

tained by using a state-of-the-art application. Furthermore we developed a Web tool to test our system and

evaluate results within the Internet community.

1 INTRODUCTION

In recent years the growing integration between

digital cameras and portable devices (mobile phones,

PDAs or tablets) has dramatically increased the

number of pictures available on the Web. New In-

ternet services, e.g. Flickr, Panoramio, Smugmug,

Picasa, were offered to the users as online storage

services for their photos, creating huge databases of

pictures, that implicitly contain an immense amount

of information. These online collections of images

consist not only of raw pictures, but also of tags,

annotations and descriptions. Each photo individual-

ly provides a low information content, but if we

consider the whole content of the online collections

we are able to extract useful information for differ-

ent purposes. The key concept is that the desired

content is already available onto the Web and we

need just to retrieve, filter and organize it. In this

way every single photo, tag or comment uploaded by

a user on the Web becomes automatically a new

information resource, and can be potentially exploit-

ed by any user who needs it.

The aim of this work is to exploit the resources

of the Web (photos, descriptions, text) for automatic

text illustration, i.e. finding pictures which best illus-

trate the content of a text. Our system works without

any supervising human intervention, and avoids the

use of personal annotated database.

When users look for images on the Web by using

image search engines (e.g. Google Images), they

type one or more keywords in a provided space, and

then they have to select the most relevant images

from the retrieved list. Our goal is some steps be-

yond. Our automatic text illustration method needs

as input only the text to be illustrated, and gives as

output a ranked list of images representing the con-

tent of the whole text. Therefore users do not need to

choose the proper keywords to create the query to

the Image Search Engine, nor to manually select the

most relevant images from the retrieved list of imag-

es.

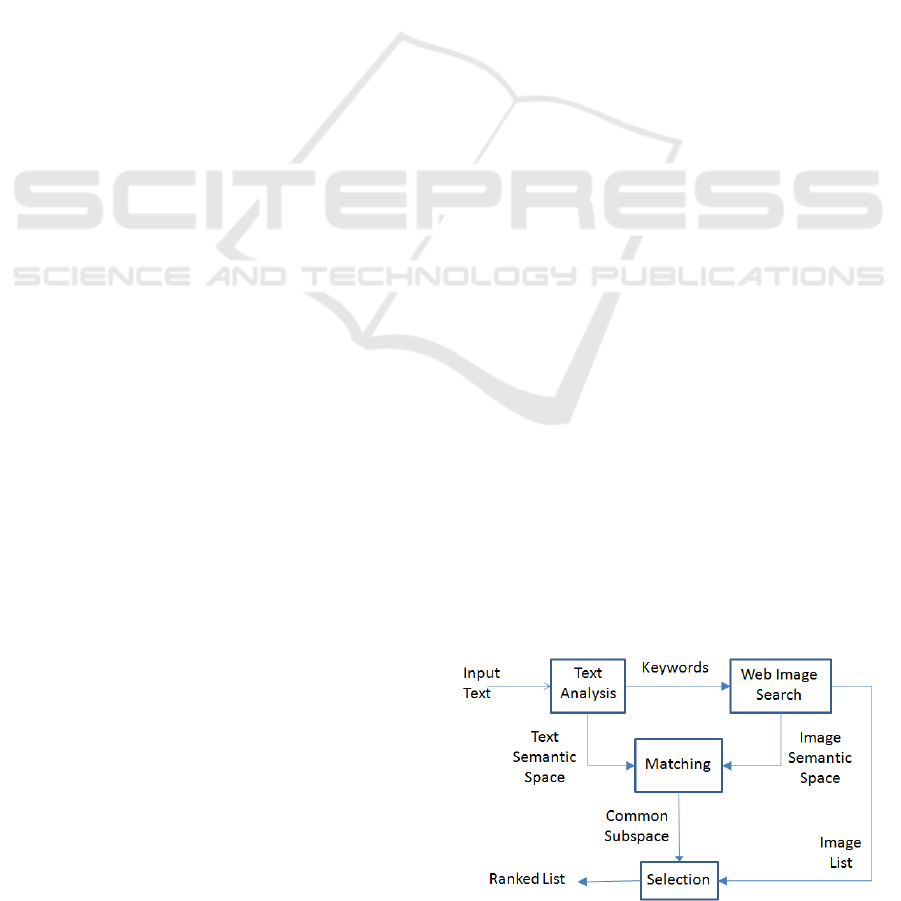

Figure 1: Overall scheme of the proposed approach.

The main contribution of this paper is the exploi-

tation of the Web, as a knowledge base, avoiding the

use of a predefined annotated image dataset. In our

139

Aramini S., Ardizzone E. and Mazzola G..

Automatic Illustration of Short Texts via Web Images.

DOI: 10.5220/0005307301390148

In Proceedings of the 6th International Conference on Information Visualization Theory and Applications (IVAPP-2015), pages 139-148

ISBN: 978-989-758-088-8

 2015 SCITEPRESS (Science and Technology Publications, Lda.)

system images are automatically retrieved by using a

Web image search engine, dynamically at each que-

ry, and annotated with the information extracted

from the related Web pages. Our method is able to

represent all the possible concepts that can be de-

scribed by a text, as it is not limited by the use of a

personal “ad hoc” image dataset. Furthermore it

does not need any time-consuming manual annota-

tion process.

2 RELATED WORKS

“Every picture tells a story”. This phrase dates back

to the beginning of the twentieth century and like the

other one, "a picture is worth 1000 words", suggests

us the importance of the visual communication

through pictures. The relationship between words

and pictures has been widely investigated in the past

decades. Many efforts have been spent in automatic

annotation of images, the process of finding auto-

matically textual tags representing an image (Bar-

nard et al., 2003; Cameiro et al., 2007; Feng et al.,

2004; Monay and Gatica Perez, 2007). In this paper

we focused on the dual problem, automatic illustra-

tion, i.e. the process of finding images which can

summarize the content of a text. Studies in recent

years have shown that depictive pictures aid learning

of texts (Carney and Levin, 2002). Drawings, pic-

tures or illustrations that today we can find in books,

short stories or newspapers, facilitate and speed up

reader's understanding. However, choosing the right

picture to tell a story or to introduce a concept can

be a difficult task, involving personal interpretation

of the author.

Since automatic illustration is a process involv-

ing different research areas, there are a lot of related

works into the scientific community. The under-

standing of a natural language text is still an open

problem, likewise picture understanding (Barnard

and Forsyth, 2001). However many techniques have

been developed to infer semantic information useful

to define a semantic-similarity between documents

(Kandola et al., 2003). Typical text analysis tech-

niques include latent semantic analysis (Deerwester

et al., 1990), or co-occurrence statistical information

(Yutaka and Ishizuka, 2004). Even if some ap-

proaches have been proposed (Coyne and Sproat

2001; Zhu et al., 2007; Joshi et al., 2006; Miller,

1990; Feng and Lapata, 2010; Rasiwasia et al., 2010;

Coelho and Ribeiro, 2011; Delgado et al., 2010),

automatic illustration is a problem far away to have

a definitive solution. WordsEye (Coyne and Sproat

2001) is an interesting method for automatically

converting text into representative 3D scenes, but it

does not focus on natural images. (Zhu et al., 2007)

presented a system to create a synthetic image from

an input text, as a “collage” of pictures that represent

some relevant keywords of the text. The "Story Pic-

turing Engine” (Joshi et al., 2006) is an automatic

illustrator that performs text illustrations by using

Wordnet (Miller, 1990), within an annotated data-

base, and a mutual reinforcement-based ranking

algorithm. (Feng and Lapata, 2010) presented a

probabilistic approach for automatic image annota-

tion and text illustration, based on the assumption

that images and their co-occurring textual data are

generated by mixtures of latent topics. The problem

of joint modelling the text and image components of

multimedia documents (cross-modal retrieval), has

been also studied by (Rasiwasia et al., 2010). (Coe-

lho and Ribeiro, 2011) proposed a method which

combines text mining techniques and visual de-

scriptors, within an annotated dataset, to illustrate

arbitrary texts. (Delgado et al., 2010) proposed a

framework that generates automated multimedia

presentations to assist news readers.

3 SYSTEM OVERVIEW

The goal of the proposed method is to look for a set

of images representing the content of an input text,

exploiting the Web knowledge and without any user

supervision.

Fig. 1 shows the overall scheme of the proposed

method. Input text is processed into the text analysis

block, which returns some keywords that summarize

the text content, and a model of its semantic mean-

ing (Text Semantic Space). Keywords are used to

query to an Image Search Engine for a set of images

related to these words (Image List). As well, some

more information are extracted from the Web pages

which include the retrieved images, and processed in

order to create a model of the concepts related to

these images (Image Semantic Space). The two

spaces are intersected to find the Common Sub-

space, and the retrieved images are ranked on the

base of the words that are into this subspace.

Before describing in detail each step of our

method, in the next section we will briefly discuss

some theory about Semantic Spaces, which are used

to model both text and image content.

4 SEMANTIC SPACES

In this section we briefly introduce the notion of

IVAPP2015-InternationalConferenceonInformationVisualizationTheoryandApplications

140

Semantic Space. According to (Lowe, 2001), “a

semantic space model is a way of representing simi-

larity of typical context in a Euclidean space with

axes determined by local word co-occurrence

counts”. The co-occurrence of a target word within a

dictionary of D fixed words corresponds to the word

position in a space of dimension D. In this space the

word position with respect to the other words ex-

presses the similarity of their meanings in the ana-

lyzed context.

A Semantic Space model is a quadruple <W, L,

S, R> where:

- W is the set of basis elements (i.e. words);

- L is a lexical association function, to map words

into the basis;

- S is a similarity measure between words;

- R is a transformation that reduces the dimension-

ality of the semantic space.

In the next sections we will explain how Seman-

tic Spaces are used to represent the text and the im-

age contents.

5 PROPOSED METHOD

Text analysis methods are typically designed to

study a text within a set of documents (corpus) with

similar contents, which often defines a specific do-

main of knowledge. In our work we focused onto

single texts, without any reference corpus of related

documents, then we cannot use any other infor-

mation but the input text. On the other hand, we are

not limited to a specific domain of knowledge. The

purpose of the Text Analysis module is twofold:

- represent the text content as a Semantic Space

model;

- extract keywords which are representative of the

text.

We aim to model the text content in a compact

and significant form, as well as to extract relevant

keywords. Input text is first scanned to build a dic-

tionary with all its words, and to count related fre-

quencies. The dictionary is filtered to remove com-

mon words (articles, prepositions, etc), the “stop-

words’, which are very frequent in a text, but are not

significant to represent its content.

Our system works with two languages (English

and Italian) and with two different lists of stop-

words. It can be easily extended to other languages,

as only a new list of stop-words is needed.

5.1 Text Semantic Space

To create a Semantic Space, we divide the input text

into sentences. Let n

be the number of sentences in

the text. Given a set of N words (w

, w

, .., w

), we

count the number of co-occurrences of the words

into the sentences, that is the number of times in

which two words are in the same sentence. We focus

only on the N most frequent words in the text, where

N is a value which is supposed to be large enough to

capture the text semantic content (see in section 6).

We create a NxN co-occurrence matrix C in which

each term indicates the number of sentences in

which the i-th and the j-th co-occur. These terms are

divided by the number of sentences n

()

jic

otherwise

swwif

jic









∈

(1)

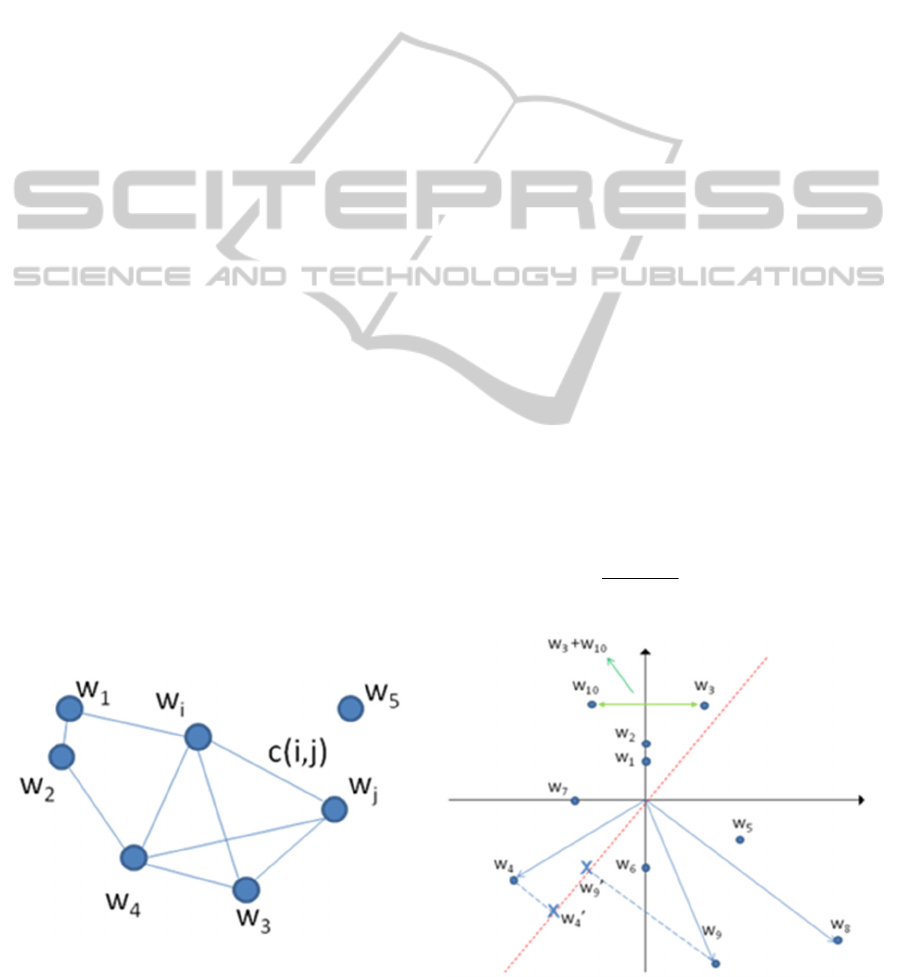

Figure 2: A graph plotting a Semantic Space. Figure 3: The reduced Text Semantic Space, projected

along the principal components axis.

AutomaticIllustrationofShortTextsviaWebImages

141

According to the model presented in section 4:

- W

is the set of words in the text;

- L

is the identity function, so raw frequencies are

used;

- S

is the normalized co-occurrence c(i,j) of two

words into the sentences of the text;

- R

reduces the space dimensionality selecting on-

ly the N most frequent words.

The Text Semantic Space (TSS) can be plotted as

a graph (fig. 2), in which the words w

are the nodes,

while the normalized co-occurrence values c(i,j) are

the weights of the edges. In general, the TSS graph

may be not completely connected, as some words

may occur alone in the sentences.

Note that many text analysis methods use TF-

IDF (term frequency–inverse document frequency)

measure to build a Semantic Space. TF-IDF is a

statistical measure that is used to evaluate the im-

portance of a word within a set of documents (cor-

pus). It is proportional to the number of times a word

appears in a document, but decreases as the word

occurs frequently in the rest of the corpus. We de-

cided to use raw frequencies, rather than TF-IDF, as

we do not have a corpus of documents but a single

text. Even considering the input text as the whole

corpus, and the sentences as the documents to be

analyzed, the probability that a (relevant) word oc-

curs more than once in a sentence is negligible, then

we decided to use word frequency for our purposes.

The choice to work onto a single text is a strictly

constraint, but it allows our method to adapt to any

type of query and to represent any type of content.

5.2 Keyword Extraction

Keyword extraction is a fundamental technique for

document summarization and retrieval. If the proper

keywords are selected, a reader can easily under-

stand the content of a document and its relationships

with the other texts in a corpus of related documents.

The goal of this step is to select some words to a

query an image search engine, in order to find a list

of candidate images that can illustrate the content of

the input text. We decided to use two keywords to

represent the text content. We noted that using a

single keyword would result in a too generic query,

as it can represent a too generic concept. Further-

more, if we use a combination of two words, rather

than only one, we drastically reduce the problem of

polysemy. In fact the second word specifies the

meaning of the first one, defining the context of the

query. Note that we focused our study onto short

texts (e.g. news) as our method aims to find a single

image representing the content of the whole text. In

fact, in case of longer texts, one single image may be

not enough descriptive to represent the content of

the whole document. On the other hand, in case of

short texts, the use of only two words as keywords

may be a tight constraint. Furthermore, with each

query, we retrieve such a huge quantity of infor-

mation from the Web that we can still have, after

filtering, enough information for our purposes. The

gain of information, with respect to the starting que-

ry, will be one of the criteria used during the valida-

tion phase of the results.

We also conducted some preliminary experi-

ments using more than two keywords, and we did

not note any significant improvement of the results.

However, we plan to conduct in the future more

experiments, to analyze in depth the influence of the

number of keywords on the results.

After having filtered the stop-words from the

text, we use five different methods to extract the

keywords:

- The two most frequent words (MF);

- The two maximum co-occurring words (MC);

- Three methods deriving from the Principal Com-

ponent Analysis of the normalized co-occurrence

(NC) matrix.

The first method simply extracts the two most fre-

quent words in the text. The second one computes

the two words that most frequently co-occur in the

sentences of the text. The last three methods are

inspired to the LSA (Deerwester et al., 1990) ap-

proach, and work within the projected text semantic

space (PTSS). The PTSS is built applying the Prin-

cipal Component Analysis to the NC matrix, extract-

ing the two major components, and projecting the

columns of NC (that are the word vectors) onto the

principal component space. We decided to work into

a 2D-space as, in almost all of our experiments, the

cumulative sum of the eigenvalues of the first two

eigenvectors is above the 90%, that is a good ap-

proximation of the whole energy content. Each word

vector is then projected as a point in PTSS (fig. 3),

but in some cases we need to further process some

peculiar points of the new space. We observed that if

two word vectors are projected onto the same point,

or are symmetrical to one of the axis or the origin,

the corresponding words co-occur in the text always

in the same sentences. Therefore they probably are

related to the same concept, or are part of a compo-

site word, and are considered as a single word when

creating the query. Hence sometimes the final query

may be composed by more than two words.

Regarding the geometrical interpretation, the

norm of the vectors in PTSS indicates the relevance

of the related words within the document (the text).

Hence, the word with the largest norm, for us, is the

IVAPP2015-InternationalConferenceonInformationVisualizationTheoryandApplications

142

most relevant for the input text (w

in fig. 3). The

choice of the second word may be guided by two

factors:

- according to the geometrical interpretation, we

select the word with the 2

largest norm (Maximum

Norm – MN) (w

in fig.3);

- we select the word whose vector has the largest

orthogonal projection with respect to the direction of

the vector with the largest norm (Maximum Orthog-

onal - MO). It expresses the concept with the maxi-

mum semantic distance from the most relevant word

in fig.3).

Note that in most cases the second word extract-

ed by MN and by MO methods is the same. That is

not true in general as shown by experimental results

in section 6.

The last method is a combination of MF and

MN. We select the two words which maximize the

product of the norms of their vectors in PTSS and

their normalized frequency into the text (Maximum

Weighted Norm – MWN).

5.3 Image Semantic Space

The Web Image Search module uses the two key-

words from the Text Analysis step to query an Im-

age Search Engine (i.e. Google Image) for a list of

images. First, we submit the query to the Web image

search engine and we select only the first M valid

images, which form our Image List. We use a parser

to automatically extract image links from the output

HTML Google page. Output links must be validated,

as sometimes they refer to images that no longer

exist, or that need an authentication to be download-

ed. Nevertheless, for efficiency, if we do not get a

reply from a link within a short timeout, we discard

the link (typically 30% of the image links are dis-

carded). For each valid image, we also analyze the

HTML content of the related webpage. For each

webpage we extract metadata keywords, page title

and image alternative attribute. To save computa-

tional resources, we decided to discard other infor-

mation (i.e. body text) which should be analyzed

with time consuming techniques (e.g.. LSA). Exper-

iments showed that this is a good trade-off between

precision and efficiency. Each image is then de-

scribed by a list of associated tags, which neverthe-

less includes some terms that are not related to the

image content. Tags are filtered discarding those

terms that are in a list of stop-words (similarly to

text analysis step): articles, conjunctions, adverbs,

but also spam, terms typically related to the Web

(www, website, blog) or to an image file (photo,

gallery) but not to its content. The filtering process

significantly reduces the number of words in the tag

lists, but it implies that some images will have no

tags, and will be discarded as they do not bring any

useful information. At last, an image is described by

one or more tags, and a word is associated to differ-

ent images. Hence, we represented this information

within a Semantic Space:

- W

is the list of all the possible detected words,

after filtering;

- L

is the number of images associated to each

word;

- S

is based on the Jaccard coefficient:

()

jiI

wIwI

wwS

∪

∩

(2)

that is the number of images shared by two words w

and w

divided by the number in the corresponding

union set. This metric indicates how much two

words are correlated.

- R

is a thresholding process. We select from the

basis, as relevant words, those which relates to al-

most m=p*M images, where p is an input parameter

that will be discussed in section 6, and M is the im-

age dataset size.

The size of the Image Semantic Space (ISS) is

not fixed, but changes within every query, as it de-

pends on the number of words which pass the above

condition. The Image Semantic Space can be plotted

as a graph of the words’ correlations, as TSS in fig.

2. For the ISS, nodes consist of words in the basis,

reduced by R

, while edges are weighted by the simi-

larity measure S

(see eq. 2) between words. As in

text case, resulting graph may be not completely

connected, if a word does not share any image with

the other words.

5.4 Matching and Re-ranking

The final step of the process is the comparison of the

two Semantic Spaces (TSS from the text, and ISS

from the Web Image Search), in order to find the set

of images in the Image List that better represents the

text content.

We intersect the two Semantic Spaces and we

select only the words which are shared by the two

spaces (fig. 4). Each word in the Common Subspace

(CSS), as it is part of ISS, is also associated to one

or more images. Nevertheless, each image in the

Image List may have one or more tags in this sub-

space. Our goal is to extract the most relevant com-

mon concept from the two semantic spaces, discard-

ing noise. In fact, representing the two spaces as

graphs,

the best images are those related to the words

AutomaticIllustrationofShortTextsviaWebImages

143

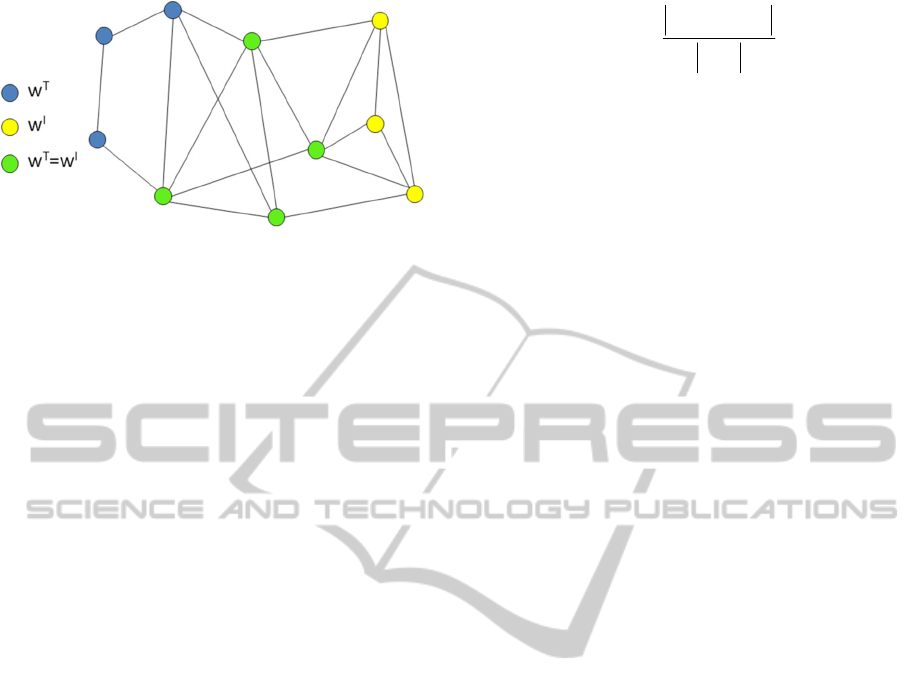

Figure 4: Matching the two Semantic Spaces. Blue nodes

are words in TSS, yellow nodes in ISS, green nodes are

words shared by the two SS.

into the largest sub-graph of ISS, which are also in

CSS. This is not a simple matching of two lists of

words. In fact the intersection of the two sub-spaces

may result in more than one subgraphs, or may pre-

sent some isolated nodes. We select all the images in

the largest connected component of the intersection

and sort them according by the number of tags they

have in this subspace. The most significant images

are those which have the maximum number of tags

associated in CSS, and are presented as output of the

system. We can observe that the matching step is

mainly based on a graph similarity approach, and

then the use of the Semantic Space theory could be

overdone. We nevertheless decided to represent the

analyzed information by using this theoretical mod-

el, as we plan to better exploit this representation in

our future works.

6 EXPERIMENTAL RESULTS

We implemented two different versions of our sys-

tem: the first one is a Matlab stand-alone prototype,

executed on an Intel Core i7 PC (4 CPU, 1.6 GHz

per processor, 4 GB RAM), exploiting the Matlab

parallel library to make 4 workers run simultaneous-

ly; the second one is web-based version, that had

been available online to the Internet community for

our tests, implemented with a client side (a simple

html page) and a server side (a Java servlet).

6.1 Stand-alone Prototype

We tested our prototype on a set of 100 randomly

selected news from the Wikinews (link1) archive.

To evaluate our system, we used both an objective

and a subjective metric. We use as objective metric

the semantic similarity of the two spaces, defined as

the size of the Common Sub-Space, divided by the

number of words in TSS:

()

TSS

ISSTSS

wwS

jiC

∩

(3)

This is a measure of the semantic similarity of

the Text and the Image Semantic Spaces, and it is

related to the “gain of knowledge”, starting from the

initial query. It indicates how many new words have

been added to the starting query-words. If the nu-

merator of S

is 2 (the lower bound of the intersec-

tion), only of the two input keywords are shared by

the ISS and the TSS, and the query output may result

into a list of images with very different contents. No

new knowledge is gained. If S

is higher, the ISS

shares a larger part of its semantic content with the

input text, and it means that new semantic infor-

mation is added to the two input words.

To help us for a subjective evaluation of the re-

sults, we asked 20 persons to test the system. We

assigned to each of them 5 short texts from our da-

taset (texts are typically made of 5-20 sentences) and

asked them to read the texts and to evaluate results

obtained with all the five proposed keyword extrac-

tion methods described in section 5.2 (MF, MC,

MN, MWN, MO). Furthermore we asked them to

test the same texts also with a state-of-the-art meth-

od, the Story Picturing Engine (Joshi et al., 2006),

which has been designed for the same purpose as our

application. SPE is an automatic text illustration

method, that exploits a personal annotated database

of images. A demo was available online when we

conducted our tests (link2). We decided to compare

the two approaches in terms of final applications,

even if the two underlying datasets are different, just

because it was difficult to adapt the chosen reference

approach to our dataset, which is built dynamically

at each query and can be often described by unrelia-

ble information (html tags). Moreover, our approach,

which has been designed to work using information

taken from the Web, should be heavily modified to

work within the dataset used by SPE.

We asked testers to indicate if each retrieved im-

age (by our methods and SPE) is Very Relevant

(VR), Somewhat Relevant (SR), or Not Relevant

(NR) to the text content. Test were performed with

N=10 most significant words from the text, M=100

retrieved images, and three values of p for R

(when

building ISS): 0.1, 0.05, 0.03. SPE online tool has

been tested with the granularity value of 0 that, as

suggested by authors, must be selected to illustrate

the whole story instead of parts of it.

For each input text, and for each proposed key-

word extraction method, we measured the similarity

Sc and the percentage of VR, SR and NR images

into the output list of images (fig.5 shows the

IVAPP2015-InternationalConferenceonInformationVisualizationTheoryandApplications

144

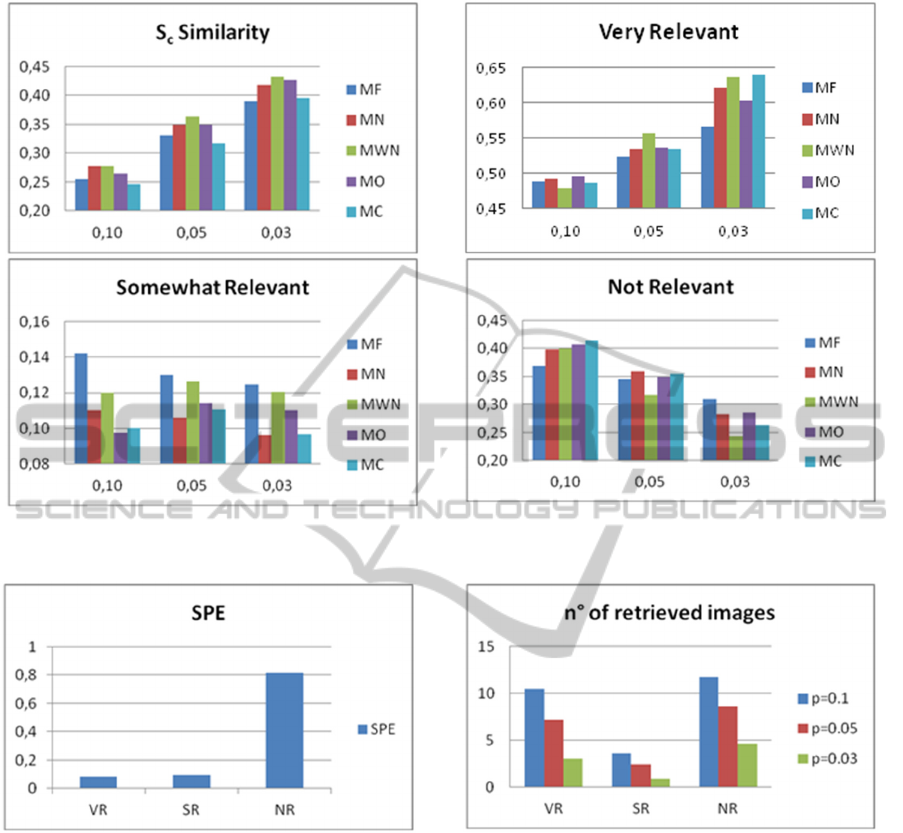

Figure 5: Average values of Sc similarity, and of percentage of VR, SR, NR images, measured for each query, versus

the p parameter, that is related to the threshold used to reduce the Image Semantic Space.

Figure 6: Averaged percentage, per query, of VR, SR

and NR images with SPE.

Figure 7: Averaged number of VR, SR and NR retrieved

images per query and per all the proposed methods.

averaged values, per query, within our dataset). Re-

sults obtained by using SPE are shown in fig. 6.

Fig.7 shows the average number of retrieved images

(VR, SR, NR) per query versus the parameter p, that

is related to the threshold process described in sec-

tion 5.3. When reducing the ISS space by using R

the lower the value of p, the lower is the minimum

number of images that a word, in ISS, must have

associated to be considered relevant, and the larger

is ISS. Experiments showed that Sc increases when

the parameter p decreases as the system works with

a larger number of words in ISS, thus increasing the

probability to share more words with TSS. Note that

we use two keywords to query for images onto the

Web, so we expect the minimum number of words

in the CSS to be larger or equal than two (the two

keywords). When setting p=0.03 each image in the

output list has, on average, 4 tags, two words more

than the two input keywords, gaining a lot of seman-

tic information with respect of the input query. As

well, the percentage (VR) of very relevant images

per query increases for lower values of p. In fact

when the two semantic spaces are very similar (Sc is

high), the query retrieves a list of relevant images,

and the precision increases. With the best configura-

tion (MWN or MC methods, p=0.03) we achieved

impressive results, more than 63% of Very Relevant

images per query that, if summed with the percent-

age of SR, grows up to a 75% of Relevant (VR+SR)

images (with MWN method and p = 0.03). On the

AutomaticIllustrationofShortTextsviaWebImages

145

Table 1: Results with the Web Server Application: Seman-

tic Similarity (SS) and average percentage, per query, of

relevant (R), not relevant (NR) and not voted (NV) images

for the two languages.

Language SS R (%) NR (%) NV (%)

English 0.35 59 33 8

Italian 0.29 52 22 26

other hand, the number of retrieved images decreas-

es with p (fig.7). In fact if ISS and TSS share a high

number of words and, as we select only the images

which have the maximum number of possible shared

tags, the output image list is reduced.

In our tests we observed two typical situations: a

“good” illustration gives as output few, but very

relevant, images; a “bad” illustration gives as output

several and not relevant images. This fact explains

why the percentage of VR retrieved images in fig. 7,

is different from that in fig. 5. Finally, a low value of

p gives the highest precision, but the lowest number

of retrieved images.

If comparing our method to Story Picturing En-

gine (link2), as expected, experiments show that our

results overcome those by SPE. Even in the worst

case, we achieved a percentage of about 50% of

Very Relevant images per query (in the best case

64%), while SPE gives less than 10% of VR images.

Note that SPE is based on a limited personal dataset

of images, annotated by authors, then it is able to

represent a small set of concepts. On the contrary,

our system works extracting the required knowledge

from the Web, creating dynamically a new image

dataset per each query, and can cover all the possible

concepts that can be expressed by a text.

Fig. 8 shows results versus the parameter p. Best

results are achieved when p=0.01. In this case que-

ries typically retrieve few images but with a lot of

associated tags (e.g. fig. 8.h shows a single image,

but that is very relevant to the input text content). It

results in a high precision and a high value of SC.

Regarding efficiency, the whole process takes 2-

3 minutes to be completed. Most of the time is spent

validating image links as described in section 5.3

(~1 sec per image, using 4 parallel workers) and

downloading metadata (0,5 sec per URL), then exe-

cution time strongly depends on the number of im-

ages retrieved by Google Image. Time spent for the

other steps of the method is negligible.

6.2 Web Server Application

Our Web server application results have been evalu-

ated, as well, using both an objective and a subjec-

tive metrics. The objective metric is the semantic

similarity defined in eq. 3. For a subjective evalua-

tion we required some help from the Internet com-

munity. We asked to the Web users to test our tool

and to leave feedbacks about returned results, select-

ing relevant and not relevant images. We stored their

feedbacks into a database to collect statistical infor-

mation about query results and their relevancy,

Feedbacks helped us to improve the method (e.g.

suggesting us new words to add to the list of stop-

words), and to evaluate our method performance.

We collected more the 1000 queries and we received

feedbacks from more or less 300 users.

Results’ precision depends on two parameters,

described in section 6: the number of images re-

trieved M and the minimum number of images m

associated to the tags (which is strictly related to the

p value described in section 6.1). We achieved the

best results, in terms of speed/precision trade-off,

working with M=25 images and p=0.04. Average

execution time is about 1 minute per query. Average

percentages of precision, per query, are shown in

Table 1, for both English and Italian languages. In

terms of Semantic Similarity, results show that we

gained knowledge with respect of the two input

keywords: each output image is tagged with more

than the two keywords used to create the query.

Precision results show that our method gives as out-

put a very low number of not relevant images, and

achieve very good results in terms of relevant imag-

es (60% circa for English queries, more than 50%

for Italian queries).

7 CONCLUSIONS

In our work we faced several problems:

- we worked with a single text, while many text

analysis techniques study documents within a corpus

of similar documents, which typically specifies the

domain of knowledge. We dynamically create the

domain at each query, without any external infor-

mation. In this way we can represent any type of

content, and we are not limited to a specific domain.

- we needed to model the text content in order to

extract relevant information, which would be com-

pared with those extracted from the Web. Semantic

Space models helped us in this step, and we used

PCA to reduce space dimensionality.

- we needed significant keywords to query an Im-

age Search Engine for a list of relevant images. We

proposed and discussed five different methods to

extract keywords from the input text or from its

models.

IVAPP2015-InternationalConferenceonInformationVisualizationTheoryandApplications

146

a) TSS

b) PTSS

c) CSS, p=0.1

d) Output tags: angeles, lakers, game, los

e) CSS, p=0.05

f) Output tags: angeles, celtics lakers, game, los,

CSS, p=0.03

h) Output tags: allen, angeles, celtics, game, lakers, los, win

Figure 8: Results obtained with MWN with different values of p. (9.d shows only part of the output list). Input text at

(link3).

AutomaticIllustrationofShortTextsviaWebImages

147

- we had to represent the content of the images of

the Web. We extracted information from the Web

pages containing the retrieved images, i.e. metadata,

and we modelled this content as a Semantic Space,

similarly to the text case.

- we needed to compare the two Semantic Space.

For that, we defined a similarity measure which

indicates how much the two spaces relates to the

same semantic meaning.

- we needed to re-rank the list of retrieved images.

We propose to extract the words from the common

subspace of the two semantic spaces. Images are

ranked on the basis of the number of tags they share

in the common sub-space.

Results are very satisfactory, and impressive if

compared to those obtained with SPE. The main

difference between the two methods is the image

dataset. SPE uses a personal collection of photos,

annotated by hand, hence is very limited by the

number of images and by the concepts represented

in its dataset. We use Google Image to create, dy-

namically at each query, a new image dataset to

work within. Thus we exploit the knowledge of the

Web, increasing the chances to find images relevant

to the text content.

Furthermore our method has been designed to be

multi-language, as it can be easily extended to other

language if the proper list of stop-words is created.

We also developed a Web implementation of the

proposed method, as a new service to Internet users.

We are confident that our solution will interest

news or advertising agencies, newspapers websites,

bloggers or in general all the users who search for

information into the Web.

At last, the “core” of our system is general pur-

pose, and can be used to compare texts, HTML pag-

es, and all types of annotated document, that can be

retrieved from the Web. That is, we can use Google

Search (Youtube, Wikipedia, etc.) instead of Google

Image, to query for any type of tagged contents

which can be useful to describe an input text.

REFERENCES

Barnard, K., Duygulu, P., et al., 2003. Matching words

and pictures. JMLR, 3:1107–1135.

Barnard, K., and Forsyth, D., 2001. Learning the Seman-

tics of Words and Pictures. Proc. International Con-

ference on Computer Vision, pp. II: 408-415, 2001.

Carney, R. N., and Levin, J. R., 2002, “Pictorial illustra-

tions still improve students' learning from text”, Edu-

cational Psychology Review, 2002, 14(1), 5-26.

Carneiro, G., Chan, A., et al., 2007. Supervised learning of

semantic classes for image annotation and retrieval.

IEEE Transactions on Pattern Analysis and Machine

Intelligence, 29(3):394–410.

Carney, R. N., and Levin, J. R., 2002. Pictorial illustra-

tions still improve students' learning from text. Educa-

tional Psychology Review, 14(1), 5-26.

Coelho, F., and Ribeiro, C., 2011, Automatic illustration

with cross-media retrieval in large-scale collections. In

Content-Based Multimedia Indexing (CBMI), 2011

9th International Workshop on (pp. 25-30). IEEE.

Coyne, B., and Sproat, R., 2001. Wordseye: An automatic

text-to-scene conversion system. In Proceedings of the

28th Annual Conference on Computer Graphics and

Interactive Techniques. SIGGRAPH 2001, 487–496.

Deerwester, S., Dumais, S. T., et al., 1990. Indexing by

latent semantic analysis. Journal of the American So-

ciety For Information Science, 41(6), 391-407.

Delgado, D., Magalhaes, J., & Correia, N., 2010. Auto-

mated illustration of news stories. In Semantic Compu-

ting (ICSC), 2010 IEEE Fourth International Confer-

ence on (pp. 73-78). IEEE.

Feng, Y., and Lapata, M., 2010. Topic models for image

annotation and text illustration. In Proceedings of the

NAACL HLT. Association for Computational Linguis-

tics, Los Angeles, California, pages 831–839.

Feng, S., Manmatha, R, and Lavrenko, V., 2004. Multiple

bernoulli relevance models for image and video anno-

tation. In CVPR, volume 2(2004), pp. 1002-1009.

Joshi, D., Wang, J .Z., and Li, J., 2006. The story picturing

engine—a system for automatic text illustration. ACM

Transactions on Mul-timedia Computing, Communica-

tions, and Applications, 2(1):68–89.

Kandola, J. S., Shawe-Taylor, J., and Cristianini, N., 2003.

Learning semantic similarity, In Neural Information

Processing Systems 15 (NIPS 15), pp. 657-664.

Lowe, W., 2001. Towards a theory of semantic space. In

Proceedings of the Twenty-Third Annual Conference

of the Cognitive Science Society 2001 (pp. 576-581).

Mahwah, NJ: Erlbaum.

Miller, G. 1990. WordNet: An on-line lexical database.

Int. Journal of Lexicography, Special Issue, 3(4).

Monay, F., and Gatica-Perez, D., 2007. Modeling seman-

tic aspects for cross-media image indexing. IEEE

Transactions on Pattern Analysis and Machine Intelli-

gence, 29(10):1802–1817.

Rasiwasia, N., Pereira, J. C., et al. 2010. A new approach

to cross-modal multimedia retrieval. In Proceedings of

the International Conference on Multimedia (MM

'10), 251-260.

Yutaka, M., and Ishizuka, M., 2004. Keyword extraction

from a single document using word co-occurrence sta-

tistical information. Int’l Journal on Artificial Intelli-

gence Tools, 13(1):157–169.

Zhu, X., Goldberg, A. B., et al., 2007. A text-to-picture

synthesis system for augmenting communication. In

Proceedings of the 22nd national conference on Artifi-

cial intelligence, Vol. 2, 1590-1595 2007.

link1: http://en.wikinews.org/wiki/Main_Page.

link2: http://alipr.com/spe/

link3: http://en.wikinews.org/wiki/Los_Angeles_Lakers_

need_to_win_game_six_to_tie_NBA_championship.

IVAPP2015-InternationalConferenceonInformationVisualizationTheoryandApplications

148
