Real-time Human Pose Estimation from Body-scanned Point Clouds

Jilliam Mar

ıa D

ıaz Barros

1,2

, Frederic Garcia

and D

esir

e Sidib

Le2i - UMR CNRS 6306, Universit

e de Bourgogne, 12 rue de la Fonderie, Le Creusot, France

SnT, University of Luxembourg, 4 rue Alphonse Weicker, Luxembourg, Luxembourg

Keywords:

Human Pose Estimation, Point Cloud, Skeleton Model.

Abstract:

This paper presents a novel approach to estimate the human pose from a body-scanned point cloud. To do

so, a predeﬁned skeleton model is ﬁrst initialized according to both the skeleton base point and its torso

limb obtained by Principal Component Analysis (PCA). Then, the body parts are iteratively clustered and the

skeleton limb ﬁtting is performed, based on Expectation Maximization (EM). The human pose is given by the

location of each skeletal node in the ﬁtted skeleton model. Experimental results show the ability of the method

to estimate the human pose from multiple point cloud video sequences representing the external surface of

a scanned human body; being robust, precise and handling large portions of missing data due to occlusions,

acquisition hindrances or registration inaccuracies.

1 INTRODUCTION

Human pose estimation is indispensable in very active

research areas such as scene understanding, human-

computer interaction and action or gesture recogni-

tion. Among the vast literature on this fundamental

research topic, many authors have considered prede-

ﬁned human models to simplify the pose estimation

task when using conventional 2-D cameras. For in-

stance, Ke et al. in (Ke et al., 2011) retrieve the human

pose from a monocular camera, using downhill sim-

plex algorithm to match 2-D feature points to a pre-

deﬁned 3-D human model. Other approaches specif-

ically parameterize the pose in a lower dimensional

space, using skeleton models. An example is the work

of Li et al. in (Li et al., 2009), where the authors esti-

mate the 2-D human pose in a video sequence using a

predeﬁned human skeleton model to ﬁt the silhouette

of a body shape. Distance Transform (DT) and Prin-

cipal Component Analysis (PCA) are used to identify

the skeleton base point and to initialize the skeleton.

Then, they perform an iterative process to cluster the

body parts to which they ﬁt the predeﬁned skeleton

model. However, a renewed interest has arisen as a

side-effect of the recent advances in 3-D sensing tech-

nologies. Indeed, recent consumer-accessible depth

cameras such as the Kinect or the Xtion Pro Live pro-

vide remarkable advantages, such as easily overcom-

ing the background matting problem, i.e., segment-

ing foreground objects from the scene background.

Although recent approaches based on depth cameras

provide very promising human pose estimates, most

of them are intended for mono-view systems and thus

limited to applications in which the user is facing to

the camera. Approaches intended for multi-view sys-

tems and thus to estimate the human pose from a full

body scan, usually extract a curve-skeleton represen-

tation of the shape to which the skeleton model can

be ﬁtted and hence, estimate the pose. However, these

approaches are impractical for applications in which

the human pose must be estimated in real-time.

In this paper, the problem of human pose estima-

tion is addressed in the context of 3-D scenes scanned

by multi-view systems composed of multiple depth

cameras. To enable for real-time applications, prior

knowledge such as a predeﬁned human body skele-

ton model is also incorporated, from which its skele-

tal joints will deﬁne the conﬁguration and thus the

pose of the scanned body. The remainder of this pa-

per is organized as follows: Section 2 presents a re-

view of human pose estimation based on depth sens-

ing. In Section 3 a detailed description of the current

approach is presented. Section 4 evaluates the pro-

posed approach on both synthetic and real data. Fi-

nally, concluding remarks are given in Section 5.

2 RELATED WORK

Related to single-depth-image pose estimation, Ye et

553

Díaz Barros J., Garcia F. and Sidibé D..

Real-time Human Pose Estimation from Body-scanned Point Clouds.

DOI: 10.5220/0005309005530560

In Proceedings of the 10th International Conference on Computer Vision Theory and Applications (VISAPP-2015), pages 553-560

ISBN: 978-989-758-089-5

 2015 SCITEPRESS (Science and Technology Publications, Lda.)

al. (Ye et al., 2011) proposed a pipeline to com-

bine pose detection with pose reﬁnement. To do so,

the depth map is used to ﬁnd a similar pose within

a database of prior full-body surface mesh models.

Lehment et al. (Lehment et al., 2010) considered 3-D

point clouds extracted from depth maps to ﬁt a mesh

of a cylinder-based stickman model using Annealing

Particle Filters (APF). However, the aforementioned

methods require a GPU-based implementation. Shot-

ton et al. (Shotton et al., 2013) introduced two super-

real-time approaches to predict the positions of body

joints using a large and varied synthetic set of training

images. Decision forests and simple depth-invariant

image features are implemented. In (Zhang et al.,

2012), Zhang et al. considered a multi-view setup

with depth cameras to perform human pose estima-

tion and tracking. The method employs APF and par-

tition sampling in point cloud models, handles occlu-

sions and reduces ambiguities. The initial pose is esti-

mated using a coarse-to-ﬁne search paradigm. To the

best of our knowledge, this is the only method using a

multiple-depth-camera setup for human pose estima-

tion. Curve-skeleton-extraction approaches have been

successfully used for different kind of shapes besides

human models. Since they preserve the geometry and

topological information of the object, they can be im-

plemented in human pose estimation by approximat-

ing the underlying skeletal structure (Garcia and Ot-

tersten, 2014b). Au et al. at (Au et al., 2008) proposed

a Laplacian-based contraction method intended only

for watertight mesh surfaces. An extension of this

work was proposed by Cao et al. (Cao et al., 2010)

to handle surfaces with boundaries, polygon soups

and point clouds. Although both methods are robust

against noise and moderate miss of data, they are not

optimized for real-time applications. Tagliasacchi et

al. presented in (Tagliasacchi et al., 2009) a method

to extract curve skeletons based on a generalized ro-

tational symmetry axis (ROSA) of an oriented point

cloud. A similar approach was proposed by Sam et al.

(Sam et al., 2012) using the antipodes as a reference.

Both methods can handle signiﬁcant missing data, but

require parameter tuning. A real-time curve-skeleton

extraction method was proposed by Garcia and Otter-

sten (Garcia and Ottersten, 2014b) in which, inspired

from (Sam et al., 2012), the skeletal candidates are

extracted in the 2-D space and then back-projected to

the 3-D space. The algorithm is robust against signif-

icant portions of missing data. Limitations are related

to occluded body parts and limbs located very close

to each other.

(a) (b)

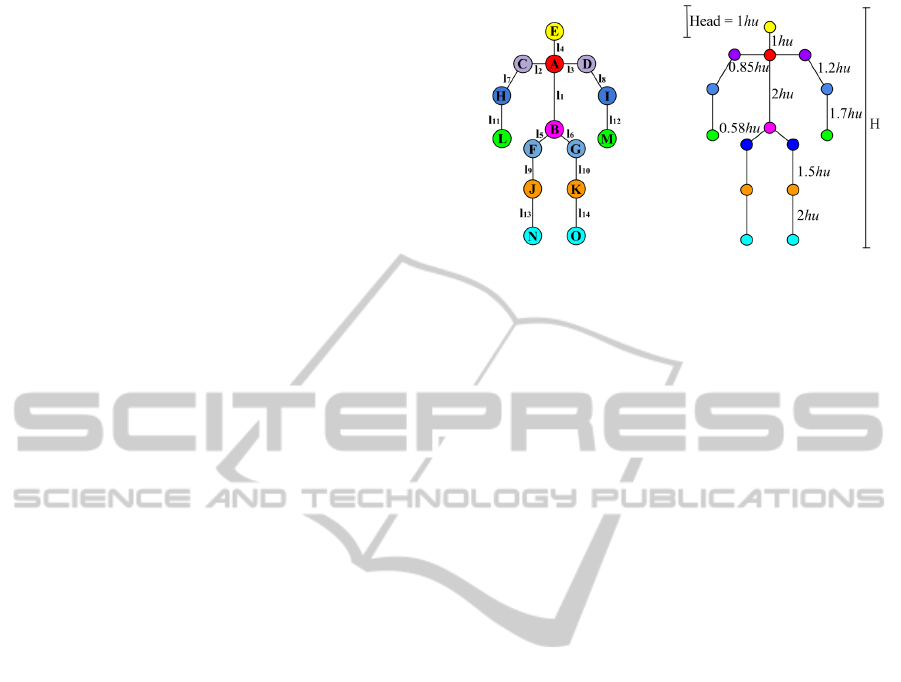

Figure 1: Predeﬁned human skeleton model. (a) Skeleton

limbs and nodes. (b) Human body proportions, with hu the

height of the head (head units).

3 PROPOSED APPROACH

A novel approach to estimate the human pose from a

body-scanned point cloud P describing a set of 3-D

points p

= (p

, p

) representing the underlying

external surface of a human body is outlined below.

Similarly to (Li et al., 2009), the current approach

has considered an articulated human skeleton model

composed of 15 nodes and 14 edges, presented in

Fig. 1 (a). By doing so, the complexity and ﬂexibil-

ity of the human body as well as the high dimension-

ality of the pose space are reduced. The predeﬁned

skeleton model represents a simpliﬁed version of the

geometry and topology of the human skeleton. Al-

though there are subtle differences between people,

human body proportions ﬁt within a fairly standard

range and thus, prior knowledge can be considered.

Indeed, an average person uses to measure 7.5 times

the height of his head (including the head). This in

turn allowed to initialize the length of each skeleton

limb as shown in Fig. 1 (b) (Hum, 2014).

In this work, P describes any possible body con-

ﬁguration of an upright person. Hence, the height of

a person (7.5 ×hu) is given by the difference between

the maximum and minimum z coordinates within P .

That is, hu = (p

max

− p

min

)/7.5, being the head the

highest body part.

The human pose estimation results from the con-

ﬁguration of the skeletal joints after approximating

the aforementioned skeleton model. This is achieved

with a four-steps framework. First, both the base

point of the skeleton model and the torso orientation

are extracted. These two parameters allow the initial-

ization of the torso whereas the remaining skeleton

limbs are initialized by an iterative process in which

the best initial skeleton limb conﬁguration is selected.

Next step concerns the clustering of the body parts,

VISAPP2015-InternationalConferenceonComputerVisionTheoryandApplications

554

to which ﬁnally, their respective skeleton limbs are

progressively approximated. The clustering and ﬁt-

ting are performed under a framework based on the

theory of Expectation Maximization. Note that the

3-D point clustering to ﬁnd the torso orientation (Sec-

tion 3.1) and the initialization of the skeleton model

using a predeﬁned set of limb conﬁgurations (Sec-

tion 3.2) are solely performed for the ﬁrst frame. In-

deed, the resulting ﬁtted skeleton corresponds to the

initial skeleton for the consecutive frame. By doing

so, the time consumed during both stages is reduced,

ensuring a better initial skeleton estimate for the fol-

lowing frames.

3.1 Torso and Base Point Extraction

The node A = (A

) in Fig. 1 (a) corresponds

to the base point of the skeleton model whereas the

segment between nodes A and B, skeleton limb l

B − A, to the torso. The direction of the torso re-

sults from the Principal Component Analysis (PCA)

on P . Indeed, the direction of the principal compo-

nent v = (v

) coincides with the direction of the

torso, assuming that P describes an upright person.

The equation of the 3-D line in which the base point

A lies is thus deﬁned from the centroid of P , i.e.,

p =

∑

i=1

, ∀p

∈ P and the normalized vector v.

The third coordinate of A, i.e., A

, is retrieved from

the human body proportions denoted in Fig. 1 (b),

whereas the two missing coordinates result from:

= v

·t + ¯p

= v

·t + ¯p

(1)

with t = (A

− ¯p

)/(v

− ¯p

). Note that the initializa-

tion of the skeleton model and hence, the body clus-

tering, are strongly dependent on these two parame-

ters. Indeed, a wrong direction of the torso entails to

a wrong initialization of the model and thus to an erro-

neous pose in space. To increase the accuracy and ro-

bustness of the torso direction, only those 3-D points

that belong to the torso are considered. To do so, the

torso 3-D points are classiﬁed by ﬁtting a cylinder,

a simpliﬁed geometric model that can be quickly ﬁt-

ted to the dataset using Random Sample Consensus

(RANSAC) (Fischler and Bolles, 1981). Alternative

ﬁtting algorithms with embedded heuristic hypothe-

ses generators can be also considered.

3.2 Initialization of the Skeleton Model

The initial skeleton model results from the skeleton

limb’s conﬁguration that minimizes the distances be-

tween the 3-D points and the set of skeleton limbs,

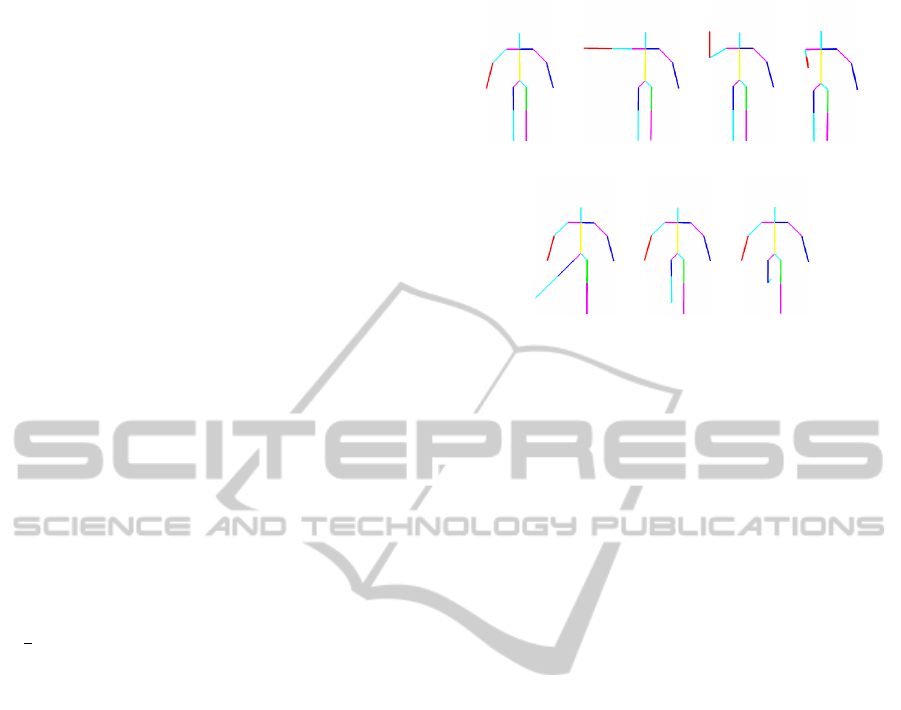

(a) (b) (c) (d)

(e) (f) (g)

Figure 2: Considered skeleton limb and node conﬁgurations

to initialize the skeleton model (only right body side conﬁg-

urations are shown).

i.e., the best matching between the predeﬁned skele-

ton model conﬁguration and the given point cloud P .

However, in contrast to alternative approaches to es-

timate the human pose from 2-D images (Li et al.,

2009), this task is far from trivial when considering

the additional degree of freedom in a 3-D space. First,

the skeleton model is aligned to the estimated base

point and torso directions. Then, the locations of the

remaining skeleton nodes are progressively computed

from the set of skeleton limb conﬁgurations, pre-

sented in Fig. 2, and using incorporated prior knowl-

edge such as the radii of the skeleton limbs and the

initial angles of the skeleton joints. Fig. 2 only shows

the selected conﬁgurations to initialize the right body

side. Nevertheless, as can be inferred, the mirrored

versions correspond to the conﬁgurations of the left

body side. Given a skeleton limb l

with radius r

azimuthal angle θ

, and polar angle φ

, the 3-D coor-

dinates of the end node w = (w

) result from:

= u

+ r

· cos θ

· cos φ

= u

+ r

· sin θ

· cos φ

= u

+ r

· sin φ

(2)

with u = (u

) the 3-D coordinates of the initial

node. The spherical coordinate system and the right-

hand rule are used to deﬁne the initial angles that gen-

erate the coordinates of each skeleton node. The an-

gles θ and φ are ﬁxed within the range of [0,π] and

[0,2π), respectively. First, the location of the skele-

ton nodes that are directly connected to the base point

A are computed, i.e., B, C, D and E. From them, the

location of F, G, H and I, followed by J, K, L and M

are computed. Finally, nodes N and O are computed.

When considering 3-D models that are differently

oriented with respect to the z-axis, the 2

principal

component is used to rotate the initialized skeleton

Real-timeHumanPoseEstimationfromBody-scannedPointClouds

555

model. In the current system conﬁguration, the eigen-

vector of the 1

component corresponds to the z-axis

whereas the eigenvector of the 2

one corresponds to

the x-axis. Thereby, a 3 × 3 rotation matrix R is com-

puted by rearranging the eigenvectors obtained from

PCA. The new location of the skeleton nodes is given

by w = R · u.

3.3 Body Parts Clustering

After initializing the skeleton model, the cluster-

ing of the body parts to which each skeleton limb

will be further approximated is performed. To do

so, each 3-D point p

is assigned to the skeleton

limb l

to which the distance is minimum, i.e., l

argmin

k∈[1,14]

(d(p

)) ∀p

∈ P .

Nevertheless, close distances between a 3-D point

and two or more skeleton limbs may induce to ambi-

guity in the clustering. Hence, these 3-D points are

not considered within the clustering process.

3.4 Skeleton Limb Fitting

Next step concerns the medial axis estimation of each

clustered body part, to which their corresponding

skeleton limb will be ﬁtted. It is important to recall

that the nodes of the torso, A and B, are ﬁxed in this

step, and the remaining nodes to be computed are only

connected to two limbs. From each cluster, the mean

point and the three principal components are extracted

using PCA. Note that the length of each skeleton limb

is known from Fig. 1 (b). To decide which of the three

eigenvectors corresponds to the medial axis, they are

stretched from both sides starting from the mean point

of the cluster and by half of their known length. As

a result, three potential medial axes that are not con-

nected to each other, but oriented towards the direc-

tions of the principal components, are obtained. The

connectivity between the skeleton limbs is ensured by

selecting the medial axis candidates of adjacent clus-

ters with the shortest distances between the end node

of the previously ﬁtted limb and the initial node of

the limb to be ﬁtted. Fig. 3 details the ﬁtting pro-

cess between the left hip and left thigh skeleton limbs.

Red, blue and green segments are the candidate me-

dial axes of each cluster, depicted as cylinders. The

three candidates of each cluster have exactly the same

length, which corresponds to the length of their re-

spective skeleton limb. The yellow point in Fig. 3 (a)

denotes the end node of the hip limb G

, whereas

the orange dashed line is the shortest distance to the

skeletal node candidates of the adjacent cluster, i.e.,

. Next, the centroid

q between G

and G

is cal-

culated, shown in purple color in Fig. 3 (b), and the

(a) (b) (c)

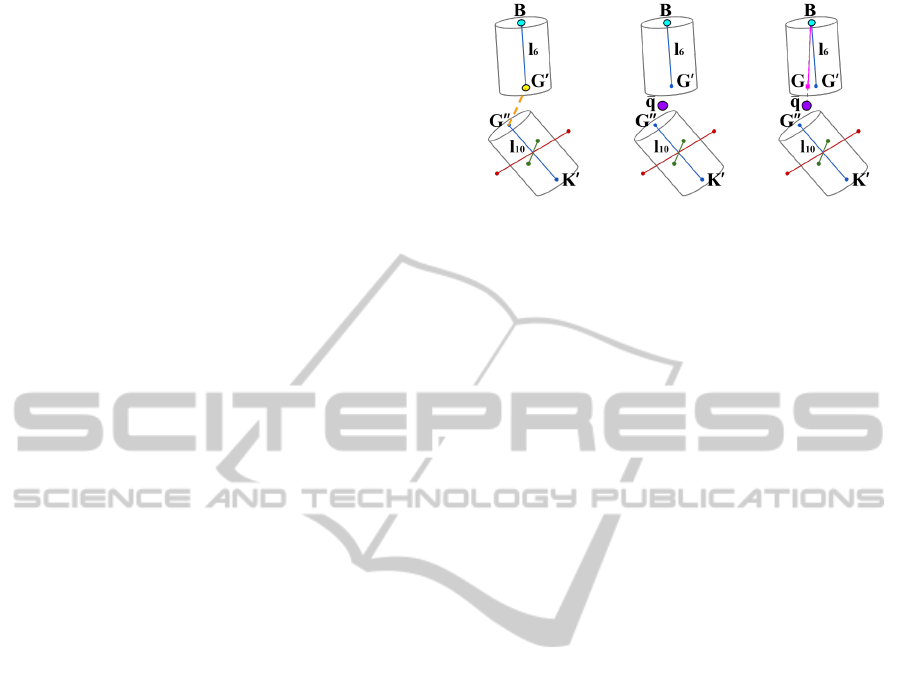

Figure 3: Fitting process of the hip limb. The medial axis

candidates corresponding to the ﬁrst, second and third prin-

cipal components (in blue, red and green colors, respec-

tively).

ﬁtting of l

is reﬁned by reorienting it towards

q, as

shown in Fig. 3 (c). The new 3-D coordinates of G

result from:

G = B + λ, (3)

with λ = d(B, G)·(

q−B)/||

q−B||. Note that node G

corresponds to the initial node of the adjacent skele-

ton limb, i.e., the thigh. Therefore, the skeleton limb

is translated to its respective location, which gives

an initial location for the node K, to be reﬁned when

ﬁtting its adjacent skeleton limb, i.e., l

3.5 Skeleton Reﬁnement

Similarly to (Li et al., 2009), the ﬁtting of the skeleton

model is performed through an iterative process based

on Expectation Maximization (EM). The Expectation

(E) step comprises Section 3.3 and the ﬁrst part of

Section 3.4, where the expected human skeleton is

calculated for the current pose. The Maximization

(M) step corresponds to the last part of Section 3.3,

where the parameters that maximize the expectation

of the skeleton model during the ﬁtting process are

computed. From the experiments, the ﬁtting process

converges to a good pose estimation in only one or

two iterations.

4 EXPERIMENTAL RESULTS

The proposed human pose estimation approach is

evaluated on both real and synthetic data. All re-

ported results have been obtained using a Mobile

Intel



QM67 Express Chipset with an integrated

graphic card Intel



HD Graphics 3000. The pro-

posed approach has been implemented in C++ lan-

guage using the OpenCV (Bradski and Kaehler, 2008)

and PCL (PCL, 2014) libraries. Real data has been

VISAPP2015-InternationalConferenceonComputerVisionTheoryandApplications

556

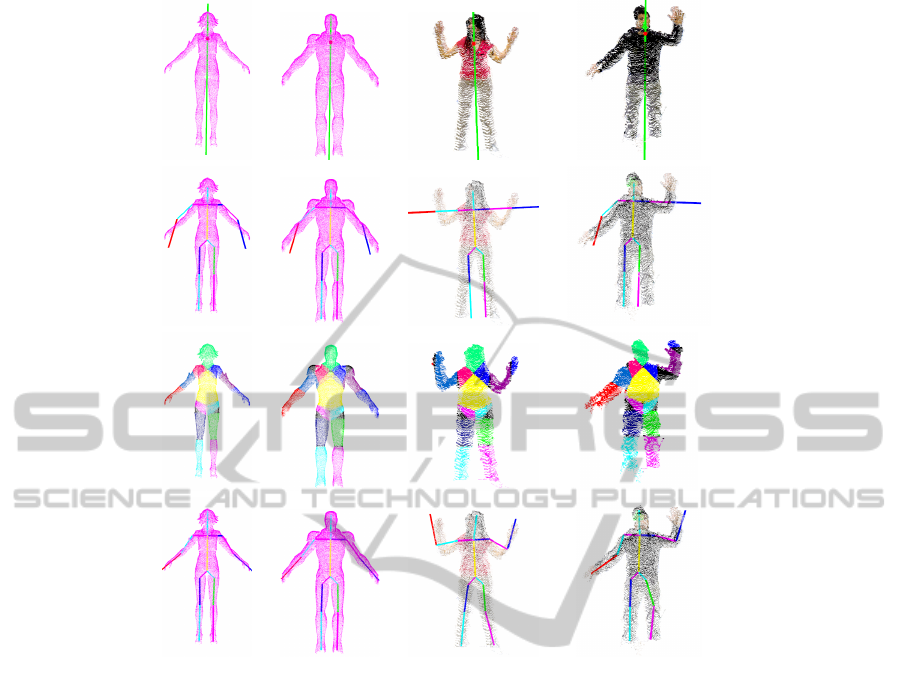

Figure 4: Human pose estimation on body-scanned point clouds using both real and synthetic data. 1

row, input point cloud.

row, initial skeleton model. 3

row, body parts clustering. 4

row, approximated skeleton model. 1

col., Nilin Combat

dataset. 2

col., Iron Man dataset. 3

col., Jilliam dataset. 4

col., Frederic dataset.

recorded using a multi-view sensing system com-

posed by 2 consumer-accessible RGB-D cameras, i.e.,

the Asus Xtion Pro Live camera, with opposed ﬁeld-

of-views, i.e., with no data overlapping. Neverthe-

less, the relationship between the two cameras was

determined by a calibration step, using the stereo cal-

ibration implementation available in OpenCV (Brad-

ski and Kaehler, 2008). Better registration approaches

based on ICP, bundle adjustment or the combination

of both can also be considered. However, the cur-

rent approach perfectly estimates the human pose on

such a coarse registered point clouds, handling large

portions of missing data as well as registration inac-

curacies. Synthetic data has been generated using V-

Rep (VRE, 2014), a very versatile robot simulator tool

in which the user can replicate real scenarios. A simu-

lated scene has been created to generate the test cases

with four virtual Kinect cameras installed in the top

corners of the virtual scene. It can be observed that

the data is perfectly registered since a full knowledge

of the relationship between the cameras and their cali-

bration parameters is known. Consequently, synthetic

data has been considered as ground truth data in the

next evaluations. All datasets have been voxelized to

account for point redundancy after data registration.

Voxelization stands for a discrete approximation of

3-D objects into a volumetric representation (Garcia

and Ottersten, 2014a).

Some visual results on both synthetic and real

body-scanned datasets are shown in the Fig. 4. The

ﬁrst row presents the considered datasets highlight-

ing the estimated orientation of the torso (green line)

and the extracted base point (purple dot). Second

row shows the initialization of the predeﬁned skele-

ton model. The clustering of all body parts is shown

in the third row whereas the ﬁtted skeleton model is

shown in last row, from which results the human pose.

In Fig. 5, the estimated poses of the synthetic Bill

model and a real dataset on some selected point-cloud

video frames are shown. These results show that the

method is able to accurately estimate the body pose

of different body conﬁgurations of an upright person.

Real-timeHumanPoseEstimationfromBody-scannedPointClouds

557

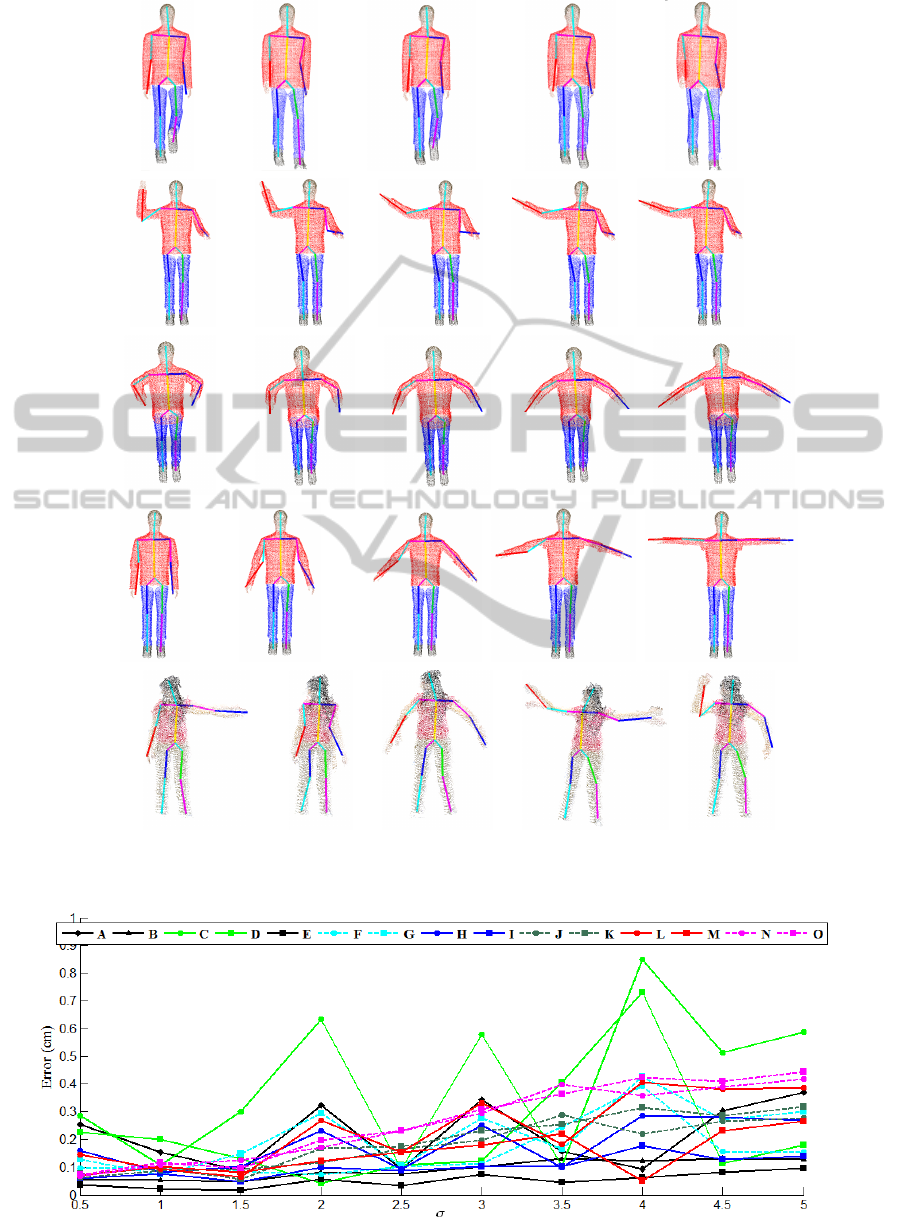

Figure 5: Human pose estimation on different frames from synthetic (1

to 4

rows) and real (5

row) video sequences of

body-scanned point clouds.

Figure 6: Fitting error of skeletal nodes for σ ∈ [0.5,5] cm.

VISAPP2015-InternationalConferenceonComputerVisionTheoryandApplications

558

(a) (b) (c)

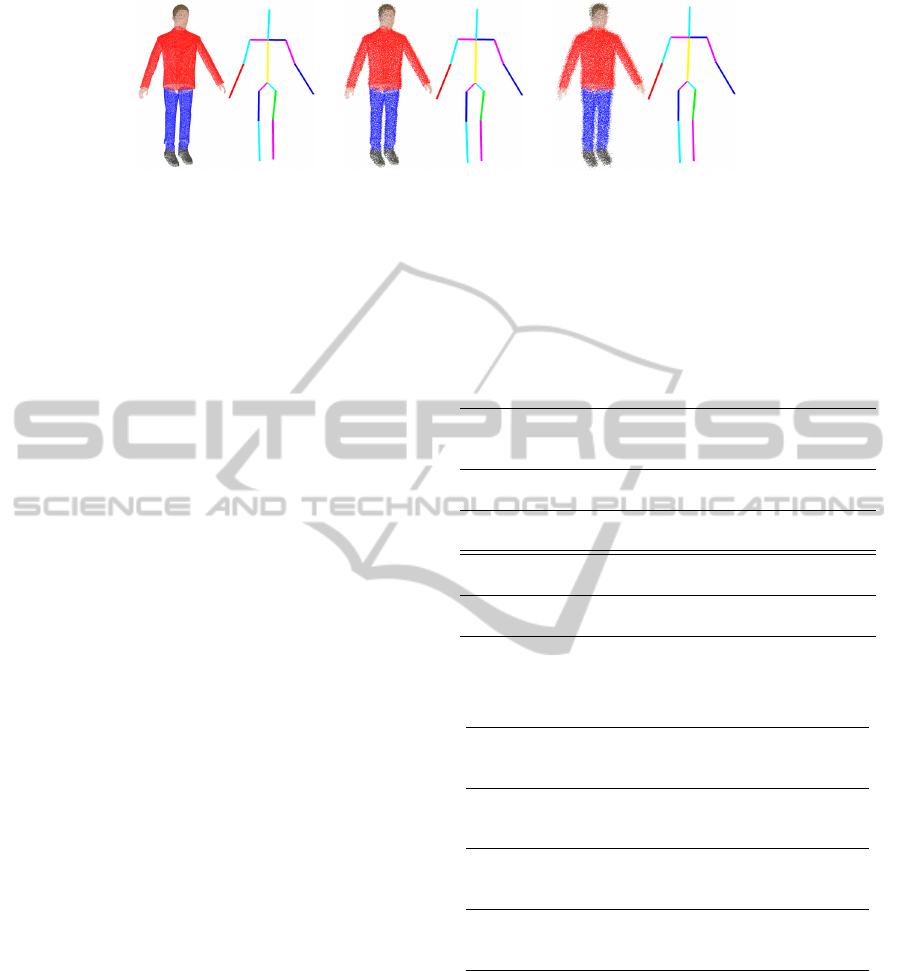

Figure 7: Bill pose estimation for (a) σ = 0 cm, (b) σ = 2.5 cm and (c) σ = 5 cm.

4.1 Robustness to Noise

Next, the robustness of the current approach against

noise is evaluated. To do so, the synthetic dataset of

Bill has been considered, to which it has been ap-

plied a zero-mean Gaussian noise with standard de-

viation σ ∈ [0.5, 5] cm, i.e., N (0,σ

). In order to in-

crease the reliability of this evaluation, the noise has

been added to the depth maps acquired by each vir-

tual Kinect camera, i.e., before being transformed to

point clouds. Fig. 6 depicts the error between the lo-

cation of the resulting skeleton nodes from the noise-

free 3-D model (considered as ground truth), and their

respective ones from the noisy models. The labels of

the nodes correspond to those presented in Fig. 1. As

shown in Fig. 7, the proposed approach is able to es-

timate the Bill pose for all σ values. However, it can

be observed that the ﬁtting error of the skeletal nodes

corresponding to body extremities slightly increases

with amount of noise.

4.2 Runtime and Performance Analysis

Table 1 reports the time consumption to estimate the

human pose for each of the datasets presented in

Fig. 4. Note that most of the time is dedicated to

cluster the 3-D points to estimate the direction of the

torso. However, it is important to recall that this oper-

ation might be done only once in the ﬁrst video frame,

as discussed in Section 3.

If a better performance is required, one can in-

crease the voxel size to represent the body-scanned

point cloud. Thus, a voxel size of 1 cm

has been con-

sidered when evaluating the approach. However, the

performance is signiﬁcantly increased by increasing

the voxel size, whereas the human pose remains accu-

rately estimated, as shown in Table 2. The only con-

straint of this implementation is that there has to be

a minimum distance of 5 cm between two 3-D points

to be clustered within the same object. Indeed, this

preliminary clustering is performed to cluster each

individual in the scene. Another improvement may

be achieved by parallelizing the initialization of the

Table 1: Time consumption analysis for human pose esti-

mation on the datasets presented in Fig. 4 (units are in ms).

Reported are the mean values taken over 100 iterations. 1

row, Nilin Combat dataset (12655 points). 2

row, Iron

Man dataset (21975 points). 3

row, Jilliam dataset (14855

points). 4

row, Frederic dataset (19675 points).

Data

Cluster Torso and Initialize Cluster Skeleton

Total

set

3-D torso base point skeleton body limb

time

points extraction model parts ﬁtting

Nilin

226.2 5.0 238.7 47.8 28.0 545.7

Combat

Iron Man 316.8 8.5 412.4 82.1 47.2 867

Jilliam 219.3 5.4 274.5 56.2 30.8 586.2

Frederic 220.2 5.0 275.8 54.7 32.0 587.7

Table 2: Time consumption and robustness depending on

the voxel size to represent the Ironman dataset (units are in

ms).

Voxel

Cluster Torso and Initialize Cluster Skeleton

Error

size

3-D torso base point skeleton body limb

(mm)

points extraction model parts ﬁtting

1 cm

316.8 8.5 412.4 82.1 47.2 0.0(21975

points)

3 cm

45.4 1.0 66.9 13.2 8.3 1.0(3516

points)

5 cm

13.8 0.4 25.3 4.8 3.9 1.8(1305

points)

skeleton model, the clustering of body parts, and the

ﬁtting of the skeleton limbs. Indeed, the human body

can be divided in four different regions, i.e., left and

right arms and left and right legs, that are independent

and thus, can be performed in parallel.

5 CONCLUDING REMARKS

A scheme to estimate the human pose from body-

scanned point cloud datasets has been described. Us-

Real-timeHumanPoseEstimationfromBody-scannedPointClouds

559

ing PCA and prior knowledge on human body pro-

portions, a predeﬁned skeleton model is initialized

and then ﬁtted to the given point cloud by an itera-

tive process based on the theory of Expectation Max-

imization. From the experiments, it is shown that a

good estimate is achieved in both synthetic and real

datasets, and even in the presence of high noise within

the depth measurements. As future work, the current

approach will be extended to alternative body conﬁg-

urations other than upright. Alternative techniques to

segment the 3-D points belonging to the torso (used

to estimate its direction) will be further investigated

in order to address the limitations given by the cylin-

drical model, such as the tuning of the model param-

eters.

ACKNOWLEDGEMENTS

This work was partially supported by the National Re-

search Fund, Luxembourg, under the CORE project

C11/BM/1204105/FAVE/Ottersten.

REFERENCES

(2014). Human Proportion Calculator. http://hpc.

anatomy4sculptors.com/.

(2014). Point Cloud Library (PCL). http://pointclouds.org/.

(2014). Virtual Robot Experimentation Platform (V-REP).

http://www.coppeliarobotics.com/.

Au, O. K.-C., Tai, C.-L., Chu, H.-K., Cohen-Or, D., and

Lee, T.-Y. (2008). Skeleton extraction by mesh con-

traction. In ACM SIGGRAPH 2008 Papers, pages

44:1–44:10. ACM.

Bradski, G. and Kaehler, A. (2008). Learning OpenCV:

Computer Vision with the OpenCV Library. O’Reilly

Media, 1st edition.

Cao, J., A., T., M., O., Zhang, H., and Su, Z. (2010).

Point cloud skeletons via laplacian based contraction.

In Shape Modeling International Conference (SMI),

pages 187–197.

Fischler, M. A. and Bolles, R. C. (1981). Random Sample

Consensus: A Paradigm for Model Fitting with Ap-

plications to Image Analysis and Automated Cartog-

raphy. Communications of the ACM, 24(6):381–395.

Garcia, F. and Ottersten, B. (2014a). CPU-Based Real-Time

Surface and Solid Voxelization for Incomplete Point

Cloud. In IEEE International Conference on Pattern

Recognition (ICPR).

Garcia, F. and Ottersten, B. (2014b). Real-time Curve-

Skeleton Extraction from Incomplete Point Clouds:

Application in Human Pose Estimation. In Interna-

tional Conference on Computer Vision Theory and

Applications (VISAPP).

Ke, S.-R., Hwang, J.-N., Lan, K.-M., and Wang, S.-Z.

(2011). View-invariant 3d human body pose re-

construction using a monocular video camera. In

Distributed Smart Cameras (ICDSC), 2011 Fifth

ACM/IEEE International Conference on, pages 1–6.

IEEE.

Lehment, N. H., Arsic, D., Kaiser, M., and Rigoll, G.

(2010). Automated pose estimation in 3d point clouds

applying annealing particle ﬁlters and inverse kine-

matics on a gpu. In Computer Vision and Pattern

Recognition Workshops (CVPRW), 2010 IEEE Com-

puter Society Conference on, pages 87–92. IEEE.

Li, M., Yang, T., Xi, R., and Lin, Z. (2009). Silhouette-

based 2d human pose estimation. In International

Conference on Image and Graphics (ICIG), pages

143–148.

Sam, V., Kawata, H., and Kanai, T. (2012). A robust

and centered curve skeleton extraction from 3d point

cloud. Computer-Aided Design and Applications,

9(6):969–879.

Shotton, J., Girshick, R., Fitzgibbon, A., Sharp, T., Cook,

M., Finocchio, M., Moore, R., Kohli, P., Criminisi,

A., Kipman, A., et al. (2013). Efﬁcient human pose

estimation from single depth images. Pattern Analy-

sis and Machine Intelligence, IEEE Transactions on,

35(12):2821–2840.

Tagliasacchi, A., Zhang, H., and Cohen-Or, D. (2009).

Curve skeleton extraction from incomplete point

cloud. In ACM SIGGRAPH 2009 Papers, SIGGRAPH

’09, pages 71:1–71:9. ACM.

Ye, M., Wang, X., Yang, R., Ren, L., and Pollefeys, M.

(2011). Accurate 3d pose estimation from a single

depth image. In Computer Vision (ICCV), 2011 IEEE

International Conference on, pages 731–738. IEEE.

Zhang, L., Sturm, J., Cremers, D., and Lee, D. (2012). Real-

time human motion tracking using multiple depth

cameras. In Intelligent Robots and Systems (IROS),

2012 IEEE/RSJ International Conference on, pages

2389–2395. IEEE.

VISAPP2015-InternationalConferenceonComputerVisionTheoryandApplications

560
