MTTV

An Interactive Trajectory Visualization and Analysis Tool

Fabio Poiesi and Andrea Cavallaro

Centre for Intelligent Sensing, Queen Mary University of London, London, U.K.

Keywords:

Visualization, Trajectory Analysis, Multi-target Tracking.

Abstract:

We present an interactive visualizer that enables the exploration, measurement, analysis and manipulation of

trajectories. Trajectories can be generated either automatically by multi-target tracking algorithms or manually

by human annotators. The visualizer helps understanding the behavior of targets, correcting tracking results

and quantifying the performance of tracking algorithms. The input video can be overlaid to compare ideal and

estimated target locations. The code of the visualizer (C++ with openFrameworks) is open source.

1 INTRODUCTION

Visualization aims at presenting complex data in a

comprehensible form and helps users to improve their

understanding, reﬁne theories and reveal failures. A

plethora of research projects investigate behaviors of

moving and potentially interacting objects such as

cells (Li et al., 2008), particles (Park et al., 2014),

insects (Fasciano et al., 2014) or people (Shitrit et al.,

2014) based on video recordings. Recent advances

in computer vision have led to the automatic gener-

ation of metadata (trajectories) that describe motion

patterns (Poiesi and Cavallaro, 2014). The observa-

tion of trajectory patterns can beneﬁt behavioral stud-

ies (Wong, 2012) of animals (Veeraraghavan et al.,

2008; Kimura et al., 2014) and humans (Helbing

et al., 2000), and can also be useful to localize errors

generated by object trackers.

To understand target interactions (Khan et al.,

2005), a user has to observe concurrent trajectories

and spatio-temporal relationships between points of

interest. Moreover, researchers need to analyze the

performance of multi-target tracking algorithms by

visualizing and understanding errors in the estimated

trajectories. Errors include identity switches (Yin

et al., 2007), track fragmentation (Li et al., 2009) or

drifts (Ross et al., 2008). Evaluation algorithms as-

sess tracking performance ofﬂine (Yin et al., 2007;

Li et al., 2009) or online (SanMiguel et al., 2012).

Tracking assessment is often limited to the numerical

analysis of evaluation scores, such as number of iden-

tity switches, number of fragmented tracks or percent-

age of mostly tracked objects (Wu and Nevatia, 2006;

Zhang et al., 2015). A visual feedback of this infor-

mation would support the identiﬁcation of the causes

of errors and complement the information provided

by the evaluation scores.

While considerable progress has been made in

3D-particle representations to improve the character-

ization of high-density biological structures (Beheiry

and Dahan, 2013), trafﬁc analysis and maritime navi-

gation (Tominski et al., 2012), as well as the 3D visu-

alization of aircraft trajectories (Hurter et al., 2009),

appropriate visualizers for the analysis of multi-target

video tracking results are still missing (Hoferlin et al.,

2009; Whitehorn et al., 2013). We are interested in

visualizing trajectories as 2D target locations (on the

image plane) tracked over time. A visualization tool

should ease the comparison between trajectories and

video in order to allow a user to analyze and compare

tracking results.

We present a multi-target trajectory visualization

software (MTTV), which enables users to explore, an-

alyze and manipulate object tracks. Figure 1 shows

the overall ﬂow diagram of the visualization mod-

ule. The user can select a point in time to overlay

the corresponding video frame onto the correspond-

ing trajectories and then move frames forward and

backward to analyze the results (Figure 2). A user

can visualize (or discard) individual trajectories or

choose a transparency level for simultaneously visu-

alizing (or hiding) multiple targets. This feature is

particularly useful during occlusions due to overlap-

ping trajectories (Joshi and Rheingans, 2005). MTTV

allows the visualization of tracking errors (e.g. frag-

mented or inaccurate trajectories) as markers with ar-

157

Poiesi F. and Cavallaro A..

MTTV - An Interactive Trajectory Visualization and Analysis Tool.

DOI: 10.5220/0005311001570162

In Proceedings of the 6th International Conference on Information Visualization Theory and Applications (IVAPP-2015), pages 157-162

ISBN: 978-989-758-088-8

 2015 SCITEPRESS (Science and Technology Publications, Lda.)

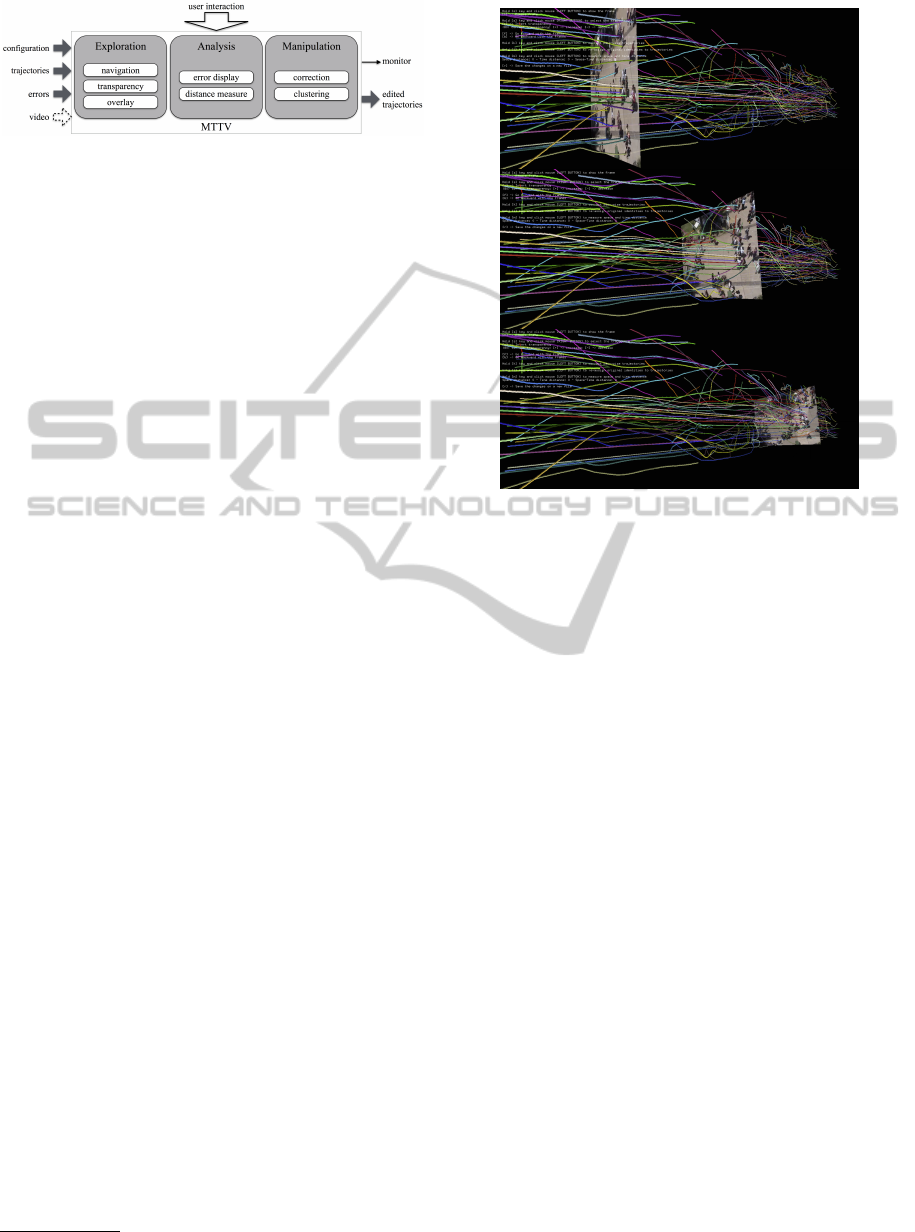

Figure 1: Flow diagram of the multi-target trajectory visual-

ization software (MTTV). Each operation includes different

functionalities, for example, trajectories can be analyzed by

displaying and correcting errors, and measuring distances

among trajectory points. Three ﬁles (i.e. conﬁguration, tra-

jectories and errors) plus a video sequence are given as in-

put. MTTV allows correction of errors and the resulting tra-

jectories with new identities can be saved in a ﬁle of edited

trajectories.

bitrary shape and color. Importantly, the user can

manually correct these errors. The corrected trajec-

tory data can then be saved for later visualization and

analysis. MTTV is developed in C++ using open-

Frameworks

that eases the interoperability between

openGL and openCV. The source code is available at

http://www.eecs.qmul.ac.uk/%7Eandrea/mttv.html.

The Graphical User Interface (GUI) of MTTV

consists of a window containing the 3D trajectory

points (Figure 3a). Each trajectory is represented with

a unique color. On the top-left corner of the window

there is the list of commands (key-buttons) for en-

abling/disabling graphical features. In order to have

a visualization of the image location of the trajectory

points, the current, previous and next frame with re-

spect to that overlaid on the trajectories are shown.

The trajectory points at these time instants are over-

laid on the frames. The user can explore the trajec-

tories by translating, rotating and zooming to change

the viewpoint, focus on speciﬁc areas of the scene and

observe the trajectory over time. It is also possible to

enable transparency, to overlay video frames, to mea-

sure distances between points and to reassign identi-

ties to trajectories.

2 EXPLORATION

MTTV receives as input a conﬁguration ﬁle that con-

tains the list of ﬁles to be loaded (i.e. video, trajectory

ﬁle, error ﬁle), the frame range and analysis modality

(i.e. on/off ). Each row of the trajectory ﬁle is com-

posed of four elements: target identity, horizontal and

vertical coordinates, and frame number. The coordi-

nates and frame number are given according to the

video format reference. The error ﬁle contains the list

of errors to be plotted as markers. The error ﬁle can

http://openframeworks.cc/, accessed: Dec 2014.

Figure 2: Visualization of 2D trajectories over time with

overlaid video frames. Frames can be navigated forward

and backward while exploring the 3D space.

be generated by the user using an evaluation software

(Nawaz et al., 2014b). The header of this ﬁle speciﬁes

types and labels of error, colors and types of markers.

The list of errors has the same format as the trajectory

ﬁle.

Generally, an observer can only focus his/her

attention on ﬁve independently moving objects

(Pylyshyn, 2003). For this reason, we embedded in

MTTV the possibility to set transparencies for the tra-

jectories the user does not want to focus on (Figure 4).

This option can be used to present results in reports

where only a subset of trajectories of interest are high-

lighted. In Figure 4b only one trajectory is left with

full color (light-blue), thus highlighting the behavior

of interest.

3 MANIPULATION

Trajectories can be manipulated by assigning their

identities to other trajectories. For example, the iden-

tity of a trajectory can be assigned to a group of trajec-

tories if a user aims to generate clusters of trajectories

with same identity. MTTV can draw (overlay) the er-

ror points that are given as input (Figure 3b - green

cube). A user can correct tracking errors by reassign-

ing the identities to the affected trajectories.

MTTV allows the user to transfer the identity of a

trajectory to another trajectory. If this process is re-

IVAPP2015-InternationalConferenceonInformationVisualizationTheoryandApplications

158

(a)

(b)

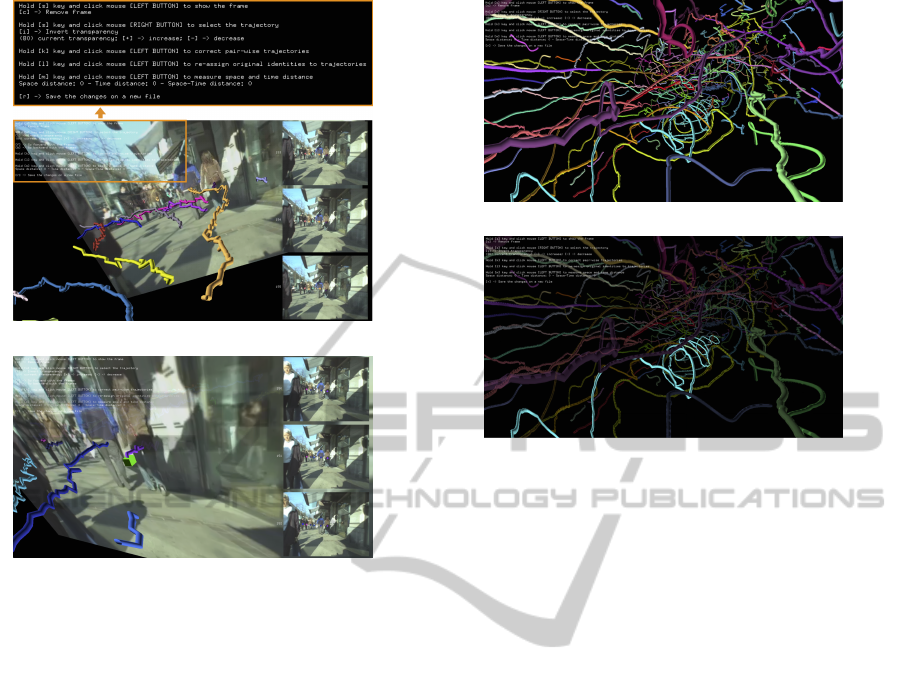

Figure 3: Interface of the visualization software. (a) A

user can overlay of a video frame at a certain time instant.

The top-left corner contains the legend of the commands

(a zoom with the commands is shown on top of the inter-

face). The right-hand side shows current, previous and next

frames with respect to that overlaid on the trajectories. (b)

Errors can be visualized by enabling the analysis modality.

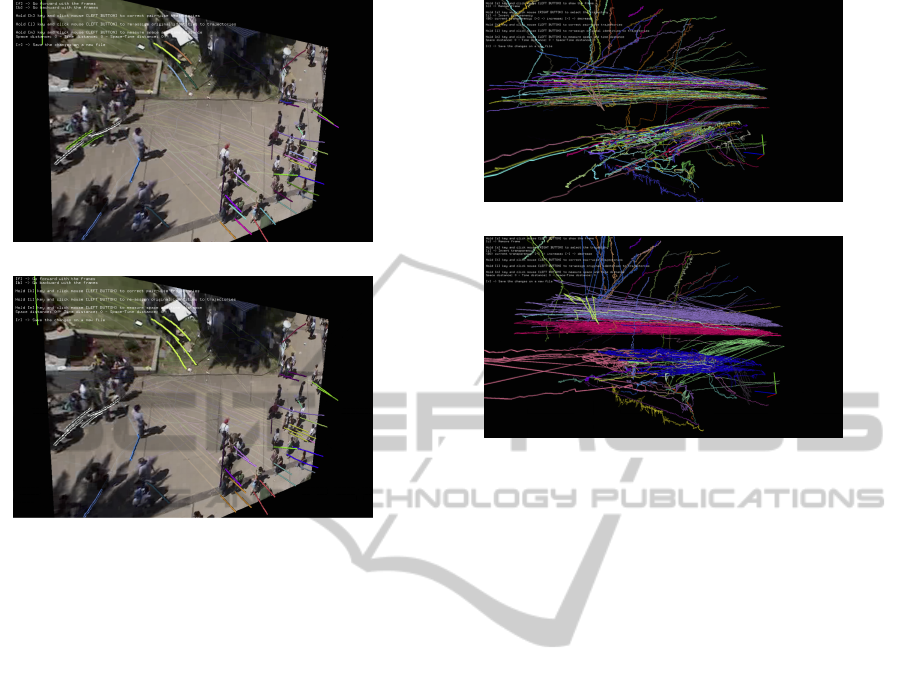

peated, it is possible to form a cluster (Figure 5 and

6). This type of annotation can be used, for exam-

ple, to evaluate clustering algorithms (Zhang et al.,

2009). Moreover, Figure 5 shows an example of an-

notation that can be used for the evaluation of meth-

ods aimed at detecting groups of people traveling to-

gether (Sochman and Hogg, 2011; Solera et al., 2013;

Bazzani et al., 2014).

Figure 6a shows an example of a set of trajecto-

ries extracted over time and normalized so that they

all start at the same time instant (t=0). These trajec-

tories were extracted from a trafﬁc dataset and used

to assess the performance of a clustering algorithm

(Nawaz et al., 2014a). Trajectories that were given

the same identity by a team of annotators were consid-

ered belonging to the same cluster. Trajectories that

were not associated to any clusters were considered

outliers during the annotation process. It is possible

to save the results of the manipulated trajectories in a

text ﬁle (edited trajectories - Figure 1) with the same

format as the input trajectory ﬁle (Sec. 2).

(a)

(b)

Figure 4: Example of high-density trajectories visualized

(a) without and (b) with transparency enabled on a subset

of trajectories. The transparency level can be chosen by the

user and ranges in the interval [0 255]. (b) The light-blue

trajectory is highlighted, whereas the others are set trans-

parent with a transparency value of 80.

4 ANALYSIS

Common errors in multi-target tracking are track

fragmentation and identity switches (Wu and Neva-

tia, 2006; Zhang et al., 2015; Yang and Nevatia,

2014; Milan et al., 2014). A track fragmentation

occurs when a trajectory is interrupted. An identity

switch occurs when an estimated trajectory changes

its matched ground-truth identity. The analysis of

these errors is often carried out by comparing evalua-

tion scores in order to judge the method with best per-

formance (Yang and Nevatia, 2012). However, some-

times errors can be of a different nature and compet-

ing methods can be robust to different tracking chal-

lenges. MTTV visualizes the spatio-temporal occur-

rence of errors in order to help the user to identify and

assess the causes of the errors, and to show whether

the errors of different trackers are of the same type.

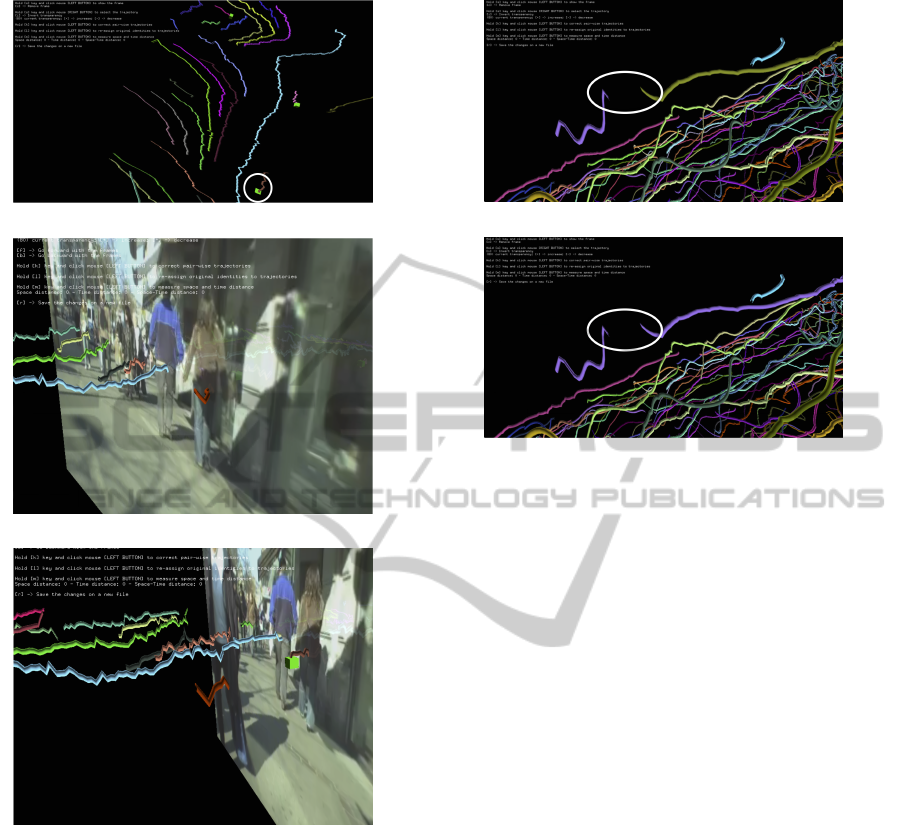

MTTV shows the spatio-temporal occurrences of

errors using markers when the analysis modality is en-

abled (Figure 7). The shape and color of markers can

be deﬁned in the header of the input error ﬁle. The

user can input a ﬁle with a list of error points to be

highlighted on the top of the trajectories in order to

associate the errors and the spatio-temporal informa-

tion of their occurrence. A detailed analysis of the er-

MTTV-AnInteractiveTrajectoryVisualizationandAnalysisTool

159

(a)

(b)

Figure 5: Samples representing (a) trajectories with a dif-

ferent identity (color) associated to each person and (b)

clusters of trajectories (with same color) indicating people

within the same group.

rors can be further carried out by overlying the video

frame in the location of the marker and navigating the

video forwards and backwards.

When two events/errors have been localized, it

is possible to measure their spatio-temporal distance.

Separate measures of time (one dimension) and space

(two dimensions) are also provided.

Figure 7 shows an example of tracking result with

the green cubes indicating where the estimated tracks

have undergone an identity change. In Figure 7a there

are three identity changes (green cubes), of which two

are due to track fragmentation (center and bottom of

the ﬁgure) and one is due to identity swap (top of the

ﬁgure). In Figure 7a the identity change highlighted

with the white ellipse is analyzed by superimposing

the frames. From Figure 7b we can observe that the

target is correctly tracked and after a few frames (Fig-

ure 7c) the tracker loses the target, and a new identity

is assigned.

When a track fragmentation or identity switch is

identiﬁed, a user can assign the correct identity to the

affected trajectory (Figure 8).

(a)

(b)

Figure 6: Trajectory clustering (annotation) can be achieved

by propagating the identity of a trajectory to the trajecto-

ries with same motion patterns. (a) Temporally normalized

trajectories that start at same time instant (t = 0) and (b)

clustered trajectories by annotators.

5 CONCLUSIONS

We presented a new visualization software (MTTV)

to measure, understand, analyze and manipulate tra-

jectories. We showed how to navigate the video to

assess the results. MTTV can help, for example, the

study of isolated target behaviors (e.g. insects (Cou-

villon et al., 2012)) and the presentation of tracking

results or trajectory patterns.

Because the openFrameworks toolkit aims at

facilitating interoperability between openGL and

openCV, the development of interactive visualization

features, for example using Kinect will be made easy.

Algorithms for data analysis provided by openCV

(e.g. clustering) can be embedded in MTTV and the

visualization can be used for a rapid feedback on the

results.

One of the limitations of MTTV is the absence

of the velocity direction information as proposed by

(Buschmann et al., 2014). The implementation of this

visualization feature is part of our future work. More-

over, by making the code available open source, we

hope that researchers will beneﬁt from this visualizer

and contribute to its further development.

IVAPP2015-InternationalConferenceonInformationVisualizationTheoryandApplications

160

(a)

(b)

(c)

Figure 7: Tracking errors can be plotted in the 3D space

and analyzed by superimposing the video frame. (a) Errors

(e.g. identity changes) are plotted using green cubes. The

white ellipse highlights an example of track fragmentation

that is analyzed by (b) superimposing and (c) navigating

through the video. (b) The target is correctly tracked and (c)

after being lost it is reinitialized with a new identity. This

reinitialization leads to an identity change shown with the

green cube.

ACKNOWLEDGEMENTS

This work was supported in part by the Artemis JU

and the UK Technology Strategy Board through COP-

CAMS Project under Grant 332913.

(a)

(b)

Figure 8: Fragmented trajectories can be corrected by trans-

ferring the identity (same color) of one trajectory to another.

(a) The target estimated with the purple trajectory was lost

and reinitialized with the green trajectory. This is because

the target went outside the scene and when it re-entered the

tracker assigned a new identity to it. (b) The purple iden-

tity is transferred to the trajectory that initially had green

identity.

REFERENCES

Bazzani, L., Zanotto, M., Cristani, M., and Murino, V.

(2014). Joint individual-group modeling for tracking.

IEEE Trans. on Pattern Analysis and Machine Intelli-

gence, DOI: 10.1109/TPAMI.2014.2353641.

Beheiry, M. E. and Dahan, M. (2013). ViSP: representing

single-particle localizations in three dimensions. Na-

ture Methods, 10(8):689–690.

Buschmann, S., Trapp, M., Luhne, P., and Dollner, J.

(2014). Hardware-accelerated attribute mapping for

interactive visualization of complex 3D trajectories. In

Proc. of International Conference on Information Vi-

sualization Theory and Applications, pages 355–363,

Lisbon, Portugal.

Couvillon, M., Phillipps, H., Schurch, R., and Ratnieks, F.

(2012). Working against gravity: horizontal honeybee

waggle runs have greater angular scatter than vertical

waggle runs. Biology Letters, 8(4):1–4.

Fasciano, T., Dornhaus, A., and Shin, M. (2014). Ant track-

ing with occlusion tunnels. In Proc. of Winter Confer-

ence on Applications of Computer Vision, pages 947–

952, Steamboat Springs, CO, USA.

Helbing, D., Farkas, I., and Vicsek, T. (2000). Simu-

lating dynamical features of escape panic. Nature,

407(9):487–490.

Hoferlin, M., Hoferlin, B., and Weiskopf, D. (2009). Video

MTTV-AnInteractiveTrajectoryVisualizationandAnalysisTool

161

visual analytics of tracked moving objects. In Proc.

of Workshop on Behaviour Monitoring and Interpre-

tation, pages 59–64, Ghent, BEL.

Hurter, C., Tissoires, B., and Conversy, S. (2009). From-

DaDy: Spreading aircraft trajectories across views to

support iterative queries. IEEE Trans. on Visualization

and Computer Graphics, 15(6):1017–1024.

Joshi, A. and Rheingans, P. (2005). Illustration-inspired

techniques for visualizing time-varying data. In Proc.

of Visualization, pages 679–686, Minneapolis, MN,

USA.

Khan, Z., Balch, T., and Dellaert, F. (2005). MCMC-based

particle ﬁltering for tracking a variable number of in-

teracting targets. IEEE Trans. on Pattern Analysis and

Machine Intelligence, 27(11):1805–1819.

Kimura, T., Ohashi, M., Crailsheim, K., Schmickl, T.,

Okada, R., Radspieler, G., and Ikeno, H. (2014). De-

velopment of a new method to track multiple honey

bees with complex behaviors on a ﬂat laboratory

arena. Plos One, 9(1):1–12.

Li, K. et al. (2008). Cell population tracking and lineage

construction with spatiotemporal context. Medical

Image Analysis, 12(5):546–566.

Li, Y., Huang, C., and Nevatia, R. (2009). Learning to asso-

ciate: hybridboosted multi-target tracker for crowded

scene. In Proc. of Computer Vision and Pattern

Recognition, pages 2953–2960, Miami, FL, USA.

Milan, A., Gade, R., Dick, A., Moeslund, T., and Reid, I.

(2014). Improving global multi-target tracking with

local updates. In Proc. of European Conference on

Computer Vision Workshops, Zurich, CH.

Nawaz, T., Cavallaro, A., and Rinner, B. (2014a). Trajec-

tory clustering for motion pattern extraction in aerial

videos. In Proc. of International Conference on Image

Processing, Paris, FR.

Nawaz, T., Poiesi, F., and Cavallaro, A. (2014b). Measures

of effective video tracking. Trans. on Image Process-

ing, 23(1):376–388.

Park, C., Woehl, T., Evans, J., and Browning, N. (2014).

Minimum cost multi-way data association for op-

timizing multitarget tracking of interacting objects.

IEEE Trans. on Pattern Analysis and Machine Intel-

ligence, DOI: 10.1109/TPAMI.2014.2346202.

Poiesi, F. and Cavallaro, A. (2014). Tracking multiple

high-density homogeneous targets. IEEE Trans. on

Circuits and Systems for Video Technology, DOI:

10.1109/TCSVT.2014.2344509.

Pylyshyn, Z. (2003). Seeing and Visualizing: It’s not what

you think (Life and Mind). Bradford Book.

Ross, D., Lim, J., Lin, R.-S., and Yang, M.-H. (2008). In-

cremental learning for robust visual tracking. Interna-

tional Journal on Computer Vision, 77(1-3):125–141.

SanMiguel, J., Cavallaro, A., and Martinez, J. (2012).

Adaptive on-line performance evaluation of video

trackers. IEEE Trans. on Image Processing,

21(5):2812–2823.

Shitrit, H. et al. (2014). Multi-commodity network ﬂow

for tracking multiple people. IEEE Trans. on Pattern

Analysis and Machine Intelligence, 36(8):1614–1627.

Sochman, J. and Hogg, D. (2011). Who knows who - in-

verting the Social Force Model for ﬁnding groups. In

Proc. of Internation Conference on Computer Vision

Workshops, pages 830–837, Barcelona, Spain.

Solera, F., Calderara, S., and Cucchiara, R. (2013). Struc-

tured learning for detection of social groups in crowd.

In Proc. of Advanced Video and Signal-Based Surveil-

lance, pages 7–12, Krakow, Poland.

Tominski, C., Schumann, H., Andrienko, G., and An-

drienko, N. (2012). Stacking-based visualization of

trajectory attribute data. IEEE Trans. on Visualization

and Computer Graphics, 18(12):2565–2574.

Veeraraghavan, A., Chellappa, R., and Srinivasan, M.

(2008). Shape-and-behavior encoded tracking of bee

dances. IEEE Trans. on Pattern Analysis and Machine

Intelligence, 30(3):463–476.

Whitehorn, L., Hawkes, F., and Dublon, I. (2013). Super-

plot3D: an open source GUI tool for 3D trajectory vi-

sualisation and elementary processing. Source code

for biology and medicine, 8(19):1–4.

Wong, B. (2012). Points of view: visualization biological

data. Nature Methods, 9(12):1131.

Wu, B. and Nevatia, R. (2006). Tracking of multiple, par-

tially occluded humans based static body part detec-

tion. In Proc. of Computer Vision and Pattern Recog-

nition, pages 951–958, New York, USA.

Yang, B. and Nevatia, R. (2012). An online learned CRF

model for multi-target tracking. In Proc. of Com-

puter Vision and Pattern Recognition, pages 2034–

2041, Providence, RI.

Yang, B. and Nevatia, R. (2014). Multi-target tracking by

online learning a CRF model of appearance and mo-

tion patterns. International Journal on Computer Vi-

sion, 107(2):203–217.

Yin, F., Makris, D., and Velastin, S. (2007). Performance

evaluation of object tracking algorithms. In WPETS,

Rio de Janeiro, Brazil.

Zhang, S., Wang, J., Wang, Z., Gong, Y., and Liu, Y. (2015).

Multi-target tracking by learning local-to-global tra-

jectory models. Pattern Recognition, 48(2):580–590.

Zhang, T., Hanqing, L., and Li, S. (2009). Learning seman-

tic scene models by object classiﬁcation and trajectory

clustering. In Proc. of Computer Vision and Pattern

Recognition, pages 1940–1947, Miami, FL, USA.

IVAPP2015-InternationalConferenceonInformationVisualizationTheoryandApplications

162
