AColDPS

Robust and Unsupervised Automatic Color Document Processing System

Louisa Kessi

1,2

, Frank Lebourgeois

1,2,

Christophe Garcia

1,2

and Jean Duong

1.2

Université de Lyon, CNRS, Lyon, France

INSA-Lyon, LIRIS, UMR5205, F-69621, Lyon, France

Keywords: Document Image Analysis, Color Processing, Business Document, Mathematical Morphology, Color

Morphology.

Abstract: This paper presents the first fully automatic color analysis system suited for business documents. Our pixel-

based approach uses mainly color morphology and does not require any training, manual assistance, prior

knowledge or model. We developed a robust color segmentation system adapted for invoices and forms

with significant color complexity and dithered background. The system achieves several operations to

segment automatically color images, separate text from noise and graphics and provides color information

about text color. The contribution of our work is Tree-fold. Firstly, it is the usage of color morphology to

simultaneously segment both text and inverted text. Our system processes inverted and non-inverted text

automatically using conditional color dilation and erosion, even in cases where there are overlaps between

the two. Secondly, it is the extraction of geodesic measures using morphological convolution in order to

separate text, noise and graphical elements. Thirdly, we develop a method to disconnect characters touching

or overlapping graphical elements. Our system can separate characters that touch straight lines, split

overlapped characters with different colors and separate characters from graphics if they have different

colors. A color analysis stage automatically calculates the number of character colors. The proposed system

is generic enough to process a wide range of images of digitized business documents from different origins.

It outperforms the classical approach that uses binarization of greyscale images.

1 INTRODUCTION

Color document processing is an active research area

with significant applications. In recent years, there

has been an increasing need for systems which are

able to convert pre-printed color documents into

digital format automatically. Most of the time, the

color image is converted into a greyscale image.

However, the performance decreases when the

segmentation fails. Nowadays, companies have to

deal with huge volumes of administrative color

documents such as invoices, forms, and letters and

so on. Indeed, some companies can have to cope

with dithering documents, complex color

background and linear color variations, which

amounts to not knowing if text is darker or lighter

compared to the background, highlighting regions,

corrective red overload on black text and not

uniform color text/graphics overlapping. Indeed,

some dithered documents may not lead to a correct

automatic analysis. Smoothing most often permits to

reduce dithering significantly but can also seriously

damage the text. Therefore, the color information is

significant. Then, a color-based segmentation could

improve the process.

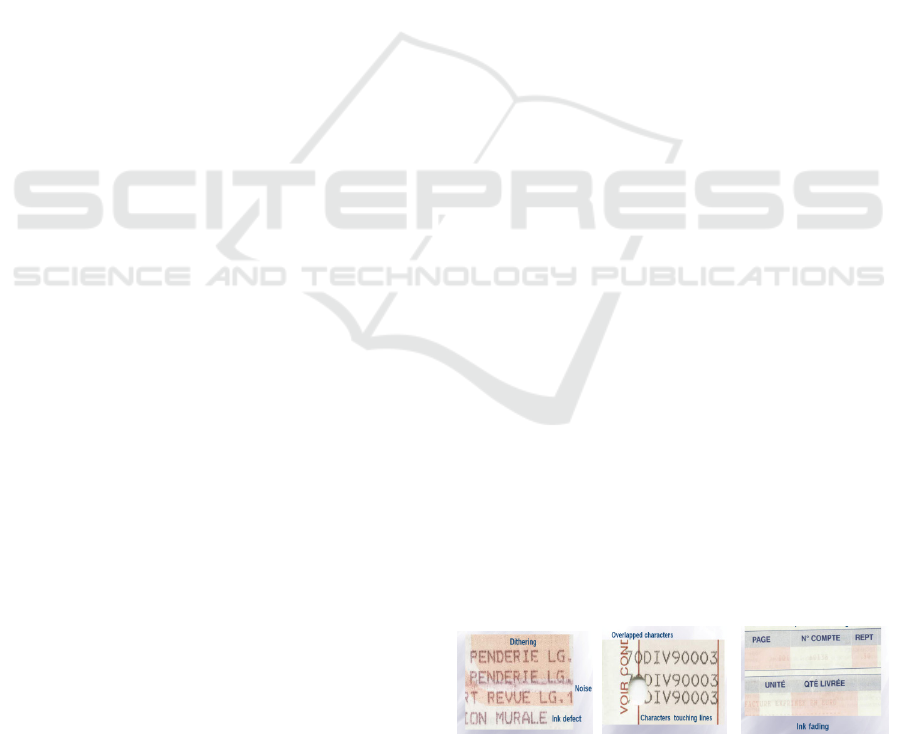

Figure 1: Issues some examples of several difficulties

presented in color business document.

1.1 Related Work

As far as the authors know, there are only few works

about the use of the color for document analysis.

The only referenced work for color documents come

from (Bottou, 2001) for the DjVu compression. In

the work of

(Karatzas et al., 2007), (Y. Peng et al.,

2007) and

(Jung et al., 2004) localization of colored

text is described. OCR of colored characters is

174

Kessi L., Lebourgeois F., Garcia C. and Duong J..

AColDPS - Robust and Unsupervised Automatic Color Document Processing System.

DOI: 10.5220/0005315801740185

In Proceedings of the 10th International Conference on Computer Vision Theory and Applications (VISAPP-2015), pages 174-185

ISBN: 978-989-758-089-5

 2015 SCITEPRESS (Science and Technology Publications, Lda.)

presented in (Badekas et al., 2006). Most of the

research on color documents considers the

classification as an essential pre-processing step to

any analysis. This facilitates the extraction of the

connected components by a simple growing region.

The work focuses mostly on-pixel classification

approaches to reduce the number of colors found.

The pixel classification consists of assigning each

pixel of the image to the color class layer according

to its colorimetric appearance. In this context,

(Ouji et al., 2011) introduce a new pseudo-saturation

measure to separate color layers and monochrome

layer. The author segments text colors and

background by selecting maxima in the hue

histogram. However, this global analysis of the

image cannot make the difference between text

colors and background color. Moreover it works

only for cleaned images. This method is not

operating for business document images.

(Ait Younes et al., 2005) describe the color thanks to

fuzzy sets in order to classify images based on

dominant colors. However, they dealing with a fixed

number of colors which is not optimized for

documents containing just a few colors.(Carel et al.,

2013) propose a hierarchical clustering based

approach to extract dominant color masks of

administrative documents. Moreover, this approach

was evaluated on a relatively small base. Therefore,

they need to provide more extensive quantitative

analysis of the process both in terms of its

effectiveness and computational requirements.

On the other hand, this method requires user

interaction for setting threshold parameters order to

decide what a dominant color is or not. This

approach works only for a specific category of

images and is very sensitive for noises. This paper

addresses the most challenging problem of color

morphology. We use this theory to develop the first

robust unsupervised Automatic Color Document

Processing System pixel-based approach.

1.2 Motivation

In this paper, we present an automatic system which

segments color characters from business documents

and especially from forms and invoices. Our

objective is achieved if all color characters are

correctly segmented from the background, using an

automatic procedure without any information

provided by the user. Contrary to previous works,

we develop the first full data-driven pixel-based

approach which doesn't need any priori information

such as the number of text colors or any training or

manual assistance. The paper is organized as

follows. Section 2 presents the color morphology

fundamentals and in Section 3 there is a detailed

description of our approach. Results are discussed in

Section 4. In Section 5 conclusions are drawn.

2 COLOR MATHEMATICAL

MORPHOLOGY

The theory of Mathematical Morphology (Serra,

1982) consists of quantitatively describing the

geometric structures present in the image, and offers

a wide range of tools (Soille, 2004). Motivated by

the recent researches on extension of morphological

operations to color images(Chanussot et al. 1998),

we have decided to employ color mathematical

morphology tools to achieve color document images

segmentation in a flexible and fast manner.

Our system uses the morphological convolution (1)

and the lexicographic order to encode color vectors

into a scalar.The morphological convolution

transforms a binary image I into an image I

taking the largest or smallest value of I + V on the

domain of definition Dv of a neighborhood V.

(x) =Min or Max { I(x+k)+V(k) }  kD

 xX

(1)

By using the interleaved bits, color morphology in 3

dimensional spaces can be substituted efficiently by

a scalar classical morphology (Chanussot et al.1998)

popularized by (Aptoula et al., 2009) show that the

scalar morphology by using the encoding scheme

illustrated in Figure 2 avoids pseudo colors

apparition. We reduce the dissymmetry between

color components by rotating the sequence of RGB.

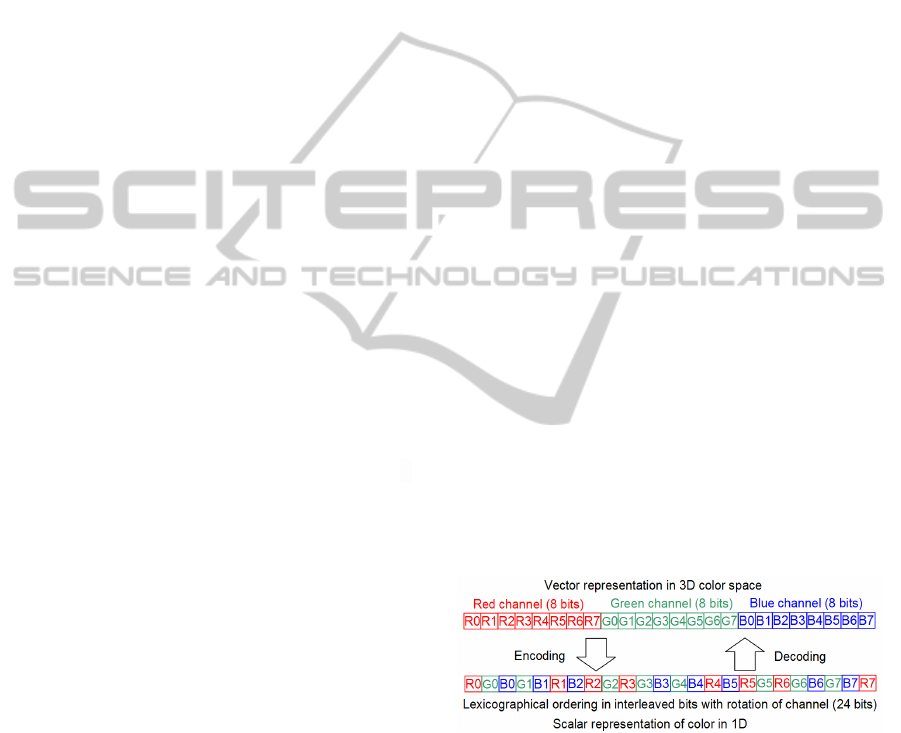

Figure 2: Color coding in scalar by using interleaved bit

and rotation of the sequence of RGB.

3 OUR PROPOSITION

Figure 3 illustrates the main steps of the proposed

system. Each step will be detailed in the next

sections following the organisation of the paper.

AColDPS-RobustandUnsupervisedAutomaticColorDocumentProcessingSystem

175

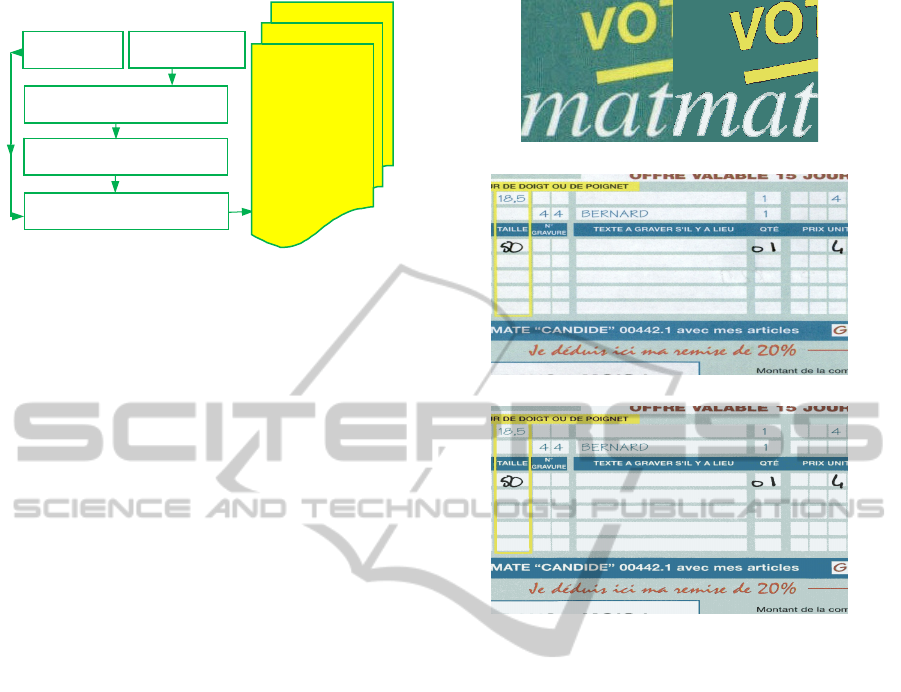

Figure 3: illustrates the overall scheme of AColDPS.

3.1 Color Clustering

The spatial MeanShift originally introduced by

(Comaniciu et al., 2002) demonstrates that a density-

based clustering is efficient for color clustering and

reduces the complexity of the original MeanShift

algorithm by introducing the spatial coordinates into

the color vector. Applied to color documents, the

spatial Mean Shift requires a complex fusion step to

restore the continuity of the characters. The Fast

Integral MeanShift proposed by (Lebourgeois et al.,

2013), reduces the complexity of the original

MeanShift from O(N²) to O(N). The global

MeanShift can be used now on large datasets and

especially on color images of documents in high

resolution. AColDPS uses the Fast Integral

MeanShift to reduce the number of colors of an

image of 2492 x 3558 in 300 dpi to a very reduced

number of colors in less than 3 sec. This clustering is

robust to large change of the colors of the characters.

3.2 Segmentation of Thin Colored

Objects by using Color Morphology

This step consists to generate a binary image of thin

colored objects. It differs from the classical

binarization of the luminance by an adaptive

thresholding approach. For images which use colors

having almost the same luminance, the thresholding

of the luminance fails. We use the mathematical

morphology because it can extract objects according

to geometrical measures. Thin objects can be

segmented by a classical Top-Hat transform. The

closing of an image I is the dilation followed by an

erosion of the image with the same structural

element (2). It enlarges the lighter foreground and

removes the thin objects which are darker than the

background (figure 5c). The radius of the structural

element B measures the thickness of the object to

remove. The Black-Top-Hat (3) of an image I

a) Color transition detected by the Mean Shift

b) Original Image I 73727 different colors

c) Fast Integral MeanShift image with 22colors

Figure 4: Fast Integral Mean Shift application.

consists of make the difference between the closing

image and the original image I, in order to highlight

all thin colored objects which are darker than the

background in luminance (figure 5d).

If we assume that all characters use colors which

are darker than the background, in luminance, a

Black-Top-Hat is efficient to extract all colored

characters from any colored background. By using

the interleaved bits order explained in

(Chanussot et al., 1998) the multidimensional

morphology in (RGB) color space can be substituted

efficiently by a scalar classical morphology.

Closing(I) = Erode

(Dilate

(I))

(2)

Black-Top-Hat(I) = Closing(I)-I

(3)

To extract all colored characters even with fading

ink, we apply an adaptive thresholding like Sauvola

thresholding. In our case, we use the variable

adaptive thresholding windows (Gaceb et al., 2013)

which compute the best window size of the Sauvola

thresholding for each pixel by using integral images

(figure 5e).

Color clustering

Color Morphology

Text graphic and noise

separation

Separate text touching graphics

Colored texts segmentation

Several images

containing only

characters having

the same color

without noise and

overlapped

graphics to send

to the OCR

VISAPP2015-InternationalConferenceonComputerVisionTheoryandApplications

176

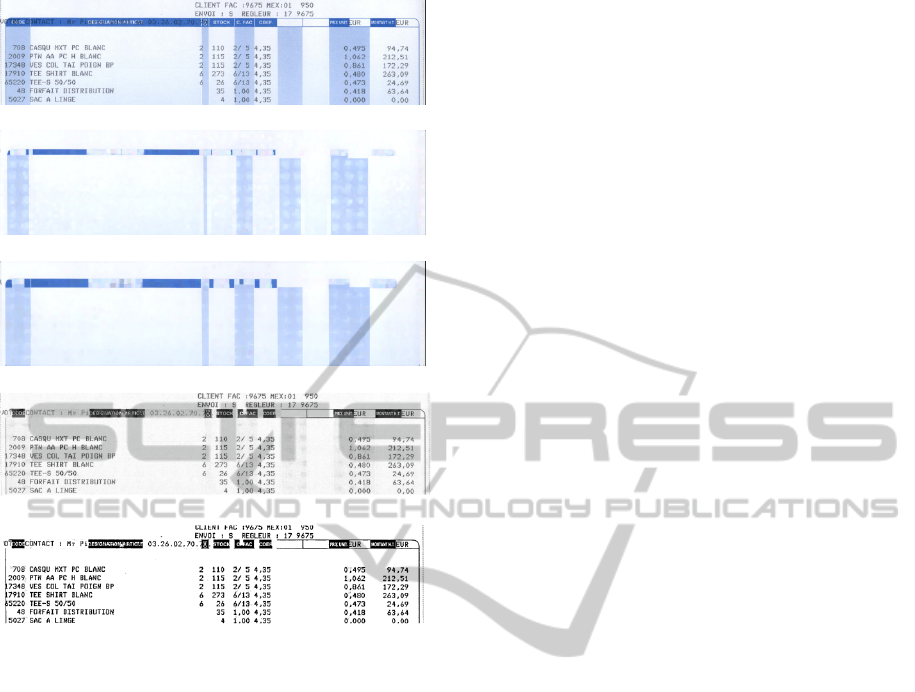

a) Original Image I

b) Dilation(I)

c) Closing(I) = Erode(Dilate(I))

d) Black-Top-Hat(I) = Closing(I)-I

e) Adaptive Threshold of the Black-Top-Hat(I) by (Gaceb, 2013)

Figure 5: Black-Top-Hat Color Morphology operation.

The difference between our thresholding and the

classical Sauvola with fixed window size is

noticeable on dithered images or images having

noise and large objects. However, Sauvola

thresholding can be used without significant loss of

performance in the case of the segmentation of the

Black-Top-Hat images because the size of objects

cannot exceed twice the size of the structural

elements. In this case the variable window size of

the Sauvola thresholding (Gaceb et al., 2013)

manages to reduce noise from the images.

In the domain of business documents, we cannot

assume that text is darker than the background in

luminance. Invoices and forms present inverted text

which is brighter than the background. This inverted

text is important for the recognition of business

documents because it generally represents the

labelling of a column or a row in a table. To extract

inverted text, we must apply a White-Top-Hat which

is the dual operation of the Black-Top-Hat

transform. The opening of the image (4) deletes thin

bright objects from darker background. The

difference between the original image and the

opening image (5) highlights the thin objects

brighter than the background.

Opening(I) = Dilate

(Erode

(I)) (4)

White-Top-Hat(I) = I-Opening (I) (5)

However, we cannot combine the Black-Top-Hat

and the White-Top-Hat results at pixel-level. The

duality of these two morphological operations makes

impossible the separation between inverted and non-

inverted text. In the Black-Top-Hat, inverted text

becomes white over black background and in White-

Top-Hat it appears black over white background.

There is no simple binary operation which separate

inverted and not inverted text. The local dominant

colors bring a solution to segment simultaneously

inverted and non-inverted text by morphology. This

operation allows to measure the color of the

background whether the text is inverted or not. The

precision of the dominant color image is not

important. In order to make a precise adjustment to

the original image we dilate or erode the dominant

color image with the original image. Among all

possible existing methods, to compute the dominant

color we have chosen the median filtering with a

large radius since its complexity has been seriously

reduced and can be calculated in constant time

(Perreault, 2007) whatever the size of the window.

Figure 6b shows the result of the median with radius

15 or a window size of 30 on image in figure 6a. The

dominant color image is a coarse representation

which we refine by applying a conditional erosion

and dilation with the original image.

In classical morphology theory for binary image,

the conditional dilation CD

(X) of a subset X by a

structural element B conditioned to a mask M is

equal to the intersection between the Dilated of X

with the binary mask M (6). Accordingly, the

conditional erosion CE

(X) of a subset X by a

structural element B conditioned to a mask M is

equal to the intersection between the complementary

of the erosion of X with the binary mask M (5).

(X) = Dilate (X) M

(6)

(X) = (Erode (X))

M

(7)

Applied to greyscale images or to scalar color

images by using interleaved bits of the three color

channels, the conditional dilation CD

(X) of a

scalar image X under condition of a scalar image M

is equal to the minimum of the dilation of X and the

image M (8). By symmetry, the conditional erosion

(X) is obtained by the maximum between M

and the erosion of X (9).

(X) =min( Dilate (X) , M) (8)

AColDPS-RobustandUnsupervisedAutomaticColorDocumentProcessingSystem

177

(X) =max( Erode (X) , M) (9)

We detect and segment separately both inverted and

non-inverted text by using the conditional dilation

(11) and the conditional erosion of the dominant

color image (12) restricted by the original image I,

respectively.

DominantLocalColor(I)  Median(I)

(10)

(Median(I))=min(Dilate(Median(I)) , I)

(11)

(Median(I))=max(Erode(Median(I)) ,I) (12)

(Median(I)) erases all not inverted texts which

are darker in luminance than the background (Figure

6c). Accordingly, CD

(Median(I)) deletes all

inverted texts which are brighter than the

background (figure 6d). To extract the not inverted

text, we define Positive(I) by taking the difference

between CE

(Median (I)) and the original image I

(10).Accordingly, to segment inverted texts, we

define Negative(I) by taking the difference between

the original image I and CD

(Median (I))(11).

Positive(I)= CE

(Median(I)) – I

(13)

Negative(I)=I - CD

(Median(I)) (14)

Figure 6e and figure 6f show the positive and the

negative parts of thin colored objects, respectively.

Both positive and negative images contain a strong

dithering of the background in the blue column

(Figure 6h). The final result is obtained by taking the

min of the adaptive thresholding of the positive and

the negative image (figure 6g). The radius of the

median in order to find the local dominant colors

depends on the size of the text to segment.

The window size of the median operator must be

larger than the maximum text height. For color

images with resolution of 300 dpi of resolution, the

maximal height of text does not exceed 25 pixels.

The size of the window for the median filtering must

be larger than this value. In order to have more

margin, we chose a window size larger than 30 or a

radius larger than 15.

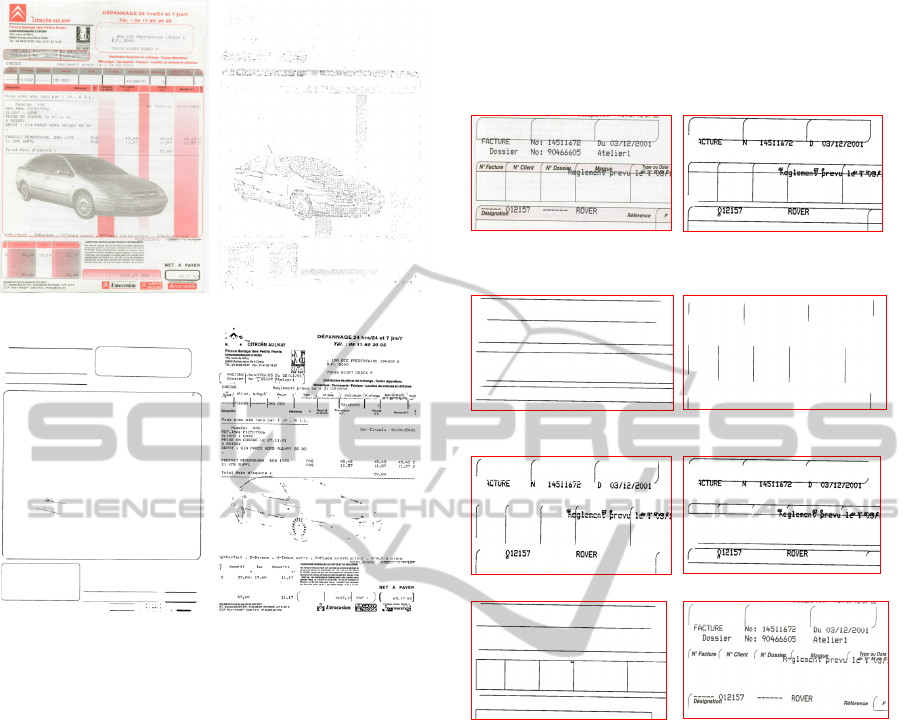

Figure 8a and 8b show that AColDPS can

process successive inclusion of color frames without

heuristics. The dithering part of the blue column is

also segmented like all thin objects such as

characters and thin graphical objects. Invoices and

forms frequently use dithered background colors that

need cleaning. In the next step, we propose a

straightforward process to remove both large graphic

objects and noise without connected components

extraction by using morphological geodesic

operations.

a) Original image I

b) Median(I) filtering in constant time (perreault, 2007)

c) CE

(Median(I))=max(Erode(Median(I)) , I)

d) CE

(Median(I))=max(Erode(Median(I)) , I)

e)Positive(I)= CE

(Median(I))- I shows not inverted texts

f)I - CD

(Median(I)) shows inverted texts

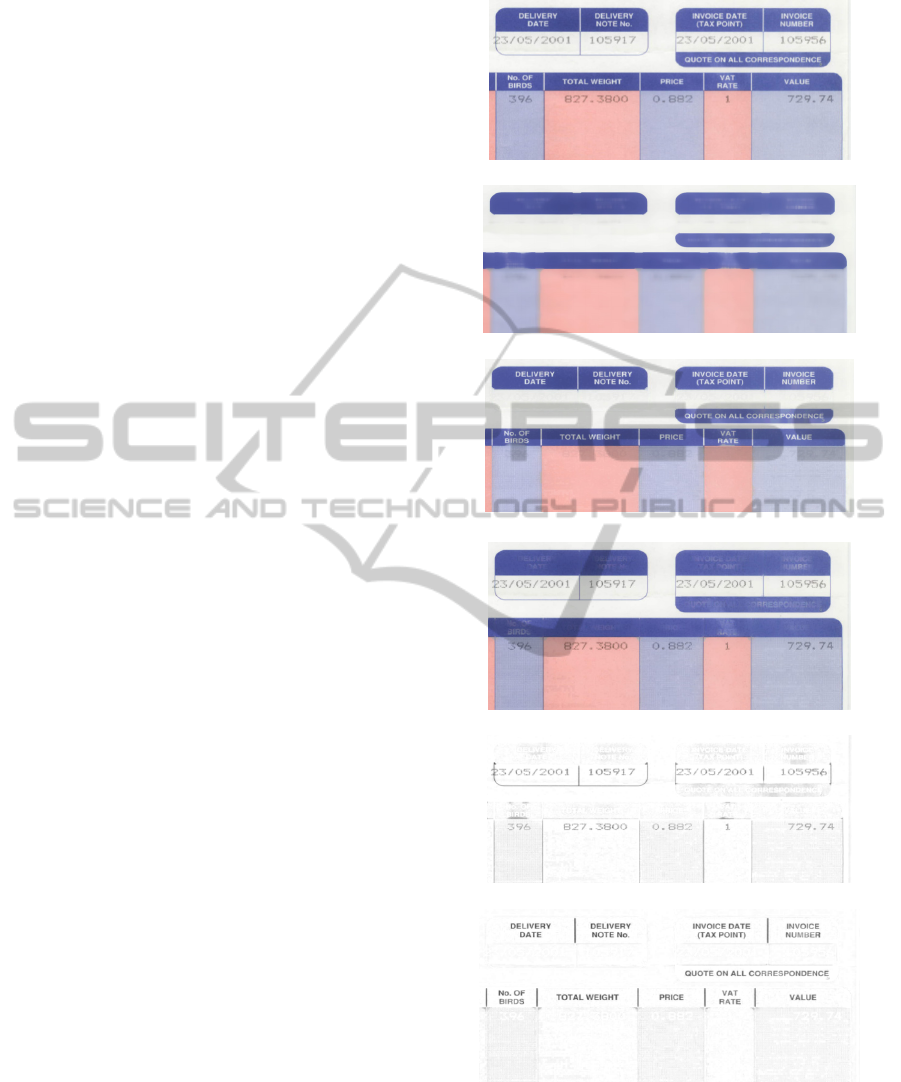

Figure 6: The succession of operations to segment color

images containing inverted and not inverted texts (cont.).

VISAPP2015-InternationalConferenceonComputerVisionTheoryandApplications

178

g) Min(Threshold(Positive(I)),Threshold(Negative(I)))

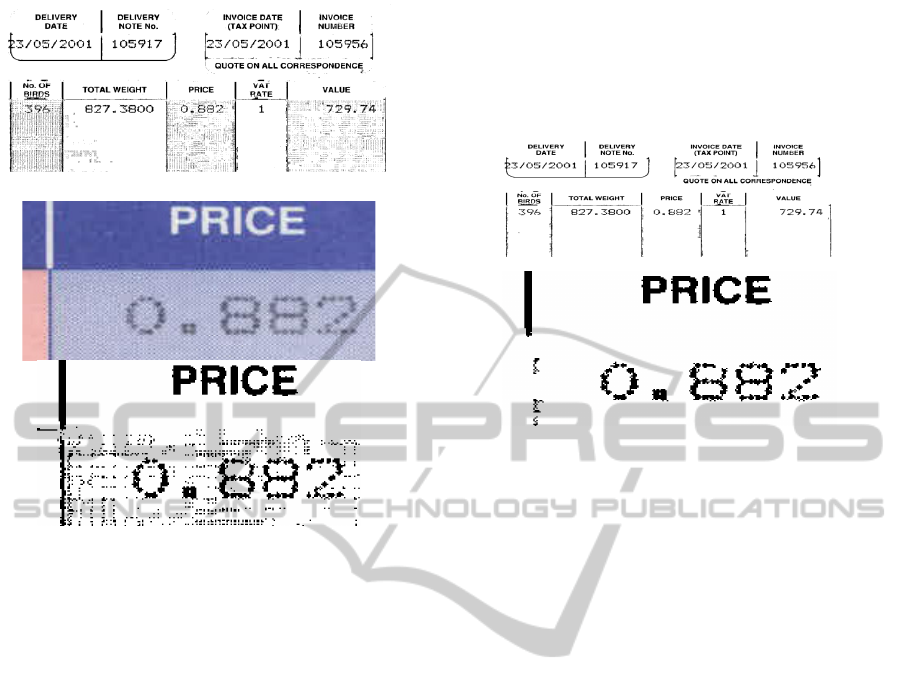

h) Zoom to show the dithering effects in the blue column

Figure 6: The succession of operations to segment color

images containing inverted and not inverted texts.

3.3 Separation of Text from Graphics,

Image Noise and Dithered

Background

This step does not use any connected components

extraction or analysis. It is only based on

morphological convolution for geodesic measures

described in section 2 applied on the binary image

obtained by the previous step.

a) Despeckle

To save computational time, we apply a despeckle to

quickly remove noise and dithered background. We

apply a two pas distance transform in the 8-

connectivity neighbourhood of the binary image.

The maximal value of the distance transform is

reached along the medial axis (Chassery, 1991) and

measure the minimum geodesic distance from each

pixel to the contours of the object. The maximal

value inside each object measures the maximal

thickness of that object. To propagate the maximal

thickness value inside each object, we repeat until

the morphological convolution of dilation with a null

mask M0 is stable. All pixels inside each object will

take the same value equal to the maximal thickness

of that object. The despeckle consists to erase in one

pass, all objects having a maximal thickness of

ThicknessMin threshold. It is similar to threshold

the resulting image with a

ThicknessMin

threshold. Figure 7 shows a despeckle of document

figure 6 with

ThicknessMin=2.

Figure 7: Results of the Despeckle by morphology.

b) Separation between

Graphics/Text/Dithered Parts

The geodesic measure of width and height is not the

measure of the bounding box surrounding the object,

but the measure of the width and height inside the

object. The geodesic measures bring more pertinent

information than classical spatial measures.

Moreover, the noise removal based on geodesic

width and height has nothing to do with the

morphological despeckle described previously based

on the objects thickness. The Objects' thickness and

geodesic width and height are complementary

information for noise and dithered background

removal. Our separation is based on the geodesic

width and height of binary objects calculated by

morphological convolution. We repeat the

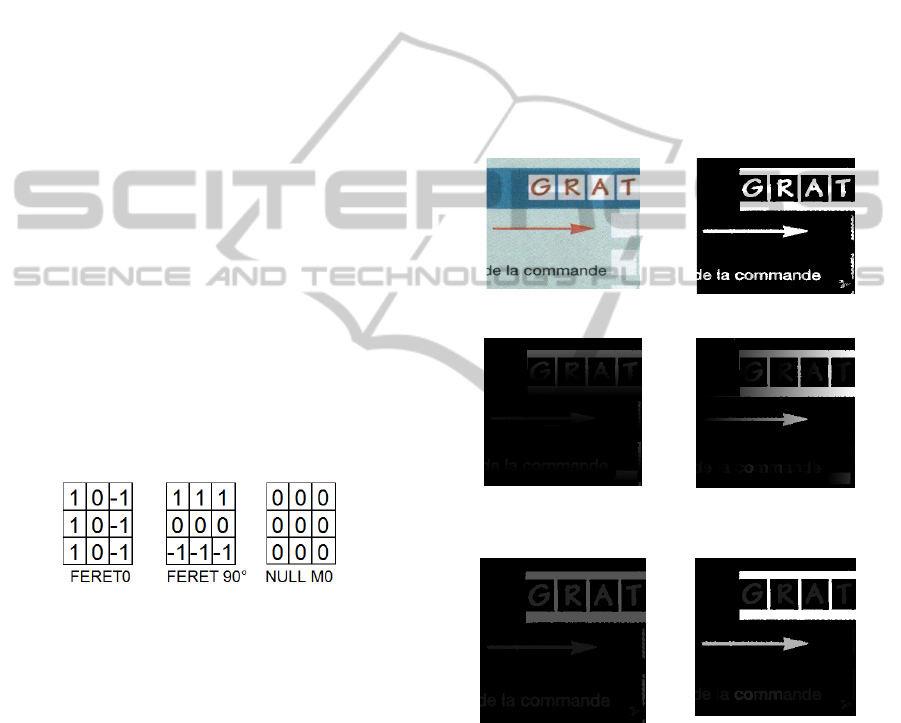

morphological convolution of dilation with the Feret

mask

FERET90 and FERET0 for 90° and 0°

direction on the binary image, respectively, until

there is no change. It provides two images

GeodesicHeight / GeodesicWidth with value 1 on

the bottom/left outermost points of each objects and

the geodesic width and height on the top/right

outermost points of each objects (figure 8c,8d),

respectively. To propagate the maximal geodesic

width and height values inside each object, we

repeat until the morphological convolution of

dilation with a null mask

NULL M0is stable.

All pixels inside each object contain the geodesic

width and height of the object (figure 8e, 8f). These

images will be useful for despeckle, noise and

dithered part removal, suppression of graphics and

AColDPS-RobustandUnsupervisedAutomaticColorDocumentProcessingSystem

179

the separation of characters connected to graphics

described in the next step.

To remove noises and speckles generated by the

dithered backgrounds, we shift pixel

(x,y) from the

binary image to the image

SpecklesImage if both

GeodesicHeight/ GeodesicWidth images have a

value strictly inferior to

HeightMin and WidthMin

pixels respectively. All objects from the binary

image having a geodesic height and width which do

not exceed

HeightMax and WidthMax

respectively, are shifted in the image TextsImage

because they have the size to be potentially

characters. All the other objects are classified into

the image

GraphicsImage if the geodesic width or

heights exceed

WidthMax or HeightMax,

respectively. They represent large objects that we

consider as graphics (Algorithm 1).

Algorithm 1: separation between graphics/text/dithering.

if ((GeodesicHeight(x, y)>0) &&

(GeodesicWidth(x,y)>0))

{

if ((GeodesicHeight(x, y)<HeightMin)&&

(GeodesicWidth(x, y) <WidthMin))

Shift pixel(x, y) in SpecklesImage

else

if ((GeodesicHeight(x, y)<=HeightMax)&&

(GeodesicWidth(x, y) <=WidthMax))

Shift pixel(x, y) in TextsImage

else

Shift pixel(x,y) in GraphicsImage

}

We choose to set HeightMin and WidthMin to the

value

3 in order to keep and thin characters like 'I' or

'1'. For printing documents, we set

WidthMax and

HeightMax to value 64 for 300dpi images, because

characters cannot exceed this size. For ligatured

manuscripts we set

WidthMax and HeightMax to

value 512 and 128 respectively, in order to shift

correctly handwritten words in the image

TextsImage.

We keep the graphical information into a binary

image for further analysis to localise frames and

detect tables in future work. Tables or frames

bordered by dot lines or dashed lines cannot be

separated from the text image because the geodesic

width or height are similar to the size of characters.

Figure 9 illustrates the separation between

speckles, text and graphics. Figure 9a shows the

difficulties of color printed invoices with complex

color background. Figure 9b shows the large amount

of speckles (noise and dots from dithering part)

deleted from the binary image. Figure 9c displays

the graphics elements and large objects. We notice

that small vertical lines from tables in columns are

not classified into graphics because their heights do

not exceed

HeightMax.

The horizontal dot line and other small

components from the graphical background are

classified to the image TextsImage instead of

GraphicsImage because their geodesic widths are

under the limit

WidthMax. These errors have no

consequences, because during the layout analysis,

these random elements from the image

TextsImage

will be rejected because they are not aligned enough

to build a text line.

a) Original image I b) binary mask obtained by the

color segmentation step

c) GeodesicHeight d) GeodesicWidth

Obtained by morphological convolution of dilation

withFERET0and FERET90

e) GeodesicHeight f) GeodesicWidth

After propagation of maximal values by morphological

convolution of dilation with

NULL M0 mask.

Figure 8: Results of the geodesic transform by

morphological convolution.

We design the system to be sure that all the

characters are correctly classified into the image

TextsImage. But for characters connected to the

graphical elements, these characters are found in the

GraphicsImage. The next step aims to separate

characters connected to graphics.

VISAPP2015-InternationalConferenceonComputerVisionTheoryandApplications

180

a) Original Image I b) SpecklesImage

c) GraphicsImage d) TextsImage

Figure 9: separation between noise/graphics/text.

3.4 Separation of Characters

Connected to Graphics

Figure 10 illustrates frequent cases for invoices with

printing text which overlap lines surrounding frames

or tables. When colors cannot separate characters

and graphics, the image

GraphicsImage contains

textual element which touch graphics (Figure 10b).

We can achieve a coarse separation between

characters and graphics by using elementary

morphological operation with the existing

information provided by the system. The binary

morphological closing of

GraphicsImage, with an

horizontal / vertical element Bh / Bv respectively,

removes all characters that touch graphics both

vertically / horizontally (figure 10c,10d). We define

H_Text (15) and V_Text(16) by the difference

between the horizontal / vertical closing of

GraphicsImage with the image GraphicsImage

itself, respectively. Images H_Text/V_Text show

characters disconnected with horizontal / vertical

lines (Figure 10e, 10f), respectively.

X= GraphicsImage

H_Text=HorizontalClosing

( X )

X

(15)

X= GraphicsImage

V_Text=VerticalClosing

( X )

X

(16)

a) Original Image with

overlapped characters touching

graphics

b) GraphicsImage

c) Horizontal Closing of

GraphicsImage

d) Vertical Closing of

GraphicsImage

e) H_Text (7) f) V_Text (8)

g) GraphicsImage after split h) Text separated from graphics

Figure 10: Separation of characters connected to graphics.

The size of the horizontal and vertical structural

elements Bh and Bv must be fixed to the minimal

width and height of characters to separate from the

graphics, respectively. Typically we use

WidthMax

and HeightMax for the size of the horizontal and

vertical structural elements respectively.

The reconstruction of characters after splitting

them from a graphic line is possible but we do not

achieve this restoration. This character

reconstruction will be detailed in future work. Our

proposed morphological operation works perfectly

well for text touching straight lines only, and is also

tolerant to image skew (figure 10h).

3.5 Color Fusion and Selection

This step consists of combining the color

information from the MeanShift clustering and the

color segmentation by morphology to merge outlier

AColDPS-RobustandUnsupervisedAutomaticColorDocumentProcessingSystem

181

colors classes to the main color classes. This step

also ranks the text color layer by frequency and

selects the main text colors. We have already

illustrated (figure 4) that the MeanShift produces

classes of outliers colors due to the existing color

transitions along characters contour. As the

Meanshift is applied only in the colorimetric space,

for each pixel independently to the other

neighbouring pixels, these color outliers cannot be

avoided. We have tested several pre-processing

algorithms such as the edge preserving smoothing

(

Nikolaou,2009) or other choc filters to suppress the

color transitions along contours. However, this kind

of pre-processing is time consuming and cannot be

used for real time applications.

We have developed a straightforward merging

process which takes into account the spatial co-

occurrence of colors classes in the segmented image

by the MeanShift. We use

TextsImage to compute

statistics about the connectivity of colors classes

found by the MeanShift. We only focus on text color

because the color of the background is useless for

our application. In the image

TextsImage, we

compute the 2D spatial co-occurrence

H2D (i,j)

equal to the number of class color

i connected

spatially to class color

j in all the inside characters of

the image

TextsImage. We use a 8-connectivity to

count correctly in one pass

H2D(i,j).We compute

H1D(i) the number of occurrence of the class color

from

H2D(i,j). C(i,j)=H2D(i,j)/H1D(j)

measures the degree of connectivity between the

class color

i with the class colorj. Color Outliers

share a high connectivity with main colors of

characters.

Algorithm 2 merges color class

i to color class j

if the connectivity

C(i,j) exceeds Cmin=0.25 and

C(i,j) and H1D(j)are maximal and the

colorimetric distance is minimal. To keep the color

coherency, we merge small class to large class and

not the inverse.

After merging the color classes in

ColorClass,

we repeat algorithm 2 until there is no more

changes. The iterations are necessary to merge

successively layers of colors around characters

contours. To select the right number of different text

color, we rank the text color classes in descending

order of frequency. There is a gap between two

consecutive ranked color classes of the decreasing

curve of frequencies. We set the number of text

colors in the middle of the larger gap between

successive color classes.

Algorithm 2: Color Fusion.

for all pixel (x,y)

if (TextsImage(x,y)==0) // if character

{

i=ColorClass(x,y) // from MeanShift

if (TextsImage(x-1,y)==0)

{ j=ColorClass(x-1,y) H2D(i,j)++ }

if (TextsImage(x,y-1)==0)

{ j=ColorClass(x,y-1) H2D(i,j)++ }

if (TextsImage(x-1,y-1)==0)

{j=ColorClass(x-1,y-1) H2D(i,j)++}

}

forcolor class i

forcolor class j >i

if C(i,j)>cmin

mergei to j if

{

* H1D(i)<H1D(j)

* C(i,j) is maximal

* H1D(j) is maximal

* ColorDistance(i,j) minimal

}

3.6 Algorithmic Optimization

Several hundreds of thousands of documents are

automatically processed daily by the company.

We must reduce the algorithmic complexity of each

step of the AColDPS system. The overall processing

for each image must not exceed few seconds without

parallelization. The objective consists of computing

an image in less than a second with parallelisation.

The color clustering is already optimized with a

complexity of a O(N) by using the Fast Integral

MeanShift based on integral cubes (Lebourgeois et

al., 2013). The adpative thresholding of the color

morphology results is also already optimized with

integral images (Gaceb et al., 2013). Median filter is

also computed in constant time by using partial

histograms correspondence of sliding windows

between two successive windows (Perreault, 2007).

We have speeded-up the median filtering by

applying it on a low resolution image for a degraded

result. However, the median result is just a coarse

representation of the local dominant color we use as

seeds for a conditional dilation or erosion. The

quality of the median result is not taken into account

during the process. For the morphological color

operation of dilation and erosion, integral images

cannot be used with min and max operators, only

summation of functions can be computed. To

optimize the color morphological operations of

dilation and erosion, we use the same idea from

(Perreault, 2007). Instead of computing the

statistical histogram to calculate the median values,

we compute the local maxima and minima of a

sliding window by using an horizontal raw vector

which stores the maximal/minimal values of each

VISAPP2015-InternationalConferenceonComputerVisionTheoryandApplications

182

column of the windows. When the window slides

from a pixel to another, we just shift the values in

the row vector and compute the maxima/minima of

the new column that we compare to the

maxima/minima of the row horizontal vector only

once.

Color segmentation and the clustering process

run in much reduced time and depend only on the

number of pixels to process. The color fusion and

selection step depends on the number of colors

found by the fast integral MeanShift. As the number

of clusters is reduced, the number of operations are

not time consuming. The computational time for the

separation between text from graphics and noise is

not predictable. The morphological convolution like

all geodesic transformation is repeated until there is

not change. The number of iterations depends on the

complexity of shapes and the alignment of dots for

the dithered image. The more the image contains

complex graphics and noise or dithered background,

the more time this step will take. The time of the

processing is maximal for complex shapes like

Peano curves or other space-filling curve. For a

300dpi image 1640 x 2332, it takes less than 3 sec.

for color clustering, 6 sec. for color image

segmentation by morphology and colors fusion and

selection on one core without parallelization. The

separation of text from graphics, image noise and

dithered background can take less than a second for

simple and clean image to several seconds for

complex images with dithered background. All the

algorithms are sequential and can be easily

parallelized.

4 RESULTS

4.1 Global Performances

We first illustrate the performances of the color

automatic segmentation on a test image provided by

the private company Janich&KlassComputertechnik

GmbH which has developed the software DpuScan

and its Advanced Color Document Processing

(ACDP) tool, which is widely used in the industry

and distributed worldwide. DpuScan is well-known

to be the best tool to separate text colors in business

documents. But it is achieved manually by selecting

each color background and text color.

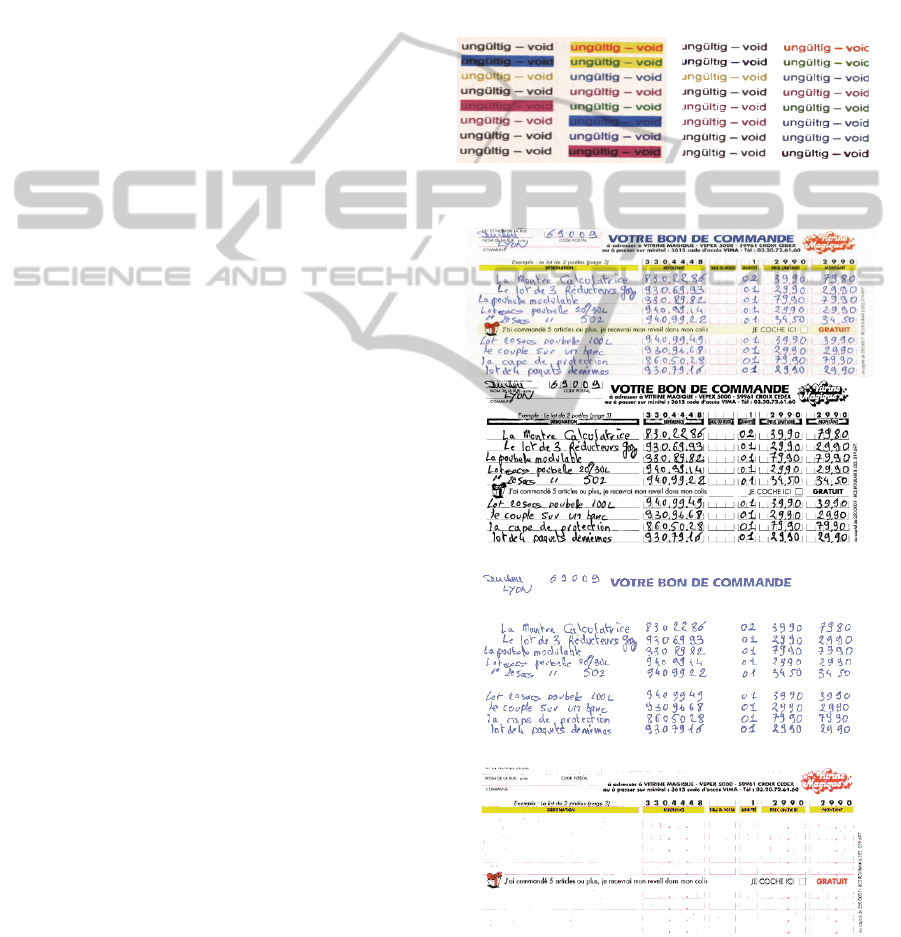

Figure 11 shows that AColDPS find text color

automatically and achieve a good segmentation of

this image. We display all color layers of text in the

same image with an artificial white background to

save place. Figure 12 and 13 show the pertinence to

use color information to segment text from complex

pre-printed backgrounds. The thresholding of the

luminance image (figure 12b) make difficult the

separation between handwritten text and the pre-

printed forms. After a color analysis, the added

handwritten text can be easily segmented. Figure 14

zoom on the table headings of the figure 4. It

illustrates the color separation between overlapped

texts in the worst case when inverted text crosses

non inverted text. AColDPS separates correctly the

two layers of text (figure 14).

Figure 11: AColDPS result on DPUscan test image.

a) Binarization of the luminance (Sauvola)

b) Main text colors (handwritten text added to the form)

c) 3 other color layers combined together (the pre-printed form)

Figure 12: Color segmentation outperforms the adaptive

thresholding of the luminance for character segmentation.

AColDPS-RobustandUnsupervisedAutomaticColorDocumentProcessingSystem

183

Figure 13: AColDPS separates correctly color handwritten

text and the background even with highlighting regions.

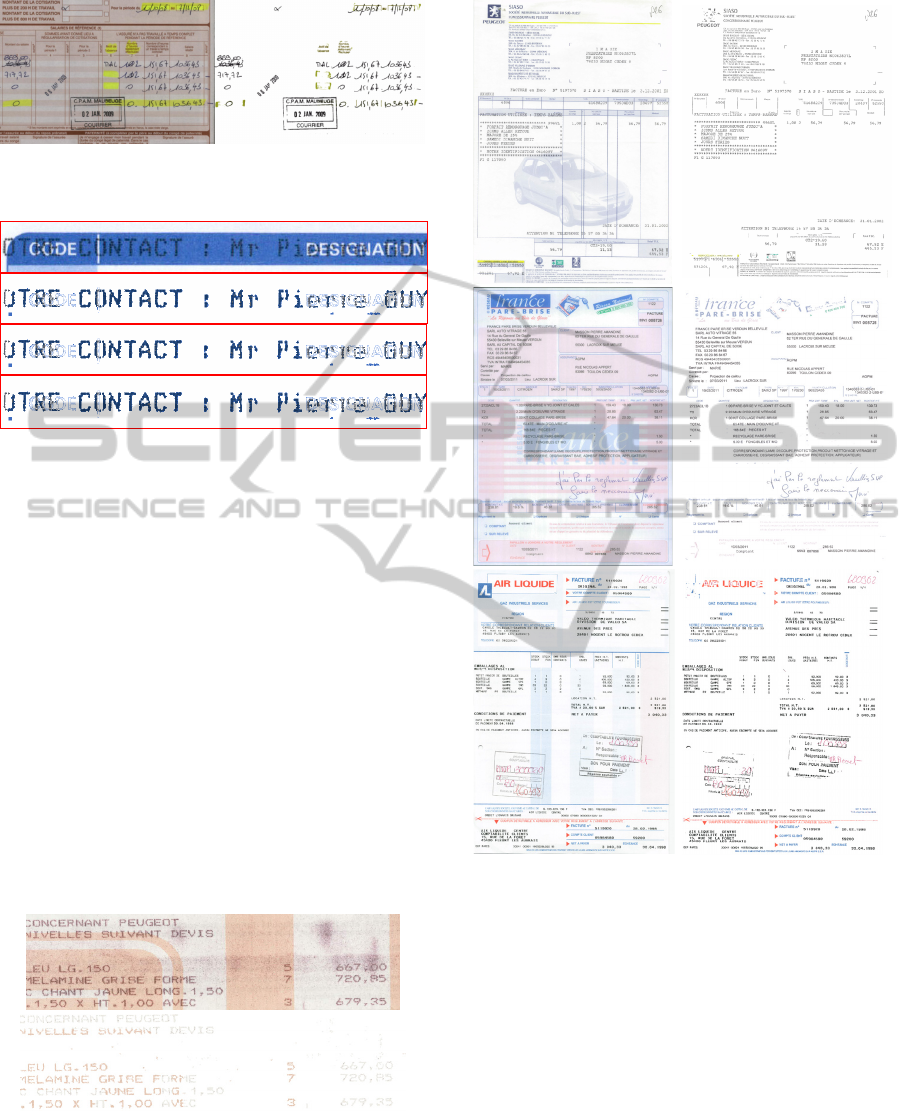

Figure 14: Correct color separations with overlapped

inverted and not inverted texts.

4.2 Evaluation on the Database

We have tested the proposed system on 529 color

images of various invoices and forms in real

situation. Among 529 images we manually found 4

images with some problems of segmentation.

Among these errors, we found 2 images that present

a change of text color, detected by the system,

because of the ink bleed trough of the color

background to the characters of the foreground

(Figure15). 1 images show handwritten texts totally

illegible because of the ink fading. 1 error is due to

the printing of black characters crossing a large

black frame. Most of errors can be explained by the

quality of the document itself. We have achieved

99.25 % of correctly segmented document.

Figure 15: Failure of AColDPS because of color transfer

from the background to the foreground.

Figure 16: Successes of AColDPS.

5 CONCLUSIONS

In this paper, we have presented an unsupervised

fully automatic system for color business document

segmentation. We have developed the first fully

data-driven pixel-based approach that does not need

a priori information, training or manual assistance.

The proposed method has the following advantages:

1) It does not require any connected component

analysis and simplifies the extraction of the layout

and the recognition step undertaken by the OCR;

2) it processes inverted and non-inverted text

automatically, using color morphology, even in

VISAPP2015-InternationalConferenceonComputerVisionTheoryandApplications

184

cases where there are overlaps between the two; 3) it

efficiently removes noise and speckles from dithered

background and automatically suppresses graphical

elements using geodesic measurements; 4) it splits

overlapped characters and separates characters from

graphics if they have different colors. The proposed

Automatic Color Document Processing System has

the potential to be adapted into different business

document images. The system outperformed the

classical approach that uses binarization of the

greyscale image and simplifies both the extraction of

the layout and the recognition performed by the

OCR. In future works, we plan to find a solution to

reconstruct characters crossing graphical elements.

ACKNOWLEDGMENT

This work is granted by ITESOFT for the project DOD.

REFERENCES

L. Bottou, P. Haffner, PG. Howard, Y. LeCun, Djvu:

analyzing and compressing scanned documents for

internet distribution. ICDAR, 2001.

K. Jung, J. Han, Hybrid approach to efficient text

extraction in complex color images, PRL, V. 25, I. 6,

19 April 2004, Pages 679-699.

D. Karatzas, et al., Color text segmentation in web images

based onhuman perception Image and Vision

Computing, Volume 25, Issue 5, 1 May 2007, Pages

564-577.

E. Badekas et al., Text segmentation in color documents,

IJIST, V. 16, I. 6, 2006, Pages: 262–274.

Y. Peng, J. Xiao, Color-based clustering for text detection

and extraction in image, ICM 2007, Pages 847-850.

A. Ouji, et al., Chromatic /achromatic separation in noisy

document images, ICDAR 2011.

A. Aıt Younes et al., Color Image Profiling Using Fuzzy

Sets, TJEECS, 13(3):343-369, 2005.

E. Carel et al., Dominant Color Segmentation of

Administrative Document Images by Hierarchical

Clustering, DocEng 2013.

S. Perreault and Patrick Hebert, Median Filtering in

Constant Time, IEEE Image Processing 2007.

J. Chanussot & P. Lambert, “Total ordering based on

space filling curves for multivalued morphology”,

Proc. ISMM'98, June 1998, pp 51-58.

Jean Serra, Image Analysis and Mathematical

Morphology, Academic Press, London, 1982.

E. Aptoula et al., Multivariate mathematical morphology

applied to color image analysis. In Chapter 10:

Multivariate Image Processing, 2009.

P. Soille, Morphological image analysis: Principles and

applications. In Springer, 2004. 2nd Edition.

Comaniciu et al., 2002, MeanShift: A Robust Approach

toward Feature Space Analysis, PAMI, Vol. 24, No. 5.

Gaceb D., et al., Adaptative Smart-Segmentation Method

for Images of Business Documents, ICDAR 2013, pp.

118-122. .

F. Lebourgeois et al., Fast Integral MeanShift: Application

to Color Segmentation of Document Images, ICDAR.

2013, IEEE ed. Washington, USA. pp. 52-56.

AColDPS-RobustandUnsupervisedAutomaticColorDocumentProcessingSystem

185
