Evaluating EEG Measures as a Workload Assessment in an

Operational Video Game Setup

Lucille Lecoutre

, Sami Lini

, Christophe Bey

, Quentin Lebour

and Pierre-Alexandre Favier

Akiani, 109 avenue Roul, 33400 Talence, France

CNRS IMS UMR 5218, 33400 Talence, France

Keywords: EEG, Mental Workload, Operational Situation, Video Games.

Abstract: We tested the electroencephalography (EEG) B-Alert X10 system (Advance Brain Monitoring, Inc.) mental

workload metrics. When we evaluate a human-systems interfaces (HSI), we need to assess the operator’s

state during a task in order evaluate the systems efficiency at helping the operator. Physiological metrics are

of good help when it comes to evaluate the operator’s mental workload, and EEG is a promising tool. The

B-Alert system includes an internal signal processing algorithm computing a mental workload index. We set

up a simple experiment on a video game in order to evaluate the reliability of this index. Participants were

asked to play a video game with different levels of goal (easy vs hard) as we measured subjective,

behavioral and physiological indices (B-Alert mental workload index, pupillometry) of mental workload.

Our results indicate that, although most of the measure point toward the same direction, the B-Alert metrics

fails to give a clear indication of the mental workload state of the participants. The use of the B-Alert

workload index alone is not precise enough to assess an operator mental workload condition with certainty.

Further evaluations of this measure need to be done.

1 INTRODUCTION

The integration of Humans in the design and

evaluation of complex systems is an approach that is

becoming increasingly important. There now is a

real interest in assessing the impact of such systems

on operators who need to handle them. Humans have

features of their own, with their constraints and

limitations that it is necessary to identify in order to

correctly adapt the systems.

When evaluating a system, the concept of mental

workload is of particular interest to qualify the

operator state. According to Cerraga and Chevalier

(Cegarra and Chevalier 2008), cognitive load

presupposes that cognitive processes have costs

drawn from a limited pool of cognitive resources.

The cognitive load is then often defined as the ratio

between the demand of the task and the human

resources available.

An overload situation can have tragic

consequences onto the performances of an operator.

Disposing of appropriate tools to assess an operator

mental state becomes crucial when evaluating a

system and the reliability of such tools is an

important issue.

Among the physiological indices of mental

workload, electroencephalography (EEG) is a good

candidate for measuring and monitoring mental

workload (Antonenko et al. 2010; Borghini et al.

2012; Tsang and Vidulich 2006).

EEG has some advantages for use in operational

environment. In particular, wireless solutions like

the B-Alert system (Advance Brain Monitoring,

Inc.

) (Berka et al. 2004; Berka et al. 2005; Berka et

al. 2007; Johnson et al. 2011) seem very promising,

as they allow more ecological experimental

situations. The implemented classification algorithm

allows one to use it without requiring extensive

medical expertise. We were particularly interested in

the mental workload gauge and decided to evaluate

this tool following a “black-box” approach.

Berka and colleagues argue in a previous study

that the workload measure of their classifier relates

more to “cognitive processes generally considered

more of the domain of executive function”, whereas

their engagement measure “tracks demands for

sensory processing and attention resources”. As the

http://www.advancedbrainmonitoring.com/

112

Lecoutre L., Lini S., Bey C., Lebour Q. and Favier P..

Evaluating EEG Measures as a Workload Assessment in an Operational Video Game Setup.

DOI: 10.5220/0005318901120117

In Proceedings of the 2nd International Conference on Physiological Computing Systems (PhyCS-2015), pages 112-117

ISBN: 978-989-758-085-7

 2015 SCITEPRESS (Science and Technology Publications, Lda.)

task we used required some level of perceptual

processing, we also evaluated the engagement

metrics. Furthermore, the engagement metrics is

based on an individually fitted model, whereas the

workload index is based on a group of individuals

tested in Berka and colleagues’ article from 2007.

We set up an experiment on a video game. It

allowed us to put the participants in operational

conditions (they sat on an office chair, in front of TV

flat screen, with PlayStation controllers in their

hands and were able to move freely) making it close

to a real life situation.

We used Rayman Origins (Figure 1), developed

for PlayStation 3 for it is a 2D platform game. This

allows us to reduce the degrees of freedom

(compared to a 3D game) and ensure us the

scenarios reproducibility despite the ecological

environment.

Like for most platform games, the player has to

collect items along the level, which defines several

performance steps as a function of the number of

collected items. Moreover, some scrolling levels

were particularly suited to our needs. We

manipulated the workload conditions by imposing

two types of goal, an easy to achieve and a hard to

achieve goal.

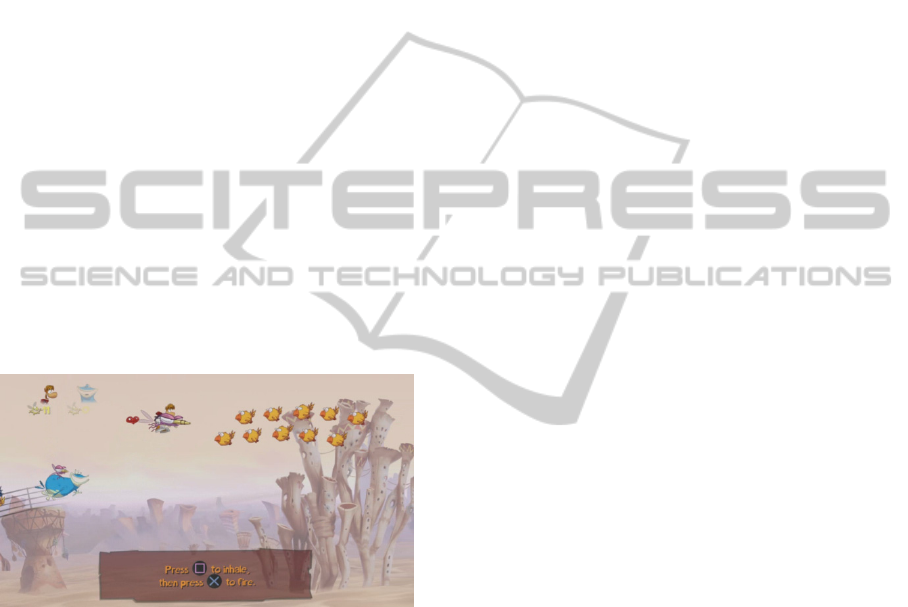

Figure 1: Screenshot of one of the two levels chosen for

the experiment.

It is advised to cross several measures when

estimating mental workload. Following this rational,

we chose a set of subjective, behavioral and

physiological measures to address the issue of the B-

Alert workload index reliability.

We had the participants take the Nasa-TLX

questionnaire, a standard subjective index of the

mental workload (National Aeronautics and Space

Administration TaskLoadindeX, Hart and Staveland

1988). This measure operates as a control measure.

Pupillometry is an indirect indicator of cognitive

load (Beatty and Lucero-Wagoner 2000; Kahneman

and Beatty 1966).We used this measure as a control

as well, since it proved its reliability in an

operational environment (Lini et al. 2013).

Heart Rate Variability (HRV) is another

physiological indirect indicator of cognitive load

(Backs et al. 1999; Wilson 2002). It is measured by

continuously monitoring heart rate.

Based on the hypothesis that an overload has a

negative effect on performances (Wickens 1992), we

also collected two performance indicators: the

number of collected items and the number of times

the participant dies within a level. A higher number

of collected items and a lower number of times a

participant dies mean better performances.

We had two tests for the EEG workload index:

its sensitivity to our experimental manipulation of

the mental workload (easy vs hard condition), and its

confrontation to our control measures.

We hypothesized that:

(H1) Our control measures were sensitive to our

task manipulations of the mental workload.

(H2) They were correlated with each other.

(H3) The EEG index of mental workload was

sensitive to our task manipulation of the

mental workload.

(H4) It was correlated with our control measure.

2 METHODS

2.1 Participants

Eight healthy participants (mean age: 22.1 ± 2 years

old, 7 males) took part in the study after signing a

consent form. They were informed of the purpose of

the study.

2.2 Measures

2.2.1 Subjective Measure

Subjects were asked to evaluate their mental

workload after each of the four runs of the

experiment with the Nasa-TLX questionnaire. We

used an approved French version of this

questionnaire (Cegarra and Morgado 2009). In order

to avoid any ambiguity, the participants took a first

dry questionnaire during the setup. They then took

the questionnaire after each run.

2.2.2 Behavioral Measures

Each participant was asked to fill a short

questionnaire about information such as his nicotine

consumption, sleep deprivation, video games

familiarity. We also measured during each run the

number of collected items and the number of time

EvaluatingEEGMeasuresasaWorkloadAssessmentinanOperationalVideoGameSetup

113

the participant died as a measure of their

performance.

2.2.3 Physiological Measures

EEG

A portable sensor headset, the B-Alert X10 System

was used to record electrophysiological data from 9

electrodes sites (Fz, F3, F4, Cz, C3, C4, POZ, P3,

P4), with left and right mastoid as reference. Each

EEG channel was sampled at 256 samples per

seconds, with a 50-Hz notch filter applied to remove

environmental artifact. We also recorded

electrocardiogram (ECG) from two electrodes linked

to the B-Alert system.

The signal decontamination procedure and the

classification algorithms are already implemented in

the B-Alert system. We were interested into two

specific metrics: the probability of being in a high

mental workload state, and the probability of being

in a high engagement state. The mental workload

model and algorithm is described in an article from

Berka and colleagues (Berka et al. 2007). The model

is adjusted using the group of participants tested in

their study. For our analysis, we averaged the index

for each run of the experiment to derive a mean

workload index.1-second samples with error values

were taken out of the analysis prior to averaging as

advised by the constructor.

The engagement metrics is based on an

individual model, adjusted for each subject with

three baseline tasks. The algorithm is presented in a

Johnson and colleague article from 2011 (Johnson et

al. 2011). Four cognitive states are discriminated

using a quadratic discriminant functional analysis:

drowsiness, sleep onset, low engagement, and high

engagement. For this study we were only interested

in the high engagement probability metrics. We took

out of the analysis the same samples as for the

workload index, prior to averaging the high

engagement probability for each run.

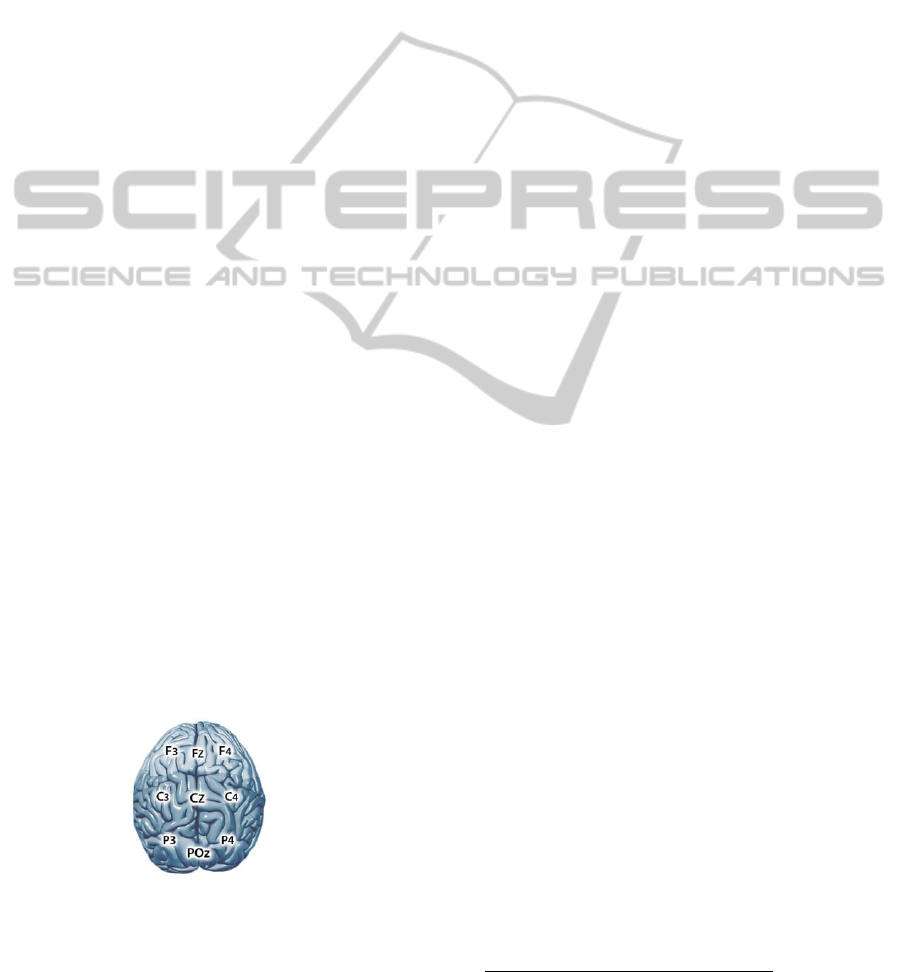

Figure 2 : EEG electrode placement.

HRV

We used the ECG channels of the B-Alert system to

derive another measure of the Heart rate variability

(HRV). HRV was estimated in the frequency

domain by calculating the power spectral density of

the Fast Fourier Transform for the tachogram.

Calculations were performed in both the 0.05-

0.15 Hz band (low frequency, LF), and 0.15-0.3 Hz

band (high frequency, HF). Total HRV retained for

analysis was the ratio of these two values (LF/HF).

HRV varies in the opposite direction to that of the

mental workload.

Eye Tracking

Subjects were fitted with a mobile eye tracker,

Tobii’s glasses (Tobii Technology

), a head-

mounted eye tracking system resembling a pair of

glasses. The tracker is monocular (right eye only),

sampling at 30 Hz with 56° × 40° recording visual

angle. Tobii studio, the data processing software,

allows dealing with mean pupil dilation, i.e. the

percentage of dilation compared to the mean dilation

measured during the calibration phase.

2.3 Procedure

We had the participants take the B-Alert baseline

tasks after the EEG was set-up. The choice vigilance

task, and standard eyes open and eyes closed

vigilance tasks lasted for 5 minutes each. The eye

tracker was calibrated after the baseline acquisition.

The experimental room brightness was

maintained constant, and the participant was in the

room long enough before the beginning of the

experiment so that we can assume he was

accommodated. Moreover, mental load related

variations of the pupil diameter are much faster than

luminosity related variations. Thus, the measured

variation of the pupil diameter clearly reflects a

cognitive process and not an automatic adaptation to

the change of brightness.

Participants were asked to play on two particular

levels of the game, chosen for their duration and

similar in difficulty. For these levels, the characters

are travelling on a mosquito able to shoot at

obstacles and villains. The display of the levels

moves on automatically, forcing the player to move

forward. These levels are scripted, events always

occur at the same times independently of the actions

of the player. This ensured reproducible scenarios

from one condition to another and from one

participant to another. The participants could train

on some other levels with the same game play while

they were being set-up.

Each of the two levels was played twice, either

http://www.tobii.com/

PhyCS2015-2ndInternationalConferenceonPhysiologicalComputingSystems

114

with an easy-to-achieve goal, or a hard-to-achieve

goal. The easy-to-achieve goal was to collect at least

150 items. The hard-to-achieve goal was to collect at

least 300 items. The order of presentation of the

levels and goals were assigned for each participant

following a latin square procedure to avoid learning

effects on the group level analysis.

In the game we chose for the experiment, the

player has to start over the level from the last

checkpoint when he dies. We had one of the

experimenter take part in the study as player 2 to

avoid these events to happen too often. The role of

the experimenter was to resurrect the player 1 when

he had died (due to contact with a villain or when

being caught up by the automatic progress of the

level). In any case the experiment helped the

participant to collect items, or guided him through

the level. We kept a record of the number of time the

participant (player 1) died as a measure of

performance. Each run lasted 4’53’’ on average. The

sessions were recorded in order to help

synchronizing all the measures.

3 RESULTS

3.1 Sensitivity of the Measures

Error probability was set at 5%.

We first tested the sensitivity of each measure

regarding the change in mental workload. We

separated the data into two groups: easy and hard

goal, regardless of the level of the game. One-tailed

Wilcoxon’s tests were used to analyse inter-

individual variability between both conditions

(paired samples). The side of the test was given by

hypothesis.

For the Nasa-TLX score, the higher the workload

is felt, the higher is the overall score. We then

expected the score to be higher in the hard condition

than in the easy condition.

For the performance measures, we expected that

the higher the workload, the worse the

performances. For the number of collected items

performance measure, we thus expected a higher

number of collected items in the easy condition than

in the hard condition. For the number of deaths, we

expected a higher number of deaths in the hard

condition than in the easy condition.

For the B-Alert metrics and the pupil dilation

metrics, we expected the measures to be higher in

the hard condition than in the easy condition.

For the heart rate variability measure, we

expected the index to be higher in the easy condition

than in the hard condition.

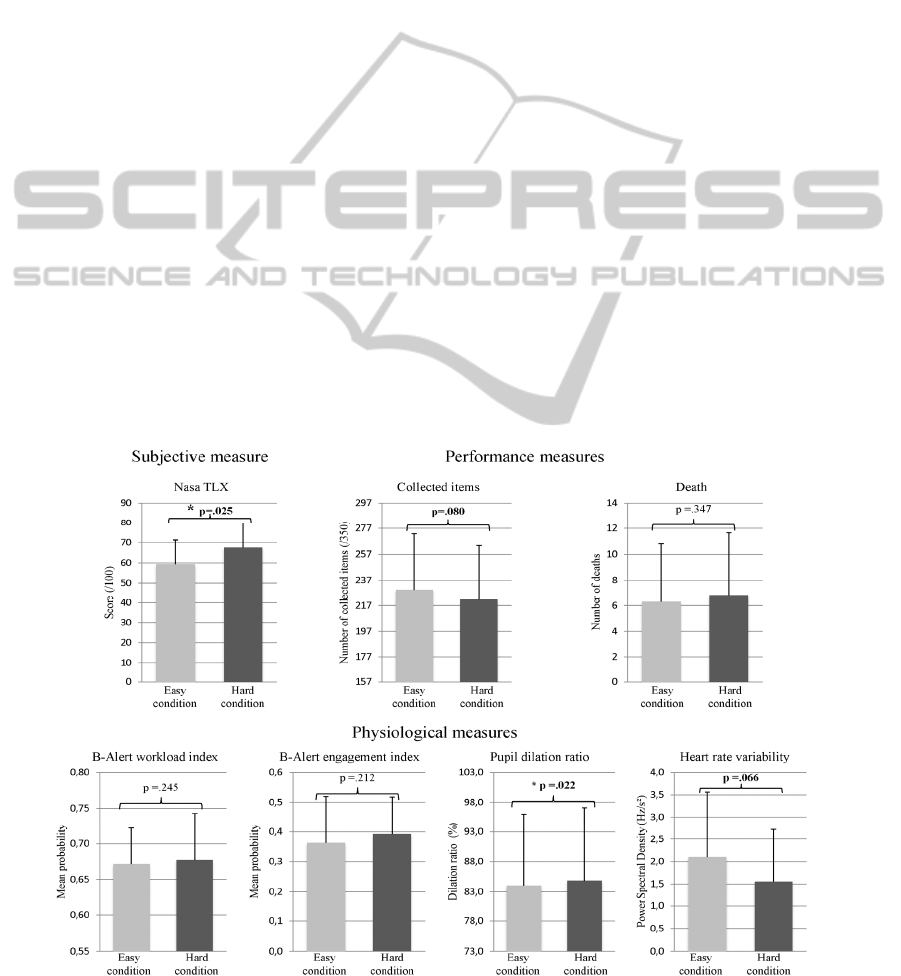

As displayed in Figure 3, the Nasa-TLX

score(p=.025) and the pupil dilation ratio (p=.022)

were sensitive to our task manipulation of the mental

Figure 3: Across subject mean value for each measurement. The easy and hard conditions are compared. Error bars

represent one standard deviation from the mean. P-value results from one-tailed Wilcoxon’s tests are displayed.

EvaluatingEEGMeasuresasaWorkloadAssessmentinanOperationalVideoGameSetup

115

workload, confirming the validity as control

measures. The HRV measure (p=.066) and the

collected item (p=.080) measure of performance

showed a trend in the direction of our hypothesis.

The other measures did not show a significant result.

3.2 Consistency of the Measures

We then analyzed the relations between the

measures by computing Spearman correlations (non

parametric) between the measures. Only significant

values are reported.

The Nasa-TLX score is correlated with both

performance measures. As hypothesized, the higher

the Nasa-TLX score, the lower the number of

collected items (R=-0.432, p=0.025) and the higher

the number of death (R=0.461, p=0.016).

The pupil dilation measure is also correlated with

the Nasa-TLX score (R=0.486, p=0.042) and both

performance measure (collected items: R=-0.663,

p=0.004; death: R=0.609, p=0.007), confirming its

validity as a control measure. It is also strongly

correlated with the EEG workload index (R=0.623,

p=0.005), but not with the EEG engagement index.

The EEG workload index is also correlated with

the Nasa-TLX score (R=0.430, p=0.026) and the

EEG engagement index (R=0.442, p=0.019),

although the EEG engagement index is correlated

neither with the Nasa-TLX score nor with the pupil

dilation measure. The HRV measure is not

correlated with any of the other measures.

4 DISCUSSION

Our experiment was designed to address the B-Alert

reliability issue in an operational environment: small

number of subjects, hard to replicate experimental

conditions.

We hypothesized that our control measures

would reflect the task manipulation (mental

workload, H1 and H2). Then, if the B-Alert system

is sensitive to mental workload variations, its metric

should also be affected by the task manipulation we

set up (H3) and be correlated with the control

measures (H4).

4.1 Validation of the Experimental

Design

The Nasa-TLX subjective index and the pupil

dilation measure were both significantly affected by

our task manipulation of the mental workload, as

previously reported in the literature (Beatty 1982;

Klingner 2010). Hence, we can confirm that the

experimental manipulation we used was successful

at eliciting differential mental workload conditions

(H1). The small number of subjects could explain

the non-significant HRV result.

The performance measures we chose failed to

show a significant variation relative to the easy and

hard conditions, although the number of collected

items showed a significant trend.

The pupil dilation metrics correlates with the

Nasa-TLX score, showing that this index is sensitive

to both objective and subjective estimates of mental

workload (H2) as reported before (Palinko et al.

2010).

Pupil dilation and Nasa-TLX scores are both

correlated with the performance measures. They are

negatively correlated with the number of collected

items and positively correlated with the number of

deaths, confirming again that the participants were

indeed in a situation of overload, which impaired

their performances.

4.2 Evaluation of the EEG Indices

As revealed by the Wilcoxon’s tests, the EEG

workload and engagement indices were not sensitive

enough to our manipulation of mental workload. The

lack of results might be due an important inter-

individual variability. We were able to recruit few

participants only, partly because of the amount of

time needed to set-up each experimental recording.

For the workload index, the model is based on a

group of individuals independently of our study and

is not adjusted to each participant. It then might be

more sensitive to inter-individual factors (for

example caffeine consumption), potentially leading

to ceiling effects masking the B-Alert metric

sensitivity. For the engagement index, we interpret

the lack of difference between the easy and hard

condition as the fact that both conditions require a

similar amount of perceptual and attention related

processing.

When confronting the measures, however, we

can observe that the EEG workload index is

correlated with the pupil dilation metrics and the

Nasa-TLX score (H4), suggesting that it is sensitive

to the same underlying phenomena.

5 CONCLUSIONS

We conducted an experiment using an ecological

gaming situation to reproduce an operational

PhyCS2015-2ndInternationalConferenceonPhysiologicalComputingSystems

116

environment. Subjective and physiological measures

of mental workload suggest that we succeeded in

placing the subjects in an overload situation.

Our analysis indicates that the B-Alert system

does not capture the variation of mental workload as

can be observed with the pupil dilation and the

subjective measures. However, the B-Alert workload

index is correlated with both of these measures,

suggesting that it varied consistently with our

hypothesis, but was not sensitive enough to capture

our mental workload variation.

The B-Alert system might be a useful option

depending on the environmental conditions: the

workload index is not sensitive to a change of

brightness (p=1), whereas pupil dilation is (p=.009).

Nonetheless, our results show that the B-Alert

metrics are not precise enough to offer a reliable

option in operational conditions.

ACKNOWLEDGEMENTS

The authors would like to thank two anonymous

reviewers for their comments on a previous version

of this manuscript and the subjects who kindly took

part to this experiment.

The authors declare no conflict of interest.

REFERENCES

Antonenko, P. et al., 2010. Using electroencephalography

to measure cognitive load. Educational Psychology

Review, 22(4), pp.425-438.

Backs, R.W., Lenneman, J.K. and Sicard, J.L., 1999. The

Use of Autonomic Components to Improve

Cardiovascular Assessment of Mental Workload in

Flight.. The International Journal of Aviation

Psychology, 9(1), pp.33-47.

Beatty, J., 1982. Task-evoked pupillary responses,

processing load, and the structure of processing

resources. Psychological bulletin, 91(2), p.276.

Beatty, J. and Lucero-Wagoner, B., 2000. The pupillary

system. Handbook of psychophysiology, 2, pp.142-

162.

Berka, C. et al., 2007. EEG correlates of task engagement

and mental workload in vigilance, learning, and

memory tasks. Aviation, space, and environmental

medicine, 78(Supplement 1), p.B231-B244.

Berka, C. et al., 2005. Evaluation of an EEG workload

model in an Aegis simulation environment. In Defense

and Security. International Society for Optics and

Photonics, pp. 90-99.

Berka, C. et al., 2004. Real-time analysis of EEG indexes

of alertness, cognition, and memory acquired with a

wireless EEG headset. International Journal of

Human-Computer Interaction, 17(2), pp.151-170.

Borghini, G. et al., 2012. Measuring neurophysiological

signals in aircraft pilots and car drivers for the

assessment of mental workload, fatigue and

drowsiness. Neuroscience and Biobehavioral Reviews.

Cegarra, J. and Chevalier, A., 2008. The use of Tholos

software for combining measures of mental workload:

Toward theoretical and methodological improvements.

Behavior Research Methods, 40(4), pp.988-1000.

Cegarra, J. and Morgado, N., 2009. Étude des propriétés

de la version francophone du NASATLX. In

Communication présentée à la cinquième édition du

colloque de psychologie ergonomique (Epique).

Hart, S.G. and Staveland, L.E., 1988. Development of

NASA-TLX (Task Load Index): Results of empirical

and theoretical research. Advances in psychology, 52,

pp.139-183.

Johnson, R.R. et al., 2011. Drowsiness/alertness algorithm

development and validation using synchronized EEG

and cognitive performance to individualize a

generalized model. Biological psychology, 87(2),

pp.241-250.

Kahneman, D. and Beatty, J., 1966. Pupil diameter and

load on memory. Science, 154(3756), pp.1583-1585.

Klingner, J.M., 2010. Measuring cognitive load during

visual tasks by combining pupillometry and eye

tracking.

Lini, S. et al., 2013. Evaluating ASAP (Anticipation

Support for Aeronauticial Planning): a user-centered

case study. In Proceedings of the 17th International

Symposium on Aviation Psychology.

Palinko, O. et al., 2010. Estimating cognitive load using

remote eye tracking in a driving simulator. In

Proceedings of the 2010 Symposium on Eye-Tracking

Research and Applications. ACM, pp. 141-144.

Tsang, P.S. and Vidulich, M.A., 2006. Mental workload

and situation awareness. Handbook of Human Factors

and Ergonomics, Third Edition, pp.243-268.

Wickens, C.D., 1992. Engineering psychology and human

performance, HarperCollins Publishers.

Wilson, G.F., 2002. An analysis of mental workload in

pilots during flight using multiple psychophysiological

measures. The International Journal of Aviation

Psychology, 12(1), pp.3-18.

EvaluatingEEGMeasuresasaWorkloadAssessmentinanOperationalVideoGameSetup

117
