ICS/SCADA Security
Analysis of a Beckhoff CX5020 PLC
Gregor Bonney, Hans Höfken, Benedikt Paffen and Marko Schuba
FH Aachen, University of Applied Sciences, Eupenerstr. 70, Aachen, Germany
Keywords: ICS, SCADA, Security, Vulnerability, Beckhoff, CX5020, PLC.
Abstract: A secure and reliable critical infrastructure is a concern of industry and governments. SCADA systems
(Supervisory Control and Data Acquisition) are a subgroup of ICS (Industrial Control Systems) and known
to be well interconnected with other networks. It is not uncommon to use public networks as transport route
but a rising number of incidents of industrial control systems shows the danger of excessive crosslinking.
Beckhoff Automation GmbH is a German automation manufacturer that did not have bad press so far. The
Beckhoff CX5020 is a typical PLC (Programmable Logic Controller) that is used in today’s SCADA
systems. It is cross-linked through Ethernet and running a customized Windows CE 6.0, therefore the
CX5020 is a good representative for modern PLCs which have emerged within the last years that use de
facto standard operation systems and open standard communication protocols. This paper presents
vulnerabilities of Beckhoff’s CX5020 PLC and shows ways to achieve rights to control the PLC program
and the operation system itself. These vulnerabilities do not need in-depth knowledge of penetration testing,
they demonstrate that switching to standard platforms brings hidden features and encapsulating SCADA
protocols into TCP/IP might not always be a good idea – underlining that securing ICS systems is still a
challenging topic.
1 INTRODUCTION
Computers in automation technology are used to
regulate industrial processes such as chemical
production processes or assembly lines in the
automobile industry. In the early years, computer
control of automation systems was done in a local
context only, i.e., with no connection to a corporate
network or the Internet (European Network and
Information Security Agency 2011b:1). In the past
decade, however, the growing availability of the
Internet, the globalization, and the growing number
of decentralized companies led to ICSs (Industrial
Control Systems) that had to be network- and
Internet-enabled (European Network and
Information Security Agency 2011c:14). From a
business perspective this results in automation
processes that are easier and thus cheaper to manage.
An essential part of ICS are SCADA systems
(Supervisory Control and Data Acquisition) which
are responsible for centrally collecting process
relevant information and – based on the analysis of
this data – send control instructions to the
production systems (European Network and
Information Security Agency 2011c:6). To this end,
the SCADA systems need to be connected to various
parts of the ICS, for example, to PLCs
(Programmable Logic Controllers), which control
the individual actuators or sensors in the machinery.
Interconnection between central SCADA machines
and PLCs is more and more based on standard
networking technology. SCADA-specific protocol
data units are, for instance, encapsulated in TCP/IP
and transmitted via Ethernet on the link layer
(industrial Ethernet) (Knapp 2011:66).
The discovery of the virus „Stuxnet“ in 2010
made it obvious to the public, that modern ICS are
vulnerable against cyber-attacks (Knapp 2011:38).
As any modern computer system, SCADA systems
and PLCs have vulnerabilities that can be exploited
with off-the-shelf or targeted malware. Internet
search engines like Shodan (SHODAN 2014), which
collect information about machines connected to the
Internet, and fast Internet scanners like Zmap (ZMap
2014), make the discovery of vulnerable machines
even simpler (Knapp 2011:117). The effects of
cyber-attacks on ICS could be devastating:
production processes could be manipulated or
disrupted. In the worst case, there could be personal
or environmental damage or loss.
This paper describes the results of an initial
137
Bonney G., Hoefken H., Paffen B. and Schuba M..
ICS/SCADA Security - Analysis of a Beckhoff CX5020 PLC.
DOI: 10.5220/0005330101370142
In Proceedings of the 1st International Conference on Information Systems Security and Privacy (ICISSP-2015), pages 137-142
ISBN: 978-989-758-081-9
Copyright
c
2015 SCITEPRESS (Science and Technology Publications, Lda.)
security analysis of a Beckhoff CX5020, a
commonly used PLC in SCADA/ICS systems. The
goal of the investigation is to find out, if a modern
PLC, which is based on a well-known platform like
Windows CE, has exploitable vulnerabilities in the
platform or the PLC part of the system. The
description of our investigation will start in chapter
2 with a brief description of ICS, SCADA, the
protocols used and the specifics of a Beckhoff
CX5020. Chapter 3 and 4 explain our analysis
approach and results which lead to a set of possible
attacks described in chapter 5. Chapter 6 gives a set
of recommendations to the manufacturer and to
users of the Beckhoff CX5020, which protect
against the described attacks.
2 ICS/SCADA SECURITY
2.1 SCADA Systems and Protocols
A typical SCADA system consists of different parts.
The low-level control algorithm is running on a PLC
or RTU (Remote Terminal Unit). These devices are
connected to sensors and actuators. They retrieve
sensor data, evaluate the local system state and
control actuators based on the data evaluation result.
Multiple SCADA systems operate as MES
(Manufacturing Execution System) and several
MESs are controlled by ERP (Enterprise Resource
Planning). The layering of the different systems is
depicted in the automation pyramid in Figure 1.

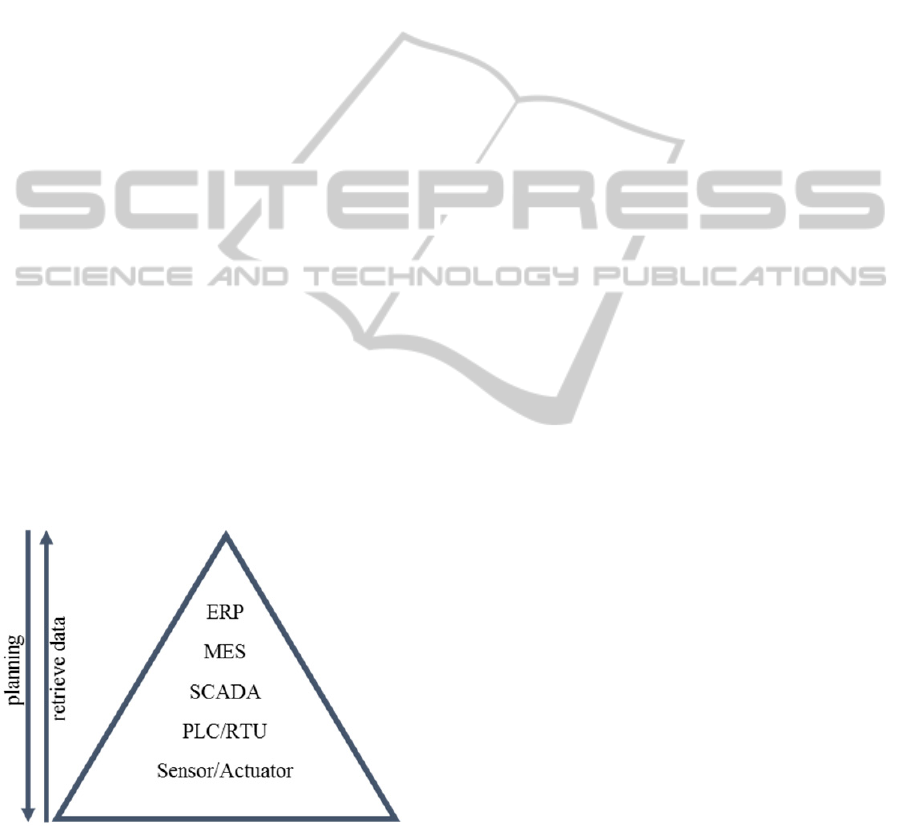

Figure 1: Automation pyramid.
An HMI (Human Machine Interface) is used to
present the current system state and allows to
manually edit parameters. An HMI’s control
directive is not limited to one PLC or RTU, it is
more likely to control multiple devices via a single
HMI. Therefore the PLC or RTU and HMI have to
be interconnected. A local setup is called remote
site. The MTU (Master Terminal Unit) is a central
place where the system state of multiple remote sites
is supervised and controlled from (Krutz 2006:7). To
achieve supervisory control and data acquisition an
EWS (Engineering Workstation) is running at the
MTU. It is a normal computer with specific SCADA
software installed that allows remote diagnostics,
sending control instructions and reprogramming. A
so-called historian saves retrieved telemetry data of
remote sites into a central database for future
evaluation (Trend Micro Incorporated:5).
SCADA makes use of networks protocols to
transport PLC administration and programming
commands. The protocols are also used for
communication between PLCs. The connection to
corporate networks and/or the Internet – for
instance, for remote maintenance – is frequently
realized through standard programs such as HTTP,
Telnet, or FTP. Connectivity on the link layer
usually takes place via Ethernet.
2.2 General SCADA Security Issues
Many SCADA systems nowadays are based on or
encapsulate higher layer protocols in unencrypted
and unauthenticated protocols like Telnet. Integrated
HMIs, which simplify control, usually operate over
HTTP and have no encryption for login credentials.
Many of the special programs and protocols used
for programming of PLCs and controlling the
infrastructure of ICSs are unsecure as well. At the
time of their development security was not part of
the requirements. Therefore, they turn out to be a
security risk (European Network and Information
Security Agency 2011a:27).
It is this kind of vulnerabilities, which allows
viruses like “Stuxnet” to be successful. Stuxnet was
not only able to exploit operating systems in the
control centre, it was also able to continue the attack
on downstream PLCs, which had no protection
against the attack. Vulnerabilities in the protocols
helped to obtain further rights and infected
machines, using for instance hardcoded passwords
of the PLCs or the credentials of the database server.
As a reaction to these new threats the automation
industry has started to develop better and more
secure components. Still, security by design, as it is
applied in software engineering by the traditional
software industry, is still a new area for ICS
manufacturers and mistakes are made. And even if
new and more secure components are made
available for retrofit or replacement of insecure parts
of an ICS, many companies avoid modernization as
ICISSP2015-1stInternationalConferenceonInformationSystemsSecurityandPrivacy
138
any change to the systems means interruption of
production, extensive testing, i.e., cost.
3 SECURITY ANALYSIS SETUP
In order to find out, if modern PLCs are “secure by
design”, an example for such a modern PLC was
analysed. The Beckhoff CX5020 is an embedded PC
running Windows CE 6.0 plus a Beckhoff
proprietary software that makes it operate as a PLC.
The built-in hardware uses an Intel Atom CPU with
1 GB of RAM and a flashcard serving as persistent
memory. An integrated UPS provides emergency
power for around two seconds and allows a secure
shutdown of the device in case of power failure.
In order to retrieve and analyse the traffic
coming and going to a remote site, a simplified test
environment was set up. The test environment
consists of an EWS and a CX5020 PLC. A third
node, a PC, is used as port scanner and is later on
connected to the mirror port of the interconnecting
switch in order to capture the traffic.
Due to the use of Windows CE 6.0 on the
CX5020 the analysis consisted of two phases. The
first phase was a normal service and vulnerability
discovery using scanning tools. After a full list of
open services was received, additional information
to each service was searched for inside the windows
registry and the local file system. The second phase
analysed the traffic between EWS and CX5020
while simulating SCADA use-cases like adding a
new remote site to the system or controlling the
PLC.
4 SECURITY ANALYSIS
RESULTS
An nmap port scan of the CX5020 PLC discovered
16 open ports (cf. Table 1) which include well-
known services like Telnet on port 23, a webserver
listening on port 80, 5120 and 5357 plus unknown
services on port 987, 48898 and 48899.
Some of these ports might be accessible from the
Internet. Assuming that a remote site is protected via
firewall but needs remote maintenance, it is likely
that the respective SCADA and maintenance ports
are open in the firewall access control lists. In the
case of a CX5020 PLC, such common open ports
would include port 48898 and 48899 as advised by
the manufacturer Beckhoff on their customer service
portal (Beckhoff Information System), and perhaps
ports 23, 80 and 987 for Windows CE remote
management.
Table 1: Port scanning result.
Port Protocol State Service
23 TCP Open telnet
80 TCP Open http
139 TCP Open netbios-ssn?
443 TCP Open tcpwrapped
445 TCP Open netbios-ssn
987 TCP Open unknown
5120 TCP Open http
5357 TCP Open http
8080 TCP Open http-proxy
48898 TCP Open tcpwrapped
123 UDP Open ntp?
137 UDP Open netbios-ns
138 UDP open/filtered netbios-dgm
161 UDP Open snmp
1900 UDP open/filtered upnp
48899 UDP open/filtered unknown
Taking into account all open ports from Table 1, a
vulnerability scan using OpenVAS was executed but
did not reveal any vulnerability except for a public
community name in the SNMP service that was
classified medium.
Looking more closely at particular ports, the
following was discovered.
4.1 Telnet
Telnet is enabled by default. When connecting to the
port a greeting containing “Welcome to Windows
CE 6.0 Telnet service on CX-ABCD” is presented
while CX-ABCD is the hostname of the device. If
the default passwords has not been changed it is
possible to log on with username “webguest” and
password “1”. Because Windows CE 6.0 is a single
user system, all logged in accounts get full
administration privileges and are able to create new
accounts by using a script called CxAddUser. The
newly created accounts are able to use Telnet, FTP,
SMB, and VPN.
4.2 Webserver
The webserver’s index page presents a template file
containing the hint “Welcome to BECKHOFF CE
device“. Beckhoff informs about one special URL
for accessing a configuration interface: <ip>:5120/
config (Beckhoff Information System). A registry
inspection discovered that the webserver supports
virtual directories and exports different hard disk
paths, as depicted in Table 2.
ICS/SCADASecurity-AnalysisofaBeckhoffCX5020PLC
139
The most interesting virtual directory is
/remoteadmin which presents Microsoft’s Windows
CE remote management tool. This virtual directory
is not documented in Beckhoff’s manual and is not
configured. Therefore, on first visit, it allows
choosing a password with at least three characters
length. Once set, these credentials give users full
control on network, time, file, and print server
settings.
Table 2: Virtual directories found in the Beckhoff
CX5020’s registry.
Virtual directory Path on Hard Disk
/ \Hard Disk\www
/MsmqAdmin \windows\msmqadminext.dll
/remoteadmin \windows\ REMOTEADMIN.dll
/remoteadminimages \windows\www\remoteadmin\
images
/upnp \windows\upnp
/UpnpDevice \Hard Disk\www
/upnpisapi \windows\upnpsvc.dll
/UpnpWebsite \Hard Disk\UPnP\Website
4.3 CeRDisp
CeRDisp is short for CE Remote Display and
describes a remote desktop service for Windows CE
devices. The service listens on TCP port 987. A
client software named CeRHost for Windows
desktop variants can be downloaded online. The
connection requires a password that has to be set in
the CX5020’s control panel. The connection setup is
transmitted in plaintext and can be attacked using
ARP-Spoofing. After a successful authentication the
user has full control over the PLC.
4.4 Vpn (Pptp)
A PPTP connection is the only way to encrypt traffic
to the device. All other services use plain text
transfer. If port 1723 is reachable, the default user
“webguest” can connect with password “1”. After
creation of new users through Telnet, those new
users can authenticate themselves and use the PPTP
service, too. The default PPTP authentication
mechanism is unsecure as it uses MS-CHAP v2 that
can be easily cracked (Marlinspike 2013).
4.5 SCADA Service
Within a SCADA system the ADS (Automation
Device Specification) protocol controls the CX5020
PLC systems. EWS operators use the Beckhoff
TwinCAT System Manager software to search for
PLCs. Such a discovery of PLCs is initiated by
special UDP packets which are broadcasted or sent
to a specific IP address on port 48899 UDP. ADS
devices reply to these packets by sending 325 bytes
of data encoding details of the operating system,
hostname, ADS and PLC runtime version to the
requesting host. Figure 2 shows the packet content
of a respective reply. The first four bytes are the
ADS packet header. Bytes 000C to 0011 represent
the NetId, bytes 001C to 0025 the PLC’s hostname.
0000 03 66 14 71 00 00 00 00 .f.q....
0008 01 00 00 80 05 14 3e 97 ......>.
0010 01 01 10 27 03 00 00 00 ...'....
0018 05 00 0a 00 43 58 2d 31 ....CX-1
0020 34 44 45 39 37 00 04 00 43E97...
0028 00 00 00 00 00 00 00 00 ........
.... 00 00 00 00 00 00 00 00 ........
0138 00 00 00 00 00 00 00 00 ........
0140 04 00 02 0b b9 08 ......
Figure 2: Information sent from the PLC to the EWS as
reply to a search request.
Every ADS device has a unique ADS NetId. The
TwinCAT System Manager uses this NetId and an
optional password to establish an ADS route. If no
device password has been set in the PLC’s control
panel any string will be accepted. Subsequently,
only the host with the IP address sent within the
route creation request is able to retrieve status
information from the PLC.
0000 03 66 14 71 00 00 00 00
.f.q....
0008 06 00 00 00 0a ff 02 0f
........
0010 01 01
1
0 27 05 00 00 00
...'....
0018 0c 00 0a 00 57 49 4e 37
....WIN7
0020 56 4d 2d 50 43 00 07 00 VM-
PC...
0028 06 00 0a ff 02 0f 01
0
1
........
0030 0d 00 0e 00 41 64 6d 69
....Admi
0038 6e 69 73 74 72 61 74 6f
nistrato
0040 72 00 02 00 08 00 31 32
r.....12
0048 33 34 35 36 37 00 05 00
34567...
0050 0d 00 31 39 32 2e 31 36
..192.16
0058 38 2e 31 2e 35 30 00 8.1.50.
Figure 3: Packet send to the PLC from an EWS when
trying to create the ADS route with password 1234567.
ICISSP2015-1stInternationalConferenceonInformationSystemsSecurityandPrivacy
140
Figure 3 shows a requests for the creation of an
ADS route between source IP 192.168.1.50 with
hostname WIN7VM-PC and the CX5020 PLC. The
first 37 bytes are similar to Figure 2 but contain the
EWS details. This packet includes the username
“Administrator”, a password “1234567” and the IP
address the PLC will establish an ADS route to.
If a wrong password has been used, a non-zero
error code is returned in the bytes at address 001C
and 001D as shown in Figure 4.
0000 03 66 14 71 00 00 00 00 .f.q....
0008 06 00 00 80 05 14 3e 97 ......e.
0010 01 01 10 27 01 00 00 00 ...'....
0018 01 00 04 00 04 07 00 00 ........
Figure 4: CX5020’s responded with error code 04 07 due
to a wrong password.
Because of the simple and unencrypted packet
structure the communication packets can be reverse
engineered easily. On top, attackers who are able to
create an ADS route could use some of the tools
published on the manufacturer’s internet platform to
manipulate or interrupt the CX5020 PLC and the
related SCADA system.
5 POSSIBLE ATTACKS
Two attacks are possible when a CX5020 PLC is
reachable over a network connection. The first
attack method uses the webserver’s virtual directory
/remoteadmin. After the attacker has set an initial
password, the REMOTEADMIN.dll creates a new
account ADMIN on the device. As all accounts are
able to use Telnet, the attacker is now able to create
a new account for VPN and therefore gains access
into the SCADA network.
The fact that the PLC answers very fast and does
not block a requester after too many wrong
password attempts leads to the second possible
attack method: a brute force or dictionary attack on
UDP port 48899. Because an established connection
allows for unlimited probing and evaluating of
passwords, it is not necessary to create a new
connection every time. It is even possible to use
multiple connections in parallel, which improves the
amount of passwords that can be tested per second.
A benchmark test written in Python achieved up to
~8000 tested passwords per second using 8 parallel
connections. The brute forced password can then be
used with CeRHost to view and control the PLC’s
desktop.
Table 3 shows the performance of the developed
Python script.
Table 3: Parallel brute force benchmark.
Passwords Threads Duration [s] Passwords
per second
200,000 1 183 1095
200,000 2 120 1665
200,000 3 74 2703
200,000 4 53 3752
200,000 8 25 7913
200,000 16 25 7971
6 RECOMMENDATION
The following advice is given to the manufacturer
and users of the Beckhoff CX5020 to improve the
system’s security:
1. Remove the registry key for the /remoteadmin
virtual directory and disable Telnet by default.
2. Implement a limitation for specific ADS packets
per second to reduce the risk of password
attacks. This can either be done on the device
itself but could also be done by an intrusion
detection and prevention system on the upstream
path.
3. Deliver the CX5020 with strong default
passwords that cannot be guessed. Users should
check if their passwords are reasonably secure.
4. Use only secure protocols, e.g., a PPTP with a
secure authentication mechanism.
7 CONCLUSIONS
ICS and SCADA systems have a central role in the
automation of modern production facilities. The
growing interconnection of ICS components among
each other and to corporate or public networks like
the Internet, leads to new security threats. Devices
that are reachable via network can easily become the
target of attackers. It is therefore crucial to take such
new threats into account and to make sure that
vulnerabilities in ICS systems are protected with
suitable controls.
In this paper we have demonstrated that modern
PLCs, like the Beckhoff CX5020, still lack the
secure design and security testing that is
commonplace for normal computer systems today.
In particular a secure default configuration and
protection against password attacks should be
considered. Unsecure protocols like Telnet, HTTP,
or PPTP with MS-CHAP v2 should be replaced with
secure versions. For new components, security
should be part of the design – and here the
ICS/SCADASecurity-AnalysisofaBeckhoffCX5020PLC
141
automation industry should quickly learn from the
experience and competence of the computer world.
REFERENCES
Beckhoff Information System, Scenario: ADS connection
through a firewall, viewed 5 November 2014, from
http://infosys.beckhoff.com/english.php?content=./con
tent/1033/tcremoteaccess/html/tcremoteaccess_firewal
l.html&id=.
Beckhoff Information System, TcWebAccess: Web based
diagnostic and configuration interface, viewed 5
November 2014, from http://infosys.beckhoff.de/
english.php?content=./content/1033/sw_os/html/CX10
00_TcWebAccess.htm&id=.
European Network and Information Security Agency,
2011a, Protecting industrial control systems: Annex V,
Heraklion, from https://www.enisa.europa.eu/act/res/
other-areas/ics-scada/annex-v.
European Network and Information Security Agency,
2011b, Protecting industrial control systems,
Heraklion, from https://www.enisa.europa.eu/act/res/
other-areas/ics-scada/protecting-industrial-control-
systems.-recommendations-for-europe-and-member-
states.
European Network and Information Security Agency,
2011c, Protecting industrial control systems: Annex I,
Heraklion, from https://www.enisa.europa.eu/act/res/
other-areas/ics-scada/annex-i.
Knapp, E., 2011, Industrial network security: Securing
critical infrastructure networks for Smart Grid,
SCADA , and other industrial control systems,
Elsevier/Syngress, Amsterdam.
Krutz, R.L., 2006, Securing SCADA systems, Wiley Pub,
Indianapolis, IN, from http://site.ebrary.com/lib/
alltitles/docDetail.action?docID=10305459.
Marlinspike, M., 2013, Divide and Conquer: Cracking
MS-CHAPv2 with a 100% success rate, viewed 5
November 2014, from https://www.cloudcracker.com/
blog/2012/07/29/cracking-ms-chap-v2/.
SHODAN, 2014, Computer Search Engine, viewed 4
November 2014, from http://www.shodanhq.com/.
Trend Micro Incorporated, ‘The SCADA That Didn't Cry
Wolf: Who's Really Attacking Your ICS Equipment?
(Part 2)’, viewed 4 November 2014, from
http://apac.trendmicro.com/cloud-
content/apac/pdfs/security-intelligence/white-
papers/wp-the-scada-that-didnt-cry-wolf.pdf.
ZMap, 2014, The Internet Scanner, viewed 4 November
2014, from https://zmap.io/.
ICISSP2015-1stInternationalConferenceonInformationSystemsSecurityandPrivacy
142
