A Generic Probabilistic Graphical Model for Region-based

Scene Interpretation

Michael Ying Yang

Institute for Information Processing, Leibniz University Hannover, Hannover, Germany

Keywords:

Scene Interpretation, Energy Function, Conditional Random Field, Bayesian Network.

Abstract:

The task of semantic scene interpretation is to label the regions of an image and their relations into meaningful

classes. Such task is a key ingredient to many computer vision applications, including object recognition,

3D reconstruction and robotic perception. The images of man-made scenes exhibit strong contextual depen-

dencies in the form of the spatial and hierarchical structures. Modeling these structures is central for such

interpretation task. Graphical models provide a consistent framework for the statistical modeling. Bayesian

networks and random ﬁelds are two popular types of the graphical models, which are frequently used for

capturing such contextual information. Our key contribution is the development of a generic statistical graph-

ical model for scene interpretation, which seamlessly integrates different types of the image features, and the

spatial structural information and the hierarchical structural information deﬁned over the multi-scale image

segmentation. It uniﬁes the ideas of existing approaches, e. g. conditional random ﬁeld and Bayesian network,

which has a clear statistical interpretation as the MAP estimate of a multi-class labeling problem. We demon-

strate experimentally the application of the proposed graphical model on the task of multi-class classiﬁcation

of building facade image regions.

1 INTRODUCTION

The task of semantic scene interpretation is to label

the regions of an image and their relations into seman-

tically meaningful classes. Such task is a key ingre-

dient to many computer vision applications, including

object recognition, 3D reconstruction and robotic per-

ception. The problem of scene interpretation in terms

of classifying various image components in the im-

ages is a challenging task partially due to the ambi-

guities in the appearance of the image data (Tsotsos,

1988). These ambiguities may arise either due to the

physical conditions such as the illumination and the

pose of the scene components with respect to the cam-

era, or due to the intrinsic nature of the data itself.

Images of man-made scenes, e. g. building facade

images, exhibit strong contextual dependencies in the

form of spatial and hierarchical interactions among

the components. Neighboring pixels tend to have sim-

ilar class labels, and different regions appear in re-

stricted spatial conﬁgurations. Modeling these spatial

and hierarchical structures is crucial to achieve good

classiﬁcation accuracy, and help alleviate the ambigu-

ities.

Graphical models, either directed models or undi-

rected models, provide consistent frameworks for the

statistical modeling. Two types of graphical mod-

els are frequently used for capturing such contex-

tual information, i. e. Bayesian networks (BNs)

(Sarkar & Boyer, 1993) and random ﬁelds (RFs) (Be-

sag, 1974), corresponding to directed and undirected

graphs. RFs mainly capture the mutually dependent

relationships such as the spatial correlation. Attempts

were made to exploit the spatial structure for seman-

tic image interpretation by using RFs. Early since

nineties, Markov random ﬁelds (MRFs) have been

used for image interpretation (Modestino & Zhang,

1992); the limiting factor that MRFs only allow for

local features has been overcome by conditional ran-

dom ﬁelds (CRFs) (Kumar & Hebert, 2003a; Laf-

ferty et al., 2001), where arbitrary features can be

used for classiﬁcation, at the expense of a purely dis-

criminative approach. On the other side, BNs usually

model the causal relationships among random vari-

ables. Early in nineties, (Sarkar & Boyer, 1993) have

proposed the perceptual inference network with the

formalism based on Bayesian networks for geomet-

ric knowledge-base representation. Both have been

used to solve computer vision problems, yet they have

their own limitations in representing the relationships

486

Yang M..

A Generic Probabilistic Graphical Model for Region-based Scene Interpretation.

DOI: 10.5220/0005341004860491

In Proceedings of the 10th International Conference on Computer Vision Theory and Applications (VISAPP-2015), pages 486-491

ISBN: 978-989-758-090-1

 2015 SCITEPRESS (Science and Technology Publications, Lda.)

between random variables. BNs are not suitable to

represent symmetric relationships that mutually relate

random variables. RFs are natural methods to model

symmetric relationships, but they are not suitable to

model causal or part-of relationships.

Spatial and hierarchical relationships are two

valuable cues for image interpretation of man-made

scenes. In this paper we will develop a consistent

graphical model representation for image interpreta-

tion that includes both information about the spatial

structure and the hierarchical structure. We assume

some preprocessing leads to regions, either as a parti-

tioning of the image area or as a set of overlapping or

non-overlapping segments. The key idea for integrat-

ing the spatial and the hierarchical structural informa-

tion into the interpretation process is to combine them

with the low-level region class probabilities in a clas-

siﬁcation process by constructing the graphical model

on the multi-scale image regions.

The following sections are organized as follows.

The related works are discussed in Sec. 2. In Sec. 3,

the statistical model for the interpretation problem is

formulated. Then, the relations to previous models is

discussed in Sec. 4. In Sec. 5, experimental results are

presented. Finally, this work is concluded in Sec. 6.

2 RELATED WORK

There are many recent works on contextual models

that exploit the spatial structures in the image. Mean-

while, the use of multiple different over-segmented

images as a preprocessing step is not new to computer

vision. In the context of multi-class image classiﬁca-

tion, the work of (Plath et al., 2009) comprises two as-

pects for coupling local and global evidences both by

constructing a tree-structured CRF on image regions

on multiple scales and using global image classiﬁca-

tion information. Thereby, (Plath et al., 2009) neglect

direct local neighborhood dependencies. The work

of (Schnitzspan et al., 2008) extends classical one-

layer CRF to a multi-layer CRF by restricting the pair-

wise potentials to a regular 4-neighborhood model

and introducing higher-order potentials between dif-

ferent layers.

Although not as popular as CRFs, BNs have

also been used to solve computer vision problems

(Mortensen & Jia, 2006; Sarkar & Boyer, 1993). BNs

provide a systematic way to model the causal rela-

tionships among the entities. By explicitly exploiting

the conditional independence relationships (known as

prior knowledge) encoded in the structure, BNs could

simplify the modelling of joint probability distribu-

tions. Based on the BN structure, the joint probability

is decomposed into the product of a set of local con-

ditional probabilities, which is much easier to spec-

ify because of their semantic meanings (Zhang & Ji,

2010).

Graphical models have reached a state where both

hierarchical and spatial neighborhood structures can

be efﬁciently handled. RFs and BNs are suitable for

representing different types of statistical relationships

among the random variables. Yet only a few previous

works focus on integrating RFs with BNs. In (Ku-

mar & Hebert, 2003b), the authors present a genera-

tive model based approach to man-made structure de-

tection in 2D natural images. They use a causal multi-

scale random ﬁeld as a prior model on the class labels.

Labels over an image are generated using Markov

chains deﬁned over coarse to ﬁne scales. However,

the spatial neighborhood relationships are only con-

sidered at the bottom scale. So, essentially, this model

is a tree-structured belief network plus a ﬂat Markov

random ﬁeld. Recently, a uniﬁed graphical model

that can represent both the causal and noncausal re-

lationships among the random variables is proposed

in (Zhang & Ji, 2010). They ﬁrst employ a CRF to

model the spatial relationships among the image re-

gions and their measurements. Then, they introduce

a multilayer BN to model the causal dependencies.

The CRF model and the BN model are then combined

through the theories of the factor graphs to form a

uniﬁed probabilistic graphical model. Their graphi-

cal model is too complex in general. Although their

model improves state of the art results on the Weiz-

mann horse dataset and the MSRC dataset, they need

a lot of domain expert knowledge to design the local

constraints. Also, they use a combination of super-

vised parameter learning and manual parameter set-

ting for the model parameterization. Simultaneously

learn the BN and CRF parameters automatically from

the training data is not a trivial task. Compared to

the graphical models in (Kumar & Hebert, 2003b),

which are too simple, the graphical models in (Zhang

& Ji, 2010) are too complex in general. Our graphical

model lies in between, cf. Fig. 1. We try to construct

our graphical model that is not too simple in order

to model the rich relationships among the neighbor-

hood of pixels and image regions in the scene, yet

not too complex in order to make parameter learning

and probabilistic inference efﬁciently. Furthermore,

our model underlies a clear semantic meaning. If the

undirected edges are ignored, meaning no spatial rela-

tionships are considered, the graph is a tree represent-

ing the hierarchy of the partonomy among the scales.

Within each scale, the spatial regions are connected

by the pairwise edges.

AGenericProbabilisticGraphicalModelforRegion-basedSceneInterpretation

487

(a) Multi-scale segmentation

(b) The graphical model

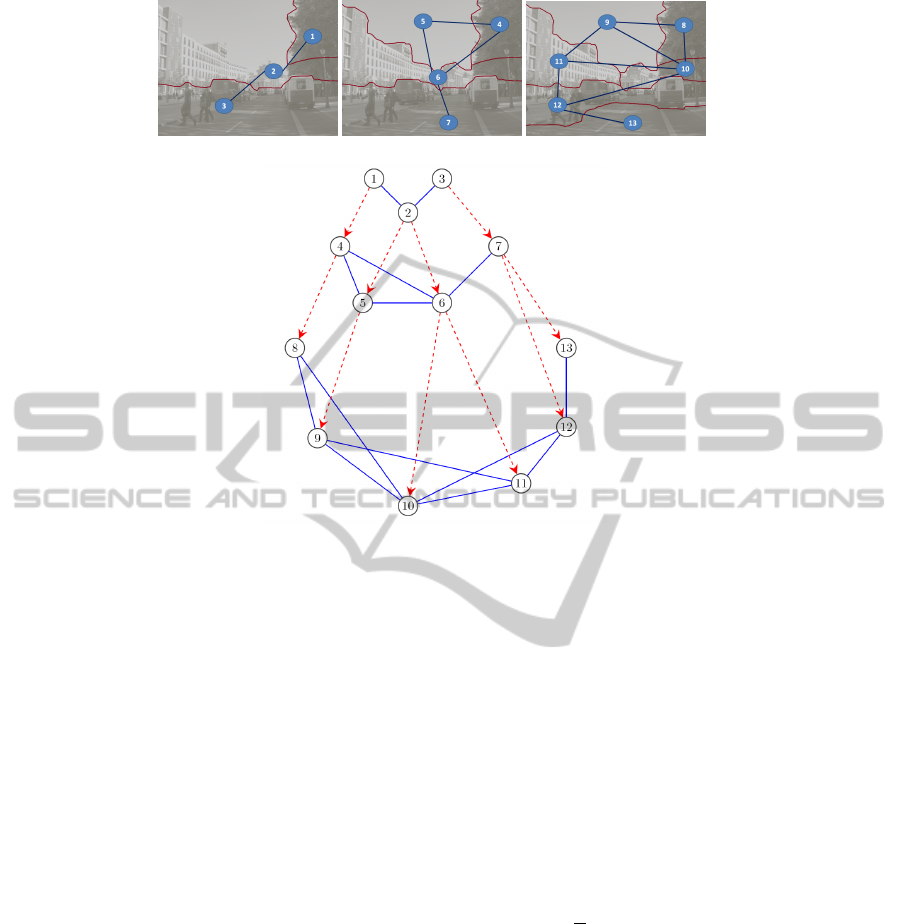

Figure 1: Illustration of the graphical model architecture. The blue edges between the nodes represent the neighborhoods

at one scale (undirected edges), and the red dashed edges represent the hierarchical relation between regions (undirected or

directed edges).

3 MODEL

3.1 The Graphical Model Construction

By constructing the graphical model, we can ﬂexibly

choose either directed edges or undirected edges to

model the relationships between the random variables

based on the semantic meaning of these relationships.

We use an example image to explain this model

construction process. Given a test image, Fig. 1 shows

the corresponding multi-scale segmentation of the im-

age, and the corresponding graphical model for im-

age interpretation. Three layers are connected via a

region hierarchy (Drauschke & F

orstner, 2011). The

development of the regions over several scales is used

to model the region hierarchy. Furthermore, the re-

lation is deﬁned over the maximal overlap of the re-

gions. Nodes connection and numbers correspond to

the multi-scale segmentation. The pairwise interac-

tions between the spatial neighboring regions can be

modeled by the undirected edges. The pairwise po-

tential functions can be deﬁned to capture the similar-

ity between the neighboring regions. The hierarchi-

cal relation between regions of the scene partonomy

representing parent-child relations or part-of relations

can be modeled by either the undirected edges or the

directed edges.

3.2 Multi-class Labeling Representation

We present the scene interpretation problem as a

multi-class labeling problem. Given the observed data

d, the distribution P over a set of the variables x can

be expressed as a product of the factors

P(x | d) =

∏

i∈V

| d)

∏

{i, j}∈E

i j

, x

| d)

∏

i,k

∈S

, x

| d) (1)

where the factors f

, f

i j

, f

are the functions of the

corresponding sets of the nodes, and Z is the normal-

ization factor. The set V is the set of the nodes in

the complete graph, and the set E is the set of pairs

collecting the neighboring nodes within each scale.

S is the set of pairs collecting the parent-child re-

lations between regions with the neighboring scales,

where

i, k

denotes nodes i and k are connected by

either a undirected edge or a directed edge. Note that

this model only exploits up to second-order cliques,

VISAPP2015-InternationalConferenceonComputerVisionTheoryandApplications

488

which makes learning and inference much faster than

the model involving high-order cliques.

By simple algebra calculation, the probability dis-

tribution given in Eq. (1) can be written in the form of

a Gibbs distribution

P(x | d) =

exp(−E(x | d)) (2)

with the energy function E(x | d) as

E(x | d) =

∑

i∈V

| d) + α

∑

{i, j}∈E

, x

| d)

+ β

∑

i,k

∈S

, x

| d) (3)

where α and β are the weighting coefﬁcients in the

model. E

is the unary potential, E

is the pairwise

potential, and E

is either the hierarchical pairwise

potential or the conditional probability energy. This

graphical model is illustrated in Fig. 1. The most

probable or maximum a posteriori (MAP) labeling x

∗

is deﬁned as

∗

= arg max

x∈L

P(x | d) (4)

and can be found by minimizing the energy function

E(x | d).

4 RELATION TO PREVIOUS

MODELS

In this section, we draw comparisons with the pre-

vious models for image interpretation (Drauschke &

orstner, 2011; Fulkerson et al., 2009; Plath et al.,

2009; Yang et al., 2010) and show that at certain

choices of the parameters of our framework, these

methods fall out as the special cases. We will now

show that our model is not only a generalization of

the standard ﬂat CRF over the image regions, but also

of the hierarchical CRF and the conditional Bayesian

network.

4.1 Equivalence to Flat CRFs Over

Regions

Let us consider the case with only one layer segmen-

tation of the image (the bottom layer of the graphical

model in Fig. 1). In this case, the weight β is set to

be zero, the set V

is the set of nodes in the graph

of the bottom layer, and the set E

is the set of pairs

collecting the neighboring nodes in the bottom layer.

This allows us to rewrite (3) as

E(x | d) =

∑

i∈V

| d) + α

∑

{i, j}∈E

, x

| d)

(5)

which is exactly the same as the energy function as-

sociated with the ﬂat CRF deﬁned over the image re-

gions with E

as the unary potential and E

as the

pairwise potential. In this case, our model becomes

equivalent to the ﬂat CRF models deﬁned over the

image regions (Fulkerson et al., 2009; Gould et al.,

2008).

4.2 Equivalence to Hierarchical CRFs

Let us now consider the case with the multi-scale seg-

mentation of the image. If we choose E

as a pairwise

potential in (3), the energy function reads

E(x | d) =

∑

i∈V

| d) + α

∑

{i, j}∈E

, x

| d)

+ β

∑

{i,k}∈S

, x

| d) (6)

which is exactly the same as the energy function as-

sociated with the hierarchical CRF deﬁned over the

multi-scale of the image regions with E

as the unary

potential, E

as the pairwise potential within each

scale, and E

as the hierarchical pairwise potential

with the neighboring scales. In this case, our model

becomes equivalent to the hierarchical CRF models

deﬁned over multi-scale of image regions (He et al.,

2004; Yang et al., 2010).

If we set α to be zero, and choose E

as a pairwise

potential in (3), the energy function reads

E(x | d) =

∑

i∈V

| d) + β

∑

{i,k}∈S

, x

| d) (7)

which is the same as the energy function associated

with the tree-structured CRF by neglecting the di-

rect local neighborhood dependencies on the image

regions on multiple scales. In this case, our model be-

comes equivalent to the tree-structured CRF models

deﬁned over multi-scale of the image regions (Plath

et al., 2009; Reynolds & Murphy, 2007).

4.3 Equivalence to Conditional

Bayesian Networks

If we set α to be zero, and choose E

as the condi-

tional probability energy in (3), the energy function

reads

E(x | d) =

∑

i∈V

| d) + β

∑

i,k

∈S

, x

| d) (8)

which is the same as the energy function associated

with the tree-structured conditional Bayesian network

deﬁned over the multi-scale of the image regions.

In the tree-structured conditional Bayesian network,

the classiﬁcation of a region is based on the unary

AGenericProbabilisticGraphicalModelforRegion-basedSceneInterpretation

489

features derived from the region and the binary fea-

tures derived from the relations of the region hierar-

chy graph. In this case, our model becomes equiv-

alent to the tree-structured conditional Bayesian net-

work deﬁned over multi-scale of the image regions

(Drauschke & F

orstner, 2011).

5 EXPERIMENTS

We conduct the experiments to evaluate the perfor-

mance of the proposed model on eTRIMS dataset

(Kor

c & F

orstner, 2009). The dataset consists of 60

building facade images, labeled with 8 classes: build-

ing, car, door, pavement, road, sky, vegetation, win-

dow. We randomly divide the images into a training

set with 40 images and a testing set with 20 images.

In all experiments, we take the ground truth label of a

region to be the majority vote of the ground truth pixel

labels. At the test stage we compute our accuracy at

the pixel level.

The hierarchical mixed graphical model is deﬁned

over the multi-scale of the image regions when we

choose E

as the conditional probability energy in

Eq. (3). We present the experimental results for the

hierarchical mixed graphical model with multi-scale

mean shift segmentation (Comaniciu & Meer, 2002)

and watershed segmentation (Vincent & Soille, 1991),

and the comparison with the baseline region classiﬁer,

the ﬂat CRF, and the hierarchical CRF classiﬁcation

results.

Results with Multi-scale Mean Shift and the Hi-

erarchical Mixed Graphical Model. The overall

classiﬁcation accuracy is 68.9%. The weighting pa-

rameters are α = 0.8, β = 1. For comparison, the RDF

region classiﬁer gives an overall accuracy of 58.8%,

the ﬂat CRF gives an overall accuracy of 65.8%, and

the hierarchical CRF gives an overall accuracy of

69.0%.

Qualitative results of the hierarchical mixed

graphical model with the multi-scale mean shift on

the eTRIMS dataset (Kor

c & F

orstner, 2009) are pre-

sented in Fig. 2. The qualitative inspection of the

results in these images shows that the hierarchical

mixed graphical model yields signiﬁcant improve-

ment. The hierarchical mixed graphical model yields

more accurate and cleaner results than the ﬂat CRF

and the RDF region classiﬁer, and comparable to

the hierarchical CRF model. The greatest accuracies

are for classes which have low visual variability and

many training examples (such as window, vegetation,

building, and sky) whilst the lowest accuracies are for

classes with high visual variability or few training ex-

amples (for example door, car, and pavement). We

expect more training data and the use of features with

better invariance properties will improve the classiﬁ-

cation accuracy. Objects such as car, door, pavement,

and window are sometimes incorrectly classiﬁed as

building, due to the dominant presence of the build-

ing in the image. Detecting windows, cars, and doors

should resolve some of such ambiguities.

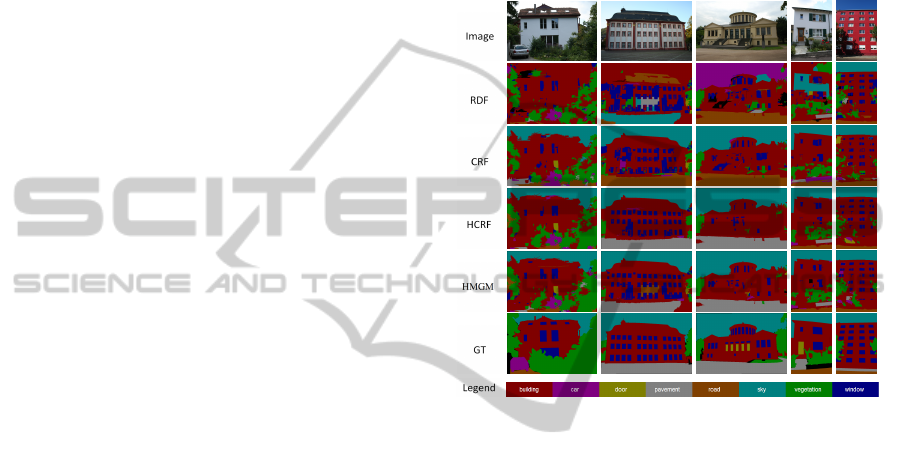

Figure 2: Qualitative classiﬁcation results of the hierar-

chical mixed graphical model with the multi-scale mean

shift segmentation on the testing images from the eTRIMS

dataset (Kor

c & F

orstner, 2009).

Results with Multi-scale Watershed and the Hi-

erarchical Mixed Graphical Model. The overall

classiﬁcation accuracy is 68.0%. The weighting pa-

rameters are α = 1.08, β = 1. For comparison, the

RDF region classiﬁer gives an overall accuracy of

55.4%, the ﬂat CRF gives an overall accuracy of

61.8%, and the hierarchical CRF gives an overall ac-

curacy of 65.3%. Qualitative results of the hierarchi-

cal mixed graphical model on the eTRIMS dataset are

presented in Fig. 3.

6 CONCLUSION

In this paper, we have addressed the problem of in-

corporating two different types of the contextual in-

formation, namely the spatial structure and the hi-

erarchical structure for image interpretation of man-

made scenes. We propose a statistically motivated,

generic probabilistic graphical model framework for

scene interpretation, which seamlessly integrates dif-

ferent types of the image features, and the spatial

VISAPP2015-InternationalConferenceonComputerVisionTheoryandApplications

490

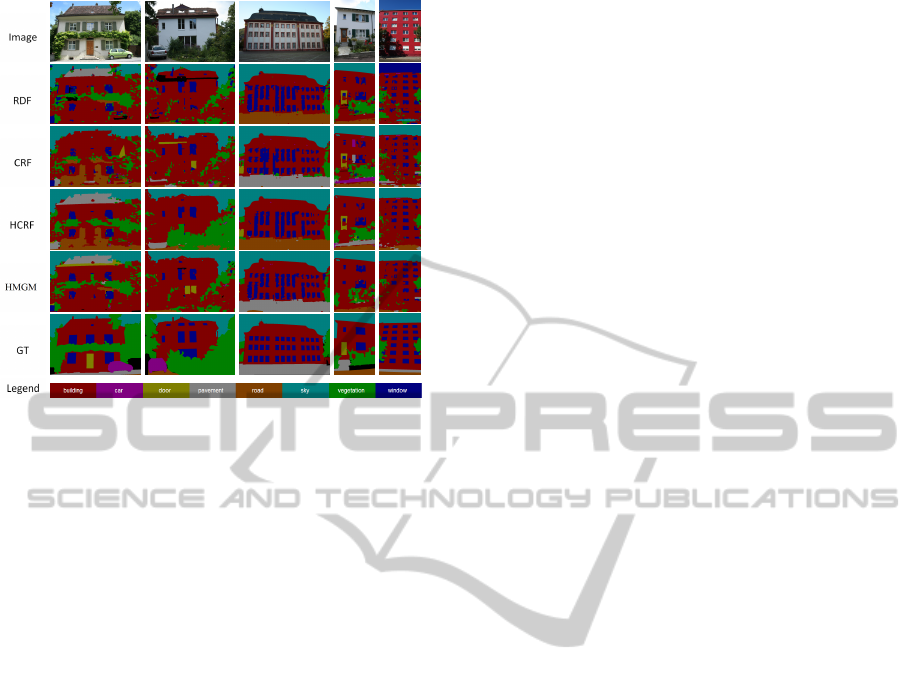

Figure 3: Qualitative classiﬁcation results of the hierar-

chical mixed graphical model with the multi-scale water-

shed segmentation on the testing images from the eTRIMS

dataset (Kor

c & F

orstner, 2009).

structural information and the hierarchical structural

information deﬁned over the multi-scale image seg-

mentation. We demonstrate the application of the pro-

posed model on the building facade image classiﬁca-

tion task.

REFERENCES

Besag, J. 1974. Spatial interaction and the statistical analy-

sis of lattice systems (with discussion). Journal of the

royal statistical society, B-36(2), 192–236.

Comaniciu, Dorin, & Meer, Peter. 2002. Mean shift: A

robust approach toward feature space analysis. Ieee

transactions on pattern analysis and machine intelli-

gence, 24(5), 603–619.

Drauschke, M., & F

orstner, W. 2011. A bayesian approach

for scene interpretation with integrated hierarchical

structure. Pages 1–10 of: Annual symposium of the

german association for pattern recognition (dagm).

Fulkerson, B., Vedaldi, A., & Soatto, S. 2009. Class

segmentation and object localization with superpixel

neighborhoods. Pages 670–677 of: International con-

ference on computer vision.

Gould, S., Rodgers, J., Cohen, D., Elidan, G., & Koller, D.

2008. Multi-class segmentation with relative location

prior. International journal of computer vision, 80(3),

300–316.

He, X., Zemel, R., & Carreira-perpin, M. 2004. Multiscale

conditional random ﬁelds for image labeling. Pages

695–702 of: Ieee conference on computer vision and

pattern recognition.

Kor

c, Filip, & F

orstner, Wolfgang. 2009. eTRIMS Image

Database for interpreting images of man-made scenes.

In: Tr-igg-p-2009-01, department of photogrammetry,

university of bonn.

Kumar, Sanjiv, & Hebert, Martial. 2003a. Discriminative

random ﬁelds: A discriminative framework for con-

textual interaction in classiﬁcation. Pages 1150–1157

of: Ieee international conference on computer vision,

vol. 2.

Kumar, Sanjiv, & Hebert, Martial. 2003b. Man-made struc-

ture detection in natural images using a causal multi-

scale random ﬁeld. Pages 119–126 of: Ieee confer-

ence on computer vision and pattern recognition.

Lafferty, J., McCallum, A., & Pereira, F. 2001. Conditional

random ﬁelds: Probabilistic models for segmenting

and labeling sequence data. Pages 282–289 of: In-

ternational conference on machine learning.

Modestino, J. W., & Zhang, J. 1992. A markov random ﬁeld

model-based approach to image interpretation. Ieee

transactions on pattern analysis and machine intelli-

gence, 14(6), 606–615.

Mortensen, Eric N., & Jia, Jin. 2006. Real-time semi-

automatic segmentation using a bayesian network.

Pages 1007–1014 of: Ieee conference on computer vi-

sion and pattern recognition.

Plath, Nils, Toussaint, Marc, & Nakajima, Shinichi. 2009.

Multi-class image segmentation using conditional ran-

dom ﬁelds and global classiﬁcation. Pages 817–824

of: Bottou, L

eon, & Littman, Michael (eds), Interna-

tional conference on machine learning.

Reynolds, J., & Murphy, K. 2007. Figure-ground segmen-

tation using a hierarchical conditional random ﬁeld.

Pages 175–182 of: Canadian conference on computer

and robot vision.

Sarkar, S., & Boyer, K. L. 1993. Integration, inference, and

management of spatial information using bayesian

networks: Perceptual organization. Pami, 15, 256–

274.

Schnitzspan, P., Fritz, M., & Schiele, B. 2008. Hierarchical

support vector random ﬁelds: Joint training to com-

bine local and global features. Pages 527–540 of:

Forsyth, D., Torr, P., & Zisserman, A. (eds), European

conference on computer vision.

Tsotsos, J.K. 1988. A ’complexity level’ analysis of imme-

diate vision. International journal of computer vision,

2(1), 303–320.

Vincent, Luc, & Soille, Pierre. 1991. Watersheds in digi-

tal spaces: An efﬁcient algorithm based on immersion

simulations. Ieee transactions on pattern analysis and

machine intelligence, 13(6), 583–598.

Yang, Michael Ying, F

orstner, Wolfgang, & Drauschke,

Martin. 2010. Hierarchical conditional random ﬁeld

for multi-class image classiﬁcation. Pages 464–469

of: International conference on computer vision the-

ory and applications.

Zhang, Lei, & Ji, Qiang. 2010. Image segmentation with a

uniﬁed graphical model. Pami, 32(8), 1406–1425.

AGenericProbabilisticGraphicalModelforRegion-basedSceneInterpretation

491
