An Experimental Study of Visual Tracking in Surgical Applications

Jiawei Zhou and Shahram Payandeh

Experimental Robotics and Imaging Laboratory, School of Engineering Science, Simon Fraser University,

Burnaby, BC, Canada

Keywords: Visual Tracking, Minimally Invasive Surgery, Adaptive Gaussian Mixture Model, Particle Filter.

Abstract: Tracking surgical tools in mono-endoscopic surgery can offer a conventional (non-robotics) application of

this type of procedure a versatile surgeon-computer interface. For example, tracking the surgical tools can

enable the surgeon to interact with the overlaid menu which allows them to have access to medical information

of the patient. Another example is the capability that such tracking can offer where the surgeon through

surgical tool can manually register per-operative images of the patient approach on the surgical site. This

paper presents the results of some of the tracking schemes which we have explored and analysed as a part of

our studies. Tracking framework based on both Gaussian and non-Gaussian framework are explored and

compared. Although majority of the approaches can offer a robust performance when used in the real surgical

scene, the method based on Particle Filter is found to have a better success rate. Based on these experimental

results, the paper also offers some discussions and suggestions for future research.

1 INTRODUCTION

The research and development in computer-aided

surgical application can dramatically promote the

delivery and training of modern medicine. For

example, image guided surgical navigation can assist

the surgeons in performing minimally invasive

surgery (MIS) through tiny incisions. Moreover, a

computer-based simulation system with Augmented

Reality (AR) is able to offer a safe and realistic

learning environment to medical students instead of

using a real-life context. The critical part for these

applications is the implementation of a user computer

interactive system (UCIS) based on surgical

requirements.

To avoid unnecessary physical contact with the

environment, some research groups have focused on

the development of a gesture-based UCIS. In this kind

of UCIS, the standard user computer interaction

devices, such as mouse and keyboard, are replaced

with sensing devices (e.g. Microsoft Kinect sensor)

which can capture the motion and the hand gestures

of the user in the workspace (Gallo et al. 2011;

Ruppert et al. 2012). Another kind of UCIS integrates

AR technology into surgical and medical

requirements. These UCISs are able to superimpose

the medical image data or 3D virtual medical model

directly onto the view of the surgeon and to spatially

al. 2007; Su et al. 2009).

Although a number of robotic surgical systems

with 3D stereo cameras have been developed to assist

the surgeon during MIS, most hospitals still prefer

utilizing a traditional and non-robotic surgical system

with a monocular camera due to limited budgets. This

paper is focused on the enhancement of such non-

robotic monocular MIS set-ups. In the previous work,

a real-time interactive system for a non-robotic

monocular endoscope MIS was developed to enhance

the practice of MIS training without adding extra

hardware to the existing setup (Sun 2012). In this

system, the surgical instrument is being considered as

the input control variable so a robust tracking

algorithm is important to localize the instrument in

the field of view.

To achieve an accurate position of the surgical

tool, a number of challenges must be overcome.

These challenges include limited measured

information from endoscopic video signals, the

complexity of the surgical scene, reflection of light,

occlusion of surgical tools and so on. To cope with

these problems, a number of research groups attach

specific markers on the surgical instrument to help

with the tracking (Tonet et al. 2007) and others utilize

segmentation techniques and feature detection to

assist tracking (Doignon et al. 2005; Cano et al.

2008).

608

Zhou J. and Payandeh S..

An Experimental Study of Visual Tracking in Surgical Applications.

DOI: 10.5220/0005346506080613

In Proceedings of the 10th International Conference on Computer Vision Theory and Applications (VISAPP-2015), pages 608-613

ISBN: 978-989-758-091-8

 2015 SCITEPRESS (Science and Technology Publications, Lda.)

For both marker-based and marker-less tracking

methods, the information from an image is not

enough to obtain a reliable result. Instead, the

information contained in a sequence of images should

be taken into account to improve the accuracy of the

tracking. To estimate the position of the surgical tool,

we introduced some probability based estimators,

such as the Kalman Filter (KF) and the Extended

Kalman Filter (EKF) to the visual tracking system in

the previous work (Zhou & Payandeh 2014). The

application of these estimators is able to return more

accurate and reliable tracking results. This paper is a

further development of the experimental study based

on the previous visual tracking work. An adaptive

Gaussian Mixture Model (AGMM) method is

implemented to track the surgical instrument under

the assumption of Gaussian background components.

Moreover, to explore better tracking performance for

surgical application, a more general tracking scheme

based on Particle Filter (PF) is presented. This

framework is further combined with the AGMM as

the Hybrid approach to provide 2D feature

information for the tool during tracking. These

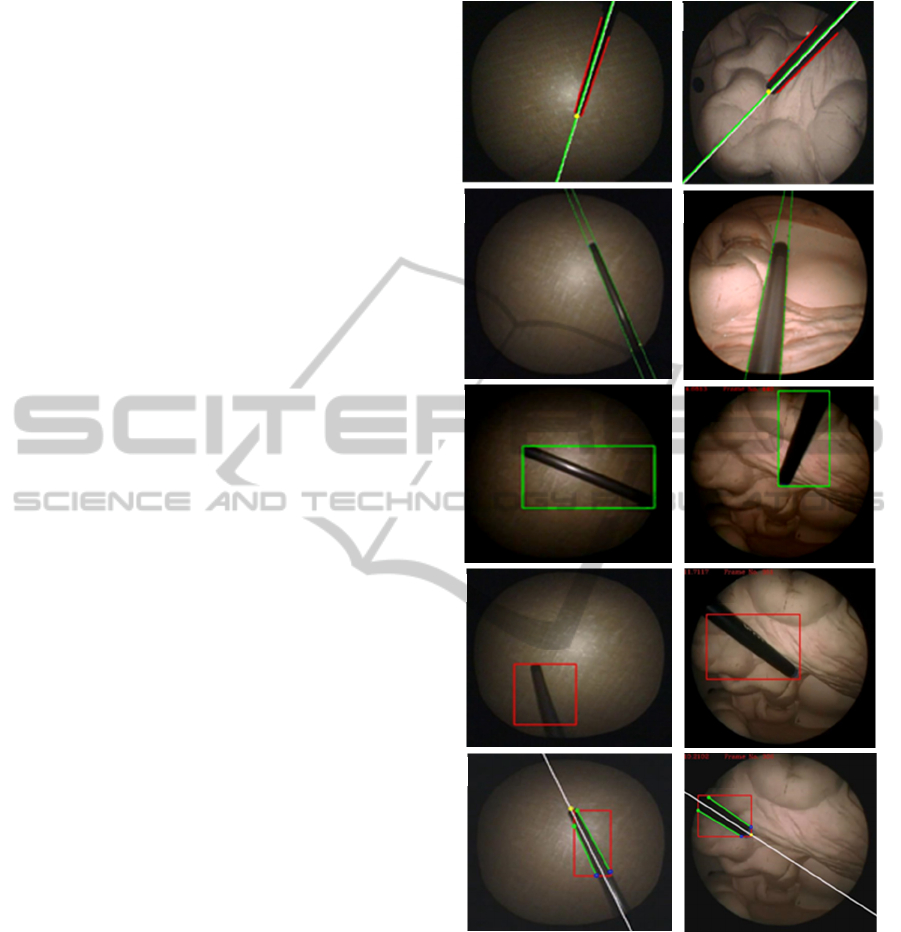

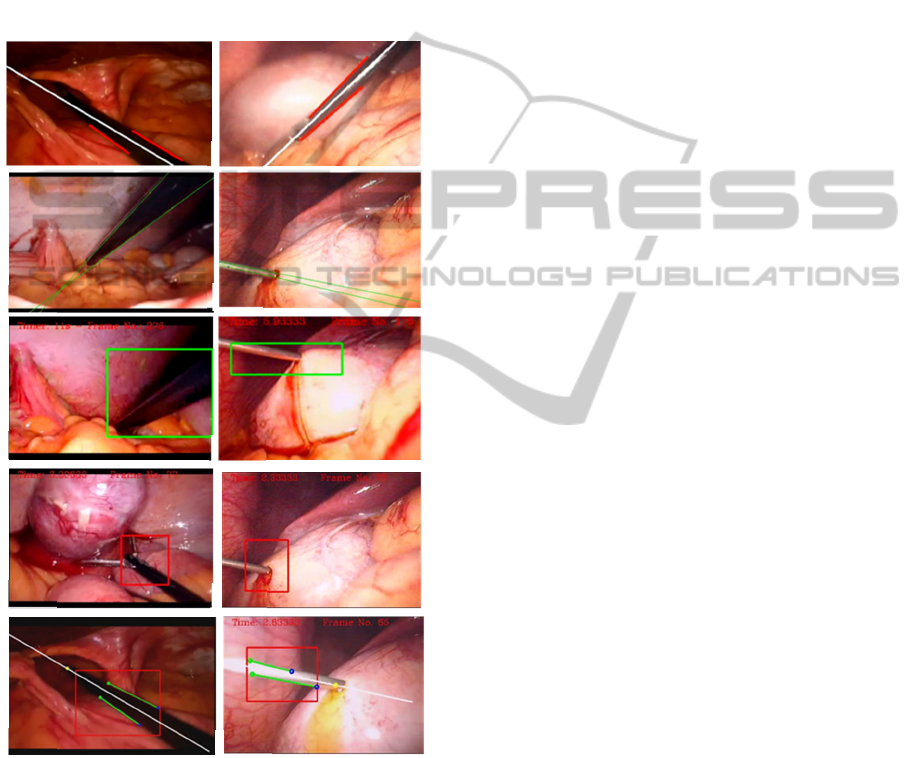

methods are experimentally evaluated in both an in-

vitro scene and an in-vivo setting, and also compared

with the results from the previous work.

2 METHODS

In this section, we present an overview of three visual

tracking approaches for MIS instrument localization.

A Gaussian-type tracking method based on AGMM

is firstly introduced, followed by a more general PF

tracking scheme with a weight-based resample

strategy. To explore better tracking performance, a

Hybrid approach which combines the PF framework

and the AGMM is also implemented.

2.1 AGMM Method

To detect a moving object in image sequences, one

type of tracking methods is based on background

subtraction. The AGMM method is a successful

application in the visual tracking field. The basic idea

for the AGMM is to set up a background model which

can be used to distinguish the foreground object from

background environment. The region of the moving

object is highlighted by calculating a reference image

and subtracting each new frame from this reference

image. The AGMM was originally proposed in (Stau

& Romano 1998) and was further developed by

introducing a shadow detection scheme

(Kaewtrakulpong & Bowden 2002). Our laboratory

has successfully applied the AGMM method in a

people surveillance system (Dai 2012). In this paper,

we use the AGMM to track the moving surgical tool.

In the AGMM, the pixel values in the scene

background are modelled using a mixture of adaptive

Gaussian components. Given an arbitrary pixel value

, the

ith

Gaussian density function at time

(, , )

titit





with a mean value

,it



and a standard

deviation

,it



. The probability of a particular pixel

having value

is defined as

,,,

() (, , )

t it t it it

Px w x









(1)

where

,it

is the weight for the

ith

Gaussian

component and

is the number of components. To

cope with slight changes in the background, such as

changing illuminants, an adaptive background model

is necessary. To allow a foreground object to become

part of the background later, the Gaussian distribution

having the lowest weight is replaced with a new

Gaussian function. This new Gaussian component is

given a low normalized weight which will be used in

the time



. Meanwhile, the mean and variance of

the other remaining Gaussian components for the

time



are also updated.

To deal with the shadow noise in the returned

foreground object region, a shadow elimination step

is added to the output of AGMM. Some

morphological operations such as opening and

closing are also applied to the shadow detected image.

After these post-processing steps, the contour of the

moving surgical instrument is accurately extracted

frame by frame.

2.2 PF Tracking Framework

The idea of the PF is to generate a group of weighted

samples (particles) to approximate the posterior

probability density function (PDF). These particles

are weighted according to the weighting function.

This function is created based on the measurement

from the image data. Generally, higher weights are

given to more reliable particles. If the number of

particles are large enough, we can recover the

unknown posterior PDF for the state-space using its

approximation after several iterations. Since the PF

method does not assume any linearity of the system

or Gaussian noise distributions, it is widely used to

track objects in general and medical applications

(Tehrani Niknejad et al. 2012; Ito et al. 2013). In the

previous work, a colour-based PF method was used

to track a coloured marker in the emulated surgical

AnExperimentalStudyofVisualTrackinginSurgicalApplications

609

scene (Sun 2012). In this paper, a modified PF

framework is used to determine the possible region

for the moving surgical instrument.

For our tracking problem, the target object is

selected to be the rectangle region

Rec

which

indicates the possible area for the surgical tool. The

state vector

at the current time

is described as

[,,,,,,,]

tCCCCRRRRt

Xxyxywhwh

 



where

(, )

is the coordinate of the rectangle center.

and

are the width and height of the rectangle.



and



are its instantaneous velocities along the x

and y directions respectively.



and



are the

instantaneous change of width and height. To

measure the similarity of the target and the particles,

we choose the colour distribution in the HSV space as

the tracking metric since the region of the instrument

tends to have more dark or bright components than

other regions. By calculating the 2D Hue-Saturation

colour histogram from various areas, we can find

those areas containing the same object owing to their

similar colour distributions.

The PF consists of prediction and update phases.

The particles at current time

are first propagated

from particles at time



according to a first-order

auto-regressive system dynamic model. In the update

phase, we compare the 2D colour histogram of each

sample area with the reference histogram. The

reference one is calculated in the initialization step.

The weighting function is designed based on the

histogram similarity. Higher weights are given to

those areas with similar colour distribution to the

reference region. From the predicted particles and

their normalized weights, we can estimate the

possible region for the moving surgical instrument

using their expected value.

To avoid the degeneracy problem in PF, we use

an adaptive resampling strategy to eliminate particles

with low weights. We first sort the predicted particles

in a descending order according to their weight values

so the particles with higher weights have the priority

to be chosen. To generate the new particle set, we take

the first element from the particle queue and make

update

copies of it in the new particle set. The number

update

is calculated from

[] min( Z| [])

[]

update update

update

nj hhnj

njN









(2)

where

is the number of elements we selected from

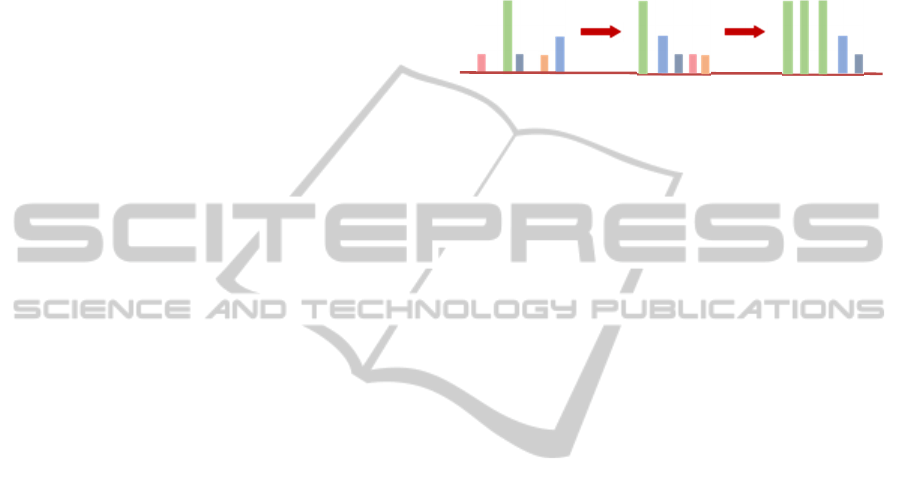

the particle queue. Figure 1 illustrates an example of

weighted-based resampling. The original particle set

has 5 particles indicated in different colours. The

height represents its weight. In (b), the particles are

organized in a descending order. After resampling,

the new particle set contains the copies from those

particles with high weights (green, blue and gray

ones). The particles with low weights (red and

orange) are removed from the particle set.

Figure 1: Illustration of the weight-based resample strategy.

(a) Original particle set. (b) Ordered particle queue. (c) New

particle set.

2.3 A Hybrid Method

The AGMM method is able to detect the moving

foreground object in a stable background but it may

fail tracking if the background or the viewing

condition is changing. The PF approach can be used

for more general surgical scenes. However, it requires

the initial state vector, usually obtained from the user.

To overcome these two drawbacks, a hybrid method

integrating the PF and the AGMM is presented. After

we get the estimated region from the PF framework,

2D feature detection is applied within the region so

that the tip and two edges of the instrument can be

returned.

For a given video stream, we assume that the

backgrounds in every constant short time period (e.g.

1~2s) are relatively stable so that the AGMM is able

to detect the moving object. Before we start the PF

part, the AGMM is first applied to determine the

initial position of the moving surgical tool and returns

a rectangular region containing the tool. We use this

rectangular region to compute the reference

histogram and to generate particles in the

initialization of the PF. After the initialization, the PF

is responsible for the surgical tool tracking as stated

in Section 2.2. If the tracking is lost, the AGMM is

applied again to relocate the rectangular region that

encloses the initial position of surgical tool, and the

PF is re-initialized. After we obtain the region of

interest from the PF, we use the feature detection

method to find the tool’s tip position. The details for

the feature detection can be referred to the previous

work (Sun 2012).

(a) (b) (c)

VISAPP2015-InternationalConferenceonComputerVisionTheoryandApplications

610

3 EXPERIMENTAL RESULTS

To evaluate the performance of all the three tracking

methods we have presented (AGMM, PF, and the

Hybrid one) for surgical and medical usage, the

experiments were conducted under an in-vitro

training environment and an in-vivo environment.

The in-vitro training cases were captured from the

surgical emulated setup in our laboratory (Sun 2012).

For in-vivo surgical experiments, we used several

surgical video clips from the online video atlas of Dr.

Julio Alejandro Murra Saca Medical Clinic

(see

reference for the website). All the results are also

compared with the KF and EKF methods which are

proposed in the previous work (Zhou & Payandeh

2014).

3.1 Tracking in in-vitro Training

Environment

In this part of the experiments, we assume the

endoscope is stationary and the background is rarely

changing (i.e. as a part of the surgical training

environment). First of all, we tested the tracking of a

moving surgical tool in the ideal scene. For this type

of scene, there are no objects in the background. In

the next stage, to simulate the surgical environment,

we test the tool tracking in a more complex scene. The

ideal background is replaced with a training

abdominal cavity model. Due to the hardware and

software limitations, only the KF approach is tested

in real-time and the other methods are tested offline.

The tracking results for all the methods are

demonstrated in Figure 2. For the KF approach, it

returns the 2D features of the tool including the tool’s

edges, midline and tip. The EKF method is able to

detect two edges of the tool. The AGMM and PF

methods indicate the region containing the moving

surgical tool. The Hybrid method can detect the 2D

features of the tool based on the interest region.

3.2 Tracking in in-vivo Surgical

Environment

For the in-vivo experiments, we used 10 endoscopic

video clips captured from the real surgical scenes.

Each of them lasts for about 10s containing 200~300

frames. In these initial experiments, we focus on the

scenes with short duration where the motion of

instrument is slow and smooth without rapid change

in orientation, scale and position. The example of

tracking results are displayed in Figure 3.

Figure 2: The tracking results of all the five methods in the

in-vitro training environments. The 1

column shows the

results in ideal scene and the 2

column displays the results

in emulated scene. Each row corresponds to different

methods. From top to bottom, they are using the KF, EKF,

AGMM, PF and Hybrid approach respectively.

To evaluate the tracking performance of each method,

we select the tracking success rate, defined as the

number of tracked frames per 200 frames, as the

criterion for tracking performance. The tracking

success rates for all the five tracking approaches

under both the in-vitro training environment and the

(a)

(b)

(e)

(f)

(g)

(h)

(i)

(j)

AnExperimentalStudyofVisualTrackinginSurgicalApplications

611

in-vivo real surgical environment are listed in Table

1. The in-vitro training environment is composed of

the ideal scene and emulated scene. The in-vivo

environment includes 10 surgical scenes labelled

from video No.1 to video No.10. For the videos No.1,

No.2, No.3, No.5 and No.6, the surface of the tool is

dark and matt. For videos No.4 and No.7, the tool is

made of a metallic material. Video No.8 involves

multiple tool tasking. In video No.9, the tool is

moving at a fast speed and video No.10 has a complex

background.

Figure 3: Examples for the tracking results of all the five

methods in the real surgical scenes. Each row corresponds

to different methods. From top to bottom, they are using the

KF, EKF, AGMM, PF and Hybrid approach respectively.

4 DISCUSSION AND

CONCLUSION

In this paper, we have proposed experimental studies

of various visual tracking techniques for MIS and

related training. The tracking performance of all the

methods (AGMM, PF and the Hybrid one), is

evaluated under different environments. For the in-

vitro experiment including the ideal scene and

emulated scene, they all have successful performance

when tracking single surgical instrument. In the

previous work, the KF and EKF methods perform

well when the instrument moves slowly and the

background is clean but they are sensitive to the noise

from the background. Compared to the KF and EKF

methods, the methods presented in this paper are

more robust with respect to such noises as long as the

background is stable or has only a slight change.

However, all the methods have limitations when

coping with the real surgical scene. The AGMM

method is able to keep tracking under a stable

background but it cannot deal with the situation when

the background changes rapidly. The PF method has

the best tracking results in comparison with all the

other methods even though it fails in the complex

surgical scene and the fast tool motion. However, the

manual initialization may lead to errors when the

initial region has a similar colour histogram with

another area in the background. The Hybrid method

works well in the in-vitro environment without

manual initialization and is able to come back from

the lost tracking situation. Based on the tracked

region, it is able to provide the tool’s feature

information even if the tracked region just covers a

small part of the tool. Nevertheless, the Hybrid

method cannot be applied to real surgical scenes due

to its unreliable initialization. Due to the motion of

both the background and the surgical tool, the

AGMM easily gives wrong information to the PF

framework which may lead to tracking failure.

In spite of the fact that none of the tracking

methods in our experimental study can be used as a

practical solution for the general surgical tool

tracking problem, these methods have shown their

possibility in a stable working condition which is the

case for the surgical training box. Based on the results

from our experimental study, a more robust tracking

approach can still be developed using the PF

framework. To obtain more reliable tracking results,

a new measurement is required to consider both the

colour distribution and feature information of the

moving tool. A better detection algorithm is also

needed to find the location of the tool’s tip. One

possible solution is to include the tip location into the

(a)

(b)

(c)

(d)

(e)

(f)

(g)

(h)

(i)

(j)

VISAPP2015-InternationalConferenceonComputerVisionTheoryandApplications

612

Table 1: The tracking performance of the KF, EKF, AGMM, PF and Hybrid method under various experimental environments.

Method

Tracking Success Rate (frames/200 frames *100%)

KF EKF AGMM PF Hybrid

Ideal Scene

90% 80% 98% 80% 83%

Emulated Scene

86% 70% 96% 90% 92%

Video No.1

30% 48% 42% 45% 20%

Video No.2

48% 33% 53% 50% 15%

Video No.3

52% Fail 38% 60% Fail

Video No.4

Fail 50% 55% 67% 40%

Video No.5

45% 31% 48% 65% 50%

Video No.6

20% 18% 23% 56% 17%

Video No.7

Fail Fail 10% 58% 10%

Video No.8

Fail Fail Fail 53% Fail

Video No.9

Fail Fail Fail Fail Fail

Video No.10

10% Fail 12% 15% Fail

state vector to minimize the error in feature detection.

Moreover, to realize the automation of the tracking,

the PF framework needs a more reliable initialization

strategy.

REFERENCES

Cano, A. M. et al., 2008. Laparoscopic Tool Tracking

Method for Augmented Reality Surgical Applications.

In 4th International Symposium, ISBMS , Proceedings.

pp. 191–196.

Dai, X., 2012. Intelligent People Surveillance

Framework.Master Thesis, Simon Fraser University.

Doignon, C., Graebling, P. & de Mathelin, M., 2005. Real-

time Segmentation of Surgical Instruments inside the

Abdominal Cavity using a Joint Hue Saturation Color

Feature. Real-Time Imaging, 11(5-6), pp.429–442.

Gallo, L. et al., Controller-free Exploration of Medical

Image Data : Experiencing the Kinect. In 2011 24th

International Symposium on Computer-Based Medical

Systems (CBMS). Bristol: IEEE, pp. 1–6.

Ito, T., Anzai, D. & Wang, J., 2013. A Modified Particle

Filter Algorithm for Wireless Capsule Endoscope

Location Tracking. In Proceedings of the 8th

International Conference on Body Area Networks. pp.

536–540.

Kaewtrakulpong, P. & Bowden, R., 2002. An Improved

Adaptive Background Mixture Model for Real- time

Tracking with Shadow Detection. Video-Based

Surveillance Systems. Springer US, pp.135–144.

Navab N, Feuerstein M, B. C., 2007. Laparoscopic Virtual

Mirror New Interaction Paradigm for Monitor Based

Augmented Reality. In Virtual Reality Conference,

VR’07. IEEE. pp. 43–50.

Ruppert, G. C. S. et al., 2012. Touchless Gesture User

Interface for Interactive Image Visualization in

Urological Surgery. World Journal of Urology, 30(5),

pp.687–91.

Stau, W. E. L. G. C. & Romano, R., 1998. Using Adaptive

Tracking to Classify and Monitor Activities in a Site.

Computer Vision and Pattern Recognition, 1998.

Proceedings. IEEE Computer Society Conference on.,

Su, L.-M. et al., 2009. Augmented Reality during Robot-

assisted Laparoscopic Partial Nephrectomy: toward

Real-time 3D-CT to Stereoscopic Video Registration.

Urology, 73(4), pp.896–900.

Sun, X., 2012. Image guided interaction in minimally

invasive surgery. Master Thesis, Simon Fraser

University..

Tehrani Niknejad, H. et al., 2012. On-Road Multivehicle

Tracking Using Deformable Object Model and Particle

Filter With Improved Likelihood Estimation. IEEE

Transactions on Intelligent Transportation Systems,

13(2), pp.748–758.

Tonet, O. et al., 2007. Tracking Endoscopic Instruments

without a Localizer: A Shape-analysis-based Approach.

Computer Aided Surgery, 12(1), pp.35–42.

Zhou, J. & Payandeh, S., 2014. Visual Tracking of

Laparoscopic Instruments. Journal of Automation and

Control Engineering Vol, 2(3), pp.234–241.

Julio Alejandro Murra-Saca MD. Notes on Cyber

Gastroenterology, [Online]. Available: http://

www.murrasaca.com/Laparoscopic.htm.

AnExperimentalStudyofVisualTrackinginSurgicalApplications

613
