Adaptive Reference Image Selection for Temporal Object Removal from
Frontal In-vehicle Camera Image Sequences
Toru Kotsuka
1
, Daisuke Deguchi
2
, Ichiro Ide
1
and Hiroshi Murase
1
1
Graduate School of Information Science, Nagoya University, Furo-cho, Chikusa-ku, Nagoya-shi, Aichi, Japan
2
Information & Communication Headquarters, Nagoya University, Furo-cho, Chikusa-ku, Nagoya-shi, Aichi, Japan
Keywords:
In-vehicle Camera, Temporal Object Removal, Adaptive Reference Image Selection.
Abstract:
In recent years, image inpainting is widely used to remove undesired objects from an image. Especially,
the removal of temporal objects, such as pedestrians and vehicles, in street-view databases such as Google
Street View has many applications in Intelligent Transportation Systems (ITS). To remove temporal objects,
Uchiyama et al. proposed a method that combined multiple image sequences captured along the same route.
However, when spatial alignment inside an image group does not work well, the quality of the output image
of this method is often affected. For example, large temporal objects existing in only one image create regions
that do not correspond to other images in the group, and the image created from aligned images becomes
distorted. One solution to this problem is to select adaptively the reference image containing only small
temporal objects for spatial alignment. Therefore, this paper proposes a method to remove temporal objects
by integration of multiple image sequences with an adaptive reference image selection mechanism.
1 INTRODUCTION
In recent years, image inpainting is widely used to re-
move undesired objects from an image. Especially,
there is a strong need for removal of temporal ob-
jects (ex. pedestrians and vehicles) from street-view
databases such as Google Street View
1
so that they
can be used for Intelligent Transportation Systems
(ITS) technologies such as geo-localization of vehi-
cles (Matsumoto et al., 2000).
Methods to remove temporal objects in an image
can be categorized into three approaches; (1) using
a single image, (2) using a single image sequence,
and (3) using multiple image sequences. The first ap-
proach synthesizes the background scene of a target
region selected manually (Bertalmio et al., 2000). It
requires only one image as an input, but it is impossi-
ble to restore the true background scene.
The second approach integrates frames captured
as one image sequence (Kawai et al., 2014). Using
the difference of appearances between frames, this
method can remove temporal objects automatically
and restore most of the background scene. How-
ever, some temporal objects, for example, parked ve-
hicles, cannot be removed since they are observed as
1
http://www.google.co.jp/help/maps/streetview/
static objects in the image sequence. The third ap-
proach integrates multiple image sequences captured
along the same route (Uchiyama et al., 2010). By us-
ing multiple image sequences, this approach can re-
move temporal objects even if they are observed as
static objects in a certain image sequence. Therefore a
method that removes temporal objects using multiple
image sequences is the most suitable for constructing
a street-view database.
The method proposed by Uchiyama et al. uses
frame alignment between image sequences and spa-
tial alignment inside an image group as a prepro-
cessing step to integrate multiple image sequences.
Through frame alignment, all images captured at the
same location are grouped. Then, spatial alignment
is performed by aligning all images with a reference
image selected from each image group. Finally, an
image without temporal objects is generated by fusion
of images in each image group. However, this method
can result in poor output image quality due to failure
of spatial alignment inside an image group. For ex-
ample, when a temporal object region existing in only
one image cannot be aligned with other images. Gen-
erally, in such cases, it is necessary to estimate cor-
respondences from the surroundings of the temporal
object. But, if the temporal object in the reference
image is large, this estimation will not work correctly.
233
Kotsuka T., Deguchi D., Ide I. and Murase H..
Adaptive Reference Image Selection for Temporal Object Removal from Frontal In-vehicle Camera Image Sequences.
DOI: 10.5220/0005357102330239
In Proceedings of the 10th International Conference on Computer Vision Theory and Applications (VISAPP-2015), pages 233-239
ISBN: 978-989-758-089-5
Copyright
c
2015 SCITEPRESS (Science and Technology Publications, Lda.)
(a) Reference image (b) Input image
(c) Generated image

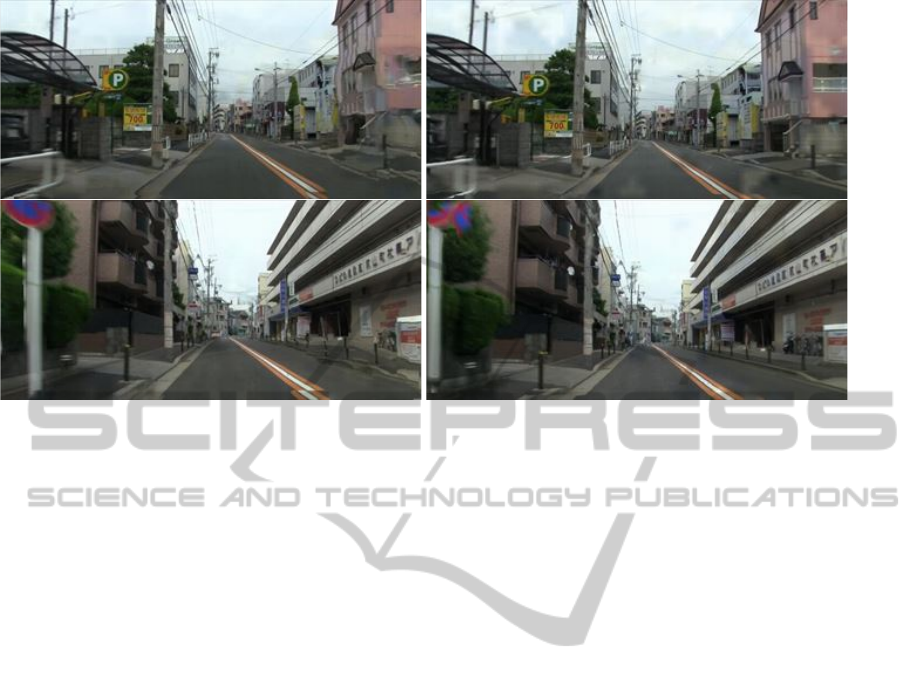

Figure 1: The generated image is distorted depending on the reference image. If there are temporal objects in the reference
image, the pixel correspondence fails.
(a) (b) (c) (d) (e) (f)
Figure 2: Examples of temporal objects.
This causes image deformation due to inappropriate
spacial alignment, as shown in Figure 1.
One way to solve this problem is to select the ref-
erence image for spatial alignment adaptively such
that it contains only small temporal objects. Thus,
this paper proposes a method to remove temporal ob-
jects by fusion of multiple image sequences with an
adaptive reference image selection mechanism. The
aim of this method is to reduce deterioration of im-
age quality that is one of the biggest problems in the
state-of-the-art methods for temporal object removal.
In the following, Section 2 explains the details of
the proposed method. Next, Section 3 describes the
experiments. The results of the experiments are dis-
cussed in Section 4. Finally, we conclude this paper
in Section 5.
2 TEMPORAL OBJECTS
REMOVAL
2.1 Definition of Temporal Objects
We define temporal objects as follows:
• Objects that exist at a certain time, but not at all
times.
In other words, temporal objects do not exist con-
stantly in the same location. Figure 2 shows exam-
ples of temporal objects in typical road scenes, such
as pedestrians (a, b), a bicycle (c), and a moving ve-
hicle (d). Parked vehicles (e, f) are also temporal ob-
jects since they do not exist in every image sequence.
On the other hand, a vehicle existing in all image se-
quences (every time) is not treated as a temporal ob-
ject.
2.2 Strategy for Adaptive Reference
Image Selection
The proposed method makes the following assump-
tion for selecting a reference image:
• If we obtain multiple images at the same location,
only background pixels can be aligned correctly.
Therefore, a reference image can be selected as the
image which has the maximum number of pixel cor-
respondences in the image group. This can be repre-
sented by the following objective function G(i), and
the i-th image in an image group is selected as a ref-
erence image that maximizes G(i).
G(i) =
n
∑
j=1, j̸=i
∑
x
g
1
(x, i, j), (1)
g
1
(x, i, j) =
{
1 if ||g
2
(x, i, j)|| ≤ l
0 otherwise
,
g
2
(x, i, j) = v
i→ j
(x) + v
j→i
(x + v
i→ j
(x)),
VISAPP2015-InternationalConferenceonComputerVisionTheoryandApplications
234
Sequence 1 Sequence 2 Sequence n
Output Image
Frame Alignment
Background Image Generation
Divide into Image Groups
Spatial Alignment
Sequence 1 Sequence 2 Sequence n
Image Group 1
Adaptive Reference Image Selection
Image Group 2
Image Group 3

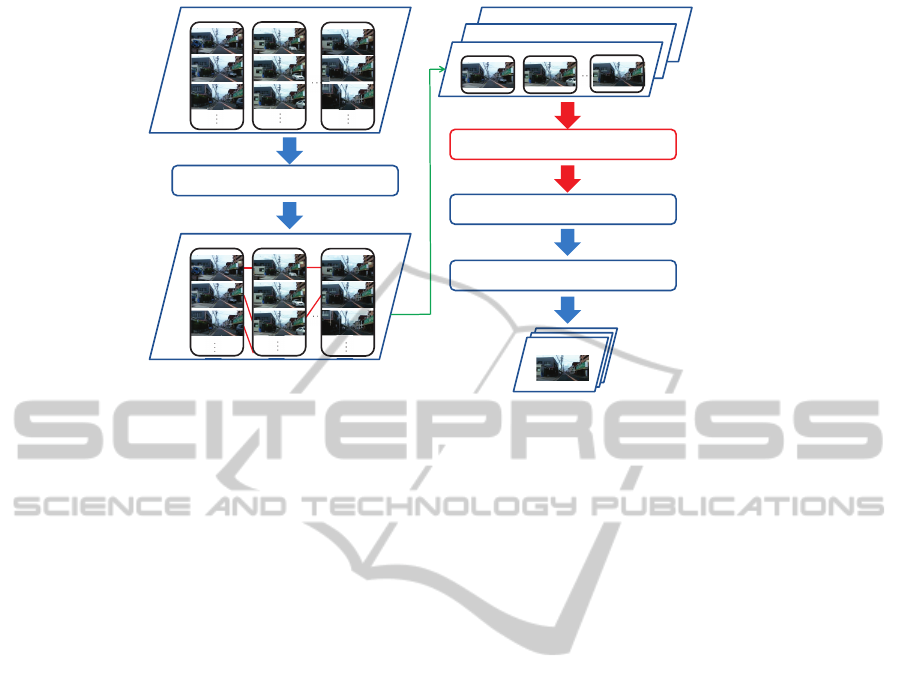

Figure 3: Process flow of the proposed method.
where x is a pixel in the image, v
i→ j
(x) is the dis-
placement between pixel x in image i and the pixel
in image j which is matched to pixel x. The number
of pixel correspondences are calculated, such that the
matching error is less than l = 4 pixels. The image
which has the maximum number of pixel correspon-
dences is selected as the reference image in the image
group.
2.3 Algorithm
According to the definition in Section 2.1, we assume
that parts of the images captured at the same loca-
tion at different times do not include temporal objects.
Thus we combine parts of the images considered as
background to remove temporal objects.
The proposed method removes temporal objects
using a majority voting scheme. Temporal object
removal is performed by integration of frontal in-
vehicle camera image sequences captured along the
same route at different times. Figure 3 shows the
framework of the proposed method. The proposed
method consists of four phases; (1)frame alignment
between image sequences, (2)adaptive reference im-
age selection, (3)spatial alignment inside an image
group, and (4)background image generation.
Frame alignment between image sequences is the
process to compensate for different vehicle speeds be-
tween image sequences. After frame alignment, the
aligned images are grouped and the following pro-
cesses are performed for every result.
Spatial alignment inside each image group is the
process to compensate for the difference in appear-
ance depending on the vehicle position. In this pro-
cess, a reference image is adaptively selected.
Background image generation is the process that
removes temporal objects by combining images in the
image group. From the assumption in Section 2.2, we
remove temporal objects by majority voting.
The following sections describe each process in
detail.
2.3.1 Frame Alignment Between Image
Sequences
Frame alignment between image sequences is per-
formed by DP matching (Dynamic Time Warping)
using measurement of the positional relationship be-
tween two camera locations based on epipolar geom-
etry (Kyutoku et al., 2012). This method is known for
effective matching of frontal camera image sequences
captured along a common route and is robust to oc-
clusions. The epipole is calculated in all image pairs
between the reference image sequence and input im-
age sequences. The nearer the captured location is
between two cameras, the longer the distance is be-
tween the image center and the epipole. This property
is used as a measure for DP matching of the image
sequences and image groups captured along the same
route.
2.3.2 Adaptive Reference Image Selection
Appearances of images in an image group differ de-
pending on the vehicle position. Before overcoming
this, adaptive reference image selection is performed.
A reference image is selected for each image
group by the method outlined in Section 2.2 using
SIFT flow (Liu et al., 2011). SIFT flow calculates
SIFT features at each pixel and associates all pixels
AdaptiveReferenceImageSelectionforTemporalObjectRemovalfromFrontalIn-vehicleCameraImageSequences
235
between images correctly using belief propagation.
By using SIFT features, the robustness to rotation,
scale, and illumination changes of the standard SIFT
algorithm are achieved, and the technique is more ef-
fective than the optical flow method.
2.3.3 Spatial Alignment Inside an Image Group
After adaptive reference image selection, spatial
alignment inside image groups is performed relative
to the reference image. In each case, pixels in the in-
put image are rearranged based on their correspond-
ing positions in the reference image. In detail, all
images in an image group are warped to the refer-
ence image according to the flow field obtained by

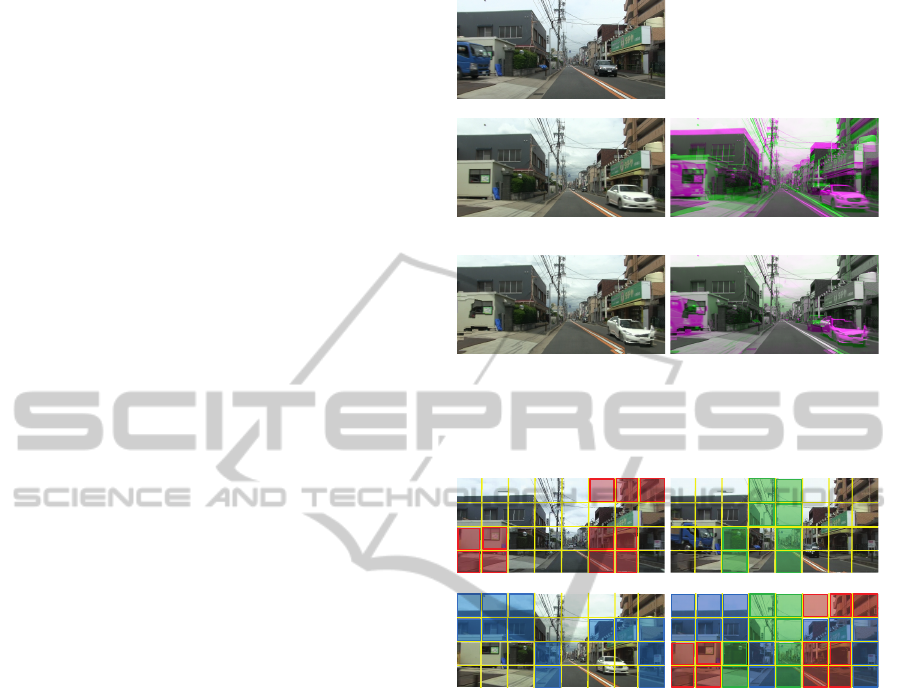

the SIFT flow algorithm. Figure 4 shows the result of
this process. The colored regions show the difference
between two images in Figures 4(c) and (e). Figure
4(d) is the output image which is rearranged to make
the image more similar to the reference image shown
in Figure 4(a).
2.3.4 Background Image Generation
Temporal object removal to create a background im-
age is performed by fusion of images in each image
group. First, each image is divided into W patches,
and vectors consisting of the pixel values of each
patch are created. In this paper, we formulate the
problem of background image generation as optimal
patch selection in each image group. Here, we in-
troduce an index vector n consisting of the selected
image indices in the image group. The index vector
n is selected by minimizing the following objective
function F(n),
F(n) =
W
∑
w=1
[(1 − λ) f
w
(n
w
) + λg
w
(n
w
)], (2)
where n
w
is the w-th patch of the selected image and
f
w
is the penalty term for temporal objects and calcu-
lated by using the vector median filter (Astola et al.,
1990). The vector median filter is a filter which out-
puts the central vector of a field of input vectors. The
central vector is defined as the vector which mini-
mizes the sum of the distance between itself and other
vectors, and f
w
is the sum of the distance between the
central vector and other vectors. Since we assume that
for a majority of timings, the input patches do not con-
tain temporal objects, the central vector is considered
to be the background.
Each vector median filter match selection is per-
formed independently, so illumination conditions of
the neighborhood patches are not preserved. To solve
this problem, a penalty g
w
to represent the discontinu-
ity of neighborhood patches is employed. If the index
(a) Reference image
(b) Input image (c) Difference between (a) and
(b)
(d) Output image (e) Difference between (a) and
(d)
Figure 4: Spatial alignment using SIFT flow. The colored
region in (c) and (e) shows the difference between two im-
ages.
(a)
(a) Input image 1
(b)
(b) Input image 2
(c)
(c) Input image 3
(d)
(d) Output image
Figure 5: Result of fusion of an image group. Output (d) is
generated by fusion of images (a), (b) and (c).
n
w+α
in the neighborhood patch is different from n
w
in a certain patch, g
w
adds the distance between the
neighborhood patch’s vector n
w+α
and the one in n
w
.
λ is the weight between f
w
and g
w
.
Figure 5 shows the selection of the patch by
F(n) and image fusion. In fact, each patch is over-
lapped and localized, and the integration of over-
lapped patches is done by alpha-blending.
3 EXPERIMENT
3.1 Dataset
We prepared a dataset composed of five frontal in-
vehicle camera image sequences captured along the
same route. The route was a straight main road and
contained some temporal objects. Each image se-
quence had an image resolution of 720 × 340 pixels,
VISAPP2015-InternationalConferenceonComputerVisionTheoryandApplications
236
recorded at 24 fps, and contained 1,000 images. Ev-
ery one image out of 25 images was used for evalua-
tion.
3.2 Evaluation Experiments
We performed the following two experiments to eval-
uate the effectiveness of the proposed method. First is
an experiment for evaluating the accuracy of the adap-
tive reference image selection. Second is an experi-
ment for evaluating an accuracy of removal of tem-
poral objects. In addition to the proposed method,
we prepared a comparative method without adaptive
reference image selection, where all reference images
are selected from a specific image sequence.
3.2.1 Accuracy of Adaptive Reference Image
Selection
We evaluated the accuracy of the adaptive reference
image selection. First, we prepared the ground truth,
which consisted of the most suitable reference im-
ages containing the fewest temporal objects in each
image group. Second, we counted the pixels of the
temporal objects in each reference image selected by
the proposed and the comparative methods. We com-
pared the number of temporal object pixels between
the ground truth and the proposed and the compara-
tive methods.
3.2.2 Accuracy of Temporal Objects Removal
We evaluated the accuracy of temporal object removal
by comparing the number of pixels corresponding to
temporal objects in the proposed and the comparative
methods.
4 RESULTS AND DISCUSSIONS
4.1 Adaptive Reference Image Selection
Table 1 shows the average difference of the number of
temporal object pixels in each reference image. Fig-
ure 6 shows the time transition of the number of tem-
poral object pixels compared with the ground truth.
The result of the proposed method was closer to the
ground truth than that of the comparative method.
These show how adaptive reference image selection
helps to choose an appropriate reference image with
fewer temporal object regions as a starting point for
temporal object removal. However, the proposed
method could not choose the best reference image in
Table 1: The average number of pixels of temporal objects
in each reference image (pixels).
Ground Proposed Comparative
truth method method
693 2,106 4,906
0
5000
10000
15000
20000
25000
30000
0
50
100
150
200
250
300
350
400
450
500
550
600
650
700
750
800
850
900
950

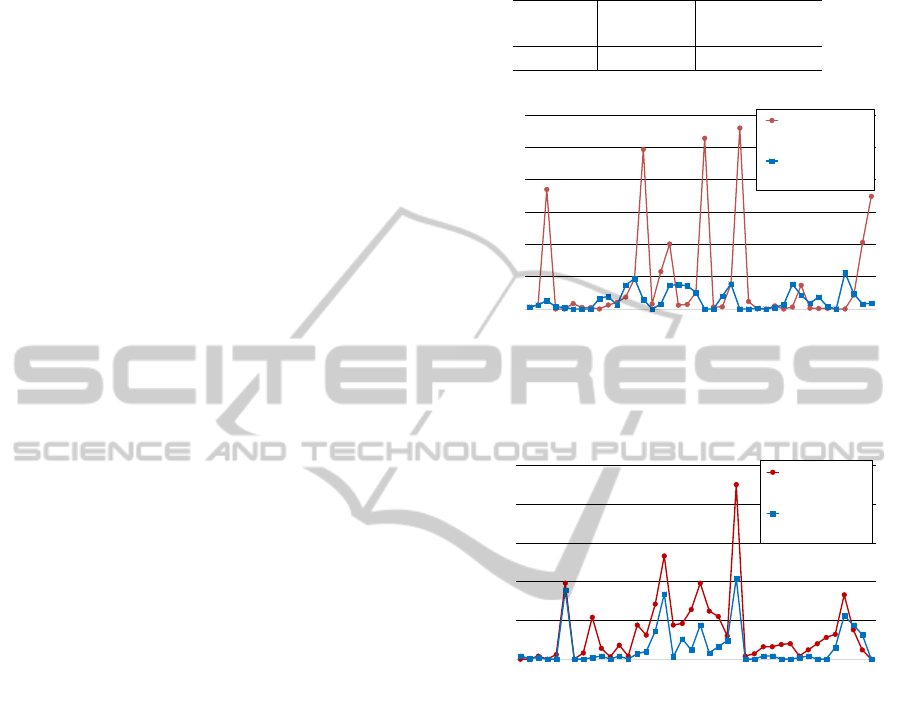

# of Pixels of the Temporal Objects
Frame #
Comparative
method
Proposed
method
Figure 6: Time transition of the number of temporal object
pixels in reference images selected by the proposed and the
comparative methods compared with the ground truth.
0
50
100
150
200
250
0
50
100
150
200
250
300
350
400
450
500
550
600
650
700
750
800
850
900
950
# of Pixels of the Temporal Objects
Frame #
Comparative
method
Proposed
method
Figure 7: Time transition of the number of temporal ob-
ject pixels in the result of the proposed and the comparative
methods.
some image groups due to failure of SIFT flow calcu-
lation. In future works, we need to investigate more
accurate spatial alignment methods.
4.2 Temporal Object Removal
The average number of pixels for temporal objects
in each output image was 16 pixels in the proposed
method and 36 pixels in the comparative method. Fig-
ure 7 shows the time transition of the number of pixels
corresponding to the temporal objects remaining in
each output image. Both the proposed and the com-
parative methods could remove almost all temporal
objects. This shows the effectiveness of temporal ob-
ject removal using multiple image sequences. Fig-
ure 8 shows examples of the output image for both
methods. As seen in Figure 8(a), the image quality de-
AdaptiveReferenceImageSelectionforTemporalObjectRemovalfromFrontalIn-vehicleCameraImageSequences
237
(a) Comparative method (b) Proposed method
Figure 8: Examples of output images.
teriorated in the comparative method. Because adap-
tive reference image selection was not performed,
there were many regions where the alignment did not
work well. Conversely, since the proposed method
employs adaptive reference image selection, the im-
age alignment failed in fewer areas. This is why the
proposed method gives better output image quality
than the comparative method. As seen in Figure 8(b),
the proposed method removed temporal objects and
reduced the distortion of visual image quality when
compared to the comparative method.
Therefore, we confirmed that adaptive reference
image selection is one of solution to prevent image
distortion when integrating multiple image sequences
for the removal of temporal objects.
5 CONCLUSION
In this paper, we introduced the concept of adaptive
reference image selection, and proposed a method to
remove temporal objects by fusion of multiple image
sequences. We confirmed that adaptive reference im-
age selection is one solution to prevent image distor-
tion when integrating multiple image sequences for
the removal of temporal objects.
For future work, we will apply the proposed
method to image sequences with more crowded
scenes. In this situation, the assumption stated in Sec-
tion 2.3 may not be satisfied. To solve this problem,
use of additional input image sequences and between-
frames information (Kawai et al., 2014) may be effec-
tive. Furthermore, we would like to develop a spatial
alignment method more robust to occlusions than the
standard SIFT flow method.
ACKNOWLEDGEMENTS
Parts of this research were supported by a Grant-in-
Aid for Young Scientists from MEXT, a Grant-In-Aid
for Scientific Research from MEXT, and a CREST
project from JST, and Nagoya University COI. The
authors would like to thank Mr. David Robert Wong
for his useful comments.
REFERENCES
Astola, J., Haavisto, P., and Neuvo, Y. (1990). Vector me-
dian filters. Proc. IEEE, 78(4):678–689.
Bertalmio, M., Sapiro, G., Caselles, V., and Ballester, C.
(2000). Image inpainting. In Proc. 27th Int. Conf.
and Exhibition on Computer Graphics and Interactive
Techniques (SIGGRAPH2000), pages 417–424.
Kawai, N., Inoue, N., Sato, T., Okura, F., Nakashima, Y.,
and Yokoya, N. (2014). Background estimation for a
single omnidirectional image sequence captured with
a moving camera. IPSJ Trans. on Computer Vision
and Applications, 6:68–72.
Kyutoku, H., Deguchi, D., Takahashi, T., Mekada, Y., Ide,
I., and Murase, H. (2012). Substraction-based for-
ward obstacle detection using illumination insensi-
tive feature for driving support. In Proc. ECCV2012
Workshop on Computer Vision in Vehicle Technology
(CVVT2012): From Earth to Mars, pages 515–525.
VISAPP2015-InternationalConferenceonComputerVisionTheoryandApplications
238
Liu, C., Yuen, J., and Torralba, A. (2011). SIFT flow:
Dense correspondence across scenes and its applica-
tions. IEEE Trans. on Pattern Analysis and Machine
Intelligence, 33(5):978–994.
Matsumoto, Y., Sakai, K., Inaba, M., and Inoue, H. (2000).
View-based approach to robot navigation. In Proc.
2000 IEEE/RSJ Int. Conf. on Intelligent Robots and
System (IROS2000), pages 1702–1708.
Uchiyama, H., Deguchi, D., Takahashi, T., Ide, I., and
Murase, H. (2010). Removal of moving objects from
a street-view image by fusing multiple image se-
quences. In Proc. 20th IAPR Int. Conf. on Pattern
Recognition (ICPR2010), pages 3456–3459.
AdaptiveReferenceImageSelectionforTemporalObjectRemovalfromFrontalIn-vehicleCameraImageSequences
239
