An Augmented Environment for Command and Control Systems

Alessandro Zocco

, Lucio T. De Paolis

, Lorenzo Greco

and Cosimo L. Manes

Product Innovation & Advanced EW Solutions, Elettronica S.p.A., Rome, Italy

Department of Engineering for Innovation, University of Salento, Lecce, Italy

Mobile Development, Leto Ltd, London, U.K.

Keywords:

Augmented Reality, Head Mounted Display, Human Computer Interaction, Network Centric Operations,

Military Decision Support System.

Abstract:

In the information age the ability to develop high-level situational awareness is essential for the success of any

military operation. The power of network centric warfare comes from the linking of knowledgeable entities

that allows information sharing and collaboration. By increasing the number of commanded platforms, the

volume of the data that can be accessed grows exponentially. When this volume is displayed to an operator,

there is an high risk to get a state of information overload and great care must be taken to make sure that what

is provided is actually information and not noise. In this paper we propose a novel interaction environment

that leverages the augmented reality technology to provide a digitally enhanced view of a real command and

control table. The operator, equipped with an optical see-through head mounted display, controls the virtual

context remaining connected to the real world. Technical details of the system are described together with

the evaluation method. Twelve users evaluated the usability of the augmented environment comparing it with

a wall-sized stereoscopic human computer interface and with a multi-screen system. Results showed the

effectiveness of the proposed system in understanding complex electronic warfare scenarios and in supporting

the decision-making process.

1 INTRODUCTION

Gaining a detailed understanding of battlespace is

nowadays essential for the success of any military op-

eration. Network Centric Warfare (NCW) is a mili-

tary doctrine of war developed by the United States

Department of Defense in the 1990s (Alberts et al.,

1999; Braulinger, 2005). The power of NCW derives

from the effective linking of forces that are geograph-

ically or hierarchically distributed. The network al-

lows knowledgeable entities to share information and

collaborate to build up a shared situational aware-

ness.

A Network Centric Operation (NCO) is an opera-

tional situation according to the NCW. Figure 1 shows

an example of NCO: different platforms have the ca-

pability of sensing some limited areas and each one

has a personal limited awareness of its proximity. In

Figure 1(a) each platform sends collected data to a

speciﬁc platform, known as Command and Control

(C2). The C2 has the special task to fuse data, in

a manual or automatic way. In Figure 1(b) the C2

sends the fused data to the different platforms, and

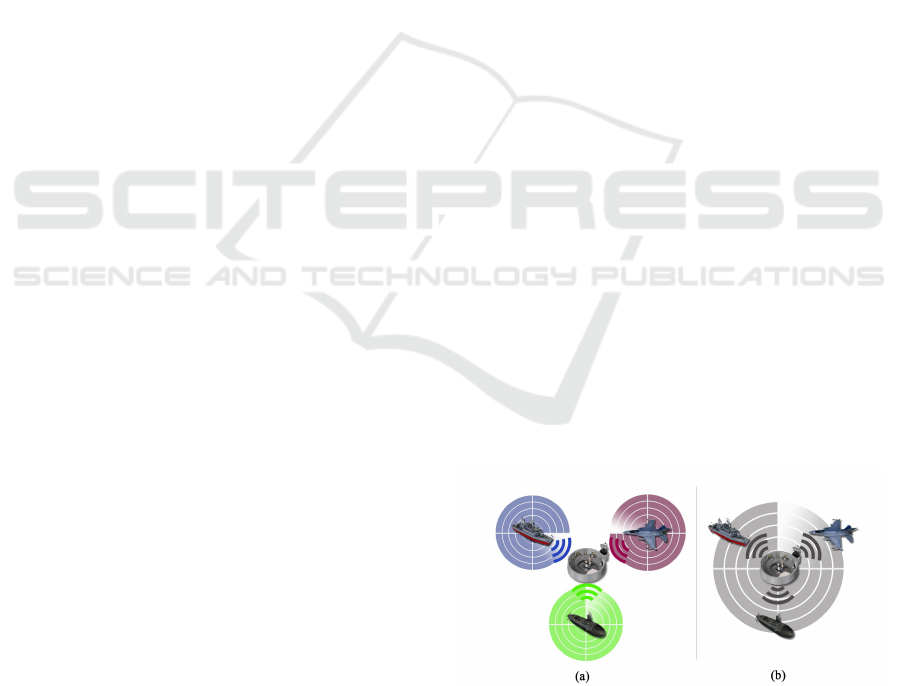

Figure 1: Example of a Network Centric Operation.

in this way they share the same enhanced situational

awareness. This process is continuously repeated dur-

ing any NCO.

As it can be inferred from the Figure 1 example,

the C2 holds an important role in these networks: it is

the system devoted to the decision-making process of

the operational aspects of the warfare. Commanders

operate such systems by means of a Human Computer

Interface (HCI) in order to get access to the Common

Operational Picture (COP) and in order to manifest

decisions (e.g., plans, orders).

The COP represents a single identical display of

209

Zocco A., De Paolis L., Greco L. and Manes C..

An Augmented Environment for Command and Control Systems.

DOI: 10.5220/0005358902090214

In Proceedings of the 10th International Conference on Computer Vision Theory and Applications (VISAPP-2015), pages 209-214

ISBN: 978-989-758-091-8

 2015 SCITEPRESS (Science and Technology Publications, Lda.)

relevant information concerning friendly, enemy, and

neutral forces. Examples of information that can be

integrated in a COP include location (e.g., current po-

sitions, rate of movements), environment (e.g. current

weather conditions, terrain features), status (e.g., ca-

pabilities of offensive and defensive enemy weapon

systems).

Being the visualized information the result of

several inputs conveyed to the same displayed area,

a state of information overload is likely to occur

when increasing the number of commanded platforms

(Shanker and Richtel, 2011). In particular, the infor-

mation ﬂow rate may be greater than the operator’s

processing rate, leading to the creation of a wrong

mental model of the mission scenario. This results in

making wrong decisions that may lead to catastrophic

situations.

This paper proposes a novel interaction environ-

ment that exploits the Augmented Reality (AR) to in-

crease situational awareness and reduce information

overload. The solution proposed is assessed on real-

istic Electronic Warfare (EW) scenarios.

Next section introduces the related works (Sect.

2). The proposed solution is then presented (Sect. 3)

followed by a description of our experiments (Sect.

4). Conclusions are eventually drawn (Sect. 5).

2 RELATED WORKS

Several researches have been performed to design and

develop new display paradigms and technologies for

advanced information visualization in tactical com-

mand and control.

Dragon has been one of the ﬁrst research projects

in formalizing requirements for systems with the need

to visualize a huge amount of information on tactical

maps for real-time applications (Julier et al., 1999).

A virtual environment for battleﬁeld visualization has

been realized with an architecture composed of in-

teraction devices, display platforms and information

sources.

Pettersson et al. have proposed a visualization en-

vironment based on the projection of four indepen-

dent stereoscopic image pairs at full resolution upon

a custom designed optical screen (Pettersson et al.,

2004). This system suffers from apparent crosstalk

between stereo images pairs.

Kapler and Wright have developed a novel visual-

ization technique for displaying and tracking events,

objects and activities within a combined temporal and

geospatial display (Kapler and Wright, 2004). The

events are represented within an X, Y, T coordinate

space, in which the X and Y plane shows ﬂat geo-

graphic space and the T-axis represents time into the

future and past. This technique is not adequate for an

immersive 3D virtual environment because it uses an

axis to describe the time evolution constraining the

spatial representation on a ﬂat surface; the altitude

information, that is important in avionic scenarios,

can’t be displayed. However, it is remarkable that the

splitting-up of geographical and logical information

(e.g., health of a platform) can enhance the usability

of the system.

In NextVC2 the main idea is to leverage the Vir-

tual Reality (VR) technology to create a shared col-

laborative environment with a customized view of the

real world objects and events (Carvalho and Ford,

2012).

Hodicky and Frantis have conducted a research

program to investigate ways to increase the level and

quality of information about the battleﬁeld by means

of VR devices (Hodicky and Frantis, 2009). The com-

mander equipped with a HMD can operate the virtual

environment by head and body movements.

The use of a system based only on VR has the dis-

advantage that the virtual world isolates the operator

making difﬁcult the connection with the real world.

In addition, this technology requires a complex and

expensive scene modeling and rendering to faithfully

reproduce the represented real world as well as artiﬁ-

cial navigation methods.

Adithya has presented a paper-based augmented

map for military scope that uses the ARToolKit

marker-tracking based approach and a video see-

through Head Mounted Display (HMD) to manage in-

teraction and visualization (Adithya, 2010). The dy-

namic information of the terrain, the placing of virtual

objects and the interaction are features of the digital

world that are superimposed onto the paper map. The

main limitation of this type of system is that the ﬁeld

of action is restricted to a speciﬁc area.

3 PROPOSED INVESTIGATION

This paper proposes a novel environment for modern

battlespaces visualization, which exploits AR tech-

nology to increase the understanding perception and

reduce information overload. This is expected to im-

prove operator’s performance in terms of both reac-

tion time and number of errors made during the exe-

cution of complex tasks.

3.1 High-level Architecture of Loki

The system proposed is part of Loki, an advanced C2

system for EW that coordinatesa set of heterogeneous

VISAPP2015-InternationalConferenceonComputerVisionTheoryandApplications

210

Figure 2: Loki architecture in the large.

platforms (air, surface, subsurface) having on board

sensors and actuators in the domain of electronic de-

fence. Figure 2 shows the high-level architectural

view of the Loki system.

The Core component continuously executesan ad-

vanced multi-sensor data fusion process on the data

retrieved from cooperating systems. Once these data

are properly fused, the system is capable to infer new

important information such as a better localization of

emitters and countermeasures strategy. These infor-

mation are transferred to the presentation layer using

a communication middleware based on Data Distribu-

tion Service (DDS) paradigm (OMG, 2007).

The Augmented Environment (AE) component

provides a digitally enhanced view of a real C2 ta-

ble conﬁguring the visual appearance of the COP and

accepting and validating user input. Moreover, it pro-

vides a persistence mechanism to decouple the data-

access logic from the core logic.

3.2 Augmented Environment

The mission area is visualized in a new way that al-

lows to increase the situational awareness. The opera-

tor, looking through the lens of an optical see-through

HMD (NVIS nVisor ST50), sees the virtual world su-

perimposed on the real world (Figure 3). The precise

alignment is obtained through the use of an electro-

magnetic tracker (Polhemus Patriot) that detects, in

real-time, the position and the orientation of the ob-

server’s head.

The virtual environment consists of a geo-

referenced 3D map of the mission area on which the

EW scenario is positioned. The localized platforms

(characterized by latitude, longitude and altitude) are

placed on the scene faithfully reﬂecting their geo-

graphic coordinates and are represented according to

MIL-STD-2525C (Department of Defense, 2008). If

the Direction of Arrival (DOA) of a threat is known

with a margin of error, the uncertainty volume is

shown as a pyramid with vertex in the platform that

Figure 3: Operator equipped with a see-through HMD.

Figure 4: Geo-referenced 3D map.

has performed the detection (Figure 4).

Different kinds of views are provided through the

activation of layers normal to the C2 table. In Fig-

ure 5 the intersection of the uncertainty areas relating

to a speciﬁc threat is shown by a top view of the 3D

model. A small viewport, placed in the upper left cor-

ner of the display, provides critical information (e.g.

warning emitters detection) to the operator. This type

of visualization permits to visualize in a correct way

the different elements of the scene and to delete any

form of information overload.

Figure 5: Activation of a layer normal to the C2 table.

The users around the C2 table can collaborate

face-to-face maintaining the ability to use real-world

objects.

AnAugmentedEnvironmentforCommandandControlSystems

211

3.3 SW Design and Implementation

The AE has been designed with high modularity ap-

plying User Interface Design Patterns (UIDP). These

patterns help to ensure that key human factors con-

cepts are quickly and correctly implemented.

The SW has been developed in C++ using OGRE,

an open-source 3D engine that abstracts the details

of the underlying system libraries (e.g., OpenGL, Di-

rectX) and provides an interface based on high-level

classes (Ogre 3D, 2001; Rocha et al., 2010). Qt

Core API has been integrated to take advantage of its

powerful mechanism for object communication called

Signals & Slots and to handle, by means the QtSe-

rialPort add-on module, the serial port to which the

electromagnetic tracker is attached (Digia, 2015).

The high-deﬁnition map of the mission area has

been generated through several steps. First, the 3D

model has been generated starting from Digital Ter-

rain Elevation Data (DTED), using Autodesk Infras-

tructure Design Suite. After that, Autodesk 3DS Max

has been used to add textures, details and colors. Fi-

nally, the resultant model has been converted in a

format supported by OGRE. An important thing that

must be considered is that in this process the geo-

referencing information is lost and a mapping algo-

rithm (Bowditch, 2012) to associate a speciﬁc point

inside the map to each pair of longitude and latitude

value has been implemented.

To avoid a different spatial perception of the vir-

tual context through the HMD in contrast to the real

world, the camera view frustum has been calibrated

to the display view frustum. The calibration method

adopted (Kellner et al., 2012) requires that each user

aligns tracked real world markers with virtual target

positions and can be completed in approximately one

minute for both eyes.

4 USABILITY EVALUATION

4.1 Test Procedure

The purpose of the evaluation was to assess the usabil-

ity of the proposed AR system. The formal usability

study was carried out at the facilities of ELT in Rome

and involved 12 members of the armed forces of dif-

ferent countries. The case study required about tree

hours per participant to be completed.

The test procedure started with a brief presenta-

tion of the system and the aim of the investigation.

Each operator was involved in the understanding

of complex NCW scenarios, using the proposal AE,

a wall-sized stereoscopic HCI (Zocco et al., 2014a;

Zocco et al., 2014b) and a multi-screen system. Three

visual detection tasks of increasing complexity were

assigned to participants (i.e., identiﬁcation, correla-

tion and triangulation).

To measure the operational behaviours, the num-

ber of failures and the completion time were automat-

ically acquired for each task. In addition the follow-

ing qualitative data, referring to the users’ experience,

were collected using questionnaires and interviews:

• depth impression;

• viewing comfort;

• level of immersion;

• sense of isolation;

• understanding perception.

4.2 Results Analysis

The results for quantitative parameters are shown in

Figure 6 through line graphs.

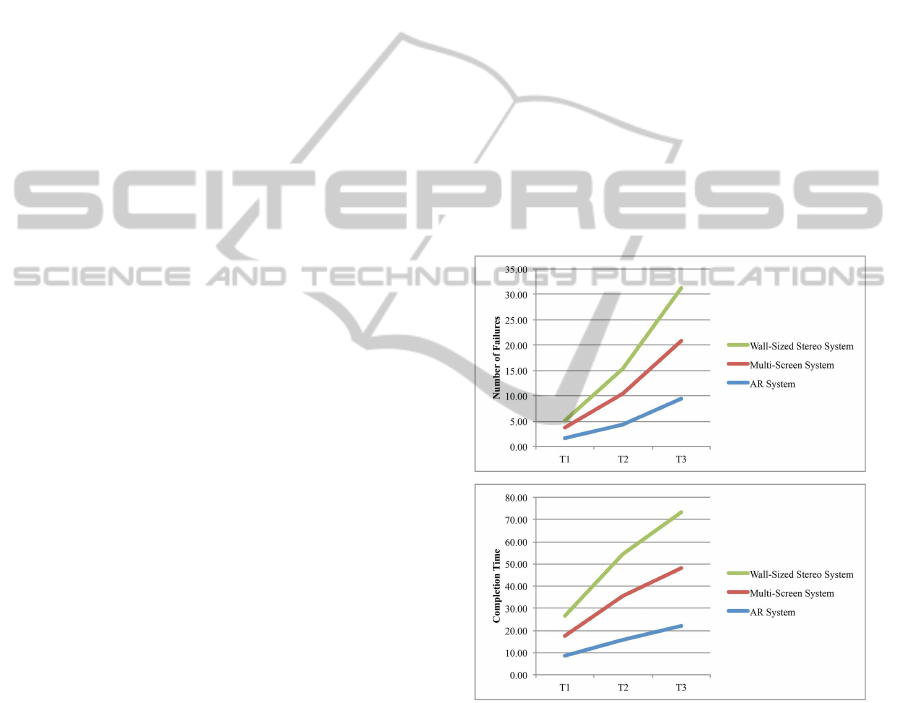

Figure 6: Quantitative data related to users’ performance.

Regarding to the simplest task T1, only minor dif-

ferences have been detected between the considered

display systems. The impact of AR becomes evident

after increasing the level of task complexity. The re-

duction in the number of failures and in the comple-

tion time under AR conditions is impressive for task

T2 and T3.

The above results represent the major outcome for

our experiments. Under AR conditions users acquire

greater situational awareness and this leads to a re-

duction of both the reaction time and the number of

errors committed.

VISAPP2015-InternationalConferenceonComputerVisionTheoryandApplications

212

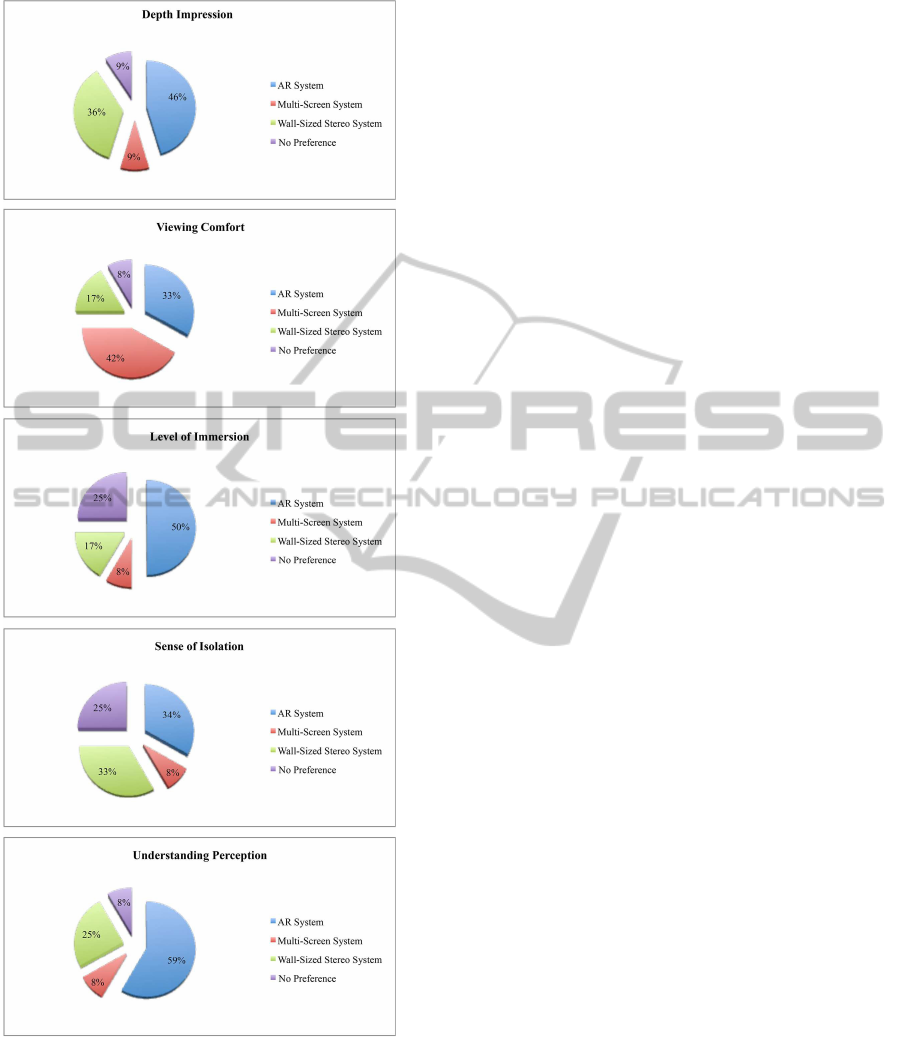

Figure 7: Qualitative data related to users’ experience.

The results of the questionnaires and interviews

are consistent with quantitative data (Figure 7).

Most of the participants had no doubts that the

depth impression and the level of immersion are

higher in case of stereo visualization (AE or wall-

sized stereo system). With complex EW scenarios,

when monocular depth cues are ambiguous, the stereo

viewing enhances spatial judgments: it is possible to

detect very closely spaced icons (representing plat-

forms or threats).

Positive judgments about viewing comfort were

provided on all display approaches. Many opera-

tors (42%) preferred the multi-screen system because

no wearable device (e.g., shutter glasses, HMD) is

needed.

The sense of isolation is approximately equal be-

tween AR system and wall-sized stereo system. In the

AR system the perception of the virtual world as part

of the real world, allows to relieve the seclusion that

derives from the use of an HMD.

The majority of participants (59%) perceived a

better understanding of the scenarios in the case of

AR system. This indicates that the methods of han-

dling the information overload and of reporting warn-

ing notiﬁcations have a signiﬁcant impact on the

decision-making process.

5 CONCLUSION

Inadequate situational awareness in NCW may lead

an operator to make wrong choices with potential

disastrous outcomes. Situational awareness is chal-

lenged by information overload. This makes the HCI

a key element is the design and development of the

C2 system for NCO.

This paper proposed the use of a novel interaction

environment that leverages the AR technology to pro-

vide a digitally enhanced view of a real C2 table.

The formal usability study showed very clear

trends with our users performing signiﬁcantly better

under AR conditions in terms of understanding per-

ception, depth impression and level of immersion. A

signiﬁcant reduction of both the number of failures

and of the completion time has been obtained.

The results presented represent the initial experi-

mentation phase of continuing research into user in-

teraction for military purposes. The lack of compar-

ative evaluation with respect to other works speciﬁ-

cally addressing NCW is due to the actual complexity

of this domain.

In the next future, a comparison between optical

and video see-through approaches will be conducted

and the gesture and motion control by means of low-

cost devices (e.g., Leap Motion, Myo) will be ex-

plored.

AnAugmentedEnvironmentforCommandandControlSystems

213

REFERENCES

Adithya, C. (2010). Augmented Reality Approach for Pa-

per Map Visualization. In INCOCCI 2010, Interna-

tional Conference on Communication and Computa-

tional Intelligence, Erode, India.

Alberts, D. S., Garstka, J. J., and Stein, F. P. (1999). Net-

work Centric Warfare: Developing and Leveraging

Information Superiority. CCRP Publication Series.

Bowditch, N. (2012). The American Practical Navigator.

National Imagery and Mapping Agency.

Braulinger, T. K. (2005). Network Centric Warfare Im-

plementation and Assessment. Master’s thesis, U.S.

Army Command and General Staff College.

Carvalho, M. M. and Ford, R. (2012). NextVC2 - A next

generation virtual world command and control. In

MILCOM 2012, IEEE Military Communications Con-

ference, Orlando, Florida, USA.

Department of Defense (2008). MIL-STD-

2525C: Common Warﬁghing Symbology.

http://www.mapsymbs.com/ms2525c.pdf. [Accessed

on 03 January 2015].

Digia (2015). Qt Project. http://qt-project.org. [Accessed

on 03 January 2015].

Hodicky, J. and Frantis, P. (2009). Decision Support System

for a Commander at the Operational Level. In KEOD

2009, 1st International Conference on Knowledge En-

gineering and Ontology Development, Madeira, Por-

tugal.

Julier, S., King, R., Colbert, B., Durbin, J., and Rosen-

blum, L. (1999). The Software Architecture of a

Real-Time Battleﬁeld Visualization Virtual Environ-

ment. In IEEE VR’99, IEEE Virtual Reality Confer-

ence, Houston, Texas, USA.

Kapler, T. and Wright, W. (2004). Geotime Information

Visualization. In INFO VIS, IEEE Symposium on In-

formation Visualization, Austin, Texas, USA.

Kellner, F., Bolte, B., Bruder, G., Rautenberg, U., Steinicke,

F., Lappe, M., and Koch, R. (2012). Geometric Cali-

bration of Head-Mounted Displays and its Effects on

Distance Estimation. IEEE Transactions on Visualiza-

tion and Computer Graphics.

Ogre 3D (2001). http://www.ogre3d.org. [Accessed on 03

January 2015].

OMG (2007). Data Distribution Service Portal.

http://portals.omg.org/dds/. [Accessed on 03

January 2015].

Pettersson, L. W., Spak, U., and Seipel, S. (2004). Collab-

orative 3D Visualizations of Geo-Spatial Information

for Command and Control. In SIGRAD 2004, Con-

ference of the Swedish Eurographics Chapter, G¨avle,

Sweden.

Rocha, R. V., Rocha, R. V., and Ara´ujo, R. B. (2010). Se-

lecting the Best Open Source 3D Games Engines. In

SBGAMES 2010, Brazilian Symposium on Games and

Digital Entertainment, Florian´opolis, Santa Catarina,

Brazil.

Shanker, T. and Richtel, M. (2011). In New Military, Data

Overload Can Be Deadly. http://www.nytimes.com/.

[Accessed on 03 January 2015].

Zocco, A., Cannone, D., and De Paolis, L. T. (2014a). Ef-

fects of Stereoscopy on a Human-Computer Interface

for Network Centric Operations. In VISAPP 2014, 9th

International Conference on Computer Vision Theory

and Applications, Lisbon, Portugal.

Zocco, A., Livatino, S., and De Paolis, L. T. (2014b).

Stereoscopic-3D Vision to Improve Situational

Awareness in Military Operations. In AVR 2014, 1st

International Conference on Augmented and Virtual

Reality, volume 8853 of Lecture Notes in Computer

Science, Lecce, Italy.

VISAPP2015-InternationalConferenceonComputerVisionTheoryandApplications

214
