Bi-modal Face Recognition

How combining 2D and 3D Clues Can Increase the Precision

Amel Aissaoui

and Jean Martinet

USTHB, Bab Ezzouar, Algeria

Lille 1 University, Villeneuve-d’Ascq, France

Keywords:

Face Recognition, Multimodal, 2D, 3D, LBP, RGB-depth.

Abstract:

This paper introduces a bi-modal face recognition approach. The objective is to study how combining depth

and intensity information can increase face recognition precision. In the proposed approach, local features

based on LBP (Local Binary Pattern) and DLBP (Depth Local Binary Pattern) are extracted from intensity

and depth images respectively. Our approach combines the results of classiﬁers trained on extracted intensity

and depth cues in order to identify faces. Experiments are performed on three datasets: Texas 3D face dataset,

BOSPHORUS 3D face dataset and FRGC 3D face dataset. The obtained results demonstrate the enhanced

performance of the proposed method compared to mono-modal (2D or 3D) face recognition. Most processes

of the proposed system are performed automatically. It leads to a potential prototype of face recognition using

the latest RGB-D sensors, such as Microsoft Kinect or Intel RealSense 3D Camera.

1 INTRODUCTION

2D face recognition is a mature research domain, with

typically high matching precision in speciﬁc contexts.

It mainly deals with images – color or grey-level –

acquired via a usual camera, representing faces’ vi-

sual appearance. Because all human faces are simi-

lar in their conﬁgurations (inter-class similarity) and

the appearance of a given face can greatly vary due

to e.g. changes in pose, expression, or illumination

(intra-class variation), unconstrained 2D facerecogni-

tion is a hard problem. Indeed, using only face inten-

sity images yields to a high sensitivity to intra-class

variations. The past decades have witnessed tremen-

dous efforts focused towards 2D face images (Zhao

et al., 2003). Despite the great progress achieved

so far within the ﬁeld, 2D image is still not reliable

enough (Abate et al., 2007), especially in the pres-

ence of pose and illumination changes (Phillips et al.,

2000).

3D face recognition was proposed as a potential

solution for face recognition. These approaches are

based on 3D shape data from faces (Bowyer et al.,

2006) obtained with speciﬁc equipments such as laser

scanners. Using the face 3D shape allows a high in-

variance to illumination and pose variation; a high

face recognition accuracy was reported in the litera-

ture using 3D approaches (Phillips et al., 2005). How-

ever, 3D data need expensive equipment and human

cooperation, which limits their application ﬁeld. Be-

sides, they always require accurate registration before

shape-based 3D matching. Matching methods of 3D

scans are very expensive in terms of CPU resources

and time processing since they are based on optimiza-

tion of complex geometric equations. In order to by-

pass the time processing issue of the 3D matching

methods, researchers now tend to focus on using face

range images instead of 3D point clouds. Such kind

of methods emerged recently specially with the rapid

development in 3D imaging systems, such as time-

of-ﬂight cameras or the Microsoft infrared camera

Kinect, which brought a major solution to use range

images without dealing with expensive equipments.

Although 3D recognition does not suffer from

light or pose changes, it does not beneﬁt from visual

information – such as textures. In recent years, the

wide availability of RGB-D sensors has opened new

research directions in face recognition and bi-modal

2D+3D face recognition using intensity and depth in-

formation received a high attention from researchers

in the ﬁeld. Depth and texture play complementary

roles in the coding of faces as they typically repre-

sent different characteristics of the face to be recog-

nized. The 2D image provides informations about

face textured regions with little geometric structure

(e.g. hairy parts, eyes, eyebrows), and the 3D data

559

Aissaoui A. and Martinet J..

Bi-modal Face Recognition - How combining 2D and 3D Clues Can Increase the Precision.

DOI: 10.5220/0005359605590564

In Proceedings of the 10th International Conference on Computer Vision Theory and Applications (VISAPP-2015), pages 559-564

ISBN: 978-989-758-090-1

 2015 SCITEPRESS (Science and Technology Publications, Lda.)

provides informations regarding less textured regions

(e.g. nose, chin, cheeks). Hence, using the shape in-

formation in addition to the intensity images allows a

better face representation and therefore better preci-

sion and robustness in face recognition.

In this paper, we introduce a novel bi-modal

framework for face recognition. Our objective is to

use the intensity and depth information in order to ob-

tain more accuracy and robustness in face recognition

compared to mono-modal approaches. Our approach

is based on local attributes calculated from intensity

and depth face images. We use the well known LBP

descriptor (Ojala et al., 2001; Ojala et al., 2002) for

intensity feature extraction. Aside from its simplic-

ity and compactness, the LBP have demonstrated a

good discriminative power in face recognition litera-

ture (Huang et al., 2011). Unlike most bi-modal ap-

proaches that use the same descriptor for both modal-

ities (Chang et al., 2003; Xu et al., 2009; Jahanbin

et al., 2011; Huang et al., 2009), we use the DLBP,

which is an extension of the LBP dedicated for range

images, in order to extract the depth cues. This allows

extracting of more discriminative features from depth

images. Facial cues from the 2D and 3D images are

used to train classiﬁers, and their decisions are com-

bined in order to ﬁnd the ﬁnal identity decision.

The remainder of the paper is organized as fol-

lows. Section 2 describes related works on 2D and

3D face recognition methods and show the comple-

mentarity of both techniques. Section 3 introduces

the proposed bi-modal approach for face recognition.

Section 4 presents experimental results on three col-

lections that demonstrates the performances of the

proposed method. Section 5 gives a conclusion to our

work.

2 RELATED WORKS

Many approaches have been proposed for face recog-

nition from intensity images (Abate et al., 2007;

Bowyer et al., 2006) and a multitude of 2D face de-

scriptors was proposed in the literature (Zhao et al.,

2003). Among these descriptors, Local Binary Pat-

terns (LBP), ﬁrst proposed by Ojala et al. (Ojala et al.,

2001; Ojala et al., 2002), are widely used. They en-

codes pixel-wise information in a given image. The

operator describes each pixel with the relative grey-

level values of its neighboring pixels:

LBP

(R,V)

(x, y) =

V− 1

∑

i=0

s(n

− n

, (1)

with s(k) =



1 if k ≥ 0

0 otherwise

where :

• n

is the grey level value of the central pixel from

the local neighborhood;

• n

are the grey level values of the neighbor pixels

around the central pixel with a radius R.

In order to acquire 3D data without using expen-

sive laser scanners, an increasingly popular method

consists in using depth sensors, such as time-of-ﬂight

cameras or the Microsoft Kinect infrared sensor. Be-

sides, classic image descriptors seem to be convenient

for face representation in such images. The advantage

of using range images is that features can be easily

extracted from raw data, which allows fast process-

ing. They also lie in a 2D dimensionality, which avoid

heavy computational cost. Moreover, depth data lie

in the 2D domain (while representing 3D data), and

can therefore be dealt with using standard 2D imag-

ing techniques.

Huang et al. (Huang et al., 2006) proposed an

extended LBP version, named 3DLBP, designed to

describe face depth images. Beside the information

provided by LBP, 3DLBP also considers the magni-

tude of the difference between the central pixel and

its neighborhood. However, this coding scheme suf-

fers from 3 drawbacks: the feature vector size is

very large, the coding principle is very sensitive to

the depth variations, and it is limited to small radius.

Other extensions have been proposed such as Local

Derivative Patterns (Zhang et al., 2010) and more re-

cently Local Vector Patterns (Fan and Hung, 2014;

Hung and Fan, 2014) for taking into consideration

high-order local pattern variations than just the ﬁrst

order with usual LBP. Other descriptors dedicated to

face range images were recently introduced such as

Depth Local Quantized Pattern (DLQP) by Mantecon

et al. (Mantecn et al., 2014). In our earlier works,

we have proposed the Depth Local Binary Pattern

(DLBP) (Aissaoui et al., 2014) as a powerful exten-

sion to LBP dedicated to face range images. DLBP

is a compact descriptor, and the coding scheme is

stable according to small changes in depth values of

the neighborhood. Unlike 3DLBP and DLQP, it is

designed for large radiuses in order to extract more

discriminative features from smooth and low-contrast

data, since it works on a multi-scale level.

Bi-modal 2D+3D face recognition makes use of

both modalities to represent a face, with the objec-

tive of taking advantage of both 2D and 3D data

complementarity. Combining 2D and 3D information

can be performed using different strategies (Husken

et al., 2005). The most used strategy is the late fusion

which takes place at the decision stage. Therefore,

we consider this strategy when combining depth and

intensity cues in the proposed system. Both 2D and

VISAPP2015-InternationalConferenceonComputerVisionTheoryandApplications

560

3D methods are affected by face expression changes,

which is an open issue that is not addressed in this

paper.

3 PROPOSED APPROACH FOR

BI-MODAL 2D-3D FACE

RECOGNITION

Our approach consists in recognizing faces using two

modalities: 2D (intensity image) and 3D (depth im-

age). First, 2D and 3D features are extracted from

intensity and depth face images using the LBP and

the DLBP descriptor, respectively. Then, 2D and 3D

classiﬁers are constructed using a Support Vector Ma-

chines based training algorithm. Finally, a late fusion

consisting in combining decisions from 2D and 3D

classiﬁers is applied.

3.1 Feature Extraction: LBP and DLBP

LBP is considered to be one of the simplest and most

efﬁcient local 2D face descriptors. For this reason, we

use the conventional LBP (See Section 2) in order to

extract features from intensity images.

Thresholding

LBP code : 167

Difference

-33

-41

-42

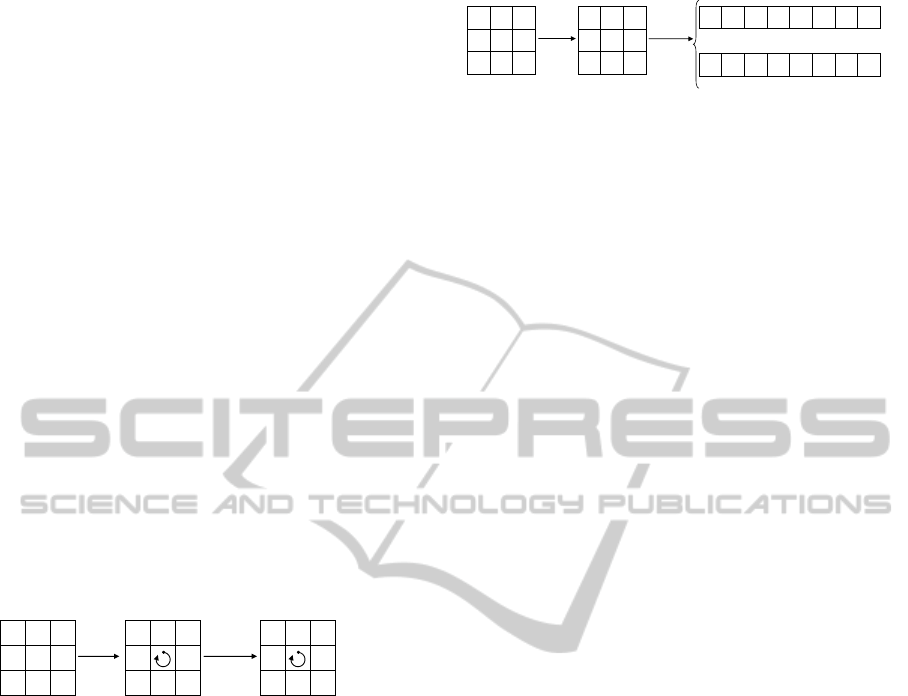

Figure 1: Illustration of LBP coding for a given pixel.

In order to extract depth features, we use the

DLBP descriptor. The DLBP is founded upon two

parts: the sign and the magnitude of the differences

between a pixel and its neighbors. Therefore, a pixel

p(x, y) is represented with two codes c

and c

. In or-

der to code the sign of the neighborhood, the original

LBP method is used: c

is obtained from neighbor-

hood pixels by generating binary values according to

the difference DD between the central pixel and each

neighbor pixel. Magnitude coding consists in assign-

ing each neighbor pixel a binary value according to a

threshold of absolute depth magnitude T

. The binary

sequence for c

is obtained in the same way as for the

sign. Fig. 2 gives an illustration of sign magnitude

coding with a radius R = 1, a neighborhood N = 8

and a magnitude threshold T

= 3. The magnitude

threshold is calculated automatically using the depth

gradient. For more details about the DLBP principle,

authors can refer to our previous work (Aissaoui et al.,

2014).

After LBP and DLBP calculation, local his-

tograms are then extracted from the LBP and DLBP

-1

-5

-3

-4

-2

•

= !"#

•

= %&

DDs

Difference

Thresholding

Figure 2: Illustration of c

and c

coding for a given pixel.

maps generated from intensity and depth image. His-

tograms offer more invariance to geometric transla-

tions, and reduce the descriptor size and consequently

the processing time. That is why they are usually used

in LBP-based face recognition methods. In order to

preserve the spacial information, the map is divided

into different regions from which histograms are ex-

tracted and then concatenated to form the LBP and

the DLBP descriptor.

3.2 Bi-modal Recognition

After feature extraction, 2D and 3D modalities are

processed independently. A face is represented by

two vectors: LBP and DLBP histograms. An SVM

based training is performed for each modality in order

to obtain classiﬁers from both modalities. We choose

the SVM because it is a very powerful classiﬁcation

method and a high accuracy was reported when using

SVM for face recognition (Byun and Lee, 2002).

In order to identify a new face, the decisions ob-

tained from the trained classiﬁers (from both modali-

ties) are fused in order to ﬁnd the face identity. Fusion

at this stage is the most generally applicable strategy

in 2D+3D face recognition task and good precision

was reported using this fusion strategy. Moreover, in-

tensity and depth information have different nature.

The late fusion allows to perform different processing

to each modality. The decision fusion is performed

using the weighted majority vote (Xu et al., 1992).

This fusion rule is among the simplest and easiest to

implement but it allows us to investigate what using

both intensity and depth information brings to the so-

lution of face recognition.

4 EXPERIMENTS

In order to demonstrate the beneﬁts from combin-

ing 2D and 3D modalities, we evaluate in this sec-

tion the proposed bi-modal approach on three 3D

face datasets: TEXAS (Gupta et al., 2010), FRGC

(Phillips et al., 2005) and BOSPHORUS (Savran

et al., 2008). The TEXAS 3D dataset consists of 1149

images of 118 persons. All faces are frontal with

different expressions and illumination changes. The

FRGC dataset contains 4007 images of 466 person

with frontal views, minor pose variations and major

Bi-modalFaceRecognition-Howcombining2Dand3DCluesCanIncreasethePrecision

561

100

Recognition rate (%)

Texas

LBP

3DLBP

DLBP

100

Recognition rate (%)

Bosphorus

LBP

3DLBP

DLBP

100

Recognition rate (%)

Frgc

LBP

3DLBP

DLBP

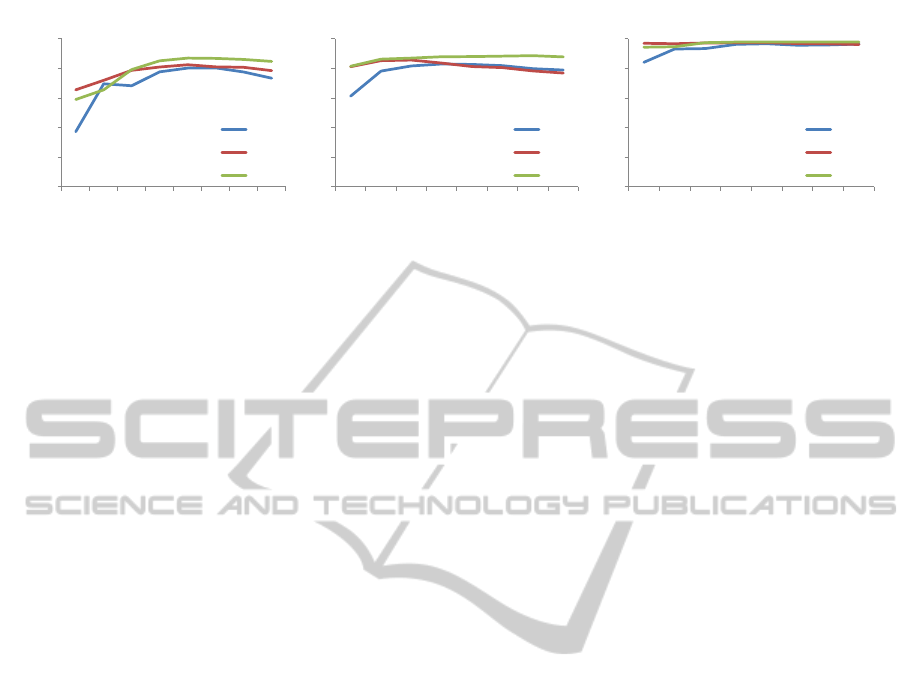

Figure 3: Comparison between LBP, 3DLBP, and DLBP for different radius values, for 3 collections.

expression and illumination variations. A number of

images is removed from this dataset since the depth

maps were unusable because of large holes due to

the scanner artifacts. The BOSPHORUS dataset in-

cludes 4666 images of 105 persons with different ex-

pressions and pose variations. Images with large pose

variations were not used from this dataset.

We have implemented the feature extraction pro-

cess using different parameters for LBP and DLBP.

Support Vector Machines (SVM) based on Radial Ba-

sis Function (RBF) kernels are used for classiﬁcation.

The precision is evaluated with a 10-fold cross vali-

dation.

We have ﬁrst calculated the precision (recogni-

tion rate) for LBP, 3DLBP, and DLBP on range im-

age. A 5× 5 grid is used when calculating local his-

tograms (i.e. 25 histograms per descriptor map). We

apply different radiuses (R ∈ [1, 8]) for each descrip-

tor for the three collections. We can see in Fig. 3

that 3DLBP and DLBP generally perform better than

LBP on range images which shows how important

it is to take into account the magnitude of the lo-

cal changes in range images. Besides, we also note

a general increase in the precision when the radius

is larger especially for DLBP, that successfully rep-

resent larger local patterns variations with more dis-

criminative codes.

In Fig. 4, we report the recognition rates obtained

using 2D, 3D and bi-modal face recognition. The

recognition rate is calculated when varying the pa-

rameters values of both descriptors and the best rate

reached by each approach is then reported. Results

show two important points:

• In FRGC and Texas collections, the 3D recogni-

tion gives better precision then 2D recognition.

This is because the illumination variation in these

two collections is very high. Therefore, using

depth allows a robust discrimination and thus bet-

ter recognition rates are obtained. In BOSPHO-

RUS collection, there is no illumination variation

and the depth maps have a low quality (depth res-

olution). This is why 2D recognition yields better

results then 3D approach in this collection.

• The bi-modal approach gives the best precision,

specially in FRGC and TEXAS collections. This

shows how combining both modalities enhances

the precision of the mono-modal approaches. In

BOSPHORUS, the bi-modal approach is as pre-

cise as the 2D approach. This can be explained

by the fact that the improvement margin is very

small. Indeed, only with 2D modality, a recogni-

tion rate of 99, 35% is reached.

5 CONCLUSIONS

We have presented a novel approach for bi-modal face

recognition. It is based on two information sources:

the LBP descriptor captures the 2D texture informa-

tion, and the DLBP descriptor that represents the face

3D details. Our goal was to investigate how using

both modalities (2D and 3D) can enhance the recog-

nition precision. Experiments on different 3D face

collections were conducted in order to evaluate our

method. According to the obtained results, we can see

that, in general, the bi-modal approach is a potential

solution to face recognition in uncontrolled environ-

ment, allowing more precision and more robustness

through the complementarity of 2D and 3D modali-

ties.

Our future works are directed towards exploring

other fusion strategies. Indeed, fusion at decision

stage assume that modalities are independent. How-

ever, we can see that relative positions of face compo-

nents (eyes, nose, etc.) are the same in images of both

modalities. Moreover, 2D and 3D modalities might

be affected similarly by certain acquisition conditions

such as occlusion or pose variations. This shows that

depth and intensity images are likely to be somehow

dependent. This induces us to consider earlier fusion

and other combinations in our future works.

VISAPP2015-InternationalConferenceonComputerVisionTheoryandApplications

562

100

Recognition rate (%)

Bosphorus

100

Recognition rate (%)

Frgc

100

Recognition rate (%)

Texas

3D approach 2D+3D bimodal approach 2D approach

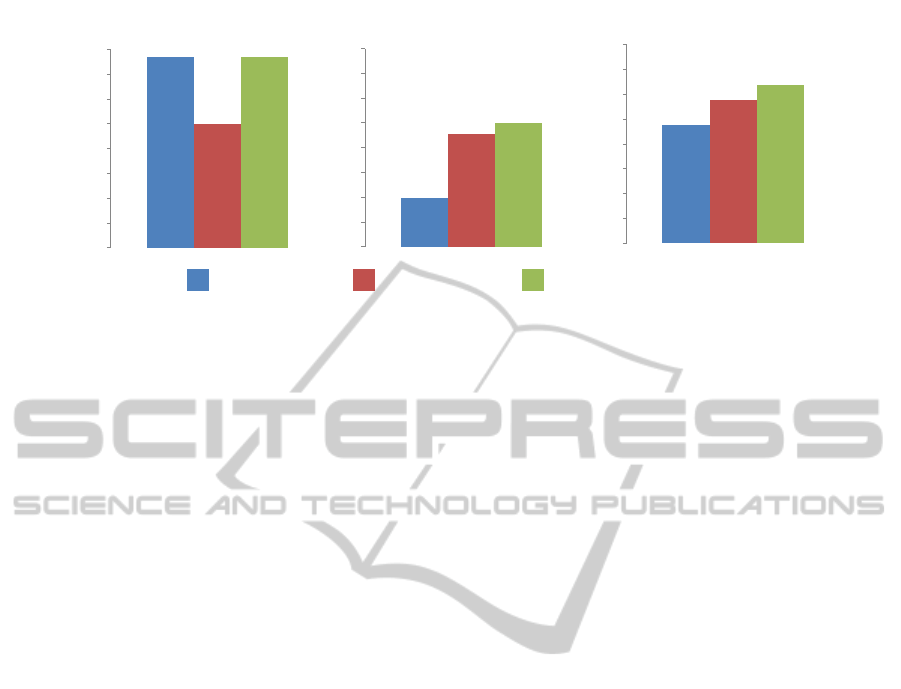

Figure 4: Comparison between 2D face recognition (LBP) with greyscale images, 3D face recognition (DLBP) with range

images, and bi-modal recognition with a late-fusion, for 3 collections.

REFERENCES

Abate, A. F., Nappi, M., Riccio, D., and Sabatino, G.

(2007). 2D and 3D face recognition: A survey. Pat-

tern Recognition Letters, 28(14):1885 – 1906.

Aissaoui, A., Martinet, J., and Djeraba, C. (2014). Dlbp:

A novel descriptor for depth image based face recog-

nition. In Proceedings of the 21th IEEE international

conference on Image processing, pages 298–302.

Bowyer, K. W., Chang, K., and Flynn, P. (2006). A survey

of approaches and challenges in 3D and multi-modal

3D + 2D face recognition. Computer Vision and Image

Understanding, 101(1):1–15.

Byun, H. and Lee, S.-W. (2002). Applications of sup-

port vector machines for pattern recognition: A sur-

vey. In Proceedings of the First International Work-

shop on Pattern Recognition with Support Vector Ma-

chines, SVM ’02, pages 213–236, London, UK, UK.

Springer-Verlag.

Chang, K., Bowyer, K., and Flynn, P. (2003). Face recog-

nition using 2D and 3D facial data. In ACM Work-

shop on Multimodal User Authentication, pages 25–

32. Citeseer.

Fan, K.-C. and Hung, T.-Y. (2014). A novel local pattern

descriptor – local vector pattern in high-order deriva-

tive space for face recognition. IEEE Transactions on

Image Processing, 23(7):2877–2891.

Gupta, S., Castleman, K., Markey, M., and Bovik, A.

(2010). Texas 3D face recognition database. In Image

Analysis and Interpretation. IEEE Southwest Sympo-

sium on, pages 97–100. IEEE.

Huang, D., Ardabilian, M., Wang, Y., and Chen, L. (2009).

Asymmetric 3D/2D face recognition based on lbp fa-

cial representation and canonical correlation analysis.

In Proceedings of the 16th IEEE international con-

ference on Image processing, ICIP’09, pages 3289–

3292, Piscataway, NJ, USA. IEEE Press.

Huang, D., Shan, C., Ardabilian, M., Wang, Y., and Chen,

L. (2011). Local binary patterns and its application

to facial image analysis: A survey. IEEE Transactions

on Systems, Man, and Cybernetics, Part C, 41(6):765–

781.

Huang, Y., Wang, Y., and Tan, T. (2006). Combining statis-

tics of geometrical and correlative features for 3D face

recognition. In Proceedings of the British Machine Vi-

sion Conference, pages 879–888.

Hung, T.-Y. and Fan, K.-C. (2014). Local vector pattern in

high-order derivative space for face recognition. In

Proceedings of the 21th IEEE international confer-

ence on Image processing, pages 239–3243.

Husken, M., Brauckmann, M., Gehlen, S., and Von der

Malsburg, C. (2005). Strategies and beneﬁts of fusion

of 2D and 3D face recognition. In Computer Vision

and Pattern Recognition-Workshops. IEEE Computer

Society Conference on, pages 174–174. IEEE.

Jahanbin, S., Choi, H., and Bovik, A. (2011). Passive mul-

timodal 2-d+3-d face recognition using gabor features

and landmark distances. Information Forensics and

Security, IEEE Transactions on, 6(4):1287–1304.

Mantecn, T., del Blanco, C., Jaureguizar, F., and Garca, N.

(2014). Dlbp: A novel descriptor for depth image

based face recognition. In Proceedings of the 21th

IEEE international conference on Image processing,

pages 293–297.

Ojala, T., Pietik¨ainen, M., and M¨aenp¨a¨a, T. (2002). Mul-

tiresolution gray-scale and rotation invariant texture

classiﬁcation with local binary patterns. IEEE Trans-

actions on Pattern Analysis and Machine Intelli-

gence., 24(7):971–987.

Ojala, T., Valkealahti, K., Oja, E., and Pietikinen, M.

(2001). Texture discrimination with multidimensional

distributions of signed gray-level differences. Pattern

Recognition, 34(3):727 – 739.

Phillips, P. J., Flynn, P. J., Scruggs, T., Bowyer, K. W.,

Chang, J., Hoffman, K., Marques, J., Min, J., and

Worek, W. (2005). Overview of the face recogni-

tion grand challenge. In Computer vision and pat-

tern recognition. IEEE computer society conference

on, volume 1, pages 947–954. IEEE.

Phillips, P. J., Moon, H., Rizvi, S. A., and Rauss, P. J.

(2000). The feret evaluation methodology for face-

Bi-modalFaceRecognition-Howcombining2Dand3DCluesCanIncreasethePrecision

563

recognition algorithms. IEEE Transactions on Pat-

tern Analysis and Machine Intelligence, 22(10):1090–

1104.

Savran, A., Aly¨uz, N., Dibeklio˘glu, H., C¸eliktutan, O.,

G¨okberk, B., Sankur, B., and Akarun, L. (2008).

Bosphorus database for 3D face analysis. In Biomet-

rics and Identity Management, pages 47–56. Springer.

Xu, C., Li, S., Tan, T., and Quan, L. (2009). Automatic

3D face recognition from depth and intensity gabor

features. Pattern Recognition, 42(9):1895 – 1905.

Xu, L., Krzyzak, A., and Suen, C. (1992). Methods of

combining multiple classiﬁers and their applications

to handwriting recognition. Systems, Man and Cyber-

netics, IEEE Transactions on, 22(3):418–435.

Zhang, B., Gao, Y., Zhao, S., and Liu, J. (2010). Local

derivative pattern versus local binary pattern: Face

recognition with high-order local pattern descriptor.

Trans. Img. Proc., 19(2):533–544.

Zhao, W., Chellappa, R., Phillips, P. J., and Rosenfeld, A.

(2003). Face recognition: A literature survey. Acm

Computing Surveys, 35(4):399–458.

VISAPP2015-InternationalConferenceonComputerVisionTheoryandApplications

564
