Querying Open Street Map with XQuery

Jes

us M. Almendros-Jim

enez and Antonio Becerra-Ter

Information Systems Group, University of Almer

ıa, 04120 Almer

ıa, Spain

{jalmen, abecerra}@ual.es

Keywords:

Open Street Map, Urban Maps, Spatial Databases, XQuery, XML.

Abstract:

In this paper we present a library for querying Open Street Map (OSM) with XQuery. This library is based

on the well-known spatial operators deﬁned by Clementini and Egenhofer, providing a repertoire of XQuery

functions which encapsulate the search on the XML document representing a layer of OSM, and make the

deﬁnition of queries on top of OSM layers easy. In essence, the library provides a repertoire of OSM Operators

for points and lines which, in combination with Higher Order facilities of XQuery, facilitates the composition

of queries and the deﬁnition of keyword based search geo-localized queries. OSM data are indexed by an

R-tree structure, in which points and lines are enclosed by Minimum Bounding Rectangles (MBRs), in order

to get shorter answer time.

1 INTRODUCTION

Open Street Map (OSM) (Haklay and Weber, 2008) is

a collaborative project to create a free editable map of

the world. It is supported by the non-proﬁt organiza-

tion called OSM Foundation. OSM data can be visu-

alized from the OSM web site

, but also many appli-

cations have been built for the handling of maps (see

http://wiki.openstreetmap.org/wiki/Software for a list

of tools). OSM can be represented with many for-

mats; in fact, there are many tools available in order

to export OSM to XML, KML, SVG, etc.

With the increasing interest in OSM, many tools

have been devoloped. However, their main taks are

edition, export, rendering, conversion, analysis, rout-

ing and navigation, and little attention focuses on

querying. Querying urban maps can be seen from

many points of view. One of the most popular query-

ing mechanism is the so-called routing or navigation;

for instance, the most suitable route to go from one

point to another of the city. In this case, the input of

the query are two points (or streets) and the output is

the sequence of instructions needed to reach the des-

tination.

Nevertheless, querying an urban map can also be

interesting for city sightseeing. In this case, places

of interests around a given geo-localized point are the

major goal. The input of the query are a point and

a city area, close to the given point, and the output

is a set of points. The tourist would also like to query

http://www.openstreetmap.org

streets close to a given street when looking for a hotel,

querying parking areas, restaurants, high ways to go

out, etc. In such queries, the input is a given point (or

street) and the output could be a number of streets,

parking areas, restaurants, high ways, etc.

Most tools are able to query OSM with very sim-

ple commands: searching by tag and relation names.

This is the case of JOSM

and Xapiviewer

. The OSM

Extended API or XAPI

is an extended API that of-

fers search queries in OSM with a XPath ﬂavoring.

The Overpass API (or OSM3S)

is an extension to se-

lect certain parts of the OSM layer. Both XAPI and

OSM3S act as a database over the web: the client

sends a query to the API and gets back the dataset

that corresponds to the query. OSM3S has a proper

query language which can be encoded by an XML

template. OSM3S offers more sophisticated queries

than XAPI, but it is equipped with a rather limited

query language.

XQuery (Robie et al., 2014; Bamford et al., 2009)

is a programming language proposed by the W3C

as standard for handling XML documents. It is a

functional language in which for-let-orderby-where-

return (FLOWR) expressions are able to traverse

XML documents. It can express Boolean conditions,

and provides a format to output documents. XQuery

has a sublanguage, called XPath (Berglund et al.,

https://josm.openstreetmap.de/

http://osm.dumoulin63.net/xapiviewer/

http://wiki.openstreetmap.org/wiki/Xapi

http://overpass-api.de/

Almendros-Jiménez J. and Becerra-Terón A..

Querying Open Street Map with XQuery.

DOI: 10.5220/0005365500610071

In Proceedings of the 1st International Conference on Geographical Information Systems Theory, Applications and Management (GISTAM-2015), pages

61-71

ISBN: 978-989-758-099-4

 2015 SCITEPRESS (Science and Technology Publications, Lda.)

2010), whose role is to address nodes on the XML

tree. XPath is properly a query language equipped

with Boolean conditions and many path-based opera-

tors. XQuery adds expressivity to XPath by providing

mechanisms to join several XML documents.

In this paper, we present a library for query-

ing OSM with XQuery. This library is based on

the well-known spatial operators deﬁned by Clemen-

tini (Clementini and Di Felice, 2000) and Egenhofer

(Egenhofer, 1994), providing a repertoire of XQuery

functions which encapsulate the search on the XML

document representing a layer of OSM, and making

the deﬁnition of queries on top of OSM layers easy.

Basically, the library provides a repertoire of OSM

Operators, for points and lines which, in combina-

tion with Higher Order facilities of XQuery, makes

the Composition of Queries and the deﬁnition of Key-

word based search Geo-Localized queries easy. OSM

data are indexed by an R-tree structure (Hadjielefthe-

riou et al., 2008), where lines and points are enclosed

by Minimum Bounding Rectangles (MBRs) in order to

get shorter answer time.

Our work focuses on the retrieval of information

and querying from urban maps. Although navigation

is a interesting type of query, we are more interested

in querying the elements of a urban map in a cer-

tain area or layer and taking as input a given point

or street. Queries about buildings, parkings, lakes,

etc. is considered as future work. The advantages of

our approach are that our XQuery library makes the

deﬁnition of queries on top of OSM layers easier. A

repertoire of OSM spatial operators are implemented

in terms of the spatial operators of Clementini and

Egenhofer. Such repertoire of operators is speciﬁc for

OSM maps, that is, it handles the particular nature of

the XML representation of OSM. It includes, for in-

stance, the operator isEndingTo for streets (i.e. ways),

which returns true whenever a street ends (without

crossing) to another one. Another operator, isCon-

tinuationOf also for streets, returns true whenever a

street is the continuation of another one. Both are par-

ticular cases of Clementini’s operator touches. In ad-

dition, our proposal includes a batch of emphCoordi-

nate based XQuery functions, allowing the expression

of interesting Geo-positioning queries. Higher order

functions in XQuery

allow deﬁnitions of composi-

tion of queries and keyword based search queries in a

easy way. Queries are expressed in terms of ﬁltering,

composition, set-based operators (union, intersection

and difference) as well as mapping.

For instance, a typical query in our approach

is something like: “Retrieve the schools close to

http://www.w3.org/TR/xpath-functions-30/#higher-

order-functions

a street, wherein “Calzada de Castro” street ends”

which combines proximity to a street, keywords (i.e.,

school), as well as the operator (i.e., isEndingTo). It

can be expressed as follows:

let $waysAllEndingTo :=

fn:filter(

rt:getLayerByName(.,"Calle Calzada de Castro"),

osm:isEndingTo(osm:getOneWay(., "Calle Calzada de Castro"),?))

return

fn:filter(

fn:for-each($waysAllEndingTo, rt:getLayerByOneWay(.,?)),

osm:searchTags(?,"school"))

which uses higher-order functions (i.e., ﬁlter and for-

each) of XQuery.

A good performance of query processing is en-

sured due to the use of indexing for OSM data. An

R-tree structure implemented as an XML document

is used to index OSM nodes and ways enclosed by

MBRs. Using the R-tree structure, we are able to re-

trieve the elements (i.e., points and streets) close to a

given point or street, and thus, to process in reason-

able time, queries focused on the vicinity of a point

or street even for large city maps. Thus, for Geo-

localized Queries, we can get better answer times.

We have implemented our library with the BaseX

XQuery processor (Grun, 2015). The implementation

is based on the transformation of geometric shapes of

OSM into the corresponding GML data. Then GML

data are handled by the Java Topology Suite (JTS)

(Shekhar and Xiong, 2008), an open source API that

provides a spatial object model and a set of spatial

operators. JTS is available for most of XQuery pro-

cessors due to the XQuery Java Binding mechanism.

This is the case of Exist (Meier, 2003) and Saxon

(Kay, 2008) processors as well as BaseX. Thus, the

library is portable to other XQuery implementations.

We have also tested our approach by using the JOSM

tool (Haklay and Weber, 2008), that works with the

XML representation of OSM data, customized with

an style to highlight points and streets obtained from

the queries. We have evaluated our library with

datasets of several sizes, for which benchmarks show

that shorter answer times are obtained even for large

city maps. Finally, the developed library is available

from http://indalog.ual.es/osm. The examples shown

in this paper can also be downloaded here.

The rest of this article is organized as follows.

Section 2 will present the basic elements of Open

Street Map. Section 3 will deﬁne the XQuery li-

brary. Section 4 will show examples of queries and

give benchmarks for several datasets. Section 5 will

compare with related work and ﬁnally, Section 6 will

conclude and present future work.

GISTAM2015-1stInternationalConferenceonGeographicalInformationSystemsTheory,ApplicationsandManagement

2 OPEN STREET MAP

OpenStreetMap uses a topological data structure

which includes the following core elements: (1)

Nodes which are points with a geographic position,

stored as coordinates (pairs of a latitude and a longi-

tude) according to WGS84. They are used in ways,

but also to describe map features without a size like

points of interest or mountain peaks. (2) Ways are or-

dered lists of nodes, representing a poly-line, or pos-

sibly a polygon if they form a closed loop. They are

used in streets and rivers as well as areas: forests,

parks, parkings and lakes. (3) Relations are ordered

lists nodes, ways and relations. Relations are used for

representing the relationship of existing node points

and ways. (4) Tags are key-value pairs (both arbitrary

strings). They are used to store metadata about the

map objects (such as their type, their name and their

physical properties). Tags are attached to a node, a

way, a relation, or to a member of a relation.

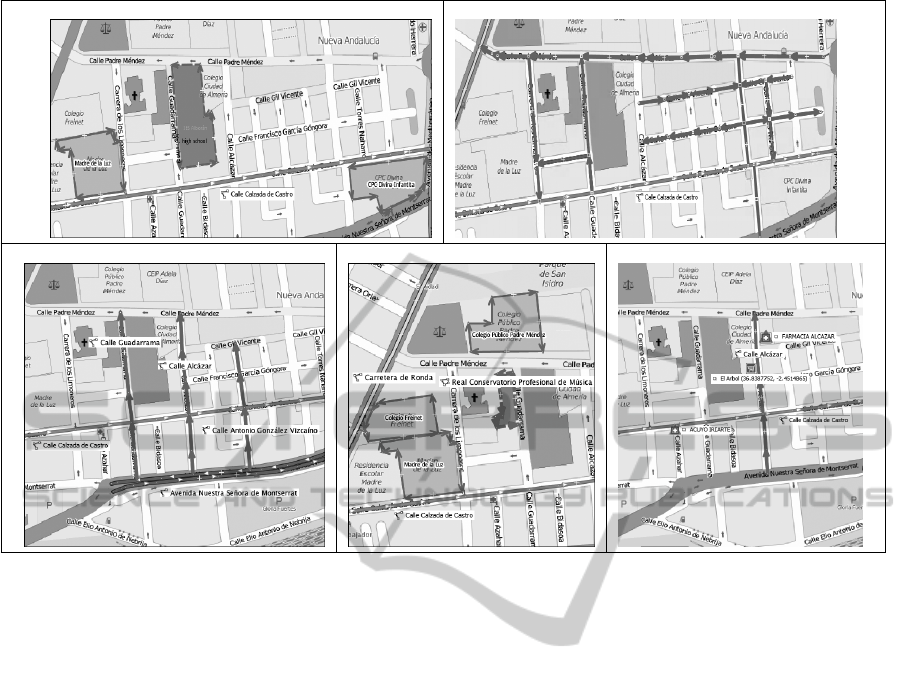

As an example of OSM, Figure 1 shows the visu-

alization with JOSM of a piece of the Almer

ıa (Spain)

city map. In order to represent such a map, OSM uses

XML labels: node, relation and way, and each label

can have several attributes; for instance, node has lat

and lon, among others, for representing latitude and

longitude of the node. A node, representing a point

of interest of the city, can have tags for adding infor-

mation about the point, using attribute pairs key (k)

and value (v) with this end. For instance, the museum

“Museo Arqueologico” of Almer

ıa city is represented

as follows:

</node>

The main element of the OSM is the way that

serves not only to represent streets but also buildings,

parkings, etc. Ways are described by a sequence of

node references, called nd, which link ways to nodes,

and tags as follows:

<way>

</way>

When the way is related to a building, park, etc,

speciﬁc tags are used inside the way description, for

instance:

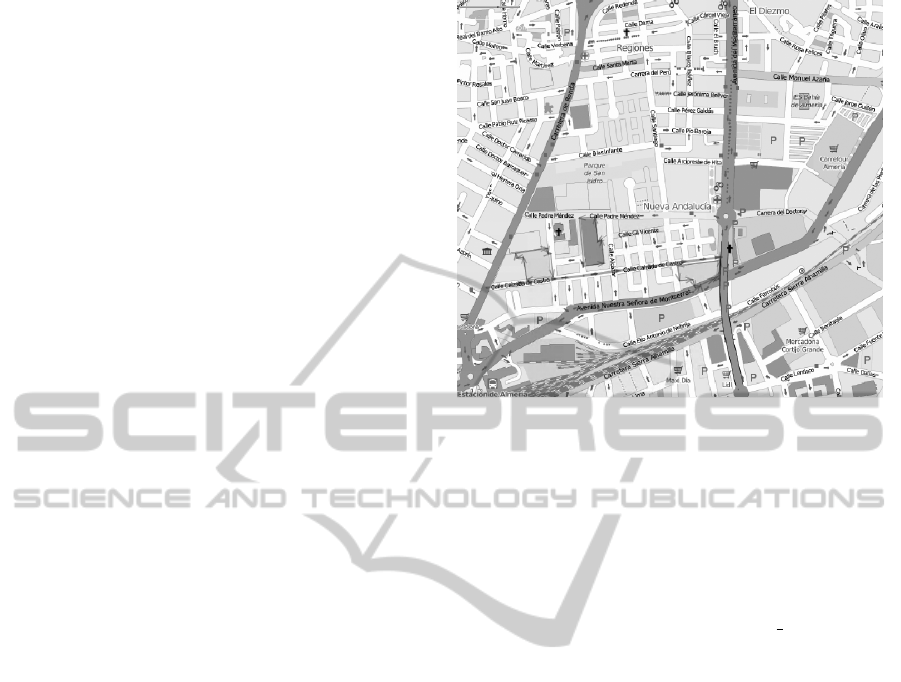

Figure 1: (Spain) Almer

ıa City Map.

</way>

In spite of the simplicity of the XML represen-

tation of OSM, many features in a OSM layer (see

http://wiki.openstreetmap.org/wiki/Map Features for

a list) can be described. Finally, relations are used to

relate elements of the map, for instance, bus routes:

</relation>

3 XQuery LIBRARY FOR OSM

Our main goal is to provide a repertoire of OSM Op-

erators, implemented as a XQuery library which, in

combination with Higher Order facilities of XQuery,

enables the expression of spatial queries over OSM

maps easily. Moreover, we have to ensure shorter an-

QueryingOpenStreetMapwithXQuery

swer time for large maps. An R-tree structure to in-

dex OSM maps has been implemented, and suitable

XQuery functions to retrieve the layer of objects close

to a given node and way have been developed.

Next, we will show the elements of the XQuery

library which includes:

(1) OSM Indexing to generate an R-tree and retrieve

elements from it,

(2) Transformation Operators to transform OSM ge-

ometries into GML ones,

(3) OSM Spatial Operators to check spatial relations

over OSM geometries, that is, ways and nodes

representing streets and points, respectively,

(4) Higher Order functions to facilitate the composi-

tion of queries and keyword based search queries.

3.1 OSM Indexing

In order to handle large city maps, in which the layer

can include many objects, an R-tree structure to in-

dex objects is used. The R-tree structure is based, as

usual, on MBRs to hierarchically organize the content

of an OSM map. Moreover, they are also used to en-

close the nodes and ways of OSM in leaves of such

structure. Figure 2 shows a visual representation of

the R-tree of a OSM layer for Almer

ıa (Spain) city

map. These ways have been highlighted in different

colors (red and green) and MBRs are represented by

light green rectangles.

The R-tree structure has been implemented as an

XML document. That is, the tag based structure of

XML is used for representing the R-tree with two

main tags called node and leaf. A node tag represents

the MBR enclosing the children nodes, while leaf tag

contains the MBR of OSM ways and nodes. The tag

mbr is used to represent MBRs. For instance, the R-

tree of the OSM map of Figure 1 is represented in

XML as follows:

<node x="-2.4574724" y="36.8305714"

z="-2.4473768" t="36.849285">

<node x="-2.4565026" y="36.8319462"

z="-2.4476476" t="36.849285">

<node x="-2.4557511" y="36.8319462"

z="-2.4491401" t="36.8414807">

<leaf x="-2.4557511" y="36.8347249"

z="-2.4522051" t="36.8396123">

<mbr x="-2.4533564" y="36.8383646"

z="-2.452359" t="36.8384662">

....

</way>

</mbr>

....

The root element of the XML document is the root

node of the R-tree, and the children can be also nodes

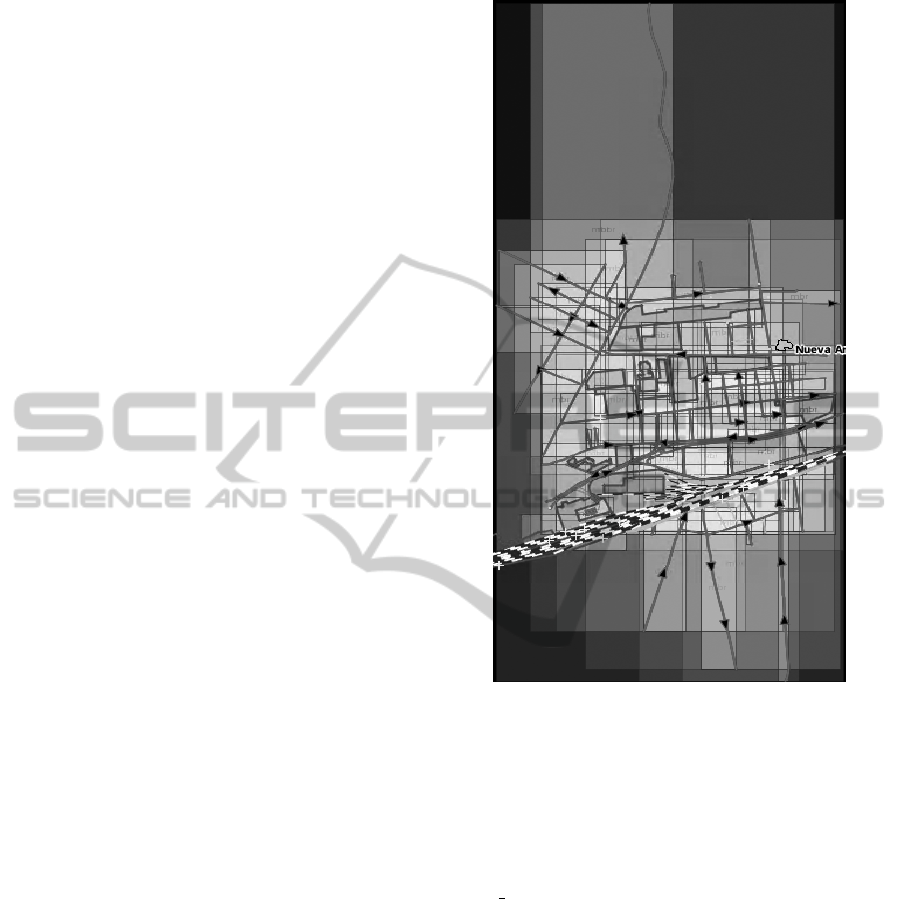

Figure 2: R-tree based indexing of OSM Maps.

and, in particular, leaves. x, y, z and t attributes of

nodes are the left (x, y) and right corners (z, t) of the

MBRs. MBRs are also represented by left and right

corners.

We have implemented in XQuery a set of func-

tions to handle R-trees for OSM. The function

load file generates a R-tree from an OSM layer.

The function getLayerbyName obtains, given the

name of a node or way, the nodes or ways of the OSM

layer whose MBR overlaps the MBRs of the given

node or way. In case of points, overlapping means in-

clusion. In other words, getLayerbyName obtains the

elements that are close to the given node or way. Fi-

nally, each node and way in isolation can be retrieved

by means of getOneWay and getNode, respectively.

Our proposed query language uses

getLayerbyName as basis, in the sense that,

queries have to be related to a certain area of interest,

given by the name of a point (park, pharmacy, etc.,)

or by the name of a street. In other words, our

query language is useful for Geo-localized queries.

Once the layer of the area of interest is retrieved,

GISTAM2015-1stInternationalConferenceonGeographicalInformationSystemsTheory,ApplicationsandManagement

Name Deﬁnition

Equals(a,b) Their interiors intersect and no part of the interior or boundary of one geometry

intersects the exterior of the other

Disjoint(a,b) They have no point in common

Touches(a,b) They have at least one boundary point in common, but no interior points

Contains(a,b) No points of b lie in the exterior of a, and at least one point of the interior of b

lies in the interior of a

Covers(a,b) Every point of b is a point of (the interior of) a

Crosses(a,b) They have some but not all interior points in common (and the dimension of the

intersection is less than at least one of them)

Overlaps(a,b) They have some but not all points in common, they have the same dimension,

and the intersection of the interiors of the two geometries has the same dimen-

sion as the geometries themselves

Figure 3: Clementini Spatial Operators.

the repertoire of OSM operators in combination with

Higher Order functions can be applied to produce

complex queries. The answer of a query will be an

OSM layer including points and streets of the area of

interest.

3.2 Transformation Operators

In order to handle OSM entities (i.e., nodes and

ways), OSM geometries of these entities have to

be transformed into GML data. Once transformed,

the GML data will be handled by the JTS li-

brary based on Clementini’s operators. In our case,

functions osm2GmlLine and osm2GmlPoint have

been deﬁned, in order to transform OSM ways and

nodes into GML multi-lines and points, respectively.

osm2GmlPoint is deﬁned as follows:

declare function osm_gml:_osm2GmlPoint($node as node()){

<gml:Point>

<gml:coordinates>

{

let $lat := $node/@lat, $lon := $node/@lon

return (concat(concat(data($lat),’,’),data($lon)))

}

</gml:coordinates>

</gml:Point>};

3.3 OSM Spatial Operators

A repertoire of OSM Operators suitable for OSM city

maps has been designed. That repertoire is speciﬁc

for OSM maps which means that it handles the partic-

ular nature of the XML representation of OSM whose

basis is the well-known spatial operator proposal de-

ﬁned by Clementini (Clementini and Di Felice, 2000).

and represented in Figure 3

. We can see in Figures 4

and 5 our proposal of (Boolean) OSM Operators for

Clementini has also deﬁned the logic negation of some

operators, that is, Intersects (for Disjoint), Within (for Con-

tains) and CoveredBy (for Covers).

querying maps. We can consider two kinds of opera-

tors:

(a) Coordinate based OSM Operators, shown in Fig-

ure 4;

(b) Clementini based OSM Operators, shown in Fig-

ure 5.

They are designed to cover most of urban queries in-

volving points (i.e., nodes) and streets (i.e., ways).

Usually, we would like to express queries related to

geo-positioning, i.e., streets at north, points at east,

and so on; the street in which a given point is located;

if two points are located in the same street; whether

two streets are crossing in any point or not; whether a

street ends to another one, and ﬁnally, whether a street

is a continuation of another one.

Next, we will show the implementation of our

OSM Operators. For instance, the coordinate based

operator furtherNorthPoints, which is true whenever

the ﬁrst point is further north than the second point, is

deﬁned as follows:

declare function osm:furtherNorthPoints($node1 as node(),

$node2 as node())

{

let $lat1 := $node1/@lat, $lat2 := $node2/@lat

return

(: Case 1: both nodes in positive Ecuador hemisphere :)

if ($lat1 > 0 and $lat2 > 0) then

if (($lat2 - $lat1) > 0) then true()

else false()

else

(: Case 2: both nodes in negative Ecuador hemisphere :)

if ($lat1 < 0 and $lat2 < 0) then

if (((-$lat2) - (-$lat1)) < 0) then true()

else false()

else

(: Case 3: First node in positive Ecuador hemisphere,

Second node in negative Ecuador hemisphere:)

if ($lat1 > 0 and $lat2 < 0) then false()

(: Case 4: First node in negative Ecuador hemisphere,

Second node in positive Ecuador hemisphere :)

else true()

};

QueryingOpenStreetMapwithXQuery

Name Deﬁnition Spatial Op.

furtherNorthPoints(p1,p2) Returns true when-

ever p1 is further

north than p2

Using latitudes

by consider-

ing points in

north and south

hemispheres

furtherSouthPoints(p1,p2) Returns true when-

ever p1 is further

south than p2

furtherNorthPoints

negation

furtherEastPoints(p1,p2) Returns true when-

ever p1 is further

east than p2

Using latitudes

by consider-

ing nodes in

west and east

hemispheres

furtherWestPoints(p1,p2) Returns true when-

ever p1 is further

west than p2

furtherEastPoints

negation

furtherNorthWays(s1,s2) Returns true when-

ever all points of

s1 are further north

than all points of s2

Using further-

NorthPoints

furtherSouthWays(s1,s2) Returns true when-

ever all points of

s1 are further south

than all points of s2

furtherNorthWays

negation

furtherEastWays(s1,s2) Returns true when-

ever all points of s1

are further east than

all points of s2

Using furtherE-

astPoints

furtherWestWays(s1,s2) Returns true when-

ever all points of

s1 are further west

than all points of s2

furtherEastWays

negation

Figure 4: Coordinate based OSM Operators.

Name Deﬁnition Clementini’s Op.

inWay(p,s) Returns true when-

ever p (point) is in s

(way)

Contains

inSameWay(p1,p2) Returns true when-

ever p1 (point) and

p2 (point) are in the

same street

Equals

isCrossing(s1,s2) Returns true when-

ever s1 (way)

crosses s2 (way)

Crosses

isNotCrossing(s1,s2) Returns true when-

ever s1 does not

cross s2

Disjoint

isEndingTo(s1,s2) Returns true when-

ever s1 ends to s2

Touches (neither

initial nor ﬁnal

point)

isContinuationOf(s1,s2) Returns true when-

ever s2 is a continu-

ation of s1

Touches (either

initial or ﬁnal

point)

Figure 5: Clementini based OSM Operators.

The Clementini based operator inWay, which

checks whether a point is located in a street, is de-

ﬁned, using Clementini’s operator contains, as fol-

lows:

declare function osm:inWay($point as node(), $way as node())

{

let $point := osm_gml:_osm2GmlPoint($point),

$line := osm_gml:_osm2GmlLine($way)

return geo:contains($line,$point)

};

The Clementini based operator inSameWay, which

returns true whether two points are located in the

same street, uses the auxiliary function WaysOfaPoint

to retrieve the street (or streets) in which the points

are located. inSameWay uses the Clementini’s opera-

tor equals, and is deﬁned as follows:

declare function osm:inSameWay($node1 as node(), $node2

as node(), $document as node()*)

{

let

$way1 := osm:WaysOfaPoint($node1,$document),

$way2 := osm:WaysOfaPoint($node2,$document)

return

some $x in $way1 satisfies

(some $y in $way2 satisfies

(let $line1 := osm_gml:_osm2GmlLine($x),

$line2 := osm_gml:_osm2GmlLine($y)

return geo:equals($line1,$line2)))

};

Now, the Clementini based operator isCrossing,

which checks if two streets are crossing, is deﬁned,

by using Clementini’s operator crosses, as follows:

declare function osm:isCrossing($way1 as node(),

$way2 as node()) {

osm:booleanQuery($way1,$way2,"geo:crosses")

};

Here, a Boolean query pattern is used, called

booleanQuery, which makes the deﬁnition of the

Clementini based OSM operators easier, and is de-

ﬁned as follows:

declare function osm:booleanQuery($way1 as node(),

$way2 as node(), $functionName as xs:string)

{

let $mutliLineString1 := osm_gml:_osm2GmlLine($way1),

$multiLineString2 := osm_gml:_osm2GmlLine($way2)

let $spatialFunction :=

fn:function-lookup(xs:QName($functionName),2)

return $spatialFunction($mutliLineString1,$multiLineString2)

};

This pattern takes as parameters two streets and a

functionName. functionName is a Clementini’s op-

erator from JTS, applied to the above streets. The

Boolean query pattern is also used for the implemen-

tation of isNotCrossing. The cases isEndingTo

and isContinuationOf are special cases of OSM

operators that are not direct instances of the Boolean

query pattern. They can be derived from Clementini’s

spatial operators. These functions use Clementini’s

operator touches, as well as start and end point of the

street in order to check the ending or continuation of

the street. For instance, isEndingTo is deﬁned as fol-

lows:

declare function osm:isEndingTo($way1 as node(),

$way2 as node())

{

if (osm:booleanQuery($way1,$way2,"geo:touches"))

then

GISTAM2015-1stInternationalConferenceonGeographicalInformationSystemsTheory,ApplicationsandManagement

Name Semantics

fn:for-each(s,f) Applies the function f to every element

of the sequence s

fn:ﬁlter(s,p) Selects the elements of the sequence s for

which p is true

fn:for-each-pair(s1,s2,f) Zips the elements of s1 and s2 with the

function f

fn:fold-left(s,e,f) Folds (left) the sequence s with f starting

from e

fn:fold-right(s,e,f) Folds (right) the sequence s with f start-

ing from e

Figure 6: Higher order functions of XQuery.

let $mutliLineString1 := osm_gml:_osm2GmlLine($way1),

$multiLineString2 := osm_gml:_osm2GmlLine($way2),

$intersection_point :=

geo:intersection($mutliLineString1,$multiLineString2),

$start_point := geo:start-point($mutliLineString1/*),

$end_point := geo:end-point($mutliLineString1/*)

return

(geo:equals($intersection_point/*,$start_point/*) or

geo:equals($intersection_point/*,$end_point/*))

else false()

};

3.4 Higher Order XQuery Facilities

XQuery 3.0 is equipped with higher order facilities.

Basically, XQuery provides a library of higher or-

der functions, that is, a repertoire of functions hav-

ing themselves functions as arguments. It is possible

due to the use of XQuery type function(item())

as item()*. Figure 6 shows the set of higher order

functions available in XQuery, which adds new func-

tionality to our library in a double sense:

(a) Allowing query composition by combining higher

order functions and OSM operators, and

(b) Allowing keyword based search queries by com-

bining higher order functions and keyword based

search operators

For instance, with respect to (a), the higher order

function filter combined with the OSM spatial op-

erator isCrossing can be used, in order to get all the

streets crossing a given street (for instance, “Calzada

de Castro” street in Almer

ıa city) as follows. Let us

remark the natural interpretation and simplicity of this

query.

fn:filter(rt:getLayerByName(.,"Calle Calzada de Castro"),

osm:isCrossing(?, osm:getOneWay(., "Calle Calzada de Castro")))

Here, getLayerByName obtains all the streets

close to “Calle Calzada de Castro” street

from

the indexed OSM layer, and getOneWay retrieves

“Calzada de Castro” street (i.e., the OSM way rep-

resenting “Calzada de Castro”). The symbol “?” in-

dicates the isCrossing argument to be ﬁltered.

“Calle” means street in spanish.

With respect to (b), a new repertoire of func-

tions has been deﬁned for adding (addTag), removing

(removeTag), replacing (replaceTag) and retrieving

(searchOneTag and searchTags) keywords of OSM

maps. For instance, the function searchTags, which

searches a set of keywords in a way, is deﬁned as fol-

lows:

declare function osm:searchTags($node as node(),

$collectionValueToSearch as xs:string*)

{

some $value in

(distinct-values(

for $valueToSearch in $collectionValueToSearch

return osm:searchOneTag($node,$valueToSearch)))

satisfies ($value = true()))

};

For instance, searchTags in combination with

the higher order function filter can be used to re-

trieve all the schools close to “Calzada de Castro”

street from the indexed OSM map. Let us highlight

that we work with geo-localized queries; i.e., key-

word search is restricted to a geo-localized point or

street. In this case the search is restricted to “Calzada

de Castro” street.

fn:filter(rt:getLayerByName(.,"Calle Calzada de Castro"),

osm:searchTags(?,"school"))

4 EXAMPLES

In this section, we will show some examples of the

use of our library in order to query OSM map data.

In addition, we will also provide benchmarks from

datasets of several sizes. Assuming the map of Figure

1 (i.e. Almer

ıa city), we can consider the following

batch of queries whose results are shown in Figure 7.

Example 1. Retrieve the schools and high schools

close to “Calzada de Castro” street:

fn:filter(

rt:getLayerByName(.,"Calle Calzada de Castro"),

osm:searchTags(?,("high school", "school")))

In this query, the higher order function filter in

combination of the function searchTags is used. It

enables the retrieval of the schools and high schools

from the layer; i.e. to search for the keywords school

and high school from the tags included in the layer

objects

. The R-tree has been previously loaded in

memory of the XQuery interpreter, and the function

getLayerByName retrieves from the R-tree, the nodes

Although here we cannot work with spatial operators

for buildings, we are still able to formulate keyword based

search queries.

QueryingOpenStreetMapwithXQuery

Example 1 Example 5

Example 2 Example 3 Example 4

Figure 7: Results for Examples.

and ways close to “Calzada de Castro” street (i.e.,

those objects whose MBR’s overlap with the MBR of

“Calzada de Castro” street).

Example 2. Retrieve the streets crossing “Calzada de

Castro” and ending to “Avenida Montserrat” street:

let $waysCrossing :=

fn:filter(

rt:getLayerByName(.,"Calle Calzada de Castro"),

osm:isCrossing(?, osm:getOneWay(., "Calle Calzada de Castro")))

return

fn:filter($waysCrossing,

osm:isEndingTo(?, osm:getOneWay(., "Avenida Montserrat")))

Here, the function filter has been used in

combination with the OSM operators isCrossing

and isEndingTo. In this query, ﬁrst of all the streets

crossing “Calzada de Castro” street are ﬁltered,

and then, from these streets, the streets ending to

“Avenida de Montserrat” street are ﬁltered.

Example 3. Retrieve the schools close to a street,

wherein “Calzada de Castro” street ends.

let $waysAllEndingTo :=

fn:filter(

rt:getLayerByName(.,"Calle Calzada de Castro"),

osm:isEndingTo(osm:getOneWay(., "Calle Calzada de Castro"),?))

return

fn:filter(

fn:for-each($waysAllEndingTo, rt:getLayerByOneWay(.,?)),

osm:searchTags(?,"school"))

Here, we can see how both kinds of queries can

be combined: on the one hand, the OSM operator

isEndingTo is used to get the streets wherein

“Calzada de Castro” street ends, and, on the other

hand, the keyword school from the nodes occurring

in the layer of each street is searched. filter is used

twice.

Example 4. Retrieve the streets close to “Calzada de

Castro” street, in which there is a supermarket “El

Arbol” and a pharmacy (or chemist’s).

osm:intersectionQuery(

osm:unionQuery(

rt:getLayerByName(.,"El Arbol"),

rt:getLayerByName(.,"pharmacy")),

rt:getLayerByName(.,"Calle Calzada de Castro"))

Here, we can see an additional feature of

our library; i.e. the handling of set-based op-

erators, such as union, intersection and

difference of sequences. Functions unionQuery,

intersectionQuery and exceptQuery of the

library can be used to produce more complex queries.

In this case, the intersection of streets close to

“Calzada de Castro” street with a supermarket

(named “El Arbol”) and a pharmacy is requested.

Example 5. Retrieve the streets to the north of

“Calzada de Castro” street:

fn:filter(

GISTAM2015-1stInternationalConferenceonGeographicalInformationSystemsTheory,ApplicationsandManagement

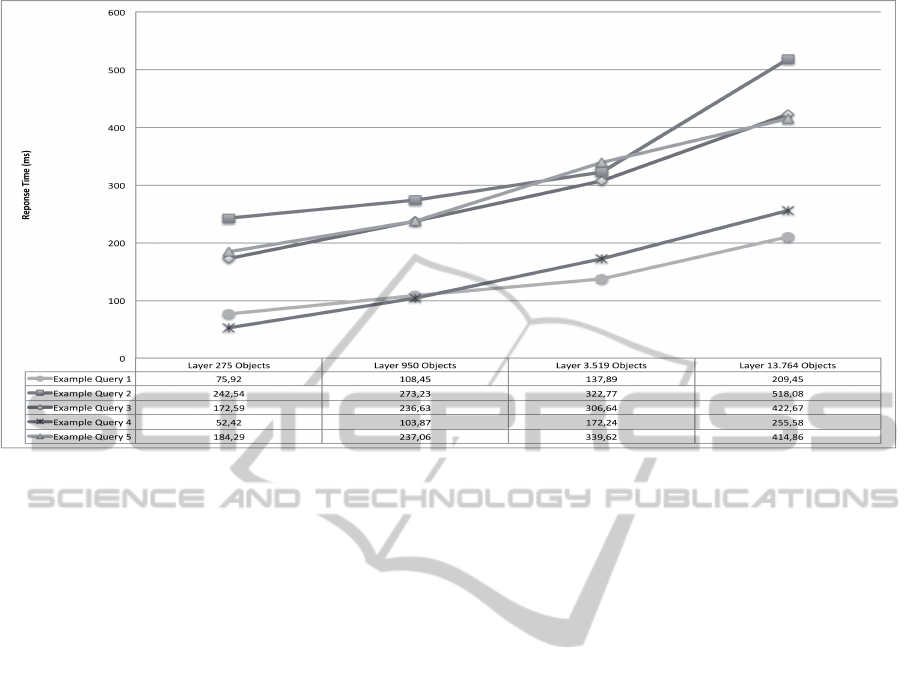

Figure 8: Benchmarking of examples for datasets of different sizes.

rt:getLayerByName(.,"Calle Calzada de Castro"),

osm:furtherNorthWays(

osm:getOneWay(., "Calle Calzada de Castro"),?))

Finally, we can see the use of geo-positioning

queries. Streets close to “Calzada de Castro” street

are obtained, and then, the further north streets are ﬁl-

tered.

4.1 Benchmarks

Now we would like to show the benchmarks obtained

from the previous examples, for datasets of different

sizes. We have used the BaseX Query processor in a

Mac Core 2 Duo 2.4 GHz. All benchmarking proofs

have been tested using a virtual machine running Win-

dows 7 since the JTS Topology Suite is not available

for Mac OS BaseX version. Benchmarks are shown in

milliseconds in Figure 8.

We have tested Examples 1 to 5 with sizes rang-

ing from two hundred to fourteen thousand objects,

corresponding to: from a zoom to “Calzada de Cas-

tro” street to the whole Almer

ıa city map (around 10

square kilometers). From the benchmarks, we can

conclude that increasing the map size, does not in-

crease, in a remarkable way, the answer time.

Unfortunately, we cannot compare our bench-

marks with existent implementations of similar tools

due to the following reasons. Even when OSM has

been used for providing benchmarks in a recent work

(Eiter et al., 2014), they use OSM as dataset for De-

scription Logic based reasoners rather than to evaluate

spatial queries. There are some proposals for deﬁning

spatial datasets for benchmarking Spatial RDF stores

(Kolas, 2008; Garbis et al., 2013), mainly focused on

Clementini’s and Egenhofer’s operators whereas our

query language offers more sophisticated queries.

5 RELATED WORK

GQuery (Boucelma and Colonna, 2004) is a pro-

posal for adding spatial operators to XQuery. Ma-

nipulation of trees and sub-trees are carried out by

XQuery, while spatial processing is performed using

geometric functions and JTS. GeoXQuery approach

(Huang et al., 2009) extends the Saxon XQuery pro-

cessor (Kay, 2008) with function libraries that pro-

vide geo-spatial operations. It is also based on JTS

and provides a GML to SVG transformation library

for the XQuery processor in order to show query re-

sults. GML Query (Li et al., 2004) is also a contribu-

tion in this research line that stores GML documents

in a spatial RDBMS. This approach performs a sim-

pliﬁcation of the GML schema that is then mapped to

its corresponding relational schema. The basic val-

ues of spatial objects are stored as values of the ta-

bles. Once the document is stored, spatial queries can

be expressed using the XQuery language with spatial

functions. The queries are translated to their equiva-

lent in SQL which are executed by means of the spa-

tial RDBMS.

Linked Geospatial Data is an emerging line of re-

search (see (Koubarakis et al., 2012) for a survey) fo-

cused on the handling of RDF based representation

QueryingOpenStreetMapwithXQuery

of geo-spatial information, adopting a Semantic Web

point of view (Egenhofer, 2002), and using SPARQL

style query languages like SPARQL-ST (Perry et al.,

2011), stSPARQL (Koubarakis and Kyzirakos, 2010)

and GeoSPARQL (Battle and Kolas, 2012). The

LinkedGeoData dataset (Stadler et al., 2012) is a work

of the AKSW research group at the University of

Leipzig that uses GeoSPARQL and well-known text

(WKT) RDF vocabularies to represent OSM data.

In our approach, we have followed the same direc-

tion as (Boucelma and Colonna, 2004; Huang et al.,

2009; Li et al., 2004), adopting XQuery for querying,

but they are not focused on OSM, and higher order

functions are not used. With regard to OSM3S (i.e.,

Overpass API), it is speciﬁcally designed for search

criteria like location, types of objects, tag values,

proximity or combinations of them. Overpass API

has the query languages Overpass XML and Over-

pass QL. Both languages are equivalent. They handle

OSM objects ((a) standalone queries) and set of OSM

objects ((b) query composition and ﬁltering). With re-

spect to (a), the query language allows the expression

of queries in order to search a particular object, and is

equipped with forward or backward recursion to re-

trieve links from an object (for instance, it allows to

retrieve the nodes of a way). With respect to (b), the

query language allows the expression of queries using

several search criteria. Among others, it can express:

to ﬁnd all data in a bounding box (i.e., positioning), to

ﬁnd all data near something else (i.e., proximity), to

ﬁnd all data by tag value (exact value, non-exact value

and regular expressions), negation, union, difference,

intersection, and ﬁltering, with a rich set of selectors,

and by polygon, by area pivot, and so on. However,

Overpass API facilities (i.e., query composition and

ﬁltering) cannot be combined with spatial operators

such as Clementini’s crossing or touching. In Over-

pass API, only one type of spatial intersection is con-

sidered (proximity 0 by using across selector). For

instance, the query (allowed in our library) ”Retrieve

the streets crossing Calzada de Castro street and end-

ing to Avenida de Montserrat street” is not allowed

in Overpass API. On the other hand, Overpass API

has a rich query language for keyword search based

queries. We plan to extend our library to handle a

richer set of keyword search based queries.

SPARQL based query languages offer a rich

set of spatial operators. For instance stSPARQL

(Koubarakis and Kyzirakos, 2010) is equipped with

Clementini’s operators, as well as MBRs based oper-

ators. Also directional operators are considered and,

functions for constructing new objects are included:

buffer, boundary, envelope, convexHull, union, inter-

section and difference as well as distance-based op-

erators: distance and area. Finally, temporal opera-

tors are also considered. The RDF representation of

OSM and the use of SPARQL style query languages,

offer also the opportunity to describe more complex

queries than OSM3S and XAPI. The use of XQuery

for OSM data makes sense when the XML represen-

tation of an OSM layer is the input of a query, and

the answer is also required in XML format; for in-

stance, when using JOSM to visualize OSM maps.

Unfortunately, SPARQL and its spatial dialects are not

equipped with Higher Order (although there exists a

recent proposal (Atzori, 2014) for SPARQL) and thus,

the queries that we can propose, are impossible to ex-

press in them. Even more, spatial dialects of SPARQL

have to deal with the graph based structure of OSM

RDF, that sometimes can make it more difﬁcult, if not

impossible, the expression of some queries (Alkha-

teeb et al., 2011). The same can happen when us-

ing a spatial DBMS and OSM data are imported to it.

While spatial DBMS can offer the same functional-

ity than the proposed XQuery extension, higher order

facilities makes the work easier.

6 CONCLUSIONS AND FUTURE

WORK

We have presented an XQuery library for querying

OSM. We have deﬁned a set of OSM Operators suit-

able for querying points and streets from OSM. We

have shown how higher order facilities of XQuery

enable the deﬁnition of complex queries over OSM

involving composition and keyword searching. We

have provided some benchmarks using our library that

take proﬁt from the R-tree structure used to index

OSM. As future work ﬁrstly, we would like to ex-

tend our library to handle closed ways of OSM, in

order to query about buildings, parks, etc. Secondly,

we would like to enrich the repertoire of OSM oper-

ators for points and streets: distance based queries,

ranked queries, etc. Finally, we would like to develop

a JOSM plugin, as well as a Web site, with the aim

to execute and to show results of queries directly in

OSM maps.

ACKNOWLEDGEMENTS

This work was funded by the EU ERDF and the

Spanish Ministry of Economy and Competitiveness

(MINECO) under Project TIN2013-44742-C4-4-R,

and by the Andalusian Regional Government (Spain)

under Project P10-TIC-6114.

GISTAM2015-1stInternationalConferenceonGeographicalInformationSystemsTheory,ApplicationsandManagement

REFERENCES

Alkhateeb, F., Baget, J.-F., and Euzenat, J. (2011). Ex-

tending SPARQL with regular expression patterns (for

querying RDF). Web Semantics: Science, Services

and Agents on the World Wide Web, 7(2):57–73.

Atzori, M. (2014). Toward the Web of Functions: Interop-

erable Higher-Order Functions in SPARQL. In The

Semantic Web–ISWC 2014, pages 406–421. Springer.

Bamford, R., Borkar, V., Brantner, M., Fischer, P. M., Flo-

rescu, D., Graf, D., Kossmann, D., Kraska, T., Mure-

san, D., Nasoi, S., et al. (2009). XQuery reloaded.

Proceedings of the VLDB Endowment, 2(2):1342–

1353.

Battle, R. and Kolas, D. (2012). Enabling the geospatial

semantic web with Parliament and GeoSPARQL. Se-

mantic Web, 3(4):355–370.

Berglund, A., Boag, S., Chamberlin, D., Fernandez, M.,

Kay, M., Robie, J., and Sim

eon, J. (2010). XML path

language (XPath) 2.0. W3C.

Boucelma, O. and Colonna, F. (2004). GQuery: a Query

Language for GML. In Proc. of the 24th Urban Data

Management Symposium, pages 27–29.

Clementini, E. and Di Felice, P. (2000). Spatial operators.

ACM SIGMOD Record, 29(3):31–38.

Egenhofer, M. J. (1994). Spatial SQL: A Query and Pre-

sentation Language. IEEE Trans. Knowl. Data Eng.,

6(1):86–95.

Egenhofer, M. J. (2002). Toward the semantic geospatial

web. In Proceedings of the 10th ACM international

symposium on Advances in geographic information

systems, pages 1–4. ACM.

Eiter, T., Schneider, P.,

Simkus, M., and Xiao, G. (2014).

Using OpenStreetMap Data to Create Benchmarks for

Description Logic Reasoners. In Proceedings of the

3rd International Workshop on OWL Reasoner Eval-

uation (ORE 2014), pages 51–57. CEUR Workshop

Proceedings, Vol-1207.

Garbis, G., Kyzirakos, K., and Koubarakis, M. (2013). Ge-

ographica: A Benchmark for Geospatial RDF Stores.

In The Semantic Web–ISWC 2013, pages 343–359.

Springer.

Grun, C. (2015). BaseX. The XML Database. http:// ba-

sex.org.

Hadjieleftheriou, M., Manolopoulos, Y., Theodoridis, Y.,

and Tsotras, V. J. (2008). R-Trees–A Dynamic In-

dex Structure for Spatial Searching. In Encyclopedia

of GIS, pages 993–1002. Springer.

Haklay, M. and Weber, P. (2008). Openstreetmap: User-

generated street maps. Pervasive Computing, IEEE,

7(4):12–18.

Huang, C.-H., Chuang, T.-R., Deng, D.-P., and Lee, H.-

M. (2009). Building GML-native web-based geo-

graphic information systems. Computers & Geo-

sciences, 35(9):1802–1816.

Kay, M. (2008). Ten reasons why saxon xquery is fast.

IEEE Data Eng. Bull., 31(4):65–74.

Kolas, D. (2008). A Benchmark for Spatial Semantic Web

Systems. In International Workshop on Scalable Se-

mantic Web Knowledge Base Systems.

Koubarakis, M., Karpathiotakis, M., Kyzirakos, K., Niko-

laou, C., and Sioutis, M. (2012). Data Models and

Query Languages for Linked Geospatial Data. In

Reasoning Web. Semantic Technologies for Advanced

Query Answering, pages 290–328. Springer.

Koubarakis, M. and Kyzirakos, K. (2010). Modeling and

querying metadata in the semantic sensor web: The

model stRDF and the query language stSPARQL. In

The semantic web: research and applications, pages

425–439. Springer.

Li, Y., Li, J., and Zhou, S. (2004). GML Storage: A Spatial

Database Approach. In Wang, S., Yang, D., Tanaka,

K., Grandi, F., Zhou, S., Mangina, E. E., Ling, T. W.,

Song, I.-Y., Guan, J., and Mayr, H. C., editors, ER

(Workshops), volume 3289 of Lecture Notes in Com-

puter Science, pages 55–66. Springer.

Meier, W. (2003). eXist: An open source native XML

database. In Web, Web-Services, and Database Sys-

tems, pages 169–183. Springer.

Perry, M., Jain, P., and Sheth, A. P. (2011). SPARQL-

ST: Extending SPARQL to support spatiotemporal

queries. In Geospatial semantics and the semantic

web, pages 61–86. Springer.

Robie, J., Chamberlin, D., Dyck, M., and Snelson, J.

(2014). XQuery 3.0: An XML query language. W3C.

Shekhar, S. and Xiong, H. (2008). Java topology suite (jts).

In Encyclopedia of GIS, pages 601–601. Springer.

Stadler, C., Lehmann, J., H

offner, K., and Auer, S. (2012).

Linkedgeodata: A core for a web of spatial open data.

Semantic Web, 3(4):333–354.

QueryingOpenStreetMapwithXQuery
