SOAQM: Quality Model for SOA Applications based on ISO 25010

Joyce M. S. Franc¸a

1,2

and Michel S. Soares

Federal University of Uberlˆandia, Faculty of Computing, Uberlˆandia, Brazil

Federal Institute of Education, Science and Technology of Norte de Minas Gerais, Janu´aria, Brazil

Federal University of Sergipe, Department of Computing, S˜ao Crist´ov˜ao, Brazil

Keywords:

Software Quality, Service Oriented Architecture, ISO 25010, Quality Model.

Abstract:

Service-Oriented Architecture (SOA) has been widely adopted to develop distributed applications with the

promise of legacy systems integration and better agility to build applications by reusing services. Considering

the important role of SOA in organizations, quality should be treated as a key issue. By observing the works

proposed in the literature, it is possible to notice that there is a need for development of a speciﬁc quality

model for SOA based on the latest ISO 25010. One of the proposals of this paper is to analyze which important

contributions were aggregated into the new ISO 25010 regarding SOA applications when compared with ISO

9126. This paper provides the deﬁnition of a speciﬁc quality model for SOA based on quality attributes deﬁned

by ISO 25010. As a result, most quality attributes proposed by ISO 25010 may be applicable to SOA at some

degree level. However, some of these quality attributes should be adapted when applied to SOA projects.

1 INTRODUCTION

Software systems are becoming increasingly complex

over time and, thus, quality assurance is becoming in-

creasingly important as well (Boehm, 2006) (Huang

et al., 2012). To ensure adequate software quality, rel-

evant quality characteristics must be speciﬁed, taking

into account the intended use of a software product.

In order to make a proper evaluation of software, rele-

vant quality characteristics of a software product have

been proposed in many quality models, including ISO

standards.

Many software systems were developed in past

years in an isolated manner, with little concerns about

their integration (Erl, 2007), which leads to increas-

ing complexity. Service-Oriented Computing is a

paradigm that utilizes services as fundamental el-

ements for developing applications/solutions (Papa-

zoglou, 2003). A service is a capability of the busi-

ness organizationthat is implemented and made avail-

able on the Internet so that other applications can ac-

cess it. Service-Oriented Architectures (SOA) emerge

as an attempt to integrate legacy systems by using

Web Services. Within SOA, developers can combine

and integrate internal legacy software assets with fur-

ther components, with the purpose of creating newap-

plications.

Several authors warn that activities related to soft-

ware quality are fundamental to software product

success (Sanders and Curran, 1994) (Sommerville,

2010). Evaluation of software quality is an extremely

important activity in the software development pro-

cess. Factors that affect quality, and can be directly

measured, are called internal quality attributes (for ex-

ample, lines of code). Factors that can only be indi-

rectly measured are called external quality attributes

such as maintainability.

ISO 9126 (ISO/IEC, 1991) has inspired several

quality models. In 2011, ISO 9126 was replaced by

ISO 25010 (ISO/IEC, 2011). There are many spe-

ciﬁc quality models for SOA already proposed in the

literature. A systematic review proposed by Oriol et

al. (Oriol et al., 2014) presented 47 quality models

speciﬁc to Web services. However, most of these pro-

posals did not take into consideration ISO standards.

Only 6 out of 47 models were based on an ISO stan-

dard. In addition, none of these 47 models is based

on ISO 25010. In a systematic mapping performed

by the authors, Quality of SOA applications has been

hardly mentioned.

One of the proposals of this paper is to analyze

which important contributions were aggregated into

the new ISO 25010 regarding SOA applications. In

addition, this analysis aims to determine if limitations

perceived in ISO 9126 were solved in the most recent

ISO 25010. Another proposal of this paper is to inves-

M. S. França J. and S. Soares M..

SOAQM: Quality Model for SOA Applications based on ISO 25010.

DOI: 10.5220/0005369100600070

In Proceedings of the 17th International Conference on Enterprise Information Systems (ICEIS-2015), pages 60-70

ISBN: 978-989-758-097-0

 2015 SCITEPRESS (Science and Technology Publications, Lda.)

tigate the applicability of ISO 25010 to SOA applica-

tions. The aim is to analyze all the quality attributes

(characteristics and sub-characteristics) proposed by

ISO 25010 and determine which of them are directly

applicable to deﬁne quality in SOA. In this direction,

the research question is deﬁned as follows:

RQ1 - What quality attributes proposed by ISO

25010 are relevant to SOA applications?

The answer to this question in this paper is the

deﬁnition of a quality model speciﬁc for SOA based

on quality attributes deﬁned by ISO 25010.

2 BRIEF INTRODUCTION TO ISO

25010

Product quality model deﬁned in ISO 25010 com-

prises eight quality characteristics: Functional Suit-

ability, Reliability, Performance Efﬁciency, Usability,

Security, Compatibility, Maintainability and Portabil-

ity, and 31 sub-characteristics as depicted in Figure

1. Compared to ISO 9126, ISO 25010 is more com-

prehensive and complete. ISO 9126 (ISO/IEC, 1991)

provides 6 characteristics and 27 sub-characteristics,

while ISO 25010 provides 8 characteristics and 31

sub-characteristics. According to (Botella et al.,

2004), ISO 9126 has some limitations due to its

generic nature. Some concepts presented in ISO 9126

need to be reﬁned before they can be actually applied

in a real project. In addition, elements of software

metrics were not clear when deﬁning the standard.

New characteristics were inserted in ISO 25010

such as security and compatibility. Both characteris-

tics were not deﬁned in ISO 9126. In addition, the hi-

erarchy of characteristics and sub-characteristics was

reorganized with the purpose of improving under-

standing of related concepts. This effort of ISO 25010

to reorganize and create new features and improve the

understanding of deﬁnitions is an attempt to address

the limitations of ISO 9126 with respect to the ab-

stract nature, incompleteness and lack of clarity as

other authors have warned (Al-Kilidar et al., 2005).

Each ISO 25010 characteristic is composed of a

set of related sub-characteristics, as depicted in Fig-

ure 1. A brief summary of the deﬁnition of each char-

acteristic is presented in this section as follows.

Functional Suitability represents the degree to

which a product or system provides functions that

meet stated and implied needs when used under spec-

iﬁed conditions. This characteristic is composed of

sub-characteristics Functional Completeness, Func-

tional Correctness, and Functional Appropriateness.

Performance efﬁciency represents the perfor-

mance relative to the amount of resources used un-

der stated conditions. This characteristic is composed

of sub-characteristics Time Behaviour, Resource Uti-

lization, and Capacity.

Compatibility is the degree to which a product,

system or component can exchange information with

other products, systems or components, and/or per-

form its required functions, while sharing the same

hardware or software environment. This character-

istic is composed of sub-characteristics Co-existence

and Interoperability.

Usability is the degree to which a product or sys-

tem can be used by speciﬁed users to achievespeciﬁed

goals with effectiveness, efﬁciency and satisfaction in

a speciﬁed context of use. This characteristic is com-

posed of sub-characteristics Appropriateness Recog-

nizability, Learnability, Operability, User Error Pro-

tection, User Interface Aesthetics, and Accessibility.

Reliability is the degree to which a system, prod-

uct or component performs speciﬁed functions under

speciﬁed conditions for a speciﬁed period of time.

This characteristic is composed of sub-characteristics

Maturity, Availability, Fault Tolerance, and Recover-

ability.

Security is the degree to which a product or system

protects information and data so that persons or other

products or systems have the degree of data access

appropriate to their types and levels of authorization.

This characteristic is composed of sub-characteristics

Conﬁdentiality, Integrity, Non-repudiation, Account-

ability, and Authenticity.

Maintainability represents the degree of effective-

ness and efﬁciency with which a product or system

can be modiﬁed to improve it, correct it or adapt

it to changes in environment, and in requirements.

This characteristic is composed of sub-characteristics

Modularity, Reusability, Analyzability, Modiﬁability,

and Testability.

Portability is the degree of effectiveness and efﬁ-

ciency with which a system, product or component

can be transferred from one hardware, software or

other operational or usage environment to another.

This characteristic is composed of sub-characteristics

Adaptability, Installability, and Replaceability.

3 SOAQM MODEL

ISO 25010 quality characteristics need to be stud-

ied and adapted in order to be applied to SOA ap-

plications. All characteristics and sub-characteristics

proposed by ISO 25010 were analyzed regarding the

real applicability to SOA. Accordingly, we establish

for each characteristics the degree of applicability to

SOA. Then, the next step of this analysis is to deﬁne

SOAQM:QualityModelforSOAApplicationsbasedonISO25010

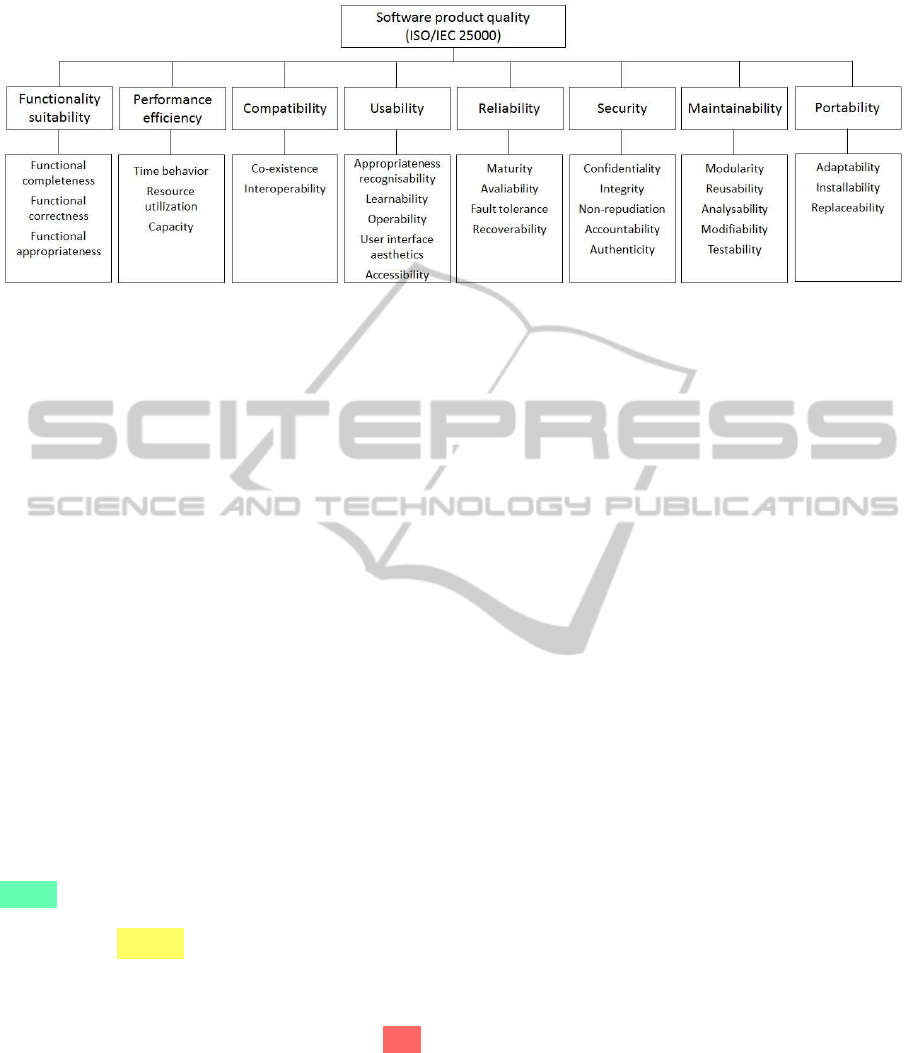

Figure 1: Quality model for external and internal quality by ISO 25010.

how these characteristics can be adapted to the SOA

context.

We propose a degree of importance that deﬁnes

which characteristics are more relevant during the

SOA application development process. Seven volun-

teers answered a questionnaire to deﬁne the degree of

importance. Two of them work in academia as re-

searchers and also in industry projects, and the other

ﬁve work only in industry, as developers, software ar-

chitects or project managers. Each question repre-

sents a quality sub-characteristic and each volunteer

answered how important this sub-characteristic is for

SOA. The answer varies from 1 to 5 following the

Likert Scale (1-Not Important, 2-Less Important, 3-

Neutral, 4-Important, 5-Very Important). The results

to this survey are described in Table 1.

Table 2 presents the results of the analysis of ISO

25010 characteristics and their applicability to SOA

projects. First two columns of Table 2 shows all char-

acteristics and sub-characteristics proposed by ISO

25010. Third column presents the degree of im-

portance of each sub-characteristic with relation to

the SOA context. Highlighted sub-characteristics in

green are important or very important quality at-

tributes for SOA applications. Sub-characteristics

highlighted in yellow are not so important, but they

are relevant for SOA and can not be disregarded. On

the other hand, there are quality sub-characteristics

considered less important or even irrelevant to SOA

applications and therefore were highlighted in

red .

Finally, the last column presents the likely reasons

that justiﬁes the results.

The remainder of this section is divided into eight

subsections. Each of the eight subsections addresses

one ISO quality characteristic and also discusses how

one can suit them in the context of SOA. These sub-

sections are also important to present the reasoning

behind each deﬁnition described in Table 2.

3.1 Functional Suitability

Sub-characteristic Functional Completeness means

the degree to which the set of functions covers all the

speciﬁed tasks and user objectives. Observing from

the SOA perspective, services must cover all the spec-

iﬁed tasks and user objectives for which they were

designed. The ﬁrst activity during the development

of SOA applications include deﬁning requirements to

develop services. This phase is commonly known

as service-oriented analysis. Service-oriented anal-

ysis (Erl, 2005) is a process of determining require-

ments, scope of service and which services will be

developed. These important deﬁnitions are incorpo-

rated into a document known as functional document,

which is used to software validation.

Sub-characteristic Functional Correctness means

the degree to which a product or system provides cor-

rect results with the needed degree of precision. This

sub-characteristic can be applied in SOA by the fact

that services should provide the correct response with

the needed degree of precision. A service requests

some information and a service provider is respon-

sible to send the correct response. Service-oriented

analysis (Erl, 2005), as mentioned in previous para-

graph, is also very important to Functional correct-

ness due to the relationship between what was re-

quested by the customer and what the service offers

as response.

Sub-characteristic Functional Appropriateness is

the degree to which the functions facilitate the accom-

plishment of speciﬁed tasks and objectives. In the

SOA context, services are designed to facilitate ac-

complishment of speciﬁed tasks, more precisely, the

execution of a business process. Services perform

functions that can be simple requests for activities or

complex business processes. Therefore, services can

be of simple nature or composite (Papazoglou, 2003).

Composite services are construct of the orchestration

ICEIS2015-17thInternationalConferenceonEnterpriseInformationSystems

Table 1: Volunteers Opinion about importance of ISO 25010 for SOA - Likert Scale.

Volunteers Opinion Statistics

Characteristic Sub-characteristics #1 #2 #3 #4 #5 #6 #7 Average Stand. Dev.

Functional Suitability

Functional completeness 5 4 5 5 3 5 2 4.1 1.1

Functional correctness 4 5 5 4 4 5 5 4.6 0.5

Functional appropriateness 5 5 5 4 4 5 2 4.3 1.0

Performance efﬁciency

Time behaviour 5 5 4 5 4 5 2 4.3 1.0

Resource utilization 3 5 4 4 4 5 4 4.1 0.6

Capacity 1 5 3 4 3 5 1 3.1 1.6

Compatibility

Co-existence 3 5 3 5 3 5 4 4.0 0.9

Interoperability 5 5 3 5 4 5 5 4.6 0.7

Usability

Appropriateness recognizability 5 2 4 4 3 4 1 3.3 1.3

Learnability 5 2 4 4 4 4 3 3.7 0.9

Operability 5 5 4 2 4 5 3 4.0 1.1

User error protection 5 5 4 4 3 4 1 3.7 1.3

User interface aesthetics 4 3 4 2 3 1 1 2.6 1.2

Accessibility 4 2 4 4 3 1 1 2.7 1.3

Reliability

Maturity 4 5 4 4 4 5 4 4.3 0.5

Availability 5 5 4 5 5 5 5 4.9 0.3

Fault tolerance 5 5 4 5 4 5 4 4.6 0.5

Recoverability 5 5 4 5 4 5 5 4.7 0.5

Security

Conﬁdentiality 5 5 4 4 4 5 5 4.6 0.5

Integrity 5 5 4 4 4 5 5 4.6 0.5

Non-repudiation 4 3 4 4 4 4 4 3.9 0.3

Accountability 5 5 4 4 4 4 4 4.3 0.5

Authenticity 5 5 4 4 4 5 5 4.6 0.5

Maintainability

Modularity 5 5 4 4 4 5 5 4.6 0.5

Reusability 5 5 4 4 4 5 5 4.6 0.5

Analyzability 5 4 4 2 5 5 2 3.9 1.2

Modiﬁability 5 5 4 4 4 5 5 4.6 0.5

Testability 5 5 4 4 4 5 5 4.6 0.5

Portability

Adaptability 5 2 3 2 4 5 5 3.7 1.3

Installability 4 1 3 2 4 5 5 3.4 1.4

Replaceability 4 2 3 4 3 5 5 3.7 1.0

process, which allows services to be composed of

other services to automating business processes.

3.2 Performance Efﬁciency

Performance efﬁciency characteristic can be applied

in SOA applications to evaluate performance of a ser-

vice.

Sub-characteristic Time-behaviour analyzes the

response and processing times and throughput rates

of a system, when performing its functions. Contex-

tualizing for SOA, we can say response time is related

to time spent by services to process a request and re-

turn a response. Generally, a service requests an in-

formation for a provider application and then this ser-

vice provides responses for a consumer application.

Thus, it is possible to measure response and process-

ing times and throughput rates of this transaction.

Sub-characteristic Resource Utilization addresses

the amounts and types of resources used by a prod-

uct or system, when performing its functions. Gen-

erally, software should make a best use of resources

such as processor capacity, memory usage, disk ca-

pacity and network bandwidth. With regard to SOA,

service based applications interact with other systems

exchanging messages over the network. Therefore,

we can consider that services use resources such as

server to access information of other applications.

Sub-characteristic Capacity means the degree to

which the maximum limits of a product or sys-

tem parameter meet requirements. This quality sub-

characteristic was vaguely deﬁned by ISO. It is dif-

ﬁcult to set the real meaning of this concept. We

suppose that capacity can be the application ability to

support several accesses at the same time without per-

formance variation. In this sense, capacity is related

with availability of a service even with many access

at the same time.

Performance efﬁciency is an important quality

characteristic which must be constantly observed in

SOA applications. According to O’Brien (O’Brien

et al., 2007), performance is negatively affected in

SOA. Therefore, the architecture should be carefully

designed and evaluated prior to implementation to

SOAQM:QualityModelforSOAApplicationsbasedonISO25010

Table 2: ISO 25010 characteristics mapped to SOA quality characteristics.

Characteristic Sub-characteristics Importance for SOA SOA Perspective

Functional Suitability

Functional completeness 4.1 Services must cover all the speciﬁed tasks and user objectives which

were designed

Functional correctness 4.6 Services should provide the correct results with the needed degree of

precision

Functional appropriateness 4.3 Services are designed to facilitate accomplishment of speciﬁed tasks,

more precisely, the execution of a business process.

Performance efﬁciency

Time behaviour 4.3 Time spent by a service to process a request and return a response.

Resource utilization 4.1 Services use resources such as servers to access information of other

applications.

Capacity 3.1 Service capacity can be deﬁned as the ability to remain working even

with large number of accesses at the same time.

Compatibility

Co-existence 4.0 Different composite services can share the use of same service opera-

tions.

Interoperability 4.6 Services are interoperable. Services allow interaction between systems

through the use of interfaces (WSDL) and communication protocols

(SOAP).

Usability

Appropriateness recognizability 3.3 Users can recognize whether this service is appropriate for their needs

through service description that relate information such as service

functionality and data types transmitted.

Learnability 3.7 Degree to which a service can facilitate the understanding of its oper-

ation.

Operability 4.0 A service has a WSDL document that allows exchange messages be-

tween services.

User error protection 3.7 The WSDL structure of a service should not allow making errors from

wrong inputs.

User interface aesthetics 2.6 Not the focus of SOA.

Accessibility 2.7 Not the focus of SOA.

Reliability

Maturity 4.3 Whenever a service consumer requests some information, it is ex-

pected that a response is returned.

Availability 4.9 Services must be available when they are requested.

Fault tolerance 4.6 Services can create strategies that may be performed when a failure

happens on some hardware or software.

Recoverability 4.7 Service ability to recover data when occurs some interruption or fail-

ure.

Security

Conﬁdentiality 4.6 Information shared by a service provider can be accessed only to an

authorized service client.

Integrity 4.6 Services must be developed to prevent unauthorized access to, or mod-

iﬁcation of private data.

Non-repudiation 3.9 Service provider constructs strategies to prove that an information have

been delivered to a service consumer

Accountability 4.3 Service are autonomous.

Authenticity 4.6 The identity of the external service provider should be authenticated.

Maintainability

Modularity 4.6 Service provider hosts a network accessible software module.

Reusability 4.6 Services are reusable.

Analyzability 3.9 Analyze change impact when services need to be modiﬁed

Modiﬁability 4.6 Services are loosely coupled. This characteristic reduces the depen-

dency between services, increasing modiﬁability.

Testability 4.6 services can be tested, for instance, through automated tools for func-

tional testing

Portability

Adaptability 3.7 Although webservicesrun remotely on a server,itcan happen a change

of platform.

Installability 3.4 Although webservicesrun remotely on a server,itcan happen a change

of platform.

Replaceability 3.7 Although webservicesrun remotely on a server,itcan happen a change

of platform.

avoid performance pitfalls.

Service application performance depends on the

combined performance of cooperating components

and their interactions. Beyond consumers and

ICEIS2015-17thInternationalConferenceonEnterpriseInformationSystems

providers applications and the need to communicate

over the network, services can be composed. Com-

posite services allows services to be composed of

other services, in such a way the logic of the process is

centralized by orchestration that enables extensibility

(composition of new services). Thus, time behaviour

depends on several factors. To deal with so many fac-

tors that can affect system performance, companies

need constantly to monitor the health of their SOA

applications (Papazoglou et al., 2008).

3.3 Compatibility

Sub-characteristic Co-existence is concerned with the

degree to which a product can perform its required

functions efﬁciently while sharing a common envi-

ronment and resources with other products, without

detrimental impact on any other product. From the

SOA perspective, co-existence concept can be re-

deﬁned/extended as follows. A composite service

matches a set of services that perform operations and

together form a speciﬁc task. As a service can be

reused by several composite services, some efforts are

needed to ensure what some authors have been called

service conformance (Papazoglou et al., 2008). Ser-

vice conformance ensures the integrity of a composite

service matching its operations with those of its con-

stituent component services, imposes semantic con-

straints on the component services and ensures that

constraints on data exchanged by component services

are satisﬁed. This means the co-existence concept can

be extended to SOA due to different composite ser-

vices that share the use of same service operations.

Sub-characteristic Interoperability refers to the

degree to which two or more systems can exchange

information and use the information that has been

exchanged. Services are interoperable (Papazoglou

et al., 2008). SOA utilizes services to construct an

application that allows exchanging messages through

networking protocol. This means services are inter-

operable and they allow interaction between systems

through the use of interface (WSDL) and communica-

tion protocols (SOAP). To allow increased interoper-

ability is the most prominent beneﬁt of SOA (O’Brien

et al., 2007).

3.4 Usability

Within the SOA context, usability is a measure of the

quality of a user’s experience in interacting with infor-

mation or services. Usability as a concept has been

rarely addressed in the context of SOA. Few studies

have been published addressing this issue (Liu, 2009).

One research named this issue as service oriented us-

ability (Liu, 2009), suggesting that some procedures

may increase usability of services, such as develop-

ment of diagrams for service and deﬁnition of life cy-

cle and lifetime of services.

Sub-characteristic Appropriateness recognizabil-

ity refers to the degree to which users can recog-

nize whether a system is appropriate for their needs.

In this sense, it is important to have access to some

description that relate the service operations. Rela-

tionship between services is based on an understand-

ing that for the services to interact, they must be

aware of each other and this awareness is achieved

through the use of service descriptions (Erl, 2005).

A service description establishes the name and loca-

tion of the service, and data exchange requirements.

SOA uses a standard format for service description

known as WSDL (Web Services Description Lan-

guage) (WSDL, 2014). Therefore, sub-characteristic

Appropriateness recognizability can be applied in

SOA because service description relates service func-

tionality and data types transmitted, and so users can

recognize whether this service is appropriate for their

needs.

Sub-characteristicLearnability is related to the de-

gree to which a system can be used by speciﬁed users

to achieve speciﬁed goals of learning to use the sys-

tem in an easy way. From the SOA perspective, this

sub-characteristic refers to the degree to which a ser-

vice can facilitate the understanding of its operation.

Sub-characteristic Operability refers to the degree

to which a product or system has attributes that make

it easy to operate and control. A service has a WSDL

document that allows exchanging messages between

services. These messages are transmitted through a

standard protocol called SOAP (Simple Object Ac-

cess Protocol) (SOAP, 2014). The standards deﬁned

for SOA make it easy to develop, operate and control

services.

Sub-characteristic User error protection is related

to the degree to which a system protects users against

making errors. Within the SOA context, this qual-

ity sub-characteristics may be appropriate to SOA by

the fact that a service has a description document

(WSDL) and its structure should not allow different

inputs from the speciﬁed ones.

Sub-characteristic User interface aesthetics refers

to the degree to which a user interface enables pleas-

ing and satisfying interaction for the user. User in-

terface aesthetics or graphical interface is not the fo-

cus of SOA. Researches in SOA are hardly concerned

with this sub-characteristic. Probably, the reason is

attributed to the fact that there it is research in other

areas such as human computer interaction that can be

leveraged to SOA applications.

SOAQM:QualityModelforSOAApplicationsbasedonISO25010

Sub-characteristic Accessibility is related to the

degree to which a product or system can be used by

people with the widest range of characteristics and

capabilities to achieve a speciﬁed goal in a speciﬁed

context of use. Accessibility is not very important to

services because this issue is not the focus of SOA

knowledge and research.

3.5 Reliability

Sub-characteristic Maturity is related to the degree to

which a system meets needs for reliability under nor-

mal operation. Clearly, maturity can be applied in

SOA because whenever a service consumer requests

some information it is expected that a response is re-

turned. Therefore, Maturity is a very important sub-

characteristic that can be addressed in SOA applica-

tions to maintain quality.

Availability is a very important sub-characteristic

in SOA applications. Availability consists in deﬁning

the degree to which a system, product or component

is operational and accessible when required for use.

This concept can be associated with SOA by the fact

that a service provider must be available when a ser-

vice consumer requests some information. Downtime

could affect the provider’s ﬁnances and reputation.

According to O’Brien (O’Brien et al., 2007), exter-

nal service providers usually agree to provide services

under a service level agreement (SLA), which deﬁnes

the contract for the provision of the service with de-

tails such as who provides the service, the guaranteed

availability of the service, the escalation process, and

the penalties to the provider if a service level is not

met.

Sub-characteristic Fault Tolerance refers to the de-

gree to which a system operates as intended despite

the presence of hardware or software faults. From

the SOA perspective, fault tolerance can be applied in

SOA applications as meaning that strategies must be

performed when a failure happens on some hardware

or software. This ability is not SOA native and should

be designed and implemented by SOA developers.

Sub-characteristic Recoverability is related to the

degree to which, in the event of an interruption or a

failure, a product or system can recover data directly

affected and re-establish the desired state of the sys-

tem. This quality sub-characteristic can be adjusted

to SOA as regards the service ability to recover data

when any interruption or failure occurs. Auto recov-

ery tools have been developed to provide the func-

tionality of recover the faulted instances and Invoke

and Callback messages during business process exe-

cution.

3.6 Security

Services are designed to limit information in the

service contract to what is really necessary for the

service to be functionally useful to consumers (Erl,

2007). Information beyond that is published in a ser-

vice contract, is considered private, and should not

be made available for creating potential consumers of

service.

Conﬁdentiality is the degree to which a system

ensures data are accessible only to those authorized

to have access. This quality sub-characteristic must

be found in SOA applications because information

shared by a service provider can be accessed only to

an authorized service client. Business process inter-

actions are always controlled from the (private) per-

spective of one of the business parties involved in the

process (Papazoglou et al., 2008).

Another security quality sub-characteristic is In-

tegrity. Integrity refers to the degree to which a sys-

tem, product or component prevents unauthorized ac-

cess to, or modiﬁcation of, software or data. Services

must be developed to prevent unauthorized access to,

or modiﬁcation of private data. Integrity is related

with one of the design principles of software engi-

neering proposed in SWEBOK (Software Engineer-

ing Body of Knowledge) (IEEE Computer Society,

2004): Encapsulation/information hiding. Encapsu-

lation/information hiding means grouping and pack-

aging elements and internal details of an abstraction

and making those details inaccessible. In this way,

services must publish in a registry, or repository such

as UDDI. Ensuring implementation details are inac-

cessible provides the guarantee that this information

is not modiﬁed or corrupted.

Sub-characteristic Non-repudiation is related to

the degree to which actions or events can be proven to

have taken place, so that the events or actions cannot

be repudiated later. In the SOA context, this concept

can be the ability of a service provider to prove that

information has been delivered to a service consumer.

Sub-characteristic Accountability refers to the de-

gree to which actions of an entity can be traced

uniquely to the entity. According to (Papazoglou

et al., 2008), services are autonomous. That way,

services have a contract that expresses a well-deﬁned

functional threshold which should not involve other

services. In addition, Thomas Erl (Erl, 2007) deﬁned

Service Autonomy as a design principle. Service Au-

tonomy refers to the ability to govern itself. When

something is autonomous, it has freedom and control

to make their own decisions without the need for ex-

ternal validation or approval. Accountability in the

SOA context refers to the service state of being ac-

ICEIS2015-17thInternationalConferenceonEnterpriseInformationSystems

countable, in other words, a service has the obliga-

tion of render an account for failure to perform as ex-

pected.

Another security quality sub-characteristic is au-

thenticity. Authenticity refers to claim and identiﬁ-

cation of a subject or resource requests access to a

certain information. A system built using a SOA ap-

proach may encompass services provided by third-

party organizations. The identity of the external ser-

vice provider should be authenticated.

According to Papazoglou (Papazoglou et al.,

2008), security is a grand challenge within SOA ap-

plications. Services must be developed to be self-

protecting, which can anticipate, detect, identify and

protect against threats. Self-protecting components

can detect hostile behaviors, e.g., unauthorized ac-

cess and use, virus infection and proliferation, and

denial-of-service attacks, as they occur and take cor-

rective actions to make themselves less vulnerable.

Self-protecting capabilities allow businesses to con-

sistently enforce security and privacy policies. One

of the strategies used to increase security is encryp-

tion. Encryption should be used to preserve conﬁden-

tiality and preserve integrity. However, as mentioned

in (O’Brien et al., 2007), encryption has the effect of

increasing messages size.

3.7 Maintainability

Maintainability quality characteristic is very impor-

tant in SOA due to its primary proposal of easy

maintaining distributed applications. Before emer-

gence of SOA, several distributed solutions were pro-

posed, with varying degree of success and limitations.

Many systems were developed with little elaboration

and integration point to point was created accord-

ing to the needs that were emerging. This approach

produced a tangle of complex connections, lack of

stability, difﬁcult maintenance, and problems asso-

ciated with extensibility and interoperability frame-

works (Erl, 2005). SOA has emerged with the pur-

pose of development of rapid, low-cost and easy com-

position of distributed applications.

Modularity is a quality sub-characteristic that de-

ﬁnes the capacity of a system to be composed of com-

ponentssuch that a change to one componenthas min-

imal impact on other components. This deﬁnition is

similar to a service concept. In a typical service-based

scenario employing the service foundations plane a

service provider hosts a network accessible software

module (an implementation of a given service) (Papa-

zoglou et al., 2008).

Reusability is an important quality sub-

characteristic which indicates that an asset can

be used in more than one system, or in building

other assets. This deﬁnition can be extended to SOA.

Service reusability is a SOA design principle that

means services are reusable (Erl, 2007). Services

encapsulate the logic that is useful for more than one

service request. Logic encapsulated by services is

generic enough to allow many usage scenarios and

can be used for different types of service consumers.

Sub-characteristic Analyzability indicates the de-

gree of effectiveness and efﬁciency with which it is

possible to assess the impact on a product or system

of an intended change to one or more of its parts, or to

diagnose a product for deﬁciencies or causes of fail-

ures, or to identify parts to be modiﬁed. Within SOA

context, Analyzability can be an important quality at-

tribute for services. In situations that a service need

to be modiﬁed, analysis of which composite services

use this service are necessary.

Modiﬁability is a quality sub-characteristic related

to the capacity of software to be modiﬁed without in-

troducing defects or degrading existing product qual-

ity. Modiﬁability increases as the independence be-

tween modules of the system increases because a

change in one module can affect all modules that are

dependent. By deﬁnition, services are loosely cou-

pled (Papazoglou et al., 2007). This means there

are few well-known dependencies between services.

Thus, the cost of modifying the implementation of

services is reduced and the overall system modiﬁa-

bility increases (O’Brien et al., 2007).

Testability is a quality sub-characteristic found in

a system or component in which test criteria can be

established and tests can be performed to determine

whether those criteria have been met. Services can

be tested through automated tools for functional test-

ing. According to O’Brien (O’Brien et al., 2007),

testing a system based on SOA is more complex than

an isolated software. For instance, if a runtime prob-

lem occurs, it may be difﬁcult to ﬁnd the cause. It

can be within the service user, the service provider,

the communication infrastructure, the discovery agent

(UDDI), or it can be due to the load on the platform

where the service executes. Trying to replicate prob-

lems in a test environment may be difﬁcult or even not

possible within a time frame.

3.8 Portability

Portability is a quality characteristic concerned with

the effectiveness and efﬁciency with which a system

can be transferred from one hardware or usage envi-

ronment to another.

Sub-characteristic Adaptability refers to the de-

gree to which a product or system can effectively and

SOAQM:QualityModelforSOAApplicationsbasedonISO25010

efﬁciently be adapted for different or evolving hard-

ware, software or other operational or usage environ-

ment.

Sub-characteristic Installability is related to the

degree of effectiveness and efﬁciency with which a

product or system can be successfully installed and/or

uninstalled in a speciﬁed environment.

Sub-characteristic Replaceability indicates the de-

gree to which a product can replace another speciﬁed

software product for the same purpose in the same en-

vironment.

In general, some authors consider that this quality

characteristic is not so important in the SOA context

because web services run remotely on a server. For

instance, according to (Oriol et al., 2014), Installabil-

ity is usually not applicable to web services because

they are executed remotely at the server side. On the

other hand, a change of a server platform of an ap-

plication provider can be performed and then services

should normally maintain their situation.

4 COMPARISON WITH

RELATED WORKS ON

QUALITY MODELS FOR SOA

Quality models are elaborated to describe, evaluate

and predict quality of a product (Deissenboeck et al.,

2009). According to software quality standard ISO

25010, quality models are useful for specifying re-

quirements, establish measures and assessments of

quality (ISO/IEC, 2011). There are several general

purpose quality models proposed for software sys-

tems. They differ on the terminology, the set of at-

tributes that deﬁne quality, and the structure of the

quality model.

Generic quality models, as the ones proposed

in the literature, need to be adapted to be applied

to SOA. Generic standards such as ISO 9126 can

not completely conform to the web services domain

(Oriol et al., 2014). For this reason, there are many

speciﬁc quality models for SOA already proposed in

the literature.

A systematic review proposed by Oriol et al.

(Oriol et al., 2014) presented 47 quality models spe-

ciﬁc to Web services. As a result of this study, con-

trary to what could be expected, most of the pro-

posals did not take into consideration ISO standards.

Only 5 out of 47 models were based on ISO 9126:

WSQM (WSQM, 2005), S-Cube Quality Reference

Model (The European Network of Excellence in Soft-

ware Services and Systems (S-Cube), 2008), GESSI

(Ameller and Franch, 2008), Yin et al. (Yin et al.,

2010), and Nadanam and Rajmohan (Nadanam, P. and

Rajmohan, R., 2012). Therefore, none of the 47 qual-

ity models were based on the new ISO 25010.

In the next paragraphs, we propose a comparison

between those 5 quality models for SOA based on ISO

9126 and the SOAQM model proposed in this paper,

which is based on ISO 25010. The main objective

is to present what has been proposed in the literature

and detach the novelty we are proposing in this new

quality model for SOA.

WSQM is a Quality Model for Web Services pro-

posed by OASIS in 2005 (WSQM, 2005). WSQM

comprises a set of quality attributes that are important

for Web Services domain. WSQM model was struc-

tured into 6 categories called Web Services Quality

Factors: Business Value, Service Level Measurement,

Interoperability, Business Processing, Manageability

and Security. Sub-factors are deﬁned to represent

quality attributes. Besides a hierarchical structure

with categories and sub-factors, there is no concern to

develop the same structure and use of all the attributes

set by ISO 9126. In addition, WSQM does not present

a mature state because many of the contained deﬁni-

tions lack precision (Goeb and Lochmann, 2011).

S-Cube Quality Reference Model (The Euro-

pean Network of Excellence in Software Services

and Systems (S-Cube), 2008) consists of a set of

quality attributes for service-based applications. S-

Cube was structured into 10 categories which are

Performance, Dependability, Security, Data-related

Quality, Conﬁguration-related Quality, Network- and

Infrastructure-related Quality, Usability, Quality of

Use Context, Cost and Other. Then, 78 quality at-

tributes were deﬁned and distributed in these cate-

gories. S-Cube was based on ISO 9126 but some def-

initions proposed by ISO 9126 were not mentioned.

For instance, Functionality, which is an important

characteristic for ISO 9126, was not considered as a

category. In addition, the classiﬁcation of attributes

is considered by the authors as follows in ISO 9126,

which is not always true. S-Cube is considered a

model too complex to be used in an intuitive way

(Goeb and Lochmann, 2011).

GESSI is a quality model based on ISO 9126 pro-

posed to focus on the quality characteristics that are

observable (Ameller and Franch, 2008). This study

proposes a tool called SALMon to monitor services

to detect Service Level Agreement violations. How-

ever, just a small set of quality attributes proposed by

ISO 9126 are observable. Therefore, just three qual-

ity attributes were addressed by GESSI, which are

related to sub-characteristics Availability, Time Be-

haviour, and Accuracy.

In (Yin et al., 2010), an ontology is proposed to

ICEIS2015-17thInternationalConferenceonEnterpriseInformationSystems

support quality of services considering the following

non-functional requirements: expressiveness, robust-

ness, ﬂexibility, scalability, performance, complete-

ness, friendliness and interoperability. A mapping of

these quality requirements and concrete requirements

is proposed, with focus on only part of ISO 9126.

Nadanam and Rajmohan proposed in 2012

(Nadanam, P. and Rajmohan, R., 2012) a quality

model for evaluating QoS (Quality of service) for web

services. This quality model also considered cloud

computing issues. As a result of this study, the qual-

ity model proposed some attributes and metrics con-

sidered relevant for cloud services. Two quality char-

acteristics deﬁned by ISO 9126 were considered in

this model: Efﬁciency and Reliability. These quality

characteristics are extended to cover cloud computing

peculiar features. Based on the derived key features,

Reusability, Adaptability, Availability, Composabil-

ity, Understandability and Scalability are newly de-

ﬁned.

Contrary to the result of the systematic review pro-

posed in (Oriol et al., 2014), we found a quality model

for SOA that is actually based on ISO 25010. A

Software Quality Model for SOA proposed by Goeb

et. al (Goeb and Lochmann, 2011) was inspired in

ISO 25010. However, this model analyzes only 5

quality characteristics: Consumption, Understanding,

Service Reuse, Support, and Extension. Furthermore,

this model was not comprehensiveenough to consider

the 8 quality characteristic and 31 sub-characteristics

proposed by ISO 25010. In addition, two out of

ﬁve considered characteristics (Support and Exten-

sion) were not deﬁned by any version of ISO. Another

issue with this quality model is that it did not fol-

low the standardization of names established by ISO

25010 because two characteristics were renamed: Ap-

propriateness Recognizability was renamed to Under-

standing, and Functional Appropriateness was called

Consumption.

Furthermore, existing models are not comprehen-

sive and do not address all quality attributes proposed

by ISO 25010, as they are based on ISO 9126. Even

in this case, they do not always follow the ISO 9126

standard. Although the models do follow ISO 9126,

such as the S-Cube, the classiﬁcation of attributes

does not follow strictly ISO 9126, and important char-

acteristics such as Functionality is not considered. In

another case, WSQM, there is a hierarchical structure

with categories and sub-factors, but not all attributes

of the ISO 9126 structure is used. This happens in

GESSI as well, in which only 3 quality attributes are

addressed, and in the model proposed in (Yin et al.,

2010).

By observing the works proposed in the literature,

it is possible to notice that there is a need for devel-

opment of a speciﬁc quality model for SOA based on

the latest ISO 25010, as described in this paper.

5 CONCLUSION

This paper addresses one gap in researches about

SOA. There is a lack of quality models speciﬁc for

SOA based on most recent ISO 25010. In this sense,

in this paper we propose a quality model for SOA ap-

plications based on quality attributes proposed in ISO

25010. ISO 25010 is a standard for software quality

that presents a quality model that may be applied for

any kind of software products. ISO 25010 is currently

the most complete version of quality models of ISO

standards due to the great amount of proposed quality

attributes.

All quality attributes proposed by ISO 25010 were

analyzed in this research from the SOA perspective

using both experts opinion and literature review. As

a result, most of quality attributes proposed by ISO

25010 may be applicable for SOA. However, these

quality attributes should be adapted to SOA contexts,

as discussed in Section 3. On the other hand, ISO

25010 has a generic nature and therefore some quality

attributes proposed do not apply to SOA domain, as

described in this paper.

One threat to validity is the small number of sub-

jects that responded the survey. However, as they

are experts in the SOA context, their opinion can be

highly considered.

Generally, quality models propose methods to

measure the quality attributes in applications. In this

sense, a future work of this research is the deﬁnition

of metrics to evaluate quality in SOA applications.

In addition, currently our research group is using the

SOAQM model as a guide to spend more resources

on speciﬁc characteristics that were considered more

important than others.

ACKNOWLEDGEMENTS

We would like to thank the Brazilian research

agencies CNPq (grant 445500/2014-0) and CAPES/

FAPITEC (grant AUXPE 0517/2014) for supporting

this work.

REFERENCES

Al-Kilidar, H., Cox, K., and Kitchenham, B. (2005). The

Use and Usefulness of the ISO/IEC 9126 Quality

SOAQM:QualityModelforSOAApplicationsbasedonISO25010

Standard. In International Symposium on Empirical

Software Engineering.

Ameller, D. and Franch, X. (2008). Service Level Agree-

ment Monitor (SALMon). In Proceedings of the Sev-

enth International Conference on Composition-Based

Software Systems (ICCBSS), pages 224–227.

Boehm, B. (2006). A View of 20th and 21st Century Soft-

ware Engineering. In Proceedings of the 28th Inter-

national Conference on Software Engineering, ICSE

’06, pages 12–29.

Botella, P., Burgus, X., Carvallo, J. P., Franch, X., Grau,

G., Marco, J., and Quer, C. (2004). ISO/IEC 9126 in

Practice: What Do We Need to Know. In Proceedings

of the 1st Software Measurement European Forum.

Deissenboeck, F., Juergens, E., Lochmann, K., and Wagner,

S. (2009). Software Quality Models: Purposes, Usage

Scenarios and Requirements.

Erl, T. (2005). Service-Oriented Architecture Concepts,

Technology, and Design. Prentice Hall, Upper Saddle

River, NJ, USA.

Erl, T. (2007). SOA Principles of Service Design (The Pren-

tice Hall Service-Oriented Computing Series from

Thomas Erl). Prentice Hall, Upper Saddle River, NJ,

USA.

Goeb, A. and Lochmann, K. (2011). A Software Qual-

ity Model for SOA. In Proceedings of the 8th Inter-

national Workshop on Software Quality, WoSQ ’11,

pages 18–25.

Huang, C.-Y., Leung, H., Leung, W.-H. F., and Mizuno,

O. (2012). Software quality assurance methodologies

and techniques. Advances in Software Engineering.

IEEE Computer Society (2004). Software Engineering

Body of Knowledge (SWEBOK). Angela Burgess,

EUA.

ISO/IEC (1991). Software Engineering - Product Quality,

ISO/IEC 9126. Technical report, International Orga-

nization for Standardization.

ISO/IEC (2011). ISO/IEC 25010 - Systems and Software

Engineering - Systems and Software Quality Require-

ments and Evaluation (SQuaRE) - System and Soft-

ware Quality Models. Technical report.

Liu, L.-L. (2009). Design principles and measurable ser-

vice oriented usability. In IEEE International Con-

ference on Service-Oriented Computing and Applica-

tions, (SOCA), pages 1–4. IEEE.

Nadanam, P. and Rajmohan, R. (2012). QoS Evaluation for

Web Services in Cloud Computing. In Proceedings

of the Third International Conference on Computing

Communication and Networking Technologies (ICC-

CNT), pages 1–8.

O’Brien, L., Merson, P., and Bass, L. (2007). Quality At-

tributes for Service-Oriented Architectures. In Pro-

ceedings of the International Workshop on Systems

Development in SOA Environments, SDSOA ’07.

Oriol, M., Marco, J., and Franch, X. (2014). Quality Models

for Web Services: A Systematic Mapping. Informa-

tion and Software Technology, 56(10):1167–1182.

Papazoglou, M. P. (2003). Service-Oriented Computing:

Concepts, Characteristics and Directions. In Proceed-

ings of the Fourth International Conference on Web

Information Systems Engineering, WISE ’03.

Papazoglou, M. P., Traverso, P., Dustdar, S., and Leymann,

F. (2007). Service-Oriented Computing: State of the

Art and Research Challenges. Computer, 40(11):38–

45.

Papazoglou, M. P., Traverso, P., Dustdar, S., and Leymann,

F. (2008). Service-Oriented Computing: a Research

Roadmap. International Journal of Cooperative In-

formation System, 17(2):223–255.

Sanders, J. and Curran, E. (1994). Software Quality: a

Framework for Success in Software Development and

Support. ACM Press/Addison-Wesley Publishing Co.,

New York, NY, USA.

SOAP (2014). Simple Object Access Protocol (SOAP) 1.1.

W3C Note. . online.

Sommerville, I. (2010). Software Engineering. Addison

Wesley, Essex,UK, 9 edition.

The European Network of Excellence in Software Services

and Systems (S-Cube) (2008). Quality Reference

Model for SBA. Gehlert, A. and Metzger, A., S-Cube

Consortium.

WSDL (2014). Web Services Description Language

(WSDL) 1.1. W3C Note. . online.

WSQM (2005). Quality Model for Web Services

(WSQM2.0). Working draft, OASIS.

Yin, B., Yang, H., Fu, P., and Chen, X. (2010). A Seman-

tic Web Services Discovery Algorithm Based on QoS

Ontology. volume 6335 of Lecture Notes in Computer

Science, pages 166–173. Springer.

ICEIS2015-17thInternationalConferenceonEnterpriseInformationSystems
