Tool Support for Analyzing the Evolution of Enterprise Architecture

Metrics

Manoj Bhat, Thomas Reschenhofer and Florian Matthes

Technische Universit

at M

unchen, Munich, Germany

Keywords:

Enterprise Architecture Management, Metrics, Domain Speciﬁc Language.

Abstract:

Managing the evolution of the Enterprise Architecture (EA) is a key challenge for modern enterprises. The EA

metrics are instrumental in quantitatively measuring the progress of an enterprise towards its goals. Retrospec-

tive analysis of EA metrics empower business users to take informed decisions while planning and selecting

efﬁcient alternatives to achieve envisioned EA goals. Even though the current EA management tools support

the deﬁnition and calculation of EA metrics, they do not capture the temporal aspects of EA metrics in their

meta-model to enable retrospective analysis. In this paper, we ﬁrst propose a model-based approach to capture

the temporal aspects of EA metrics and then extend a domain speciﬁc language to compute EA metrics at

any point of time in the past. This allows visualizing the evolution of EA metrics and as a consequence the

evolution of the EA.

1 INTRODUCTION

Enterprises continuously change, improve, and evolve

to respond to demands of their highly dynamic and

competitive business and IT environment (Rouse,

2005). The enterprise architecture (EA) is an es-

sential mechanism to capture requirements of their

environment and it is widely accepted as a mecha-

nism to achieve business and IT alignment (Matthes

et al., 2008). Typically, an EA documents the (a) cur-

rent state of the EA model, (b) target state as an en-

visioned long-term perspective, and (c) intermediate

planned states to achieve the target state (Roth et al.,

2013). By deﬁning several planned states with re-

spect to an envisioned target state, decision makers

can deﬁne efﬁcient alternatives for the desired change

and use an EA metric model to justify their decisions.

The EA metrics which are part of an EA model en-

able the measurement of the EA management (EAM)

endeavor and support the quantitative based manage-

ment of the EA targeting the predeﬁned EAM goal

achievement (Bose, 2006).

Managing the transformation of an enterprise

from its current state to an envisioned target state

via planned states is a challenge (Buckl et al., 2009).

A key aspect in analyzing the managed evolution of

an EA is the understanding of the evolution of its

EA metrics which indicates the progress of an enter-

prise towards its target state. By considering EA met-

rics’ evolution in a collaborative environment, deci-

sion makers can collectively reconﬁgure the planned

states and select the appropriate alternative. There-

fore, in this paper we focus on the temporal aspects

of the EA metric model for analyzing the evolution of

metrics and as a consequence the evolution of the EA.

In the context of an EA, a clear deﬁnition of

the EA metric does not exist. In general, EA met-

rics aid in planning and controlling the structural and

behavioral aspects of an EA. The EA metrics cor-

responding to the structural aspects include quality

and acceptance-oriented metrics such as the project’s

quality plan availability (Matthes et al., 2012a). The

EA metrics encompass Key Performance Indicators

(KPIs) which correspond to the behavioral aspects of

an EA (e.g. Application Criticality Rating). In this

paper, the term metric refers to the EA metric that

captures both the structural and behavioral aspects.

Even though metrics have been extensively used

in Enterprise Performance Management systems for

business intelligence, there exists a perception of the

lack of metrics in EAM (Kaisler et al., 2005; Bose,

2006). This perception is changing as more and more

efforts are being invested to formulate metrics and to

map them with EAM goals (Matthes et al., 2012a).

The survey conducted by Hauder et al. (Hauder et al.,

2013), shows that the current EAM systems (85% of

the surveyed tool vendors) support the deﬁnition, cal-

culation, and visualization of EA metrics and 23% of

154

Bhat M., Reschenhofer T. and Matthes F..

Tool Support for Analyzing the Evolution of Enterprise Architecture Metrics.

DOI: 10.5220/0005370701540161

In Proceedings of the 17th International Conference on Enterprise Information Systems (ICEIS-2015), pages 154-161

ISBN: 978-989-758-098-7

 2015 SCITEPRESS (Science and Technology Publications, Lda.)

the surveyed systems allow the customization of met-

rics with a domain speciﬁc language (DSL).

Although the current EAM tools support the deﬁ-

nition of metrics through DSLs, these DSLs however

do not have the ﬂexibility to compute the metric at a

particular point of time in the past. Furthermore, ma-

jority of the existing EA tools maintain version repos-

itories of EA models as a sequence of architectural

snapshots (Buckl et al., 2009). One of the issues with

the snapshot-based versioning is the incompleteness

of the information stored in versioning systems to per-

form quality retrospective analysis. As versioning of

EA models is not very frequent (quarterly, yearly, or

only when signiﬁcant changes are made), changes in

the artifacts which affect business decisions could be

lost during subsequent versioning of an EA. More-

over, the task of downloading and processing sev-

eral versions from a repository is time-consuming and

resource-intensive (Robbes and Lanza, 2007).

Therefore, a means to index appropriate business

artifacts for quick access becomes vital in understand-

ing the continuous evolution of an enterprise over a

given period of time. The contribution of this paper is

twofold: ﬁrst we conceptualize the temporal aspects

of metrics in an EA model. We then extend an exist-

ing DSL (Monahov et al., 2013) to facilitate the com-

putation of metrics at any given time in the past by us-

ing the information model’s history. In consequence,

this allows the visualization of EA metrics’ evolution

for instance, on a time series graph.

Organizationally, Section 2 reviews the related

work. Section 3 presents our approach to model the

temporal aspects in an EA model. Section 4 presents

a DSL to query the historized data and Section 5

presents the evaluation of our approach. In section

6, we conclude with a short summary.

2 RELATED WORK

Pourshahid et al. extend the Goal-oriented Require-

ment Language (GRL) with the concept KPI to mea-

sure business processes against business goals (Pour-

shahid et al., 2007). The meta-type KPI is modeled

with attributes including target value, threshold value,

and worst value. The concepts in the GRL model such

as goals, tasks, and actors are associated with the KPI

to provide the organizational context.

Popova and Sharpanskykh propose a meta-model

to capture the goal, KPI structure and relations be-

tween them (Popova and Sharpanskykh, 2010). The

meta-model captures the KPI as a concept with at-

tributes including name, deﬁnition, type, timeframe,

scale, and threshold. The attribute type captures the

unit (continuous or discreet) used to measure the KPI.

The attribute timeframe indicates the duration during

which the KPI is deﬁned and the attribute scale indi-

cates the unit of measurement.

Strecker et al. present a method (MetricM) along

with a DSL named MetricML (Strecker et al., 2012).

The MetricM is integrated with the Multi-Perspective

Enterprise Modeling method to enrich the description

of the KPI with relevant enterprise context. The con-

cept indicator in the MetricML meta-model reﬁnes

the deﬁnition of the KPI as captured by Pourshahid et

al. and Popova and Sharpanskykh.

To ensure consistency in deﬁning, documenting,

and retrieving KPIs, Matthes et al. introduced a uni-

form KPI description template to capture the general

structural elements and organization-speciﬁc struc-

tural elements of a KPI (Matthes et al., 2012b). The

general structural elements and organization-speciﬁc

structural elements of a KPI are listed in Table 1

and Table 2 respectively. Furthermore, based on

this template, an EAM KPI Catalog consisting of 52

literature-based and practice-proven KPIs was devel-

oped (Matthes et al., 2012a). This catalog also lists

EAM goals and maps them to KPIs.

Table 1: General Structural Elements of a KPI.

Property Description

Title A unique name of the KPI.

Description Detailed description of the KPI

and its purpose.

Goals Each KPI is related to at least one

of the EAM goals.

Calculation Textual description of how the

KPI has to be calculated based on

a certain information model.

Source Source of the KPI (literature or

practice).

Layers A KPI can be assigned to one or

more EA layers.

There also exists a large body of knowledge on

DSLs for ensuring non-functional requirements (e.g.

safety-critical concerns and quality assurance) of in-

formation systems through appropriate metrics. For

instance, in (Monperrus et al., 2008) authors propose

a language for calculating metrics that determine the

internal complexity, size, and quality of the domain

models. Similarly in (Klint et al., 2009), a DSL for

analyzing the source code of software systems is pre-

sented. In the context of an EA, Iacob and Jonkers (Ia-

cob and Jonkers, 2006) propose an approach based on

the ArchiMate enterprise modeling language to quan-

titatively measure the performance of the EA models.

Similarly, Johnson et al. (Johnson et al., 2007) extend

ToolSupportforAnalyzingtheEvolutionofEnterpriseArchitectureMetrics

155

Table 2: Organization-speciﬁc Structural Elements.

Property Description

Measurement

frequency

The time interval between two

measurement points.

Interpretation Description of how the calculated

value should be interpreted (good,

acceptable, or bad).

KPI con-

sumer

The person who is interested in the

value of the KPI.

KPI owner The person responsible for the

KPI.

Target value The KPI value to be achieved.

Planned val-

ues

The KPI values to be achieved

while targeting the target value.

Tolerance

values

The allowed deviations from

planned and target values.

Escalation

rule

Steps to be taken when the target

EAM goal is not achieved.

the inﬂuence diagram notation (Expert, 2005) to sup-

port the quantitative analysis of the EA model prop-

erties including information security, performance,

availability, and interoperability.

Monahov et al. (Monahov et al., 2013) pro-

pose a DSL named Model-based Expression Lan-

guage (MxL) to formally deﬁne KPIs in the catalog

(Matthes et al., 2012a) and to allow their automated

calculation and evaluation. However, as discussed in

(Monahov et al., 2013), the current version of MxL is

not able to access the information model’s history to

compute the KPI at a point of time in the past.

Even though the aforementioned meta-models

capture EA metrics and its properties, they do not

consider the concept of time with respect to these met-

rics. Considering the temporal aspects in the meta-

model is necessary for analyzing the evolution of met-

rics. Furthermore, it enables the extension of the ex-

isting DSLs to query the information model with re-

spect to time and hence allows the calculation of met-

rics at any point of time in the past.

3 CAPTURING AN EA MODEL’S

EVOLUTION

A wide variety of EAM tools provide the capability to

model an EA and to analyze the data in a collabora-

tive environment (Matthes et al., 2008). However, to

address the challenges including the rigid information

structures and mismatch between unstructured infor-

mation sources in an EA, a model-based hybrid wiki

approach (Matthes and Neubert, 2011) was designed

and an EAM tool Tricia

was developed. We

extend Trica in our approach for the following

reasons:

1. Tricia follows a model-driven approach to system

implementation and has a ﬂexible meta-model

uchner et al., 2010).

2. Tricia’s MxL provides the capability to deﬁne and

compute metrics.

3. Tricia’s user-related services including access

control, search, versioning, and schema evolu-

tion allows controlled access to the information

model’s history and enables the computation of

EA metrics at any point of time in the past.

4. Tricia’s extensive enterprise-level collaborative

environment supports iterative development and

management of quantitative models.

First, we will extend the EA metric meta-model

with the temporal aspects. This is followed by a dis-

cussion on the extended version of the MxL that com-

putes metrics at any point of time in the past by ac-

cessing the information model’s history.

Figure 1, provides an excerpt of the EA metric

meta-model with the focus on the metric and its tem-

poral aspects. A detailed description of the Tricia

meta-model is discussed in (B

uchner et al., 2010). In

the following sub-sections, we will discuss the con-

cepts relevant in our context and illustrate how these

concepts enable to capture the evolution of metrics.

Business Type, Business Attribute Deﬁnition, Busi-

ness Entity, and Business Attribute. The Business

Type and Business Attribute Deﬁnition allow the def-

inition of the information model’s schema. As shown

in Figure 1, the Business Type contains multiple Busi-

ness Attribute Deﬁnitions. A user (constrained by the

Role) can create multiple Business Entities represent-

ing a speciﬁc Business Type. A Business Entity can

contain multiple Business Attributes belonging to a

Business Attribute Deﬁnition. These concepts in the

meta-model allow users to create their own informa-

tion model and its schema at runtime.

Metric, Metric Function, Measurement Rule (MR)

and Metric’s Value. The concept Metric comprises

of the general structural elements and organization

speciﬁc structural elements as discussed in the pre-

vious section (not shown in Figure 1). The temporal

aspects of metrics are captured by its corresponding

MR. The frequency information captured in the MR is

used to trigger temporal events to recalculate metrics

and the timeSeriesType information is used to visual-

ize the evolution of metrics. The concept MR captures

the following attributes:

http://infoAsset.de

ICEIS2015-17thInternationalConferenceonEnterpriseInformationSystems

156

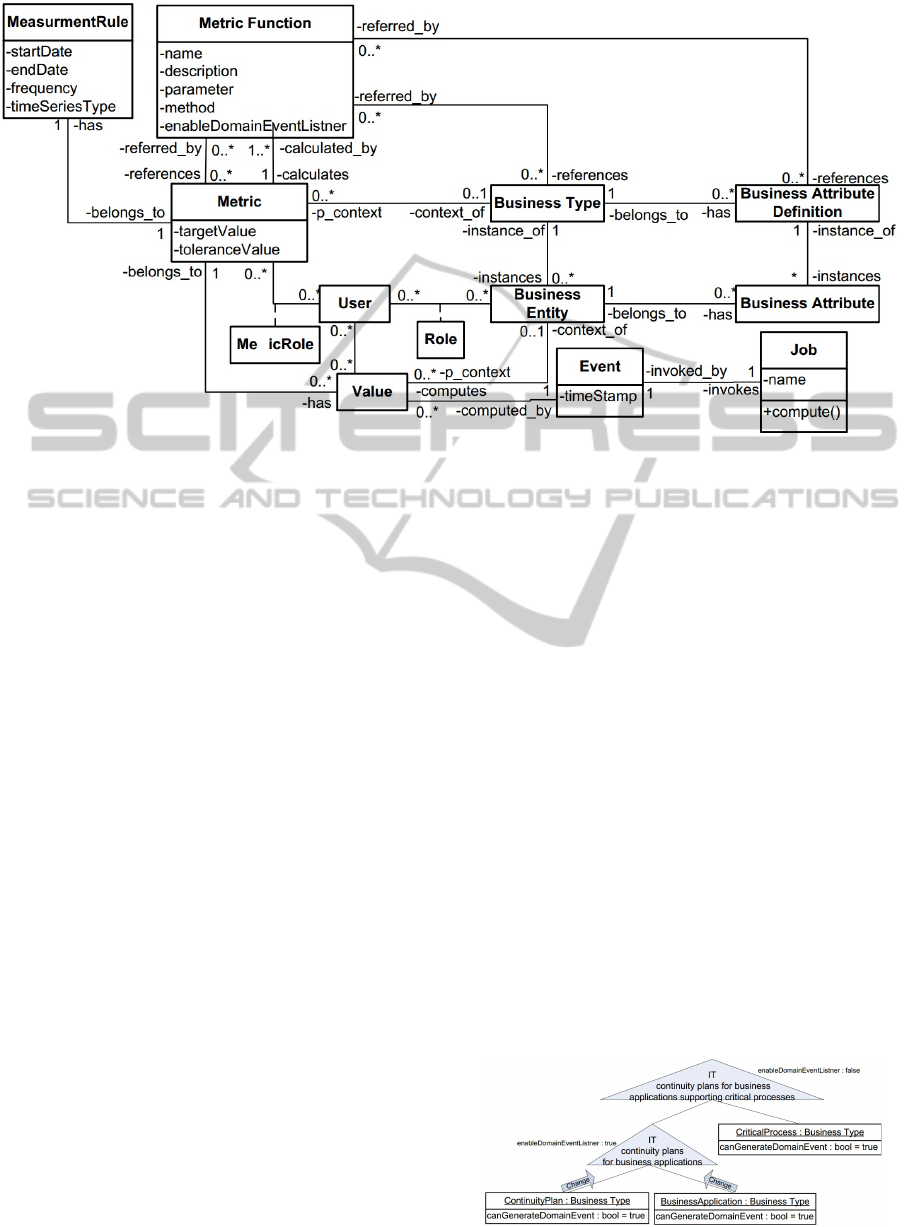

Figure 1: Meta-model capturing temporal aspects of EA metrics.

• startDate: determines when to start monitoring a

metric. The default value is the time when the

metric was ﬁrst deﬁned.

• endDate: determines when to stop monitoring a

metric.

• frequency: the interval between two measure-

ment points; enumeration of values such as daily,

monthly, and quarterly.

• timeSeriesType: enumeration of values such as

continuous, discrete, linear, step-wise (Segev and

Shoshani, 1987) for interpolation.

Furthermore, as shown in Figure 1, a Metric is cal-

culated by a Metric Function which refers to multiple

Business Types, Business Attribute Deﬁnitions, and

other metrics for its calculation. The attributes of the

Metric Function are as follows:

• name: name of the Metric Function.

• description: description of the Metric Function.

• method: implementation script in a DSL.

• enableDomainEventListner: if the value is true,

the Metric Function listens to domain events.

When a business entity triggers a domain event

to re-compute a metric, the Metric Function is ex-

ecuted and the new metric value is persisted.

Events. We explicitly model events in the meta-

model to enable the re-computation of metrics. On

occurrence of a speciﬁc event, a new job is created

by a job scheduler to recompute the corresponding

metric. For better readability, dependencies from the

source of an event to a specialized event are not shown

in Figure 1. These events are classiﬁed as:

• Temporal event: Is triggered by the Measurement

Rule depending on the measurement frequency of

a metric, i.e. daily, monthly or quarterly.

• User triggered event: A user can trigger this event

at any point to accesses the updated metric value.

• Domain event: A domain event is triggered by a

Business Entity or Business Attribute when it is

modiﬁed (created, updated, deleted).

• Model change event: Is triggered by a Business

Type and Business Attribute Deﬁnition to repre-

sent a change in the information model’s schema.

To avoid performance issues in the system due

to frequent generation of domain events, a metric is

recalculated only when the corresponding Business

Type’s attribute canGenerateDomainEvent and the

Metric function’s attribute enableDomainEventList-

ner are set to true. In other words, domain events

are propagated through the system and metrics are

recalculated only when their corresponding ﬂags are

enabled. For instance, let us consider the scenario

shown in Figure 2. The metric “IT continuity plan

for business applications (ITC)” depends on the Con-

tinuityPlan and BusinessApplication Business Types

Figure 2: Events.

ToolSupportforAnalyzingtheEvolutionofEnterpriseArchitectureMetrics

157

whereas, the metric “IT continuity plan for business

applications supporting critical processes (ITCP)”

depends on the CriticalProcess Business Type and

the value of the ITC metric. As both enable-

DomainEventListner and canGenerateDomainEvent

ﬂags corresponding to the ITC metric and its corre-

sponding Business Types are set to true any change in

instances of these Business Types results in the recal-

culation and persistence of the ITC metric. On the

contrary, changes in instances of CriticalProcess or

values of the ITC metric does not result in the re-

calculation of the ITCP metric as the corresponding

enableDomainEventListner ﬂag is set to false.

Role of User. Tricia provides access control and con-

tent authoring mechanisms to manage user permis-

sions on the information model. The users or the

group of users can read, write, or administrate content

in the system. Similarly, user permissions and roles

can be set on metrics deﬁned in the system (through

the MetricRole concept shown in Figure 1). The met-

ric consumers have read access, while the metric own-

ers are responsible for deﬁning metrics and have both

the read and write access.

Capturing the aforementioned concepts in the

model allows persisting metrics as its corresponding

business entities evolve and as a consequence allows

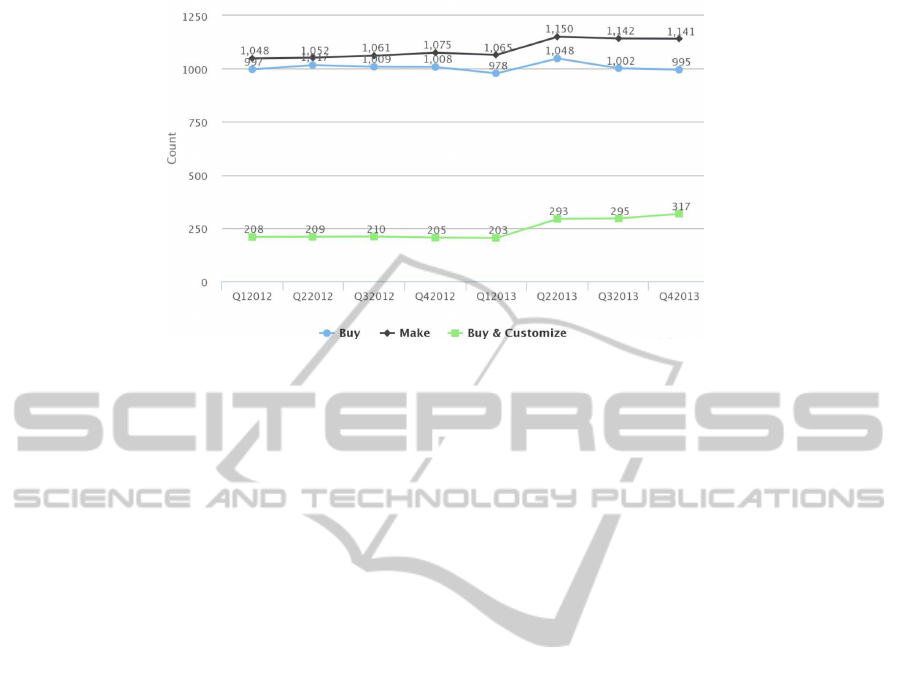

the visualization of the metrics’ evolution (Figure 8).

4 A DSL FOR ACCESSING AN EA

MODEL’S HISTORY

By modeling the temporal aspects of metrics, we can

query the value of metrics in the past and can visual-

ize their evolution. However, if the temporal aspects

of metrics are not yet modeled, their values in the past

cannot be determined. In such scenarios, the informa-

tion model’s history needs to be accessed to compute

the past metric values. Tricia manages versions of its

entities and provides functionalities to compare ver-

sions and to restore previous versions of entities. As

shown in Figure 3, versions are managed in change-

sets which not only capture the value of the entity be-

fore its change, but also its entity type, type of change

(new, edit, delete), and modiﬁcation timestamp.

An EAM tool that manages the information

model’s history and a DSL that can access the in-

formation model can facilitate evaluating a metric at

any point of time in the past. As Tricia meets the

above requirements, we extended the capabilities of

the MxL to compute metrics at any point of time in the

past. Furthermore, the MxL is independent of Tricia

and can be integrated within other EAM tools. The

MxL is speciﬁc to the EAM domain and is inspired

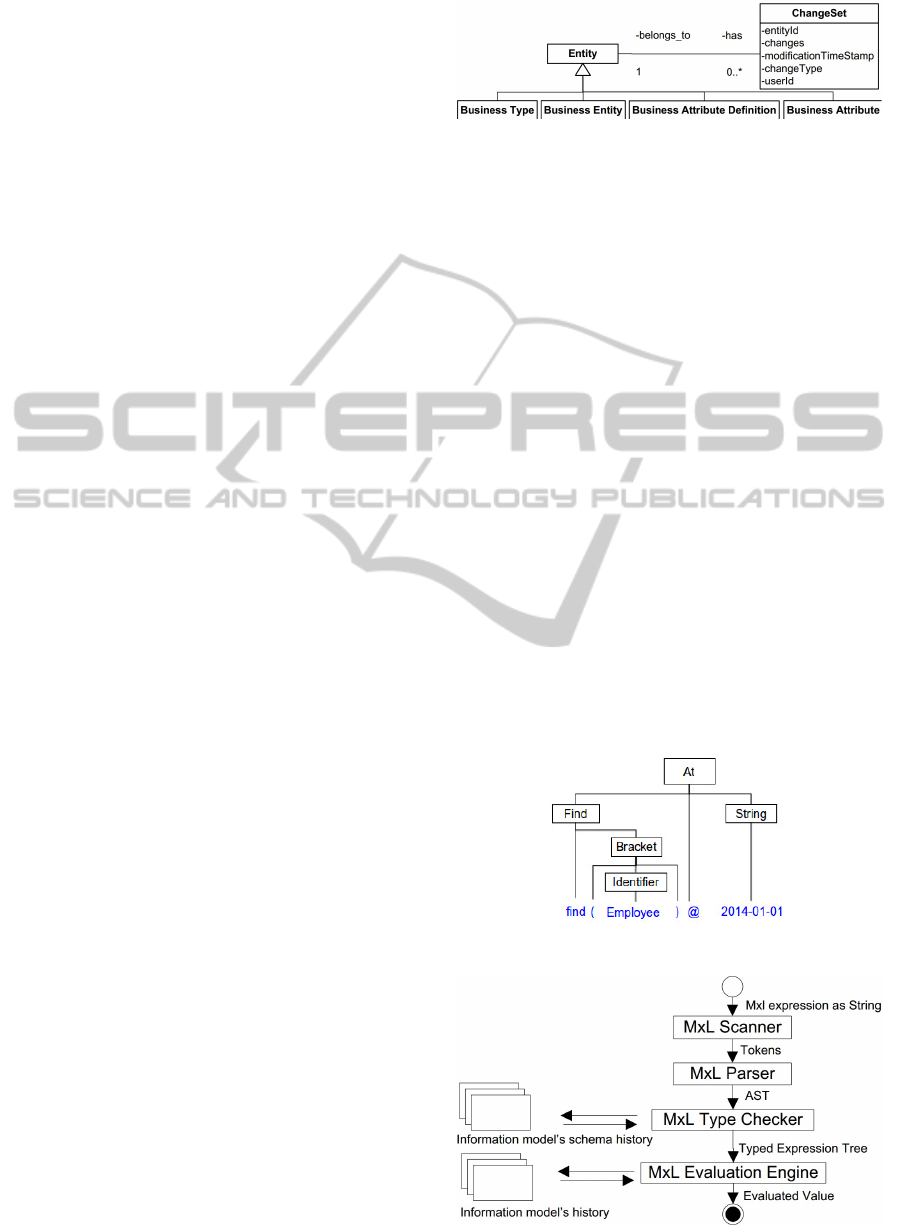

Figure 3: Versions of Entities.

by the Object Constraint Language (OCL) and Mi-

crosoft’s Language Integrated Query (LINQ) leading

to properties such as functional programming, object-

orientation, and sequence-orientation. A detailed de-

scription of the available data types, language con-

structs, and operations in the MxL with examples is

documented in (Monahov et al., 2013).

We extend the grammar of MxL by introducing a

new literal “@” that retrieves the state of the object at

a given time. That is, the MxL expression “Expres-

sion @ time” is not evaluated on the current state of

the information model but on the information model’s

history and the state of entities at a given time.

The abstract syntax tree (AST) generated by the

MxL parser containing the “@” literal sets the AtEx-

pression as a node in the AST with one MxL expres-

sion as the left operator and the other MxL expression

representing date as the right operator. This is illus-

trated in Figure 4 with a very simple example. The

AST is passed to the MxL type checker to validate

the static semantics of the language, which generates

a Typed Expression Tree (TET) to be executed by the

MxL execution engine. If the MxL expression refers

to Business Types and Business Attribute Deﬁnitions,

Figure 4: The AST containing the At Expression.

Figure 5: Evaluating MxL Expression with Date as String.

ICEIS2015-17thInternationalConferenceonEnterpriseInformationSystems

158

m1 = f i n d ( Employee ) . where ( s a l a r y > 3 000). c o u n t ( ) / / 3

m2 = f i n d ( Employee ) . where ( s a l a r y > 3 000). c o u n t ( ) @p astDat e 1 / / 1

m3 = f i n d ( Employee ) . where ( s a l a r y > 3 000). c o u n t ( ) @p astDat e 2 / / 1

m4 = f i n d ( Employee ) . where ( s a l a r y > 3 000). c o u n t ( ) @

[ Today , p a s t D a t e 1 , p a s t D a t e 2 , p a s t D a t e 3 ] / / [ 3 , 1 , 1 , 2 ]

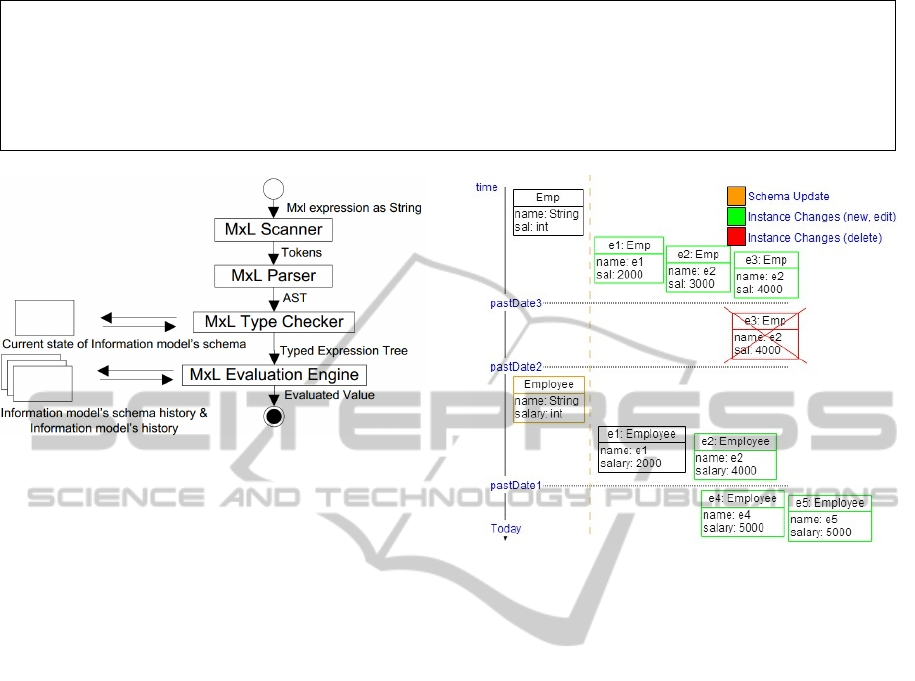

Figure 6: Evaluating MxL Expression with date as MxlOb-

ject/parameter.

the MxL type checker ensures their existence in the

information model’s schema and retrieves them be-

fore generating the TET. Please refer (Reschenhofer

et al., 2014) for a detailed description on the MXL

type checker and the type system of the MxL.

With the introduction of the AtExpression, the

MxL type checker now has to determine the type of

the MxL Objects on a given date. However, if the

date itself is an MxL Object, the type of other MxL

Objects corresponding to this date cannot be deter-

mined at compile time but only at runtime. Thus, we

consider the following two scenarios:

Considering Date at Compile Time If the date is ex-

pressed as a string, the type checker ensures that the

date is in a ﬁxed format and determines the date at

the compile time. As indicated in Figure 5, the type

checker queries the schema history and checks the

type of the objects corresponding to this date.

Considering Date at Runtime. As shown in Fig-

ure 6, if the date is an MxL Object, the type checker

checks the type of all MxL Objects with respect to the

current state of the information model’s schema. At

runtime, ﬁrst the date is evaluated and then types of

all other MxL objects are retrieved from the schema

history and the expression is evaluated for this date.

Since Tricia maintains the change-sets of both

the information model and its schema, it is pos-

sible to evaluate the expression irrespective of the

change in either one of them. Let us con-

sider an exemplary use-case to calculate a metric

(m - “ﬁnd(Employee).where(salary>3000).count()”).

This metric computes the count of employees with

Figure 7: Evolution of Entity.

the salary more than 3000. Note that the value of

the metric m changes as the business type Employee

and its business attribute deﬁnitions name and salary

evolve over time. As shown in Figure 7, evaluating

the MxL expression (1) corresponding to m1 at the

current point in time (Today), returns value: 3 which

is based on the current state of system. However, ex-

ecuting the MxL expression (2) representing the met-

ric m2 at the current point in time returns value: 1,

which is based on the state of the system at a point

of time in the past i.e. pastDate1. Furthermore, Fig-

ure 7 also shows that the schema itself is updated at

some point after pastDate2 and executing the MxL

expression corresponding to the metric m3 with the

date pastDate2, ﬁrst checks for changes in the change-

set representing schema change and returns the result

corresponding to the schema at pastDate2. Also, the

“@” literal can be followed by a sequence of dates,

which returns a sequence of results corresponding to

each date in the sequence as captured in mertic m4.

5 EVALUATION

We conducted an analytical and observational evalu-

ation (von Alan et al., 2004) of the implementation

of the MxL’s At Expression. One of our industry

partners in the ﬁnancial sectors provided the histor-

ToolSupportforAnalyzingtheEvolutionofEnterpriseArchitectureMetrics

159

Figure 8: Evolution of NACL metrics.

ized data for the evaluation. Without loosing general-

ity, we imported the data with the timestamp of snap-

shots and updated the versions of artifacts to achieve

a consistent view on the evolution of the information

model. We then implemented metrics that are used to

measure the complexity of the application landscapes

(AL). These metrics (e.g., topology-based metrics

and heterogeneity-focused metrics (Lagerstrom et al.,

2014; Schuetz et al., 2013; Schneider et al., 2015)),

were identiﬁed by our research group in a related re-

search activity. The metrics used to measure the com-

plexity of the AL include the Number of Applications,

Number of Information Flows, and Number of Ap-

plications per Customization Level (NACL) metrics.

The customization level indicates the category of the

business applications such as buy, make, and buy and

customize. The historized data received from our in-

dustry partner was versioned quarterly from the ﬁrst

quarter of 2012 to the fourth quarter of 2013. Using

the “@” operator to compute the Number of Applica-

tions in the past, the trend in the metric is visualized

in the Tricia platform. Similarly, the Number of In-

formation Flows metric is visualized on a time series

graph and is used to analyze the complexity and con-

nectedness of the AL. The complexity of the AL is

directly proportional to the number of interfaces (in-

formation ﬂows) in each application. The NACL met-

ric determines the number of business applications in

different customization levels. The trend in the NACL

metric, as shown in Figure 8, enables executives to

compare and analyze where the company has been in-

vesting over the period of time.

6 SUMMARY, CONCLUSION AND

OUTLOOK

In this paper, we have discussed the temporal as-

pects of metrics and proposed a meta-model to cap-

ture them in the context of the EAM. In section 3,

we elaborated the concepts in the EA metric meta-

model and discussed how metrics can be persisted as

the information model changes. We then extended

the existing DSL named MxL for calculating metrics

based on the information model’s history. In section

5, we presented the evaluation of our approach. Al-

though we have successfully evaluated the EA metric

meta-model and the extension of MxL in our research

group, to comply to the observational evaluation as

deﬁned in (von Alan et al., 2004), we still need to

study the usability and performance in a business en-

vironment. We propose to further collaborate with our

industry partners from the banking domain for evalu-

ating our approach with their application landscape

data. Furthermore, conducting interviews of enter-

prise architects in the respective partner organizations

will provide necessary inputs to improve our system

before testing it in their practical settings.

In general, the time series analysis comprises of

(a) developing the model that represents a time se-

ries and (b) predicting the future values based on that

model. In this paper, our focus has been on the for-

mer aspect i.e. developing the model that represents

the time series of metrics and analyzing their past evo-

lution. However, considering both aspects of the time

series analysis will further beneﬁt decision makers in

taking informed strategic decisions. The time series

model of metrics will act as a base model to apply

evolutionary algorithms to predict the future metric

ICEIS2015-17thInternationalConferenceonEnterpriseInformationSystems

160

values along the time series. In the future work, we

will validate this claim as well as evaluate the pro-

posed EA metrics model in a practical settings.

REFERENCES

Bose, R. (2006). Understanding mgmt. data systems for en-

terprise performance mgmt. Industrial Mgmt. & Data

Systems, 106(1):43–59.

uchner, T., Matthes, F., and Neubert, C. (2010). Data

model driven implementation of web cooperation sys-

tems with tricia. In Objects and Databases, pages 70–

84. Springer.

Buckl, S., Ernst, A., Matthes, F., and Schweda, C. M.

(2009). Visual roadmaps for managed enterprise ar-

chitecture evolution. In Software Eng., Artiﬁcial In-

tell., Networking and Parallel/Distributed Computing,

2009. SNPD’09. 10th ACIS Int. Conf. on, pages 352–

357. IEEE.

Expert, H. (2005). Hugin api reference manual, version 6.4,

september 2005.

Hauder, M., Roth, S., Schulz, C., and Matthes, F. (2013).

Current tool support for metrics in enterprise architec-

ture management.

Iacob, M.-E. and Jonkers, H. (2006). Quantitative analysis

of enterprise architectures. In Interoperability of En-

terprise Software and Applications, pages 239–252.

Springer.

Johnson, P., Lagerstr

om, R., N

arman, P., and Simonsson,

M. (2007). Enterprise architecture analysis with ex-

tended inﬂuence diagrams. Information Systems Fron-

tiers, 9(2-3):163–180.

Kaisler, S. H., Armour, F., and Valivullah, M. (2005). En-

terprise architecting: Critical problems. In System Sci-

ences, 2005. HICSS’05. Proceedings of the 38th An-

nual Hawaii Int. Conf. on, pages 224b–224b. IEEE.

Klint, P., van der Storm, T., and Vinju, J. (2009). Rascal:

A domain speciﬁc language for source code analysis

and manipulation. In Source Code Analysis and Ma-

nipulation, 2009. SCAM’09. Ninth IEEE Int. Working

Conf. on, pages 168–177.

Lagerstrom, R., Baldwin, C., MacCormack, A., and Aier,

S. (2014). Visualizing and measuring enterprise ap-

plication architecture: An exploratory telecom case.

In System Sciences (HICSS), 2014 47th Hawaii Int.

Conf. on, pages 3847–3856.

Matthes, F., Buckl, S., Leitel, J., and Schweda, C. M.

(2008). Enterprise architecture management tool sur-

vey 2008. Techn. Univ. M

unchen.

Matthes, F., Monahov, I., Schneider, A., and Schulz, C.

(2012a). Eam kpi catalog v 1.0. Technische Univer-

sit

at M

unchen, Germany, Tech. Rep.

Matthes, F., Monahov, I., Schneider, A. W., and Schulz, C.

(2012b). Towards a uniﬁed and conﬁgurable structure

for ea management kpis. In Trends in Enterprise Ar-

chitecture Research and Practice-Driven Research on

Enterprise Transformation, pages 284–299. Springer.

Matthes, F. and Neubert, C. (2011). Wiki4eam: Using hy-

brid wikis for enterprise architecture management. In

Proceedings of the 7th Int. Symposium on Wikis and

Open Collaboration, pages 226–226. ACM.

Monahov, I., Reschenhofer, T., and Matthes, F. (2013). De-

sign and prototypical implementation of a language

empowering business users to deﬁne key performance

indicators for enterprise architecture management. In

EDOCW, 2013 17th IEEE Int., pages 337–346. IEEE.

Monperrus, M., J

equel, J.-M., Champeau, J., and

Hoeltzener, B. (2008). Measuring models. Synthesis,

19:20.

Popova, V. and Sharpanskykh, A. (2010). Modeling organi-

zational performance indicators. Information Systems,

35(4):505–527.

Pourshahid, A., Amyot, D., Chen, P., Weiss, M., and

Forster, A. J. (2007). Business process monitoring

and alignment: An approach based on the user re-

quirements notation and business intelligence tools. In

WER, pages 80–91.

Reschenhofer, T., Monahov, I., and Matthes, F. (2014).

Type-safety in ea model analysis. In EDOCW, 2014

IEEE 18th Int., pages 87–94.

Robbes, R. and Lanza, M. (2007). A change-based ap-

proach to software evolution. Electronic Notes in The-

oretical Computer Science, 166:93–109.

Roth, S., Hauder, M., Farwick, M., Breu, R., and Matthes,

F. (2013). Ea documentation: Current practices and

future directions.

Rouse, W. B. (2005). A theory of enterprise transformation.

Systems Engineering, 8(4):279–295.

Schneider, A. W., Reschenhofer, T., Sch

utz, A., and

Matthes, F. (2015). Empirical results for application

landscape complexity. Technical report, Darmstadt

Technical University, Department of Business Admin-

istration, Economics and Law, Institute for Business

Studies (BWL).

Schuetz, A., Widjaja, T., and Kaiser, J. (2013). Complexity

in enterprise architectures-conceptualization and in-

troduction of a measure from a system theoretic per-

spective.

Segev, A. and Shoshani, A. (1987). Logical modeling of

temporal data. In ACM Sigmod Record, volume 16,

pages 454–466. ACM.

Strecker, S., Frank, U., Heise, D., and Kattenstroth, H.

(2012). Metricm: a modeling method in support of

the reﬂective design and use of performance measure-

ment systems. Information Systems and e-Business

Management, 10:241–276.

von Alan, R. H., March, S. T., Park, J., and Ram, S. (2004).

Design science in information systems research. MIS

quarterly, 28(1):75–105.

ToolSupportforAnalyzingtheEvolutionofEnterpriseArchitectureMetrics

161
