Scoping Automation in Software Product Lines

Andressa Ianzen

, Rafaela Mantovani Fontana

1,2

, Marco Antonio Paludo

, Andreia Malucelli

and Sheila Reinehr

Pontifical Catholic University of Paraná (PUCPR), R. Imaculada Conceição, 1155, Curitiba, PR, Brazil

Federal University of Paraná (UFPR), R. Dr. Alcides Vieira Arcoverde, 1225, Curitiba, PR, Brazil

Keywords: Linguistic Annotation, Software Product Lines, Scoping.

Abstract: Software product lines (SPL) are recognized as a way to increase the quality as well as to reduce the cost,

delivery time, and mitigate risks of software products. Scoping, an essential step in SPLs, requires time and

effort of domain experts; thus, automation initiatives at this stage are invaluable. This paper presents a semi-

automatic approach for defining scope in SPLs. Consequently, a method is pro-posed for the semi-automatic

identification and classification of product features, along with an approach for evaluating the variabilities

and commonalities between the established line and a new product. Experiments conducted to evaluate the

approach verify the benefits of the semi-automatization of scoping, including reduction of the time and

human effort involved.

1 INTRODUCTION

Software Product Lines (SPL) are recognized as a

way to increase quality, reduce costs, reduce

delivery time, and minimize risks in software

production (Clements and Northrop, 2002). Using

SPLs, reuse is systematized, drawing upon the

identification and development of assets that will be

reused by SPL products and their architecture

(Linden et al., 2007).

To identify reusable assets that should be

developed, execution of an activity called scoping is

essential. The scoping activity aims to map the scope

while identifying and delimiting the products,

features, and areas of the domain that should be part

of the SPL. It also identifies common features and

variables, and is critical to the success of the SPL

(John, 2010).

Scoping requires intense participation of the

domain experts. In the creation of a SPL, according

to the extraction approach (Alves et al., 2010),

existing systems are first used to create an assets

base. Since the dependence on human intervention at

this stage can be limiting, it is important to adopt an

approach that reduces the need for the presence of

domain experts (John et al., 2006).

The goal of this study is to develop a semi-

automatic approach to assist in SPL scoping. The

proposed approach consists of two steps: 1) scoping,

using a proposed method for the semi-automatic

identification and classification of features based on

artifacts of the organization’s product; and 2)

product engineering, which facilitates evaluation of

the variabilities and commonalities between the

created SPL and a new product, and is used to

support the decision on whether to include the

product in the product family.

The proposed approach can help organizations

that wish to migrate to the SPL approach to begin

mapping their products and view them as families in

the same domain that share components seen as

common features.

The remainder of this paper is organized as

follows: In Section 2, work related to SPL scoping is

presented. In Section 3, the structure of the study is

discussed. In Section 4, the proposed approach is

outlined. In Section 5, the results obtained are

discussed. Finally, in Section 6, conclusions and

limitations of the study are presented.

2 SCOPING IN SPL

Sixteen proposals related to scoping in SPL were

identified in a literature review conducted.

In Ganesan et al., (2006), an approach for

analyzing the source code to identify the people who

know the domain of the organization's products is

Ianzen A., Mantovani Fontana R., Paludo M., Malucelli A. and Reinehr S..

Scoping Automation in Software Product Lines.

DOI: 10.5220/0005372400820091

In Proceedings of the 17th International Conference on Enterprise Information Systems (ICEIS-2015), pages 82-91

ISBN: 978-989-758-097-0

 2015 SCITEPRESS (Science and Technology Publications, Lda.)

presented. This is one of the major benefits of the

method for the scoping phase.

The approach proposed by Noor et al., (2007)

performs the scoping manually, and promotes the

migration of existing systems to the SPL approach.

The mapping phase of product line requires the

participation of stakeholders and domain experts.

In Noor et al., (2008), principles of agile

methodologies are applied in the planning of SPL,

and the participation of stakeholders who know the

domain is required during the execution of the

process.

In Carbon et al., (2009), the agile practice

“planning game” was adapted and used with SPL,

complementing the continuous process of scoping. It

focuses especially on changes or new requirements

from external customers.

Analysis of the approaches presented in John and

Eisenbarth (2009) indicates that scoping is an

activity that involves various stakeholders of the

organization and that all sixteen approaches are

considered relevant. The selection criteria to

consider an approach to be relevant are

characteristics like strong relationship with product

lines, some maturity, and sufficient documentation

to be understood and applied.

The study by Liu et al. (2010) initially proposed

the identification of commonalities between

different domains to be analyzed subsequently by

developers. The difficulty of the essential

commonalities between the systems being found and

persisting was demonstrated.

The basis of the approach by Ullah et al., (2010)

is the generation of multiple product portfolios from

customer preferences, requiring strong intervention

of the customers in the process. The base is existing

systems that will evolve into the SPL, considering

the structure of the systems, so as to propose

variations.

The commonality and variability extraction

(CAVE) approach proposed by John (2010) is a

manual approach that uses user documentation as a

source for the process of scoping. In the proposed

approach, an SPL consultant applies patterns to

design a matrix that is subsequently validated by the

domain expert.

The work presented in Lee et al., (2010)

compares and analyzes traditional approaches to the

realization of the activity of scoping to find its

essential components and develop them into a single

approach.

The approach by Muller (2011) has a focus that

is complementary to scoping, in that it seeks to

identify features that most directly influence the

financial performance of the line.

Unlike the approach presented previously by

Ganesan et al., (2006), in which the source code is

examined in order to identify people with

involvement in the domain, the next two approaches

use the source code to identify the product features.

Duszynski (2011) proposes a reverse engineering

approach to extract variability information from the

source code of similar software products. The

requirement is to use codes that are clones of the

others, typically obtained from products that have

been duplicated and do not employ the concepts of

SPL. Ziadi et al., (2012) created class diagrams

simplified for later decomposition into smaller parts,

in order to identify candidate features. In both of the

above cases, the intervention of experts is necessary,

owing to the limitations of the approaches.

Other semi-automatic approaches have been

proposed by Yoshimura et al., (2008), who

examined the candidate variabilities based on the

historical product version, considering that its

variables can be obtained because there are

persistence’s in change history and by Archer et al.,

(2012), who had the goal of transposing the

description of products into a feature model, in

which product descriptions are organized into tables,

with each row representing a product.

The proposal by Medeiros and Almeida (2012) is

a three-stage process that first extracts features based

on the source code of legacy applications, after

comparison of the similarities to finally obtain the

refinement of the result with the intervention of a

scope analyst, an expert in the application domain.

Finally, Cruz et al., (2013) makes the association

of source code of legacy applications with features

and considers issues such as measures of lines of

code, cyclomatic complexity, and coupling. The

authors adopt a process with stages of inference of

asset costs, relevance to the desired segments,

calculation, and qualification of candidate products

and, finally, the grouping of the best products for

each application segment.

Thus, it can be seen that most of the above

approaches require the intervention of experts,

stakeholders, or customers, performing manual tasks

that can generate errors and sometimes hamper the

efficiency of the SPL scoping process. The study in

John (2010) identified the importance and need for

automation of the standards for automatic analysis of

documents and identification of artifacts for SPL.

To satisfy the need identified in the literature and

in the results of the analysis of current approaches,

this paper proposes an approach that reduces human

involvement in the scoping phase of the SPL. The

ensuing section shows how the approach proposed to

fill this gap was developed.

ScopingAutomationinSoftwareProductLines

3 STUDY STRUCTURE

This study aimed to develop a semi-automatic

approach to assist in SPL scoping. To achieve the

proposed objective, the research was divided into

two stages, as depicted in Figure 1:

Figure 1: Study structure.

In Stage 1, the conceived method was

implemented in the Java programming language,

using the Eclipse IDE. Partial results are detailed in

Section 4. The proposed method was evaluated via

an experiment with manuals from the LG family of

smartphones (available on the web). The experiment

aimed to compare the results of the manual reading

and analysis of six user manuals for creating an SPL,

with using the proposed approach for the creation of

the SPL. Two researchers participated in the

experiment.

The experiment was conducted in two stages. In

the first stage, six user manuals were read and the

features identified manually extracted. A total of 62

pages were read in the first manual, 51 pages in the

second, 48 pages in the third, 39 pages in the fourth,

30 pages in the fifth, and 52 pages in the sixth. In

total, 282 pages were read in the experiment, by both

participants. While the document was being read, the

identified features were also being recorded in

another document. The time spent reading and

extracting features from the documents was also

recorded.

In Stage 2, the proposed algorithm was

implemented to evaluate whether or not a new

product was part of an already established SPL. This

implementation was validated in an experiment that

evaluated whether four different products were part

of an existing SPL. The experiments were performed

based on the SPL created in the first experiment, and

evaluated 1) a cell phone from the family of

smartphones, but from another brand; 2) a

conventional cell phone of the same brand as used in

the creation of the SPL; 3) an LCD TV; and 4) a

smartphone from the same family as that of the SPL

that was generated in the previous stage.

The next section presents the proposed

approaches in two stages and describes the results of

the experiments used to evaluate them.

3.1 Threats to Validity

Experiments are used to verify the effects of

interventions (Kampenes et al., 2009). In this study,

they were used at two different times and in different

ways. The first involved the participation of

individuals to compare the manual to the semi-

automatic approach. The second involved testing of

the algorithm on different products to verify its

effectiveness in identifying the characteristics of

these products. For the second experiment, there

were no concerns about the internal validity, since

people were not involved. However, in the first

experiment, it was possible to identify a threat to the

internal validity called “selection bias” (Kampenes

et al., 2009).

According to Kampenes et al., (2009), selection

bias occurs when the characteristics of the

individuals involved in the experiment can influence

the result of the experiment. One way to reduce this

threat is to reduce differences between the

individuals involved. In this research, an attempt

was made to involve individuals with the same

training (IT), with completed or continuing post-

graduate studies. In this way, it is expected that

selection bias was reduced in the first experiment,

and that the threats to the internal validity of the

study were likewise reduced.

4 PROPOSED APPROACH TO

SPL SCOPING

This section presents the results of the study as well

as the experiments conducted in order to evaluate

Semi-automatic approach to assist in SPL scoping

Method for Semi-automatic identification

and cla ssification of features.

Experiment: comparison of analysis and

manual reading with the proposed

method.

Approach to evaluate the variabilities and

commonalities between the created SPL

and a new product.

Experiment: evaluation of four different

products in an existing SPL.

STAGE 1

GE 2

ICEIS2015-17thInternationalConferenceonEnterpriseInformationSystems

them.

4.1 Method for Semi-automatic

Identification and Classification of

Features

The process used in the implemented application is

shown in Figure 2 and begins with definition of the

source folder of the documents. If they are in PDF

format, they are converted to TXT format using the

PDFBox library (Apache, 2012). Processing by

TreeTagger then occurs, in which the words are

separated by blanks (tokenization) using an

LXParser library, and special characters removed.

The definition of this set of special characters was

presented in a proof of concept of the linguistic

annotation tool conducted previously.

Each processed document gives rise to other

containing language annotations that, in turn, are

processed in the search for features. Lines that do

not have a verb (or that have a verb but no noun or

adjective) are ignored. All the others are processed

to identify the following sequences:

 VERB + NOUN + ADJECTIVE

 VERB + ADJECTIVE + NOUN

 VERB + NOUN + NOUN

 VERB + NOUN.

In an example text from the manual, “To send a text

message, use the phone,” two valid sequences were

found: “send text message” and “use phone.” It is

important to mention that the entire line is analyzed

at once, such that the desired standards are then

sought. For example, the line above would be

linguistically annotated as follows: (PRP to) (V

send) (NOM text) (NOM message) (V use) (Det the)

(NOM phone).

Then, only the verbs, nouns, and adjectives are

taken into consideration, and the format of the entire

line is identified. In the process, the patterns that are

searched for are compared with the format identified

in the sentence and, if there is a match, the words

that correspond to the pattern are removed from the

line and are considered a feature. The analysis then

continues without these words until the end of the

line.

The valid sequences identified are then analyzed

again to check which of them are related to auxiliary

verbs; these are then discarded. Then, the identified

features are processed to identify the root of words

in order to group similar nouns, as in the case of

plurals and verbs that are synonyms. Traceability of

the documents with the features is maintained for the

purpose of classification within the family.

The features are presented to the user with their

respective synonymous functionalities, when

applicable, and with one of the following

classifications: common (present in all products),

variable (present in two or more products), or

optional (present in a single product). Possible

actions are the exclusion or signaling of synonymous

features. After the user interactions, the features are

written to an eXtensible Markup Language (XML)

file to facilitate their reuse and distribution.

There is an iteration in this procedure to enable

the consideration of “stop features.” Following the

“TreeTagger” stage, which performs the linguistic

annotation of all the artifacts provided by the user

for the creation of the SPL, the algorithm moves on

to handle one artifact at a time. The first artifact is

processed, organized, and presented to the user. The

user analyzes the features, excludes what she wants

to exclude, creates synonymous features (if

necessary), and finalizes the analysis of the artifact.

At this point, the features that have been excluded

by the user are saved in a list of “stop features.”

The algorithm processes the next artifact and

takes into account the list of “stop features.” If any

identified feature is included in this list, it is

discarded and not presented to the user as a result of

the processing of this second artifact. The features of

this second artifact are organized and classified,

along with those that had already been identified in

the first artifact, and are presented again to the user

for exclusion and evaluation of synonymous

features.

Instead of processing, organizing, and presenting

the features located in all the artifacts provided by

the user all at once, the information is presented

cumulatively so that use of the list of “stop features”

is possible, with the aim of reducing the number of

features presented to the user. Figure 2 depicts the

stages in the process.

The SPL can be considered complete when the

user finishes analyzing the last artifact. Three files,

with information about the SPL, are saved on the

user’s computer:

 “line.xml,” which contains all the features of the

SPL with its classifications

 “SF.txt,” which contains a list of identified “stop

features.”

 “line.properties,” which contains two values: the

total number of SPL features and a

representation of the lowest percentage of

common and variable features found during the

analysis of all the products of the SPL.

File “line.xml” is the file that represents the created

SPL. Through it, all the features comprising the

SPL, the products in which they are found, as well

ScopingAutomationinSoftwareProductLines

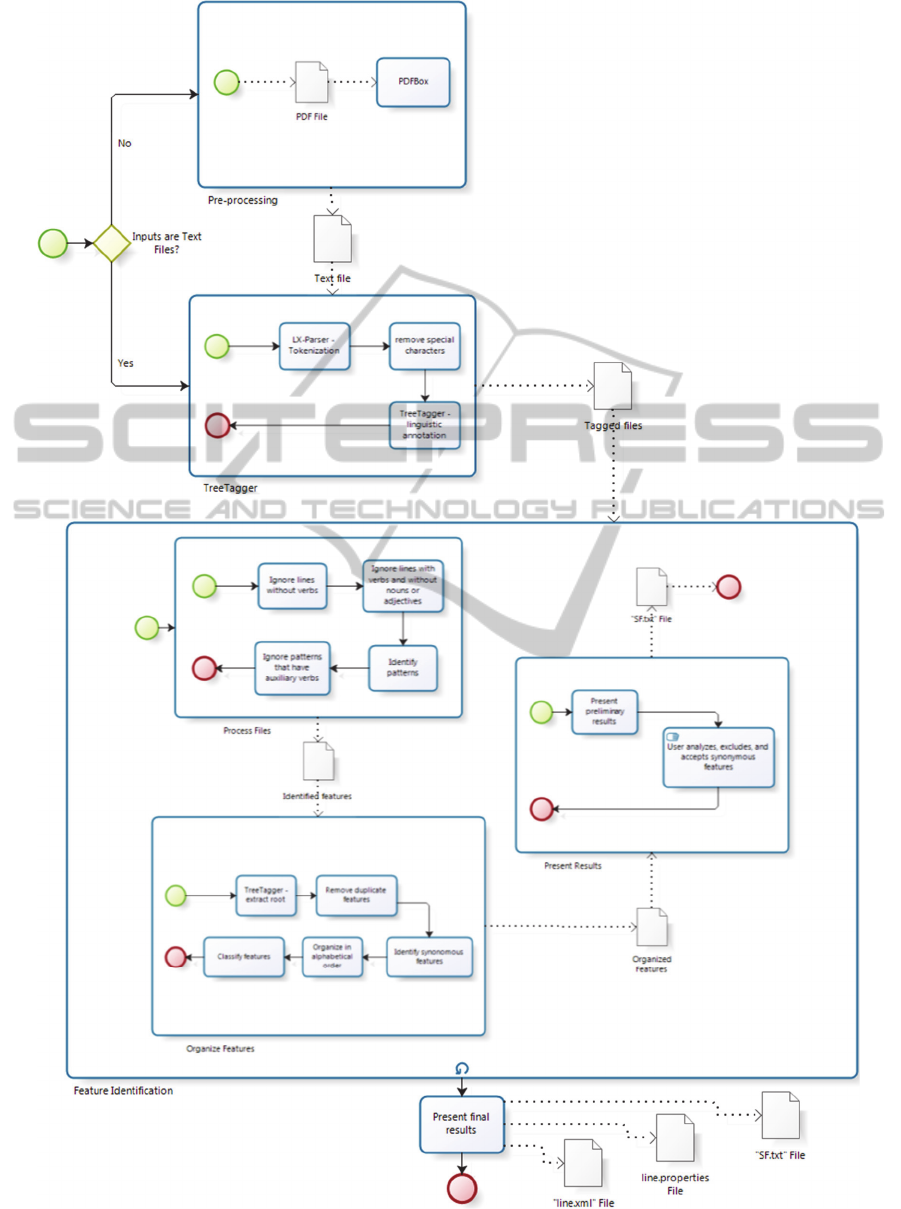

Figure 2: Stages in the semi-automatic method for identifying features.

ICEIS2015-17thInternationalConferenceonEnterpriseInformationSystems

Table 1: Summary of the manual stage.

Participant 1 Participant 2

Document name Identified features

Time spent

Identified features Time spent

LG Hotmail Phone C570 177 01:13:00 331 00:54:00

LG Optimus 2X P990 103 01:06:00 342 00:22:00

LG Optimus GT540 94 01:17:00 339 00:17:00

LG Optimus L3 E400 114 00:42:00 321 00:23:00

LG Optimus Pro C660 103 00:32:00 184 00:24:00

LG Optimus Black P970 106 00:41:00 279 00:21:00

Total 1796 05:31:00 697 02:41:00

Table 2: Summary of the automatic stage – Participant 1.

Cycle

Ignored features – stop

features

Presented features

Time spent by the

algorithm

Features excluded by

the user

1 - 1349 00:00:60 79

2 2 2284 00:00:18 122

3 23 2813 00:00:16 40

4 24 3322 00:00:18 8

5 26 3876 00:00:18 1

6 32 4085 00:00:18 3

Table 3: Summary of the automatic stage – Participant 2.

Cycle

Ignored features –

stop features

Presented features

Time spent by the

algorithm

Features excluded by

the user

1 - 1349 00:00:36 668

2 20 1629 00:00:08 623

3 139 1645 00:00:07 48

4 103 2177 00:00:06 845

5 202 1789 00:00:08 3

6 247 2031 00:00:05 628

as their classifications, can be seen. This file also

facilitates evaluation of new products in relation to

the existing SPL.

4.1.1 Evaluation Experiment

To evaluate the semi-automatic approach to

identifying features for SPL, an experiment was

performed with two participants and manuals for six

LG smartphones. The files were pre-processed by

hand in order to obtain only the chapters that

describe functions of the devices (chapters such as

index, warranties, addresses, and accessories were

excluded) and were also “processed” to contain one

sentence per line (without the need to include

punctuation). Further, the files did not have words

that were incorrectly separated by blank spaces or

hyphenation.

Table 1 shows the time spent by each participant

participant analyzing each document, as well as the

number of features identified in each document, in

the experiment Participant 1 identified

approximately 60% more features than Participant 2

and took approximately 50% longer.

To interpret these numbers, the features

identified manually by the two participants were

analyzed and compared. Participant 1 was found to

perform a more detailed job than Participant 2 when

describing the features, finding a greater number,

and spending more time. For example, instead of

simply stating “Configure volume,” this participant

described all the ways to accomplish this

configuration, such as “Increase music volume,”

“Decrease music volume,” and “Increase radio

volume.” However, in some instances, vague

features were described by the same participant as

“Back,” “Save,” and “Share.” These features, as

described in a list that does not identify, for

example, the chapter in which they were found,

cannot be considered relevant, since they are not

clear: “Back” to where? “Save” and “Share” what?

Following the manual identification of the

features, the proposed semi-automatic approach for

the creation of the SPL was used. The participants

were instructed in the use of the process, with an

explanation of its operation, and were directed to

first analyze the identified features in order to

exclude those that were not really features, and then

to only identify synonymous features.

The time spent in the second stage of the

experiment was also recorded by the participants.

This annotation is related to the time that each

ScopingAutomationinSoftwareProductLines

individual needed to analyze the results and to

exclude and create synonymous features. The time

the algorithm took to extract the information from

the documents was recorded by the algorithm itself

in its execution log. The features that were excluded

by the user and those that the algorithm ignored and

did not present to the user because they were on the

list of “stop features,” since they had previously

been excluded by the user, were also recorded in the

algorithm execution log. Table 2 presents the results

obtained by Participant 1, while Table 3 presents

those obtained by Participant 2. Both tables present a

summary of this second stage.The “Cycle” column

presents the processing cycle of the algorithm. In

cycle 1, the first file is pro-cessed, thus the list of

“stop features” is empty, and no features are

automatically ignored. The features are presented to

the user (column 3), and the user analyzes and

indicates those s/he wants to exclude (col-umn 5).

When the user completes the analysis of the data

presented in the first cycle, the algorithm starts the

second cycle, i.e., it processes the second file,

gathers the results with the results of the first file,

au-tomatically ignores the features that are on the

list of “stop features,” and displays the result to the

user again. These cycles are repeated until the

information in all the files is processed, presented,

and analyzed by the user.

The first line of the column that represents the

processing time spent by the algorithm (column 4)

also includes the time necessary for the algorithm to

perform the linguistic annotation in all the

documents that are to be analyzed; consequently, the

first cycle is slower than the others.

Participant 1 excluded 253 features, all of which

were included in the list of “stop features,” resulting

in 107 features being automatically ignored (not

presented to the user). Participant 1 generated an

SPL with 4,065 features after six cycles, without

considering the features marked as synonyms during

the analysis conducted by the participant.

Participant 2 excluded 2,815 features, resulting

in 711 features being automatically ignored (not

presented to the user), because they had been

included in the list of “stop features.”

Approximately 20% of the total number of excluded

features was automatically excluded without the

need for user evaluation.

Participant 2 generated an SPL with 1,051

features after six cycles, also disregarding the

features marked as synonyms during the analysis

conducted by the participant.

With respect to time, Participant 1 completed the

entire analysis in one day, taking only 6 hours.

Participant 2 took 11 hours to complete the analysis,

but this time was distributed over six days. The

distribution of the time for the analysis over more

days arguably benefited the analysis of the second

participant, since this activity is time consuming and

requires concentration and focus in order to achieve

good results.

Analyzing the features that are part of the SPL of

the participants, created in this stage of the

experiment, several vague or inconsistent features

were again identified in the results of Participant 1;

for example, “allow according to light,” “use

according to their,” “reproduce adic list,” “Picasa

sns,” “depending on your software,” “srt file the

same,” and “knowing certain information.” Since

Participant 1 used approximately 80% less time than

Participant 2, this may have affected the quality of

the result produced, since this task is manual and

requires focus and concentration.

Participant 2 excluded approximately 1,000%

more features than Participant 1, and took

approximately 80% more time. Since more time was

taken to analyze the results, it is believed that the

analysis was conducted with more depth, and that

therefore more features were excluded and more

features were identified as synonyms, reducing the

final result of the number of features of the SPL by

approximately 74%.

Comparing the results of the semi-automatic

evaluation with the results of the manual evaluation,

the conclusion is reached that, in both cases,

Participant 1 identified a greater number of features.

However, this does not mean that the identified

features were correct, because several

inconsistencies were later found in the results by the

researcher. With respect to time spent, Participant 1

spent roughly the same amount of time in both

stages. Table 4 presents a summary of this

comparison.

Table 4: Comparison of the results of the manual and semi-automatic stages.

Participant

Time spent

(manual state)

Identified features

(manual stage)

Time spent

(semi-automatic

stage)

Identified features

(semi-automatic stage)

1 05:31:00 1796 06:00:00 4065

2 02:41:00 697 11:00:00 1051

ICEIS2015-17thInternationalConferenceonEnterpriseInformationSystems

Table 5: Summary of the evaluation of the new product.

Document

Features of those ignored –

stop features

Features of those

presented

Resulting features after

analysis

Common or variable features

with respect to the SPL

Motorola MB502 47 1128 314 30

TV LCD 9 328 110 2

LG-A180 20 234 81 6

LG-E405 387 673 344 145

4.2 Approach Used to Evaluate the

Variabilities and Commonalities

between the Created SPL and a

New Product

In this stage, the algorithm that evaluates whether a

new product is part of an already established SPL

was implemented. For this purpose, the three files

recorded at the time when creation of the SPL was

completed, using the approach proposed in Section

4.1, were used.

To begin the evaluation, the user indicates the

directory where the three files are located. The

algorithm then locates the XML file, reads it, and

presents the SPL to the user. On this screen, at the

end of the current list of features, the user has to

indicate the folder where the document for the new

product to be evaluated can be found.

The same processing that occurs to create a new

SPL occurs at this point for evaluation of the new

product: the file is converted to TXT format (if it is

not already in that format), receives linguistic

annotations, then features are extracted according to

the patterns searched for and organized and

presented to the user for analysis. During this

process, the list of “stop features” for the existing

SPL is also evaluated, with automatic exclusion of

the product features that are on this list.

However, after the user completes the analysis of

the results of the identified features in the new

product, excluding and making synonyms, the

evaluation process itself is conducted. A search is

conducted in the features of the existing SPL to

determine which features of the new product already

exist in the SPL. This is done to identify the features

that would be considered common or variables if the

product were incorporated into the SPL.

4.2.1 Evaluation Experiment

Analyzing the results of the experiment presented in

Section 4.1, the SPL created by Participant 2 was

selected for use in this phase as the preexisting

family, since it appeared to be the more stable of the

two created in the experiment. The following

experiments were performed:

 Evaluation of a cell phone from the family of

smartphones, but from another brand;

 Evaluation of a conventional cell phone of the

same brand as that used in the creation of the

SPL;

 Evaluation of an LCD TV; and

 Evaluation of a cell phone from the same family

of smartphones as those used to create the SPL.

For these experiments, the files were pre-processed

by hand to obtain only the chapters that describe

functions of the devices (chapters such as index,

warranties, addresses, installation, and accessories

were excluded) and were also “processed” to contain

one sentence per line (without the need to include

punctuation). Further, the files did not have words

that were incorrectly separated by blank spaces or

hyphenation. Table 5 presents a summary of the

experiments conducted. The first line of the table is

from a cell phone from the smartphone family and

the third is from a cell phone from the family of

conventional cell phones. For the smartphone, 30

identified features were also found in the existing

SPL. This represents 9.55% of the total functionality

of this product; hence, it was not considered part of

the SPL. Likewise, the other two products were also

not considered part of the SPL, since they were

found to have few features in common.

In the case of the LG-405, 145 manually

identified features were also found in the existing

SPL. This represents 42.15% of all the features of

this product; hence, it was considered part of the

SPL.

In Table 5, it can be seen that for this product,

which was considered part of the existing SPL, 387

features were automatically ignored (not presented

to the user), because they were on the list of “stop

features.” This shows that approximately 54% of the

total number of excluded features was automatically

excluded without the need for user evaluation. This

reduces the amount of time a user spends analyzing

the results, making exclusions, and marking the

synonyms. In this case, 29 minutes were spent. If the

list of “stop features” had not been implemented, it

is estimated that the time for manual analysis would

have been more than 50% longer, i.e., approximately

43 minutes.

ScopingAutomationinSoftwareProductLines

The next section presents discussions of the

results obtained in experiments that evaluated the

semi-automatic approaches for identifying features

and evaluating the variabilities and commonalities

be-tween an existing SPL and a new product.

5 DISCUSSION OF THE RESULTS

The results showed that the semi-automatic

approach proposed in this paper assisted in the

identification and classification of features. The

results of the comparisons conducted between the

use of the approach and the manual identification

show that the number of features identified by using

the approach was higher. Moreover, the approach

does not only identify the product features, but also

classifies them. In all the comparisons, only the

identification of the features was conducted

manually, not their classification.

The results of the experiment evaluating the

semi-automatic approach showed that the number of

features identified by the approach was greater than

that achieved manually. The time spent manually

and automatically was virtually the same for one

participant in the experiment, while for the other,

300% more time was spent on automatic processing.

In manual processing, only the features were

identified. The analysis of synonymous features and

the identification of the variabilities, in order to

create an SPL, were not performed during manual

processing. Using the proposed approach, the

participants in this experiment generated an SPL

with its features classified as common, variable, or

optional. By using the “stop features” list, the

reduction in the number of features was more than

20% for one of the participants in this experiment,

further reducing the time spent on analysis of the

features.

In the experiment that evaluated the algorithm in

order to assess whether or not a new product is part

of a pre-existing SPL, four assessments were

conducted, with the results showing that the

assessment conducted by the algorithm was correct,

and reached a specific goal. In the first three

experiments, the algorithm correctly indicated that

the products were not part of the created SPL. The

final indication was also correct: the product was

indicated as part of the SPL.

In this experiment, the effectiveness of the use of

“stop features” was confirmed once again: in one of

the products analyzed, approximately 58% of the

total number of excluded features was automatically

excluded without the need for evaluation by the user.

6 CONCLUSIONS

The approaches that address the scoping of SPLs are

unanimous in counting on the intervention of people

involved in the process, whether customers,

stakeholders, or experts in the application domain.

However, human intervention can result in errors in

scoping, along with potential problems related to

efficiency and time to conduct the processes.

Only the approach presented by John (2010)

involved an attempt to reduce the effort of this role

in the process. This work sought to automate the

process as much as possible and reduce the

intervention of people. The proposed approach

showed that it is possible to achieve these goals and

reduce effort with domain experts, given that

features are derived from existing documents, such

as user manuals, but can be substituted for meeting

minutes, specification documents, and other relevant

documents that can significantly assist in scoping an

SPL.

The main contributions of the proposed approach

can be summarized as follows:

 Assisting organizations seeking to migrate to the

SPL approach to begin mapping their products,

and viewing them as families in the same domain

that share components seen as features in

common. From this point of view, it is possible

to start planning the architecture of the line and

identifying the reuse it provides;

 Providing a unique way to present a product

family such that it is visible to people and

machines, enabling the implementation of

automatic processes;

 Assisting in decision-making regarding the

inclusion of a new product in an existing family,

and mapping its features in relation to the

features available for reuse in the family. On the

basis of the visualization of existing

commonalities and variabilities between the

future new member and the existing family, it is

possible to decide to change features of the

family in order to address the new member,

include it, or decide to implement it exclusively

to the new product.

The main limitation of this research is related to the

fact that the experiments were conducted with users

of the selected product and not with domain experts.

Ideally, such experiments should be per-formed by

domain experts and compared with an SPL created

by them in a manual and extractive form. Another

limitation of the research is that the results depended

on evaluation by people. Errors may have occurred

ICEIS2015-17thInternationalConferenceonEnterpriseInformationSystems

during the analyses conducted in the experiments

and that may have altered the results, since all the

experiments were laborious.

This approach was developed over product

manuals to serve as a basis for the construction of

the SPL as well as for the identification of a new

product belonging to the SPL. This may be a

limitation in cases of software products without user

manuals. One possible approach in this case would

be to use Use Case documents, which are common

artifacts in software development.

REFERENCES

Alves, V.; Niu, N.; Alves, C.; Valença, G. 2010.

Requirements Engineering for Software Product

Lines: A Systematic Literature Review. Information

and Software Technology, v. 52.

Archer, M.; Cleve, A.; Perrouin, G.; Heymans, P.;

Vanbeneden, C.; Collet, P.; Lahire, P. 2012. On

extracting feature models from product descriptions.

In Proceedings of the Sixth International Workshop on

Variability Modeling of Software-Intensive Systems

(VaMoS '12). ACM, New York, NY, USA, pp. 45-54.

Carbon, R.; Knodel, J.; Muthig, D.; Meier, G. 2008.

Providing Feedback from Application to Family

Engineering - The Product Line Planning Game at the

Testo AG. In: 12th International Software Product

Line Conference. Limerick, Ireland, IEEE, p. 180-189.

Clements, P; Northrop, L. 2002. Software Product Lines:

Practices and Patterns. Boston: Addison-Wesley, 563

Cruz, J.; Neto, P.S.; Britto, R.; Rabelo, R.; Ayala, W;

Soares, T. Mota, M. 2013. Toward a Hybrid Approach

to Gen-erate Software Product Line Portfolios. In:

2013 IEEE Congress on Evolution Computation.

Cancun, México, IEEE, pp. 2229-2236.

Duszynski, S. 2011. A scalable goal-oriented approach to

software variability recovery. In: Software Product

Lines - 15th International Conference, SPLC 2011,

Munich, Germany, August 22-26.

Ganesan, D.; Muthig, D.; Knodel, J.; Rose, D. 2006.

Discovering Organizational Aspects from the Source

Code His-tory Log during the Product Line Planning

Phase – A Case Study. IEEE International Working

Conference on Reverse Engineering (WCRE 2006),

Villa dei Papi, p. 211 -220.

John, I. 2010. Using Documentation for Product Line

Scoping. IEEE Software, vol. 27, p. 42 - 47.

John, I.; Eisenbarth, M. 2009. A Decade of Scoping: A

Survey. In: Proceedings of the 13th International

Software Product Line Conference, 1, 2009, Airport

Marriott, San Francisco, CA, USA. Pittsburgh, p. 31-

40.

John, I.; Knodel, J.; Lehner, T.; Muthig, D. 2006. A

Practical Guide to Product Line Scoping. In: Software

Product Lines: Proceedings of the 10th International

Software Product Line Conference (SPLC 2006).

Anais… Balti-more, Maryland, August 21-24.

Kampenes, Vigdis By; Dybå, Tore; Hannay, Jo E.;

Sjøberg, Dag I. K. 2009. A systematic review of quasi-

experiments in software engineering. Information and

Software Technology. Vol. 51. No. 1. pp. 71-82. DOI:

10.1016/j.infsof.2008.04.006.

Lee, J.; Kang, S.; Lee, D. H. 2010. A Comparison of

Software Product Line Scoping Approaches. In:

International Journal of Software Engineering and

Knowledge Engineering, Vol. 20, Issue 5, World

Scientific, October. pp. 637-663.

Linden, F.; Schimid, K.; Rommes, E. 2007. Software

Product Lines in Action. Springer.

Liu, Y.; Nguyen, K.; Witten, M.; Reed, K. 2010. Cross

Product Line Reuse in Component-based Software

Engineer-ing. In: 2010 International Conference on

Computer Application and System Modeling (ICCASM

2010). Tai-yuan, China, p. 427-434.

Medeiros, T.F.L.; Almeida, E.S. 2012. CodeScoping: A

Source Code Based Tool to Software Product Lines

Scoping. In: 2012 38th Euromicro Conference on

Software Engineering and Advanced Applications. p.

101-104.

Muller, J. 2011. Value-Based Portfolio Optimization for

Software Product Lines. In: Software Product Line

Confer-ence (SPLC), 2011 15th International, pp.15-

24, 22-26.

Noor, M.; Rabiser, R.; Grünbacher, P. 2008. Agile product

line planning: A collaborative approach and a case

study. The Journal of Systems and Software, vol. 81,

p. 868-882.

Noor, M.A.; Grünbacher, P.; Briggs, R.O. 2007. A

collaborative approach for Product Line Scoping : a

case study in collaboration engineering. In:

Proceedings of the 25th IASTED International Multi-

Conference. Innsbruck, Austria, p. 216 - 223.

The APACHE Software Foundation. Apache PDFBox –

Java PDF Library. Available at:

<http://pdfbox.apache.org/>. Acesso em 01. Mar.

2012.

Ullah, M.I.; Ruhe, G.; Garousi, V. 2010. Decision support

for moving from a single product to a product

portfolio in evolving software systems. The Journal of

Systems and Software, vol. 83, Dec., pp. 2496-2512.

Yoshimura, K.; Narisawa, F.; Hashimoto, K.; Kikuno, T.

2008. A Method to Analyze Variability Based on

Product Release History: Case Study of Automotive

System. In: Proc. SPLC (2), pp. 249-256.

Ziadi, T.; Frias, L.; Silva, M. M. A.; Ziane, M. 2012.

Feature Identification from the Source Code of

Product Variants. In: Software Maintenance and

Reengineering (CSMR), 2012 16th European

Conference on, pp. 417-422.

ScopingAutomationinSoftwareProductLines
