Testing M2T Transformations

A Systematic Literature Review

Andr

e Abade

1,2

, Fabiano Ferrari

and Daniel Lucr

edio

Computing Department, Federal University of S

ao Carlos,

Rodovia Washington Luis, km 235, 13565-905, S

ao Carlos, SP, Brazil

Federal Institute of Education, Science and Technology of Mato Grosso,

Estrada de Acesso a BR-158, s/n, 78600-000, Barra do Garc¸as, MT, Brazil

Keywords:

Model-Driven Development, MDD, Model-to-Text, M2T, Testing Transformation Model, Complex Data.

Abstract:

Context: Model-Driven Development (MDD) is about to become a reality in the development of enterprise

information systems due to its beneﬁts, such as reduction of development and maintenance costs, and support

for controlled evolution. Consequently, testing model transformations, considering their high complexity par-

ticularly regarding Model-to-Text (M2T) transformations, plays a key role to increase the conﬁdence in the

produced artefacts. Objective: this paper aims to characterize testing approaches and test selection criteria

that focus on M2T transformations, in particular white-box approaches. Method: the objective is accom-

plished through a systematic literature review. We deﬁned research questions regarding the testing of M2T

transformations and extracted and analyzed data from a set of primary studies. Results: we identiﬁed a va-

riety of incipient white-box testing approaches for this context. They mostly rely on mapping strategies and

traceability of artefacts. Most of them focus on well-formedness and correctness of models and source code,

although we could notice a change of focus in most recent research. Conclusions: current solutions for testing

M2T transformations have begun to change the initial focus on well-formedness and correctness of models.

Some approaches involve techniques that establish coverage criteria for testing, whereas others try to solve the

testability across many transformations languages.

1 INTRODUCTION

A crucial success factor in the development of in-

formation systems is the alignment of system and

business goals, business semantics and business

processes. Recently, Model-Driven Development

(MDD) concepts, methodologies and technology have

been employed in the development and evolution of

web information systems (Soltani and Benslimane,

2012; Panﬁlenko et al., 2013; Basso et al., 2014;

Mayo et al., 2014; Garzotto, 2011). Overall, research

initiatives aim to integrate MDD with other paradigms

and technologies such as BPM (Business Process

Model), SOA (Service-Oriented Architectures) and

Agile Methods. Note that MDD does not only pro-

vide a structured and systematic approach to system

development, but also offers developers the possibil-

ity of using model transformation technologies to de-

rive models of a lower abstraction level that can be

further reﬁned, and even generating software code au-

tomatically (Pastor and Espa

na, 2012).

The need for software solutions in the business

practice faces the increasing complexity of these solu-

tions and the permanent rising of requirements related

to performance, reliability and shorter technology cy-

cles. There is also the pressure for cost reduction and

frequent requirement changes. Together, these factors

do not allow the industry to undervalue the integra-

tion of new concepts and techniques for software en-

gineering (Panﬁlenko et al., 2013). Thus, in the MDD

ﬁeld, ensuring that models and transformations are ef-

fective and efﬁcient becomes a major challenge. Note

that the transformations of models involve different

abstraction levels, and the complexity of the MDD

paradigm is directly related to three elements involved

in these transformations: the input (or source) mod-

els, the transformation rules and the output artefacts

(Sendall and Kozaczynski, 2003; Guerra et al., 2013).

Software testing can be an effective approach

for validating model transformations. According to

Fleurey et al. (2004), the testing of model transfor-

mations is different from testing of traditional im-

plementations because the former requires complex

models as test input data, in particular when com-

177

Abade A., Ferrari F. and Lucrédio D..

Testing M2T Transformations - A Systematic Literature Review.

DOI: 10.5220/0005378501770187

In Proceedings of the 17th International Conference on Enterprise Information Systems (ICEIS-2015), pages 177-187

ISBN: 978-989-758-097-0

 2015 SCITEPRESS (Science and Technology Publications, Lda.)

pared with simple data types. Testing in MDD rep-

resents a new challenge compared to testing in tradi-

tional systems (Beizer, 1990) or object-oriented sys-

tems (Binder, 1999). This is due to the fact that the

involved data are models, which have signiﬁcantly

more complex structures than simple data types or tra-

ditional objects (Fraternali and Tisi, 2010). In fact,

the testing-related problems in MDD more closely re-

sembles those of testing interpreters or virtual ma-

chines (Sirer and Bershad, 1999), and are also related

to the testing of grammars (L

ammel, Ralf, 2001) or

compilers (Kalinov et al., 2003).

Studies conducted by Harman (2008) claim that

the testing of model transformations leaves a number

of open issues, which are related with the combination

of software testing and the types of transformation

that happen in MDD. Much effort has been put into

the establishment of Model-to-Model (M2M) trans-

formation testing techniques in the last years (Amrani

et al., 2012; Vallecillo et al., 2012).

Most of the approaches for testing Model-to-

Text (M2T) transformations are derived from M2M-

related techniques. Consequently, speciﬁc knowledge

regarding M2T testing is still limited, and hence pro-

vides only moderate support to developers, e.g. to

those using the Template Method behavioural pat-

tern. Thus, Wimmer and Burgueo (2013) highlight

the need for testing approaches that are able to support

the correct generation of software artefacts by means

of M2T transformations.

Motivated by research opportunities determined

by numerous issues involving the testing of model

transformations, Selim et al. (2012) provided a his-

torical perspective in order to recognise the main re-

search investigations. The authors identify core and

emerging topics and proposed approaches. Despite

the fact that Selim et al. (2012) work dates from 2012

and that their discussions did not exclusively address

the testing in context of M2T transformations, three

phases are highlighted and need further research and

investigations, namely: (i) generation of test data; (ii)

test adequacy criteria; and (iii) the deﬁnition of test

data sets.

This paper presents the results of a systematic lit-

erature review that summarises the state-of-the-art re-

garding the testing of M2T transformations. More

speciﬁcally, this study aims to identify which struc-

tural (white-box) testing techniques and test selection

criteria have been investigated to date, how complex

data has been characterised within the identiﬁed ap-

proaches, and which is the predominant behavioural

pattern used in transformation engines. A systematic

literature review is a type of scientiﬁc research which

aims to present an unbiased review about a research

topic, following a methodology that is reliable, ac-

curate and that allows auditing (Kitchenham, 2004;

Fabbri et al., 2013).

The remainder of this paper is organised as fol-

lows: The next section provides basic background.

The study planning is described in Section 3; the sec-

tion also lists the selected primary studies. In the

sequence, Section 4 presents an analysis of data ex-

tracted from the selected studies. Section 5 compares

the identiﬁed testing approaches and Section 6 con-

cludes this paper.

2 BACKGROUND

2.1 Model-Driven Development – MDD

In Software Engineering, MDD is a software develop-

ment paradigm that handles models as primary arte-

facts from which code or other artefacts are generated.

The Model Driven Architecture (MDA), proposed by

the Object Management Group (OMG), is one of the

embodiments of the MDD concept. In MDA-based

processes, models play a key role in the software de-

velopment (Object Management Group, 2003).

Model transformation has been characterised as a

primary step for the MDD paradigm. It can be deﬁned

by a set of rules that together describe how a model

in the source language can be transformed into one

or more models in the target language (Kleppe et al.,

2003).

A transformation involving two or more models

can be classiﬁed as: transformation from model to

model (M2M or Model-to-Model); and transforma-

tion from model to text (M2T or Model-to-Text).

M2T transformations are used to generate the source

code and documents, implement serialised models,

and create visualisation and exploration models, thus

automating several software engineering tasks (Rose

et al., 2012).

One issue addressed in M2T transformations

refers to the way of implementing the code generator.

According to Czarnecki and Helsen (2006) and Rose

et al. (2012), the most common approaches to accom-

plish M2T transformations are based on the Visitor

and Template Method behavioural patterns. A Tem-

plate Method is an abstract deﬁnition of an algorithm;

it deﬁnes the algorithm step by step. Each step in-

vokes an abstract operation or a primitive operation.

The Visitor pattern, on the other hand, represents an

operation to be performed on the elements of an ob-

ject structure. It allows the creation of a new operation

without changing the class of the elements on which

it operates.

ICEIS2015-17thInternationalConferenceonEnterpriseInformationSystems

178

To deﬁne these transformations, a tool that allows

software engineers to build mapping rules from M2M

or M2T is necessary. It should allow mapping rules to

be speciﬁed and created as naturally as possible, since

the construction of a transformer is already a com-

plex task by itself. Finally, a mechanism to apply the

speciﬁed transformations, possibly maintaining some

form of traceability between the mapped elements, is

required (Lucredio et al., 2012).

2.2 Testing and MDD

Testing consists of a dynamic analysis of the prod-

uct which is relevant to the identiﬁcation and elimi-

nation of defects that remain. It represents the latest

revision of the speciﬁcation, design and coding (Har-

rold, 2000). In general, the testing techniques can

be divided into code-based (white-box or structural)

and speciﬁcation-based (black-box or functional). It

is important to notice that neither is complete, since

they aim to identify different types of defects. When

applied together, they can raise the level of software

reliability.

The high abstraction level of MDD is a key con-

cern that rules the complexity of the three main ele-

ments in this paradigm, namely: the input models, the

transformation rules and the output artefacts. Conse-

quently, applying existing testing techniques to model

transformations becomes a cumbersome task.

The testability of model transformations aims at

facilitating the generation of test data and ensuring

better coverage through adjustments of the test crite-

ria. Studies of Harman (2008) and Selim et al. (2012)

claim that the models of transformer tests open a num-

ber of issues which relate to the combination of soft-

ware testing and the types of transformations that oc-

cur in MDD. Fleury et al. (2004) and Selim et al.

(2012) highlight that functional testing, on the one

hand, guarantees the correctness of transformations.

White-box testing, on the other hand, aims to guar-

antee high coverage of the transformations, both in

terms of the input/output artefacts and the transfor-

mation rules themselves.

The relevance of the issues surrounding the trans-

formation of models and their combination with soft-

ware testing has motivated and underlie the sys-

tematic review reported in the paper. Since the

MDD paradigm aims to produce effective, defect-free

source code at a late stage in the software lifecycle,

it important to investigate the evolution and applica-

tion of testing techniques and test selection criteria in

the context of the complexity that comes along with,

speciﬁcally, M2T transformations.

3 THE REVIEW PROCESS AND

RESULTS

This section presents the study planning and sum-

marises the main procedures to perform the system-

atic review herein described. A systematic review

aims to obtain the pieces of work that provide re-

search evidence on a speciﬁc subject, which are called

primary studies

3.1 Study Planning

To identify the white-box testing approaches (tech-

niques and test selection criteria) that have been

proposed and applied to M2T transformations, we

planned a systematic literature review (or simply sys-

tematic review) following the process deﬁned by Fab-

bri et al. (2013). To provide transparency and allow

replicability and audit of the whole process (which

are requirements of systematic reviews (Kitchenham,

2004), we used the StArt Tool (State of the Art

through Systematic Review) (Hernandes et al., 2012),

which supports all process phases and stores all inter-

mediate results together with the study selection deci-

sions.

Research Questions

n Software Engineering, the research questions of a

systematic review usually address solutions for a spe-

ciﬁc problem with a given research topic. When it

comes to M2T transformations, there are several in-

teresting related issues. For our review, we deﬁned

three research questions, each one associated with in-

clusion and exclusion criteria, as follows:

• Primary Question (PQ) - Which white-box testing

approaches have been investigated for M2T trans-

formations in the context of MDD so far?

• Secondary Question 1 (SQ1) - Amongst the test-

ing approaches that have been investigated for

M2T transformations in the context of MDD,

which ones are speciﬁc regarding the use of the

Template Method behavioural pattern?

• Secondary Question 2 (SQ2) - Amongst the test-

ing approaches that have been investigated for

M2T transformations in the context of MDD,

which ones characterise the complexity of the data

used in the transformation mechanisms?

The term “primary study” has so far been used in the

Evidence based Software Engineering domain (Kitchenham

et al., 2004)to describe a variety of research results, from

well-founded experimental procedures to incipient research

approaches. Systematic reviews, on the other hand, are con-

sidered “secondary studies”.

TestingM2TTransformations-ASystematicLiteratureReview

179

Search String

According to Petersen et al. (2008) and Fabbri et al.

(2013), the process of collecting the set of primary

studies begins by deﬁning the search string. There-

fore, the search string should be formulated on the

experience of researchers and reviewers involved and

must have a comprehensive scope, for the purpose of

recovering all primary studies of interest. Reading the

primary studies retrieved with the search string enable

the researcher to verify their relevance. For initial se-

lection, key information should be spotted in the study

title and/or summary. Subsequently, ﬁnal selection re-

lies on the full reading of the study.

Even though different indexed research reposi-

tories deﬁne their own syntax for building search

strings, we initially deﬁned the following generic

string that was later customised for each search en-

gine:

(‘‘model driven development’’ OR ‘‘model driven

software development’’ OR MDD OR MDSD OR

‘‘model-driven engineering’’ OR MDE)

AND

(test* OR ‘‘coverage criteria’’ OR ‘‘software

testing’’ OR ‘‘white box’’)

AND

(‘‘model transformation’’ OR ‘‘model to text

transformation’’ OR ‘‘model to code

transformation’’ OR M2T OR M2C)

Primary Study Sources

The search strategy and selection of primary stud-

ies were deﬁned according to the sources of stud-

ies, keywords, selection criteria, types of studies and

languages of the studies. We selected the follow-

ing sources to search for primary studies: indexed

electronic databases (IEEE Xplore Digital Library

ACM Digital Library

and Elsevier Scopus

). In ad-

dition, we hand searched 18 journals and conference

proceedings suggested by specialists

, all related to

software testing and MDD, published from 2008 to

2013. The list of journals and conference proceedings

is presented in Table 1.

The searches in the indexed repositories returned

202 entries

. The full list of primary studies identi-

ﬁed by the searches was evaluated against a set of in-

clusion and exclusion criteria which are described in

http://www.ieeexplore.ieee.org – access: october/2014

http://dl.acm.org – access: october/2014

http://www.scopus.com – access: october/2014

Approaching specialists in a given ﬁeld is one of the

recommendations of (Kitchenham, 2004).

Note that not all entries are in fact primary studies. For

example, some are proceedings’ front matters, while others

are abstracts of conference invited talks and tutorials.

Table 1: List of Conferences and Journals indicated.

ID Description

1 ACiS - Software Engineering Research and Applications

2 ASE - Automated Software Engineering

3 CAiSE - Conference on Advanced Information Systems En-

gineering

4 ENASE - Evaluation of Novel Approaches to Software Engi-

neering

5 GPCE - Generative Programming and Component Engineer-

ing

6 GTTSE - Generative and Transformational Techniques in

Software Engineering

7 ICMT - International Conference on Model Transformation

8 ICSR - International Conference on Software Reuse

9 ICST - International Conference on Software Testing, Veriﬁ-

cation, and Validation

10 ICTSS - International Conference on Testing Software and

Systems

11 ISSTA - International Symposium on Software Testing and

Analysis

12 MoDELS - Model Driven Engineering Languages and Sys-

tems

13 MODELSWARD - Model-Driven Engineering and Software

Development

14 SBCars - Brazilian Symposium on Software Components,

Architectures and Reuse

15 SBES - Brazilian Symposium on Software Engineering

16 SLE - Software Language Engineering

17 SoCO - Soft Computing Models in Industrial and Environ-

mental Applications

18 SoSyM Journal - Software and System Modeling

the sequence. We also describe the selection process

(preliminary and ﬁnal selection).

Inclusion and Exclusion Criteria

Inclusion criteria were used to determine which

studies were relevant to the research questions of the

systematic review. The following inclusion criteria

were applied:

+ Publications, technical reports or “grey” literature

that describe empirical studies, of any particular

study design, in which the testing of M2T trans-

formations was applied to any technology.

+ Studies that describe the problems / barriers for

the use of white-box testing approaches in M2T

transformations.

+ Studies describing techniques / methods to testing

M2T transformations.

+ Studies which allowed the identiﬁcation of be-

havioural pattern used in M2T transformations.

Exclusion criteria were deﬁned to protect the in-

terests of the main theme and the research questions.

Several studies were excluded for not addressing the

testing of M2T transformations, or not even mention-

ing the behavioural pattern used in the M2T transfor-

mations.

ICEIS2015-17thInternationalConferenceonEnterpriseInformationSystems

180

Studies that met the following criteria were ex-

cluded from the review:

- Studies that are not relevant to the research ques-

tions.

- Studies that did not allow access to full text.

- Studies that did not describing techniques / meth-

ods to testing M2T transformations.

Preliminary Selection

After applying the inclusion and exclusion criteria

to each primary study based on their titles and ab-

stracts, the preliminary set of relevant primary studies

included 49 entries. At this stage, 21 primary studies

were included as a result of the analysis of speciﬁc

conference proceedings and journals, thus summing

up 70 entries in the preliminary list. Table2 presents

the number of studies accepted, discarded and dupli-

cated (i.e. retrieved by more than one search engine)

after the preliminary selection phase.

Table 2: Number of studies accepted, discarded and dupli-

cated during the preliminary selection.

Source

Preliminary Selection

Accepted Discarded Duplicated

ACM 14 (20,00%) 43 (36,13%) 12 (35,29%)

IEEE 11 (15,71%) 23 (19,33%) 01 (02,94%)

Scopus 24 (34,29%) 53 (44,54%) 21 (61,76%)

Specialists 21 (30,00%) 00 (00,00%) 00 (00,00%)

Total 70 (100,0%) 119 (100,0%) 34 (100,0%)

Data Extraction Strategy and Final Selection

We extracted data from the selected studies to ad-

dress each of the research questions. We classiﬁed

studies according to the following categories: be-

havioural pattern; research type (evaluation research,

solution proposal, validation research, philosophical

paper, opinion paper and personal experience); char-

acterisation (or not) of the complexity of the data used

in the transformation mechanisms; testing approach.

Discrepancies observed during the analysis were dis-

cussed amongst the involved researchers (co-authors

of this paper).

In a second, ﬁnal iteration, from the 70 pre-

selected studies, we selected only those ones which

fulﬁlled a set of relevant research issues and speci-

ﬁed testing approaches used in the model transforma-

tions. In order to perform this ﬁnal selection, stud-

ies accepted in the preliminary selection phase went

through a complete reading and were again classiﬁed

based on the inclusion and exclusion criteria. This re-

sulted in a ﬁnal list of 9 primary studies. Details are

provided in the sequence.

3.2 Final Selection Results

Table 3 presents the list of 9 selected primary studies.

Studies are sorted by year of publication and grouped

by source. Other information items available in the ta-

ble are study identiﬁer (ID), authors, and information

related to the research questions which are detailed

later in the paper. Note that the ID of selected studies

will be used hereafter to facilitate the identiﬁcation of

each piece of work.

According to Kitchenham (2004), the ﬁnal set of

selected studies should avoid overlapping of primary

studies. For example, if we identify two or more

pieces of work that describe the same testing approach

(e.g. the latter as the evolution of the former), the ﬁ-

nal selection should include only the more recent one.

Taking this into consideration, Table 4 lists all over-

lapping results we identiﬁed.

Studies listed in Table 3 were classiﬁed accord-

ing to a set of relevant research issues and speciﬁed

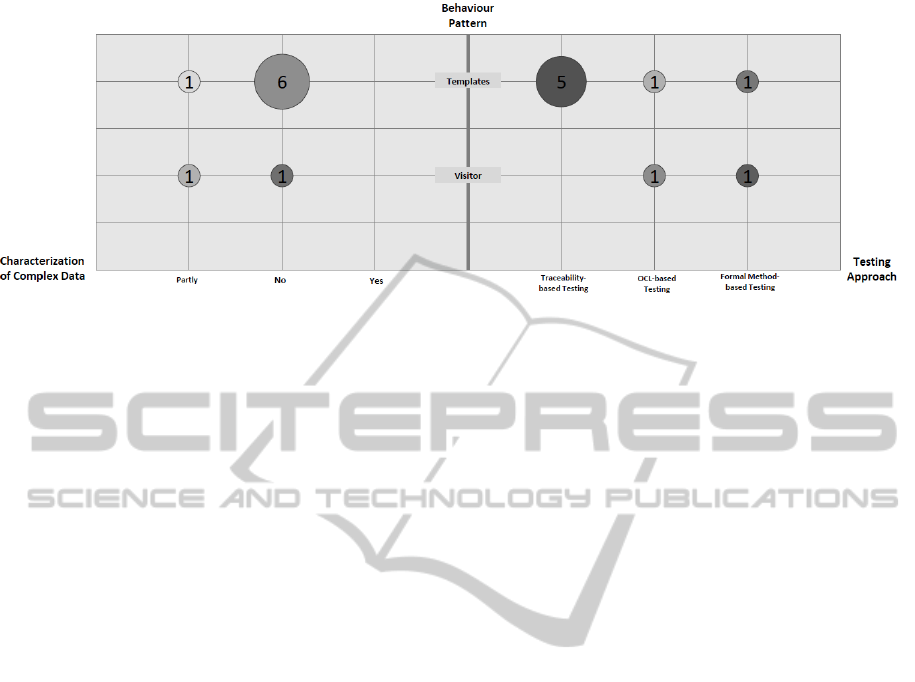

approaches used in the model transformations. Each

characteristic was named facet. Figure 1 depicts the

distribution of studies according to each facet. It pro-

vides a quantiﬁcation of studies associated with the

research questions deﬁned for the review.

4 ANALYSIS AND DISCUSSION

This section presents the analysis and discussion of

the results obtained in the systematic review. The de-

scription of results is organised according to the facets

depicted in Figure 1. The facets concern properties

which are relevant to the research questions that will

be discussed in the sequence.

It should be clariﬁed that the behavioural pattern

deﬁned for the transformations, as well as the char-

acterisation of complex data, impacts on the formu-

lation of techniques and approaches to test the M2T

transformations. For instance, the Template Method

often makes use of a reference implementation (Lu-

credio et al., 2012), allowing that coverage criteria

can be deﬁned with respect to the input models, the

templates and the generated code.

Facet 1 - Behavioural Pattern – This facet groups the

studies according to the behavioural pattern of the

transformer design. The classiﬁcation is based on the

categories deﬁned by Czarnecki and Helsen (2006)

and Rose et al. (2012). After analysing the char-

acteristics of the transformations languages used in

each study, we obtained the following groups: (a) ap-

proaches that apply the Visitor pattern (S6, S7); and

(b) approaches that apply the Template Method pat-

tern (S1, S2, S3, S4, S5, S8, S9).

TestingM2TTransformations-ASystematicLiteratureReview

181

Table 3: Final selection of primary studies.

Year Source ID Title Authors

Characterise Structural Test

Complex Visitor Template

Data Pattern Method

2008

Specialist S1 Unit Testing Model Management Op-

erations

(Polack et al.,

2008)

No - X

Scopus S2 Using model transformation to support

model-based test coverage measure-

ment

(Naslavsky et al.,

2008)

No - X

2010 ACM S3 Multi-level Testes for Model Driven

Web Applications

(Fraternali and

Tisi, 2010)

No - X

2011 Scopus S4 Model-driven testing: Transformations

from test models to test code

(Lamancha et al.,

2011)

No - X

2013

Specialist S5 A Method for Testing Model to Text

Transformations

(Tiso et al., 2013) Parcial - X

Specialist S6 An Approach to Testing Java Im-

plementation against Its UML Class-

Model

(Chavez et al.,

2013)

No X -

ACM S7 Transformation Rules for Platform In-

dependent Testing: An Empirical

Study

(Eriksson et al.,

2013)

Parcial X -

Scopus S8 MTC Flow: A Tool to Design, De-

velop and Deploy Model Transforma-

tion Chains

(Alvarez and

Casallas, 2013)

No - X

Specialist S9 Testing M2T/T2M transformations (Wimmer and Bur-

gueño, 2013)

No - X

Table 4: Overlapping results of primary studies.

Year Final Selection Year Subsumed studies

2013 (Tiso et al., 2013) 2012 (Tiso et al., 2012)

2013 (Eriksson et al., 2013) 2012 (Eriksson et al., 2012)

The results shown in Figure 1 are consis-

tent with the standardisation efforts of the OMG

MOFM2T (Object Management Group, 2012). They

show that 78% of the selected studies support trans-

formations by applying the Template Method pattern,

while only 22% emphasises the application of the Vis-

itor pattern. Following this trend, the work of Rose

et al. (2012) deﬁnes a model of features that supports

the decision making process regarding the use of M2T

transformation languages, based on MOF standards.

Facet 2 - Characterisation of Complex Data – Basi-

cally, the complexity of transformations is deﬁned by

the high level of abstraction used in input models,

by the complexity of the transformation rules and by

the diversity of software artefacts that may be gener-

ated (Baudry et al., 2010). In detriment of the analyti-

cal model and of the formal model, the computational

model encapsulates all semantics of the developed so-

lution, i.e.beyond the abstract data types, the compu-

tational models also establish relationships, cardinal-

ity, and the directional ﬂow of associations between

objects belonging to a given context.

According to Baudry et al. (2010), the complexity

of the input/output data manipulated by model trans-

formations bring new challenges, thus requiring adap-

tations of testing techniques. In spite of it, we found

out that 78% of studies did not address issues related

to complex data involved in transformations (S1, S2,

S3, S4, S6, S8, S9). Only 22% of the studies partially

characterise complex data in transformations using

some representation strategy (S5, S7).

Facet 3 - Testing Approach – Software testing consists

in a dynamic analysis of the product. It is relevant to

the detection and subsequent elimination of software

defects. Testing represents the latest revision of the

speciﬁcation, design and coding. In general, testing

techniques can be classiﬁed between those based on

source code (structural) and those based on the speci-

ICEIS2015-17thInternationalConferenceonEnterpriseInformationSystems

182

Figure 1: Bubble chart - Results distribution by facet.

ﬁcation (functional).

Overall, the studies investigate structural testing

for M2T transformations. Such technique examines

the internal structure of the software to derive test re-

quirements. This facet groups primary studies that in-

vestigate structural-based testing approaches that fo-

cus on the following property or software speciﬁca-

tion methods: (a) Traceability, with 56% of studies

(S1, S2, S3, S4, S8); (b) OCL, with 22% of studies

(S6, S9); and (c) Formal Methods, with 22% of stud-

ies (S5, S7). The next section provides more details

of this facet.

5 COMPARISON BETWEEN

APPROACHES

To keep our analysis aligned with the facets deﬁned

in the previous section, we next compare the testing

approaches by means of their common characteris-

tics. For this, three groups are deﬁned as follows:

(A) M2T Testing with Visitor Pattern; (B) M2T Test-

ing with Template Method Pattern; and (C) Complex

Data Characterisation for M2T Testing. The analyses

are grouped according to the categories of the Test-

ing Approach facet. Following this organisation, for

groups (A) and (B) we compared the selected studies

based on the categories included in the third facet de-

picted in Figure 1, namely: Traceability-based Test-

ing, OCL-based Testing and Formal Method-based

Testing.

A - M2T TESTING WITH VISITOR PATTERN

Two testing approaches show these characteristics.

They are the studies S6 and S7 listed in Table 3. Note

that this group does not include any primary study that

addresses Traceability-based Testing.

OCL-based Testing

Study S6, by Chavez et al. (2013), proposes an inno-

vative approach named CCUJ. The authors describe

how to automate such an approach, which allows the

conformance checking (well-formedness) between a

UML design and Java implementation using trace-

ability techniques and mappings. The CCUJ approach

checks whether the Java implementation is consistent

with the OCL speciﬁcation in terms of pre- and post-

conditions associated with the class diagrams; con-

sequently, conformance checking is needed. In this

work, the authors do not explicitly deﬁne the cover-

age criteria for structural testing, since much of the

methodology was concerned with validation of well-

formedness. The study describes the methodology,

however does not address the issue of complex data

characterisation.

Formal Method-based Testing

Studies S7, by Eriksson et al. (2013) propose that the

structural testing for M2T transformations and their

coverage criteria are deﬁned by means of arrays com-

posed of predicates and their clauses. One of the

processes of these approaches consists in quantify-

ing how many clauses form a predicate; the goal is

to estimate the number of test requirements based on

logical expressions. These approaches discuss how to

resolve the discrepancy in the number of test require-

ments between the model and generated source code,

considered in their empirical evaluations on average

60% higher. These approaches partially characterise

the input/output complex data involved in M2T trans-

formations. Basically, both studies cover all the is-

sues that deﬁne the problems for Testing M2T Trans-

formations. However, the authors highlight that only

one compiler was used for transformations, thus in-

validating the results to other transformers.

TestingM2TTransformations-ASystematicLiteratureReview

183

B - M2T TESTING WITH TEMPLATE METHOD

PATTERN

Eight testing approaches address the testing of M2T

transformations that focus on the Template Method

pattern. These studies are S1, S2, S3, S4, S5, S8

and S9 listed in Table 3. We next provide an analysis

and comparison between them.

Traceability-based Testing

Study S1, by Polack et al. (2008), makes use of unit

testing to ensure the correctness of the operations of

the model with respect to the generated source code.

For that, the authors propose a prototype which speci-

ﬁes the execution of this transformation upon the Ep-

silon platform. This approach uses the know-how of

testing of M2M transformations to tackle the testing

of M2T transformations. Even though unit testing is

not a new concept for the development of software,

it is considered an important strategy for developers

to improve code quality, during the understanding of

the functional requirements of a class or method (Os-

herove, 2009). A variety of approaches for structural

testing of M2M transformations apply this strategy to

establish good training models and correctness crite-

ria.

Studies S2 Naslavsky et al. (2008) and S4 Laman-

cha et al. (2011) deal with testing of M2T transforma-

tions by applying Model-Based Testing (MBT). MBT

is a technique for automatically generating test cases

based on models extracted from software artefacts.

Thus, its main goal is the creation of artefacts that

describe the requirements and behaviour of the sys-

tem itself, aimed at automating the testing process.

Once the model is developed, it can be used in vari-

ous ways and for various stages of the software devel-

opment process, such as requirements speciﬁcation,

code generation, analysis of system reliability and

testing (Broy et al., 2005). The approach proposed

by Naslavsky et al. (2008) (S2) relies on a strategy of

mapping and traceability, via annotations in the code,

to measure the coverage achieved by test cases exer-

cised by the models derived with the MBT approach.

Lamancha et al. (2011) (S4) propose a framework

to automate the testing in the context of MBT. This

framework consists in creating test models for both

types of transformations: M2M and M2T. To gener-

ate test cases with this approach, MOFScript is used

according to OMG standards (Oldevik, 2011). The

contribution of this study is guided primarily by auto-

mated generation of test cases through mapping and

traceability technique.

The approach of Fraternali and Tisi (2010) (S3)

focuses on testing environment issues. Testing envi-

ronment refers to the infrastructure upon which the

test runs, including hardware conﬁgurations, soft-

ware, automation tools, testing team, organisational

aspects, supplies, and network documentation. Its

purpose is to facilitate testing under well-known and

controlled conditions. In this perspective, (Fraternali

and Tisi, 2010) address the deﬁnition, management

and execution of tests for web applications under the

MDD paradigm, in its various abstraction levels. The

approach is aligned with the ﬂow of transformations

MDA and source code. The proposed methodology

makes use of WebML and WebRatio platform to im-

plement a framework that manages the test cases,

keeping traceability across the levels.

Study S8 Alvarez and Casallas (2013) describes a tool

called MTC Flow that allows developers to create ap-

plications according to the MDD paradigm. The tool

provides a graphical DSL to specify the MTC work-

ﬂow model independently of the transformation tech-

nology. Another important feature is the manage-

ment of alternative execution paths using a Tag Sys-

tem to mark the elements in the MTCs design. These

marks later will guide the MTC execution engine. In

this approach, the integration of the different layers

of the MDA provides interoperability. Testing tech-

niques available in the tool’s environment underlies

the validation of correctness and well-formedness of

the models.

OCL-based Testing

Wimmer and Burgue

no (2013) (S9) make know-how

inherited from testing in M2M context to compose a

proposal for M2T / T2M test regardless of the lan-

guages used both for source models and output arte-

facts. The authors specify the contracts and transfor-

mation rules through an extension of OCL, supporting

the design and execution of unit tests in order to vali-

date the established rules and contracts.

Formal Method-based Testing

Studies S5 by Tiso et al. (2013), present a method

to test M2T transformations, which uses a set of inte-

grated approaches. The development of model trans-

formations is part of this method. This proposal is a

set of rules that characterise the well-formedness and

correctness of the model, in addition to the character-

isation by means of stereotypes of UML diagrams for

selecting source models. Thus, this method has the

objective of organising test input data to establish test

coverage criteria of the model.

C - COMPLEX DATA CHARACTERISATION FOR

M2T TESTING

Most real-world applications use complex input data

structures, which are represented as objects that re-

sult from the aggregation or composition of other ob-

jects. In a context of structural testing, which requires

ICEIS2015-17thInternationalConferenceonEnterpriseInformationSystems

184

knowledge about the internal implementation struc-

ture to devise relevant test input data, understanding

such input data structure is fundamental. This com-

prehension shall enable the deﬁnition of effective test

data that will determine high coverage, and hence

high conﬁdence on the software correctness.

Once it becomes possible to adequately represent

the elements of the source models in a MDD ap-

proach, testers becomes able to compose complex in-

put data sets that exercise speciﬁc parts of the trans-

former. Such speciﬁc parts are related, for exam-

ple, to a particular type of artefact that will be gen-

erated. As an example, while a set of input ele-

ments can exercise the transformer to generate Java

artefacts (i.e.Java classes), another particular set can

exercise the transformer to generate SQL artefacts

(i.e.database queries).

In this systematic review, two studies (S5 and S7)

partially characterise complex data for M2T trans-

formations using some data representation strategy.

Study S7 (Eriksson et al., 2013) use predicate logic

to compose arrangements of complex data in order to

resolve the discrepancy in the number of test require-

ments between the source model and the generated

code. The limitations reported by the authors con-

cerns the use of only one transformer with the Visitor

behavioural pattern, and the lack of reports regarding

the effective characterisation of complex data for dif-

ferent types of artefacts that can be generated accord-

ing to the MDD paradigm.

As previously described in this section, study

S5 (Tiso et al., 2013) have the objective of organ-

ising test input data to establish test coverage crite-

ria of the model. However, the data characterisation

described in these studies has a generic nature. The

authors do not particularly address complex data rep-

resentation for textual models; the generic approach

might be customised for the output of M2T transfor-

mations.

6 CONCLUSION

A systematic review is not a simple summary of

the published research on a particular topic. It is a

methodology for building knowledge by means of ev-

idence reported in primary studies, which allows re-

searchers to go a step beyond an ordinary review. In

this context, this paper reported on the results of a

systematic review that characterised the state-of-the-

art with respect to the testing of M2T transformations

in the context of MDD. The results provide a cate-

gorisation of the common features found in testing

approaches, as well as their recurring problems and

limitations.

In a high-level analysis, we conclude that the ex-

isting solutions for the testing of M2T transforma-

tions have begun to change the initial focus on well-

formedness and correctness of models. Even though

they are still in a small number, some approaches are

prominent proposals regarding the use of techniques

that establish coverage criteria for testing, whereas

others already try to solve the testability across many

transformation languages. Nevertheless, the solutions

found in the literature cannot yet be considered es-

tablished, so this research topic needs to be further

explored.

Regarding our research questions, the results re-

veal that the focus is on structural testing of M2T

transformations. Approaches in this context are

evolving, especially with the use of traceability map-

pings and transformations. However, most of the eval-

uated approaches deal exclusively with issues of well-

formedness and correctness of models. We could not

identify approaches that characterised the complexity

of the data manipulated by model transformations that

somehow optimise the coverage criteria by establish-

ing a discipline for test design.

Still regarding the research questions, we con-

clude that structural testing approaches for M2T

transformations focus on the Template Method be-

havioural pattern, when compared with the Visitor

pattern. This corroborates the OMG effort for deﬁn-

ing standards for M2T transformations, raising the

relevance of templates as transformation artefacts,

and hence their quality assurance through testing.

We highlight that a main threat to the validity

of our study concerns the small number of selected

papers after the application of the search string and

the criteria to include papers for evaluation. As a

future work and as a way to mitigate such threat,

we plan to consider additional databases, increas-

ing the scope of results obtained through the search

machines. Another possible measure to reduce the

threat consists in the application of the backward

snowballing technique in the selected primary stud-

ies (Jalali and Wohlin, 2012).

Even though we were able to identify approaches

for testing M2T transformations, the main problems

still require much research and investigation. The

complexity of the source model, the transformer itself

and the output artefacts pose an important challenge

for future research.

ACKNOWLEDGEMENTS

The authors would like to thank the ﬁnancial support

TestingM2TTransformations-ASystematicLiteratureReview

185

received from the Federal Institute of Education, Sci-

ence and Technology of Mato Grosso and the Gradu-

ate Degree Program in Computer Science of the Fed-

eral University of S

ao Carlos .

REFERENCES

Alvarez, C. and Casallas, R. (2013). Mtc ﬂow: A tool

to design, develop and deploy model transformation

chains. In Workshop on ACadeMics Tooling with

Eclipse (ACME), pages 1–9. ACM.

Amrani, M., Lucio, L., Selim, G., Combemale, B., Dingel,

J., Vangheluwe, H., Le Traon, Y., and Cordy, J. R.

(2012). A tridimensional approach for studying the

formal veriﬁcation of model transformations. In 5th

International Conference on Software Testing, Veriﬁ-

cation and Validation (ICST), pages 921–928. IEEE

Computer Society.

Basso, F. P., Pillat, R. M., Frantz, R. Z., and Roos-Frantz, F.

(2014). Assisted tasks to generate pre-prototypes for

web information systems. In 16th International Con-

ference on Enterprise Information Systems (ICEIS),

pages 14–25.

Baudry, B., Ghosh, S., Fleurey, F., France, R., Le Traon, Y.,

and Mottu, J.-M. (2010). Barriers to systematic model

transformation testing. Communications of the ACM,

53(6):139–143.

Beizer, B. (1990). Software Testing Techniques. Van Nos-

trand Reinhold Co., New York, NY, USA, 2nd edition.

Binder, R. V. (1999). Testing Object-Oriented Systems:

Models, Patterns and Tools. Addison Wesley, Read-

ing/MA - USA, 1st edition.

Broy, M., Jonsson, B., Katoen, J.-P., Leucker, M., and

Pretschner, A. (2005). Model-Based Testing of Re-

active Systems: Advanced Lectures, volume 3472.

Springer-Verlag.

Chavez, H. M., Shen, W., France, R. B., and Mechling,

B. A. (2013). An approach to testing java imple-

mentation against its uml class model. In 16th In-

ternational Conference on Model Driven Engineering

Languages and Systems (MODELS), pages 220–236

(LNCS 8107). Springer.

Czarnecki, K. and Helsen, S. (2006). Feature-based sur-

vey of model transformation approaches. IBM Sys-

tems Journal, 45(3):621–645.

Eriksson, A., Lindstr

om, B., Andler, S. F., and Offutt, J.

(2012). Model transformation impact on test artifacts:

An empirical study. In Workshop on Model-Driven

Engineering, Veriﬁcation and Validation (MoDeVVa),

pages 5–10. ACM.

Eriksson, A., Lindstr

om, B., and Offutt, J. (2013). Trans-

formation rules for platform independent testing: An

empirical study. In 6th International Conference on

Software Testing, Veriﬁcation and Validation (ICST),

pages 202–211. IEEE Computer Society.

Fabbri, S. C. P. F., Felizardo, K. R., Ferrari, F. C., Hernan-

des, E. C. M., Octaviano, F. R., Nakagawa, E. Y., and

Maldonado, J. C. (2013). Externalising tacit knowl-

edge of the systematic review process. IET Software,

7(6):298–307.

Fleurey, F., Steel, J., and Baudry, B. (2004). Validation

in model-driven engineering: testing model transfor-

mations. In First International Workshop on Model,

Design and Validation, pages 29–40. IEEE Computer

Society.

Fraternali, P. and Tisi, M. (2010). Multi-level tests for

model driven web applications. In 10th International

Conference on Web Engineering (ICWE), pages 158–

172 (LNCS 6189. Springer-Verlag.

Garzotto, F. (2011). Enterprise frameworks for data in-

tensive web applications: An end-user development,

model based approach. Journal of Web Engineering,

10(2):87–108.

Guerra, E., Lara, J., Kolovos, D., Paige, R., and Santos,

O. (2013). Engineering model transformations with

transml. Software and Systems Modeling, 12(3):555–

577.

Harman, M. (2008). Open problems in testability transfor-

mation. In Workshops of the International Confer-

ence on Software Testing Veriﬁcation and Validation

(ICSTW), pages 196–209. IEEE Computer Society.

Harrold, M. J. (2000). Testing: A roadmap. In Conference

on the Future of Software Engineering - in conjunc-

tion with ICSE, pages 61–72. ACM.

Hernandes, E. M., Zamboni, A., Fabbri, S., and Di Thom-

mazo, A. (2012). Using GQM and TAM to evaluate

StArt - a tool that supports systematic review. CLEI

Electronic Journal, 15(1).

Jalali, S. and Wohlin, C. (2012). Systematic literature stud-

ies: Database searches vs. backward snowballing. In

6th International Symposium on Empirical Software

Engineering and Measurement (ESEM), pages 29–38.

ACM.

Kalinov, A., Kossatchev, A., Petrenko, A., Posypkin, M.,

and Shishkov, V. (2003). Coverage-driven automated

compiler test suite generation. Electronic Notes in

Theoretical Computer Science, 82(3):500–514.

Kitchenham, B. (2004). Procedures for performing system-

atic reviews. Technical report, Departament of Com-

puter Science, Keele University.

Kitchenham, B. A., Dyba, T., and Jorgensen, M. (2004).

Evidence-based software engineering. In 26th Inter-

national Conference on Software Engineering (ICSE),

pages 273–281, Washington, DC, USA. IEEE Com-

puter Society.

Kleppe, A. G., Warmer, J., and Bast, W. (2003). MDA

Explained: The Model Driven Architecture: Practice

and Promise. Addison-Wesley Longman Publishing

Co., Inc., Boston, MA, USA.

Lamancha, B. P., Mateo, P. R., Polo, M., and Caivano, D.

(2011). Model-driven testing - transformations from

test models to test code. In 6th International Confer-

ence on Evaluation of Novel Approaches to Software

Engineering - (ENASE), pages 121–130. SciTePress.

ammel, Ralf (2001). Grammar testing. In Hussmann,

H., editor, Fundamental Approaches to Software En-

ICEIS2015-17thInternationalConferenceonEnterpriseInformationSystems

186

gineering, volume 2029 of Lecture Notes in Computer

Science, pages 201–216. Springer Berlin Heidelberg.

Lucredio, D., de Almeida, E., and Fortes, R. (2012). An in-

vestigation on the impact of MDE on software reuse.

In Sixth Brazilian Symposium on Software Compo-

nents Architectures and Reuse (SBCARS), pages 101–

110. IEEE Computer Society.

Mayo, F. J. D., Escalona, M. J., Mej

ıas, M., Ross, M.,

and Staples, G. (2014). Towards a homogeneous

characterization of the model-driven web develop-

ment methodologies. Journal of Web Engineering,

13(1&2):129–159.

Naslavsky, L., Ziv, H., and Richardson, D. J. (2008). Us-

ing model transformation to support model-based test

coverage measurement. In 3rd International Work-

shop on Automation of Software Test (AST), pages 1–

6. ACM.

Object Management Group (2003). MDA guide ver-

sion 1.0.1. online - http://www.omg.org/cgi-

bin/doc?omg/03-06-01.pdf – accessed on 26/02/2015.

Object Management Group (2012). MOF model to text

transformation language - MOFM2T 1.0. online.

http://www.omg.org/spec/MOFM2T/1.0/ – accessed

on 26/02/2015.

Oldevik, J. (2011). MOFScript User Guide. online.

http://eclipse.org/gmt/mofscript/doc/MOFScript-

User-Guide-0.9.pdf.

Osherove, R. (2009). The Art of Unit Testing: With Exam-

ples in .Net. Manning Publications Co., Greenwich,

CT, USA, 1st edition.

Panﬁlenko, D. V., Hrom, K., Elvesæter, B., and Landre,

E. (2013). Model transformation recommendations

for service-oriented architectures. In 15th Interna-

tional Conference on Enterprise Information Systems

(ICEIS), pages 248–256.

Pastor, O. and Espa

na, S. (2012). Full model-driven prac-

tice: From requirements to code generation. In

Advanced Information Systems Engineering, volume

7328 of Lecture Notes in Computer Science, pages

701–702. Springer Berlin Heidelberg.

Petersen, K., Feldt, R., Mujtaba, S., and Mattsson, M.

(2008). Systematic mapping studies in software engi-

neering. In 12th International Conference on Evalua-

tion and Assessment in Software Engineering (EASE),

pages 68–77, Swinton, UK, UK. British Computer So-

ciety.

Polack, D., Paige, R., Rose, L., and Polack, F. (2008). Unit

testing model management operations. In Workshops

of the International Conference on Software Testing

Veriﬁcation and Validation (ICSTW), pages 97–104.

IEEE Computer Society.

Rose, L., Matragkas, N., Kolovos, D., and Paige, R. (2012).

A feature model for model-to-text transformation lan-

guages. In ICSE Workshop on Modeling in Software

Engineering (MISE), pages 57–63. IEEE Computer

Society.

Selim, G. M. K., Cordy, J. R., and Dingel, J. (2012). Model

transformation testing: The state of the art. In First

Workshop on the Analysis of Model Transformations

(AMT), pages 21–26, New York, NY, USA. ACM.

Sendall, S. and Kozaczynski, W. (2003). Model transfor-

mation: the heart and soul of model-driven software

development. Software, IEEE, 20(5):42–45.

Sirer, E. and Bershad, B. (1999). Testing Java virtual ma-

chines - An Experience Report on Automatically Test-

ing Java Virtual Machines. In International Confer-

ence on Software Testing And Review.

Soltani, M. and Benslimane, S. M. (2012). From a high

level business process model to service model arti-

facts - A model-driven approach. In 14th Interna-

tional Conference on Enterprise Information Systems

(ICEIS), pages 265–268. SciTePress.

Tiso, A., Reggio, G., and Leotta, M. (2012). Early ex-

periences on model transformation testing. In First

Workshop on the Analysis of Model Transformations

(AMT), pages 15–20, New York, NY, USA. ACM.

Tiso, A., Reggio, G., and Leotta, M. (2013). A method

for testing model to text transformations. In Second

Workshop on the Analysis of Model Transformations

(AMT), volume 1077. CEUR-WS.org.

Vallecillo, A., Gogolla, M., Burgue

no, L., Wimmer, M.,

and Hamann, L. (2012). Formal speciﬁcation and test-

ing of model transformations. In Formal Methods for

Model-Driven Engineering, volume 7320, pages 399–

437. Springer.

Wimmer, M. and Burgue

no, L. (2013). Testing M2T/T2M

transformations. In Model-Driven Engineering Lan-

guages and Systems, volume 8107, pages 203–219.

Springer Berlin Heidelberg.

TestingM2TTransformations-ASystematicLiteratureReview

187
