Bug Prediction for an ATM Monitoring Software

Use of Logistic Regression Analysis for Bug Prediction

Ozkan Sari

1,2

and Oya Kalipsiz

Department of Computer Engineering, Yildiz Technical University, Esenler, Istanbul, Turkey

ATM Software Development Department, Provus Bilisim Hizmetleri, Sariyer, Istanbul, Turkey

Keywords: Software Metrics and Measurement, Software Engineering, Bug Prediction, Logistic Regression Analysis.

Abstract: Software testing which is carried out for the elimination of the software defects is one of the significant

activities to achieve software quality. However, testing each fragment of the software is impossible and

defects still occur even after several detailed test activities. Therefore, there is a need for effective methods

to detect bugs in software. It is possible to detect faulty portions of the code earlier by examining the

characteristics of the code. Serving this purpose, bug prediction activities help to detect the presence of

defects as early as possible in an automated fashion. As a part of the ongoing thesis study, an effective

model is aimed to be developed in order to predict software entities having bugs. A public bug database and

ATM monitoring software source code are used for the creation of the model and to find the performance of

the study.

1 INTRODUCTION

It is natural that all software has a certain amount of

defects. The important thing is to detect and

eliminate these defects. Test activities help to

achieve this goal, but even after testing it cannot be

said that the software is totally defect free. It is also

impossible to check all combinations of inputs,

outputs and conditions during the test (Khannur A.,

2014). Finding and fixing a defect after delivery is

often more expensive up to 100 times. (Boehm and

Basili, 2001) In order to find the defects that cannot

be detected during test activities and detect these

defects as early as possible, an effective method

should be devised.

Considering the nature of the software

development process, bugs are always possible and

hard to detect. The time and developers are also

limited and there is not much resource to find bugs

and fix them. Thus, bug prediction has been an area

of interest for a long time and several academic

studies have been performed on this area of research.

Throughout this paper, we use the terms defect

and bug synonymously. A fault or defect is a flaw in

the software, which causes it to behave incorrectly.

Most bug prediction models reports which software

entities are likely to contain faults and which are

likely to be defect free. Those models are referred as

classification models (Weyuker, E. J. et. al., 2010).

The purpose of this study is to find faulty

software files/classes by examining the specific

metrics of the code and evaluating them with logistic

regression analysis in order to form a model.

The developed logistic regression model is

wanted to be simple and easy to be used in real

software development projects. After the model is

formed, it is used to detect bugs in the source code

of an Automated Teller Machine (ATM) monitoring

system project, which is actively used and still being

developed according to the customer needs. This

monitoring system is selected instead of larger and

more elaborate software, because of the owner

company’s demands and support for such a case

study.

This paper is organized as follows. In section II,

we introduce some bug prediction approaches which

are related to our study. Section III is about data

analysis techniques, particularly about logistic

regression. In section IV, the data set used to create

the logistic regression model is introduced. In

Section V, how logistic regression model is created

is explained. Section VI is about the use of proposed

model in real software development project data and

demonstrates the performance of the developed

logistic regression model. Finally, Section VII

concludes the paper with some remarks and notes

382

Sari O. and Kalipsiz O..

Bug Prediction for an ATM Monitoring Software - Use of Logistic Regression Analysis for Bug Prediction.

DOI: 10.5220/0005382803820387

In Proceedings of the 17th International Conference on Enterprise Information Systems (ICEIS-2015), pages 382-387

ISBN: 978-989-758-097-0

 2015 SCITEPRESS (Science and Technology Publications, Lda.)

about possible future works.

2 BUG PREDICTION

APPROACHES

Different bug prediction approaches propose

different kind of methods to solve this problem.

Some of the many prediction techniques related to

our study are source code metrics, process metrics

and previous defects.

2.1 Source Code Metrics

Metrics like cohesion, coupling, complexity, lines of

code and object-oriented metrics are used as an

instrument to measure source code properties to

promote software quality. Most of the bug prediction

approaches utilizes the source code metrics. CK

metrics (Chidamber and Kemerer, 1994) and object-

oriented metrics are some of the well-known source

code metrics. Some of these metrics used in this

study, are given in Table 1.

Table 1: CK & OO Metrics Used in this study.

Name Description

wmc Weighted Method Count

dit Depth of Inheritance Tree

lcom Lack of Cohesion in Methods

noa Number of attributes

nom Number of methods

2.2 Process Metrics

This approach states that the changes in the source

code leads to bugs (Moser et al., 2008). The metrics

such as number of revisions, number of authors who

make changes, average lines added/removed in a

revision are used in process metrics.

Table 2: Metrics used by Moser et al.

Name Description

NR Number of revisions

NFIX Number of times a file has been a part of fix

NAUTH Number of authors who has previously

changed the file

LINES Number of lines added or removed

The changes in the source code are mostly analyzed

from a software configuration management (SCM)

system. For instance, NFIX metric represents the

number of bug fixes performed on the file, which is

extracted from the commit comments of a versioning

system like SVN or CVS.

Some of the process metrics related to our study

is given in Table 2.

2.3 Previous Defects

By inspecting previous defects in a source code

fragment, future defects might be predicted.

Zimmermann proposed that the number of past bug

fixes correlates with the number of future fixes

(Zimmermann T. et al., 2007).

In our study, we focused on whether or not the

class file has a previous bug or not, instead of the

exact number of bug fixes in the class file. That’s

because, we realized that a bug fix might be

committed in several different commit steps and in

such cases the number might be misleading. As

given in Table 2, the “BUGS UNTIL” metric

denotes if the file had a past defect and the “BUGS

AFTER” metric denotes if the file has a bug after the

inspected SVN version.

3 DATA ANALYSIS

Data analysis is one of the many techniques which

can be used for defect prediction. As a part of this

study, regression analysis and specifically logistic

regression analysis is used to create a model to

estimate the relationship among source code metrics

and bug probability.

3.1 Linear Regression Analysis

Regression analysis is used for predicting values or

assessing the effects of one or more response

variables from a collection of predictor variable

values. This technique shows the casual relationship

between events and factors (Johnson, R. A. et. al.,

2007). One can observe the casual relationship in

several incidents in life. For example, the market

value of a house might be explained with living area

in square feet, location and so on.

The classical linear regression model with a

single response variable Y with predictor variables z

and a random error ε takes the following form:

 











…









(1)

The response variable Y is also called dependent

variable, and z

’s are independent variables.

BugPredictionforanATMMonitoringSoftware-UseofLogisticRegressionAnalysisforBugPrediction

383

Table 3: A sample from the bug prediction data set.

File / Class name wmc dit lcom noa nom

…

BUGS UNTIL BUGS AFTER

IndexBinaryFolder 20.0 2 15 1 6.0

…

CachedIndexEntry 1.0 1 0 2 1.0

…

ASTNode 176.0 1 190 131 20.0

…

MemberTypeBinding 12.0 6 10 0 5.0

…

CodeSnippetParser 115.0 2 820 7 41.0

…

… … … … … …

…

……

3.2 Logistic Regression Analysis

Different from linear regression, logistic regression

analysis is a classification technique which is not

based on all quantitative variables but some or all of

the variables are qualitative. In its simplest setting,

the response variable Y in logistic regression model

is restricted to two values, which can be coded as 0

and 1 (H. Okamura et. al., 2010). General form of

the logistic regression model is as follows:

log



1





.

(2)

The probability of belonging to a category is found

using the following equation:





; , 











.

1





.

(3)

The equations in (2) and (3), is used to form a

logistic regression model from the selected data set.

4 DATA SET

The bug prediction dataset by D'Ambros et al. is

used in our study. The dataset contains data about

some popular java-based software systems, namely,

Eclipse JDT Core (http://www.eclipse.org/jdt/core/),

Eclipse PDE UI (https://eclipse.org/pde/pde-ui/),

Eclipse OSGI Equinox Framework

(http://eclipse.org/equinox/framework/), Apache

Lucene (http://lucene.apache.org/) and Eclipse

Mylyn (http://eclipse.org/mylyn/). The database

contains metric values of 5371 java class files

(D'Ambros et. al., 2010).

The dataset includes the following pieces of

information for each class:

 Values of 17 source code metrics (CK + 11

object oriented metrics)

 Values of 15 metrics computed from CVS

change log data

 Categorized (with severity and priority) post-

release defect counts

Only the metrics suitable to the ATM Monitoring

software and can easily be retrieved from its source

code are used in our study but all the samples are

used to create a logistic regression model to predict

whether a class has a defect or not. A small sample

of data is given at Table 3.

5 APPLICATION

The data set explained in section IV is used in

logistic regression analysis. 10% of the data are

spared for tests, 90% of them are used in the

analysis.

Table 4: Logistic Regression Model Calculations.

Estimate Std. Error Z Value Pr(>|z|)

(Int.)

-3.4680919 0.2484656 -13.9580000

< 2e-

***

WMC

0.0062890 0.0011536 5.4510000

5.00e-08

***

DIT

-0.0702946 0.0347372 -2.0240000

04301

LCOM

-0.0001523 0.0000478 -3.1860000

00144

NOM

0.0248885 0.0056447 4.4090000

1.04e-05

***

NOA

0.0225958 0.0039736 5.6860000

1.30e-08

***

BUG

1.4098361 0.2428095 5.8060000

6.39e-

***

Significance: 0 ‘***’ 0.001 ‘**’ 0.01 ‘*’ 0.05 ‘.’ 0.1 ‘ ’ 1

Error ~ WMC+DIT+LCOM+NOM+NOA+BUG

Logistic regression model is created to find the

probability of the existence of a defect/bug in a class

file. Variables and their estimates, along with

standard error and significance of the model are

given in Table 4. Calculations have been performed

on the statistical computing tool R

(https://www.rstudio.com/).

The problem statement of this study is that, given

a version X of a software system S, to find for each

class of X, the presence of defects reported after

version X until a future version Y.

Logistic regression model equation obtained as a

ICEIS2015-17thInternationalConferenceonEnterpriseInformationSystems

384

result of calculations on the statistical computing

tool R-studio is as follows:









  3.4680919 

0.0062890 ∗ – 0.0702946 ∗  

0.0001523 ∗   0.0248885 ∗

  0.0225958 ∗  

1.4098361 ∗ 

(4)

By using the value Y in equation 4, one can

calculate the probability of a file/class to be

classified as faulty as in equation 5.



exp



1exp



(5)

The logistic regression model here is validated by

the spared 10% test data and the success rate of the

model is calculated as 84.642%, as given in Table 5.

Table 5: Logistic Regression Model Test Results.

Sample 573

True Classification 485

False Classification 88

Success Rate 84.642%

6 USE OF THE MODEL

The next step in our study is to use the logistic

model in real software development project data,

which is the source code from the ATM Monitoring

Software, developed in Provus Bilisim Hizmetleri in

Istanbul, Turkey. In order to use the model in a

private source code base, the metrics compatible

with the model must be generated and the success of

the model must be validated.

6.1 ATM Monitoring Software

ATM Monitoring System is complex and online

software of several different modules and

components, which gives service to different banks

in Turkey, Albania and Cyprus. Software code has

been developed using Java based technologies since

2004 and it consists of more than 250.000 lines of

code. In our study, only File Distribution Project

component source codes are used.

6.2 Data Collection Process

Data collection process is performed by inspecting

source codes kept in an internal SVN

(https://subversion.apache.org/), a SCM repository.

In order to compute the metric values for different

Java classes, Eclipse IDE (http://www.eclipse.org),

Google Code Pro Analytix Tool

(https://developers.google.com/java-dev-

tools/codepro/) and Eclipse Metrics Plugin

(http://metrics2.sourceforge.net) has been used.

Figure 1 summarizes how the metric values are

gathered. SVN repositories (SCM) keep the current

status of project files and also commit transaction

information. A commit transaction is a set of files

which were modified, deleted, or added to

repository. These transactions also include version

number, date, time, developer and the comment.

As the nature of Java programs, a source file

might consists of one main java class and several

java inner classes. Only java main classes are

considered as a part of this study.

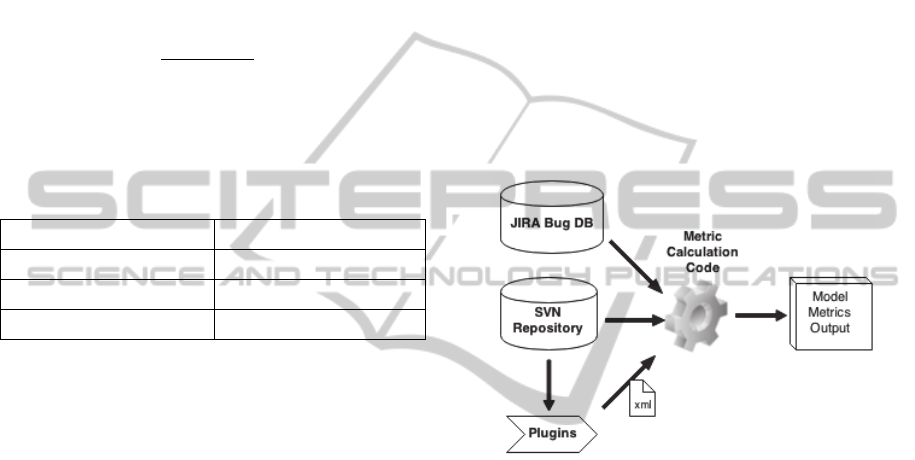

Figure 1: Metric Data Collection.

6.2.1 Calculation of Metric Values

Source code retrieved from SCM is analyzed by

Eclipse Metrics plug-in and Google Code Pro

Analytix tool. These tools output metric values for

each individual java class as separate xml files.

Additional metric values such as previous defects

and change metrics are directly gathered from source

files in SVN repository. To access the SVN

repository and parse the commit transactions and

their comments, SVN Kit library (svnkit.com) has

been used.

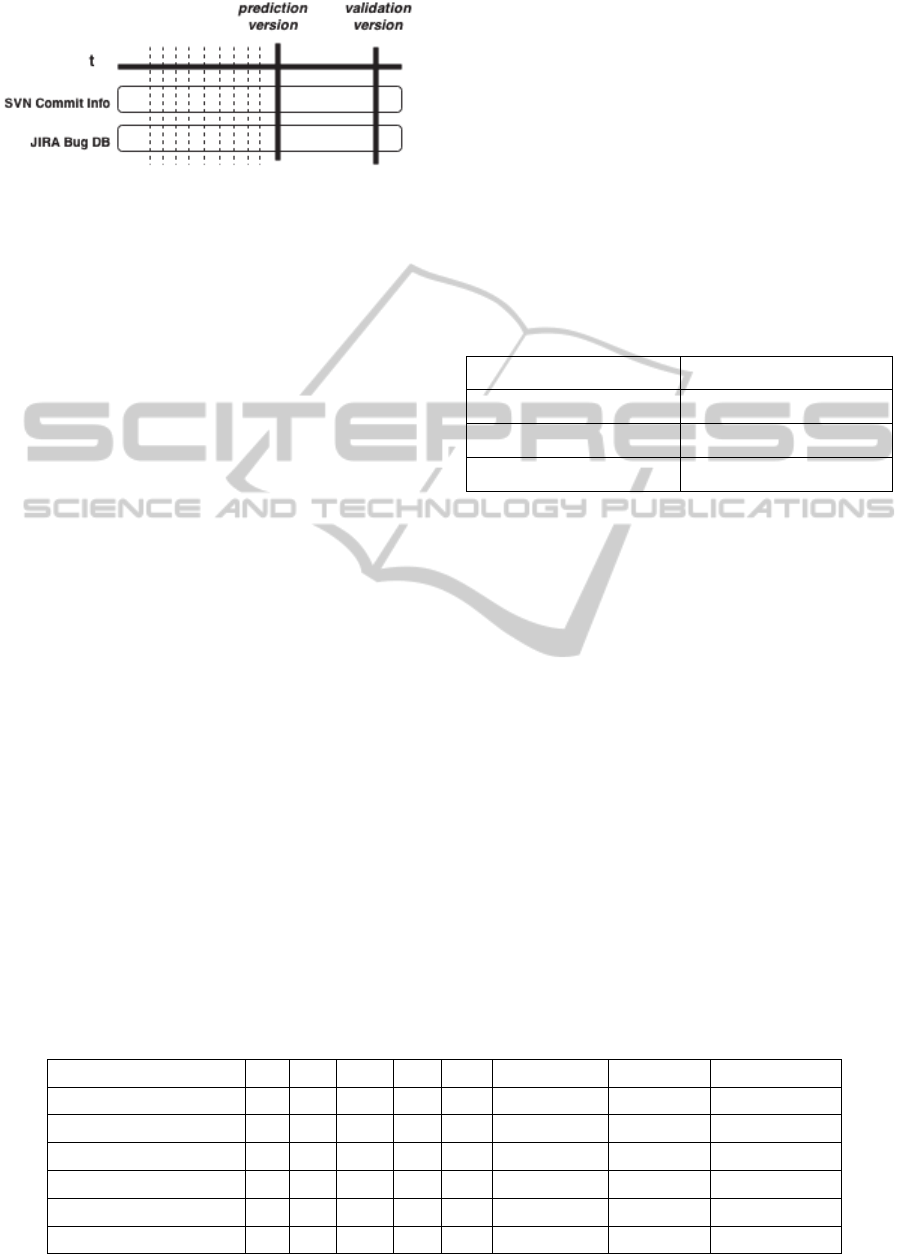

As given in Figure 2, a specific SCM version has

been fixed as the prediction version in order to

calculate metric values for source code. Current

version has also been fixed as validation version to

test the performance of the bug prediction

calculations.

In order to parse and convert this gathered

information as a usable format, a metric calculation

program has been developed. The xml files which

include the metric values and additional source file

BugPredictionforanATMMonitoringSoftware-UseofLogisticRegressionAnalysisforBugPrediction

385

Figure 2: Code Retrieval Approach.

information is input by this program and metric

values suitable to be used in logistic regression

model equation given in (4) is generated.

6.2.2 Linking Bugs to Classes

As Zimmermann (Zimmermann T. et. al, 2007),

Fischer (Fischer M. et. al, 2003) and Bird (Bird et.

al., 2009) studied linking bugs to versioning system

files, we performed a similar approach and detected

bugs by some keywords from SVN commit

comments.

In order to find if the java class had a defect

which was fixed afterwards, developer comments in

SVN commit transactions have been parsed and

checked against some patterns to mark the change as

a part of bug fix. To be recognized as a bug fix, the

commit comment must include some special

keywords, such as “fix”, “bug” and some words in

Turkish Language specifying a bug fixing activity.

Some additional metrics such as the number of

developers that had previously changed the java file

is also retrieved by checking SVM commit

transactions.

6.3 Performance of the Model

After calculating the metric values required for the

logistic regression equation, probability of a class

having a defect is predicted. Predicted percentage

values more than 50% are accepted that it means to

have defect in the inspected class.

In order to validate the predictions, SVN

transactions after the prediction version are

controlled and it is checked that whether or not any

bug fixed or defect detected. This information is

specified with the “BUGS” variable.

A portion of the real software data with the

required metric values, the prediction and validation

result (bugs) are shown in Table 7.

Using the logistic model equations given in

Equation 4 & 5, the probability of java classes in

ATM Monitoring Software having defect is

calculated and this results are validated as explained

above. The results, as shown in Table 6, show that

the generated logistic regression model is 66.6%

successful in the real software data.

Table 6: Performance Results of the model.

Sample 48

True Classification 32

False Classification 16

Success Rate 66.6%

7 CONCLUSIONS

In this study, a logistic regression model is generated

by using the bug prediction dataset by D'Ambros et

al., which consists of 5371 samples from 5 different

popular open-source projects.

To use this model in a selected real software

development project, the required metric values are

obtained by analyzing the project source code and a

small database of metric values is formed. An ATM

Monitoring System which belongs to the company

Provus who supports this study is selected for this

study.

Then, the model is applied to the files in project

source code and bug probabilities are predicted.

Finally, these results are validated by checking the

comments in SCM commit transactions after the

selected prediction version. The results show a 66%

success rate in the selected project source code.

Table 7: Sample Data from Real Software Data.

File/Class dit wmc lcom noa nom BUGS UNTIL

Prediction BUGS AFTER

PAYSFDSHelper.java 1 17 0 1 5 1

13.30% 0

PAYSFDSScheduler.java 1 6 0 2 4 0

3.37% 0

FDSMonitor.java 0 5 0 0 5 0

3.52% 0

FDSJobExecutor.java 0 1 0 0 1 0

3.12% 0

ObjectDefinition.java 1 19 0.571 3 7 0

4.00% 1

RunnerComparator.java 1 9 0 0 1 0

3.06% 0

ICEIS2015-17thInternationalConferenceonEnterpriseInformationSystems

386

In future, we plan to create some different

logistic regression models and compare them with

one another and classify their strength and

weaknesses. Furthermore, we will examine more

samples from real software data and form a larger

bug database, which might be published online.

ACKNOWLEDGEMENTS

Authors would like to thank the company of Provus

Bilisim Hizmetleri in Istanbul, Turkey. The source

code of the ATM Monitoring system which is used

in this study belongs to Provus and Provus may not

agree with all of the interpretations/conclusions of

this paper.

REFERENCES

Weyuker, E. J.; Bell, R. M.; Ostrand, T. J., "We're Finding

Most of the Bugs, but What are We Missing?,"

Software Testing, Verification and Validation (ICST),

2010 Third International Conference on , vol., no.,

pp.313,322, 6-10 April 2010.

Khannur, A., Structured Software Testing: The Discipline

of Discovering, Partridge Publishing, 2014, pages 22-

23.

Boehm, B., Basili V. R., “Software Defect Reduction Top

10 List”, IEEE Computer, Vol. 34, No. 1, Jan 2001,

pages 135-137.

Shyam R. Chidamber and Chris F. Kemerer. A metrics

suite for object oriented design. IEEE Trans. Software

Eng., 20(6):476-493, 1994.

Raimund Moser, Witold Pedrycz, and Giancarlo Succi. A

comparative analysis of the efficiency of change

metrics and static code attributes for defect prediction.

In Proceedings of ICSE 2008, pages 181-190, 2008.

Thomas Zimmermann, Rahul Premraj, and Andreas

Zeller. Predicting defects for eclipse. In Proceedings

of PROMISE 2007, page 76. IEEE CS, 2007.

H. Okamura, Y. Etani and T. Dohi, "A multi-factor

software reliability model based on logistic

regression," Proceedings of 21st IEEE International

Symposium on Software Reliability Engineering

(ISSRE'10), pp. 31-40, IEEE CPS (2010).

Kuwa, D.; Dohi, T., "Generalized Logit Regression-Based

Software Reliability Modeling with Metrics Data,"

Computer Software and Applications Conference

(COMPSAC), 2013 IEEE 37th Annual , vol., no.,

pp.246,255, 22-26 July 2013.

Johnson, R. A., Wichern D. W., Applied Multivariate

Statistical Analysis, Pearson, 6th Edition, April 2,

2007.

Marco D'Ambros, Michele Lanza, and Romain Robbes.

An extensive comparison of bug prediction

approaches. In MSR '10: Proceedings of the 7th

International Working Conference on Mining

Software Repositories, s. 31-41, 2010.

Michael Fischer, Martin Pinzger, and Harald Gall.

Populating a release history database from version

control and bug tracking systems. In Proceedings of

ICSM 2003, pages 23-32. IEEE CS, 2003.

Christian Bird, Adrian Bachmann, Eirik Aune, John

Duffy, Abraham Bernstein, Vladimir Filkov, and

Premkumar Devanbu. Fair and balanced?: bias in bug-

fix datasets. In Proceedings of ESEC/FSE 2009, pages

121-130, New York, NY, USA, 2009. ACM.

BugPredictionforanATMMonitoringSoftware-UseofLogisticRegressionAnalysisforBugPrediction

387
