Integration of a Food Distribution Routing Optimization Software with

an Enterprise Resource Planner

Pedro J. S. Cardoso

1,2

, Gabriela Sch

utz

1,3

, Jorge Semi

1,5

, J

anio Monteiro

1,5

, Jo

ao Rodrigues

1,2

Andriy Mazayev

, Emanuel Ey

, Micael Viegas

, Carlos Neves

and S

ergio Anast

acio

Instituto Superior de Engenharia, University of the Algarve, Faro, Portugal

LARSys, University of the Algarve, Faro, Portugal

CEOT, University of the Algarve, Faro, Portugal

Departamento de Engenharia Eletr

onica e Inform

atica, University of the Algarve, Faro, Portugal

INESC-ID, Rua Alves Redol, 9, Lisbon, Portugal

X4DEV, Business Solutions, Loul

e, Portugal

{pcardoso, gschutz, jsemiao, jmmontei, jrodrig, amazayev, eevieira, mimviegas}@ualg.pt,

{carlos.neves, sergio.anastacio}@x4dev.pt

Keywords:

Enterprise Resource Planning, Vehicle Routing Problem, Geographical Information, Application Program-

ming Interface, Data Acquisition.

Abstract:

i3FR is a system for optimizing the distribution of fresh goods, using a ﬂeet of vehicles, which must be inte-

grated with an existing Enterprise Resource Planning (ERP) software, while avoiding disruption of established

schedules and procedures. In terms of delivery optimization, the most similar problem in literature is the well-

established and experimented Vehicle Routing Problem with Time Windows (VRPTW), which is, by nature,

a multiple objective problem where the number of vehicles and the total traveled distance must be minimized.

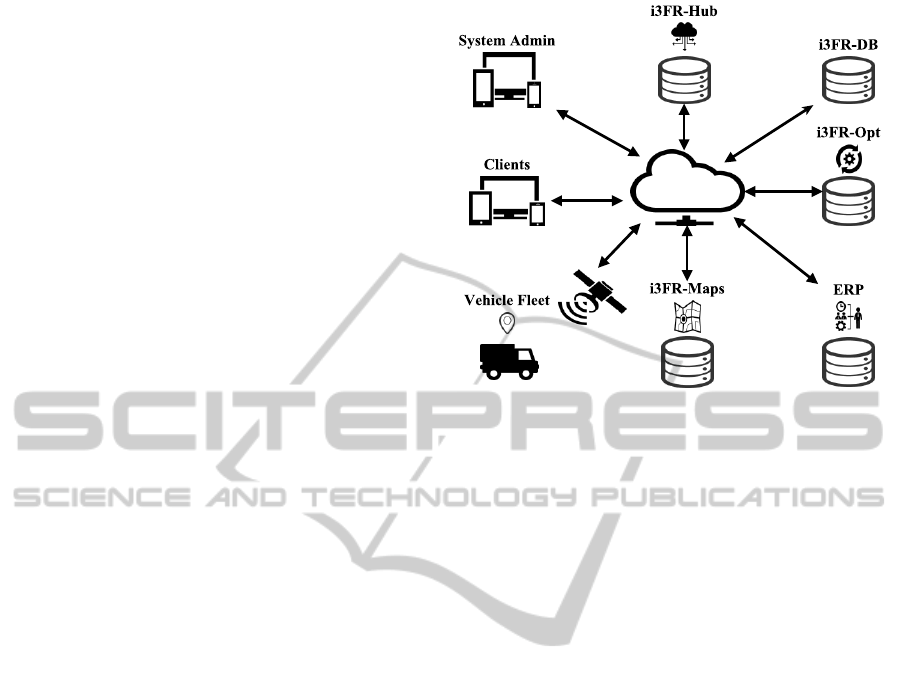

In this paper, the overall architecture of the i3FR system is presented, which includes several modules and

services (such as ERP, routing optimization and data acquisition modules), and the communication between

them. The novelty in the proposed architecture comprises: (i) the application to a fresh goods distribution

network, with multiple restrictions on goods’ acclimatization; (ii) a data acquisition system which includes

vehicle data and environmental data from the vehicles’ refrigerated volumes, such as temperature; and (iii) the

integration of the VRPTW optimization system with an existing ERP. A case-study is described and validates

the overall implementation. The main contribution of paper is the proposal of a multi-layered architecture to

integrate existing ERP software with a route optimization and a temperature data acquisition module.

1 INTRODUCTION

i3FR (Intelligent Fresh Food Fleet Router) is an on-

going project of the University of the Algarve and

X4DEV Business Solutions, with the main objec-

tive of building a system to manage and to optimize

the distribution of fresh products by private ﬂeets.

The system will be integrated with an existing ERP,

namely the SAGE ERP X3 (SAGE, 2014), and will

compute routes from the depots to the delivery points

using cartographic information and taking into con-

sideration multiple objectives.

The intelligent management of the distribution

ﬂeet is assured not only by optimizing costs, but also

by monitoring what is being distributed. In the case

of refrigerated vehicle ﬂeets, for the transportation of

fresh and frozen goods, the speciﬁcity is high. In this

particular case it is necessary to maintain the quality

of the products, to satisfy the legal criteria for food

transportation, as well as the goods’ safety and hy-

giene as required by suppliers and customers.

The product being developed can be divided in

three main components: (1) a data acquisition sys-

tem for the distribution vehicles; (2) an intelligent

routing optimization platform, and (3) an Application

Program Interface (API) to integrate the new modules

with the existing ERP.

The ﬁrst component will acquire statistical data

from the vehicles (e.g., fuel consumption and speeds

obtained from “control units”), from the past/real de-

livery tours (e.g., using GPS data or track obstruc-

tions reported by drivers), along with data from wire-

153

S. Cardoso P., Schütz G., Semião J., Monteiro J., Rodrigues J., Mazayev A., Ey Vieira E., Viegas M., Neves C. and Anastácio S..

Integration of a Food Distribution Routing Optimization Software with an Enterprise Resource Planner.

DOI: 10.5220/0005385901530161

In Proceedings of the 1st International Conference on Geographical Information Systems Theory, Applications and Management (GISTAM-2015), pages

153-161

ISBN: 978-989-758-099-4

 2015 SCITEPRESS (Science and Technology Publications, Lda.)

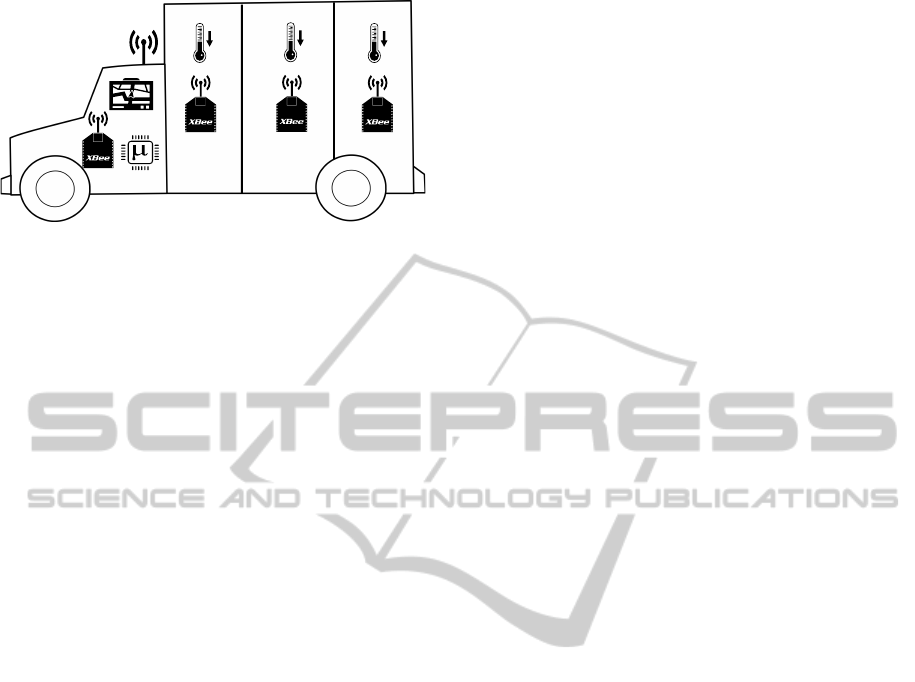

less sensors placed inside and outside the transporta-

tion chambers. In the case-study, the vehicles’ trans-

portation chambers are divided into three subtypes,

namely: frozen, chilled and ambient/dry goods cate-

gories. The acquired data is then used in the second

component, which optimizes the routes, taking into

account multiple constraints (e.g., vehicle capacities,

time windows for deliveries, route duration, balance

between route duration and driver working periods)

and objectives (e.g., minimize the number of routes,

minimize the total distance, minimize the total time to

perform the deliveries and maximize customers sat-

isfaction). The route computation will be endowed

with intelligence based on data acquired during pre-

vious routes, leaving open the possibility of integrat-

ing other sources. The third module is fundamental

as a bridge between the existing ERP and what is pro-

posed to be conducted in the i3FR project.

Some related works and products exist on the mar-

ket. An algorithm for the distribution of fresh veg-

etables in which the perishability represents a criti-

cal factor was developed in (Osvald and Stirn, 2008).

The problem was formulated as a VRPTW with

time-dependent travel-times (VRPTWTD), where the

travel-times between two locations depend on both

the distance and the time of the day. The problem

was solved using a heuristic approach based on the

Tabu Search (Glover and Laguna, 1999). The per-

formance of the algorithm was veriﬁed using modi-

ﬁed Solomon’s problems. A somehow similar work

was proposed in (Tarantilis and Kiranoudis, 2002),

which deals with distribution problem formulated as

an open multi-depot vehicle routing problem (OMD-

VRP) encountered by a fresh meat distributor. To

solve the problem, a stochastic search meta-heuristic

algorithm, termed as the list-based threshold accept-

ing algorithm, was proposed. In (Ambrosino and

Sciomachen, 2007) was considered a generalization

of the asymmetric capacitated vehicle routing prob-

lem with split delivery. The solution determines the

distribution plan of two types of products, namely:

fresh/dry and frozen food. The problem was solved

using a mixed-integer programming model for the

problem, followed by a two-step heuristic procedure.

In (Abousaeidi et al., 2011) the distribution of fresh

vegetables was addressed. The focus of the study

was the delivery of fresh vegetables selecting the

best routes particularly for urban areas such as Kuala

Lumpur city, which faces trafﬁc problems. There

are also a relatively large number of companies pro-

viding commercial software which is similar to the

one developed in the i3FR project (Routyn, 2014;

Optimoroute.com, 2014; optrak.com, 2014; Newro-

nia.com, 2014; Logvrp.com, 2014).

The main contribution of this paper is the pro-

posal of a multi-layered architecture to integrate ex-

isting ERPs with a route optimization and a tem-

perature data acquisition module. The optimization

module is prepared to deal with dynamic scenarios,

where new demands may appear during the optimiza-

tion process, which will integrate them in the iteration

procedure. Furthermore, computed routes will have

several states, e.g., (1) “open” meaning that new or-

ders can be added, removed or swapped inside that

route, (2) “locked” in which case new orders may

still be inserted but swapping is no longer allowed,

and (3) “closed” meaning that no more changes can

be made to the route. Furthermore, the system is

prepared to acquire geographical data from several

sources, namely from Google Maps, from an Open

Street Maps router and from data retrieved from pre-

vious deliveries/routes. The system is also prepared to

accept several optimizers, if necessary. All this main-

taining the company’s core ERP software.

A distribution company of fresh, frozen, ultra-

frozen and dried products was selected as case-study,

having up to 5000 daily deliveries and a ﬂeet of 120

vehicles. Therefore, the system must be able to man-

age thousands of customers, each with different de-

mand characteristics, matching the company’s deliv-

ery resources with the customer’s delivery require-

ments. The use of the company’s ERP allows for

maintaining most of the existing procedures, which

avoids disruption to the company’s routines.

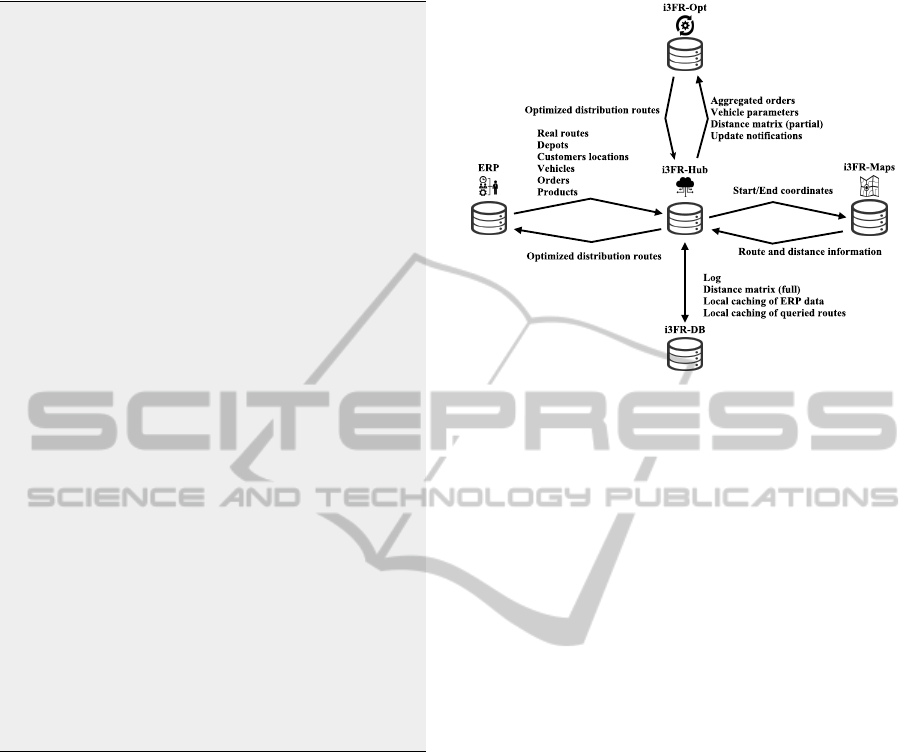

The remaining document is structured as follows.

Section 2 presents the steps necessary to integrate the

existing ERP with the new modules, namely the Opti-

mization module (i3FR-Opt), the Hub module (i3FR-

Hub), the Database module (i3FR-DB) and the Maps

module (i3FR-Maps). The data acquisition module

is addressed in Sec. 3. The fourth and ﬁnal section

presents some conclusions and future works.

2 STEPS IN THE INTEGRATION

OF AN ERP WITH A VRP

OPTIMIZATION MODULE

A typical enterprise has many departments or busi-

ness units (e.g., sales, inventory, ﬁnance, and human

resources departments), that have to be continuously

communicating and exchanging data with each other.

For instance, whenever the sales department makes a

sale, it has to check the inventory department and send

information relative to the sale to the ﬁnance depart-

ment. In the middle is the human resources depart-

ment, which will be informed to ensure man power to

GISTAM2015-1stInternationalConferenceonGeographicalInformationSystemsTheory,ApplicationsandManagement

154

process the picking and sending of the items. There-

fore, the success and efﬁciency of the organization

lies, although not exclusively, in the successful com-

munication between those departments.

A decentralized system would maintain data

spread through the local departments. The local de-

partments, in general, do not have access to the data of

the other departments, which turns obtaining real data

(e.g., stock inventory) into a time-consuming proce-

dure, leading to inefﬁciency, loss of revenues and pos-

sible customer dissatisfaction. Simultaneously, the

lack of communication makes it hard to do integrated

business intelligence procedures, due to disparate, re-

dundant and, most probably, inconsistent enterprise

data.

In a centralized system, often simply called ERP,

data is maintained at a central location and shared

with other departments in real time. Sensitive data

sharing is supported on views to the various users and

departments. This strategy provides more accurate

data by removing redundancy and real time updates.

In our case, the ERP management system is a

SAGE ERP X3 (SAGE, 2014), which stores all vi-

tal information of the corporation activities, like cus-

tomers, orders, suppliers, vehicles, employees, etc.

The corporation management is done using inter-

faces/forms properly developed for the retrieving and

ﬁlling of data stored on the ERP database.

The i3FR Routing System, used to compute the

distribution routes, was designed to be independent

of the ERP, allowing future integration with other

ERP systems or even autonomous operation, given

the implementation of the proper interfaces. Under

that independence perspective, the communications

between the systems were implemented as web ser-

vices. More precisely, a Web API with simple repre-

sentational state transfer (REST) based communica-

tions was considered (Richardson and Ruby, 2008).

The advantage is in the fact that RESTful APIs do not

require XML-based Web service protocols to support

their interfaces, which in the present case was done

using JSON (JSON, 2014).

The web services on the ERP side, provide the

necessary data through GET requests/methods (e.g.,

customers addresses, orders, available vehicles, and

vehicles capacities) and receive the results generated

by the i3FR Routing System through POST methods

(e.g., computed routes).

The i3FR Routing System is composed of several

interdependent sub-modules which also communicate

via HTTP, thus allowing for the system to be scaled

from a single-machine environment to a large multi-

server production deployment. In more detail, the

system is composed of the following modules:

Figure 1: System’s global diagram.

i3FR-Opt – The actual route optimization algorithm

is implemented in the optimization module desig-

nated i3FR-Opt. The optimization process relies

in heuristics and meta-heuristics (Cardoso et al.,

2015) that should run in real-time, taking into

consideration the dynamics of the overall system

(more details in Sec. 2.1).

i3FR-Hub – All communications occurring inside

the i3FR Routing System go through i3FR-Hub

which acts, as the name suggests, as a hub. For in-

stance, the optimization module, i3FR-Opt, sends

and receives all the data it requires through a

RESTful API provided by the i3FR-Hub. Further-

more, all communication to the external systems

also goes through this hub, which acts as a “gate-

way”, a security access provider, and a data val-

idator (more details in Sec. 2.2).

i3FR-DB – The i3FR Routing System operates on

top of a non-relational database. The database

provides local storage of information relevant

to the optimization procedure, namely: data re-

trieved from the ERP (avoiding overloading the

system with constant requests), cartographic in-

formation, computed routes, etc. (see Sec. 2.3).

i3FR-Maps – A cartography subsystem, i3FR-Maps,

was also implemented. The system retrieves rout-

ing informations from other systems (e.g., Google

Maps) and stores it on the i3FR-DB (see Sec. 2.4).

The overall system is depicted in Fig. 1.

2.1 i3FR-Opt Module

i3FR-Opt module is the optimization unit, responsi-

ble for ﬁnding a suitable set of routes for the distri-

IntegrationofaFoodDistributionRoutingOptimizationSoftwarewithanEnterpriseResourcePlanner

155

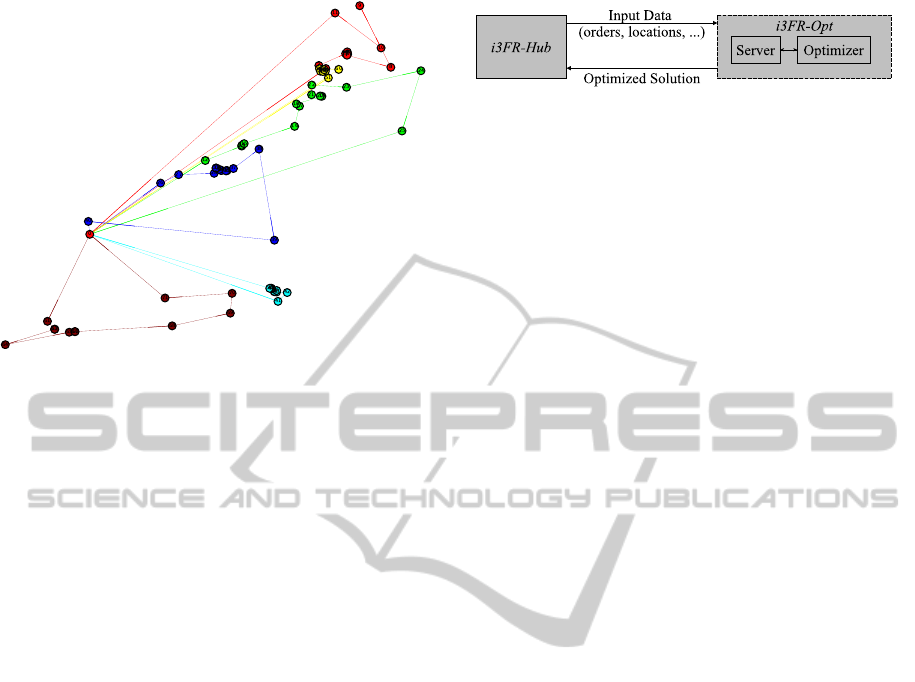

Figure 2: Excerpt of a solution returned by the i3FR-Opt,

presenting 6 routes with 71 deliveries.

bution of fresh goods. The optimization procedure

computes routes from one or more depots that visit

each customer once, within given time intervals, with-

out violating the vehicle capacities, and other legal

constraints (e.g., maximum consecutive driving time).

The most similar problem to the one to be solved

is the Vehicle Routing Problem with Time Windows

(VRPTW), common to the majority of the distribu-

tion ﬂeets (Hsu et al., 2007; Chen et al., 2009; Faulin,

2003; Solomon, 1987; Cardoso et al., 2015). In its

simpliﬁed form, the VRPTW can be stated as the

problem of designing an optimum set of routes that

deliver a set of goods, to a set of customers, within

predeﬁned time windows.

Within the VRPTW perspective, for the time be-

ing, the main objectives of the computational process

are to obtain solutions which minimize the number

of necessary delivery vehicles/drivers, minimize the

total delivery distance, and maximize the minimum

load between all vehicles. These objectives optimize

the operational costs (e.g., fuel and worker) and give

more equilibrated routes, in terms of man workload.

Figure 2 depicts an excerpt of a solution returned by

the i3FR-Opt, presenting 6 routes with 71 deliveries.

The module itself can be seen as a composition of

two sub-modules (see Fig. 3). The server sub-module

is responsible for the communication with the exter-

nal services, in particular with the i3FR-Hub mod-

ule. This sub-module acts as a server, in the sense

that it waits for notiﬁcations from the hub. When-

ever a notiﬁcation arrives, the server sub-module gets

the corresponding data, which includes the tasks of

checking if the received data is consistent and sends

it to the optimizer sub-module. This strategy al-

lows to continuously maintain the optimization sub-

module iterative process, avoiding blocking commu-

Figure 3: Communication between Hub and Opt modules.

nication. Those notiﬁcations (e.g., new/edited orders)

are passed through shared memory to the optimizer,

which in turn computes the best possible routes.

In the other direction, whenever signiﬁcant im-

provements to the solution are obtained, they are com-

municated to the server, which posts them to the

i3FR-Hub, and which in turn sends them to the com-

pany’s ERP to be visualized and possibly adopted as

a solution. Figure 4 shows an excerpt of a particu-

lar route, as a JSON document, return by the opti-

mization module to the hub. Among other things, the

route document has information about the start and

end times, total distance, orders and path identiﬁers.

The document is then expanded in the i3FR-Hub by

dereferencing the identiﬁers, and the result is stored

on the i3FR-DB and sent to the ERP.

At this point, since it is infeasible for the company

to process all routes simultaneously, a method for

locking/constraining optimization of certain routes

was devised. As vehicles are loaded in inverse de-

livery order, this locking state prohibits the optimiza-

tion module from changing the delivery sequence but

allows other changes as the insertion of new deliv-

eries along the computed path. This allows the com-

pany to lock a route to start picking goods and loading

the corresponding vehicle. This locking command,

as all communications, is relayed through the i3FR-

Hub. This led to the need to implement a rollback

procedure, such that the system could recover to the

point where the locked solution was sent to the deci-

sion maker at the Interface and Management System

(i.e., the ERP).

As a ﬁnal note, the optimization module relies on

heavy computation and was developed in C++.

2.2 i3FR-Hub Module

As already introduced, i3FR-Hub is the routing sys-

tem’s central communications hub, which fuses data

from several sources to be pre-processed and for-

warded, for instance to the i3FR-Opt module. i3FR-

Hub accesses the RESTful-API provided by the In-

terface and Management System (the ERP) to obtain

data on depots, customers’ locations, vehicles, cus-

tomer orders and product details.

Vehicle data includes information about the max-

imum (legal) transportation mass and volume capaci-

ties. In the case-study, it was considered that the vehi-

GISTAM2015-1stInternationalConferenceonGeographicalInformationSystemsTheory,ApplicationsandManagement

156

{

" id Ve hic le " : " v 200 _0 " ,

" ro ut eSt ar t ": " 2014 -11 - 28 07 : 46 : 00" ,

" r o u te E n d " : " 20 1 4 - 11 -28 15 : 39 : 0 0 " ,

" D i s ta n c e " : 6 19 4 0 ,

" ro u t eS t a t e " : " c l os e d " ,

" r o ut e " :

[

{

" i d D ep o t " : O b je c t Id (" . .. " ) ,

" e st i m a t e d D ep a r t u r e T i m e " : "20 14 -11 - 28

07 : 46 "

{

" i d Pa t h " : O b je c t Id (" . .. " ) ,

" pa t h Le n g t h " : 2 42 03 ,

" tr a v el T i m e " : 49

{

" i d O rd e r " : O b je c t Id (" . .. " ) ,

" id L o ca t i o n " : O b je c t Id (" . .. " ) ,

" e st i m a t e d Ar r i v a l T i me " : "20 14 -11 - 28 08

: 3 5"

{

" i d Pa t h " : O b je c t Id (" . .. " ) ,

" pa t h Le n g t h " : 91 6 ,

" tr a v el T i m e " : 2

...

{

" i d D ep o t " : O b je c t Id (" . .. " ) ,

" e st i m a t e d Ar r i v a l T i me " : "20 14 -11 - 28 15

: 3 9"

}

]

}

Figure 4: Excerpt of route generate by the i3FR-Opt.

cles have multiple transportation categories, namely:

frozen, chilled and ambient/dry goods categories.

Product information includes mass per unit, trans-

portation category (e.g., temperature range) as well as

individual product dimensions, from which package

volumes are computed.

Customer orders are pre-processed/aggregated be-

fore being sent to i3FR-Opt, i.e, the i3FR-Hub uses

the product information to aggregate products by

transportation categories. This way, the i3FR-Opt

receives the totals for each transportation category

(namely, mass and volume), allowing i3FR-Opt to fo-

cus on improving the solutions.

From the list of customer locations and depots, a

distance matrix composed of several layers is gener-

ated (see Sec. 2.4) and stored on i3FR-DB. An excerpt

of this data is passed to i3FR-Opt where it is used for

computing the routes. A different excerpt, containing

Figure 5: Inputs and outputs of i3FR-Hub.

full human-readable path descriptions is later passed

to the Interface and Management System allowing the

representation of the computed routes on the manage-

ment interface and later use on the vehicle’s naviga-

tion systems (see Fig 6).

A full log of operations is maintained by i3FR-

Hub, which allows storing intermediate solutions

from the beginning to the end of the optimization pro-

cess, as well as rolling back and resuming optimiza-

tion from previous states.

Finally, i3FR-Hub also provides a RESTful API

for an in-development web-based back ofﬁce user in-

terface. An overview of the data going in and out of

i3FR-Hub is shown in Fig. 5.

2.3 i3FR-DB Module

The i3FR routing system stores all data in a net-

work connected high performance database which re-

lies on a MongoDB server, with an ODM (Object-

Document Mapper) layer implemented in Python for

convenience.

MongoDB is a non-relational database, also

known as a NoSQL database (MongoDB, 2014; Red-

mond and Wilson, 2012). This is a document-oriented

database with high performance and high reliability.

Other characteristics include easy scalability (verti-

cally and horizontally through replication and auto-

sharding, respectively) and map-reduce.

A MongoDB database is structured as a set of col-

lections, which store documents. These documents

are BSON objects (a binary JSON (JSON, 2014) doc-

ument format), allowed to have a dynamic schema,

i.e., documents in the same collection are not forced

to have the same structure. This schema-less property

is particularly important in the present problem, since

IntegrationofaFoodDistributionRoutingOptimizationSoftwarewithanEnterpriseResourcePlanner

157

{

" _ id " : O b je c t Id (" . .. " ) ,

" d i s ta n c e " : 38 9 ,

" tr a v el T i m e " : 58 ,

" s o ur c e " : " g m a p s _d i r e c t io n s " ,

" s t ep s " : {

" en d _ a dd r e s s " : " Hum an - re a d ab l e a d dr e ss " ,

" st a r t _ ad d r e s s " : "Hu man - r ea d a bl e ad d re s s "

" s t ep s " : [

{

" h tm l _ i n s tr u c t i o ns " : "Hu man -

re a da b l e d r iv i ng i ns t r u ct i o n s "

" d i s ta n c e " : 31 9 ,

" d u r at i o n " : 47 ,

" p o l yl i n e " : " mr | aF | rn l ... @ D p@ @ Z

" ,

" st a r t _ lo c a t i on " : [# .# , #. # ] ,

" en d _ l oc a t i o n " : [ # .# , #. # ] ,

{

" m a n eu v e r " : " turn - r i gh t " ,

" h tm l _ i n s tr u c t i o ns " : "Hu man -

re a da b l e d r iv i ng i ns t r u ct i o n s "

" d i s ta n c e " : 70 ,

" d u r at i o n " : 11 ,

" p o l yl i n e " : " wo | a Fd io ... Q? U @Y B [

B " ,

" st a r t _ lo c a t i on " : [# .# , #. # ] ,

" en d _ l oc a t i o n " : [ # .# , #. # ] ,

}

] ,

" st a r t _ lo c a t i on " : [# .# , #. # ] ,

" en d _ l oc a t i o n " : [ # .# , #. # ] ,

}

Figure 6: Example of an expanded path.

some of the data stored in the database does not fol-

low a common design (e.g., data retrieved from the

cartographic system). Other important factors led us

to use MongoDB: (1) the possibility to embed in a

single document a set of data (e.g., a solution of the

problem or an order with multiple products), avoiding

intricate and expensive cross-table join procedures;

(2) the geospatial engine capable of geographic stor-

age and geographic search features. Many of these

features are supported on 2D and 2Dsphere indexes.

The ﬁrst one calculates geometries over a ﬂat sur-

face while the second one does it over an Earth-like

sphere. In this case, location data is stored in GeoJ-

SON objects with longitude and latitude. The engine

supports fundamental operations like “inclusion” to

query for locations contained entirely within a speci-

ﬁed polygon, “intersection” to query for locations that

intersect with a speciﬁed geometry, and “proximity”

to query for the points nearest to another point. The

last one is used for instance to set the priorities of the

access to the cartographic API (see Sec. 2.4). Finally,

(3) JSON was deﬁned as the language used to com-

municate between all modules, which simpliﬁes stor-

ing and generating documents, avoiding costly con-

versions to other data representations.

The decision of using MongoDB combines the

high performance of the document storage database

with the convenience of using document-like in-

stances. At the same time, overloading the existing

Interface and Management System infrastructure with

high volumes of database queries is avoided, because

a local cache of all relevant ERP data is maintained in

the MongoDB database, along with a full operations

and error log.

Figure 7 presents two examples of the structure

of the JSON documents stored on the MongoDB

database, namely a delivery location (on the top) and

the details of an order (on the bottom).

2.4 i3FR-Maps Module

The database stores a multi-layered distance matrix

built with data obtained from several mapping sources

which contains full road information at the highest

layer.

The ﬁrst (lowest) layer is built using the geospatial

MongoDB features to compute a complete distance

matrix of geographic distances over a sphere with ap-

proximately the Earth’s curvature. This is easily com-

puted from the geographical coordinates, providing

a ﬁrst approximation to the real distance. However,

these values are only for newer customers since more

exact values will be computed later using cartographic

services.

An asynchronous process then makes use of this

ﬁrst layer to incrementally build a second layer from a

locally maintained mapping system based on a Open-

StreetMaps router (OSRM, 2014). This process will

work towards generating a complete matrix of queried

routes, prioritizing its queries by nearest geographic

distance between locations, which are more probable

of belonging to a route.

Initially, this 2nd layer of the distance matrix is

provided to i3FR-Opt to generate initial delivery rout-

ing approximations. These initial approximations are

then analyzed in i3FR-Hub in order to gradually build

a 3rd layer of the distance matrix by selectively query-

ing an up-to-date commercial routing service such as

GoogleMaps, Bing or similar.

Further iterations of the routing optimization are

then based on the 3rd and most precise layer of the

distance matrix.

GISTAM2015-1stInternationalConferenceonGeographicalInformationSystemsTheory,ApplicationsandManagement

158

{

" _ id " : O b j ec t Id (" . .. " ) ,

" i d Er p " : #,

" l oc " : {

" t yp e " : " P oi nt " ,

" co o r d in a t e s " : [ #.# , #.# ]

}

" up d a t eS t a m p " : " 20 14 - 11 -01 11 : 59 : 0 0"

}

{

" _ id " : O b j ec t Id (" . .. " ) ,

" i d O rd e r " : #,

" d e po t " : {

" id " : O b je c t Id (" . .. " ) ,

" i d Er p " : " U ni q ue ID as p r ov i d ed by

ERP " ,

" l oc " : {

" t yp e " : " P oi nt " ,

" co o r d in a t e s " : [ #. # , #.# ]

" a d d re s s " : " Hum an - re a d ab l e a d dr e ss " ,

" l o c at i o n " : {

" id " : O b je c t Id (" . .. " ) ,

" i d Er p " : " U ni q ue ID as p r ov i d ed by

ERP " ,

" l oc " : {

" t yp e " : " P oi nt " ,

" co o r d in a t e s " : [ #. # , #.# ]

" a d d re s s " : " Hum an - re a d ab l e a d dr e ss " ,

" i t em s " : [

{

" id P r od u c t " : O b j ec t Id (" . .. " ) ,

" st o r a g e Ca t e g o ry ": " _F r e ez e _ " ,

" m as s " : #,

" x " : #, " y " : # , " z " : #,

" q ty " : #. #

...

] ,

" se r v i ce T i m e " : 5,

" de l i v e ry W i n d ow ": [

{

" s t ar t " : " 20 14 - 11 -28 09 : 00 : 0 0" ,

" e nd " : " 20 14 - 11 -28 11 : 00 : 0 0"

{

" s t ar t " : " 20 14 - 11 -28 14 : 00 : 0 0" ,

" e nd " : " 20 14 - 11 -28 17 : 00 : 0 0"

}

] ,

" up d a t eS t a m p " : " 20 14 - 11 -27 17 : 41 : 0 0"

}

Figure 7: Examples of the structure of the JSON documents

stored on MongoDB: a delivery location (on the top) and an

order (on the bottom).

The higher layers of the distance matrix include

information on distance, travel time and toll informa-

tion for multiple alternative routes between locations.

Full human-readable point by point route information

is also maintained which can be displayed to drivers

on the in-vehicle user interface.

3 DATA ACQUISITION MODULE

The i3FR project also implements a data acquisition

module from the vehicles included in a more general

module. The acquired data will be used to validate

the routes and provide information about other param-

eters, such as the vehicles chambers’ temperatures,

vehicles’ fuel cost, traveled kilometers, and vehicle’s

Global Positioning System (GPS) data.

The overall system is based on a main controller

module, powered by the vehicle’s battery, which is

based on an ARM microcontroller unit core and is re-

sponsible to gather information from the external sen-

sors and devices, and to communicate with the main

ERP system through a Global System for Mobile

Communications (GSM) protocol. Hence, the main

controller of the data acquisition system is connected

inside the vehicle to several devices, as follows: (i)

to the vehicle’s electronic control unit (ECU), using

the OBD-II standard; (ii) to an external GPS module,

using a serial interface; (iii) to temperature sensors

placed in the refrigerated chambers, using the ZigBee

protocol (based on the IEEE 802.15.4 standard); and

(iv) to an external GPRS (General Packet Radio Ser-

vice) module, to connect via GSM to the world wide

web and send the gathered data to the ERP’s database.

An important feature of the data acquisition sys-

tem is the use of wireless temperature sensors, spe-

cially developed to this project, to allow the easy im-

plementation of the system in any existing distribu-

tion ﬂeet. As vehicles here are mostly trucks with

triple refrigerated cabins or chambers, each one with

its unique temperature characteristics and categories

(frozen, chilled and ambient/dry) and certiﬁed for

food transportation, it is necessary to use wireless sen-

sors to not violate the walls of the chambers by in-

stalling a wired communication with the sensors.

Hence, the ZigBee protocol was chosen to allow

the wireless interface between the microcontroller

unit and the sensors.

The ZigBee devices use a Coordinator/End-

Device conﬁguration, that allows to put the ZigBee

on the sensor nodes into a sleep mode. When the Zig-

Bee End-Device (sensor) wakes up, it sends the tem-

perature data to the coordinator. This method allows

battery saving while the ZigBee is asleep.

IntegrationofaFoodDistributionRoutingOptimizationSoftwarewithanEnterpriseResourcePlanner

159

Figure 8: Diagram of the vehicle layout showing the sen-

sors, wireless communication and users interface.

Moreover, each external temperature module has

a ZigBee device with four ADC (Analog to Digi-

tal Converter) inputs, where two are used to acquire

the temperature information from an integrated circuit

(IC) temperature sensor, and a signal of the power-

supply voltage.

The temperature sensor is the MCP9700 (Mi-

crochip, 2014) temperature sensor, which allows ac-

quiring temperatures in the deﬁned range with a low

cost.

The voltage signal is acquired to allow monitor-

ing the battery charge available of the power-supply

batteries.

As a long battery life is required and the operating

environment can have extreme temperatures of -20

to +60

C, two 3.2 volts LiFePo4 (lithium iron phos-

phate) type batteries were used, which ensure long

lifetimes.

Note that these rechargeable batteries, although

they have somewhat lower energy density than other

common batteries found in consumer electronics

(e.g., LiCoO2 type), offer longer lifetimes, better

power density (the rate that energy can be drawn from

them) and are inherently safer when working at the

considered temperature range.

The data acquired by the data acquisition system,

is sent to the ERP’s database to be used by the i3FR-

Opt module. It is also stored in the data acquisition

module in a SD (Secure Digital) memory card, to en-

sure that it is not lost during ﬁeld operations. More-

over, dedicated printed circuit boards for both, the

main control module and the temperature sensor mod-

ule were specially developed and were already tested

in real vehicles, sending the acquired information to

the ERP’s database, through the Internet.

Figure 8 presents a diagram of the vehicle lay-

out showing the sensors, wireless communication and

users interface.

4 CONCLUSIONS AND FUTURE

WORK

This work presents the steps used to implement a

multi-layered architecture to integrate a SAGE ERP

X3 with the developed VRPTW optimization soft-

ware and the data acquisition module.

Thought to provide scalability, the optimization

system was designed to include several services,

namely: an optimization module – i3FR-Opt, a maps

module – i3FR-Maps, a database module – i3FR-

DB and a hub/communication module – i3FR-Hub.

Among other things, these modules are prepared to:

(1) deal with dynamic scenarios, where new demands

may be integrated during the optimization process; (2)

acquire geographical data from several sources; (3)

accept several optimizers services; and (4) maintain

the company’s core ERP software.

On the other hand, the data acquisition system

can be used to obtain important information about the

transported goods, namely: transportation tempera-

tures and humidity. The system is modular and easy

to install avoiding major physical interventions on the

vehicles.

The overall system is in an integration and test

phase, where very promising results were achieved.

As future work, among other things, relevant in-

formation from the data acquisition module should be

further integrated with the routing system (e.g., com-

pare the real time taken in each route to validate the

values returned by Google Maps and OSRM). The

amount of data retrieved by the acquisition system

also indicates the need for a big data analysis module,

in order to properly take advantage of the all system.

ACKNOWLEDGEMENTS

This work was partly supported by project i3FR: In-

telligent Fresh Food Fleet Router – QREN I&DT,

n. 34130, POPH, FEDER, the Portuguese Foun-

dation for Science and Technology (FCT), project

LARSyS PEstOE/EEI/LA0009/2013. We also thanks

to project leader X4DEV, Business Solutions [http://

www.x4dev.pt/].

REFERENCES

Abousaeidi, M., Fauzi, R., and Muhamad, R. (2011). Appli-

cation of geographic information system (gis) in rout-

ing for delivery of fresh vegetables. In Humanities,

Science and Engineering (CHUSER), 2011 IEEE Col-

loquium on, pages 551–555. IEEE.

GISTAM2015-1stInternationalConferenceonGeographicalInformationSystemsTheory,ApplicationsandManagement

160

Ambrosino, D. and Sciomachen, A. (2007). A food distri-

bution network problem: a case study. IMA Journal of

Management Mathematics, 18(1):33–53.

Cardoso, P. J. S., Sch

utz, G., Mazayev, A., and Ey, E.

(2015). Solutions in under 10 seconds for vehicle rout-

ing problems with time windows using commodity

computers. In Proc. of the 8th International Confer-

ence on Evolutionary Multi-Criterion Optimization,

EMO’15, page (Accepted for publication).

Chen, H.-K., Hsueh, C.-F., and Chang, M.-S. (2009). Pro-

duction scheduling and vehicle routing with time win-

dows for perishable food products. Computers & Op-

erations Research, 36(7):2311 – 2319.

Faulin, J. (2003). Applying MIXALG procedure in a

routing problem to optimize food product delivery.

Omega, 31(5):387 – 395.

Glover, F. and Laguna, M. (1999). Tabu search. Springer.

Hsu, C.-I., Hung, S.-F., and Li, H.-C. (2007). Vehicle rout-

ing problem with time-windows for perishable food

delivery. Journal of Food Engineering, 80(2):465–

475.

JSON (2014). Javascript object notation. http://

www.json.org/. Accessed september 28, 2014.

Logvrp.com (2014). Logvrp.com. http://logvrp.com. Re-

trived on Nov. 27, 2014.

Microchip (2014). The mcp9700 temperature sensor,

datasheet. http://www.microchip.com/wwwproducts/

Devices.aspx?dDocName=en022289. Accessed De-

cember 1, 2014.

MongoDB, I. (2014). Mongodb. http://

www.mongodb.com/. Accessed 28/10/2014.

Newronia.com (2014). Newronia.com. http://en.

newronia.com. Retrived on Nov. 27, 2014.

Optimoroute.com (2014). Optimoroute.com. http://

optimoroute.com. Retrived on Nov. 27, 2014.

optrak.com (2014). Optrak.com. http://optrak.com/. Re-

trived on Nov. 27, 2014.

OSRM (2014). OSRM – Open Source Routing Ma-

chine. http://project-osrm.org/. Accessed september

28, 2014.

Osvald, A. and Stirn, L. Z. (2008). A vehicle routing al-

gorithm for the distribution of fresh vegetables and

similar perishable food. Journal of Food Engineering,

85(2):285 – 295.

Redmond, E. and Wilson, J. R. (2012). Seven databases

in seven weeks: a guide to modern databases and the

NoSQL movement. Pragmatic Bookshelf.

Richardson, L. and Ruby, S. (2008). RESTful web services.

” O’Reilly Media, Inc.”.

Routyn (2014). Routyn. http://www.routyn.com/. Retrived

on Nov. 27, 2014.

SAGE, E. X. (2014). Sage erp x3. Accessed september 28,

2014.

Solomon, M. M. (1987). Algorithms for the vehicle rout-

ing and scheduling problems with time window con-

straints. Operations research, 35(2):254–265.

Tarantilis, C. and Kiranoudis, C. (2002). Distribution of

fresh meat. Journal of Food Engineering, 51(1):85 –

91.

IntegrationofaFoodDistributionRoutingOptimizationSoftwarewithanEnterpriseResourcePlanner

161
