TCG

A Model-based Testing Tool for Functional and Statistical Testing

Laryssa Lima Muniz

1,2

, Ubiratan S. C. Netto

and Paulo Henrique M. Maia

Fundac¸

ao Cearense de Meteorologia e Recursos H

ıdricos (Funceme), Fortaleza, Brazil

Universidade Estadual do Cear

a, Fortaleza, Brazil

Keywords:

Model-based Testing, Tool, Functional Testing, Statistical Testing.

Abstract:

Model-based testing (MBT) is an approach that takes software speciﬁcation as the base for the formal model

creation and, from it, enables the test case extraction. Depending on the type of model, an MBT tool can

support functional and statistical tests. However, there are few tools that support both testing techniques.

Moreover, the ones that support them offer a limited number of coverage criteria. This paper presents TCG,

a tool for the generation and selection of functional and statistical test cases. It provides 8 classic generation

techniques and 5 selection heuristics, including a novel one called minimum probability of path.

1 INTRODUCTION

Model-based testing (MBT) is a technique for auto-

matic generation of a test case set using models ex-

tracted from software artefacts (Binder, 1999). This

approach stands for automating the whole test gener-

ation process and for reducing the costs for test de-

sign by up to 85 percent (Weissleder and Schlingloff,

2014). As this approach depends on the quality of

the used model, a high level of accuracy in the model

construction task is necessary (Beizer, 1995).

The automation of an MBT approach depends on

three main elements (Dalal et al., 1999): (i) the model

that describes the system behaviour; (ii) the test gen-

eration algorithm (test criteria); and (iii) tools that

provide the necessary infrastructure for the test case

generation. Regarding the model, the most used ones

are the UML diagrams, like the sequence, use case

and state diagrams, ﬁnite state machine based for-

malisms, statecharts, and labelled transition systems

(LTS). To manipulate them, many tools have been

developed that implement different test criteria, as

shown by several surveys in the area (Shirole and Ku-

mar, 2013; Shaﬁque and Labiche, 2013; Aichernig

et al., 2008). Since the test cases are generated from

models instead of source code, MBT approaches are

adequate for functional tests.

In addition, some work have proposed the use of

probabilistic models, such as Markov chains, together

with MBT techniques for statistical generation of test

cases based on the system probability execution (Wal-

ton and Poore, 2000)(Feliachi and Le Guen, 2010),

that also allows to estimate the reliability of a given

system (Trammell, 1995)(Zhou et al., 2012). Sup-

ported by traditional software testing techniques, such

as functional and structural testing, the statistical test

comprises the application of statistics to the solution

of software testing problems (Sayre and Poore, 1999).

The statistical test can be seen as an excellent

complement to the existing testing techniques. It

does not need to be used as a different technique, but

as a one that aims at adding reliability to the other

ones (Poore and Trammell, 1999). In this context, sta-

tistical tests should be supported by tools that promote

all that testing process, such as MaTeLo (Feliachi and

Le Guen, 2010) and JUMBL.

According to Utting and Legeard (2007), an MBT

tool should support several kinds of criterion to give

as much control over the generated tests as possible.

Furthermore, the user should be able to combine dif-

ferent coverage criteria (Antoniol et al., 2002). How-

ever, this is not found in several MBT tools, as we

show in Section 5. Only few tools support functional

and statistical testing. Moreover, even the tools that

allow both types of analysis usually offer few com-

binations of coverage criteria. This may prevent the

user of choosing the most appropriate approach ac-

cording to the system under test (SUT).

This paper introduces TCG, a free MBT tool for

generation and selection of test cases for both func-

tional and statistical tests. This is possible because

404

Muniz L., Netto U. and Maia P..

TCG - A Model-based Testing Tool for Functional and Statistical Testing.

DOI: 10.5220/0005398604040411

In Proceedings of the 17th International Conference on Enterprise Information Systems (ICEIS-2015), pages 404-411

ISBN: 978-989-758-097-0

 2015 SCITEPRESS (Science and Technology Publications, Lda.)

it was developed as a plugin for LoTuS

, a graph-

ical tool for software behavior modeling that allows

the user to model both the non-probabilistic behavior

using LTS, and the probabilistic one using probabilis-

tic LTSs, which are similar to Discrete Time Markov

Chain. The main contribution of this work is twofold:

(i) providing a set of techniques for test cases gen-

eration and selection addressing both functional and

statistical tests, which permits the user to use differ-

ent criteria when analyzing distinct systems and to

exercise the same system with different criteria, and

(ii) implementing criteria that have not been found in

other tools, including a new selection technique called

minimum probability of a path. We describe a case

study where TCG was used to generate and select

functional and statistical test cases for a distributed

system for health remote assistance.

The reminder of this work is organized as follows:

in Section 2 we give the background that supports this

work. Section 3 introduces the TCG tool and its main

features. A case study using the proposed tool is de-

scribed in Section 4, while a comparison with other

tools is discussed in Section 5. Finally, Section 6

brings the conclusions and future work.

2 BACKGROUND

2.1 Model-based Testing

MBT is an approach that takes software speciﬁcation

as the base for the formal model creation and, from it,

enables the test case extraction. MBT is composed by

several activities, as depicted by Figure 1.

Firstly, the user takes the speciﬁcation or require-

ment document and encodes that into an expected sys-

tem behaviour model which the test generation tool

can understand. This format can be either graph-

ical, like UML diagrams and ﬁnite state machine

formalisms, or textual, like the Aldebaran format

(AUT)

. The formal model represents the high-level

test objectives: it expresses the aspects of the sys-

tem behavior that the engineer wants to test. In this

work, we represent the system behaviour model as an

LTS (Keller, 1976), which is a 4-tuple L = (S, A, T,

), where S is a non-empty ﬁnite set of states, A is

a non-empty ﬁnite set of labels that denote the alpha-

bet of L, T ⊆ (S x A x S) deﬁnes the set of labelled

transitions between states, and q

is the initial state.

The next step consists of selecting the most appro-

priate test case generation (or coverage) criteria. The

http://jeri.larces.uece.br/lotus

http://www.inrialpes.fr/vasy/cadp/man/aldebaran.html

choice of coverage criteria determines the algorithms

that the tool uses to generate tests, how large a test

suite it generates, how long it takes to generate them,

and which parts of the model are tested (Utting and

Legeard, 2007).

There are “families” of test generation crite-

ria (Utting and Legeard, 2007), such as: (i) Structural

model coverage criteria, which deal with coverage of

the control-ﬂow through the model, based on ideas

from control-ﬂow through programs; (ii) Data cover-

age criteria, which deal with coverage of the input

data space of an operation or transition in the model;

(iii) Fault-model criteria, which generate test suites

that are good at detecting certain kinds of fault in the

model; (iv) Requirements-based criteria, which aim

to generate a test suite that ensures that all the in-

formal requirements are tested; (v) Explicit test case

speciﬁcations, which allow a validation engineer to

explicitly say that a certain test, or set of tests, should

be generated from the model; and (vi) Statistical test

generation methods, which use random generation

as a easy way to generate tests that explore a wide

range of system behaviors. Currently, the proposed

tool supports criteria (i) and (vi) as generation crite-

ria, while (v) is used as test case selection criterion.

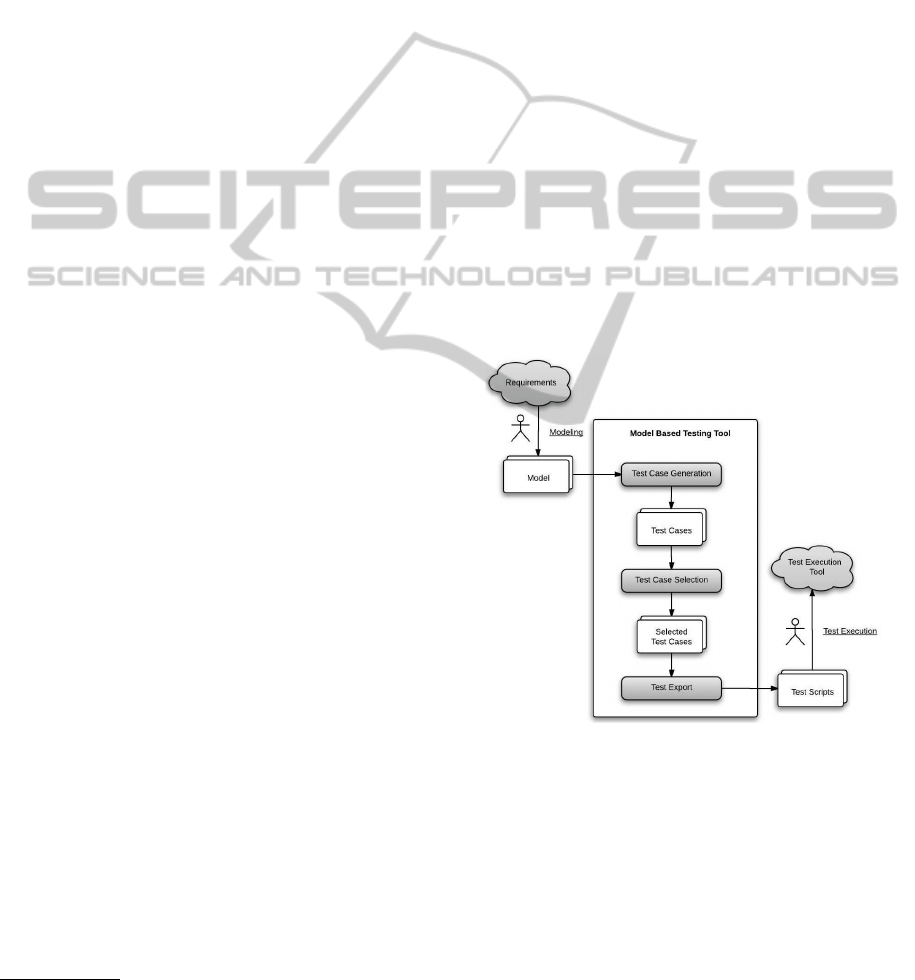

Figure 1: Model-based testing approach.

The output of the test generation is a collection

of abstract test cases, called test suite, which are se-

quences of traces from the model. Each trace repre-

sents a possible usage scenario that needs to be tested.

Before the tests cases are returned, an alternative

step is to choose a test selection heuristic. This is

useful, and sometimes necessary, since the genera-

tion technique may produce a large number of test

cases, which can turn the tester’s work impractical.

This work implements selection heuristics that reduce

the test suite size by both discarding similar test cases

TCG-AModel-basedTestingToolforFunctionalandStatisticalTesting

405

using a similarity degree function or letting the user

select the scenarios that should be tested.

The next step of the MBT process is to export

and concretize the abstract test cases into executable

and/or human readable formats. Often this happens

via some translation or transformation tool. Currently,

this work does not support this phase.

Finally, the test execution happens using a test ex-

ecution environment. In the case of manual execution,

the abstract test cases are turned into manual test plans

and detailed test steps for manual test execution.

2.2 Functional Tests

The functional test, also known as black box test, sees

the SUT as a closed box in which there is no knowl-

edge about how it is implemented or about its internal

behaviour. This approach has the advantage of gen-

erating test cases before the implementation is ready,

since it is based on the speciﬁcation. On the other

hand, it depends on the model, i.e., the test cases gen-

erated are the ones speciﬁed in the system behavior. If

there are possible behaviors that are missing from the

software speciﬁcation, then the generated test cases

will not cover all possible behaviors of the SUT (Car-

taxo et al., 2008).

2.3 Statistical Tests

Statistical tests are based on the development of a sys-

tem behavior model and, from it, the speciﬁcation of a

usage model that represents it, such as the probability

of use of system functions. In (Walton et al., 1995),

the authors state that usage models can be represented

by Markov chains, and propose an eight-step method-

ology for creating those models, among which we

highlight: review the software speciﬁcation; identify

the use of the software and set environmental parame-

ters; develop the structure of the usage model and see

if it conforms to the speciﬁcation; develop and verify

the probability distribution for the model. It is note-

worthy that the usage model deﬁnes only functional

aspects of a software, not considering non-functional

or structural aspects of the modeled software.

According to (Poore and Trammell, 1999), among

the beneﬁts of statistical software testing using us-

age models are: (i) automatic test generation: the use

of usage models is ideal for automatic test genera-

tion, e.g, using Markov chains for performing statis-

tical software testing; (ii) efﬁcient testing: testing be-

come very structured and contribute to achieve more

efﬁcient results; and (iii) quantitative management of

testing: quantitative results of the tests end up helping

in management and decision making. As limitations,

the authors cites the possibility of explosion of states,

if the model is very detailed, or loss of information if

the model is more abstract.

In this work we use the probabilistic LTS (PLTS)

as the formalism for modeling the probabilistic be-

havior of the SUT. A PLTS extends an LTS adding,

for each transition, a probability of occurrence be-

tween 0 and 1 such that the sum of the probabilities of

the outgoing transitions from the same state is always

1. When removing the labels of the PLTS transitions,

the resulting model is a Discrete Time Markov Chain

(DTMC). We assume that the model is a proper rep-

resentation of the system being modelled and that the

transition probabilities are correct.

3 THE TCG TOOL

LoTuS is an open source lightweight tool for graph-

ical modeling of the system behavior using LTS. It

provides an interactive and simple way for the cre-

ation, composition and manipulation of LTSs. Fur-

thermore, it allows the user to associate the LTS tran-

sitions to guard conditions and probabilities of execu-

tion, which makes possible modeling PLTSs. One of

the main beneﬁts of LoTuS is that it is extensible, pro-

viding a Java API with which a developer can create

plugins to add new features to the tool. Some plugins

have been developed and are available on the tool’s

website, such as a plugin for generation of execution

traces and a plugin for annotation of probability of oc-

currence in the model’s transitions from a ﬁle contain-

ing a bag of traces. The idea, therefore, is to permit

the users to choose the plugins that they want to work

with and to allow them to create their own plugins that

meet their needs.

TCG (Test Case Generation) is a plugin to gen-

erate and select test cases for probabilistic and non-

probabilistic models created by the user in LoTuS.

The plugin is available as a jar ﬁle such that, to be

loaded by LoTuS, it needs simply to be placed in the

tool’s extensions folder. When launched, LoTuS au-

tomatically loads all plugins that are in that folder. As

LoTuS, the tool is free to download

and use.

The plugin creates the menu item “TCG” in the

LoTuS’ main menu. From it, two sub-menus are dis-

played, Functional and Statistical, that contain the

available criteria for the generation and selection of

test cases for non-probabilistic and probabilistic mod-

els, respectively.

http://jeri.larces.uece.br/lotus/plugins/tcg

ICEIS2015-17thInternationalConferenceonEnterpriseInformationSystems

406

3.1 Test Case Generation

As discussed in Section 2, TCG addresses two kinds

of test generation families: Structural model cover-

age criteria and Statistical test generation methods.

Regarding the former, Utting and Legeard (2007)

highlight four main categories: Control-ﬂow-oriented

coverage criteria, Data-ﬂow-oriented coverage crite-

ria, Transition-based coverage criteria, and UML-

based coverage criteria. As TCG deals with state ma-

chine based formalisms (LTS and PLTS) with no in-

formation about control ﬂow condition (guards) or in-

put data, it provides only Transition-based coverage

criteria.

More speciﬁcally, TCG implements 8 transition-

based coverage criteria, which are:

• All States: returns a set of paths in which the union

of them cover all the states of the LTS.

• All Transitions: returns a set of paths in which the

union of them cover all transitions of the LTS.

• All paths: performs an exhaustive search, gener-

ating a large number of paths. In order to avoid an

inﬁnite execution, the user can set a timer as the

stop condition, meaning that the algorithm will

terminate after that time slot has passed and the

test cases produced within that period will be re-

turned.

• All-loop-free paths: returns all paths that do not

contain any cycle, consequently, each generated

path will not contain any repeated state.

• All-one-loop paths: returns all paths that contain

at most one cycle, consequently, each generated

path will contain at most one and only one re-

peated state.

• Shortest path: returns the shortest complete path.

• Random path: also known as random walk, re-

turns a number of random paths speciﬁed by the

user. For each path, the choice on which state to

go is made non-deterministically.

• Probabilistic random path: similar to its non-

probabilistic counterpart, with the proviso that the

random choice is based on the probability distri-

bution of the current state’s outgoing transitions.

The result of the application of the test generation

technique is one or a set of paths, each one represent-

ing a test case. For the statistical tests, each path is

shown with its probability of occurrence, which is cal-

culated by multiplying the probability of each transi-

tion between to consecutive states in the path.

3.2 Test Case Selection

Sometimes the number of test cases generated by the

tool can be very large, which makes testing all test

cases not applicable in most practical cases. Thus, it

is necessary to reduce the set of test cases. We pay

particular attention to strategies for selecting the parts

(functionalities) of the software on which the testing

must concentrate in order to avoid loss of time and

effort by testing all possible test cases.

TCG provides 5 techniques for test case selection:

Test purpose, Similarity of Paths, Weight similarity of

Paths, Most Probable Path and Minimum Probability

of Path.

3.2.1 Test Purpose

A test purpose is a speciﬁc objective (or property) that

the tester would like to test, and can be seen as a spec-

iﬁcation of a test case. Test purposes can be used to

select test cases. This approach is also referred to as

“user guided” test selection. The test purposes ap-

proach was formally elaborated by (de Vries, 2001).

The notation to express test purposes may be the

same as the notation used for the model, such as a

statechart or an LTS, or it may be a different one

(e.g., in UML, a behavior model based on class dia-

grams and state machines, and explicit test case spec-

iﬁcations formalized with message sequence chart di-

agrams) (Utting and Legeard, 2007). In TCG, the test

purpose follows the same approach used in (Cartaxo

et al., 2008), which consists of using regular expres-

sions composed by a sequence of model labels, possi-

bly with a * among the labels. In that case, the * rep-

resents any transition label or simply no label. The

sequence can end either with the word “ACCEPT”,

which means that all the test cases that satisfy the test

purpose are desirable, or “REJECT”, which means

that we want the counterpart, i.e., all the test cases

that do not satisfy the test purpose.

To specify the test purpose, the user must obey

to one of the following rules: (i)*&ACCEPT: returns

all possible paths; (ii)*a*&ACCEPT: returns all paths

that have the label a; (iii) *a&ACCEPT: returns all

paths that end with the label a; (iv) *a*b&ACCEPT:

returns all paths that have the label a and end with la-

bel b; *a,b&ACCEPT: returns all paths that end with

label a followed by label b; (vi) a*&ACCEPT: returns

all paths that start with label a. Although the rules

presented here consider only one or two labels, test

purpose rules for three or more labels can be easily

derived from those rules.

The same formation rules are valid for the se-

quences ending with “REJECT”. However, the re-

turned test cases are exactly the ones that do not sat-

TCG-AModel-basedTestingToolforFunctionalandStatisticalTesting

407

isfy the same sequence ending with “ACCEPT”. For

instance, the sequence *&REJECT returns no paths,

while the sequence *a*&REJECT returns all paths

that do not contain the label a.

3.2.2 Similarity of Paths

The idea is that whenever full coverage on model-

based test case generation is unfeasible and/or test

cases are mostly redundant, a similarity function

can be automatically applied to discard similar test

cases, keeping the most representative ones that

still provides an adequate coverage of the functional

model (Cartaxo et al., 2011). Given an LTS and a path

coverage percentage as goal, the strategy reduces the

size of the general test suite (according to the percent-

age), assuring that the remaining test cases are the less

similar and covers the LTS transitions as much as pos-

sible.

The similarity degree between each pair of test

cases (model paths) is deﬁned by the number of equal

actions that both paths have. This similarity degree

indicates how close the test cases are. The choice is

made by ﬁnding the smallest test case, i.e, the one

with the smallest number of actions. In case both test

cases have the same length, then the tool chooses one

of them randomly.

3.2.3 Weighted Similarity of Paths

This approach is similar to the Similarity of Paths,

with the proviso that the path probability is taken

into account for the selection of the remaining test

cases (Bertolino et al., 2008). The main difference

is in the calculation of the similarity degree.

Weighted Similarity of Paths foresees the test

cases selection by prioritizing accordingly with the

probability of each test case. The idea is that when

choosing between two similar test cases to be dis-

carded, the one that has a greater probability of oc-

currence is kept. In addition, if the probabilities of

the two test cases are the same, then the algorithm

follows the Similarity of Path’s steps. Therefore, we

aim at testing suites that have the most different test

cases and yet these are also the most important ones.

3.2.4 Remaining Techniques

The two other selection techniques are the most prob-

able paths and the minimum probability of a path.

The former consists of showing the N most probable

paths, where N is informed by the user (the default

value is 1, which means that only the most probable

path is returned). The latter allows the user to inform

the minimum occurrence probability expected for a

test case. The tool returns only the test cases that sat-

isfy that boundary. This selection technique comple-

ments the previous one and helps the user prioritize

the most important test cases. Although intuitive, the

minimum probability of a path has not been found in

other MBT statistical testing tools.

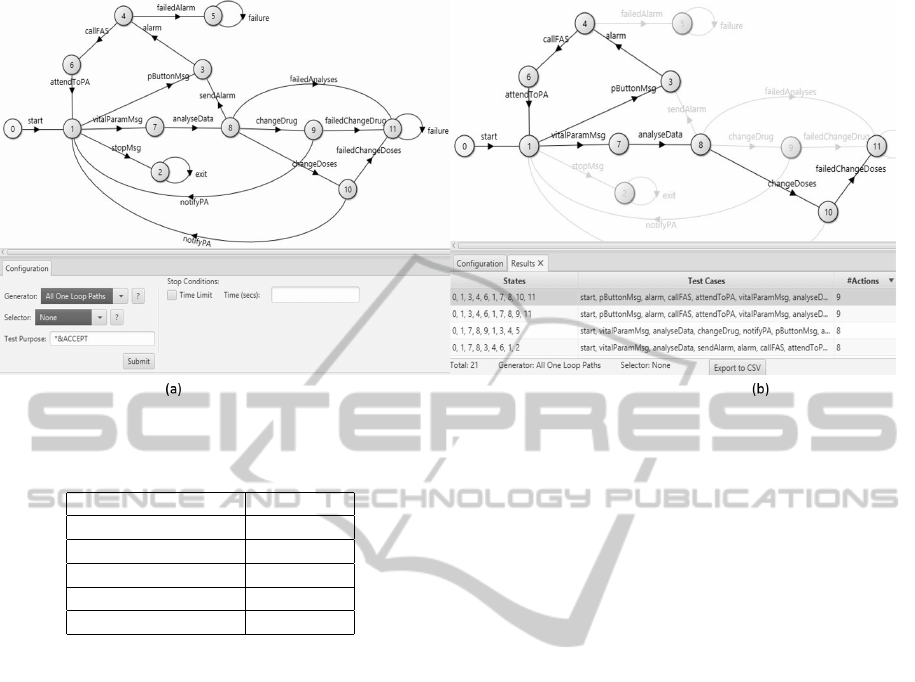

4 CASE STUDY

The case study has been carried out with an applica-

tion called TeleAssistance (TA), a distributed system

for remote assistance of patients (Epifani et al., 2009).

We set up two scenarios: in the ﬁrst one, we con-

sidered the non-probabilistic model, while the second

one we assumed that the user annotated the model

with execution probabilities, turning it into a PLTS.

The TeleAssistance offers three choices: sending

the patient’s vital parameters, sending a panic alarm

by pressing a button and stopping the application.

The data of the ﬁrst message is forwarded to a Med-

ical Laboratory service (LAB) to be analyzed. The

LAB replies by sending one of the following results:

change drug, change doses or send an alarm. The

latter message triggers the intervention of a First-Aid

Squad (FAS) whose task is to attend to the patient at

home in case of emergency. When the patient presses

the panic button, the application also generates an

alarm sent to the FAS. Finally, the patient may decide

to stop the TA service. TA can fail in the following

situations: sending an alarm to the FAS, receiving the

data analysis from the LAB, or sending a change dose

or change drug notiﬁcation to the patient. In all cases,

the system goes to a ﬁnal state indicating that a failure

has occurred.

Figure 2(a) shows an excerpt of the LoTuS’ main

screen. At the top there is the TA behaviour model,

and at the bottom the TCG main panel, from which

the user can select the test case generation and selec-

tion techniques. In that example, the user selected

the All-one-loop paths generator and no selector tech-

nique. Figure 2(b) depicts the result of the application

of the technique previously chosen. Note that when a

test case is selected, LoTuS highlights the correspond-

ing path in the model.

4.1 Scenario 1: Using a

Non-probabilistic Model

The ﬁrst analysis consisted of generating the abstract

test cases using the main coverage criteria. Table 1

shows the result. As expected, the All Paths crite-

rion generated the greatest number of test cases (760),

ICEIS2015-17thInternationalConferenceonEnterpriseInformationSystems

408

Figure 2: (a)LoTuS main screen and TA behaviour model and (b)Result of the application of All-one-loop path generator.

Table 1: Comparison among the generation criteria.

Criterion #test cases

All Paths 760

All One-loop paths 21

All Transitions 9

All Free-loop paths 6

All states 4

since it is an exhaustive algorithm, followed by All-

one-loop paths (21), All transitions (9), All-free-loop

paths (6), and All states (4).

The second analysis aimed at showing the appli-

cation of different selection techniques. Then, to il-

lustrate the results, let us assume again that the user

chose the All-one-loop paths generation criteria.

For non-probabilistic models, two selection tech-

niques are available: similarity of paths and test pur-

poses. To exercise the former, we considered 3 sce-

narios, each one with a different similarity degree.

After applying a path coverage of 25%, 50%, and

75%, TCG reduced the original number test cases to

6, 11, and 16, respectively.

Although the similarity of paths can considerably

decrease the test suite size, the user cannot select the

situations that he/she desires to test. In that case, the

test purpose is more adequate. For instance, suppos-

ing the user desires to select only the test case where

a successful termination of the TA happens (the sys-

tem performs the stopMsg message). To do this, the

search string *stopMsg&ACCEPT is used. Note that

to use the test purpose, it is necessary ﬁrst to generate

the test cases using a particular criteria. This inﬂu-

ences the result of the test purpose.

Applying that test purpose to the original test suite

generated by All-one-loop paths criterion, it resulted

in 5 test cases. If the user, on the other hand, chooses

the All Path coverage criterion and subsequently ap-

plies that test purpose, the resulting test suite size

jumped to 65 test cases.

Therefore, the choice on which generation algo-

rithm to use impacts the number of test cases. The

user should know the pros and cons of each criterion.

For instance, using All Paths may be very expensive

due to its large result set, but it covers practically all

possible system behaviours. Each selection technique

also affects the test case size. So, for instance, if the

user chooses a very low degree of similarity, the num-

ber of test cases tend to be very small, which may not

be enough to test the main software features.

4.2 Scenario 2: Using a Probabilistic

Model

In this scenario, we use the same probabilistic model

of the TA system used in (Epifani et al., 2009), which

represents in the model the probability of execution of

ordinary transitions and the probability of failure for

failure transitions. As the generation techniques are

the same used in the non-probabilistic counterpart, we

focused on applying selection criteria that are speciﬁc

of probabilistic models: the weight similarity of paths

and minimum probability of path.

Considering again that the user has already gener-

ated the test cases using the All-one-loop paths tech-

nique, he/she desired to apply the weight similarity

of paths to reduce the test suite size. After applying

the same path coverage used in the Similarity of Paths

TCG-AModel-basedTestingToolforFunctionalandStatisticalTesting

409

Figure 3: Comparison regarding generation criteria.

Figure 4: Comparison regarding selection criteria.

example (25%, 50%, and 75%), we obtained the test

suites with sizes 6, 13, and 19, respectively. Although

the results seems equal, they are indeed different. The

probabilistic approach selected some test cases that

were removed in the previous one, since they had a

greater probability of execution then its similar path.

This is the case of, for instance, the path 0, 1, 3, 4, 6,

1, 2 (probability 4.78%).

In the second analysis, we used the minimum

probability of path technique, in which the user can

select only the test cases that satisfy the minimum

probability informed by him/her. Supposing that the

user is interested in testing ﬁrstly the scenarios that

have probability of occurrence of at least 10%, TCG

returns only one test case, which is the situation where

the TA user stars and stops the device, without inter-

acting with it (path 0,1,2 - probability 13.72%. The

next most probable path is the one with probability

4,78% mentioned before. This occurred because the

probability of the test cases are low, since the proba-

bility of the last action of each test case is very small

(0.14 for the success transition and 0.04, 0.02, and

0.01 for the failure transitions).

5 RELATED WORK

There are several papers in the area (Shirole and Ku-

mar, 2013)(Shaﬁque and Labiche, 2013)(Aichernig

et al., 2008) that show systematic reviews or surveys

describing various approaches, techniques and MBT

tools, comparing them using varied criteria. In this

section we will focus the discussion on work closer to

ours that also propose tools for generation and selec-

tion of functional and statistical test cases.

We have selected a few tools that deal with both

types of models. These tools are shown in Figures 3

and 4. Note that they are the ones that could be down-

loaded and tested.

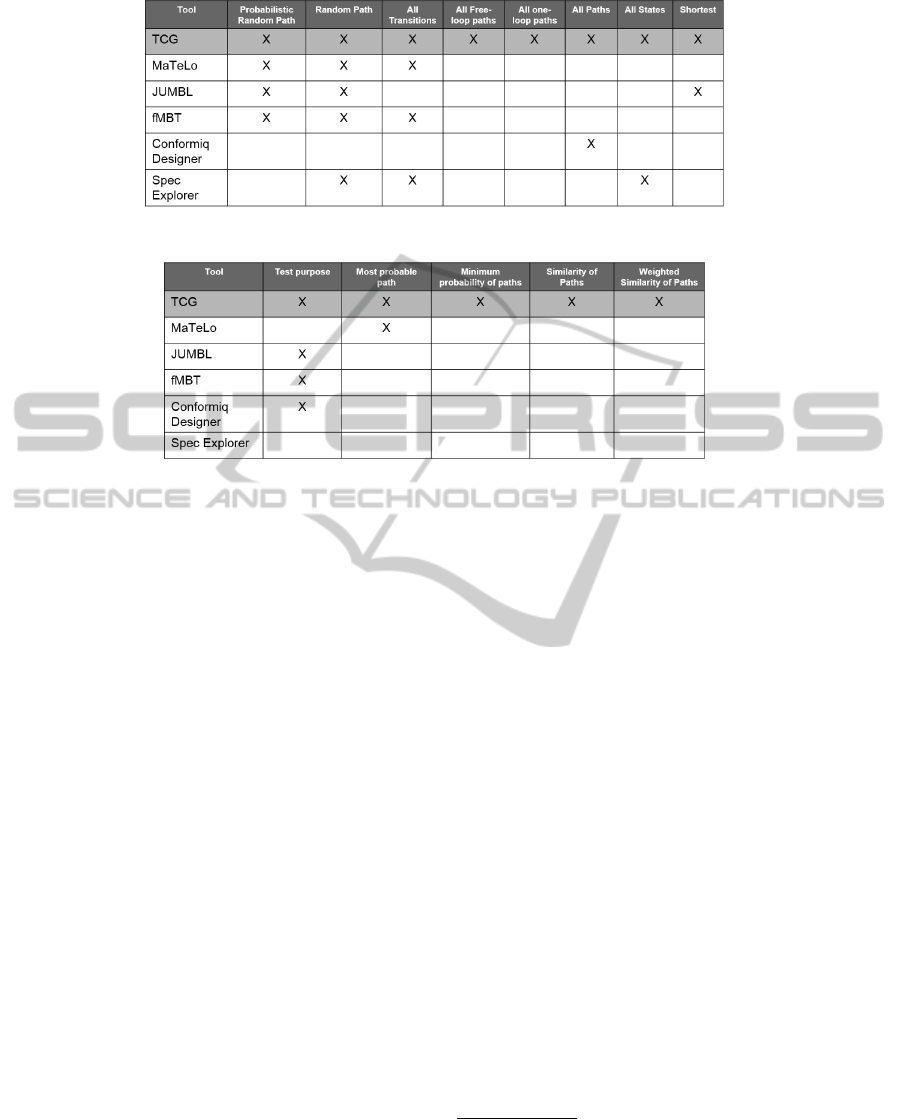

Figure 3 shows a comparison table among TCG

and the other tools regarding the generation tech-

niques. All transition and (probabilistic) random path

are the most supported criteria and that are provided

by all tools, except Conformiq Designer

. On the

other hand, that tool is the only one which implements

the All path criterion. In addition, Spec Explorer

and

JUMBL

also provide criteria that are not supported

by the other tools, namely All States and Shortest

path, respectively. TCG is the only one which im-

plements all discussed generation criteria.

Figure 4 complements the comparison regard-

ing the selection techniques. Fours implement only

one technique: MaTeLo (Most probable path) (Feli-

achi and Le Guen, 2010) and JUMBL, fMBT

, Con-

formiqDesigner (Test purpose). Spec Explorer pro-

vides none of the selection techniques. One more

time, TCG is the only one which supports the user

http://www.conformiq.com/products/

conformiq-designer/

http://research.microsoft.com/en-us/projects/

specexplorer/

http://sqrl.eecs.utk.edu/esp/jumbl.html

https://01.org/fmbt

ICEIS2015-17thInternationalConferenceonEnterpriseInformationSystems

410

with all discussed selection techniques, being this a

great beneﬁt of the tool.

6 CONCLUSION

This paper introduced TCG, an MBT tool for func-

tional and statistical tests. It uses as input both LTS

and probabilistic LTS models and provides 8 classic

test case generation techniques along with 5 selection

heuristics. The main contributions are the implemen-

tation of a variety of techniques in only one tool, in-

cluding ones that have not been implemented in sim-

ilar tools, and the introduction of a new selection cri-

teria, the minimum probability of path. We showed

a case study where the tool was used to generate and

select test suites for a distributed system.

Currently we are increasing the tool features by

allowing the automatically generation of test scripts

from the produced test suites. We are also working

on deﬁning and implementing a probabilistic criteria

to compare the whole test suite, and not only individ-

ual test cases. As future work, we intend to use the

tool in other contexts, particularly real cases from the

industry, to assess its usability and applicability, and

implement some prioritization techniques.

REFERENCES

Aichernig, B., Krenn, W., Eriksson, H., and Vinter, J.

(2008). D 1.2 - state of the art survey - part a: Model-

based test case generation. Technical report, AIT Aus-

trian Institute of Technology GmbH.

Antoniol, G., Briand, L., Di Penta, M., and Labiche, Y.

(2002). A case study using the round-trip strategy for

state-based class testing. In Software Reliability Engi-

neering, 2002. ISSRE 2003. Proceedings. 13th Inter-

national Symposium on, pages 269–279.

Beizer, B. (1995). Black-box Testing: Techniques for Func-

tional Testing of Software and Systems. John Wiley &

Sons, Inc., New York, NY, USA.

Bertolino, A., Cartaxo, E., Machado, P., and Marchetti, E.

(2008). Weighting inﬂuence of user behavior in soft-

ware validation. In Database and Expert Systems Ap-

plication, 2008. DEXA ’08. 19th International Work-

shop on, pages 495–500.

Binder, R. V. (1999). Testing Object-oriented Systems:

Models, Patterns, and Tools. Addison-Wesley Long-

man Publishing Co., Inc., Boston, MA, USA.

Cartaxo, E. G., Andrade, W. L., Neto, F. G. O., and

Machado, P. D. L. (2008). Lts-bt: A tool to gener-

ate and select functional test cases for embedded sys-

tems. In Proceedings of the 2008 ACM Symposium

on Applied Computing, SAC ’08, pages 1540–1544.

ACM.

Cartaxo, E. G., Machado, P. D. L., and Neto, F. G. O.

(2011). On the use of a similarity function for test

case selection in the context of model-based testing.

Softw. Test. Verif. Reliab., 21(2):75–100.

Dalal, S. R., Jain, A., Karunanithi, N., Leaton, J. M., Lott,

C. M., Patton, G. C., and Horowitz, B. M. (1999).

Model-based testing in practice. In Proceedings of the

21st International Conference on Software Engineer-

ing, ICSE ’99, pages 285–294. ACM.

de Vries, R. G. (2001). In Tretmans, G. J. and Brinksma,

H., editors, Formal Approaches to Testing of Soft-

ware 2001 (FATES’01), Aarhus, Denmark, volume

NS-01-4 of BRICS Notes Series, pages 61–76, Aarhus,

Denkmark.

Epifani, I., Ghezzi, C., Mirandola, R., and Tamburrelli,

G. (2009). Model evolution by run-time adaptation.

In ICSE ’09: Proceedings of the 31st International

Conference on Software Engineering, pages 111–121,

Vancouver, Canada. ACM.

Feliachi, A. and Le Guen, H. (2010). Generating transi-

tion probabilities for automatic model-based test gen-

eration. In Software Testing, Veriﬁcation and Valida-

tion (ICST), 2010 Third International Conference on,

pages 99–102.

Keller, R. M. (1976). Formal veriﬁcation of parallel pro-

grams. Commun. ACM, 19:371–384.

Poore, J. and Trammell, C. (1999). Application of statisti-

cal science to testing and evaluating software intensive

systems. In Science and Engineering for Software De-

velopment: A Recognition of Harlan D. Mills’ Legacy,

1999. Proceedings, pages 40–57.

Sayre, K. and Poore, J. H. (1999). Partition testing with us-

age models. In Proceedings of the Science and Engi-

neering for Software Development: A Recognition of

Harlan D. Mills’ Legacy, SESD ’99, pages 24–. IEEE

Computer Society.

Shaﬁque, M. and Labiche, Y. (2013). A systematic review

of state-based test tools. International Journal on Soft-

ware Tools for Technology Transfer, pages 1–18.

Shirole, M. and Kumar, R. (2013). Uml behavioral model

based test case generation: A survey. SIGSOFT Softw.

Eng. Notes, 38(4):1–13.

Trammell, C. (1995). Quantifying the reliability of soft-

ware: Statistical testing based on a usage model. In

Proceedings of the 2Nd IEEE Software Engineering

Standards Symposium, ISESS ’95, pages 208–, Wash-

ington, DC, USA. IEEE Computer Society.

Utting, M. and Legeard, B. (2007). Practical Model-Based

Testing: A Tools Approach. Morgan Kaufmann Pub-

lishers Inc., San Francisco, CA, USA.

Walton, G. H. and Poore, J. H. (2000). Generating transition

probabilities to support model-based software testing.

Softw. Pract. Exper., 30(10):1095–1106.

Walton, G. H., Poore, J. H., and Trammell, C. J. (1995).

Statistical testing of software based on a usage model.

Softw. Pract. Exper., 25(1):97–108.

Weissleder, S. and Schlingloff, H. (2014). An evalu-

ation of model-based testing in embedded applica-

tions. In Software Testing, Veriﬁcation and Validation

(ICST), 2014 IEEE Seventh International Conference

on, pages 223–232.

Zhou, K., Wang, X., Hou, G., and Jie Wang, S. A.

(2012). Software reliability test based on markov us-

age model. Journal of Software, 7(9):2061–2068.

TCG-AModel-basedTestingToolforFunctionalandStatisticalTesting

411
