Fast and Robust Cyclist Detection for Monocular Camera Systems

Wei Tian and Martin Lauer

Institute of Measurement and Control, KIT, Engler-Bunte-Ring 21, Karlsruhe, Germany

1 MOTIVATION

In recent years vision-based detection becomes more

and more important among automobile industries.

One of the most successful examples is pedestrian

detection, which is broadly applied in driver assis-

tance systems. In comparison to that, cyclist de-

tection hasn’t attracted much interest from most re-

searchers, although cyclists are ranged in the same

level with pedestrians in the group of vulnerable road

users (Gandhi and Trivedi, 2007).

However, cyclist detection is a also an impor-

tant task. Not only because cyclists are as vulnera-

ble as pedestrians but also they share the same road

with other vehicles with a comparable velocity, which

makes them much easier to get involved in accidents

and to suffer from severe injuries and even fatalities.

In addition, the available systems of cyclist detection

are mostly radar-based. They are sensitive to all the

objects in surroundings so that more false positives

can be generated, reducing the robustness of the sys-

tem. In the mean while, vision based pedestrian de-

tection has already achieved high precision (Doll´ar

et al., 2012). Therefore, designing a vision-based de-

tection system specially tailored to cyclists is neces-

sary.

2 RESEARCH PROBLEM

For implementation of such a system several prob-

lems remain to be solved. At ﬁrst, the appearance

of cyclists in the image obviously varies according to

the viewpoints. This requires extra algorithms to deal

with multi-view detection and the precision should be

maintained as well. This problem is rarely taken into

consideration in pedestrian detection. Secondly, due

to small bodies, cyclists can be easily occluded by

other objects, e.g. cars. To capture partially occluded

cyclists is also challenging. Thirdly, collision predic-

tion requires knowledge of the cyclists’ trajectories.

This knowledge allows us to estimate the risk of an

accident which can be used to implant active protec-

tion systems or to send warning signals to car drivers

and cyclists. At last, the detector should be able to

run in real time. This is very important for applica-

tion on low cost hardware, as cost reduction is always

the issue of industries. So this system should provide

a solution to these points.

3 STATE OF THE ART

In the last decade enormous progress has been seen

in the area of vision-based object detection. Viola et

al. in (Viola and Jones, 2004) designed a cascade de-

tector integrated with Haar-like features and achieved

a real time speed. Dalal et al. proposed HOG (his-

togram of oriented gradients) feature in (Dalal and

Triggs, 2005), improving the detection precision sig-

niﬁcantly. Based on that, Felzenszwalb et al. intro-

duced DPMs (deformable part models) in (Felzen-

szwalb et al., 2008). By applying part ﬁlters and al-

lowing displacements between them, this method has

achieved the best results at one time. As another alter-

native, Wojek et al. combined HOG with Haar-like,

shapelet (Sabzmeydani and Mori, 2007) and shape

context (Mori et al., 2005) in (Wojek and Schiele,

2008) and proved that it performs better than individ-

ual features. In (Walk et al., 2010) Walk et al. added

color and motion information to this method and im-

proved the precision in one more step. Unlike them,

Doll´ar utilized different features to assemble integral

channels (Doll´ar et al., 2009). By using a cascade de-

tector, he achieved a comparable result and a much

faster speed. As extension, Benenson et al. in (Be-

nenson et al., 2012) made an even faster detector with

the help of differently scaled models and stixels from

stereo images. These methods are mainly focused on

detection of pedestrians.

As for cyclist detection, Rogers et al. in (Rogers

and Papanikolopoulos, 2000) modeled bicycles by

two circles. Cho et al. applied DPMs in combination

with an extended Kalman ﬁlter to detect and track bi-

cycles (Cho et al., 2010). However, bicycle detection

makes little sense in some situations, e.g. parked bi-

cycles without riders, because it is the cyclist not the

bicycle that needs protection. Instead, Li et al. used

Tian W. and Lauer M..

Fast and Robust Cyclist Detection for Monocular Camera Systems.

 2015 SCITEPRESS (Science and Technology Publications, Lda.)

HOG-LP to detect crossing cyclists (Li et al., 2010).

As cyclists from other directions are not concerned,

the usability of their method is limited.

4 OUTLINE OF OBJECTIVES

In this work we are aiming at building a vision-based

detection system for cyclists. To solve the multi-view

problem, we divide the cyclist’s viewpoints into sev-

eral subgroups and for each group a detector is built.

Occluded cyclists are only partially visible, which

means that part detectors are required. Based on the

detector results, hypotheses about cyclists are made

after probability analysis. As a fact, time cost for de-

tection is strongly dependent not only on the detection

algorithm but also on the image size. So we integrate

ROI (region of interest) extracion into our framework.

With its help, only interesting regions in the image

are concerned, so that detection can further speed up.

Moreover, tracking algorithms in 2-D and even in 3-

D environment are integrated to improve the detection

results and to estimate the trajectory. At last, we are

also planing to extend our framework to detect gen-

eral object classes.

5 METHODOLOGY

This section consists of four parts. The ﬁrst part de-

scribes our selected detectors. The second part intro-

duces the methods to deal with partial occlusions. The

third one focuses on monocular camera based ROI ex-

traction. Finally, we brieﬂy discuss about tracking al-

gorithms.

5.1 Detector Structure

5.1.1 Unimodel vs. Multi-model

To search for objects in an image, the mostly used

method is sliding window detection, which is also ap-

plied in our project. In this method, a window with

the same size as the training samples is shifted over

the image. Hypotheses about objects are made based

on features which are calculated inside the window.

Since only objects within this window can be de-

tected, it is important to choose the window size ap-

propriately.

For simplicity, most researchers use only one ﬁxed

window size to detect pedestrians, since the aspect ra-

tio is almost constant, independent of the pose and the

appearance. Unlike that, the appearance of other ob-

jects, e.g. cars or cylists, varies signiﬁcantly in differ-

ent viewpoints. In (Ohn-Bar and Trivedi, 2014) Ohn-

Bar solved this problem for cars by building detectors

for each visual subcatgory and achieved good results.

So in this project we do it in a similar way. For train-

ing we also choose the KITTI dataset (Geiger et al.,

2012), which is one of the benchmarks for object de-

tection and contains rich images of trafﬁc scenes. In-

stead of using additional features in (Ohn-Bar and

Trivedi, 2014), positive samples here are sorted di-

rectly according to their 3-D orientations. We do it in

this way, because, not only the procedure can be sim-

pliﬁed but also errors from false classiﬁcations can be

avoided.

In this paper we divide positive samples into eight

equidistant orientation groups, each with a range of

◦

, as shown in Figure 1. Since sliding window de-

tection is used, we also scale samples of each group

to their rounded average aspect ratios. E.g. 0.5 is cho-

sen for group II and VI, 1.0 for group IV and VIII and

the others have an aspect ratio of 0.75. The minimal

height of each sample is 80 pixels.

VIII

VII

III

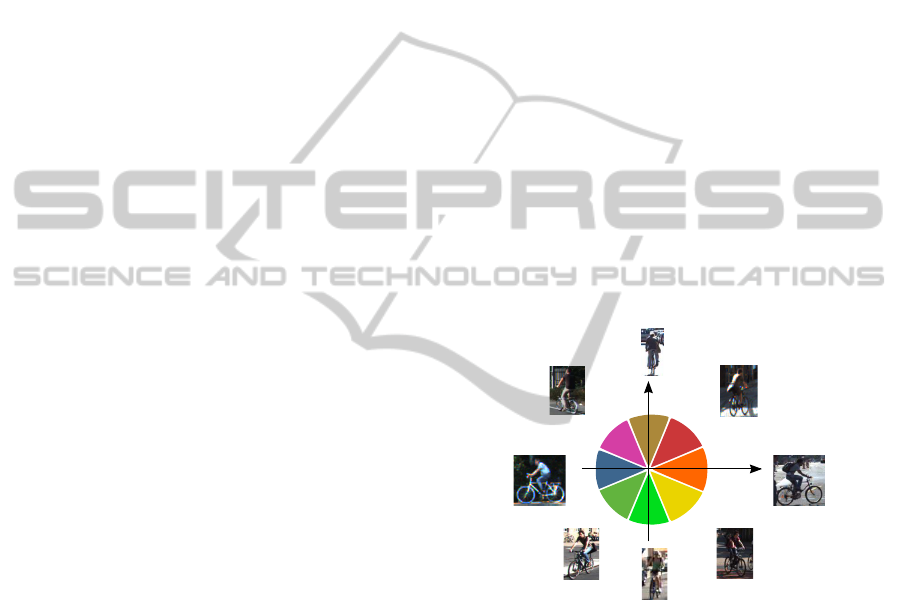

Figure 1: Division of positive samples into eight equidistant

orientation groups I to VIII.

5.1.2 SVM vs. DT

Support vector machines (SVM) are often used to-

gether with HOG features. SVMs can obtain high

precision but at a great time cost. On the contrary, de-

cision trees (DT) often run at fast speed, even though

the classiﬁcation power is often weak in practice. So

our aim is to build a detector which combines advan-

tages of both kinds of classiﬁers.

Here we choose a cascade as the detector struc-

ture. Unlike (Doll´ar et al., 2009), we do some modi-

ﬁcations to it. As shown in Figure 2, it consists of n

stages of DTs and one SVM. The front DTs can ﬁlter

out lots of negative samples very quickly, so that a fast

speed is achieved. The last SVM guarantees a high

VISIGRAPP2015-DoctoralConsortium

precision and its inﬂuence on speed is mere. Because

it is located at the last stage, only a few classiﬁcations

are done there.

Since only gray images are used in this paper, i.e.

color information is not available, we choose HOG as

features instead of integral channels in (Doll´ar et al.,

2009) (Benenson et al., 2012). For classiﬁcation,

HOG vectors are calculated for each image patch.

The SVM makes use of the whole vector. Instead,

DTs only deal with some speciﬁc vector elements. To

select the number n, two points should be concerned.

On one side, too few DT stages can increase the bur-

den on SVM and further reduce the detection speed.

On the other side, with too many DT stages, only

a few negative samples can be obtained for training

SVM, which makes it very easy to be overﬁt. Accord-

ing to our experience, 2 to 4 is a reasonable number.

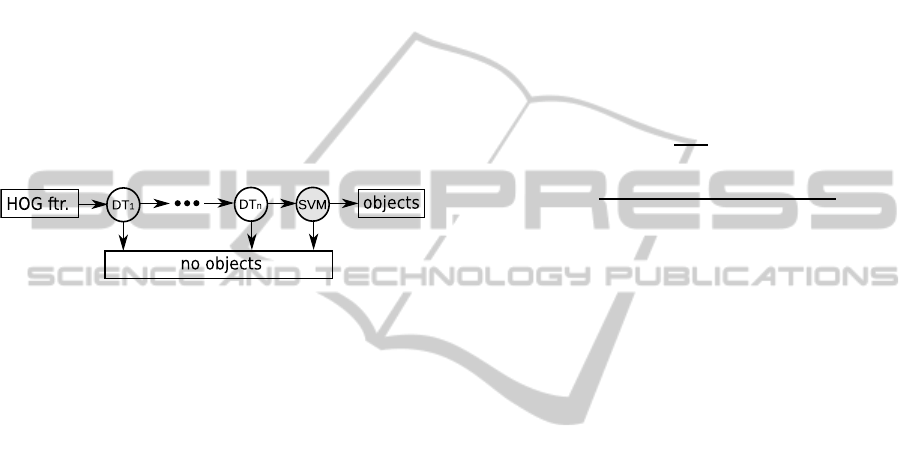

Figure 2: Structure of the cascade detector. It consists of n

stages of decision trees DT

to DT

and one support vector

machine SVM. For each image patch a HOG feature vector

is calculated. While the SVM makes use of the whole vec-

tor, the DTs only consider some speciﬁc vector elements, so

that a fast detection speed is achieved.

5.2 Detection with Partial Occlusion

Up to now we focused on detecting cyclists with full

bodies. As for occluded cyclists, we can only rec-

ognize them by capturing their visible parts with part

detectors.

To decide which part should be detected, we take

the same approach as (Felzenszwalb et al., 2008). At

ﬁrst, we calculate HOG features for each sample and

use them to train a SVM. Then a rectangular ﬁlter

with the same size as the part detector is convoluted

with the weights. The maxima, regarded as with high

energy, are selected as locations for part detectors.

For each group in Figure 1, we train m part de-

tectors with the same structure as Figure 2. For efﬁ-

ciency, we only run part detectors on image regions

without hypotheses of full body detectors. Based on

results of part detectors we can estimate the presence

of cyclists according to the method proposed by Shu

in (Shu et al., 2012).

Here we interpret the score s(p

) of part i at loca-

tion p = (x, y) as

s(p

) = c

+ d

· f

, d

), (1)

where c

is the convolution value of the part ﬁlter

and (d

, d

) is the relative displacement to its anchor.

, d

) = (d

, d

) denotes the deformation

and d

is the coefﬁcient vector, which can be learned

from a latent SVM as in (Felzenszwalb et al., 2008).

So the total score from part ﬁlters can be interpreted

score

= b+

∑

i=1

s(p

), (2)

where b is a bias factor. But this equation is only valid

for completely visible cyclists. For occlusion, only

the visible parts are interesting to us. If we take an

assumption that visible parts always have high part

scores, the problem can be converted to search a set

of the most conﬁdent parts, which maximize the

score. Then Equation (2) can be rewritten as

score

= b+ argmax

∑

i∈S

1+ exp(A(p

) · s(p

) + B(p

))

, (3)

where |S

| is the set cardinality, in (Shu et al., 2012)

it is equal to 3. A and B are parameters, which can be

learned by the sigmoid ﬁtting method in (Platt, 1999).

This equation can be considered as calculating the av-

erage score of a subset of parts. As occluded parts al-

ways have a smaller score, the score reaches its max-

imum only if all parts are visible in the subset.

Since cyclists are divided into 8 aspects, there are

totally 8m part detectors. To apply them on images

one after another is extremely time consuming and

unnecessary. Because at one location only one part

type can exist. Hence, we decide to assemble part de-

tectors from one aspect, e.g. with the help of random

forests (Breiman, 2001). Then we only have 16 de-

tectors.

5.3 ROI Extraction from Monoscopic


For further improving detection performance, we

would like to integrate ROI extraction to our frame-

work. Here the ROI extraction is based on the fact

that all cyclists are on the ground and that the height,

the pitch and the roll angle of the camera are known.

Hence, the task is to ﬁnd regions in the image, which

are corresponding to detected objects standing on the

ground. As one solution, Sudowe et al. in (Sudowe

and Leibe, 2011) introduced the mathemtical deriva-

tion from the size of an object in the real world to its

location in the image.

Here we also prefer this geometric method to ex-

tract ROIs, because no further sensors are available

and precise locating of object is required, which is

important to predict collisions. But unlike Sudowe’s

FastandRobustCyclistDetectionforMonocularCameraSystems

approach we will reveal the relationship between the

size and the location of an object in the image by a

regression method.

At ﬁrst we observe objects in the real world. Here

we build two horizontal planes with a height z = 0 and

z = S

obj

respectively. The ﬁrst one corresponds to the

ground plane and the other is a horizontal plane just

above the head of the objects. As shown in Figure 3,

both planes consist of grid points. For each point from

one plane we associate it with the point from the other

plane with the same horizontal coordinates to make

one pair. So between each point pair, the distance is

constant and equals object’s height S

obj

. Here we take

for example S

obj

= 2m.

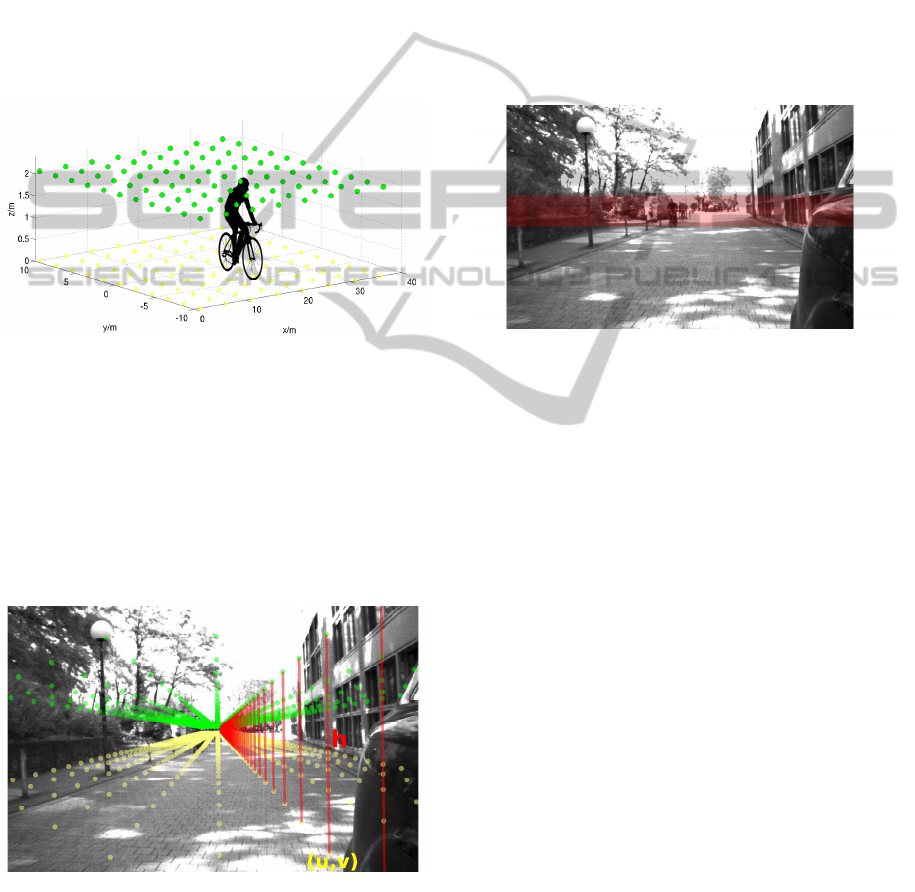

Figure 3: Two planes of grid points. The ground plane is

presented in yellow with a height of z = 0 and the green

one is the plane just above object’s head with a height of

z = S

obj

= 2m.

Then we project the grid points from both planes

into the image (Figure 4) and store their coordinates

in matrix U

and U

obj

respectively. After that we

calculate the distance between each point pair again,

which correspondsto object’s height in the image, and

store them in vector h. According to (Sudowe and

Figure 4: Calculate the distance h between each point pair

and store it. Location (u, v) is the coordinates of the corre-

sponding ground point.

Leibe, 2011), the size and the location of an object in

the image have a nearly linear dependence,

h = U

· B, (4)

where B is a parameter matrix and can be obtained by

some regression method, such as the least squares al-

gorithm. For simplicity, Equation (4) can be rewritten

h =



u v 1



· B (5)

where h is object’s height with respect to the ground

point [u, v, 1]

in the image.

If the roll angle of the camera is zero, the size of

an object is only dependent on the vertical coordinate

of its bottom v. Therefore, the ROIs for objects can

be restricted to a region between two horizontal lines

(Figure 5), which is in accordance with the results in

(Sudowe and Leibe, 2011).

Figure 5: Example for ROI extraction by our geometric

method. This image is captured in the KIT. The roll angle

of the camera is zero and the detection window has a height

of 80 pixels. The height of the object in the real world is

assumed to be 2m. Red region represents the ROI of valid

objects.

In the same way we can obtain the dependence be-

tween the size and the location of an object in scaled

images, so that the geometry based ROI extraction can

be extended to multi-scale detection.

5.4 Tracking of Cyclists

To predict collisions, not only the presence of cyclists

but also their trajectories should be known, which re-

quires to track cyclists along image sequences. Here

we use a simple model with constant velocity. The

state vector is

x = [x, y, v

, v

, h, w]

, (6)

where (x, y) is coordinates of the bottom left corner of

the cyclist, (v

, v

) denotes the velocity in the image,

and (h, w) represents the size. The acceleration and

size variations are modeled as noise. With the help of

a Kalman ﬁlter (Kalman, 1960), the state of the cyclist

can be predicted in the next image. To associate the

predictions and the detections, we use overlapping ar-

eas between them. It means only the overlapping rate

between a prediction and a detection is greater than

a predeﬁned threshold, an association will be created.

VISIGRAPP2015-DoctoralConsortium

As the number of detections in an image can be dif-

ferent from the number of predictions, we will solve

the association problem by JPDA (Joint Probabilis-

tic Data Association) algorithm (Bojilov et al., 2003).

The predicted state is updated by its associated dete-

cion. Single detections are regarded as new objects

(cyclists) and single objects without detection are di-

rectly taken into next prediction. This procedure can

be seen in the right part of Figure 6.

Because detectors can fail for some images, er-

rors accumulate for those objects in prediction steps.

To avoid it, we add other trackers, such as optical

ﬂow, which consists of several feature points. As

shown in the left part of Figure 6, each detected cy-

clist is assigned with a Kalman ﬁlter and an optical

ﬂow tracker. The feature points of the optical ﬂow

tracker are updated for each frame. If an associated

detection exists, the feature points are checked and

only valid ones remain. Otherwise the state of the cy-

clist is estimated based on the optical ﬂow tracker, so

that the tracking results can be further stabilized.

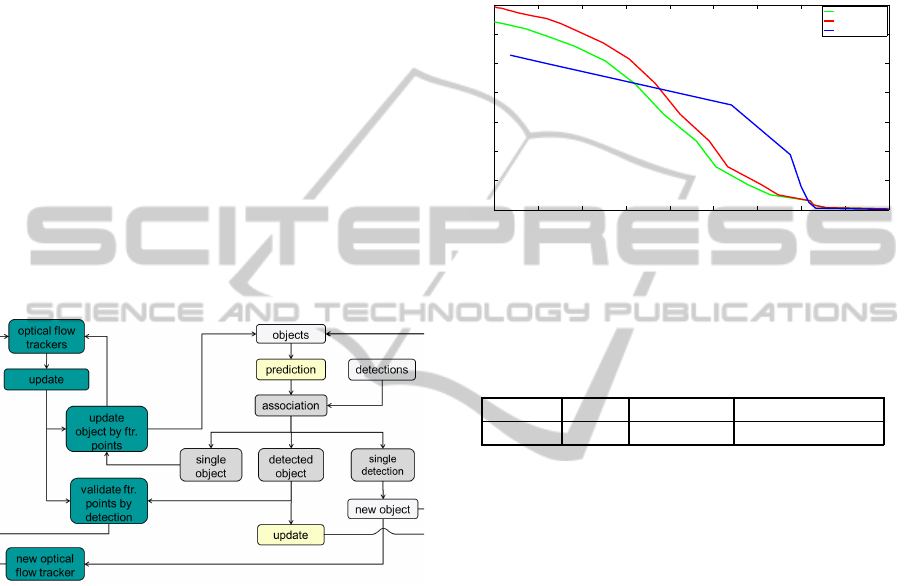

Figure 6: Tracking algorithm by Kalman ﬁlter (right side)

and optical ﬂow (left side). Each detected cyclist is as-

signed with a Kalman ﬁlter and an optical ﬂow tracker. For

each frame, the states of objects are predicted and the fea-

ture points of the optical ﬂow tracker are also updated. The

predicted objects are updated by their associated detecions.

Single detections are regarded as new objects (cyclists) and

single objects without detection are updated by their opti-

cal ﬂow trackers, so that the tracking results can be further

stabilized.

6 STATE OF THE RESEARCH

At the moment we have already built cascade detec-

tors to detect cyclists. The geometry based ROI ex-

traction method is also integrated. To explore the de-

tector’s performance, we have captured a video with

scenes both on campus and in nearby urban areas.

There are totally 45000 images, consisting of lots of

objects, such as cars, pedestrians and cyclists. The

images have a size of 1312× 1082 pixels. In compar-

ison, we also trained a cascaded DPM detector for cy-

clists with the codes provided by (Felzenszwalb et al.,

2010). We ran both our detector and the DPM detec-

tor on the test data and the recall-precision-curves are

plotted in Figure 7. Additionally, we also evaluated

computational efﬁciency of each detector (Table 1).

0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1

0.1

0.2

0.3

0.4

0.5

0.6

0.7

Precision

Recall

DT+SVM

DT+SVM+ROI

DPM

Figure 7: Recall-precision-curves for our detectors with

(red) and without ROI extraction (green) and the DPM de-

tector (blue).

Table 1: Time cost of our detectors with (DT+SVM+ROI)

and without ROI extraction (DT+SVM) and the DPM de-

tector.

DPM DT+SVM DT+SVM+ROI

time(s) 2.2 0.28 0.09

It can be seen that the precision of our detector can

increase at most 10% if the ROI extraction method is

integrated. In comparison with DPM, our detector has

a higher recall at low precision ranges but its precision

becomes worse if the recall value decreases. As far

as the real situation is concerned, false negatives are

even worse than false positives. Because protection

measurements can not be activated, if cyclists are not

recognized, leading to reduced survival probabilities

in accidents. As for time cost, our detector runs at a

speed of almost 11 fps. In comparison, DPM takes

2.2s for one image. Obviously, our detector is more

suitable for real time applications, even though it is

not as good as the DPM detector in high precision

areas.

7 EXPECTED OUTCOME

For a more precise impression of our detector’s per-

formance, we would like to do test on more datasets

as well as to compare it with other standard detectors.

So far we are only concerned about detection of com-

pletely visible objects. In the next step, we will work

on detection of partially occluded objects. To stabilize

FastandRobustCyclistDetectionforMonocularCameraSystems

detection along image sequences, the tracking algo-

rithm also works in progress. For a precise estimation

of a cyclist’s trajectory, we would like to project its

2-D movement into 3-D coordinates. This can only

be done with the help of additional sensors, e.g. li-

dar. Moreover, we also want to extend our framework

for the recognization of general object classes. In the

future, we would like to see our system applied on

vehicles, which makes contribution to protection of

cyclists.

REFERENCES

Benenson, R., Mathias, M., Timofte, R., and Van Gool, L.

(2012). Pedestrian detection at 100 frames per second.

In Computer Vision and Pattern Recognition (CVPR),

2012 IEEE Conference on, pages 2903–2910.

Bojilov, L., Alexiev, K., and Konstantinova, P. (2003). An

accelerated imm jpda algorithm for tracking multiple

manoeuvring targets in clutter. In Numerical Meth-

ods and Applications, volume 2542, pages 274–282.

Springer Berlin Heidelberg.

Breiman, L. (2001). Random forests. Machine Learning,

45(1):5–32.

Cho, H., Rybski, P., and Zhang, W. (2010). Vision-based bi-

cycle detection and tracking using a deformable part

model and an ekf algorithm. In 13th International

IEEE Conference on Intelligent Transportation Sys-

tems.

Dalal, N. and Triggs, B. (2005). Histograms of oriented gra-

dients for human detection. In Computer Vision and

Pattern Recognition, 2005. CVPR 2005. IEEE Com-

puter Society Conference on, volume 1, pages 886–

893 vol. 1.

Doll´ar, P., Tu, Z., Perona, P., and Belongie, S. (2009). Inte-

gral channel features. In BMVC.

Doll´ar, P., Wojek, C., Schiele, B., and Perona, P. (2012).

Pedestrian detection: An evaluation of the state of the

art. PAMI, 34.

Felzenszwalb, P., McAllester, D., and Ramanan, D. (2008).

A discriminatively trained, multiscale, deformable

part model. In Computer Vision and Pattern Recog-

nition, 2008. CVPR 2008. IEEE Conference on, pages

1–8.

Felzenszwalb, P. F., Girshick, R. B., and McAllester, D.

(2010). Discriminatively trained deformable part

models, release 4.

Gandhi, T. and Trivedi, M. (2007). Pedestrian protec-

tion systems: Issues, survey, and challenges. Intel-

ligent Transportation Systems, IEEE Transactions on,

8(3):413–430.

Geiger, A., Lenz, P., and Urtasun, R. (2012). Are we ready

for autonomous driving? the kitti vision benchmark

suite. In Conference on Computer Vision and Pattern

Recognition (CVPR).

Kalman, R. E. (1960). A new approach to linear ﬁltering

and prediction problems.

Li, T., Cao, X., and Xu, Y. (2010). An effective crossing

cyclist detection on a moving vehicle. In Intelligent

Control and Automation (WCICA), 2010 8th World

Congress on, pages 368–372.

Mori, G., Belongie, S., and Malik, J. (2005). Efﬁcient

shape matching using shape contexts. Pattern Anal-

ysis and Machine Intelligence, IEEE Transactions on,

27(11):1832–1837.

Ohn-Bar, E. and Trivedi, M. M. (2014). Fast and robust ob-

ject detection using visual subcategories. In Computer

Vision and Pattern Recognition Workshops-Mobile Vi-

sion.

Platt, J. C. (1999). Probabilistic outputs for support vector

machines and comparisons to regularized likelihood

methods. In ADVANCES IN LARGE MARGIN CLAS-

SIFIERS, pages 61–74. MIT Press.

Rogers, S. and Papanikolopoulos, N. (2000). Counting bi-

cycles using computer vision. In Intelligent Trans-

portation Systems, 2000. Proceedings. 2000 IEEE,

pages 33–38.

Sabzmeydani, P. and Mori, G. (2007). Detecting pedestri-

ans by learning shapelet features. In Computer Vision

and Pattern Recognition, 2007. CVPR ’07. IEEE Con-

ference on, pages 1–8.

Shu, G., Dehghan, A., Oreifej, O., Hand, E., and Shah, M.

(2012). Part-based multiple-person tracking with par-

tial occlusion handling. In Computer Vision and Pat-

tern Recognition (CVPR), 2012 IEEE Conference on,

pages 1815–1821.

Sudowe, P. and Leibe, B. (2011). Efﬁcient use of geomet-

ric constraints for sliding-window object detection in

video. In Computer Vision Systems, volume 6962,

pages 11–20. Springer Berlin Heidelberg.

Viola, P. and Jones, M. (2004). Robust real-time face de-

tection. International Journal of Computer Vision,

57(2):137–154.

Walk, S., Majer, N., Schindler, K., and Schiele, B. (2010).

New features and insights for pedestrian detection.

In Computer Vision and Pattern Recognition (CVPR),

2010 IEEE Conference on, pages 1030–1037.

Wojek, C. and Schiele, B. (2008). A performance eval-

uation of single and multi-feature people detection.

In Pattern Recognition, volume 5096, pages 82–91.

Springer Berlin Heidelberg.

VISIGRAPP2015-DoctoralConsortium
