A Mathematical Programming Approach to Multi-cloud Storage

Makhlouf Hadji

Technological Research Institute SystemX, Palaiseau, Saclay, France

Keywords:

Cloud Computing, Distributed Storage, Data Replication, Encryption, Broker, Optimization.

Abstract:

This paper addresses encrypted data storage in multi-cloud environments. New mathematical models and

algorithms are introduced to place and replicate encrypted data chunks and ensure high availability of the

data. To enhance data availability, we present two cost-efﬁcient algorithms based on a complete description

of a linear programming approach of the multi-cloud storage problem. Performance assessment results, using

simulations, show the scalability and cost-efﬁciency of the proposed multi-cloud distributed storage solutions.

1 INTRODUCTION

Cloud storage has emerged as a new paradigm to host

user and enterprize data in cloud providers and data

centers. Cloud storage providers (such as Amazon,

Google, etc.) store large amounts of data and vari-

ous distributed applications (AWS, 2014) with differ-

entiated prices. Amazon provides for example stor-

age services at a fraction of a dollar per Terabyte per

month (AWS, 2014)). Cloud service providers pro-

pose also different SLAs in their storage offers. These

SLAs reﬂect the different cost of proposed availabil-

ity guarantees. End-users interested in more reliable

SLAs, must pay more, and this leads to cause high

costs when storing large amounts of data. The cloud

storage providers to attract users do not charge for

initial storage or put operations. Retrieval becomes

unfortunately a hurdle, a costly process and users are

likely to experience data availability problems. A way

to avoid unavailability of data is to rely on multiple

providers by replicating the data and actually chunk

the data and distribute it across the providers so none

of them can actually reconstruct the data to protect it

from any misuse. This paper aims at improving this

type of distributed storage across multiple providers

to achieve high availability at reasonable (minimum)

storage service costs by proposing new scalable and

efﬁcient algorithms to select providers for distributed

storage. The objective is to optimally replicate data

chunks and store the replicates in a distributed fash-

ion across the providers. In order to protect the data

even further, the chunks are encrypted.

1.1 Paper Contributions and Structure

We propose data chunk placement algorithms to

tradeoff data availability and storage cost and pro-

vide some guarantees on the performance of the dis-

tributed storage. We assume end-users involved in

PUT (write) and GET (read) operations of data ob-

jects stored in an encrypted manner and distributed

optimally in different data centers require a speciﬁed

level of data availability during data retrieval. More

speciﬁcally, after data encryption and partition oper-

ations which consist to split the data into encrypted

chunks to be distributed across multiple data centers,

our main work focuses on improving and optimizing

two operations:

• Data Chunks Placement Optimization: through

a novel, efﬁcient, scalable algorithm that mini-

mizes placement cost and meets data availability

requirements given probabilities of failure (or un-

availability) of the storage systems and hence the

stored data.

• Chunk Replication: to meet a required high level

of availability of the data using optimal replica-

tion of chunks to reduce the risk of inaccessibility

of the data due to data center failures (or storage

service degradations).

To realize these objectives, we derive a number of

mathematical models to be used by a broker (real or

logical broker) to select the storage service providers

leading to cost-efﬁcient and reliable data storage. The

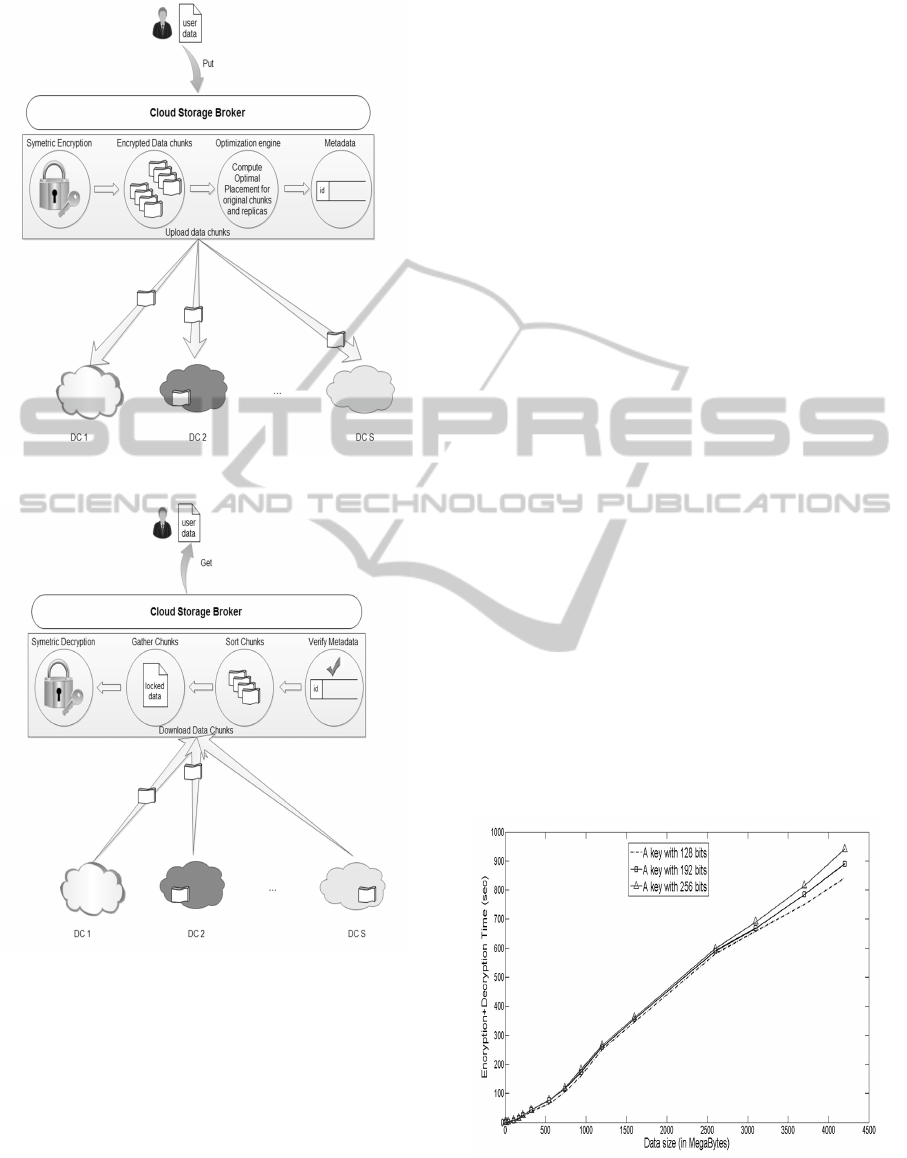

proposed broker collaborates with the providers hav-

ing different storage costs and reliability (storage ser-

vice availability), as depicted in detail in Figure 1.

Hadji M..

A Mathematical Programming Approach to Multi-cloud Storage.

DOI: 10.5220/0005412000170029

In Proceedings of the 5th International Conference on Cloud Computing and Services Science (CLOSER-2015), pages 17-29

ISBN: 978-989-758-104-5

 2015 SCITEPRESS (Science and Technology Publications, Lda.)

We assume that the providers propose storage ser-

vices to the broker and to end-users with same reli-

ability but with different prices (prices for a real bro-

ker for instance will be lower than those proposed to

end-users).

It is consequently assumed that there exist ben-

eﬁts for a storage service brokerage that optimally

distributes encrypted data across the most appropriate

providers. Thus, the aim of this paper consists to pro-

pose a scalable and polynomial algorithm spanning a

cost efﬁcient chunk placement model that can achieve

optimal solutions, when guaranteeing high data avail-

ability to end-users.

Section 2 presents related work on cloud storage

and optimization. In Section 3, we use the well known

Advanced Encryption Standard (AES) algorithm (Se-

ungmin et al., 2014) to encrypt end-user data and

divide them into |N | chunks. In the same section,

we propose mathematical models to deal with chunk

placement and replication in an optimal manner for

given server costs and availabilities. Performance as-

sessments and results are reported in Section 4. Con-

clusion and future work are reported in Section 5.

2 RELATED WORK

Data storage and data replication has received a lot of

attention at the data management, distribution and ap-

plication level since the distribution of original data

objects and their replicas is crucial to overall sys-

tem performance, especially in the cloud environment

where data are supposed to be protected and highly

available in different data centers. The current liter-

ature concerns essentially the cloud storage problem

in tandem with replication techniques to improve data

availability, but to our knowledge, does not consider

data transfer in/out costs, or migration costs, etc. We

will nevertheless cite some of the related work even if

it can not be directly compared to the proposed algo-

rithms in this paper.

In (Mansouri et al., 2013), authors dealt with the

problem of multi-cloud storage with a focus on avail-

ability and cost criteria. The authors proposed a ﬁrst

algorithm to minimize replication cost and maximize

expected availability of objects. The second algo-

rithm has the same objective subject to budget con-

straints. However, this paper did not embed security

aspects apart from dividing the data into chunks or ob-

jects. In our work, we propose to divide data into en-

crypted chunks, that will be optimally stored and dis-

tributed through various data centers with minimum

costs while satisfying the QoS required by end-users.

Moreover, the proposed algorithm in (Mansouri et al.,

2013) is a simple heuristic without any convergence

guarantee to the optimal solution. Our proposed algo-

rithm converges in few seconds to optimal solutions

benchmarked by the Bin-Packing algorithm.

In (Thanasis et al., 2012), authors present Scalia,

a system to deal with the problem of multi cloud data

storage under availability and durability requirements

and constraints. The authors note the NP-Hardness

of the considered problem, and propose algorithms to

solve small instances of the problem. In our work, we

propose a new efﬁcient and scalable solution capable

of handling large instances in a few seconds. Clearly,

the proposed solution in (Thanasis et al., 2012) suffers

from scalability challenges to handle on with larger

instances, when our algorithms are able to quickly

solve large instances of the deﬁned problem.

To avoid failure and achieve higher availability

when storing data in the cloud, reference (Yanzhen

and Naixue, 2012) proposes a distributed algorithm to

better replicate data objects in different virtual nodes

instantiated in physical servers. According to the traf-

ﬁc load of all considered nodes, the authors consid-

ered three decisions or actions as replicate, migrate,

or suicide to better meet end-user requirements and

requests. However, the proposed approach consists

only in checking the feasibility of migrating a virtual

node, performs suicide actions or replicating a copy

of a virtual node, without optimizing the system. In

our work, we propose optimization algorithms based

on a complete description of the convexe hull of the

deﬁned problem, leading to reach optimal solutions

even for large instances.

Reference (Srivastava et al., 2012) proposes a sim-

ple heuristic to give stored data greater protection and

higher availability by splitting a ﬁle (data) into sub-

ﬁles to be placed in different virtual machines belong-

ing to the physical resources (data centers for exam-

ple) of one provider or different providers. The paper

dealt with PUT and GET operations to distribute and

retrieve the required subﬁles (data) without encrypt-

ing them. The proposed heuristic in (Srivastava et al.,

2012) can only reach suboptimal solutions, leading to

considerable gaps compared to the optimal solutions.

We propose a new scalable and cost efﬁcient solution

to deal with the multi-cloud storage problem.

Aiming to provide cost-effective availability and

improve performance and load balancing of cloud

storage, the authors of reference (Qingsong et al.,

2010) propose CDRM as a cost-effective dynamic

replication management scheme. CDRM consists in

maintaining a minimal number of replica for a given

availability requirement, and proposes a replica place-

ment based on the blocking probability of data nodes.

Moreover, CDRM allows us to dynamically adjust the

CLOSER2015-5thInternationalConferenceonCloudComputingandServicesScience

replica number according to changing workload and

node capacities. However, the paper focuses only on

the relationship between availability and replica num-

ber, and there is no proposal to deal with the optimal

placement of replicas.

To achieve high performance and reduce data loss

when we require storage services in the cloud, dif-

ferent papers in the literature propose various algo-

rithms that are useful only for small instances due to

the NP-Hardness of the problem. In (Bonvin et al.,

2010), the authors propose a key-value store named

Skute, which consists in dynamically allocating the

resources of a data cloud to several applications in

a cost effective and fair way using game theoretical

models. To guarantee cloud object storage perfor-

mance, the authors of (Jindarak and Uthayopas, 2012)

propose a dynamic replication scheme to enhance the

workload distribution of cloud storage systems. The

authors of (Chia-Wei et al., 2012) conduct a study

based on a dynamic programming approach, to deal

with the problem of selecting cloud providers offer-

ing storage services with different costs and failure

probabilities.

Reference (Abu-Libdeh et al., 2010) proposes

a distributed storage solution named RACS, to

avoid vendor lock-in, reduce the cost of switch-

ing providers, and better tolerate provider outages.

The authors applied erasure coding (see references

(Weatherspoon and Kubiatowicz, 2002), (Li and Li,

2013) and (Rodrigo and Liskov, 2005)) to design the

proposed solution RACS. In the same spirit, refer-

ences (Ford et al., 2010), (Myint and Thu, 2011), (Ne-

gru et al., 2013) and (Zhang et al., 2012) addressed the

cloud storage problem described above, under differ-

ent constraints including energy consumption, budget

limitation, limited storage capacities, and the avail-

ability of the stored data.

In (Varghese and Bose, 2013), authors propose

a new solution to guarantee the data integrity when

stored in a cloud data center. The proposed solution is

based on homomorphic veriﬁable response and hash

index hierarchy. This kind of solutions can be inte-

grated to our work to reenforce data security and pri-

vacy for reticent users. An other reference on secured

multi cloud storage can be found in (Balasaraswathi

and Manikandan, 2014). Authors presented a crypto-

graphic data splitting with dynamic approach for se-

curing information. The splitting approach of the pro-

posed solution is not deeply studied. This may lead to

not select cost efﬁcient providers.

3 SYSTEM MODEL

To store encrypted data in multiple DCs belonging

to various cloud providers system, while optimizing

storage costs and failure probabilities, we separate

the global problem into a number of combinatorial

optimization sub-problems. To derive the model we

make a simplifying assumption regarding the pricing

scheme between cloud service providers, the broker

and end-users. We assume that the proposed stor-

age price by a service cloud provider to end-users is

higher than that proposed to the broker. This can be

explained by the large amount of demands that will

be required by the broker aggregating the demands

of a ﬁnite set of end-users seeking to avoid vendor

lock-in and higher availability. One can assume that

prices proposed by cloud providers are smaller as the

volume of data is larger. Note that the broker will

guarantee a minimum storage cost meeting end-users

requirements, ensuring that the proposed cost to end-

users can never exceed a certain threshold.

We ﬁrst propose to use the well known AES (Ad-

vanced Encryption Standard) algorithm (Seungmin

et al., 2014) for efﬁcient data encryption. This will

generate different encrypted chunks to be distributed

in the available storage nodes or data centers. This en-

cryption ensures the conﬁdentiality of the stored data.

Moreover, the used solution permits to construct di-

verse chunks (with small sizes) to facilitate PUT and

GET requests as is shown in Figures 1 and 2.

We derive two algorithms to handle encrypted data

chunk placement and replication to guarantee data

high availability, and storage cost efﬁciency. This can

be summarized as follows:

• Data Chunk Placement: The ﬁrst important ob-

jective of our paper consists in guaranteeing the

availability of all chunks of stored data by opti-

mally distributing them to a cost-efﬁcient set of

selected data centers (see Figure 1). This avoids

user lock-in, and reduces the total cost of the stor-

age service. This optimization is performed under

end-user or data owner constraints and require-

ments such as the choice of a minimum number of

data centers to be involved in storing the chunks

of the data. This can reinforce the availability of

data for given data centers failure probabilities.

• Data Chunk Replication: After optimally stor-

ing the encrypted chunks of a data, we determine

a replication algorithm based on bipartite graph

theory, to derive optimal solutions of the problem

of storing replica chunks. This ensures high data

availability since content can be retrieved even if

some servers or data centers are not available.

Once all data chunk are placed in different data

AMathematicalProgrammingApproachtoMulti-cloudStorage

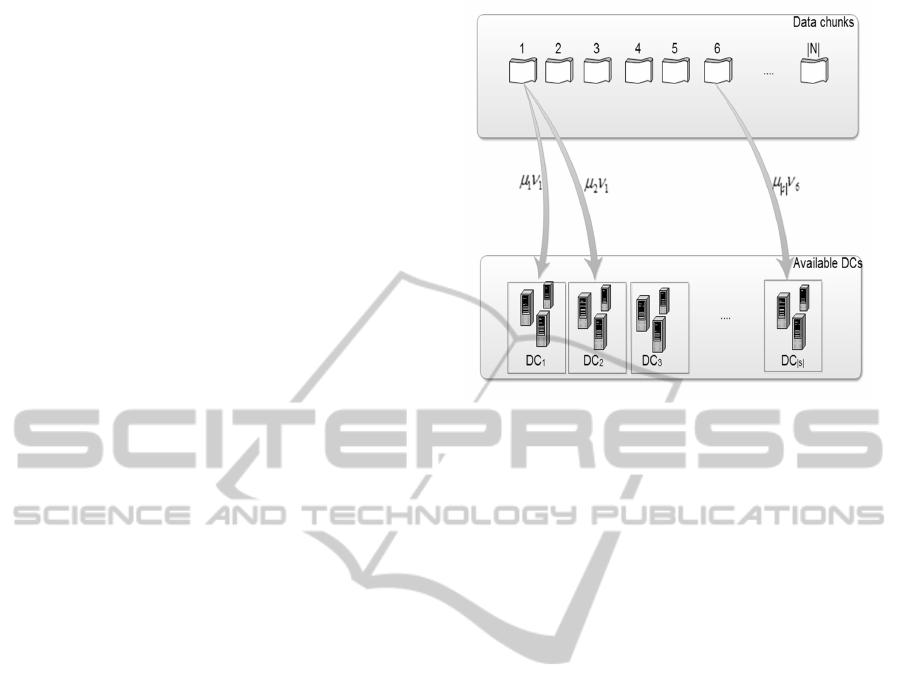

Figure 1: The system model: PUT requests.

Figure 2: The system model: GET requests.

centers, end-users may solicit the data by GET re-

quests (download data). The broker needs to gather

all the data chunks, sort them, decrypt them, and ﬁ-

nally deliver the entire data to the end-user. Figure 2

gives more details on GET operations.

In the following, we suppose that each data object

(chunk) has r replicas. Finding the optimal number

of replicas of each chunk, is not in the scope of this

paper. A well-known example on the choice of r is

the Google storage solution based on r = 3 replicas of

each stored data chunk (Ghemawat et al., 2003).

3.1 Data Encryption Algorithm

While consumers have been willing to trade privacy

for the convenience of cloud storage services, this is

not the case for enterprises and government organi-

zations. To achieve high data security and privacy,

we propose to divide the requested user data to store

into encrypted chunks. This facilitates PUT and GET

requests by considering small ﬁles (chunks), and rein-

forces the security of data (thanks to the encryption)

in the same time.

To preserve the conﬁdentiality of data, we seek

algorithms that can encrypt and decrypt multiple

chunks in a small time. To deal with this problem, we

propose to use the symmetric encryption algorithm

noted AES for Advanced Encryption Standard (Se-

ungmin et al., 2014). The AES algorithm is a fast

solution to handle with large amount of data as it is

shown in Figure 3 where three different keys (128

bits, 192 bits and 256 bits) are used to encrypt and

decrypt data sizes ranging from 1 Megabyte to 4 Gi-

gabytes in a time interval ranging from 200 seconds

to 800 seconds.

The key sizes are chosen by end-users depending

on the privacy level of their data. In our proposal,

we suppose that the broker proposes an encryption

solution in which generated private keys are well kept

within end-users with a key size of 128 bits.

Note that more details on the encryp-

tion/decrytpion algorithms used in this paper,

can be found in the literature (see for example

(Seungmin et al., 2014) and (NIST, 2014)). A deep

study of these solutions is not in the scope of this

paper.

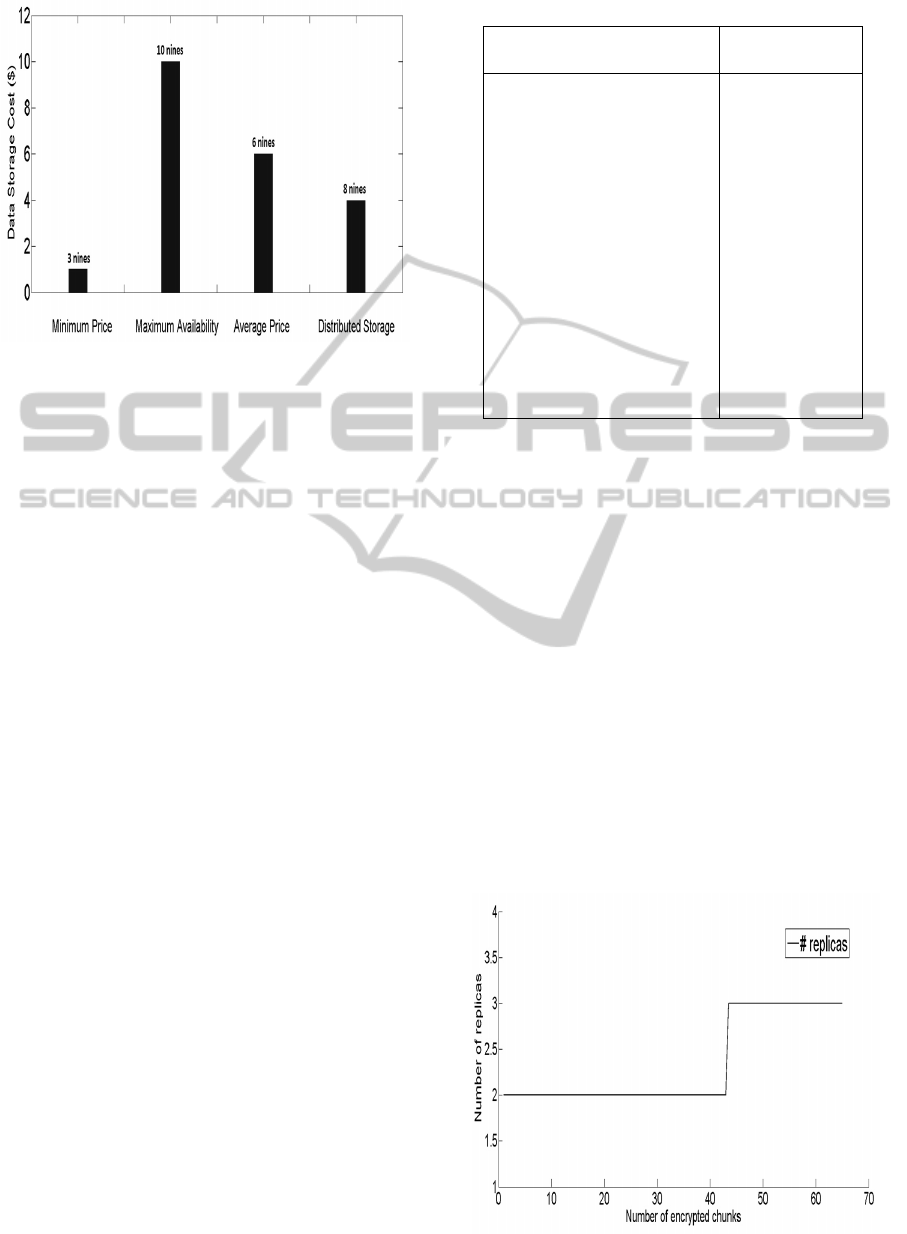

Figure 3: Encryption and decryption’s time evolution with

data size.

CLOSER2015-5thInternationalConferenceonCloudComputingandServicesScience

3.2 Data Placement Cost Minimization:

b-Matching Formulation

We start data chunks placement model by consider-

ing each data D of a user u, as a set of chunks (noted

by N ), resulting from the AES algorithm. Let S be

the set of all available data centers able to host and

store end-user data. We investigate an optimal place-

ment by storing all the chunks in the ”best” available

data centers. Each cloud provider with a data center

s ∈ S proposes a storage cost per Gigabyte and per

month noted by µ

. This price varies for different

reasons: varying demands and workloads, data cen-

ter reliability, geographical constraints, etc. End-user

requests are submitted to the broker which will relay

them to cloud service providers, in an encrypted form

with optimized storage costs. The broker guarantees

end-users high data availability with minimum cost

by choosing a set of cloud providers (or DCs) meet-

ing the requirements (see Figure 1 for more details).

In the following, we will address chunks place-

ment optimization model based on different con-

straints as the probability of failure of a data center or

a provider, and a limited storage capacity. Each data

center (or provider) has a probability of data avail-

ability (according to the number of nines in the pro-

posed SLA), and a failure probability ( f ) is then equal

to 1−probability of data availability. Moreover, the

limited storage capacity is given by a storage quota

proposed by the provider to the broker according to a

negotiated pricing menue.

Our optimization problem is similar to a classical

Bin-Packing formulation, in which bins can be repre-

sented by the different Data Centers, and the items can

be seen as the data chunks. Reference (Korte and Vy-

gen, 2001) has shown a while ago the NP-Hardness

of the Bin-Packing problem. Thus, we deduce the

complexity (NP-Hardness) of our chunks’ placement

problem.

For this reason, and the fact that workloads and re-

quests to store date arrive overtime, the broker seeks a

dynamic chunk placement solution that will be regu-

larly and rapidly updated to remain cost-effective and

ensure data high availability.

Each data chunk i ∈ N has a certain volume noted

by ν

. We graphically represent the storage of a chunk

i in a data center k as an edge e = (i, k) (with the ini-

tial extremity (i = I(e)) of e corresponding to a chunk,

and the terminal extremity (k = T (e)) of e) represent-

ing the data center (see Figure 4).

Based on this conﬁguration, one can construct a

new weighted bipartite graph G = (N ∪ S,E), where

N is the set of vertices representing encrypted chunks

to be stored, and S is the set of all available data cen-

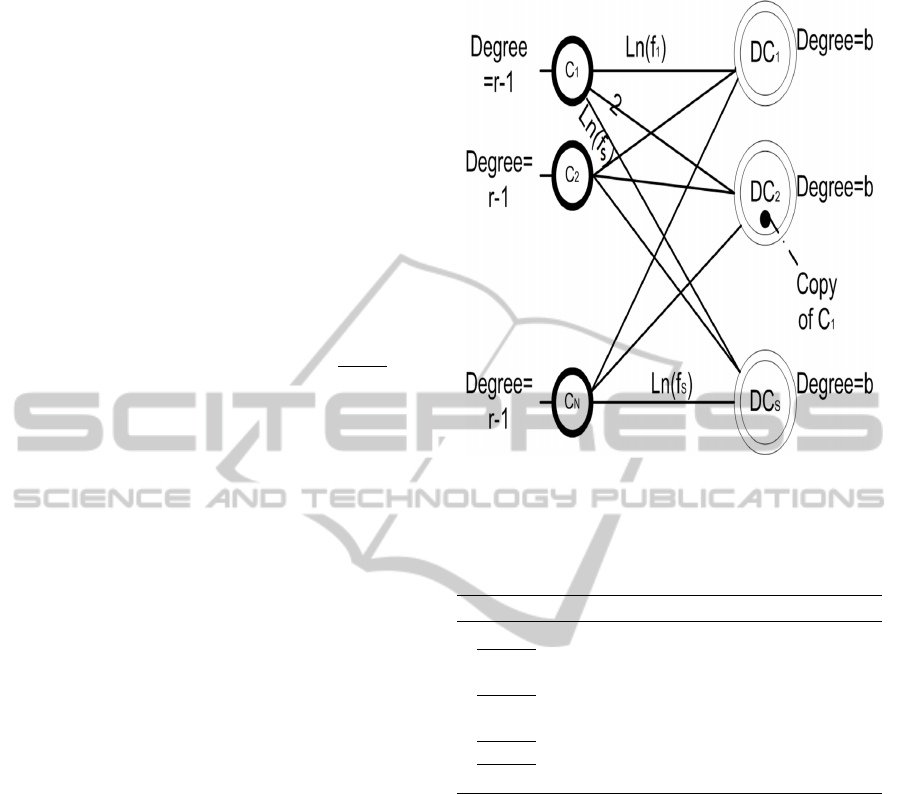

Figure 4: Complete bipartite graph construction.

ters (see Figure 4). E is the set of weighted edges

between N and S constructed as described:

there is an edge e = (i, k) between each encrypted

chunk i and each available data center k, and the

weight of e is given by µ

We now introduce the well known ”minimum

weight b-matching problem” to build a combinato-

rial optimization solution. The b-matching is a gen-

eralization of the minimum weight matching problem

and can be deﬁned as follows (see (Korte and Vygen,

2001) for more details):

Deﬁnition Let G be an undirected graph with inte-

gral edge capacities: u : E(G) → N ∪ ∞ and numbers

b : V (G) → N. Then a b-matching in G is a func-

tion f : E(G) → N with f (e) ≤ u(e), ∀e ∈ E(G), and

∑

e∈δ(v)

f (e) ≤ b(v) for all v ∈ V (G).

In the above, δ(v) represents the set of incident edges

of v. To simplify notation, with no loss in generality,

we use E and V for the edges and vertices of G. That

is we drop the G in E(G) and V (G).

From the deﬁnition, ﬁnding a minimum weight b-

matching in a graph G consists in identifying f such

that

∑

e∈E

f (e) is minimum, where γ

is an associ-

ated cost to edge e. This problem can be solved in

polynomial time since the full description of its con-

vex hull is given in (Korte and Vygen, 2001).

Proposition 3.1. Let G = (N ∪ S, E) be a weighted

complete bipartite graph built as described in Figure

4. Then, ﬁnding an optimal chunk placement solution

is equivalent to an uncapacitated (u ≡ ∞) minimum

weight b-matching solution, where b(v) = 1 if v ∈ N

(v is a chunk) and for all vertices v ∈ S , we put b(0) =

0, and for v ≥ 1, we have

AMathematicalProgrammingApproachtoMulti-cloudStorage

b(v) =

|N | −

∑

v−1

k=0

b(k)

(1)

where β is the minimum number of data centers to

be used to store the data chunks. This parameter is

required by end-users to avoid vendor lock-in.

To mathematically formulate our model, we asso-

ciate a real decision variable x

to each edge e in the

bipartite graph. As shown in Figure 4, each edge links

a chunk to a data center. After optimization, if the de-

cision is x

= 1 then chunk i (i = I(e) initial extrem-

ity) will be stored in data center j ( j = T (e) terminal

extremity). Since the solution of a b-matching prob-

lem is based on solving a linear program, an integer

solution of the minimum weight b-matching is found

in polynomial time. This is equivalent to the optimal

solution of the chunk placement problem described in

this section.

According to the storage costs listed previously and

by deﬁning the probability of failure of a data cen-

ter (or a provider) noted by f , we assign each chunk

to the best data center with minimum cost. We note

by Cost

plac

the total cost of placing |N | chunks in an

optimal manner. We can formulate the objective func-

tion as follows:

minCost

plac

∑

e∈E,e=(i, j)



1 − f



(2)

where ν

is the volume of chunk i, and (1 − f ) is

the probability of data center availability (or provider

availability).

This optimization is subject to a number of linear

constraints. For instance, the broker has to consider

the placement of all data chunks, and each chunk will

be assigned to one and only one data center (the chunk

replication problem will be discussed in the next sec-

tion). This is represented by (3):

∑

e∈δ(v)

= 1, ∀v ∈ N (3)

Each data center s has a capacity Q

. This leads to

the following constraints:

|N |

∑

C=1

≤ Q

, ∀s ∈ S (4)

According to end-user requirements and to guar-

antee high data availability, chunks will be deployed

in different data centers to avoid vendor lock-in. This

is given by the following inequality:

|N |

∑

C=1

≤ b(s), ∀s ∈ S (5)

Using the b-matching model with constraints (4),

enables the use of the complete convex hull of b-

matching and makes the problem easy in terms of

combinatorial complexity theory.

Reference (Korte and Vygen, 2001) gives a com-

plete description of the b-matching convex hull ex-

pressed in constraints (3), (4) and (5). These families

of constraints are reinforced by blossom inequalities

to get integer optimal solutions with continuous vari-

ables:

∑

e∈E(G(A))

+ x(F) ≤



∑

v∈A

+ |F|



, ∀A ∈ N ∪S,

(6)

where F ⊆ δ(A) and

∑

v∈A

+ |F| is odd, and

δ(A) =

∑

i∈A, j∈A

(i j)

. E(G(A)) represents a subset of

edges of the subgraph G(A) generated by a subset of

vertices A. An in depth study of blossom constraints

(6) is out of the scope of this paper, but more details

can be found in (Grotschel et al., 1985).

Based on the bipartite graph G, we constructed a

polynomial time approximation scheme of the data

chunks placement problem by identifying the b-

matching formulation. The blossom constraints (6)

are added to our model to get optimal integer solu-

tions of the placement problem whose model is ﬁnally

given by:

minCost

plac

∑

|S|

s=1

∑

|N |

C=1

1− f

S.T. :











∑

|S|

s=1

= 1, ∀C ∈ N

∑

|N |

C=1

≤ Q

, ∀s ∈ S

∑

|N |

C=1

≤ b(s), ∀s ∈ S

∑

e∈E(G(A))

+ x(F) ≤

∑

v∈A

+|F|

, ∀A ∈ N ∪S

F ⊆ δ(A),

∑

v∈A

+ |F| is odd

∈ R

, ∀C ∈ N , ∀s ∈ S

(7)

The variables and constants used in the ﬁnal

model are summarized as follows:

3.3 Data Replication Algorithm

To enhance performance and availability of end-user

stored data, we propose a replication model of data

chunks depending on data center failure probabilities,

and expected availability (noted by A

expec

) required

by each user. The objective consists in ﬁnding the

optimal trade-off between data center availability and

storage costs. This leads to avoiding expensive data

centers with high failure probability.

We assume that each data chunk is replicated r

times, and reconstituting a ﬁle data needs to get one

CLOSER2015-5thInternationalConferenceonCloudComputingandServicesScience

Table 1: Variables and constants of the model.

Variables Meaning

N set of data chunks

S set of data centers

volume of a data chunk C

storage cost per Gigabyte/month of

provider j

real variable indicating if e is so-

licited or not

upper bound of the degree of v

δ(A) =

∑

i∈A, j∈A

(i j)

δ(v) set of incident edges to v

β minimum number of providers

copy of all chunks (i.e. |N | chunks among r × |N |

are necessary to reconstruct a data). Figure 5 gives

more details and shows chunks replication procedure.

It is important to note that initially, each en-

crypted chunk will be replicated by the selected host-

ing providers within their data centers, and the bro-

ker can reinforce this mechanism by proposing to add

more replicas guaranteeing higher data availability.

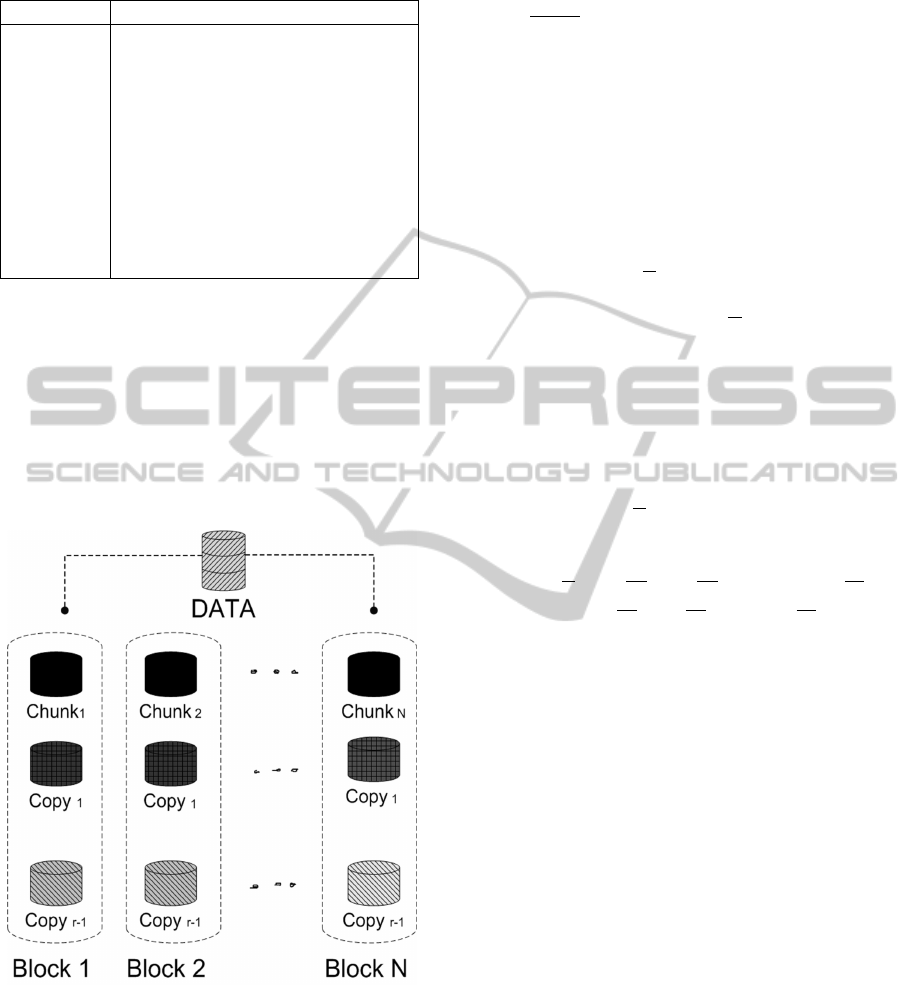

Figure 5: Data replication.

In the following, we would like to replicate |N |

chunks into |S| data centers according to various

costs (storage costs) and performance requirements

such as the data availability. We suppose that S =



, s

, . . . , s

|S|



and for the sake of simplicity (due to

the problem NP-Hardness), we suppose w.l.o.g. each

data center has a large amount of storage resources

able to host data chunks and replicas. We associate

each data center s ∈ S with a probability of failure f

We suppose (as cited above) that each data chunk

C (C = 1, |N |) has r replicas to place in r data centers

that do not contain the chunk C. Thus we ask the

following question: How do we replicate data chunks

through available data centers so that the total cost of

storage is optimal (minimal) and data availability is

maximal?

Thus, for each chunk C, the problem consists in

selecting a subset ϕ

of r available data centers that

do not contain C, leading to a minimum storage cost

and a high probability of data availability.

We note by P(C) the probability of chunk C avail-

ability (respect. P(C) is the probability of non-

availability of a chunk C). P(D) is the probability

of data availability (respect. P(D) is the probability

of non-availability of data D). Note that a chunk C

is not available if all of its copies are not available

(see Figure 5). In other words, a block in Figure 5

with r replicas is non available if all of the data cen-

ters storing this block are non available. By supposing

the data centers are independent, we get the following

proposition:

Proposition 3.2. P(C) =

∏

s∈ϕ

Proof.

P(C) = P(C

and C

and . . . and C

)

= P(C

) × P(C

) × . . . × P(C

)

∏

s∈ϕ

Proposition 3.3. P(D) =

∏

|N |

C=1



1 −

∏

s∈ϕ



Proof. A data D with r × |N | chunks, is entirely

available if all chunks are available. According to

Proposition (3.2), the probability of data ﬁle availabil-

ity (i.e. P(D)) is then given by:

P(D) =

|N |

∏

C=1

P(C)

|N |

∏

C=1

1 −

∏

s∈ϕ

The QoS requirement for end-users is presented

by the data availability. This is noted by A

expect

(as

used in (Mansouri et al., 2013) for example). Thus,

to meet end-user QoS requirement, the broker should

replicate each D in a selected sub-set of data centers

that satisﬁes:

|N |

∏

C=1

1 −

∏

s∈ϕ

≥ A

expect

(8)

AMathematicalProgrammingApproachtoMulti-cloudStorage

We derive a mathematical model to efﬁciently re-

duce the replication costs noted by Cost

rep

, under the

QoS requirements described by the inequality (8). As

the number of replicas of each chunk is supposed to

be r, we seek an optimal sub-set of data centers of

size r to store the replicas of each chunk. Moreover,

our solution should not put all the chunks within the

same data center to avoid vendor lock-in. Thus, in

the following, we address a mathematical optimiza-

tion model to efﬁciently replicate all the chunks of a

data D.

min

Cost

rep

∑

|N |

C=1

∑

s∈ϕ

S.T. :

(

∏

|N |

C=1



1 −

∏

s∈ϕ



≥ A

expect

, ;

|ϕ

| = r, ∀C = 1, |N |;

(9)

To solve the model (9), we can resort to dynamic

programming approach as the objective function of

(9) is separable and monotone. As these methods re-

sort to recursion technique, they can prove to be ex-

pensive in certain cases due to the exponential number

of data centers subsets to enumerate. For this reason,

and for the sake of scalability, we prefer to address a

simple, scalable and succinct algorithm to reach near

optimal solutions for large instances in few seconds.

Solving the model (9) is equivalent to ﬁnd a sub-

set of data centers able to host chunks in a cost ef-

ﬁcient manner, and that satisﬁes the requirement (8).

We propose a simple and scalable algorithm to solve

(9) in few seconds for large number of data centers

and data chunks. Without loss of generality, we

assume that minimizing a function Z is approxima-

tively equivalent to minimize ln(Z). Thus, for each

chunk C, we seek a subset of data centers that min-

imizes ln(

∏

s∈ϕ

). This is equivalent to minimize

∑

s∈ϕ

ln( f

). Moreover, We construct a new bipar-

tite graph G

= (V

∪ S

, E

), where V

is the set of

chunks to be stored and S

is the set of all available

data centers (see Figure 6). E

is the set of weighted

edges between the two parts of vertices of G

. There

is an edge between each chunk C and each data center

s (not containing a copy of chunk C) with a weight

given by ln( f

). If a data center s has already stored a

copy of chunk C, then the weight of the edge (C, s) is

equal to 2. Figure 6 gives more details.

From graph G

, we identify a minimum weight b-

matching with a given vector b as follows :

• for each v ∈V

, degree of v is equal to b(v) = r −1,

• the degree of each vertex v ∈ S

is equal to b(v)

given by (1).

To summarize, we give the following algorithm,

Figure 6: New bipartite graph G

to replicate chunks.

leading to ﬁnd the best subset of data centers to repli-

cate all the chunks in a cost efﬁcient manner, verifying

condition (8).

Algorithm 1: Data replication algorithm.

Step 0: Construct the bipartite graph G

(see Fig-

ure 6);

Step 1: Compute a b-Matching with a minimum

cost solution using the vector b;

Step 2: Check if (8) is satisﬁed;

Step 3: If (8) is not satisﬁed, GOTO Step 0, by in-

crementing the degrees of vertices in S

;

The algorithm 1 is deployed to replicate efﬁciently

r − 1 copies of each chunk C of a data D.

3.4 Data Chunk Splitting

In this section, we discuss the rational number of

chunks (|N

∗

|) to be used to split the data according to

data center failure probabilities ( f

for a DC s), num-

ber of replicas (r) of each chunk, and the data avail-

ability expected by end-users (A

expect

According to Proposition (3.3), we seek a ratio-

nal number of encrypted chunks to get after splitting

the data when satisfying end-users QoS represented

by data availability A

expect

. We get the following in-

equality :

|N |

∏

C=1

|N |

∏

C=1

1 −

∏

s∈ϕ

≥ A

expect

(10)

CLOSER2015-5thInternationalConferenceonCloudComputingandServicesScience

As A

expect

< 1 and

∏

|N |

C=1



1 −

∏

s∈ϕ



< 1, in-

equality (10) leads to the following one:

|N |

∏

C=1

1 −

∏

s∈ϕ

≤ ln(A

expect

) (11)

We also note that for each chunk indexed by C,

we have r replicas and then |ϕ

| = r. For the sake of

simplicity, we also suppose that the failure probabil-

ity of each data center is close to the average failure

probability given by f . This allows us to deduce :

∏

s∈ϕ





(12)

And following inequality (11), we get:

|N | × ln



1 − f



≤ ln(A

expect

) (13)

According to (13), we deduce the number of data

chunks as follows :

∗

| ≥

ln(A

expect

)



1 − f



(14)

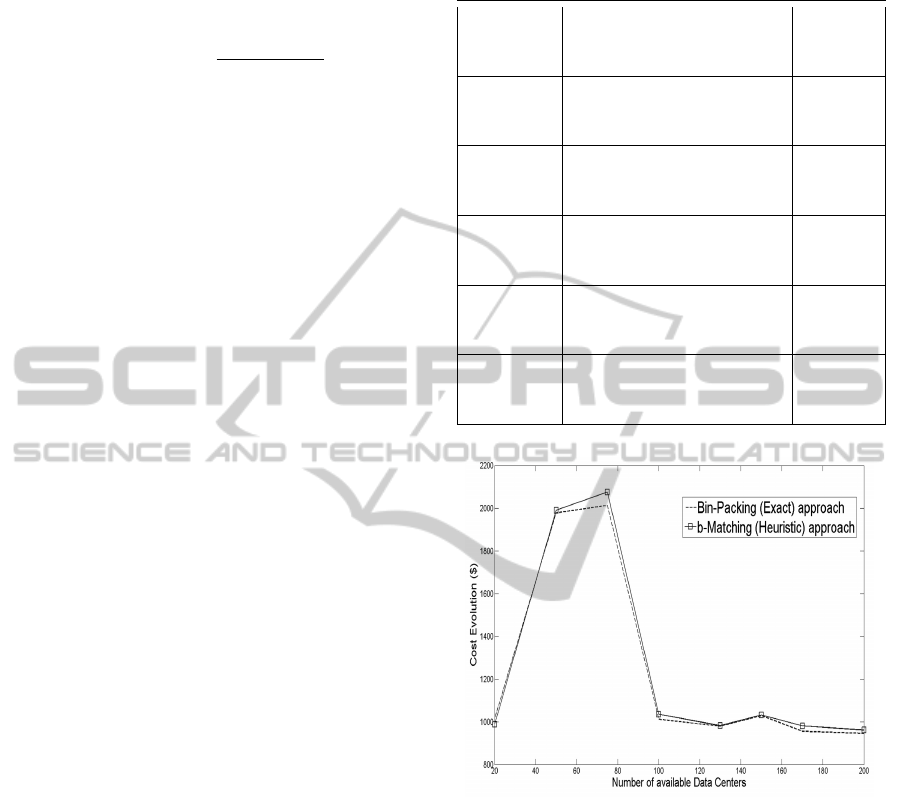

4 NUMERICAL RESULTS

To evaluate and assess performance, our algorithms

have been implemented and evaluated using simula-

tions and an experimental platform managed by an

instance of OpenStack (Openstack, 2014). The lin-

ear programming solver CPLEX (CPLEX, 2014) was

used to derive the b-matching solution and the Bin-

Packing solution used to benchmark our heuristic.

As our goal in this paper is to analyze and discuss

the applicability and the interest of storage brokering

services in interaction with multiple data centers or

cloud providers, we devote some numerical results to

cross validating our proposed algorithms and assess-

ing their cost efﬁciency and scalability for large data

sizes. It is obvious to remark that the Bin-Packing

model used to place data chunks invokes a branch and

bound approach leading to explore the entire space of

all the existing solutions. This leads to ﬁnd ”optimal”

solutions for small data sizes serving as a benchmark

for other approaches and algorithms. As the data size

increases, the optimal solution for data chunk place-

ment can only be found in exponential time. Thus, for

large data, we resort to our heuristic solution based on

graph theory and the b-matching approach.

In addition, our performance evaluation seeks to

identify the limits of the discussed problem in terms

of algorithmic complexity, and its suitability for op-

timizing real life instances. We will also determine

the gap between the suboptimal heuristic solutions

and the optimal solution provided by the Branch and

Bound model when it can be reached in acceptable

times.

4.1 Simulation Environment

The proposed algorithms in this paper were evaluated

using a 1.70 GHz server with 6 GBytes of available

RAM. We used data ﬁles with sizes ranging from 100

Megabytes to 4 Gigabytes. These data were stored in

a distributed manner over a number of available data

centers or providers ranging from 10 to 50. We asso-

ciate with each data center, a data price per Gigabyte

and per month, uniformly generated between 0 $ and

1 $. Each data is splitting multiple chunks and each

chunk size is equal to 1 Megabyte. This conﬁgura-

tion leads to construct a full mesh bipartite graph as

described above. The number of generated bipartite

graphs was set to 100 in our simulations yielding an

average value reported in the following curves and ta-

bles. Without loss of generality, we suppose that each

data center has an unlimited storage capacity.

In addition, we also used a platform of 20 servers

running a Havana instance of OpenStack (Openstack,

2014) in a multi-node architecture. Each server (as-

similated to a data center in real life) proposes Swift

containers (Swift, 2014) to store data chunks. We as-

sociate a storage cost to each container (or DC) as

described above. It is important to note that we used

Swift API only to guarantee PUT and GET operations

from and to the broker by intercepting and hosting en-

crypted chunks, without considering Swift replication

policy. To improve our broker functionalities, we will

add an S3 compatible interface allowing end-users to

request the broker storing their data within Amazon

S3.

4.2 Performance Evaluation

The ﬁrst experiment consists in comparing the Bin-

Packing and b-Matching (heuristic) approaches in

terms of delay to derive the optimal and suboptimal

solutions, respectively. We report different scenarios

in Table 2, varying the number of data centers able

to store end-users data (from 12 to 700 DCs), and the

number of chunks ranging from 50 chunks to 2000

chunks, which is equivalent to store data size of 50

Megabytes to 2000 Megabytes, as each chunk is of 1

Megabyte.

To get a better grasp of the relative performance

of the two algorithms, we generate 100 runs and take

the average value of each instance, as reported.

The performance of the heuristic algorithm com-

AMathematicalProgrammingApproachtoMulti-cloudStorage

pared to the optimal solution is represented by a gap

deﬁned as the percentage difference between the cost

of the optimal and the heuristic solutions:

Gap(%) = 100 ×

sol

− BP

sol

(15)

where BP

sol

is the cost of the exact solution pro-

vided by the Bin-Packing algorithm (to use as a ref-

erence or benchmark) and bM

sol

is the cost of the b-

Matching solution.

Table 2 reports the results of the evaluation and

clearly shows the difﬁculty to reach optimal solutions

using the Bin-Packing (Branch and Bound) algorithm

whose resolution times become prohibitive for the

scenarios of a data ﬁle of 2 Gigabytes to be distributed

on a selected set of data centers among 300, 500 and

700 providers or data centers. Our heuristic solution

performs close to optimal with Gap not exceeding 6%

for the evaluated cases. More speciﬁcally the gap is

in the interval [0.65%; 5.93%].

The results shown in Table 2 illustrate the difﬁ-

culty to optimally solve the data chunks placement

problem (see case of a data of 50 Mb with 25 DCs).

At the same time, they demonstrate that the heuris-

tic approach can ﬁnd good and near-optimal solutions

whose cost is quite close to the optimum (see case

of data with 2000 MB and 700 DCs). Our algorithm

provides an excellent trade-off between convergence

time, optimality, scalability and cost. With respect to

convergence time as seen in the third column of Table

2, it converges in a few seconds for the scenario with

2000 chunks and 700 DCs (54 secs compared to more

than 3 hours for Bin-Packing).

To get a better grasp of the relative performance

of the two algorithms used in this paper, a data ﬁle of

100 Megabytes is used and split into 100 encrypted

chunks to be stored in a number of data centers rang-

ing from 20 to 200. Figure 7 shows the characteristics

of the algorithms. The b-matching algorithm achieves

the best cost performance since it has consistently in-

curred the smallest cost, very close to the Bin-Packing

which does not scale (as seen in Table 2). Exception-

ally, one can remark in Figure 7 (the scenario with

20 to 40 available DCs), the cost found by the b-

Matching is slightly lower than the cost of the Bin-

Packing leading to negligible SLA violations caused

by the quality of the upper bound given by equation

(1) which should be enhanced in a future work. This

is explained by the difﬁculty to optimally store and

place all the data chunks in different data centers.

Another experiment consists in evaluating the pro-

posed heuristic solution to determine the trade-off be-

tween storage cost and data availability. We associate

with each user a required percentage of its data avail-

ability, denoted by A

expect

. We reformulate A

expect

Table 2: Encrypted data chunks placement: b-Matching al-

gorithm performances.

|N | |S| b-

Matching

Time (sec)

Bin-

Packing

Time (sec)

Gap (%)

12 0.15 0.16 2.24

25 0.15 0.16 5.93

40 0.17 0.18 2.06

100

25 0.17 0.20 3.08

50 0.18 0.20 0.65

75 0.20 0.22 2.98

500

100 1.10 2.11 1.94

250 1.27 3.68 4.37

350 1.33 4.20 0.97

1000

200 7.22 12.7 5.36

400 8.5 17.5 1.37

700 10.4 22.6 3.66

2000

300 30.7 > 3H 1.45

500 45.2 > 3H 4.3

700 54.8 > 3H 0.81

Figure 7: Storage cost gap.

terms of the number of nines required by a user. We

simulated a cloud storage market of 15 data centers

belonging to different providers having different fail-

ure rates. For example, Amazon S3 (AWS, 2014) of-

fers two levels of services: ”Standard Storage” witch

has 11 nines of storage availability for 0.03$ per Giga-

byte per month, while ”Amazon S3 Reduced Redun-

dancy Storage (RRS)” has 4 nines of data availability

for 0.024$ per GB per month. The simulated market

is summarized in Table 3.

We consider a user data of 100 Gigabytes, and we

investigate four methods to ﬁnd the trade-off between

a maximum data availability and a minimum price

(cost). We use the following scenarios:

CLOSER2015-5thInternationalConferenceonCloudComputingandServicesScience

Figure 8: Data storage cost and availability trade-off.

• Minimum Price: A user selects simply the

cheapest provider in the market (Provider 15

proposing a price of $0.01 per Gigabyte and per

month in Table 3) without concerns on data avail-

ability (3 nines). Following this approach, the

data will be stored with a total minimum costs of

1$ and a weak data availability (3 nines in Fig-

ure 8). Moreover, the user is locked-in within one

cloud provider with a weak data availability. This

can lead to disrupting services and loss of data.

• Maximum Availability: A user selects the

provider with high availability in the simulated

market (Provider 1 with 10 nines in Table 3). Ac-

cording to pricing proposal of Provider 2, the total

storage cost is higher than the cost of the ﬁrst sce-

nario (10 $ in Figure 8). This may also lead to

users’ lock-in within the same provider.

• Average Price: In this case, we use the average

price of the market, and we store the data within

the provider with equivalent price (Provider 9

with 0.06$ per Gigabyte per month in Table 3).

The total data cost in this case is equal to 6$ with

6 nines of data availability (according to the pro-

posal of Provider 6). This scenario presents higher

data availability than scenario 1 with a consider-

able cost increase. In this case, we also solicited

one provider to store the data, which may cause

user lock-in.

• Distributed Storage: We used our proposed ap-

proach (Algorithm 1) to ﬁnd the trade-off between

data availability and price. As depicted in Fig-

ure 8, our solution reaches a maximum availabil-

ity of 8 nines with a minimum cost of 4$. This

is due to data distribution over a set of selected

providers with high availability and reasonable

prices, avoiding user lock-in at the same time.

Table 3: Storage market costs and data availability.

Providers Price

($/GB/month)

Data Avail-

ability

Prov 1 0.1 99.99999999%

Prov 2 0.095 99.99999995%

Prov 3 0.09 99,9999999%

Prov 4 0.085 99,9999995%

Prov 5 0.08 99,999999%

Prov 6 0.075 99,999995%

Prov 7 0.07 99.99999%

Prov 8 0.065 99,99995%

Prov 9 0.06 99,9999%

Prov 10 0.055 99,9995%

Prov 11 0.05 99,999%

Prov 12 0.04 99,995%

Prov 13 0.03 99.99%

Prov 14 0.02 99.95%

Prov 15 0.01 99.9%

A last experiment consists in evaluating the be-

havior of the number of replicas (noted by r) of

each chunk with the evolution of the number of data

chunks (|N

∗

|) identiﬁed in (14) for example. We sup-

posed that the average value of data centers failure

probability is equal to 10

−3

, when the expected data

availability required by cloud consumers is equal to

99.9999%.

Figure 9 depicts the evolution of r for different

chunks number ranging from 1 to 60. Thus, we re-

mark that for a number of chunks |N

∗

| ≤ 43, the

number of required replicas is equal to 2, and for

∗

| ≥ 44 chunks, the number of replicas converges

to 3 and there is no need to replicate more even for

larger number of chunks. This may lead to store large

data volumes with reduced costs when satisfying the

required QoS (data availability). Note that this result

is very similar than that determined by the Google

File System solution (Ghemawat et al., 2003).

Figure 9: Data chunks replication behavior.

AMathematicalProgrammingApproachtoMulti-cloudStorage

5 SUMMARY AND FUTURE

WORK

In this paper we considered an encrypted and dis-

tributed solution allowing to store users’ data in dif-

ferent providers’ data centers offering storage ser-

vices with different prices and SLAs. To eliminate

user lock-in and to liberate user data from a unique

provider, we proposed a new efﬁcient and scalable

solution based on b-Matching theory to optimize the

storage cost and the data failure at the same time. The

b-Matching algorithm works in tandem with a replica-

tion solution allowing to efﬁciently increase the data

availability of end-users. This replication algorithm is

based on a simple and fast approach giving near opti-

mal solutions even for large problem instances.

In future work, we will reinforce our mathematical

model of data chunk placement based on b-Matching

theory, to consider network constraints when users are

involved in PUT and GET operations. This may lead

cloud consumers to combine requests of compute (as

EC2 instances (EC2, 2014)) services with storage ser-

vices (as Google Drive (Google, 2014)) at the same

time. Thus, we will reinforce our broker’s function-

alities to give cloud consumers various means to con-

sume proposed cloud resources in a more secure man-

ner with reduced cost.

REFERENCES

Abu-Libdeh, H., Princehouse, L., and Weatherspoon, H.

(2010). Racs: A case for cloud storage diversity.

In Proceedings of the 1st ACM Symposium on Cloud

Computing, SoCC ’10, pages 229–240, New York,

NY, USA. ACM.

AWS (2014). http://aws.amazon.com/fr/s3/pricing/.

Balasaraswathi, V. and Manikandan, S. (2014). Enhanced

security for multi-cloud storage using cryptographic

data splitting with dynamic approach. In Advanced

Communication Control and Computing Technologies

(ICACCCT), 2014 International Conference on, pages

1190–1194.

Bonvin, N., Papaioannou, T., and Aberer, K. (2010). A

self-organized, fault-tolerant and scalable replication

scheme for cloud storage. In Proceedings of the 1st

ACM Symposium on Cloud Computing, SoCC ’10,

pages 205–216, New York, NY, USA. ACM.

Chia-Wei, C., Pangfeng, L., and Jan-Jan, W. (2012).

Probability-based cloud storage providers selection al-

gorithms with maximum availability. In Parallel Pro-

cessing (ICPP), 2012 41st International Conference

on, pages 199–208.

CPLEX (2014). http://www-01.ibm.com/software/

commerce/optimization/cplex-optimizer/.

EC2 (2014). http://aws.amazon.com/fr/ec2/.

Ford, D., Labelle, F., Popovici, F., Stokely, M., Truong,

V., Barroso, L., Grimes, C., and Quinlan, S. (2010).

Availability in globally distributed storage systems. In

Proceedings of the 9th USENIX Symposium on Oper-

ating Systems Design and Implementation.

Ghemawat, S., Gobioff, H., and Leung, S. (2003). The

google ﬁle system. SIGOPS Oper. Syst. Rev.,

37(5):29–43.

Google (2014). drive.google.com/.

Grotschel, M., Lovsz, L., and Shrijver, A. (1985). Ge-

ometric algorithms and combinatorial optimization.

Springer.

Jindarak, K. and Uthayopas, P. (2012). Enhancing cloud

object storage performance using dynamic replication

approach. In Parallel and Distributed Systems (IC-

PADS), 2012 IEEE 18th International Conference on,

pages 800–803.

Korte, B. and Vygen, J. (2001). Combinatorial optimiza-

tion: theory and algorithms. Springer.

Li, J. and Li, B. (2013). Erasure coding for cloud storage

systems: A survey. Tsinghua Science and Technology,

18(3):259–272.

Mansouri, Y., Toosi, A., and Buyya, R. (2013). Brokering

algorithms for optimizing the availability and cost of

cloud storage services. In Proceedings of the 2013

IEEE International Conference on Cloud Computing

Technology and Science - Volume 01, CLOUDCOM

’13, pages 581–589, Washington, DC, USA. IEEE

Computer Society.

Myint, J. and Thu, N. T. (2011). A data placement algo-

rithm with binary weighted tree on pc cluster-based

cloud storage system. In Cloud and Service Comput-

ing (CSC), 2011 International Conference on, pages

315–320.

Negru, C., Pop, F., Cristea, V., Bessisy, N., and Jing, L.

(2013). Energy efﬁcient cloud storage service: Key

issues and challenges. In Emerging Intelligent Data

and Web Technologies (EIDWT), 2013 Fourth Inter-

national Conference on, pages 763–766.

NIST (2014). Announcing the advanced encryption stan-

dard (aes).

Openstack (2014). https://www.openstack.org/.

Qingsong, W., Veeravalli, B., Bozhao, G., Lingfang, Z., and

Dan, F. (2010). Cdrm: A cost-effective dynamic repli-

cation management scheme for cloud storage cluster.

In Cluster Computing (CLUSTER), 2010 IEEE Inter-

national Conference on, pages 188–196.

Rodrigo, R. and Liskov, B. (2005). High availability in

dhts: Erasure coding vs. replication. In Peer-to-Peer

Systems IV 4th International Workshop IPTPS 2005,

Ithaca, New York.

Seungmin, K., Bharadwaj, V., and KhinMiMi, A. (2014).

Espresso: An encryption as a service for cloud storage

systems. Monitoring and Securing Virtualized Net-

works and Services, pages 15–28.

Srivastava, S., Gupta, V., Yadav, R., and Kant, K. (2012).

Enhanced distributed storage on the cloud. In Com-

puter and Communication Technology (ICCCT), 2012

Third International Conference on, pages 321–325.

Swift (2014). http://docs.openstack.org/developer/swift/.

Thanasis, G. P., Bonvin, N., and Aberer, K. (2012). Scalia:

An adaptive scheme for efﬁcient multi-cloud storage.

CLOSER2015-5thInternationalConferenceonCloudComputingandServicesScience

In Proceedings of the International Conference on

High Performance Computing, Networking, Storage

and Analysis, SC ’12, pages 20:1–20:10, Los Alami-

tos, CA, USA. IEEE Computer Society Press.

Varghese, L. and Bose, S. (2013). Integrity veriﬁcation in

multi cloud storage. In Proceedings of International

Conference on Advanced Computing.

Weatherspoon, H. and Kubiatowicz, J. (2002). Erasure cod-

ing vs. replication: A quantitative comparison. In Re-

vised Papers from the First International Workshop

on Peer-to-Peer Systems, IPTPS ’01, pages 328–338,

London, UK, UK. Springer-Verlag.

Yanzhen, Q. and Naixue, X. (2012). Rfh: A resilient,

fault-tolerant and high-efﬁcient replication algorithm

for distributed cloud storage. In Parallel Processing

(ICPP), 2012 41st International Conference on, pages

520–529.

Zhang, Q., Xue-zeng, P., Yan, S., and Wen-juan, L. (2012).

A novel scalable architecture of cloud storage sys-

tem for small ﬁles based on p2p. In Cluster Com-

puting Workshops (CLUSTER WORKSHOPS), 2012

IEEE International Conference on, pages 41–47.

AMathematicalProgrammingApproachtoMulti-cloudStorage
